V

S25FL016A

16 Megabit CMOS 3.0 Volt Flash Memory with 50-MHz SPI (Serial Peripheral Interface) Bus

Data Sheet

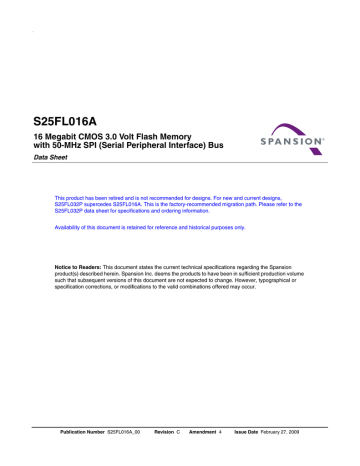

S25FL016A Cover Sheet

This product has been retired and is not recommended for designs. For new and current designs,

S25FL032P supercedes S25FL016A. This is the factory-recommended migration path. Please refer to the

S25FL032P data sheet for specifications and ordering information.

Availability of this document is retained for reference and historical purposes only.

Notice to Readers: This document states the current technical specifications regarding the Spansion product(s) described herein. Spansion Inc. deems the products to have been in sufficient production volume such that subsequent versions of this document are not expected to change. However, typographical or specification corrections, or modifications to the valid combinations offered may occur.

Publication Number S25FL016A_00 Revision C Amendment 4 Issue Date February 27, 2009

D a t a S h e e t

Notice On Data Sheet Designations

Spansion Inc. issues data sheets with Advance Information or Preliminary designations to advise readers of product information or intended specifications throughout the product life cycle, including development, qualification, initial production, and full production. In all cases, however, readers are encouraged to verify that they have the latest information before finalizing their design. The following descriptions of Spansion data sheet designations are presented here to highlight their presence and definitions.

Advance Information

The Advance Information designation indicates that Spansion Inc. is developing one or more specific products, but has not committed any design to production. Information presented in a document with this designation is likely to change, and in some cases, development on the product may discontinue. Spansion

Inc. therefore places the following conditions upon Advance Information content:

“This document contains information on one or more products under development at Spansion Inc.

The information is intended to help you evaluate this product. Do not design in this product without contacting the factory. Spansion Inc. reserves the right to change or discontinue work on this proposed product without notice.”

Preliminary

The Preliminary designation indicates that the product development has progressed such that a commitment to production has taken place. This designation covers several aspects of the product life cycle, including product qualification, initial production, and the subsequent phases in the manufacturing process that occur before full production is achieved. Changes to the technical specifications presented in a Preliminary document should be expected while keeping these aspects of production under consideration. Spansion places the following conditions upon Preliminary content:

“This document states the current technical specifications regarding the Spansion product(s) described herein. The Preliminary status of this document indicates that product qualification has been completed, and that initial production has begun. Due to the phases of the manufacturing process that require maintaining efficiency and quality, this document may be revised by subsequent versions or modifications due to changes in technical specifications.”

Combination

Some data sheets contain a combination of products with different designations (Advance Information,

Preliminary, or Full Production). This type of document distinguishes these products and their designations wherever necessary, typically on the first page, the ordering information page, and pages with the DC

Characteristics table and the AC Erase and Program table (in the table notes). The disclaimer on the first page refers the reader to the notice on this page.

Full Production (No Designation on Document)

When a product has been in production for a period of time such that no changes or only nominal changes are expected, the Preliminary designation is removed from the data sheet. Nominal changes may include those affecting the number of ordering part numbers available, such as the addition or deletion of a speed option, temperature range, package type, or V

IO

range. Changes may also include those needed to clarify a description or to correct a typographical error or incorrect specification. Spansion Inc. applies the following conditions to documents in this category:

“This document states the current technical specifications regarding the Spansion product(s) described herein. Spansion Inc. deems the products to have been in sufficient production volume such that subsequent versions of this document are not expected to change. However, typographical or specification corrections, or modifications to the valid combinations offered may occur.”

Questions regarding these document designations may be directed to your local sales office.

2 S25FL016A S25FL016A_00_C4 February 27, 2009

S25FL016A

16 Megabit CMOS 3.0 Volt Flash Memory with 50-MHz SPI (Serial Peripheral Interface) Bus

Data Sheet

This product has been retired and is not recommended for designs. For new and current designs, S25FL032P supercedes

S25FL016A. This is the factory-recommended migration path. Please refer to the S25FL032P data sheet for specifications and ordering information.

Distinctive Characteristics

Architectural Advantages

„ Single power supply operation

– Full voltage range: 2.7 to 3.6 V read and program operations

„ Memory Architecture

– Thirty-two sectors with 512 Kb each

„ Program

– Page Program (up to 256 bytes) in 1.4 ms (typical)

– Program operations are on a page by page basis

„ Erase

– 0.5 s typical sector erase time

– 10 s typical bulk erase time

„ Cycling Endurance

– 100,000 cycles per sector typical

„ Data Retention

– 20 years typical

„ Device ID

– JEDEC standard two-byte electronic signature

– RES command one-byte electronic signature for backward compatibility

„ Process Technology

– Manufactured on 0.20 µm MirrorBit

®

process technology

„ Package Option

– Industry Standard Pinouts

– 16-pin SO package (300 mils)

– 8-pin SO package (208 mils)

– 8-Contact WSON Package (6x8 mm), Pb Free

Performance Characteristics

„ Speed

– 50 MHz clock rate (maximum)

„ Power Saving Standby Mode

– Standby Mode 50 µA (max)

– Deep Power Down Mode 1.3 µA (typical)

Memory Protection Features

„ Memory Protection

– W# pin works in conjunction with Status Register Bits to protect specified memory areas

– Status Register Block Protection bits (BP2, BP1, BP0) in status register configure parts of memory as read-only

Software Features

– SPI Bus Compatible Serial Interface

General Description

The S25FL016A is a 3.0 Volt (2.7 V to 3.6 V), single-power-supply Flash memory device. The device consists of thirty-two sectors, each with 512 Kb memory.

The device accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The devices are designed to be programmed in-system with the standard system 3.0 volt V

CC

supply.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program command. The device supports Sector Erase and Bulk Erase commands.

Each device requires only a 3.0 volt power supply (2.7 V to 3.6 V) for both read and write functions. Internally generated and regulated voltages are provided for the program operations. This device does not require a

V

PP

supply.

Publication Number S25FL016A_00 Revision C Amendment 4 Issue Date February 27, 2009

This document states the current technical specifications regarding the Spansion product(s) described herein. Spansion Inc. deems the products to have been in sufficient production volume such that subsequent versions of this document are not expected to change. However, typographical or specification corrections, or modifications to the valid combinations offered may occur.

4

D a t a S h e e t

Table of Contents

Distinctive Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.

Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.

Input/Output Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.

Logic Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5.

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.1

Valid Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6.

Spansion SPI Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7.

Device Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.1

Byte or Page Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.2

Sector Erase / Bulk Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.3

Monitoring Write Operations Using the Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.4

Active Power and Standby Power Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.5

Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.6

Data Protection Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7.7

Hold Mode (HOLD#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

8.

Sector Address Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9.

Command Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

9.1

Read Data Bytes (READ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

9.2

Read Data Bytes at Higher Speed (FAST_READ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

9.3

Read Identification (RDID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

9.4

Write Enable (WREN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

9.5

Write Disable (WRDI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

9.6

Read Status Register (RDSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

9.7

Write Status Register (WRSR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9.8

Page Program (PP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

9.9

Sector Erase (SE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

9.10

Bulk Erase (BE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

9.11

Deep Power Down (DP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

9.12

Release from Deep Power Down (RES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

10.

Power-up and Power-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

11.

Initial Delivery State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

12.

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

13.

Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

14.

DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

15.

Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

16.

AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

17.

Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

17.1

SOC008 wide—8-pin Plastic Small Outline Package (208 mils Body Width) . . . . . . . . . . . . 32

17.2

SO3 016 wide—16-pin Plastic Small Outline Package (300-mil Body Width) . . . . . . . . . . . . 33

17.3

WSON 8-contact (6 x 8 mm) No-Lead Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

18.

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

Figures

Figure 2.1

Figure 2.2

Figure 2.3

Figure 6.1

Figure 6.2

Figure 7.1

Figure 9.1

Figure 9.2

16-pin Plastic Small Outline Package (SO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

8-pin Plastic Small Outline Package (SO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

16 Mb 8-Pin WSON Package (6 x 8 mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Bus Master and Memory Devices on the SPI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

SPI Modes Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Hold Mode Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Read Data Bytes (READ) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Read Data Bytes at Higher Speed (FAST_READ) Command Sequence . . . . . . . . . . . . . . . 17

Figure 9.3

Figure 9.4

Figure 9.5

Figure 9.6

Read Identification (RDID) Command Sequence and Data-Out Sequence . . . . . . . . . . . . . 18

Write Enable (WREN) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Write Disable (WRDI) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Read Status Register (RDSR) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 9.7

Figure 9.8

Write Status Register (WRSR) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Page Program (PP) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 9.9

Sector Erase (SE) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 9.10

Bulk Erase (BE) Command Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 9.11

Deep Power Down (DP) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 9.12

Release from Deep Power Down (RES) Command Sequence . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 9.13

Release from Deep Power Down and Read Electronic Signature (RES)

Command Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 10.1

Power-Up Timing Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 12.1

Maximum Negative Overshoot Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 12.2

Maximum Positive Overshoot Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 15.1

AC Measurements I/O Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 16.1

SPI Mode 0 (0,0) Input Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 16.2

SPI Mode 0 (0,0) Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 16.3

HOLD# Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 16.4

Write Protect Setup and Hold Timing during WRSR when SRWD=1 . . . . . . . . . . . . . . . . . . 31

February 27, 2009 S25FL016A_00_C4 S25FL016A 5

D a t a S h e e t

Tables

Table 5.1

Table 7.1

Table 8.1

Table 8.2

Table 9.1

Table 9.2

Table 9.3

Table 9.4

S25FL016A Valid Combinations Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

S25FL016A Protected Area Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

S25FL016A Device Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

S25FL016A Sector Address Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Read Identification (RDID) Data-Out Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

S25FL016A Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Protection Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Command Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Table 10.1

Power-Up Timing Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Table 12.1

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Table 13.1

Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Table 14.1

DC Characteristics (CMOS Compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Table 15.1

Test Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Table 16.1

AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

6 S25FL016A S25FL016A_00_C4 February 27, 2009

1.

Block Diagram

SRAM

D a t a S h e e t

PS

Logic

Array - L

X

D

E

C

Array - R

RD

IO

DATA PATH

2.

Connection Diagrams

Figure 2.1 16-pin Plastic Small Outline Package (SO)

NC

NC

NC

NC

CS#

SO

HOLD#

VCC

3

4

5

6

7

8

1

2

16 SCK

14

13

12

11

10

9

15

SI

NC

NC

NC

NC

GND

W#

February 27, 2009 S25FL016A_00_C4 S25FL016A 7

D a t a S h e e t

Figure 2.2 8-pin Plastic Small Outline Package (SO)

CS#

SO

W#

GND

1

2

3

4

8 VCC

7

HOLD#

6

5

SCK

SI

Figure 2.3 16 Mb 8-Pin WSON Package (6 x 8 mm)

W#

GND

3

WSON

4

7

6

5

SCK

SI

8 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

3.

Input/Output Descriptions

Signal

SO

SI

SCK

CS#

HOLD#

W#

V

CC

GND

I/O Description

Output Signal Data Output: Transfers data serially out of the device on the falling edge of SCK.

Input

Input

Serial Data Input: Transfers data serially into the device. Device latches commands, addresses, and program data on SI on the rising edge of SCK.

Serial Clock: Provides serial interface timing. Latches commands, addresses, and data on SI on rising edge of SCK. Triggers output on SO after the falling edge of SCK.

Input

Input

Input

Input

Input

Chip Select: Places device in active power mode when driven low. Deselects device and places

SO at high impedance when high. After power-up, device requires a falling edge on CS# before any command is written. Device is in standby mode when a program, erase, or Write Status Register operation is not in progress.

Hold: Pauses any serial communication with the device without deselecting it. When driven low,

SO is at high impedance, and all input at SI and SCK are ignored. Requires that CS# also be driven low.

Write Protect: Protects the memory area specified by Status Register bits BP2:BP0. When driven low, prevents any program or erase command from altering the data in the protected memory area.

Supply Voltage

Ground

4.

Logic Symbol

V

CC

SO

SI

SCK

CS#

W#

HOLD#

GND

February 27, 2009 S25FL016A_00_C4 S25FL016A 9

D a t a S h e e t

5.

Ordering Information

This product has been retired and is not recommended for designs. For new and current designs,

S25FL032P supercedes S25FL016A. This is the factory-recommended migration path. Please refer to the

S25FL032P data sheet for specifications and ordering information.

The ordering part number is formed by a valid combination of the following:

S25FL 016 A 0L M A I 00 1

PACKING TYPE

(Note 1)

1 = Tube

3 = 13” Tape and Reel

MODEL NUMBER (Additional Ordering Options)

01 = 8-pin SO package

00 = 16-pin SO / 8-contact WSON package

TEMPERATURE RANGE

I = Industrial (–40°C to + 85°C)

PACKAGE MATERIALS

A = Standard

F = Lead

PACKAGE TYPE

M = 8-pin / 16-pin SO package

N = 8-contact Package

SPEED

0L = 50 MHz

DEVICE TECHNOLOGY

A = 0.20 µm MirrorBit

®

Process Technology

DENSITY

016 = 16 Mbit

DEVICE FAMILY

S25FL

Spansion

®

Memory 3.0 Volt-only, Serial Peripheral Interface (SPI) Flash Memory

5.1

Valid Combinations

Table 5.1

lists the valid combinations configurations planned to be supported in volume for this device.

Table 5.1 S25FL016A Valid Combinations Table

Base Ordering

Part Number

S25FL016A

S25FL016A Valid Combinations

Speed Option

0L

Package &

Temperature

MAI, MFI

NAI, NFI

Model

Number

00, 01

00

Notes

1. Contact your local sales office for availability.

2. Package marking omits leading “S25” and speed, package, and model number form.

3. A for standard package (non-Pb free); F for Pb-free package.

Packing Type

Package Marking

(Note 2)

0, 1, 3

(Note 1)

FL016A + (Temp) +

0, 1, 3

(Note 1)

(Note 3)

10 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

6.

Spansion SPI Modes

A microcontroller can use either of its two SPI modes to control Spansion SPI Flash memory devices:

„ CPOL = 0, CPHA = 0 (Mode 0)

„ CPOL = 1, CPHA = 1 (Mode 3)

Input data is latched in on the rising edge of SCK, and output data is available from the falling edge of SCK for both modes.

When the bus master is in standby mode, SCK is as shown in

Figure 6.2

for each of the two modes:

„ SCK remains at 0 for (CPOL = 0, CPHA = 0 Mode 0)

„ SCK remains at 1 for (CPOL = 1, CPHA = 1 Mode 3)

Figure 6.1 Bus Master and Memory Devices on the SPI Bus

SPI Interface with

(CPOL, CPHA) =

(0, 0) or (1, 1)

Bus Master

SO

SI

SCK

SCK SO SI SCK SO SI SCK SO SI

SPI Memory

Device

SPI Memory

Device

SPI Memory

Device

CS3 CS2 CS1

CS# W# HOLD# CS# W# HOLD# CS# W# HOLD#

Note

The Write Protect (W#) and Hold (HOLD#) signals should be driven high (logic level 1) or low (logic level 0) as appropriate.

Figure 6.2 SPI Modes Supported

CS#

Mode 0

CPOL CPHA

0 0 SCK

Mode 3 1 1

SCK

SI

SO

MSB

MSB

February 27, 2009 S25FL016A_00_C4 S25FL016A 11

D a t a S h e e t

7.

Device Operations

All Spansion SPI devices (S25FL-A) accept and output data in bytes (8 bits at a time).

7.1

Byte or Page Programming

Programming data requires two commands: Write Enable (WREN), which is one byte, and a Page Program

(PP) sequence, which consists of four bytes plus data. The Page Program sequence accepts from 1 byte up to 256 consecutive bytes of data (which is the size of one page) to be programmed in one operation.

Programming means that bits can either be left at 0, or programmed from 1 to 0. Changing bits from 0 to 1 requires an erase operation. Before this can be applied, the bytes of the memory need to be first erased to all

1’s (FFh) before any programming.

7.2

Sector Erase / Bulk Erase

The Sector Erase (SE) and Bulk Erase (BE) commands set all the bits in a sector or the entire memory array to 1. While bits can be individually programmed from a 1 to 0, erasing bits from 0 to 1 must be done on a sector-wide (SE) or array-wide (BE) level.

7.3

Monitoring Write Operations Using the Status Register

The host system can determine when a Write Status Register, program, or erase operation is complete by monitoring the Write in Progress (WIP) bit in the Status Register. The Read from Status Register command provides the state of the WIP bit.

7.4

Active Power and Standby Power Modes

The device is enabled and in the Active Power mode when Chip Select (CS#) is Low. When CS# is high, the device is disabled, but may still be in the Active Power mode until all program, erase, and Write Status

Register operations have completed. The device then goes into the Standby Power mode, and power consumption drops to I

SB

. The Deep Power Down (DP) command provides additional data protection against inadvertent signals. After writing the DP command, the device ignores any further program or erase commands, and reduces its power consumption to I

DP

.

7.5

Status Register

The Status Register contains the status and control bits that can be read or set by specific commands

(

Table 9.2, S25FL016A Status Register on page 19

):

„ Write In Progress (WIP): Indicates whether the device is performing a Write Status Register, program or erase operation.

„ Write Enable Latch (WEL): Indicates the status of the internal Write Enable Latch.

„ Block Protect (BP2, BP1, BP0): Non-volatile bits that define memory area to be software-protected against program and erase commands.

„ Status Register Write Disable (SRWD): Places the device in the Hardware Protected mode when this bit is set to 1 and the W# input is driven low. In this mode, the non-volatile bits of the Status Register (SRWD,

BP2, BP1, BP0) become read-only bits.

12 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

7.6

Data Protection Modes

Spansion SPI Flash memory devices provide the following data protection methods:

„ The Write Enable (WREN) command: Must be written prior to any command that modifies data. The

WREN command sets the Write Enable Latch (WEL) bit. The WEL bit resets (disables writes) on power-up or after the device completes the following commands:

– Page Program (PP)

– Sector Erase (SE)

– Bulk Erase (BE)

– Write Disable (WRDI)

– Write Status Register (WRSR)

„ Software Protected Mode (SPM): The Block Protect (BP2, BP1, BP0) bits define the section of the memory array that can be read but not programmed or erased.

Table 7.1

shows the sizes and address ranges of protected areas that are defined by Status Register bits BP2:BP0.

„ Hardware Protected Mode (HPM): The Write Protect (W#) input and the Status Register Write Disable

(SRWD) bit together provide write protection.

„ Clock Pulse Count: The device verifies that all program, erase, and Write Status Register commands consist of a clock pulse count that is a multiple of eight before executing them.

Table 7.1 S25FL016A Protected Area Sizes

Status Register

Block Protect Bits

0

1

1

1

1

BP2 BP1

0

0

0

0

0

1

1

0

0

1

1

1

0

1

0

1

BP0

0

1

0

Protected

Address Range

None

1F0000h–1FFFFFh

1E0000h–1FFFFFh

1C0000h–1FFFFFh

180000h–1FFFFFh

100000h–1FFFFFh

000000h–1FFFFFh

000000h–1FFFFFh

Memory Array

Protected

Sectors

Unprotected

Address Range

(0)

(1) SA31

(2) SA31:SA30

000000h–1FFFFFh

000000h–1EFFFFh

000000h–1DFFFFh

(4) SA31:SA28

(8) SA31:SA24

(16) SA31:SA16

(32) SA31:SA0

(32) SA31:SA0

000000h–1BFFFFh

000000h–17FFFFh

000000h–0FFFFFh

None

None

Unprotected

Sectors

SA31:SA0

SA30:SA0

SA29:SA0

SA27:SA0

SA23:SA0

SA15:SA0

None

None

Protected

Portion of

Total Memory

Area

0

1/32

1/16

1/8

1/4

1/2

All

All

7.7

Hold Mode (HOLD#)

The Hold input (HOLD#) stops any serial communication with the device, but does not terminate any Write

Status Register, program or erase operation that is currently in progress.

The Hold mode starts on the falling edge of HOLD# if SCK is also low (see

Figure 7.1

, standard use). If the

falling edge of HOLD# does not occur while SCK is low, the Hold mode begins after the next falling edge of

SCK (non-standard use).

The Hold mode ends on the rising edge of HOLD# signal (standard use) if SCK is also low. If the rising edge of HOLD# does not occur while SCK is low, the Hold mode ends on the next falling edge of CLK (nonstandard use) See

Figure 7.1

.

The SO output is high impedance, and the SI and SCK inputs are ignored (don’t care) for the duration of the

Hold mode.

CS# must remain low for the entire duration of the Hold mode to ensure that the device internal logic remains unchanged. If CS# goes high while the device is in the Hold mode, the internal logic is reset. To prevent the device from reverting to the Hold mode when device communication is resumed, HOLD# must be held high, followed by driving CS# low.

February 27, 2009 S25FL016A_00_C4 S25FL016A 13

D a t a S h e e t

Figure 7.1 Hold Mode Operation

SCK

HOLD#

Hold

Condition

(standard use)

Hold

Condition

(non-standard use)

8.

Sector Address Table

Table 8.1

shows the size of the memory array, sectors, and pages. The device uses pages to cache the program data before the data is programmed into the memory array. Each page or byte can be individually programmed (bits are changed from 1 to 0). The data is erased (bits are changed from 0 to 1) on a sector- or

device-wide basis using the SE or BE commands.

Table 8.2

shows the starting and ending address for each sector. The complete set of sectors comprises the memory array of the Flash device.

Each Device has

2,097,152

8,192

32

Table 8.1 S25FL016A Device Organization

Each Sector has

65,536

256

Each Page has

256

— bytes pages sectors

14 S25FL016A S25FL016A_00_C4 February 27, 2009

SA16

SA15

SA14

SA13

SA12

SA11

SA22

SA21

SA20

SA19

SA18

SA17

Sector

SA31

SA30

SA29

SA28

SA27

SA26

SA25

SA24

SA23

SA4

SA3

SA2

SA1

SA0

SA10

SA9

SA8

SA7

SA6

SA5

D a t a S h e e t

Table 8.2 S25FL016A Sector Address Table

Address Range

100000h

0F0000h

0E0000h

0D0000h

0C0000h

0B0000h

0A0000h

090000h

080000h

070000h

060000h

050000h

1F0000h

1E0000h

1D0000h

1C0000h

1B0000h

1A0000h

190000h

180000h

170000h

160000h

150000h

140000h

130000h

120000h

110000h

040000h

030000h

020000h

010000h

000000h

10FFFFh

0FFFFFh

0EFFFFh

0DFFFFh

0CFFFFh

0BFFFFh

0AFFFFh

09FFFFh

08FFFFh

07FFFFh

06FFFFh

05FFFFh

1FFFFFh

1EFFFFh

1DFFFFh

1CFFFFh

1BFFFFh

1AFFFFh

19FFFFh

18FFFFh

17FFFFh

16FFFFh

15FFFFh

14FFFFh

13FFFFh

12FFFFh

11FFFFh

04FFFFh

03FFFFh

02FFFFh

01FFFFh

00FFFFh

February 27, 2009 S25FL016A_00_C4 S25FL016A 15

D a t a S h e e t

9.

Command Definitions

The host system must shift all commands, addresses, and data in and out of the device, beginning with the most significant bit. On the first rising edge of SCK after CS# is driven low, the device accepts the one-byte command on SI (all commands are one byte long), most significant bit first. Each successive bit is latched on

the rising edge of SCK.

Table 9.4 on page 25

lists the complete set of commands.

Every command sequence begins with a one-byte command code. The command may be followed by address, data, both, or nothing, depending on the command. CS# must be driven high after the last bit of the command sequence has been written.

The Read Data Bytes (READ), Read Status Register (RDSR), Read Data Bytes at Higher Speed

(FAST_READ) and Read Identification (RDID) command sequences are followed by a data output sequence on SO. CS# can be driven high after any bit of the sequence is output to terminate the operation.

The Page Program (PP), Sector Erase (SE), Bulk Erase (BE), Write Status Register (WRSR), Write Enable

(WREN), or Write Disable (WRDI) commands require that CS# be driven high at a byte boundary, otherwise the command is not executed. Since a byte is composed of eight bits, CS# must therefore be driven high when the number of clock pulses after CS# is driven low is an exact multiple of eight.

The device ignores any attempt to access the memory array during a Write Status Register, program, or erase operation, and continues the operation uninterrupted.

9.1

Read Data Bytes (READ)

The Read Data Bytes (READ) command reads data from the memory array at the frequency (f

SCK

) presented at the SCK input, with a maximum speed of 33 MHz. The host system must first select the device by driving

CS# low. The READ command is then written to SI, followed by a 3-byte address (A23-A0). Each bit is latched on the rising edge of SCK. The memory array data, at that address, are output serially on SO at a frequency f

SCK

, on the falling edge of SCK.

Figure 9.1

and

Table 9.4 on page 25

detail the READ command sequence. The first byte specified can be at any location. The device automatically increments to the next higher address after each byte of data is output.

The entire memory array can therefore be read with a single READ command. When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

The READ command is terminated by driving CS# high at any time during data output. The device rejects any

READ command issued while it is executing a program, erase, or Write Status Register operation, and continues the operation uninterrupted.

Figure 9.1 Read Data Bytes (READ) Command Sequence

CS#

Mode 3

SCK

Mode 0

0 1 2 3 4 5 6 7 8 9 10 28 29 30 31 32 33 34 35 36 37 38 39

Command 24-Bit Address

SI

SO

Hi-Z

23 22 21

MSB

3 2 1 0

Data Out 1

7 6 5

MSB

4

3

2

1 0 7

Data Out 2

16 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

9.2

Read Data Bytes at Higher Speed (FAST_READ)

The FAST_READ command reads data from the memory array at the frequency (f

SCK

) presented at the SCK input, with a maximum speed of 50 MHz. The host system must first select the device by driving CS# low. The

FAST_READ command is then written to SI, followed by a 3-byte address (A23-A0) and a dummy byte. Each bit is latched on the rising edge of SCK. The memory array data, at that address, are output serially on SO at a frequency f

SCK

, on the falling edge of SCK.

The FAST_READ command sequence is shown in

Figure 9.2

and

Table 9.4 on page 25

. The first byte

specified can be at any location. The device automatically increments to the next higher address after each byte of data is output. The entire memory array can therefore be read with a single FAST_READ command.

When the highest address is reached, the address counter reverts to 00000h, allowing the read sequence to continue indefinitely.

The FAST_READ command is terminated by driving CS# high at any time during data output. The device rejects any FAST_READ command issued while it is executing a program, erase, or Write Status Register operation, and continues the operation uninterrupted.

Figure 9.2 Read Data Bytes at Higher Speed (FAST_READ) Command Sequence

CS#

SCK

Mode 3

Mode 0

SI

SO

Hi-Z

0 1 2

3 4

5 6

7

8

9 10 28 29 30 31 32 33 34 35 36 37 38

39

40 41 42 43 44

45

46 47

Command

24-Bit Address

23 22 21

Dummy Byte

3 2

1 0

7

6 5 4

3

2 1 0

7 6

MSB

5 4

3

DATA OUT 1

2 1 0 7

MSB

DATA OUT 2

9.3

Read Identification (RDID)

The Read Identification (RDID) command outputs the one-byte manufacturer identification, followed by the two-byte device identification, to the host system.

JEDEC assigns the manufacturer identification byte; for Spansion devices it is 01h. The device manufacturer assigns the device identification: the first byte provides the memory type; the second byte indicates the

memory capacity. See

Table 9.1 on page 18

or

Table 9.4 on page 25

for device ID data.

The host system must first select the device by driving CS# low. The RDID command is then written to SI, and each bit is latched on the rising edge of SCK. The 24-bit device identification data is output from the memory array on SO at a frequency f

SCK

, on the falling edge of SCK.

The RDID command sequence is shown in

Figure 9.3

and

Table 9.4 on page 25

.

Driving CS# high after the device identification data has been read at least once terminates the READ_ID command. Driving CS# high at any time during data output also terminates the RDID operation.

The device rejects any RDID command issued while it is executing a program, erase, or Write Status Register operation, and continues the operation uninterrupted.

February 27, 2009 S25FL016A_00_C4 S25FL016A 17

D a t a S h e e t

Figure 9.3 Read Identification (RDID) Command Sequence and Data-Out Sequence

CS#

SCK

Mode 3

Mode 0

0

1 2 3 4 5 6

7 8 9 10 11 12 13 14 15 16 17 18

28 29 30 31

Command

SI

Manufacturer Identification

SO

Hi-Z

Device Identification

15

14

13

3 2

1 0

MSB

Table 9.1 Read Identification (RDID) Data-Out Sequence

Manufacturer Identification

01h

Memory Type

02h

Device Identification

Memory Capacity

14h

9.4

Write Enable (WREN)

The Write Enable (WREN) command (see

Figure 9.4

) sets the Write Enable Latch (WEL) bit to a 1, which enables the device to accept a Write Status Register, program, or erase command. The WEL bit must be set prior to every Page Program (PP), Erase (SE or BE) and Write Status Register (WRSR) command.

The host system must first drive CS# low, write the WREN command, and then drive CS# high.

Figure 9.4 Write Enable (WREN) Command Sequence

CS#

SCK

Mode 3

Mode 0

0 1 2 3 4 5 6

7

Command

SI

Hi-Z

SO

18 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

9.5

Write Disable (WRDI)

The Write Disable (WRDI) command (see

Figure 9.5

) resets the Write Enable Latch (WEL) bit to a 0, which disables the device from accepting a Write Status Register, program, or erase command. The host system must first drive CS# low, write the WRDI command, and then drive CS# high.

Any of following conditions resets the WEL bit:

„ Power-up

„ Write Disable (WRDI) command completion

„ Write Status Register (WRSR) command completion

„ Page Program (PP) command completion

„ Sector Erase (SE) command completion

„ Bulk Erase (BE) command completion

Figure 9.5 Write Disable (WRDI) Command Sequence

CS#

Mode 3

SCK

Mode 0

0

1 2 3 4 5 6 7

Command

SI

SO

Hi-Z

9.6

Read Status Register (RDSR)

The Read Status Register (RDSR) command outputs the state of the Status Register bits.

Table 9.2

shows the status register bits and their functions.

The RDSR command may be written at any time, even while a program, erase, or Write Status Register operation is in progress. The host system should check the Write In Progress (WIP) bit before sending a new command to the device if an operation is already in progress.

Figure 9.6

shows the RDSR command

sequence, which also shows that it is possible to read the Status Register continuously until CS# is driven high.

Bit

7

6

5

4

3

2

Status Register Bit

SRWD

BP2

BP1

BP0

Table 9.2 S25FL016A Status Register

Bit Function

Status Register Write Disable

Description

1 = Protects when W# is low

0 = No protection, even when W# is low

Not used

Not used

Block Protect

000–111 = Protects upper half of address range in 5 sizes. See

Table 7.1 on page 13

.

1

0

WEL

WIP

Write Enable Latch

Write in Progress

1 = Device accepts Write Status Register, program, or erase commands

0 = Ignores Write Status Register, program, or erase commands

1 = Device Busy. A Write Status Register, program, or erase operation is in progress

0 = Ready. Device is in standby mode and can accept commands.

February 27, 2009 S25FL016A_00_C4 S25FL016A 19

D a t a S h e e t

Figure 9.6 Read Status Register (RDSR) Command Sequence

CS#

Mode 3

SCK

Mode 0

0

1

2 3 4 5 6

7

8

9

10

11

12 13 14

15

Command

SI

SO

Hi-Z

7 6 5 4 3 2 1 0 7 6

5 4 3

2

1 0 7

MSB

MSB

Status Register Out Status Register Out

The following describes the status and control bits of the Status Register.

Write In Progress (WIP) bit: Indicates whether the device is busy performing a Write Status Register, program, or erase operation. This bit is read-only, and is controlled internally by the device. If WIP is 1, one of these operations is in progress; if WIP is 0, no such operation is in progress.

Write Enable Latch (WEL) bit: Determines whether the device will accept and execute a Write Status

Register, program, or erase command. When set to 1, the device accepts these commands; when set to 0, the device rejects the commands. This bit is set to 1 by writing the WREN command, and set to 0 by the

WRDI command, and is also automatically reset to 0 after the completion of a Write Status Register, program, or erase operation. WEL cannot be directly set by the WRSR command.

Block Protect (BP2, BP1, BP0) bits: Define the portion of the memory area that will be protected against any changes to the stored data. The Write Status Register (WRSR) command controls these bits, which are

non-volatile. When one or more of these bits is set to 1, the corresponding memory area (see

Table 7.1 on page 13

) is protected against Page Program (PP) and Sector Erase (SE) commands. If the Hardware

Protected mode is enabled, BP2:BP0 cannot be changed. The Bulk Erase (BE) command is executed only if all Block Protect (BP2, BP1, BP0) bits are 0.

Status Register Write Disable (SRWD) bit: Provides data protection when used together with the Write

Protect (W#) signal. When SRWD is set to 1 and W# is driven low, the device enters the Hardware Protected mode. The non-volatile bits of the Status Register (SRWD, BP2, BP1, BP0) become read-only bits and the device ignores any Write Status Register (WRSR) command.

9.7

Write Status Register (WRSR)

The Write Status Register (WRSR) command changes the bits in the Status Register. A Write Enable

(WREN) command, which itself sets the Write Enable Latch (WEL) in the Status Register, is required prior to writing the WRSR command.

Table 9.2, S25FL016A Status Register on page 19

shows the status register

bits and their functions.

The host system must drive CS# low, write the WRSR command, and the appropriate data byte on SI

(

Figure 9.7

).

The WRSR command cannot change the state of the Write Enable Latch (bit 1). The WREN command must be used for that purpose. Bit 0 is a status bit controlled internally by the Flash device. Bits 6 and 5 are always read as 0 and have no user significance.

The WRSR command also controls the value of the Status Register Write Disable (SRWD) bit. The SRWD bit and W# together place the device in the Hardware Protected Mode (HPM). The device ignores all WRSR

commands once it enters the Hardware Protected Mode (HPM).

Table 9.3 on page 21

shows that W# must

be driven low and the SRWD bit must be 1 for this to occur.

20 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

Figure 9.7 Write Status Register (WRSR) Command Sequence

CS#

Mode 3

SCK

Mode 0

0 1 2 3

4

5

6 7 8 9 10 11 12 13 14 15

Command

Status Register In

SI

SO

Hi-Z

7 6 5 4 3 2 1 0

MSB

Table 9.3 Protection Modes

W#

Signal

1

1

0

0

SRWD

Bit

1

0

0

1

Mode

Software

Protected

(SPM)

Write Protection of the Status Register

Status Register is writable (if the WREN command has set the WEL bit). The values in the SRWD, BP2, BP1 and BP0 bits can be changed.

Hardware

Protected

(HPM)

Status Register is Hardware write protected.

The values in the SRWD, BP2, BP1 and BP0 bits cannot be changed.

Protected Area

(See Note)

Protected against program and erase commands

Unprotected Area

(See Note)

Ready to accept Page

Program and Sector Erase commands

Protected against program and erase commands

Ready to accept Page

Program and Sector Erase commands

Note

As defined by the values in the Block Protect (BP2, BP1, BP0) bits of the Status Register, as shown in Table 7.1 on page 13

.

Table 9.3

shows that neither W# or SRWD bit by themselves can enable HPM. The device can enter HPM either by setting the SRWD bit after driving W# low, or by driving W# low after setting the SRWD bit.

However, the device disables HPM only when W# is driven high.

Note that HPM only protects against changes to the status register. Since BP2:BP0 cannot be changed in

HPM, the size of the protected area of the memory array cannot be changed. Note that HPM provides no protection to the memory array area outside that specified by BP2:BP0 (Software Protected Mode, or SPM).

If W# is permanently tied high, HPM can never be activated, and only the SPM (BP2:BP0 bits of the Status

Register) can be used.

9.8

Page Program (PP)

The Page Program (PP) command changes specified bytes in the memory array (from 1 to 0 only). A WREN command is required prior to writing the PP command.

The host system must drive CS# low, and then write the PP command, three address bytes, and at least one data byte on SI. CS# must be driven low for the entire duration of the PP sequence. The command sequence

is shown in

Figure 9.8

and

Table 9.4 on page 25

.

The device programs only the last 256 data bytes sent to the device. If the number of data bytes exceeds this limit, the bytes sent before the last 256 bytes are discarded, and the device begins programming the last 256 bytes sent at the starting address of the specified page. This may result in data being programmed into different addresses within the same page than expected. If fewer than 256 data bytes are sent to device, they are correctly programmed at the requested addresses.

The host system must drive CS# high after the device has latched the 8th bit of the data byte, otherwise the device does not execute the PP command. The PP operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of t

PP

. The Status Register may be read to check the value of the Write In Progress (WIP) bit while the PP operation is in progress. The WIP bit is 1 during the PP operation, and is 0 when the operation is completed. The device internally resets the

Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

The device does not execute a Page Program (PP) command that specifies a page that is protected by the

Block Protect bits (BP2:BP0) (see

Table 7.1 on page 13

).

February 27, 2009 S25FL016A_00_C4 S25FL016A 21

D a t a S h e e t

Figure 9.8 Page Program (PP) Command Sequence

CS#

Mode 3

SCK

Mode 0

0

1

2

3

4

5

6 7

8

9

10 28

29 30 31

32 33 34 35 36 37 38 39

SI

Command

24-Bit Address

23 22 21

Data Byte 1

3 2 1 0 7 6 5

4 3 2

1 0

MSB

MSB

CS#

SCK

40

41 42 43

44 45 46 47 48 49 50 51 52 53 54

55

SI

Data Byte 2 Data Byte 3

7 6 5 4 3 2 1

0 7 6

5 4 3 2 1

0

MSB MSB

Data Byte 256

7

6 5 4 3 2 1 0

MSB

9.9

Sector Erase (SE)

The Sector Erase (SE) command sets all bits at all addresses within a specified sector to a logic 1. A WREN command is required prior to writing the PP command.

The host system must drive CS# low, and then write the SE command plus three address bytes on SI. Any address within the sector (see

Table 7.1 on page 13

) is a valid address for the SE command. CS# must be

driven low for the entire duration of the SE sequence. The command sequence is shown in

Figure 9.9

and

Table 9.4 on page 25

.

The host system must drive CS# high after the device has latched the 8th bit of the SE command, otherwise the device does not execute the command. The SE operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of t

SE

. The Status Register may be read to check the value of the Write In Progress (WIP) bit while the SE operation is in progress. The WIP bit is 1 during the SE operation, and is 0 when the operation is completed. The device internally resets the

Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

The device does not execute an SE command that specifies a sector that is protected by the Block Protect

bits (BP2:BP0) (see

Table 7.1 on page 13

).

Figure 9.9 Sector Erase (SE) Command Sequence

CS#

Mode 3

SCK

Mode 0

0 1 2 3 4 5 6 7 8 9 10 28 29 30 31

SI

Command 24-bit Address

23 22 21

MSB

3 2

1

0

SO

Hi-Z

22 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

9.10

Bulk Erase (BE)

The Bulk Erase (BE) command sets all the bits within the entire memory array to logic 1s. A WREN command is required prior to writing the PP command.

The host system must drive CS# low, and then write the BE command on SI. CS# must be driven low for the entire duration of the BE sequence. The command sequence is shown in

Figure 9.10

and

Table 9.4 on page 25

.

The host system must drive CS# high after the device has latched the 8th bit of the CE command, otherwise the device does not execute the command. The BE operation begins as soon as CS# is driven high. The device internally controls the timing of the operation, which requires a period of t

BE

. The Status Register may be read to check the value of the Write In Progress (WIP) bit while the BE operation is in progress. The WIP bit is 1 during the BE operation, and is 0 when the operation is completed. The device internally resets the

Write Enable Latch to 0 before the operation completes (the exact timing is not specified).

The device only executes a BE command if all Block Protect bits (BP2:BP0) are 0 (see

Table 7.1 on page 13

). Otherwise, the device ignores the command.

Figure 9.10 Bulk Erase (BE) Command Sequence

CS#

Mode 3

SCK

Mode 0

0 1 2 3 4 5 6 7

Command

SI

SO

Hi-Z

9.11

Deep Power Down (DP)

The Deep Power Down (DP) command provides the lowest power consumption mode of the device. It is intended for periods when the device is not in active use, and ignores all commands except for the Release from Deep Power Down (RES) command. The DP mode therefore provides the maximum data protection

against unintended write operations. The standard standby mode, which the device goes into automatically when CS# is high (and all operations in progress are complete), should generally be used for the lowest power consumption when the quickest return to device activity is required.

The host system must drive CS# low, and then write the DP command on SI. CS# must be driven low for the

entire duration of the DP sequence. The command sequence is shown in

Figure 9.11

and

Table 9.4 on page 25

.

The host system must drive CS# high after the device has latched the 8th bit of the DP command, otherwise the device does not execute the command. After a delay of t

DP, the device enters the DP mode and current reduces from I

SB

to I

DP

(see

Table 14.1 on page 28

).

Once the device has entered the DP mode, all commands are ignored except the RES command (which releases the device from the DP mode). The RES command also provides the Electronic Signature of the device to be output on SO, if desired (see

Section 9.12

and

9.12.1)

.

DP mode automatically terminates when power is removed, and the device always powers up in the standard standby mode. The device rejects any DP command issued while it is executing a program, erase, or Write

Status Register operation, and continues the operation uninterrupted.

February 27, 2009 S25FL016A_00_C4 S25FL016A 23

D a t a S h e e t

Figure 9.11 Deep Power Down (DP) Command Sequence

CS# tDP

Mode 3

SCK

Mode 0

0 1

2 3 4 5 6 7

Command

SI

SO

Hi-Z

Standby Mode Deep Power-down Mode

9.12

Release from Deep Power Down (RES)

The device requires the Release from Deep Power Down (RES) command to exit the Deep Power Down mode. When the device is in the Deep Power Down mode, all commands except RES are ignored.

The host system must drive CS# low and write the RES command to SI. CS# must be driven low for the entire

duration of the sequence. The command sequence is shown in

Figure 9.12

and

Table 9.4 on page 25

.

The host system must drive CS# high t

RES(max) after the 8-bit RES command byte. The device transitions from DP mode to the standby mode after a delay of t

RES

(see

Table 16.1 on page 29

). In the standby mode,

the device can execute any read or write command.

Figure 9.12 Release from Deep Power Down (RES) Command Sequence

CS#

Mode 3

SCK

Mode 0

0

1

2 3

4

5

6

7

Command t

RES

SI

SO

Hi-Z

Deep Power-down Mode Standby Mode

24 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

9.12.1

Release from Deep Power Down and Read Electronic Signature (RES)

The device features an 8-bit Electronic Signature, which can be read using the RES command. See

Figure 9.13

and

Table 9.4 on page 25

for the command sequence and signature value. The Electronic

Signature is not to be confused with the identification data obtained using the RDID command. The device offers the Electronic Signature so that it can be used with previous devices that offered it; however, the

Electronic Signature should not be used for new designs, which should read the RDID data instead.

After the host system drives CS# low, it must write the RES command followed by 3 dummy bytes to SI (each bit is latched on SI during the rising edge of SCK). The Electronic Signature is then output on SO; each bit is shifted out on the falling edge of SCK. The RES operation is terminated by driving CS# high after the

Electronic Signature is read at least once. Additional clock cycles on SCK with CS# low cause the device to output the Electronic Signature repeatedly.

When CS# is driven high, the device transitions from DP mode to the standby mode after a delay of t

RES

, as previously described. The RES command always provides access to the Electronic Signature of the device and can be applied even if DP mode has not been entered.

Any RES command issued while an erase, program, or WRSR operation is in progress not executed, and the operation continues uninterrupted.

Figure 9.13 Release from Deep Power Down and Read Electronic Signature (RES) Command Sequence

CS#

0

1 2

3 4 5 6 7

8

9 10

28 29 30 31 32 33 34 35 36 37

38

SCK

SI

SO

Hi-Z

Command

23 22 21

MSB

3 Dummy Bytes

3 2 1 0

7 6 5 4

3 2 1

0

MSB

Electronic ID out t

RES

Deep Power-down Mode

Standby Mode

Table 9.4 Command Definitions

Operation

Read

Write Control

Erase

Program

Status

Register

Power Saving

Command

READ

Description

Read Data Bytes

FAST_READ Read Data Bytes at Higher Speed

RDID Read Identification

(Note 1)

WREN

WRDI

SE

BE

Write Enable

Write Disable

Sector Erase

Bulk (Chip) Erase

PP

RDSR

WRSR

DP

RES

Page Program

Read from Status Register

Write to Status Register

Deep Power Down

Release from Deep Power Down

Release from Deep Power Down and

Read Electronic Signature

(Note 2)

One-Byte

Command Code

03H (0000 0011)

0BH (0000 1011)

9FH (1001 1111)

06H (0000 0110)

04H (0000 0100)

D8H (1101 1000)

C7H (1100 0111)

02H (0000 0010)

05H (0000 0101)

01H (0000 0001)

B9H (1011 1001)

ABH (1010 1011)

ABH (1010 1011)

Address

Bytes

3

3

0

0

0

3

0

3

0

0

0

0

0

Dummy

Byte

0

1

0

0

0

0

0

0

0

0

0

0

3

Data Bytes

1 to

1 to

1 to 3

0

0

0

0

1 to 256

1 to

1

0

0

1 to

Notes

1. The S25FL016A has a manufacturer ID of 01h, and a device ID consisting of the memory type (02h) and the memory capacity (14h).

2. The S25FL016A has an Electronic Signature ID of 14h.

February 27, 2009 S25FL016A_00_C4 S25FL016A 25

D a t a S h e e t

10. Power-up and Power-down

During power-up and power-down, certain conditions must be observed. CS# must follow the voltage applied on V

CC

, and must not be driven low to select the device until V

CC

reaches the allowable values as follows

(see

Figure 10.1

and

Table 10.1 on page 26

):

„ At power-up, V

CC

(min) plus a period of t

PU

„ At power-down, V

SS

A pull-up resistor on Chip Select (CS#) typically meets proper power-up and power-down requirements.

No Write Status Register, program, or erase command should be sent to the device until V

CC

rises to the V

CC min, plus a delay of t

PU

. At power-up, the device is in standby mode (not Deep Power Down mode) and the

WEL bit is reset (0).

Each device in the host system should have the V

CC

rail decoupled by a suitable capacitor close to the package pins (this capacitor is generally of the order of 0.1 µF), as a precaution to stabilizing the V

CC

feed.

When V

CC

drops from the operating voltage to below the minimum V

CC

threshold at power-down, all operations are disabled and the device does not respond to any commands. Note that data corruption may result if a power-down occurs while a Write Register, program, or erase operation is in progress.

Figure 10.1 Power-Up Timing Diagram

V cc

V cc

(max)

V cc

(min) t

PU

Full Device Access

Symbol

V

CC(min) t

PU

Time

Table 10.1 Power-Up Timing Characteristics

Parameter

V

CC

(minimum)

V

CC

(min) to device operation

Min

2.7

10

Max Unit

V ms

11. Initial Delivery State

The device is delivered with all bits set to 1 (each byte contains FFh) upon initial factory shipment. The Status

Register contains 00h (all Status Register bits are 0).

26 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

12. Absolute Maximum Ratings

Do not stress the device beyond the ratings listed in this section, or serious, permanent damage to the device may result. These are stress ratings only and device operation at these or any other conditions beyond those

indicated in this section and in the

Operating Ranges

section of this document is not implied. Device operation for extended periods at the limits listed in this section may affect device reliability.

Table 12.1 Absolute Maximum Ratings

Description

Ambient Storage Temperature

Voltage with Respect to Ground: All Inputs and I/Os

Rating

–65°C to +150°C

–0.5 V to V

CC

+0.5 V

Notes

1. Minimum DC voltage on input or I/O pins is –0.5 V. During voltage transitions, input at I/O pins may overshoot V

SS

to –2.0 V for periods of

up to 20 ns. See Figure 12.2

. Maximum DC voltage on output and I/O pins is 3.6 V. During voltage transitions output pins may overshoot to V

CC

+ 2.0 V for periods up to 20 ns. See

Figure 12.2

.

2. No more than one output may be shorted to ground at a time. Duration of the short circuit should not be greater than one second.

3. Stresses above those listed under

Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this data sheet is not implied. Exposure of the device to absolute maximum rating conditions for extended periods may affect device reliability.

Figure 12.1 Maximum Negative Overshoot Waveform

20 ns 20 ns

+0.8 V

–0.5 V

–2 V

20 ns

Figure 12.2 Maximum Positive Overshoot Waveform

20 ns

V

CC

+2.0 V

V

CC

+0.5 V

2.0 V

20 ns 20 ns

13. Operating Ranges

Table 13.1 Operating Ranges

Description

Ambient Operating Temperature (T

A

)

Positive Power Supply

Industrial

Voltage Range

Note

Operating ranges define those limits between which functionality of the device is guaranteed.

Rating

–40°C to +85°C

2.7 V to 3.6 V

February 27, 2009 S25FL016A_00_C4 S25FL016A 27

D a t a S h e e t

14. DC Characteristics

This section summarizes the DC Characteristics of the device. Designers should check that the operating conditions in their circuit match the measurement conditions specified in the Test Specifications in

Table 15.1 on page 28

, when relying on the quoted parameters.

Parameter

V

CC

Description

Supply Voltage

I

CC1

I

CC2

I

CC3

I

CC4

I

CC5

I

SB

I

DP

Active Read Current

Table 14.1 DC Characteristics (CMOS Compatible)

Active Page Program Current

Active WRSR Current

Active Sector Erase Current

Active Bulk Erase Current

Standby Current

Deep Power Down Current

I

LI

I

LO

V

IL

V

IH

V

OL

V

OH

Input Leakage Current

Output Leakage Current

Input Low Voltage

Input High Voltage

Output Low Voltage

Output High Voltage

Note

Typical values are at T

A

= 25

°

C and 3.0 V.

Test Conditions (See Note)

Min

2.7

Typ.

3

9

Max

3.6

12 SCK = 0.1 V

SCK = 0.1 V

CC

CC

/0.9V

/0.9V

CC

CC

33 MHz

V

CC

= 3.0V

50 MHz

14 19

CS# = V

CC

CS# = V

CC

CS# = V

CC

CS# = V

CC

V

CC

= 3.0 V

CS# = V

CC

V

CC

= 3.0 V

CS# = V

CC

V

IN

= GND to V

CC

17.5

21

1.3

28

24

24

24

50

5

1

V

IN

= GND to V

CC

1

–0.3

0.7 V

CC

V

CC

+ 0.5

I

OL

= 1.6 mA, V

CC

= V

CC min

0.4

I

OH

= –0.1 mA V

CC

– 0.2

0.3 V

CC

µA

V

V

V

µA

µA

V mA mA mA mA

µA

Unit

V mA mA

15. Test Conditions

Figure 15.1 AC Measurements I/O Waveform

0.8 V

CC

Input Levels

0.7 V

CC

0.5 V

CC

0.3 V

CC

0.2 V

CC

Input and Output

Timing Reference levels

Symbol

C

L

Table 15.1 Test Specifications

Parameter

Load Capacitance

Input Rise and Fall Times

Input Pulse Voltage

Input Timing Reference Voltage

Output Timing Reference Voltage

Min Max

30

0.2 V

CC

to 0.8 V

CC

0.3 V

CC

to 0.7 V

CC

0.5 V

CC

5

Unit

pF ns

V

V

V

28 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

16. AC Characteristics

Table 16.1 AC Characteristics

Symbol

(Notes) Parameter Min

Typ

(Notes)

Max

(Notes)

F

F

SCK

SCK

SCK Clock Frequency READ command

SCK Clock Frequency for:

FAST_READ, PP, SE, BE, DP, RES, WREN, WRDI, RDSR, WRSR

Clock Rise Time (Slew Rate)

D.C.

D.C.

33

50 t

CH t

V t

HO t

HD:DAT t

SU:DAT t

R t

F t

LZ

(3)

t

HZ

(3)

t

DIS

(3)

t

WPS

(3)

t

WPH

(3)

t

W t

DP t

RES t

PP t

SE t

BE t

CRT t

CFT t

WH t

WL t

CS t

CSS

(3)

t

CSH

(3)

t

HD

(3)

t

CD

(3)

t

HC

Clock Fall Time (Slew Rate)

SCK High Time

SCK Low Time

CS# High Time

CS# Setup Time

CS# HOLD Time

HOLD# Setup Time (relative to SCK)

HOLD# Hold Time (relative to SCK)

HOLD# Setup Time (relative to SCK)

HOLD# Hold Time (relative to SCK)

Output Valid

Output Hold Time

Data in Hold Time

Data in Setup Time

Input Rise Time

Input Fall Time

HOLD# to Output Low Z

HOLD# to Output High Z

Output Disable Time

Write Protect Setup Time

Write Protect Hold Time

Write Status Register Time

CS# High to Deep Power Down Mode

Release DP Mode

Page Programming Time

Sector Erase Time

Bulk Erase Time

0.1

0.1

9

9

100

5

5

5

5

5

5

0

5

5

15

15

67

1.4

0.5

10

(1)

(1)

(1)

10

5

10

10

10

150

30

3

3

5

3

(2)

(2)

96 (2)

Notes

1. Typical program and erase times assume the following conditions: 25°C, V

CC

= 3.0V; 10,000 cycles; checkerboard data pattern

2. Under worst-case conditions of 90°C; V

CC

= 2.7V; 100,000 cycles

3. Not 100% tested

Unit

MHz

MHz ns ns ns ns ns ns ns ns ns ms

μs

μs ms sec sec ns ns ns ns ns ns

V/ns

V/ns ns ns ns ns ns

February 27, 2009 S25FL016A_00_C4 S25FL016A 29

30

D a t a S h e e t

Figure 16.1 SPI Mode 0 (0,0) Input Timing

CS#

SCK t

CSH t

CSS

SI t

SU:DAT t

HD:DAT

MSB IN t

CRT t

CFT t

CSH

LSB IN t

CS t

CSS

SO

Hi-Z

Figure 16.2 SPI Mode 0 (0,0) Output Timing

CS# t

WH

SCK t

HO t

V

SO t

HO t

V t

WL

LSB OUT t

DIS

Figure 16.3 HOLD# Timing

CS#

SCK t

CH t

HD t

HZ t

CD t

HC t

LZ

SO

SI

HOLD#

S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

W#

Figure 16.4 Write Protect Setup and Hold Timing during WRSR when SRWD=1 t

WPS t

WPH

CS#

SCK

SI

SO

Hi-Z

February 27, 2009 S25FL016A_00_C4 S25FL016A 31

D a t a S h e e t

17. Physical Dimensions

17.1

SOC008 wide—8-pin Plastic Small Outline Package (208 mils Body Width)

A

3

D

4

5

0.20 C A-B

D

SEE

DETAIL B

9

H

WITH

PLATING b1

3

E1

4

E1/2

E/2

E c

BASE

METAL

(b)

7

SECTION A-A c1

A

A2

PACKAGE

JEDEC

A1

c e

A1

B

SOC 008 (inches) SOC 008 (mm)

0.002 0.0098 0.051 0.249

A2 0.067 0.075 1.70 1.91

b 0.014

0.0075

E 0.315 BSC 8.001 BSC e .050 BSC 1.27 BSC

L

N

0.020

5

8 8

θ 0˚ 8˚ 0˚ 8˚

θ1 5˚ 15˚ 5˚ 15˚

θ2

0˚ 0˚ b

0.25

M C

0.10

C

C

A-B

0.33 C

D

0.10

C

SEATING PLANE

C

H q 1

L1

L

DETAIL B

A

A q 2

0.07 R MIN.

GAUGE

PLANE

SEATING

PLANE

L2 q

NOTES:

1. ALL DIMENSIONS ARE IN BOTH INCHES AND MILLMETERS.

2. DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994.

3. DIMENSION D DOES NOT INCLUDE MOLD FLASH,

PROTRUSIONS OR GATE BURRS. MOLD FLASH,

PROTRUSIONS OR GATE BURRS SHALL NOT EXCEED 0.15 mm

.

PER END. DIMENSION E1 DOES NOT INCLUDE INTERLEAD

FLASH OR PROTRUSION INTERLEAD FLASH OR PROTRUSION

SHALL NOT EXCEED 0.25 mm PER SIDE. D AND E1

DIMENSIONS ARE DETERMINED AT DATUM H.

4. THE PACKAGE TOP MAY BE SMALLER THAN THE PACKAGE

BOTTOM. DIMENSIONS D AND E1 ARE DETERMINED AT THE

OUTMOST EXTREMES OF THE PLASTIC BODY EXCLUSIVE OF

MOLD FLASH, TIE BAR BURRS, GATE BURRS AND INTERLEAD

FLASH. BUT INCLUDING ANY MISMATCH BETWEEN THE TOP

AND BOTTOM OF THE PLASTIC BODY.

5. DATUMS A AND B TO BE DETERMINED AT DATUM H.

6. "N" IS THE MAXIMUM NUMBER OF TERMINAL POSITIONS FOR

THE SPECIFIED PACKAGE LENGTH.

7. THE DIMENSIONS APPLY TO THE FLAT SECTION OF THE LEAD

BETWEEN 0.10 TO 0.25 mm FROM THE LEAD TIP.

8. DIMENSION "b" DOES NOT INCLUDE DAMBAR PROTRUSION.

ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.10 mm TOTAL

IN EXCESS OF THE "b" DIMENSION AT MAXIMUM MATERIAL

CONDITION. THE DAMBAR CANNOT BE LOCATED ON THE

LOWER RADIUS OF THE LEAD FOOT.

9. THIS CHAMFER FEATURE IS OPTIONAL. IF IT IS NOT PRESENT,

THEN A PIN 1 IDENTIFIER MUST BE LOCATED WITHIN THE INDEX

AREA

10. LEAD COPLANARITY SHALL BE WITHIN 0.10 mm AS MEASURED

FROM THE SEATING PLANE.

3432 \ 16-038.03 \ 10.28.04

32 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

17.2

SO3 016 wide—16-pin Plastic Small Outline Package (300-mil Body Width)

PACKAGE SO3 016 (inches)

JEDEC MS-013(D)AA

SYMBOL

A

MIN

0.093

MAX

0.104

A1

A2 b b1

0.004

0.081

0.012

0.011

0.012

0.104

0.020

0.019

SO3 016 (mm)

MS-013(D)AA

MIN

2.35

MAX

2.65

0.10

2.05

0.31

0.27

0.30

2.55

0.51

0.48

c c1

0.008

0.008

0.013

0.012

0.20

0.20

0.33

0.30

D 0.406 BSC 10.30 BSC

E 0.406 BSC 10.30 BSC

E1 0.295 BSC 7.50 BSC e .050 BSC 1.27 BSC

L 0.016

0.050

0.40

L1 .055 REF 1.40 REF

1.27

L2 .010 BSC 0.25 BSC

N 16 16 h

θ

θ1

θ2

0.10

0.30

15˚

0.25

0˚ 0˚

0.75

15˚

NOTES:

1.

ALL DIMENSIONS ARE IN BOTH INCHES AND MILLMETERS.

2. DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994.

3.

.

DIMENSION D DOES NOT INCLUDE MOLD FLASH,

PROTRUSIONS OR GATE BURRS. MOLD FLASH,

PROTRUSIONS OR GATE BURRS SHALL NOT EXCEED 0.15 mm

PER END. DIMENSION E1 DOES NOT INCLUDE INTERLEAD

FLASH OR PROTRUSION INTERLEAD FLASH OR PROTRUSION

SHALL NOT EXCEED 0.25 mm PER SIDE. D AND E1

DIMENSIONS ARE DETERMINED AT DATUM H.

4. THE PACKAGE TOP MAY BE SMALLER THAN THE PACKAGE

BOTTOM. DIMENSIONS D AND E1 ARE DETERMINED AT THE

OUTMOST EXTREMES OF THE PLASTIC BODY EXCLUSIVE OF

MOLD FLASH, TIE BAR BURRS, GATE BURRS AND INTERLEAD

FLASH. BUT INCLUDING ANY MISMATCH BETWEEN THE TOP

AND BOTTOM OF THE PLASTIC BODY.

5. DATUMS A AND B TO BE DETERMINED AT DATUM H.

6. "N" IS THE MAXIMUM NUMBER OF TERMINAL POSITIONS FOR

THE SPECIFIED PACKAGE LENGTH.

7. THE DIMENSIONS APPLY TO THE FLAT SECTION OF THE LEAD

BETWEEN 0.10 TO 0.25 mm FROM THE LEAD TIP.

8. DIMENSION "b" DOES NOT INCLUDE DAMBAR PROTRUSION.

ALLOWABLE DAMBAR PROTRUSION SHALL BE 0.10 mm TOTAL

IN EXCESS OF THE "b" DIMENSION AT MAXIMUM MATERIAL

CONDITION. THE DAMBAR CANNOT BE LOCATED ON THE

LOWER RADIUS OF THE LEAD FOOT.

9. THIS CHAMFER FEATURE IS OPTIONAL. IF IT IS NOT PRESENT,

THEN A PIN 1 IDENTIFIER MUST BE LOCATED WITHIN THE INDEX

AREA INDICATED.

10. LEAD COPLANARITY SHALL BE WITHIN 0.10 mm AS MEASURED

FROM THE SEATING PLANE.

3601 \ 16-038.03 \ 8.31.6

February 27, 2009 S25FL016A_00_C4 S25FL016A 33

D a t a S h e e t

17.3

WSON 8-contact (6 x 8 mm) No-Lead Package

N

D A

B

(DATUM A)

PIN #1 ID

R0.20

1 2

D2

D2/2

NX L

E

9.

E2/2

E2

0.30 DIA TYP.

8.

2X

0.10

C

1

2X

0.10

C

0.10

C

9.

0.05

C

SEATING PLANE

A

A1

2

TOP VIEW

SIDE VIEW

C

DATUM A

N

N-1 e

(ND-1) X e

5.

BOTTOM VIEW

K

NX b

4.

M

M

C

C

A B

SEE DETAIL "A"

L e/2 e

DETAIL "A"

SYMBOL e

N

ND

L b

D2

E2

D

E

A

A1

L1

θ

K

QUAD FLAT NO LEAD PACKAGES (WSNB) - PLASTIC

MIN

0.45

0.35

4.70

6.30

0.70

0.00

0

DIMENSIONS

NOM

1.27 BSC

8

4

0.50

0.40

4.80

6.40

6.00 BSC

8.00 BSC

0.75

0.02

0.15 MAX.

---

0.20 MIN.

MAX

0.55

0.45

4.90

6.50

0.80

0.05

12

NOTE

3

5

4

10

2

L1

10.

TERMINAL TIP

4.

NOTES:

1. DIMENSIONING AND TOLERANCING CONFORMS TO

ASME Y14.5M-1994.

2. ALL DIMENSIONS ARE IN MILLIMETERS, SYM

θ IS IN DEGREES.

3. N IS THE TOTAL NUMBER OF TERMINALS.

4. DIMENSION b APPLIES TO METALLIZED TERMINAL AND IS

MEASURED BETWEEN 0.15 AND 0.30 mm FROM TERMINAL TIP.

IF THE TERMINAL HAS THE OPTIONAL RADIUS ON THE OTHER

END OF THE TERMINAL, THE DIMENSION b SHOULD NOT BE

MEASURED IN THAT RADIUS AREA.

5.

ND REFERS TOT HE NUMBER OF TERMINALS ON D SIDE.

6.

MAXIMUM PACKAGE WARPAGE IS 0.05 mm.

7.

MAXIMUM ALLOWABLE BURRS IS 0.076 mm IN ALL DIRECTIONS.

8.

PIN #1 ID ON TOP WILL BE LASER MARKED.

9.

BILATERAL COPLANARITY ZONE APPLIES TO THE EXPOSED

HEAT SINK SLUG AS WELL AS THE TERMINALS.

10. A MAXIMUM 0.15 mm PULL BACK (L1) MAY BE PRESENT.

3408\ 16-038.28a

34 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

18. Revision History

Section

Revision A (July 13, 2004)

Global

Revision A1 (September 13, 2004)

Connection Diagrams

Ordering Information Table

Revision A2 (December 16, 2004)

Read Identification (RDID)

Revision A3 (March 3, 2005)

Ordering Information

Read Identification (RDID)

Revision A4 (March 29, 2005)

DC Characteristics

Global

Revision A5 (June 21, 2005)

Distinctive Characteristics

Ordering Information

Valid Combination Table

Power-up and Power-down section

DC Characteristics

AC Characteristics

Revision A6 (December 21, 2005)

Global

Ordering Information

Valid Combination Table

Revision B0 (April 18, 2005)

Global

AC Characteristics table

Revision B1 (June 29, 2006)

DC Characteristics

Revision C0 (August 28, 2006)

Global

Revision C1 (February 16, 2007)

Global

Absolute Maximum Ratings

Revision C2 (June 29, 2007)

Device Operations

Revision C3 (January 7, 2008)

Ordering Information

Revision C4 (February 27, 2009)

Global

Initial release.

Description

Added the WSON 6x8mm pin out.

Changed OPN to reflect Device technology identification change from M to A for CS99S MirrorBit technology.

Changed memory capacity of the device in the second byte from 14h to 15h.

Added new commercial temperature range. Updated package and temperature, and package marking information. Added note on standard package A and Pb-free package F information.

Updated memory capacity of the device in the second byte from 15h to 14h.

Updated table.

Removed Commercial temperature range.

Updated Page Program speed. Update Deep Power Down Mode time. Update timing numbers.

Added Tray to packing type.

Updated Packing Type.

Updated this section. Removed Figure 19. Updated Table 7 Power-up Timing.

Added and updated values in Table 8.

Updated Figure 21.

Added 8-pin SO package to Distinctive Characteristics, Connection Diagram, and Ordering

Information, and Physical Dimensions sections.

Added Tray to packing type.

Updated.

Changed document status from Advance Information to Preliminary. Changed title from family of devices to specific device.

Updated t

W

specifications.

Changed typical and maximum specifications for I

CC2

.

Rewrote entire document for better flow and clarity. No specifications were changed.

Deleted Preliminary status from document.

Added overshoot and undershoot information.

Added sentence to Byte or Page Programming

Added Tray packing option for 8-pin and 16-pin SOIC packages.

Added obsolescence information to Cover Sheet, Distinctive Characteristics, and Ordering

Information sections of data sheet.

February 27, 2009 S25FL016A_00_C4 S25FL016A 35

D a t a S h e e t

36 S25FL016A S25FL016A_00_C4 February 27, 2009

D a t a S h e e t

Colophon

The products described in this document are designed, developed and manufactured as contemplated for general use, including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured as contemplated (1) for any use that includes fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2) for any use where chance of failure is intolerable (i.e., submersible repeater and artificial satellite). Please note that Spansion will not be liable to you and/or any third party for any claims or damages arising in connection with above-mentioned uses of the products. Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other abnormal operating conditions. If any products described in this document represent goods or technologies subject to certain restrictions on export under the Foreign Exchange and Foreign Trade Law of Japan, the US Export Administration Regulations or the applicable laws of any other country, the prior authorization by the respective government entity will be required for export of those products.

Trademarks and Notice

The contents of this document are subject to change without notice. This document may contain information on a Spansion product under development by Spansion. Spansion reserves the right to change or discontinue work on any product without notice. The information in this document is provided as is without warranty or guarantee of any kind as to its accuracy, completeness, operability, fitness for particular purpose, merchantability, non-infringement of third-party rights, or any other warranty, express, implied, or statutory. Spansion assumes no liability for any damages of any kind arising out of the use of the information in this document.

Copyright © 2004-2009 Spansion Inc. All rights reserved. Spansion

®

, the Spansion Logo, MirrorBit

®

, MirrorBit

®

Eclipse

, ORNAND

,

ORNAND2

, HD-SIM

, EcoRAM

and combinations thereof, are trademarks of Spansion LLC in the US and other countries. Other names used are for informational purposes only and may be trademarks of their respective owners.

February 27, 2009 S25FL016A_00_C4 S25FL016A 37

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
