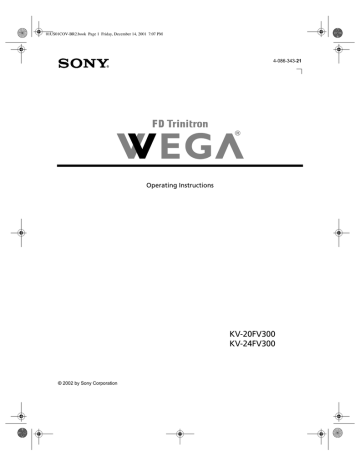

01US01COV-BR2.book Page 1 Friday, December 14, 2001 7:07 PM
Connecting Additional Equipment
4-086-343-21
Operating Instructions
KV-20FV300
KV-24FV300
© 2002 by Sony Corporation
01US01COV-BR2.book Page 2 Friday, December 14, 2001 7:07 PM
01US01COV-BR2.book Page 3 Friday, December 14, 2001 7:07 PM
Connecting Additional Equipment
WARNING
To reduce the risk of fire or electric shock, do not expose the
TV to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
You are cautioned that any changes or
modifications not expressly approved in this manual
could void your authority to operate this equipment.
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference with radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antennas.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Protecting the TV
To prevent internal heat build-up, do not block the
ventilation openings.
Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
Note to the CATV Installer
Note on Caption Vision
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of
cable entry as practical.
This television receiver provides display of television closed
captioning in accordance with
§ 15.119 of the FCC rules.
Use of this television for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster-cable company and/or
program owner.
SAFETY PRECAUTIONS
Operate the TV only on 120 V AC.
One blade of the power plug is wider than the other for
safety purposes and will fit into the power outlet only one
way. If you are unable to insert the plug fully into the
outlet, contact your dealer.
If any liquid or solid object falls into the TV, unplug it and
have it checked by qualified personnel before operating it
further.
CAUTION
When using TV games, computers, and similar products
with your TV, keep the brightness and contrast functions at
low settings. If a fixed (non-moving) pattern is left on the
screen for long periods of time at a high brightness or
contrast setting, the image can be permanently imprinted
onto the screen. Continuously watching the same channel
can cause the imprint of station logos onto the TV screen.
These types of imprints are not covered by your warranty
because they are the results of misuse.
To reduce the risk of electric shock, do not use
this polarized plug with an extension cord,
receptacle, or other outlet unless the blades can
be fully inserted to prevent blade exposure.
Owner’s Record
The model and serial numbers are located on the front cover
of this manual and at the rear of your TV.
Trademarks and Copyrights
ENERGY STAR® is a registered mark.
As an ENERGY STAR® Partner, Sony has
determined that this product or product
model meets the ENERGY STAR® guidelines
for energy efficiency.
Licensed by BBE Sound, Inc. under USP 4638258.4482866. BBE
and BBE symbol are trademarks of BBE Sound, Inc.
®
WOW and the (
) symbol are trademarks of SRS Labs, Inc.
WOW technology is incorporated under license from SRS Labs, Inc
01US02REG-BR.fm Page 4 Monday, December 17, 2001 10:58 AM
User Guide
Important Safeguards
For your protection, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings, cautions
and instructions placed on the set, or described in the
operating instructions or service manual.
WARNING
To guard against injury, the following basic safety
precautions should be observed in the installation, use, and
servicing of the set.Use
Use
Power Sources
This set should be operated only
from the type of power source
indicated on the serial/model
plate. If you are not sure of the type
of electrical power supplied to your
home, consult your dealer or local
power company. For those sets
designed to operate from battery
power, refer to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug
(a plug having one blade wider than the other), or with a
three-wire grounding type plug (a plug having a third pin
for grounding).
Refer to the following instructions:
For the set with a polarized AC power cord plug
This plug will fit into the power
outlet only one way. This is a
safety feature. If you are unable to
insert the plug fully into the
outlet, try reversing the plug. If
the plug still fails to fit, contact
your electrician to have a suitable outlet installed. Do not
defeat the safety purpose of the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire grounding type AC plug
Do not disconnect the antenna or the power cord during a
heavy storm. Lightning may strike while you are holding
the cable or cord, causing serious injury. Turn off your TV
and wait for the weather to improve.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may
touch dangerous voltage points or short
out parts that could result in a fire or
electric shock. Never spill liquid of any
kind on the set.
Attachments
Do not use attachments not
recommended by the manufacturer, as
they may cause hazards.
Do not place any objects, especially
heavy objects, on top of the set. The
object may fall from the set, causing
injury.
Cleaning
Unplug the set from the wall outlet
before cleaning or polishing it. Do not
use liquid cleaners or aerosol cleaners.
Use a cloth lightly dampened with
water for cleaning the exterior of the set.
If a snapping or popping sound from a
TV set is continuous or frequent while the TV
is operating, unplug the TV and consult your
dealer or service technician. It is normal for
some TV sets to make occasional snapping or
popping sounds, particularly when being
turned on or off.
Installation
Always use two or more people to lift or move the set. The
set is heavy and the bottom surface is flat. Serious injury can
result from trying to move the set by yourself alone, or from
unsteady handling.
Install the set on a stable, level surface.
Water and Moisture
This plug will only fit into a
grounding-type power outlet.
This is a safety feature. If you are
unable to insert the plug into the
outlet, contact your electrician to
have a suitable outlet installed.
Do not defeat the safety purpose
of the grounding plug.
Do not use powerline operated sets
near water — for
example, near a
bathtub, washbowl,
kitchen sink, or
laundry tub, in a wet
basement, or near a
swimming pool, etc.
Overloading
Accessories
Do not
overload wall
outlets,
extension
cords or
convenience
receptacles
beyond their
capacity, since this can result in fire or electric shock.
Always turn the set off when it is not to be used. When the
set is left unattended and unused for long periods of time,
unplug it from the wall outlet as a precaution against the
possibility of an internal malfunction that could create a fire
hazard.
Do not place the set on an unstable cart, stand, tripod,
bracket, table, or shelf. The set may fall, causing serious
injury to a child or an adult, and serious damage to the set.
Use only a cart or stand recommended by the manufacturer
for the specific model of TV. Any mounting of the product
should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the
manufacturer. An appliance and cart combination should be
moved with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination to
overturn.
01US02REG-BR.fm Page 5 Monday, December 17, 2001 10:05 AM
Connecting Additional Equipment
Ventilation
Antenna Grounding According to the NEC
The slots and openings in the cabinet and in the back or
bottom are provided for necessary ventilation. To ensure
reliable operation of the set, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
•
Never cover the slots and openings
with a cloth or other materials.
Antenna Grounding According to the National Electrical
Code, ANSI/NFPA 70.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
•
•
•
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
Never block the slots and
openings by placing the set on a
bed, sofa, rug or other similar
surface.
Never place the set in a confined
space, such as a bookcase or built-in
cabinet, unless proper ventilation is
provided.
Do not place the set near or over a
radiator or heat register, or where it is
exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll over
the power cord, and do not place the set where
the power cord is subject to wear or abuse.
Grounding or Polarization
This set may be equipped with a polarized
alternating current line plug (a plug
having one blade wider than other). This plug will fit into
the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug still fails to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
ELECTRIC
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRIC CODE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ARTICLE 250, PART H)
Lightning
For added protection for this television receiver during a
lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the
receiver due to lightning and power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
•
When the power cord or
plug is damaged or frayed.
•
If liquid has been spilled
into the set or objects have
fallen into the product.
•
If the set has been exposed to
rain or water.
•
If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
•
If the set does not operate
normally when following the operating
instructions. Adjust only those controls
that are specified in the operating
instructions. Improper adjustment of
other controls may result in damage
and will often require extensive work
by a qualified technician to restore the
set to normal operation.
When the set exhibits a distinct change in
performance — this indicates a need for service.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such
power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA
SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP
FROM CONTACTING SUCH POWER LINES OR
CIRCUITS AS CONTACT WITH THEM IS ALMOST
INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges. Section 810 of the National Electrical Code (NEC)
in USA and Section 54 of the Canadian Electrical Code in
Canada provides information with respect to proper
grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for
the grounding electrode.
•
01US01COV-BR2.book Page 6 Friday, December 14, 2001 7:07 PM
User Guide
Servicing
Do not attempt to service the set
yourself since opening the cabinet may
expose you to dangerous voltage or
other hazards. Refer all servicing to
qualified service personnel.
Replacement Parts
When replacement parts are required,
be sure the service technician certifies
in writing that he has used
replacement parts specified by the
manufacturer that have the same
characteristics as the original parts.
Unauthorized substitutions may
result in fire, electric shock, or other
hazards.
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
01US01COV-BR2TOC.fm Page 1 Monday, December 17, 2001 10:10 AM
Contents
Introduction
®
Introducing the FD Trinitron WEGA Features .................................................1
Batteries for the Remote Control ..........................................................................2
About this Manual ..................................................................................................2
Front Panel Menu Controls ...................................................................................2
Connecting Your TV
TV Rear Panel ..........................................................................................................3
Basic Connections ...................................................................................................4
Connecting Additional Equipment ......................................................................5
Using the Remote Control and Basic Functions
Using the Remote Control ................................................................................... 13
Setting Up the TV Automatically ....................................................................... 14
Quick Start to the Menus ..................................................................................... 15
Using the Menus
To Access a Menu.................................................................................................. 17
Using the Video
Menu .................................................................................. 18
Picture Controls Menu ......................................................................................... 19
Using the Audio
Menu ................................................................................ 20
Options Menu ........................................................................................................ 21
Using the Channel Setup
Menu.................................................................. 22
Parental Control .................................................................................................... 24
Using the Parental Control
Menu .............................................................. 27
Using the Timer
Menu................................................................................. 30
Using the Setup
Menu ................................................................................. 31
Other Information
Programming the Remote Control .....................................................................32
Troubleshooting ....................................................................................................35
Specifications .........................................................................................................37
Index .............................................................................................................................38
01US01COV-BR2.book Page 2 Friday, December 14, 2001 7:07 PM
User Guide
01US01COV-BR2.book Page 1 Friday, December 14, 2001 7:07 PM
Introduction
Introduction
Congratulations on your purchase of the Sony FD Trinitron WEGA ® . Before you begin using
this manual, please check the model number located on the rear of your TV or on the front
cover of this manual.
®
Introducing the FD Trinitron WEGA Features
Some of the features you will enjoy include:
FD Trinitron FLAT CRT — Technologically advanced tube delivers a picture with
uncompromising accuracy and outstanding image detail.
Y, PB, PR Inputs — A component video input connection for a superior picture quality.
WOW — Provides a dramatic presence with a full, deep bass sound. When WOW is
enabled, BBE is directly activated to further enhance the audio program.
Parental Control (V-Chip)— A tool to help parents monitor what their children watch on
TV by establishing rating limits.
Favorite Channel — Instant access to your favorite channels with the touch of a button.
XDS Banner — A new convenient feature that displays the name and the remaining time
of the current program viewed, if available.
Universal Remote Control — Program your remote control to operate your connected
cable box, VCR, digital satellite receiver, or DVD player.
Energy Star® — Meets the Energy Star guidelines for energy efficiency.
Direct MTS — Allows direct access to your Multi-Channel TV Sound: Stereo, Mono, or
Auto SAP (Second Audio Program), with the touch of a button.
Trilingual Menus — Choose between English, French, or Spanish menus.
Front Panel Controls — Allows access to the on-screen menus without the use of a remote
control.
Front A/V Inputs — A quick connection for video games, camcorders, stereo/mono
equipment, or headphones.
Auto Mute — A friendly feature designed to automatically mute your TV when no signal
is received.
1
01US03GET-BR.fm Page 2 Monday, December 17, 2001 10:14 AM
Operating Instructions
Batteries for the Remote Control
Insert two AA (R6) batteries (supplied) into the remote control using the following illustration
as a guide.
Under normal conditions, batteries will last up to six months. If the remote control does
not operate properly, the batteries might be worn out.
If you will not be using the remote control for an extended period of time, remove the
batteries to avoid possible damage from battery leakage.
About this Manual
This manual provides instructions to help you enjoy your new TV. It shows you how to
connect to an antenna or cable, cable box, VCR, DVD, satellite receiver, stereo system, or
camcorder. Once you’re connected, follow the instructions and use the remote control to
access the on-screen menus.
Front Panel Menu Controls
F
F
The front Audio/Video panel controls allows you to access the menu without the remote
control. Press
to display the on-screen menu. Use the
and
buttons on the front
button
Audio/Video panel instead of the F and f buttons on the remote control. Use the
buttons on the remote control.
on the front Audio/Video panel instead of the G, g, and
Press
again when the setting or adjustment is complete.
To navigate the menus with your remote control, see “Using the Menus” on page 17.
2
01US04BAS-BR.fm Page 3 Monday, December 17, 2001 10:15 AM
Connecting Your TV
Connecting Your TV
Read this section before setting up your TV for the first time. This section covers basic
connections in addition to any optional equipment you may be connecting.
TV Rear Panel
1
4
2
3
5
Jack
Description
1 S VIDEO
Connects to the S VIDEO OUT jack on your VCR or other video
equipment that has S VIDEO. S VIDEO provides better picture
quality than the VHF/UHF jacks or the video input jack. S VIDEO
does not provide sound; the audio cables must still be connected.
2 VHF/UHF
Connects to your VHF/UHF antenna or cable.
3 VIDEO
/AUDIO (L/R)
Connects to the AUDIO and VIDEO output jacks on your VCR or
other video equipment. A Second video input jack (VIDEO 2) is
located on the front panel of the TV. These AUDIO/VIDEO input
jacks provide better picture quality than the VHF/UHF jack.
4 Y, PB, PR/
L, R
Connects to the component video Y, PB, PR to AUDIO L and R
output jacks on your DVD player or Digital Set-top box.
5 AUDIO OUT
(VAR/FIX)
L(MONO)/R
Connects to the AUDIO L and R input jacks on your audio or
video equipment. You can listen to your TV’s audio through your
stereo system.
3
01US01COV-BR2.book Page 4 Friday, December 14, 2001 7:07 PM
Operating Instructions
Basic Connections
TV with indoor or outdoor antenna, or CATV cable
Depending on the cable available in your home, choose one of the connections below:
If you are connecting to an indoor or outdoor antenna, you may need to adjust the
orientation of the antenna for best reception.
4
01US01COV-BR2.book Page 5 Friday, December 14, 2001 7:07 PM
Connecting Your TV
Connecting Additional Equipment
TV and VCR
Rear of TV
2
VCR
1
Video (yellow)
Audio L (white)
Audio R (red)
From
cable/antenna
Optional connection
To watch video programs from your VCR, tune your TV to channel 3 or 4 (as set on the rear
of your VCR).
1
Connect the coaxial cable from your TV antenna or cable service to the IN jack on your
VCR.
2
Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
Optional connection
If your VCR is equipped with video outputs, you can get better picture quality by connecting
Audio/Video cables (not supplied) from AUDIO and VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
You can use the button to switch between the VHF/UHF and VIDEO inputs.
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
5
01US04BAS-BR.fm Page 6 Monday, December 17, 2001 10:23 AM
Operating Instructions
TV and Cable Box
Cable Box
1
From
cable
2
Coaxial
Cable
Rear of TV
1
2
Connect the coaxial cable from your cable service to the IN jack on your cable box.
Connect a coaxial cable (not supplied) from the OUT jack on your cable box to the
VHF/UHF jack on the TV.
To view channels from your cable box, tune your TV to channel 3 or 4 (as set on the rear
panel of your cable box) and use the cable box’s remote control to change channels.
If you will be controlling all channel selection through your cable box, you should consider
using the Channel Fix feature by setting your TV to channnel 3 or 4 (see page 22).
6
01US04BAS-BR.fm Page 7 Monday, December 17, 2001 10:24 AM
Connecting Your TV
TV, VCR, and Cable Box
Rear of TV
3
VCR
Video (yellow)
Audio L (white)
Audio R (red)
2
Cable Box
Optional connection
1
From
cable
1
2
Connect the coaxial cable from your cable service to the IN jack on your cable box.
3
Connect a coaxial cable (not supplied) from the OUT jack on your VCR to the VHF/UHF
jack on the TV.
Connect a coaxial cable (not supplied) from the OUT jack on your cable box to the IN jack
on your VCR.
Ifusing
you will be controlling all channel selection through your cable box, you should consider
the Channel Fix feature by setting your TV to channel 3 or 4 (see page 22).
Optional connection
If your VCR is equipped with video outputs, you can get better picture quality by connecting
Audio/Video cables (not supplied) from AUDIO and VIDEO OUT on your VCR to
AUDIO/VIDEO IN on your TV.
You can use the button to switch between the VHF/UHF and VIDEO inputs.
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
7
01US01COV-BR2.book Page 8 Friday, December 14, 2001 7:07 PM
Operating Instructions
TV and Satellite Receiver
From
cable/
antenna
Rear of TV
2
Satellite Receiver
1
Satellite
antenna
cable
Video (yellow)
Audio L (white)
Audio R (red)
3
1
2
Connect the cable from your satellite antenna to SATELLITE IN on your satellite receiver.
3
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your
satellite receiver to AUDIO and VIDEO IN on your TV.
Connect the coaxial cable from your cable service or antenna to the VHF/UHF jack on
your TV.
You can use the button to switch between the VHF/UHF and VIDEO inputs.
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
8
01US01COV-BR2.book Page 9 Friday, December 14, 2001 7:07 PM
Connecting Your TV
TV, Satellite Receiver, and VCR
Satellite
antenna
cable
4
From
cable/
antenna
1
Rear of TV
2
VCR
Satellite Receiver
3
Video (yellow)
Audio L (white)
Audio R (red)
5
1
2
3
Connect the cable from your satellite antenna to SATELLITE IN on the satellite receiver.
4
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your
satellite receiver to AUDIO and VIDEO IN on your VCR.
5
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your VCR
to AUDIO and VIDEO IN on your TV.
Connect the coaxial cable from your cable service or antenna to the IN jack on your VCR.
Using a coaxial cable (not supplied), connect the OUT jack on your VCR to the VHF/UHF
jack on your TV.
To view from the satellite receiver or VCR, select the video input to which your satellite
receiver or VCR is connected by pressing
on the remote control.
9
01US01COV-BR2.book Page 10 Friday, December 14, 2001 7:07 PM
Operating Instructions
Connecting a DVD Player
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your DVD
player to AUDIO and VIDEO IN on your TV.
Rear of TV
Rear of DVD Player
Video (yellow)
Audio L (white)
Audio R (red)
For better picture quality, use S VIDEO instead of the yellow Audio/ Video cable. S VIDEO
does not provide sound; the audio cables must still be connected.
Optional connection
If your DVD player is equipped with component video outputs (Y, PB, PR), you can optimize
the picture quality by using component video cables.
Rear of TV
Rear of DVD Player
Y (black and white)
PB (blue)
PR (red)
Audio L (white)
Audio R (red)
1
Using component video cables (not supplied), connect the Y, PB, PR OUT on your DVD
player to Y, PB, PR IN on your TV.
2
Connect AUDIO OUT on your DVD player to AUDIO IN on your TV.
The Y, P , P outputs on your DVD player are sometimes labeled Y, C , and C or Y, B-Y, and
B
R
R-Y. If so, connect the cables to like colors.
10
B
R
01US01COV-BR2.book Page 11 Friday, December 14, 2001 7:07 PM
Connecting Your TV
Connecting a Camcorder
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO OUT on your
camcorder to AUDIO and VIDEO IN on your TV.
Front A/V Panel
F
Front A/V Panel
F
Audio R (red)
Audio L (white)
Video (yellow)
A/V output
Connecting Headphones
Connect the headphones to the
jack on the front of your TV. Headphone jack is STEREO.
Front A/V Panel
11
01US01COV-BR2.book Page 12 Friday, December 14, 2001 7:07 PM
Operating Instructions
Using the Remote Control and Basic
Functions
This section shows you how to use the more advanced buttons on the remote control and how
to use the on-screen menus.
1
qz
2
qs
3
qd
qf
4
5
qg
qh
qj
6
7
qk
ql
8
w;
9
wz
0
12
01US05ADV-BR.fm Page 13 Monday, December 17, 2001 10:34 AM
Using the Remote Control and Basic Functions
Using the Remote Control
1 MUTING
2 SYSTEM OFF
3 TV/VCR
4 PICTURE MODE
5 SLEEP
6 JUMP
7
8 RESET
9 VOL (volume)
0 CODE SET
qa POWER
qs FUNCTION
qd VCR/DVD
(operating)
qf TV/VIDEO
qg DISPLAY
qh MTS/SAP
qj
0
9
and ENTER
qk GUIDE
ql
w; MENU
wa CH (channel)
Instantly turns off the sound. Press again or press
to restore the
sound.
Powers off all Sony equipment at once (may not work with older
equipment).
Press when you are finished using a VCR and you want to switch to
the TV Antenna input. Your VCR power will remain on.
Cycles through the available Video Mode settings.
Turns the TV off automatically in approximately 15, 30, 45, 60 or 90
minutes. Cancel by pressing until SLEEP OFF appears.
Press to jump back and forth between two channels. The TV
alternates between current channel and the last channel that was
selected.
Press for a direct selection of Effect settings (Simulated, WOW, SRS,
Off) (see page 20).
Press to return to factory settings while in an on-screen menu.
Press when you want to adjust the volume.
Use to program your remote control to operate connected video
equipment (see page 32).
Press when you want to turn connected equipment on or off.
Press when you want to control connected equipment with your
remote control.
Operates VCR or DVD. Use when you want to operate connected
VCR or DVD with your remote control.
Cycles through available video inputs.
Press once to show current time (if set) and channel number. Press
again to turn DISPLAY off.
Cycles through the Multi-channel TV Sound (MTS) options: Stereo,
Mono, and Auto SAP (Second Audio Program).
Change the channels directly. Press 0 9 buttons to select a
channel, then press ENTER.
Brings up the custom guide of your satellite receiver.
Moves the cursor in the on-screen menus. Press the arrow buttons to
move the cursor. Press the center button to select or access an option.
Displays the on-screen menu. Press again to exit the menu at any
time.
Press when you want to change channels.
If you lose your remote control, see page 36.
13
01US01COV-BR2.book Page 14 Friday, December 14, 2001 7:07 PM
Operating Instructions
Setting Up the TV Automatically
After you have finished connecting your TV, you can perform Auto Program to set up your
channels.
1
Press
to turn on the TV. The Initial Setup screen appears.
TV
Initial Setup
First please connect
cable / antenna
[CH+]
[CH–]
Auto Program
Exit
2
Press
press
on the remote control or on the TV front panel to perform Auto Program, or
to exit.
The Initial Setup screen appears each time you turn on the TV until you perform Auto
Program.
To perform Auto Program again
1
2
3
4
5
Press
.
Press g to highlight Channel Setup (
Press f to highlight Cable. Press
).
to select.
Press F or f to select On or Off according to how you connected your TV. Press
Press f to highlight Auto Program. Press
After performing Auto Program, press
14
to search for channels.
to exit.
.
01US01COV-BR2.book Page 15 Friday, December 14, 2001 7:07 PM
Using the Remote Control and Basic Functions
Quick Start to the Menus
The following settings are available in your on-screen menus:
Menu
Allows you to
Video : Vivid
Brightness
Color
Hue
Sharpness
Color Temp. : Cool
VM : High
Video
Mode : Vivid
Picture Controls
Move
Select
End
Return
Select
End
Make adjustments to your picture settings.
Options
Audio
Treble
Bass
Balance
Steady Sound : Off
Effect : Off
Options
Move
Select
MTS : Stereo
Speaker : On
Audio Out : Fixed
End
Return
Select
End
Change your audio settings.
Channel Setup
Favorite Channels
Cable : On
Channel Fix : Off
Auto Program
Channel Skip/Add
Channel Label
Move
Select
End
Customize your channel settings.
15
01US01COV-BR2.book Page 16 Friday, December 14, 2001 7:07 PM
Operating Instructions
Menu
Allows you to
Parental Control
Password :
Move
Select
End
Set rating limits on your TV based on a
program’s rating or content.
End
Set the clock on your TV and program
scheduled viewing using Timer 1 and
Timer 2.
End
Select captioning options, label video
inputs, adjust tilt correction, select menu
languages, or run a demo of the menus.
Timer
Timer 1 : Set
Timer 2 : Set
Current Time
Move
Select
Setup
Caption Vision : Off
Video Label
Tilt Correction
Language : English
Demo
Move
16
Select
01US01COV-BR2.book Page 17 Friday, December 14, 2001 7:07 PM
Operating Instructions
Using the Menus
This section shows the options available for setting up and adjusting your TV.
To Access a Menu
1
2
3
4
Press
5
Press
to display the on-screen menu.
Use the G or g buttons to highlight the desired menu, then press
Use the F or f buttons to highlight the desired option, then press
.
.
Press
to complete the adjustment or follow the instructions that will appear on your
screen to activate the desired option.
to exit the menu.
Press
once to display the on-screen menu, and press again to return to normal
viewing. If no buttons are pressed, the menu closes automatically after about 90 seconds.
17
01US01COV-BR2.book Page 18 Friday, December 14, 2001 7:07 PM
Using the Menus
Using the Video
Menu
To access the Video menu, refer to the following steps:
To Display
To Select
Video
Mode : Vivid
Picture Controls
Move
Mode
Customized
picture viewing
Press
18
Select
Vivid: Select for enhanced picture contrast and sharpness.
Movie: Select for a finely detailed picture.
Sports: Select for a bright picture.
Standard: Select for a standard picture.
for direct Mode settings (Vivid, Movie, Sports, Standard).
End
01US01COV-BR2.book Page 19 Friday, December 14, 2001 7:07 PM
Operating Instructions
Picture Controls Menu
To access the Picture Controls menu, first open the Video menu by referring to
the following steps:
To Display
To Select
Press f to highlight Picture Controls, then press g.
Video : Vivid
Brightness
Color
Hue
Sharpness
Color Temp. : Cool
VM : High
Return
Select
End
Controls
With the Picture Controls menu open:
Picture:
Press G to decrease the contrast. Press g to increase contrast.
Brightness:
Press G to darken the picture. Press g to brighten the picture.
Color:
Press G to decrease color saturation. Press g to increase color saturation.
Hue:
Press G to increase the red tones. Press g to increase the green tones.
Sharpness:
Press G to soften the picture. Press g to sharpen the picture.
Color Temp.
White color tint
adjustment
Use the F or f button to select from one of the following options:
Cool: Gives the white colors a blue tint.
Neutral: Gives the white colors a neutral tint.
Warm: Gives the white colors a red tint.
VM
Velocity
Modulation
Sharpens picture definition to give objects a sharp, clean edge. Use the
F or f button to select from one of the following options: Off, High, Low.
19
01US01COV-BR2.book Page 20 Friday, December 14, 2001 7:07 PM
Using the Menus
Using the Audio
Menu
To access the Audio menu, refer to the following steps:
To Display
To Highlight
To Select
Audio
Treble
Bass
Balance
Steady Sound : Off
Effect : Off
Options
Move
Select
End
Treble
Press G to decrease the higher pitched sound. Press g to increase the
higher pitched sound.
Bass
Press G to decrease the lower pitched sound. Press g to increase the
lower pitched sound.
Balance
Press G to emphasize the left speaker. Press g to emphasize the right
speaker.
Steady
Sound
Stabilizes
volume
Press F or f to select one of the following options:
On: Select to stabilize the volume when changing channels.
Off: Select to turn Steady Sound off.
Effect
Press F or f to select one of the following options:
Simulated: Simulates stereo quality sound for mono programs.
WOW: Provides a dramatic presence with a full, deep bass sound. When
WOW is enabled, BBE is directly activated to further enhance the audio
program.
SRS: Produces a dynamic three dimensional sound for stereo audio
signals.
Off: Normal stereo or mono reception.
Press
20
for a direct selection of Effect settings (Simulated, WOW, SRS, Off).
01US01COV-BR2.book Page 21 Friday, December 14, 2001 7:07 PM
Operating Instructions
Options Menu
To access the Options menu, first open the Audio menu by referring to the
following steps:
Options
To Display
To Highlight
To Select
MTS : Stereo
Speaker : On
Audio Out : Fixed
Press f to highlight Options, then press g.
MTS
Multi-Channel
TV Sound
Press
Return
Select
End
Press F or f to select one of the following options:
Stereo: Select when viewing a broadcast in stereo.
Mono: Select to reduce noise in areas of poor reception.
Auto SAP: Select to have the TV automatically to a Second Audio
Program (SAP) when a signal is received.
for direct MTS settings (Stereo, Mono, Auto SAP).
Speaker
Custom
selection of
audio output
source
On: Select to listen to the sound from the TV speakers with or without a
separate stereo system.
Off: Select to turn off the TV speakers and listen to the TV’s sound only
through external audio system speakers.
Audio Out
Use to control
the TV’s volume
through a stereo
Audio Out settings can only be set when speakers are set to Off.
Variable: Adjust the volume through your TV.
Fixed: Adjust the TV volume through a connected stereo.
Audio Out settings can only be set when Speaker is set to Off.
If your TV is set to Auto SAP, some programs may be muted or distorted. If your TV does
not output sound, change your Audio setting to Stereo or Mono.
21
01US01COV-BR2.book Page 22 Friday, December 14, 2001 7:07 PM
Using the Menus
Using the Channel Setup
Menu
To access the Channel Setup menu, refer to the following steps:
To Display
To Highlight
To Select
Channel Setup
Favorite Channels
Cable : On
Channel Fix : Off
Auto Program
Channel Skip/Add
Channel Label
Move
Select
Favorite
Channels
Quick access
to favorite
channels
Press g to open Favorite Channels menu:
1 Use the F or f buttons to select the position (1-5) where you want to set
a favorite channel. Then press
.
2 Using the F or f buttons, select the desired channel.
3 Press
to change to the channel selected.
to exit.
4 Press G to return to the Channel Setup menu or press
To use Favorite Channels: Exit all menus and press
the desired channel number and press
Cable
End
. Press F or f to move the cursor to
.
On: Select if you are receiving cable channels with a CATV cable.
Off: Select if you are using a TV antenna.
After changing your cable settings, you will need to perform Auto Program. When
Channel Fix is set, you will not be able to use your cable settings.
Channel Fix
2-6: Select when you want to control all channel selection through a cable
box or VCR. Select the appropriate channel (usually 3 or 4) and use the
cable box’s or VCR’s remote control for channel selection.
Video 1: Select from available video inputs when you have connected
video equipment (e.g. satellite receiver) and you want your TV fixed to it.
Off: Channel Fix is not set.
Auto Program
Press g to perform Auto Program.
Perform Auto Program whenever setting up your TV.
The TV will scan through all available channels and program receivable
channels.
22
01US01COV-BR2.book Page 23 Friday, December 14, 2001 7:07 PM
Operating Instructions
Channel
Skip/Add
Use this feature after you run Auto Program to skip unwanted channels or
add new ones. Press g to open the Channel Skip/Add menu:
1 Use the F or f button to select the position of the desired channel, then
press
.
.
2 Use the F or f buttons to select Skip or Add, then press
to exit.
3 Press G to return to the Channel Setup menu or press
Pressing CH+ or CH- will skip over channels that have been skipped. You can still use the
--9 buttons to directly tune to skipped channels.
Channel
Label
Label up to 40
channels with
their call letters
Press g to open the Channel Label menu:
1 Press
, then press F or f until you reach the desired channel
number. Press
to activate the channel.
2 Press
, then use the F or f buttons to display the first call letter or
number of the caption, then press
to select it. When finished, press
to activate.
Favorite Channels, Cable, Channel Skip/Add, and Channel Label cannot be used when
Channel Fix is set.
23
01US01COV-BR2.book Page 24 Friday, December 14, 2001 7:07 PM
Using the Menus
Parental Control
The Parental Control feature is designed to help parents monitor what their children watch on
television. This section shows you the different rating systems available and how to set your
TV’s rating limit.
Overview of the Ratings
Once you have become familiar with these rating systems, you should be ready to set your
TV’s rating limit.
Movie Rating
(U.S. models only)
This system defines the rating levels of movies shown in theaters and on prime cable
channels.
Rating
Defined as
G
General audience
PG
Parental Guidance suggested
PG-13
Parents strongly cautioned
R
Restricted
NC-17
No one 17 and under admitted
X
Adult audience only
24
Movie Rating
G:
PG :
PG-13 :
R:
NC-17 :
X:
Press
Move
Return
to block
Select
Select
End MENU
End
01US01COV-BR2.book Page 25 Friday, December 14, 2001 7:07 PM
Operating Instructions
TV Rating
(U.S. models only)
The TV rating is divided into two groups: age-based and content-based.
Age
TV Rating
TV-Y:
TV-Y7:
TV-G:
TV-PG :
TV-14:
TV-MA :
Press
Move
Return
FV
D
D
L
L
L
S
S
S
to block
Select
Select
V
V
V
Content
End MENU
End
Age
Defined as
Content
Defined as
TV-Y
All children
FV
Fantasy Violence
TV-Y7
Directed to older children
D
Suggestive dialogue
TV-G
General audience
L
Strong language
TV-PG
Parental Guidance
suggested
S
Sexual situations
V
Violence
TV-14
Parents strongly cautioned
TV-MA
Mature Audience only
The content ratings will increase depending on the level of the age-based rating. For
example, a program with a TV-PG V (Violence) rating may contain moderate violence, while
a TV-14 V (Violence) rating may contain intense violence.
Unrated
(U.S. models only)
You have the option of blocking TV programs or movies that are not rated.
Allow
Allows all unrated programs
Block
Blocks all unrated programs
Custom Rating
Movie Rating
TV Rating
Unrated : Allow
Choose a category
Move
Select
Return
Select
MENU
End
If you choose to block unrated TV programs, please be aware that the following programs
may be blocked: emergency broadcasts, political programs, sports, news, public service
announcements, religious programs, and weather.
25
01US01COV-BR2.book Page 26 Friday, December 14, 2001 7:07 PM
Using the Menus
English Rating
(Canadian models only)
These ratings are for Canadian programs that are broadcast in English.
Rating
Defined as
C
Children
C8+
Children 8 years and older
G
General programming
PG
Parental Guidance
14+
Viewers 14 and older
18+
Adult programming
English Rating
C:
C8+ :
G:
PG :
14+ :
18+ :
Press
Move
Return
to block
Select
Select
MENU
End
French Rating
(Canadian models only)
These ratings are for Canadian programs that are broadcast in French.
Rating
Defined as
G
General
8 ans+
Not recommended for younger
children
13 ans+
Not recommended for children
under age 13
16 ans+
Not recommended for ages
under 16
18 ans+
This program is restricted to
adults
French Rating
G:
8 ans+ :
13 ans+ :
16 ans+ :
18 ans+ :
Press
Move
Return
to block
Select
Select
U.S.A. Rating
(Canadian models only)
For programs from the United States, please see “TV Rating” on page 27.
26
End MENU
End
01US06ADD-BR.fm Page 27 Monday, December 17, 2001 10:36 AM
Operating Instructions
Using the Parental Control
Menu
To access the Parental Control menu, refer to the following steps:
To Display
To Select
To Highlight
Parental Control
Password :
Use [0-9] buttons to
enter new password
Move
Select
End
In the Parental Control
menu, you will be asked to set a 4-digit password for any further
access into Parental Control.
1
Press
, then use the
0
9
buttons to enter a 4-digit password.
Keep this manual in a safe place. If you forget your password, see page 36.
2
Confirm your password by entering it again.
Once your password is set correctly, the next Parental Control menu appears. For future access
to this menu, use your password. A password is needed every time you want to access
Parental Control menu.
27
01US06ADD-BR.fm Page 28 Monday, December 17, 2001 10:36 AM
Using the Menus
Setting the Rating
You can change the Rating by selecting one of the Lock options.
Parental Control
Lock : Off
Change Password
Country : U.S.A.
Turn Parental Lock
Off
Move
Select
1
With Lock highlighted, press
End
.
If you are not familiar with the Parental Guidelines rating system, use one of the following
preselected categories to simplify the rating selections, Child, Youth, Young Adult.
2
Use the F or f buttons to select the desired rating and press
.
Rating
TV will allow a maximum rating of
Child
TV-Y, TV-G, G (U.S. models only), G (Canadian models only)
Youth
TV-PG, PG (U.S. models only), PG (Canadian models only)
Young Adult
TV-14, PG-13 (U.S. models only), 14+ (Canadian models only)
Custom
Select to set more restrictive ratings (see next section)
Off
No rating limit
Changing your Password
1
Use the F or f button to move the cursor to Change Password and press
2
Follow steps 1 and 2 for “Using the Parental Control Menu” on page 27.
.
Information for Parents
To view a program that exceeds the TV rating
Press
, then use the
0
9
buttons to enter your password.
Entering your password to view a blocked program will temporarily turn Lock to Off. To
reactivate your Lock settings, turn the TV off then back on. The TV will return to the
settings that you have selected.
28
01US06ADD-BR.fm Page 29 Monday, December 17, 2001 10:37 AM
Operating Instructions
Using the Custom Menu
Before setting Custom ratings, see page 24-26, “Overview of the Ratings,” for a description of
the available rating systems.
Follow the instructions on the screen to make your custom settings. Select the country desired
for your TV’s rating limit. See page 25 for U.S. models and page 26 for Canadian models for
more information.
Once you have blocked a rating or content, all higher ratings or content will be
automatically blocked.
29
01US01COV-BR2.book Page 30 Friday, December 14, 2001 7:07 PM
Using the Menus
Using the Timer
Menu
To access the Timer menu, refer to the following steps:
To Display
To Highlight
To Select
Timer
Timer 1 : Set
Timer 2 : Set
Current Time
Move
Current Time
Select
End
Set your TV to the current day and time. Press g to open Current Time
menu:
.
1 Use the F or f button to enter the correct day and time, then press
2 Press
to exit the menu.
You must set the Current Time before you can use Timer 1 and Timer 2.
Timer 1 and
Timer 2
Scheduled
viewing
Use your timer settings to program your TV by day, time, duration and
channel. The timer’s duration is maximum of 6 hours. When the channel
is fixed is not necessary to set the channel.
With the menu open, set the cursor on Timer 1 or Timer 2:
.
1 Press F or f to select Timer 1 or Timer 2, then press
2 Press F or f to enter the desired day, time, duration and channel, then
press
. The Timer status should be On when the Timer has been set.
3 Press
to exit the menu.
You can set the Timer to On, Off, or Set. Once the timer is set, you can turn it On or Off
without having to go through the settings. When you set Timer 1 or Timer 2, a red light on
the front panel of your TV will turn on.
When you perform Auto Program, Timer 1 and Timer 2 settings will be cleared. Also, in the
event of any loss of power, Current Time and Timer 1 and Timer 2 settings will be cleared.
30
01US01COV-BR2.book Page 31 Friday, December 14, 2001 7:07 PM
Operating Instructions
Using the Setup
Menu
To access the Setup menu, refer to the following steps:
To Display
To Highlight
To Select
Setup
Caption Vision : Off
Video Label
Tilt Correction
Language : English
Demo
Move
Caption
Vision
ClosedCaptioning
End
Select
Allows you to select from three closed caption modes (for programs that are
broadcast with closed caption).
Press F or f to select one of the following options:
CC1, 2, 3, 4: Displays printed dialogue and sound effects of a program.
Text1, 2, 3, 4: Displays network/station information.
XDS (Extended Data Services): Displays the name of the current program
and its remaining time, if available.
Off: Caption Vision is not activated.
Video Label Allows you to label the audio/video components you connected to the TV,
Label connected VCR, DVD, etc. When you press TV/VIDEO to switch inputs, the Video
equipment
Label will display on screen.
Press g to open the Video Label menu:
.
1 Press F or f to access the input you want to label and press
.
2 Press F or f to choose a label and press
Tilt
Correction
Press g to open Tilt Correction:
Press F or f to correct any tilt of the picture from –5 to +5, then press
activate and return to the Setup menu.
Language
Display all menus in the language of your choice.
Use the F or f buttons to select desired language and press
Demo
Press
to
.
to run a demonstration of the on-screen menus.
You can press any key to exit the Demo mode.
31
01US01COV-BR2.book Page 32 Friday, December 14, 2001 7:07 PM
Other Information
Other Information
Programming the Remote Control
You can use the supplied remote control to operate Sony or non-Sony video equipment.
1
2
3
4
Press
.
Press
or
Use the
Press
0
9
(FUNCTION).
buttons to key in the code number from the following chart.
.
VCR codes
Sony
301, 302, 303
JCPenney
309, 305, 304, 330, 314,
336, 337
Admiral (M.Ward)
327
JVC
314, 336, 337, 345, 346,
347
Aiwa
338, 344
Kenwood
314, 336, 332, 337
Audio Dynamic
314, 337
LXI (Sears)
332, 305, 330, 335, 338
Broksonic
319, 317
Magnavox
308, 309, 310
Canon
309, 308
Marantz
314, 336, 337
Citizen
332
Marta
332
Craig
302, 332
Memorex
309, 335
Criterion
315
Minolta
305, 304
Curtis Mathis
304, 338, 309
Mitsubishi/MGA
323, 324, 325, 326
Daewoo
341, 312, 309
Multitech
325, 338, 321
DBX
314, 336, 337
NEC
314, 336, 337
Dimensia
304
Olympic
309, 308
Emerson
319, 320, 316, 317, 318,
341
Optimus
327
Fisher
330, 335
Panasonic
308, 309, 306, 307
Funai
338
Pentax
305, 304
General Electric
329, 304, 309
Philco
308, 309
Go Video
322, 339, 340
Philips
308, 309, 310
Goldstar
332
Pioneer
308
Hitachi
306, 304, 305, 338
Quasar
308, 309, 306
Instant Replay
309, 308
RCA/PROSCAN
304, 305, 308, 309, 311,
312, 313, 310, 329
32
01US01COV-BR2.book Page 33 Friday, December 14, 2001 7:07 PM
Operating Instructions
VCR codes
Realistic
309, 330, 328, 335, 324,
338
Symphonic
338
Samsung
322, 313, 321
Tashiro
332
Sansui
314
Tatung
314, 336, 337
Sanyo
330, 335
Teac
314, 336, 338, 337
Scott
312, 313, 321, 335, 323,
324, 325, 326
Technics
309, 308
Sharp
327, 328
Toshiba
312, 311
Shintom
315
Wards
327, 328, 335, 331, 332
Signature 2000
(M.Ward)
338, 327
Yamaha
314, 330, 336, 337
SV2000
338
Zenith
331
Sylvania
308, 309, 338, 310
Cable box codes
Sony
Satellite receiver codes
230
Sony
801
Hamlin/Regal
222, 223, 224, 225, 226
General Electric
802
Jerrold/G. I.
201, 202, 203, 204, 205,
206, 207, 208, 218
Hitachi
805
Oak
227, 228, 229
Hughes
804
Panasonic
219, 220, 221
Panasonic
803
Pioneer
214, 215
RCA/PROSCAN
802, 808
Scientific Atlanta
209, 210, 211
Toshiba
806, 807
Tocom
216, 217
Zenith
212, 213
Laser Disc Player codes
DVD codes
Sony
Panasonic
Pioneer
Sony
JVC
Mitsubishi
Onkyo
Oritron
751
756
761
762
Panasonic
Philips/
Magnavox
Pioneer
RCA
Samsung/Hitachi
Toshiba
Zenith
753
757
701
704, 710
702
DBS codes
DIRECTV
Echostar/Dish
Network
809
810
759
752
755
758
754
760
33
01US01COV-BR2.book Page 34 Friday, December 14, 2001 7:07 PM
Other Information
Ifcorrect
more than one code number is listed, try entering them one by one until you come to the
code for your equipment.
Whenever
you remove the batteries, the code numbers may revert to the factory setting
and must be reset.
Inremote
some rare cases, you may not be able to operate your equipment with the supplied
control. In this case, use the equipment’s supplied remote control.
Operating a VCR
Press
To
Power on the VCR
0
9
Select channels directly
Change channels
or
and
Play video tape
Stop
Search forward or backward
Pause
Record
Change between VCR and TV inputs
Operating a DVD
Press
To
Power on the DVD
0
9
Select chapters directly
Search chapters forward or backward
F, f, G, g
Play DVD
Stop
Pause
Move the cursor in the menu
Display the DVD menu
Operating a Laser Disc
Press
To
Power on the laser disc
Search chapters forward or backward
Play disc
Stop
Pause
34
01US01COV-BR2.book Page 35 Friday, December 14, 2001 7:07 PM
Operating Instructions
Troubleshooting
If you are having a problem with your TV, try the suggestions below. If the problem persists,
contact your nearest Sony Dealer.
No picture, no
sound
Poor or no picture,
good sound
Good picture, no
sound
No color
Only snow appears
on the screen
Dotted lines or
stripes
Double images or
ghosts
Cannot receive
higher number
channels (UHF)
when using an
antenna
Make sure the power cord is plugged in.
If a red light is flashing on the front of your TV for more than a
few minutes, disconnect and reconnect the power cord to restore
the TV. If the problem continues, call your local service center.
Check the TV/VIDEO settings: when watching TV, set to TV;
when watching video equipment, set to VIDEO (page 13).
Make sure the batteries have been inserted correctly into the
remote control (page 2).
Try another channel, it could be station trouble.
Adjust Picture in the Picture Controls menu under Video
(page 19).
Adjust Brightness in the Picture Controls menu under Video
(page 19).
Check the antenna and/or cable connections (page 4).
Press
so that MUTING disappears from the screen (page 13).
Check your Audio settings. Your TV may be set to Auto-SAP or
your Speakers might be Off (page 21).
Adjust Color in the Picture Controls menu under Video (page 19).
Check the Cable setting in the Channel Setup menu (page 22).
Check the antenna and/or cable connections (page 4).
Make sure the channel selected is currently broadcasting.
Adjust the antenna.
Move the TV away from other electronic equipment. Some
electronic equipment can create electrical noise, which can
interfere with TV reception.
Check your outdoor antenna or call your cable service.
Make sure Cable is set to Off in the Channel Setup menu
(page 22).
Perform Auto Program to add channels that are not presently in
the memory (page 14).
35
01US01COV-BR2.book Page 36 Friday, December 14, 2001 7:07 PM
Other Information
Cable stations
don’t seem to work
Remote control
does not operate
The TV needs to be
cleaned
Lost password for
Parental Control
You lost your
remote control
Make sure Cable is set to On in the Channel Setup menu
(page 22).
Perform Auto Program to add channels that are not presently in
the memory (page 14).
Batteries could be weak. Replace them (page 2).
Move the TV 3-4 or more feet away from fluorescent lights.
Clean the TV with a soft dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
In the password screen, enter the following master password:
4357. After using the master password, you must create a new
password, it cannot be used to unlock currently blocked channels.
You can use the front Audio/Video panel controls to access the
menu (page 2). Contact your nearest Sony Dealer to order a
replacement.
If, after reading these Operating Instructions, you have additional questions related to the use of your Sony television, please call
our Direct Response Center at 1-800-222-SONY (7669) (U.S. residents only) or (416) 499-SONY (7669) (Canadian residents
only).
36
01US01COV-BR2.book Page 37 Friday, December 14, 2001 7:07 PM
Operating Instructions
Specifications
For all models (except as noted)
Television system
Channel coverage
Antenna
Picture tube
Power requirements
Supplied Accessories
Optional Accessories
KV-20FV300
Screen size
Inputs/outputs
Speaker output
Power Consumption
American TV standard/NTSC
VHF: 2-13/UHF: 14-69/CATV: 1-125
75-ohm external antenna terminal for VHF/UHF
FD Trinitron® tube
120V, 60 Hz
Size AA (R6) batteries (2)
Remote Control RM-Y180 (1)
Connecting cables VMC-810S/820S, VMC-720M,
YC-YC-15V/30V, RK74A
EAC-66 U/V mixer
Visible screen size: 20 inches (507 mm) measured diagonally
Actual screen size: 21 inches (533.4 mm) measured diagonally
2 video, 2 audio
1 S VIDEO
1 Y, PB,PR, 1 audio
1 AUDIO OUT
1 headphone jack
10 W x 2
155 W in use
1 W in standby
Dimensions (W/H/D)
609 x 463 x 502 mm (24 x 18 1/4 x 19 3/4 inches)
Mass
KV-24FV300
Screen size
27 kg (59 lbs. 8oz.)
Inputs/outputs
Speaker output
Power Consumption
Visible screen size: 24 inches (598 mm) measured diagonally
Actual screen size: 25 inches (635 mm) measured diagonally
2 video, 2 audio
1 S VIDEO
1 Y, PB,PR, 1 audio
1 AUDIO OUT
1 headphone jack
10 W x 2
180 W in use
1 W in standby
Dimensions (W/H/D)
762 x 625x 570mm (30 x 22 7/16 x 245/8 inches)
Mass
37 kg (81 lbs. 9oz.)
Design and specifications are subject to change without notice.
37
01US01COV-BRIX.fm Page 38 Monday, December 17, 2001 10:43 AM
Index
Index
A
F
Audio
Menu 20
Audio Out 21
Auto Program 14, 22
Auto SAP 21
B
Balance 20
Bass 20
Battery Installation 2
Brightness 19
Favorite Channels 22
Front A/V Panel (see TV Front Panel) 2
H
Hue 19
L
Language 31
M
Menus
20
Audio
Channel Setup
Parental Control
Setup
31
Timer
30
Video
18
Mode
Movie 18
Sports 18
Standard 18
Vivid 18
MTS
Auto SAP 21
Mono 21
Stereo 21
C
Cable 22
Caption Vision 31
Channel Fix 22
Channel Label 23
Channel Setup
Menu 22
Channel Skip/Add 23
Color 19
Color Temp 19
Connections
Cable and Antenna 4
Connecting a Camcorder 11
Connecting a DVD player 10
Connecting Headphones 11
TV and Cable Box 6
TV and VCR 5
TV and Satellite Receiver 8
TV, Satellite Receiver, and VCR 9
TV, VCR, and Cable Box 7
Current Time 30
D
Demo 31
DISPLAY 13
E
Effect
Off 20
Simulated 20
SRS 20
WOW 20
38
22
27
O
Options (Audio) 21
P
Parental Control 24 (also see Ratings)
Menu 27
Parental Control
Picture 19
Picture Controls
Brightness 19
Color 19
Hue 19
Picture 19
Sharpness 19
Picture Mode (see Mode) 18
01US01COV-BR2.book Page 39 Friday, December 14, 2001 7:07 PM
R
Ratings
English Rating 26
French Rating 26
Movie Rating 24
TV Rating 25
Unrated 25
U.S.A. Rating 26
Remote Control
Using 12
Programming 32
S
Setup
Menu 31
Sharpness 19
Simulated 20
SLEEP 13
Speaker 21
Specifications 37
SRS 20
Steady Sound 20
Stereo 21
T
Tilt Correction 31
Timer
Menu 30
Timer 1 and Timer 2 30
Treble 20
Troubleshooting 35
TV Features 1
TV Front Panel 2
TV Rear Panel 3
V
Video
Menu 18
Video Label 31
VM 19
W
WOW 20
01US01COV-BR2.book Page 40 Friday, December 14, 2001 7:07 PM
Sony Corporation
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
