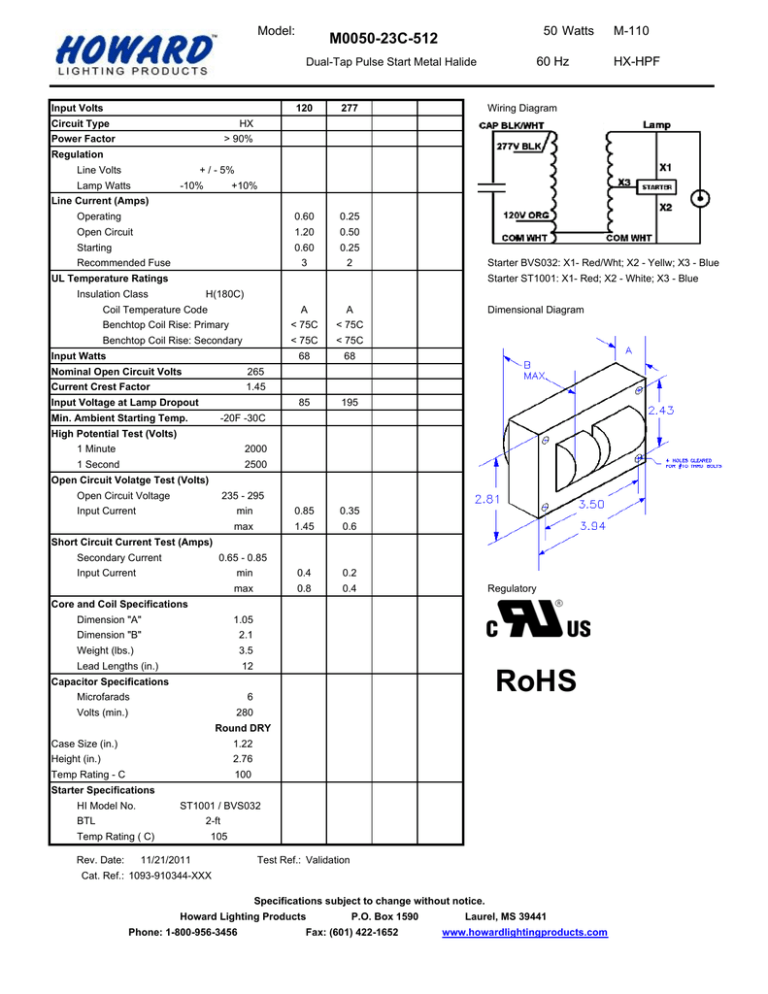

Model: 50 Watts M-110 60 Hz

Model: 50 Watts M-110 60 Hz
Model:
50 Watts
M0050-23C-512
60 Hz
Dual-Tap Pulse Start Metal Halide
Input Volts
120
277
Operating
0.60
0.25
Open Circuit
1.20
0.50
Starting
0.60
0.25
3
2
Circuit Type
M-110
HX-HPF
Wiring Diagram
HX
Power Factor
> 90%
Regulation
Line Volts
+ / - 5%
Lamp Watts
-10%
+10%
Line Current (Amps)
Recommended Fuse
Starter BVS032: X1- Red/Wht; X2 - Yellw; X3 - Blue
UL Temperature Ratings
Starter ST1001: X1- Red; X2 - White; X3 - Blue
Insulation Class
H(180C)
Coil Temperature Code
A
A
Benchtop Coil Rise: Primary
< 75C
< 75C
Benchtop Coil Rise: Secondary
< 75C
< 75C
68
68
85
195
min
0.85
0.35
max
1.45
0.6
min
0.4
0.2
max
0.8
0.4
Input Watts
Nominal Open Circuit Volts
265
Current Crest Factor
1.45
Input Voltage at Lamp Dropout
Min. Ambient Starting Temp.
Dimensional Diagram
-20F -30C
High Potential Test (Volts)
1 Minute
2000
1 Second
2500
Open Circuit Volatge Test (Volts)
Open Circuit Voltage
235 - 295
Input Current
Short Circuit Current Test (Amps)
Secondary Current
0.65 - 0.85
Input Current
Regulatory
Core and Coil Specifications
Dimension "A"
1.05
Dimension "B"
2.1
Weight (lbs.)
3.5
Lead Lengths (in.)
12
RoHS
Capacitor Specifications
Microfarads
6
Volts (min.)
280
Round DRY
Case Size (in.)
1.22
Height (in.)
2.76
Temp Rating - C
100
Starter Specifications
HI Model No.
ST1001 / BVS032
BTL
2-ft
Temp Rating ( C)
Rev. Date:
105
11/21/2011
Test Ref.: Validation
Cat. Ref.: 1093-910344-XXX
Specifications subject to change without notice.
Howard Lighting Products
Phone: 1-800-956-3456
P.O. Box 1590
Fax: (601) 422-1652
Laurel, MS 39441
www.howardlightingproducts.com
