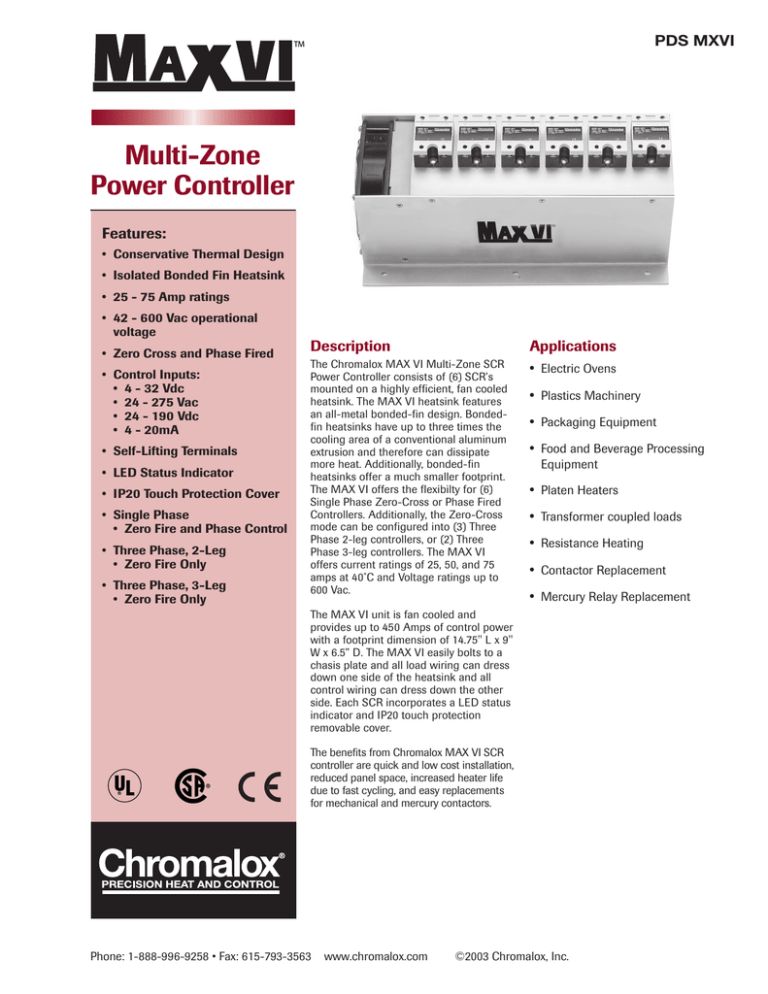

MaxVI

MaxVI
PDS MXVI
Multi-Zone
Power Controller
Features:
• Conservative Thermal Design
• Isolated Bonded Fin Heatsink
• 25 - 75 Amp ratings
• 42 - 600 Vac operational
voltage
• Zero Cross and Phase Fired
• Control Inputs:
• 4 - 32 Vdc
• 24 - 275 Vac
• 24 - 190 Vdc
• 4 - 20mA
• Self-Lifting Terminals
• LED Status Indicator
• IP20 Touch Protection Cover
• Single Phase
• Zero Fire and Phase Control
• Three Phase, 2-Leg
• Zero Fire Only
• Three Phase, 3-Leg
• Zero Fire Only
Description
Applications
The Chromalox MAX VI Multi-Zone SCR
Power Controller consists of (6) SCR’s
mounted on a highly efficient, fan cooled
heatsink. The MAX VI heatsink features
an all-metal bonded-fin design. Bondedfin heatsinks have up to three times the
cooling area of a conventional aluminum
extrusion and therefore can dissipate
more heat. Additionally, bonded-fin
heatsinks offer a much smaller footprint.
The MAX VI offers the flexibilty for (6)
Single Phase Zero-Cross or Phase Fired
Controllers. Additionally, the Zero-Cross
mode can be configured into (3) Three
Phase 2-leg controllers, or (2) Three
Phase 3-leg controllers. The MAX VI
offers current ratings of 25, 50, and 75
amps at 40˚C and Voltage ratings up to
600 Vac.
• Electric Ovens
• Plastics Machinery
• Packaging Equipment
• Food and Beverage Processing
Equipment
• Platen Heaters
• Transformer coupled loads
• Resistance Heating
• Contactor Replacement
• Mercury Relay Replacement
The MAX VI unit is fan cooled and
provides up to 450 Amps of control power
with a footprint dimension of 14.75" L x 9"
W x 6.5” D. The MAX VI easily bolts to a
chasis plate and all load wiring can dress
down one side of the heatsink and all
control wiring can dress down the other
side. Each SCR incorporates a LED status
indicator and IP20 touch protection
removable cover.
The benefits from Chromalox MAX VI SCR
controller are quick and low cost installation,
reduced panel space, increased heater life
due to fast cycling, and easy replacements
for mechanical and mercury contactors.
Phone: 1-888-996-9258 • Fax: 615-793-3563
www.chromalox.com
©2003 Chromalox, Inc.
Multi-Zone Power Controller
Specifications
Control Modes
Single Phase, Three-Phase 2-Leg or Three-Phase 3-Leg
Zero-cross, On/Off or Time Propportional
Phase Angle Single Phase Only
Command Signals
On/Off:
4.5 - 32 Vdc
24 - 265 Vac
24 - 190 Vdc
Linear:
4 - 20mA
Line Voltage
42 - 600 Vac Zero-Cross Mode
230 or 600 Vac Phase Angle Mode
Line/Load Connections
Self Lifting Terminals. Output terminals
can handle cables up to #6AWG
Load Current
25, 50, 75 Amps @ 40˚C (104˚F)
Cooling
Forced Air, Fan Cooled
120 Vac, 17 VA
Terminal provided for separate fan power
Mounting
Panel Mount, any orientation.
Weight
11.5kg (12 lbs.)
6.50”
14.75”
Model
MAX VI
9.0”
Multi-Zone Power Controller
The MAX VI Multi-Zone SSR power pak consists of (6) SSR’s mounted on a highly efficient, fan cooled heatsink. The
MAX VI can be configured as (6) single-phase, (3) three-phase 2-leg or (2) three-phase 3-leg controllers. MAX VI offers
On/Off, Time Proportional, and Single-Phase, Phase Fired configurations. The Chromalox MAX VI offers the following
standard features: 40˚C Ambient Rating, Zero-Voltage Turn-On or Phase Angle Fired designs, LED Staus Indicator, IP20
Touch Protection, Operational Ranges up to 600 Vac, Self-Lifting Terminals, and dv/dt protection.
Code
25
50
75
Current @ 40˚C (104˚F) Ambient
25 Amp
50 Amp
75 Amp
Code
25
Per SSR
Per SSR
Per SSR
150 Amp Total
300 Amp Total
450 Amp Total
Input Control Voltage
1
2
3
4
5
6
4.5 - 32 Vdc (DC logic Zero Cross Fired)
24 - 265 Vac or 24 - 190 Vdc (AC/DC logic Zero Cross Fired)
4 - 20mA, 7.6 Vdc Minimum ( Time Proportioning Single Phase Zero Cross Fired)
4 - 20mA, 15.2 Vdc Minimum (Time Proportioning Three Phase 2-Leg Zero Cross Fired)
4 - 20mA (Single Phase, Phase Angle Fired 90-280 Vac)
4 - 20mA (Single Phase, Phase Angle Fired 330-660 Vac)
1
Typical Model Number
Note
Fan Requires 120 Vac Power
PDS MXVI
September 03
2
• 1382 Heil Quaker Blvd. • LaVergne, TN 37086 • PH: 1-888-996-9258 • www.chromalox.com
