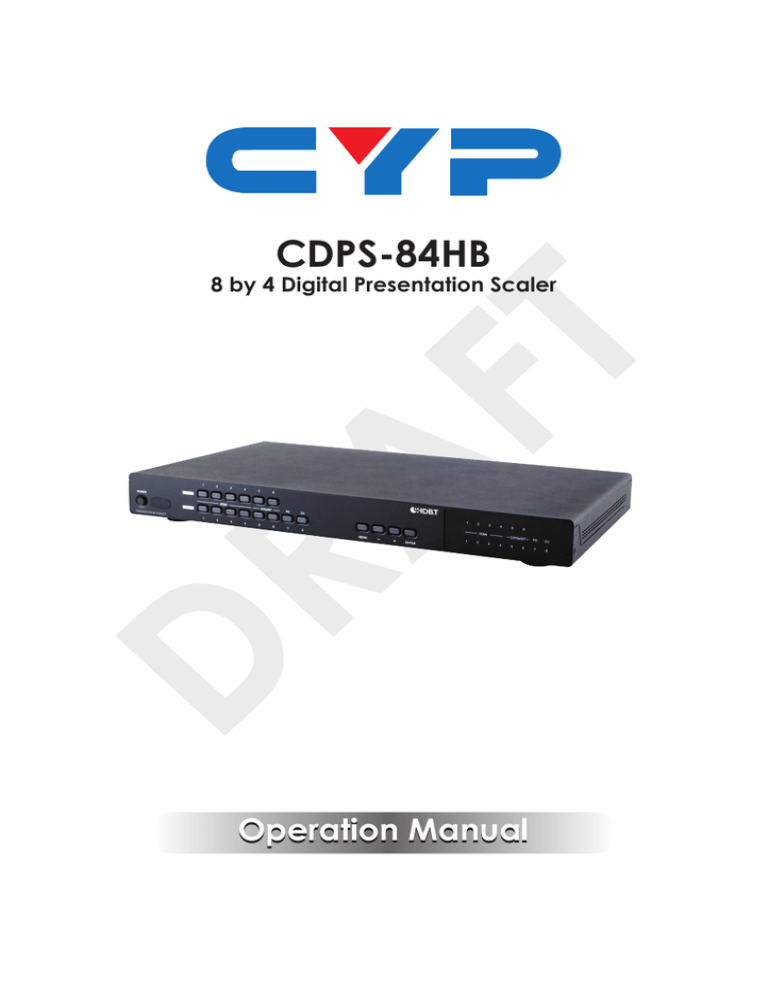

CDPS-84HB

8 by 4 Digital Presentation Scaler

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2012 by Cypress Technology.

All Rights Reserved.

Version 1.0 October 2009

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

RDV1

DRAFT

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 Remote Control ...............................5

6.4 RS-232 Pin Assignment .....................6

6.5 RS-232/Telnet Commands ...............6

6.6 OSD Menu .......................................10

7. Connection Diagram .......................... 14

8. Specifications ...................................... 15

8.1 Input Resolution Support ...............16

9. Acronyms ............................................. 18

8.2 Output Resolution Support ............17

DRAFT

1

1. INTRODUCTION

This HDBaseT™ capable 8 by 4 Digital Presentation Scaler can switch and scale HDMI/HDBaseT/PC/Composite Video signals from any one of its eight inputs and simultaneously display it on any of its HMDI or

HDBaseT outputs. The unit has and HDMI bypass output, allowing local monitoring of any of the HDMI or HDBaseT inputs, and features full

5play™ convergence for easy integration of compatible transmitters and receivers. It has the added benefit of control via IR remote control, RS-232, IP/Telnet and WebGUI, with all information including system status presented on its comprehensive LCD display.

2. APPLICATIONS

• Home Theater/Entertainment

• Lecture Room/Hall Presentation

• Show Room/Demo Room

• Public Commercial Display

• Information Board

3. PACKAGE CONTENTS

• 1 x 8 by 4 Presentation Scaler

• 1 x IR Extender Cable

• 1 x IR Receiver Cable

• 1 x Remote Control with Battery

• 1 x Power Cord

• Operation Manual

Input source equipment such as Blu-ray/DVD/PS3 player or Set-Top-Box cables.

DRAFT

and output HDMI TV/Display and or audio amplifier with connection

5. FEATURES

• HDMI, HDCP and DVI compliant

• Full 5Play™ convergence: Video, Audio, LAN serving, Bi-directional

Power over Cable (PoC) and Control (IR & RS-232 bypass)

• Supports High-definition Audio: LPCM 7.1CH, Dolby TrueHD, Dolby

Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)

• Supports distances of up to 100 meters over industry standard

CAT5e/6/7 cable

• Supports scaling of any input signals to a wide range of HDTV and

PC output resolutions up to 1080p and WUXGA (RB)

• Digital to Analog and Analog to Digital Audio conversion (DAC/

ADC)

• Simultaneous video output of the selected source through the

HDBaseT and HDMI outputs and audio output through the digital coaxial and analog L/R outputs

• Features four HDMI inputs with corresponding L/R audio inputs

(3.5mm mini-jack), two HDBaseT CAT5e/6/7 inputs, PC (15-pin D-Sub) with L/R audio (3.5mm mini-jack) and Composite Video and L/R audio (3 RCA)

• Features two HDMI outputs, one HDBaseT CAT5e/67 outputs, one

Digital Coaxial audio output and one L/R audio 3.5mm mini-jack output

• Supports switchable HDMI bypass allowing local monitoring of any of the HDMI or HDBaseT inputs

• Supports Power over Cable on the CAT5e/6/7 output to a compatible Receiver

• Supports control via IR, Remote control, RS-232, Telnet WebGUI and on-panel controls

2

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER

4

1 2 3 4 5 6

BYPASS

INPUT

HDMI CA5e/6/7 PC CV

1 2 3 4 5 6 7 8 PRESENTATION SCALER

1 2 3 5 6 7

MENU

+

ENTER

8 9 10 3

4

1

1

2 3

2

HDMI

3

4

4

5 6

CAT5e/6/7

5 6

PC

7

CV

8

5 6 7

1

POWER: Press this button to turn ON the device and the LED will illuminated.

2

IR Window: This IR receiver receives only the remote control signal from the packaged included remote control.

3

INPUT HDMI 1~4 & LED: Press the IN buttons to select an input source signal from the 4 HDMI input sources to be display for output ports.

The LED will illuminate according to the selection.

4

BYPASS & LED: Press these buttons to select an input source signal from the 6 input sources to be display for BYPASS output port. The

LED will illuminate according to the selection.

5

INPUT CAT5e/6/7 5~6 & LED: Press the IN buttons to select an input source signal from the 2 CAT5e/6/7 input sources to be display for output ports. The LED will illuminate according to the selection.

6

be display for PC output port. The LED will illuminate according to the selection.

7

INPUT CV & LED: Press this button to select CV input source signal s to be display for CV output port. The LED will illuminate according to the selection.

8

MENU: Press this wheel to enter into the menu and press it again to confirm the selection.

9

+/-: Press these buttons to move up/down under menu selection or under volume control to adjust audio volume up/down.

10

ENTER: Press this button to confirm menu selection.

3

6.2 Rear Panel

1

2

5

IR OUT IR IN

OUTPUT

CAT5e/6/7

COAX

HDMI 1

6

7

8

AUDIO

DSP PROG.

SERVICE 1

ON OFF

SERVICE 2

HDMI 2

AUDIO

BYPASS

AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4

HDMI HDMI 1 HDMI 2 HDMI 3 HDMI 4

3 4 7 9 10

13 14 16

INPUT

CAT5e/6/7

5

11

8

R

CAT5e/6/7

L CV

PC

AUDIO 7

RS-232

LAN

6 7

DC 24 V

12 15 17

1

IR OUT: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

2

IR IN: Connect to the supplied IR Extender cable for IR signal reception. Ensure that remote being used is within the direct lineof-sight of the IR Extender.

3

OUTPUT CAT5e/6/7: Connect to the Receiver unit with a Single

CAT5e/6/7 cable for transmission of all data signals.

4

OUTPUT HDMI: Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal.

5

OUTPUT COAX: Connect to audio sound equipment such as speaker or amplifier for audio sound output.

6

OUTPUT AUDIO: Connect to audio sound equipment such as

7

SERVICE 1& 2: These slots are reserved for firmware update use only.

8

DSP PROG Switch: This switch is reserved for firmware update use only.

9

BYPASS: Connect to a HDMI equipped TV/monitor or DVI equipped monitor with audio sound equipment such as speaker for both video and audio output display.

10

INPUT HDMI 1~4 & AUDIO 1~4: Connect to HDMI source equipment such as DVD or Blu-ray player along or to DVI source equipment along with audio source signal.

11

INPUT CAT5e/6/7: Connect this port to HDMI to CAT5e/6/7

Transmitter with CAT5e/6/7 cable to extend the signal up to 100m.

4

5

12

INPUT PC & AUDIO: Connect this port to PC/Laptop with audio signal for input signal selecting.

13

INPUT CV: Connect this port to source equipment such as video player or Set-Top-Box for input signal selecting.

14

RS-232: Connect from PC/Laptop for RS-232 command sending to control the device.

15

LAN: Connect from PC/Laptop with active internet service for Web

GUI control with RJ-45 terminated cable.

16

POWER Toggle: Switch this toggle to turn ON and OFF the device’s power.

17

DC 24V: Connect the adaptor with power cord included in the package and connect to AC wall outlet for power supply.

HDMI 1

CAT5e/6/7

1

6.3 Remote Control

1 POWER:

Press this button to switch the device

ON or to put the device into Standby mode.

2

MUTE

HDMI 2

HDMI 3

2

POWER

PC

CV

2

HDMI 4

MUTE:

3

4

5

INPUT:

MENU:

EXIT:

INPUT

Press this button to mute output audio sound.

Press these buttons one time each to select input source for outputs display.

Press this button to enter into the On-

Screen Menu.

Press this button to exit menu selection.

5

8

-

RESET

HDMI 2

HDMI 3

HDMI 4

OK

HDMI 1 CAT5e/6/7 1

CAT5e/6/7 2

BYPASS

CR-135

MENU

ADJUST

EXIT

DRAFT

+

4

6

7

9

6 ▲▼◄►& OK:

Press OK to confirm the selection or use the directional buttons to navigate the On-Screen-Menu.

1

3

6.4 RS-232 Pin Assignment

8

9

6

7

4

5

2

3

PIN

1

CDPS-84HB

Assignment

NC

Tx

Rx

NC

GND

NC

NC

NC

NC

8

9

6

7

4

5

2

3

Remote Control

PIN Assignment

1 NC

Rx

Tx

NC

GND

NC

NC

NC

NC

Baud Rate: 19200bps

Data Bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1

R SOURCE

6.5 RS-232/Telnet Commands

COMMAND

S SOURCE 1~8

DRAFT

Reports the numerical equivalent for SOURCE setting (as above)

6

7

COMMAND

S OUTPUT 1~25

R OUTPUT

DESCRIPTION

0=640×480

1=800×600

2=1024×768

3=1280×768

4=1360×768

5=1280×720

6=1280×800

7=1280×1024

8=1440×900

9=1400×1050

10=1680×1050

11=1600×1200

12=1920×1080

13=1920×1200

14=480p

[email protected]

[email protected]

[email protected]

18=576p

[email protected]

[email protected]

[email protected]

Reports the numerical equivalent for OUTPUT setting (as above)

S SIZE 0~6

4=LETTER BOX

5=UNDER 2

6=UNDER 1

0=OVERSCAN

1=FULL

2=BEST FIT

3=PAN SCAN

R SIZE

S INPUTHDCP 0/1

R INPUTHDCP

S CONTRAST 0~60

R CONTRAST

S BRIGHTNESS 0~60

R BRIGHTNESS

S HUE 0~60

R HUE

Reports the numerical equivalent for SIZE setting (as above)

HDMI support HDCP status

Reports HDMI support HDCP status

Setups the numerical equivalent for

DRAFT

Setups the numerical equivalent for HUE setting (as left)

Reports the numerical equivalent for HUE setting

S SATURATION 0~60

Setups the numerical equivalent for

SATURATION setting (as left)

COMMAND

R SATURATION

S SHARPNESS 0~30

R SHARPNESS

S NR 0~3

R NR

DESCRIPTION

Reports the numerical equivalent for

SATURATION setting

Setups the numerical equivalent for

SHARPNESS setting (as left)

Reports the numerical equivalent for

SHARPNESS setting

0=OFF

1=LOW

2=MIDDLE

3=HIGH

Reports the numerical equivalent for the

NOISE REDUCTION setting (as above)

S VOLUME 0~100

R VOLUME

S AUDIO DELAY 0~3

R AUDIO DELAY

Volume Value

Reports Volume value

0=OFF

1=40ms

2=110ms

3=150ms

Reports the numeric equivalent for AUDIO

DELAY setting (as above)

0=ON 1=MUTE

S AUDIO MUTE 0/1

R AUDIO MUTE

S HDMIAUDIO 0/1

Reports the numeric equivalent for AUDIO

MUTE setting (as above)

0=AUTO

R HDMIAUDIO

S KEY LOCK 0/1

R KEY LOCK

S FREERUNCOLOR 0/1

1=EXT.

Reports HDMI AUDIO Status

0=ENABLE

LOCK setting (as above)

0=ENABLE

1=DISABLE

1=DISABLE

R FREERUNCOLOR

Reports the numeric equivalent for AUDIO

SELECT setting (as above)

S RESET 1

S POWER 0/1

R POWER

Setups the numerical equivalent for RESET setting (as left)

0=OFF 1=ON

Reports the numeric equivalent for POWER setting (as above)

9

COMMAND

PORT 0~8

DESCRIPTION

0=HDMI

4=HDMI 4

7=VIDEO

1=HDMI 2

5=HDBT 1

3=HDMI

36=HDBT2

8=PC Last Memory

VOL +

VOL -

ST

Volume Value

Volume Value

FW Version & Source

Note:

1. Audio Delay is only supported on Analog Stereo output.

2. When the HDMI input is encoded with HDCP, no image will be output from the PC/HD output.

3. Only LPCM 2 channel digital audio is supported, please ensure that the source audio is set to LPCM 2 channel audio in order to avoid unnecessary audio noise.

4. RS-232 commands will be not executed unless followed with a carriage return and LF. Commands are case-insensitive.

DRAFT

6.6 OSD Menu

1 st Layer

DISPLAY

2 nd Layer

OUTPUT

Remark 3rd Layer

640X480 60

800x600 60

1024x768 60

1280x768 60

1360x768 60

1280x720 60

1280x800 60

1280x1024 60

1440x900 60

1400x1050 60

1680x1050 60

1600x1200 60

1920x1080 60

1920x1200 60

720X480P 60

1280X720P 60

1920X1080I 60

DRAFT

10

11

DISPLAY SIZE OVER SCAN

FULL

FOLLOW INPUT

PAN SCAN

LETTER BOX

UNDER 2

UNDER 1

MODE INFO OFF

INPUT HDCP

(HDMI mode only)

INFO

ON

OFF

ON

AUTO SETUP

PC

(PC mode only)

Yes/No(Default No)

(PC mode only) 0~60

V_POSITION

PHASE

0~60

0~31

XGA/WXGA(Default

XGA)

CLOCK

WXGA/XGA

DRAFT

COLOR

AUDIO

CONTRAST

BRIGHTNESS

COLOR

HUE

SATURATION

SHARPNESS

NR.

OFF

LOW

MIDDLE

HIGH

VOLUME

R

G

B

R OFFSET

G OFFSET

B OFFSET

0~60(Default 30)

0~60(Default 30)

0~1023(Default 512)

0~1023(Default 512)

0~1023(Default 512)

0~1023(Default 512)

0~1023(Default 512)

0~1023(Default 512)

0~60(Default 30)

0~60(Default 30)

0~30(Default 0)

0~100(Default 100)

SOUND

SOURCE

(HDMI mode only)

ON

MUTE

AUTO

12

13

SETUP FACTORY RESET OSD Setting back to factory default

KEY LOCK

POWER

SAVE

IP MODE

OFF

ON

OFF

ON

DHCP

STATIC

SET STATIC IP IP ADDRESS

0.0.0.0~

255.255.255.255

(Default 192.168.0.1)

SUBNET MASK 0.0.0.0~

255.255.255.255

(Default 255.255.255.0)

Def. GATWAY 0.0.0.0~

255.255.255.255

FREERUN

COLOR

INFORMATION INPUT:

MISC.

BLUE

BLOCK

HDBTOUT

(UART1)

(Default 192.168.0.254)

DRAFT

OUTPUT:

REVISION:

IP ADDRESS:

HDBT1~2(Default

HDBT1)

Default settings are underlined.

7. CONNECTION DIAGRAM

1.5m

60°

IR BLASTER

3m

60°

3m

Blu-ray/DVD

Player

Router with

Internet

Connection

IR Extender

Active

Speakers

Active Speakers

HDMI In

RS-232 In

Transmitter

LAN

HDMI to CAT5e/6 with LAN/IR/RS232

Smartphone or Tablet

TX

100M

Set-top Box

RS-232

Equipped PC

RS-232

Cable

RX

INPUT

IR OUT IR IN AUDIO AUDIO AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4 AUDIO 7

INPUT R L CV

DSP PROG.

8

Power

IR2 Blaster

IR1 Extender

Link

CAT5e/6 In

OUTPUT

3D TV/

Display

CAT5e/6/7

CAT5e/6

Output

100M

COAX

HDMI 1

HDMI

3D TV/

Display

ON

SERVICE 1

OFF

HDMI

BYPASS

HDMI

Input

Blu-ray

Player

DVI to

HDMI

Output

Blu-ray or PS3 Player

CAT5e/6/7

5

CAT5e/6/7

6

SERVICE 2

DRAFT

PC

PC

RS-232

LAN

Network

Router

Power

Supply

DC 24 V

DELL PC/

Laptop

14

15

8. SPECIFICATIONS

Frequency bandwidth

Input Ports

Resolution

Output ports

Up to 10.2Gbps

4 x HDMI

4 x L/R

2 x CAT5e/6/7

1 x PC + L/R

1 x CV+L/R

2 x USB (Service only)

1 x LAN

1 x RS-232

1 x IR

2 x HDMI

1 x HDMI Bypass

1 x CAT5e/6/7

1 x Coaxial

1 x L/R

[email protected]/60, [email protected],

VGA~WUXGA(RB)

Audio Format

ESD Protection

Power Supply

Dimensions

Weight

LPCM 2CH, Dolby Digital 2~5.1CH/ DTS

2~5.1CH (Pass through)

Human body model:

DRAFT

Excluded

3410g

438mm (W) x 275mm (D) x 44mm (H)/Jack

Included

Chassis Material

Silkscreen Color

Metal

Black

Operating Temperature

Storage Temperature

Relative Humidity

Power Consumption

0˚C~40˚C / 32˚F ~ 104˚F

-20˚C~60˚C / -4˚F ~ 140˚F

20~90% RH (no condensation)

8.1 Input Resolution Support

INPUT RESOLUTION

480i/576i

480p/576p

[email protected]/60 Hz

[email protected]/60 Hz

[email protected]/60 Hz

[email protected]/72/75 Hz

[email protected]/60/72/75 Hz

COMP

-

-

PC

-

-

-

-

-

HDMI

 

[email protected]/70/75 Hz

-

 

[email protected]/75 Hz

[email protected] Hz

1280×[email protected] Hz

1680×[email protected] Hz

1920×[email protected] Hz

-

-

-

-

-

1920 x [email protected]

[email protected]/25/30 Hz

 

16

17

HDMI

8.2 Output Resolution Support

OUTPUT RESOLUTION

480p/576p

PC/HD

HD

HD

HD

HD

[email protected]/60 Hz

[email protected]/60 Hz

[email protected]/60 Hz

[email protected] Hz

[email protected] Hz

[email protected] Hz

[email protected] Hz

[email protected] Hz

1280×[email protected] Hz

1280×[email protected] Hz

1360×[email protected] Hz

1400×[email protected] Hz

1440×[email protected] Hz

 

1920×[email protected] Hz

1680×[email protected] Hz

DRAFT

9. ACRONYMS

ACRONYM

COMP

CV

DVI

EDID

HDCP

HDMI

IR

OSD

USB

UXGA

VGA

XGA

WUXGA

COMPLETE TERM

Component Video

Composite Video

Digital Visual Interface

Extended Display Identification Data

High-Bandwidth Digital Content Protection

High-Definition Multimedia Interface

Infrared

On-screen Display (Menu)

Universal Serial Bus

Ultra Extended Graphics Array

Video Graphics Array

Extended Graphics Array

Wide Ultra Extended Graphics Array

DRAFT

18

DRAFT

CYPRESS TECHNOLOGY CO., LTD

Home page: http://www.cypress.com.tw

20140530 MPM-CDPS84HB

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
