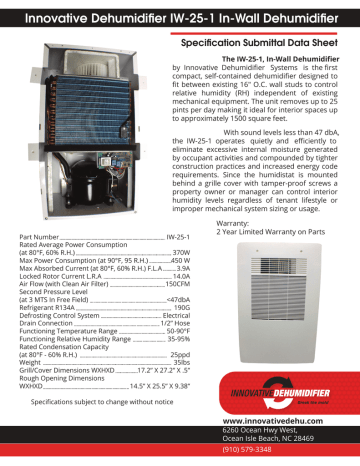

Innovative Dehumidifier IW-25-1 In-Wall Dehumidifier
Specification Submittal Data Sheet
The IW-25-1, In-Wall Dehumidifier
by Innovative Dehumidifier Systems is the first
compact, self-contained dehumidifier designed to
fit between existing 16" O.C. wall studs to control
relative humidity (RH) independent of existing
mechanical equipment. The unit removes up to 25
pints per day making it ideal for interior spaces up
to approximately 1500 square feet.
With sound levels less than 47 dbA,
the IW-25-1 operates quietly and efficiently to
eliminate excessive internal moisture generated
by occupant activities and compounded by tighter
construction practices and increased energy code
requirements. Since the humidistat is mounted
behind a grille cover with tamper-proof screws a
property owner or manager can control interior
humidity levels regardless of tenant lifestyle or
improper mechanical system sizing or usage.
IW-25-1
Part Number
Rated Average Power Consumption
370W
(at 80°F, 60% R.H.)
450 W
Max Power Consumption (at 90°F, 95 R.H.)
3.9A
Max Absorbed Current (at 80°F, 60% R.H.) F.L.A
14.0A
Locked Rotor Current L.R.A
150CFM
Air Flow (with Clean Air Filter)
Second Pressure Level
(at 3 MTS In Free Field)
<47dbA
Refrigerant R134A
190G
Electrical
Defrosting Control System
1/2” Hose
Drain Connection
Functioning Temperature Range
50-90°F
35-95%
Functioning Relative Humidity Range
Rated Condensation Capacity
25ppd
(at 80°F - 60% R.H.)
35lbs
Weight
Grill/Cover Dimensions WXHXD
17.2” X 27.2” X .5”
Rough Opening Dimensions
14.5” X 25.5” X 9.38”
WXHXD
Warranty:
2 Year Limited Warranty on Parts
Specifications subject to change without notice
www.innovativedehu.com
6260 Ocean Hwy West,
Ocean Isle Beach, NC 28469
(910) 579-3348
Rear View
Front View
EXAMPLE OF A TYPICAL INSTALLATION
OPTIONAL ACCESSORY:
Surface Mounting Box
Dimensions
26 1/2"H x 17 1/4"W x 11"D
NOTE: The IW-25-1 may be installed at any height, the above example is for illustrative purposes only.
Model
IW-25-1
Quantity
Comments
Project:
Location
:
Architect
:
Engineer
:
Contractor
:
Submitted by :
Date
:
For Complete Installation Instructions Visit: www.innovativedehu.com
