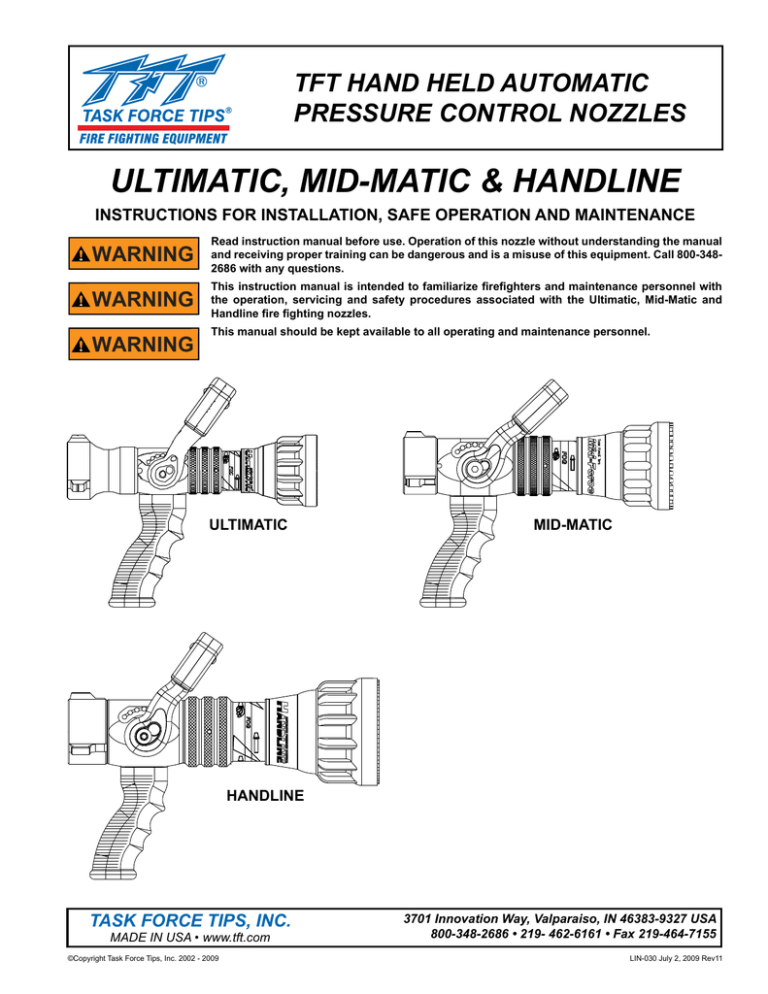

lin-030 rev11
TFT HAND HELD AUTOMATIC
PRESSURE CONTROL NOZZLES
ULTIMATIC, MID-MATIC & HANDLINE
INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
WARNING
WARNING
Read instruction manual before use. Operation of this nozzle without understanding the manual and receiving proper training can be dangerous and is a misuse of this equipment. Call 800-348-
2686 with any questions.
This instruction manual is intended to familiarize firefighters and maintenance personnel with the operation, servicing and safety procedures associated with the Ultimatic, Mid-Matic and
Handline fire fighting nozzles.
This manual should be kept available to all operating and maintenance personnel.
WARNING
ULTIMATIC MID-MATIC
HANDLINE
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2002 - 2009
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIN-030 July 2, 2009 Rev11
Table Of Contents
1.0 MEANING OF SIGNAL WORDS
2.0 GENERAL INFORMATION
2.1 VARIOUS MODELS AND TERMS
2.2 COLOR CODED VALVE HANDLE COVERS - MID-MATIC &
HANDLINE ONLY
2.3 MECHANICAL SPECIFICATIONS
3.0 FLOW CHARACTERISTICS
3.1 REACH & TRAJECTORY
3.2 USE WITH SALT WATER
4.0 NOZZLE CONTROLS
4.1 FLOW CONTROL
4.1.1 LEVER TYPE FLOW CONTROL
4.1.2 TWIST SHUTOFF
4.1.3 TIP ONLY NOZZLES
4.2 PATTERN AND FLUSH CONTROL
4.2.1 PATTERN CONTROL
4.2.2 FLUSH CONTROL5
5.0 USE OF ULTIMATIC, MID-MATIC & HANDLINE NOZZLES
6.0 FIELD INSPECTION
7.0 WARRANTY
8.0 ANSWERS TO YOUR QUESTIONS
9.0 NOZZLE FLOW CHARTS
10.0 INSPECTION CHECKLIST
DANGER
PERSONAL RESPONSIBILITY CODE
The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following:
1. Firefighting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.
2. It is your responsibility to read and understand any user’s instructions, including purpose and limitations, provided with any piece of equipment you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions, and care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain the personal skill level required to operate any equipment you may be called upon to use.
5. It is your responsibility to know that your equipment is in operable condition and has been maintained in accordance with the manufacturer’s instructions.
6. Failure to follow these guidelines may result in death, burns or other severe injury.
FEMSA
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
1.0 MEANING OF SAFETY SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to personal injury.
2.0 GENERAL INFORMATION
•
•
•
•
•
•
The Task Force Tips Ultimatic, MID-MATIC and Handline nozzles are designed to provide excellent performance under most fire fighting conditions. Their rugged construction is compatible with the use of fresh water (see section 5.0 for saltwater use) as well as fire fighting foam solutions. Other important operating features are:
Slide valve with valve handle detent flow control for excellent stream quality at all valve positions
Quick-acting pattern control from straight stream to wide fog
“Power fog teeth” for full-fill fog
“Gasket grabber” inlet screen to keep large debris from entering nozzle
Easily flushable while flowing to clear trapped debris
TFT’s five-year warranty and unsurpassed customer service
©Copyright Task Force Tips, Inc. 2002 - 2009
2
LIN-030 July 2, 2009 Rev11
2.1 VARIOUS MODELS AND TERMS
SERIES
ULTIMATIC
MID-MATIC
HANDLINE
FLOW RANGE
GPM L/min
10-125 40-500
10-100
70-200
40-400
70-200
95-300
100-600
190-1350
NOMINAL PRESSURE
PSI BAR
100 7
75
100
75
100
6
7
6
7
STANDARD COUPLING*
1,1-1/2 NH or 1-1/4 NPSH
1,1-1/2 NH or 1-1/4 NPSH
1-1/2 NH
1-1/2 NH
1-1/2 or 2-1/2 NH
95-250 200-950 75 6 1-1/2 or 2-1/2 NH
* Other threads, coupling sizes, or connector styles can be specified at time of order.
Ultimatic, MID-MATIC and Handline nozzles are available in several models. Some common models are shown in figure 1.
CAUTION
Nozzle must be mated to a hose line with matched threads. Mismatched or damaged threads may cause nozzle to leak or uncouple from hose under pressure and could cause injury.
COUPLING
FL
OW
CONTRO
L
ON OFF
STREAM
SHAPER
BARREL LABEL
NAME LABEL
RUBBER
GASKET
PISTOL
GRIP
NOZZLE WITH VALVE and INTEGRAL PISTOL GRIP
TIP ONLY NOZZLE
FIGURE 1 COMMON MODELS AND TERMS
VALVE HANDLE
VALVE POSITION
LABEL
DETENTS
GASKET
GRABBER
INLET
SCREEN
NOZZLE WITH VALVE
VALVE RING
TIP ONLY NOZZLE
WITH TWIST SHUTOFF
FIGURE 1 COMMON MODELS AND TERMS
©Copyright Task Force Tips, Inc. 2002 - 2009
3
LIN-030 July 2, 2009 Rev11
2.2 COLOR CODED VALVE HANDLE AND PISTOL GRIP
The TFT ULTIMATIC, MID-MATIC & HANDLINE with lever type valve handles are supplied with black valve handle covers and pistol grips. The handle covers and pistol grips are available from TFT in various colors for those departments wishing to color code the nozzle to the discharge controls. A colored handle cover set will be sent upon receipt of the warranty card by TFT. Your department’s name can also be engraved on the covers (see warranty card for more information).
Handle covers are replaceable by removing the four screws that hold the handle covers in place. Use a 3/32” allen wrench when replacing screws. Pistol grip is replaceable by following TFT instruction sheet LTT-108.
For standardization NFPA 1901 (A-4-9.3) recommends the following color code scheme:
Preconnect #1 or Bumper Jump Line
Preconnect or discharge #2
Preconnect or discharge #3
Orange
Red
Yellow
Preconnect or discharge #4
Preconnect or discharge #5
Preconnect or discharge #6
Preconnect or discharge #7
Foam Lines
White
Blue
Black
Green
Red w/ White border (Red/White)
Other Colors Available:
•
•
•
•
Gray
Pink
Purple
Tan
2.3 MECHANICAL SPECIFICATIONS
Maximum nozzle inlet pressure with valve shutoff
Operating temperature range of fluid
Storage temperature range
Materials used
Ultimatic 800 psi
Mid-Matic 300 psi
Handline 300 psi
33 to 120º F
55 bar
21 bar
21 bar
1 to 50º C
-40 to 150º F -40 to 65º C
Aluminum 6000 series hard anodized MIL8625 class 3 type 2, stainless steel 300 series, nylon 6-6, nitrile rubber
3.0 FLOW CHARACTERISTICS
The graphs in figure 2 show the typical performance of ULTIMATIC, MID-MATIC and HANDLINE nozzles.
200 400
FLOW (LPM)
600 800 1000
140
120
ULTIMATIC
FLOW RANGE
ULTIMATIC
MID-MATIC
1200
100
HANDLINE
80
MID-MATIC
FLOW RANGE
60
HANDLINE
FLOW RANGE
40
8
6
4
2
20
0
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360
100 PSI ULTIMATIC, MID-MATIC & HANDLINE
©Copyright Task Force Tips, Inc. 2002 - 2009
4
LIN-030 July 2, 2009 Rev11
200 400
FLOW (LPM)
600 800 1000
140
120
100
ULTIMATIC
FLOW RANGE
75 PSI ULTIMATIC
75 PSI MID-MATIC 75 PSI HANDLINE
8
6
80
60
MID-MATIC
FLOW RANGE
4
40
HANDLINE
FLOW RANGE
2
20
0
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280
FLOW (GPM)
75 PSI ULTIMATIC, MID-MATIC & HANDLINE
FIGURE 2
The charts in section 8.0 of this document give specific examples of maximum flow rates for particular situations. Friction losses may vary due to differences in hose construction resulting in flows different than those shown. For situations or lengths of hose not listed on the chart, approximate flows can be calculated using conventional hydraulics.
DANGER
WARNING
WARNING
An inadequate supply of nozzle pressure and/or flow will cause an ineffective stream and can result in injury, death or loss of property. See flow chart in section 8.0 or call 800-348-2686 for assistance.
Failure to restrain nozzle reaction can cause firefighter injury from loss of footing and/or stream protection. Nozzle reaction will vary as supply conditions change: such as opening or closing other nozzles, hose line kinks, changes in pump settings, etc. Changes in spray pattern or flushing will also affect nozzle reaction. The nozzle operator must always be positioned to restrain the nozzle reaction in the event of those changes.
Injury from whipping can occur. If nozzle gets out of control or away from operator, retreat from nozzle immediately. Do not attempt to regain control of nozzle while flowing water.
CAUTION
Fire streams are capable of injury and damage. Do not direct water stream to cause injury or damage to persons or property.
3.1 REACH AND TRAJECTORY
Specific data is published in technical documents LTT-140 and LTT-145 entitled Reach & Trajectory Data of Hand Held Nozzles.
3.2 USE WITH SALT WATER
Use with salt water is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service lifr of the nozzle may be shortened due to the effects of corrosion and is not covered under warranty.
4.0 NOZZLE CONTROLS
4.1 FLOW CONTROL
4.1.1 LEVER TYPE FLOW CONTROL
On models that use a lever type valve handle, the nozzle is shut off when the handle is fully forward. The valve handle has six detent flow positions. These detent positions allow the nozzle operator to regulate the flow of the nozzle depending on the need or what can be safely and effectively handled. TFT recommends the use of a pistol grip for easier handling. For additional stress reduction, a hose rope or strap may also be used. This permits more effective use and ease of advancement, while minimizing strain and fatigue.
©Copyright Task Force Tips, Inc. 2002 - 2009
5
LIN-030 July 2, 2009 Rev11
4.1.2 TWIST SHUTTOFF
On models that use a twist flow control. The valve is opened or closed by rotating the valve ring. Rotating the ring clockwise
(as seen from the operating position behind the nozzle) closes the valve, while counterclockwise rotation opens it. Detents are provided at four intermediate positions and the position of the valve is shown by the exposed valve position label.
4.1.3 TIP ONLY NOZZLES
Tip only nozzles have NO shut off valve contained within the nozzle and MUST be used with a separate ball valve attached to the nozzle.
4.2 PATTERN AND FLUSH CONTROL
4.2.1 PATTERN CONTROL
TFT’s ULTIMATIC, MID-MATIC and HANDLINE have full pattern control from straight stream to wide fog. Turning the STREAM
SHAPER clockwise (as seen from the operating position behind the nozzle) moves the SHAPER to the straight stream position.
Turning the SHAPER counterclockwise will result in an increasingly wider pattern.
Since the stream trim point varies with the flow, the stream should be “trimmed” after changing the flow to obtain the straightest and farthest reaching stream. To properly trim a stream, first open the pattern to a narrow fog. Then close the stream to parallel to give maximum reach. NOTE: Turning the shaper further forward will cause stream crossover and reduce the effective reach of the nozzle.
The nozzle reaction is greatest when the shaper is in the straight stream position. The nozzle operator must be prepared for a change in reaction as the pattern is changed.
4.2.2 FLUSH CONTROL
Small debris passes through the gasket grabber and may get caught inside the nozzle. This trapped material will cause poor stream quality, shortened reach and reduced flow. To remove this trapped debris the nozzle can be flushed as follows; while still flowing water, turn the SHAPER counterclockwise past the full fog position (increased resistance will be felt on the SHAPER as the nozzle goes into flush). This will open the nozzle allowing debris to pass through. Rotate the SHAPER clockwise and out of flush to continue normal operation. During flush the nozzle reaction will decrease as the pattern becomes wider and the pressure drops. The nozzle operator must be prepared for an increase of nozzle reaction when returning the nozzle from the flush position to retain control of the nozzle.
WARNING
Large amounts of debris can reduce the flow of the nozzle resulting in an ineffective flow. In the event of a blockage it may be necessary to retreat to a safe area, uncouple nozzle and remove debris.
FIGURE 3 - GASKET GRABBER
5.0 USE OF ULTIMATIC, MID-MATIC and HANDLINE NOZZLES
IT IS THE RESPONSIBILITY OF THE INDIVIDUAL FIRE DEPARTMENT OR AGENCY TO DETERMINE PHYSICAL CAPABILITIES
AND SUITABILITY FOR AN INDIVIDUAL’S USE OF THIS EQUIPMENT.
Many factors contribute to the extinguishment of a fire. Among the most important is delivering water at a flow rate sufficient to absorb heat faster than it is being generated. The flow rate depends largely on the pump discharge pressure and hose friction loss. The pump discharge pressure may be found by use of the chart in section 8.0. It can also be calculated using a hydraulic equation such as:
©Copyright Task Force Tips, Inc. 2002 - 2009
6
LIN-030 July 2, 2009 Rev11
WARNING
CAUTION
CAUTION
Water is a conductor of electricity. Application of water solutions on high voltage equipment can cause injury or death by electrocution. The amount of current that may be carried back to the nozzle will depend on the following factors:
Voltage of the line or equipment • Distance from the nozzle to the line or equipment
Size of the stream • Whether the stream is solid or broken • Purity of the water
2
Do not couple aluminum to brass. Dissimilar metals coupled together can cause galvanic corrosion that can result in inability to unscrew threads or complete loss of thread engagement.
The nozzle may become damaged if allowed to freeze while containing water. Always drain after use to avoid damage and possible loss of use.
1 Electrostatic Hazards of Foam Blanketing Operations by Peter Howels. Industrial Fire Safety July/August 1993
2 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47.
For additional information on calculating specific hose layouts, consult an appropriate fire service training manual,
A Guide to Automatic Nozzles, or call TFT’s “Hydraulics
Hotline” at 800-348-2686.
PDP = NP + FL + DL + EL
PDP = Pump discharge pressure in PSI
NP = Nozzle pressure in PSI
FL = Hose friction loss in PSI
DL = Device loss in PSI
EL = Elevation loss in PSI
6.0 FIELD INSPECTION
TFT’s ULTIMATIC, MID-MATIC and HANDLINE are designed and manufactured to be damage resistant and require minimal maintenance. However, as the primary fire fighting tools upon which your life depends, they should be treated accordingly.
Use with saltwater is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of the nozzle may be shortened due to the effects of corrosion and is not covered under warranty.
WARNING
Nozzle must be inspected for proper operation and function according to inspection checklist on last page before each use. Any nozzle that fails inspection is dangerous to use and must be repaired before using.
Performance tests shall be conducted on the Ultimatic, Mid-Matic and Handline nozzle after a repair, or anytime a problem is reported to verify operation in accordance with TFT test procedures. Consult factory for the procedure that corresponds to the model and serial number of the nozzle. Any equipment which fails the related test criteria should be removed from service immediately. Troubleshooting guides are available with each test procedure or equipment can be returned to the factory for service and testing.
Factory service is available with repair time seldom exceeding one day in our facility. Factory serviced nozzles are repaired by experienced technicians to original specifications, fully tested and promptly returned. Any returns should include a note as to the nature of the problem, who to reach in case of questions and if a repair estimate is required.
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service.
TFT Item#
LIB-020
LHM-020
LIH-020
LDH-020
Title
Ultimatic 125 Service Procedure
Mid-Matic & Mid-Force Service Procedure
Handline Service Procedure
Handline & Dual-Force Service Procedure
SPECIAL CONFIGURATIONS; If nozzles are made according to the special marking or performance requirements of the fire department then the operating characteristics may differ from the published data in this manual. Repair parts specific to each serial number may differ from those shown in the service procedure. The required parts for each serial number are available on-line by entering www.tft.123456 the with numbers corresponding to the serial number engraved on the product.
Consult TFT for laser engraved handle covers, special labeling, logos, and special laser engraving on the nozzle.
CAUTION
Any alterations to the nozzle and its markings could diminish safety and constitutes a misuse of this product.
All Task Force Tip nozzles are factory lubricated with high quality silicone grease. This lubricant has excellent washout resistance and long term performance. If your department has unusually hard or sandy water, the moving parts may be affected. Foam agents and water additives contain soaps and chemicals that may break down the factory lubrication.
The moving parts of the nozzle should be checked on a regular basis for smooth and free operation, and signs of damage. IF THE
NOZZLE IS OPERATING CORRECTLY, THEN NO ADDITIONAL LUBRICATION IS NEEDED. Any nozzle that is not operating correctly should be immediately removed from service and the problem corrected.
©Copyright Task Force Tips, Inc. 2002 - 2009
7
LIN-030 July 2, 2009 Rev11
7.0 WARRANTY
Task Force Tips, Inc., 3701 Industrial Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its
Ultimatic, Mid-Matic, and Handline series nozzles (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase.
TFT’s obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by
TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 3701 Industrial Way, Valparaiso, Indiana 46383-9327 USA, within a reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT
ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR
PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
8.0 ANSWERS TO YOUR QUESTIONS
We appreciate the opportunity of serving you and making your job easier. If you have any problems or questions, our toll-free
“Hydraulics Hotline”, 800-348-2686, is normally available to you 24 hours a day, 7 days a week.
©Copyright Task Force Tips, Inc. 2002 - 2009
8
LIN-030 July 2, 2009 Rev11
9.0 NOZZLE FLOW CHARTS
100 PSI
= 100 PSI ULTIMATIC
75 PSI
= 75 PSI ULTIMATIC
ULTIMATIC 125 Flow Chart
FLOW (GPM)
125
3/4" HOSE
150 ft.
200 ft.
250 ft.
100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI
10 22
—
19
—
17
1" HOSE
150 ft.
200 ft.
250 ft.
100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI
1 1/2" HOSE
150 ft.
200 ft.
250 ft.
100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI
23 53 20 47 18 42 70 108 60 97 50 89
150
175
200
225
250
300
350
400
450
500
600
26
29
34
16
20
23
38
42
46
49
55
42
45
49
52
57
32
34
38
25
27
30
22
25
29
13
17
20
33
36
39
42
48
42
45
50
28
30
33
21
24
26
37
39
29
32
34
37
42
20
22
26
11
15
18
25
27
30
19
21
23
56
62
72
34
42
50
82
88
99
61
68
75
48
52
62
29
36
42
33
35
38
40
44
80
90
98
105
109
117
—
—
120
—
70
78
84
95
103
110
90
100
117
—
71
77
86
54
60
66
26
32
38
42
46
54
62
68
74
80
90
49
55
60
65
69
78
100
125
—
—
—
125 85
—
110
—
125
— —
— —
114
—
—
—
—
75 106
95
110
118
—
125
—
—
—
— — — — — —
85
93
—
—
— —
— —
—
—
—
—
—
—
99
106
—
—
— —
— —
—
—
—
—
—
—
117
— — — — — —
(1) Number in each box indicates flow (GPM). (2) Flows may vary with brand or condition of hose.
(3) Flows are approximate and do not reflect losses in preconnect piping.
7 BAR
= 7 BAR ULTIMATIC
6 BAR
= 6 BAR ULTIMATIC
ULTIMATIC 125 Flow Chart
FLOW (LPM)
8.6
19mm HOSE
45M 60M 75M
7 BAR 6 BAR 7 BAR 6 BAR 7 BAR 6 BAR
40 85 ---70 ---65
25mm HOSE
45M.
60M 75M
7 BAR 6 BAR 7 BAR 6 BAR 7 BAR 6 BAR
85 200
75
180 70 160
38mm HOSE
45M 60M 75M
7 BAR 6 BAR 7 BAR 6 BAR 7 BAR 6 BAR
265 410 225 365
190 335
10
12
60
75
95
100
50
65
80
90
40
55
70
80
130 230 110
205
100 185 380 475 320 430 285 400
160 255 135 225 120 210 475 ---415 ---360 445
14
85 115 75 100 70 85 190 285 160 250 145 225
15.5
100 120
17
110 130
21
130 145
85
95
110
105
115
75
85
95
100
210
235
125 100 115 275
310
335
180
195
270
290
375 235 325
160
175
245
260
205 295
----
----
----
----
----
----
----
----
475
----
----
----
----
----
----
----
415
475
----
----
----
----
----
----
24
28
31
34
145
160
185
160
195
125
170 135
160
140
170
110
150 120
140
125
150
305
130 340
175 185 150
160 130 145 370
395
415
445
----
----
265 360
295
390
320
415
340 445
235
255
320
350
280 375
305 400
----
----
----
----
41
210 215 180 190 160 165 455 ---380 ---340 445
(1) Number in each box indicates flow (LPM). (2) Flows may vary with brand or condition of hose.
(3) Flows are approximate and do not reflect losses in preconnect piping. (4) 1 BAR = 100 KPA
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
©Copyright Task Force Tips, Inc. 2002 - 2009
9
LIN-030 July 2, 2009 Rev11
MID-MATIC
100 PSI
Flow & Nozzle Reaction Chart
= 100 PSI MID-MATIC
75 PSI
= 75 PSI MID-MATIC
FLOW (GPM)
REACTION
(LBS)
1 1/2" HOSE
50
75
100
125
150
175
200
225
250
93
45
117
59
140
72
162
84
183
94
202
104
150 ft.
100 PSI 75 PSI
200 ft.
100 PSI 75 PSI
21
8
31
13
65
30
49
16
61
24
86
37
21
7
29
12
59
27
48
15
59
23
77
33
115
51
141
63
165
73
187
81
208
88
221
96
84
40
105
52
124
63
141
73
158
82
174
90
101
44
123
55
142
63
160
71
176
78
198
79
1 3/4" HOSE
77
37
96
47
112
57
128
65
142
73
155
80
250 ft.
100 PSI 75 PSI
21
7
28
12
55
25
46
14
57
21
71
30
92
40
110
49
128
57
143
64
157
70
179
69
108
54
141
72
174
90
204
105
---
---
---
---
21
8
23
14
72
34
150 ft.
100 PSI 75 PSI
51
17
65
27
102
45
142
63
178
79
214
90
---
---
---
---
---
---
2" HOSE
97
48
125
63
151
78
175
91
198
102
218
112
21
8
32
14
67
32
200 ft.
100 PSI 75 PSI
50
16
62
25
91
40
124
55
153
68
179
79
204
87
222
95
---
---
63
29
91
44
114
57
136
70
157
81
176
91
194
100
250 ft.
100 PSI 75 PSI
21
7
31
13
49
16
60
24
150 ft.
100 PSI 75 PSI
22
8
36
15
52
18
69
29
200 ft.
100 PSI 75 PSI
22
8
35
15
52
18
68
28
84
36
111
49
137
61
159
70
179
79
198
86
215
91
137
61
---
---
---
---
---
---
216
91
---
---
---
---
84
41
135
69
196
101
---
---
---
---
---
---
---
---
120
35
175
77
221
95
---
---
---
---
---
---
---
---
79
38
122
62
168
87
212
109
---
---
---
---
---
---
113
57
151
78
187
97
222
113
---
---
---
---
250 ft.
100 PSI 75 PSI
22
8
34
15
75
36
51
17
66
27
108
48
155
69
195
85
224
98
---
---
---
---
---
---
(1) Number on top in each box indicates flow (GPM), and number on bottom indicates nozzle reaction (LBS).
(2) Flows may vary with brand or condition of hose. (3) Flows are approximate and do not reflect losses in preconnect piping.
MID-MATIC
Flow & Nozzle Reaction Chart
= 7 BAR MID-MATIC = 6 BAR MID-MATIC
7 BAR 6 BAR
FLOW (LPM)
REACTION
(KG)
3.5
5.2
7
8.6
10
12
14
15.5
17
38mm HOSE
45M
7 BAR 6 BAR
60M
7 BAR 6 BAR
75M
7 BAR 6 BAR
740
35
790
40
835
44
210
8
350
14
460
19
540
24
615
28
680
31
445
27
530
33
615
38
695
43
765
47
80
4
115
6
245
14
350
20
535
33
600
37
660
41
80
3
110
5
225
12
320
18
395
24
470
29
540
24
600
27
655
30
705
33
750
36
190
7
315
12
405
16
475
20
485
30
535
33
585
36
80
3
105
5
210
11
290
17
365
21
425
26
590
26
635
29
680
31
175
6
285
11
365
15
430
18
490
21
540
24
45mm HOSE
45M
7 BAR 6 BAR
60M
7 BAR
75M
7 BAR 6 BAR
----
----
----
----
----
----
245
10
420
17
540
24
650
30
740
35
805
41
535
33
660
41
770
48
----
----
----
----
275
15
410
25
80
4
85
6
785
39
835
44
----
----
225
9
380
15
490
20
575
25
660
30
725
35
475
29
570
35
660
41
750
46
825
51
80
4
120
6
255
15
365
22
595
37
665
41
735
45
80
3
115
6
240
13
345
20
430
26
515
32
715
34
770
38
815
41
205
8
345
14
445
18
520
23
600
26
660
30
50mm HOSE
45M
7 BAR 6 BAR
60M
7 BAR 6 BAR
75M
7 BAR 6 BAR
----
----
----
----
----
----
310
12
535
23
695
33
805
41
----
----
----
----
635
40
800
50
----
----
----
----
----
----
85
4
130
7
300
17
460
28
740
46
----
----
----
----
----
----
----
----
85
4
135
7
320
19
510
31
----
----
----
----
----
----
285
11
485
20
630
29
750
36
----
43
----
----
570
35
710
44
840
51
----
----
----
----
85
4
130
7
285
16
430
26
----
----
----
----
----
----
255
10
450
19
580
25
690
32
775
38
845
45
(1) Number on top in each box indicates flow (LPM), and number on bottom indicates nozzle reaction (KG).
(2) Flows may vary with brand or condition of hose. (3) Flows are approximate and do not reflect losses in preconnect piping.
10
©Copyright Task Force Tips, Inc. 2002 - 2009 LIN-030 July 2, 2009 Rev11
100 PSI
HANDLINE Flow & Nozzle Reaction Chart
= 100 PSI HANDLINE
75 PSI
= 75 PSI HANDLINE
Note: For Nozzles with Serial # TFT-H465101 and/or Manufactured after 12/01/2003
1 1/2" HOSE
FLOW
(GPM)
REACTION
(LBS)
50
75
100
125
150
175
200
225
250
150 ft.
100 PSI 75 PSI
96
39
122
52
145
63
165
72
183
81
200
89
216
97
48
16
64
25
71
20
104
31
130
41
151
49
170
57
187
65
202
72
216
80
229
88
200 ft.
100 PSI 75 PSI
85
34
108
45
127
54
144
62
160
70
174
77
188
83
47
15
60
23
114
35
133
42
149
48
164
55
178
61
190
66
202
72
65
18
91
27
250 ft.
100 PSI 75 PSI
77
31
98
40
115
48
45
14
58
22
130
56
144
62
157
68
169
74
160
53
172
58
182
63
120
37
135
43
148
48
60
16
82
24
103
31
1 3/4" HOSE
150 ft.
100 PSI 75 PSI
50
17
73
29
115
48
149
64
177
78
203
91
227
102
249
113
269
123
84
25
126
39
157
52
183
63
206
74
225
86
241
98
257
109
271
122
200 ft.
100 PSI 75 PSI
49
16
67
26
103
42
131
56
156
68
178
79
198
88
216
97
234
106
75
22
112
34
136
44
162
54
182
63
201
71
217
80
231
90
244
99
250 ft.
100 PSI 75 PSI
48
15
63
25
93
38
119
50
141
61
160
70
178
79
195
87
210
94
147
48
165
55
182
63
70
20
101
30
126
39
197
70
211
77
223
85
150 ft.
100 PSI 75 PSI
256
108
276
127
295
145
313
163
336
180
107
33
162
54
203
72
232
90
239
108
276
127
295
145
312
163
329
181
51
18
88
36
148
64
197
88
2" HOSE
200 ft.
100 PSI 75 PSI
210
94
242
109
270
123
289
138
304
154
51
17
81
33
132
57
173
76
234
92
255
108
272
123
288
138
304
154
96
29
145
47
182
63
212
77
250 ft.
100 PSI 75 PSI
189
84
217
98
243
110
266
121
284
133
50
17
76
31
121
51
158
69
218
81
236
94
254
107
269
120
284
134
88
26
133
42
166
56
194
68
(1) Number on top in each box indicates flow (GPM), and number on bottom indicates nozzle reaction (LBS).
(2) Flows may vary with brand or condition of hose. (3) Flows are approximate and do not reflect losses in preconnect piping.
2-1/2" HOSE
355
209
368
234
---
---
---
---
157
52
230
89
269
120
300
150
341
185
349
198
362
222
375
245
---
---
53
19
116
49
224
101
290
140
317
167
343
185
356
210
369
235
---
---
---
---
53
19
123
52
252
114
300
150
150 ft. 200 ft. 250 ft.
100 PSI 75 PSI 100 PSI 75 PSI 100 PSI 75 PSI
53
18
140
45
212
77
251
105
281
131
307
157
342
186
354
209
367
232
378
255
111
46
206
92
282
131
307
157
343
186
356
210
368
232
380
255
348
197
361
221
373
245
---
---
148
48
221
83
260
112
290
140
335
173
7 BAR
HANDLINE Flow & Nozzle Reaction Chart
= 7 BAR HANDLINE
6 BAR
= 6 BAR HANDLINE
Note: For Nozzles with Serial # TFT-H465101 and/or Manufactured after 12/01/2003
38mm HOSE
FLOW
(GPM)
REACTION
(LBS)
3.5
5.2
7
8.6
10
12
14
15.5
17
693
37
757
40
818
44
182
7
242
11
363
18
462
24
549
29
625
33
45M
7 BAR 6 BAR
765
33
818
36
867
40
269
9
394
14
492
19
572
22
643
26
708
29
60M
7 BAR 6 BAR
674
28
719
30
765
33
246
8
344
12
431
16
503
19
564
22
621
25
75M
7 BAR 6 BAR
170
6
220
10
291
14
371
18
435
22
492
25
545
28
594
31
640
34
606
32
659
35
712
38
178
7
227
10
322
15
409
20
481
24
545
28
227
7
310
11
390
14
454
17
511
20
560
22
606
24
651
26
689
29
45mm HOSE
45M
7 BAR 6 BAR
189
8
276
13
435
22
564
29
670
35
768
41
859
46
942
51
973
49
1018
56
1026
55
693
29
780
34
852
39
912
44
318
11
477
18
594
24
185
7
254
12
390
19
496
25
590
31
674
36
749
40
818
44
866
48
60M
7 BAR 6 BAR
284
10
424
15
526
20
613
24
689
29
761
32
821
36
874
41
924
45
75M
7 BAR 6 BAR
182
7
238
11
352
17
450
23
534
28
606
32
674
36
738
39
795
43
265
9
382
14
477
18
556
22
625
25
689
29
746
32
799
35
844
39
50mm HOSE
65mm HOSE
45M
7 BAR 6 BAR
60M
7 BAR 6 BAR
75M
7 BAR 6 BAR
45M
7 BAR 6 BAR
60M
7 BAR 6 BAR
75M
7 BAR 6 BAR
193
8
333
16
405
15
613
24
193
8
307
15
363
13
549
21
189
8
588
14
333
12
503
19
201
9
466
24
594
24
871
40
201
9
439
22
560
22
836
38
201
8
420
21
530
20
802
35
560
29
746
40
905
49
1045
58
1117
66
1181
74
768
33
878
41
969
49
1045
58
1117
66
1185
74
500
26
655
34
795
43
916
49
1022
56
1094
63
689
29
802
35
458
23
598
31
628
25
734
31
866
42
965
49
1030
56
1090
63
715
38
825
37
821
44
920
50
893
43
961
49
1007
55
1018
54
1245
82
1272
82
1151
70
1151
70
1075
60
1075
61
954
52
1298
84
1347
95
1397
107
---
---
---
---
1018
54
1291
84
1344
95
1393
106
---
---
---
---
848
46
1200
76
1321
90
1370
101
1419
111
---
---
984
51
1136
68
1136
68
1098
64
1098
64
1268
78
1317
89
1366
100
1412
111
---
---
780
42
1067
59
1162
71
1298
84
950
48
1064
59
1162
71
1294
84
1347
95
1393
105
1438
116
1340
95
1389
105
1431
116
(1) Number on top in each box indicates flow (LPM), and number on bottom indicates nozzle reaction (KG).
(2) Flows may vary with brand or condition of hose. (3) Flows are approximate and do not reflect losses in preconnect piping.
©Copyright Task Force Tips, Inc. 2002 - 2009
11
LIN-030 July 2, 2009 Rev11
10.0 INSPECTION CHECKLIST
Nozzle must be inspected for proper operation and function according to this checklist before each use.
Check that:
1) There is no obvious damage such as missing, broken or loose parts, damaged labels etc.
2) Gasket grabber is free of debris.
3) Coupling is tight and leak free.
4) Valve operates freely through full range and regulates flow.
5) “OFF” position does fully shut off and flow is stopped.
6) Nozzle flow is adequate as indicated by pump pressure and nozzle reaction.
7) Shaper turns freely and adjusts pattern through full range.
8) Shaper turns into full flush and out of flush with normal flow and pressure restored.
WARNING
Any Ultimatic, Mid-Matic or Handline nozzle failing any part of the inspection checklist is unsafe and must have the problem corrected before use. Operating a nozzle that fails any of the above inspections is a misuse of this equipment.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2002 - 2009
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219- 462-6161 • Fax 219-464-7155
LIN-030 July 2, 2009 Rev11
* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
advertisement
