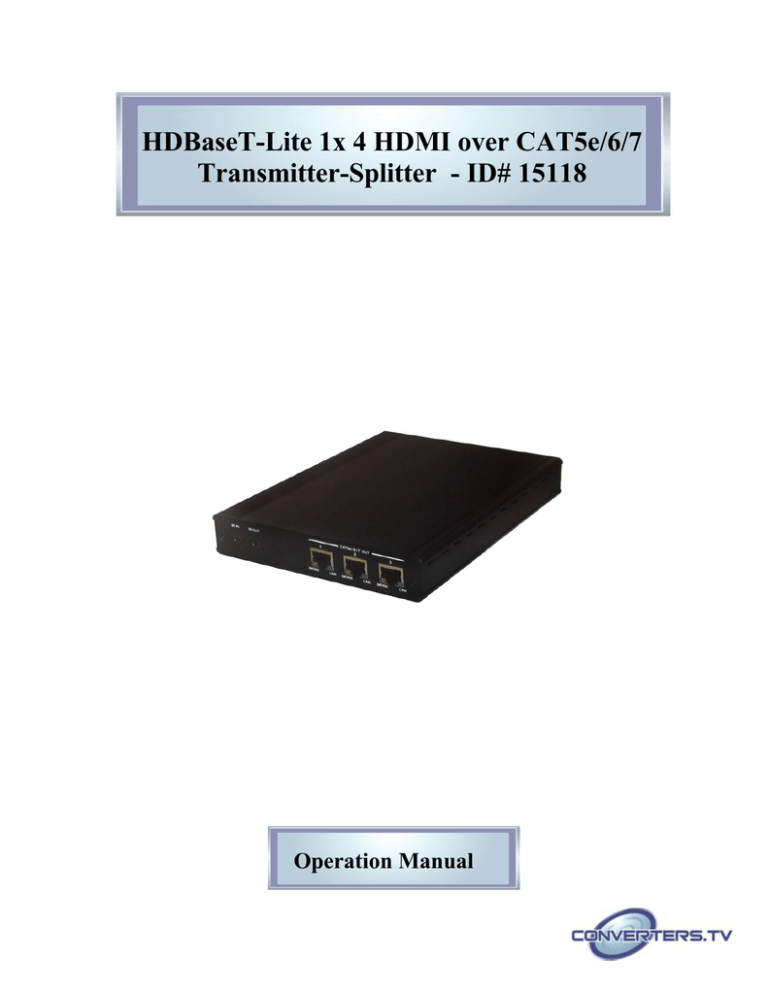

HDBaseT-Lite 1x 4 HDMI over CAT5e/6/7
Transmitter-Splitter - ID# 15118
Operation Manual
Introduction
The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to
1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one
HDTV and three CAT5e/6/7 outputs. The HDMI can be connected to HDMI
display for instant nearby display and the CAT5e/6/7 can be connected to
CAT5e/6/7 to HDMI Receivers for distance up to 60 meters.
Features
•
HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
•
The HDMI and CAT5e/6/7 outputs are playing the same source
simultaneously
•
Supports data rate from 250Mbps up to 3Gbps
•
Supports wide range of PC resolutions from VGA to WUXGA and HDTV
resolutions up to 4Kx2K ([email protected] and [email protected]).
•
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32-192kHz sample rate)
•
Supports distances up to 60 meters through CAT5e/6/7 cables
•
Can select Standard or TV EDID
•
Supports USB service port
•
Supports Bi-directional IR control
•
The 3D signal display follow by display TV’s EDID
Note:
•
Applications
•
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specification.
•
2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI
cable and display in order for proper image displaying.
•
•
•
•
•
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
•
•
•
Source equipment with HDMI output connector
Display TV/Monitor with HDMI input connector
HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
System Requirements
Operation Controls
and Functions
Front Panel
1. HDMI IN:
Connect with source equipment such as DVD/Blu-ray or PS3 player.
2.SYNC:
This LED will illuminate when the HDMI input port connected to the source.
3. HDMI OUT:
Connect to HDMI display for instant image display or cascade with another
family type Transmitter.
4. HDMI LINK:
This LED will illuminate when HDMI output is connected to TV or display
monitor.
5. EDID STD/TV:
The default factory setting is on TV, leave as it is when the display is properly.
The unit will detect the 1st CAT5e/6/7 output’s EDID when it obtain a 4Kx2K
EDID and send out the signal accordingly to other output ports. If the 1st
CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's
EDID and send out the signal that all outputs can accept.
This device obtain the last memory function therefore, the device will use the
last output port 1's EDID when output port 1 is not connected to a display after
power cycling or switch in between the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD EDID's
video at [email protected] and audio at LPCM 2CH.
6. SERVICE:
This slot is reserved for factory service only.
7. POWER LED:
Once the power supply is connected the LED will illuminate
8. DC 24V:
Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.
Back Panel
1. IR IN:
Connect with IR Extender to receive IR signal from Transmitter side and
blast out at Receiver side. Ensure that remote controller being used is
within he direct line-of-sight of the IR Extender.
2. IR OUT:
Connect with IR Blaster to blast out the IR signal received from the
Receiver side. Place the IR Baster in direct line-of-sight of the equipment to
be controlled.
3. CAT5e/6/7 OUT 1~3:
Connect these ports to CAT5e/6/7 to HDMI Receivers (with or without PoE
function) with CAT5e/6/7 cable to extend the signal up to 100m.
4.MODE & LINK 1~3:
The Mode LED will illuminate when the device is connected with power.
The link LED will illuminate when CAT5e/6/7 output(s) has been connected
to the Receiver(s) and the Receiver(s) has connected with display that
shows image on screen.
IR Pin Assignment
Connection Diagram
CAT5e/6/7 Cable
Specification
CABLE
TYPE
RANGE PIXEL CLOCK VIDEO DATA SUPPORTED
RATE
RATE
VIDEO
CAT5e/6/7 60m
40m
<=225 MHz
<=5.3 Gbps
(HD Video)
Up to 1080p, 60
Hz, 36 bits, 3D
(data rates lower
than 5.3 Gbps or
below 225 MHz
TMDS clock).
>225 MHz
> 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
Specifications
Video Bandwidth
Input ports
Output ports
Resolution
HDMI Input Cable Distance
CAT5e/6/7 Output
Cable Distance
IR Frequency
Power Supply
Dimensions
Weight
Chassis Material
Silkscreen Color
ESD Protection
Operating Temperature
Storage Temperature
Relative Humidity
Power Consumption
300Mbps/10.2Gbps
1 x HDMI,
1 x IR IN,
1 x USB (Service only)
1 x HDMI,
3 x CAT5e/6/7
1 x IR OUT,
Up to 4Kx2K
([email protected]/[email protected])
N/A
Up to 60m
30~50kHz
24V / 2.7A DC (US/EU standards,
CE/FCC/UL certified)
145 mm(W) x 199 mm(D) x 30 mm(H)
584 g
Metal
Black
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
0°C ~ 40°C
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
20 ~ 90% RH (non-condensing)
33W
