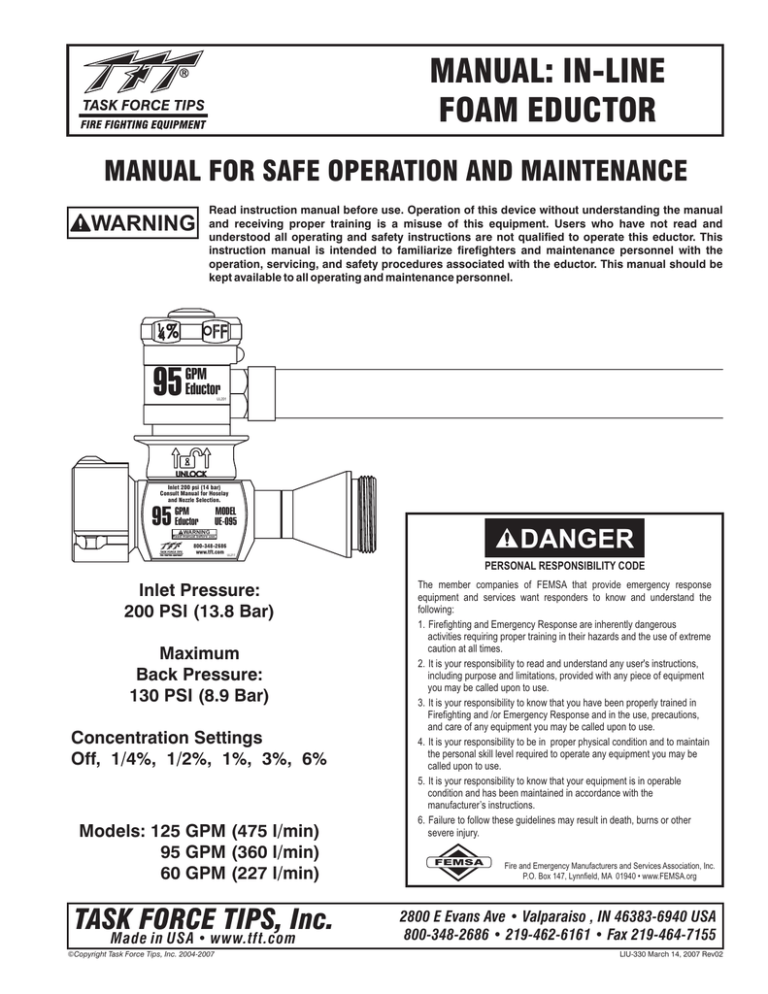

MANUAL: IN-LINE

FOAM EDUCTOR

MANUAL FOR SAFE OPERATION AND MAINTENANCE

WARNING

Read instruction manual before use. Operation of this device without understanding the manual and receiving proper training is a misuse of this equipment. Users who have not read and understood all operating and safety instructions are not qualified to operate this eductor.

operation, servicing, and safety procedures associated with the eductor.

This instruction manual is intended to familiarize firefighters and maintenance personnel with the

This manual should be kept available to all operating and maintenance personnel.

95

GPM

Eductor

UL201

Inlet 200 psi (14 bar)

Consult Manual for Hoselay and Nozzle Selection.

95

GPM

Eductor

WARNING

Read manual before use.

MODEL

UE-095

® 800-348-2686 www.tft.com

UL211

Inlet Pressure:

200 PSI (13.8 Bar)

Maximum

Back Pressure:

130 PSI (8.9 Bar)

Concentration Settings

Off, 1/4%, 1/2%, 1%, 3%, 6%

Models: 125 GPM (475 l/min)

95 GPM (360 l/min)

60 GPM (227 l/min)

TASK FORCE TIPS, Inc.

Made in USA • www.tft.com

©Copyright Task Force Tips, Inc. 2004-2007

DANGER

PERSONAL RESPONSIBILITY CODE

The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following:

1. Firefighting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.

2. It is your responsibility to read and understand any user's instructions, including purpose and limitations, provided with any piece of equipment you may be called upon to use.

3. It is your responsibility to know that you have been properly trained in

Firefighting and /or Emergency Response and in the use, precautions, and care of any equipment you may be called upon to use.

4. It is your responsibility to be in proper physical condition and to maintain the personal skill level required to operate any equipment you may be called upon to use.

5. It is your responsibility to know that your equipment is in operable condition and has been maintained in accordance with the manufacturer’s instructions.

6. Failure to follow these guidelines may result in death, burns or other severe injury.

FEMSA

Fire and Emergency Manufacturers and Services Association, Inc.

P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org

2800 E Evans Ave • Valparaiso , IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

LIU-330 March 14, 2007 Rev02

TABLE OF CONTENTS

1.0 MEANING OF SIGNAL WORDS

4.3 FOAM COMPATIBILITY

2.0 SAFETY

4.4 FOAM CONSUMPTION

3.0 GENERAL INFORMATION

3.1 PART IDENTIFICATION

3.2 GENERAL OPERATING

INSTRUCTION

3.3 CLEANING EDUCTOR

4.0 FOAM SELECTION

4.1 CLASS A FOAM

4.2 CLASS B FOAM

5.0 MAXIMUM HOSE LAY

6.0 NOZZLE SELECTION

7.0 TROUBLE-SHOOTING

8.0 WARRANTY

9.0 DRAWING AND PARTS LIST

10.0 FOAM BUCKET ARRANGEMENT

10.1 FOAM SUPPLY LOGISITICS

11.0 MAINTENANCE

1.0 MEANING OF SIGNAL WORDS

A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

2.0 SAFETY

The eductor is designed for Class A and Class B foam concentrates. If you intend to use the eductor for liquids other than Class A and

Class B concentrates and water, we urge you to contact the Task Force Tips Engineering Department. The use of other liquids may void the warranty and subject the user to hazards not addressed in this manual. The user assumes all risks for non-intended uses.

Make sure there is enough foam concentrate prepared before fighting fire. TFT’s eductors are calibrated 15% more than the nominal rate, or half percent point, which ever is less. Per FOAM EQUIPMENT AND LIQUID CONCENTRATES – UL

162, the liquid concentrate induction rate of a proportioner, expressed as a percentage of the flow rate of the mixed water plus concentrate solution, shall be minus zero (0) percent, plus thirty (30) percent of the manufacturer’s specified induction rate or one percent point, whichever is less.

Make sure the meter head set to OFF position and the correct nozzle and hose lay are securely attached to the eductor before the hose line is charged.

Make sure the nozzle gallonage matches eductor’s gallonage.

Make sure the hose lay does not exceed the maximum listed in the operating instruction.

Make sure that the meter head is set to the correct concentration for the type of foam being used. Foam concentrates can be ineffective if not used at the correct percentage.

DANGER

Lack of foam can place operator at risk of injury or death. Establish foam flow before advancing into hazardous situations. Make sure you do not run out of foam concentrate before the task is complete. Check concentrate level periodically and keep an adequate supply on hand.

WARNING

Do not use Class A foam on Class B fires or Class B foam on Class A fires. Note: Some foam concentrates are universal and can be used on Class B fires and spills and as a wetting agent on

Class A fires. (Refer to foam concentrate manufacturer’s recommendations for proper foam choice.)

2

WARNING

WARNING

Improper use of foam can result in injury or damage to the environment. Follow the foam concentrate manufacturer's instructions and fire service training to avoid the following:

• Using the wrong type of foam on a fire, i.e. Class A foam on Class B flammable liquid fire

• Mishandling of concentrates

• Plunging foam into pools of liquid fuels

• Directing foam onto yourself or other personnel

There is a wide variety of foam concentrates. Each user is responsible for verifying that any foam concentrate chosen to be used with this unit has been tested to assure that the foam obtained is suitable for the purpose intended.

3.0 GENERAL INFORMATION

Eductor Types:

UE-060-NF

UE-095-NF

UE-125-NF

INLINE EDUCTOR 60 GPM 1.5"NH

INLINE EDUCTOR 95 GPM 1.5"NH

INLINE EDUCTOR 125 GPM 1.5"NH

UE-060-NJ

UE-095-NJ

UE-125-NJ

INLINE EDUCTOR 60 GPM 2.5"NH

INLINE EDUCTOR 95 GPM 2.5"NH

INLINE EDUCTOR 125 GPM 2.5"NH

UE-060-IF

UE-095-IF

UE-125-IF

INLINE EDUCTOR 60 GPM 1.5"NPSH

INLINE EDUCTOR 95 GPM 1.5"NPSH

INLINE EDUCTOR 125 GPM 1.5"NPSH

UE-060-IJ

UE-095-IJ

UE-125-IJ

INLINE EDUCTOR 60 GPM 2.5"NPSH

INLINE EDUCTOR 95 GPM 2.5"NPSH

INLINE EDUCTOR 125 GPM 2.5"NPSH

The eductor proportioning rate ranges from 0 .25%,0 .5%, 1%, 3%, to 6%.

TFT’s eductors can be used with 0.25% or 0.5% class A foam concentrates for wildland, rural and urban fire suppression on Class A fuels (wood, paper, combustible materials). On Class A materials the eductors are intended to be used for direct extinguishment, overhaul, and wetting of fuels. Some foam concentrates are corrosive, we recommend using only Class A concentrates that have received USDA and USFS approval.

On class B materials, the eductors are primarily intended for vapor suppression or extinguishment. They can be used with high viscosity 1%, 3%, 6%, 3x3% and 3x6% Alcohol Resistant Class B concentrates on flammable liquids containing polar solvents.

The eductor can also be used with plain AFFF concentrates rated at 1%, 3%, or 6%, with various freeze protected foams, and with FFFP foam types. These foams generally have a lower viscosity than the calibration viscosity of the TFT eductor and will be inducted faster than expected resulting in stronger concentrations. While this does not degrade foam quality, it does reduce the operating time for a given foam supply.

Standard inlet operating pressure is 200 psi on all eductors (1400 kPa/14 bar).

3.1 PART IDENTIFICATION

PUSH BUTTON TO

BACK FLUSH.

METERING HEAD

TURN KNOB TO SET

PROPORTIONING RATE.

PROPORTIONING INDICATOR

RETRACT THE LOCKER RING

TO UNLOCK.

RELEASE THE LOCKER RING

TO ENGAGE.

CHECK DISK

36" LONG 1" ID CLEAR HOSE

(Not to Scale)

20" LONG 1" OD WAND

(Not to Scale)

EDUCTOR BODY

3

EXIT

3.1 PART IDENTIFICATION cont.

The eductor can be split into two parts by grasping the locking ring and retracting it fully to separate the metering head from the eductor body. All the foam passageways can easily be inspected. The foam passageway into the eductor contains a free-floating check disk with three fins. The check disk is pressure activated to keep water from coming out of the fire hose and back into the foam pail.

The metering head contains a red back flush button that can be depressed to open the check disk.

The metering head also has a large proportioning knob that can be rotated to align a ball valve to six different detent positions: Off ¼%

½% 1% 3% 6%. Each foam setting has a precision sized metering orifice in the valve ball. The eductor cannot be operated between settings, as the metering orifices will not line up properly. The setting on the proportioning knob lines up with the white indicator ball.

3.2 GENERAL OPERATING INSTRUCTION

1) Choose the right foam concentrate (see section 4)

2) Lay the right hose (see section 5)

3) Connect the right nozzle (see section 6)

4) Charge the hose and open the nozzle fully to establish the water flow.

5) Adjust the pump pressure so the eductor inlet is set at 200 PSI.

6) Put the wand in the bucket and rotate the percentage knob to the desired concentration.

3.3 CLEANING EDUCTOR

After use take the wand out of the bucket and turn down the pump pressure below 75 PSI. Shut off the nozzle. Restrain the wand and expect a rapid discharge of water especially at 6% setting. Push the red flush button and run fresh water through the wand and metering head on each setting until there is no visible foam in the flush water.

Retract the lock ring to remove the metering head. Turn off the water supply and remove the eductor from the hose so that any remaining foam residue can be washed from the wand, metering head, and eductor.

CAUTION

Do not back flush above 75 PSI. Rapid back flush discharge from the wand could cause injury. The back flush push button is pressure activated and must not be forced at pressures over 75 PSI (5 bar).

4.0 FOAM SELECTION

Actual foam concentrations vary with changes in water flow, foam concentrate temperature and viscosity. The user must verify that the concentrate’s performance is suitable for use in their application. In all cases, the manufacturer’s recommendations must be followed.

CAUTION

Class A foam concentrates are generally less viscous than Class B foam concentrates. Using 1%

Class B foam percentage setting to educt Class A foam, may cause the actual Class A foam percentage to be more than 1%.

4.1 CLASS A FOAM

SOLID FUEL - CLASS A

CLASS A FOAM

Recommended using Class A foam that meets USDA Forest Service “Interim Requirements for Foam for Wildland Fires,

Aircraft or Ground Application” or NFPA 298 “Foam Chemicals for Wildland Fire Control.”

MOP UP & OVERHAUL

OPERATIONS

WILDLAND &

EXPOSURE PROTECTION

Apply as needed for penetration, isolation, cooling, and smothering.

Apply with low expansion nozzle for:

- soaking and penetration of fuel

- greater stream reach

Apply with medium expansion nozzle for:

- greater coverage

- longer lasting

- insulating

4 straight stream nozzle low expansion nozzle piercing nozzle medium expansion nozzle

4.2 CLASS B FOAM

LIQUID FUEL - CLASS B

HYDROCARBONS

Fuels that are mostly distilled from crude oil or vegetable matter. Will not mix with water.

POLAR SOLVENTS

A flammable liquid that mixes with water. Examples are alcohol's, amines, ethers, esters, aldehydes, and ketones. In firefighting, any flammable liquid which destroys regular foam is generally referred to as a polar solvent.

AFFF (Aqueous Film Forming Foam)

AR (Alcohol Resistant Foam)

AR (Alcohol Resistant Foam)

UNIGNITED

May apply at less than rates for ignited. Be capable of increasing to ignited rates if needed.

Apply with

MEDIUM EXPANSION

NOZZLE for vapor suppression

UNIGNITED

Application rates:

Use foam manufacturer's recommendations for handheld nozzles.

Apply with

MEDIUM EXPANSION

NOZZLE for vapor suppression

4.3 FOAM COMPATIBILITY

CAUTION

Do not mix different types of foam concentrates or foams of the same type from different manufacturers. Mixing of foam concentrates can cause the contents of the foam tank to gel and produce unpredictable results. Clean tank and foam passages thoroughly when changing foam types.

Medium Expansion Nozzle

— produces the greatest expansion ratios. It should be used on Class B fuels for vapor suppression and Class A fuels when a longer lasting insulating layer of drier foam is desired.

Low Expansion Nozzle

— can be used with either Class A or B foam solutions. Reach is slightly less than the smooth bore. It should be used on Class B fires for extinguishment and Class A fuels to soak the fuel with a wet foam solution.

Straight Stream Nozzle

— is for Class A foam solutions. Foam expansion will be negligible. It should be used where maximum reach or penetration is desired.

4.4 FOAM CONSUMPTION

The following tables indicate the theoretical foam concentrate flow rate and the time it will take to empty a 5 gallon container of various concentrates with eductors of different ratings.

60 GPM Eductor

Setting Foam Time To Empty

Class 5 Gallons

1/4%

1/2%

A

A

33 min 20 sec

16 min 40 sec

1%

3%

6%

B

B

B

8 min 20 sec

2 min 47 sec

1 min 23 sec

Foam

Flow Rate

0.15 gpm

0.3 gpm

0.6 gpm

1.8 gpm

3.6 gpm

95 GPM Eductor

Time To Empty

5 Gallons

20 min 50 sec

10 min 25 sec

5 min 16 sec

1 min 45 sec

53 sec

Foam

Flow Rate

0.24 gpm

0.5 gpm

1.0 gpm

2.9 gpm

5.7 gpm

5

125 GPM Eductor

Time To Empty

5 Gallons

16 min

8 min

4 min 0 sec

1 min 20 sec

40 sec

Foam

Flow Rate

0.3 gpm

0.6 gpm

1.3 gpm

3.8 gpm

7.5 gpm

4.4 FOAM CONSUMPTION cont.

1. The class A foam used for calibration is the “Knock Down” from National

Foam. The calibration viscosity is 20 Centipoise.

2. The class B foam used for calibration is the “Universal Plus 3% /6% Alcohol

Resistant Aqueous Film Forming Foam” (AR-AFFF) from National Foam.

The calibration viscosity is 2892 centipoise tested with Brookfield #3

Spindle @ 30 rpm.

3. TFT’S eductors were calibrated with 1 ¾” Conquest Hose.

UE-060-NF calibration hose length is 300 ft.

UE-095-NF calibration hose length is 250 ft.

UE-125-NF calibration hose length is 150 ft.

Actual calibrated rate for each setting and the foam concentrate used for calibration

SETTING ACTUAL RATE FOAM CLASS

1/4%

1/2%

0.287%

0.575%

A

A

1%

3%

6%

1.15%

3.45%

6.5%

B

B

B

Per UL-162, TFT’s eductors are calibrated 15% more than the nominal rate, or half percent point, which ever is less. Therefore actual time to empty 5 gallons is less than the values in table.

5.0 MAXIMUM HOSE LAY
