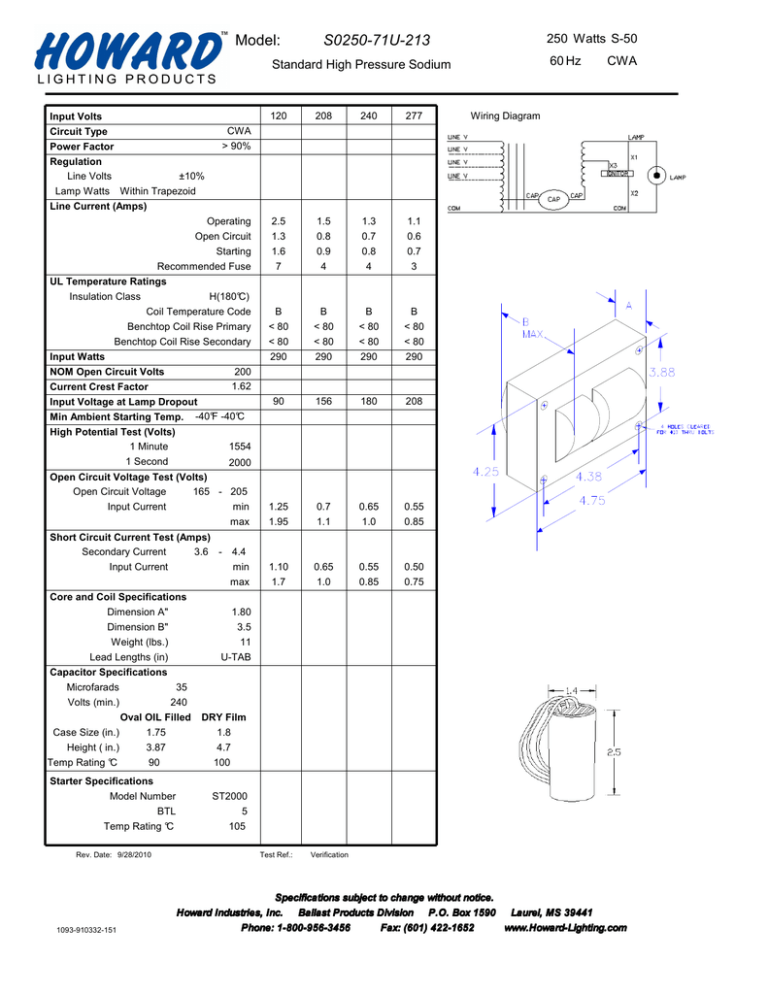

S0250-71U-213 Model: S-50 250

S0250-71U-213 Model: S-50 250
Model:
250 Watts S-50
S0250-71U-213
60 Hz
Standard High Pressure Sodium
Input Volts
120
208
240
277
CWA
Wiring Diagram
CWA
Circuit Type
> 90%
Power Factor
Regulation
Line Volts
±10%
Lamp Watts
Within Trapezoid
Line Current (Amps)
Operating
2.5
1.5
1.3
1.1
Open Circuit
1.3
0.8
0.7
0.6
Starting
1.6
0.9
0.8
0.7
7
4
4
3
Recommended Fuse
UL Temperature Ratings
Insulation Class
H(180°C)
Coil Temperature Code
B
B
B
B
Benchtop Coil Rise Primary
< 80
< 80
< 80
< 80
Benchtop Coil Rise Secondary
< 80
< 80
< 80
< 80
290
290
290
290
90
156
180
208
min
1.25
0.7
0.65
0.55
max
1.95
1.1
1.0
0.85
min
1.10
0.65
0.55
0.50
max
1.7
1.0
0.85
0.75
Input Watts
200
1.62
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -40°F -40°C
High Potential Test (Volts)
1 Minute
1554
1 Second
2000
Open Circuit Voltage Test (Volts)
165 - 205
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
3.6 -
4.4
Input Current
Core and Coil Specifications
Dimension A"
1.80
Dimension B"
3.5
Weight (lbs.)
11
Lead Lengths (in)
U-TAB
Capacitor Specifications
Microfarads
35
Volts (min.)
240
Case Size (in.)
Height ( in.)
Temp Rating °C
Oval OIL Filled
1.75
DRY Film
1.8
3.87
4.7
90
100
Starter Specifications
Model Number
ST2000
BTL
5
Temp Rating °C
105
Rev. Date: 9/28/2010
1093-910332-151
Test Ref.:
Verification
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
Phone: 1-800-956-3456
Fax: (601) 422-1652
www.Howard-Lighting.com
