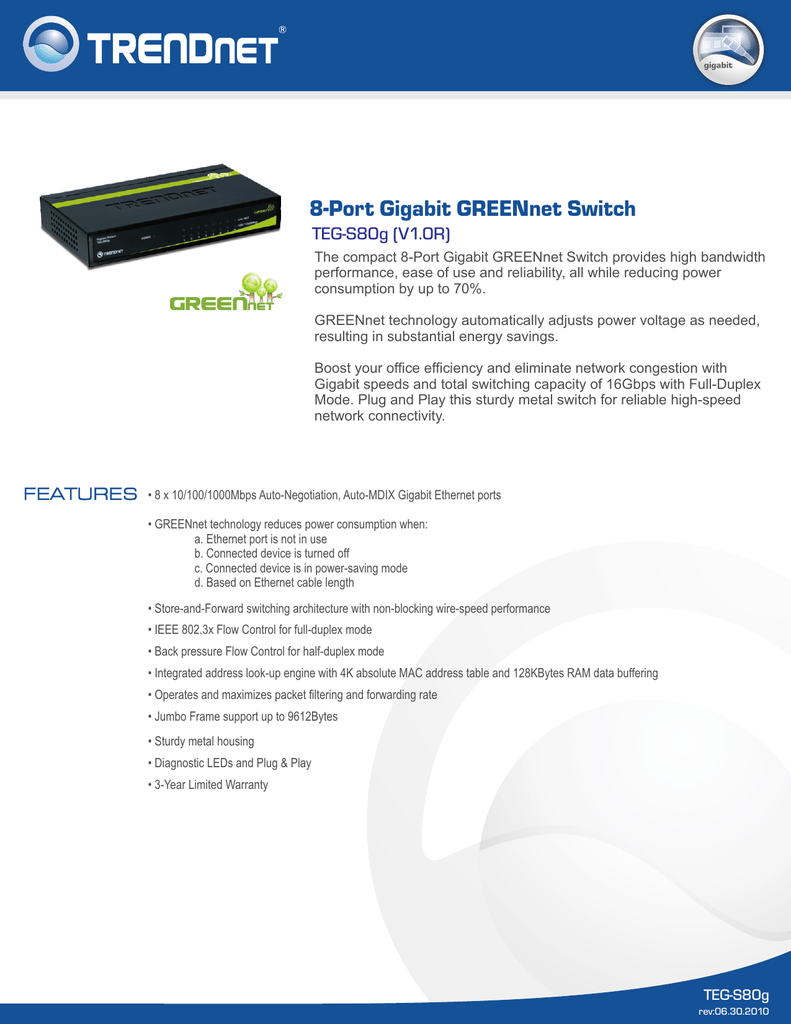

Trendnet TEG-S80g 8-Port Gigabit GREENnet Switch Datasheet

gigabit
8-Port Gigabit GREENnet Switch
TEG-S80g (V1.0R)
The compact 8-Port Gigabit GREENnet Switch provides high bandwidth
performance, ease of use and reliability, all while reducing power
consumption by up to 70%.
GREENnet technology automatically adjusts power voltage as needed,
resulting in substantial energy savings.
Boost your office efficiency and eliminate network congestion with
Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex
Mode. Plug and Play this sturdy metal switch for reliable high-speed
network connectivity.
FEATURES
• 8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
• GREENnet technology reduces power consumption when:
a. Ethernet port is not in use
b. Connected device is turned off
c. Connected device is in power-saving mode
d. Based on Ethernet cable length
• Store-and-Forward switching architecture with non-blocking wire-speed performance
• IEEE 802.3x Flow Control for full-duplex mode
• Back pressure Flow Control for half-duplex mode
• Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
• Operates and maximizes packet filtering and forwarding rate
• Jumbo Frame support up to 9612Bytes
• Sturdy metal housing
• Diagnostic LEDs and Plug & Play
• 3-Year Limited Warranty
TEG-S80g
rev:06.30.2010
8-Port Gigabit GREENnet Switch
TEG-S80g (V1.0R)
SPECIFICATIONS
Hardware
Standards
• IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control
Network Media
• Ethernet: Cat. 3,4,5, up to 100m
Data Rate
• Ethernet: 10Mbps/20Mbps (half/full-duplex)
• Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol / Topology
Power Consumption
• CSMA/CD, Star
• 5w (max)
Switch Fabric
• 16Gbps forwarding capacity
Interface
• 8 x 10/100/1000Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
• 128KBytes
Filtering Table
Diagnostic LED
• 4K entries
Power Adapter
• 7.5V DC, 1A external power adapter
Dimension
• 171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
• Fast Ethernet: Cat. 5, up to 100m
• Gigabit Ethernet: Cat. 5, 5e,6, up to 100m
• Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)
• Power, Link/ACT, 100Mbps, 1000Mbps
Weight
• 450g (15.9oz)
Temperature
• Operating: 0° ~ 40° C (32° ~ 104° F) • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
• 5%~90% (non-condensing)
Certifications
• FCC, CE
*Max power savings compared with standard TRENDnet switches.
NETWORKING SOLUTIONS
PACKAGE CONTENTS
• TEG-S80g
• Multi-Language Quick Installation Guide
1
Delivers less power
to unused ports
on
less power
on
RELATED PRODUCTS
2
Delivers less power
when devices are off
off
on
less power
on
TEW-672GR
300Mbps Dual Band Wireless N Gigabit Router
TEG-PCBUSR
10/100/1000Mbps Gigabit CardBus PC Card
TEG-PCITXR
10/100/1000Mbps Gigabit PCI Adapter
TEG-S50g
5-Port Gigabit GREENnet Switch
3
Delivers less power
with shorter
cable lengths
GREENnet
Switch
20m
60m
100m
Full Power
ORDERING INFORMATION
Regular
Switch
20m
*Max power savings compared with standard TRENDnet switches.
60m
100m
