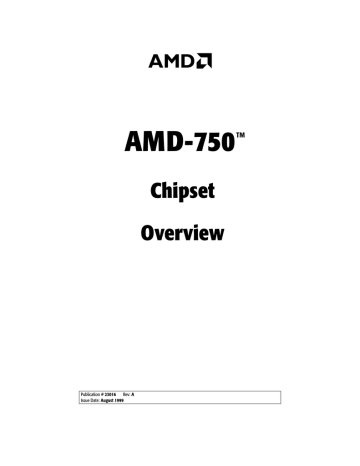

AMD-750
AMD-750
Chipset
Overview
Publication # 23016
Rev: A
Issue Date: August 1999
TM
© 1999 Advanced Micro Devices, Inc. All rights reserved.
The contents of this document are provided in connection with Advanced
Micro Devices, Inc. (“AMD”) products. AMD makes no representations or
warranties with respect to the accuracy or completeness of the contents of
this publication and reserves the right to make changes to specifications and
product descriptions at any time without notice. No license, whether express,
implied, arising by estoppel or otherwise, to any intellectual property rights
is granted by this publication. Except as set forth in AMD’s Standard Terms
and Conditions of Sale, AMD assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products including, but not
limited to, the implied warranty of merchantability, fitness for a particular
purpose, or infringement of any intellectual property right.
AMD’s products are not designed, intended, authorized or warranted for use
as components in systems intended for surgical implant into the body, or in
other applications intended to support or sustain life, or in any other application in which the failure of AMD’s product could create a situation where personal injury, death, or severe property or environmental damage may occur.
AMD reserves the right to discontinue or make changes to its products at any
time without notice.
Trademarks
AMD, the AMD logo, AMD Athlon, and combinations thereof, AMD-750, AMD-751, and AMD-756 are trademarks
of Advanced Micro Devices, Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other product names used in this publication are for identification purposes only and may be trademarks of
their respective companies.
AMD-750™ Chipset Overview
23016A—August 1999
AMD-750™ Chipset
The AMD Athlon™ processor powers the next generation of
computing platforms, delivering the ultimate performance for
cutting-edge applications and an unprecedented computing
experience.
The AMD-750™ chipset is a highly integrated system logic
so lut io n t h a t d e livers e n h a n c e d p er fo rm a n c e for t h e
AMD Athlon processor and other AMD Athlon frontside
bus-compatible processors. The AMD-750 chipset consists of
the AMD-751™ system controller in a 492-pin plastic ball-grid
array (PBGA) package and the AMD-756™ peripheral bus
controller.
The AMD-751 system controller features the AMD Athlon
frontside bus, system memory controller, accelerated graphics
port (AGP) controller, and peripheral component interconnect
(PCI) bus controller.
The AMD-756 peripheral bus controller features three primary
blocks (PCI-to-ISA bridge, USB controller interface, EIDE
UDMA-33 and -66 controller), each with independent access to
the PCI bus, a complete set of PCI interface signals and state
machines, and capable of working independently with separate
devices.
Figure 1 on page 2 shows the block diagram of the AMD-750
chipset system.
AMD-750™ Chipset
1
AMD-750™ Chipset Overview
23016A—August 1999
AMD Athlon™
Processor
72-bit
Frontside Bus
AMD-751™
System
System Controller
Controller
SERR#
PREQ#
PGNT#
WSC#
AGP Bus
AGP
64-bit
Memory Bus
SDRAM
DRAM
64-bit
PCI Bus
32-bit
AMD-756™
Peripheral Bus
Southbridge
Controller
LAN
Ethernet
System Management,
Reset, Initialize,
Interrupts
SCSI
SMBus
ISA Bus
USBus
16-bit
EIDE Bus
BIOS
Figure 1.
2
AMD-750™ Chipset System Block Diagram
AMD-750™ Chipset
AMD-750™ Chipset Overview
23016A—August 1999
AMD-751™ System Controller
Key features of the AMD-751 system controller are provided in
this section. For more information, see the AMD-751™ System
Controller Data Sheet, order# 21910.
The AMD-751 system controller is designed with the following
features:
n
n
n
n
The AMD Athlon frontside bus supports three 200-MHz
high-speed channels
The 33-MHz 32-bit PCI 2.2-compliant bus interface supports
up to six masters
The 66-MHz AGP 2.0-compliant interface supports 2x data
transfer mode
High-speed memory—The AMD-751 system controller is
designed to support 100-MHz PC-100 revision 1.0 SDRAM
DIMMs
AMD Athlon™ System Bus
The AMD Athlon frontside bus has the following features:
n
n
n
n
n
n
n
High-performance point-to-point system bus topology
Source synchronous clocking for high-speed transfers
HSTL-like low-voltage swing transceiver logic signal levels
Three 200-MHz independent high-speed channels:
• 13-pin processor request channel
• 13-pin system probe channel
• 72-pin data transfer channel (8-bit ECC)
1.6 Gbytes per second peak-data-transfer rates at 200 MHz
Large 64-byte (cache line) data burst transfers
Data Buffers:
• Memory write FIFO (MWF)
• Memory read FIFO (MRF)
• PCI/APCI (AGP-PCI) write buffer
• PCI/APCI read buffer
AMD-751™ System Controller
3
AMD-750™ Chipset Overview
23016A—August 1999
n
Transaction Queues:
• Command queue (CQ)
• Memory write queue (MWQ)
• Memory read queue (MRQ)
• Probe (snoop) queue (PQ)
Integrated Memory Controller
The integrated memory controller has the following features:
n
n
n
n
n
n
n
n
n
n
n
n
4
Memory Request Organizer (MRO)—Serves as a data
crossbar, determines request dependencies, and optimizes
scheduling of memory requests
The AMD-751 system controller supports the following
concurrences:
• Processor-to-main-memory with PCI-to-main-memory
• Processor-to-main-memory with AGP-to-main-memory
• Processor-to-PCI with PCI-to-main-memory or
AGP-to-main-memory
Memory error correcting code (ECC) support
Supports the following DRAM:
• Up to three non-buffered PC-100 revision 1.0 SDRAM
DIMMs using 16-Mbit, 64-Mbit, and 128-Mbit technology
• 64-bit data width, plus 8-bit ECC paths
• Flexible row and column addressing
Supports up to 768 Mbytes of memory
Four open pages within one CS (device selected by chip
select) for one quadword
Default two-page leapfrog policy for eight quadword
requests
BIOS-configurable
memory-timing
parameters
and
configuration parameters
3.3-V memory interface operation with no external buffers
Four cache lines (32 quadwords) of processor-to-DRAM
posted write buffers with full read-around capability
Concurrent DRAM writeback and read-around-write
Burst read and write transactions
AMD-751™ System Controller
AMD-750™ Chipset Overview
23016A—August 1999
n
n
Decoupled and burst DRAM refresh with staggered CS
timing
Provides the following refresh options:
• Programmable refresh rate
• CAS-before-RAS
• Populated banks only
• Chipset powerdown via SDRAM automatic refresh
command
• Automatic refresh of idle slots—improves bus
availability for memory access by the processor or
system
PCI Bus Controller
The PCI bus controller has the following features:
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Compliance with PCI Local Bus Specification, Revision 2.2
Supports six PCI masters
32-bit interface, compatible with 3.3-V and 5-V PCI I/O
Synchronous PCI bus operation up to 33 MHz
PCI-initiator peer concurrence
Automatic processor-to-PCI burst cycle detection
Four-entry, 64-bit PCI master (processor or AGP) write FIFO
Extensive utilization of FIFOs
Zero wait-state PCI initiator and target burst transfers
PCI-to-DRAM data streaming up to 132 Mbytes per second
Enhanced PCI command optimization, such as memory read
line (MRL), memory read multiple (MRM), and
memory-write-and-invalidate (MWI)
Timer-enforced fair arbitration between PCI initiators
Supports advanced concurrency
Supports retry disconnect for improved bus utilization
PCI read buffer keeps track of each master
PCI target request queue
AMD-751™ System Controller
5
AMD-750™ Chipset Overview
23016A—August 1999
AGP Features
The AGP features include the following:
n
n
n
n
n
n
6
Bus Features
• Compliance with AGP 1.0 specification
• Synchronous 66-MHz 1x and 2x data-transfer modes
• Multiplexed and demultiplexed transfers
• Up to four pipelined grants
• Support of sideband address (SBA) bus
Request Queue Features
• Separate read-request and write-request queues
• Reordering of high-priority requests over low-priority
requests in queue
• Concurrent issuing of requests from both the write
queue and read queue
• Selects next request to optimize bus utilization
Transaction Queues
• Memory-to-AGP and processor-to-AGP transaction
queues
FIFO Features
• 16-entry (64-bit) AGP-to-memory write FIFO
• 64-entry (64-bit) memory-to-AGP read FIFO
Secondary PCI Bus Features
• Pipelined burst reads and writes
• Extensive utilization of FIFOs
GART (graphics address remapping table) Features
• Conventional (two-level) GART scheme
• Eight-entry, fully-associative GART table cache (GTC)
• Three fully-associative GART directory caches (GDC)
• One 4-entry for PCI
• One 8-entry for the processor
• One 16-entry for AGP
AMD-751™ System Controller
AMD-750™ Chipset Overview
23016A—August 1999
Power Management
The power management features include the following:
n
n
Support for both ACPI and Microsoft® PC 98 power
management
AMD-751 system controller supports the following power
states:
• Processor Halt/Stop-Grant/Sleep states
• Power-On-Suspend
AMD-751™ System Controller
7
AMD-750™ Chipset Overview
23016A—August 1999
AMD-756™ Peripheral Bus Controller
Key features of the AMD-756 controller are listed in this
section. For more information, see the AMD-756™ Peripheral
Bus Controller Data Sheet, order# 22548.
The AMD-756 contains the following functional units:
n
n
n
n
n
Integrated ISA bus controller
Enhanced master-mode PCI IDE controller with ultra
DMA-33/66 support
USB controller
Keyboard/mouse controller
Real-time clock
PCI-to-ISA Bridge
The AMD-756 controller includes a PC97-compliant PCI-to-ISA
bridge with the following features:
n
n
n
n
n
n
n
n
n
n
n
n
n
8
PCI 2.2-compliant interface
Eight-level doubleword buffer between PCI and ISA buses
Dual cascaded AT-8259-compatible interrupt controllers
Dual AT-8237-compatible DMA controllers
Type F DMA transfer support
Support for ISA legacy distributed DMA across the PCI bus
AT-8254-compatible programmable interval timer
Integrated real-time clock w/extended 256-byte CMOS RAM
Programmable ISA bus clock
Fast reset and gate A20 operation
Edge-triggered or level-sensitive interrupts
Flash, 2-Mbyte EPROM, BIOS support
Integrated keyboard controller with PS/2 mouse support
AMD-756™ Peripheral Bus Controller
AMD-750™ Chipset Overview
23016A—August 1999
Enhanced IDE Controllers
The AMD-756 controller includes enhanced master mode PCI
and IDE controllers with the following features:
n
n
n
n
n
n
n
n
n
Ultra DMA-33/66 support for a primary and secondary dualdrive port
Transfer rates up to 33 Mbytes per second supporting PIO
modes 1–4, multi-word DMA mode-2 drivers, and up to 66
Mbytes per second supporting the ultra DMA-66 interface
Sixteen-level doubleword prefetch and write buffers
Commands can be interleaved between the two channels
Bus master programming interface for compliance with
SFF-8038i 1.0 and Microsoft Windows® 95
Full-featured scatter-gather capability
Support for ATAPI-compliant devices
Support for PCI-native and ATA-compatibility modes
Complete bus mastering software driver support
Universal Serial Bus Controller
The AMD-756 controller includes a universal serial bus (USB)
controller with the following features:
n
n
n
n
n
USB 1.0 and OHCI compliant
Sixteen-level doubleword FIFO for burst PCI bus access
Root hub and four ports
Integrated physical-layer transceivers with over-current
detection status on USB inputs
Legacy keyboard and PS/2 mouse support
AMD-756™ Peripheral Bus Controller
9
AMD-750™ Chipset Overview
23016A—August 1999
Plug-n-Play Support
The AMD-756 controller supports plug-n-play with the
following features:
n
n
n
PCI interrupts steerable to any of three interrupt channels
Microsoft Windows 98 and plug-n-play BIOS compliant
Serial IRQ compliant
Power Management
The AMD-756 controller includes the following sophisticated
power management features:
n
n
n
n
n
n
n
n
n
n
n
10
Supports advanced configuration and power interface
power management (ACPI 1.0 compliant)
Supports legacy power management (APM 1.2 compliant)
Supports soft-off and power-on suspend with hardware
automatic wakeup
Two general-purpose timers, one system-inactivity timer,
and a 24-bit or 32-bit APCI-compliant timer
Dedicated external modem-ring input pin for system
wakeup
Normal, doze, sleep, suspend, and conserve modes
Eighteen multiplexed general-purpose I/O pins
SMBus implementation for JEDEC-compatible DIMM
identification and on-board device power/thermal control
Primary and secondary interrupt differentiation for
individual channels
Clock throttling control
Multiple internal and external SMI# sources for flexible
power management
AMD-756™ Peripheral Bus Controller
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
