Epson EB-S6
Epson EB-X6/S6/W6.fh11 1/20/09 4:48 PM Page 1
C
M
Y
CM
MY
CY CMY
K
SPECIFICATIONS
Weight - approx. 2.7kg/6.0lbs
2.8kg/6.2lbs
Smooth and Simple to Projection
AV Mute Slide Lens Shutter
Auto-Keystone (only for X6 and W6)
Mute is achieved easily by closing the slide cover. Projection
resumes quickly upon reopening the shutter.
It detects vertical inclination automatically, and corrects any
screen distortion smoothly.
92mm
245mm
327mm
PART NUMBER
V11H283052
V11H284052
V11H285052
MODEL NUMBER
EB-S6
EB-X6
EB-W6
PROJECTION SYSTEM
RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD
Front / Rear / Ceiling mount
SPECIFICATION OF
MAIN PARTS
LCD
SIZE
DRIVING METHOD
PIXEL NUMBER
NATIVE RESOLUTION
ASPECT RATIO
TYPE
F-NUMBER
FOCAL LENGTH
ZOOM RATIO
TYPE
LIFE
PROJECTION LENS
PROJECTION DISTANCE
LAMP
SCREEN SIZE
(PROJECTED DISTANCE)
23" to 260" [0.87 to 10.5 m] (Zoom:Tele)
30" to 350" [0.87 to 10.5 m] (Zoom:Wide)
60" screen 1.8 - 2.4 m
HIGH BRIGHTNESS MODE
LOW BRIGHTNESS MODE
COLOUR LIGHT OUTPUT (COLOUR BRIGHTNESS)
CONTRAST
COLOUR REPRODUCTION
SOUND OUTPUT
2200 lm
1750 lm
2200 lm
2000:1
Full-Colour (16.77 million colours)
1 W Monaural
EFFECTIVE SCANNING
FREQUENCY RANGE
(Analog)
PIXEL CLOCK
HORIZONTAL
VERTICAL
TILT ANGLE
13.5 MHz to 162 MHz
15 kHz to 69 kHz
50 Hz to 85 Hz
0 to 11 degrees
ADJUSTMENT FUNCTION
KEYSTONE CORRECTION
SOURCE SEARCH
AUTO DETECTION OF RGB COMPONENT
MULTI SCREEN COLOUR ADJUSTMENT
OPERATION PANEL PROTECTION
PASSWORD PROTECTED FUNCTION
(SECURITY FUNCTION)
USB DISPLAY
Vertical: -30 to +30 degrees
Yes
Yes
Yes
Yes
Yes
(Protection of User Logo Network)
USB Display Ver. 1.40 (for Windows)
ANALOG RGB I/O
DISPLAY PERFORMANCE
INPUT TERMINAL
DISPLAY PERFORMANCE
NATIVE
VIDEO
NATIVE
800 x 600 dots
D-sub 15pin x 1
HDMI
INPUT SIGNAL
VERSION (CAPABILITIES)
VIDEO STANDARD
VIDEO SIGNAL
AUDIO SIGNAL
INPUT TERMINAL
HDCP
N/A
N/A
N/A
N/A
N/A
N/A
VIDEO I/O
INPUT SIGNAL
INPUT TERMINAL
VIDEO STANDARD
VIDEO
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: D-sub 15pin
Video-RGB: D-sub 15pin
VIDEO
Yes
Other Features
Direct Power ON/OFF
60 Inch Projection at 1.8m
Short Throw Lens
8 Color Modes
Help Function
1.2x Optical Zoom (Only for X6 and W6)
AUDIO I/O
AUDIO TERMINAL
USB DISPLAY
INPUT
CONTROL I/O
USB I/O
For EB-W6 only
Practicality not just at Work, but also at Home
Business
Home
Native resolution is WideXGA (1280 x 800 pixels) for wide and
easy to see presentations, and the 7W speaker allows it to exert
its full influence on the business scene. Slide show presentations
are also possible without using a PC via USB memory or an SD
memory card.
At home, enjoy a picture slide show via USB memory or an SD
memory card. High image quality is thanks to HDMI! Enjoy High
vision imaging, and the 7W speaker makes it possible to appreciate
animated data without connecting to an external speaker!
1.8 m
With AAA type alkaline batteries x 2pcs
1.8 m <6 ft>, AHD-15 pin type slim-cable
1.8 mSoft
OPTIONAL ACCESSORIES
ELPLP41
ELPAF13
ELPKS16B
ELPST09B
ELPKC02
ELPKC09
ELPKC10
ELPKC19
ELPKC22
ELPSC06
ELPSC07
ELPSC08
ELPSC10
ELPMB23
ELPFC03
ELPFP04
ELPFP05
ELPFP06
ELPFP13
ELPFP14
Spare Lamp
Air Filter Set
Soft Carrying Case
Presentation Remote Control Kit
Computer Cable
HD15/HD15 1.8 m
Computer Cable
HD15/HD15 3.0 m
Computer Cable
HD15/HD15 20.0 m
Component Video Cable HD15 / 3RCA (male) 3.0 m
HD-TV Cable
HD15/D4 3.0 m
50-inch Screen
60-inch Screen
80-inch Screen
100 Type Screen
Ceiling Mount
Ceiling Plate
Pipe 370 mm Silver
Pipe 570 mm Silver
Pipe 770 mm Silver
Pipe 450 mm White
Pipe 700 mm White
EPSON is the registered trademark of Seiko Epson
Corporation.
All other product names and other company names
used herein are for identification purposes only and
are the trademarks or registered trademarks of their
respective owners.
EPSON disclaims any and all rights in those marks.
Scan/Print samples shown herein are simulations.
Specifications are subject to change without notice.
2000 lm
1590 lm
2000 lm
7 W Monaural
15 kHz to 92 kHz
1024 x 768 dots
1280 x 800 dots
Ver 1.3a (Specific features IS NOT supported)
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
TMDS (TMDS is signal for HDMI)
Linear PCM
HDMI x 1
YES
N/A
N/A
N/A
N/A
N/A
N/A
Stereo mini jack x 1 (Audio In or Out are selectable on OSD menu)
Type B x 1 (for mouse, K/B, control, USB Display) USB Type B Ver 2.0
OPERATING TEMPERATURE
5ºC to 35ºC <41ºF to 95ºF>
OPERATING ALTITUDE
0 m to 2,286 m <0 ft to 7,500 ft> (over 1,500 m / 4,921 ft: with High Altitude mode)
DIRECT POWER ON/OFF
Yes
START-UP PERIOD
About 5 seconds, warm-up period: 30 seconds
COOL DOWN PERIOD
Instant off
100 - 240 VAC +/- 10%, 50/60 Hz
LAMP ON
STANDBY (NETWORK ON)
STANDBY (NETWORK OFF)
POWER CONSUMPTION
Power Cable
Remote Control
Computer Cable
USB Cable
Carrying Case
Password Protect Sticker
Owner’s Manual
1,024,000 dots (1280 x 800) x 3
WXGA
16:10
1280 x 720 dots (720p)
POWER SUPPLY VOLTAGE
SUPPLIED ACCESSORIES
0.56-inch wide panel with MLA
30" to 300" [1.0 to 10.4 m] (Zoom:Tele) 27" to 270" [1.0 to 10.4 m] (Zoom:Tele)
30" to 300" [0.84 to 8.7 m] (Zoom:Wide) 27" to 270" [0.84 to 8.7 m] (Zoom:Wide)
60" screen 1.7 - 2.1 m
60" screen 1.9 - 2.3 m
LIGHT OUTPUT
(BRIGHTNESS)
Quick Start-up 5sec/Instant Off function
Start up is a quick 5 seconds after pushing the
power button. Set up smoothly and stress free
and begin your presentations quickly. Shut off
the power, put it away, and go to the next
presentation.There is no irritating waiting before
putting it away.
0.63-inch (X3)
0.55-inch (X3)
Poly-silicon TFT Active Matrix
480,000 dots (800 x 600) x 3
786,432 dots (1024 x 768) x 3
SVGA
XGA
4:3
Digital zoom / Manual focus
Manual : zoom / focus
1.44
1.6-1.74
16.6mm
18.4mm-22.12mm
No Optical Zoom, Digital Zoom (1.0 - 1.35) 1 - 1.2
E-TORL 170 W UHE
3000 hours (High brightness mode) / 4000 hours (Low brightness mode)
246W
10W
3W
DIMENSIONS (D x W x H)
245 x 327 x 92mm (excludes feet)
WEIGHT
Approx. 2.7 kg / 6.0 lbs.
FAN NOISE
35 / 28 dB (High/Low Brightness Mode)
Approx. 2.8 kg / 6.2 lbs.
CONNECTOR PANEL
EB-X6/S6
EB-W6
USB Type B S-Video
Computer/
Component Video
Monitor Out
SD
USB Type B S-Video
Computer 1/
Component Video
HDMI
USB Type A
Video
L-Audio-R
Video
L-Audio-R
Friendly, easy to use
and rich function projector
• Easy and Speedy USB Display Function
• 2200lm with High Contrast Ratio 2000:1
• 4000 Lamp Hours
Epson EB-X6/S6/W6.fh11 1/20/09 4:48 PM Page 2
C
Convenient Connectivity for any
Projection Environment
M
Y
CM
MY
CY CMY
K
Broadening the Reach of 3LCD Projectors
Bold, Bright, Beautiful Epson 3LCD
Projectors
EPSON’S 3LCD PROJECTORS THE BEST OF LCD TECHNOLOGY
When powerful images are a must, so too is a 3LCD
projector. Systems that use 3LCD technology are
easy on the eyes because they reproduce astoundingly
beautiful images in bright, natural colour without dither
noise or colour break-up. 3LCD - The world leader in
projection technology.
What is a 3LCD Projector
USB ‘Plug and Project’
connectivity for quick
projection on the spot.
LCD panel (HTPS)
Screen
Lens
Red
3LCD projectors pass light through LCD
panels about the size of a postage
stamp then use the projector's lens to
expand the minute details within the
images. Thus, the projector is able to
reproduce a wide gamut of colours to
project clear, detailed and beautiful
images with ultra-smooth movement
onto the viewing surface. This is the
defining characteristic of 3LCD systems.
Projection begins immediately by simply connecting the projector
to a PC using the included USB cable (1.8m).
e
The technology behind
the internal prism
Dichroic Mirror
The lumens detailed in the catalogue refer to the brightness of a
projected image's "full-white" area. Luminance of colours, however,
is also very important in a projector. 3LCD projectors offer superior
colour luminance, producing vivid and sharp colour images. These
capabilities enable them to provide more effective support than ever
before in business presenrtations, which increasingly make use of
colour in images such as photographs and charts broken down by
colour.
Mirror
LCD panel
LCD panel
Blue
Prism
Mirror
Support for smoother presentations
The technology behind other projectors
Mouse control and page up/down function can be operated using
the projector’s remote controller. Presentations can be done away
from the PC itself.*
In business projectors, after the 3LCD projector system, the second
most common type of projectors is the 1-chip DLP® projector system.
These 1-chip DLP® projectors reflect light by a DLP® chip where
lamplight is typically switched alternately through red, green, blue
and white parts of rotating wheel.
Brightness in the
catalogue is
measured by a
100% full-white
pattern image.
+
+
+
It uses a low 231W during operation and just 4.3W when in standby
for an environmentally conscious, energy conserving design.*
Stand-by Mode
4.3W*
* This numerical value is for 200-240 volt regions.
Consumption is 246W and 3.0W in 100-120 volt
regions.
E-TORL
Highly Reliable
4000 hour long-life lamp
The longer lamp-life makes it an economical choice.
Plus, you don't have to worry about the lamp
burning out.
The world of imaging technology is constantly evolving and 3LCD
projectors are evolving right alongside to bring you more detailed
and beautiful images. 3LCD projectors bring wonder and excitement
to the world of imaging.
New E-TORL Lamp
Picture with rough colour gradation
The high reliability of 3LCD projectors is a matter of great pride for
Epson. A major factor in the dependability of our products is that
they contain no moving mechanical parts in the light control system.
We believe that being the number one projector brand worldwide in
2005 (source: Decision Tree Consulting ) is a tribute to customers’
trust in the reliability of our 3LCD projector systems.
3LCD projectors deliver natural images and
faithfully reproduce primary colours across
a wide spectrum. Another important element
of proper image projection is smooth colour
gradation. 3LCD projectors display excellent
gradation along with smooth colour change.
They project a broad array of presentation
materials, such as photographic images,
with a truly natural look and feel, so that
they can be used effectively in all manner
of business applications.
Easy on the eyes
Image showing colour break-up
Normal
Colour break-up, which occurs in field
sequential colour projection technology,
arises from the relationship between the
motion of an image on a screen and the
motion of the viewer's eyes. This causes
the image to suffer from a "rainbow-like"
effect. 3LCD projectors, however, do not
sufer from the effect but instead produce
images that are easy on the eyes.
Colour Break-up
Smooth video playback
Image showing smooth video playback
Lamp
"DLP" is a registered trademark or a trademark of Texas Instruments in the US and/or other countries. Information and
images where found by comparing several models of top selling 1-chip DLP® business projectors from countries with
high market share against several Epson 3LCD business projectors with similar specifications and prices.
(As of May, 2006) The images are simulated to show results.
Advancement of 3LCD Projectors
Picture with smooth colour gradation
Lens
(E-TORL: Epson-Twin Optimize Reflection Lamp)
Epson’s recently developed small, high performance
“E-TORL” lamps efficiently gather and project light
to effectively eliminate light-leakage and minimize
light diffraction. This system combines an ellipsoidal
reflector with an aspherical lens and a hemispherical
mirror to produce a lamp so small and highly
efficient that it is ahead of its time.
Image showing smooth colour gradation
Smooth motion
But actual image with colour are projected.
Based on independent research
by Decision Tree Consulting
(DTC)
Other projectors include
1-chip DLP® projector
Screen
colour wheel
Low power consumption
3LCD projectors
Lens
=
42.0%
Image with dark colours
The most
important thing
is to reproduce
the bright colour
of projected
images.
DLP® chip
1-chip DLP® projector : RGB are synthesized in the human brain.
Compact and bright - Epson's innovative lamp "E-TORL"
Full-white
pattern
Even though the brightness (brightness of
white) described on catalogue is the same,
brightness of colour differs depending on
each technology and models.
Image with bright colours
*HTPS(High Temperature Poly-Silicon) is an active matrix transmissive LCD.
It is extremely small and produces high quality images.
* Not supported by Mac OS. Sound cannot be sent from the PC to the projector.
Eco & Maintenance
Natural images
Colour reproduction and gradation
The most important thing is to reproduce the bright colour
of projected images.
Gree n
3LCD projector : RGB are synthesized inside the projector.
Simple connectivity
Characteristics of 3LCD Projectors
from Epson
58.0%
3LCD projectors reproduce an impressive luminance of colours and
bright images.
Lamp
Prism
A projector which uses the 3-panel LCD system breaks light waves
that are produced by the lamp into the three primary colours, red,
green and blue. Each of the three colours of light is then passed
through its own LCD panel to provide images in full time colour with
silky smooth movement. The three colours of light are then are
recombined through a prism to give the images the rich, full colour
which is projected onto the viewing surface without the possibility
of colour break-up.
NEW
(3LCD projector market share from April, 1st 2002 through March 31st, 2007.)
Dichroic Mirror
The technology behind LCD
projectors
3-panel LCD system technology by Epson
Easy & Speedy, USB Display Function
3LCD projectors continue to be the most widely used projectors in
the world. Many different projector manufacturers adopt 3LCD due
to its overwhelmingly solid reputation. The fact that more than
14million front projectors units have sold worldwide over the past
18 years is a testament to customers’ trust in the technology and
understanding of the stunningly beautiful images LCDs project.
Motion in which outlines
are broken up into multiple lines
3LCD projectors use three separate liquid
crystal panels-one red, one green and one
blue-which they use for the continuous
combination of the colours. In fast-moving
images, 3LCD projectors produce a smooth
total image, preventing outlines from
breaking up into multiple lines. This smooth
video playback contributes to making
effective presentations.

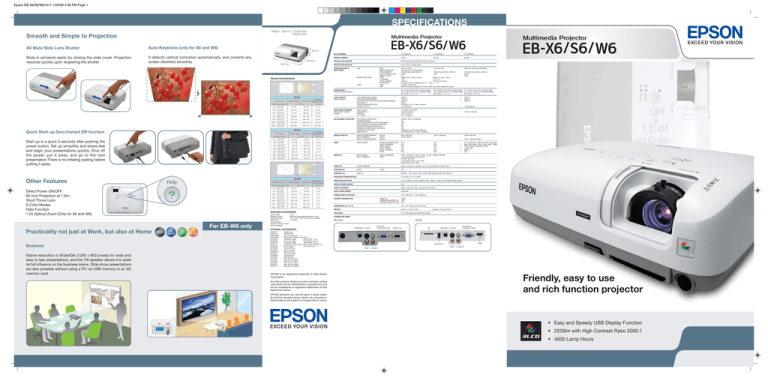

Epson EB-X6/S6/W6.fh11 1/20/09 4:48 PM Page 2
C
Convenient Connectivity for any
Projection Environment
M
Y
CM
MY
CY CMY
K
Broadening the Reach of 3LCD Projectors
Bold, Bright, Beautiful Epson 3LCD
Projectors
EPSON’S 3LCD PROJECTORS THE BEST OF LCD TECHNOLOGY
When powerful images are a must, so too is a 3LCD
projector. Systems that use 3LCD technology are
easy on the eyes because they reproduce astoundingly
beautiful images in bright, natural colour without dither
noise or colour break-up. 3LCD - The world leader in
projection technology.
What is a 3LCD Projector
USB ‘Plug and Project’
connectivity for quick
projection on the spot.
LCD panel (HTPS)
Screen
Lens
Red
3LCD projectors pass light through LCD
panels about the size of a postage
stamp then use the projector's lens to
expand the minute details within the
images. Thus, the projector is able to
reproduce a wide gamut of colours to
project clear, detailed and beautiful
images with ultra-smooth movement
onto the viewing surface. This is the
defining characteristic of 3LCD systems.
Projection begins immediately by simply connecting the projector
to a PC using the included USB cable (1.8m).
e
The technology behind
the internal prism
Dichroic Mirror
The lumens detailed in the catalogue refer to the brightness of a
projected image's "full-white" area. Luminance of colours, however,
is also very important in a projector. 3LCD projectors offer superior
colour luminance, producing vivid and sharp colour images. These
capabilities enable them to provide more effective support than ever
before in business presenrtations, which increasingly make use of
colour in images such as photographs and charts broken down by
colour.
Mirror
LCD panel
LCD panel
Blue
Prism
Mirror
Support for smoother presentations
The technology behind other projectors
Mouse control and page up/down function can be operated using
the projector’s remote controller. Presentations can be done away
from the PC itself.*
In business projectors, after the 3LCD projector system, the second
most common type of projectors is the 1-chip DLP® projector system.
These 1-chip DLP® projectors reflect light by a DLP® chip where
lamplight is typically switched alternately through red, green, blue
and white parts of rotating wheel.
Brightness in the
catalogue is
measured by a
100% full-white
pattern image.
+
+
+
It uses a low 231W during operation and just 4.3W when in standby
for an environmentally conscious, energy conserving design.*
Stand-by Mode
4.3W*
* This numerical value is for 200-240 volt regions.
Consumption is 246W and 3.0W in 100-120 volt
regions.
E-TORL
Highly Reliable
4000 hour long-life lamp
The longer lamp-life makes it an economical choice.
Plus, you don't have to worry about the lamp
burning out.
The world of imaging technology is constantly evolving and 3LCD
projectors are evolving right alongside to bring you more detailed
and beautiful images. 3LCD projectors bring wonder and excitement
to the world of imaging.
New E-TORL Lamp
Picture with rough colour gradation
The high reliability of 3LCD projectors is a matter of great pride for
Epson. A major factor in the dependability of our products is that
they contain no moving mechanical parts in the light control system.
We believe that being the number one projector brand worldwide in
2005 (source: Decision Tree Consulting ) is a tribute to customers’
trust in the reliability of our 3LCD projector systems.
3LCD projectors deliver natural images and
faithfully reproduce primary colours across
a wide spectrum. Another important element
of proper image projection is smooth colour
gradation. 3LCD projectors display excellent
gradation along with smooth colour change.
They project a broad array of presentation
materials, such as photographic images,
with a truly natural look and feel, so that
they can be used effectively in all manner
of business applications.
Easy on the eyes
Image showing colour break-up
Normal
Colour break-up, which occurs in field
sequential colour projection technology,
arises from the relationship between the
motion of an image on a screen and the
motion of the viewer's eyes. This causes
the image to suffer from a "rainbow-like"
effect. 3LCD projectors, however, do not
sufer from the effect but instead produce
images that are easy on the eyes.
Colour Break-up
Smooth video playback
Image showing smooth video playback
Lamp
"DLP" is a registered trademark or a trademark of Texas Instruments in the US and/or other countries. Information and
images where found by comparing several models of top selling 1-chip DLP® business projectors from countries with
high market share against several Epson 3LCD business projectors with similar specifications and prices.
(As of May, 2006) The images are simulated to show results.
Advancement of 3LCD Projectors
Picture with smooth colour gradation
Lens
(E-TORL: Epson-Twin Optimize Reflection Lamp)
Epson’s recently developed small, high performance
“E-TORL” lamps efficiently gather and project light
to effectively eliminate light-leakage and minimize
light diffraction. This system combines an ellipsoidal
reflector with an aspherical lens and a hemispherical
mirror to produce a lamp so small and highly
efficient that it is ahead of its time.
Image showing smooth colour gradation
Smooth motion
But actual image with colour are projected.
Based on independent research
by Decision Tree Consulting
(DTC)
Other projectors include
1-chip DLP® projector
Screen
colour wheel
Low power consumption
3LCD projectors
Lens
=
42.0%
Image with dark colours
The most
important thing
is to reproduce
the bright colour
of projected
images.
DLP® chip
1-chip DLP® projector : RGB are synthesized in the human brain.
Compact and bright - Epson's innovative lamp "E-TORL"
Full-white
pattern
Even though the brightness (brightness of
white) described on catalogue is the same,
brightness of colour differs depending on
each technology and models.
Image with bright colours
*HTPS(High Temperature Poly-Silicon) is an active matrix transmissive LCD.
It is extremely small and produces high quality images.
* Not supported by Mac OS. Sound cannot be sent from the PC to the projector.
Eco & Maintenance
Natural images
Colour reproduction and gradation
The most important thing is to reproduce the bright colour
of projected images.
Gree n
3LCD projector : RGB are synthesized inside the projector.
Simple connectivity
Characteristics of 3LCD Projectors
from Epson
58.0%
3LCD projectors reproduce an impressive luminance of colours and
bright images.
Lamp
Prism
A projector which uses the 3-panel LCD system breaks light waves
that are produced by the lamp into the three primary colours, red,
green and blue. Each of the three colours of light is then passed
through its own LCD panel to provide images in full time colour with
silky smooth movement. The three colours of light are then are
recombined through a prism to give the images the rich, full colour
which is projected onto the viewing surface without the possibility
of colour break-up.
NEW
(3LCD projector market share from April, 1st 2002 through March 31st, 2007.)
Dichroic Mirror
The technology behind LCD
projectors
3-panel LCD system technology by Epson
Easy & Speedy, USB Display Function
3LCD projectors continue to be the most widely used projectors in
the world. Many different projector manufacturers adopt 3LCD due
to its overwhelmingly solid reputation. The fact that more than
14million front projectors units have sold worldwide over the past
18 years is a testament to customers’ trust in the technology and
understanding of the stunningly beautiful images LCDs project.
Motion in which outlines
are broken up into multiple lines
3LCD projectors use three separate liquid
crystal panels-one red, one green and one
blue-which they use for the continuous
combination of the colours. In fast-moving
images, 3LCD projectors produce a smooth
total image, preventing outlines from
breaking up into multiple lines. This smooth
video playback contributes to making
effective presentations.
Epson EB-X6/S6/W6.fh11 1/20/09 4:48 PM Page 2
C
Convenient Connectivity for any
Projection Environment
M
Y
CM
MY
CY CMY
K
Broadening the Reach of 3LCD Projectors
Bold, Bright, Beautiful Epson 3LCD
Projectors
EPSON’S 3LCD PROJECTORS THE BEST OF LCD TECHNOLOGY
When powerful images are a must, so too is a 3LCD
projector. Systems that use 3LCD technology are
easy on the eyes because they reproduce astoundingly
beautiful images in bright, natural colour without dither
noise or colour break-up. 3LCD - The world leader in
projection technology.
What is a 3LCD Projector
USB ‘Plug and Project’
connectivity for quick
projection on the spot.
LCD panel (HTPS)
Screen
Lens
Red
3LCD projectors pass light through LCD
panels about the size of a postage
stamp then use the projector's lens to
expand the minute details within the
images. Thus, the projector is able to
reproduce a wide gamut of colours to
project clear, detailed and beautiful
images with ultra-smooth movement
onto the viewing surface. This is the
defining characteristic of 3LCD systems.
Projection begins immediately by simply connecting the projector
to a PC using the included USB cable (1.8m).
e
The technology behind
the internal prism
Dichroic Mirror
The lumens detailed in the catalogue refer to the brightness of a
projected image's "full-white" area. Luminance of colours, however,
is also very important in a projector. 3LCD projectors offer superior
colour luminance, producing vivid and sharp colour images. These
capabilities enable them to provide more effective support than ever
before in business presenrtations, which increasingly make use of
colour in images such as photographs and charts broken down by
colour.
Mirror
LCD panel
LCD panel
Blue
Prism
Mirror
Support for smoother presentations
The technology behind other projectors
Mouse control and page up/down function can be operated using
the projector’s remote controller. Presentations can be done away
from the PC itself.*
In business projectors, after the 3LCD projector system, the second
most common type of projectors is the 1-chip DLP® projector system.
These 1-chip DLP® projectors reflect light by a DLP® chip where
lamplight is typically switched alternately through red, green, blue
and white parts of rotating wheel.
Brightness in the
catalogue is
measured by a
100% full-white
pattern image.
+
+
+
It uses a low 231W during operation and just 4.3W when in standby
for an environmentally conscious, energy conserving design.*
Stand-by Mode
4.3W*
* This numerical value is for 200-240 volt regions.
Consumption is 246W and 3.0W in 100-120 volt
regions.
E-TORL
Highly Reliable
4000 hour long-life lamp
The longer lamp-life makes it an economical choice.
Plus, you don't have to worry about the lamp
burning out.
The world of imaging technology is constantly evolving and 3LCD
projectors are evolving right alongside to bring you more detailed
and beautiful images. 3LCD projectors bring wonder and excitement
to the world of imaging.
New E-TORL Lamp
Picture with rough colour gradation
The high reliability of 3LCD projectors is a matter of great pride for
Epson. A major factor in the dependability of our products is that
they contain no moving mechanical parts in the light control system.
We believe that being the number one projector brand worldwide in
2005 (source: Decision Tree Consulting ) is a tribute to customers’
trust in the reliability of our 3LCD projector systems.
3LCD projectors deliver natural images and
faithfully reproduce primary colours across
a wide spectrum. Another important element
of proper image projection is smooth colour
gradation. 3LCD projectors display excellent
gradation along with smooth colour change.
They project a broad array of presentation
materials, such as photographic images,
with a truly natural look and feel, so that
they can be used effectively in all manner
of business applications.
Easy on the eyes
Image showing colour break-up
Normal
Colour break-up, which occurs in field
sequential colour projection technology,
arises from the relationship between the
motion of an image on a screen and the
motion of the viewer's eyes. This causes
the image to suffer from a "rainbow-like"
effect. 3LCD projectors, however, do not
sufer from the effect but instead produce
images that are easy on the eyes.
Colour Break-up
Smooth video playback
Image showing smooth video playback
Lamp
"DLP" is a registered trademark or a trademark of Texas Instruments in the US and/or other countries. Information and
images where found by comparing several models of top selling 1-chip DLP® business projectors from countries with
high market share against several Epson 3LCD business projectors with similar specifications and prices.
(As of May, 2006) The images are simulated to show results.
Advancement of 3LCD Projectors
Picture with smooth colour gradation
Lens
(E-TORL: Epson-Twin Optimize Reflection Lamp)
Epson’s recently developed small, high performance
“E-TORL” lamps efficiently gather and project light
to effectively eliminate light-leakage and minimize
light diffraction. This system combines an ellipsoidal
reflector with an aspherical lens and a hemispherical
mirror to produce a lamp so small and highly
efficient that it is ahead of its time.
Image showing smooth colour gradation
Smooth motion
But actual image with colour are projected.
Based on independent research
by Decision Tree Consulting
(DTC)
Other projectors include
1-chip DLP® projector
Screen
colour wheel
Low power consumption
3LCD projectors
Lens
=
42.0%
Image with dark colours
The most
important thing
is to reproduce
the bright colour
of projected
images.
DLP® chip
1-chip DLP® projector : RGB are synthesized in the human brain.
Compact and bright - Epson's innovative lamp "E-TORL"
Full-white
pattern
Even though the brightness (brightness of
white) described on catalogue is the same,
brightness of colour differs depending on
each technology and models.
Image with bright colours
*HTPS(High Temperature Poly-Silicon) is an active matrix transmissive LCD.
It is extremely small and produces high quality images.
* Not supported by Mac OS. Sound cannot be sent from the PC to the projector.
Eco & Maintenance
Natural images
Colour reproduction and gradation
The most important thing is to reproduce the bright colour
of projected images.
Gree n
3LCD projector : RGB are synthesized inside the projector.
Simple connectivity
Characteristics of 3LCD Projectors
from Epson
58.0%
3LCD projectors reproduce an impressive luminance of colours and
bright images.
Lamp
Prism
A projector which uses the 3-panel LCD system breaks light waves
that are produced by the lamp into the three primary colours, red,
green and blue. Each of the three colours of light is then passed
through its own LCD panel to provide images in full time colour with
silky smooth movement. The three colours of light are then are
recombined through a prism to give the images the rich, full colour
which is projected onto the viewing surface without the possibility
of colour break-up.
NEW
(3LCD projector market share from April, 1st 2002 through March 31st, 2007.)
Dichroic Mirror
The technology behind LCD
projectors
3-panel LCD system technology by Epson
Easy & Speedy, USB Display Function
3LCD projectors continue to be the most widely used projectors in
the world. Many different projector manufacturers adopt 3LCD due
to its overwhelmingly solid reputation. The fact that more than
14million front projectors units have sold worldwide over the past
18 years is a testament to customers’ trust in the technology and
understanding of the stunningly beautiful images LCDs project.
Motion in which outlines
are broken up into multiple lines
3LCD projectors use three separate liquid
crystal panels-one red, one green and one
blue-which they use for the continuous
combination of the colours. In fast-moving
images, 3LCD projectors produce a smooth
total image, preventing outlines from
breaking up into multiple lines. This smooth
video playback contributes to making
effective presentations.
Epson EB-X6/S6/W6.fh11 1/20/09 4:48 PM Page 1
C
M
Y
CM
MY
CY CMY
K
SPECIFICATIONS
Weight - approx. 2.7kg/6.0lbs
2.8kg/6.2lbs
Smooth and Simple to Projection
AV Mute Slide Lens Shutter
Auto-Keystone (only for X6 and W6)
Mute is achieved easily by closing the slide cover. Projection
resumes quickly upon reopening the shutter.
It detects vertical inclination automatically, and corrects any
screen distortion smoothly.
92mm
245mm
327mm
PART NUMBER
V11H283052
V11H284052
V11H285052
MODEL NUMBER
EB-S6
EB-X6
EB-W6
PROJECTION SYSTEM
RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD
Front / Rear / Ceiling mount
SPECIFICATION OF
MAIN PARTS
LCD
SIZE
DRIVING METHOD
PIXEL NUMBER
NATIVE RESOLUTION
ASPECT RATIO
TYPE
F-NUMBER
FOCAL LENGTH
ZOOM RATIO
TYPE
LIFE
PROJECTION LENS
PROJECTION DISTANCE
LAMP
SCREEN SIZE
(PROJECTED DISTANCE)
23" to 260" [0.87 to 10.5 m] (Zoom:Tele)
30" to 350" [0.87 to 10.5 m] (Zoom:Wide)
60" screen 1.8 - 2.4 m
HIGH BRIGHTNESS MODE
LOW BRIGHTNESS MODE
COLOUR LIGHT OUTPUT (COLOUR BRIGHTNESS)
CONTRAST
COLOUR REPRODUCTION
SOUND OUTPUT
2200 lm
1750 lm
2200 lm
2000:1
Full-Colour (16.77 million colours)
1 W Monaural
EFFECTIVE SCANNING
FREQUENCY RANGE
(Analog)
PIXEL CLOCK
HORIZONTAL
VERTICAL
TILT ANGLE
13.5 MHz to 162 MHz
15 kHz to 69 kHz
50 Hz to 85 Hz
0 to 11 degrees
ADJUSTMENT FUNCTION
KEYSTONE CORRECTION
SOURCE SEARCH
AUTO DETECTION OF RGB COMPONENT
MULTI SCREEN COLOUR ADJUSTMENT
OPERATION PANEL PROTECTION
PASSWORD PROTECTED FUNCTION
(SECURITY FUNCTION)
USB DISPLAY
Vertical: -30 to +30 degrees
Yes
Yes
Yes
Yes
Yes
(Protection of User Logo Network)
USB Display Ver. 1.40 (for Windows)
ANALOG RGB I/O
DISPLAY PERFORMANCE
INPUT TERMINAL
DISPLAY PERFORMANCE
NATIVE
VIDEO
NATIVE
800 x 600 dots
D-sub 15pin x 1
HDMI
INPUT SIGNAL
VERSION (CAPABILITIES)
VIDEO STANDARD
VIDEO SIGNAL
AUDIO SIGNAL
INPUT TERMINAL
HDCP
N/A
N/A
N/A
N/A
N/A
N/A
VIDEO I/O
INPUT SIGNAL
INPUT TERMINAL
VIDEO STANDARD
VIDEO
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: D-sub 15pin
Video-RGB: D-sub 15pin
VIDEO
Yes
Other Features
Direct Power ON/OFF
60 Inch Projection at 1.8m
Short Throw Lens
8 Color Modes
Help Function
1.2x Optical Zoom (Only for X6 and W6)
AUDIO I/O
AUDIO TERMINAL
USB DISPLAY
INPUT
CONTROL I/O
USB I/O
For EB-W6 only
Practicality not just at Work, but also at Home
Business
Home
Native resolution is WideXGA (1280 x 800 pixels) for wide and
easy to see presentations, and the 7W speaker allows it to exert
its full influence on the business scene. Slide show presentations
are also possible without using a PC via USB memory or an SD
memory card.
At home, enjoy a picture slide show via USB memory or an SD
memory card. High image quality is thanks to HDMI! Enjoy High
vision imaging, and the 7W speaker makes it possible to appreciate
animated data without connecting to an external speaker!
1.8 m
With AAA type alkaline batteries x 2pcs
1.8 m <6 ft>, AHD-15 pin type slim-cable
1.8 mSoft
OPTIONAL ACCESSORIES
ELPLP41
ELPAF13
ELPKS16B
ELPST09B
ELPKC02
ELPKC09
ELPKC10
ELPKC19
ELPKC22
ELPSC06
ELPSC07
ELPSC08
ELPSC10
ELPMB23
ELPFC03
ELPFP04
ELPFP05
ELPFP06
ELPFP13
ELPFP14
Spare Lamp
Air Filter Set
Soft Carrying Case
Presentation Remote Control Kit
Computer Cable
HD15/HD15 1.8 m
Computer Cable
HD15/HD15 3.0 m
Computer Cable
HD15/HD15 20.0 m
Component Video Cable HD15 / 3RCA (male) 3.0 m
HD-TV Cable
HD15/D4 3.0 m
50-inch Screen
60-inch Screen
80-inch Screen
100 Type Screen
Ceiling Mount
Ceiling Plate
Pipe 370 mm Silver
Pipe 570 mm Silver
Pipe 770 mm Silver
Pipe 450 mm White
Pipe 700 mm White
EPSON is the registered trademark of Seiko Epson
Corporation.
All other product names and other company names
used herein are for identification purposes only and
are the trademarks or registered trademarks of their
respective owners.
EPSON disclaims any and all rights in those marks.
Scan/Print samples shown herein are simulations.
Specifications are subject to change without notice.
2000 lm
1590 lm
2000 lm
7 W Monaural
15 kHz to 92 kHz
1024 x 768 dots
1280 x 800 dots
Ver 1.3a (Specific features IS NOT supported)
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
TMDS (TMDS is signal for HDMI)
Linear PCM
HDMI x 1
YES
N/A
N/A
N/A
N/A
N/A
N/A
Stereo mini jack x 1 (Audio In or Out are selectable on OSD menu)
Type B x 1 (for mouse, K/B, control, USB Display) USB Type B Ver 2.0
OPERATING TEMPERATURE
5ºC to 35ºC <41ºF to 95ºF>
OPERATING ALTITUDE
0 m to 2,286 m <0 ft to 7,500 ft> (over 1,500 m / 4,921 ft: with High Altitude mode)
DIRECT POWER ON/OFF
Yes
START-UP PERIOD
About 5 seconds, warm-up period: 30 seconds
COOL DOWN PERIOD
Instant off
100 - 240 VAC +/- 10%, 50/60 Hz
LAMP ON
STANDBY (NETWORK ON)
STANDBY (NETWORK OFF)
POWER CONSUMPTION
Power Cable
Remote Control
Computer Cable
USB Cable
Carrying Case
Password Protect Sticker
Owner’s Manual
1,024,000 dots (1280 x 800) x 3
WXGA
16:10
1280 x 720 dots (720p)
POWER SUPPLY VOLTAGE
SUPPLIED ACCESSORIES
0.56-inch wide panel with MLA
30" to 300" [1.0 to 10.4 m] (Zoom:Tele) 27" to 270" [1.0 to 10.4 m] (Zoom:Tele)
30" to 300" [0.84 to 8.7 m] (Zoom:Wide) 27" to 270" [0.84 to 8.7 m] (Zoom:Wide)
60" screen 1.7 - 2.1 m
60" screen 1.9 - 2.3 m
LIGHT OUTPUT
(BRIGHTNESS)
Quick Start-up 5sec/Instant Off function
Start up is a quick 5 seconds after pushing the
power button. Set up smoothly and stress free
and begin your presentations quickly. Shut off
the power, put it away, and go to the next
presentation.There is no irritating waiting before
putting it away.
0.63-inch (X3)
0.55-inch (X3)
Poly-silicon TFT Active Matrix
480,000 dots (800 x 600) x 3
786,432 dots (1024 x 768) x 3
SVGA
XGA
4:3
Digital zoom / Manual focus
Manual : zoom / focus
1.44
1.6-1.74
16.6mm
18.4mm-22.12mm
No Optical Zoom, Digital Zoom (1.0 - 1.35) 1 - 1.2
E-TORL 170 W UHE
3000 hours (High brightness mode) / 4000 hours (Low brightness mode)
246W
10W
3W
DIMENSIONS (D x W x H)
245 x 327 x 92mm (excludes feet)
WEIGHT
Approx. 2.7 kg / 6.0 lbs.
FAN NOISE
35 / 28 dB (High/Low Brightness Mode)
Approx. 2.8 kg / 6.2 lbs.
CONNECTOR PANEL
EB-X6/S6
EB-W6
USB Type B S-Video
Computer/
Component Video
Monitor Out
SD
USB Type B S-Video
Computer 1/
Component Video
HDMI
USB Type A
Video
L-Audio-R
Video
L-Audio-R
Friendly, easy to use
and rich function projector
• Easy and Speedy USB Display Function
• 2200lm with High Contrast Ratio 2000:1
• 4000 Lamp Hours
Epson EB-X6/S6/W6.fh11 1/20/09 4:48 PM Page 1
C
M
Y
CM
MY
CY CMY
K
SPECIFICATIONS
Weight - approx. 2.7kg/6.0lbs
2.8kg/6.2lbs
Smooth and Simple to Projection
AV Mute Slide Lens Shutter
Auto-Keystone (only for X6 and W6)
Mute is achieved easily by closing the slide cover. Projection
resumes quickly upon reopening the shutter.
It detects vertical inclination automatically, and corrects any
screen distortion smoothly.
92mm
245mm
327mm
PART NUMBER
V11H283052
V11H284052
V11H285052
MODEL NUMBER
EB-S6
EB-X6
EB-W6
PROJECTION SYSTEM
RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD
Front / Rear / Ceiling mount
SPECIFICATION OF
MAIN PARTS
LCD
SIZE
DRIVING METHOD
PIXEL NUMBER
NATIVE RESOLUTION
ASPECT RATIO
TYPE
F-NUMBER
FOCAL LENGTH
ZOOM RATIO
TYPE
LIFE
PROJECTION LENS
PROJECTION DISTANCE
LAMP
SCREEN SIZE
(PROJECTED DISTANCE)
23" to 260" [0.87 to 10.5 m] (Zoom:Tele)
30" to 350" [0.87 to 10.5 m] (Zoom:Wide)
60" screen 1.8 - 2.4 m
HIGH BRIGHTNESS MODE
LOW BRIGHTNESS MODE
COLOUR LIGHT OUTPUT (COLOUR BRIGHTNESS)
CONTRAST
COLOUR REPRODUCTION
SOUND OUTPUT
2200 lm
1750 lm
2200 lm
2000:1
Full-Colour (16.77 million colours)
1 W Monaural
EFFECTIVE SCANNING
FREQUENCY RANGE
(Analog)
PIXEL CLOCK
HORIZONTAL
VERTICAL
TILT ANGLE
13.5 MHz to 162 MHz
15 kHz to 69 kHz
50 Hz to 85 Hz
0 to 11 degrees
ADJUSTMENT FUNCTION
KEYSTONE CORRECTION
SOURCE SEARCH
AUTO DETECTION OF RGB COMPONENT
MULTI SCREEN COLOUR ADJUSTMENT
OPERATION PANEL PROTECTION
PASSWORD PROTECTED FUNCTION
(SECURITY FUNCTION)
USB DISPLAY
Vertical: -30 to +30 degrees
Yes
Yes
Yes
Yes
Yes
(Protection of User Logo Network)
USB Display Ver. 1.40 (for Windows)
ANALOG RGB I/O
DISPLAY PERFORMANCE
INPUT TERMINAL
DISPLAY PERFORMANCE
NATIVE
VIDEO
NATIVE
800 x 600 dots
D-sub 15pin x 1
HDMI
INPUT SIGNAL
VERSION (CAPABILITIES)
VIDEO STANDARD
VIDEO SIGNAL
AUDIO SIGNAL
INPUT TERMINAL
HDCP
N/A
N/A
N/A
N/A
N/A
N/A
VIDEO I/O
INPUT SIGNAL
INPUT TERMINAL
VIDEO STANDARD
VIDEO
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: D-sub 15pin
Video-RGB: D-sub 15pin
VIDEO
Yes
Other Features
Direct Power ON/OFF
60 Inch Projection at 1.8m
Short Throw Lens
8 Color Modes
Help Function
1.2x Optical Zoom (Only for X6 and W6)
AUDIO I/O
AUDIO TERMINAL
USB DISPLAY
INPUT
CONTROL I/O
USB I/O
For EB-W6 only
Practicality not just at Work, but also at Home
Business
Home
Native resolution is WideXGA (1280 x 800 pixels) for wide and
easy to see presentations, and the 7W speaker allows it to exert
its full influence on the business scene. Slide show presentations
are also possible without using a PC via USB memory or an SD
memory card.
At home, enjoy a picture slide show via USB memory or an SD
memory card. High image quality is thanks to HDMI! Enjoy High
vision imaging, and the 7W speaker makes it possible to appreciate
animated data without connecting to an external speaker!
1.8 m
With AAA type alkaline batteries x 2pcs
1.8 m <6 ft>, AHD-15 pin type slim-cable
1.8 mSoft
OPTIONAL ACCESSORIES
ELPLP41
ELPAF13
ELPKS16B
ELPST09B
ELPKC02
ELPKC09
ELPKC10
ELPKC19
ELPKC22
ELPSC06
ELPSC07
ELPSC08
ELPSC10
ELPMB23
ELPFC03
ELPFP04
ELPFP05
ELPFP06
ELPFP13
ELPFP14
Spare Lamp
Air Filter Set
Soft Carrying Case
Presentation Remote Control Kit
Computer Cable
HD15/HD15 1.8 m
Computer Cable
HD15/HD15 3.0 m
Computer Cable
HD15/HD15 20.0 m
Component Video Cable HD15 / 3RCA (male) 3.0 m
HD-TV Cable
HD15/D4 3.0 m
50-inch Screen
60-inch Screen
80-inch Screen
100 Type Screen
Ceiling Mount
Ceiling Plate
Pipe 370 mm Silver
Pipe 570 mm Silver
Pipe 770 mm Silver
Pipe 450 mm White
Pipe 700 mm White
EPSON is the registered trademark of Seiko Epson
Corporation.
All other product names and other company names
used herein are for identification purposes only and
are the trademarks or registered trademarks of their
respective owners.
EPSON disclaims any and all rights in those marks.
Scan/Print samples shown herein are simulations.
Specifications are subject to change without notice.
2000 lm
1590 lm
2000 lm
7 W Monaural
15 kHz to 92 kHz
1024 x 768 dots
1280 x 800 dots
Ver 1.3a (Specific features IS NOT supported)
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
TMDS (TMDS is signal for HDMI)
Linear PCM
HDMI x 1
YES
N/A
N/A
N/A
N/A
N/A
N/A
Stereo mini jack x 1 (Audio In or Out are selectable on OSD menu)
Type B x 1 (for mouse, K/B, control, USB Display) USB Type B Ver 2.0
OPERATING TEMPERATURE
5ºC to 35ºC <41ºF to 95ºF>
OPERATING ALTITUDE
0 m to 2,286 m <0 ft to 7,500 ft> (over 1,500 m / 4,921 ft: with High Altitude mode)
DIRECT POWER ON/OFF
Yes
START-UP PERIOD
About 5 seconds, warm-up period: 30 seconds
COOL DOWN PERIOD
Instant off
100 - 240 VAC +/- 10%, 50/60 Hz
LAMP ON
STANDBY (NETWORK ON)
STANDBY (NETWORK OFF)
POWER CONSUMPTION
Power Cable
Remote Control
Computer Cable
USB Cable
Carrying Case
Password Protect Sticker
Owner’s Manual
1,024,000 dots (1280 x 800) x 3
WXGA
16:10
1280 x 720 dots (720p)
POWER SUPPLY VOLTAGE
SUPPLIED ACCESSORIES
0.56-inch wide panel with MLA
30" to 300" [1.0 to 10.4 m] (Zoom:Tele) 27" to 270" [1.0 to 10.4 m] (Zoom:Tele)
30" to 300" [0.84 to 8.7 m] (Zoom:Wide) 27" to 270" [0.84 to 8.7 m] (Zoom:Wide)
60" screen 1.7 - 2.1 m
60" screen 1.9 - 2.3 m
LIGHT OUTPUT
(BRIGHTNESS)
Quick Start-up 5sec/Instant Off function
Start up is a quick 5 seconds after pushing the
power button. Set up smoothly and stress free
and begin your presentations quickly. Shut off
the power, put it away, and go to the next
presentation.There is no irritating waiting before
putting it away.
0.63-inch (X3)
0.55-inch (X3)
Poly-silicon TFT Active Matrix
480,000 dots (800 x 600) x 3
786,432 dots (1024 x 768) x 3
SVGA
XGA
4:3
Digital zoom / Manual focus
Manual : zoom / focus
1.44
1.6-1.74
16.6mm
18.4mm-22.12mm
No Optical Zoom, Digital Zoom (1.0 - 1.35) 1 - 1.2
E-TORL 170 W UHE
3000 hours (High brightness mode) / 4000 hours (Low brightness mode)
246W
10W
3W
DIMENSIONS (D x W x H)
245 x 327 x 92mm (excludes feet)
WEIGHT
Approx. 2.7 kg / 6.0 lbs.
FAN NOISE
35 / 28 dB (High/Low Brightness Mode)
Approx. 2.8 kg / 6.2 lbs.
CONNECTOR PANEL
EB-X6/S6
EB-W6
USB Type B S-Video
Computer/
Component Video
Monitor Out
SD
USB Type B S-Video
Computer 1/
Component Video
HDMI
USB Type A
Video
L-Audio-R
Video
L-Audio-R
Friendly, easy to use
and rich function projector
• Easy and Speedy USB Display Function
• 2200lm with High Contrast Ratio 2000:1
• 4000 Lamp Hours
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
