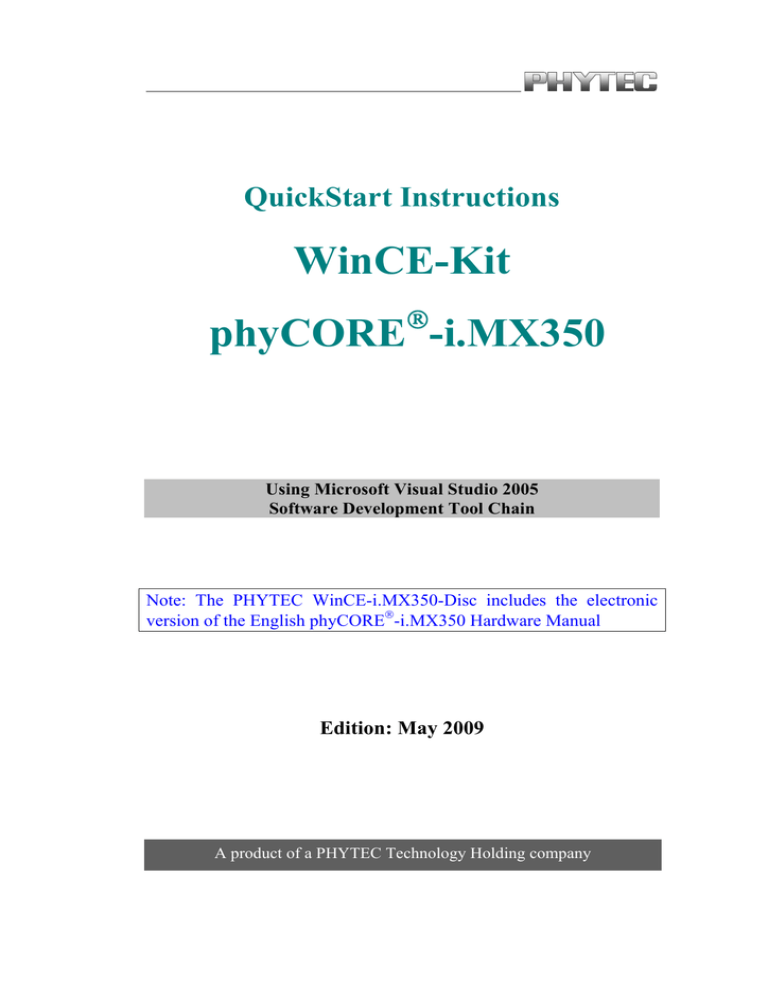

QuickStart Instructions

WinCE-Kit

phyCORE

®

-i.MX350

Using Microsoft Visual Studio 2005

Software Development Tool Chain

Note: The PHYTEC WinCE-i.MX350-Disc includes the electronic version of the English phyCORE -i.MX350 Hardware Manual

Edition: May 2009

A product of a PHYTEC Technology Holding company

phyCORE

®

Instructions

In this manual copyrighted products are not explicitly indicated. The absence of the trademark (

™) and copyright (©) symbols does not imply that a product is not protected. Additionally, registered patents and trademarks are similarly not expressly indicated in this manual.

The information in this document has been carefully checked and is believed to be entirely reliable. However, PHYTEC Messtechnik GmbH assumes no responsibility for any inaccuracies. PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC

Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

Additionally, PHYTEC Messtechnik GmbH offers no guarantee nor accepts any liability for damages arising from the improper usage or improper installation of the hardware or software. PHYTEC Messtechnik GmbH further reserves the right to alter the layout and/or design of the hardware without prior notification and accepts no liability for doing so.

© Copyright 2006 PHYTEC Messtechnik GmbH, 55129 Mainz.

Rights - including those of translation, reprint, broadcast, photomechanical or similar reproduction and storage or processing in computer systems, in whole or in part - are reserved. No reproduction may be made without the explicit written consent from PHYTEC Messtechnik GmbH.

EUROPE

Address: PHYTEC Technologie Holding AG

Robert-Koch-Str. 39

55129 Mainz

GERMANY

Ordering

Information:

+49 (800) 0749832 [email protected]

PHYTEC America LLC

203 Parfitt Way SW, Suite G100

Bainbridge Island, WA 98110

USA

1 (800) 278-9913 [email protected]

Technical

Support:

+49 (6131) 9221-31 [email protected]

Fax: +49 (6131) 9221-33

Web Site: http://www.phytec.de

1st Edition: May 2009

1 (800) 278-9913 [email protected]

1 (206) 780-9135 http://www.phytec.com

© PHYTEC Meßtechnik GmbH 2009 L-725e_1

Contents

1 Introduction ............................................................................................1

1.1

Rapid Development Kit Documentation ...................................... 1

1.2

Professional Support Packages available ..................................... 1

1.3

Overview of this QuickStart Instruction ...................................... 2

1.4

Conventions used in this QuickStart ............................................ 3

1.5

System Requirements ................................................................... 4

1.6

Microsoft Visual Studio 2005 Development Tool Chain ............ 5

2 Getting Started .......................................................................................7

2.1

Installing Visual Studio 2005....................................................... 7

2.2

Installing Platform Builder........................................................... 8

2.3

Installing WinCE i.MX35-Kit software ..................................... 10

2.4

Installing Microsoft Active Sync 4.5 ......................................... 13

2.5

Preparing the phyCORE

®

-i.MX35 to interface to a host-PC..... 14

2.6

Establishing an Active Sync Connection ................................... 15

2.7

Downloading Example Code with Active Sync ........................ 15

2.8

Downloading Example Code with Visual Studio 2005 ............. 17

3 Getting More Involved.........................................................................21

3.1

Creating a New Project............................................................... 21

3.2

Modifying the Source Code ....................................................... 24

3.3

Building the Project.................................................................... 25

4 Debugging .............................................................................................27

4.1

Starting the Debugger................................................................. 27

4.2

Visual Studio 2005 Debug Features........................................... 29

4.3

Using the Visual Studio 2005 Debug Features .......................... 30

4.4

Running, Stopping and Resetting............................................... 30

4.5

Changing Target Settings for the "Executable Version"............ 31

5 Building an image.................................................................................32

5.1

Changing an image..................................................................... 32

5.2

Download an image.................................................................... 33

6 Summary...............................................................................................39

Appendix A How to install WindowsCE on the i.MX35 Kit ...........40

5 min

4-5 h

30 min

40 min

50 min

© PHYTEC Meßtechnik GmbH 2009 L-725e_1

phyCORE

®

Instructions

© PHYTEC Messtechnik GmbH 2008 L-725e_1

Introduction

1 Introduction

5 min

This QuickStart provides general information on the PHYTEC phyCORE

®

-i.MX350 Single Board Computer (SBC). It gives you also an overview of Microsoft’s Visual Studio 2005 software development tool chain and instructions on how to run example programs on the phyCORE

®

-i.MX350, mounted on the PHYTEC phyCORE

®

Development Board i.MX350, in conjunction with

Visual Studio 2005.

Please refer to the

phyCORE -i.MX350 Hardware Manual

for specific information on such board-level features as

jumper configuration

,

memory mapping

and

pin layout

. Selecting the links on the electronic version of this document leads to the respective section of the phyCORE

®

-i.MX350 Hardware Manual.

1.1 Rapid Development Kit Documentation

This "Rapid Development Kit" (RDK) includes the following electronic documentation on the enclosed "PHYTEC WinCEi.MX350-Disc ":

• the PHYTEC

phyCORE -i.MX350 Hardware Manual

• controller

User's Manuals and Data Sheets

• this QuickStart Instruction with general "Rapid Development

Kit" description, software installation advice and an example program, enabling quick out-of-the box start-up of the phyCORE

®

-i.MX350 in conjunction with the Microsoft Visual

Studio 2005 software development tool chain

1.2 Professional Support Packages available

This Kit comes with free installation support. If you do have any questions concerning installation and setup, you are welcome to contact our support department.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

1

phyCORE

®

Instructions

For more in-depth questions, we offer a variety of custom tailored packages with different support options (e-mail, phone, direct contact to the developer) and different reaction times.

Please contact our sales team to discuss the appropriate support option if professional support beyond installation and setup is important to you.

1.3 Overview of this QuickStart Instruction

This QuickStart Instruction gives a general "Rapid Development

Kit" description, as well as software installation advice and one example program enabling quick out-of-the box start-up of the phyCORE

®

-i.MX350 in conjunction with Microsoft's Visual

Studio 2005. It is structured as follows:

1) The “Getting Started” section uses the example HelloWorld to demonstrate the download of user code to the target device using Visual Studio 2005 with ActiveSync.

2) The “Getting More Involved” section provides step-by-step instructions on how to configure and build a new WinCE image, modify the example, create and build a new project and generate and download output files to the phyCORE

®

i.MX350 using the Microsoft tools.

3) The “Debugging” section demonstrates simple debug functions using Visual Studio 2005 debug environment.

In addition to the dedicated data for this Rapid Development Kit, the PHYTEC WinCE Kit CD-ROM contains supplemental information on embedded microcontroller design and development.

2

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

1.4 Conventions used in this QuickStart

The following is a list of the typographical conventions used in this book:

Italic

Used for file and directory names, program and command names, command-line options, menu items, URLs, and other terms that correspond the terms on your desktop.

Bold

Used in examples to show commands or other text that should be typed literally by the user.

Pay special attention to notes set apart from the text with the following icons:

At this part you might leave be path of this QuickStart.

This is a warning. It helps you to avoid annoying problems.

You can find useful supplementary information about the topic.

At the beginning of each chapter you can find information of the time to pass the following chapter.

You have successfully passed an important part of this

QuickStart.

You can find information to solve problems.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

3

phyCORE

®

Instructions

1.5 System Requirements

The use of this "Rapid Development Kit" requires:

• the PHYTEC phyCORE

• the phyCORE

®

®

-i.MX350

Development Board i.MX350 with the included

DB-9 serial cable, USB A/mini-B cable and AC adapter supplying 5 VDC /min. 2A

• Windows Embedded CE6.0 (Eval version)

• the PHYTEC WinCE-i.MX350-Disc for WinCE

• an IBM-compatible host-PC (586 or higher running with

WindowsXP)

For more information and example updates, please refer to the following sources:

http://www.phytec.de

[email protected]

4

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

1.6 Microsoft Visual Studio 2005 Development Tool Chain

Microsoft's Software development tools for the i.MX350 architecture aid every level of developer from the professional applications engineer to the student just learning about embedded software development.

Visual Studio 2005 is a new version of Microsoft’s popular IDE that supports also embedded devices. The Platform Builder is now integrated in Visual Studio 2005. So it is now possible to customize the WinCE Image and write user applications with just one tool. Visual Studio 2005 combines project management, source code editing, program debugging, and target programming in a single, powerful environment. This QuickStart provides an overview of the most commonly used VS 2005 features

• including:

Project management, device setup, and tool configuration

Editor facilities for creating, modifying, and correcting programs

Target debugging

Building a new image

The VS 2005 editor offers many standard and advanced software editing features like:

Automatic completion of code statements

Auto listing of object members

• Detailed Syntax Highlighting. Colours are used in printed output.

Automatic indent and tab blocks of code

The Visual Studio 2005 Tool chain is available from your local

Microsoft dealer. There is also an evaluation version available

© PHYTEC Messtechnik GmbH 2009 L-725e_1

5

phyCORE

®

Instructions

which is used in this Quickstart. You can use it to develop standard WinCE applications, MFC WinCE applications and

.NET Applications for WinCE.

If you already have installed another version of Visual Studio

2005, you can use this one. We recommend installing the evaluation version when working with this Quickstart.

6

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

2 Getting Started

4-5 h

In this chapter you will install Rapid Development Kit software and

®

prepare the phyCORE -i.MX350, mounted on the Development

Board, to interface to a host-PC. You will also learn how to download an example application from a host-PC usingVisual Studio 2005.

2.1 Installing Visual Studio 2005

To install Visual Studio 2005 on your desktop PC insert the DVD labeled “Visual Studio 2005 Professional Edition” included in this kit in your DVD Rom drive. The setup should launch automatically. If not, open a windows file explorer, go to your DVD drive, change to the directory vs and start “setup.exe” manually.

The following screen appears:

© PHYTEC Messtechnik GmbH 2009 L-725e_1

7

phyCORE

®

Instructions

Click on “Install Visual Studio 2005” and follow the instructions of the setup program.

During the setup you have to enter a product activation key. You can request this key from Microsoft. Please read the inside of the

Windows Embedded CE6.0 DVD package for information.

2.2 Installing Platform Builder

8

To install the Platform Builder Plug-in for Visual Studio 2005, please insert the DVD labeled “Windows Embedded CE6.0” in your DVD drive. The setup should start automatically. If not, open a windows file explorer, go to your DVD drive and start “setup.exe” manually.

When the following dialog appears, be sure to select “Platform

Builder” and under “CE6.0 Operating System” the files for

“ARMV4I”.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

During the setup you have to enter a product activation key. This key had been sent to you together with the activation key for

Visual Studio 2005.

When the installation has finished, you need to install a service pack for Visual Studio 2005. Go to the following webpage

http://www.microsoft.com/downloads/details.aspx?FamilyId=BB4A7

5AB-E2D4-4C96-B39D-37BAF6B5B1DC&displaylang=en

and download and install the service pack.

On the download page you can choose the language of the service pack. For the Visual Studio 2005 evaluation version that comes with the PHYTEC WinCE-i.MX350-Kit, you have to download the English version.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

9

phyCORE

®

Instructions

After installing the SP1 you need to install some updates for the

Platform Builder. Install the SP1 for Platform Builder from

http://www.microsoft.com/downloads/details.aspx?familyid=BF0DC0

E3-8575-4860-A8E3-290ADF242678&displaylang=en

.

Also install the monthly updates starting with the rollup package from

2006 from the following site, please ensure to install the packages fro

ARM4I.

http://www.microsoft.com/downloads/details.aspx?familyid=5733C26

C-168B-474D-8A27-59B30B769402&displaylang=en

At the end of this page, you can find links to all other monthly updates.

2.3 Installing WinCE i.MX350-Kit software

In this section you will find a description of the WinCE-i.MX350-Kit setup. This setup will install the following tools and programs:

• SDK for i.MX350 WinCE6.0

• A binary BSP for the phyCORE-i.MX350 and a project to build a new image

• Example programs for Visual Studio 2005

• HabToolKit for programming a new boot loader

• Digital version of this Quickstart instruction and the hardware manuals

The i.MX350 SDK for WinCE is needed for writing target-oriented applications. It will integrate in the Visual Studio IDE, offering a new target device for code generation. Also the SDK includes all functionality that is included in the image that runs on the i.MX350.

Therefore using the SDK allows the compiler to check if all functionality that is needed in the application will be present in the image. The absence of specific features is therefore recognized at

“compile-time” not at “runtime”.

10

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

For proper installation of the SDK it is essential to first install

Visual Studio 2005 as described in chapter 2.1.

Insert the CD labelled “PHYTEC WinCE-i.MX350” in your

CDROM/DVD drive and start setup.exe.

In this dialog you are asked for a destination path for installing the demo software and the manuals. We recommend to use the default path for working with this Quickstart.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

11

phyCORE

®

Instructions

In the next dialog you can choose a program folder. We recommend using the default program folder for working with this Quickstart.

In the next steps, the Freescale BSP for i.MX350 and the BSP for the

PHYTEC phyCORE-i.MX350 will be installed. Please follow the instructions on the screen.

12

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

After this the installation of the SDK will be launched.

Follow the instructions of the installation program to complete the installation of the WinCE i.MX350-Kit software.

2.4 Installing Microsoft Active Sync 4.5

To be able to upload the software you are developing to your i.MX350 device you need Microsoft Active Sync 4.5. When your PC is connected to your i.MX350 device via a USB cable this software allows you to create a direct connection to your device.

You can download Microsoft Active Sync 4.5 from the Microsoft website at

http://www.microsoft.com/windowsmobile/activesync/activesync45.mspx

To download the software follow the instruction given on the webpage and save the downloaded file to your hard drive. Select the folder you saved the software to and double-click setup.exe.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

13

phyCORE

®

Instructions

Chose a folder and click “Next” and in the following dialog click “Install” to start the installation process for Microsoft Active Sync 4.5. This may take a few minutes.

You have successfully installed the software for the WinCEi.MX350-Kit. You can find the programs you will need to develop own applications for the target on your host system. All necessary configurations were done by the setup program.

2.5 Preparing the phyCORE

®

-i.MX350 to interface to a host-PC

To be able to interface your i.MX350 with your PC you must first setup the correct network settings on your i.MX350. For downloading software to the i.MX350 with ActiveSync we will use the USB interface in this Quickstart. This chapter explains how to configure WinCE to connect to your host PC.

Connect the AC adapter with the power supply connector X30 (5V) on your board.

The power connector should have 5 VDC inside and outside should be ground.

If Windows CE didn’t start within 1 minute, you have a kit with linux preinstalled. Please continue with Appendix A “How to install Windows CE on the i.MX350 Kit” and continue here after you have finished this chapter successfully.

When Windows CE has loaded it will show a screen to calibrate the touch panel. Click on the cross on the screen to calibrate your touch panel. When calibration is done you will see the WinCE screen.

14

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

2.6 Establishing an Active Sync Connection

The i.MX350 device should already be connected to the PC as described in chapter 2.4 and running.

ActiveSync should already be running after the installation in chapter

2.4.

Connect the USB A/mini-B cable with the USB OTG connector (X16) on the target to a free USB port on your host.

Ensure to use the USB A/mini-B included in this RDK.

Establishing the connection might take a few seconds. Once the connection has been established Active Sync will show a screen with status information.

Your PC is now connected to your i.MX350 device.

2.7 Downloading Example Code with Active Sync

To download the example code provided on the WinCE-i.MX350-

Disc, you need to have Active Sync running on your PC to be able to

© PHYTEC Messtechnik GmbH 2009 L-725e_1

15

phyCORE

®

Instructions

establish a connection to your i.MX350 device as described in the previous chapter.

Click on Tools in the menu bar of Active Sync and select Explore

Device. An Explorer window called Mobile Device will open that will show you the folder structure of the Windows CE installation on your i.MX350 device.

16

Open a file manager and navigate to the

C:\PHYTEC\PCM043_phyCORE-i.MX350\WinCE-

Kit\Demos\HelloWorld\HelloWorld\Phytec i.MX350 SDK

(ARMV4I)\Debug folder. Select HelloWorld.exe and copy it to the

Mobile Device window in the folder Program Files using drag and drop.

The program has now been copied to your i.MX350 device. You will be able to access it by double-clicking the My Device icon on your i.MX350 device. This opens a window that will show you the file

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

structure of your device. You should be able to find HelloWorld.exe at the location you copied it to. Double-click it to execute the program.

A window will open on your i.MX350 device that will print a Hello

World message.

2.8 Downloading Example Code with Visual Studio 2005

PHYTEC provides you with example code to learn about downloading code onto your i.MX350 device. This code has already been copied to your local hard drive by the setup.

Start the tool chain by selecting Microsoft Visual Studio 2005 from the programs group: Start\Programs/Microsoft Visual Studio 2005.

After starting Visual Studio 2005 the window shown below will appear. Here you can create projects, edit files, configure tools, assemble, link and start the debugger. Close all projects that might be open by selecting Project / Close Project.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

17

phyCORE

®

Instructions

The HelloWorld example downloads a program to your device that, when executed, prints the text Hello World on the display of your phyCORE

®

Development Board i.MX350.

• To open the HelloWorld project select File/Open/Project/Solution from the Visual Studio 2005 menu bar.

• Browse to the folder C:\PHYTEC\PCM043_phyCORE-

i.MX350\WinCE-Kit\Demos\HelloWorld.

• Select the HelloWorld project HelloWorld.

18

• Click Open.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Introduction

• In the Solution Platform pull-down menu make sure that the

Phytec i.MX350 SDK (ARMV4I) configuration is selected. Also make sure that Phytec i.MX350SDK ARMV4I device is selected in the Target device menu.

If these menus are not shown in your Visual Studio IDE, move your mouse to an empty space on the toolbar, press the right mouse button and select from the pop up menu the menus Target and Device.

Build the Project

• Build the target by either selecting the Build icon

on the build toolbar or in the main menu bar select Build / Build HelloWorld.

• If any source file of the project contains any errors, they will be shown in the Output Window - Build tab. Use the editor to correct the error(s) in the source code, save the file and repeat the build.

• If there are no errors, the code can be downloaded to your i.MX350 device. For this to work you need to have established an Active

Sync connection between your PC and your i.MX350 device as described in section 2.6. When the connection is established select

Build/Deploy HelloWorld from the main menu bar.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

19

phyCORE

®

Instructions

• The individual steps of the download procedure can be viewed in the Output Window - Build tab.

• Wait until the download is complete.

• The newly created application was now deployed on your i.MX350 device. To start it select My Device on the target platform and go to the folder Program Files/Helloworld and double tap on

“Helloworld”

• A window will open on your i.MX350 device that will print a Hello

World message.

• Click on the Close icon in the window to close the application.

You have successfully passed the Getting Started part of this

QuickStart. In this chapter you learned how to open a project, build an executable and transfer and run this executable on the target hardware.

20

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Getting

3 Getting More Involved

30 min

In this chapter you will learn how to configure the Visual Studio 2005

IDE (Integrated Development Environment), modify the source code from our example, create a new project and build and download a machine-readable output file to the target hardware.

3.1 Creating a New Project

• To create a new project file select File / New / Project from the

Visual Studio 2005 menu. This opens a dialog that will ask about the kind of project you wish to create.

• Open the Visual C++ tree and select Smart Device.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

21

phyCORE

®

Instructions

• In the Templates field select Win32 Smart Device Project.

• In the text field Name, enter the name of the project you wish to create, e.g. myHelloWorld.

• Click OK.

• Click Next.

22

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Getting More Involved

• Click on the entry Phytec i.MX350 SDK in the field Installed SDKs: and press the > button. The Phytec i.MX350 SDK will appear in the

Selected SDKs field.

• Select Pocket PC 2003 in the field Selected SDKs and press the < button. This removes the Pocket PC 2003 SDK from the list of selected SDKs.

• Press Next

© PHYTEC Messtechnik GmbH 2009 L-725e_1

23

phyCORE

®

Instructions

• Don’t change the settings in this window and press Finish.

At this point you have created a new project for the i.MX350 board.

The next step is to modify the C source file before building your project. This includes compiling, linking, locating and creating the executable.

3.2 Modifying the Source Code

Open up the myHelloWorld tree and Source Files. Double-click on the myHelloWorld.cpp file to open the file in the source code editor.

24

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Getting More Involved

• Locate the following code section to make your HelloWorld program print the text Hello World! 5 times instead of just one.

case WM_PAINT:

hdc

=

BeginPaint(hWnd, &ps);

• Replace this code section with the following: case WM_PAINT:

RECT rt;

hdc = BeginPaint(hWnd, &ps);

GetClientRect(hWnd, &rt);

int i;

for(i = 1; i <= 5 ; i++)

{

rt.top = rt.top + 30;

DrawText(hdc, _T("Hello World!"), 12, &rt,

DT_SINGLELINE | DT_VCENTER | DT_CENTER);

}

EndPaint(hWnd, &ps);

break;

• Save the modified file by choosing File / Save or by clicking the

floppy disk icon .

3.3 Building the Project

You are now ready to run the compiler and linker.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

25

phyCORE

®

Instructions

• Build the target by either selecting the Build icon

on the build toolbar or in the main menu bar select Build / Build myHelloWorld.

• If any source file of the project contains any errors, they will be shown in the Output Window - Build tab. Use the editor to correct the error(s) in the source code, save the file and repeat the build.

• If there are no errors, the code can be downloaded to your i.MX350 device. For this to work you need to have established an Active

Sync connection between your PC and your i.MX350 device as described in section 2.6. When the connection is established select

Build/Deploy HelloWorld from the main menu bar.

• The individual steps of the download procedure can be viewed in the Output Window - Build tab.

• Wait until the download is complete.

• The newly created application was now deployed on your i.MX350 device. To start it select My Device on the target platform and go to the folder Program Files/myHelloworld and double tap on

“myHelloworld”

A window will open on your i.MX350 device that will print five Hello

World messages.

You have now modified source code, recompiled the code, created a downloadable file, and successfully executed this modified code.

26

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

4 Debugging

40 min

This Debugging section provides a basic introduction to the debug functions included in Visual Studio 2005. The most important features are described by using an existing example. For a more detailed description of the debugging features, please refer to the appropriate manuals provided by Microsoft.

4.1 Starting the Debugger

• Make sure that Debug is selected in the Solution Configurations pull-down menu.

Open up the myHelloWorld tree and Source Files. Double-click on the myHelloWorld.cpp file to open the file in the source code editor.

• Locate the following code section and click on the line rt.top = rt.top + 30;

• Select Debug/Toggle Breakpoint on the main menu bar or press F9 to set a breakpoint here. The red marker on the left-hand side of the selected line indicates the breakpoint.

• To start debugging withVisual Studio 2005, select Debug/Start

Debugging or press F5.

• A progress bar will indicate the download process of the debug program.

If a problem occurs during data transfer, an error message will be displayed. If this should occur, make sure you have established a connection between your PC and your i.MX350 device as described in section 2.5.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

27

phyCORE

®

Instructions

If data transfer was successful, a screen similar to the one shown below will appear. The debug toolbar is displayed. In the lower part of the debug screen you will see the Variables and Watch windows.

28

You may need to open, resize and /or move some windows to make your screen look similar to the screen capture. You can open inactive windows by choosing the desired window from the Debug/Windows pull-down menu.

The debugger will run up to the code section you have marked with a breakpoint and stop automatically. Notice the yellow arrow pointing to that breakpoint

You can click on Debug/Toggle Breakpoint or press F9 again to remove the breakpoint you have set.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

4.2 Visual Studio 2005 Debug Features

• The Debugger window toolbar gives access to the following debug commands: Restart, Stop Debugging, Break Execution, Show

Next Statement, Step Into, Step Over, Step Out and Run to Cursor.

• The first button on the debugger toolbar is the Start Debugging button. This starts or continuous debugging.

• The Break All halts execution and the editor shows the current source code line.

• The Stop Debugging button stops the debugger and will lead you back to your project screen.

• The Restart button restarts the execution of the program from the beginning.

• The Show Next Statement button allows you to go through your program code line by code line.

• The first button allowing exact control of the program execution is the Step Into button. The Step Into command performs the execution of the command line to which the Current-Statement

Arrow points. This can be a C command line or a single assembler line, depending on the current display mode. If the command line is a function call, Step Into jumps to the C function or subroutine, enabling you to explore the code contained in the accessed subroutine.

• The Step Over button is next on the debugger toolbar. The Step

Over command executes the command line, to which the Current-

Statement Arrow points. This can be a C command line or a single assembler line, depending on the current display mode. If the command line is a function call, the function will be executed without single stepping into the function.

• The next button is the Step Out button. Step Out is used to exit a function you are currently in. Step Out is very useful if you find yourself in a function you are not interested in and need to return quickly to your intended function.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

29

phyCORE

®

Instructions

• The Hex button toggles the display style of watch variables between hexadecimal and decimal.

• The last button pops up a menu where you can choose different windows useful for debugging, like watch windows, process information, memory information and calling stack.

4.3 Using the Visual Studio 2005 Debug Features

• The Variables window – Auto tab automatically shows the value of the local variable i. You can change the number base from decimal to hexadecimal by right clicking on the variable and selecting

Hexadecimal Display.

• Click Step Over several times and watch the value of i count up.

• As you can see in the source code, the for{} loop will end if i becomes equal to 5. To leave the for{} loop, change the value of i by selecting the value, changing it to 10 and pressing <Enter>.

Now repeat clicking on Step Over until you leave the loop.

• Remove the breakpoint by clicking into the source code line that has the breakpoint and press F9 or the Insert/Remove Breakpoint icon.

• Click in the source code, at return 0; and choose Run to Cursor from the debug toolbar. Your program will be executed until it reaches this line.

4.4 Running, Stopping and Resetting

30

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

• To run your program without stopping at any time, delete all breakpoints by clicking on the Insert/Remove Breakpoint icon.

• Click the Go

button.

Hello World! will be displayed on the screen of your i.MX315device.

• You can use the Stop Debugging

button to stop program execution at any time.

4.5 Changing Target Settings for the "Executable Version"

After successfully debugging the program, next change the project and the target settings in order to create an executable file that can then be downloaded to and executed out of the memory on the phyCORE

®

i.MX350.

• Make sure the program execution is stopped.

• Exit the current debug session by selecting Stop Debugging.

• In the Solution Configurations pull down menu select ’Release’.

• Build and execute your project as described in 3.3.

You can now watch your final example execute and Hello World! will be displayed on the screen of your i.MX350 device.

You have successfully finished the debug section of this

Quickstart. You learned how to set breakpoints, run your program to a specific line of code and inspect variables.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

31

phyCORE

®

Instructions

5 Building an image

50 min

In this section you will learn how to add your own application to a

WinCE project, create a new image and download this image on the i.MX350. We will use the application build and debugged in the chapters before as an example.

5.1 Changing an image

32

First you need a project to build the image with. In this example you can use the project we provide on the i.MX350 WinCE-Kit CD, which is already installed on your system.

• Open Visual Studio 2005, if not already open.

• To open the project select File/Open/Project/Solution from the

Visual Studio 2005 menu bar.

• Browse to the folder C:\WINCE600\OSDesigns\iMX350Project

Select the project iMX350Project.

When the project is loaded you will see the project in the Solution

Explorer Tab in the left window.

Open the Tree i.MX350_Phytec_Projekt3\Parameter

Files\.MX350_Phytec:ARMMV4I(Active)

and double click on

project.bib. Under the “Files” section add the following line:

HelloWorld.exe "C:\Phytec\PCM043_phyCORE-i.MX350\i.MX350-WinCE-Kit\Demos

\myHelloWorld\myHelloWorld\Phytec i.MX350 SDK (ARMV4I)\Debug\myHelloWorld.exe" NK

This will add the executable HelloWorld.exe to the Windows directory of the target. The path tells the platform builder where to find the executable that should be added to the image and the parameter NK specifies the name of the memory reagion where it should be added to.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

To build a new image select Build/Build /Solution from the Visual

Studio 2005 menu bar. The build process will take about 20 minutes, depending on your host platform hardware.

You don’t have always to do a complete build process that takes this long. If you just want to add a file to the image like in the example before, you can do this by selecting Build\Copy Files to

Release dir. This copies all necessary files to the Release directory. Then you can build the image with Build\Make Run-

Time image. This takes only about 5 minutes. Please refer to the

Visual Studio 2005/Platformbuilder documentation for more information.

5.2 Download an image

In the next step we want to download the image to the target.

For this step you need a terminal program like HyperTerminal.

Start the HyperTerminal program within the Programs|Accessories bar.

The HyperTerminal main window will now appear:

© PHYTEC Messtechnik GmbH 2009 L-725e_1

33

phyCORE

®

Instructions

Double-click on the HyperTerminal icon “Hypertrm” to create a new

HyperTerminal session.

The Connection Description window will now appear. Enter “COM

Direct” in the Name text field.

Next click on OK. This creates a new HyperTerminal session named

“COM Direct” and advances you to the next HyperTerminal window.

34

The COM Direct Properties window will now appear. Specify Direct

to COM1/COM2 under the Connect Using pull-down menu (be sure to indicate the correct COM setting for your system).

Click the Configure button in the COM Direct Properties window to advance to the next window (COM1/COM2 Properties).

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

• Set the following COM parameters: Bits per second = 115200;

Data bits = 8; Parity = None; Stop Bits = 1; Flow Control = None.

• Selecting OK advances you to the COM Direct–HyperTerminal monitoring window. Notice the connection status report in the lower left corner of the window.

• Connect the UART 1 (connector P1 – TOP) to the computer.

• Power up the baseboard

• You will now see some output messages from the bootloader in the

HyperTerminal window. Press space to stop the bootloader.

• Connect the cross-over Ethernet cable with the connector X23 on the target and the right network card of your host.

• In the HyperTerminal window you can press ‘0’ to change the IP address of the device and ‘1’ to change the network mask. Change the default settings so it will fit to the network settings on your PC.

• Press ‘3’ to disable DHCP.

• Press ‘5’ to change the Autoboot entry to NK from NOR

• Press ‘S’ to save the configuration.

• Select Target/Connectivity Option from the Visual Studio 2005 menu bar.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

35

phyCORE

®

Instructions

• Select Ethernet for the Download and Transport settings from the drop down box.

36

• Click on the Settings button on the right of the Download Drop down box. A window will appear. Leave this window open.

• Change to the Hyperterminal window and press ‘d’ on the keyboard to start the download of the image

• You will see some output messages followed by a BOOTME message.

• Go back to Visual Studio. In the window Ethernet download

settings a new entry should appear in the Active target devices list.

Select the device and close the window.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

• Select Target/Attach Device from the Visual Studio menu bar. A download message with a status bar should appear and the download should start.

When the download is finished, the image should start. Calibrate the touch panel, then navigate to the folder MyDevice\Windows. There you find your HelloWorld application that can be executed.

In this example the image that was build is a RAM image, when you reset the device, the original image from flash will be started again.

To build an image that can be stored in flash, right click on the entry

iMX350Phytec in the solution explorer and select Properties.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

37

phyCORE

®

Instructions

In the Properties dialog select Configuration Properties and Build

Options. Check the “Write run-time image to flash memory” and rebuild the solution.

Please read Appendix A “How to install Windows CE on the i.MX350

Kit” for information on how to flash the image.

You have successfully finished this QuickStart.

38

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

6 Summary

This QuickStart Instruction gave a general "Rapid Development

Kit" description, as well as software installation advice and an example program enabling quick out-of-the box start-up of the phyCORE

®

-i.MX350 in conjunction with WinCE.

In the Getting started section you learned how to configure your host to provide a basis for working with your target platform.

You installed the Rapid Development Kit software and you learned to copy and run a program on the target.

In the Getting More Involved section you got a step-by-step instruction on how to modify the example, create and build new projects and copy output files to the phyCORE -i.MX350 using

Visual Studio 2005.

The Debugging part of this QuickStart gave you information on setting up and using the debugger with Visual Studio 2005. You learned how to set breakpoints, watching and changing variables content.

In the Building an Image section you learned how to build a new image based on a preconfigured BSP and project.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

39

phyCORE

®

Instructions

Appendix A How to install WindowsCE on the i.MX350 Kit

Installing the bootloader

1) Configure the switch S5 to boot with UART

2) Connect the UART 1 (connector P1 - TOP) to the computer

3) Power up the baseboard

4) Start the Advanced ToolKit program with Start -> Programs ->

Advanced ToolKit -> AdvancedToolKit V1.60

40

5) Fill in the Advanced ToolKit window like below:

• Choose i.MX35 for “i.MX CPU”

• Choose the number of the serial port used for “Serial Port”

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

• Click “Next”

• On the next window select “Flash Tool”

• Click “Go” to run the selected tool.

• Select the Operation Type “Erase”

© PHYTEC Messtechnik GmbH 2009 L-725e_1

41

phyCORE

®

Instructions

• Choose NOR INTEL_CFI for “Flash model”

• Set the “Size” in the Operating Settings at 40.000

• Click “Erase”

42

• When finished, select the Operating type “Program”

• Choose NOR INTEL_CFI for “Flash model”

• Choose the binary to flash (eboot.nb0) with the Browse button and navigate to the directory C:\PHYTEC\PCM043_phyCORE-

i.MX350\WinCE-Kit\EBOOT\

• Click on “Program”

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

6) When finished, power down the baseboard

7) Configure the switch S5 to boot with NOR Flash

Installing the image

© PHYTEC Messtechnik GmbH 2009 L-725e_1

43

phyCORE

®

Instructions

Start the HyperTerminal program within the

Programs|Accessories bar.

The HyperTerminal main window will now appear:

Double-click on the HyperTerminal icon “Hypertrm” to create a new HyperTerminal session.

The Connection Description window will now appear. Enter

“COM Direct” in the Name text field.

44

Next click on OK. This creates a new HyperTerminal session named “COM Direct” and advances you to the next

HyperTerminal window.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

The COM Direct Properties window will now appear. Specify

Direct to COM1/COM2 under the Connect Using pull-down menu (be sure to indicate the correct COM setting for your system).

Click the Configure button in the COM Direct Properties window to advance to the next window (COM1/COM2

Properties).

• Set the following COM parameters: Bits per second = 115200;

Data bits = 8; Parity = None; Stop Bits = 1; Flow Control =

None.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

45

phyCORE

®

Instructions

• Selecting OK advances you to the COM Direct–

HyperTerminal monitoring window. Notice the connection status report in the lower left corner of the window.

• Connect the UART 1 (connector P1 - TOP) to the computer.

• Power up the baseboard

• You will now see some output messages from the bootloader in the HyperTerminal window. Press space to stop the bootloader.

• Connect the cross-over Ethernet cable with the connector X23 on the target and the right network card of your host.

• In the HyperTerminal window you can press ‘0’ to change the

IP address of the device and ‘1’ to change the network mask.

Change the default settings so it will fit to the network settings on your PC.

• Press ‘3’ to disable DHCP.

• Press ‘5’ to change the Autoboot entry to NK from NOR

• Press ‘S’ to save the configuration.

• Start Microsoft Visual Studio 2005

• Select Target/Attach Device from the Visual Studio 2005 menu bar. In the following Select a run-time image dialog, navigate to C:\PHYTEC\PCM043_phyCORE-

i.MX350\WinCE-Kit\Image and select nk.bin.

• Select Target/Connectivity Option from the Visual Studio

2005 menu bar.

• Select Ethernet for the Download and Transport settings from the drop down box.

46

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Debugging

• Click on the Settings button on the right of the Download Drop down box. A window will appear. Leave this window open.

• Change to the Hyperterminal window and press ‘d’ on the keyboard to start the download of the image

• You will see some output messages followed by a BOOTME message.

• Go back to Visual Studio. In the window Ethernet download

settings a new entry should appear in the Active target devices list. Select the device and close the window.

© PHYTEC Messtechnik GmbH 2009 L-725e_1

47

phyCORE

®

Instructions

• Select Target/Attach Device from the Visual Studio menu bar.

A download message with a status bar should appear and the download should start.

• When the download is finished, the image has been downloaded in RAM. Now go to the HyperTerminal window, the bootloader should state a message to program the image now in flash. Press ‘Y’ to confirm this.

• When programming the flash is completed, the bootloader will state “spin forever”. Reset the board by pressing the reset button. WinCE should boot now.

48

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Suggestions for Improvement

Document: WinCE-Kit with phyCORE

®

-i.MX350 QuickStart

Instructions

Document number: L-725e_1, May 2009

How would you improve this manual?

Did you find any mistakes in this manual? page

Submitted by:

Customer number:

Name:

Company:

Address:

Return to:

PHYTEC Technologie Holding AG

55129 Mainz, Germany

Fax: +49 (6131) 9221-26

© PHYTEC Messtechnik GmbH 2009 L-725e_1

Published by

© PHYTEC Messtechnik GmbH 2009

Ordering No. L-725e_1

Printed in Germany

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
