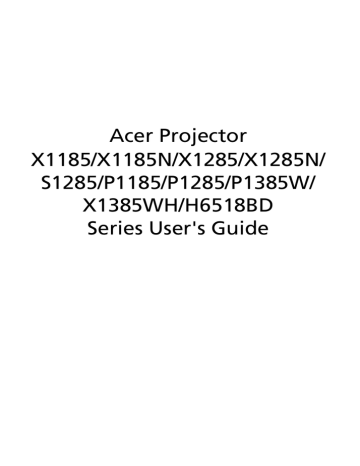

Acer Projector

X1185/X1185N/X1285/X1285N/

S1285/P1185/P1285/P1385W/

X1385WH/H6518BD

Series User's Guide

Acer Projector User's Guide

Original Issue: 01/2015

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Acer Projector

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI

, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for Your Safety and

Comfort

Read these instructions carefully. Keep this document for future reference.

Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

•

Install the power supply unit before connecting the power cord to the AC power outlet.

•

Unplug the power cord before removing the power supply unit from the projector.

•

If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

iii

Warnings!

•

Do not use this product near water.

•

Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.

•

Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

•

Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

iv

•

To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.

•

Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices or lamp.

Using electrical power

•

This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

•

Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.

•

If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

•

Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.

•

This product's AC adapter is equipped with a three-wire grounded plug.

The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

•

Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (14.76 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

•

the power cord or plug is damaged, cut or frayed

•

liquid was spilled into the product

•

the product was exposed to rain or water

•

the product has been dropped or the case has been damaged

•

the product exhibits a distinct change in performance, indicating a need for service

•

the product does not operate normally after following the operating instructions

v

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

•

Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

•

Turn on the projector first and then signal sources.

•

Do not place the product in the following environments:

•

Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector are necessary.

Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.

Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the life span and darken the image.

Locations near fire alarms.

•

Locations with an ambient temperature above 40 ºC/104 ºF.

Locations where the altitudes are higher than 10000 feet.

•

Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It

vi

might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

•

Do not keep using this product to break or drop it. In this case contact your dealer for inspection.

•

Do not face the projector lens to the sun. It can lead to fire.

•

When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.

•

Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to wait for the fan to stop before turning main power off.

•

Do not touch the air outlet grille and bottom plate which become hot.

•

Clean the air filter frequently. The temperature inside may rise and cause damage when the filter/ventilation slots are clogged with dirt or dust.

•

Do not look into the air outlet grille when projector is operating. It may hurt your eyes.

•

Always open the lens shutter or remove the lens cap when the projector is on.

•

Do not block the projector lens with any object when the projector is under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

•

Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions.

•

Contact your local dealer or Acer service center when you need to change the lamp.

•

The product will detect the life of the lamp itself. Please contact your local dealer or Acer service center for changing the lamp, when lamp warning message displays.

•

Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you.

•

Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage.

•

This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

vii

Caution for Listening

To protect your hearing, follow these instructions.

•

Increase the volume gradually until you can hear clearly and comfortably.

•

Do not increase the volume level after your ears have adjusted.

•

Do not listen to music at high volumes for extended periods.

•

Do not increase the volume to block out noisy surroundings.

•

Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics

Equipment (WEEE) regulations, visit http://www.acer-group.com/public/

Sustainability/index.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

"Lamp(s) contain Mercury,

Dispose Properly."

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the

Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

viii

First Thing First

Usage Notes

Do:

•

Turn off the product before cleaning.

•

Use a soft cloth moistened with mild detergent to clean the display housing.

•

Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

•

Block the slots and openings on the projector provided for ventilation.

•

Use abrasive cleaners, waxes or solvents to clean the unit.

•

Use under the following conditions:

•

In extremely hot, cold or humid environments.

•

In areas susceptible to excessive dust and dirt.

•

Near any appliance that generates a strong magnetic field.

•

Place in direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

•

Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

•

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

•

Please do not open or disassemble the product as this may cause electric shock.

•

The product will detect the life of the lamp itself. Please contact your local dealer or

Acer service center for changing the lamp, when lamp warning message displays.

•

When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.

•

Turn on the projector first and then the signal sources.

•

Do not use lens cap when projector is in operation.

•

When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.

Information for Your Safety and Comfort

First Thing First

Usage Notes

Precautions

Introduction

Product Features

Package Overview

Projector Overview

Projector Outlook

Control Panel

Remote Control Layout

MHL Feature Introduction

Getting Started

Connecting the Projector

Turning the Projector On/Off

Turning On the Projector

Turning Off the Projector

Adjusting the Projected Image

Adjusting the Height of the Projected Image

How to Optimize Image Size and Distance

How to Get a Preferred Image Size by Adjusting

Distance and Zoom

User Controls

Installation Menu

Onscreen Display (OSD) Menus

Color


Setting

Management

Audio

3D

Language

Appendices

iii

viii

1

2

4

5

3

7

8

13

14

15

16

21

26

37

38

39

27

28

31

33

40 Troubleshooting

LED & Alarm Definition Listing

Using the inner connector(s)

Ceiling Mount Installation

Specifications

Compatibility Modes

Regulations and safety notices

40

44

45

46

49

53

57

Introduction

Product Features

This product is a single-chip DLP

projector, including the following outstanding features:

•

DLP

technology

•

X1185/X1185N/P1185: Native 800 x 600 SVGA resolution, Auto/4:3/16:9 aspect ratio supported

X1285/X1285N/S1285/P1285: Native 1024 x 768 XGA resolution, Auto/4:3/

16:9 aspect ratio supported

P1385W/X1385WH: Native 1280 x 800 WXGA resolution, Auto/Full/4:3/16:9/

L.Box aspect ratio supported

H6518BD: Native 1920 x 1080 1080p resolution, Auto/Full/4:3/16:9/L.Box aspect ratio supported

•

Enables projecting 3D content via DLP Link Technology: Blu-Ray 3D supported (P1185/P1285/P1385W/X1385WH/H6518BD)

•

One-touch "3D" button on remote control allows quick and easy access to the 3D functions

•

Acer ColorBoost technology delivers vivid, life-like images

•

High brightness and contrast ratio

•

Versatile display modes enable optimum performance in any situation

•

NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported

•

Lower power consumption and economy (ECO) mode extends lamp life

•

Dynamic Black / ExtremeEco functions help decrease lamp power consumption and further extend lamp life.

Dynamic Black: If turned on, the projector dynamically adjusts the power consumption of the lamp according to the brightness of the image being projected. When projecting darker images the power consumption will be reduced and the contrast of the image will also be enhanced.

ExtremeEco: The projector will decrease the power consumption of the lamp by up to 70% when no input signal can be detected for 5 minutes.

•

Acer EcoProjection Technology delivers Intelligent power management approach and physical efficiency improvement

•

Advanced keystone correction delivers optimum presentations

•

Multi-language Onscreen Display (OSD) menus

•

Manual focus/zoom projection lens

•

2X digital zoom and pan move function

•

Microsoft compliant

Windows

2000, XP, 7, 8, 8.1, Vista

, Macintosh OS, Chrome OS

•

CEC (Consumer Electronics Control) function supported (H6518BD)

•

LumiSense

supported (H6518BD)

•

TCO certified (P1285/X1285/P1385W/X1385WH)

1

2

Package Overview

This projector comes with all the items shown below. Check to make sure you have them all. Contact your dealer immediately if any thing is missing.

S1285

X1185/X1185N/X1285/X1285N/

P1185/X1385WH

P1285/P1385W/H6518BD

Projector

Power cord VGA cable Security card

User’s guide (CD-ROM) Remote control Quick start guide

Battery x 2 Carrying case

(Optional)

WirelessHD dongle kit

(MWIHD1)

(Optional)

Dust filter

(Optional)

Projector Overview

Projector Outlook

Front/upper side

S1285 X1185/X1185N/X1285/X1285N/

P1185/X1385WH

1 2

P1285/P1385W/H6518BD

# Description

Control panel

# Description

4 HDMI (MHL) connector

Micro USB cable

2 Power key and Power indicator LED 5 Projection lens

3 Zoom ring and Focus ring

Focus ring

6 Remote control receiver

7 Lens cap

Rear side

1 2 4 7 8 9

S-VIDEO VGA IN -2 VGA IN -1 VGA-OUT

AUDIO IN -1

AUDIO IN -2

USB

MINI-B

AUDIO OUT

VIDEO

X1185/X1185N/X1285/X1285N/S1285

1 2 3 4 5 6 7

RS232

VGA IN -1 VGA-OUT RS232

AUDIO IN -1

AUDIO IN -2

AUDIO OUT

S-VIDEO

DC 5V OUT

USB

MINI-B

HDMI / MHL

VIDEO

H6518BD

1 2 3 4 5 7 8

VGA IN -2 VGA IN -1

AUDIO IN -1

AUDIO IN -2

S-VIDEO DC 5V OUT

USB

MINI-B

HDMI / MHL

AUDIO OUT VIDEO

P1185/P1285/P1385W/X1385WH

VGA-OUT

AUDIO IN -1

AUDIO IN -2

AUDIO OUT

S-VIDEO

USB

MINI-B

VGA IN -2

VIDEO

VGA IN -1 VGA-OUT RS232

RS232

10 11 12

# Description

1 Audio input connector

Audio output connector

2 S-Video input connector

Composite video input connector

3 DC 5V output

4 Mini USB connector

7 Analog RGB signal/HDTV/

# Description component video input connector

Monitor loop-through output connector

RS232 connector

10 Kensington™ lock port

5 HDMI (MHL) connector 11 Power socket

6 Component video input connector 12 Tilt adjusting wheel

3

4

Control Panel

# Function

1 LAMP

2 POWER indicator

LED

3 Keystone

Description

Lamp Indicator LED.

Refer to the "Turning the Projector On/Off" section.

Power key

MODE

TEMP

SOURCE

9 Four directional selection keys

10 RESYNC

Adjusts image distortion caused by tilting projection

(±40 degrees).

Refer to the "Turning the Projector On/Off" section.

Launches the Onscreen Display (OSD) menu, returns to the previous step for the OSD menu operation or exits the OSD menu.

Chooses a display mode.

Temp Indicator LED.

Chooses RGB, component video, S-Video, composite video, HDMI (MHL) or HDTV source.

Selects items or makes adjustments to your selection

Automatically synchronizes the projector to the input source.

Remote Control Layout

X1185/X1185N/X1285/X1285N/

S1285/P1185/X1385WH/H6518BD P1285/P1385W

5

# Function

POWER

MEDIA SETUP

ZOOM

MODE

Keystone

Description

Refer to the "Turning the Projector On/Off" section.

(No function)

Zooms the projector display in or out.

Chooses a display mode.

Adjusts image distortion caused by tilting projection

(±40 degrees).

Four directional selection keys

6 Keypad 0~9

Selects items or makes adjustments to your selection.

VGA

COMPONENT

S-VIDEO

10 HDMI™/DVI

11 Infrared transmitter

Press "0~9" to input a password in the "Setting" >

"Security" OSD.

To change source to VGA. This connection supports analog RGB, YPbPr (480p/576p/720p/1080i/1080p), and

YCbCr (480i/576i).

To change source to Component video. This connector supports YPbPr/YCbCr.

To change source to S-Video.

To change source to HDMI™ (or DVI). (for the model with HDMI™ or DVI connector)

Sends signals to the projector.

6

# Function

12 FREEZE

13 SOURCE

14 HIDE

15 MENU

16 PgUp/PgDn

Description

To pause the screen image.

Chooses RGB, component video, S-Video, composite video, HDMI (MHL) or HDTV source.

Press "HIDE" to hide screen image; press again to display the image.

Launches the Onscreen Display (OSD) menu, returns to the previous step for the OSD menu operation or exits the OSD menu.

For computer mode only. Use this button to select the next or previous page. This function is only available when connected to a computer via a USB cable.

To change source to composite video.

Chooses an aspect ratio.

(No function)

17 VIDEO

18 RATIO

19 WIRELESS;

LAN/WiFi

Rewind

Play/Pause

Stop

Fast-forward

21 SD/USB A

22 USB B

23 3D

24 Laser

(No function)

Press to open the 3D menu for adjusting 3D settings.

Emits visible laser pointer light for presentation purposes. This function is not available for the projectors sold in the Japanese market.

MHL Feature Introduction

When your smart device is connected to the projector, you can use some buttons on the remote control to control your smart device. Press "MODE" for one second to enter or leave the MHL control mode. After entering the MHL control mode, press "SOURCE" to switch between the navigation mode

(default), media mode and numeric mode.

MODE

Function

Description

Navigation mode

Media mode Numeric mode

Long press for one second to enter or leave the

MHL control mode.

13 SOURCE

5 Four directional select keys

After entering the MHL control mode, press to switch between the navigation mode (default), media mode and numeric mode.

Up down down

Left Left

Right Right

(No function) (No function)

Decreases the volume.

Increases the volume.

(No function)

6 Keypad 0~9

15 MENU

Rewind

Play/Pause

Stop

Fast-forward

(No function) (No function) Enters 0~9.

Goes to the root menu.

(No function) (No function)

Enters 1.

(No function)

Rewinds/Plays/

Selects or

Pauses/Stops/ enters items.

Fast-forwards

Exits current page.

the playing of media files.

(No function)

Enters 2.

Enters 3.

(No function)

7

8

Getting Started

Connecting the Projector

•

X1185/X1185N/X1285/X1285N/S1285

VGA

Video/S-Video

Output

DVD player,

Set-top box,

HDTV receiver

Display

RS232

R B G

Speakers

AUDIO IN -1

AUDIO IN -2

AUDIO OUT

S-VIDEO

USB

MINI-B

VGA IN -2

VIDEO

VGA IN -1 VGA-OUT RS232

1 Power cord

Description #

6 S-Video cable

Description

2 VGA cable 7 RS232 cable

3 VGA to component video/HDTV adapter 8 USB cable

4 Composite video cable

5 Audio cable

9 3 RCA component cable

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

•

P1185/P1285/P1385W/X1385WH

Speakers

Video/S-Video

Output

DVD player,

Set-top box,

HDTV receiver

VGA

Display

RS232

Smartphone/ tablet

9

HDTV adapter

AUDIO IN -1

AUDIO IN -2

AUDIO OUT

S-VIDEO DC 5V OUT

USB

MINI-B

HDMI / MHL

VIDEO

VGA IN -2

VGA IN -1

VGA-OUT RS232

(P1285/P1385W) or

# Description # Description

1 Power cord

2 VGA cable

7 RS232 cable

8 USB cable

3 VGA to component video/HDTV adapter 9 3 RCA component cable

4 Composite video cable

5 Audio cable

6 S-Video cable

10 HDMI (MHL) cable

11 WirelessHD dongle

12 Wireless dongle

10

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

Note: Some smart devices require a converter (supplied by the smart device maker) to enable the MHL function.

Note: Compatible HDMI/MHL dongles: WirelessHD (MWIHD1),

MWA3, Android (MWND1), Chromecast TM .

•

H6518BD

Speakers

VGA

Smartphone/ tablet

Video/S-Video

Output

DVD player,

Set-top box,

HDTV receiver

Display

RS232

11

AUDIO IN -1

AUDIO IN -2

AUDIO OUT

S-VIDEO DC 5V OUT

USB

MINI-B

HDMI / MHL

VIDEO

VGA IN -1 VGA-OUT RS232

1 Power cord

Description

2 VGA cable

4 Composite video cable

5 Audio cable

6 S-Video cable

7 RS232 cable or

8 USB cable

Description

9 3 RCA component cable

10 HDMI (MHL) cable

11 WirelessHD dongle

12 Wireless dongle

12

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

Note: Some smart devices require a converter (supplied by the smart device maker) to enable the MHL function.

Note: Compatible HDMI/MHL dongles: WirelessHD (MWIHD1),

MWA3, Android (MWND1), Chromecast TM .

13

Turning the Projector On/Off

Turning On the Projector

1 Ensure that the power cord and signal cable are securely connected.

The Power LED will light red.

2 Turn on the projector by pressing (POWER) on the control panel or remote control, and the Power indicator LED will turn blue.

3 Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically (when the Source Lock function is disabled).

•

If the screen displays "No Signal", please make sure the signal cables are securely connected.

If you connect to multiple sources at the same time, use "SOURCE" on the control panel or remote control, or the direct source key on the remote control to switch between inputs.

1 & 2

S1285 X1185/X1185N/X1285/X1285N/

P1185/X1385WH

P1285/P1385W/H6518BD

14

Turning Off the Projector

1 To turn the projector off, press the power button. This message appears:

"Please press power button again to complete the shutdown process"

Press the power button again.

2 The LED Power indicator will turn solid red to indicate standby mode.

3 It is now safe to unplug the power cord.

When Instant Resume is selected:

1 The LED Power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly.

2 As long as the power cord remains plugged in, you can press the power button to turn the projector immediately back on anytime during the 2-minute shutdown process.

3 Once the system has finished cooling, the LED Power indicator will stop blinking and turn solid red to indicate standby mode.

4 It is now safe to unplug the power cord.

•

Warning indicators:

"Projector Overheated. Lamp will automatically turn off soon."

This onscreen message indicates that the projector has overheated.

The lamp will automatically turn off, the projector will automatically shut down, and the LED Temp indicator will turn solid red. Contact your local dealer or service center.

"Fan failed. Lamp will automatically turn off soon."

This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED Temp indicator will blink. Contact your local dealer or service center.

Note:

Whenever the projector automatically shuts down and the LED Temp indicator turns solid red, contact your local reseller or service center

Adjusting the Projected Image

Adjusting the Height of the Projected Image

The projector is equipped with two elevator feet for adjusting the image height.

To raise the image:

1 Use the front Tilt adjusting wheel to raise the image to the desired height and angle.

2 Use the rear Tilt adjusting wheel to fine-tune the display angle.

To lower the image:

1 Use the front Tilt adjusting wheel to lower the image to the desired height angle.

2 Use the rear Tilt adjusting wheel to fine-tune the display angle.

15

Tilt adjusting wheel

16

How to Optimize Image Size and Distance

Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen.

•

SVGA

If the projector is 3 m from the screen, good image quality is possible for image sizes between 87" and 95".

Note: Remind as below figure, the space of 160 cm height is required when the projector is located at 3 m distance.

Max scre en size

95"

Min scre en size

87"

Height:

146 cm

Height:

160 cm

From base to top of image

3 m

Desired distance

4.5

Desired

Distance

(m)

< A >

Minimum Screen Size (Min zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

1.5

59 x 44

88 x 66

Maximum Screen Size (Max zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

2.5

3.5

101

118 x 88

147 x 110

176 x 132

206 x 154

121

146

170

111

65 x 48

97 x 73

129 x 97

161 x 121

194 x 145

226 x 169

106

133

160

186

116

130

145

174

203

232

261

289

318

347

Zoom Ratio: 1.1 x

235 x 176

265 x 199

294 x 221

353 x 265

412 x 309

471 x 353

529 x 397

588 x 441

647 x 485

706 x 529

194

218

243

291

340

388

437

485

534

582

127

143

159

191

222

254

286

318

349

381

258 x 194

290 x 218

323 x 242

387 x 290

452 x 339

516 x 387

581 x 435

645 x 484

710 x 532

774 x 581

213

240

266

319

373

426

479

532

585

639

17

•

XGA

If the projector is 3 m from the screen, good image quality is possible for image sizes between 72" and 79".

Note: Remind as below figure, the space of 133 cm height is required when the projector is located at 3 m distance.

Max scre en size

79"

Min scre en size

72"

Height:

121 cm

Height:

133 cm

From base to top of image

3 m

Desired distance

3.5

4.5

Desired

Distance

(m)

< A >

Minimum Screen Size (Min zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

1.5

2.5

49 x 37

74 x 55

98 x 74

123 x 92

101

121

145

169

193

109

217

241

265

289

Zoom Ratio: 1.1 x

147 x 110

172 x 129

196 x 147

221 x 165

245 x 184

294 x 221

343 x 257

392 x 294

441 x 331

490 x 368

539 x 404

588 x 441

121

142

162

182

202

243

283

324

364

404

445

485

Maximum Screen Size (Max zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

54 x 40

81 x 60

108 x 81

134 x 101

111

106

119

161 x 121

188 x 141

215 x 161

242 x 181

133

155

177

200

238

265

291

318

132

159

185

212

269 x 202

323 x 242

376 x 282

430 x 323

484 x 363

538 x 403

591 x 444

645 x 484

222

266

310

355

399

444

488

532

18

•

XGA (fixed-zoom models)

If the projector is 3 m from the screen, good image quality is possible for image sizes around 242".

Note: Remind as below figure, the space of 424 cm height is required when located at 3 m distance.

242"

Height:

424 cm

From base to top of image

3 m

Desired distance

4.5

Screen Size

Desired

Distance

(m)

< A >

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

1.5

121

164 x 123

246 x 184

141

212

2.5

3.5

161

202

242

282

328 x 246

410 x 307

492 x 369

574 x 430

283

353

424

495

323

363

403

484

565

645

726

807

887

968

Zoom Ratio: 1.0 x

656 x 492

738 x 553

820 x 615

984 x 738

1148 x 861

1311 x 984

1475 x 1107

1639 x 1230

1803 x 1352

1967 x 1475

566

636

707

848

990

1131

1273

1414

1555

1697

19

•

WXGA

If the projector is 3 m from the screen, good image quality is possible for image sizes between 84" and 93".

Note: Remind as below figure, the space of 125 cm height is required when the projector is located at 3 m distance.

Max scre en size

Min scre en size

93"

84"

Height:

114 cm

Height:

125 cm

From base to top of image

3 m

Desired distance

3.5

4.5

Desired

Distance

(m)

< A >

Minimum Screen Size (Min zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

1.5

2.5

61 x 38

91 x 57

121 x 76

152 x 95

141

169

197

225

113

127

253

281

310

338

Zoom Ratio: 1.1 x

182 x 114

212 x 133

242 x 152

273 x 170

303 x 189

364 x 227

424 x 265

485 x 303

545 x 341

606 x 379

667 x 417

727 x 455

114

133

152

170

189

227

265

303

341

379

417

455

Maximum Screen Size (Max zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

67 x 42

100 x 63

133 x 83

167 x 104

104

108

124

139

200 x 125

233 x 146

267 x 167

300 x 188

125

146

167

188

279

310

340

371

155

186

217

248

333 x 208

400 x 250

467 x 292

533 x 333

600 x 375

667 x 417

733 x 458

800 x 500

208

250

292

333

375

417

458

500

20

•

1080p

If the projector is 3 m from the screen, good image quality is possible for image sizes between 90" and 118".

Note: Remind as below figure, the space of 154 cm height is required when the projector is located at 3 m distance.

Max scre en size

Min scre en size

118"

90"

Height:

118 cm

Height:

154 cm

From base to top of image

3 m

Desired distance

4.5

Desired

Distance

(m)

< A >

Minimum Screen Size (Min zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

1.5

67 x 38

100 x 56

Maximum Screen Size (Max zoom)

Diagonal

(inch)

W (cm) x H (cm)

From base to top of image

(cm)

< C >

2.5

3.5

105

133 x 75

167 x 94

200 x 113

233 x 131

118

138

118

137

87 x 49

130 x 73

174 x 98

217 x 122

261 x 147

304 x 171

103

128

154

180

120

136

151

181

211

241

271

301

331

361

Zoom Ratio: 1.3 x

267 x 150

300 x 169

333 x 188

400 x 225

467 x 263

533 x 300

600 x 338

667 x 375

733 x 413

800 x 450

158

177

197

236

276

315

354

394

433

473

157

177

196

236

275

314

354

393

432

471

348 x 196

391 x 220

435 x 245

522 x 293

609 x 342

696 x 391

783 x 440

870 x 489

957 x 538

1043 x 587

205

231

257

308

360

411

462

514

565

616

21

How to Get a Preferred Image Size by Adjusting

Distance and Zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.

•

SVGA

To obtain an image size of 70", set the projector at a distance between 2.2 m and 2.4 m from the screen and adjust the zoom level accordingly.

70"

Desired image size

Height:

117 cm

From base to top of image

2.4 m

2.2 m

Desired distance

Desired Image Size

Diagonal (inch)

< A >

W (cm) x H (cm)

61 x 46

81 x 61

102 x 76

122 x 91

120

150

180

200

100

250

300

142 x 107

163 x 122

183 x 137

203 x 152

244 x 183

305 x 229

366 x 274

406 x 305

508 x 381

610 x 457

Zoom Ratio: 1.1 x

Distance (m)

Max zoom

Min zoom

< C >

1.3

1.6

1.9

2.2

1.0

1.4

1.7

2.1

2.5

2.8

3.1

3.8

2.4

2.8

3.1

3.5

4.7

5.7

6.3

7.9

9.4

4.1

5.2

6.2

6.9

8.6

Top (cm)

From base to top of image < D >

101

201

251

302

335

117

134

151

168

419

503

22

•

XGA

To obtain an image size of 70", set the projector at a distance between 2.6 m and 2.9 m from the screen and adjust the zoom level accordingly.

70"

Desired image size

Height:

117 cm

From base to top of image

2.9 m

2.6 m

Desired distance

Desired Image Size

Diagonal (inch)

< A >

W (cm) x H (cm)

61 x 46

81 x 61

102 x 76

122 x 91

120

150

180

200

100

250

300

142 x 107

163 x 122

183 x 137

203 x 152

244 x 183

305 x 229

366 x 274

406 x 305

508 x 381

610 x 457

Zoom Ratio: 1.1 x

Distance (m)

Max zoom

Min zoom

< C >

1.5

1.9

2.3

2.6

1.2

1.7

2.1

2.5

3.0

3.4

3.8

4.5

2.9

3.3

3.7

4.1

5.7

6.8

7.6

9.4

11.3

5.0

6.2

7.5

8.3

10.4

Top (cm)

From base to top of image < D >

101

201

251

302

335

117

134

151

168

419

503

•

XGA (fixed-zoom models)

To obtain an image size of 70" set the projector at a distance 0.9 m from the screen.

23

70"

Desired image size

Height:

123 cm

From base to top of image

0.9 m

Desired distance

Desired Image Size

Diagonal (inch)

< A >

W (cm) x H (cm)

61 x 46

81 x 61

102 x 76

122 x 91

120

150

180

200

100

250

300

142 x 107

163 x 122

183 x 137

203 x 152

244 x 183

305 x 229

366 x 274

406 x 305

508 x 381

610 x 457

Zoom Ratio: 1.0 x

Distance (m)

Max zoom

Min zoom

< C >

0.5

0.6

0.7

0.9

0.4

0.5

0.6

0.7

1.0

1.1

1.2

1.5

0.9

1.0

1.1

1.2

1.9

2.2

2.5

3.1

3.7

1.5

1.9

2.2

2.5

3.1

Top (cm)

From base to top of image < D >

105

210

263

315

351

123

140

158

175

438

526

24

•

WXGA

To obtain an image size of 70" set the projector at a distance between 2.3 m and 2.5 m from the screen and adjust the zoom level accordingly.

70"

Desired image size

Height:

94 cm

From base to top of image

2.5 m

2.3 m

Desired distance

Desired Image Size

Diagonal (inch)

< A >

W (cm) x H (cm)

65 x 40

86 x 54

108 x 67

129 x 81

120

150

180

200

100

250

300

151 x 94

172 x 108

194 x 121

215 x 135

258 x 162

323 x 202

388 x 242

431 x 269

538 x 337

646 x 404

Zoom Ratio: 1.1 x

Distance (m)

Max zoom

Min zoom

< C >

1.3

1.6

1.9

2.3

1.1

1.4

1.8

2.1

2.6

2.9

3.2

3.9

2.5

2.8

3.2

3.6

4.8

5.8

6.5

8.1

9.7

4.3

5.3

6.4

7.1

8.9

Top (cm)

From base to top of image < D >

162

202

242

269

108

121

135

337

404

•

1080p

To obtain an image size of 70" set the projector at a distance between 1.8 m and 2.3 m from the screen and adjust the zoom level accordingly.

25

2.3 m

1.8 m

Desired distance

70"

Desired image size

Height:

92 cm

From base to top of image

Desired Image Size

Diagonal (inch)

< A >

W (cm) x H (cm)

66 x 37

89 x 50

111 x 62

133 x 75

120

150

180

200

100

250

300

155 x 87

177 x 100

199 x 112

221 x 125

266 x 149

332 x 187

398 x 224

443 x 249

553 x 311

664 x 374

Zoom Ratio: 1.3 x

Distance (m)

Max zoom

Min zoom

< C >

1.0

1.3

1.5

1.8

1.0

1.3

1.7

2.0

2.3

2.5

3.1

2.3

2.7

3.0

3.3

3.8

4.6

5.1

6.4

7.6

4.0

5.0

6.0

6.6

8.3

Top (cm)

From base to top of image < D >

157

196

235

262

105

118

131

327

392

26

User Controls

Installation Menu

The Installation menu provides an Onscreen Display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal" is displayed on the screen.

1 Turn on the projector by pressing (POWER) on the control panel or remote control.

2 Press "MENU" on the control panel or remote control to launch the

OSD for projector installation and maintenance.

3 The background pattern acts as a guide to adjusting the calibration and alignment settings, such as screen size and distance, focus and more.

Note: The OSD screenshot is for reference only and may differ from the actual design.

4 The Installation menu includes several options.

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Press "MENU" anytime to exit the menu and return to the Acer welcome screen.

27

Onscreen Display (OSD) Menus

The projector has multilingual Onscreen Display (OSD) menus that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

•

To open the OSD menu, press "MENU" on the control panel or remote control.

•

When the OSD is displayed, use

After selecting the desired main menu item, press for feature setting.

to select an item in the main menu.

to enter a submenu

•

Use to select the desired item and adjust the settings by using

•

Select the next item to be adjusted in the submenu and adjust as described above.

•

Press "MENU" on the control panel or remote control, the screen will return to the main menu.

•

To exit the OSD menu, press "MENU" on the control panel or remote control again. It will close and the projector will automatically save the new settings.

Main menu

Setting

Submenu

Note: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

28

Color

LumiSense

Display Mode

Wall Color

Brightness

The light sensor of LumiSense+ technology can intelligently optimizes the brightness and color saturation of projected image based on actual ambient light. The feature greatly enhances dark detail visibility and color saturation.

•

Off: For normal mode. (ambient light sensor is off)

•

Auto Bright: Light sensor is on to automatically detect ambient light and optimize the brightness and color saturation of projected image.

•

Dynamic Black: automatically optimize the display of dark movie scenes enabling them to be shown in incredible detail.

There are many factory presets optimized for various types of images.

•

Bright: For brightness optimization.

•

Presentation: For meeting presentation with higher brightness.

•

Standard: For common environment.

•

Movie: For brighter and general movie/video/photo playing.

•

Dark Cinema: For dark movie content.

•

Video: For playing video in a bright environment.

•

Picture: For graphic picture.

•

Game: For game content.

•

Education: For education environment.

•

Sport: For sport picture.

•

User: Memorize user’s settings.

Use this function to choose a proper color according to the wall. There are several choices, including White, Light

Yellow, Light Blue, Pink and Dark Green. It will compensate for the color deviation due to the wall color to show the correct image tone.

Adjusts the brightness of the image.

•

Press to darken the image.

•

Press to lighten the image.

Contrast

Saturation

Tint

Color

Temperature

Dynamic Black

Gamma

29

Controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

•

Press to decrease the contrast.

•

Press to increase the contrast.

Adjusts a video image from black and white to fully saturated colors.

•

Press to decrease the amount of color in the image.

•

Press to increase the amount of color in the image.

Adjusts the color balance of red and green.

•

Press to increase the amount of green in the image.

•

Press to increase the amount of red in the image.

Adjusts the color temperature. At higher color temperatures, the screen looks colder; at lower color temperatures, the screen looks warmer.

If turned on, the projector dynamically adjusts the power consumption of the lamp according to the brightness of the image being projected. When projecting darker images the power consumption will be reduced and the contrast of the image will also be enhanced.

Effects the representation of dark scenery. With greater gamma value, dark scenery will look brighter.

30

Advanced

•

Ind. Color Management: Adjusts the red, green, blue, cyan, yellow and magenta colors.

•

- Ind. Hue: Changes the hue of the color selected.

•

- Ind. Saturation: Adjusts a video image from black and white to fully saturated color.

•

- Ind. Gain: Adjusts the contrast levels.

•

Brilliant Color: Produces an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images. This feature is "On" by default.

•

White Peaking: Increases the brightness of whites that are near 100%. (Video sources only)

•

Film Mode: Sets the image optimized to 24-frame True

Film mode for more realistic cadence of film playback during motion sequences.

•

Noise Reduction: Adjusts the level of noise reduction that helps to eliminate unwanted noise in the picture.

•

Black Extension: Analyzes the current input image and calculates an offset value which is then added to the analog to digital converter black level value. This ensures optimum black level for each analog source.

Note: "Saturation" and "Tint" functions are not supported under computer mode.

31


Projection

Mode

Projection

Location

Aspect Ratio

Auto Keystone

•

Front-Desktop: The factory default setting.

•

Front-Ceiling: When you select this function, the projector inverts the image for ceiling-mounted projection.

Rear-Desktop: When you select this function, the projector reverses the image so that you can project behind a translucent screen.

Rear-Ceiling: When you select this function, the projector reverses and inverts the image at same time.

You can project from behind a translucent screen with ceiling mounted projection.

Front: The factory default setting.

•

Rear: Reverses the image so you can project from behind a translucent screen.

Auto: Automatically adjusts projection location of image.

•

Desktop

•

Ceiling: Turns the image upside down for ceilingmounted projection.

Use this function to choose your desired aspect ratio.

•

Auto: Keeps the image with original width-height ratio and maximizes the image to fit native horizontal or vertical pixels.

•

Full (for WXGA/1080p models): The image will be displayed making full use of the horizontal and vertical pixels.

•

4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.

•

16:9: The image will be scaled to fit the screen and displayed using a 16:9 ratio.

•

L.Box (for WXGA/1080p models): Keeps the original signal aspect ratio and zooms in by 1.333 times.

Automatically adjusts image distortion caused by tilting projection (±40 degrees).

32

Keystone Manually adjusts image distortion caused by tilting projection (±40 degrees).

Manual

Keystone

This function is unavailable when Auto Keystone is set to "On".

Adjusts the sharpness of the image.

•

Press to decrease the sharpness.

Sharpness

•

Press to increase the sharpness.

H. Position

(Horizontal

Position)

V. Position

(Vertical

Position)

Frequency

Tracking

HDMI Color

Range

HDMI Scan Info

•

Press

to move the image left.

to move the image right.

•

Press to move the image down.

•

Press to move the image up.

Changes the projector’s refresh rate to match the frequency of your computer’s graphics card. If you experience a vertical flickering bar in the projected image, use this function to correct it.

Synchronizes the signal timing of the display with the graphics card. If you experience an unstable or flickering image, use this function to correct it.

Adjusts the color range of the HDMI image data to prevent color display error.

•

Auto: Automatically adjusts the color range by information from the player.

•

Limited Range: Processes the input image as limited color range data.

•

Full Range: Processes the input image as full color range data.

Adjusts the overscan ratio of the HDMI image on screen.

•

Auto: Automatically adjusts the overscan ratio by information from the player.

•

Underscan: Always no overscan on the HDMI image.

•

Overscan: Always keep overscan on the HDMI image.

Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under video mode.

33

Note: "HDMI Color Range" and "HDMI Scan Info" are only available when the input signal is HDMI.

Setting

Startup Screen

Screen Capture

Source Lock

Closed Caption

Use this function to select your desired startup screen. If you change the setting, it will take effect when you exit the OSD menu.

•

Acer: The default startup screen of your Acer projector.

•

User: Use the memorized picture from the "Screen

Capture" function.

Use this function to customize the startup screen. To capture the image that you want to use as the startup screen, follow the instructions below.

Notice

Before proceeding with the following steps, make sure that the "Keystone" is set to the default value "0", and the

"Aspect Ratio" is set to "4:3". For details, refer to the "Image" section.

•

Change the "Startup Screen" from the default setting

"Acer" to "User".

•

Select "Screen Capture" to customize the startup screen.

•

A dialog box appears to confirm the action. Choose

"Yes" to use the current image as your customized startup screen. Choose "No" to cancel the screen capture and exist the Onscreen Display (OSD).

•

A message appears stating that the screen capture is in progress.

•

When the screen capture is finished, the message disappears and the original display is shown.

Selecting "On" enables the function and when switching input signals, you need to press "SOURCE" on the control panel or remote control, or the direct source key on the remote control. When this function is disabled, the projector will detect your source automatically.

Selects a preferred closed captioning mode from CC1, CC2,

CC3, CC4 (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature.

This function is only available when a composite video or S-

Video input signal is selected and its system format is NTSC.

34

VGA OUT

(Standby)

DC 5V Out

(Standby)

HDMI CEC

(Internal)

Reset

Security

Selecting "On" enables the function. The projector can output a VGA signal when it is in standby mode and the VGA IN (or

VGA IN 1) and VGA OUT sockets are correctly connected to the devices.

Enabling this function slightly increases the standby power consumption.

Selecting "On" enables the function. Both micro USB cable inside the projector and the DC 5V out port/USB A port (if available) on the back of the projector can output 5V power when it is in standby mode.

Enabling this function slightly increases the standby power consumption.

Selecting "On" allows synchronized power ON/OFF operation between the projector and a CEC-compatible device connected to the HDMI/MHL port of the projector.

This function is only available for the internal HDMI/

MHL port.

Press after choosing "Yes" to return the display parameters on all menus to the factory default settings.

Security

This projector provides a useful security function for the administrator to manage the projector.

Press to change the "Security" setting. If the security function is enabled, your must enter "Administrator

Password" first before changing the security setting.

The factory default of "Administrator Password" is

"1234".

•

Select "On" to enable the security function. You have to enter password depending on the "Security Mode".

Please refer to "User Password" section for details.

•

If "Off" is selected, you can switch on the projector without password.

Security

35

Timeout (Min.)

Once "Security" is set to "On", you can set timeout function.

•

Press to select timeout duration.

•

The range is from 10 to 990 minutes.

•

When time is up, the projector will request you to enter the password again.

•

The factory default setting of "Timeout (Min.)" is "Off".

•

Once the security function is enabled, the projector will request you to enter password when switching on the projector. Both "User Password" and "Administrator

Password" can be accepted for this dialogue.

User Password

•

Press to set up or change "User Password".

•

Use the numerical keys on the remote control to set the password and press "MENU" to confirm.

•

To delete the digits, Press .

•

Enter the password again when you see "Confirm

Password" displayed.

•

The password should be 4~8 digits in length.

•

If you select "Request password only after plugging power cord", you are requested to input the password every time the power cord is plugged.

•

If you select "Always request password while projector turns on", you are requested to input the password every time the projector is turned on.

36

Security

Administrator Password

You can enter "Administrator Password" when the "Enter

Administrator Password" or "Enter Password" dialogue box displays.

•

Press to change "Administrator Password".

•

The factory default of "Administrator Password" is

"1234".

If you forget your administrator password, do the following to retrieve the administrator password:

•

Enter the unique 6-digit "Universal Password" which is printed on the Security Card that came with your projector. This unique password will be accepted by the projector no matter what the administrator password is.

•

If the Security Card is lost, please contact your local Acer service center.

Lock User Startup Screen

This function is set to "OFF" by default. If set to "ON", the startup screen is locked and cannot be changed by the

"Startup Screen" and "Screen Capture" functions.

37

Management

ECO Mode

High Altitude

Choose "On" to dim the projector lamp, which will also lower the power consumption, reduce noise, and extend the lamp life. Choose "Off" to return to the normal mode.

Choose "On" to turn on the High Altitude mode. When this function is turned on, the projector fans operate at full speed continuously to cool down the projector’s temperature.

•

Instant Off: Enables you to turn off the projector immediately without fan cooling process by pressing the power button twice.

Turn Off Mode

•

Instant Resume: Enables you to restart the projector immediately within 2 minutes after turning it off.

Auto Shutdown

(Minutes)

AC Power On

The projector will automatically shut down while there is no signal input detected after the time you set.

Selecting "On" enables the function. The projector will automatically turn on when power is supplied via the power cord.

Lamp Hour Elapse Displays the lamp’s elapsed operating time (in hours).

Lamp Reminding

Choose this function to show or hide warning message when the changing lamp message is displayed. The message will show up 30 hours before end of life.

Lamp Hour Reset

Press after choosing "Yes" to reset the lamp hour counter to 0 hours.

Audio

Volume

BT Speaker

Connection

Mute

Power On/Off

Volume

•

Press to decrease the volume.

•

Press to increase the volume.

•

Bluetooth: Selecting "On" enables the function.

•

Bluetooth Search: Press to search for available devices. Select a device in the list of found devices.

The projector will automatically try to connect to the last connected device the next time you enable the Bluetooth function.

•

Choose "On" to turn mute on.

•

Choose "Off" to turn mute off.

Select this function to adjust the notification volume when turning the projector on/off.

38

Alarm Volume

3D

2D to 3D

Select this function to adjust the volume of any warning notifications.

Selects "On" to enable the 3D function supported by DLP 3D technology.

•

On: Select this item while using DLP 3D glasses, quad buffer (NVIDIA/ATI...) graphics card and HQFS format file or DVD with corresponding SW player.

•

Off: Turns off the 3D mode.

•

2D to 3D: Converts 2D contents to 3D. Note that DLP 3D glasses are required to obtain the best 3D effect.

•

Mode: Provides several preset 2D to 3D conversion modes for your selection. You can also select User and use the "Convergence" and "Depth" functions described below to setup your customized conversion mode.

•

Convergence: Changes the convergence effect that is used when converting 2D contents to 3D.

•

Depth: Adjusts the image depth of 3D objects.

3D Format

3D Sync Invert

24P 3D

"Depth" and "Convergence" are only available when

"Mode" is set to "User".

If the 3D content is not displayed correctly, you can select a

3D format that suits the 3D content you are viewing and obtain the best result.

If you see a discrete or overlapping image while wearing DLP

3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image

(for DLP 3D).

Choose 96Hz or 144Hz for 24p 3D.

Choose "On" to display the 3D warning message.

3D Warning

Message

Note: Supported 3D signal timings:

Signal source type

Video/S-Video/Component video

VGA/HDMI (PC mode)

Supported timing

HQFS 3D (480i@60Hz), 576i@50Hz

HDMI (Video mode)

640 x 480@50/60/100/120Hz

800 x 600@50/60/100/120Hz

1024 x 768@50/60/100/120Hz

1280 x 800@50/60/100/120Hz (RB)

HQFS 3D (480i@60Hz) , 576i@50Hz,

Frame Packing ([email protected]/24Hz,

720p@50/60Hz)

Side-by-Side Horizontal (1080i@50/60Hz,

1080p@50/60Hz)

Top-and-Bottom (720p@50/60Hz,

[email protected]/24Hz, 1080p@50/60Hz)

It needs correct settings on graphics card 3D application program for correct

3D display.

The SW players, such as Stereoscopic Player and DDD TriDef Media Player can support 3D format files. You can download these players on the web page below.

- Stereoscopic Player (Trial): http://www.3dtv.at/Downloads/Index_en.aspx

- DDD TriDef Media Player (Trial): http://www.tridef.com/download/TriDef-

3-D-Experience-4.0.2.html

Note: "3D Sync Invert" and "3D Format" are only available when "3D" is enabled.

Language

Sets a language for the OSD menus. Use select your preferred language.

39

40

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

Problem

No image appears onscreen

Partial, scrolling or incorrectly displayed image

(For PC (Windows

95/98/2000/XP/

Win7/Vista))

•

Solution

Make sure all the cables are correctly connected as

described in the "Getting Started" section.

Ensure none of the connector pins are bent or broken.

Make sure the projector is switched on.

•

Press "RESYNC" on the control panel or remote control.

•

For an incorrectly displayed image:

•

Open "My Computer > Control Panel," and then double-click the "Display" icon.

Select the "Settings" tab.

Verify that your display resolution setting is lower than or equal to 1600 x 1200 or 1920 x

1080.

•

Click the "Advanced Properties" button.

If the problem still appears, change the monitor display you are using and follow the steps below:

Verify that the resolution setting is lower than

•

• or equal to 1600 x 1200 or 1920 x 1080.

Click the "Change" button under the

"Monitor" tab.

Click "Show all devices > Standard monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.

Verify that the resolution setting of the monitor display is lower than or equal to 1600 x 1200 or 1920 x 1080.

Partial, scrolling or incorrectly displayed image

(For notebooks)

The screen of the notebook computer is not displaying your presentation

•

Image is unstable or flickering

Image has vertical flickering bar

•

Image is out of focus

•

Press "RESYNC" on the control panel or remote control.

For an incorrectly displayed image:

•

Follow the steps for item 2 (above) to adjust the resolution of your computer.

Press the toggle output settings. Example:

[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],

Gateway [Fn]+[F4], IBM [Fn]+[F7], HP

[Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

If you are using a Microsoft

Windows

based notebook: Some notebook PCs may deactivate their own screens when a second display device is in use.

Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

If you are using an Apple

Mac

OS based notebook: In System Preferences, open Display and select Video Mirroring "On."

Use "Tracking" to correct it. Refer to the "Image"

section for more information.

Change the display color setting on your computer.

Use "Frequency" to make an adjustment. Refer to

the "Image" section for more information.

Check and reconfigure the display mode of your graphics card to make it compatible with the projector.

Adjust the focus ring on the projector lens.

Make sure the projection screen is within the required distance:

X1185/X1185N/P1185/X1285/X1285N/P1285/P1385W/

X1385WH:

4.6 to 24.9 feet (1.4 to 7.6 meters)

S1285:

4.9 to 24.9 feet (1.5 to 7.6 meters)

H6518BD:

3.8 to 24.9 feet (1.15 to 7.6 meters)

Refer to the "How to Get a Preferred Image Size by

Adjusting Distance and Zoom" section for more

information.

41

42

Image is stretched when displaying a

"widescreen"

DVD title

Image is too small or too large

Image has slanted sides

Image is reversed

•

When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings:

•

If you play a 4:3 format DVD title, please change the format to 4:3 with the projector OSD.

•

If the image is still stretched, you will also need to adjust the aspect ratio. Set up the display format to

16:9 (wide) aspect ratio on your DVD player.

Adjust the zoom lever on the top of the projector.

Move the projector closer to or further from the screen.

Press "MENU" on the control panel or remote

control. Go to "Image" > "Aspect Ratio" and try

different settings.

•

If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.

Press the Keystone correction keys on the control panel or remote control until the image becomes square.

Press "MENU" on the control panel or remote

control to open the OSD menu. Go to "Image" >

"Auto Keystone" or "Image" > "Keystone" to make

adjustments.

•

Select "Image" > "Projection Mode", "Image" >

"Projection Location" on the OSD and adjust the

projection direction.

Problems with the Projector

Condition

The projector stops responding to all controls

Lamp burns out or makes a popping sound

Solution

If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.

When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.

43 OSD Messages

# Condition

Message

Message Reminder

Fan Fail - the system fan is not working.

Fan Fail.

Lamp will automatically turn off soon.

Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it is used. Please also check the dust filters if they are installed. If the dust filter is clogged with dust, please clean it.

Projector Overheated.

Lamp will automatically turn off soon.

Replace the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.

Lamp is approaching the end of its useful life in full power operation.

Replacement suggested!

44

LED & Alarm Definition Listing

LED Messages

Message

Red

Power LED

Blue

LAMP LED

Red

-Standby

(Power cord plugged in)

Power on

Lamp retry

Quick flashing

-Turning off (Cooling state)

Turning off (Cooling completed)

Error (Thermal failure)

Error (Fan lock failure)

Quick flashing

Error (Lamp breakdown)

Error (Color wheel failure)

Quick flashing

TEMP LED

Red

Quick flashing

45

Using the inner connector(s)

Turn the projector off by pressing (POWER). Allow the projector at least 45 minutes to cool down. Disconnect the power cord.

1 Use a screwdriver to remove the screw(s) from the cover. (Illustration #1)

2 Push up and remove the cover. (Illustration #2)

3 Locate the HDMI (MHL) connector beside the focus/zoom ring.

4 Insert the WirelessHD dongle (MWIHD1) or other HDMI/MHL dongle into the HDMI (MHL) connector. (Illustration #3)

5 A micro USB cable is also available if you need to power the HDMI/MHL dongle.

6 Replace the cover and tighten the screw(s). (Illustration #4 - #5)

46

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

1 Drill four holes into a solid, structurally sound part of the ceiling, and secure the mount base.

49.9

Note: Screws are not included. Please obtain the appropriate screws for your type of ceiling.

2 Secure the ceiling rod using the appropriate type of cylinder screws.

Ceiling Mount Base

- Attach to ceiling

Short Rod

Long Rod

Screw Type A

50 mm length / 8 mm diameter -

Extension Rod

Large Cylinder Cap

Allen Key

- For tighten/loosen

Tightening Screw

Medium Rod

47

3 Use the appropriate number of screws for the projector size to attach the projector to the ceiling mount bracket.

Screw Type B

Large Washer

Smaller Washer

Projector Bracket

Supports projector and allows for adjustments

Spacer

- For heat dissipation

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution. Use two washers for extra support, if deemed necessary.

4 Attach the ceiling bracket to the ceiling rod.

Tightening Screw

Large Cylinder Cap

Allen Key

- For tighten/loosen

Screw Type A

50 mm length -

/8 mm diameter

48

5 Adjust the angle and positioning as necessary.

Tightening Screw

Allen Key

Tightening Screw

Note: The appropriate type of screw and washer for each model is listed in the table below. 4 mm diameter screws are enclosed in the screw pack.

Diameter (mm)

Screw Type B

Length (mm)

Large

Washer Type

Small

48.39 mm

121.61 mm

49

Specifications

The specifications below are subject to change without notice. For final specs, please refer to Acer's marketing documentation.

Projection system

Resolution

Computer compatibility

Video compatibility

Aspect ratio

Displayable colors

Projection lens

DLP

™

• X1185/X1185N/P1185:

Native: SVGA (800 x 600)

Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),

WUXGA (1920 x 1200) (supports reduce blanking only)

•

X1285/X1285N/S1285/P1285:

Native: XGA (1024 x 768)

Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),

WUXGA (1920 x 1200) (supports reduce blanking only)

P1385W/X1385WH:

Native: WXGA (1280 x 800)

Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),

WUXGA (1920 x 1200) (supports reduce blanking only)

• H6518BD

Native: 1080p (1920 x 1080)

Maximum: WUXGA (1920 x 1200) (supports reduce blanking only)

Refer to the "Compatibility Modes" section for more

information.

NTSC (3.58/4.43), PAL (M/N), PAL 60, SECAM, HDTV

(720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i,

576i)

•

X1185/X1185N/P1185/X1285/X1285N/S1285/

P1285:

Auto, 4:3 (native), 16:9

• P1385W/X1385WH/H6518BD:

Auto, 4:3, 16:9, Full, L.Box

1.07 billion colors

•

X1185/X1185N/P1185:

F = 2.56 - 2.68, f = 22.04 mm - 24.14 mm,

1:1.1 Manual Zoom and Manual Focus

• X1285/X1285N/P1285:

F = 2.56 - 2.8, f = 21.00 mm - 23.10 mm,

1:1.1 Manual Zoom and Manual Focus

•

S1285:

F = 2.6, f = 6.9 mm,

1:1.0 Manual Zoom and Manual Focus

• P1385W/X1385WH:

F = 2.56 - 2.8, f = 21.00 mm - 23.10 mm,

1:1.1 Manual Zoom and Manual Focus

•

H6518BD:

F = 2.59 - 2.87, f = 16.88 mm - 21.88 mm,

1:1.3 Manual Zoom and Manual Focus

50

Projection screen size (diagonal) with clear focus

Projection distance with clear focus

Throw ratio

Horizontal scan rate

Vertical refresh scan rate

Keystone correction

Digital zoom

Audio

Weight

Dimensions (W x D x H)

Power supply

•

X1185/X1185N/P1185:

54" (138 cm) - 300" (762 cm)

•

X1285/X1285N/P1285:

55" (138 cm) - 300" (762 cm)

•

S1285:

60" (152 cm) - 300" (762 cm)

•

P1385W/X1385WH:

55" (139 cm) - 300" (762 cm)

•

H6518BD:

45" (115 cm) - 300" (762 cm)

•

X1185/X1185N/P1185:

7.8' (2.4 m) - 39.2' (11.9 m)

•

X1285/X1285N/P1285:

7.4' (2.3 m) - 37.2' (11.3 m)

•

S1285:

2.4' (0.7 m) - 12.2' (3.7 m)

•

P1385W/X1385WH:

6.4' (1.9 m) - 31.8' (9.7 m)

•

H6518BD:

4.9' (1.5 m) - 25.1' (7.6 m)

•

X1185/X1185N/P1185/X1285/X1285N/P1285:

78"±3% @ 3.1 m (1.96 - 2.15)

•

S1285:

78"±3% @ 0.96 m (0.61)

•

P1385W/X1385WH:

87"±3% @ 2.9 m (1.55 - 1.7)

•

H6518BD:

95"±3% @ 2.42 m (1.15 - 1.5)

31 - 99 KHz

23 - 120 Hz

•

P1185/P1285/P1385W/X1385WH/H6518BD:

+/-40 Degrees (Vertical), Manual & Auto

•

X1185/X1185N/X1285/X1285N/S1285:

+/-40 Degrees (Vertical), Manual

2 X

•

X1185/X1185N/X1285/X1285N/S1285/P1185/

X1385WH:

3W x 1

•

P1285/P1385W/H6518BD:

10W x 1

Approximate 3.3 kg (7.26 lbs.)

415 x 320 x 180 mm (13.6’ x 10.5’ x 5.9’)

Universal AC input 100 - 240 V, input frequency 50/60

Power consumption (typical)

Operating temperature

I/O connectors

•

X1185/X1185N/P1185/X1285/X1285N/S1285/

P1285/P1385W/X1385WH:

190 W

•

H6518BD:

210 W

•

0ºC to 40ºC / 32ºF to 104ºF

X1185/X1185N/X1285/X1285N/S1285:

•

Power socket x 1

USB (Type mini B) x 1

VGA input x 2

VGA output x 1

RS232 x 1

Composite video x 1

S-Video x 1

3.5 mm audio jack input x 2

3.5 mm audio jack output x 1

•

P1185/X1385WH:

•

Power socket x 1

USB (Type mini B) x 1

VGA input x 2

VGA output x 1

RS232 x 1

Composite video x 1

S-Video x 1

HDMI/MHL x 1

USB Type A (DC 5V OUT) x 1

3.5 mm audio jack input x 2

3.5 mm audio jack output x 1

51

52

Standard package contents

Accessory (optional)

•

P1285/P1385W:

•

Power socket x 1

USB (Type mini B) x 1

VGA input x 2

VGA output x 1

RS232 x 1

Composite video x 1

S-Video x 1

•

HDMI/MHL x 2

USB Type A (DC 5V OUT) x 1

3.5 mm audio jack input x 2

3.5 mm audio jack output x 1

•

Micro USB cable x 1

H6518BD:

•

Power socket x 1

USB (Type mini B) x 1

VGA input x 1

VGA output x 1

Component video input x 1

RS232 x 1

Composite video x 1

S-Video x 1

HDMI/MHL x 2

USB Type A (DC 5V OUT) x 1

3.5 mm audio jack input x 2

3.5 mm audio jack output x 1

Micro USB cable x 1

AC power cord x 1

VGA cable x 1

Remote control x 1

Battery x 2 (for the remote control)

User's guide (CD-ROM) x 1

Quick start guide x 1

Security card x 1

Composite video cable x 1

Carrying case x 1

Dust filter x 1

WirelessHD dongle kit (MWIHD1) x 1

* Design and specifications are subject to change without notice.

Compatibility Modes

1 VGA Analog - PC Signal

Mode Resolution

VGA

SVGA

XGA

SXGA

QuadVGA

SXGA+

UXGA

PowerBook G4

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1280 x 960

1400 x 1050

1600 x 1200

640 x 480

800 x 600

1024 x 768

1152 x 870

V.Frequency [Hz]

66.6 (67)

120

68.68

98.96

63.85

67.50

77.10

63.98

76.97

79.98

91.15

60.00

75.00

65.32

75.00

H.Frequency

[KHz]

31.47

37.86

37.50

43.27

61.91

35.20

37.88

48.08

46.88

53.67

77.43

48.36

56.48

60.02

31.50

35.00

37.88

48.36

60.241

68.681

53

54

WXGA

1280 x 768

1280 x 720

1280 x 800

1280 x 800 - RB

1440 x 900

1680 x 1050

1366 x 768

1920 x 1080-RB

1920 x 1080-EIA

1024 x 600

1920 x 1200-RB

2 HDMI - PC Signal

Resolution Mode

VGA_60

VGA_72

VGA_75

VGA_85

VGA_120

SVGA_56

SVGA_60

SVGA_72

SVGA_75

SVGA_85

SVGA_120

XGA_60

XGA_70

XGA_75

XGA_120

SXGA_75

SXGA_85

SXGA_60

SXGA_72

SXGA_75

SXGA_85

QuadVGA_75

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1280 x 960

120

59.95

V.Frequency [Hz]

85.061

119.854

60.004

70.069

75.029

119.804

84.99

60.02

59.94

72.809

85.008

119.518

56.25

60.317

72.188

75.025

85.024

H.Frequency

[KHz]

31.469

37.861

37.5

43.269

61.91

35.156

37.879

48.077

46.875

53.674

77.425

48.363

56.476

60.023

98.958

67.5

77.094

63.981

76.97

79.976

91.146

47.78

60.29

68.63

45.00

49.70

101.6

55.94

65.29

47.71

66.60

67.50

37.50

74.04

Mode

480i

480p

576i

576p

720p

1080i

1080p

SXGA+_60

UXGA_60

Mac G4

MAC13

Mac G4

MAC19

MAC21

WXGA_60

WXGA_75

WXGA_85

WXGA_60

WXGA_120-RB

WXGA+_60

1680x1050_60 acer_16:9

1920 x 1080_RB

1920 x 1080_EIA acer_timing

1400 x 1050

1600 x 1200

640 x 480@60Hz

640 x 480@67Hz

800 x 600@60Hz

1024 x 768@60Hz

1024 x 768@75Hz

1152 x 870@75Hz

1280 x 768

1280 x 720

1280 x 800

1440 x 900

1680 x 1050

1366 x 768

1920 x1080

1024 x 600

1920 x 1200-RB

3 HDMI - Video Signal

1920 x 1200

Resolution

720 x 480

(1440 x 480)

720 x 480

720 x 576

(1440 x 576)

720 x 576

1280 x 720

1920 x 1080

59.87

74.893

84.837

59.81

119.909

59.887

59.954

59.978

59.94

66.667

60.317

60.004

75.02

75.061

59.79

59.95

V.Frequency [Hz] H.Frequency [KHz]

60 15.73

23.98

31.47

15.63

31.25

45.00

37.50

33.75

28.13

67.50

56.26

27.00

26.97

47.776

60.289

68.633

49.702

101.563

55.935

65.29

65.317

31.469

37.879

48.363

60.241

68.681

47.712

66.587

67.5

37.5

74.038

55

56 4 MHL - Video Signal

Mode

480i

480p

576i

576p

720p

1080i

1080p

5 YPbPr Signal

Resolution

720 x 480

(1440 x 480)

720 x 480

720 x 576

(1440 x 576)

720 x 576

1280 x 720

1920 x 1080

V.Frequency [Hz] H.Frequency [KHz]

60 15.73

60 31.47

23.98

15.63

31.25

45.00

37.50

33.75

28.13

27.00

26.97

33.75

Mode

480i

480p

576i

576p

720p

1080i

1080p

6 Video, S-Video Signal

Resolution

720 x 480

720 x 576

1280 x 720

1920 x 1080

Mode

NTSC

PAL

SECAM

PAL-M

PAL-N

PAL-60

NTSC4.43

V.Frequency [Hz] H.Frequency [KHz]

59.94

15.73

59.94

50.00

31.47

15.63

50.00

60.00

50.00

60.00

31.25

45.00

37.50

33.75

50.00

60.00

50.00

24.00

23.98

28.13

67.5

56.26

27.00

26.97

V.Frequency [Hz] H.Frequency [KHz]

15.73

15.63

15.73

15.63

15.73

60 fsc (MHz)

3.58

4.43

4.25 or 4.41

3.58

4.43

57

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the device and receiver.

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications

Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

58

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du

Canada.

Declaration of Conformity for EU countries

Acer hereby, declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian regulatory certification

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-210)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

59

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact a local office in the country of use.

Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

60

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi

New Taipei City 221, Taiwan

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail:[email protected]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: +39-02-939-921, Fax: +39-02 9399-2913 www.acer.it

Declare under our own responsibility that the product:

Product:

Trade Name:

Model Number:

DLP Projector

Acer

X1185/X1285/S1285/ P1185/P1285/P1385W/X1385WH/H6518BD series

•

To which this declaration refers conforms to the relevant standard or other standardizing documents:

•

EN55022:2010 Class B; EN 55024:2010

EN61000-3-2:2006+A1:2009+A2:2009, Class A

EN61000-3-3:2008

EN 60950-1:2006/A11:2009/A1:2010+A12:2011

•

Regulation (EC) No. 1275/ 2008; EN 62301:2005

EN50581:2012

We hereby declare above product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC and RoHS Directive 2011/

65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Year to begin affixing CE marking 2015.

Jan. 26, 2015 -

RU Jan/Sr. Manager Date

Regulation Center, Acer Inc.

Acer America Corporation

333 West San Carlos St.,

Suite 1500

San Jose, CA 95110

U. S. A.

Tel: 254-298-4000

Fax: 254-298-4147 www.acer.com

61

Federal Communications Commission

Declaration of Conformity

The following local Manufacturer /Importer is responsible for this declaration:

Product:

Model Number:

Name of Responsible Party:

Address of Responsible Party:

Contact Person:

Phone No.:

Fax No.:

DLP Projector

QSV1407/QSV1502/QNX1408/

QNX1501/QNX1419/QSV1410/

QNX1411/QWX1413/QWX1409/

H1P1418 series

Acer America Corporation

333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U. S. A.

Acer Representative

254-298-4000

254-298-4147

Congratulations!

This product is TCO Certified for Sustainable IT

TCO Certified is an international third party sustainability certification for

IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.

This product has been verified to meet all the criteria in TCO Certified, including:

Corporate Social Responsibility

Socially responsible production - working conditions and labor law in manufacturing country

Energy Efficiency

Energy efficiency of product and power supply. Energy Star compliant, where applicable

Environmental Management System

Manufacturer must be certified according to either ISO 14001 or EMAS

Minimization of Hazardous Substances

Limits on cadmium, mercury, lead & hexavalent chromium including requirements for mercury -free products, halogenated substances and hazardous flame retardants

Design for Recycling

Coding of plastics for easy recycling. Limit on the number of different plastics used.

Product Lifetime, Product Take Back

Minimum one-year product warranty. Minimum three-year availability of spare parts. Product takeback

Packaging

Limits on hazardous substances in product packaging. Packaging prepared for recycling

Ergonomic, User-centered design

Visual ergonomics in products with a display. Adjustability for user comfort (displays, headsets)

Acoustic performance protection against sound spikes (headsets) and fan noise (projectors, computers)

Ergonomically designed keyboard (notebooks)

Electrical Safety, minimal electro-magnetic Emissions

Third Party Testing

All certified product models have been tested in an independent, accredited laboratory.

A detailed criteria set is available for download at www.tcodevelopment.com

, where you can also find a searchable database of all TCO Certified IT products.

TCO Development, the organization behind TCO Certified, has been an international driver in the field of Sustainable IT for 20 years. Criteria in TCO Certified are developed in collaboration with scientists, experts, users and manufacturers. Organizations around the world rely on TCO Certified as a tool to help them reach their sustainable IT goals.

We are owned by TCO, a non-profit organization representing office workers. TCO Development is headquartered in Stockholm,

Sweden, with regional presence in North America and Asia.
