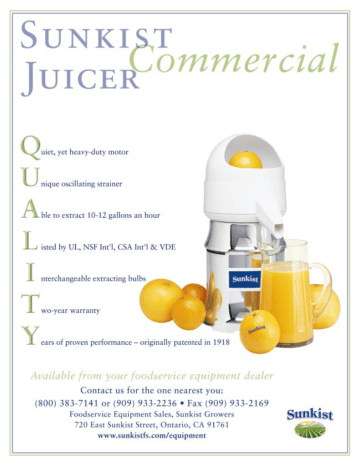

Read the manufacturer's brochure

Read the manufacturer's brochure
Commercial Juicer #8
Parts Information
Effective date April 1, 2003
Specifications
Chrome-plated steel housing.
Corrosion proof plastic dome, spout &
bowl support.
Safe...Listed by Underwriters Laboratories,
CSA International®, NSF International® &
VDE as applicable.
Shipping weight . . . . . . . . . . . . . .37 pounds
Net weight . . . . . . . . . . . . . . . . . .31 pounds
Overall dimensions . . . .17” high 8” diameter
Horsepower . . . . . . . . . . . . . . . . . . . . . . . .1⁄4
Cube . . . . . . . . . . . . . . . . . . . . . . . . . . .1.12
Carton size . . . . . . . . . . .93⁄4” x 93⁄4” x 223⁄4”
Part
Number Description
1.
2.
3.
4.
4A.
4C.
6.
7.
7B.
8.
9.
10.
10A.
10B.
11.
12.
13.
14.
14A.
15.
15D.
Plastic Bowl Assembly incl. dome
(10A), spout (10B) & bowl support (10)
Extracting Bulbs Sets
A. Lemon fits #8 model
B. Orange fits #7 & #8 models
C. Grapefruit fits #7 & #8 models
Lever Lock & Screws for Strainer
(for #7 juicer - not illustrated)
Strainer w/Lever Lock & Screws (for
#7 juicer - not illustrated)
Strainer for #8 juicer
Strainer Puller for #8 juicer
Bowl Support Screws, Spacers,
Washers (set of 3)
Umbrella Ring w/Set Screw &
Gasket (not illustrated)
Umbrella Seal (only for use on
grooved eccentric housings,
replaces 7, 8 & 9)
Umbrella Ring Set Screw (incl’d
w/7) (not illustrated)
Umbrella Ring Gasket (incl’d w/7)
(not illustrated)
Plastic Bowl Support only
(incl’d w/#1)
Plastic Dome only (incl’d w/#1)
Plastic Spout only (incl’d w/#1)
Bowl Support Gasket
Chrome Motor Housing
Electric Cord Bushing (use w/ 50B)
Electric Cord 115/60
Rubber Cord - Export
Toggle Switch w/Switch Guard
(not illustrated)
Rocker Switch w/Switch Seal
8087 Revised 01-04
Part
Number Description
15E.
16.
17.
17C.
18.
18A.
19.
20-7.
20-8.
20-8C.
22.
24.
25.
26.
27.
28.
29.
30.
31.
33.
34.
35.
36.
37.
40.
41A.
41B.
Connectors for 14A & 15D (set of 4)
(not illustrated)
Rubber Feet (set of 3)
Shaft Tip w/Pin (not illustrated)
Shaft Tip w/Pin (revised)
Eccentric housing Gasket
(incl’d w/#20)
Shaft Tip Gasket (fits 17C)
Brass Tube
Eccentric Housing w/Bearings,
Gasket & Brass Tube #7 Juicer
Eccentric Housing w/Bearings,
Gasket & Brass Tube #8 Juicer
Eccentric Mechanism #8 Juicer
Ecc. Hub w/Bearing & Screw
Ecc. Hub Hex Screw 1⁄4-20x1⁄2
Spring Screw to Motor Mount 10-32
Lock Washers incl. 36 (2) & 37 (3)
Bronze Bushing Coil Spring to Motor
Mount 9⁄64 x 3⁄8 x 1⁄4
Coil Spring
Bronze Bushing Coil Spring to Ecc.
Housing 9⁄64 x 3⁄8 x 3⁄16
Arm Screw - Small 1⁄4-32 x 11⁄16
Arm Screw - Large 1⁄4-20 x 29⁄32
Spring Screw to Ecc. Housing 1⁄4-32
Eccentric Arm
Ecc. Arm Bronze Bushing
1
⁄2 x 3⁄16 x 5⁄16
Lock Washer, 3⁄16, Internal Tooth
Lock Washer, 1⁄4, Internal Tooth
Top Motor Casting
Stationary Motor Switch - Howell
Motor
Centrifugal Motor Switch 115V Howell Motor
Part
Number Description
41B1.
43.
44-1.
44B1.
44D.
45.
46.
47.
47B.
48.
50.
50B.
52.
53.
54.
54B.
54C.
57.
61.
62.
64.
65.
67.
Centrifugal Motor Switch 230V Howell Motor
Motor Bearing Top or Bottom - Howell
Rotor w/shaft Howell Motor 115/60
Rotor w/shaft Howell Motor 230/50
Rotor w/shaft Howell Motor 230/60
Motor Bearing Top or Bottom - Ohio
Motor Screws (set of 4)
Stator (winding) - Howell Motor
115/60
Stator (winding) - Howell Motor
230/50
Tension Washers - Howell Motor
(set of 2)
Electric Cord Strain Relief for J-2
Electric Cord Strain Relief for
J-1, J-4 & J-5
Perforated Base Plate
Ground Screw w/Lock Washer for
J-1, J-4 & J-5 (set of 2)
Base Plate Screws for J-1, J-4 &
J-5 (set of 3)
Tamper Proof Screws for Base Plate
on J-2 (set of 3)
Driver Tool for 54B (not illustrated)
Logo Plate, Label and Fasteners
Thermal Overload 115/60 - Howell
Motor
Thermal Overload 230/50 - Howell
Motor
Model #7 or #8 Motor - 115/60
4.3 amp - 1750 rpm
Model #7 or #8 Motor - 230/50
2.5 amp - 1425 rpm
Model #7 or #8 Motor - 230/60
2.2 amp - 1725 rpm
SUNKIST and design are trademarks of © 2004 Sunkist Growers, Inc., Sherman Oaks, CA 91423, USA
