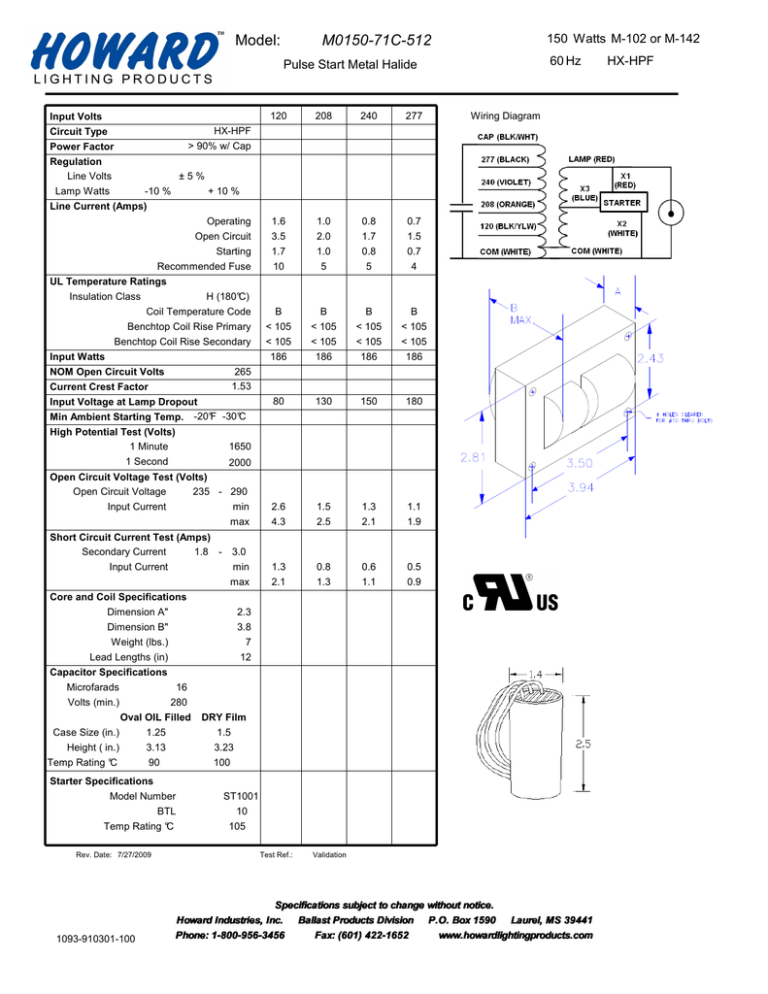

M0150-71C-512 Model: M-102 or M-142 150

M0150-71C-512 Model: M-102 or M-142 150
Model:
150 Watts M-102 or M-142
M0150-71C-512
60 Hz
Pulse Start Metal Halide
Input Volts
120
208
240
277
Wiring Diagram
HX-HPF
Circuit Type
> 90% w/ Cap
Power Factor
Regulation
Line Volts
±5%
Lamp Watts
-10 %
+ 10 %
Line Current (Amps)
Operating
1.6
1.0
0.8
0.7
Open Circuit
3.5
2.0
1.7
1.5
Starting
1.7
1.0
0.8
0.7
Recommended Fuse
10
5
5
4
UL Temperature Ratings
Insulation Class
H (180°C)
Coil Temperature Code
B
B
B
B
Benchtop Coil Rise Primary
< 105
< 105
< 105
< 105
Benchtop Coil Rise Secondary
< 105
< 105
< 105
< 105
186
186
186
186
80
130
150
180
min
2.6
1.5
1.3
1.1
max
4.3
2.5
2.1
1.9
min
1.3
0.8
0.6
0.5
max
2.1
1.3
1.1
0.9
Input Watts
265
1.53
NOM Open Circuit Volts
Current Crest Factor
Input Voltage at Lamp Dropout
Min Ambient Starting Temp. -20°F -30°C
High Potential Test (Volts)
1 Minute
1650
1 Second
2000
Open Circuit Voltage Test (Volts)
235 - 290
Open Circuit Voltage
Input Current
Short Circuit Current Test (Amps)
Secondary Current
1.8 -
3.0
Input Current
Core and Coil Specifications
Dimension A"
2.3
Dimension B"
3.8
Weight (lbs.)
7
Lead Lengths (in)
12
Capacitor Specifications
Microfarads
16
Volts (min.)
280
Case Size (in.)
Oval OIL Filled
1.25
Height ( in.)
Temp Rating °C
DRY Film
1.5
3.13
3.23
90
100
Starter Specifications
Model Number
ST1001
BTL
10
Temp Rating °C
105
Rev. Date: 7/27/2009
1093-910301-100
Test Ref.:
Validation
Specifications subject to change without notice.
Howard Industries, Inc.
Ballast Products Division P.O. Box 1590
Laurel, MS 39441
www.howardlightingproducts.com
Phone: 1-800-956-3456
Fax: (601) 422-1652
HX-HPF
