PM MEMS 1xN Optical Switch (1x2 to 1x4)

PM MEMS 1xN Optical Switch (1x2 to 1x4)

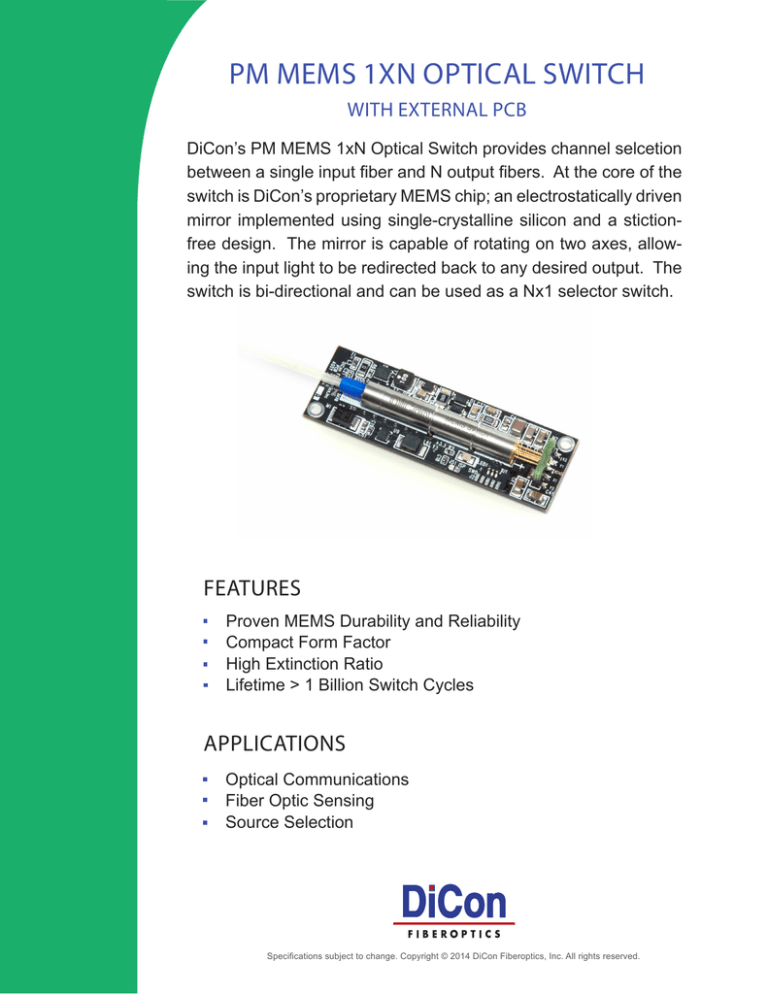

PM MEMS 1XN OPTICAL SWITCH
WITH EXTERNAL PCB
DiCon’s PM MEMS 1xN Optical Switch provides channel selcetion
between a single input fiber and N output fibers. At the core of the
switch is DiCon’s proprietary MEMS chip; an electrostatically driven
mirror implemented using single-crystalline silicon and a stictionfree design. The mirror is capable of rotating on two axes, allowing the input light to be redirected back to any desired output. The
switch is bi-directional and can be used as a Nx1 selector switch.
FEATURES
Proven MEMS Durability and Reliability
Compact Form Factor
High Extinction Ratio
Lifetime > 1 Billion Switch Cycles
APPLICATIONS
Optical Communications
Fiber Optic Sensing
Source Selection
Specifications subject to change. Copyright © 2014 DiCon Fiberoptics, Inc. All rights reserved.
WITH EXTERNAL PCB
OPTICAL SPECIFICATIONS1
PARAMETER
Insertion 1x2
Loss2
1x3, 1x4
3
Crosstalk
Back Reflection
TDL
WDL4
Extinction Ratio
Repeatability5
Optical Power
Durability
Switching Time
Operating Temp
Storage Temp
Fiber Type
RATING
1.0 dB max.
1.5 dB max.
-50 dB max.
-50 dB max.
0.25 dB max.
0.30 dB max.
18 dB min.
+/- 0.05 dB max.
500 mW max.
10 9 cycles min.
40 ms max.
-5 to 70 oC
-40 to 85oC
9/125/250mm Panda Fiber
1. Specifications are without connectors.
2. IL is measured at CWL, 23oC.
3. Power off isolation is same as crosstalk.
4. WDL is measured in a +/- 20nm range at 23oC.
5. Repeatability is defined after 100 cycles.
MECHANICAL DIMENSIONS
(Units: mm)
ORDERING INFORMATION
2B
MLC
Product Code
MLC
PM MEMS
Switch
Switch Configuration
1xN
1xN
Specify N ≤ 4
Control Interface
TTL
I2C
TTL
I 2C
Wavelength Range
13
15
1290 - 1330 nm
1530 - 1570 nm
Connector Key Orientation
PMF
PMS
PMN
SPECIFICATIONS / ORDERING INFORMATION
PM MEMS 1XN OPTICAL SWITCH
Fast axis
Slow axis
No connector
Fiber and Jacket Type
2B
9/125
mm Panda fiber with 250 mm buffer
Connector Type
FC/SPC FC/SPC
FC/APC FC/APC
N
NONE
Also Available: SC, SC/UPC, SC/APC, ST, ST/UPC, LC
Pigtail Length
1
X
1 Meter
Specify X Meters
ELECTRICAL SPECIFICATIONS
PARAMETER
Latching Type
Control Type
Vcc Voltage
Power Consumption
Vcc Damage Threshold
RATING
non-latching
I2C and TTL
12 VDC
700 mW max.
15 VDC
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
PM MEMS 1XN OPTICAL SWITCH
Tolerance is +/- 0.05 m
0284A
