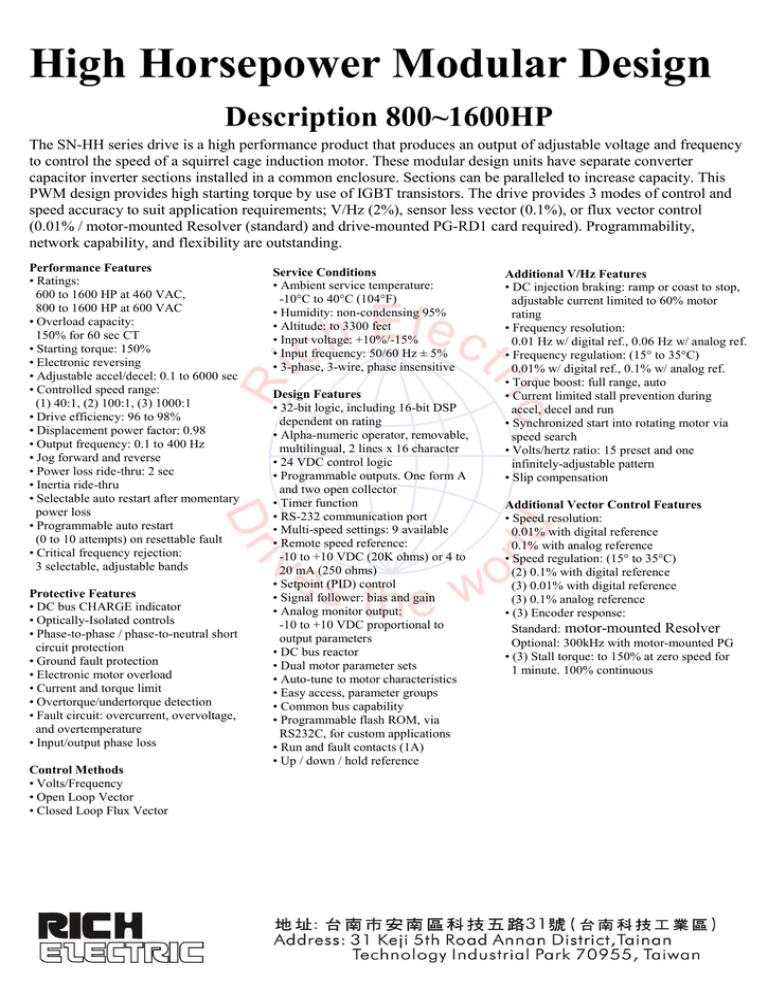

SN-HH Series Specifications
High Horsepower Modular Design
Description 800~1600HP
The SN-HH series drive is a high performance product that produces an output of adjustable voltage and frequency
to control the speed of a squirrel cage induction motor. These modular design units have separate converter
capacitor inverter sections installed in a common enclosure. Sections can be paralleled to increase capacity. This
PWM design provides high starting torque by use of IGBT transistors. The drive provides 3 modes of control and
speed accuracy to suit application requirements; V/Hz (2%), sensor less vector (0.1%), or flux vector control
(0.01% / motor-mounted Resolver (standard) and drive-mounted PG-RD1 card required). Programmability,
network capability, and flexibility are outstanding.
Performance Features
• Ratings:
600 to 1600 HP at 460 VAC,
800 to 1600 HP at 600 VAC
• Overload capacity:
150% for 60 sec CT
• Starting torque: 150%
• Electronic reversing
• Adjustable accel/decel: 0.1 to 6000 sec
• Controlled speed range:
(1) 40:1, (2) 100:1, (3) 1000:1
• Drive efficiency: 96 to 98%
• Displacement power factor: 0.98
• Output frequency: 0.1 to 400 Hz
• Jog forward and reverse
• Power loss ride-thru: 2 sec
• Inertia ride-thru
• Selectable auto restart after momentary
power loss
• Programmable auto restart
(0 to 10 attempts) on resettable fault
• Critical frequency rejection:
3 selectable, adjustable bands
Protective Features
• DC bus CHARGE indicator
• Optically-Isolated controls
• Phase-to-phase / phase-to-neutral short
circuit protection
• Ground fault protection
• Electronic motor overload
• Current and torque limit
• Overtorque/undertorque detection
• Fault circuit: overcurrent, overvoltage,
and overtemperature
• Input/output phase loss
Control Methods
• Volts/Frequency
• Open Loop Vector
• Closed Loop Flux Vector
Service Conditions
• Ambient service temperature:
-10°C to 40°C (104°F)
• Humidity: non-condensing 95%
• Altitude: to 3300 feet
• Input voltage: +10%/-15%
• Input frequency: 50/60 Hz ± 5%
• 3-phase, 3-wire, phase insensitive
Design Features
• 32-bit logic, including 16-bit DSP
dependent on rating
• Alpha-numeric operator, removable,
multilingual, 2 lines x 16 character
• 24 VDC control logic
• Programmable outputs. One form A
and two open collector
• Timer function
• RS-232 communication port
• Multi-speed settings: 9 available
• Remote speed reference:
-10 to +10 VDC (20K ohms) or 4 to
20 mA (250 ohms)
• Setpoint (PID) control
• Signal follower: bias and gain
• Analog monitor output:
-10 to +10 VDC proportional to
output parameters
• DC bus reactor
• Dual motor parameter sets
• Auto-tune to motor characteristics
• Easy access, parameter groups
• Common bus capability
• Programmable flash ROM, via
RS232C, for custom applications
• Run and fault contacts (1A)
• Up / down / hold reference
Additional V/Hz Features
• DC injection braking: ramp or coast to stop,
adjustable current limited to 60% motor
rating
• Frequency resolution:
0.01 Hz w/ digital ref., 0.06 Hz w/ analog ref.
• Frequency regulation: (15° to 35°C)
0.01% w/ digital ref., 0.1% w/ analog ref.
• Torque boost: full range, auto
• Current limited stall prevention during
accel, decel and run
• Synchronized start into rotating motor via
speed search
• Volts/hertz ratio: 15 preset and one
infinitely-adjustable pattern
• Slip compensation
Additional Vector Control Features
• Speed resolution:
0.01% with digital reference
0.1% with analog reference
• Speed regulation: (15° to 35°C)
(2) 0.1% with digital reference
(3) 0.01% with digital reference
(3) 0.1% analog reference
• (3) Encoder response:
Standard: motor-mounted Resolver
Optional: 300kHz with motor-mounted PG
• (3) Stall torque: to 150% at zero speed for
1 minute. 100% continuous
