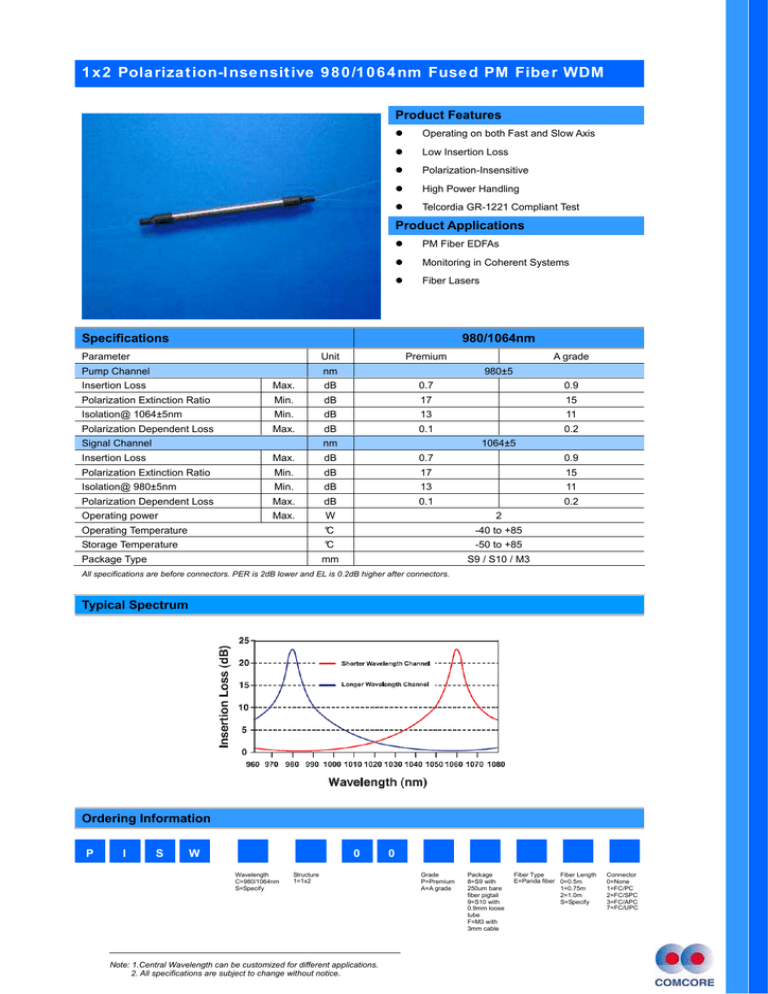

1 x 2 Pola rizat ion-I nse nsit ive 9 8 0 /1 0 6 4 nm Fuse d PM Fibe r WDM
Product Features
Operating on both Fast and Slow Axis
Low Insertion Loss
Polarization-Insensitive
High Power Handling
Telcordia GR-1221 Compliant Test
Product Applications
PM Fiber EDFAs
Monitoring in Coherent Systems
Fiber Lasers
Specifications
980/1064nm
Parameter
Unit
Pump Channel
nm
Premium
A grade
980±5
Insertion Loss
Max.
dB
0.7
0.9
Polarization Extinction Ratio
Min.
dB
17
15
[email protected] 1064±5nm
Min.
dB
13
11
Polarization Dependent Loss
Max.
dB
0.1
0.2
Signal Channel
nm
1064±5
Insertion Loss
Max.
dB
0.7
0.9
Polarization Extinction Ratio
Min.
dB
17
15
[email protected] 980±5nm
Min.
dB
13
11
Polarization Dependent Loss
Max.
dB
0.1
0.2
Operating power
Max.
W
2
Operating Temperature
°C
-40 to +85
Storage Temperature
°C
-50 to +85
Package Type
mm
S9 / S10 / M3
All specifications are before connectors. PER is 2dB lower and EL is 0.2dB higher after connectors.
Typical Spectrum
Ordering Information
P
I
S
W
0
Wavelength
C=980/1064nm
S=Specify
Structure
1=1x2
Note: 1.Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
0
Grade
P=Premium
A=A grade
Package
8=S9 with
250um bare
fiber pigtail
9=S10 with
0.9mm loose
tube
F=M3 with
3mm cable
Fiber Type
Fiber Length
E=Panda fiber 0=0.5m
1=0.75m
2=1.0m
S=Specify
Connector
0=None
1=FC/PC
2=FC/SPC
3=FC/APC
7=FC/UPC
