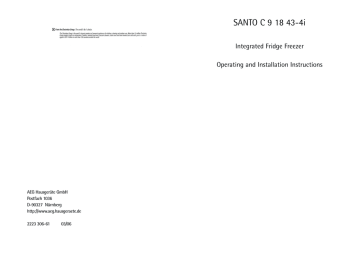

SANTO C 9 18 43-4i
Integrated Fridge Freezer
Operating and Installation Instructions
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
2223 306-61
03/06
Dear customer,
Before switching on your new fridge/freezer into operation please read these operating instructions carefully. They contain important information for
safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Important!, Attention!). Please observe the following instructions
carefully.
Additional information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the “Something Not Working”
section.
For futher assistance contact your local AEG Service Force Centre, see the
chapter “Service and Spare Parts”.
To buy accessories, consumables and spare parts at our online shop please
visit: http://www.aeg-electrolux.co.uk
2
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating and Indicator Panel Fridge . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . . .8
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Variable Storage Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operating and Indicator Panel Freezer . . . . . . . . . . . . . . . . . . . . . . . . .10
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . .11
Fresh Food Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Freezing and Storing Frozen Food . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Freezing Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Something Not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Changing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Your Appliance Needs Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Housing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3
Safety
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety, ensure you understand them fully before using the appliance.
Intended Use
• The appliance is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the
appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage
that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to Initial Start–Up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact your retailer.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of Children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable and remove any locks or catches, to prevent
young children being trapped inside.
• Do not allow children to tamper with the controls or play with the product.
4
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
Daily Operation
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Service
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.
Disposal
Appliance Packaging Information
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
24
5
Disposal of Old Appliances
Positioning
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - to your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures, to prevent small children being trapped inside.
Disposal:
• The appliance may not be disposed of with domestic waste or
bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of
the appliance, must not be damaged.
• The symbol
on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Remove Transport Packaging
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rating plate, which is located on the inside left of the appliance.
The following table shows which ambient temperature is correct for each
climate classification.
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
The appliance should be located in a dry atmosphere, out of direct sunlight
and away from continuous heat and extreme temperature, e.g. not next to
a boiler or radiator, or in a very cold room e.g. an outhouse. If these temperatures are exceeded i.e. warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please refer to the relevant
instructions.
Your Appliance Needs Air
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Shelf holders
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation.
To remove them proceed as follows:
Move the shelf retainers in the direction of the arrow, raise the shelf from
the rear and push it forward until it
is freed and remove the retainers.
6
min.
200 cm
2
min.
200 cm2
D567
A
Housing Dimensions
B
Height
Depth
Width
1780 mm
550 mm
560 mm
C
23
Installation
Operating and indicator panel Fridge
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not
be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on the
left and can be viewed when the salad boxes are removed.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362)
fuse must be used.
Important!
GREEN & YELLOW
13 AMP. FUSE
The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the
BROWN
mains lead of this appliance may not
BLUE
CORD CLAMP
correspond with the coloured markD207
ings identifying the terminals in your
plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E” or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal marked “N” or
coloured black.
The wire coloured brown must be connected to the terminal marked “L” or
coloured red.
Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safely.
13 AMP
1.
2.
3.
4.
22
°C
°C
°C
A.
B
C
D
E
F
G
B
ALARM OFF
ON/OFF
ON/OFF
A
°C
C
D
E
F G
Mains pilot indicator (green)
Fridge button ON/OFF
Temperature setting button (for warmer temperatures)
Temperature display
Temperature setting button (for colder temperatures)
COOLMATIC function "on" indicator (yellow)
COOLMATIC button
Temperature setting buttons
•
•
The temperature is adjusted using the “C“ and “E“ buttons. These buttons are
connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, “C“ or “E“.
Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
The temperature that has been selected for inside the fridge. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the fridge.
The ACTUAL temperature is indicated with illuminated numbers.
Temperature display
The temperature display can indicate several pieces of information.
7
•
•
During normal operation, the temperature currently present in the fridge
(ACTUAL temperature) is displayed.
When the temperature is being adjusted a flashing display indicates the
fridge temperature currently set (DESIRED temperature).
Starting Up - Setting the Temperature
1.
2.
3.
4.
5.
Plug the mains plug into the mains socket.
Press ON/OFF button. The green mains pilot indicator illuminates. The
appliances start.
Press either the “C“ or “E“ button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
Set the required temperature by pressing the “C“ or “E“ buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
From a food safety point of view +5 °C should be considered sufficiently
cold for storing food in the fridge.
Once the required temperature has been set, after a short period (approx. 5
sec.) the temperature display will change and again indicate the current
ACTUAL temperature inside the fridge. The display will change from flashing
to continuous illumination.
Information! When the setting is changed, the compressor does not start
immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food
immediately after switching on.
COOLMATIC
1.
2.
The COOLMATIC function is suited for quick cooling of large quantities of
goods in the refrigerator.
The COOLMATIC function is switched on by pressing the COOLMATIC button. The yellow light illuminates.
The COOLMATIC function now provides for intensive cooling. A DESIRED
temperature of +2 °C is automatically selected. The COOLMATIC function is
ended automatically after a period of 6 hours.
The COOLMATIC function can be ended manually at any time by pressing
the COOLMATIC button again. The yellow light goes out.
Guarantee Conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is handed over to
the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. Should guarantee repairs be necessary the purchaser must inform the nearest AEG Service Force Centre (manufacturer’s service or authorised agent). AEG reserves the right to
stipulate the place of the repair (i.e. the customer’s home, place of installation or AEG
workshop).
3. The guarantee or free replacement includes both labour and materials.
4. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
5. The purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you
to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exist
in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free Trade Area.
- The product is installed and used in accordance with our instructions and is only used
domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to give
them details of your new home. They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117 511
Sweden
Stockholm
+46 (0) 8 672 53 60
UK
Luton
+44 (0) 8705 350 350
Holiday function
The holiday function sets the temperature at +15°C. This function allows
you to keep the refrigerator shut and empty during a long holiday period
(e.g. the summer holidays) without the formation of a bad smell.
8
21
Service and Spare Parts
1.
2.
In the event of your appliance requiring service, or if you wish to purchase
spare parts, please contact your local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information
about Service Force, please visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read details under
the heading “Something Not Working”.
When you contact the Service Force Centre you will need to give following
details:
1.Your name, address and post code
2.Your telephone number
3.Clear and concise details of the fault
4.The model and serial number of the appliance. (found on the rating plate on the interior side wall behind the salad box).
5.The purchase date
Please note that a valid purchase receipt or guarantee documentation is
required for in-guarantee service calls.
Customer Care Department
20
For general enquiries concerning your AEG appliance or for futher
information on AEG products, please contact our Customer Care
Department by letter or telephone at the address below or visit our
website at www.aeg.co.uk.
Customer Care Department
Major Appliances
AEG Domestic Appliances
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: 08705 350 350*
*calls to this number may be recorded for training purposes
To turn on the holiday function, press button (C).
Press continuosly button (C) until the letter “H” (Holiday) appears on the
temperature indicator. The temperature indicator can modify the displayed
temperature up to +8°C, 1° at a tim. 8°C will be followed by the letter “H”.
Now the refrigerator is in the “holiday” function in the energy-saving mode.
The fridge compartment must be empty with holiday function on.
Interior Accessories
Storage Shelves
The glass shelf above the fruit and
vegetable compartment should
always remain in position, to ensure
fruit and vegetables stay fresh longer.
The remaining storage shelves can be
adjusted to various heights:
Pull the storage shelf forward until it
D338
can be tipped up or down and removed.
To insert at a different height use the same procedure in reverse.
Adjustment for tall goods:
Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the
underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
Variable Storage Box
1.
2.
Some models are equipped with a variable storage box which is fitted under
a door shelf compartment and can be slid sideways.
The box can be inserted under any door shelf compartment.
To change the position of the storage box; lift the shelf compartment
with the box upwards and out of the
holders in the door and remove the
retaining bracket out of the guide
under the shelf compartment.
Reverse the above operation to insert
the shelf at a different height..
9
Operating and indicator panel Freezer
°C
ON/OFF
°C
ALARM OFF
ON/OFF
H
H.
I.
J.
K.
L.
M.
N.
O.
P.
°C
°C
I
J
K
L
M
N
O
P
Mains pilot indicator (green)
Freezer button ON/OFF
Temperature setting button (for warmer temperatures)
Temperature display
Temperature setting button (for colder temperatures)
FROSTMATIC function "on" indicator (yellow)
FROSTMATIC button
Alarm reset light
Alarm reset button
Temperature setting buttons
•
•
If, after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service
calls.
The temperature is adjusted using the “J“ and “L“ buttons. These buttons are
connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, “J“ or “L“.
Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
Changing the Light Bulb
1.
2.
3.
4.
5.
6.
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it. Light bulb data: 220-240 V,
max. 25 W
To switch off the appliance, press the
button ON/OFF.
Unplug the mains plug.
To change the light bulb press on the
rear hook and at the same time slide
the cover in the direction indicated
by the arrow.
Change the defective light bulb.
Refit the light bulb cover.
Switch the appliance back on.
The temperature that has been selected for inside the freezer. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the freezer.
The ACTUAL temperature is indicated with illuminated numbers.
10
19
Something Not Working
Temperature display
If the appliance is not functioning correctly, please carry out the following
checks before contacting your local AEG Service Force Centre.
Warning!
Repairs should only be carried out by qualified service engineers. Repairs
carried out by inexperienced persons may cause injury or serious malfunctioning of the appliance.
The temperature display can indicate several pieces of information.
•
During normal operation, the temperature currently present in the freezer
(ACTUAL temperature) is displayed.
•
When the temperature is being adjusted a flashing display indicates the
freezer temperature currently set (DESIRED temperature).
Starting Up - Setting the Temperature
1.
2.
Symptom
Possible Cause
Remedy
Appliance is not switched on
Switch on the appliance.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Appliance does not work.
Fuse has blown or is defective.
Socket is defective.
Appliance cools too much.
Temperature is set too cold.
The food is too warm.
Temperature is not properly
adjusted.
Door was open for an extended period.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
The appliance is near a heat
source.
Check fuse, replace if necessary.
Electrical malfunctions are to
be corrected by an electrician.
Turn the temperature control
knob to a warmer setting.
Please look in the "Initial Start
Up" section.
Only open the door as long as
necessary.
5.
6.
FROSTMATIC
Turn the temperature control
knob to a colder setting.
Please look in the "Installation
location" section.
Please look in the "Changing
Interior lighting does not work. Light bulb is defective.
the Light Bulb" section.
Carefully warm the leaking
sections of the door seal with
a hair dryer (not hotter than
Heavy build up of frost, possi- Door seal is not air tight (posapprox. 50 °C). At the same
bly also on the door seal.
sibly after reversing the door).
time shape the warmed door
seal by hand until it sits correctly.
The compressor does not start This is normal, no error has
The compressor starts after a
immediately after changing
occurred.
period of time.
the temperature setting.
Water on the floor or on stor- Water drain hole is blocked.
See the "Cleaning and Care"
age shelves.
section.
18
3.
4.
Plug the mains plug into the mains socket.
Press ON/OFF button. The green mains pilot indicator illuminates. The alarm
light flashes since the temperature is reached. The buzzer sounds.
Pressing button “P” the buzzer stops.
Press either the “J“ or “L“ button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
Set the required temperature by pressing the “J“ or “L“ buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
From a food safety point of view -18 °C should be considered sufficiently
cold for storing food in the freezer.
The alarm light,when the set temperature is reached. Press the alarm button to turn off the buzzer.
1.
2.
The FROSTMATIC function accelerates the freezing of fresh food and, at the
same time, protects foodstuffs already stored from undesirable warming.
The FROSTMATIC function is switched on by pressing the FROSTMATIC button. The yellow light illuminates.
If the FROSTMATIC function is not ended manually, the appliance switch off
the FROSTMATIC function after 48 hours. The yellow light goes out.
The FROSTMATIC function can be ended manually at any time by pressing
the FROSTMATIC button again. The yellow light goes out.
Alarm reset button
In the event of an abnormal temperature rise inside the freezer (e.g. power
cut) warning light (O) will start to flash and a buzzer will sound.
After the temperature has returned to normal, the warning light (O) will
continue to flash, although the buzzer has stopped.
When the alarm button is pressed, the warmest temperature reached in the
compartment flashes on the indicator.
11
• Many proprietary kitchen surface cleaners contain chemicals that can
attack/damage the plastics used in this appliance. For this reason it is
recommended that the outer casing of this appliance is only cleaned with
warm water with a little washing-up liqiud added.
Switching the Appliance off
1.
2.
3.
4.
To switch off, hold down the ON/OFF button for approx. 5 seconds. This will
result in a countdown from "3" to "1" taking place in the temperature
display. On reaching "1" the fridge will switch off. The temperature display
will go off.
Note:
The appliance cannot be switched on or off if unplugged, or if there is no
power being supplied to it. Following connection to the mains power supply, the appliance returns to the same operating state as before the interruption of main power.
If the appliance is not going to be used for an extended period:
Switch off the appliance, holding down the ON/OFF button until the display
goes off (see above).
Remove the mains plug or switch off or turn out the circuit breaker or fuse.
Defrost the freezer compartment and clean the appliance thoroughly (see
section: “Cleaning and Maintenance”).
Finally, leave the doors open to avoid a build up of odours.
1.
Remove frozen food and the food from the refrigerator. Wrap frozen
food in several layers of newspaper. Store it in a cool place, well covered.
2.
Switch the appliance off and remove the plug from the mains, or switch off.
3.
Clean the appliance and the interior accessories with lukewarm
water and with a little bicarbonate
of soda added (5ml to 0,5 litre of
water).
4.
Dry the appliance thoroughly.
5.
Check the water drain hole on the
rear wall of the fridge. Clear a
blocked drain hole with the aid of
the drain cleaning tool included
with the appliance.
6.
When everything is dry switch the
appliance back on.
D037
Energy Saving Tips
• Do not install the appliance near radiators or other sources of continuous
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation at the appliance base and at the back wall
of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool
first.
• Do not leave the door open any longer than necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will
then be used to cool the fridge.
12
17
Warning!
Never use metal tools to scrape off the frost
Do not use a mechanical device or any artificial means to speed up the
thawing process other than those recommended by the manufacturer.
A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.
Switching Off the Appliance
1.
2.
3.
4.
To switch off the appliance, press the ON/OFF button for approx.5 seconds
or disconnect from the electricity supply.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice trays.
Remove the mains plug or switch off.
Defrost freezer compartment and clean thoroughly (see section: “Cleaning
and Care”).
Leave the door open to avoid the build up of odours.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
Before carrying out any cleaning or maintenance, disconnect the appliance
from the electricity supply.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, which could cause an electric shock! Hot
vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Warning!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peel,
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
16
Fresh Food Refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquid in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or
wapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle
rack on the door.
Bananas, potatoes, onions and garlic, if not in airtight containers, must
not be kept in the refrigerator.
Freezing and Storing Frozen Food
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen
within a period of 24 hours. If you wish to freeze food several days in a
row, please observe a maximum capacity of only 2/3 to 3/4 of that on the
rating plate. The quality of the food is best preserved when it is frozen
right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
13
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode!
Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods occurs.
Important! Do not touch frozen food with wet hands. Your hands could
stick to the food.
1.
2.
3.
Freezing Calendar
• The symbols on the drawers show different types of frozen goods.
• The numbers indicate storage times in months for the appropriate types
of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating
before freezing. The lower value applies to foods with high fat content.
Defrosting
Place the packed food in the drawers. Place food to be frozen in the upper
drawer. Unfrozen food must not touch items already frozen, otherwise the
frozen food could begin to defrost.
Press the fast freeze button 24 hours before introducing fresh food for freezing. The yellow light comes on.
Place frozen foods in the drawers sorted by type, as far as possible.
Ice Pack
There are two ice packs in one drawer of the freezer.
In the event of a power failure or malfunction, the ice pack will lengthen
the amount of time it takes for the frozen food to become too warm by
several hours. The ice pack can only fulfil this task efficiently if it is placed
in the uppermost drawer, at the front, above the frozen food. You can use
the ice pack for cooling cold bags.
Preparation of Ice Cubes
1.
2.
14
Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
To loosen the frozen cubes, either twist the ice cube tray or hold it under
running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects. Use the ice scraper supplied.
1.
2.
3.
4.
5.
6.
Refrigerator
Frost is automatically removed from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The
defrost water drains out through a trough into a special container at the back
of the appliance, located over the motor compressor, where it evaporates.
Freezer
The freezer compartment, however, will become progressively covered with
frost. This should be removed with the special plastic scraper provided,
whenever the thickness of the frost exceeds 4 mm. During this operation it
is not necessary to switch off the power supply or to remove the foodstuffs.
However when the ice becomes very thick on the inner liner, complete
defrosting should be carried out as follows:
Remove the frozen food from the freezer, wrap it in several layers of newspaper and put it in a very cool place.
Switch off the appliance and pull out the plug.
Leave the freezer compartment door open.
Insert the plastic scraper into the
recess provided under the defrost
water channel and place a collecting
basin under it.
Once defrosting is completed keep
the scraper handy for future use;
Replace the plug in the power socket.
D068
15
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode!
Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods occurs.
Important! Do not touch frozen food with wet hands. Your hands could
stick to the food.
1.
2.
3.
Freezing Calendar
• The symbols on the drawers show different types of frozen goods.
• The numbers indicate storage times in months for the appropriate types
of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating
before freezing. The lower value applies to foods with high fat content.
Defrosting
Place the packed food in the drawers. Place food to be frozen in the upper
drawer. Unfrozen food must not touch items already frozen, otherwise the
frozen food could begin to defrost.
Press the fast freeze button 24 hours before introducing fresh food for freezing. The yellow light comes on.
Place frozen foods in the drawers sorted by type, as far as possible.
Ice Pack
There are two ice packs in one drawer of the freezer.
In the event of a power failure or malfunction, the ice pack will lengthen
the amount of time it takes for the frozen food to become too warm by
several hours. The ice pack can only fulfil this task efficiently if it is placed
in the uppermost drawer, at the front, above the frozen food. You can use
the ice pack for cooling cold bags.
Preparation of Ice Cubes
1.
2.
14
Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
To loosen the frozen cubes, either twist the ice cube tray or hold it under
running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects. Use the ice scraper supplied.
1.
2.
3.
4.
5.
6.
Refrigerator
Frost is automatically removed from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The
defrost water drains out through a trough into a special container at the back
of the appliance, located over the motor compressor, where it evaporates.
Freezer
The freezer compartment, however, will become progressively covered with
frost. This should be removed with the special plastic scraper provided,
whenever the thickness of the frost exceeds 4 mm. During this operation it
is not necessary to switch off the power supply or to remove the foodstuffs.
However when the ice becomes very thick on the inner liner, complete
defrosting should be carried out as follows:
Remove the frozen food from the freezer, wrap it in several layers of newspaper and put it in a very cool place.
Switch off the appliance and pull out the plug.
Leave the freezer compartment door open.
Insert the plastic scraper into the
recess provided under the defrost
water channel and place a collecting
basin under it.
Once defrosting is completed keep
the scraper handy for future use;
Replace the plug in the power socket.
D068
15
Warning!
Never use metal tools to scrape off the frost
Do not use a mechanical device or any artificial means to speed up the
thawing process other than those recommended by the manufacturer.
A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.
Switching Off the Appliance
1.
2.
3.
4.
To switch off the appliance, press the ON/OFF button for approx.5 seconds
or disconnect from the electricity supply.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and deep-frozen packages as well as ice trays.
Remove the mains plug or switch off.
Defrost freezer compartment and clean thoroughly (see section: “Cleaning
and Care”).
Leave the door open to avoid the build up of odours.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories,
should be cleaned regularly.
Warning!
Before carrying out any cleaning or maintenance, disconnect the appliance
from the electricity supply.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, which could cause an electric shock! Hot
vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Warning!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peel,
– butyric acid;
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
16
Fresh Food Refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquid in the refrigeator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf above
the vegetable drawer(s)
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc: these should be covered and may be placed
on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the
special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or
wapped in aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle
rack on the door.
Bananas, potatoes, onions and garlic, if not in airtight containers, must
not be kept in the refrigerator.
Freezing and Storing Frozen Food
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder
before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen
within a period of 24 hours. If you wish to freeze food several days in a
row, please observe a maximum capacity of only 2/3 to 3/4 of that on the
rating plate. The quality of the food is best preserved when it is frozen
right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
13
• Many proprietary kitchen surface cleaners contain chemicals that can
attack/damage the plastics used in this appliance. For this reason it is
recommended that the outer casing of this appliance is only cleaned with
warm water with a little washing-up liqiud added.
Switching the Appliance off
1.
2.
3.
4.
To switch off, hold down the ON/OFF button for approx. 5 seconds. This will
result in a countdown from "3" to "1" taking place in the temperature
display. On reaching "1" the fridge will switch off. The temperature display
will go off.
Note:
The appliance cannot be switched on or off if unplugged, or if there is no
power being supplied to it. Following connection to the mains power supply, the appliance returns to the same operating state as before the interruption of main power.
If the appliance is not going to be used for an extended period:
Switch off the appliance, holding down the ON/OFF button until the display
goes off (see above).
Remove the mains plug or switch off or turn out the circuit breaker or fuse.
Defrost the freezer compartment and clean the appliance thoroughly (see
section: “Cleaning and Maintenance”).
Finally, leave the doors open to avoid a build up of odours.
1.
Remove frozen food and the food from the refrigerator. Wrap frozen
food in several layers of newspaper. Store it in a cool place, well covered.
2.
Switch the appliance off and remove the plug from the mains, or switch off.
3.
Clean the appliance and the interior accessories with lukewarm
water and with a little bicarbonate
of soda added (5ml to 0,5 litre of
water).
4.
Dry the appliance thoroughly.
5.
Check the water drain hole on the
rear wall of the fridge. Clear a
blocked drain hole with the aid of
the drain cleaning tool included
with the appliance.
6.
When everything is dry switch the
appliance back on.
D037
Energy Saving Tips
• Do not install the appliance near radiators or other sources of continuous
warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation at the appliance base and at the back wall
of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool
first.
• Do not leave the door open any longer than necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will
then be used to cool the fridge.
12
17
Something Not Working
Temperature display
If the appliance is not functioning correctly, please carry out the following
checks before contacting your local AEG Service Force Centre.
Warning!
Repairs should only be carried out by qualified service engineers. Repairs
carried out by inexperienced persons may cause injury or serious malfunctioning of the appliance.
The temperature display can indicate several pieces of information.
•
During normal operation, the temperature currently present in the freezer
(ACTUAL temperature) is displayed.
•
When the temperature is being adjusted a flashing display indicates the
freezer temperature currently set (DESIRED temperature).
Starting Up - Setting the Temperature
1.
2.
Symptom
Possible Cause
Remedy
Appliance is not switched on
Switch on the appliance.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Appliance does not work.
Fuse has blown or is defective.
Socket is defective.
Appliance cools too much.
Temperature is set too cold.
The food is too warm.
Temperature is not properly
adjusted.
Door was open for an extended period.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
The appliance is near a heat
source.
Check fuse, replace if necessary.
Electrical malfunctions are to
be corrected by an electrician.
Turn the temperature control
knob to a warmer setting.
Please look in the "Initial Start
Up" section.
Only open the door as long as
necessary.
5.
6.
FROSTMATIC
Turn the temperature control
knob to a colder setting.
Please look in the "Installation
location" section.
Please look in the "Changing
Interior lighting does not work. Light bulb is defective.
the Light Bulb" section.
Carefully warm the leaking
sections of the door seal with
a hair dryer (not hotter than
Heavy build up of frost, possi- Door seal is not air tight (posapprox. 50 °C). At the same
bly also on the door seal.
sibly after reversing the door).
time shape the warmed door
seal by hand until it sits correctly.
The compressor does not start This is normal, no error has
The compressor starts after a
immediately after changing
occurred.
period of time.
the temperature setting.
Water on the floor or on stor- Water drain hole is blocked.
See the "Cleaning and Care"
age shelves.
section.
18
3.
4.
Plug the mains plug into the mains socket.
Press ON/OFF button. The green mains pilot indicator illuminates. The alarm
light flashes since the temperature is reached. The buzzer sounds.
Pressing button “P” the buzzer stops.
Press either the “J“ or “L“ button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
Set the required temperature by pressing the “J“ or “L“ buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
From a food safety point of view -18 °C should be considered sufficiently
cold for storing food in the freezer.
The alarm light,when the set temperature is reached. Press the alarm button to turn off the buzzer.
1.
2.
The FROSTMATIC function accelerates the freezing of fresh food and, at the
same time, protects foodstuffs already stored from undesirable warming.
The FROSTMATIC function is switched on by pressing the FROSTMATIC button. The yellow light illuminates.
If the FROSTMATIC function is not ended manually, the appliance switch off
the FROSTMATIC function after 48 hours. The yellow light goes out.
The FROSTMATIC function can be ended manually at any time by pressing
the FROSTMATIC button again. The yellow light goes out.
Alarm reset button
In the event of an abnormal temperature rise inside the freezer (e.g. power
cut) warning light (O) will start to flash and a buzzer will sound.
After the temperature has returned to normal, the warning light (O) will
continue to flash, although the buzzer has stopped.
When the alarm button is pressed, the warmest temperature reached in the
compartment flashes on the indicator.
11
Operating and indicator panel Freezer
°C
ON/OFF
°C
ALARM OFF
ON/OFF
H
H.
I.
J.
K.
L.
M.
N.
O.
P.
°C
°C
I
J
K
L
M
N
O
P
Mains pilot indicator (green)
Freezer button ON/OFF
Temperature setting button (for warmer temperatures)
Temperature display
Temperature setting button (for colder temperatures)
FROSTMATIC function "on" indicator (yellow)
FROSTMATIC button
Alarm reset light
Alarm reset button
Temperature setting buttons
•
•
If, after carrying out the necessary checks there is still a fault with your
appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service
calls.
The temperature is adjusted using the “J“ and “L“ buttons. These buttons are
connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, “J“ or “L“.
Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
Changing the Light Bulb
1.
2.
3.
4.
5.
6.
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it. Light bulb data: 220-240 V,
max. 25 W
To switch off the appliance, press the
button ON/OFF.
Unplug the mains plug.
To change the light bulb press on the
rear hook and at the same time slide
the cover in the direction indicated
by the arrow.
Change the defective light bulb.
Refit the light bulb cover.
Switch the appliance back on.
The temperature that has been selected for inside the freezer. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the freezer.
The ACTUAL temperature is indicated with illuminated numbers.
10
19
Service and Spare Parts
1.
2.
In the event of your appliance requiring service, or if you wish to purchase
spare parts, please contact your local Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information
about Service Force, please visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have read details under
the heading “Something Not Working”.
When you contact the Service Force Centre you will need to give following
details:
1.Your name, address and post code
2.Your telephone number
3.Clear and concise details of the fault
4.The model and serial number of the appliance. (found on the rating plate on the interior side wall behind the salad box).
5.The purchase date
Please note that a valid purchase receipt or guarantee documentation is
required for in-guarantee service calls.
Customer Care Department
20
For general enquiries concerning your AEG appliance or for futher
information on AEG products, please contact our Customer Care
Department by letter or telephone at the address below or visit our
website at www.aeg.co.uk.
Customer Care Department
Major Appliances
AEG Domestic Appliances
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: 08705 350 350*
*calls to this number may be recorded for training purposes
To turn on the holiday function, press button (C).
Press continuosly button (C) until the letter “H” (Holiday) appears on the
temperature indicator. The temperature indicator can modify the displayed
temperature up to +8°C, 1° at a tim. 8°C will be followed by the letter “H”.
Now the refrigerator is in the “holiday” function in the energy-saving mode.
The fridge compartment must be empty with holiday function on.
Interior Accessories
Storage Shelves
The glass shelf above the fruit and
vegetable compartment should
always remain in position, to ensure
fruit and vegetables stay fresh longer.
The remaining storage shelves can be
adjusted to various heights:
Pull the storage shelf forward until it
D338
can be tipped up or down and removed.
To insert at a different height use the same procedure in reverse.
Adjustment for tall goods:
Remove the front half of the two-part vario glass storage shelf and insert it
at a different level. Space is thus gained for storage of tall goods on the
underlying storage shelf.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
Variable Storage Box
1.
2.
Some models are equipped with a variable storage box which is fitted under
a door shelf compartment and can be slid sideways.
The box can be inserted under any door shelf compartment.
To change the position of the storage box; lift the shelf compartment
with the box upwards and out of the
holders in the door and remove the
retaining bracket out of the guide
under the shelf compartment.
Reverse the above operation to insert
the shelf at a different height..
9
•
•
During normal operation, the temperature currently present in the fridge
(ACTUAL temperature) is displayed.
When the temperature is being adjusted a flashing display indicates the
fridge temperature currently set (DESIRED temperature).
Starting Up - Setting the Temperature
1.
2.
3.
4.
5.
Plug the mains plug into the mains socket.
Press ON/OFF button. The green mains pilot indicator illuminates. The
appliances start.
Press either the “C“ or “E“ button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
Set the required temperature by pressing the “C“ or “E“ buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is adjusted by 1 °C.
From a food safety point of view +5 °C should be considered sufficiently
cold for storing food in the fridge.
Once the required temperature has been set, after a short period (approx. 5
sec.) the temperature display will change and again indicate the current
ACTUAL temperature inside the fridge. The display will change from flashing
to continuous illumination.
Information! When the setting is changed, the compressor does not start
immediately if automatic defrosting is currently taking place. As the storage temperature within the fridge is reached quickly you can store food
immediately after switching on.
COOLMATIC
1.
2.
The COOLMATIC function is suited for quick cooling of large quantities of
goods in the refrigerator.
The COOLMATIC function is switched on by pressing the COOLMATIC button. The yellow light illuminates.
The COOLMATIC function now provides for intensive cooling. A DESIRED
temperature of +2 °C is automatically selected. The COOLMATIC function is
ended automatically after a period of 6 hours.
The COOLMATIC function can be ended manually at any time by pressing
the COOLMATIC button again. The yellow light goes out.
Guarantee Conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is handed over to
the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. Should guarantee repairs be necessary the purchaser must inform the nearest AEG Service Force Centre (manufacturer’s service or authorised agent). AEG reserves the right to
stipulate the place of the repair (i.e. the customer’s home, place of installation or AEG
workshop).
3. The guarantee or free replacement includes both labour and materials.
4. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
5. The purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you
to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exist
in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free Trade Area.
- The product is installed and used in accordance with our instructions and is only used
domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to give
them details of your new home. They will then ensure that the local Service Organisation is
aware of your move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117 511
Sweden
Stockholm
+46 (0) 8 672 53 60
UK
Luton
+44 (0) 8705 350 350
Holiday function
The holiday function sets the temperature at +15°C. This function allows
you to keep the refrigerator shut and empty during a long holiday period
(e.g. the summer holidays) without the formation of a bad smell.
8
21
Installation
Operating and indicator panel Fridge
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not
be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the appliance rating plate. The rating plate is inside, on the
left and can be viewed when the salad boxes are removed.
The appliance is supplied with a 13 amp plug fitted. In the event of having
to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362)
fuse must be used.
Important!
GREEN & YELLOW
13 AMP. FUSE
The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the
BROWN
mains lead of this appliance may not
BLUE
CORD CLAMP
correspond with the coloured markD207
ings identifying the terminals in your
plug, proceed as follows:
The wire coloured green and yellow must be connected to the terminal
marked with the letter “E” or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal marked “N” or
coloured black.
The wire coloured brown must be connected to the terminal marked “L” or
coloured red.
Upon completion there must be no cut, or stray strands of wire present and
the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that the cut-off plug is disposed of safely.
13 AMP
1.
2.
3.
4.
22
°C
°C
°C
A.
B
C
D
E
F
G
B
ALARM OFF
ON/OFF
ON/OFF
A
°C
C
D
E
F G
Mains pilot indicator (green)
Fridge button ON/OFF
Temperature setting button (for warmer temperatures)
Temperature display
Temperature setting button (for colder temperatures)
COOLMATIC function "on" indicator (yellow)
COOLMATIC button
Temperature setting buttons
•
•
The temperature is adjusted using the “C“ and “E“ buttons. These buttons are
connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESIRED temperature (Temperature display flashes) by pressing one of the two
buttons, “C“ or “E“.
Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temperature.
DESIRED temperature means:
The temperature that has been selected for inside the fridge. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the fridge.
The ACTUAL temperature is indicated with illuminated numbers.
Temperature display
The temperature display can indicate several pieces of information.
7
Disposal of Old Appliances
Positioning
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service
life - to your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures, to prevent small children being trapped inside.
Disposal:
• The appliance may not be disposed of with domestic waste or
bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of
the appliance, must not be damaged.
• The symbol
on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Remove Transport Packaging
This appliance should only be installed at a location where the ambient
temperature corresponds to the climate classification indicated on the rating plate, which is located on the inside left of the appliance.
The following table shows which ambient temperature is correct for each
climate classification.
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
The appliance should be located in a dry atmosphere, out of direct sunlight
and away from continuous heat and extreme temperature, e.g. not next to
a boiler or radiator, or in a very cold room e.g. an outhouse. If these temperatures are exceeded i.e. warmer or colder, then the appliance may not
operate correctly.
For building-in and door reversal instructions please refer to the relevant
instructions.
Your Appliance Needs Air
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings
clear of obstruction;
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
Shelf holders
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation.
To remove them proceed as follows:
Move the shelf retainers in the direction of the arrow, raise the shelf from
the rear and push it forward until it
is freed and remove the retainers.
6
min.
200 cm
2
min.
200 cm2
D567
A
Housing Dimensions
B
Height
Depth
Width
1780 mm
550 mm
560 mm
C
23
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in
accordance with the appropriate standards. The necessary measures in
accordance with appliance safety legislation regulations (GSG), accident
prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in
the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
Daily Operation
• Do not operate any electrical appliances in the refrigerator/freezer (e.g.
electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
• When unplugging always pull the plug from the mains socket, do not pull
on the cable.
Service
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local AEG Service Force Centre.
Disposal
Appliance Packaging Information
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of
at a waste-paper recycling collection location.
24
5
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Disposal of Old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Shelf Holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operating and Indicator Panel Fridge . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . . .8
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Storage Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Variable Inner Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Variable Storage Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operating and Indicator Panel Freezer . . . . . . . . . . . . . . . . . . . . . . . . .10
Starting Up and Temperature Regulation . . . . . . . . . . . . . . . . . . . . . .11
Fresh Food Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Freezing and Storing Frozen Food . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Ice Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Freezing Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Switching Off the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Something Not Working . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Changing the Light Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Your Appliance Needs Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Housing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3
Safety
Please read this instruction book before using the appliance and retain for
future reference. These warnings are provided in the interests of your safety, ensure you understand them fully before using the appliance.
Intended Use
• The appliance is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the
appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage
that may be caused.
• Alterations or changes to the appliance are not permitted for reasons of
safety.
Prior to Initial Start–Up
• Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in! In the event of damage, please contact your retailer.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of Children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable and remove any locks or catches, to prevent
young children being trapped inside.
• Do not allow children to tamper with the controls or play with the product.
4
Dear customer,
Before switching on your new fridge/freezer into operation please read these operating instructions carefully. They contain important information for
safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them on
to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Important!, Attention!). Please observe the following instructions
carefully.
Additional information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of
the appliance are marked with the flower.
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the “Something Not Working”
section.
For futher assistance contact your local AEG Service Force Centre, see the
chapter “Service and Spare Parts”.
To buy accessories, consumables and spare parts at our online shop please
visit: http://www.aeg-electrolux.co.uk
2
SANTO C 9 18 43-4i
Integrated Fridge Freezer
Operating and Installation Instructions
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
2223 306-61
03/06
Download PDF

advertising
