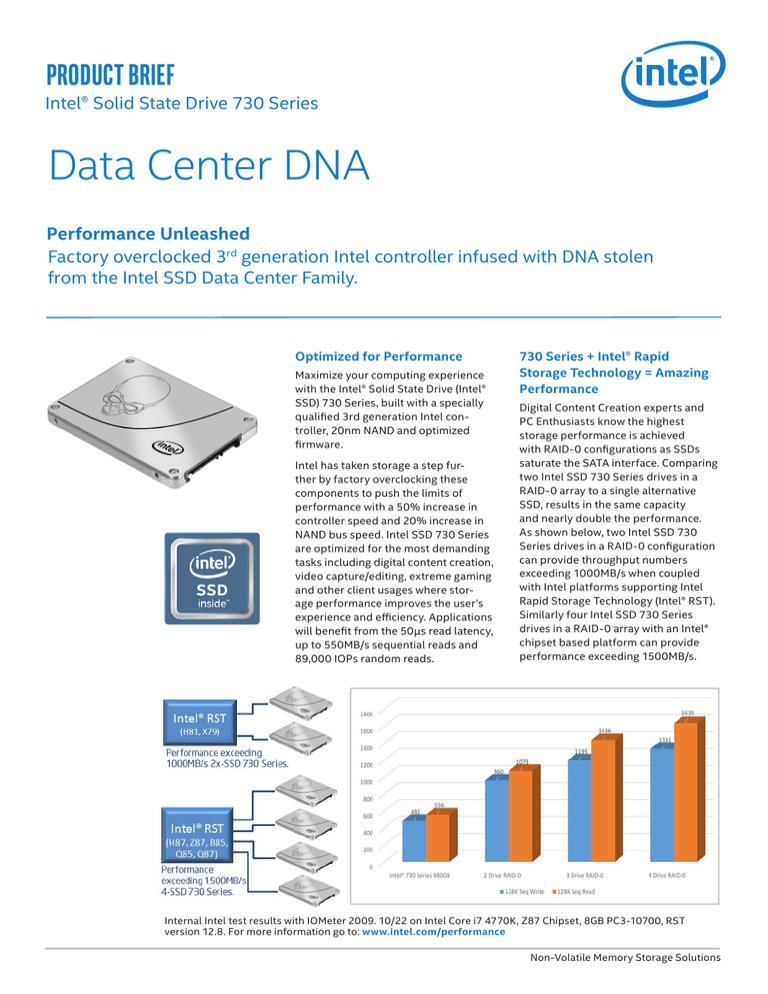

Data Center DNA product brief
product brief
Intel® Solid State Drive 730 Series
Data Center DNA
Performance Unleashed
Factory overclocked 3rd generation Intel controller infused with DNA stolen
from the Intel SSD Data Center Family.
Optimized for Performance
Maximize your computing experience
with the Intel® Solid State Drive (Intel®
SSD) 730 Series, built with a specially
qualified 3rd generation Intel controller, 20nm NAND and optimized
firmware.
Intel has taken storage a step further by factory overclocking these
components to push the limits of
performance with a 50% increase in
controller speed and 20% increase in
NAND bus speed. Intel SSD 730 Series
are optimized for the most demanding
tasks including digital content creation,
video capture/editing, extreme gaming
and other client usages where storage performance improves the user’s
experience and efficiency. Applications
will benefit from the 50µs read latency,
up to 550MB/s sequential reads and
89,000 IOPs random reads.
730 Series + Intel® Rapid
Storage Technology = Amazing
Performance
Digital Content Creation experts and
PC Enthusiasts know the highest
storage performance is achieved
with RAID-0 configurations as SSDs
saturate the SATA interface. Comparing
two Intel SSD 730 Series drives in a
RAID-0 array to a single alternative
SSD, results in the same capacity
and nearly double the performance.
As shown below, two Intel SSD 730
Series drives in a RAID-0 configuration
can provide throughput numbers
exceeding 1000MB/s when coupled
with Intel platforms supporting Intel
Rapid Storage Technology (Intel® RST).
Similarly four Intel SSD 730 Series
drives in a RAID-0 array with an Intel®
chipset based platform can provide
performance exceeding 1500MB/s.
Internal Intel test results with IOMeter 2009. 10/22 on Intel Core i7 4770K, Z87 Chipset, 8GB PC3-10700, RST
version 12.8. For more information go to: www.intel.com/performance
Non-Volatile Memory Storage Solutions
Intel® Solid State Drive 730 Series
Intel Data Center DNA = Extreme Endurance & Performance Consistency
Product Spotlight
Intel® SSD 730 Series also delivers excellent endurance to support the needs of the
most demanding client usages. Support for up to 70GB writes per day for five years
(compared to the industry typical 20GB) provides piece of mind for digital content
creators and PC enthusiasts who demand dependable up-time from their workstations
and gaming rigs. The Intel SSD 730 Series drive also brings greater performance
consistency to the client market in both single drive and multiple drive RAID arrays.
Intel’s advanced firmware algorithms allow Intel to deliver client SSDs with “data
center” efficiency and dependability throughout the life of the drive.
•Intel® SSD Architecture designed and
optimized for leading client storage
performance
•Intel Data Center DNA brings
performance consistency for all data
types and extreme endurance to client
storage
•Intel® Rapid Storage Technology plus
730 Series delivers top performance
for the most demanding storage
workloads
Solid State Drive Computing Starts with Intel Inside®.
For more information, visit www.intel.com/ssd
TECHNICAL SPECIFICATIONS1
Model Name
Intel® Solid State Drive 730 Series
Capacity
2.5-inch: 240GB and 480GB
NAND Flash Memory
20nm Intel® NAND Flash Memory Multi-Level Cell (MLC) Compute-Quality Components
Sustained Sequential Reads / Writes
Bandwidth2
Sustained Sequential Reads / Writes
2 Drive RAID-0
240GB: up to 550 / 270 MB/s
240GB: up to 1020 / 530 MB/s
480GB: up to 550 / 470 MB/s
480GB: up to 1020 / 910 MB/s
Read /Write Latency
50 µs / 65 µs
Random I/O Operations per
Second3
4 KB Reads / Writes
2 Drive RAID-0
240GB: up to 86,000 IOPS / 56,000 IOPS
240GB: up to 136,000 IOPS / 111,000 IOPS
480GB: up to 89,000 IOPS / 74,000 IOPS
480GB: up to 168,000 IOPS / 145,000 IOPS
4KB Reads / Writes
Interface
SATA 6Gb/s, compatible with SATA 3Gb/s and 1.5Gb/s
Form Factor, Height and Weight
Form Factor: 2.5-inch
Height: Up to 7mm
Weight: Up to 78 grams
Life Expectancy
2 million hours Mean Time Between Failures (MTBF)
Lifetime Endurance
240GB - 50GB Writes per Day
Usage
24/7 operation
Power Consumption4
12V
240GB
480GB
5V
240GB
480GB
Active:
3.8W
5.5W
Active:
3.8W
5.0W
Idle:
1.5W
1.5W
Idle:
1.2W
1.3W
480GB – 70GB Writes per Day
Operating Temperature
0° C to 70° C
RoHS Compliance
Meets the requirements of European Union (EU) RoHS Compliance Directives
Product Ordering Information
To order, visit intel.com/ssd
Based on the Intel® SSD DC 730 Series Product Specification.
Device measured using Iometer with 4K Random Writes QD=32 across 100% span of the drive. Latency measured using write transfer size of 4KB (4,096 bytes) and queue depth set to 1.
3
Based on JESD218 standard with JESD219 workload based on JESD SSD standard
4
Based on JESDEC SSD standard JC64.8
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or
“undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change
without notice. Do not finalize a design with this information.
1
2
Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using specific
computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance tests to assist you in
fully evaluating your contemplated purchases, including the performance of that product when combined with other products.
Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of Intel products as measured by those tests. Any difference in system
hardware or software design or configuration may affect actual performance. Buyers should consult other sources of information to evaluate the performance of systems or components they are considering
purchasing. For more information on performance tests and on the performance of Intel products, go to: http://www.intel.com/performance/resources/benchmark_limitations.htm.
The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on
request. Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in
this document, or other Intel literature, may be obtained by calling 1-800-548-4725, or by visiting Intel’s Web site at www.intel.com.
Copyright © 2014 Intel Corporation. All rights reserved. Intel, the Intel logo, and Intel Inside are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Printed in the USA 20151204/jm/ ra
330147-004US
