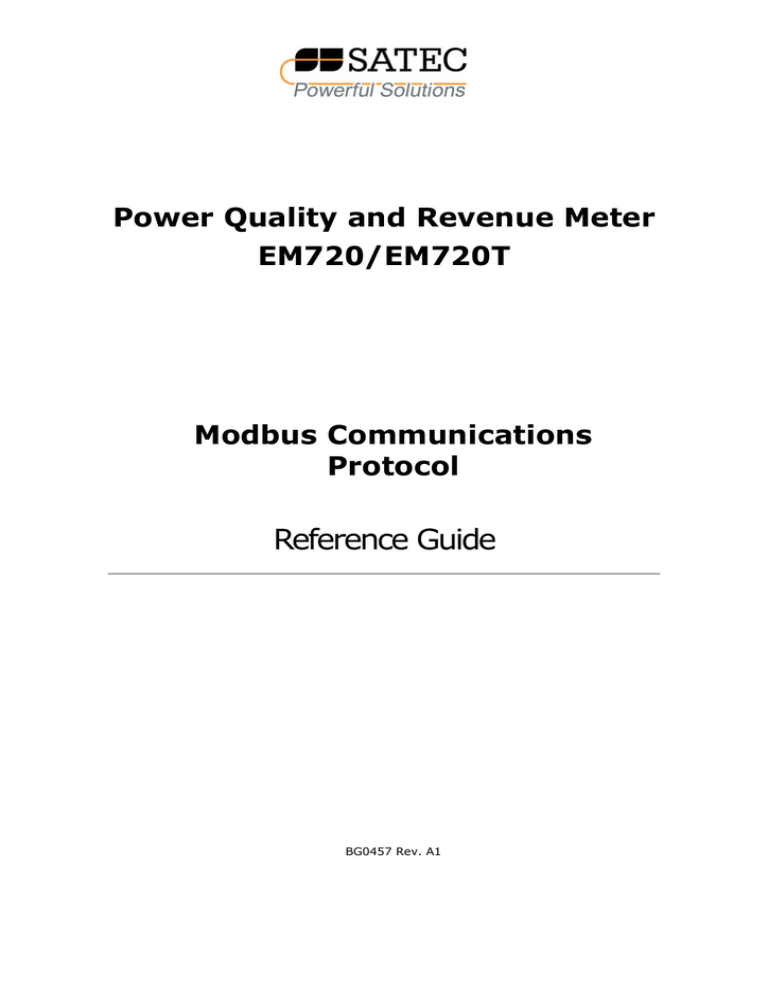

Power Quality and Revenue Meter

EM720/EM720T

Modbus Communications

Protocol

Reference Guide

BG0457 Rev. A1

Every effort has been made to ensure that the material herein is complete and accurate. However, the manufacturer is not responsible for any mistakes in printing or faulty instructions contained in this book. Notification of any errors or misprints will be received with appreciation.

For further information regarding a particular installation, operation or maintenance of equipment, contact the manufacturer or your local representative or distributor.

REVISION HISTORY

Rev.A1 Initial release

Modbus is a trademark of Schneider Electric.

2

Table of Contents

1 GENERAL ..........................................................................................................9

2 MODBUS PROTOCOL IMPLEMENTATION....................................................10

2.1

Transmission Modes.........................................................................................................10

2.2

Address Field .....................................................................................................................10

2.3

Function Field ....................................................................................................................10

2.4

Exception Responses .......................................................................................................10

2.5

Modbus Register Addresses ............................................................................................10

2.6

Data Formats......................................................................................................................11

2.6.1

16-bit Scaled Integer Format ............................................................................. 11

2.6.2

32-bit Long Integer Format................................................................................ 12

2.6.3

32-bit Modulo-10000 Format.............................................................................. 13

2.7

User Assignable Registers ...............................................................................................13

2.8

Password Protection.........................................................................................................13

2.9

Data Recording and File Transfers..................................................................................14

2.9.1

Log File Organization ........................................................................................ 14

Multi-section Files ............................................................................................... 14

Data Log Files .................................................................................................... 14

Billing/TOU Profile Data Log Files .......................................................................... 15

Waveform Log Files............................................................................................. 15

2.9.2

File Transfers................................................................................................... 15

Common File Transfer ......................................................................................... 15

Reading a Multi-section Billing/TOU Profile Log File .................................................. 16

Reading Multi-section Waveform Files .................................................................... 17

Reading Real-time Waveforms .............................................................................. 17

3 MODBUS REGISTER MAP ..............................................................................18

3.1

Modbus Setup Registers ..................................................................................................18

Modbus Assignable Registers ................................................................................ 18

Assignable Registers Map..................................................................................... 18

Modbus Conversion Scales ................................................................................... 18

Device Data Scales ............................................................................................. 18

3.2

16-bit Scaled Analog Registers and Energy Counters - Basic Register Set ...............19

3.3

16-bit Scaled Analog Registers, Binary Registers and Counters.................................21

None................................................................................................................. 21

Setpoint Status (bitmap) ..................................................................................... 21

Special Inputs .................................................................................................... 21

Event Flags (bitmap) ........................................................................................... 21

Digital Inputs (bitmap) ........................................................................................ 21

Relay Outputs (bitmap) ....................................................................................... 21

Counters ........................................................................................................... 21

1/2-Cycle Values ................................................................................................ 21

1-Cycle Phase Values .......................................................................................... 22

1-Cycle Low Phase Values .................................................................................... 22

1-Cycle High Phase Values ................................................................................... 23

1-Cycle Total Values............................................................................................ 23

1-Cycle Auxiliary Values ...................................................................................... 23

Phasor .............................................................................................................. 24

1-Second Phase Values........................................................................................ 24

1-Second Low Phase Values ................................................................................. 25

1-Second High Phase Values ................................................................................ 25

1-Second Total Values ......................................................................................... 25

1-Second Auxiliary Values.................................................................................... 26

3

4

Present Harmonic Demands.................................................................................. 26

Present Volt, Ampere and Power Demands ............................................................. 26

Instrumentation Total Energies ............................................................................. 27

Symmetrical Components .................................................................................... 27

V1/V12 Harmonic Distortion ................................................................................. 28

V2/V23 Harmonic Distortion ................................................................................. 28

V3/V31 Harmonic Distortion ................................................................................. 28

I1 Harmonic Distortion ........................................................................................ 28

I2 Harmonic Distortion ........................................................................................ 28

I3 Harmonic Distortions ....................................................................................... 28

I4 Harmonic Distortion ........................................................................................ 28

Fundamental Phase Values................................................................................... 28

Flicker............................................................................................................... 29

Fundamental Total Values .................................................................................... 29

Minimum 1-Cycle Phase Values............................................................................. 29

Minimum 1-Cycle Total Values .............................................................................. 30

Minimum 1-Cycle Auxiliary Values ......................................................................... 30

Maximum 1-Cycle Phase Values ............................................................................ 30

Maximum 1-Cycle Total Values ............................................................................. 31

Maximum 1-Cycle Auxiliary Values ........................................................................ 31

Instrumentation Maximum Demands ..................................................................... 31

Maximum Harmonic Demands .............................................................................. 32

Scaled Analog Inputs........................................................................................... 32

Raw Analog Inputs.............................................................................................. 32

TOU Parameters ................................................................................................. 32

Scaled Analog Outputs ........................................................................................ 32

Billing/TOU Energy Register #1............................................................................. 33

Billing/TOU Energy Register #2............................................................................. 33

Billing/TOU Energy Register #3............................................................................. 33

Billing/TOU Energy Register #4............................................................................. 33

Billing/TOU Energy Register #5............................................................................. 33

Billing/TOU Energy Register #6............................................................................. 33

Billing/TOU Energy Register #7............................................................................. 33

Billing/TOU Energy Register #8............................................................................. 33

Billing/TOU Energy Register #9............................................................................. 33

Billing/TOU Energy Register #10 ........................................................................... 34

Billing/Summary Energy Accumulated Demands...................................................... 34

Billing/Summary Energy Block Demands ................................................................ 34

Billing/Summary Energy Sliding Window Demands .................................................. 34

Billing/Summary Energy Maximum Demands .......................................................... 34

Billing/TOU Maximum Demand Register #1 ............................................................ 34

Billing/TOU Maximum Demand Register #2 ............................................................ 34

Billing/TOU Maximum Demand Register #3 ............................................................ 34

Billing/TOU Maximum Demand Register #4 ............................................................ 35

Billing/TOU Maximum Demand Register #5 ............................................................ 35

Billing/TOU Maximum Demand Register #6 ............................................................ 35

Billing/TOU Maximum Demand Register #7 ............................................................ 35

Billing/TOU Maximum Demand Register #8 ............................................................ 35

Billing/TOU Maximum Demand Register #9 ............................................................ 35

Billing/TOU Maximum Demand Register #10........................................................... 35

V1/V12 Harmonic Angles ..................................................................................... 35

V2/V23 Harmonic Angles ..................................................................................... 35

V3/V31 Harmonic Angles ..................................................................................... 36

I1 Harmonic Angles............................................................................................. 36

I2 Harmonic Angles............................................................................................. 36

I3 Harmonic Angles............................................................................................. 36

I4 Harmonic Angles............................................................................................. 36

0.2-Second RMS Values ....................................................................................... 36

3-Second RMS Values.......................................................................................... 37

10-Minute RMS Values......................................................................................... 37

0.2-Second Total Harmonics................................................................................. 38

3-Second Total Harmonics ................................................................................... 39

10-Minute Total Harmonics................................................................................... 39

3.4

32-bit Analog Registers, Binary Registers and Counters .............................................41

Setpoint Status SP1-SP16 (bitmap) ....................................................................... 41

Special Inputs .................................................................................................... 41

Event Flags (bitmap) ........................................................................................... 41

Internal Pulsed Events......................................................................................... 41

Digital Inputs DI1-DI8 (bitmap) ............................................................................ 41

Relay Outputs RO1-RO4 (bitmap).......................................................................... 41

Internal Static Events.......................................................................................... 41

Counters ........................................................................................................... 41

Time/Date ......................................................................................................... 41

1/2-Cycle Values ................................................................................................ 42

1-Cycle Phase Values .......................................................................................... 42

1-Cycle Low Phase Values .................................................................................... 43

1-Cycle High Phase Values ................................................................................... 43

1-Cycle Total Values............................................................................................ 44

1-Cycle Auxiliary Values ...................................................................................... 44

Phasor .............................................................................................................. 44

1-Second Phase Values........................................................................................ 45

1-Second Low Phase Values ................................................................................. 46

1-Second High Phase Values ................................................................................ 46

1-Second Total Values ......................................................................................... 46

1-Second Auxiliary Values.................................................................................... 46

Present Harmonic Demands.................................................................................. 47

Present Volt, Ampere and Power Demands ............................................................. 47

Instrumentation Total Energies ............................................................................. 48

Billing Summary (Total) Energy Registers............................................................... 48

Symmetrical Components .................................................................................... 48

V1/V12 Harmonic Distortion ................................................................................. 48

V2/V23 Harmonic Distortion ................................................................................. 49

V3/V31 Harmonic Distortion ................................................................................. 49

I1 Harmonic Distortion ........................................................................................ 49

I2 Harmonic Distortion ........................................................................................ 49

I3 Harmonic Distortion ........................................................................................ 49

I4 Harmonic Distortion ........................................................................................ 49

Fundamental Phase Values................................................................................... 49

Flicker............................................................................................................... 50

Fundamental Total Values .................................................................................... 50

Minimum 1-Cycle Phase Values............................................................................. 50

Minimum 1-Cycle Total Values .............................................................................. 51

Minimum 1-Cycle Auxiliary Values ......................................................................... 51

Maximum 1-Cycle Phase Values ............................................................................ 51

Maximum 1-Cycle Total Values ............................................................................. 52

Maximum 1-Cycle Auxiliary Values ........................................................................ 52

Instrumentation Maximum Demands ..................................................................... 52

Maximum Harmonic Demands .............................................................................. 53

Scaled Analog Inputs........................................................................................... 53

Raw Analog Inputs.............................................................................................. 53

TOU Parameters ................................................................................................. 53

Scaled Analog Outputs ........................................................................................ 53

Billing/TOU Energy Register #1............................................................................. 53

Billing/TOU Energy Register #2............................................................................. 54

Billing/TOU Energy Register #3............................................................................. 54

Billing/TOU Energy Register #4............................................................................. 54

Billing/TOU Energy Register #5............................................................................. 54

Billing/TOU Energy Register #6............................................................................. 54

Billing/TOU Energy Register #7............................................................................. 54

Billing/TOU Energy Register #8............................................................................. 54

5

Billing/TOU Energy Register #9............................................................................. 54

Billing/TOU Energy Register #10 ........................................................................... 54

Billing/Summary Energy Accumulated Demands...................................................... 55

Billing/Summary Energy Block Demands ................................................................ 55

Billing/Summary Energy Sliding Window Demands .................................................. 55

Billing Summary (Total) Maximum Demands........................................................... 55

Billing/TOU Maximum Demand Register #1 ............................................................ 55

Billing/TOU Maximum Demand Register #2 ............................................................ 55

Billing/TOU Maximum Demand Register #3 ............................................................ 56

Billing/TOU Maximum Demand Register #4 ............................................................ 56

Billing/TOU Maximum Demand Register #5 ............................................................ 56

Billing/TOU Maximum Demand Register #6 ............................................................ 56

Billing/TOU Maximum Demand Register #7 ............................................................ 57

Billing/TOU Maximum Demand Register #8 ............................................................ 57

Billing/TOU Maximum Demand Register #9 ............................................................ 57

Billing/TOU Maximum Demand Register #10........................................................... 57

V1/V12 Harmonic Angles ..................................................................................... 58

V2/V23 Harmonic Angles ..................................................................................... 58

V3/V31 Harmonic Angles ..................................................................................... 58

I1 Harmonic Angles............................................................................................. 58

I2 Harmonic Angles............................................................................................. 58

I3 Harmonic Angles............................................................................................. 58

I4 Harmonic Angles............................................................................................. 58

0.2-Second RMS Values ....................................................................................... 59

3-Second RMS Values.......................................................................................... 59

10-Minute RMS Values......................................................................................... 60

0.2-Second Total Harmonics................................................................................. 60

3-Second Total Harmonics ................................................................................... 61

10-Minute Total Harmonics................................................................................... 62

Generic TOU Season Energy Registers ................................................................... 62

Generic TOU Season Maximum Demand Registers ................................................... 62

Generic Data...................................................................................................... 62

3.5

Minimum/Maximum Log Registers ..................................................................................65

Minimum Phase Values ........................................................................................ 65

Minimum Total Values ......................................................................................... 66

Minimum Auxiliary Values .................................................................................... 66

Maximum Phase Values ....................................................................................... 67

Maximum Total Values......................................................................................... 68

Maximum Auxiliary Values ................................................................................... 69

Billing/Summary Energy Maximum Demands .......................................................... 69

Engineering Maximum Demands ........................................................................... 69

Maximum Harmonic Demands .............................................................................. 70

Billing/TOU Maximum Demand Register #1 ............................................................ 71

Billing/TOU Maximum Demand Register #2 ............................................................ 71

Billing/TOU Maximum Demand Register #3 ............................................................ 71

Billing/TOU Maximum Demand Register #4 ............................................................ 71

Billing/TOU Maximum Demand Register #5 ............................................................ 71

Billing/TOU Maximum Demand Register #6 ............................................................ 71

Billing/TOU Maximum Demand Register #7 ............................................................ 72

Billing/TOU Maximum Demand Register #8 ............................................................ 72

Billing/TOU Maximum Demand Register #9 ............................................................ 72

Billing/TOU Maximum Demand Register #10........................................................... 72

3.6

Billing Period Data.............................................................................................................73

Present billing period data.................................................................................... 73

Previous (most recent) billing period data............................................................... 73

Second previous billing period data ....................................................................... 73

Third previous billing period data .......................................................................... 73

Fourth previous billing period data ........................................................................ 73

6

3.7

Device Control and Status Registers ..............................................................................82

User Event Flags Registers (bit map) ..................................................................... 82

Remote Relay Control Registers (bit map) .............................................................. 82

Reset/Clear Registers .......................................................................................... 82

Device Mode Control Registers.............................................................................. 83

Operation/Event Counters .................................................................................... 83

Memory Status Registers ..................................................................................... 83

Log Notification Registers (bit map)....................................................................... 83

Setpoint Status Registers (bit map) ....................................................................... 83

Setpoint Alarm Latch Registers (bit map) ............................................................... 83

Device Diagnostics Register (bit map).................................................................... 83

Current Port Number ........................................................................................... 84

Current Network Settings..................................................................................... 84

Device Authorization Registers.............................................................................. 84

Factory Diagnostic Registers................................................................................. 84

3.8

Device Setup Registers.....................................................................................................85

Device Identification ........................................................................................... 85

Factory Device Settings ....................................................................................... 85

Basic Setup........................................................................................................ 85

Demands Setup.................................................................................................. 86

Device Options Setup .......................................................................................... 86

Local Settings .................................................................................................... 86

Clock Indication and Setup................................................................................... 87

Communication Ports Setup ................................................................................. 87

Network Setup ................................................................................................... 88

Dial-up/GPRS Modem Setup ................................................................................. 88

Password Setup.................................................................................................. 88

Expert Power Service Setup ................................................................................. 89

Internet Service Provider (ISP) accounts ................................................................ 89

Display Setup..................................................................................................... 89

DNP Options Setup ............................................................................................. 89

DNP Events Setup............................................................................................... 90

DNP Class 0 Point Assignments ............................................................................. 91

EN50160 PQ Recorder Triggers Setup (EN50160 voltage characteristics)..................... 91

Advanced EN50160 Setup .................................................................................... 92

EN50160 Harmonic Voltage Limits......................................................................... 92

EN50160 Interharmonic Voltage Limits .................................................................. 93

Fault Log Triggers Setup ...................................................................................... 93

Fault Log Recording Setup.................................................................................... 93

File Setup .......................................................................................................... 94

Waveform Recorder Setup ................................................................................... 95

Data Log Setup .................................................................................................. 95

TOU Daily Profile Setup ....................................................................................... 96

TOU Calendar Setup............................................................................................ 96

Billing Energy/TOU Registers Setup ....................................................................... 97

Billing Energy/TOU Registers Source Setup............................................................. 97

Control Setpoints Setup ....................................................................................... 98

Periodic Timers Setup.......................................................................................... 99

Digital Inputs Setup ............................................................................................ 99

Relay Outputs Setup ........................................................................................... 99

Analog Inputs Setup............................................................................................ 100

Analog Outputs Setup.......................................................................................... 100

3.9

Expansion I/O Configuration ......................................................................................... 101

I/O Slots Configuration Info ................................................................................. 101

I/O Type Info ..................................................................................................... 101

3.10

File Transfer Registers................................................................................................... 102

File Transfer Control Blocks .................................................................................. 102

File Info Response Block (Variation 0 – File info) ..................................................... 103

File Info Response Block (Variation 1 – Current record info) ...................................... 104

7

File Info Response Block (Variation 2 – Data log record structure).............................. 104

Event Log Response Block.................................................................................... 105

Data Log Response Block ..................................................................................... 105

Waveform Log Response Block.............................................................................. 106

Power Quality (PQ) Log Response Block ................................................................. 106

Fault Log Response Block..................................................................................... 107

3.11

EN 50160 Compliance Statistics Data Log................................................................... 109

3.12

EN 50160 Harmonics Survey Statistics Data Log ....................................................... 114

3.13

Billing/TOU Monthly Profile Data Log .......................................................................... 114

3.14

Billing/TOU Daily Profile Data Log................................................................................ 117

3.15

Energy Load Profile Data Log ....................................................................................... 118

4 DATA SCALES AND UNITS ..........................................................................119

Data Scales ....................................................................................................... 119

Data Units ......................................................................................................... 119

5 DATA FORMATS ...........................................................................................120

Timestamp ........................................................................................................ 120

File ID............................................................................................................... 120

File Attributes .................................................................................................... 120

File Status Word (bitmap) .................................................................................... 120

File Record Status Word (bitmap).......................................................................... 120

TOU Profile Log Channel ID .................................................................................. 120

Waveform Log Channel ID.................................................................................... 120

Profile Log Sections Mask..................................................................................... 120

Waveform Log Channel Mask................................................................................ 121

TOU Tariff Change Time....................................................................................... 121

Summary/TOU Energy Register Source ID .............................................................. 121

Setpoint Trigger Parameters ID............................................................................. 121

Setpoint Relational Operator................................................................................. 121

Setpoint Action ID .............................................................................................. 121

Counter Source ID .............................................................................................. 121

Relay Output Pulse Source ID ............................................................................... 121

AO Output Parameters ID .................................................................................... 122

Event Cause/Point ID .......................................................................................... 122

Event Effect ID ................................................................................................... 123

Data Point ID ..................................................................................................... 123

Event Type ID .................................................................................................... 124

Device Diagnostics (bitmap) ................................................................................. 124

DNP Object Types ............................................................................................... 125

DNP Class 0 Objects............................................................................................ 125

Wiring Mode....................................................................................................... 126

Factory Device Options (bitmap) ........................................................................... 126

8

1 General

This document specifies a subset of the Modbus serial communications protocol used to transfer data between a master computer station and the EM720. The document provides the complete information necessary to develop third-party communications software capable of communication with the Series EM720 meters. Refer to the EM720

Operation Manual for more information on communications operation, configuring the communications parameters, and communications connections.

IMPORTANT

1. In 3-wire connection schemes, the unbalanced current and phase readings for power factor, active power, and reactive power will be zeros, because they have no meaning. Only the total three-phase power values will be shown.

2. Most of the advanced features are configured using multiple setup parameters that can be accessed in a number of contiguous registers. When writing the setup registers, it is recommended to write all the registers at once using a single request, or to clear (zero) the setup before writing into separate registers.

9

2 Modbus Protocol Implementation

For detailed information about Modbus protocol, Modbus message framing and error checking, refer to the "Modicon Modbus Protocol Reference Guide". It can be downloaded from the Modbus-IDA Website at

http://www.modbus.org/

. The following paragraphs outline some issues concerning the implementation of the Modbus protocol in the EM720.

2.1 Transmission Modes

The EM720 can be set up to communicate on a Modbus network using RTU transmission mode. Refer to the "EM720 Operation Manual" on how to select the transmission mode in your meter.

2.2 Address Field

The address field contains a user assigned address of the instrument (1-247) on a

Modbus network. Broadcast mode using address 0 is not supported.

2.3 Function Field

The Modbus functions implemented in the EM720 are shown in Table 2-1. Function 04 can be used in the same context as function 03.

Table 2-1 Modbus Function Codes

Code (decimal)

03

04

06

16

08

1

Meaning in Modbus

Read holding registers

Read input registers

Preset single register

Preset multiple registers

Loop-back test

Action

Read multiple registers

Read multiple registers

Write single register

Write multiple registers

Communications test

1

The EM720 supports only diagnostic code 0 - return query data.

2.4 Exception Responses

The instrument sends an exception response when an error is detected in the received message. To indicate that the response is notification of an error, the high order bit of the function code is set to 1.

Implemented exception response codes:

01 - Illegal function

02 - Illegal data address

03 - Illegal data value

04 - Device failure

When the character framing, parity, or redundancy check detects a communication error, processing of the master's request stops. The instrument will not act on or respond to the message.

2.5 Modbus Register Addresses

The EM720 Modbus registers are numbered in the range of 0 to 65535. From the

Modbus applications, the EM720 Modbus registers can be accessed by simulating holding registers of the Modicon 584, 884 or 984 Programmable Controller, using a 5digit “4XXXX” or 6-digit “4XXXXX” addressing scheme. To map the EM720 register address to the range of the Modbus holding registers, add a value of 40001 to the

10

EM720 register address. When a register address exceeds 9999, use a 6-digit addressing scheme by adding 400001 to the EM720 register address.

2.6 Data Formats

The EM720 uses three data formats to pass data between a master application and the instrument: 16-bit short integer, 32-bit long integer and 32-bit modulo-10000 formats.

Binary values and counters are always transmitted in 32-bit registers, while analog values can be read both in 32-bit and in 16-bit scaled registers.

Analog registers 256 through 308 and 6656 through 10935 contain scaled 16-bit values.

2.6.1 16-bit Scaled Integer Format

16-bit scaled analog data is transmitted in a single 16-bit Modbus register being scaled to the range of 0 to 9999. To get a true reading, a reverse conversion should be done using the following formula:

Y =

X × ( HI − LO )

9999

+ LO where:

Y - True reading in engineering units

X - Raw input data in the range of 0 to 9999

LO and HI - Data low and high scales in engineering units

The engineering scales are indicated for every scaled 16-bit register. Refer to Section 4

“Data Scales and Units” for applicable data scales and measurement units. The default voltage scale in the device is 144V (120V+20%). It can be changed through register

242 (see Section 3.1, Device Data Scales), or via the supplemental PAS software. The recommended voltage scale is 120V+20% = 144V for using with external PT’s, and

480V+25% = 600V for a direct connection to power line.

CONVERSION EXAMPLES

1. Voltage readings

a) Assume device settings (direct wiring): PT ratio = 1; Voltage scale = 600V (480V + 25%).

Voltage engineering scales (see Section 4):

HI_ENG = Vmax = 600.0 × PT ratio = 600.0 × 1 = 600.0V

LO_ENG = 0V

If the raw data reading is 2000 then the voltage reading in engineering units will be as follows:

Volts reading = 2000 × (600.0 - 0)/(9999 - 0) + 0 = 120.0V b) Assume device settings (wiring via PT): PT ratio = 14,400V : 120V = 120; Voltage scale =

144V.

Voltage engineering scales (see Section 4):

HI_ENG = Vmax = 144.0 × PT ratio = 144 × 120 = 17,280V

LO_ENG = 0V

If the raw data reading is 8314 then the voltage reading in engineering units will be as follows:

Volts reading = 8314 × (17,280 - 0)/9999 + 0 = 14,368V

2. Current readings

Assume device settings: CT primary current = 200A.

Current engineering scales (see Section 4):

HI_ENG = Imax = CT primary current × 2 = 200.00 × 2 = 400.00A

LO_ENG = 0A

11

If the raw data reading is 250 then the current reading in engineering units will be as follows:

Amps reading = 250 × (400.00 - 0)/(9999 - 0) + 0 = 10.00A

3. Power readings

a) Assume device settings (direct wiring): Wiring 4LL3; PT = 1; CT primary current = 200A;

Voltage scale = 600V.

Active Power engineering scales (see Section 4): kW

HI_ENG = Pmax = Vmax × Imax × 2 = (600.0 × 1) × (200.00 × 2) × 2 = 662,400W = 480.000

LO_ENG = -Pmax = -480.000kW

If the raw data reading is 5500 then the power reading in engineering units will be as follows:

Watts reading = 5500 × (480.000 - (-480.000))/(9999 - 0) + (-480.000) = 48.053 kW

If the raw data reading is 500 then the power reading in engineering units will be as follows:

Watts reading = 500 × (480.000 - (-480.000))/(9999 - 0) + (-480.000) = -431.995kW b) Assume device settings (wiring via PT): Wiring 4LN3; PT = 120; CT primary current = 200A.

Active Power engineering scales (see Section 4):

HI_ENG = Pmax = Vmax × Imax × 3 = (600 × 120) × (200.00 × 2) × 3/1000 = 86,400 kW

LO_ENG = -Pmax = -86,400 kW

If the raw data reading is 5500 then the power reading in engineering units will be as follows:

Watts reading = 5500 × (86,400 - (-86,400))/(9999 - 0) + (-86,400) = 8,650 kW

If the raw data reading is 500 then the power reading in engineering units will be as follows:

Watts reading = 500 × (86,400 - (-86,400))/(9999 - 0) + (-86,400) = -77,759 kW

4. Power Factor readings

Power factor engineering scales (see Section 3.3):

HI_ENG = 1.000.

LO_ENG = -1.000.

If the raw data reading is 8900 then the power factor in engineering units will be as follows:

Power factor reading = 8900 × (1.000 - (-1.000))/(9999 - 0) + (-1.000) = 0.78

2.6.2 32-bit Long Integer Format

32-bit long integer data is transmitted in two adjacent 16-bit Modbus registers as unsigned (UINT32) or signed (INT32) whole numbers. The first register contains the low-order word (lower 16 bits) and the second register contains the high order word

(higher 16 bits). The low-order word always starts at an even Modbus address. The value range for unsigned data is 0 to 4,294,967,295; for signed data the range is -

2,147,483,648 to 2,147,483,647.

If your Modbus driver does not support a 32-bit long integer format, you can read the two 16-bit registers separately, and then convert them into a 32-bit value as follows

(using C notation):

32-bit value = (signed short) high_order_register × 65536L + (unsigned short) low_order_register

Examples

1. Unsigned 32-bit Values

If you read unsigned Voltage V1 of 69,000V from registers 13952-13953, then the register readings will be as follows:

(13952) = 3464

(13953) = 1

12

The 32-bit value is (1 x 65536 + 3464) = 69000V.

2. Signed 32-bit Values

If you read signed kW of -789kW from registers 14336-14337, then the register readings will be:

(14336) = 64747 (unsigned)

(14337) = 65535 (unsigned) or -1(signed value).

To take the high order register as a signed value, compare it with 32767. If the value is less or equal to 32767, use it as is. If it is greater than 32767, then this is a negative number in a two's complement code (like in our example) - just subtract it from 65536 to get the original negative value.

The 32-bit reading is (-1 x 65536 + 64747) = -789kW.

Fractional 32-bit data is transmitted using a decimal pre-multiplier to pass fractional numbers in an integer format. Fractional numbers are pre-multiplied by 10 to the power N, where N is the number of digits in the fractional part. For example, the frequency reading of 50.01 Hz is transmitted as 5001, having been pre-multiplied by

100. Whenever a data register contains a fractional number, the register measurement unit is given with a multiplier ×0.1, ×0.01 or ×0.001, showing the weight of the least significant decimal digit. To get an actual fractional number with specified precision, multiply the register value by the given multiplier. To write a fractional number into the register, divide the number by the given multiplier.

2.6.3 32-bit Modulo-10000 Format

Energy counters 287-294 and 301-302 are read in two contiguous 16-bit registers in a modulo-10000 format. The first (low order) register contains the value mod 10000, and the second (high order) register contains the value/10000. To get the true energy reading, the high order register value should be multiplied by 10,000 and added to the low order register.

2.7 User Assignable Registers

The EM720 has 120 user assignable registers in the address range of 0 to 119, any of which you can map to any register address accessible in the instrument. Registers that reside in different locations may be accessed by a single request by re-mapping them to adjacent addresses in the user assignable registers area.

The actual addresses of the assignable registers, which are accessed via addresses 0 through 119, are specified in the register map (registers 120 through 239), where register 120 contains the actual address of the register accessed via register 0, register 121 contains the actual address of the register accessed via register 1, and so on. The assignable registers and the map registers themselves may not be re-mapped.

To build your own register map, write to map registers 120 to 239 the actual addresses you want to read from or write to via the assignable area (registers 0 to

119). 32-bit long registers should always be aligned at even addresses. For example, if you want to read registers 7136 (1-second V1 voltage, scaled short integer) and

14720-14721 (kWh Import, long integer) via registers 0-2, do the following:

- write 14720 to register 120

- write 14721 to register 121

- write 7136 to register 122

Reading from registers 0-2 will return the kWh reading in registers 0 (low 16 bits) and

1 (high 16 bits), and the voltage reading in register 2.

2.8 Password Protection

The EM720 has a password protection for setups, cumulative registers and log files from being changed or cleared via communications. Refer to the EM720 Operation

Manual for details.

13

A user password must be written into the 32-bit device authorization register (44378-

44379) before another write request is issued. If the correct password is not supplied, the meter will respond to all write requests directed to the meter setup and reset registers with the exception code 01 (illegal operation). It is recommended to clear the authorization register after you have completed your changes in order to activate password protection.

2.9 Data Recording and File Transfers

2.9.1 Log File Organization

Historical files are stored to the non-volatile flash memory. Memory is allocated for each file statically when you set up your files and will not change unless you reorganize the files. The EM720 automatically performs de-fragmentation of the memory each time you re-organize your files. This prevents possible leakage of memory caused by fragmentation.

Data records in a file are arranged in the order of their recording. Each record has a unique 16-bit sequence number that is incremented modulo 65536 with each new record. The sequence number can be used to point to a particular record in the file, or to check the sequence of records when uploading files from the device.

Each file has a write position pointer that indicates the place where the next record will be recorded, and a read position pointer that indicates the place from where the current record will be read. Both pointers show sequence numbers of the records they point to rather than record offsets in the file.

After acknowledging a record you have read, the read pointer automatically advances to the next record in the file. When the read pointer gets to the record to which the file write pointer points, the end-of-file (EOF) flag is set. It is automatically cleared when a new record is added to the file, or when you explicitly move the read pointer to any record within a file.

If a file has a wrap-around attribute (circular file), the most recent records can overwrite the oldest records. When this happens at the current read position, the read pointer automatically advances forward in order to point to the oldest record in the file.

The EM720 keeps a separate read pointer for each communication port so that access to the same file through a different port will not affect current active sessions for other ports.

Multi-section Files

Log files can have one or more (up to 20) sections for multi-channel recording. An ordinal file consists of a single section. Some files, such as daily profile log files and waveform log files, are arranged as multi-section files.

A multi-section file is subdivided into multiple sections of the same structure, one section per recording channel. The number of sections in each file is defined at the time you set up your files and may not change unless you re-organize the file. Each section within a multi-section file can be addressed by a section number, or by a section channel ID.

A multi-section file has a single write position pointer for all sections and stores data in all sections simultaneously. This means that records with the same sequence number in all sections are associated with the same event. A multi-section file has also a single read position pointer for all sections.

Data Log Files

Conventional data log files can store up to 16 measured parameters per a record. Any data measured by the device can be stored in the log file. The number of parameters that each record will hold and the list of parameters you want to be recorded in the file can be selected through the Data log setup registers for a particular file.

Recording data to data log files can be triggered through the setpoints, either on a time basis, or upon any event detected by the setpoints.

14

Billing/TOU Profile Data Log Files

Data log files #15 and #16 are factory configured for monthly and daily profile logs of the energy/usage and maximum demand registers. A profile log file is organized as a multi-section file that has a separate section for each energy and maximum demand register. The number of sections is taken automatically from your Summary/TOU

Registers setup. Since each Summary/TOU energy register has a shadow maximum demand register, the number of sections in the file can be twice the number of the allocated Summary/TOU registers.

A profile log file stores the summary (total of all tariffs) data and/or all tariff data for each configured Summary/TOU register.

Waveform Log Files

Waveform log files are organized as multi-section files that store data for each recording channel in a separate section. A waveform log file can record up to six AC channels simultaneously: three voltage and three current waveforms. The number of sections in a file, or channels that a file can store, is defined when you set up the file.

The channels that a file will record are selected in the waveform log setup. All selected channels are recorded in successive file sections.

A waveform file has a single read pointer for all sections, so that data from all channels of a single record can be read together without repositioning the file pointer. When you point to a particular file record, data from all sections related to the same event are all available for a read. Moreover, the EM720 takes all channel data for the currently accessed record to a separate buffer, so that even when the record is overwritten at the time of reading, you are still prevented from receiving partially updated data.

A single waveform record for a channel can contain up to 512 points of the sampled input signal. Refer to the line frequency field in the channel header record to correctly set up the time scale for the waveforms.

If a waveform log is configured to record more samples per event than a single record can hold, the waveform recorder will store as many records per event as required to record the entire event. All waveform records related to the event are merged in a series and have the same series number, so that they can be plotted together. Each record within a series has a unique serial number that allows tracking the sequence of records in a series. A single waveform series can hold up to 81,920 points (2,560 cycles at a rate of 32 samples per cycle) of a sampled AC signal.

2.9.2 File Transfers

File transfer protocol provides both data transfer and information services. File transfer is performed through two blocks of registers: a 32-word master request block and a

288-word read-only file response block. After a master application has written the request into the file request block, the requested data is available for a read through the file response block registers. File transfer functions allow changing the file or section position in order to point to the desired record.

The information services use separate 8-word file info request and 200-word file info response blocks. The extended file information is available including current file pointers’ positions, file contents, the number of records in the file, allocated file size, time of the last file update, and more.

Common File Transfer

Log files can be read either in a sequence record-by-record, or in a random order. Each

Read-File request fills the file response block with the data of the record pointed to by the file (or section) read pointer. If you want to begin reading a file from a particular record, which sequence number is known, you can change the pointer position by issuing the Set-File-Position request with the desired sequence number. If you want to read a file from the beginning, send the Reset-File-Position request that moves the pointer to the oldest file record. If you do not change the file position, then you will continue reading the file from the record following the one you have read the last time you accessed the file.

15

You need not explicitly move the file position to the following record if you want to continue reading a file in sequence after you have uploaded the current record.

Instead, issue an acknowledgment request that automatically advances the file pointer to the next record, and then read the record data through the file response block.

The file response block can contain more than one record. The number of records available in the block and the file record size in words are always reported in the block heading. There are no special rules on how to read records from the file transfer block.

You can read a single record or all records together, or begin reading from the last record and end with the first record. However, you should remember: 1) after an acknowledgment, the file position moves to the record following the last one you have accessed in the file transfer block; and 2) data in the file transfer block does not change until you either issue an acknowledgment, or explicitly change the file position by the Set-File-Position or Reset-File-Position requests.

The file transfer is completed after you have read the last record of the file. Before storing a file record to your database, always check bit 9 in the record status word, which contains the end-of-file (EOF) flag. This bit set to 1 indicates that the file read pointer does not point to any record within the file, and you should not store any record that has this bit set. The EOF flag is set only after you have acknowledged the last record of the file, so that testing for end-of-file requires one extra read. If you wish to stop the transfer just after storing the last file record, acknowledge the record and check bit 0 in the record status word. Bit 0 is set to 1 only once when you read the last record of the file.

The following gives a summary of steps you should do to read an ordinal log file:

1. If you want to begin reading a file from a particular record or from the first record, use either the Set-File-Position request with the desired record sequence number, or the Reset-File-Position request. Preset a section number and channel ID to zero.

2. Write the Read-File request with a section number and channel ID set to zero.

3. Read the record data from the file response block.

4. Write an acknowledgment for the file. You need not fill all the request fields: only the file function is required. The file pointer will be moved to the next file record.

5. Repeat steps 3-4 until all the file records are read.

Reading a Multi-section Billing/TOU Profile Log File

In a multi-section data profile file, all user requests including an acknowledgment; the

Read-File, Set-File-Position and Reset-File-Position requests, relate to a particular file section rather than to the file itself. The only request that affects the entire file is the

Erase-File that clears all the file sections together.

A file section can be requested either by a section number, or by a section channel ID.

If you use a channel ID, preset the section number field to 0xFFFF. If a section number is specified, the channel ID field will not be checked. The device returns both fields in the response block heading, so you can always identify what channel data is being read from the present file section. If you want to know which channels are recorded to the file sections, check the file channel mask in the file info block. This is a bitmap that contains one in a bit position if a channel with an ID equal to the bit number is recorded to the file, and contains zero if it is not.

The following gives a summary of steps for reading a multi-section data log file:

1. If you want to begin reading a file section from a particular record or from the first record, use either the Set-File-Position request with the desired record sequence number, or the Reset-File-Position request. Specify either a section number, or the channel ID for the section from where you want to read data. If you use a channel

ID, preset the section number field to 0xFFFF.

2. Write the Read-File request with the section number and channel ID as shown in the previous step.

3. Read the record data from the file response block.

16

4. Write an acknowledgment for the file. The file section pointer will be moved to the next record.

5. Repeat steps 3-4 until all the section records are read.

Reading Multi-section Waveform Files

Waveform files can be read as conventional multi-section files in the order described above. Another way is to take advantage of the fact that waveform files have a single read pointer for all file sections, so you can read records of all the channels related to the same event at once without repositioning the file pointer. The following gives a summary of steps for reading waveform files:

1. If you want to begin reading a file from a particular record or from the first record, use either the Set-File-Position request with the desired record sequence number, or the Reset-File-Position request. Preset the section field to zero.

2. Write the Read-File request. Address you request to the first file section (its number is always zero), or to the first file channel (if you know channel’s ID). If you use a channel ID, preset the section number field to 0xFFFF.

3. Read the channel’s data from the file response block. Store the received record’s sequence number.

4. Write the Read-File request for the next file section or channel using the stored record sequence number. The file response block will be refilled with the data for the requested channel that is related to the record with the same sequence number.

5. Repeat steps 3, 4 until all the channel records with the current sequence number are read.

6. Write an acknowledgment. The file pointer will be moved to the next record.

Repeat steps 2-6 until all the file records are read.

Reading Real-time Waveforms

Real-time waveforms are accessed through the same transfer blocks just like the waveform log files by addressing file 128. Writing the Read-File request for file 128 provides a simultaneous capture of 6 real-time waveform records – three voltage and three current waveforms – into a communication buffer that can be read through the common file response block. The following gives a summary of steps for reading realtime waveforms:

1. Write the Read-File request for file 128. Address you request to the first file section

(its number is always zero), or to the first file channel (if you know channel’s ID).

If you use a channel ID, preset the section number field to 0xFFFF.

2. Read the channel’s data from the file response block.

3. Write the Read-File request for the next file section or channel. The file response block will be refilled with the data for the requested channel.

4. Repeat steps 3, 4 until all the channel records are read.

5. Write an acknowledgment to release the buffer.

17

3 Modbus Register Map

3.1 Modbus Setup Registers

Description

Modbus Assignable Registers

0-119

+0

+1

Register 0 contents

Register 1 contents

+119

Assignable Registers Map

...

Register 119 contents

120-239

+0

+1

+119

Mapped register 0 address

Mapped register 1 address

Mapped register 119 address

Modbus Conversion Scales

240 Low raw scale

241

Device Data Scales

High raw scale

242 Voltage scale, in secondary volts

243 Current scale, in secondary amps

0-65535

0-65535

0-65535

0-65535

0-65535

0-65535

0

9999

60-600 (default 144V)

10-500 (default is CT secondary current × Current Overload)

1V

×0.1A

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

UINT16 R/W

UINT16 R/W

Notes

R/W

R/W

R/W

R/W

R/W

R/W

18

3.2 16-bit Scaled Analog Registers and Energy Counters - Basic Register Set

256-308

+8 0x1108

+15 0x110F

+16 0x1110

+17 0x1111 kW L3

Power factor L1

Power factor L2

Power factor L3

Description

+22 0x1501 In (neutral) Current

+23 0x1502 Frequency

+24 0x3709 Maximum kW import sliding window demand

+25 0x160F

+26 0x370B

+27 0x1611

+28 0x3703

+29 0x3704 kW import accumulated demand

Maximum kVA sliding window demand kVA accumulated demand

I1 Maximum ampere demand

I2 Maximum ampere demand

+30 0x3705

+31

+32

+33

+34

+35

+36

+37

I3 Maximum ampere demand kWh import (low) kWh import (high) kWh export (low) kWh export (high)

+kvarh net (low)

+kvarh net (high)

-kvarh net (low)

Low and High Scales

2

Units

2

0-Vmax

0-Vmax

0-Vmax

0-Imax

U1

U1

U1

U2

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

U2

U2

U3

U3

U3

U3

U3

U3

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-1.000-1.000

-1.000-1.000

-1.000-1.000

-1.000-1.000

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Imax

45.00-65.00

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Imax

0-Imax

0-Imax

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

U3

U3

U3

U3

U2

U2

Type R/W

UINT16 R

UINT16 R

UINT16 R

INT16

INT16

INT16

INT16

INT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

1

1

1

U2 UINT16 R

×0.1 kWh UINT16 R 5

×1 MWh UINT16 R 5

×0.1 kWh UINT16 R 5

×1 MWh UINT16 R 5

×0.1 kvarh UINT16 R 3, 5

×1 Mvarh UINT16 R 3, 5

×0.1 kvarh UINT16 R 4, 5

UINT16 R

UINT16 R

UINT16 R

INT16 R

R

R

R

R

R

U3

U3

U3

0.001

0.001

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16 R

0.001 INT16 R

0.001 INT16 R

U3

U3

INT16

INT16

R

R

U3

U2

UINT16 R

UINT16 R

Notes

19

Description

+38

+39 0x1112

+40 0x1113

+41 0x1114

+42 0x1115

+43 0x1116

+44 0x1117

+45

+46

+47 0x1609

+48 0x160B

+49 0x1615

-kvarh net (high)

V1/V12 Voltage THD

V2/V23 Voltage THD

V3/V31 Voltage THD

I1 Current THD

I2 Current THD

I3 Current THD kVAh (low) kVAh (high)

Present kW import sliding window demand

Present kVA sliding window demand

PF (import) at Max. kVA sliding window demand

+50 0x111B

+51 0x111C

I1 Current TDD

I2 Current TDD

+52 0x111D I3 Current TDD

Low and High Scales

2

Units

2

0-9999

0-999.9

0-999.9

0-999.9

0-999.9

×1 Mvarh

0.1%

0.1%

0.1%

0.1%

0-999.9

0-999.9

0-9999

0-9999

-Pmax-Pmax

-Pmax-Pmax

0-1.000

0.1%

0.1%

U3

U3

0.001

Type R/W

UINT16 R

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

4, 5

2

2

2

3-sec value

3-sec value

3-sec value

3-sec value

3-sec value

3-sec value

×0.1 kVAh UINT16 R 5

×1 MVAh UINT16 R 5

0-100.0

0-100.0

0-100.0

0.1%

0.1%

0.1%

UINT16

UINT16

UINT16

R

R

R

3-sec value

3-sec value

3-sec value

Notes

NOTES:

1

When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

2 All analog registers except of harmonics are 1-second average values. For volts, amps and power scales and units, refer to Section 4 ”Data Scales and Units”. For analog data scaling formulas and examples, see Section 2.6.1, “16-bit Scaled Integer Format”.

3 Positive readings of kvarh net

4

Negative readings of kvarh net

5 If you use these energy registers instead of 32-bit registers, limit the energy roll value to 8 digits (see Device Options Setup) to avoid early overflow.

20

3.3 16-bit Scaled Analog Registers, Binary Registers and Counters

3584 0x0000

3616 0x0080

3648-3649

+1 0x0101

Description

None

Setpoint Status (bitmap)

Special Inputs

Phase rotation order

Low and High Scales

3

Units

3

0

0=error, 1=positive (ABC),

2=negative (CBA)

3776 0x0300

3968 0x0600

4096 0x0800

4224-4239

Event Flags (bitmap)

Digital Inputs (bitmap)

Relay Outputs (bitmap)

Counters

4320-4344

+3 0x0B83

1/2-Cycle Values

V4 (zero-sequence) Voltage

+11 0x0B8B In Current

0-Vmax

0-Imax

0-Imax

0-Imax

0-I4max

0-Imax

0

0

0

0

0

0-Vmax

0-Imax

0

0-300.0

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-Vmax

0-Vmax

0-Vmax

0-Vmax

0-Vmax

0-Vmax

Type R/W

UINT16 R

U1

U1

U1

U1

U1

U1

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT16 R 1

UINT16 R 1

UINT16 R 1

UINT16 R

UINT16 R

UINT16 R

U1

U2

U2

U2

U2

U2

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

U1

U2

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

0.1% UINT16 R

Notes

21

Description

4352-4390

1-Cycle Phase Values

+8 0x0C08 kW L3

+15 0x0C0F Power factor L1

+16 0x0C10 Power factor L2

+17 0x0C11 Power factor L3

+18 0x0C12 V1/V12 Voltage THD

+19 0x0C13 V2/V23 Voltage THD

+20 0x0C14 V3/V31 Voltage THD

+21 0x0C15

+22 0x0C16

I1 Current THD

I2 Current THD

+23 0x0C17 I3 Current THD

+24 0x0C18 I1 K-Factor

+25 0x0C19 I2 K-Factor

+26 0x0C1A I3 K-Factor

+27 0x0C1B I1 Current TDD

+28 0x0C1C I2 Current TDD

+29 0x0C1D I3 Current TDD

4416-4427

1-Cycle Low Phase Values

Low and High Scales

3

Units

3

0-300.0

0

Type R/W

0.1% UINT16 R

UINT16 R

0

0-100.00

0-Vmax U1

UINT16 R

0.01Hz UINT16 R

UINT16 R 1

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

U1

U1

U2

U2

U2

U3

U3

U3

U3

UINT16 R

UINT16 R

1

1

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16 R

INT16 R

INT16 R

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

-1.000-1.000

-1.000-1.000

-1.000-1.000

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

1.0-999.9

1.0-999.9

1.0-999.9

0-100.0

0-100.0

0-100.0

0-Vmax

0-Vmax

0-Vmax

0-Vmax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

U3

U3

U3

U3

U3

0.001

0.001

0.001

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1

0.1

0.1

0.1%

0.1%

0.1%

U1

U1

U1

U1

U2

U3

U3

INT16 R

INT16 R

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16

INT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

R

R

2

2

2

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

UINT16

UINT16

R

R

0.2-sec value

0.2-sec value

UINT16 R 0.2-sec value

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

INT16

INT16

1

R

R

Notes

22

Description

+5 0x0D05 Low PF Lag

+5 0x0D06 Low PF Lead

+7 0x0D07 Low voltage THD

+8 0x0D08 Low current THD

+9 0x0D09 Low K-Factor

+10 0x0D0A Low current TDD

+11 0x0D0B Low L-L voltage

4480-4491

1-Cycle High Phase Values

+5 0x0E05

+5 0x0E06

+7 0x0E07

+8 0x0E08

+9 0x0E09

High PF Lag

High PF Lead

High voltage THD

High current THD

High K-Factor

+10 0x0E0A High current TDD

+11 0x0E0B High L-L voltage

4544-4556

1-Cycle Total Values

+4 0x0F04

+5 0x0F05

+5 0x0F06

+7 0x0F07

+8 0x0F08

+9 0x0F09

+10 0x0F0A

+11 0x0F0B

+12 0x0F0C

4608-4612

Total PF lag

Total PF lead

Total kW import

Total kW export

Total kvar import

Total kvar export

3-phase average L-N/L-L voltage

1-Cycle Auxiliary Values

+1 0x1001 In (neutral) Current

+2 0x1002 Frequency

+5 0x1005

+6 0x1006

Battery DC voltage

V4 (zero-sequence) voltage

Low and High Scales

3

Units

3

0-Pmax

0-1.000

U3

0.001

0-1.000

0-999.9

0-999.9

1.0-999.9

0.001

0.1%

0.1%

0.1

0-100.0

0-Vmax

0-Vmax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1.000

0.1%

U1

U1

U2

U3

U3

U3

0.001

0-1.000

0-999.9

0-999.9

1.0-999.9

0-100.0

0-Vmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

-1.000-1.000

0-1.000

0-1.000

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Vmax

Type R/W

UINT16 R

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

0.2-sec value,

0.2-sec value

0.2-sec value

UINT16

UINT16

R

R

0.2-sec value

0.2-sec value

UINT16 R 1

UINT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R

2

Notes

0.001

0.1%

0.1%

0.1

0.1%

U1

U3

U3

UINT16

UINT16

UINT16

UINT16

R

R

R

R

0.2-sec value, 2

0.2-sec value

0.2-sec value

UINT16

UINT16

R

R

0.2-sec value

0.2-sec value

INT16 R

INT16 R

U3 UINT16 R

0.001 INT16 R

0.001

0.001

UINT16

UINT16

R

R

U3

U3

U3

U3

UINT16

UINT16

UINT16

UINT32

R

R

R

R

U1 UINT16 R 1

U1

0-I4max

0-Imax

0-Fmax

0-300.0

0-300.0

0-9999.00

0-Vmax

U2

U2

UINT16 R

UINT16 R

0.01Hz UINT16 R

0.1% UINT16 R

0.1% UINT16 R

0.01V

U1

UINT16

UINT16

R

R

23

4640-4655

+0 0x1080

+1 0x1081

+2 0x1082

Phasor

V1/V12 Voltage magnitude

V2/V23 Voltage magnitude

V3/V31 Voltage magnitude

I1 Current magnitude

I2 Current magnitude

I3 Current magnitude

I4 Current magnitude

V1/V12 Voltage angle

V2/V23 Voltage angle

Description

Low and High Scales

3

Units

3

0-Vmax U1

0-Vmax

0-Vmax

0-Imax

U1

U1

U2

Type R/W

UINT16 R 2

UINT16

UINT16

R

R

2

2

UINT16 R

UINT16 R +4 0x1084

+5 0x1085

+6 0x1086

+7 0x1087

+8 0x1088

+9 0x1089

1-Second Phase Values

0-Imax

0-Imax

0-I4max

-180.0-180.0

-180.0-180.0

U2

U2

U2

0.1º

0.1º

UINT16

UINT16

UINT16

INT16

INT16

R

R

R

R

R

2

2

+10 0x108A V3/V31 Voltage angle -180.0-180.0 0.1º INT16 R 2

INT16 R

+12 0x108C

+13 0x108D I2 Current angle -180.0-180.0

+14 0x108E

+15 0x108F

4672-4704

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

U1

U1

U1

U2

U2

U2

UINT16 R 1

UINT16 R 1

UINT16 R 1

UINT16 R

UINT16 R

UINT16 R

+8 0x1108

+15 0x110F

+16 0x1110

+17 0x1111

+18 0x1112

+19 0x1113

+20 0x1114

+21 0x1115

+22 0x1116

+23 0x1117

+24 0x1118 kW L3

Power factor L1

Power factor L2

Power factor L3

V1/V12 Voltage THD

V2/V23 Voltage THD

V3/V31 Voltage THD

I1 Current THD

I2 Current THD

I3 Current THD

I1 K-Factor

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

-1.000-1.000

-1.000-1.000

-1.000-1.000

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

1.0-999.9

U3

U3

U3

U3

U3

U3

U3

U3

U3

0.001

0.001

0.001

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1

INT16 R

INT16 R

INT16 R

INT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16

INT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

2

2

2

3-sec value

3-sec value

3-sec value

3-sec value

3-sec value

3-sec value

3-sec value

Notes

24

+25 0x1119

+26 0x111A

I2 K-Factor

I3 K-Factor

+27 0x111B

+28 0x111C

I1 Current TDD

I2 Current TDD

+29 0x111D I3 Current TDD

Description

+36 0x1123

+37 0x1124

+38 0x1125

4736-4749

V1x Voltage

V2x Voltage

V3x Voltage

1-Second Low Phase Values

+5 0x1205

+5 0x1206

+7 0x1207

+8 0x1208

+9 0x1209

+10 0x120A

+11 0x120B

4800-4813

Low PF Lag

Low PF Lead

Low voltage THD

Low current THD

Low K-Factor

Low current TDD

Low L-L voltage

1-Second High Phase Values

+5 0x1305

+5 0x1306

+7 0x1307

+8 0x1308

+9 0x1309

+10 0x130A

+11 0x130B

4864-4876

High PF Lag

High PF Lead

High voltage THD

High current THD

High K-Factor

High current TDD

High L-L voltage

1-Second Total Values

Low and High Scales

3

Units

3

1.0-999.9

1.0-999.9

0.1

0.1

0-100.0

0-100.0

0-100.0

0-Vmax

0.1%

0.1%

0.1%

U1

0-Vmax

0-Vmax

0

0

0

0-Vmax

0-Vmax

0-Vmax

U1

U1

U1

U1

U1

0-Vmax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1.000

0-1.000

0-999.9

0-999.9

1.0-999.9

0-100.0

0-Vmax

0-Vmax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1.000

0-1.000

0-999.9

0-999.9

1.0-999.9

0-100.0

0-Vmax

-Pmax-Pmax

-Pmax-Pmax

U3

0.001

0.001

0.1%

0.1%

0.1

0.1%

U1

U3

U3

U1

U2

U3

U3

U3

0.001

0.001

0.1%

0.1%

0.1

0.1%

U1

U1

U2

U3

U3

Type R/W Notes

UINT16

UINT16

R

R

3-sec value

3-sec value

UINT16

UINT16

R

R

3-sec value

3-sec value

UINT16 R 3-sec value

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16

UINT16

UINT16

R

R

R

Transient coprocessor V1 channel

Transient coprocessor V2 channel

Transient coprocessor V3 channel

UINT16 R 1

UINT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R

UINT16

UINT16

UINT16

R

R

R

3-sec value,

3-sec value

2

UINT16

UINT16

UINT16

R

R

R

3-sec value

3-sec value

UINT16 R 1

UINT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R

UINT16

UINT16

R

R 3-sec value, 2

UINT16

UINT16

UINT16

UINT16

R

R

R

R

3-sec value

3-sec value

3-sec value

INT16 R

INT16 R

25

Description

+4 0x1404

+5 0x1405

+5 0x1406

+7 0x1407

+8 0x1408

+9 0x1409

+10 0x140A

+11 0x140B

+12 0x140C

4928-4932

Total PF lag

Total PF lead

Total kW import

Total kW export

Total kvar import

Total kvar export

3-phase average L-N/L-L voltage

3-phase average L-L voltage

3-phase average current

1-Second Auxiliary Values

+1 0x1501 In (neutral) Current

+2 0x1502 Frequency

+5 0x1505

+6 0x1506

Battery DC voltage

V4 (zero-sequence) voltage

+8 0x1508

+9 0x1509

4960-4971

+0 0x1580

+1 0x1581

+2 0x1582

V4x voltage

Internal temperature

Present Harmonic Demands

V1/V12 THD demand

V2/V23 THD demand

V3/V31 THD demand

+4 0x1584

+5 0x1585

+6 0x1586

+7 0x1587

+8 0x1588

I1 THD demand

I2 THD demand

I3 THD demand

I4 THD demand

I1 TDD demand

+9 0x1589 I2 TDD demand

+10 0x158A I3 TDD demand

+11 0x158B

4992-5021

I4 TDD demand

Present Volt, Ampere and Power Demands

+0 0x1600

+1 0x1601

+2 0x1602

+3 0x1603

+4 0x1604

+5 0x1605

+6 0x1606

V1/V12 Volt demand

V2/V23 Volt demand

V3/V31 Volt demand

I1 Ampere demand

I2 Ampere demand

I3 Ampere demand kW import block demand

0-100.0

0-100.0

0-100.0

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0-Pmax

Low and High Scales

3

Units

3

0-Pmax

-1.000-1.000

U3

Type R/W

UINT16 R

0.001 INT16 R

0-1.000

0-1.000

0-Pmax

0-Pmax

0.001

0.001

U3

U3

UINT16

UINT16

UINT16

UINT16

R

R

R

R

0-Pmax

0-Pmax

0-Vmax

0-Vmax

0-Imax

0-I4max

0-Imax

0-Fmax

U3

U3

U1

U1

U2

U2

U2

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

1

UINT16 R

UINT16 R

0.01Hz UINT16 R

0-300.0

0-300.0

0-9999.00

0-Vmax

0

0-Vmax

-200.0 to 200.0

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-100.0

0.1% UINT16 R

0.1% UINT16 R

0.01V

U1

UINT16

UINT16

R

R

U1

0.1ºC

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

U1

U1

U1

U2

U2

U2

U3

UINT16 R

UINT16

INT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

Notes

Transient coprocessor V4 channel

2

UINT16 R

UINT16 R

UINT16

UINT16

UINT16

UINT16

R

R

R

2

2

2

2

2

26

+7 0x1607

+8 0x1608

+9 0x1609

+10 0x160A

+11 0x160B

Description

kvar import block demand kVA block demand kW import sliding window demand kvar import sliding window demand kVA sliding window demand

+15 0x160F

+16 0x1610

+17 0x1611

+18 0x1612

+19 0x1613

+20 0x1614

+21 0x1615 kW import accumulated demand kvar import accumulated demand kVA accumulated demand kW import predicted sliding window demand kvar import predicted sliding window demand kVA predicted sliding window demand

PF (import) at Max. kVA sliding window demand

+22 0x1616

+23 0x1617

+24 0x1618

+25 0x1619 kW export block demand kvar export block demand kW export sliding window demand kvar export sliding window demand

+26 0x161A

+27 0x161B kW export accumulated demand kvar export accumulated demand

+28 0x161C kW export predicted sliding window demand

+29 0x161D kvar export predicted sliding window demand

+33 0x1621

5056-5073

+2,3 0x1701

I4 ampere demand

Instrumentation Total Energies

kWh export

5152-5161

+0 0x1880

+1 0x1881

+2 0x1882

+3 0x1883

+4 0x1884

Symmetrical Components

Positive-sequence voltage

Negative-sequence voltage

Zero-sequence voltage

Negative-sequence voltage unbalance

Zero-sequence voltage unbalance

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0

0

0

0-Imax

0-10

9

-1

0-10

9

-1

Low and High Scales

3

Units

3

0-Pmax

0-Pmax

U3

U3

0-Pmax

0-Pmax

0-Pmax

U3

U3

U3

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-1.000

U3

U3

U3

U3

U3

U3

0.001

0-10

9

-1

0-10

9

-1

0-10

9

-1

0-Vmax

0-Vmax

0-Vmax

0-300.0

0-300.0

U3

U3

U3

U3

U3

U3

U3

U3

U2

Type R/W

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16

UINT16

UINT16

R

R

R

R

R

R

0.1 kvarh UINT32

0.1 kvarh UINT32

R

R

R

R

0.1 kVAh UINT32

U1

U1

U1

0.1%

0.1%

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

Notes

27

+8 0x1888

+9 0x1889

5184-5233

+0 0x1900

+1 0x1901

5248-5297

+49 0x1A31

5312-5361

Negative-sequence current unbalance

Zero-sequence current unbalance

V1/V12 Harmonic Distortion

H01 Harmonic distortion

H02 Harmonic distortion

...

+49 0x1931

+0 0x1A00

+1 0x1A01

H50 Harmonic distortion

V2/V23 Harmonic Distortion

...

+0 0x1B00

+1 0x1B01

Description

H01 Harmonic distortion

H02 Harmonic distortion

H50 Harmonic distortion

V3/V31 Harmonic Distortion

H01 Harmonic distortion

H02 Harmonic distortion

...

+49 0x1B31

5376-5425

+0 0x1C00

+1 0x1C01

H50 Harmonic distortion

I1 Harmonic Distortion

H01 Harmonic distortion

H02 Harmonic distortion

...

Low and High Scales

3

Units

3

0-Imax

0-Imax

0-Imax

0-300.0

0-300.0

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

0-100.00

U2

U2

U2

0.1%

0.1%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

Type R/W

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

2

UINT16

UINT16

R

R

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

2

2

+49 0x1C31 H50 Harmonic distortion

5440-5489

I2 Harmonic Distortion

0-100.00 0.01% UINT16 R

+0 0x1D00 H01 Harmonic distortion 0-100.00

+1 0x1D01 H02 Harmonic distortion 0-100.00

5504-5553

...

+49 0x1D31 H50 Harmonic distortion

+0 0x1E00

+0 0x2B00

+1 0x2B01

6208-6225

I3 Harmonic Distortions

H01 Harmonic distortion

+1 0x1E01 H02 Harmonic distortion

...

+49 0x1E31

6336-6398

H50 Harmonic distortion

I4 Harmonic Distortion

H01 Harmonic distortion

H02 Harmonic distortion

...

+49 0x2B31 H50 Harmonic distortion

Fundamental Phase Values

Notes

0-100.00

0-100.00

0-100.00

0-100.00

0.01%

0.01%

0.01%

UINT16

UINT16

UINT16

R

R

R

0.01% UINT16 R

0-100.00

0-100.00

0.01%

0.01%

UINT16

UINT16

R

R

0-100.00 0.01% UINT16 R values

0-Vmax

0-Vmax

U1

U1

UINT16 R 2

UINT16 R 2

28

Description

+8 0x2908 kW L3

+15 0x290F

+16 0x2910

Power factor L1

Power factor L2

+17 0x2911 Power factor L3

6240-6245 Flicker

6272-6275

+0 0x2A00

+1 0x2A01

+2 0x2A02

+3 0x2A03

6400-6429

Fundamental Total Values

Total fundamental kW

Total fundamental kvar

Total fundamental kVA

Total fundamental PF

Minimum 1-Cycle Phase Values

+8 0x2C08 kW L3

Low and High Scales

3

Units

3

0-Vmax

0-Imax

U1

U2

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

U2

U2

U3

U3

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

-1.000-1.000

-1.000-1.000

U3

U3

U3

U3

U3

U3

U3

0.001

0.001

Type R/W

UINT16 R 2

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16 R

INT16 R

INT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R

UINT16 R

INT16

INT16

R

R

Notes

-1.000-1.000

0-100.00

0-100.00

0.001 INT16 R

2

0.01 UINT16 R

0.01 UINT16 R

0-100.00

0-100.00

0-100.00

0-100.00

0.01

0.01

0.01

0.01

UINT16 R

UINT16 R

UINT16 R

UINT16 R values

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

-1.000-1.000

0-Vmax

0-Vmax

0-Vmax

U3

U3

U3

0.001

U1

U1

U1

INT16

INT16

UINT16

INT16

R

R

R

R

UINT16 R

UINT16 R

UINT16 R

1

1

1

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

U2

U2

U2

U3

U3

U3

U3

U3

U3

U3

U3

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16 R

INT16 R

INT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R

29

+15 0x2C0F Power factor L1

+16 0x2C10 Power factor L2

+17 0x2C11 Power factor L3

+18 0x2C12 V1/V12 Voltage THD

+19 0x2C13 V2/V23 Voltage THD

+20 0x2C14 V3/V31 Voltage THD

+21 0x2C15 I1 Current THD

+22 0x2C16

+23 0x2C17

I2 Current THD

I3 Current THD

+24 0x2C18 I1 K-Factor

+25 0x2C19 I2 K-Factor

+26 0x2C1A I3 K-Factor

+27 0x2C1B I1 Current TDD

+28 0x2C1C I2 Current TDD

+29 0x2C1D I3 Current TDD

Description

6464-6467

Minimum 1-Cycle Total Values

+3 0x2D03 Total PF

+4 0x2D04 Total PF lag

+5 0x2D05 Total PF lead

6528-6530

Minimum 1-Cycle Auxiliary Values

+2 0x2E02 Frequency

6912-6941

Maximum 1-Cycle Phase Values

+8 0x3408 kW L3

Low and High Scales

3

Units

3

0-Pmax

0-1.000

U3

0.001

0-1.000

0-1.000

0-9999

0-9999

0.001

0.001

0.1%

0.1%

0-999.9

0-999.9

0-999.9

0-999.9

1.0-999.9

1.0-999.9

1.0-999.9

0-100.0

0-100.0

0-100.0

0-Vmax

0-Vmax

0-Vmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1.000

0-1.000

0-1.000

0-Imax

0-Fmax

0-300.0

0-300.0

Type R/W

UINT16 R

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

Absolute value

Absolute value

Absolute value

2

2

0.2-sec value

0.2-sec value

0.1%

0.1%

0.1%

0.1%

0.1

0.1

0.1

0.1%

0.1%

0.1%

U1

U1

U1

U3

U3

U3

0.001

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

R

2 0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

UINT16 R

UINT16 R

UINT16 R

0.001

0.001

U2

INT16 R

INT16 R

UINT16 R

UINT16 R Absolute value

UINT16

UINT16

R

R

UINT16 R

U2 UINT16 R

0.01Hz UINT16 R

0.1% UINT16 R

0.1% UINT16 R

Notes

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

U1

U1

U1

U2

U2

U2

U3

U3

U3

U3

UINT16 R 1

UINT16 R 1

UINT16 R 1

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16 R

INT16 R

INT16 R

30

Description

+15 0x340F

+16 0x3410

+17 0x3411

+18 0x3412

+19 0x3413

+20 0x3414

Power factor L1

Power factor L2

Power factor L3

V1 Voltage THD

V2 Voltage THD

V3 Voltage THD

+21 0x3415

+22 0x3416

+23 0x3417

+24 0x3418

+25 0x3419

+26 0x341A

+27 0x341B

+28 0x341C

I1 Current THD

I2 Current THD

I3 Current THD

I1 K-Factor

I2 K-Factor

I3 K-Factor

I1 Current TDD

I2 Current TDD

+29 0x341D I3 Current TDD

6976-6979

Maximum 1-Cycle Total Values

+3 0x3503

+4 0x3504

+5 0x3505

7040-7042

Total PF

Total PF lag

Total PF lead

Maximum 1-Cycle Auxiliary Values

+2 0x3602 Frequency

7104-7124

+0 0x3700

+1 0x3701

+2 0x3702

+3 0x3703

+4 0x3704

+5 0x3705

Instrumentation Maximum Demands

V1/V12 Maximum volt demand

V2/V23 Maximum volt demand

V3/V31 Maximum volt demand

I1 Maximum ampere demand

I2 Maximum ampere demand

I3 Maximum ampere demand

Low and High Scales

3

Units

3

-Pmax-Pmax

-Pmax-Pmax

U3

U3

0-Pmax

0-Pmax

0-Pmax

0-1.000

U3

U3

U3

0.001

0-1.000

0-1.000

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

1.0-999.9

0.001

0.001

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1

1.0-999.9

1.0-999.9

0-100.0

0-100.0

0-100.0

0-Vmax

0-Vmax

0-Vmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1.000

0-1.000

0-1.000

0-Imax

0-Fmax

0-300.0

0-300.0

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

Type R/W

0.1

0.1

0.1%

0.1%

0.1%

U1

U1

U1

U3

U3

U3

0.001

0.001

0.001

U2

INT16 R

INT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R Absolute value

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

R

R

R

R

Absolute value

Absolute value

2

2

2

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

UINT16 R 0.2-sec value

UINT16 R

UINT16 R

UINT16 R

INT16 R

INT16 R

UINT16 R

UINT16 R Absolute value

UINT16

UINT16

R

R

UINT16 R

U2 UINT16 R

0.01Hz UINT16 R

0.1% UINT16 R

0.1% UINT16 R

U1

U1

U1

U2

U2

U2

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

2

2

2

Notes

31

Description

+9 0x3709

+10 0x370A

+11 0x370B

Maximum kW import sliding window demand

Maximum kvar import sliding window demand

Maximum kVA sliding window demand

+15 0x370F

+16 0x3710

Maximum kW export sliding window demand

Maximum kvar export sliding window demand

+20 0x3714

7200-7211

+0 0x3880

+1 0x3881

+2 0x3882

I4 Maximum ampere demand

Maximum Harmonic Demands

V1/V12 THD demand

V2/V23 THD demand

V3/V31 THD demand

+4 0x3884

+5 0x3885

+6 0x3886

+7 0x3887

I1 THD demand

I2 THD demand

I3 THD demand

I4 THD demand

+8 0x3888

+9 0x3889

I1 TDD demand

I2 TDD demand

+10 0x388A I3 TDD demand

+11 0x388B I4 TDD demand

7360-7361

+0 0x3B00

+1 0x3B01

7392-7393

+0 0x3B80

+1 0x3B81

7424-7425

Scaled Analog Inputs

Analog input AI1

Analog input AI2

Raw Analog Inputs

Analog input AI1

Analog input AI2

TOU Parameters

+1 0x3C01 Active profile

7424-7425

+0 0x3C80

Scaled Analog Outputs

Analog output AO1

Low and High Scales

3

Units

3

0-Pmax

0-Pmax

0-Pmax

U3

U3

U3

0-Pmax

0-Pmax

0

0

0

0-Imax

U3

U3

U2

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-100.0

0-100.0

0-100.0

0-100.0

AI1min-AI1Max

AI2min-AI2Max

0-4095

0-4095

0-7

0-15:

0-3 = Season 1 Profile #1-4,

4-7 = Season 2 Profile #1-4,

8-11 = Season 3 Profile #1-4,

12-15 = Season 4 Profile #1-4

0-4095

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

UINT16

Type R/W

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16

UINT16

R

R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16

UINT16

UINT16

R

R

R

2

2

2

UINT16 R

UINT16 R

UINT16

UINT16

UINT16

R

R

R

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

UINT16

UINT16

R

R

UINT16 R/W

R/W

Notes

32

+1 0x3C81

7488-7503

+0,1 0x3D00 Tariff #1 register

+2,3 0x3D01 Tariff #2 register

0-999,999,999

0-999,999,999

0.1 kWh UINT32

0.1 kWh UINT32

R

R

… R

+14,15 0x3D07 Tariff #8 register 0-999,999,999

7552-7567

+0,1 0x3E00

+2,3 0x3E01

Analog output AO2

Billing/TOU Energy Register #1

Billing/TOU Energy Register #2

+14,15 0x3E07

Tariff #1 register

Tariff #2 register

Description

7616-7631

+0,1 0x3F00

Billing/TOU Energy Register #3

Tariff #1 register

+2,3 0x3F01 Tariff #2 register

Low and High Scales

3

Units

3

0-4095

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0.1 kWh UINT32 R

0.1 kWh UINT32 R

R

0.1 kWh

0.1 kWh

Type R/W

UINT16

UINT32

UINT32

R/W

R

R

R

+14,15 0x3F07

7680-7695

+0,1 0x4000

+2,3 0x4001

Billing/TOU Energy Register #4

Tariff #1 register

Tariff #2 register

+14,15 0x4007

7744-7759

+0,1 0x4100

+2,3 0x4101

Billing/TOU Energy Register #5

Tariff #1 register

Tariff #2 register

+14,15 0x4107

7808-7823

+0,1 0x4200

Billing/TOU Energy Register #6

Tariff #1 register

+2,3 0x4201 Tariff #2 register

+14,15 0x4207

7872-7887

Billing/TOU Energy Register #7

+0,1 0x4300

+2,3 0x4301

Tariff #1 register

Tariff #2 register

+14,15 0x4307

7936-7951

+0,1 0x4400

+2,3 0x4401 Tariff #2 register

+14,15 0x4407

Billing/TOU Energy Register #8

Tariff #1 register

8384-8399

+0,1 0x4B00

Billing/TOU Energy Register #9

Tariff #1 register

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0.1 kWh UINT32

0.1 kWh UINT32

0.1 kWh

0.1 kWh

UINT32

UINT32

R

R

R

0.1 kWh UINT32

0.1 kWh UINT32

R

R

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

R

R

R

R

0.1 kWh

0.1 kWh

UINT32

UINT32

R

R

R

0.1 kWh UINT32 R

Notes

33

+2,3 0x4B01 Tariff #2 register

+14,15 0x4B07

8448-8463

+0,1 0x4C00

+2,3 0x4C01

Billing/TOU Energy Register #10

Tariff #1 register

Tariff #2 register

+14,15 0x4C07

8000-8007

+0 0x4500

+1 0x4501

+9 0x4509 Summary register #10 demand

8032-8039

+0 0x4580

Description

Billing/Summary Energy Accumulated Demands

Summary register #1 demand

Summary register #2 demand

Billing/Summary Energy Block Demands

Summary register #1 demand

Low and High Scales

3

Units

3

0-999,999,999

0-999,999,999

0-999,999,999

0-Pmax

0-Pmax

0-Pmax

0-Pmax

+1 0x4581 Summary register #2 demand

+9 0x4589

8064-8071

Summary register #10 demand

Billing/Summary Energy Sliding Window Demands

0-Pmax

0-Pmax

+0 0x4600

+1 0x4601

Summary register #1 demand

Summary register #2 demand

+9 0x4609 Summary register #10 demand

8160-8167

Billing/Summary Energy Maximum Demands

0-Pmax

0-Pmax

0-Pmax

0.1 kWh

U3

U3

U3

UINT16

UINT16

UINT16

R

R

R

R

R

U3 UINT16 R

R

U3 UINT16

R

R

0.1 kWh UINT32

0.1 kWh UINT32

U3

U3

U3

Type R/W

UINT32

UINT16

UINT16

UINT16

R

R

R

R

R

R

U3 UINT16 R

R

+0 0x4780

+1 0x4781

Summary register #1 maximum demand

Summary register #2 maximum demand

+9 0x4789 Summary register #10 maximum demand

8192-8199

+0 0x4800

Billing/TOU Maximum Demand Register #1

Tariff #1 maximum demand

+1 0x4801 Tariff #2 maximum demand

+7 0x4807

8256-8263

+0 0x4900

+1 0x4901

Tariff #8 maximum demand

Billing/TOU Maximum Demand Register #2

Tariff #1 maximum demand

Tariff #2 maximum demand

+7 0x4907 Tariff #8 maximum demand

8320-8327

+0 0x4A00

+1 0x4A01

Billing/TOU Maximum Demand Register #3

Tariff #1 maximum demand

Tariff #2 maximum demand

+7 0x4A07 Tariff #8 maximum demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

U3

U3

U3

U3

U3

U3

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

U3 UINT16 R

R

U3 UINT16 R

R

R

U3

U3

U3

UINT16

UINT16

UINT16

R

R

R

R

U3 UINT16 R

Notes

34

Description

8224-8231

+0 0x4880

Billing/TOU Maximum Demand Register #4

Tariff #1 maximum demand

+1 0x4881 Tariff #2 maximum demand

+7 0x4887

8288-8295

Tariff #8 maximum demand

Billing/TOU Maximum Demand Register #5

+0 0x4980

+1 0x4981

Tariff #1 maximum demand

Tariff #2 maximum demand

+7 0x4987 Tariff #8 maximum demand

8352-8359

Billing/TOU Maximum Demand Register #6

+0 0x4A80

+1 0x4A81

Tariff #1 maximum demand

Tariff #2 maximum demand

+7 0x4A87 Tariff #8 maximum demand

8896-8903

+0 0x5300

Billing/TOU Maximum Demand Register #7

Tariff #1 maximum demand

+1 0x5301 Tariff #2 maximum demand

+7 0x5307

8928-8935

+0 0x5380

+1 0x5381

Tariff #8 maximum demand

Billing/TOU Maximum Demand Register #8

Tariff #1 maximum demand

Tariff #2 maximum demand

+7 0x5387

8960-8975

+0 0x5400

+1 0x5401

Tariff #8 maximum demand

Billing/TOU Maximum Demand Register #9

Tariff #1 maximum demand

Tariff #2 maximum demand

+7 0x5407 Tariff #8 maximum demand

8992-9007

+0 0x5480

Billing/TOU Maximum Demand Register #10

Tariff #1 maximum demand

+1 0x5481 Tariff #2 maximum demand

+7 0x5487

9984-10033

Tariff #8 maximum demand

V1/V12 Harmonic Angles

+0 0x6400

+1 0x6401

H01 Harmonic angle

H02 Harmonic angle

...

+49 0x6431 H50 Harmonic angle

10048-10097

V2/V23 Harmonic Angles

+0 0x6500

+1 0x6501

H01 Harmonic angle

H02 Harmonic angle

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

Low and High Scales

3

Units

3

0-Pmax U3

0-Pmax

0-Pmax

U3

Type R/W

UINT16

UINT16

UINT16

R

R

R

R

U3

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

U3

U3

R

U3

U3

U3

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

U3 UINT16 R

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

U3 UINT16 R

R

R

R

R

R

R

R

R

R

U3 UINT16 R

R

R

R

R

2, 4

2, 4

Notes

35

Description

Low and High Scales

3

Units

3

Type R/W

...

+49 0x6531 H50 Harmonic angle

10112-10161

+0 0x6600

V3/V31 Harmonic Angles

H01 Harmonic angle

+1 0x6601 H02 Harmonic angle

...

+49 0x6631

10240-10289

+0 0x6800

+1 0x6801

H50 Harmonic angle

I1 Harmonic Angles

H01 Harmonic angle

H02 Harmonic angle

...

+49 0x6831

10304-10353

+0 0x6900

+1 0x6901

H50 Harmonic angle

I2 Harmonic Angles

H01 Harmonic angle

H02 Harmonic angle

+11 0x6C0B In current

2, 4

4

4

...

+49 0x6931 H50 Harmonic angle

10368-10417

+0 0x6A00

I3 Harmonic Angles

H01 Harmonic angle

4

+1 0x6A01

10432-10481

...

+0 0x6B00

H02 Harmonic angle

I4 Harmonic Angles

H01 Harmonic angle

+49 0x6A31 H50 Harmonic angle -180.0-180.0

4

+1 0x6B01 H02 Harmonic angle

...

+49 0x6B31

10496-10520

0.2-Second RMS Values

0-Vmax

0-Vmax

0-Vmax

0

U1

U1

U1

UINT16 R 1

UINT16 R 1

UINT16 R 1

UINT16 R

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0-I4max

0-Imax

0

0

0

U1

U1

U1

U2

U2

U2

U2

U2

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

Notes

36

Description

+17 0x6C11 Zero-sequence voltage

+24 0x6C18 Frequency

10528-10552

3-Second RMS Values

+11 0x6C8B In current

+17 0x6C91 Zero-sequence voltage

+24 0x6C98 Frequency

10560-10584

10-Minute RMS Values

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0-I4max

0-Imax

0

0

0

0

0

0-Vmax

0-Imax

0

0-300.0

Low and High Scales

3

Units

3

0

0

0-Vmax

0-Imax

0

0-300.0

U1

U2

Type R/W

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

0.1% UINT16 R

0-300.0

0

0

0-100.00

0-Vmax

0-Vmax

0-Vmax

0

0.1% UINT16 R

UINT16 R

UINT16 R

0.01Hz UINT16 R

U1

U1

U1

UINT16 R

UINT16 R

UINT16 R

1

1

1

UINT16 R

0-300.0

0

0

0-100.00

0-Vmax

0-Vmax

0-Vmax

0-V4max

0-Vmax

0-Vmax

U1

U1

U1

U2

U2

U2

U2

U2

U1

U2

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

0.1% UINT16 R

0.1% UINT16 R

UINT16 R

UINT16 R

0.01Hz UINT16 R

U1

U1

U1

U4

U1

U1

UINT16 R

UINT16 R

UINT16 R

1

1

1

UINT16 R

UINT16 R

UINT16 R

Notes

37

+11 0x6D0B In current

+24 0x6D18 Frequency

10624-10655

0.2-Second Total Harmonics

+4 0x6E04

+5 0x6E05

+6 0x6E06

+7 0x6E07

I1 THD

I2 THD

I3 THD

I4 THD

+8 0x6E08

+9 0x6E09

V1 interharmonics THD

V2 interharmonics THD

+10 0x6E0A V3 interharmonics THD

+12 0x6E0C I1 interharmonics THD

+13 0x6E0D I2 interharmonics THD

+14 0x6E0E

+15 0x6E0F

I3 interharmonics THD

I4 interharmonics THD

+16 0x6E10

+17 0x6E11

I1 TDD

I2 TDD

Description

0-300.0

0

0

0-100.00

0-999.9

0-999.9

0-999.9

0

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0

Low and High Scales

3

Units

3

0-Vmax

0-Imax

U1

U2

0-Imax

0-Imax

0-I4max

0-Imax

U2

U2

U2

U2

0

0

0

0

0

0-Vmax

0-Imax

0

0-300.0

Type R/W

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

U1

U2

UINT16 R

UINT16 R

UINT16 R

0.1% UINT16 R

0-999.9

0-999.9

0-999.9

0-999.9

0-100.0

0-100.0

0-100.0

0-100.0

1.0-999.9

1.0-999.9

1.0-999.9

0.1% UINT16 R

UINT16 R

UINT16 R

0.01Hz UINT16 R

0.1% UINT16 R 2

0.1% UINT16 R 2

0.1% UINT16 R 2

UINT16 R

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

2

2

2

UINT16 R

0.1% UINT16 R

0.1% UINT16 R

0.1

0.1

0.1

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

UINT16 R

UINT16 R

UINT16 R

Notes

38

10656-10687

Description

3-Second Total Harmonics

+4 0x6E84

+5 0x6E85

+6 0x6E86

+7 0x6E87

+8 0x6E88

I1 THD

I2 THD

I3 THD

I4 THD

V1 interharmonics THD

+9 0x6E89 V2 interharmonics THD

+10 0x6E8A V3 interharmonics THD

+12 0x6E6E I1 interharmonics THD

+13 0x6E8D I2 interharmonics THD

+14 0x6E8E I3 interharmonics THD

+15 0x6E8F

+16 0x6E90

I4 interharmonics THD

I1 TDD

+17 0x6E91 I2 TDD

10688-10719

10-Minute Total Harmonics

+4 0x6F04

+5 0x6F05

+6 0x6F06

+7 0x6F07

+8 0x6F08

+9 0x6F09

+10 0x6F0A

I1 THD

I2 THD

I3 THD

I4 THD

V1 interharmonics THD

V2 interharmonics THD

V3 interharmonics THD

+12 0x6F0C I1 interharmonics THD

+13 0x6F0D I2 interharmonics THD

+14 0x6F0E

+15 0x6F0F

I3 interharmonics THD

I4 interharmonics THD

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0

0-999.9

0-999.9

0-999.9

0-999.9

Low and High Scales

3

Units

3

1.0-999.9 0.1

0-999.9

0-999.9

0-999.9

0

Type R/W

UINT16 R

0.1% UINT16 R

0.1% UINT16 R

0.1% UINT16 R

2

2

2

UINT16 R

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0-999.9

0

0-999.9

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

2

2

2

UINT16 R

UINT16 R

0-999.9

0-999.9

0-999.9

0-100.0

0-100.0

0-100.0

0-100.0

1.0-999.9

1.0-999.9

1.0-999.9

1.0-999.9

0-999.9

0-999.9

0-999.9

0

0-999.9

0.1%

0.1%

0.1%

0.1%

0.1%

0.1

0.1

0.1

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

0.1%

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

0.1% UINT16 R

0.1% UINT16 R

0.1 UINT16 R

UINT16 R

UINT16 R

UINT16 R

0.1% UINT16 R 2

0.1% UINT16 R 2

0.1% UINT16 R 2

0

0.1%

UINT16 R

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

2

2

2

UINT16 R

UINT16 R

Notes

39

+16 0x6F10

+17 0x6F11

I1 TDD

I2 TDD

Description

Low and High Scales

3

Units

3

0-100.0

0-100.0

0.1%

0.1%

0-100.0

0-100.0

1.0-999.9

1.0-999.9

1.0-999.9

1.0-999.9

0.1

0.1

0.1

0.1

Type R/W

UINT16

UINT16

R

R

0.1% UINT16 R

0.1% UINT16 R

UINT16 R

UINT16 R

UINT16 R

UINT16 R

Notes

NOTES:

1

When the 4LN3, 4LL3, 3LN3 or 3LL3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line.

2

When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

3

For volts, amps, power and frequency scales and units refer to Section 4 ”Data Scales and Units”. For analog data scaling formulas and examples, see Section 2.6.1, “16-bit Scaled Integer

Format”.

4 Harmonic angles are referenced to the fundamental voltage harmonic H01 on phase L1.

40

3.4 32-bit Analog Registers, Binary Registers and Counters

11776-11777 0x0000

11840 0x0080

11904-11907

+2,3 0x0101

12160-12161 0x0300

0x0400

0x0401

0x0402

0x0403

0x0404

0x0405

0x0407

0x0408

12544-12545 0x0600

12800-12801 0x0800

0x0900

0x0901

0x0902

13056-13071

0x0904

0x0906

Description

None

Setpoint Status SP1-SP16 (bitmap)

Special Inputs

Phase rotation order

Event Flags (bitmap)

Internal Pulsed Events

kWh Import pulse kWh Export pulse kWh Total pulse kvarh Import pulse kvarh Export pulse kvarh Total pulse

Start of power demand interval pulse

Start of tariff interval pulse

Digital Inputs DI1-DI8 (bitmap)

Relay Outputs RO1-RO4 (bitmap)

Internal Static Events

Phase order error

Positive phase order

Negative phase order

General fault event

External fault trigger

Counters

Time/Date

Options/Range

3

Units

3

Type R/W

0x00000000-0x0000FFFF UINT32 R

0

0=error, 1=positive (ABC),

UINT32 R

2=negative (CBA)

0x00000000-0x000000FF UINT32

0/1

0/1

0/1

0/1

0/1

0/1

0/1

0/1

0/1

TRG

TRG

TRG

TRG

TRG

TRG

TRG

TRG

TRG

0x00000000-0x000000FF UINT32

0x00000000-0x0000000F UINT32

0/1 TRG

0/1

0/1

0/1

0/1

0/1

0/1

0/1

0/1

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0

TRG

TRG

TRG

TRG

TRG

TRG

TRG

TRG

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 R/W

UINT32 TRG

Notes

41

Description

0x0B02 Day of week

0x0B03 Year

0x0B04 Month

0x0B05 Day of month

0x0B06 Hours

0x0B07 Minutes

0x0B08 Seconds

13248-13297

+0, 1 0x0B80

+2, 3 0x0B81

+4, 5 0x0B82

+6, 7 0x0B83

+8, 9 0x0B84

1/2-Cycle Values

V1 Voltage

V2 Voltage

V3 Voltage

Not used

V12 Voltage

+10, 11 0x0B85

+12, 13 0x0B86

+14, 15 0x0B87

+16, 17 0x0B88

V23 Voltage

V31 Voltage

I1 Current

I2 Current

+18, 19 0x0B89

+20, 21 0x0B8A

I3 Current

Not used

+22, 23 0x0B8B In Current

+24, 25 0x0B8C Not used

+26, 27 0x0B8D Not used

+28, 29 0x0B8E

+30, 31 0x0B8F

+32, 33 0x0B90

+34, 35 0x0B91

+36, 37 0x0B92

+38, 39 0x0B93

+40, 41 0x0B94

+42, 43 0x0B95

+44, 45 0x0B96

+46, 47 0x0B97

+48, 49 0x0B98

13312-13389

Not used

Not used

Not used

Zero-sequence voltage

Zero-sequence current

Not used

Voltage unbalance

Current unbalance

Ix current unbalance

Not used

Frequency (1-cycle)

1-Cycle Phase Values

Options/Range

3

Units

3

0

1-7, 1 = Sun, 7 = Sat

0-99

1-12

1-31

0-23

0-59

0-59

Type R/W

UINT32 TRG

UINT32 TRG

UINT32 TRG

UINT32 TRG

UINT32 TRG

UINT32 TRG

UINT32 TRG

UINT32 TRG

0-Vmax

0-Vmax

0-Vmax

0

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0

0-Imax

0

0

0

0

0

0-Vmax

0-Imax

0

0-3000

0-3000

0-3000

0

0-10000

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

U1

U1

U2

U2

U2

U2

U1

U1

U1

U1

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

U1

U2

×0.1%

×0.1%

×0.1%

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

×0.01Hz UINT32 R

U1 UINT32 R 1

U1

U1

U2

U2

U2

U3

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

INT32

1

1

R

1

1

1

Notes

42

Description

+16,17 0x0C08 kW L3

+30,31 0x0C0F

+32,33 0x0C10

+34,35 0x0C11

+36,37 0x0C12

+38,39 0x0C13

+40,41 0x0C14

+42,43 0x0C15

+44,45 0x0C16

+46,47 0x0C17

Power factor L1

Power factor L2

Power factor L3

V1/V12 Voltage THD

V2/V23 Voltage THD

V3/V31 Voltage THD

I1 Current THD

I2 Current THD

I3 Current THD

+54,55 0x0C1B I1 Current TDD

+56,57 0x0C1C I2 Current TDD

+58,59 0x0C1D I3 Current TDD

13440-13463

1-Cycle Low Phase Values

+10,11 0x0D05 Low PF Lag

+12,13 0x0D06 Low PF Lead

+14,15 0x0D07 Low voltage THD

+16,17 0x0D08 Low current THD

+20,21 0x0D0A Low current TDD

+22,23 0x0D0B Low L-L voltage

13568-13591

1-Cycle High Phase Values

Options/Range

3

Units

3

-Pmax-Pmax

-Pmax-Pmax

U3

U3

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

U3

U3

U3

U3

0-Pmax

0-Pmax

-1000-1000

-1000-1000

-1000-1000

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

10-9999

10-9999

10-9999

0-1000

0-1000

0-1000

0-Vmax

0-Vmax

0-Vmax

0-Vmax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1000

0-1000

0-9999

0-9999

10-9999

0-1000

0-Vmax

0-Vmax

0-Imax

-Pmax-Pmax

U1

U2

U3

U3

U3

×0.001

×0.001

×0.1%

×0.1%

×0.1

×0.1%

U1

U1

U2

U3

U3

U3

×0.001

×0.001

×0.001

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1

×0.1

×0.1

×0.1%

×0.1%

×0.1%

U1

U1

U1

Type R/W

INT32 R

INT32 R

INT32 R

INT32 R

INT32 R

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

INT32 R

UINT32 R 2 0.2-sec value

UINT32 R 2 0.2-sec value

UINT32 R 2 0.2-sec value

UINT32 R

UINT32 R

UINT32 R

UINT32 R 1

UINT32 R

INT32 R

INT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R 0.2-sec value

UINT32 R 1

UINT32 R

INT32 R

Notes

43

+10,11 0x0E05

+12,13 0x0E06

+14,15 0x0E07

+16,17 0x0E08

+20,21 0x0E0A

+22,23 0x0E0B

13696-13721

High PF Lag

High PF Lead

High voltage THD

High current THD

High current TDD

High L-L voltage

1-Cycle Total Values

Description

+8,9 0x0F04

+10,11 0x0F05

+12,13 0x0F06

+14,15 0x0F07

+16,17 0x0F08

+18,19 0x0F09

+20,21 0x0F0A

+22,23 0x0F0B

+24,25 0x0F0C

13824-13841

Total PF lag

Total PF lead

Total kW import

Total kW export

Total kvar import

Total kvar export

3-phase average L-N/L-L voltage

3-phase average L-L voltage

3-phase average current

1-Cycle Auxiliary Values

+2,3 0x1001 In (neutral) Current

+4,5 0x1002 Frequency

+10,11 0x1005

+12,13 0x1006

13864-13895

+0,1 0x1080

+2,3 0x1081

+4,5 0x1082

+8,9 0x1084

+10,11 0x1085

+12,13 0x1086

+14,15 0x1087

+16,17 0x1088

+18,19 0x1089

+20,21 0x108A

Battery DC voltage

V4 (zero-sequence) voltage

Phasor

V1/V12 Voltage magnitude

V2/V23 Voltage magnitude

V3/V31 Voltage magnitude

I1 Current magnitude

I2 Current magnitude

I3 Current magnitude

I4 Current magnitude

V1/V12 Voltage angle

V2/V23 Voltage angle

V3/V31 Voltage angle

Options/Range

3

Units

3

-Pmax-Pmax

0-Pmax

U3

U3

0-1000

0-1000

0-9999

0-9999

10-9999

0-1000

0-Vmax

×0.001

×0.001

×0.1%

×0.1%

×0.1

×0.1%

U1

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

-1000-1000

0-1.000

0-1.000

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Vmax

0-Vmax

0-Imax

0-I4max

0-Imax

0-Fmax

0-3000

0-3000

0-999900

0-Vmax

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0-I4max

-1800-1800

-1800-1800

-1800-1800

U3

U1

U1

U2

U3

U3

U3

×0.001

×0.001

×0.001

U3

U3

U3

U1

U1

U2

U2

U2

U2

×0.1º

×0.1º

×0.1º

Type R/W

INT32

UINT32 R

UINT32 R

UINT32 R

UINT32

INT32

INT32

UINT32 R

INT32 R

UINT16 R

UINT16 R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

2

2

INT32 R

INT32 R

INT32 R

UINT32 R

UINT32 R

0.2-sec value

1

U2

U2

UINT32 R

UINT32 R

×0.01Hz UINT32 R

×0.1%

×0.1%

UINT32 R

UINT32 R

×0.01V

U1

UINT32 R

UINT32 R

U1 UINT32 R 2

Notes

44

Description

+24,25 0x108C I1 Current angle

+26,27 0x108D I2 Current angle

+28,29 0x108E I3 Current angle

+30,31 0x108F

13952-14017

I4 Current angle

1-Second Phase Values

+16,17 0x1108 kW L3

+30,31 0x110F

+32,33 0x1110

+34,35 0x1111

+36,37 0x1112

+38,39 0x1113

+40,41 0x1114

+42,43 0x1115

+44,45 0x1116

+46,47 0x1117

Power factor L1

Power factor L2

Power factor L3

V1/V12 Voltage THD

V2/V23 Voltage THD

V3/V31 Voltage THD

I1 Current THD

I2 Current THD

I3 Current THD

+54,55 0x111B I1 Current TDD

+56,57 0x111C I2 Current TDD

+58,59 0x111D I3 Current TDD

+72,73 0x1124 V1x Voltage

Options/Range

3

Units

3

-1800-1800 ×0.1º

-1800-1800

-1800-1800

-1800-1800

0-Vmax

×0.1º

×0.1º

×0.1º

U1

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

U1

U1

U2

U2

U2

U3

U3

U3

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

-1000-1000

-1000-1000

-1000-1000

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

10-9999

10-9999

10-9999

0-1000

0-1000

0-1000

0-Vmax

0-Vmax

0-Vmax

0

0

0

0-Vmax

U3

U3

U3

U3

U3

U3

×0.001

×0.001

×0.001

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1

×0.1

×0.1

×0.1%

×0.1%

×0.1%

U1

U1

U1

U1

Type R/W

INT32 R

INT32 R

INT32 R

INT32 R

INT32 R

UINT32 R 1

UINT32 R 1

UINT32 R 1

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

INT32 R

INT32 R

INT32 R

INT32 R

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

INT32 R

UINT32 R 2 3-sec value

UINT32 R 2 3-sec value

UINT32 R 2 3-sec value

Notes

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R Transient coprocessor V1 channel

45

+74,75 0x1125

+76,77 0x1126

14080-14103

+0, 1 0x1200

+2, 3 0x1201

+4, 5 0x1202

+6, 7 0x1203

+8, 9 0x1204

+10, 11 0x1205

+12, 13 0x1206

+14, 15 0x1207

+16, 17 0x1208

+18, 19 0x1209

+20, 21 0x120A

+22, 23 0x120B

14208-14231

+0, 1 0x1300

+2, 3 0x1301

+4, 5 0x1302

+6, 7 0x1303

+8, 9 0x1304

+10, 11 0x1305

+12, 13 0x1306

+14, 15 0x1307

+16, 17 0x1308

+18, 19 0x1309

+20, 21 0x130A

+22, 23 0x130B

14336-14343

Description

V2x Voltage

V3x Voltage

1-Second Low Phase Values

Low voltage

Low current

Low kW

Low kvar

Low kVA

Low PF Lag

Low PF Lead

Low voltage THD

Low current THD

Low K-Factor

Low current TDD

Low L-L voltage

1-Second High Phase Values

High voltage

High current

High kW

High kvar

High kVA

High PF Lag

High PF Lead

High voltage THD

High current THD

High K-Factor

High current TDD

High L-L voltage

1-Second Total Values

+8,9 0x1404

+10,11 0x1405

+12,13 0x1406

+14,15 0x1407

+16,17 0x1408

+18,19 0x1409

+20,21 0x140A

+22,23 0x140B

+24,25 0x140C

14464-14477

Total PF lag

Total PF lead

Total kW import

Total kW export

Total kvar import

Total kvar export

3-phase average L-N/L-L voltage

3-phase average L-L voltage

3-phase average current

1-Second Auxiliary Values

Options/Range

3

Units

3

0-Vmax

0-Vmax

U1

U1

0-Vmax

0-Imax

-Pmax-Pmax

U1

U2

U3

-Pmax-Pmax

0-Pmax

0-1000

0-1000

0-9999

0-9999

10-9999

0-1000

0-Vmax

0-Vmax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1000

0-1000

0-9999

0-9999

10-9999

U3

U3

×0.001

×0.001

×0.1%

×0.1%

×0.1

×0.1%

U1

U1

U2

U3

U3

U3

×0.001

×0.001

×0.1%

×0.1%

×0.1

×0.1%

U1

0-1000

0-Vmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

-1000-1000

0-1.000

0-1.000

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Vmax

0-Vmax

0-Imax

U3

U3

U3

×0.001

×0.001

×0.001

U3

U3

U3

U3

U1

U1

U2

Type R/W Notes

UINT32

UINT32

UINT32

UINT32

INT32

R

R

R

R

R

Transient coprocessor V2 channel

Transient coprocessor V3 channel

1

INT32

UINT32

R

R

UINT32 R

UINT32 R

UINT32

UINT32

UINT32

R

R

R

1

INT32

INT32

R

R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

UINT32 R

INT32 R

UINT16 R

UINT16 R

UINT32 R

UINT32

UINT32

UINT32

R

R

R

UINT32

UINT32

UINT32

R

R

R

1

46

+2,3 0x1501 In (neutral) Current

+4,5 0x1502 Frequency

Description

+10,11 0x1505

+12,13 0x1506

+16,17 0x1508

+18,19 0x1509

14504-14527

+0,1 0x1580

+2,3 0x1581

+4,5 0x1582

+8,9 0x1584

+10,11 0x1585

+12,13 0x1586

+14,15 0x1587

+16,17 0x1588

+18,19 0x1589

+20,21 0x158A

+22,23 0x158B

14592-14659

+0,1 0x1600

+2,3 0x1601

+4,5 0x1602

+6,7 0x1603

+8,9 0x1604

+10,11 0x1605

+12,13 0x1606

+14,15 0x1607

+16,17 0x1608

+18,19 0x1609

+20,21 0x160A

+22,23 0x160B

Battery DC voltage

V4 (zero-sequence) voltage

V4x voltage

Internal temperature

Present Harmonic Demands

V1/V12 THD demand

V2/V23 THD demand

V3/V31 THD demand

I1 THD demand

I2 THD demand

I3 THD demand

I4 THD demand

I1 TDD demand

I2 TDD demand

I3 TDD demand

I4 TDD demand

Present Volt, Ampere and Power Demands

V1/V12 Volt demand

V2/V23 Volt demand

V3/V31 Volt demand

I1 Ampere demand

I2 Ampere demand

I3 Ampere demand kW import block demand kvar import block demand kVA block demand kW import sliding window demand kvar import sliding window demand kVA sliding window demand

+30,31 0x160F

+32,33 0x1610

+34,35 0x1611

+36,37 0x1612 kW import accumulated demand kvar import accumulated demand kVA accumulated demand kW import predicted sliding window demand

0-Vmax

0-Imax

0-Imax

0-Imax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0

0

0

0-Pmax

0-Pmax

0-Pmax

0-Pmax

Options/Range

3

Units

3

0-I4max

0-Imax

0-Fmax

0-3000

0-3000

0-999900

0-Vmax

U2

U2

Type R/W

UINT32 R

UINT32 R

×0.01Hz UINT32 R

×0.1% UINT32 R

UINT32 R

×0.1%

×0.01V

U1

UINT32 R

UINT32 R

0

0-Vmax

-2000 to 2000

0-9999

0-9999

0-9999

0

0-9999

0-9999

0-9999

0-9999

0-1000

0-1000

0-1000

0-1000

0-Vmax

0-Vmax

U1

×0.1ºC

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

U1

U1

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32

UINT32

R

R

2

2

Notes

Transient coprocessor V4 channel

INT32 R

UINT32 R 2

UINT32 R 2

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

U1

U2

U2

U2

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

2

UINT32 R

UINT32 R

UINT32 R

UINT32

UINT32

UINT32

UINT32

R

47

Description

+38,39 0x1613

+40,41 0x1614

+42,43 0x1615

+44,45 0x1616

+46,47 0x1617 kvar import predicted sliding window demand kVA predicted sliding window demand

PF (import) at Max. kVA sliding window demand kW export block demand kvar export block demand

+48,49 0x1618

+50,51 0x1619

+52,53 0x161A

+54,55 0x161B

+56,57 0x161C kW export sliding window demand kvar export sliding window demand kW export accumulated demand kvar export accumulated demand kW export predicted sliding window demand

+58,59 0x161D kvar export predicted sliding window demand

+66,67 0x1621

14720-14737

+0,1 0x1700

+2,3 0x1701

I4 ampere demand

Instrumentation Total Energies

kWh import kWh export

+8,9 0x1704

+10,11 0x1705 kvarh import kvarh export

+16,17 0x1708

14760-14779

+0,1 0x1780 kVAh total

Billing Summary (Total) Energy Registers

Summary energy register #1

+2,3 0x1781 Summary energy register #2

+18,19 0x1789

14912-14931

Summary energy register #10

Symmetrical Components

+0,1 0x1880

+2,3 0x1881

+4,5 0x1882

+6,7 0x1883

+8,9 0x1884

Positive-sequence voltage

Negative-sequence voltage

Zero-sequence voltage

Negative-sequence voltage unbalance

Zero-sequence voltage unbalance

+16,17 0x1888

+18,19 0x1889

14976-15075

+0,1 0x1900

Negative-sequence current unbalance

Zero-sequence current unbalance

V1/V12 Harmonic Distortion

H01 Harmonic distortion

0-999,999,999

0-999,999,999

0-999,999,999

0-Vmax

0-Vmax

0-Vmax

0-3000

0-3000

0-Imax

0-Imax

0-Imax

0-3000

0-3000

0-10000

Options/Range

3

Units

3

0-Pmax

0-Pmax

U3

U3

0-1000

0-Pmax

0-Pmax

×0.001

U3

U3

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0

0

0

U3

U3

U3

U3

U3

U3

0-Imax

0-999,999,999

0-999,999,999

0

0

0-999,999,999

Type R/W

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

UINT32 R

UINT32 R

R

UINT32 R

UINT32 R

UINT32 R

U2 UINT32

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

INT32

0.1 kvarh UINT32

R

UINT32 R

R

0

0

INT32

UINT32 R

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

0.1 kWh UINT32

U1

U1

U1

×0.1%

×0.1%

U2

U2

U2

×0.1%

×0.1%

R

UINT32

UINT32

R

R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

2

×0.01% UINT32 R

Notes

48

Description

+2,3 0x1901 H02 Harmonic distortion

...

+98,99 0x1931 H50 Harmonic distortion

15104-15203

+0,1 0x1A00

V2/V23 Harmonic Distortion

H01 Harmonic distortion

+2,3 0x1A01 H02 Harmonic distortion

...

+98,99 0x1A31

15232-15331

+0,1 0x1B00

H50 Harmonic distortion

V3/V31 Harmonic Distortion

H01 Harmonic distortion

+2,3 0x1B01 H02 Harmonic distortion

...

+98,99 0x1B31 H50 Harmonic distortion

15360-15459

+0,1 0x1C00

I1 Harmonic Distortion

H01 Harmonic distortion

+2,3 0x1C01 H02 Harmonic distortion

...

+98,99 0x1C31 H50 Harmonic distortion

15488-15587

I2 Harmonic Distortion

+0,1 0x1D00 H01 Harmonic distortion

+2,3 0x1D01 H02 Harmonic distortion

...

+98,99 0x1D31 H50 Harmonic distortion

15616-15715

+0,1 0x1E00

+2,3 0x1E01

I3 Harmonic Distortion

H01 Harmonic distortion

H02 Harmonic distortion

...

+98,99 0x1E31 H50 Harmonic distortion

17280-17379

I4 Harmonic Distortion

+0,1 0x2B00

+2,3 0x2B01

H01 Harmonic distortion

H02 Harmonic distortion

...

+98,99 0x2B31

17024-17059

H50 Harmonic distortion

Fundamental Phase Values

+16,17 0x2908 kW L3

Options/Range

3

Units

3

0-10000 ×0.01%

Type R/W

UINT32 R

0-10000 ×0.01% UINT32 R

2

0-10000

0-10000

×0.01%

UINT32 R

×0.01% UINT32 R

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

×0.01% UINT32 R

2

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

×0.01% UINT32 R

0-10000

0-10000

×0.01% UINT32 R

×0.01% UINT32 R

0-10000 ×0.01% UINT32 R

0-Vmax U1 UINT32 R 2

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

U1

U1

U2

U2

U2

U3

U3

U3

UINT32 R 2

UINT32 R 2

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

INT32 R

Notes

49

Description

+30,31 0x290F

+32,33 0x2910

+34,35 0x2911

Power factor L1

Power factor L2

Power factor L3

17088-17099 Flicker

17152-17159

+0,1 0x2A00

+2,3 0x2A01

+4,5 0x2A02

+6,7 0x2A03

17408-17473

Fundamental Total Values

Total fundamental kW

Total fundamental kvar

Total fundamental kVA

Total fundamental PF

Minimum 1-Cycle Phase Values

+16,17 0x2C08 kW L3

+30,31 0x2C0F

+32,33 0x2C10

+34,35 0x2C11

+36,37 0x2C12

+38,39 0x2C13

+40,41 0x2C14

Power factor L1

Power factor L2

Power factor L3

V1/V12 Voltage THD

V2/V23 Voltage THD

V3/V31 Voltage THD

Options/Range

3

Units

3

-Pmax-Pmax

-Pmax-Pmax

U3

U3

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

U3

U3

U3

U3

Type R/W

INT32

INT32

R

R

INT32 R

UINT32 R

UINT32 R

UINT32 R

Notes

-1000-1000

-1000-1000

-1000-1000

×0.001

×0.001

×0.001

INT32 R

INT32 R

INT32 R

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

×0.01

×0.01

×0.01

×0.01

×0.01

×0.01

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R values

-Pmax-Pmax

-Pmax-Pmax

U3

U3

INT32

INT32

R

R

0-Pmax

-1000-1000

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

0-1000

0-1000

0-1000

0-9999

0-9999

0-9999

U3

×0.001

U1

U1

U1

U2

U2

U2

U3

U3

U3

U3

U3

U3

U3

U3

U3

×0.001

×0.001

×0.001

×0.1%

×0.1%

×0.1%

UINT32

INT32

R

INT32 R

UINT32 R 1

UINT32 R 1

UINT32 R 1

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

INT32 R

R

INT32 R

INT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R 2 0.2-sec value

UINT32 R 2 0.2-sec value

UINT32 R 2 0.2-sec value

50

+42,43 0x2C15

+44,45 0x2C16

+46,47 0x2C17

I1 Current THD

I2 Current THD

I3 Current THD

Description

+54,55 0x2C1B I1 Current TDD

+56,57 0x2C1C I2 Current TDD

+58,59 0x2C1D I3 Current TDD

17536-17547

Minimum 1-Cycle Total Values

+8,9 0x2D04 Total PF lag

+10,11 0x2D05 Total PF lead

17664-17673

Minimum 1-Cycle Auxiliary Values

+4,5 0x2E02 Frequency

18432-18497

Maximum 1-Cycle Phase Values

+16,17 0x3408 kW L3

+30,31 0x340F

+32,33 0x3410

Power factor L1

Power factor L2

0-9999

Options/Range

3

Units

3

×0.1%

0-9999

0-9999

10-9999

10-9999

10-9999

0-1000

0-1000

×0.1%

×0.1%

×0.1

×0.1

×0.1

×0.1%

×0.1%

0-1000

0-Vmax

0-Vmax

×0.1%

U1

U1

0-Vmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1000

0-1000

0-1000

0-I4max

0-Imax

0-Fmax

0-3000

0-3000

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-Pmax

0-Pmax

0-1000

0-1000

U1

U3

U3

U3

×0.001

×0.001

×0.001

U2

U2

×0.1%

×0.1%

U1

U1

U1

U2

U2

U2

U3

U3

U3

U3

U3

U3

U3

U3

U3

×0.001

×0.001

Type R/W

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

×0.01Hz UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

1

1

UINT32 R

UINT32 R

UINT32 R

INT32

INT32

INT32

INT32

INT32

INT32

R

R

R

1

R

R

R

UINT32 R

UINT32 R

UINT32 R

Notes

51

+34,35 0x3411

+36,37 0x3412

+38,39 0x3413

+40,41 0x3414

+42,43 0x3415

+44,45 0x3416

+46,47 0x3417

Power factor L3

V1/V12 Voltage THD

V2/V23 Voltage THD

V3/V31 Voltage THD

I1 Current THD

I2 Current THD

I3 Current THD

Description

+54,55 0x341B

+56,57 0x341C

I1 Current TDD

I2 Current TDD

+58,59 0x341D I3 Current TDD

18560-18571

Maximum 1-Cycle Total Values

+8,9 0x3504

+10,11 0x3505

18688-18697

Total PF lag

Total PF lead

Maximum 1-Cycle Auxiliary Values

+4,5 0x3602 Frequency

18816-18857

+0,1 0x3700

+2,3 0x3701

+4,5 0x3702

+6,7 0x3703

+8,9 0x3704

+10,11 0x3705

Instrumentation Maximum Demands

V1/V12 Maximum volt demand

V2/V23 Maximum volt demand

V3/V31 Maximum volt demand

I1 Maximum ampere demand

I2 Maximum ampere demand

I3 Maximum ampere demand

+18,19 0x3709

+20,21 0x370A

+22,23 0x370B

Maximum kW import sliding window demand

Maximum kvar import sliding window demand

Maximum kVA sliding window demand

0-1000

Options/Range

3

Units

3

×0.001

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

10-9999

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1

10-9999

10-9999

0-1000

0-1000

0-1000

0-Vmax

0-Vmax

0-Vmax

×0.1

×0.1

×0.1%

×0.1%

×0.1%

U1

U1

U1

-Pmax-Pmax

-Pmax-Pmax

0-Pmax

0-1000

0-1000

0-1000

0-I4max

0-Imax

0-Fmax

0-3000

0-3000

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0-Pmax

0-Pmax

0-Pmax

U3

U3

U3

×0.001

×0.001

×0.001

U2

U2

×0.01Hz

×0.1%

×0.1%

U1

U1

U1

U2

U2

U2

U3

U3

U3

Type R/W

UINT32 R

UINT32 R

UINT32 R

2

2

2

0.2-sec value

0.2-sec value

0.2-sec value

UINT32 R

UINT32 R

UINT32 R

INT32 R

INT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

2

2

UINT32 R

UINT32 R

UINT32 R

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

2

UINT32 R

Notes

52

+30,31 0x370F

+32,33 0x3710

Description

Maximum kW export sliding window demand

Maximum kvar export sliding window demand

0-Pmax

0-Pmax

0

0

Options/Range

3

Units

3

U3

U3

Type R/W

UINT32 R

UINT32 R

UINT32

UINT32

R

R

UINT32 R

UINT32 R

+40,41 0x3714

19008-19031

+0,1 0x3880

+2,3 0x3881

+4,5 0x3882

+8,9 0x3884

+10,11 0x3885

+12,13 0x3886

+14,15 0x3887

+16,17 0x3888

+18,19 0x3889

+20,21 0x388A

+22,23 0x388B

19328-19359

+0,1 0x3B00

+2,3 0x3B01

19392-19393

+0,1 0x3B80

+2,3 0x3B81

19456-19459

+2,3 0x3C01

19520-19524

+0,1 0x3C80

+2,3 0x3C81

19584-19599

+0,1 0x3D00

I4 Maximum ampere demand

Maximum Harmonic Demands

V1/V12 THD demand

V2/V23 THD demand

V3/V31 THD demand

I1 THD demand

I2 THD demand

I3 THD demand

I4 THD demand

I1 TDD demand

I2 TDD demand

I3 TDD demand

I4 TDD demand

Scaled Analog Inputs

Analog input AI1

Analog input AI2

Raw Analog Inputs

Analog input AI1

Analog input AI2

TOU Parameters

Active profile

Scaled Analog Outputs

Analog output AO1

Analog output AO2

Billing/TOU Energy Register #1

Tariff #1 register

0

0-I4max

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-1000

0-1000

0-1000

0-1000

AI1min-AI1Max

AI2min-AI2Max

0-4095

0-4095

0-7

0-15:

1-3 = Season 1 Profile #1-4,

4-7 = Season 2 Profile #1-4,

8-11 = Season 3 Profile #1-4,

12-15 = Season 4 Profile #1-4

0-4095

0-4095

0-999,999,999

U4

U2

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

0.1 kWh

UINT32 R

UINT32

UINT32 R

R

R/W

R/W

R

UINT32 R 2

UINT32 R 2

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32

UINT32

UINT32

UINT32

R

R

R

R

UINT32 R

UINT32

UINT32

UINT32

+2,3 0x3D01 Tariff #2 register

0-999,999,999 0.1 kWh UINT32 R

R

+14,15 0x3D07 Tariff #8 register 0-999,999,999

Notes

53

Description

19712-19727

+0,1 0x3E00

Billing/TOU Energy Register #2

Tariff #1 register

+2,3 0x3E01 Tariff #2 register

+14,15 0x3E07

19840-19855

Billing/TOU Energy Register #3

+0,1 0x3F00

+2,3 0x3F01

Tariff #1 register

Tariff #2 register

+14,15 0x3F07

19968-19983

Billing/TOU Energy Register #4

+0,1 0x4000

+2,3 0x4001

Tariff #1 register

Tariff #2 register

+14,15 0x4007

20096-20111

+0,1 0x4100

Billing/TOU Energy Register #5

Tariff #1 register

+2,3 0x4101 Tariff #2 register

+14,15 0x4107

20224-20239

+0,1 0x4200

+2,3 0x4201

Billing/TOU Energy Register #6

Tariff #1 register

Tariff #2 register

+14,15 0x4207

20352-20367

+0,1 0x4300

+2,3 0x4301

Billing/TOU Energy Register #7

Tariff #1 register

Tariff #2 register

+14,15 0x4307

20480-20495

+0,1 0x4400

Billing/TOU Energy Register #8

Tariff #1 register

+2,3 0x4401 Tariff #2 register

+14,15 0x4407

21376-21391

Billing/TOU Energy Register #9

+0,1 0x4B00

+2,3 0x4B01

Tariff #1 register

Tariff #2 register

+14,15 0x4B07

21504-21519

Billing/TOU Energy Register #10

+0,1 0x4C00

+2,3 0x4C01

Tariff #1 register

Tariff #2 register

Options/Range

3

Units

3

0-999,999,999

0-999,999,999

0.1 kWh

Type R/W

UINT32 R

0.1 kWh UINT32 R

R

0-999,999,999

0-999,999,999

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

0-999,999,999

0-999,999,999

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0.1 kWh

0.1 kWh

0.1 kWh

0.1 kWh

UINT32

UINT32

UINT32

R

R

R

R

UINT32 R

R

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

0.1 kWh UINT32 R

0.1 kWh UINT32 R

R

0.1 kWh UINT32

0.1 kWh UINT32

R

R

R

0.1 kWh UINT32

0.1 kWh UINT32

R

R

Notes

54

Description

Options/Range

3

Units

3

+14,15 0x4C07

20608-20627

+0,1 0x4500

+2,3 0x4501

Billing/Summary Energy Accumulated Demands

Summary register #1 demand

Summary register #2 demand

+18,19 0x4509

20672-20691

+0,1 0x4580

+2,3 0x4581

Summary register #10 demand

Billing/Summary Energy Block Demands

Summary register #1 demand

Summary register #2 demand

+18,19 0x4589

20736-20755

+0,1 0x4600

+2,3 0x4601

Summary register #10 demand

Billing/Summary Energy Sliding Window Demands

Summary register #1 demand

Summary register #2 demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

Type R/W

R

U3

U3

U3

U3

U3

U3

U3

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

+18,19 0x4609 Summary register #10 demand

20928-20979

+0,1 0x4780

Billing Summary (Total) Maximum Demands

Summary register #1 maximum demand

0-Pmax

0-Pmax

0-Pmax

U3

U3

UINT32

UINT32

+2,3 0x4781 Summary register #2 maximum demand

+18,19 0x4789

+20-31 0x478A-

Summary register #10 maximum demand

0-Pmax

0-Pmax

0-Pmax

U3

U3

UINT32

UINT32

Reserved

0x478F

+32,33 0x4790

+34,35 0x4791

Summary register #1 cumulative maximum demand

Summary register #2 cumulative maximum demand

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

+50,51 0x4789

20992-21043

+0,1 0x4800

+2,3 0x4801

Summary register #10 cumulative maximum demand

Billing/TOU Maximum Demand Register #1

Tariff #1 maximum demand

Tariff #2 maximum demand

0-999,999,999

0-Pmax

0-Pmax

U3

U3

U3

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

+14,15 0x4807 Tariff #8 maximum demand

+16-31 0x4808-

0x480F

0-Pmax

R

U3 UINT32

Reserved

R

+32,33 0x4810

+34,35 0x4811

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

R

R

R

+50,51 0x4817

21120-21171

+0,1 0x4900

+2,3 0x4901

Tariff #8 cumulative maximum demand

Billing/TOU Maximum Demand Register #2

Tariff #1 maximum demand

Tariff #2 maximum demand

0-999,999,999

0-Pmax

0-Pmax

U3

U3

U3

UINT32

UINT32

UINT32

R

R

R

R

Notes

55

+14,15 0x4907

+16-31 0x4908-

0x490F

+32,33 0x4910

+34,35 0x4911

Description

Tariff #8 maximum demand

Options/Range

3

Units

3

0-Pmax

Reserved

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

+50,51 0x4917 Tariff #8 cumulative maximum demand

21248-21299

+0,1 0x4A00

+2,3 0x4A01

Billing/TOU Maximum Demand Register #3

Tariff #1 maximum demand

Tariff #2 maximum demand

0-999,999,999

0-999,999,999

0-999,999,999

0-Pmax

0-Pmax

U3

U3

U3

Type R/W

UINT32

UINT32

UINT32

R

R

R

R

U3

U3

U3

UINT32

UINT32

UINT32

R

R

R

+14,15 0x4A07 Tariff #8 maximum demand

+16-31 0x4A08-

0x4A0F

0-Pmax

R

U3 UINT32

Reserved

R

+32,33 0x4A10

+34,35 0x4A11

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

R

R

R

+50,51 0x4A17

21056-21107

+0,1 0x4880

+2,3 0x4881

Tariff #8 cumulative maximum demand

Billing/TOU Maximum Demand Register #4

Tariff #1 maximum demand

Tariff #2 maximum demand

0-999,999,999

0-Pmax

0-Pmax

U3

U3

U3

UINT32

UINT32

UINT32

R

R

R

+14,15 0x4887 Tariff #8 maximum demand

+16-31 0x4888-

0x488F

0-Pmax

R

U3 UINT32

Reserved

R

+32,33 0x4890

+34,35 0x4891

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

+50,51 0x4897 Tariff #8 cumulative maximum demand

0-999,999,999

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

R

R

R

R

U3 UINT32

21184-21235

+0,1 0x4980

Billing/TOU Maximum Demand Register #5

Tariff #1 maximum demand

+2,3 0x4981 Tariff #2 maximum demand

+14,15 0x4987

+16-31 0x4988-

0x498F

+32,33 0x4990

0-Pmax

0-Pmax

U3 UINT32 R

R

R

U3 UINT32 R

R

Tariff #8 maximum demand 0-Pmax U3 UINT32

Reserved

Tariff #1 cumulative maximum demand 0-999,999,999 U3 UINT32

+34,35 0x4991 Tariff #2 cumulative maximum demand

+50,51 0x4997 Tariff #8 cumulative maximum demand

21312-21363

+0,1 0x4A80

+2,3 0x4A81

Billing/TOU Maximum Demand Register #6

Tariff #1 maximum demand

Tariff #2 maximum demand

0-999,999,999

0-999,999,999

0-Pmax

0-Pmax

U3 UINT32 R

R

U3 UINT32 R

U3

U3

UINT32

UINT32

R

R

Notes

56

+16-31 0x4A88-

0x4A8F

+32,33 0x4A90

Description

+14,15 0x4A87 Tariff #8 maximum demand

Reserved

Tariff #1 cumulative maximum demand

Options/Range

3

Units

3

0-Pmax

0-999,999,999

Type R/W

R

U3

U3

UINT32

UINT32

R

R

+34,35 0x4A91 Tariff #2 cumulative maximum demand

+50,51 0x4A97

22400-22451

+0,1 0x5300

Tariff #8 cumulative maximum demand

Billing/TOU Maximum Demand Register #7

Tariff #1 maximum demand

0-999,999,999

0-999,999,999

0-Pmax

U3 UINT32 R

R

U3

U3

UINT32

UINT32

R

R

+2,3 0x5301

+14,15 0x5307

+16-31 0x5308-

Tariff #2 maximum demand

Tariff #8 maximum demand

0-Pmax

0-Pmax

U3 UINT32 R

R

U3 UINT32

Reserved

R

0x530F

+32,33 0x5310

+34,35 0x5311

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

R

R

+50,51 0x5317 Tariff #8 cumulative maximum demand

22464-22515

+0,1 0x5380

Billing/TOU Maximum Demand Register #8

Tariff #1 maximum demand

0-999,999,999

0-Pmax

R

U3 UINT32 R

U3 UINT32 R

+2,3 0x5381

+14,15 0x5387

+16-31 0x5388-

Tariff #2 maximum demand

Tariff #8 maximum demand

0-Pmax

0-Pmax

U3 UINT32 R

R

U3 UINT32

Reserved

R

0x538F

+32,33 0x5390

+34,35 0x5391

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

R

R

R

+50,51 0x5397

22528-22579

+0,1 0x5400

+2,3 0x5401

Tariff #8 cumulative maximum demand

Billing/TOU Maximum Demand Register #9

Tariff #1 register

Tariff #2 register

0-999,999,999

0-Pmax

0-Pmax

U3

U3

U3

UINT32

UINT32

UINT32

R

R

R

+14,15 0x5407 Tariff #8 register

+16-31 0x5408-

0x540F

0-Pmax

R

U3 UINT32

Reserved

R

+32,33 0x5410

+34,35 0x5411

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

+50,51 0x5417

22592-22643

+0,1 0x5480

Tariff #8 cumulative maximum demand

Billing/TOU Maximum Demand Register #10

Tariff #1 register

0-999,999,999

0-999,999,999

0-999,999,999

0-Pmax

U3

U3

UINT32

UINT32

R

R

R

U3

U3

UINT32

UINT32

R

R

Notes

57

+2,3 0x5481 Tariff #2 register

+14,15 0x5487

+16-31 0x5488-

0x548F

Description

Options/Range

3

Units

3

0-Pmax U3

Type R/W

UINT32 R

R

R

Tariff #8 register 0-Pmax U3 UINT32

Reserved

+32,33 0x5490

+34,35 0x5491

Tariff #1 cumulative maximum demand

Tariff #2 cumulative maximum demand

+50,51 0x5497 Tariff #8 cumulative maximum demand

24576-24675

V1/V12 Harmonic Angles

+0,1 0x6400

+2,3 0x6401

H01 Harmonic angle

H02 Harmonic angle

0-999,999,999

0-999,999,999

0-999,999,999

-1800-1800

-1800-1800

+98,99 0x6431

24704-24803

...

+0,1 0x6500

+2,3 0x6501

H50 Harmonic angle

V2/V23 Harmonic Angles

H01 Harmonic angle

H02 Harmonic angle

...

-1800-1800

-1800-1800

-1800-1800

U3

U3

UINT32

UINT32

R

R

R

U3 UINT32 R

2, 4

×0.1º

×0.1º

INT32 R

INT32 R

×0.1º

×0.1º

×0.1º

INT32 R

2, 4

INT32 R

INT32 R

+98,99 0x6531

24832-24931

+0,1 0x6600

+98,99 0x6631

25088-25187

+0,1 0x6800

+98,99 0x6831

25216-25315

+0,1 0x6900

+2,3 0x6901

25344-25443

+0,1 0x6A00

+2,3 0x6A01

...

+98,99 0x6A31 H50 Harmonic angle

25472-25571

+0,1 0x6B00

+2,3 0x6B01

H50 Harmonic angle

V3/V31 Harmonic Angles

H01 Harmonic angle

+2,3 0x6601 H02 Harmonic angle

...

H50 Harmonic angle

I1 Harmonic Angles

H01 Harmonic angle

+2,3 0x6801 H02 Harmonic angle

...

H50 Harmonic angle

I2 Harmonic Angles

H01 Harmonic angle

H02 Harmonic angle

...

+98,99 0x6931 H50 Harmonic angle

I3 Harmonic Angles

H01 Harmonic angle

H02 Harmonic angle

I4 Harmonic Angles

H01 Harmonic angle

H02 Harmonic angle

...

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

-1800-1800

×0.1º

×0.1º

INT32 R

2, 4

INT32 R

×0.1º INT32 R

INT32 R

×0.1º

×0.1º

4

INT32 R

×0.1º INT32 R

×0.1º

×0.1º

×0.1º

INT32 R

4

INT32 R

INT32 R

INT32 R ×0.1º

×0.1º

×0.1º

4

INT32 R

INT32 R

×0.1º INT32 R

4

×0.1º

×0.1º

INT32 R

INT32 R

Notes

58

Description

+98,99 0x6B31

25600-25649

+0, 1 0x6C00

+2, 3 0x6C01

+4, 5 0x6C02

H50 Harmonic angle

0.2-Second RMS Values

V1 voltage

V2 voltage

V3 voltage

+6, 7 0x6C03

+8, 9 0x6C04

+10, 11 0x6C05

+12, 13 0x6C06

+14, 15 0x6C07

V4 voltage

V12 voltage

V23 voltage

V31 voltage

I1 current

+16, 17 0x6C08

+18, 19 0x6C09

I2 current

I3 current

+20, 21 0x6C0A I4 current

+22, 23 0x6C0B In current

+24, 25 0x6C0C Not used

+26, 27 0x6C0D Not used

+28, 29 0x6C0E

+30, 31 0x6C0F

Not used

Not used

+32, 33 0x6C10

+34, 35 0x6C11

+36, 37 0x6C12

+38, 39 0x6C13

+40, 41 0x6C14

+42, 43 0x6C15

+44, 45 0x6C16

Not used

Zero-sequence voltage

Zero-sequence current

Not used

Voltage unbalance

Current unbalance

Not used

+46, 47 0x6C17

+48, 49 0x6C18

25664-25713

+0, 1 0x6C80

+2, 3 0x6C81

+4, 5 0x6C82

+6, 7 0x6C83

+8, 9 0x6C84

Not used

Frequency

3-Second RMS Values

V1 voltage

V2 voltage

V3 voltage

V4 voltage

V12 voltage

+10, 11 0x6C85

+12, 13 0x6C86

+14, 15 0x6C87

+16, 17 0x6C88

V23 voltage

V31 voltage

I1 current

I2 current

+18, 19 0x6C89 I3 current

+20, 21 0x6C8A I4 current

+22, 23 0x6C8B In current

+24, 25 0x6C8C Not used

+26, 27 0x6C8D Not used

+28, 29 0x6C8E Not used

0

0-Vmax

0-Imax

0

0-3000

0-3000

0

0

0-10000

0-Vmax

0-Vmax

0-Vmax

0-V4max

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

0-I4max

0-Imax

0

0

0

U2

U2

U2

U1

U1

U1

U4

U1

U1

U1

U2

U2

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

1

1

1

Notes

59

Description

+30, 31 0x6C8F

+32, 33 0x6C90

+34, 35 0x6C91

+36, 37 0x6C92

+38, 39 0x6C93

+40, 41 0x6C94

Not used

Not used

Zero-sequence voltage

Zero-sequence current

Not used

Voltage unbalance

+42, 43 0x6C95

+44, 45 0x6C96

+46, 47 0x6C97

Current unbalance

Not used

Not used

+48, 49 0x6C98

25728-25777

Frequency

10-Minute RMS Values

+0, 1 0x6D00 V1 voltage

+2, 3 0x6D01 V2 voltage

+4, 5 0x6D02 V3 voltage

+6, 7 0x6D03 V4 voltage

+8, 9 0x6D04 V12 voltage

+10, 11 0x6D05 V23 voltage

+12, 13 0x6D06 V31 voltage

+14, 15 0x6D07 I1 current

+16, 17 0x6D08 I2 current

+18, 19 0x6D09 I3 current

+20, 21 0x6D0A I4 current

+22, 23 0x6D0B In current

+24, 25 0x6D0C Not used

+26, 27 0x6D0D Not used

+28, 29 0x6D0E Not used

+30, 31 0x6D0F Not used

+32, 33 0x6D10 Not used

+34, 35 0x6D11 Zero-sequence voltage

+36, 37 0x6D12 Zero-sequence current

+38, 39 0x6D13 Not used

+40, 41 0x6D14 Voltage unbalance

+42, 43 0x6D15 Current unbalance

+44, 45 0x6D16 Not used

+46, 47 0x6D17 Not used

+48, 49 0x6D18 Frequency

25856-25903

+0, 1 0x6E00

0.2-Second Total Harmonics

V1 THD

+2, 3 0x6E01

+4, 5 0x6E02

+6, 7 0x6E03

+8, 9 0x6E04

+10, 11 0x6E05

V2 THD

V3 THD

Not used

I1 THD

I2 THD

0-I4max

0-Imax

0

0

0

0

0

0-Vmax

0-Imax

0

0-3000

0-3000

0

0

0-10000

0-9999

0

0

0-Vmax

0-Imax

0

0-3000

0-3000

0

0

Options/Range

3

Units

3

0-10000

0-Vmax

U1

U2

×0.1%

×0.1%

Type R/W

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

×0.01Hz UINT32 R

U1 UINT32 R 1

0-Vmax

0-Vmax

0-V4max

0-Vmax

0-Vmax

0-Vmax

0-Imax

0-Imax

0-Imax

U1

U1

U4

U1

U1

U1

U2

U2

U2

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

1

1

0-9999

0-9999

0

0-9999

0-9999

U2

U2

U1

U2

×0.1%

×0.1%

×0.1%

×0.1%

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

R

R

×0.01Hz UINT32 R

UINT32 R 2 ×0.1%

×0.1%

×0.1%

UINT32 R

UINT32 R

UINT32 R

2

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

Notes

60

Description

+12, 13 0x6E06

+14, 15 0x6E07

+16, 17 0x6E08

+18, 19 0x6E09

+20, 21 0x6E0A

+22, 23 0x6E0B

I3 THD

I4 THD

V1 interharmonics THD

V2 interharmonics THD

V3 interharmonics THD

Not used

+24, 25 0x6E0C I1 interharmonics THD

+26, 27 0x6E0D I2 interharmonics THD

+28, 29 0x6E0E I3 interharmonics THD

+30, 31 0x6E0F

+32, 33 0x6E10

+34, 35 0x6E11

+36, 37 0x6E12

I4 interharmonics THD

I1 TDD

I2 TDD

I3 TDD

+38, 39 0x6E13

+40, 41 0x6E14

+42, 43 0x6E15

+44, 45 0x6E16

+46, 47 0x6E17

25920-25967

+0, 1 0x6E80

+2, 3 0x6E81

+4, 5 0x6E82

I4 TDD

I1 K-Factor

I2 K-Factor

I3 K-Factor

I4 K-Factor

3-Second Total Harmonics

V1 THD

V2 THD

V3 THD

+6, 7 0x6E83

+8, 9 0x6E84

+10, 11 0x6E85

+12, 13 0x6E86

+14, 15 0x6E87

Not used

I1 THD

I2 THD

I3 THD

I4 THD

+16, 17 0x6E88

+18, 19 0x6E89

+20, 21 0x6E8A

V1 interharmonics THD

V2 interharmonics THD

V3 interharmonics THD

+22, 23 0x6E8B

+24, 25 0x6E6E

Not used

I1 interharmonics THD

+26, 27 0x6E8D I2 interharmonics THD

+28, 29 0x6E8E I3 interharmonics THD

+30, 31 0x6E8F

+32, 33 0x6E90

+34, 35 0x6E91

I4 interharmonics THD

I1 TDD

I2 TDD

+36, 37 0x6E92

+38, 39 0x6E93

+40, 41 0x6E94

+42, 43 0x6E95

+44, 45 0x6E96

I3 TDD

I4 TDD

I1 K-Factor

I2 K-Factor

I3 K-Factor

0-9999

Options/Range

3

Units

3

×0.1%

0-9999

0-9999

0-9999

0-9999

0

×0.1%

×0.1%

×0.1%

×0.1%

0-9999

0-9999

0-9999

0-9999

0-1000

0-1000

0-1000

0-1000

10-9999

10-9999

10-9999

10-9999

0-9999

0-9999

0-9999

0

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0

0-9999

0-9999

0-9999

0-9999

0-1000

0-1000

0-1000

0-1000

10-9999

10-9999

10-9999

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1

×0.1

×0.1

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1

×0.1

×0.1

×0.1

×0.1%

Type R/W

UINT32 R

UINT32 R

UINT32 R 2

UINT32 R 2

UINT32 R 2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R 2

UINT32 R 2

UINT32 R 2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R 2

UINT32 R 2

UINT32 R

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

Notes

61

+46, 47 0x6E97

25984-26031

+0, 1 0x6F00

+2, 3 0x6F01

+4, 5 0x6F02

+6, 7 0x6F03

+8, 9 0x6F04

+10, 11 0x6F05

+12, 13 0x6F06

+14, 15 0x6F07

+16, 17 0x6F08

+18, 19 0x6F09

+20, 21 0x6F0A

+22, 23 0x6F0B

+24, 25 0x6F0C

+26, 27 0x6F0D I2 interharmonics THD

+28, 29 0x6F0E

+30, 31 0x6F0F

+32, 33 0x6F10

+34, 35 0x6F11

+36, 37 0x6F12

I4 K-Factor

10-Minute Total Harmonics

V1 THD

V2 THD

V3 THD

Not used

I1 THD

I2 THD

I3 THD

I4 THD

V1 interharmonics THD

V2 interharmonics THD

V3 interharmonics THD

Not used

I1 interharmonics THD

I3 interharmonics THD

I4 interharmonics THD

I1 TDD

I2 TDD

I3 TDD

Description

Options/Range

3

Units

3

10-9999 ×0.1

0-9999

0-9999

0-9999

0

0-9999

×0.1%

×0.1%

×0.1%

×0.1%

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0

0-9999

0-9999

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

0-9999

0-9999

0-1000

0-1000

0-1000

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

×0.1%

Type R/W

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

2

2

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

2

2

2

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

UINT32 R

Notes

+38, 39 0x6F13

+40, 41 0x6F14

+42, 43 0x6F15

+44, 45 0x6F16

I4 TDD

I1 K-Factor

I2 K-Factor

I3 K-Factor

0-1000

10-9999

10-9999

10-9999

×0.1%

×0.1

×0.1

×0.1

UINT32 R

UINT32 R

UINT32 R

UINT32 R

+46, 47 0x6F17

0x7000

0x7001

I4 K-Factor

Generic TOU Season Energy Registers

Tariff #1 register

Tariff #2 register

10-9999 ×0.1 UINT32 R

0-10

9

-1

0-10

9

-1

0.1 kWh UINT32

0.1 kWh UINT32

0x7007 Tariff #8 register

0-10

9

-1

0.1 kWh UINT32

0x7100

0x7101

Generic TOU Season Maximum Demand Registers

Tariff #1 register

Tariff #2 register

0-Pmax

0-Pmax

U3

U3

UINT32

UINT32 references

0x7107 Tariff #8 register

Generic Data

0x7403 V4 (neutral) voltage

0-Pmax U3 UINT32 references

0-Vmax

0-Vmax

U1

U1

UINT32 1

UINT32 1

0-Vmax

0-Vmax

0-Vmax

U1

U1

U1

UINT32 1

UINT32

UINT32

62

0x7418 Frequency

0x7421

0x7422

0x7423

0x1900

0x1901

...

0x1931

0x1A00

0x1A01

...

0x1A31

0x1B00

0x1B01

Description

V1 interharmonics THD

V2 interharmonics THD

V3 interharmonics THD

V1 H01 Harmonic voltage, %Un

V1 H02 Harmonic voltage, %Un

V1 H50 Harmonic voltage, %Un

V2 H01 Harmonic voltage, %Un

V2 H02 Harmonic voltage, %Un

V2 H50 Harmonic voltage, %Un

V3 H01 Harmonic voltage, %Un

V3 H02 Harmonic voltage, %Un

...

0x1B31 V3 H50 Harmonic voltage, %Un

0x6005

0x6006

0x6007

0x6008

0x600A

0x600B

0x600C

V1 Frq1 %Un, 1st signaling voltage magnitude V1

V1 Frq2 %Un, 2nd signaling voltage magnitude V1

V1 Frq3 %Un, 3rd signaling voltage magnitude V1

V1 Frq4 %Un, 4th signaling voltage magnitude V1

V2 Frq1 %Un, 1st signaling voltage magnitude V2

V2 Frq2 %Un, 2nd signaling voltage magnitude V2

V2 Frq3 %Un, 3rd signaling voltage magnitude V2

0x600D V2 Frq4 %Un, 4th signaling voltage magnitude V2

0x600F V3 Frq1 %Un, 1st signaling voltage magnitude V3

0x6010

0x6011

V3 Frq2 %Un, 2nd signaling voltage magnitude V3

V3 Frq3 %Un, 3rd signaling voltage magnitude V3

Options/Range

3

Units

3

0-Vmax

0-Vmax

U1

U1

0-Imax

0-Imax

0-Imax

0-I4max

U2

U2

U2

U2

0-3000

0-10000

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

0-10000

Type R/W

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

×0.1% UINT32

×0.01Hz UINT32

×0.1% UINT32 2

×0.1%

×0.1%

×0.1%

×0.1%

UINT32 2

UINT32 2

UINT32

UINT32

2

2

×0.1% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01

×0.01

UINT32 2

UINT32 2

×0.01

×0.01

×0.01

×0.01

UINT32 2

UINT32 2

UINT32

UINT32

2

2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

×0.01% UINT32 2

Notes

63

0x6012

Description

V3 Frq4 %Un, 4th signaling voltage magnitude V3

Options/Range

3

Units

3

0-10000

Type R/W

×0.01% UINT32 2

3

4

NOTES:

1

2

When the 4LN3, 4LL3, 3LN3 or 3LL3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line.

When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

For volts, amps, power and frequency scales and units, refer to Section 4 ”Data Scales and Units”.

Harmonic angles are referenced to the fundamental voltage harmonic H01 on phase L1.

Notes

64

3.5 Minimum/Maximum Log Registers

Description

35840-35971

+0,1

+2,3

+4,5

+6,7

+8,9

+10,11

+12,13

+14,15

0x2C00

0x2C01

0x2C02

0x2C03

Minimum Phase Values

Min. V1/V12 Voltage

Timestamp

Min. V2/V23 Voltage

Timestamp

Min. V3/V31 Voltage

Timestamp

Min. I1 Current

Timestamp

+16,17

+18,19

+20,21

+22,23

+24,25

+26,27

+28,29

+30,31

+32,33

+34,35

+36,37

+38,39

+40,41

+42,43

0x2C04

0x2C05

0x2C06

0x2C07

Min. I2 Current

Timestamp

Min. I3 Current

Timestamp

Min. kW L1

Timestamp

Min. kW L2

Timestamp

0x2C08

0x2C09

Min. kW L3

Timestamp

Min. kvar L1

Timestamp

0x2C0A Min. kvar L2

Timestamp

+44,45

+46,47

+48,49

+50,51

+52,53

+54,55

+56,57

+58,59

+60,61

+62,63

+64,65

+66,67

0x2C0B Min. kvar L3

Timestamp

0x2C0C Min. kVA L1

Timestamp

0x2C0D Min. kVA L2

Timestamp

0x2C0E Min. kVA L3

Timestamp

0x2C0F

0x2C10

+68,69

+70,71

+72,73

+74,75

0x2C11

0x2C12

+76,77 0x2C13

Min. Power factor L1

Timestamp

Min. Power factor L2

Timestamp

Min. Power factor L3

Timestamp

Min. V1/V12 Voltage THD

Timestamp

Min. V2/V23 Voltage THD

Options/Range/Format

3

Units

3

0-Vmax

F1

0-Vmax

F1

0-Vmax

F1

0-Imax

F1

U1 sec

U1 sec

U1 sec

U2 sec

Type R/W

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R sec

UINT32

UINT32

R

R

0-1000

0-1000

0-1000

0-9999

0-9999

1

1

1

Notes

sec UINT32 R sec INT32 R sec

INT32

INT32

R

R sec INT32 R sec INT32 R sec

INT32

INT32

R

R sec

INT32

INT32

R

R sec UINT32 R

×0.001 sec

×0.001 sec

×0.001 sec

×0.1% sec

×0.1% sec UINT32 R sec

UINT32

UINT32

R

R

UINT32

UINT32

UINT32

UINT32

R

R

R

R

Absolute value

Absolute value

UINT32

UINT32

R

R

Absolute value

UINT32

UINT32

R

R

2

0.2-sec value

UINT32 R

2

0.2-sec value

65

Description

+78,79

+80,81

+82,83

+84,85

+86,87

+88,89

+90,91

+92,93

+94,95

+96,97

+98,99

+100,101

+102,103

+104,105

+106,107

+108,109

+110,111

0x2C14

0x2C15

0x2C16

0x2C17

0x2C18

0x2C19

Timestamp

Min. V3/V31 Voltage THD

Timestamp

Min. I1 Current THD

Timestamp

Min. I2 Current THD

Timestamp

Min. I3 Current THD

Timestamp

Min. I1 K-Factor

Timestamp

Min. I2 K-Factor

Timestamp

0x2C1A Min. I3 K-Factor

Timestamp

0x2C1B Min. I1 Current TDD

Timestamp

+112,113

+114,115

+116,117

+118,119

+120,121

+122,123

+124,125

+126,127

+128,129

+130,131

0x2C1C Min. I2 Current TDD

Timestamp

0x2C1D Min. I3 Current TDD

Timestamp

0x2C1E Min. V12 voltage

Timestamp

0x2C1F

0x2C20

Min. V23 voltage

Timestamp

Min. V31 voltage

Timestamp

36096-36119

+0,1

+2,3

Minimum Total Values

0x2D00 Min. Total kW

Timestamp

+4,5

+6,7

+8,9

+10,11

+12,13

+14,15

0x2D01

0x2D02

0x2D03

Min. Total kvar

Timestamp

Min. Total kVA

Timestamp

Min. Total PF

Timestamp

+16,17

+18,19

+20,21

+22,23

0x2D04

0x2D05 Min. Total PF lead

36352-36371

+0,1 0x2E00

+2,3

+4,5 0x2E01

Min. Total PF lag

Timestamp

Timestamp

Minimum Auxiliary Values

Min. I4 current

Timestamp

Min. In Current

Options/Range/Format

3

Units

3

0-9999

0-9999

0-9999

0-9999

10-9999

10-9999

10-9999

0-1000

0-1000

-1000-1000

0-1000

0-1000

Type R/W Notes

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

×0.1 sec

×0.1 sec

×0.1 sec

×0.1% sec

×0.1% sec sec

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

INT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R sec

INT32

UINT32

R

R

2

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value sec

UINT32

UINT32

R

R

0.2-sec value sec UINT32 R sec UINT32 R sec

UINT32

UINT32

R

R sec

×0.001 sec

×0.001 sec

×0.001 sec

UINT32

INT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

0-Imax sec

U2

UINT32

UINT32

R

R

66

Description

+6,7

+8,9

+10,11

+12,13

0x2E02

0x2E03

+14,15

+16,17

+18,19

36864-36995

+0,1

+2,3

0x2E04

0x3400

0x3401 +4,5

+6,7

+8,9

+10,11

0x3402

+12,13

+14,15

+16,17

+18,19

+20,21

+22,23

0x3403

0x3404

0x3405

0x3406 +24,25

+26,27

+28,29

+30,31

+32,33

+34,35

+36,37

+38,39

+40,41

+42,43

+44,45

+46,47

+48,49

+50,51

0x3407

0x3408

0x3409

0x340A

0x340B

0x340C

+52,53

+54,55

+56,57

+58,59

+60,61

+62,63

+64,65

+66,67

+68,69

+70,71

Timestamp

Min. Frequency

Timestamp

Min. Voltage unbalance

Timestamp

Min. Current unbalance

Timestamp

Maximum Phase Values

Max. V1/V12 Voltage

Timestamp

Max. V2/V23 Voltage

Timestamp

Max. V3/V31 Voltage

Timestamp

Max. I1 Current

Timestamp

Max. I2 Current

Timestamp

Max. I3 Current

Timestamp

Max. kW L1

Timestamp

Max. kW L2

Timestamp

Max. kW L3

Timestamp

Max. kvar L1

Timestamp

Max. kvar L2

Timestamp

Max. kvar L3

Timestamp

Max. kVA L1

Timestamp

0x340D Max. kVA L2

Timestamp

0x340E Max. kVA L3

Timestamp

0x340F

0x3410

Max. Power factor L1

Timestamp

Max. Power factor L2

Timestamp

0x3411 Max. Power factor L3

Timestamp

Options/Range/Format

3

Units

3

0-Fmax

0-3000

0-3000

0-Vmax

×0.01Hz sec

×0.1% sec

×0.1% sec

U1 sec

Type R/W

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R sec sec sec

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

1

1

1 sec UINT32 R sec

UINT32

UINT32

R

R sec

INT32

INT32

R

R sec INT32 R sec sec

INT32

INT32

INT32

R

R

R sec

INT32

INT32

R

R sec INT32 R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R

0-1000

0-1000

0-1000 sec

×0.001 sec

×0.001 sec

×0.001 sec

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

Absolute value

Absolute value

Absolute value

Notes

67

Description

+72,73

+74,75

+76,77

+78,79

+80,81

+82,83

+84,85

+86,87

+88,89

+90,91

0x3412

0x3413

0x3414

0x3415

0x3416

Max. V1/V12 Voltage THD

Timestamp

Max. V2/V23 Voltage THD

Timestamp

Max. V3/V31 Voltage THD

Timestamp

Max. I1 Current THD

Timestamp

Max. I2 Current THD

Timestamp

+92,93

+94,95

+96,97

+98,99

+16,17

+18,19

+20,21

+22,23

0x3417

0x3418

+100,101

+102,103

+104,105

+106,107

+108,109

+110,111

+112,113

+114,115

+116,117

+118,119

+120,121

+122,123

+124,125

+126,127

+128,129

+130,131

37120-37143

0x3420

0x3500 +0,1

+2,3

+4,5

+6,7

+8,9

+10,11

+12,13

+14,15

0x3501

0x3502

0x3503

0x3419 Max. I2 K-Factor

Timestamp

0x341A

0x341B

Max. I3 K-Factor

Timestamp

Max. I1 Current TDD

Timestamp

0x341C Max. I2 Current TDD

Timestamp

0x341D Max. I3 Current TDD

Timestamp

0x341E Max. V12 voltage

Timestamp

0x341F Max. V23 voltage

Timestamp

Max. V31 voltage

Timestamp

Maximum Total Values

Max. Total kW

Timestamp

Max. Total kvar

Timestamp

Max. Total kVA

Timestamp

Max. Total PF

Timestamp

0x3504

0x3505

Max. I3 Current THD

Timestamp

Max. I1 K-Factor

Timestamp

Max. Total PF lag

Timestamp

Max. Total PF lead

Timestamp

Options/Range/Format

3

Units

3

0-9999

0-9999

×0.1% sec

×0.1% sec

0-9999

0-9999

0-9999

0-9999

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

10-9999

10-9999

×0.1 sec

×0.1 sec

10-9999

0-1000

0-1000

0-1000

×0.1 sec

×0.1% sec

×0.1% sec

×0.1% sec

Type R/W

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

Notes

2

0.2-sec value

2

0.2-sec value

2

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value

0.2-sec value sec UINT32 R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec

INT32

UINT32

R

R sec UINT32 R

-1000-1000

0-1000

0-1000 sec

×0.001 sec

×0.001 sec

×0.001 sec

UINT32

INT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

68

Description

37376-37395

+0,1 0x3600

+2,3

+4,5

+6,7

0x3601

0x3602 +8,9

+10,11

+12,13

+14,15

0x3603

Maximum Auxiliary Values

Max. I4 current

Timestamp

Max. In Current

Timestamp

Max. Frequency

Timestamp

Max. Voltage unbalance

Timestamp

+16,17

+18,19

0x3604

37504-37543

+0,1

+2,3

0x4780

+4,5

+6,7

0x4781

Max. Current unbalance

Timestamp

Billing/Summary Energy Maximum Demands

Summary register #1 Maximum Demand

Timestamp

Summary register #2 Maximum Demand

Timestamp

+36,37

+38,39

0x4789

37632-37715

+0,1 0x3700

+2,3

+4,5

+6,7

+8,9

+10,11

0x3701

0x3702

0x3703 +12,13

+14,15

+16,17

+18,19

+20,21

+22,23

+24,25

+26,27

+28,29

+30,31

+32,33

+34,35

+36,37

+38,39

+40,41

+42,43

+44,45

+46,47

0x3704

0x3705

0x3706

0x3707

0x3708

0x3709

0x370A

0x370B

Summary register #10 Maximum Demand

Timestamp

Engineering Maximum Demands

V1/V12 Maximum volt demand

Timestamp

V2/V23 Maximum volt demand

Timestamp

V3/V31 Maximum volt demand

Timestamp

I1 Maximum ampere demand

Timestamp

I2 Maximum ampere demand

Timestamp

I3 Maximum ampere demand

Timestamp

Not used

Timestamp

Not used

Timestamp

Not used

Timestamp

Maximum kW import sliding window demand

Timestamp

Maximum kvar import sliding window demand

Timestamp

Maximum kVA sliding window demand

Timestamp

Options/Range/Format

0-Fmax

0-3000

0-3000

3

Units

3

Type R/W

sec UINT32 R sec

UINT32

UINT32

R

R

×0.01Hz sec

×0.1% sec

UINT32

UINT32

UINT32

UINT32

R

R

R

R

×0.1% sec

UINT32

UINT32

R

R

Notes

1 sec UINT32 R

1 sec UINT32 R

1 sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec UINT32 R sec UINT32 R

UINT32

UINT32

R

R

UINT32 R

UINT32 R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec UINT32 R

69

Description

+12,13

+14,15

+16,17

+18,19

+20,21

+22,23

+24,25

+26,27

+28,29

+30,31

+32,33

+34,35

+36,37

+38,39

+40,41

+42,43

+44,45

+46,47

+48,49

+50,51

+52,53

+54,55

+56,57

+58,59

+60,61

+62,63

+64,65

+66,67

+68,69

+70,71

+72,73

+74,75

+76,77

+78,79

+80,81

+82,83

0x3737

0x370D Not used

Timestamp

0x370E Not used

Timestamp

0x370F

Not used

Timestamp

0x3710

Maximum kW export sliding window demand

Timestamp

Maximum kvar export sliding window demand

Timestamp

0x3737

0x3712

0x3713

0x3714

Not used

Timestamp

Not used

Timestamp

Not used

Timestamp

I4 Maximum ampere demand

Timestamp

38016-38063

+0,1

+2,3

0x3880

0x3881 +4,5

+6,7

+8,9

+10,11

0x3882

Maximum Harmonic Demands

V1/V12 THD demand

Timestamp

V2/V23 THD demand

Timestamp

V3/V31 THD demand

Timestamp

0x3884

0x3885

0x3886

0x3887

0x3888

0x3889

0x388A

0x388B

I1 THD demand

Timestamp

I2 THD demand

Timestamp

I3 THD demand

Timestamp

I4 THD demand

Timestamp

I1 TDD demand

Timestamp

I2 TDD demand

Timestamp

I3 TDD demand

Timestamp

I4 TDD demand

Timestamp

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-9999

0-1000

0-1000

0-1000

0-1000

Options/Range/Format

3

Units

3

Type R/W

2

2

2

Notes

UINT32 R

UINT32

UINT32

R

R sec

UINT32 R

UINT32 R sec

UINT32

UINT32

R

R

UINT32

UINT32

R

R

UINT32 R

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

×0.1% sec

UINT32 R sec

UINT32

UINT32

R

R

×0.1% sec

×0.1% sec

×0.1% sec

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

UINT32

UINT32

R

R

R

R

70

Description

38144-38175

+0,1 0x4800

+2,3

+4,5

+6,7

0x4801

Billing/TOU Maximum Demand Register #1

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

+4,5

+6,7

0x4807 Tariff #8 maximum demand

Timestamp

38400-38431

+0,1

+2,3

0x4900

0x4901

Billing/TOU Maximum Demand Register #2

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

38656-38687

0x4907 Tariff #8 maximum demand

Timestamp

Billing/TOU Maximum Demand Register #3

+0,1

+2,3

+4,5

+6,7

0x4A00

0x4A01

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

38272-38313

+0,1

+2,3

+4,5

+6,7

0x4A07 Tariff #8 maximum demand

Timestamp

Billing/TOU Maximum Demand Register #4

0x4880

0x4881

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

+4,5

+6,7

0x4887 Tariff #8 maximum demand

Timestamp

38528-38559

+0,1

+2,3

0x4980

0x4981

Billing/TOU Maximum Demand Register #5

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

0x4987

38784-38815

+0,1 0x4A80

+2,3

+4,5 0x4A81

Tariff #8 maximum demand

Timestamp

Billing/TOU Maximum Demand Register #6

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Options/Range/Format

3

Units

3

Type R/W

sec UINT32 R sec

UINT32

UINT32

R

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec UINT32 R

R sec UINT32 R

0-Pmax sec UINT32 R sec

UINT32

UINT32

R

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R

R sec

UINT32

UINT32

R

R sec

U3

UINT32

UINT32

R

R

Notes

71

Description

+6,7 Timestamp

+28,29

+30,31

38912-38943

0x4A87 Tariff #8 maximum demand

Timestamp

Billing/TOU Maximum Demand Register #7

+0,1

+2,3

+4,5

+6,7

0x5300

0x5301

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

39040-39071

+0,1

+2,3

+4,5

+6,7

0x5307 Tariff #8 maximum demand

Timestamp

Billing/TOU Maximum Demand Register #8

0x5380

0x5381

Tariff #1 maximum demand

Timestamp

Tariff #2 maximum demand

Timestamp

+28,29

+30,31

0x5387 Tariff #8 maximum demand

Timestamp

39168-39299

+0,1

+2,3

0x5400

Billing/TOU Maximum Demand Register #9

Tariff #1 register

Timestamp

+4,5

+6,7

+6,7

0x5401 Tariff #2 register

Timestamp

0x5407 Tariff #8 register +28,29

+30,31

39296-39327

+0,1 0x5480

+2,3

+4,5 0x5481

Timestamp

Billing/TOU Maximum Demand Register #10

Tariff #1 register

Timestamp

Tariff #2 register

Timestamp

+28,29

+30,31

0x5487 Tariff #8 register

Timestamp

Options/Range/Format

0-Pmax

3

Units

3

Type R/W

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R

U3 sec

UINT32

UINT32

R

R sec UINT32 R

R sec UINT32 R sec

UINT32

UINT32

R

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R sec

UINT32

UINT32

R

R

R sec UINT32 R sec UINT32 R sec UINT32 R

R sec UINT32 R

NOTES:

1

2

3

When the 4LN3, 4LL3, 3LN3 or 3LL3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line.

When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

For volts, amps, power and frequency scales and units, refer to Section 4 ”Data Scales and Units”.

Notes

72

3.6 Billing Period Data

Address Point ID

40410

40411

40412-41135

41136-41859

Description

Billing period counter

Number of available billing periods

Present billing period data

Previous (most recent) billing period data

0-99

0-4

UINT16

UINT16

R

R

41860-42583

42584-43307

43308-44031

+0-723

Second previous billing period data

Third previous billing period data

Fourth previous billing period data

Billing period data structure

+0,1

+2,3

Billing period timestamp

Billing period duration

F1 UINT32 seconds UINT32

R

R

+4,5 0x1780 Register 1 total energy 0-999,999,999

+6,7 0x1781 Register 2 total energy 0-999,999,999

+8,9 0x1782 Register 3 total energy 0-999,999,999

+10,11 0x1783 Register 4 total energy 0-999,999,999

+12,13 0x1784 Register 5 total energy 0-999,999,999

+14,15 0x1785 Register 6 total energy 0-999,999,999

+16,17 0x1786 Register 7 total energy 0-999,999,999

+18,19 0x1787 Register 8 total energy 0-999,999,999

+20,21 0x1788 Register 9 total energy 0-999,999,999

+22,23 0x1789 kWh

+24,25 0x4780 Register 1 total maximum demand 0-Pmax U3 UINT32 R

+26,27 0x7700 Register 1 total maximum demand timestamp

+28,29 0x4781 Register 2 total maximum demand

+30,31 0x7700 Register 2 total maximum demand timestamp

+32,33 0x4782 Register 3 total maximum demand

+34,35 0x7700 Register 3 total maximum demand timestamp

+36,37 0x4783 Register 4 total maximum demand

+38,39 0x7700 Register 4 total maximum demand timestamp

+40,41 0x4784 Register 5 total maximum demand

+42,43 0x7700 Register 5 total maximum demand timestamp

+44,45 0x4785 Register 6 total maximum demand

+46,47 0x7700 Register 6 total maximum demand timestamp

+48,49 0x4786 Register 7 total maximum demand

+50,51 0x7700 Register 7 total maximum demand timestamp

+52,53 0x4787 Register 8 total maximum demand

+54,55 0x7700 Register 8 total maximum demand timestamp

+56,57 0x4788 Register 9 total maximum demand

+58,59 0x7700 Register 9 total maximum demand timestamp

+60,61 0x4789 Register 10 total maximum demand

+62,63 0x7700 Register 10 total maximum demand timestamp

+64,65 0x4790 Register 1 total cumulative maximum demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-999,999,999

U3

F1

U3

F1

U3

F1

U3

F1

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

Notes

73

Address Point ID Description

+66,67 0x4791 Register 2 total cumulative maximum demand

+68,69 0x4792 Register 3 total cumulative maximum demand

+70,71 0x4793 Register 4 total cumulative maximum demand

+72,73 0x4794 Register 5 total cumulative maximum demand

+74,75 0x4795 Register 6 total cumulative maximum demand

+76,77 0x4796 Register 7 total cumulative maximum demand

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

U3

U3

U3

U3

U3

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

+78,79 0x4797 Register 8 total cumulative maximum demand

+80,81 0x4798 Register 9 total cumulative maximum demand

0-999,999,999

0-999,999,999

U3

U3

UINT32

UINT32

R

R

+82,83 0x4799 Register 10 total cumulative maximum demand 0-999,999,999 U3 UINT32 R

+84,85 0x3D00 Register 1 tariff #1 energy 0-999,999,999

+86,87 0x3D01 Register 1 tariff #2 energy 0-999,999,999

+88,89 0x3D02 Register 1 tariff #3 energy 0-999,999,999

+90,91 0x3D03 Register 1 tariff #4 energy 0-999,999,999

+92,93 0x3D04 Register 1 tariff #5 energy 0-999,999,999

+94,95 0x3D05 Register 1 tariff #6 energy 0-999,999,999

+96,97 0x3D06 Register 1 tariff #7 energy 0-999,999,999

+98,99 0x3D07 kWh

+100,101 0x3E00

+102,103 0x3E01

+104,105 0x3E02

+106,107 0x3E03

+108,109 0x3E04

+110,111 0x3E05

+112,113 0x3E06

+114,115 0x3E07

+116,117 0x3F00

+118,119 0x3F01

+120,121 0x3F02

+122,123 0x3F03

+124,125 0x3F04

+126,127 0x3F05

+128,129 0x3F06

+130,131 0x3F07

+132,133 0x4000

+134,135 0x4001

+136,137 0x4002

+138,139 0x4003

+140,141 0x4004

+142,143 0x4005

+144,145 0x4006

+146,147 0x4007

+148,149 0x4100

Notes

74

Address Point ID

+150,151 0x4101

+152,153 0x4102

+154,155 0x4103

+156,157 0x4104

+158,159 0x4105

+160,161 0x4106

+162,163 0x4107

+164,165 0x4200

+166,167 0x4201

+168,169 0x4202

+170,171 0x4203

+172,173 0x4204

+174,175 0x4205

+176,177 0x4206

+178,179 0x4207

+180,181 0x4300

+182,183 0x4301

+184,185 0x4302

+186,187 0x4303

+188,189 0x4304

+190,191 0x4305

+192,193 0x4306

+194,195 0x4307

+196,197 0x4400

+198,199 0x4401

+200,201 0x4402

+202,203 0x4403

+204,205 0x4404

+206,207 0x4405

+208,209 0x4406

+210,211 0x4407

Description

+212,213 0x4B00

+214,215 0x4B01

+216,217 0x4B02

+218,219 0x4B03

+220,221 0x4B04

+222,223 0x4B05

+224,225 0x4B06

+226,227 0x4B07

+228,229 0x4C00 Register 10 tariff #1 energy 0-999,999,999

+230,231 0x4C01 Register 10 tariff #2 energy 0-999,999,999

+232,233 0x4C02 Register 10 tariff #3 energy 0-999,999,999

+234,235 0x4C03 kWh

Notes

75

Address Point ID Description

+236,237 0x4C04 Register 10 tariff #5 energy 0-999,999,999

+238,239 0x4C05 Register 10 tariff #6 energy 0-999,999,999

+240,241 0x4C06 Register 10 tariff #7 energy 0-999,999,999

+242,243 0x4C07 kWh

+244,245 0x4800

+246,247 0x7701

Register 1 tariff #1 maximum demand

Register 1 tariff #1 maximum demand timestamp

0-Pmax U3

F1

UINT32

UINT32

R

R

+248,249 0x4801

+250,251 0x7702

+252,253 0x4802

+254,255 0x7703

+256,257 0x4803

+258,259 0x7704

+260,261 0x4804

+262,263 0x7705

+264,265 0x4805

+266,267 0x7786

+268,269 0x4806

+270,271 0x7707

+272,273 0x4807

+274,275 0x7708

+276,277 0x4900

+278,279 0x7701

+280,281 0x4901

Register 1 tariff #2 maximum demand

Register 1 tariff #2 maximum demand timestamp

Register 1 tariff #3 maximum demand

Register 1 tariff #3 maximum demand timestamp

Register 1 tariff #4 maximum demand

Register 1 tariff #4 maximum demand timestamp

Register 1 tariff #5 maximum demand

Register 1 tariff #5 maximum demand timestamp

Register 1 tariff #6 maximum demand

Register 1 tariff #6 maximum demand timestamp

Register 1 tariff #7 maximum demand

Register 1 tariff #7 maximum demand timestamp

Register 1 tariff #8 maximum demand

Register 1 tariff #8 maximum demand timestamp

Register 2 tariff #1 maximum demand

Register 2 tariff #1 maximum demand timestamp

Register 2 tariff #2 maximum demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

+282,283 0x7702

+284,285 0x4902

+286,287 0x7703

+288,289 0x4903

+290,291 0x7704

+292,293 0x4904

+294,295 0x7705

+296,297 0x4905

+298,299 0x7786

+300,301 0x4906

+302,303 0x7707

+304,305 0x4907

+306,307 0x7708

+308,309 0x4A00

+310,311 0x7701

+312,313 0x4A01

+314,315 0x7702

+316,317 0x4A02

+318,319 0x7703

Register 2 tariff #2 maximum demand timestamp

Register 2 tariff #3 maximum demand

Register 2 tariff #3 maximum demand timestamp

Register 2 tariff #4 maximum demand

Register 2 tariff #4 maximum demand timestamp

Register 2 tariff #5 maximum demand

Register 2 tariff #5 maximum demand timestamp

Register 2 tariff #6 maximum demand

Register 2 tariff #6 maximum demand timestamp

Register 2 tariff #7 maximum demand

Register 2 tariff #7 maximum demand timestamp

Register 2 tariff #8 maximum demand

Register 2 tariff #8 maximum demand timestamp

Register 3 tariff #1 maximum demand

Register 3 tariff #1 maximum demand timestamp

Register 3 tariff #2 maximum demand

Register 3 tariff #2 maximum demand timestamp

Register 3 tariff #3 maximum demand

Register 3 tariff #3 maximum demand timestamp

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

F1

U3

F1

U3

F1

U3

F1

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

Notes

76

Address Point ID

+320,221 0x4A03

+322,323 0x7704

+324,325 0x4A04

+326,327 0x7705

+328,329 0x4A05

+330,331 0x7786

+332,333 0x4A06

+334,335 0x7707

+336,337 0x4A07

+338,339 0x7708

+340,341 0x4880

+342,343 0x7701

+344,345 0x4881

+346,347 0x7702

+348,349 0x4882

+350,351 0x7703

+352,353 0x4883

+354,355 0x7704

+356,357 0x4884

+358,359 0x7705

+360,361 0x4885

+362,363 0x7786

+364,365 0x4886

+366,367 0x7707

+368,369 0x4887

+370,371 0x7708

+372,373 0x4980

+374,375 0x7701

+376,377 0x4981

+378,379 0x7702

+380,381 0x4982

+382,383 0x7703

+384,385 0x4983

+386,387 0x7704

+388,389 0x4984

+390,391 0x7705

+392,393 0x4985

+394,395 0x7786

+396,397 0x4986

+398,399 0x7707

+400,401 0x4987

+402,403 0x7708

+404,405 0x4A80

Description

Register 3 tariff #4 maximum demand

Register 3 tariff #4 maximum demand timestamp

Register 3 tariff #5 maximum demand

Register 3 tariff #5 maximum demand timestamp

Register 3 tariff #6 maximum demand

Register 3 tariff #6 maximum demand timestamp

Register 3 tariff #7 maximum demand

Register 3 tariff #7 maximum demand timestamp

Register 3 tariff #8 maximum demand

Register 3 tariff #8 maximum demand timestamp

Register 4 tariff #1 maximum demand

Register 4 tariff #1 maximum demand timestamp

Register 4 tariff #2 maximum demand

Register 4 tariff #2 maximum demand timestamp

Register 4 tariff #3 maximum demand

Register 4 tariff #3 maximum demand timestamp

Register 4 tariff #4 maximum demand

Register 4 tariff #4 maximum demand timestamp

Register 4 tariff #5 maximum demand

Register 4 tariff #5 maximum demand timestamp

Register 4 tariff #6 maximum demand

Register 4 tariff #6 maximum demand timestamp

Register 4 tariff #7 maximum demand

Register 4 tariff #7 maximum demand timestamp

Register 4 tariff #8 maximum demand

Register 4 tariff #8 maximum demand timestamp

Register 5 tariff #1 maximum demand

Register 5 tariff #1 maximum demand timestamp

Register 5 tariff #2 maximum demand

Register 5 tariff #2 maximum demand timestamp

Register 5 tariff #3 maximum demand

Register 5 tariff #3 maximum demand timestamp

Register 5 tariff #4 maximum demand

Register 5 tariff #4 maximum demand timestamp

Register 5 tariff #5 maximum demand

Register 5 tariff #5 maximum demand timestamp

Register 5 tariff #6 maximum demand

Register 5 tariff #6 maximum demand timestamp

Register 5 tariff #7 maximum demand

Register 5 tariff #7 maximum demand timestamp

Register 5 tariff #8 maximum demand

Register 5 tariff #8 maximum demand timestamp

Register 6 tariff #1 maximum demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

F1

U3

F1

U3

F1

U3

F1

U3

U3

F1

U3

F1

U3

F1

U3

F1

U3

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

Notes

77

Address Point ID

+406,407 0x7701

+408,409 0x4A81

+410,411 0x7702

+412,413 0x4A82

+414,415 0x7703

+416,417 0x4A83

+418,419 0x7704

+420,421 0x4A84

+422,423 0x7705

+424,425 0x4A85

+426,427 0x7786

+428,429 0x4A86

+430,431 0x7707

+432,433 0x4A87

+434,435 0x7708

+436,437 0x5300

+438,439 0x7701

+440,441 0x5301

+442,443 0x7702

+444,445 0x5302

+446,447 0x7703

+448,449 0x5303

+450,451 0x7704

+452,453 0x5304

+454,455 0x7705

+456,457 0x5305

+458,459 0x7786

+460,461 0x5306

+462,463 0x7707

+464,465 0x5307

+466,467 0x7708

+468,469 0x5380

+470,471 0x7701

+472,473 0x5381

+474,475 0x7702

+476,477 0x5382

+478,479 0x7703

+480,481 0x5383

+482,483 0x7704

+484,485 0x5384

+486,487 0x7705

+488,489 0x5385

Description

Register 6 tariff #1 maximum demand timestamp

Register 6 tariff #2 maximum demand

Register 6 tariff #2 maximum demand timestamp

Register 6 tariff #3 maximum demand

Register 6 tariff #3 maximum demand timestamp

Register 6 tariff #4 maximum demand

Register 6 tariff #4 maximum demand timestamp

Register 6 tariff #5 maximum demand

Register 6 tariff #5 maximum demand timestamp

Register 6 tariff #6 maximum demand

Register 6 tariff #6 maximum demand timestamp

Register 6 tariff #7 maximum demand

Register 6 tariff #7 maximum demand timestamp

Register 6 tariff #8 maximum demand

Register 6 tariff #8 maximum demand timestamp

Register 7 tariff #1 maximum demand

Register 7 tariff #1 maximum demand timestamp

Register 7 tariff #2 maximum demand

Register 7 tariff #2 maximum demand timestamp

Register 7 tariff #3 maximum demand

Register 7 tariff #3 maximum demand timestamp

Register 7 tariff #4 maximum demand

Register 7 tariff #4 maximum demand timestamp

Register 7 tariff #5 maximum demand

Register 7 tariff #5 maximum demand timestamp

Register 7 tariff #6 maximum demand

Register 7 tariff #6 maximum demand timestamp

Register 7 tariff #7 maximum demand

Register 7 tariff #7 maximum demand timestamp

Register 7 tariff #8 maximum demand

Register 7 tariff #8 maximum demand timestamp

Register 8 tariff #1 maximum demand

Register 8 tariff #1 maximum demand timestamp

Register 8 tariff #2 maximum demand

Register 8 tariff #2 maximum demand timestamp

Register 8 tariff #3 maximum demand

Register 8 tariff #3 maximum demand timestamp

Register 8 tariff #4 maximum demand

Register 8 tariff #4 maximum demand timestamp

Register 8 tariff #5 maximum demand

Register 8 tariff #5 maximum demand timestamp

Register 8 tariff #6 maximum demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

U3

F1

U3

F1

U3

F1

U3

F1

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

Notes

78

Address Point ID

+490,491 0x7786

+492,493 0x5386

+494,495 0x7707

+496,497 0x5387

+498,499 0x7708

+500,501 0x5400

+502,503 0x7701

+504,505 0x5401

+506,507 0x7702

+508,509 0x5402

+510,511 0x7703

+512,513 0x5403

+514,215 0x7704

+516,517 0x5404

+518,519 0x7705

+520,521 0x5405

+522,523 0x7786

+524,525 0x5406

+526,527 0x7707

+528,529 0x5407

+530,531 0x7708

+532,533 0x5480

+534,535 0x7701

+536,537 0x5481

+538,539 0x7702

+540,541 0x5482

+542,543 0x7703

+544,545 0x5483

+546,547 0x7704

+548,549 0x5484

+550,551 0x7705

+552,553 0x5485

+554,555 0x7786

+556,557 0x5486

+558,559 0x7707

+560,561 0x5487

+562,563 0x7708

+564,565 0x4810

+566,567 0x4811

+568,569 0x4812

+570,571 0x4813

+572,573 0x4814

+574,575 0x4815

Description

Register 8 tariff #6 maximum demand timestamp

Register 8 tariff #7 maximum demand

Register 8 tariff #7 maximum demand timestamp

Register 8 tariff #8 maximum demand

Register 8 tariff #8 maximum demand timestamp

Register 9 tariff #1 maximum demand

Register 9 tariff #1 maximum demand timestamp

Register 9 tariff #2 maximum demand

Register 9 tariff #2 maximum demand timestamp

Register 9 tariff #3 maximum demand

Register 9 tariff #3 maximum demand timestamp

Register 9 tariff #4 maximum demand

Register 9 tariff #4 maximum demand timestamp

Register 9 tariff #5 maximum demand

Register 9 tariff #5 maximum demand timestamp

Register 9 tariff #6 maximum demand

Register 9 tariff #6 maximum demand timestamp

Register 9 tariff #7 maximum demand

Register 9 tariff #7 maximum demand timestamp

Register 9 tariff #8 maximum demand

Register 9 tariff #8 maximum demand timestamp

Register 10 tariff #1 maximum demand

Register 10 tariff #1 maximum demand timestamp

Register 10 tariff #2 maximum demand

Register 10 tariff #2 maximum demand timestamp

Register 10 tariff #3 maximum demand

Register 10 tariff #3 maximum demand timestamp

Register 10 tariff #4 maximum demand

Register 10 tariff #4 maximum demand timestamp

Register 10 tariff #5 maximum demand

Register 10 tariff #5 maximum demand timestamp

Register 10 tariff #6 maximum demand

Register 10 tariff #6 maximum demand timestamp

Register 10 tariff #7 maximum demand

Register 10 tariff #7 maximum demand timestamp

Register 10 tariff #8 maximum demand

Register 10 tariff #8 maximum demand timestamp

Register 1 tariff #1 cumulative maximum demand

Register 1 tariff #2 cumulative maximum demand

Register 1 tariff #3 cumulative maximum demand

Register 1 tariff #4 cumulative maximum demand

Register 1 tariff #5 cumulative maximum demand

Register 1 tariff #6 cumulative maximum demand

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

U3

F1

U3

F1

U3

F1

U3

F1

F1

U3

F1

U3

F1

U3

F1

U3

F1

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

F1

U3

U3

F1

U3

F1

U3

F1

U3

U3

U3

U3

U3

U3

Notes

79

Address Point ID

+576,577 0x4816

+578,579 0x4817

+580,581 0x4910

+582,583 0x4911

+584,585 0x4912

+586,587 0x4913

+588,589 0x4914

+590,591 0x4915

+592,593 0x4916

+594,595 0x4917

+596,597 0x4A10

+598,599 0x4A11

+600,601 0x4A12

+602,603 0x4A13

+604,605 0x4A14

+606,607 0x4A15

+608,609 0x4A16

+610,611 0x4A17

+612,613 0x4890

+614,615 0x4891

+616,617 0x4892

+618,619 0x4893

+620,621 0x4894

+622,623 0x4895

+624,625 0x4896

+626,627 0x4897

+628,629 0x4990

+630,631 0x4991

+632,633 0x4992

+634,635 0x4993

+636,637 0x4994

+638,639 0x4995

+640,641 0x4996

+642,643 0x4997

+644,645 0x4A90

+646,647 0x4A91

+648,649 0x4A92

+650,651 0x4A93

+652,653 0x4A94

+654,655 0x4A95

+656,657 0x4A96

+658,659 0x4A97

Description

Register 1 tariff #7 cumulative maximum demand

Register 1 tariff #8 cumulative maximum demand

Register 2 tariff #1 cumulative maximum demand

Register 2 tariff #2 cumulative maximum demand

Register 2 tariff #3 cumulative maximum demand

Register 2 tariff #4 cumulative maximum demand

Register 2 tariff #5 cumulative maximum demand

Register 2 tariff #6 cumulative maximum demand

Register 2 tariff #7 cumulative maximum demand

Register 2 tariff #8 cumulative maximum demand

Register 3 tariff #1 cumulative maximum demand

Register 3 tariff #2 cumulative maximum demand

Register 3 tariff #3 cumulative maximum demand

Register 3 tariff #4 cumulative maximum demand

Register 3 tariff #5 cumulative maximum demand

Register 3 tariff #6 cumulative maximum demand

Register 3 tariff #7 cumulative maximum demand

Register 3 tariff #8 cumulative maximum demand

Register 4 tariff #1 cumulative maximum demand

Register 4 tariff #2 cumulative maximum demand

Register 4 tariff #3 cumulative maximum demand

Register 4 tariff #4 cumulative maximum demand

Register 4 tariff #5 cumulative maximum demand

Register 4 tariff #6 cumulative maximum demand

Register 4 tariff #7 cumulative maximum demand

Register 4 tariff #8 cumulative maximum demand

Register 5 tariff #1 cumulative maximum demand

Register 5 tariff #2 cumulative maximum demand

Register 5 tariff #3 cumulative maximum demand

Register 5 tariff #4 cumulative maximum demand

Register 5 tariff #5 cumulative maximum demand

Register 5 tariff #6 cumulative maximum demand

Register 5 tariff #7 cumulative maximum demand

Register 5 tariff #8 cumulative maximum demand

Register 6 tariff #1 cumulative maximum demand

Register 6 tariff #2 cumulative maximum demand

Register 6 tariff #3 cumulative maximum demand

Register 6 tariff #4 cumulative maximum demand

Register 6 tariff #5 cumulative maximum demand

Register 6 tariff #6 cumulative maximum demand

Register 6 tariff #7 cumulative maximum demand

Register 6 tariff #8 cumulative maximum demand

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

Notes

80

Address Point ID

+660,661 0x5310

+662,663 0x5311

+664,665 0x5312

+666,667 0x5313

+668,669 0x5314

+670,671 0x5315

+672,673 0x5316

+674,675 0x5317

+676,677 0x5390

+678,679 0x5391

+680,681 0x5392

+682,683 0x5393

+684,685 0x5394

+686,687 0x5395

+688,689 0x5396

+690,691 0x5397

+692,693 0x5410

+694,695 0x5411

+696,697 0x5412

+698,699 0x5413

+700,701 0x5414

+702,703 0x5415

+704,705 0x5416

+706,707 0x5417

+708,709 0x5490

+710,711 0x5491

+712,713 0x5492

+714,715 0x5493

+716,717 0x5494

+718,719 0x5495

+720,721 0x5496

+722,723 0x5497

Description

Register 7 tariff #1 cumulative maximum demand

Register 7 tariff #2 cumulative maximum demand

Register 7 tariff #3 cumulative maximum demand

Register 7 tariff #4 cumulative maximum demand

Register 7 tariff #5 cumulative maximum demand

Register 7 tariff #6 cumulative maximum demand

Register 7 tariff #7 cumulative maximum demand

Register 7 tariff #8 cumulative maximum demand

Register 8 tariff #1 cumulative maximum demand

Register 8 tariff #2 cumulative maximum demand

Register 8 tariff #3 cumulative maximum demand

Register 8 tariff #4 cumulative maximum demand

Register 8 tariff #5 cumulative maximum demand

Register 8 tariff #6 cumulative maximum demand

Register 8 tariff #7 cumulative maximum demand

Register 8 tariff #8 cumulative maximum demand

Register 9 tariff #1 cumulative maximum demand

Register 9 tariff #2 cumulative maximum demand

Register 9 tariff #3 cumulative maximum demand

Register 9 tariff #4 cumulative maximum demand

Register 9 tariff #5 cumulative maximum demand

Register 9 tariff #6 cumulative maximum demand

Register 9 tariff #7 cumulative maximum demand

Register 9 tariff #8 cumulative maximum demand

Register 10 tariff #1 cumulative maximum demand

Register 10 tariff #2 cumulative maximum demand

Register 10 tariff #3 cumulative maximum demand

Register 10 tariff #4 cumulative maximum demand

Register 10 tariff #5 cumulative maximum demand

Register 10 tariff #6 cumulative maximum demand

Register 10 tariff #7 cumulative maximum demand

Register 10 tariff #8 cumulative maximum demand

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

0-999,999,999

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

Notes

81

3.7 Device Control and Status Registers

Description

User Event Flags Registers (bit map)

44032-44033 Event flags set register (0 = no effect, 1 = set)

44034-44035

44036-44037

Event flags clear register (0=clear, 1 = no effect)

Event flags status (0 = cleared, 1 = set)

Remote Relay Control Registers (bit map)

0x00000000 - 0x000000FF

0x00000000 - 0x000000FF

0x00000000 - 0x000000FF

UINT32

UINT32

UINT32

W

W

R

Notes

44046-44047

44050-44051

44054-44055

44058-44059

Force relay operate register

(0 = no effect, 1 = operate)

Force relay release register

(0 = no effect, 1 = release)

Locally latched relays status

(0 = unlatched, 1 = locally latched)

Remote latched relays status

(0 = unlatched, 1 = remote latched)

Remote relay control disabled status (0 = remote control enabled, 1 = remote control disabled)

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF

UINT16

44062-44063 UINT32 R Remote relay control is disabled if the internal pulse source is linked to the relay

44066-44067

44070-44071

44074-44075

Relay status (0 = open, 1 = closed)

Latch relays (0 = not latched mode, 1 = latched mode)

Pulse relays (0 = not pulse mode, 1 = pulse mode)

44104 Reserved

44105

44106

Clear Billing/TOU maximum demands

Clear counters

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF

0x00000000 - 0x00000FFF 44078-44079 KYZ relays (0 = not KYZ mode, 1 = KYZ mode)

44082-44083 Relay polarity (0 = normal mode, 1 = inverting mode) 0x00000000 - 0x00000FFF

44086-44101 Reserved

Reset/Clear Registers

44102 Reserved

44103 Clear maximum demands 0 = clear all maximum demands

1 = clear power demands

2 = clear volt and ampere demands

3 = clear volt demands

4 = clear ampere demands

5 = clear harmonic demands

0

44107

44108

Clear Min/Max log

Clear accumulators/event counters

0 = clear all counters,

1-8 = clear counter #1-#8

0

0 = clear EN50160 counters

UINT32 R

UINT32 R

UINT32

UINT16

UINT16

UINT16 W

UINT16

UINT16

W

W

82

Description Notes

44109-44133 Reserved

Device Mode Control Registers

44134-44135 Reserved

44136

44137

PQ recorder

Fault recorder

44138-44165 Reserved

Operation/Event Counters

44198-44199

44200-44201

44202-44203

44204-44205

44206-44207

44208-44209

44210-44211

Device’s start of operation date

Device operation time

Lithium battery’s start of operation date

Lithium battery operation time

Auxiliary NiMH battery’s start of operation date

Auxiliary NiMH battery pack operation time

Device out-of-service time

1 = clear device diagnostics

2 = clear device operation time

3 = clear lithium battery operation time

4 = clear auxiliary NiMH battery pack operation time

5 = clear power fault counters

0 = disabled, 1 = enabled

0 = disabled, 1 = enabled

F1

F1

F1

0-65535

0-65535

UINT16

UINT16

UINT16 R/W sec sec sec sec

UINT16

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT16

R

R

R

R

R

R

R

R

R

44212-44213

44214-44215

Device power failure counter

Power interruption counter

44216-44261 Reserved

Memory Status Registers

44262-44263

44264-44265

Memory size, bytes

Free memory, bytes

44266-44277 Reserved

Log Notification Registers (bit map)

UINT32

UINT32

R

R

44278-44279 Files 0-31 (0 = no new logs, 1 = new record logged) 0x00000000 - 0xFFFFFFFF UINT32 R

44280-44293 Reserved 0

Setpoint Status Registers (bit map)

44294-44295 Setpoints 1-16 status (0 = released, 1 = operated) 0x00000000 - 0x0000FFFF UINT32 R

44296-44309 Reserved

Setpoint Alarm Latch Registers (bit map)

44310-44311 Setpoints 1-16 alarm status. When read: 0 = no setpoint operations logged, 1 = setpoint has been operated at least once since the last alarm bit reset.

When written: 0 = clear setpoint alarm bit, 1 = no effect.

44312-44325 Reserved

Device Diagnostics Register (bit map)

0x00000000 - 0x0000FFFF UINT32 R/W

44326-44327 Device self-diagnostics flags.

When read: 0 = no faults logged, 1 = a fault bit has

F23

83

When written: 0 = clear a fault bit, 1 = no effect.

44328-44341 Reserved

Current Port Number

Description

been set at least once since the last reset.

44342 Active port number

44343-44345 Reserved

Current Network Settings

44346-44377

+0,1 Ethernet network IP address

+2,3

+4,5

Ethernet network subnet mask

Ethernet network default gateway

0-2 = serial port COM1-COM3

+10,11

+12,13

GPRS network IP Address

GPRS network subnet mask

+14,15 GPRS network default gateway

44362-44377 Reserved

Device Authorization Registers

44378-44379 Write: 8-digit password. Read: 0 = access permitted,

-1 = authorization required.

Factory Diagnostic Registers

45952-46079 Factory diagnostic registers

0 - 99999999 (write)

0/-1 (read)

UINT16 R

UINT32

UINT32

UINT32

R

R

R

Notes

Network byte order

Network byte order

Network byte order

UINT32

UINT32

UINT32

R

R

R

Network byte order

Network byte order

Network byte order

UINT32 R

84

3.8 Device Setup Registers

Description

Device Identification

46080-46111

+0,1

+2,3

+4-11

+12-13

+14-15

Device serial number

Device model ID

Device model name

Device options (bitmap)

Device production date and time

+20 Device firmware version number

+21

+22

+23

+24

+25

Device firmware build number

Transient coprocessor firmware version number

Transient coprocessor firmware build number

Boot loader version number

Boot loader build number

Factory Device Settings

46112-46178

+0

+1

V1-V4 input range

V1-V4 input overload

+4

+5

I1-I4 input range

I1-I4 input overload

+14-63 Reserved

+64 Ethernet MAC address 0-1

+65

+66

Basic Setup

46208-46271

Ethernet MAC address 2-3

Ethernet MAC address 4-5

+1

+2

+3-4

+5

+6

+7

+8-16

+17

+18-23

PT ratio (primary to secondary ratio)

PT secondary (line-to-line) voltage

Reserved

CT primary current

Reserved

I4 CT primary current

Reserved

Nominal line frequency

Reserved

0-999999

72000

“EM720”

F27

F1

2600-2699

1-99

2700-2799

1-99

1-99

480, 120 (option U)

120

1, 5

200

0x0500

0x00F0

0x0000-0xFFFF

F26

10-65000

10-480

1-20000

1-20000

50, 60

UINT32

UINT32

CHAR16

UINT32

UINT32

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

R

R

Notes

Null-terminated string

Two higher decimal digits = major version number, two lower decimal digits = minor version number

A

A

×0.1

V

Hz

V

%

UINT16

UINT16

R

R

A UINT16 R

% UINT16 R

UINT16

UINT16

UINT16 R

UINT16

UINT16

R

R

UINT16 R/W

UINT16 R/W

UINT16 R Read as 65535

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R

R/W

R

R/W

R

Read as 65535

Read as 65535

Read as 65535

85

+24

+25

+26-31

Demands Setup

46240-46255

+0

+1

+2

+3-7

+8

+9

+10

+11-15

Device Options Setup

46256-46268

+0

+1

+2

+3

+4-6

+7

+8

+9-12

Local Settings

46400-46415

+0

+1

Description

I maximum demand load current

I4 maximum demand load current

Reserved

Power demand period (block interval)

Number of demand periods in a sliding window

Demand synchronization source input

0-20000

0-20000

1, 2, 3, 5, 10, 15, 30, 60

1-15

0 = device clock, 1-8 = DI1-DI8

A

A min

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R Read as 65535

Notes

R/W

R/W

R/W A DI input is considered a pulse or

KYZ input. The pulse edge restarts the power demand accumulation interval.

R/W Read as 65535

R/W

R/W

R/W

R/W Read as 65535

Reserved

Volt demand period

Ampere demand period

Harmonic demand period

Reserved

0-9000

0-9000

0-9000 sec sec sec

0-+/-720

0=DST disabled (standard time only),

1=DST enabled (fixed switching dates),

2= scheduled DST period (calendar min

UINT16

UINT16

UINT16

UINT16

UINT16

Power calculation mode

Energy roll value

Reserved

End of billing (TOU/Billing maximum demand reset) mode, bitmap

Reserved

Energy LED test mode

Energy LED pulse rate, Wh/impulse, varh/impulse (in secondary units)

Reserved

0 = using reactive power:

S = f(P,Q),

1 = using non-active power:

Q=f(S,P)

2 = 100,000.0 kWh

3 = 1,000,000.0 kWh

4 = 10,000,000.0 kWh

5 = 100,000,000.0 kWh (default)

Bit 0 = 1 – automatic/monthly mode allowed

Bit 1 = 1 - COM mode allowed

Bit 2 = 1 - manual mode allowed

0 = disabled, 1 = enabled

1 - 40

UINT16 R/W Read as 65535

UINT16

UINT16

R/W

R/W

Read as 65535

×0.01Wh UINT16 R/W

UINT16 R/W Read as 65535

Local time offset, min

Daylight savings time (DST) option

INT16 R/W

86

Description Notes

+2

+3

+4

+5

+6

+7

+8

DST start month

DST start week of the month

DST start weekday

DST end month

DST end week of the month

DST end weekday

Clock synchronization source defined switching dates)

1-12

1=1st, 2=2nd, 3=3rd, 4=4th week,

5=the last week of the month

1-7 (1=Sun, 7=Sat)

1-12

1=1st, 2=2nd, 3=3rd, 4=4th week,

5=the last week of the month

1-7 (1=Sun, 7=Sat)

0=IRIG-B, 1-8 = DI1-DI8,

32767 = meter clock

+9

+10

Country code

DST start hour

+11 DST end hour

+12-15 Reserved

ITU country calling code

1-6

1-6

Clock Indication and Setup

46416-46447

+0,1

+4

Local time, in seconds, since Jan 1, 1970 F1

Fractional seconds, milliseconds 0-999

+5 Seconds

+6 Minutes

+7 Hour

+8 Day of month

+9 Month

+10 Year (calendar year minus 2000)

+11

+12

Weekday

Daylight savings time status

0-59

0-59

0-23

1-31

1-12

0-99

1-7 (1=Sun, 7=Sat)

0=standard time is active,

1=daylight savings time is active

+13-31 Reserved

Communication Ports Setup

46448-46495

+0 Communication protocol

+1

+2

+3

Interface

Device address

Baud rate

0 = Modbus RTU, 1 = Modbus

ASCII, 2 = DNP3.0,

6 = IEC 62056-21,

7 = IEC 61850

0 = RS-232, 1 = RS-422, 2 = RS-

485, 3 = Infrared, 8 = GSM/GPRS

Modbus: 1-247

DNP3.0: 0–65532

3 = 1200 bps, 4 = 2400 bps, 5 =

4800 bps, 6 = 9600 bps, 7 = 19200 sec

µsec

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT32

UINT32

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W A DI input is considered a pulse or

KYZ input. The pulse edge adjusts the clock at the nearest whole minute.

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R

UINT16

87

Description Notes

+4

+5

+6

+7

+8

Data format

CTS mode

RTS mode

Minimum delay before sending data

Inter-character time-out bps, 8 = 38400 bps, 9 = 57600 bps,

10 = 115200 bps

0 = 7 bits/even parity,

1 = 8 bits/no parity,

2 = 8 bits/even parity

0 = not used, 1 = wait for CTS before sending data

0 = not used,

1 = RTS is asserted during the transmission

0-1000 (default = 5)

0-1000 (default = four-character time)

0 = slave (default), 1 = master

500-30000 ms

UINT16

UINT16

UINT16

R/W

R/W

R/W

N/A for COM1-COM3 (read as

65535)

N/A for COM1-COM3 (read as

65535)

+9

+10

+11-15

46448-46463

46464-46479

46480-46495

Port direction

Receive timeout (for a master port only)

Reserved

COM1 Setup

COM2 Setup

COM3 Setup

ms

UINT16

UINT16

R/W

R/W

Read as 65535

Network Setup

46576-46703

+0,1

+2,3

+4,5

Network subnet mask

+6-31 Reserved

Dial-up/GPRS Modem Setup

46640-46671

+0,1

R/W

Device IP Address 0x01000000-0xFFFFFFFF UINT32 R/W

+2,3

+4,5

+6,7

+8,9

Network subnet mask 0x00000001-0xFFFFFFFF UINT32 R/W

Network default gateway 0x00000000-0xFFFFFFFF UINT32 R/W

Number of dial attempts

Connection timeout, sec

0–1000, 0-dial forever

0-9999

UINT32

UINT32

R/W

R/W

+10,11

+12,13

+14,15

+16-23

Delay between redials, sec

Idle connection timeout, sec

Number of rings before answer

Modem init string

+24-31 Reserved

0-9999

0-9999, 0 = never

0-20, 0 = never answer

“AT&F&D1&C1”

UINT32

UINT32

UINT32

CHAR16

R/W

R/W

R/W

R/W Null-terminated string

Password Setup

46704-46711

+0,1

+2,3

+4,5

+6,7

Password 1 (Low level)

Password protection (always ON)

Password 2 (Medium level)

Password 3 (High level)

0-99999999

1 = enabled

0-99999999

0-99999999

UINT32

UINT16

UINT32

UINT32

R/W

R/W

R/W

R/W

Read as 0

Read as 0

Read as 0

88

Expert Power Service Setup

46768-46783

+0,1

+2,3

+4,5

Description

Expert Power server IP Address

Expert Power server TCP service port

Expert Power client enabled

+6,7

+8,9

Time to next session

Time to next session

+10-15 Reserved

Internet Service Provider (ISP) accounts

46784-46831

+0-15 Dial string (telephone number)

0-65535

0 = client disabled, 1 = client enabled

1-99999

1-99999

“*99#”

46784-46831

Display Setup

48664-48695

+0 Reserved

+1 Auto-scroll interval

+2

+3

+5

+6

Account No.1

Auto-return interval

Backlight time

+4 Reserved

Auto-scroll sequence, bitmap

Diagnostics message icon

0 = disabled,

1-10, 15, 20, 25, 30

0 = disabled,

1-5, 10, 15, 20, 25, 30

0 = disabled, 1-10

0-0x01FF

Bits 0-8 = 1 – display #1-9 is included in a scroll sequence

0 = disabled

1 = enabled

+7-31 Reserved

DNP Options Setup

51158-51183

+0 Default Binary Input Static object variation F24 (default 0)

+1

+2

+3 Default Frozen Binary Counter object variation

+4 Reserved

+5

Default Binary Input Change object variation

Default Binary Counter object variation

F24 (default 1)

F24 (default 3)

F24 (default 4)

Default Binary Counter Change Event object variation F24 (default 2)

+6 Default Analog Input object variation

+7 Reserved

+8 Reserved

+9 Default Analog Input Change Event object variation

+10 Re-mapping static point indices for event objects

F24 (default 3)

F24 (default 2)

0=disabled (default), 1=enabled min min min

UINT32

UINT32

UINT32

CHAR32

R/W

R Same as previous

R/W GPRS network by default

Notes

R/W Default = 5001

UINT16 R/W

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

89

Description

+11

+12

+13

+14

+15

+16

+17

+18-21

+22,23

+24

+25

DNP Events Setup

51190-51445

16-bit BC Scaling

16-bit AI Scaling

Number of points allocated for Analog Input change events

Number of points allocated for Binary Input change events

Number of points allocated for Binary Counter change events

Select/Operate Timeout

Multi Fragment Interval

Reserved

Time Sync Period

Voltage scale, volts secondary

Current scale, amps secondary

51184-51189 Reserved

+0,1 Threshold/Deadband

0= ×1 (default), 1=×10, 2=×100,

3= ×1000

0=disabled, 1=enabled (default)

0 to 64 (default 32)

0 to 32 (default 0)

0 to 64 (default 0)

2 to 30 seconds (default 10 sec)

50 to 500 ms (default 50 ms)

Read as 65535

1 to 86400 seconds (default 86400 sec)

60 to 480V (default 144V)

100-500

0 to 4.3

×10

9

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT32

R/W

R/W

R/W

R/W

R/W

R/W

V UINT16 R/W

×0.1A

UINT16 R/W

Notes

R/W A hysteresis for the point return threshold is 0.05Hz for frequency and 2% of the operating threshold for other points

+2

+3

DNP point number

Event scan control field (bitmap)

DNP point number available for the selected object

Bits 0-1 - DNP Object:

0 = none, 1=AI, 2=BI, 3=BC

Bit 2 – Object change event scan:

0= event disabled, 1=enabled

Bits 5-6 - DNP event poll class:

0=Class 1, 1=Class 2, 2=Class 3

Bit 7 - Event log on an event:

0= disabled, 1=enabled

Bits 8-9 – Threshold/Deadband relation:

0=Delta, 1= more than (over threshold), 2=less than (under threshold)

UINT16 R/W If Event log is enabled, the source of a DNP event will be recorded to the device Event log file as a general Setpoint #17.

90

51190-51193

DNP Event #1

51194-51197

DNP Event #2

51442-51445

DNP Event #64

51446-51701 Reserved

DNP Class 0 Point Assignments

Description

51702-51797

+0

+1

+2

51702-51704

51705-51707

51795-51797

DNP object and variation

Start point number

Number of points in a range

DNP Class 0 Points Range 1

DNP Class 0 Points Range 2

DNP Class 0 Points Range 32

51798-51893 Reserved

EN50160 PQ Recorder Triggers Setup

(EN50160 voltage characteristics)

50134-50453

+0 Threshold, %

+1

+2

Hysteresis, % of threshold

Log options, bitmap

+3

+4

+5

+6

+7

+8

+9

+10

+11

50134-50149

50150-50165

50166-50181

50182-50197

50198-50213

50214-50229

50230-50245

50246-50261

Waveform log number

Data/RMS plot option

Data log number (factory preset)

1/2-cycle RMS plot, cycles before event

1/2-cycle RMS plot, cycles after event

1/2-cycle RMS plot duration, cycles

0.2-sec envelope RMS plot duration, seconds

3-sec envelope RMS plot duration, minutes

10-min envelope RMS plot duration, hours

Power frequency, dF/Fn

Voltage variations, dV/Un

Rapid voltage changes, dV/Un

Flicker severity, Plt

Voltage dips, %Un

Voltage interruptions, %Un

Temporary overvoltages, %Un

Transient overvoltages, %Un

Notes

F25

Point number for the selected object

0-128

UINT16

UINT16

UINT16

R/W

R/W

R/W

0 - 2000

0 - 500

Bit 0 – waveform log on event start:

0 = disabled, 1 = enabled;

Bit 1 – waveform log on event end:

0 = disabled, 1 = enabled;

Bit 2 – PQ log:

0 = enabled, 1 = disabled.

0-1 = log #1 - #2

0 = disabled, 1 = enabled

13 (log #14)

0 – 20

0 - 20

0 - 10000

0 - 10000

0 - 10000

0 - 10000

0

×0.1% UINT16 R/W

×0.1% UINT16 R/W

R/W cycle cycle cycle sec min hours

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

91

50262-50277

50278-50293

50294-50309

50310-50325

50326-50341

50342-50357

Description

Voltage unbalance, %

Harmonic THD, %

Harmonic voltage, %Un

Interharmonic THD, %

Interharmonic voltage, %Un

Mains signaling voltage, %Un

50358-50453 Reserved

Advanced EN50160 Setup

50838-50862

EN50160 Compliance Statistics

+0 Evaluation

+1 Evaluation period

+2 First day of the week

EN50160 Harmonics Survey

+4 Evaluation

+5 Evaluation period

+8

Rapid Voltage Changes

Repetition rate, per hour, maximum

Flicker

+12

+13

Harmonic Voltage

THD, up to order

Harmonics, up to order

Interharmonic Voltage

+16 Evaluation

+17 THD, up to order

+18 Interharmonics, up to order

Mains Signaling Voltage

+20 Evaluation

+21 1st signaling frequency

+22

+23

2nd signaling frequency

3rd signaling frequency

+24 4th signaling frequency

50863-50901 Reserved

EN50160 Harmonic Voltage Limits

50902-50965

0=daily, 1=weekly

1=Sunday, 7=Saturday

0

0=daily, 1=weekly

0

1-10

0

1-10

0

25-50

25-50

0

25-50

25-50

0

1100-30000

1100-30000

1100-30000

1100-30000

0

1-10000

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

UINT16

UINT16

UINT16

R/W

R/W

R/W

UINT16 R/W

×0.1Hz

×0.1Hz

×0.1Hz

UINT16 R/W

UINT16 R/W

UINT16 R/W

×0.1Hz UINT16 R/W

R/W

×0.01% UINT16 R/W

R/W

R/W

R/W

Notes

R/W

R/W

R/W

92

+49-63 Reserved

EN50160 Interharmonic Voltage Limits

50966-51029

Description

+49-63 Reserved

Fault Log Triggers Setup

52150-52277

+0 Trigger 1: Threshold, %

+1

+2

+3

+4

+5

Trigger 1: Hysteresis, % of threshold

Trigger 1: Trigger enabled

Trigger 2: Threshold, %

Trigger 2: Hysteresis, % of threshold

Trigger 2: Trigger enabled

52150-52157

52158-52165

52166-52173

52174-52181

52182-52189

52190-52197

52198-52205

External trigger

Zero-sequence current

Zero-sequence voltage

Current unbalance

Voltage unbalance

Overcurrent and Undervoltage

Undervoltage

52206-52213

I4 (neutral) current

52214-52277 Reserved

Fault Log Recording Setup

52278-52341

+0 Log options, bitmap

+1

+2

+3

+4

Waveform log number

Data/RMS plot option

Data log number (factory preset)

1/2-cycle RMS plot, cycles before event

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

1-10000

0 - 2000

0 - 500

0 = disabled, 1 = enabled

0 - 2000

0 - 500

0 = disabled, 1 = enabled

Bit 0 – waveform log on event start:

0 = disabled, 1 = enabled;

Bit 1 – waveform log on event end:

0 = disabled, 1 = enabled;

Bit 2 – recording to PQ log:

0 = enabled, 1 = disabled.

0 - 7 = log #1 - #8

0 = disabled, 1 = enabled

12 = log #13

0 - 20 cycle x 0.1% x 0.1% x 0.1% x 0.1%

×0.01% UINT16 R/W

×0.01% UINT16 R/W

×0.01%

UINT16 R/W

×0.01% UINT16 R/W

×0.01% UINT16 R/W

×0.01% UINT16 R/W

×0.01% UINT16 R/W

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

Notes

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

Enabled by default

93

+5

Description

1/2-cycle RMS plot, cycles after event

+6 1/2-cycle RMS plot duration, cycles

+7-63 Reserved

File Setup

52598-53877

0 - 20

0 - 10000

0

+1

+2

+3

+4

File attributes (bitmap)

Number of records in the file

Number of sections/channels in the file

Number of parameters per section record

0

F3

0-65535 (0 = delete file)

0-32

1-16 (34 for EN50160 Statistics log,

52 for EN50160 Harmonics Survey)

0

+6

+7

+8, 9

52598-52607

52608-52617

Section record size, bytes (for info only)

File record size, bytes (for info only)

Allocated file size, bytes (for info only)

Event Log File Setup

Data Log #1 File Setup

52618-52627

52628-52637

52638-52647

52648-52657

52658-52667

52668-52677

52678-52687

52688-52697

52698-52707

Data Log #2 File Setup

Data Log #3 File Setup

Data Log #4 File Setup

Data Log #5 File Setup

Data Log #6 File Setup

Data Log #7 File Setup

Data Log #8 File Setup

Data Log #9 File Setup (EN50160 Statistics)

Data Log #10 File Setup (EN50160 Harmonics

Survey)

Data Log #11 File Setup

Data Log #12 File Setup

52708-52717

52718-52727

52728-52737

52738-52747

52748-52757

52758-52767

52768-52777

52778-52787

52788-52797

Data Log #13 File Setup (Fault RMS Data

Profile)

Data Log #14 File Setup (Power Quality RMS

Data Profile)

Data Log #15 File Setup (Energy Load Profile)

Data Log #16 File Setup (Energy/TOU Daily

Profile)

Waveform Log #1 File Setup

Waveform Log #2 File Setup

Waveform Log #3 File Setup (Transient

Waveforms)

52798-52857 Reserved

52858-52867

EN50160 PQ Log File Setup

52868-52877

Fault Log Setup

cycle cycle

R

R

R

UINT16

UINT16

UINT32

Notes

UINT16

UINT16

R/W

R/W

UINT16

UINT16

UINT16

R/W

R/W

R/W 0 = non-partitioned file

94

Description

52878-53877 Reserved

Waveform Recorder Setup

53878-53949

+0 Sampling rate, samples per cycle

+1 Number of cycles per series

+4

+4,5

Number of cycles before a trigger

File channel mask, bitmap

53878-53885

53886-53893

53894-53901

Data Log Setup

54006-55541

+0

+1

+2

+3

+4

+5

+6

+7

+8

+9

+10

+11

+12

+13

+14

+15

Waveform Log #1 Setup

Waveform Log #2 Setup

Waveform Log #3 Setup

Data log parameter #1 ID

Data log parameter #2 ID

Data log parameter #3 ID

Data log parameter #4 ID

Data log parameter #5 ID

Data log parameter #6 ID

Data log parameter #7 ID

Data log parameter #8 ID

Data log parameter #9 ID

Data log parameter #10 ID

Data log parameter #11 ID

Data log parameter #12 ID

Data log parameter #13 ID

Data log parameter #14 ID

Data log parameter #15 ID

Data log parameter #16 ID

+16-31 Reserved

54006-54037

Data log #1 Setup

54038-54069

54070-54101

Data log #2 Setup

Data log #3 Setup

54102-54133

54134-54165

54166-54197

54198-54229

Data log #4 Setup

Data log #5 Setup

Data log #6 Setup

Data log #7 Setup

32, 64, 128, 256, 1024 (transient waveform)

16-2560 (32 samples/cycle),

8-1280 (64 samples/cycle),

4-640 (128 samples/cycle)

2-320 (256 samples/cycle)

1 (1024 samples/cycle)

0

1-20

F9, 0x000000FF

0

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

0x0000-0xFFFF

UINT16

Notes

R/W Ignored when written

UINT16

UINT32

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

Ignored when written

95

54230-54261

54262-54293

54294-54325

Data log #8 Setup

Description

Data log #9 Setup (EN50160 Statistics)

Data log #10 Setup (EN50160 Harmonics

Survey)

Notes

Auto-configured. Read as NONE.

Auto-configured. Read as NONE.

54326-54357

54358-54389

54390-54421

54422-54453

54454-54485

Data log #11 Setup

Data log #12 Setup

Data log #13 Setup (Fault RMS Profile)

Data log #14 Setup (PQ RMS Profile)

Data log #15 Setup (Energy Load Profile)

Auto-configured

54486-54517

TOU Daily Profile Setup

55574-55581

55582-55589

Data log #16 Setup (Energy/TOU Daily Profile)

55574-55701

+0 1 st tariff change

+1 2 nd

tariff change

+2 3 rd

+3 4 th

tariff change

tariff change

+4 5 th tariff change

+5 6

+6 7

+7 8 th th th

tariff change

tariff change

tariff change

Daily profile #1: Season 1, Day type 1

Daily profile #2: Season 1, Day type 2

F10

F10

F10

F10

F10

F10

F10

F10

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

Auto-configured

55590-55597

55598-55605

55606-55613

55614-55621

55622-55629

55630-55637

55638-55645

55646-55653

55654-55661

55662-55669

55670-55677

55678-55685

55686-55693

55694-55701

55702-55711

TOU Calendar Setup

55712-56031

+0-9

+0

Daily profile #3: Season 1, Day type 3

Daily profile #4: Season 1, Day type 4

Daily profile #5: Season 2, Day type 1

Daily profile #6: Season 2, Day type 2

Daily profile #7: Season 2, Day type 3

Daily profile #8: Season 2, Day type 4

Daily profile #9: Season 3, Day type 1

Daily profile #10: Season 3, Day type 2

Daily profile #11: Season 3, Day type 3

Daily profile #12: Season 3, Day type 4

Daily profile #13: Season 4, Day type 1

Daily profile #14: Season 4, Day type 2

Daily profile #15: Season 4, Day type 3

Daily profile #16: Season 4, Day type 4

Reserved

Calendar entry record

Daily profile/Period 0-3 = Season 1, Day types 0-3

4-7 = Season 2, Day types 0-3

8-11 = Season 3, Day types 0-3

R/W

96

Description

+1 Week of month

+2

+3

+4

+5

Weekday

Till Weekday

Month

Day of month

+6

+7

Till Month

Till Day of month

+8 Year

55712-55721

55722-55731

55732-55741

Calendar entry #1

Calendar entry #2

Calendar entry #3

56182-56191

Calendar entry #48

Billing Energy/TOU Registers Setup

56672-56711

+0 Metering channel

+1 Units of measurement

+2 Flags (bitmap)

56672-56675

56676-56679

56680-56683

56684-56687

56688-56691

56692-56695

56696-56699

56700-56703

56704-56707

Register #1 Setup

Register #2 Setup

Register #3 Setup

Register #4 Setup

Register #5 Setup

Register #6 Setup

Register #7 Setup

Register #8 Setup

Register #9 Setup

56708-56711

Register #10 Setup

Billing Energy/TOU Registers Source Setup

56928-56967

12-15 = Season 4, Day types 0-3

128 = DST period schedule

0=all, 1=1st, 2=2nd, 3=3 rd

, 4=4th,

5=last week of the month

0=all, 1-7 (Sun=1, Sat=7)

0=all, 1-7 (Sun=1, Sat=7)

0=all, 1-12=January - December

0=all, 1-31=day 1-31

0=all, 1-12=January - December

0=all, 1-31=day 1-31

0, 1 = self-metering channel,

2-6 = external metering channels

0=none, 1=kWh import, 2=kvarh import, 3=kVAh, 4=kWh export,

2=kvarh export

Bit 0=1 - TOU enabled

Bit 1=1 – Energy usage profile enabled

Bit 2=1 - Max. Demand profile enabled

Bit 3=1 - Summary (total) profile enabled

0

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

Notes

97

Description

+0 Energy source ID

+1 Target summary register number

+2,3 Multiplier

56928-56931

56932-56935

Energy Source #1

Energy Source #2

56936-56939

56940-56943

56944-56947

56948-56951

56952-56955

56956-56959

56960-56963

56964-56967

Energy Source #3

Energy Source #4

Energy Source #5

Energy Source #6

Energy Source #7

Energy Source #8

Energy Source #9

Energy Source #10

Control Setpoints Setup

57184-58143

+0

+1

+2

+3

+4

+5

+6

+7

+8

+9

+10

+11

+12,13

+14,15

+16,17

+18,19

Condition #1: Trigger parameter ID

Condition #2: Trigger parameter ID

Condition #3: Trigger parameter ID

Condition #4: Trigger parameter ID

Condition #1: Logical operator

Condition #2: Logical operator

Condition #3: Logical operator

F11

0-9 = register #1-#10

0-1000000

F12

F12

F12

F12

0 = OR, 1 = AND

0 = OR, 1 = AND

0 = OR, 1 = AND

Condition #4: Logical operator 0 = OR, 1 = AND

Condition #1: Relational operator F13

Condition #2: Relational operator F13

Condition #3: Relational operator F13

Condition #4: Relational operator F13

Condition #1: Operate limit

Condition #2: Operate limit

Condition #3: Operate limit

Condition #4: Operate limit

+20,21

+22,23

+24,25

+26,27

+28

+29

+30

+31

+32,33

+34,35

+36,37

+38,39

Condition #1: Release limit

Condition #2: Release limit

Condition #3: Release limit

Condition #4: Release limit

Action #1: Parameter value

Action #2: Parameter value

Action #3: Parameter value

Action #4: Parameter value

×0.001

UINT16 R/W

UINT16 R/W

INT32 R/W

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

Notes

INT32

INT32

INT32

INT32

INT32

INT32

INT32

INT32

R/W

R/W

R/W

R/W

R/W

R/W

R/W

R/W

INT32

INT32

INT32

INT32

R/W

R/W

R/W

R/W

98

Description

+40,41

+42,43

57184-57243

57244-57303

58084-58143

Periodic Timers Setup

61024-61031

+0,1

61024-61025

61026-61027

61028-61029

61030-61031

Digital Inputs Setup

61728-61759

+0

+1

+2

+3

Operate delay

Release delay

Setpoint #1

Setpoint #2

...

Setpoint #16

Time interval, in seconds

Timer #1 Setup

Timer #2 Setup

Timer #3 Setup

Timer #4 Setup

Pulse mode

Polarity

De-bounce time, ms

Flags

× 0.001

61728-61731

61732-61735

61736-61739

61756-61759

Relay Outputs Setup

61984-62007

+0

+1

DI1 Setup

DI2 Setup

DI3 Setup

DI8 Setup

Operation Mode

Polarity

+2

+3

+4

61984-61989

61990-61995

Pulse width, ms

Pulse source ID

Units per pulse

RO1 Setup

RO2 Setup

0-10000000

0-10000000

0=timer disabled,

16/20-9999,000 ms

0.001 s

0.001 s

UINT32

UINT32

×0.001 s UINT32

Notes

R/W

R/W

Factory set for 15-min energy load profile

R/W Rounded to a nearest multiple of the frequency period.

0 = pulse, 1 = KYZ

0 = normal, 1 = inverting

1-1000

Bit 1: 0 = Fault Recorder input disabled, 1 = Fault Recorder input enabled

0=latched, 1=unlatched,

2=pulse, 3=KYZ

Bit 0 – Polarity:

0=normal, 1=inverting,

Bit 1 - Retentive mode:

0=disabled, 1=enabled

1-1000

F17

1-10000

UINT16

UINT16

UINT16

R/W

R/W

R/W Debounce time will be the same for all inputs

UINT16 R/W

UINT16 R/W

×0.1 UINT16 R/W

R/W

99

61996-62001

62002-62007

Analog Inputs Setup

62368-62379

+0

+2,3

+4,5

62368-62373

62374-62379

Analog Outputs Setup

62560-62571

+0

+2,3

+4,5

62560-62565

62566-62571

RO3 Setup

RO4 Setup

Input parameter ID

Description

Zero scale value (0/4 mA)

Full scale value (20/1 mA)

AI1 Setup

AI2 Setup

Output parameter ID

Zero scale value (0/4 mA)

Full scale value (20/1 mA)

AO1 Setup

AO2 Setup

0 = input not assigned

0

F18

0

See Section 3.4

See Section 3.4

UINT16

INT32

INT32

UINT16

INT32

INT32

R/W

R/W

R/W

R/W

R/W

R/W

Notes

100

3.9 Expansion I/O Configuration

Options/Range Units Notes

I/O Slots Configuration Info

63008-63055

+0 Module type

63008-63011

63012-63015

Slot 1 Configuration

Slot 2 Configuration

63016-63019

Slot 3 Configuration

63020-63055 Reserved

I/O Type Info

63056-63119

+0

+1

Number of I/O slots of this type

Total number of I/O's of this type

See table below

0

0-2

0-8

0

UINT16

UINT16

UINT16

R

R

R

63056-63059

DI Type Info

63060-63063

RO Type Info

63064-63067

63068-63071

AI Type Info

AO Type Info

63076-63119 Reserved

DI1-DI4 are assigned to on-board digital inputs

I/O numbers of expansion I/O modules are automatically assigned in the order of connection. The first four digital inputs DI1-DI4 are assigned to the on-board digital inputs. The first digital input on the expansion slot is assigned DI5.

Expansion Module Types

Module Option D4 D3 D2 D1 D0

2DI/2RO 0 0 0

Ethernet + USB + RS-232/485 RS-485

1 0 0 0

0 0 0 1

Ethernet + USB + RS-232/485

RS-232 + RS-232/485

RS-232 + RS-232/485

Wireless Cellular/GPRS

IRIG-B + RS-232/485

IRIG-B + RS-232/485

RS-232

RS-485

RS-232

RS-485

RS-232

1 0 0 1

1 0 0 0

1 0 0 1

1 0 0 0

1 0 0 0

1 0 0 1

0 0 0 1

0 0 1 1

0 0 1 1

0 1 0 1

0 1 1 1

0 1 1 1

0 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1

101

+1

+2

+3

+4

+5

+6

+7

+8, 9

+10, 11

+12, 13

+14, 15

63152-64943

64944-64951

+0

+1

+2

+3

+5

64952-65151

3.10 File Transfer Registers

Description

File Transfer Control Blocks

63120-63151

File Request Block

+0 File function

File ID

Section number (functions 3, 5, 11)

Section channel ID (functions 3, 5, 11)

Record sequence number (functions 3, 11)

Request variation (function 11)

Find key: N/A

Find key: N/A

Find key: Start time, seconds since 1/1/1970

Find key: Start time, fractional seconds in µsec

Find key: End time, seconds since 1/1/1970

Find key: End time, fractional seconds in µsec

File Response Block

Data transfer area [0 – 1791]

File Info Request Block

File function

File ID

Section number

Section channel ID

Request variation

File Info Response Block

Data transfer area [0 - 199]

1 = ACK - acknowledgement

3 = set file position

5 = reset file position

7 = find

11 = read file

127 = erase file

F2

0-31, 0xFFFF = use channel ID

F6, F7

0-65535

0, 4

F1

F1

9 = read file info

F2

0-31, 0xFFFF = use channel ID

F6, F7

0

0, 1, 2 sec

µsec sec

µsec

UINT16

UINT16

UINT16

UINT32

UINT32

UINT32

UINT32

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

R

R/W

R/W

R/W

R/W

R/W

R

Notes

R/W 1 - clears the file transfer block

3 - changes the file position

5 - sets the file position at the first

(oldest) record

7 - finds a record matching an event or/and time (see Note 3)

11 - opens the file for reading from

R/W the present file position

R/W

R/W

R/W The record sequence number with function 11 does not change the file position (see Note 2).

R/W See file response headings

R/W

R/W

R/W Note 3

R/W Note 3

R/W Note 3

R/W Note 3

102

NOTES:

1. File sections for partitioned (multi-section) files, like Summary/TOU profile log files, can be requested either by a section number, or by a section channel ID. If a section number is set to

0xFFFF, the section channel ID will be used to identify the section. The section number will be returned in the response block. If a section number is written, then the corresponding channel ID will be returned in the file response block.

2. The record sequence number with function 11 (Read-File) does not change the file position and is used only as a reference to track the order of records. The file transfer block will continue to hold the same data until it is acknowledged, or until the file position is explicitly moved to another record. For multi-section, the Read-File request, which addresses a different file section, will refill the transfer block with data of the record from the requested file section with the identical sequence number. After acknowledgment, the file position will be moved to the next record.

3. Function 7 (Find) puts into the file request block the sequence number of the first record in the file that matches the event time. Any one of the find keys can be omitted by setting it to 0.

If one or a number of find keys are omitted, the device will use the remaining keys to locate the matching record. If the record could not be found, the device responds to the write request with the exception code 3 (illegal data). The status of the operation can be read through the file status word in the file info block.

File Response Blocks

Description

File Info Response Block (Variation 0 – File info)

Notes

+3

+4

+5

+2

+3

+4, 5

+6, 7

+8

+9

+10

+11

+12

+13

+14, 15

+16, 17

+18, 19

+20, 21

+22, 23

Section channel ID

Number of records in the block

Record size, words

File (section) status

Number of sections in the file

File channel mask (channels 1-32), bitmap

File channel mask (channels 33-64), bitmap

Number of records in the file

Number of records until the end of the file

Current record (read position) sequence number

Current write position sequence number

First (oldest) record sequence number

Last (newest) record sequence number

Last record time, seconds since 1/1/1970

Last record time, fractional seconds

First record time, seconds since 1/1/1970

First record time, fractional seconds

Not used

0-65535

0-65535

0-65535

0-65535

0-65535

0-65535

F1

F1

0

9

16

0-31

F6, F7

1

36

0

0

0

F3

F4

0-32

F8, F9

F8, F9 sec

µsec sec

µsec

UINT16

UINT16

UINT16

UNT16

UINT16

UINT32

UINT32

UINT16

UINT16

UINT16

UINT16

UINT16

UINT16

UINT32

UINT32

UINT32

UINT32

UINT32

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

0 = non-partitioned file

103

+24, 25

+26, 27

+28, 29

+30

+31

+32

+1

+2

+3

Not used

Not used

Not used

Number of fields in a data record

Field 1 parameter ID

Field 2 parameter ID

… …

Description

Maximum number of records

Number of parameters per data section record

Section record size, bytes

+33

+34, 35

File record size, bytes

Allocated file size, bytes

File Info Response Block (Variation 1 – Current record info)

+3

+4

+5

+0

+1

+2

+3

File (section) status

Number of records in the file

Number of records until the end of the file

Current record (read position) sequence number

+4, 5

+6, 7

Current record time, seconds since 1/1/1970

Current record time, fractional seconds

File Info Response Block (Variation 2 – Data log record structure)

+3

+4

+5

Section channel ID

Number of records in the block

Record size, words

Section channel ID

Number of records in the block

Record size, words

0

0

0

0-65535

0-16

9

F2

0-31

F6, F7

1

8

1

0

F4

0-65535

0-65535

0-65535

F1

9

1-16

0-15

F6, F7

1

2 + Number of parameters

2

0

0

1-16 (34 for EN50160 Statistics log,

52 for EN50160 Harmonics Survey)

0-0 ×FFFF

0-0 ×FFFF sec

µsec

µsec sec

µsec

Byte

Byte

Byte

UINT32

UINT32

UINT32

UINT16

UINT16

UINT16

UINT16

UINT32

R

R

R

R

R

R

R

R

Notes

UINT16

UINT16

UINT16

R

R

R

UNT16

UINT16

UINT16

UINT16

UINT32

UINT32

R

R

R

R

R

R

UINT16

UINT16

UINT16

R

R

R

104

Event Log Response Block

+0 Last file function

Description

+3

+4

+5

Section channel ID

Number of records in the block

Record size, words

63160-63543

+0

+1

+2, 3

+4, 5

+6

+7

Event Log Records

Record status

Record sequence number

Trigger time, seconds since 1/1/1970

Trigger time, fractional seconds in µsec

Event number

Event point/source ID

+10, 11 Value triggered

...

Data Log Response Block

+0 Last file function

+3

+4

+5

+6

63160-64439

+0

+1

+2, 3

+4, 5

+6

+7

+8, 9

+10, 11

Section channel ID

Number of records in the block

Record size, words

Request variation

Data Log Records

Record status

Record sequence number

Record time, seconds since 1/1/1970

Record time, fractional seconds in µsec

Trigger event type

Trigger event number

Log value #1

Log value #2

1, 3, 5, 11

0

0

0

1-32

12

0

0

F5

0-65535

F1

1-65535

F19

F20

0

1, 3, 5, 11

1-16

0-7

F6

1-16

8 + 2 ×Number of parameters

0 = regular log, 4 = EN50160 online statistics (with file ID = 9, 10)

0

F5

0-65535

F1

F22

0 sec

µsec sec

µsec

INT16

UINT16

UINT32

UINT32

INT16

UINT16

INT32

INT32

R

R

R

R

R

R

R

R

UINT16 R

UINT16

UINT16

UINT16

R

R

R

INT16

UINT16

UINT32

UINT32

UINT16

UINT16

R

R

R

R

R

R

INT32

UINT16

R

R

UINT16

UINT16

R

R

Notes

105

Description

… …

...

Waveform Log Response Block

63152-63159

Block Heading

+0

+1

Last file function

File ID

+3

+4

+5

Section channel ID

Number of records in the block

Record size, words

63160-63799

+0

+1

+2, 3

+4, 5

+6, 7

+8, 9

+10

+11

+12

+13

+14

+15

+16

+17

Waveform Log Record

Record status

Record sequence number

Start time, seconds since 1/1/1970

Start time, fractional seconds

Trigger time, seconds since 1/1/1970

Trigger time, fractional seconds

Record series number

Record serial number in a series

Trigger event type

Trigger event number

Source point ID (generic)

Trigger reference sample index

Sampling rate, µsec/sample

Sampling rate, samples/cycle

+19

+20, 21

+22

+23

Channel offset, sampling units

Channel multiplier, primary units

Channel divisor, sampling units

Length of a sample series, data points

+128

+128-639

Sample Series

Sample data series points [0...511]

Power Quality (PQ) Log Response Block

63152-63159

Block Heading

+0 Last file function

1, 3, 5, 11

17-18, 128 (F2)

0-9

F7

1

640

0

0

F5

0-65535

F1

F1

1-65535

0-65535

F22

1-65535

See Generic Data in Section 3.4

0-511

150-6950

32, 64, 128, 256, 1024 (transient waveform)

4500-6500

0

See Generic Data in Section 3.4

2047 (transient waveform), 8191

512

0

-32768 - 32767

1, 3, 5, 11

26

0

R

UINT16

UINT16

UINT16

UINT16

UINT16

R

R

R

R

R sec

µsec sec

µsec

INT16

UINT16

UINT32

UINT32

UINT32

UINT32

UINT16

UINT16

R

R

R

R

R

R

R

R

UINT16

UINT16

UINT16

UINT16

R

R

R

R

×0.1 µsec UINT16 R

R

×0.01 Hz UINT16 R

INT16 R

UINT32 R

UINT16

UINT16

R

R

INT16 R

1

UINT16 R

Notes

106

+3

+4

+5

Description

Section channel ID

Number of records in the block

Record size, words

63160-63799

+0

+1

+2, 3

+4, 5

+6, 7

+8, 9

+10

+11

+12

PQ Log Records

Record status

Record sequence number

Start time, seconds since 1/1/1970

Start time, fractional seconds in µsec

End time, seconds since 1/1/1970

End time, fractional seconds in µsec

PQ event type

PQ event number

Point ID (generic)

+14, 15

+16, 17

Value reference (base), primary units

Value magnitude, primary units

63160-63179

Record #1

...

63430-63447

Fault Log Response Block

Record #16

63152-63159

Block Heading

+0 Last file function

+3

+4

+5

Section channel ID

Number of records in the block

Record size, words

63160-64183

+0

+1

+2, 3

+4, 5

+6, 7

+8, 9

+10

+11

+12

+13

+14, 15

Fault Log Records

Record status

Record sequence number

Start time, seconds since 1/1/1970

Start time, fractional seconds in µsec

End time, seconds since 1/1/1970

End time, fractional seconds in µsec

Fault event type

Fault event number

Current phase point ID (generic)

Volts phase point ID (generic)

Current reference (base), primary units

0

1–16

18

0

0

F5

0–65535

F1

F1

F22

1–65535

See Generic Data in Section 3.4

0

See Generic Data in Section 3.4

See Generic Data in Section 3.4

1, 3, 5, 11

27

0

0

1-32

22

0

0

F5

0-65535

F1

F1

F22

1-65535

0-65535

0-65535

See Generic Data in Section 3.4 sec

µsec sec

µsec

U2 sec

µsec sec

µsec

UINT16

UINT16

UINT16

R

R

R

R

R

R

R

R

R

R

R

R

R

R

R

INT16

UINT16

UINT32

UINT32

UINT32

UINT32

UINT16

UINT16

UINT16

INT32

INT32

UINT16

UINT16

UINT16

UINT16

R

R

R

INT16

UINT16

UINT32

UINT32

UINT32

UINT32

UINT16

UINT16

UINT16

UINT16

INT32

R

R

R

R

R

R

R

R

R

R

R

Notes

107

+16, 17

+18, 19

+20, 21

63160-63191

64152-64183

Description

Current magnitude, primary units

Volts reference (base), primary units

Volts magnitude, primary units

Record #1

...

Record #32

See Generic Data in Section 3.4

See Generic Data in Section 3.4

See Generic Data in Section 3.4

1

To restore the original sampled data in the channel units (e.g., Volts, Amps), the following conversion should be applied:

U2

U1

U1

Sampled Data [ primary units ] =

( Data Sample − Channel Offset ) ×

Channel Divisor

Channel Multiplier

INT32

INT32

INT32

R

R

R

Notes

NOTES:

1. If a file is read through a TCP connection, your assignments for the transfer will be effective only within the current connection socket. Since the device cannot guarantee that your next connection will be made through the same socket, you should not make any assumptions regarding the present block settings. When you open a new connection, always check the file status and pointers before reading file records.

2. When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line.

108

3.11 EN 50160 Compliance Statistics Data Log

File

Section

Record

Field No.

Point Label

0

1 Nnv

2 N

3 N1

4 N2

5 N1/N, %

6 N2/N, %

7 Freq Min

8 Freq Max

1

1 Nnv

2 N

3 N1

4 N2

5 N1/N, %

6 N2/N, %

7 V1 N1

8 V1 Min

9 V1 Max

10 V2 N1

11 V2 Min

12 V2 Max

13 V3 N1

14 V3 Min

15 V3 Max

2

1 N1

2 V1 N1

3 V1 dV%

4 V2 N1

5 V2 dV%

6 V3 N1

7 V3 dV%

3

1 Nnv

2 N

3 N1

4 N1/N, %

5 V1 N1

Point

ID

Description

Power Frequency

0x5A00 Number of non-valid 10-sec intervals

1

Options/Range

2

0x5A01 Number of valid 10-sec intervals

0x5A02 Number of incidents ±1%, N1

0x5A03 Number of incidents +4%/-6%, N2

0x5A04 EN50160 compliance ratio, N1/N

0x5A05 EN50160 compliance ratio, N2/N

0x5A06 Minimum frequency

0x5A07 Maximum frequency

Supply Voltage Variations

0x5A80 Number of non-valid 10-min intervals

0x5A81 Number of valid 10-min intervals

0x5A82 Number of polyphase incidents ±10%, N1

0x5A83 Number of polyphase incidents +10/-15%, N2

0x5A84 EN50160 compliance ratio, N1/N

0x5A85 EN50160 compliance ratio, N2/N

0x5A86 Number of incidents ±10% on phase V1

0x5A87 Minimum voltage on phase V1

0x5A88 Maximum voltage on phase V1

0x5A89 Number of incidents ±10% on phase V2

0x5A8A Minimum voltage on phase V2

0x5A8B Maximum voltage on phase V2

0x5A8C Number of incidents ±10% on phase V3

0x5A8D Minimum voltage on phase V3

0x5A8E Maximum voltage on phase V3

Rapid Voltage Changes

0x5B00 Number of polyphase incidents

0x5B01 Number of incidents on phase V1

0x5B02 Maximum voltage variation on phase V1, dV/Un%

0x5B03 Number of incidents on phase V2

0x5B04 Maximum voltage variation on phase V2, dV/Un%

0x5B05 Number of incidents on phase V3

0x5B06 Maximum voltage variation on phase V3, dV/Un%

Flicker

0x5B80 Number of non-valid 2-hour intervals

0x5B81 Number of valid 2-hour intervals

0x5B82 Number of polyphase incidents Plt >1%, N1

0x5B83 EN50160 compliance ratio, N1/N

0x5B84 Number of incidents Plt > 1% on phase V1

Units

0.01%

U1

U1

U1

U1

U1

U1

0.01%

0.01%

0.01%

0.01%

0.01Hz

0.01Hz

0.01%

0.01%

0.01%

2

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

109

File

Section

Record

Field No.

Point Label

6 V1 Plt Max

7 V2 N1

8 V2 Plt Max

9 V3 N1

10 V3 Plt Max

4

1 N11 90%/100ms

2 N12 85%/100ms

3 N13 70%/100ms

4 N14 40%/100ms

5 N11 90%/500ms

6 N12 85%/500ms

7 N13 70%/500ms

8 N14 40%/500ms

9 N11 90%/1s

10 N12 85%/1s

11 N13 70%/1s

12 N14 40%/1s

13 N11 90%/3s

14 N12 85%/3s

15 N13 70%/3s

16 N14 40%/3s

17 N11 90%/20s

18 N12 85%/20s

19 N13 70%/20s

20 N14 40%/20s

21 N11 90%/60s

22 N12 85%/60s

23 N13 70%/60s

24 N14 40%/60s

25 N11 90%/180s

26 N12 85%/180s

27 N13 70%/180s

28 N14 40%/180s

29 V1 N1

30 V1 Min

31 V2 N1

32 V2 Min

33 V3 N1

34 V3 Min

5

1 N1 1s

Point

ID

Description

1

Options/Range

0x5B85 Maximum Plt on phase V1

0x5B86 Number of incidents Plt > 1% on phase V2

2

0x5B87 Maximum Plt on phase V2

0x5B88 Number of incidents Plt > 1% on phase V3

0x5B89 Maximum Plt on phase V3

Voltage Dips

(indicative statistics)

0x5C00 Number of polyphase incidents u<90%/t<100ms

0x5C01 Number of polyphase incidents u<85%/t<100ms

0x5C02 Number of polyphase incidents u<70%/t<100ms

0x5C03 Number of polyphase incidents u<40%/t<100ms

0x5C04 Number of polyphase incidents u<90%/t<500ms

0x5C05 Number of polyphase incidents u<85%/t<500ms

0x5C06 Number of polyphase incidents u<70%/t<500ms

0x5C07 Number of polyphase incidents u<40%/t<500ms

0x5C08 Number of polyphase incidents u<90%/t<1s

0x5C09 Number of polyphase incidents u<85%/t<1s

0x5C0A Number of polyphase incidents u<70%/t<1s

0x5C0B Number of polyphase incidents u<40%/t<1s

0x5C0C Number of polyphase incidents u<90%/t<3s

0x5C0D Number of polyphase incidents u<85%/t<3s

0x5C0E Number of polyphase incidents u<70%/t<3s

0x5C0F Number of polyphase incidents u<40%/t<3s

0x5C10 Number of polyphase incidents u<90%/t<20s

0x5C11 Number of polyphase incidents u<85%/t<20s

0x5C12 Number of polyphase incidents u<70%/t<20s

0x5C13 Number of polyphase incidents u<40%/t<20s

0x5C14 Number of polyphase incidents u<90%/t<60s

0x5C15 Number of polyphase incidents u<85%/t<60s

0x5C16 Number of polyphase incidents u<70%/t<60s

0x5C17 Number of polyphase incidents u<40%/t<60s

0x5C18 Number of polyphase incidents u<90%/t<180s

0x5C19 Number of polyphase incidents u<85%/t<180s

0x5C1A Number of polyphase incidents u<70%/t<180s

0x5C1B Number of polyphase incidents u<40%/t<180s

0x5C1C Total number of incidents on phase V1

0x5C1D Minimum residual voltage on phase V1

0x5C1E Total number of incidents on phase V2

0x5C1F Minimum residual voltage on phase V2

0x5C20 Total number of incidents on phase V3

0x5C21 Minimum residual voltage on phase V3

Voltage Interruptions

(indicative statistics)

0x5D00 Number of polyphase incidents <1s

Units

U1

U1

U1

0.01

0.01

0.01

2

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

110

File

Section

Record

Field No.

Point Label

2 N2 180s

3 N3 >180s

4 V1 Min

5 V2 Min

6 V3 Min

6

1 N11 110%/1s

2 N12 120%/1s

3 N13 140%/1s

4 N14 160%/1s

5 N15 200%/1s

6 N21 110%/60s

7 N22 120%/60s

8 N23 140%/60s

9 N24 160%/60s

10 N25 200%/60s

11 N31 110%/>60s

12 N32 120%/>60s

13 N33 140%/>60s

14 N34 160%/>60s

15 N35 200%/>60s

16 V1 N1

17 V1 Max

18 V2 N1

19 V2 Max

20 V3 N1

21 V3 Max

7

1 N1 110%

2 N2 150%

3 N3 200%

4 N4 250%

5 N5 300%

6 V1 N1 110%

7 V1 N2 150%

8 V1 N3 200%

9 V1 N4 250%

10 V1 N5 300%

11 V2 N1 110%

12 V2 N2 150%

13 V2 N3 200%

14 V2 N4 250%

Point

ID

Description

0x5D01 Number of polyphase incidents <180s

0x5D02 Number of polyphase incidents >180s

1

Options/Range

2

0x5D03 Minimum residual voltage on phase V1

0x5D04 Minimum residual voltage on phase V2

0x5D05 Minimum residual voltage on phase V3

Temporary Overvoltages

(indicative statistics)

0x5D80 Number of polyphase incidents u>110%/t<1s

0x5D81 Number of polyphase incidents u>120%/t<1s

0x5D82 Number of polyphase incidents u>140%/t<1s

0x5D83 Number of polyphase incidents u>160%/t<1s

0x5D84 Number of polyphase incidents u>200%/t<1s

0x5D85 Number of polyphase incidents u>110%/t<60s

0x5D86 Number of polyphase incidents u>120%/t<60s

0x5D87 Number of polyphase incidents u>140%/t<60s

0x5D88 Number of polyphase incidents u>160%/t<60s

0x5D89 Number of polyphase incidents u>200%/t<60s

0x5D8A Number of polyphase incidents u>110%/t>60s

0x5D8B Number of polyphase incidents u>120%/t>60s

0x5D8C Number of polyphase incidents u>140%/t>60s

0x5D8D Number of polyphase incidents u>160%/t>60s

0x5D8E Number of polyphase incidents u>200%/t>60s

0x5D8F Total number of incidents on phase V1

0x5D90 Maximum voltage magnitude on phase V1

0x5D91 Total number of incidents on phase V2

0x5D92 Maximum voltage magnitude on phase V2

0x5D93 Total number of incidents on phase V3

0x5D94 Maximum voltage magnitude on phase V3

Transient Overvoltages

(indicative statistics)

0x5E00 Number of polyphase incidents u>120%

0x5E01 Number of polyphase incidents u>150%

0x5E02 Number of polyphase incidents u>200%

0x5E03 Number of polyphase incidents u>250%

0x5E04 Number of polyphase incidents u>300%

0x5E05 Number of incidents u>120% on phase V1

0x5E06 Number of incidents u>150% on phase V1

0x5E07 Number of incidents u>200% on phase V1

0x5E08 Number of incidents u>250% on phase V1

0x5E09 Number of incidents u>300% on phase V1

0x5E0A Number of incidents u>120% on phase V2

0x5E0B Number of incidents u>150% on phase V2

0x5E0C Number of incidents u>200% on phase V2

0x5E0D Number of incidents u>250% on phase V2

Units

U1

U1

U1

U1

U1

U1

2

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

111

File

Section

Record

Field No.

Point Label

15 V2 N5 300%

16 V3 N1 110%

17 V3 N2 150%

18 V3 N3 200%

19 V3 N4 250%

20 V3 N5 300%

21 V1 Peak Max

22 V2 Peak Max

23 V3 Peak Max

8

1 Nnv

2 N

3 N1

4 N1/N, %

5 V Unb% Max

9

1 Nnv

2 N

3 N1

4 N2

5 N1/N, %

6 N2/N, %

7 V1 N1

8 V1 HD% Max

9 V1 H#

10 V1 N2

11 V1 THD Max

12 V2 N1

13 V2 HD% Max

14 V2 H#

15 V2 N2

16 V2 THD Max

17 V3 N1

18 V3 HD% Max

19 V3 H#

20 V3 N2

21 V3 THD Max

10

1 Nnv

2 N

3 N1

4 N2

Point

ID

Description

1

Options/Range

0x5E0E Number of incidents u>300% on phase V2

0x5E0F Number of incidents u>120% on phase V3

2

0x5E10 Number of incidents u>150% on phase V3

0x5E11 Number of incidents u>200% on phase V3

0x5E12 Number of incidents u>250% on phase V3

0x5E13 Number of incidents u>300% on phase V3

0x5E14 Maximum peak voltage on phase V1

0x5E15 Maximum peak voltage on phase V2

0x5E16 Maximum peak voltage on phase V3

Supply Voltage Unbalance

0x5E80 Number of non-valid 10-min intervals

0x5E81 Number of valid 10-min intervals

0x5E82 Number of incidents V Unb > 2%, N1

0x5E83 EN50160 compliance ratio, N1/N

0x5E84 Maximum voltage unbalance

Harmonic Voltage

0x5F00 Number of non-valid 10-min intervals

0x5F01 Number of valid 10-min intervals

0x5F02 Number of polyphase harmonic voltage incidents, N1

0x5F03 Number of polyphase voltage THD incidents, N2

0x5F04 EN50160 harmonic voltage compliance ratio, N1/N

0x5F05 EN50160 voltage THD compliance ratio, N2/N

0x5F06 Number of harmonic voltage incidents on phase V1

0x5F07 Worst-case harmonic magnitude on phase V1, %Un

0x5F08 Worst-case harmonic component number on phase V1

0x5F09 Number of voltage THD incidents on phase V1

0x5F0A Worst-case voltage THD on phase V1

0x5F0B Number of harmonic voltage incidents on phase V2

0x5F0C Worst-case harmonic magnitude on phase V2, %Un

2-50

0x5F0D Worst-case harmonic component number on phase V2

0x5F0E Number of voltage THD incidents on phase V2

0x5F0F Worst-case voltage THD on phase V2

0x5F10 Number of harmonic voltage incidents on phase V3

0x5F11 Worst-case harmonic magnitude on phase V3, %Un

0x5F12 Worst-case harmonic component number on phase V3

0x5F13 Number of voltage THD incidents on phase V3

0x5F14 Worst-case voltage THD on phase V3

Interharmonic Voltage

0x5F80 Number of non-valid 10-min intervals

0x5F81 Number of valid 10-min intervals

0x5F82 Number of polyphase interharmonic voltage incidents, N1

0x5F83 Number of polyphase interharmonic THD incidents, N2

2-50

2-50

Units

0.01%

0.01%

0.01%

0.1%

0.01%

0.1%

0.01%

0.1%

U1

U1

U1

0.01%

0.1%

2

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

112

File

Section

Record

Field No.

Point Label

5 N1/N, %

6 N2/N, %

7 V1 N1

8 V1 HD% Max

9 V1 H#

10 V1 N2

11 V1 THD Max

12 V2 N1

13 V2 HD% Max

14 V2 H#

15 V2 N2

16 V2 THD Max

17 V3 N1

18 V3 HD% Max

19 V3 H#

20 V3 N2

21 V3 THD Max

11

1 Nnv

2 N

3 N1

4 N1/N, %

5 V1 N1

6 V1 Frq1 %Un

7 V1 Frq2 %Un

8 V1 Frq3 %Un

9 V1 Frq4 %Un

10 V2 N1

11 V2 Frq1 %Un

12 V2 Frq2 %Un

13 V2 Frq3 %Un

14 V2 Frq4 %Un

15 V3 N1

16 V3 Frq1 %Un

17 V3 Frq2 %Un

18 V3 Frq3 %Un

19 V3 Frq4 %Un

20 Frq1

21 Frq2

22 Frq3

23 Frq4

1

Point

ID

Description

1

Options/Range

0x5F84 EN50160 interharmonic voltage compliance ratio, N1/N

0x5F85 EN50160 interharmonic voltage THD compliance ratio, N2/N

2

0x5F86 Number of interharmonic voltage incidents on phase V1

0x5F87 Worst-case interharmonic magnitude on phase V1, %Un

0x5F88 Worst-case interharmonic component number on phase V1

0x5F89 Number of interharmonic voltage THD incidents on phase V1

0x5F8A Worst-case interharmonic voltage THD on phase V1

0x5F8B Number of interharmonic voltage incidents on phase V2

0x5F8C Worst-case interharmonic magnitude on phase V2, %Un

0x5F8D Worst-case interharmonic component number on phase V2

0x5F8E Number of interharmonic voltage THD incidents on phase V2

0x5F8F Worst-case interharmonic voltage THD on phase V2

0x5F90 Number of interharmonic voltage incidents on phase V3

0x5F91 Worst-case interharmonic magnitude on phase V3, %Un

0x5F92 Worst-case interharmonic component number on phase V3

0x5F93 Number of interharmonic voltage THD incidents on phase V3

0x5F94 Worst-case interharmonic THD on phase V3

Mains Signaling Voltage

0x6000 Number of non-valid 3-sec intervals

0x6001 Number of valid 3-sec intervals

0x6002 Number of polyphase incidents, N1

0x6003 EN50160 compliance ratio, N1/N

0x6004 Number of incidents on phase V1

0x6005 Maximum 1st signaling voltage magnitude on phase V1, %Un

0x6006 Maximum 2nd signaling voltage magnitude on phase V1, %Un

0x6007 Maximum 3rd signaling voltage magnitude on phase V1, %Un

0x6008 Maximum 4th signaling voltage magnitude on phase V1, %Un

0x6009 Number of incidents on phase V2

0x600A Maximum 1st signaling voltage magnitude on phase V2, %Un

0x600B Maximum 2nd signaling voltage magnitude on phase V2, %Un

0x600C Maximum 3rd signaling voltage magnitude on phase V2, %Un

0x600D Maximum 4th signaling voltage magnitude on phase V2, %Un

0x600E Number of incidents on phase V3

0x600F Maximum 1st signaling voltage magnitude on phase V3, %Un

0x6010 Maximum 2nd signaling voltage magnitude on phase V3, %Un

0x6011 Maximum 3rd signaling voltage magnitude on phase V3, %Un

0x6012 Maximum 4th signaling voltage magnitude on phase V3, %Un

0x6013 1st signaling voltage frequency

0x6014 2nd signaling voltage frequency

0x6015 3rd signaling voltage frequency

0x6016 4th signaling voltage frequency

2-50

2-50

2-50

Units

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.01%

0.1%

0.01%

0.1%

0.01%

0.1%

0.01%

0.01%

0.01%

0.01%

0.01Hz

0.01Hz

0.01Hz

0.01Hz

When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

2

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

113

2

For volts, amps, power and frequency scales and units, refer to Section 4 ”Data Scales and Units”.

3.12 EN 50160 Harmonics Survey Statistics Data Log

File

Section

Record

Field No.

Point Label

0

1 THD MAX

2 THDO MAX

3 THDE MAX

4 %HD02 MAX

5 %HD03 MAX

51 %HD50 MAX

1

1 THD MAX

2 THDO MAX

3 THDE MAX

4 %HD02 MAX

5 %HD03 MAX

51 %HD50 MAX

2

1 THD MAX

2 THDO MAX

3 THDE MAX

4 %HD02 MAX

5 %HD03 MAX

51 %HD50 MAX

Point

ID

Description

1

V1 Harmonic Voltage

0xC000 Maximum THD on phase

0xC001 Maximum odd harmonics THD

0xC002 Maximum even harmonics THD

0xC003 Maximum HD02 harmonic voltage magnitude, %Un

0xC004 Maximum HD03 harmonic voltage magnitude, %Un

0xC032 Maximum HD50 harmonic voltage magnitude, %Un

V2 Harmonic Voltage

0xC000 Maximum THD on phase

0xC001 Maximum odd harmonics THD

0xC002 Maximum even harmonics THD

0xC003 Maximum HD02 harmonic voltage magnitude, %Un

0xC004 Maximum HD03 harmonic voltage magnitude, %Un

0xC032 Maximum HD50 harmonic voltage magnitude, %Un

V3 Harmonic Voltage

0xC000 Maximum THD on phase

0xC001 Maximum odd harmonics THD

0xC002 Maximum even harmonics THD

0xC003 Maximum HD02 harmonic voltage magnitude, %Un

0xC004 Maximum HD03 harmonic voltage magnitude, %Un

0xC032 Maximum HD50 harmonic voltage magnitude, %Un

1

Options/Range Units Type

0.1%

0.1%

0.1%

0.01%

0.01%

0.01%

0.1%

0.1%

0.1%

0.01%

0.01%

0.01%

0.1%

0.1%

0.1%

0.01%

0.01%

0.01%

When the 4LN3 or 3LN3 wiring mode is selected, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

Notes

3.13 Billing/TOU Monthly Profile Data Log

File

Channel/

Section

1

0/0

Record

Field No.

2

1 REG1

2 TRF1

3 TRF2

4 TRF3

Point Label Point

ID

Energy Register #1

Description Options/Range

Units

3

Type Notes

114

File

Channel/

Section

1

Record

Field No.

2

5 TRF4

6 TRF5

7 TRF6

8 TRF7

9 TRF8

Point Label

9/9

1 REG10

2 TRF1

3 TRF2

4 TRF3

5 TRF4

6 TRF5

7 TRF6

8 TRF7

9 TRF8

16/10

1 REG1 MD

2 TIME0

3 REG1 CMD

4 TRF1 MD

5 TIME1

6 TRF1 CMD

7 TRF2 MD

8 TIME2

9 TRF2 CMD

10 TRF3 MD

11 TIME3

12 TRF3 CMD

13 TRF4 MD

14 TIME4

15 TRF4 CMD

16 TRF5 MD

17 TIME5

18 TRF5 CMD

19 TRF6 MD

20 TIME6

21 TRF6 CMD

22 TRF7 MD

23 TIME7

24 TRF7 CMD

Point

ID

Description Options/Range

Energy Register #10

Monthly Maximum Demand Register #1

0x4780 Summary (total) maximum demand

0x7700 Summary (total) maximum demand timestamp

0x4790 Summary (total) cumulative maximum demand

0x7100 Tariff #1 maximum demand

0x7701 Tariff #1 maximum demand timestamp

0x7180 Tariff #1 cumulative maximum demand

0x7101 Tariff #2 maximum demand

0x7702 Tariff #2 maximum demand timestamp

0x7181 Tariff #2 cumulative maximum demand

0x7102 Tariff #3 maximum demand

0x7703 Tariff #3 maximum demand timestamp

0x7183 Tariff #3 cumulative maximum demand

0x7103 Tariff #4 maximum demand

0x7704 Tariff #4 maximum demand timestamp

0x7183 Tariff #4 cumulative maximum demand

0x7104 Tariff #5 maximum demand

0x7705 Tariff #5 maximum demand timestamp

0x7184 Tariff #5 cumulative maximum demand

0x7105 Tariff #6 maximum demand

0x7786 Tariff #6 maximum demand timestamp

0x7185 Tariff #6 cumulative maximum demand

0x7106 Tariff #7 maximum demand

0x7707 Tariff #7 maximum demand timestamp

0x7186 Tariff #7 cumulative maximum demand

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

Units

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

3

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

115

2

3

File

Channel/

Section

1

Record

Field No.

2

25/19

Point Label

25 TRF8 MD

26 TIME8

27 TRF8 CMD

1 REG10 MD

2 TIME0

3 REG10 CMD

4 TRF1 MD

5 TIME1

6 TRF1 CMD

7 TRF2 MD

8 TIME2

9 TRF2 CMD

10 TRF3 MD

11 TIME3

12 TRF3 CMD

13 TRF4 MD

14 TIME4

15 TRF4 CMD

16 TRF5 MD

17 TIME5

18 TRF5 CMD

19 TRF6 MD

20 TIME6

21 TRF6 CMD

22 TRF7 MD

23 TIME7

24 TRF7 CMD

25 TRF8 MD

26 TIME8

27 TRF8 CMD

1

Point

ID

Description Options/Range

0x7107 Tariff #8 maximum demand

0x7708 Tariff #8 maximum demand timestamp

0x7187 Tariff #8 cumulative maximum demand

Monthly Maximum Demand Register #10

0x4789 Summary (total) maximum demand

0x7700 Summary (total) maximum demand timestamp

0x4799 Summary (total) cumulative maximum demand

0x7100 Tariff #1 maximum demand

0x7701 Tariff #1 maximum demand timestamp

0x7180 Tariff #1 cumulative maximum demand

0x7101 Tariff #2 maximum demand

0x7702 Tariff #2 maximum demand timestamp

0x7181 Tariff #2 cumulative maximum demand

0x7102 Tariff #3 maximum demand

0x7703 Tariff #3 maximum demand timestamp

0x7183 Tariff #3 cumulative maximum demand

0x7103 Tariff #4 maximum demand

0x7704 Tariff #4 maximum demand timestamp

0x7183 Tariff #4 cumulative maximum demand

0x7104 Tariff #5 maximum demand

0x7705 Tariff #5 maximum demand timestamp

0x7184 Tariff #5 cumulative maximum demand

0x7105 Tariff #6 maximum demand

0x7786 Tariff #6 maximum demand timestamp

0x7185 Tariff #6 cumulative maximum demand

0x7106 Tariff #7 maximum demand

0x7707 Tariff #7 maximum demand timestamp

0x7186 Tariff #7 cumulative maximum demand

0x7107 Tariff #8 maximum demand

0x7708 Tariff #8 maximum demand timestamp

0x7187 Tariff #8 cumulative maximum demand

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

0-Pmax

0-999,999,999

Units

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

U3

F1

U3

3

Type Notes

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

An energy use profile section is allocated for registers for which a source input is selected in the Energy/TOU Register setup and for which energy use profile is enabled. A maximum demand profile section is allocated for registers for which maximum demand profile is enabled in the Energy/TOU Register setup. Not configured sections/channels are not available for download.

Refer to the file channel mask in the file info for configured channels.

The number of parameters in a section is automatically configured depending on the number of actually used tariffs selected in the TOU Daily Profiles.

For power scale and units, refer to Section 4 ”Data Scales and Units”.

116

3.14 Billing/TOU Daily Profile Data Log

File

Channel/

Section

1

0/0

Record

Field No.

2

1 REG1

2 TRF1

3 TRF2

4 TRF3

5 TRF4

6 TRF5

7 TRF6

8 TRF7

9 TRF8

Point Label

9/9

1 REG10

2 TRF1

3 TRF2

4 TRF3

5 TRF4

6 TRF5

7 TRF6

8 TRF7

9 TRF8

16/10

1 REG1 MD

2 TRF1 MD

3 TRF2 MD

4 TRF3 MD

5 TRF4 MD

6 TRF5 MD

7 TRF6 MD

8 TRF7 MD

9 TRF8 MD

25/19

1 REG10 MD

2 TRF1 MD

3 TRF2 MD

4 TRF3 MD

5 TRF4 MD

6 TRF5 MD

Point

ID

Description Options/Range

Units

3

Type Notes

Energy Register #1

Energy Register #10

Daily Maximum Demand Register #1

0x4780 Summary (total) max. demand reading

0x7100 Tariff #1 max. demand reading

0x7101 Tariff #2 max. demand reading

0x7102 Tariff #3 max. demand reading

0x7103 Tariff #4 max. demand reading

0x7104 Tariff #5 max. demand reading

0x7105 Tariff #6 max. demand reading

0x7106 Tariff #7 max. demand reading

0x7107 Tariff #8 max. demand reading

Daily Maximum Demand Register #10

0x4789 Summary (total) max. demand reading

0x7100 Tariff #1 max. demand reading

0x7101 Tariff #2 max. demand reading

0x7102 Tariff #3 max. demand reading

0x7103 Tariff #4 max. demand reading

0x7104 Tariff #5 max. demand reading

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

0-Pmax

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

U3

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

117

2

3

File

Channel/

Section

1

Record

Field No.

2

Point Label

7 TRF6 MD

8 TRF7 MD

9 TRF8 MD

1

Point

ID

Description Options/Range

0x7105 Tariff #6 max. demand reading

0x7106 Tariff #7 max. demand reading

0x7107 Tariff #8 max. demand reading

0-Pmax

0-Pmax

0-Pmax

Units

U3

U3

U3

3

Type Notes

UINT32

UINT32

UINT32

An energy use profile section is allocated for registers for which a source input is selected in the Energy/TOU Register setup and for which energy use profile is enabled. A maximum demand profile section is allocated for registers for which maximum demand profile is enabled in the Energy/TOU Register setup. Not configured sections/channels are not available for download.

Refer to the file channel mask in the file info for configured channels.

The number of parameters in a section is automatically configured depending on the number of actually used tariffs selected in the TOU Daily Profiles.

For power scale and units, refer to Section 4 ”Data Scales and Units”.

3.15 Energy Load Profile Data Log

File

Section

0

Record

Field No.

1

Point Label Point

ID

Description Options/Range

1

The number of parameters in a file is automatically configured depending on the number of registers for which a source input is selected in the Energy/TOU Register setup.

118

4 Data Scales and Units

Code Condition

Data Scales

Vmax

Imax

I4max

Pmax

Fmax

AImin

AImax

+/-1mA

0-20mA

4-20mA

Voltage scale

Current Scale

Value

× PT Ratio, V

× CT Ratio

1

, A

Current Scale × I4 CT Ratio

1

Vmax

× Imax × 2, W

, A

AImin = -AI full scale

AImax = AI full scale × 2

AImin = AI zero scale

AImax = AI full scale

AImin = AI zero scale

AImax = AI full scale

× 2

0-1mA AImin = AI zero scale

AImax = AI full scale

Data Units

U1 PT Ratio = 1

PT Ratio > 1

U2

0.1 V

1 V

U3 PT Ratio = 1

PT Ratio > 1

U4

1 W/Var/VA

1 kW/kvar/kVA

Range Notes

0 to 2 ×CT primary current

0 to 10 ×CT primary current

2

3

3

4

1

CT Ratio = CT primary current/CT secondary current

2

The default Voltage scale is 144V (120V +20%). You can change it via the Device Data Scale setup (see Section 3.1) or via the Device Options setup in PAS.

3

The default Current scale is 2 × CT secondary current (2 × 1A or 2 × 5A depending on the order).

4

Pmax is rounded to whole kilowatts. With PT=1.0, if Pmax is greater than 9,999,000 W, it is truncated to 9,999,000 W.

119

5 Data Formats

Format Code

Timestamp

F1

Value Description

Local time in a UNIX-style format. Represents the number of seconds since midnight (00:00:00), January 1, 1970.

The time is valid after January 1, 2000.

File ID

F2

12

13

14

15

16

1-8

9

10

11

17-19

26

27

128

File Attributes

F3 Bit 0 = 0

Bit 0 = 1

Bit 1 = 1

Bits 4:6 =

0

1

2

3

4

File Status Word

(bitmap)

F4 Bit 0 = 1

Bit 8 = 1

Bit 9 = 1

Bit 10 = 1

Bit 11 = 1

Bit 12 = 1

Bit 13 = 1

Bit 14 = 1

Bit 15 = 1

File Record Status Word

(bitmap)

F5 Bit 0 = 1

Bit 8 = 1

Bit 9 = 1

Bit 10 = 1

TOU Profile Log Channel ID

F6

16-25

Waveform Log Channel ID

F7

Bit 11 = 1

Bit 12 = 1

Bit 13 = 1

Bit 14 = 1

Bit 15 = 1

0

1

2

3

Data log #1-8

Data log #9 – EN50160 Compliance Statistics

Data log #10 – EN50160 Harmonic Survey Statistics

Data log #11

Data log #12 – Energy Load Profile log

Data log #13 – Fault RMS Profile log

Data log #14 – PQ RMS Profile log

Data log #15 – Energy/TOU Monthly Profile log

Data log #16 – Energy/TOU Daily Profile log

Waveform log #1-3

Power quality (PQ) event log

Fault event log

Real time waveform capture

Non-wrap file (stop when full)

Wrap-around (circular) file

Fixed (non-changeable) file attributes

Multi-section data log file attributes:

Regular file

Energy/TOU Monthly Profile log

Energy/TOU Daily Profile log

EN50160 Compliance Statistics

EN50160 Survey Statistics - Voltage Harmonics

The last record of the file is being read

File is empty

Reading after EOF

Corrupted record (CRC error)

No file section found for the requested channel

Reading after the end of a data block

File is not accessible

Record not found

Generic read error (with one of the bits 8-14)

The last record of the file is being read

File is empty

Reading after EOF

Corrupted record (CRC error)

No file section found for the requested channel

Reading after the end of a data block

File is not accessible

Record not found

Generic read error (with one of the bits 8-14)

Summary/TOU maximum demand registers #1-#10

Channel V1/V12

Channel V2/V23

Channel V3/V31

Channel V4 (neutral)

Notes

Multi-section file

Multi-section file

Multi-section file

Multi-section file

Note 1

Note 1

Note 1

Profile Log Sections Mask

F8 Bit 0:7 = 1 Summary/TOU energy usage registers #1-#8

120

Format Code

Waveform Log Channel Mask

F9

F10

Value

Bit 16:23 = 1

Bit 0 = 1

Bit 1 = 1

Bit 2 = 1

Bit 3 = 1

Bit 4 = 1

Bit 5 = 1

Bit 6 = 1

Bit 7 = 1

TOU Tariff Change Time

Bits 8:15 = 0-7

Bits 2:7 = 0-23

Bits 0:1 = 0-3

Description

Summary/TOU maximum demand registers #1-#8

Channel V1/V12

Channel V2/V23

Channel V3/V31

Channel V4

Channel I1

Channel I2

Channel I3

Channel I4

Tariff number #1-#8

Tariff start hour

Tariff start quarter of an hour

Summary/TOU Energy Register Source ID

F11 0x0000 None

0x0700-0x0707 Pulse input DI1-DI8

Note 1

Notes

0x1701 kWh export

0x1705 kvarh export

0x1708 kVAh

Setpoint Trigger Parameters ID

F12 0x0000-0xFFFF

0x1200-0x120F

Setpoint Relational Operator

F13 0 = NONE

Any data point ID excluding energy counters

External trigger #1-#16 (UDP broadcast trigger message)

None (with pulsed events)

1 = GREATER OR

EQUAL

Analog value or counter is over the operate limit

2 = LESS OR EQUAL Analog value or counter is under the operate limit

See Section 3.4

3 = EQUAL

4 = NOT EQUAL

5 = ON

6 = OFF

Analog value or counter is equal to the operate limit

Analog value or counter is not equal to the operate limit

Binary status is 1/ON

Binary status is 0/OFF

Setpoint Action ID

F14

F17

0x2000-0x2007

0x2100-0x2107

0x3000-0x3003

0x3100-0x3103

0x4000-0x4007

0x4200-0x4207

0x6100

0x6101

0x6102

0x6103

0x6104

0x6105

0x6300

0x6400

0x6500

0x7000

0x7001

0x7002

0x7100-0x710D

0x7200-0x7201

Set user event flag #1-#8

Clear user event flag #1-#8

Operate relay RO1-RO4

Release latched relay RO1-RO4

Increment counter #1-#8

Clear counter #1-#8

Reset all total maximum demand registers

Reset maximum power demand registers

Reset maximum volt and ampere demand registers

Reset maximum volt demand registers

Reset maximum ampere demand registers

Reset maximum harmonic demand registers

Reset Billing/TOU maximum demands

Clear all counters

Clear Min/Max log registers

Event log on setpoint operated

Event log on setpoint released

Event log on any setpoint transition

Data log #1-#14

Waveform Log #1-#2

Counter Source ID

F16 0x0000 None

0x0001-0x0008

Relay Output Pulse Source ID

Pulse input DI1-D8

0x0000 None

0x0400 kWh import pulse

0x0401

0x0403 kWh export pulse kvarh import pulse

0x0404

0x0405 kvarh export pulse kvarh total pulse

121

Format Code Value

AO Output Parameters ID

F18 0x0000

Description

None (output disabled)

1-Cycle Phase Values

1-Cycle Total Values

0x0F04

0x0F05

0x0F0A

0x0F0B

0x0F0C

Total PF Lag

Total PF Lead

3-phase average L-N/L-L voltage

3-phase average L-L voltage

3-phase average current

1-Cycle Auxiliary Values

0x1002 Frequency

1-Sec Phase Values

0x1100 V1/V12 Voltage

0x1101

0x1102

V2/V23 Voltage

V3/V31 Voltage

1-Sec Total Values

0x1404

0x1405

0x140A

0x140B

0x140C

Total PF Lag

Total PF Lead

3-phase average L-N/L-L voltage

3-phase average L-L voltage

3-phase average current

1-Sec Auxiliary Values

0x1502 Frequency

0x160F

0x1610

0x1611

0x161A

0x161B

Event Cause/Point ID

F19

0x0000-0x59FF

0x6400-0xFFFF

Accumulated kW import demand

Accumulated kvar import demand

Accumulated kVA demand

Accumulated kW export demand

Accumulated kvar export demand

Setpoint Operation Events

Trigger parameter ID

Trigger parameter ID

Setpoint Action Events

0x5B00-0x5BFF

0x5C00-0x5CFF

0x5D00-0x5DFF

Point ID (low byte, see F21)

Front Panel Operations

Point ID (low byte, see F21)

Self-Check Diagnostics Events

Point ID (low byte, see F21)

Notes

Note 2

1

1

122

Format Code

Data Point ID

F21

0x5E08

0x6015

0x6202

0x6203

0x620E

0x620F

0x6211

0x6212

0x6300

Value

RTOS Kernel error

Hardware Diagnostics Events

RAM/Data error

Hardware watchdog reset

0x6205 CPU exception

0x6206 Reserved

0x6207 Software watchdog reset

Expanded/FLASH memory fault

CPU EEPROM fault

I/O board EEPROM fault

Transient coprocessor fault

Power down

0xF600 Enabled

0xF700 Disabled

0xF800 Started

0xF801 Begin

0xF900 Stopped

0xF901 End

Setpoint Operation Events

0xE100-0xE10F

0xE200-0xE20F

Setpoint operated (low byte = setpoint ID)

Setpoint released (low byte = setpoint ID)

See F14

Setpoint Action Events

Setpoint action ID

Data Locations

Description

RTC DST/Standard time update

0x6318

0x6319

0x631A

IRIG-B signal lost

IRIG-B time unlocked

IRIG-B time locked

Event Effect ID

0x631D

F20

Motion/tilt sensor operation

Communications/Self-check/Front Panel Events

0x0000 None

0x6100

0x6101

0x6102

0x6103

0x6104

0x6105

0x6300

All total maximum demands cleared

Power maximum demands cleared

Volt and ampere maximum demands cleared

Volt maximum demands cleared

Ampere maximum demands cleared

Harmonic maximum demands cleared

Summary/TOU maximum demand registers cleared

0x6400

0x6401-0x6407

0x6500

0x6A00-0x6A1A

0x6B00

All counters cleared

Counter cleared (low byte = counter ID)

Min/Max log cleared

Log file cleared (low byte = File ID)

EN50160 statistics cleared

0x6B02

0x6B03

0x6B04

0x6B05

0xF000-0xF00F

0xF100-0xF10F

Device operation time cleared

Battery operation time cleared

Aux. battery operation time cleared

Failure counters cleared

Setpoint set (low byte = setpoint ID)

Setpoint cleared (low byte = setpoint ID)

0xF300 Setup reset (set by default)

Notes

123

Format Code

0x09

0x0A

Value

Digital inputs setup

Pulse counters setup

Description

0x12

0x13

0x14

0x16

0x18

0x19

0x1C

0x1D

0x1F

0x20

0x21

0x22

User assignable register map

Programmable Min/Max log setup

Data log setup

TOU energy registers setup

TOU daily profiles

TOU calendar

User selectable device options

RO Setup

DNP 3.0 class 0 map

DNP 3.0 options setup

DNP 3.0 events setup

DNP 3.0 event setpoints

0x25 Net setup

0x27

0x28

0x29

0x2A

Waveform log setup

PQ log setup

Fault log setup

Device mode control

0x2B-0x4E Reserved

0x4F Password tampering attempt

Event Type ID

F22

0x0000

0x0001-0x0010

0x0200

0x0201

0x0202

0x0203

0x0204

0x0205

Setpoint Events

SP: Generic setpoint event

SP1-SP16: Setpoint #1-#16 event

Fault Events

FE: Generic fault event

FE1: Zero-sequence current

FE2: Zero-sequence voltage

FE3: Current unbalance

FE4: Voltage unbalance

FE5: Overcurrent and undervoltage

0x0207

0x0300

0x0301-0x0308

0x0500

0x0501

0x0502

0x0503

0x0505

0x0506

0x0507

0x0508

0x0509

0x050A

0x050B

0x050C

Device Diagnostics

(bitmap)

F23 Bit 0 = 1

Bit 1 = 1

Bit 2 = 1

FE7: Neutral current (I4)

DI Events

DI: Generic DI event

DI1-DI8: DI1-DI8 event

EN 50160 PQ Events (EN 50160 categories)

PQE: Generic EN50160 PQ event

PQE1: Frequency variations

PQE2: Voltage variations

PQE3: Rapid voltage changes

PQE5: Voltage dips

PQE6: Voltage interruptions

PQE7: Temporary overvoltages

PQE8: Transient overvoltages

PQE9: Voltage unbalance

PQE10: Harmonic voltage

PQE11: Interharmonic voltage

PQE12: Mains signaling voltage

Reserved

Permanent fault

RAM/Data error

Notes

124

3

0

1

0

1

2

2

3

DNP Class 0 Objects

F25 0x1E01

0x1E02

0x1E03

1

2

3

4

5

2

3

0

3

0

1

0

1

2

Format Code

Bit 17 = 1

Bit 18

Bit 19

Bit 20 = 1

Bit 21 = 1

Bit 22 = 1

Bit 23

Bit 24 = 1

Bit 25 = 1

Bit 26

Bit 27 = 1

Bit 28

Bit 29 = 1

Bit 30 = 1

Bit 31

DNP Object Types

F24

0

1

0

1

Bit 3 = 1

Value

Bit 4 = 1

Bit 5 = 1

Bit 6

Bit 7 = 1

Bit 8 = 1

Bit 9 = 1

Bit 10 = 1

Bit 11 = 1

Bit 12 = 1

Bit 13

Bit 14 = 1

Bit 15 = 1

Bit 16

Description

CPU watchdog reset

Sampling fault

CPU exception

Reserved

Software watchdog reset

Power down

Device reset

Configuration reset

RTC fault

Configuration fault

Reserved

Expanded/Data FLASH memory fault

CPU EEPROM fault

Reserved

I/O board EEPROM fault

Transient coprocessor fault

Reserved

C Library error

RTOS Kernel error

Task error

Reserved

IRIG-B signal lost

IRIG-B time unlocked

Reserved

Magnetic interference

Reserved

Motion/tilt sensor

Circuit fault

Reserved

Static Binary Input Objects

Single-Bit Binary Input

Binary Input With Status

Binary Input Change Event Objects

Binary Input Change Without Time

Binary Input Change With Time

Static Binary Counters

32-bit Binary Counter

32-bit Binary Counter Without Flag

16-bit Binary Counter

16-bit Binary Counter Without Flag

Binary Counter Change Events

32-bit Counter Change Event Without Time

32-bit Counter Change Event With Time

16-bit Counter Change Event Without Time

16-bit Counter Change Event With Time

Frozen Binary Counters

32-bit Frozen Counter

32-bit Frozen Counter Without Flag

32-bit Frozen Counter With Time of Freeze

16-bit Frozen Counter

16-bit Frozen Counter Without Flag

16-bit Frozen Counter With Time of Freeze

Static Analog Input Objects

32-bit Analog Input

32-bit Analog Input Without Flag

16-bit Analog Input

16-bit Analog Input Without Flag

Analog Input Change Events

32-bit Analog Change Event Without Time

32-bit Analog Change Event With Time

16-bit Analog Change Event Without Time

16-bit Analog Change Event With Time

Analog Input 30:01

Analog Input 30:02

Analog Input 30:03

Notes

125

Format Code

0x1E04

0x2801

0x2802

0x0101

0x0102

0x1401

0x1402

0x1405

0x1406

0x1501

0x1502

0x1505

0x1506

0x1509

0x150A

Value

Wiring Mode

F26 0

1

Analog Input 30:04

Analog Output 40:01

Analog Output 40:02

Binary Input 01:01

Binary Input 01:02

Binary Counter 20:01

Binary Counter 20:02

Binary Counter 20:05

Binary Counter 20:06

Frozen Counter 21:01

Frozen Counter 21:02

Frozen Counter 21:05

Frozen Counter 21:06

Frozen Counter 21:09

Frozen Counter 21:10

Description Notes

2

3

4

5

6

3OP2 - 3-wire open delta using 2 CTs (2 element)

4LN3 - 4-wire WYE using 3 PTs (3 element), line-toneutral voltage readings

3DIR2 - 3-wire direct connection using 2 CTs (2 element)

4LL3 - 4-wire WYE using 3 PTs (3 element), line-to-line voltage readings

3OP3 - 3-wire open delta using 3 CTs (2 1/2 element)

3LN3 - 4-wire WYE using 2 PTs (2 1/2 element), line-toneutral voltage readings

3LL3 - 4-wire WYE using 2 PTs (2 1/2 element), line-toline voltage readings

Factory Device Options

(bitmap)

F27 0 Fast transient overvoltage option (special order)

NOTES:

1

Voltage

When the 4LN3 or 3LN3 wiring mode is selected, the voltages and voltage waveforms will be line-to-neutral; for any other wiring mode, they will be line-to-line.

2

Analog Outputs

1) For bi-directional analog output ( ±1 mA), the zero scale setup corresponds to the center (0 mA) of the scale range, and the direction of the current matches the sign of the output parameter. Unsigned parameters are output within the current range 0 to +1 mA and can be scaled as in the case of single-ended analog output (0-1 mA).

For signed values, such as powers and signed power factor, the scale is always symmetrical with regard to 0 mA, and the full scale corresponds to +1 mA output for positive readings and to -1 mA output for negative readings. The zero scale (0 mA output) is permanently set in the instrument to zero for all parameters except the signed power factor for which it is set to

1.000 (see Note 2). In write requests, the zero scale is ignored.

2) Except for the signed power factor, the setup scale is continuous within the entire value range. For signed power factor, the setup scale is broken at +1.000 in order to provide continuous output current when the power factor changes close to ±1.000.

The setup scale is symmetrical in the range of -0 to +0 with a center at 1.000 (-1.000 is assumed to be equal to +1.000).

Negative power factor is output as -1.000 minus measured value, and non-negative power factor is output as +1.000 minus measured value. To set the entire range for power factor from-0 to +0, the scales would be specified as -0 to 0. Because of the fact that negative zero may not be transmitted through communications, the value of -0.001 is used to specify the scale of -0, and both +0.001 and 0.000 are used to specify the scale of +0.

126

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement

Table of contents
