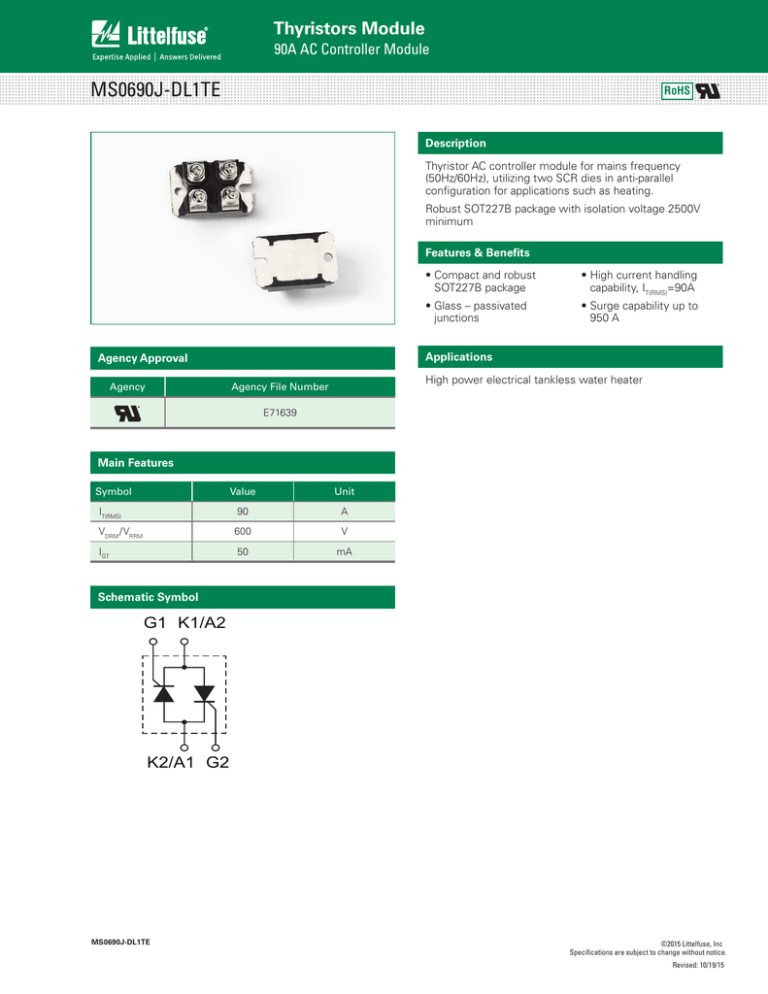

MS0690J-DL1TE Thyristors Module Teccor brand Thyristors

MS0690J-DL1TE Thyristors Module Teccor brand Thyristors
Thyristors
Module
Teccor® brand
Thyristors
90A AC Controller Module
MS0690J-DL1TE
RoHS
Description
Thyristor AC controller module for mains frequency
(50Hz/60Hz), utilizing two SCR dies in anti-parallel
configuration for applications such as heating.
Robust SOT227B package with isolation voltage 2500V
minimum
Features & Benefits
• High current handling
capability, IT(RMS)=90A
• Glass – passivated
junctions
• Surge capability up to
950 A
Applications
Agency Approval
Agency
• Compact and robust
SOT227B package
High power electrical tankless water heater
Agency File Number
E71639
Main Features
Symbol
Value
Unit
IT(RMS)
90
A
VDRM /VRRM
600
V
IGT
50
mA
Schematic Symbol
G1 K1/A2
K2/A1 G2
MS0690J-DL1TE
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 10/19/15
Thyristors
Module
Teccor® brand
Thyristors
90A AC Controller Module
Absolute Maximum Ratings
Symbol
Parameter
On-State RMS Current - 360° as module
IT(RMS)
IT(AV)
Test Conditions
Average On-State Current - 360° as module
ITSM
Peak Non-Repetitive Surge Current, single cycle 60Hz
64
It
I t Value for fusing
di/dt
Critical Rate-of-Rise of On-State Current
PGM
Peak Gate Power Dissipation
PG(AV)
Average Gate Power Dissipation
41
Unit
A
A
950
A
tp =8.3ms
3745
A2s
IG = 150mA, f=60Hz,
TJ=125°C
200
A/μs
TJ = 125°C, Tp=30μs
10
TJ = 125°C, Tp=300μs
5
TJ = 125°C
1.0
W
Storage Junction Temperature Range
-40 to 150
°C
Operating junction Temperature Range
-40 to 125
°C
2
TJ
65
TC = 92°C
Average On-State Current - 180° as single SCR
Tstg
90
TC = 92°C
On-State RMS Current - 180° as single SCR
2
Value
W
Electrical Characteristics (TJ = 25°C, unless otherwise specified)
Symbol
Parameter
Test Conditions
IGT
DC Gate Trigger Current
VGT
DC Gate Trigger Voltage
IH
VD = 12V; RL = 30 Ω
Value
min.
5
max.
Unit
50
mA
1.6
V
80
mA
Holding Current
IT=400mA (initial)
Critical Rate-of-Rise of Off-State Voltage
TJ = 125°C, VD = VDRM/VRRM,
Exponential Waveform, Gate Open
tq
Turn-Off Time
IT=2A, TP=50μs, dv/dt=5V/μs,
di/dt=-30A/μs
35
μs
tgt
Turn-On Time
IG = 150mA, PW =15 μs,
IT = 130A(pk)
3
μs
Value
Unit
1.8
V
dv/dt
500
V/μs
Static Characteristics
Symbol
Test Conditions
VTM
Peak On-State Voltage
IDRM
IRRM
VD = VDRM / VRRM
IT = 130 A Peak, TP =380μs
TJ = 25°C
TJ = 125°C
MAX.
MAX.
20
μA
3000
μA
Thermal Resistances
Symbol
Rθ(J-C)
MS0690J-DL1TE
Parameter
Value
Unit
Thermal Resistance, Junction to Case
0.3
°C/W
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 10/19/15
Thyristors
Module
Teccor® brand
Thyristors
90A AC Controller Module
Figure 1: Normalized DC Gate Trigger Current
vs. Junction Temperature
Figure 2: Normalized DC Gate Trigger Voltage
vs. Junction Temperature
2.0
Ratio of VGT /VGT (TJ=25°C)
Ratio of IGT /IGT (TJ = 25°C)
2.0
1.5
1.0
0.5
0.0
-40
-15
10
35
60
85
110
1.5
1.0
0.5
0.0
125
-40
-15
10
Junction Temperature (TJ) -- (°C)
Figure 3: Normalized DC Holding Current
vs. Junction Temperature
60
85
110
125
Figure 4: On-State Current vs. On-State
Voltage (Typical, per SCR)
200
Instantaneous On-state Current (iT) – Amps
2.0
Ratio of IH /IH (TJ =25°C)
35
Junction Temperature (TJ) -- (°C)
1.5
1.0
0.5
TJ = 25°C
180
160
140
120
100
80
60
40
20
0
0.0
-40
-15
10
35
60
85
110
0.7
125
0.8
Junction Temperature (TJ) -- (°C)
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
Instantaneous On-state Voltage (vT) – Volts
Figure 5: Power Dissipation (Typical)
vs. RMS On-State Current per SCR
Figure 6: Maximum Allowable Case Temperature
vs. RMS On-State Current per module
130
60
Maximum Allowable Case Temperature
(TC)-°C
Average On-State Power Dissipation
[PD (AV)] - (W atts)
125
120
50
115
110
40
105
100
30
20
10
0
0
10
20
30
40
50
RMS On-State Current [IT(R MS)] - (Am ps)
MS0690J-DL1TE
60
70
95
90
85
80
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
75
70
0
10
20
30
40
50
60
70
80
90
100
RMS On-State Current [IT(RMS)] - Amps
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 10/19/15
Thyristors
Module
Teccor® brand
Thyristors
90A AC Controller Module
Figure 7: Maximum Allowable Case Temperature vs. Average On-State Current per module
130
Maximum Allowable Case Temperature
(TC)-°C
125
120
115
110
105
100
95
90
85
80
CURRENT WAVEFORM: Sinusoidal
LOAD: Resistive or Inductive
CONDUCTION ANGLE: 180°
75
70
0
10
20
30
40
50
60
70
80
90
100
Average On-State Current [IT(AVE)] - Amps
Figure 7: Surge Peak On-State Current vs. Number of Cycles
SUPPLY FREQUENCY: 60 Hz Sinusoidal
LOAD: Resistive
RMS On-State Current: [IT(RMS)]: Maximum Rated
Value at Specified Case Temperature
Peak Surge (Non-repetitive)
On-state Current (ITSM) – Amps
1000
Notes:
1. Gate control may be lost during and immediately
following surge current interval.
2. Overload may not be repeated until junction
temperature has returned to steady-state
rated value.
100
10
1
10
100
1000
Surge Current Duration -- Full Cycles
MS0690J-DL1TE
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 10/19/15
Thyristors
Module
Teccor® brand
Thyristors
90A AC Controller Module
Physical Specifications
Environmental Specifications
Test
Terminal Finish
100% Nickel Plated
Body
UL recognized epoxy meeting flammability
classification 94V-0
Lead Material
Copper Alloy
Specifications and Conditions
AC Blocking
Intermittent
Operational Life
Temperature/
Humidity
High Temp Storage
Design Considerations
Careful selection of the correct device for the application’s
operating parameters and environment will go a long way
toward extending the operating life of the Thyristor. Good
design practice should limit the maximum continuous
current through the main terminals to 75% of the device
rating. Other ways to ensure long life for a power discrete
semiconductor are proper heat sinking and selection of
voltage ratings for worst case conditions. Overheating,
overvoltage (including dv/dt), and surge currents are
the main killers of semiconductors. Correct mounting,
soldering, and forming of the leads also help protect
against component damage.
MIL-STD-750, M-1040, Cond A Applied
Peak AC voltage @ 125°C for 1008 hours
MIL-STD-750, Method 1037, 15000cycles,
ΔTJ ≥ 100°C
EIA / JEDEC, JESD22-A101
504 hours; 160V - DC: 85°C;
85% rel humidity
MIL-STD-750, M-1031,
1008 hours; 150°C
Low-Temp Storage
1008 hours; -40°C
Temperature Cycling
MIL-STD-750, M-1051,
20 cycles; -25°C to +125°C; 15-min
dwell-time
Dimensions
SOT-227 B
Dimension
4
3
1
2
PIN 1: K2/A1
PIN 2: G1
PIN 3: K1/A2
PIN 4: G2
Note: M4x7.5MM screw, 4 screws per unit.
MS0690J-DL1TE
A
B
C
D
E
F
G
H
J
K
L
M
N
O
P
Q
R
S
T
U
V
Inches
Millimeters
Min
Max
Min
Max
1.240
0.307
0.161
0.161
0.161
0.587
1.186
1.489
0.460
0.351
0.030
0.497
0.990
0.078
0.193
1.045
0.155
0.186
0.968
0
0.130
1.256
0.323
0.169
0.169
0.169
0.595
1.193
1.505
0.481
0.378
0.033
0.507
1.001
0.084
0.232
1.059
0.174
0.191
0.987
0.005
0.180
31.50
7.80
4.09
4.09
4.09
14.91
30.12
37.80
11.68
8.92
0.76
12.62
25.15
1.98
4.90
26.54
3.94
4.72
24.50
0
3.30
31.90
8.20
4.29
4.29
4.29
15.11
30.30
38.20
12.22
9.60
0.84
12.88
25.42
2.13
5.89
26.90
4.42
4.85
25.07
0.127
4.57
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 10/19/15
Thyristors
Module
Teccor® brand
Thyristors
90A AC Controller Module
Packing Options
Part Number
Weight
Packing Mode
Base Quantity
30g
Tube
160
MS0690J-DL1TE
Part Numbering System
Part Marking System
M S 06 90 J - D L1TE
Module products
MS0690J-DL1TE
Manufacturing Location Code
®
SCR module
Voltage Rating
60: 600V
Current Rating
90: 90A
MS0690J-DL1TE
YMXXX
Circuit Variation
D: 2 SCR die in anti-parallel
configuration
Package Type
J: SOT227B
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
©2015 Littelfuse, Inc
Specifications are subject to change without notice.
Revised: 10/19/15
