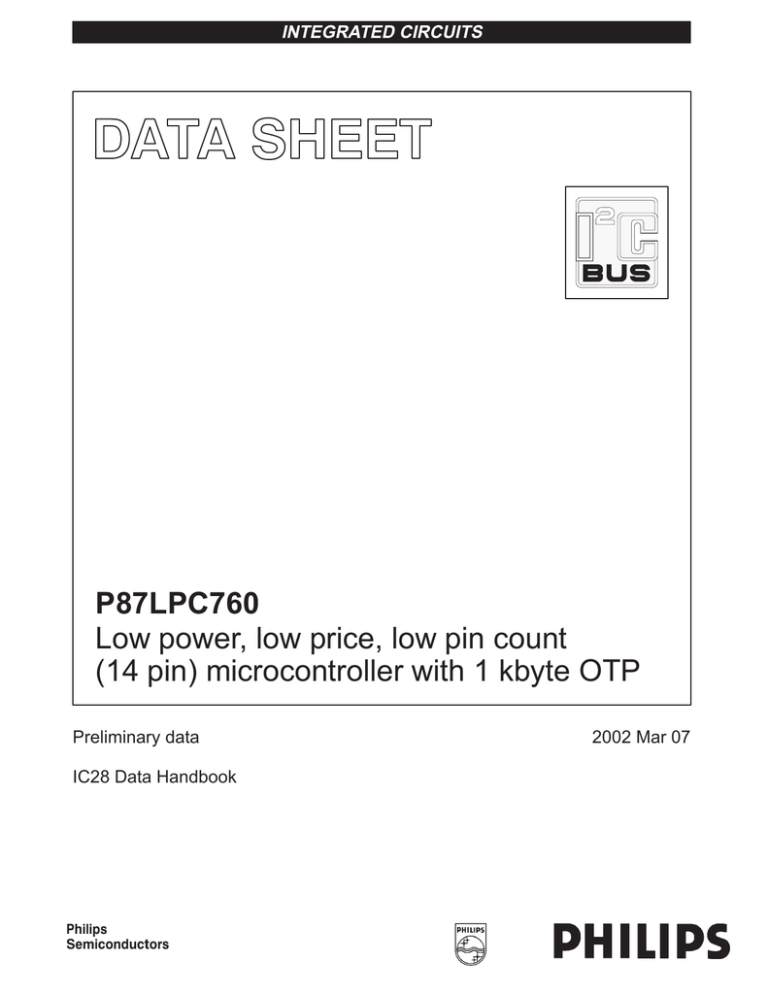

INTEGRATED CIRCUITS
P87LPC760
Low power, low price, low pin count
(14 pin) microcontroller with 1 kbyte OTP
Preliminary data
IC28 Data Handbook
2002 Mar 07
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIN CONFIGURATION, 14-PIN TSSOP AND 14-PIN DIP PACKAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LOGIC SYMBOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PIN DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL FUNCTION REGISTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enhanced CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Analog Comparators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Comparator Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Internal Reference Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Comparator Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Comparators and Power Reduction Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Comparator Configuration Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I2C Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I2C Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading I2CON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking ATN and DRDY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Writing I2CON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Regarding Transmit Active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Regarding Software Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External Interrupt Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quasi-Bidirectional Output Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Open Drain Output Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Push-Pull Output Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard Interrupt (KBI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Frequency Oscillator Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Medium Frequency Oscillator Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Frequency Oscillator Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On-Chip RC Oscillator Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External Clock Input Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CPU Clock Modification: CLKR and DIVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Monitoring Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brownout Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power On Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Reduction Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Idle Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Down Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low Voltage EPROM Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timer/Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timer Overflow Toggle Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2002 Mar 07
i
1
1
2
2
3
5
6
8
8
8
8
8
10
10
10
10
11
11
11
13
13
13
14
15
16
17
17
18
18
19
21
21
21
21
21
21
21
23
23
23
24
24
24
24
26
26
27
28
29
29
29
31
31
31
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Mode 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial Port Control Register (SCON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Baud Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Timer 1 to Generate Baud Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
More About UART Mode 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
More About UART Mode 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
More About UART Modes 2 and 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multiprocessor Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Address Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watchdog Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watchdog Feed Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watchdog Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual Data Pointers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EPROM Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32-Byte Customer Code Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Configuration Bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ABSOLUTE MAXIMUM RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COMPARATOR ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AC ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REVISION HISTORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2002 Mar 07
ii
31
31
31
31
32
32
34
34
37
37
40
40
40
41
42
42
42
43
43
43
44
45
46
47
47
52
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
• Four keypad interrupt inputs, plus one additional external interrupt
input
• Four interrupt priority levels
• Watchdog timer with separate on-chip oscillator, requiring no
external components. The watchdog timeout time is selectable
from 8 values
• Active low reset. On-chip power-on reset allows operation with no
external reset components
• Low voltage reset. One of two preset low voltage levels may be
GENERAL DESCRIPTION
selected to allow a graceful system shutdown when power fails.
May optionally be configured as an interrupt
The P87LPC760 is a 14-pin single-chip microcontroller designed for
low pin count applications demanding high-integration, low cost
solutions over a wide range of performance requirements. A
member of the Philips low pin count family, the P87LPC760 offers
programmable oscillator configurations for high and low speed
crystals or RC operation, wide operating voltage range,
programmable port output configurations, selectable Schmitt trigger
inputs, LED drive outputs, and a built-in watchdog timer. The
P87LPC760 is based on an accelerated 80C51 processor
architecture that executes instructions at twice the rate of standard
80C51 devices.
• Oscillator Fail Detect. The watchdog timer has a separate fully
on-chip oscillator, allowing it to perform an oscillator fail detect
function
• Configurable on-chip oscillator with frequency range and RC
oscillator options (selected by user programmed EPROM bits).
The RC oscillator option allows operation with no external
oscillator components
• Programmable port output configuration options:
quasi-bidirectional, open drain, push-pull, input-only
• Selectable Schmitt trigger port inputs
• LED drive capability (20 mA) on all port pins
• Controlled slew rate port outputs to reduce EMI. Outputs have
FEATURES
• An accelerated 80C51 CPU provides instruction cycle times of
300–600 ns for all instructions except multiply and divide when
executing at 20 MHz. Execution at up to 20 MHz when
VDD = 4.5 V to 6.0 V, 10 MHz when VDD = 2.7 V to 6.0 V
approximately 10 ns minimum ramp times
• Nine I/O pins minimum. Up to 12 I/O pins using on-chip oscillator
• 2.7 V to 6.0 V operating range for digital functions
• 1 kbyte EPROM code memory
• 128 byte RAM data memory
• 32 byte customer code EPROM allows serialization of devices,
and reset options
• Only power and ground connections are required to operate the
P87LPC760 when fully on-chip oscillator and reset options are
selected
• Serial EPROM programming allows simple in-circuit production
storage of setup parameters, etc
coding. Two EPROM security bits prevent reading of sensitive
application programs
• Two 16-bit counter/timers. One timer may be configured to toggle
• Idle and Power Down reduced power modes. Improved wakeup
a port output upon timer overflow
• One analog comparator
• Full duplex UART
• I2C communication port
from Power Down mode (a low interrupt input starts execution).
Typical Power Down current is 1 mA
• 14-pin TSSOP and 14-pin DIP packages
ORDERING INFORMATION
Part Number
Temperature Range °C and Package
Frequency
Drawing Number
P87LPC760BDH
0 to +70, plastic thin shrink small outline package; 14 leads; body width 4.4 mm
20 MHz (5 V), 10 MHz (3 V)
SOT402-1
P87LPC760BN
0 to +70, plastic dual in-line package; 14 leads
(300 mil)
20 MHz (5 V), 10 MHz (3 V)
SOT27-1
2002 Mar 07
1
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
PIN CONFIGURATION, 14-PIN TSSOP AND 14-PIN DIP PACKAGES
P1.7
1
14 P0.3/CIN1B
RST/P1.5
2
13 P0.4/CIN1A
VSS
3
12 P0.5/CMPREF
X1/P2.1
4
11 VDD
X2/CLKOUT/P2.0
5
10 P0.6/CMP1
SDA/INT0/P1.3
6
9
P1.0/TxD
SCL/T0/P1.2
7
8
P1.1/RxD
SU01527
LOGIC SYMBOL
VDD
VSS
CIN1B
CLKOUT/X2
X1
RxD
PORT 1
CMP1
PORT 0
CMPREF
TxD
T0/SCL
INT0/SDA
RST
PORT 2
CIN1A
SU01528
2002 Mar 07
2
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
BLOCK DIAGRAM
ACCELERATED
80C51 CPU
INTERNAL BUS
UART
1 KBYTE
CODE EPROM
I2C
128 BYTE
DATA RAM
TIMER 0, 1
PORT 2
CONFIGURABLE I/OS
PORT 1
CONFIGURABLE I/OS
WATCHDOG TIMER
AND OSCILLATOR
PORT 0
CONFIGURABLE I/OS
ANALOG
COMPARATOR
KEYPAD
INTERRUPT
CRYSTAL OR
RESONATOR
CONFIGURABLE
OSCILLATOR
POWER MONITOR
(POWER-ON RESET,
BROWNOUT RESET)
ON-CHIP
RC
OSCILLATOR
SU01529
2002 Mar 07
3
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
FFFFh
FFFFh
UNUSED SPACE
FD01h
UNUSED CODE
MEMORY SPACE
CONFIGURATION BYTES
UCFG1, UCFG2
(ACCESSIBLE VIA MOVX)
FD00h
FCFFh
32-BYTE CUSTOMER
CODE SPACE
(ACCESSIBLE VIA MOVC)
FCE0h
FFh
SPECIAL FUNCTION
REGISTERS
(ONLY DIRECTLY
ADDRESSABLE)
UNUSED CODE
MEMORY SPACE
0400h
03FFh
1 KBYTE ON-CHIP
CODE MEMORY
UNUSED SPACE
128 BYTES ON-CHIP DATA
MEMORY
(DIRECTLY AND
INDIRECTLY
ADDRESSABLE)
80h
7Fh
16-BIT ADDRESSABLE BYTES
INTERRUPT VECTORS
00h
0000h
ON-CHIP CODE
MEMORY SPACE
ON-CHIP DATA
MEMORY SPACE
0000h
EXTERNAL DATA
MEMORY SPACE1
SU01530
1. The P87LPC760 does not support access to external data memory. However, the User Configuration Bytes are accessed via the MOVX
instruction as if they were in external data memory.
Figure 1. P87LPC760 Program and Data Memory Map
2002 Mar 07
4
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
PIN DESCRIPTIONS
MNEMONIC
P0.3–P0.6
PIN NO.
TYPE
NAME AND FUNCTION
10, 12–14
I/O
Port 0: Port 0 is an 4-bit I/O port with a user-configurable output type. Port 0 latches are
configured in the quasi-bidirectional mode and have either ones or zeros written to them
during reset, as determined by the PRHI bit in the UCFG1 configuration byte. The operation
of port 0 pins as inputs and outputs depends upon the port configuration selected. Each port
pin is configured independently. Refer to the section on I/O port configuration and the DC
Electrical Characteristics for details.
The Keyboard Interrupt feature operates with port 0 pins.
Port 0 also provides various special functions as described below.
14
I
P0.3
CIN1B
Comparator 1 positive input B.
13
I
P0.4
CIN1A
Comparator 1 positive input A
12
I
P0.5
CMPREF
Comparator reference (negative) input.
10
O
P0.6
CMP1
Comparator 1 output
P1.0–P1.3
1–2
I/O
P1.5, P1.7
6–9
Port 1: Port 1 is an 6-bit I/O port with a user-configurable output type, except for three pins
as noted below. Port 1 latches are configured in the quasi-bidirectional mode and have either ones or zeros written to them during reset, as determined by the PRHI bit in the UCFG1
configuration byte. The operation of the configurable port 1 pins as inputs and outputs depends upon the port configuration selected. Each of the configurable port pins are programmed independently. Refer to the section on I/O port configuration and the DC Electrical
Characteristics for details.
Port 1 also provides various special functions as described below.
9
O
P1.0
TxD
Transmitter output for the serial port.
8
I
P1.1
RxD
Receiver input for the serial port.
7
I/O
I/O
P1.2
T0
Timer/counter 0 external count input or overflow output.
SCL
I2C serial clock input/output. When configured as an output,
P1.2 is open drain, in order to conform to I2C specifications.
I
I/O
P1.3
INT0
External interrupt 0 input.
SDA
I2C serial data input/output. When configured as an output, P1.3
is open drain, in order to conform to I2C specifications.
2
I
P1.5
RST
External Reset input (if selected via EPROM configuration). A
low on this pin resets the microcontroller, causing I/O ports and
peripherals to take on their default states, and the processor
begins execution at address 0. When used as a port pin, P1.5 is
a Schmitt trigger input only.
4, 5
I/O
5
O
6
P2.0–P2.1
Port 2: Port 2 is a 2-bit I/O port with a user-configurable output type. Port 2 latches are configured in the quasi-bidirectional mode and have either ones or zeros written to them during
reset, as determined by the PRHI bit in the UCFG1 configuration byte. The operation of port
2 pins as inputs and outputs depends upon the port configuration selected. Each port pin is
configured independently. Refer to the section on I/O port configuration and the DC Electrical Characteristics for details.
Port 2 also provides various special functions as described below.
P2.0
Output from the oscillator amplifier (when a crystal oscillator
option is selected via the EPROM configuration).
CLKOUT
CPU clock divided by 6 clock output when enabled via SFR bit
and in conjunction with internal RC oscillator or external clock
input.
X1
Input to the oscillator circuit and internal clock generator circuits
(when selected via the EPROM configuration).
4
I
VSS
3
I
Ground: 0 V reference.
VDD
11
I
Power Supply: This is the power supply voltage for normal operation as well as Idle and
Power Down modes.
2002 Mar 07
P2.1
X2
5
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
SPECIAL FUNCTION REGISTERS
Name
Description
Bit Functions and Addresses
SFR
Address
MSB
Reset
Value
LSB
E7
E6
E5
E4
E3
E2
E1
E0
KBF
BOD
BOI
LPEP
SRST
0
–
DPS
F7
F6
F5
F4
F3
F2
F1
F0
ACC*
Accumulator
E0h
AUXR1#
Auxiliary Function Register
A2h
B*
B register
F0h
CMP1#
Comparator 1 control
register
ACh
DIVM#
CPU clock divide-by-M
control
95h
00h
DPTR:
Data pointer (2 bytes)
DPH
Data pointer high byte
83h
00h
DPL
Data pointer low byte
82h
I2CFG#*
I2C configuration register
I2CON#*
I2C control register
I2DAT#
I2C data register
IEN0*
Interrupt enable 0
00h
00h
–
–
CE1
CP1
CN1
OE1
CO1
CMF1
CE
CD
CC
CB
CA
C9
C8
C8h/RD
SLAVEN
MASTRQ
0
TIRUN
–
–
CT1
CT0
C8h/WR
SLAVEN
MASTRQ
CLRTI
TIRUN
–
–
CT1
CT0
DF
DE
DD
DC
DB
DA
D9
D8
RDAT
ATN
DRDY
ARL
STR
STP
MASTER
–
D8h/WR
CXA
IDLE
CDR
CARL
CSTR
CSTP
XSTR
XSTP
D9h/RD
RDAT
0
0
0
0
0
0
0
D9h/WR
XDAT
x
x
X
x
x
x
x
AF
AE
AD
AC
AB
AA
A9
A8
EA
EWD
EBO
ES
ET1
–
ET0
EX0
EF
EE
ED
EC
EB
EA
E9
E8
ETI
–
EC1
–
–
–
EKB
EI2
A8h
00h1
00h
CF
D8h/RD
02h1
00h1
80h1
80h
00h
00h1
IEN1#*
Interrupt enable 1
E8h
BF
BE
BD
BC
BB
BA
B9
B8
IP0*
Interrupt priority 0
B8h
–
PWD
PBO
PS
PT1
–
PT0
PX0
00h1
IP0H#
Interrupt priority 0 high
byte
B7h
–
PWDH
PBOH
PSH
PT1H
–
PT0H
PX0H
00h1
FF
FE
FD
FC
FB
FA
F9
F8
IP1*
Interrupt priority 1
F8h
PTI
–
PC1
–
–
–
PKB
PI2
00h1
IP1H#
Interrupt priority 1 high
byte
F7h
PTIH
–
PC1H
–
–
–
PKBH
PI2H
00h1
KBI#
Keyboard Interrupt
86h
87
86
85
84
83
82
81
80
–
CMP1
CMPREF
CIN1A
CIN1B
–
–
–
97
96
95
94
93
92
91
90
(P1.7)
–
RST
–
INT0
T0
RxD
TxD
A7
A6
A5
A4
A3
A2
A1
A0
–
–
–
X1
X2
Note 2
P0*
P1*
Port 0
Port 1
80h
90h
00h
Note 2
Note 2
P2*
Port 2
A0h
–
–
–
P0M1#
Port 0 output mode 1
84h
–
(P0M1.6)
(P0M1.5)
(P0M1.4) (P0M1.3)
–
–
–
00h
P0M2#
Port 0 output mode 2
85h
–
(P0M2.6)
(P0M2.5)
(P0M2.4) (P0M2.3)
–
–
–
00h
P1M1#
Port 1 output mode 1
91h
(P1M1.7)
–
–
–
–
–
(P1M1.1)
(P1M1.0)
00h1
P1M2#
Port 1 output mode 2
92h
(P1M2.7)
–
–
–
–
–
(P1M2.1)
(P1M2.0)
00h1
P2M1#
Port 2 output mode 1
A4h
P2S
P1S
P0S
ENCLK
–
T0OE
(P2M1.1)
(P2M1.0)
00h
2002 Mar 07
6
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
Name
Description
P87LPC760
Bit Functions and Addresses
SFR
Address
MSB
Reset
Value
LSB
P2M2#
Port 2 output mode 2
A5h
–
–
–
–
–
–
(P2M2.1)
(P2M2.0)
00h1
PCON
Power control register
87h
SMOD1
SMOD0
BOF
POF
GF1
GF0
PD
IDL
Note 3
D7
D6
D5
D4
D3
D2
D1
D0
PSW*
Program status word
D0h
CY
AC
F0
RS1
RS0
OV
F1
P
PT0AD#
Port 0 digital input disable
F6h
00h
00h
9F
9E
9D
9C
9B
9A
99
98
SM0
SM1
SM2
REN
TB8
RB8
TI
RI
SCON*
Serial port control
98h
SBUF
Serial port data buffer
register
99h
XXh
SADDR#
Serial port address
register
A9h
00h
SADEN#
Serial port address enable
B9h
00h
SP
Stack pointer
81h
07h
8F
8E
8D
8C
8B
8A
89
88
TF1
TR1
TF0
TR0
–
–
IE0
IT0
00h
TCON*
Timer 0 and 1 control
88h
TH0
Timer 0 high byte
8Ch
00h
00h
TH1
Timer 1 high byte
8Dh
00h
TL0
Timer 0 low byte
8Ah
00h
TL1
Timer 1 low byte
8Bh
TMOD
Timer 0 and 1 mode
89h
–
–
M1
M0
GATE
C/T
M1
M0
WDCON#
Watchdog control register
A7h
–
–
WDOVF
WDRUN
WDCLK
WDS2
WDS1
WDS0
WDRST#
Watchdog reset register
A6h
00h
00h
Note 4
XXh
NOTES:
* SFRs are bit addressable.
# SFRs are modified from or added to the 80C51 SFRs.
1. Unimplemented bits in SFRs are X (unknown) at all times. Ones should not be written to these bits since they may be used for other
purposes in future derivatives. The reset value shown in the table for these bits is 0.
2. I/O port values at reset are determined by the PRHI bit in the UCFG1 configuration byte.
3. The PCON reset value is x x BOF POF–0 0 0 0b. The BOF and POF flags are not affected by reset. The POF flag is set by hardware upon
power up. The BOF flag is set by the occurrence of a brownout reset/interrupt and upon power up.
4. The WDCON reset value is xx11 0000b for a Watchdog reset, xx01 0000b for all other reset causes if the watchdog is enabled, and xx00
0000b for all other reset causes if the watchdog is disabled.
2002 Mar 07
7
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Details of P87LPC760 functions will be described in the following
sections.
Port 0. Setting the corresponding bit in PT0AD disables that pin’s
digital input. Port bits that have their digital inputs disabled will be
read as 0 by any instruction that accesses the port.
Enhanced CPU
Analog Comparators
The P87LPC760 uses an enhanced 80C51 CPU which runs at twice
the speed of standard 80C51 devices. This means that the
performance of the P87LPC760 running at 5 MHz is exactly the
same as that of a standard 80C51 running at 10 MHz. A machine
cycle consists of 6 oscillator cycles, and most instructions execute in
6 or 12 clocks. A user configurable option allows restoring standard
80C51 execution timing. In that case, a machine cycle becomes 12
oscillator cycles.
An analog comparator is provided on the P87LPC760. Input and
output options allow use of the comparator in a number of different
configurations. Comparator operation is such that the output is a
logical one (which may be read in a register and/or routed to a pin)
when the positive input (one of two selectable pins) is greater than
the negative input (selectable from a pin or an internal reference
voltage). Otherwise the output is a zero. The comparator may be
configured to cause an interrupt when the output value changes.
In the following sections, the term “CPU clock” is used to refer to the
clock that controls internal instruction execution. This may
sometimes be different from the externally applied clock, as in the
case where the part is configured for standard 80C51 timing by
means of the CLKR configuration bit or in the case where the clock
is divided down via the setting of the DIVM register. These features
are described in the Oscillator section.
Comparator Configuration
FUNCTIONAL DESCRIPTION
The comparator has a control register, CMP1. The control register is
shown in Figure 2.
The overall connections to the comparator are shown in Figure 3.
There are eight possible configurations for the comparator, as
determined by the control bits in the CMP1 register: CP1, CN1, and
OE1. These configurations are shown in Figure 4. The comparator
functions down to a VDD of 3.0V.
Analog Functions
When the comparator is first enabled, the comparator output and
interrupt flag are not guaranteed to be stable for 10 microseconds.
The comparator interrupt should not be enabled during that time,
and the comparator interrupt flag must be cleared before the
interrupt is enabled in order to prevent an immediate interrupt
service.
The P87LPC760 incorporates one Analog Comparator. In order to
give the best analog function performance and to minimize power
consumption, pins that are actually being used for analog functions
must have the digital outputs and the digital inputs disabled.
Digital outputs are disabled by putting the port output into the Input
Only (high impedance) mode as described in the I/O Ports section.
Digital inputs on port 0 may be disabled through the use of the
PT0AD register. Each bit in this register corresponds to one pin of
CMP1
Address: ACh
Reset Value: 00h
Not Bit Addressable
BIT
CMP1.7, 6
SYMBOL
—
7
6
5
4
3
2
1
0
—
—
CE1
CP1
CN1
OE1
CO1
CMF1
FUNCTION
Reserved for future use. Should not be set to 1 by user programs.
CMP1.5
CE1
Comparator enable. When set by software, the corresponding comparator function is enabled.
Comparator output is stable 10 microseconds after CE1 is first set.
CMP1.4
CP1
Comparator positive input select. When 0, CIN1A is selected as the positive comparator input. When
1, CIN1B is selected as the positive comparator input.
CMP1.3
CN1
Comparator negative input select. When 0, the comparator reference pin CMPREF is selected as
the negative comparator input. When 1, the internal comparator reference Vref is selected as the
negative comparator input.
CMP1.2
OE1
Output enable. When 1, the comparator output is connected to the CMP1 pin if the comparator is
enabled (CE1 = 1). This output is asynchronous to the CPU clock.
CMP1.1
CO1
Comparator output, synchronized to the CPU clock to allow reading by software. Cleared when the
comparator is disabled (CE1 = 0).
CMP1.0
CMF1
Comparator interrupt flag. This bit is set by hardware whenever the comparator output CO1 changes
state. This bit will cause a hardware interrupt if enabled and of sufficient priority. Cleared by
software and when the comparator is disabled (CE1 = 0).
SU01531
Figure 2. Comparator Control Register (CMP1)
2002 Mar 07
8
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
CP1
(P0.4) CIN1A
P87LPC760
COMPARATOR 1
+
(P0.3) CIN1B
CO1
CMP1 (P0.6)
(P0.5) CMPREF
–
Vref
OE1
CN1
CHANGE DETECT
CMF1
INTERRUPT
SU01532
Figure 3. Comparator Input and Output Connections
CP1, CN1, OE1 = 0 0 0
CP1, CN1, OE1 = 0 0 1
+
CIN1A
CIN1A
+
CMPREF
–
CO1
CO1
CMP1
–
CMPREF
CP1, CN1, OE1 = 0 1 0
CP1, CN1, OE1 = 0 1 1
+
CIN1A
CIN1A
+
Vref (1.23V)
–
CO1
CMP1
CO1
Vref (1.23V)
–
CP1, CN1, OE1 = 1 0 0
CP1, CN1, OE1 = 1 0 1
+
CIN1B
CIN1B
+
CMPREF
–
CO1
CMP1
CO1
–
CMPREF
CP1, CN1, OE1 = 1 1 0
CIN1B
CP1, CN1, OE1 = 1 1 1
+
CIN1B
+
Vref (1.23V)
–
Vref (1.23V)
CO1
CMP1
CO1
–
SU01533
Figure 4. Comparator Configurations
2002 Mar 07
9
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
wake up the processor. If the comparator output to a pin is enabled,
the pin should be configured in the push-pull mode in order to obtain
fast switching times while in power down mode. The reason is that
with the oscillator stopped, the temporary strong pull-up that
normally occurs during switching on a quasi-bidirectional port pin
does not take place.
Internal Reference Voltage
An internal reference voltage generator may supply a default
reference when a single comparator input pin is used. The value of
the internal reference voltage, referred to as Vref, is 1.23 V ±10%.
Comparator Interrupt
The comparator has an interrupt flag CMF1 contained in its
configuration register. This flag is set whenever the comparator
output changes state. The flag may be polled by software or may be
used to generate an interrupt. The interrupt will be generated when
the corresponding enable bit EC1 in the IEN1 register is set and the
interrupt system is enabled via the EA bit in the IEN0 register.
The comparator consumes power in Power Down and Idle modes,
as well as in the normal operating mode. This fact should be taken
into account when system power consumption is an issue.
Comparator Configuration Example
The code shown in Figure 5 is an example of initializing the
comparator. If comparator 1 is configured to use the CIN1A and
CMPREF inputs, outputs the comparator result to the CMP1 pin,
and generates an interrupt when the comparator output changes.
Comparators and Power Reduction Modes
The comparator may remain enabled when Power Down or Idle
mode is activated. The comparator will continue to function in the
power reduction mode. If the comparator interrupt is enabled, a
change of the comparator output state will generate an interrupt and
CmpInit:
mov
PT0AD,#30h
anl
orl
mov
P0M2,#0cfh
P0M1,#30h
CMP1,#24h
call
delay10us
anl
setb
CMP1,#0feh
EC1
setb
ret
EA
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
P87LPC760
The interrupt routine used for the comparator must clear the
interrupt flag (CMF1 in this case) before returning.
Disable digital inputs on pins that are used
for analog functions: CIN1A, CMPREF.
Disable digital outputs on pins that are used
for analog functions: CIN1A, CMPREF.
Turn on comparator 1 and set up for:
– Positive input on CIN1A.
– Negative input from CMPREF pin.
– Output to CMP1 pin enabled.
The comparator has to start up for at
least 10 microseconds before use.
Clear comparator 1 interrupt flag.
Enable the comparator 1 interrupt. The
priority is left at the current value.
Enable the interrupt system (if needed).
Return to caller.
SU01189
Figure 5. Example of comparator initialization code
2002 Mar 07
10
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
I2C Serial Interface
“stuck high” may mean a faulty device, or that noise induced onto
the I2C bus caused all masters to withdraw from I2C arbitration.
The I2C bus uses two wires (SDA and SCL) to transfer information
between devices connected to the bus. The main bus features are:
The first five of these times are 4.7 ms (see I2C specification) and
are covered by the low order three bits of timer I. Timer I is clocked
by the P87LPC760 CPU clock. Timer I can be pre-loaded with one
of four values to optimize timing for different oscillator frequencies.
At lower frequencies, software response time is increased and will
degrade maximum performance of the I2C bus. See special function
register I2CFG description for prescale values (CT0, CT1).
• Bidirectional data transfer between masters and slaves.
• Serial addressing of slaves (no added wiring).
• Acknowledgment after each transferred byte.
• Multimaster bus.
• Arbitration between simultaneously transmitting masters without
The MAXIMUM SCL CHANGE time is important, but its exact span
is not critical. The complete 10 bits of timer I are used to count out
the maximum time. When I2C operation is enabled, this counter is
cleared by transitions on the SCL pin. The timer does not run
between I2C frames (i.e., whenever reset or stop occurred more
recently than the last start). When this counter is running, it will carry
out after 1020 to 1023 machine cycles have elapsed since a change
on SCL. A carry out causes a hardware reset of the I2C interface
and generates an interrupt if the Timer I interrupt is enabled. In
cases where the bus hang-up is due to a lack of software response
by this device, the reset releases SCL and allows I2C operation
among other devices to continue.
corruption of serial data on bus.
The I2C subsystem includes hardware to simplify the software
required to drive the I2C bus. The hardware is a single bit interface
which in addition to including the necessary arbitration and framing
error checks, includes clock stretching and a bus timeout timer. The
interface is synchronized to software either through polled loops or
interrupts.
Refer to the application note AN422, entitled “Using the 8XC751
Microcontroller as an I2C Bus Master” for additional discussion of
the 8xC76x I2C interface and sample driver routines.
Timer I is enabled to run, and will reset the I2C interface upon
overflow, if the TIRUN bit in the I2CFG register is set. The Timer I
interrupt may be enabled via the ETI bit in IEN1, and its priority set
by the PTIH and PTI bits in the IP1H and IP1 registers respectively.
The P87LPC760 I2C implementation duplicates that of the 87C751
and 87C752 except for the following details:
• The interrupt vector addresses for both the I2C interrupt and the
Timer I interrupt.
• The I2C SFR addresses (I2CON, I2CFG, I2DAT).
• The location of the I2C interrupt enable bit and the name of the
I2C Interrupts
If I2C interrupts are enabled (EA and EI2 are both set to 1), an I2C
interrupt will occur whenever the ATN flag is set by a start, stop,
arbitration loss, or data ready condition (refer to the description of
ATN following). In practice, it is not efficient to operate the I2C
interface in this fashion because the I2C interrupt service routine
would somehow have to distinguish between hundreds of possible
conditions. Also, since I2C can operate at a fairly high rate, the
software may execute faster if the code simply waits for the I2C
interface.
SFR it is located within (EI2 is Bit 0 in IEN1).
• The location of the Timer I interrupt enable bit and the name of the
SFR it is located within (ETI is Bit 7 in IEN1).
• The I2C and Timer I interrupts have a settable priority.
Timer I is used to both control the timing of the I2C bus and also to
detect a “bus locked” condition, by causing an interrupt when
nothing happens on the I2C bus for an inordinately long period of
time while a transmission is in progress. If this interrupt occurs, the
program has the opportunity to attempt to correct the fault and
resume I2C operation.
Typically, the I2C interrupt should only be used to indicate a start
condition at an idle slave device, or a stop condition at an idle
master device (if it is waiting to use the I2C bus). This is
accomplished by enabling the I2C interrupt only during the
aforementioned conditions.
Six time spans are important in I2C operation and are insured by timer I:
• The MINIMUM HIGH time for SCL when this device is the master.
• The MINIMUM LOW time for SCL when this device is a master.
Reading I2CON
RDAT
The data from SDA is captured into “Receive DATa”
whenever a rising edge occurs on SCL. RDAT is also
available (with seven low-order zeros) in the I2DAT
register. The difference between reading it here and
there is that reading I2DAT clears DRDY, allowing the
I2C to proceed on to another bit. Typically, the first
seven bits of a received byte are read from
I2DAT, while the 8th is read here. Then I2DAT can be
written to send the Acknowledge bit and clear DRDY.
This is not very important for a single-bit hardware interface like
this one, because the SCL low time is stretched until the software
responds to the I2C flags. The software response time normally
meets or exceeds the MIN LO time. In cases where the software
responds within MIN HI + MIN LO time, timer I will ensure that the
minimum time is met.
• The MINIMUM SCL HIGH TO SDA HIGH time in a stop condition.
• The MINIMUM SDA HIGH TO SDA LOW time between I2C stop
ATN
“ATteNtion” is 1 when one or more of DRDY, ARL, STR,
or STP is 1. Thus, ATN comprises a single bit that can
be tested to release the I2C service routine from a “wait
loop.”
DRDY
“Data ReaDY” (and thus ATN) is set when a rising edge
occurs on SCL, except at idle slave. DRDY is cleared
by writing CDR = 1, or by writing or reading the I2DAT
register. The following low period on SCL is stretched
until the program responds by clearing DRDY.
and start conditions (4.7ms, see I2C specification).
• The MINIMUM SDA LOW TO SCL LOW time in a start condition.
• The MAXIMUM SCL CHANGE time while an I2C frame is in
progress. A frame is in progress between a start condition and the
following stop condition. This time span serves to detect a lack of
software response on this device as well as external I2C
problems. SCL “stuck low” indicates a faulty master or slave. SCL
2002 Mar 07
P87LPC760
11
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Address: D8h
I2CON
Bit
Reset Value: 81h
Addressable1
BIT
7
6
5
4
3
2
1
0
READ
RDAT
ATN
DRDY
ARL
STR
STP
MASTER
—
WRITE
CXA
IDLE
CDR
CARL
CSTR
CSTP
XSTR
XSTP
SYMBOL
FUNCTION
I2CON.7
RDAT
Read: the most recently received data bit.
“
CXA
Write: clears the transmit active flag.
I2CON.6
ATN
Read: ATN = 1 if any of the flags DRDY, ARL, STR, or STP = 1.
“
IDLE
Write: in the I2C slave mode, writing a 1 to this bit causes the I2C hardware to ignore the bus until it
is needed again.
I2CON.5
DRDY
“
CDR
I2CON.4
ARL
“
CARL
I2CON.3
STR
“
CSTR
I2CON.2
STP
“
CSTP
I2CON.1
MASTER
“
XSTR
I2CON.0
—
“
XSTP
Read: Data Ready flag, set when there is a rising edge on SCL.
Write: writing a 1 to this bit clears the DRDY flag.
Read: Arbitration Loss flag, set when arbitration is lost while in the transmit mode.
Write: writing a 1 to this bit clears the CARL flag.
Read: Start flag, set when a start condition is detected at a master or non-idle slave.
Write: writing a 1 to this bit clears the STR flag.
Read: Stop flag, set when a stop condition is detected at a master or non-idle slave.
Write: writing a 1 to this bit clears the STP flag.
Read: indicates whether this device is currently as bus master.
Write: writing a 1 to this bit causes a repeated start condition to be generated.
Read: undefined.
Write: writing a 1 to this bit causes a stop condition to be generated.
SU01155
1. Due to the manner in which bit addressing is implemented in the 80C51 family, the I2CON register should never be altered by use of the
SETB, CLR, CPL, MOV (bit), or JBC instructions. This is due to the fact that read and write functions of this register are different. Testing of
I2CON bits via the JB and JNB instructions is supported.
Figure 6. I2C Control Register (I2CON)
I2DAT
Address: D9h
Reset Value: xxh
Not Bit Addressable
BIT
7
6
5
4
3
2
1
0
READ
RDAT
—
—
—
—
—
—
—
WRITE
XDAT
—
—
—
—
—
—
—
SYMBOL
FUNCTION
I2DAT.7
RDAT
Read: the most recently received data bit, captured from SDA at every rising edge of SCL. Reading
I2DAT also clears DRDY and the Transmit Active state.
“
XDAT
Write: sets the data for the next transmitted bit. Writing I2DAT also clears DRDY and sets the
Transmit Active state.
I2DAT.6–0
–
Unused.
SU01156
Figure 7.
2002 Mar 07
I2 C
Data Register (I2DAT)
12
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
bit position in the message, it may then write I2CON with one or
more of the following bits, or it may read or write the I2DAT register.
Checking ATN and DRDY
When a program detects ATN = 1, it should next check DRDY. If
DRDY = 1, then if it receives the last bit, it should capture the data
from RDAT (in I2DAT or I2CON). Next, if the next bit is to be sent, it
should be written to I2DAT. One way or another, it should clear
DRDY and then return to monitoring ATN. Note that if any of ARL,
STR, or STP is set, clearing DRDY will not release SCL to high, so
that the I2C will not go on to the next bit. If a program detects
ATN = 1, and DRDY = 0, it should go on to examine ARL, STR,
and STP.
ARL
CXA
Writing a 1 to “Clear Xmit Active” clears the Transmit
Active state. (Reading the I2DAT register also does
this.)
Regarding Transmit Active
Transmit Active is set by writing the I2DAT register, or by writing
I2CON with XSTR = 1 or XSTP = 1. The I2C interface will only drive
the SDA line low when Transmit Active is set, and the ARL bit will
only be set to 1 when Transmit Active is set. Transmit Active is
cleared by reading the I2DAT register, or by writing I2CON with CXA
= 1. Transmit Active is automatically cleared when ARL is 1.
“Arbitration Loss” is 1 when transmit Active was set, but
this device lost arbitration to another transmitter.
Transmit Active is cleared when ARL is 1. There are
four separate cases in which ARL is set.
IDLE
Writing 1 to “IDLE” causes a slave’s I2C hardware to
ignore the I2C until the next start condition (but if
MASTRQ is 1, then a stop condition will cause this
device to become a master).
CDR
Writing a 1 to “Clear Data Ready” clears DRDY.
(Reading or writing the I2DAT register also does this.)
2. If the program sent a 1, but another device sent a
repeated start, and it drove SDA low before SCL
could be driven low. (This type of ARL is always
accompanied by STR = 1.)
CARL
Writing a 1 to “Clear Arbitration Loss” clears the ARL
bit.
CSTR
Writing a 1 to “Clear STaRt” clears the STR bit.
3. In master mode, if the program sent a repeated start,
but another device sent a 1, and it drove SCL low
before this device could drive SDA low.
CSTP
Writing a 1 to “Clear SToP” clears the STP bit. Note that
if one or more of DRDY, ARL, STR, or STP is 1, the low
time of SCL is stretched until the service routine
responds by clearing them.
XSTR
Writing 1s to “Xmit repeated STaRt” and CDR tells the
I2C hardware to send a repeated start condition. This
should only be at a master. Note that XSTR need not
and should not be used to send an “initial”
(non-repeated) start; it is sent automatically by the I2C
hardware. Writing XSTR = 1 includes the effect of
writing I2DAT with XDAT = 1; it sets Transmit Active
and releases SDA to high during the SCL low time.
After SCL goes high, the I2C hardware waits for the
suitable minimum time and then drives SDA low to
make the start condition.
XSTP
Writing 1s to “Xmit SToP” and CDR tells the I2C
hardware to send a stop condition. This should only be
done at a master. If there are no more messages to
initiate, the service routine should clear the MASTRQ
bit in I2CFG to 0 before writing XSTP with 1. Writing
XSTP = 1 includes the effect of writing I2DAT with
XDAT = 0; it sets Transmit Active and drives SDA low
during the SCL low time. After SCL goes high, the I2C
hardware waits for the suitable minimum time and then
releases SDA to high to make the stop condition.
1. If the program sent a 1 or repeated start, but another
device sent a 0, or a stop, so that SDA is 0 at the rising
edge of SCL. (If the other device sent a stop, the
setting of ARL will be followed shortly by STP being
set.)
4. In master mode, if the program sent stop, but it could
not be sent because another device sent a 0.
STR
“STaRt” is set to a 1 when an I2C start condition is
detected at a non-idle slave or at a master. (STR is not
set when an idle slave becomes active due to a start
bit; the slave has nothing useful to do until the rising
edge of SCL sets DRDY.)
STP
“SToP” is set to 1 when an I2C stop condition is
detected at a non-idle slave or at a master. (STP is not
set for a stop condition at an idle slave.)
MASTER
“MASTER” is 1 if this device is currently a master on
the I2C. MASTER is set when MASTRQ is 1 and the
bus is not busy (i.e., if a start bit hasn’t been
received since reset or a “Timer I” time-out, or if a stop
has been received since the last start). MASTER is
cleared when ARL is set, or after the software writes
MASTRQ = 0 and then XSTP = 1.
Writing I2CON
Typically, for each bit in an I2C message, a service routine waits for
ATN = 1. Based on DRDY, ARL, STR, and STP, and on the current
2002 Mar 07
P87LPC760
13
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
I2CFG
P87LPC760
Address: C8h
Reset Value: 00h
Bit Addressable
7
6
5
4
3
2
1
0
SLAVEN
MASTRQ
CLRTI
TIRUN
—
—
CT1
CT0
BIT
SYMBOL
FUNCTION
I2CFG.7
SLAVEN
Slave Enable. Writing a 1 this bit enables the slave functions of the I2C subsystem. If SLAVEN and
MASTRQ are 0, the I2C hardware is disabled. This bit is cleared to 0 by reset and by an I2C
time-out.
I2CFG.6
MASTRQ
Master Request. Writing a 1 to this bit requests mastership of the I2C bus. If a transmission is in
progress when this bit is changed from 0 to 1, action is delayed until a stop condition is detected. A
start condition is sent and DRDY is set (thus making ATN = 1 and generating an I2C interrupt).
When a master wishes to release mastership status of the I2C, it writes a 1 to XSTP in I2CON.
MASTRQ is cleared by an I2C time-out.
I2CFG.5
CLRTI
Writing a 1 to this bit clears the Timer I overflow flag. This bit position always reads as a 0.
I2CFG.4
TIRUN
Writing a 1 to this bit lets Timer I run; a zero stops and clears it. Together with SLAVEN, MASTRQ,
and MASTER, this bit determines operational modes as shown in Table 1.
I2CFG.2, 3
—
I2CFG.1, 0 CT1, CT0
Reserved for future use. Should not be set to 1 by user programs.
These two bits are programmed as a function of the CPU clock rate, to optimize the MIN HI and LO
time of SCL when this device is a master on the I2C. The time value determined by these bits
controls both of these parameters, and also the timing for stop and start conditions.
SU01552
Figure 8. I2C Configuration Register (I2CFG)
Regarding Software Response Time
Because the P87LPC760 can run at 20 MHz, and because the I2C
interface is optimized for high-speed operation, it is quite likely that
an I2C service routine will sometimes respond to DRDY (which is set
at a rising edge of SCL) and write I2DAT before SCL has gone low
again. If XDAT were applied directly to SDA, this situation would
produce an I2C protocol violation. The programmer need not worry
about this possibility because XDAT is applied to SDA only when
SCL is low.
max column in the table. The value for CT1 and CT0 is found in the
first line of the table where CPU clock max is greater than or equal
to the actual frequency.
Conversely, a program that includes an I2C service routine may take
a long time to respond to DRDY. Typically, an I2C routine operates
on a flag-polling basis during a message, with interrupts from other
peripheral functions enabled. If an interrupt occurs, it will delay the
response of the I2C service routine. The programmer need not worry
about this very much either, because the I2C hardware stretches the
SCL low time until the service routine responds. The only constraint
on the response is that it must not exceed the Timer I time-out.
For instance, at an 8 MHz frequency, with CT1/CT0 set to 1 0, the
minimum SCL high and low times will be 5.25 m s.
Table 2 also shows the machine cycle count for various settings of
CT1/CT0. This allows calculation of the actual minimum high and
low times for SCL as follows:
SCL min high/low time in microseconds = 6 * Min Time Count
CPU clock in MHz
Table 2 also shows the Timer I timeout period (given in machine
cycles) for each CT1/CT0 combination. The timeout period varies
because of the way in which minimum SCL high and low times are
measured. When the I2C interface is operating, Timer I is pre-loaded
at every SCL transition with a value dependent upon CT1/CT0. The
pre-load value is chosen such that a minimum SCL high or low time
has elapsed when Timer I reaches a count of 008 (the actual value
pre-loaded into Timer I is 8 minus the machine cycle count).
Values to be used in the CT1 and CT0 bits are shown in Table 2. To
allow the I2C bus to run at the maximum rate for a particular
oscillator frequency, compare the actual oscillator rate to the f OSC
2002 Mar 07
14
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Table 1. Interaction of TIRUN with SLAVEN, MASTRQ, and MASTER
SLAVEN,
MASTRQ,
MASTER
TIRUN
OPERATING MODE
All 0
0
The I2C interface is disabled. Timer I is cleared and does not run. This is the state assumed after a reset. If an I2C
application wants to ignore the I2C at certain times, it should write SLAVEN, MASTRQ, and TIRUN all to zero.
All 0
1
The I2C interface is disabled.
Any or all 1
0
The I2C interface is enabled. The 3 low-order bits of Timer I run for min-time generation, but the hi-order bits do
not, so that there is no checking for I2C being “hung.” This configuration can be used for very slow I2C operation.
Any or all 1
1
The I2C interface is enabled. Timer I runs during frames on the I2C, and is cleared by transitions on SCL, and by
Start and Stop conditions. This is the normal state for I2C operation.
Table 2. CT1, CT0 Values
CT1, CT0
Min Time Count
(Machine Cycles)
CPU Clock Max
(for 100 kHz I2C)
Timeout Period
(Machine Cycles)
10
7
8.4 MHz
1023
01
6
7.2 MHz
1022
00
5
6.0 MHz
1021
11
4
4.8 MHz
1020
of the same or lower priority. The highest priority interrupt service
cannot be interrupted by any other interrupt source. So, if two
requests of different priority levels are received simultaneously, the
request of higher priority level is serviced.
Interrupts
The P87LPC760 uses a four priority level interrupt structure. This
allows great flexibility in controlling the handling of the P87LPC760’s
many interrupt sources. The P87LPC760 supports up to 10 interrupt
sources.
If requests of the same priority level are received simultaneously, an
internal polling sequence determines which request is serviced. This
is called the arbitration ranking. Note that the arbitration ranking is
only used to resolve simultaneous requests of the same priority
level.
Each interrupt source can be individually enabled or disabled by
setting or clearing a bit in registers IEN0 or IEN1. The IEN0 register
also contains a global disable bit, EA, which disables all interrupts at
once.
Table 3 summarizes the interrupt sources, flag bits, vector
addresses, enable bits, priority bits, arbitration ranking, and whether
each interrupt may wake up the CPU from Power Down mode.
Each interrupt source can be individually programmed to one of four
priority levels by setting or clearing bits in the IP0, IP0H, IP1, and
IP1H registers. An interrupt service routine in progress can be
interrupted by a higher priority interrupt, but not by another interrupt
Table 3. Summary of Interrupts
Description
Interrupt
Flag Bit(s)
Vector
Address
Interrupt
Enable Bit(s)
Interrupt
Priority
Arbitration
Ranking
Power Down
Wakeup
External Interrupt 0
IE0
0003h
EX0 (IEN0.0)
IP0H.0, IP0.0
1 (highest)
Yes
Timer 0 Interrupt
TF0
000Bh
ET0 (IEN0.1)
IP0H.1, IP0.1
4
No
Timer 1 Interrupt
TF1
001Bh
ET1 (IEN0.3)
IP0H.3, IP0.3
8
No
TI & RI
0023h
ES (IEN0.4)
IP0H.4, IP0.4
9
No
BOF
002Bh
EBO (IEN0.5)
IP0H.5, IP0.5
2
Yes
Serial Port Tx and Rx
Brownout Detect
I2C Interrupt
ATN
0033h
EI2 (IEN1.0)
IP1H.0, IP1.0
5
No
KBI Interrupt
KBF
003Bh
EKB (IEN1.1)
IP1H.1, IP1.1
6
Yes
WDOVF
0053h
EWD (IEN0.6)
IP0H.6, IP0.6
3
Yes
CMF1
0063h
EC1 (IEN1.5)
IP1H.5, IP1.5
7
Yes
–
0073h
ETI (IEN1.7)
IP1H.7, IP1.7
10 (lowest)
No
Watchdog Timer
Comparator 1 interrupt
Timer I interrupt
2002 Mar 07
15
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
External Interrupt Inputs
The P87LPC760 has one individual interrupt input as well as the
Keyboard Interrupt function. The latter is described separately in this
section. The interrupt input are identical to those present on the
standard 80C51 microcontroller.
transition-activated, the external source has to hold the request pin
high for at least one machine cycle, and then hold it low for at least
one machine cycle. This is to ensure that the transition is detected
and that interrupt request flag IE0 is set. IE0 is automatically cleared
by the CPU when the service routine is called.
The external source can be programmed to be level-activated or
transition-activated by setting or clearing bit IT0 in Register TCON. If
IT0 = 0, external interrupt 0 is triggered by a detected low at the
INT0 pin. If IT0 = 1, external interrupt 0 is edge triggered. In this
mode if successive samples of the INT0 pin show a high in one
cycle and a low in the next cycle, interrupt request flag IE0 in TCON
is set, causing an interrupt request.
If the external interrupt is level-activated, the external source must
hold the request active until the requested interrupt is actually
generated. If the external interrupt is still asserted when the interrupt
service routine is completed another interrupt will be generated. It is
not necessary to clear the interrupt flag IE0 when the interrupt is
level sensitive, it simply tracks the input pin level.
If the external interrupt is enabled when the P87LPC760 is put into
Power Down or Idle mode, the interrupt will cause the processor to
wake up and resume operation. Refer to the section on Power
Reduction Modes for details.
Since the external interrupt pin is sampled once each machine
cycle, an input high or low should hold for at least 6 CPU Clocks to
ensure proper sampling. If the external interrupt is
IE0
EX0
BOF
WAKEUP
(IF IN POWER
DOWN)
EBO
KBF
EKB
EA
(FROM IEN0
REGISTER)
WDT
EWD
CM1
EC1
INTERRUPT
TO CPU
TF0
ET0
TF1
ET1
RI + TI
ES
ATN
EI2
SU01534
Figure 9. Interrupt Sources, Interrupt Enables, and Power Down Wakeup Sources
2002 Mar 07
16
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
input and output without the need to reconfigure the port. This is
possible because when the port outputs a logic high, it is weakly
driven, allowing an external device to pull the pin low. When the pin
is pulled low, it is driven strongly and able to sink a fairly large
current. These features are somewhat similar to an open drain
output except that there are three pull-up transistors in the
quasi-bidirectional output that serve different purposes.
I/O Ports
The P87LPC760 has 3 I/O ports, port 0, port 1, and port 2. The
exact number of I/O pins available depend upon the oscillator and
reset options chosen. At least 9 pins of the P87LPC760 may be
used as I/Os when a two-pin external oscillator and an external
reset circuit are used. Up to 12 pins may be available if fully on-chip
oscillator and reset configurations are chosen.
One of these pull-ups, called the “very weak” pull-up, is turned on
whenever the port latch for the pin contains a logic 1. The very weak
pull-up sources a very small current that will pull the pin high if it is
left floating.
All but three I/O port pins on the P87LPC760 may be software
configured to one of four types on a bit-by-bit basis, as shown in
Table 4. These are: quasi-bidirectional (standard 80C51 port
outputs), push-pull, open drain, and input only. Two configuration
registers for each port choose the output type for each port pin.
A second pull-up, called the “weak” pull-up, is turned on when the
port latch for the pin contains a logic 1 and the pin itself is also at a
logic 1 level. This pull-up provides the primary source current for a
quasi-bidirectional pin that is outputting a 1. If a pin that has a logic 1
on it is pulled low by an external device, the weak pull-up turns off,
and only the very weak pull-up remains on. In order to pull the pin
low under these conditions, the external device has to sink enough
current to overpower the weak pull-up and take the voltage on the
port pin below its input threshold.
Table 4. Port Output Configuration Settings
PxM1.y
PxM2.y
Port Output Mode
0
0
Quasi-bidirectional
0
1
Push-Pull
1
0
Input Only (High Impedance)
1
1
Open Drain
P87LPC760
The third pull-up is referred to as the “strong” pull-up. This pull-up is
used to speed up low-to-high transitions on a quasi-bidirectional port
pin when the port latch changes from a logic 0 to a logic 1. When
this occurs, the strong pull-up turns on for a brief time, two CPU
clocks, in order to pull the port pin high quickly. Then it turns off
again.
Quasi-Bidirectional Output Configuration
The default port output configuration for standard P87LPC760 I/O
ports is the quasi-bidirectional output that is common on the 80C51
and most of its derivatives. This output type can be used as both an
The quasi-bidirectional port configuration is shown in Figure 10.
VDD
2 CPU
CLOCK DELAY
P
STRONG
P
VERY
WEAK
P
WEAK
PORT
PIN
PORT LATCH
DATA
N
INPUT
DATA
SU01159
Figure 10. Quasi-Bidirectional Output
2002 Mar 07
17
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
Open Drain Output Configuration
P87LPC760
The value of port pins at reset is determined by the PRHI bit in the
UCFG1 register. Ports may be configured to reset high or low as
needed for the application. When port pins are driven high at reset,
they are in quasi-bidirectional mode and therefore do not source
large amounts of current.
The open drain output configuration turns off all pull-ups and only
drives the pull-down transistor of the port driver when the port latch
contains a logic 0. To be used as a logic output, a port configured in
this manner must have an external pull-up, typically a resistor tied to
VDD. The pull-down for this mode is the same as for the
quasi-bidirectional mode.
Every output on the P87LPC760 may potentially be used as a
20 mA sink LED drive output. However, there is a maximum total
output current for all ports which must not be exceeded.
The open drain port configuration is shown in Figure 11.
All ports pins of the P87LPC760 have slew rate controlled outputs.
This is to limit noise generated by quickly switching output signals.
The slew rate is factory set to approximately 10 ns rise and fall
times.
Push-Pull Output Configuration
The push-pull output configuration has the same pull-down structure
as both the open drain and the quasi-bidirectional output modes, but
provides a continuous strong pull-up when the port latch contains a
logic 1. The push-pull mode may be used when more source current
is needed from a port output.
The bits in the P2M1 register that are not used to control
configuration of P2.1 and P2.0 are used for other purposes. These
bits can enable Schmitt trigger inputs on each I/O port, enable
toggle outputs from Timer 0 and Timer 1, and enable a clock output
if either the internal RC oscillator or external clock input is being
used. The last two functions are described in the Timer/Counters
and Oscillator sections respectively. The enable bits for all of these
functions are shown in Figure 13.
The push-pull port configuration is shown in Figure 12.
The three port pins that cannot be configured are P1.2, P1.3, and
P1.5. The port pins P1.2 and P1.3 are permanently configured as
open drain outputs. They may be used as inputs by writing ones to
their respective port latches. P1.5 may be used as a Schmitt trigger
input if the P87LPC760 has been configured for an internal reset
and is not using the external reset input function RST.
Each I/O port of the P87LPC760 may be selected to use TTL level
inputs or Schmitt inputs with hysteresis. A single configuration bit
determines this selection for the entire port. Port pins P1.2, P1.3,
and P1.5 always have a Schmitt trigger input.
Additionally, port pins P2.0 and P2.1 are disabled for both input and
output if one of the crystal oscillator options is chosen. Those
options are described in the Oscillator section.
PORT
PIN
N
PORT LATCH
DATA
INPUT
DATA
SU01160
Figure 11. Open Drain Output
VDD
P
PORT
PIN
N
PORT LATCH
DATA
INPUT
DATA
SU01161
Figure 12. Push-Pull Output
2002 Mar 07
18
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P2M1
P87LPC760
Address: A4h
Reset Value: 00h
Not Bit Addressable
BIT
7
6
5
4
3
2
1
0
P2S
P1S
P0S
ENCLK
–
T0OE
(P2M1.1)
(P2M1.0)
SYMBOL
FUNCTION
P2M1.7
P2S
When P2S = 1, this bit enables Schmitt trigger inputs on Port 2.
P2M1.6
P1S
When P1S = 1, this bit enables Schmitt trigger inputs on Port 1.
P2M1.5
P0S
When P0S = 1, this bit enables Schmitt trigger inputs on Port 0.
P2M1.4
ENCLK
P2M1.2
T0OE
P2M1.1, P2M1.0
—
When ENCLK is set and the 87LPC760 is configured to use the on-chip RC oscillator, a clock
output is enabled on the X2 pin (P2.0). Refer to the Oscillator section for details.
When set, the P1.2 pin is toggled whenever Timer 0 overflows. The output frequency is therefore
one half of the Timer 0 overflow rate. Refer to the Timer/Counters section for details.
These bits, along with the matching bits in the P2M2 register, control the output configuration of
P2.1 and P2.0 respectively1.
SU01535
1. See Table 4, Port Output Configuration Settings.
Figure 13. Port 2 Mode Register 1 (P2M1)
Due to human time scales and the mechanical delay associated with
keyswitch closures, the KBI feature will typically allow the interrupt
service routine to poll port 0 in order to determine which key was
pressed, even if the processor has to wake up from Power Down
mode. Refer to the section on Power Reduction Modes for details.
Keyboard Interrupt (KBI)
The Keyboard Interrupt function is intended primarily to allow a
single interrupt to be generated when any key is pressed on a
keyboard or keypad connected to specific pins of the P87LPC760,
as shown in Figure 14. This interrupt may be used to wake up the
CPU from Idle or Power Down modes. This feature is particularly
useful in handheld, battery powered systems that need to carefully
manage power consumption yet also need to be convenient to use.
The P87LPC760 allows any pin of port 0 to be enabled to cause this
interrupt. Port pins are enabled by the setting of bits in the KBI
register, as shown in Figure 15. The Keyboard Interrupt Flag (KBF)
in the AUXR1 register is set when any enabled pin is pulled low
while the KBI interrupt function is active. An interrupt will generated
if it has been enabled. Note that the KBF bit must be cleared by
software.
2002 Mar 07
19
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
P0.6
KBI.6
P0.5
KBI.5
KBF (KBI INTERRUPT)
P0.4
KBI.4
EKB
(FROM IEN1 REGISTER)
P0.3
KBI.3
SU01536
Figure 14. Keyboard Interrupt
KBI
Address: 86h
Reset Value: 00h
Not Bit Addressable
BIT
7
6
5
4
3
2
1
0
–
KBI.6
KBI.5
KBI.4
KBI.3
–
–
–
SYMBOL
FUNCTION
KBI.6
KBI.6
When set, enables P0.6 as a cause of a Keyboard Interrupt.
KBI.5
KBI.5
When set, enables P0.5 as a cause of a Keyboard Interrupt.
KBI.4
KBI.4
When set, enables P0.4 as a cause of a Keyboard Interrupt.
KBI.3
KBI.3
When set, enables P0.3 as a cause of a Keyboard Interrupt.
Note: the Keyboard Interrupt must be enabled in order for the settings of the KBI register to be effective. The interrupt flag
(KBF) is located at bit 7 of AUXR1.
SU01537
Figure 15. Keyboard Interrupt Register (KBI)
2002 Mar 07
20
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Low Frequency Oscillator Option
This option supports an external crystal in the range of 20 kHz to
100 kHz.
Oscillator
The P87LPC760 provides several user selectable oscillator options,
allowing optimization for a range of needs from high precision to
lowest possible cost. These are configured when the EPROM is
programmed. Basic oscillator types that are supported include: low,
medium, and high speed crystals, covering a range from 20 kHz to
20 MHz; ceramic resonators; and on-chip RC oscillator.
Table 5 shows capacitor values that may be used with a quartz
crystal in this mode.
Table 5. Recommended oscillator capacitors for use with the low frequency oscillator option
VDD = 2.7 to 4.5 V
VDD = 4.5 to 6.0 V
Oscillator
Frequency
Lower Limit
Optimal Value
Upper Limit
Lower Limit
Optimal Value
Upper Limit
20 kHz
15 pF
15 pF
33 pF
33 pF
33 pF
47 pF
32 kHz
15 pF
15 pF
33 pF
33 pF
33 pF
47 pF
100 kHz
15 pF
15 pF
33 pF
15 pF
15 pF
33 pF
Medium Frequency Oscillator Option
This option supports an external crystal in the range of 100 kHz to
4 MHz. Ceramic resonators are also supported in this configuration.
Table 6 shows capacitor values that may be used with a quartz
crystal in this mode.
Table 6. Recommended oscillator capacitors for use with the medium frequency oscillator option
VDD = 2.7 to 4.5 V
ency
Oscillator Freq
Frequency
Lower Limit
Optimal Value
Upper Limit
100 kHz
33 pF
33 pF
47 pF
1 MHz
15 pF
15 pF
33 pF
4 MHz
15 pF
15 pF
33 pF
High Frequency Oscillator Option
This option supports an external crystal in the range of 4 to 20 MHz.
Ceramic resonators are also supported in this configuration.
Table 7 shows capacitor values that may be used with a quartz
crystal in this mode.
Table 7. Recommended oscillator capacitors for use with the high frequency oscillator option
VDD = 2.7 to 4.5 V
VDD = 4.5 to 6.0 V
Oscillator
Frequency
Lower Limit
Optimal Value
Upper Limit
Lower Limit
Optimal Value
Upper Limit
4 MHz
15 pF
33 pF
47 pF
15 pF
33 pF
68 pF
8 MHz
15 pF
15 pF
33 pF
15 pF
33 pF
47 pF
16 MHz
–
–
–
15 pF
15 pF
33 pF
20 MHz
–
–
–
15 pF
15 pF
33 pF
the X2/P2.0 pin may be enabled when the external clock input is
used.
On-Chip RC Oscillator Option
The on-chip RC oscillator option has a typical frequency of 6 MHz
and can be divided down for slower operation through the use of the
DIVM register. For on-chip oscillator tolerance see AC Electrical
Characteristics table. A clock output on the X2/P2.0 pin may be
enabled when the on-chip RC oscillator is used.
Clock Output
The P87LPC760 supports a clock output function when either the
on-chip RC oscillator or external clock input options are selected.
This allows external devices to synchronize to the P87LPC760.
When enabled, via the ENCLK bit in the P2M1 register, the clock
output appears on the X2/CLKOUT pin whenever the on-chip
oscillator is running, including in Idle mode. The frequency of the
clock output is 1/6 of the CPU clock rate. If the clock output is not
needed in Idle mode, it may be turned off prior to entering Idle,
saving additional power. The clock output may also be enabled
when the external clock input option is selected.
External Clock Input Option
In this configuration, the processor clock is input from an external
source driving the X1/P2.1 pin. The rate may be from 0 Hz up to
20 MHz when VDD is above 4.5 V and up to 10 MHz when VDD is
below 4.5 V. When the external clock input mode is used, the
X2/P2.0 pin may be used as a standard port pin. A clock output on
2002 Mar 07
21
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
THE OSCILLATOR MUST BE CONFIGURED IN ONE OF
THE FOLLOWING MODES:
P87LPC760
QUARTZ CRYSTAL OR
CERAMIC RESONATOR
– LOW FREQUENCY CRYSTAL
87LPC760
– MEDIUM FREQUENCY CRYSTAL
– HIGH FREQUENCY CRYSTAL
X1
CAPACITOR VALUES MAY BE OPTIMIZED FOR
DIFFERENT OSCILLATOR FREQUENCIES (SEE TEXT)
*
X2
A SERIES RESISTOR MAY BE REQUIRED IN ORDER TO
LIMIT CRYSTAL DRIVE LEVELS. THIS IS PARTICULARLY
IMPORTANT FOR LOW FREQUENCY CRYSTALS (SEE TEXT).
SU01538
Figure 16. Using the Crystal Oscillator
87LPC760
CMOS COMPATIBLE EXTERNAL
OSCILLATOR SIGNAL
THE OSCILLATOR MUST BE CONFIGURED IN
THE EXTERNAL CLOCK INPUT MODE.
X1
X2
A CLOCK OUTPUT MAY BE OBTAINED ON
THE X2 PIN BY SETTING THE ENCLK BIT IN
THE P2M1 REGISTER.
SU01539
Figure 17. Using an External Clock Input
2002 Mar 07
22
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
FOSC2 (UCFG1.2)
FOSC1 (UCFG1.1)
FOSC0 (UCFG1.0)
CLOCK SELECT
EXTERNAL CLOCK INPUT
XTAL
SELECT
OSCILLATOR STARTUP TIMER
INTERNAL RC OSCILLATOR
10-BIT RIPPLE COUNTER
CLOCK
OUT
COUNT 256
CRYSTAL: LOW FREQUENCY
CLOCK
SOURCES
RESET
COUNT
COUNT 1024
CRYSTAL: MEDIUM FREQUENCY
CRYSTAL: HIGH FREQUENCY
DIVIDE-BY-M
(DIVM REGISTER)
AND
CLKR SELECT
CPU
CLOCK
POWER MONITOR RESET
÷1/÷2
POWER DOWN
CLKR
(UCFG1.3)
SU01167
Figure 18. Block Diagram of Oscillator Control
CPU Clock Modification: CLKR and DIVM
For backward compatibility, the CLKR configuration bit allows setting
the P87LPC760 instruction and peripheral timing to match standard
80C51 timing by dividing the CPU clock by two. Default timing for
the P87LPC760 is 6 CPU clocks per machine cycle while standard
80C51 timing is 12 clocks per machine cycle. This division also
applies to peripheral timing, allowing 80C51 code that is oscillator
frequency and/or timer rate dependent. The CLKR bit is located in
the EPROM configuration register UCFG1, described under EPROM
Characteristics
Power Monitoring Functions
The P87LPC760 incorporates power monitoring functions designed
to prevent incorrect operation during initial power up and power loss
or reduction during operation. This is accomplished with two
hardware functions: Power-On Detect and Brownout Detect.
Brownout Detection
The Brownout Detect function allows preventing the processor from
failing in an unpredictable manner if the power supply voltage drops
below a certain level. The default operation is for a brownout
detection to cause a processor reset, however it may alternatively
be configured to generate an interrupt by setting the BOI bit in the
AUXR1 register (AUXR1.5).
In addition to this, the CPU clock may be divided down from the
oscillator rate by a programmable divider, under program control.
This function is controlled by the DIVM register. If the DIVM register
is set to zero (the default value), the CPU will be clocked by either
the unmodified oscillator rate, or that rate divided by two, as
determined by the previously described CLKR function.
The P87LPC760 allows selection of two Brownout levels: 2.5 V or
3.8 V. When VDD drops below the selected voltage, the brownout
detector triggers and remains active until VDD is returns to a level
above the Brownout Detect voltage. When Brownout Detect causes
a processor reset, that reset remains active as long as VDD remains
below the Brownout Detect voltage. When Brownout Detect
generates an interrupt, that interrupt occurs once as VDD crosses
from above to below the Brownout Detect voltage. For the interrupt
to be processed, the interrupt system and the BOI interrupt must
both be enabled (via the EA and EBO bits in IEN0).
When the DIVM register is set to some value N (between 1 and
255), the CPU clock is divided by 2 * (N + 1). Clock division values
from 4 through 512 are thus possible. This feature makes it possible
to temporarily run the CPU at a lower rate, reducing power
consumption, in a manner similar to Idle mode. By dividing the clock,
the CPU can retain the ability to respond to events other than those
that can cause interrupts (i.e. events that allow exiting the Idle
mode) by executing its normal program at a lower rate. This can
allow bypassing the oscillator startup time in cases where Power
Down mode would otherwise be used. The value of DIVM may be
changed by the program at any time without interrupting code
execution.
2002 Mar 07
When Brownout Detect is activated, the BOF flag in the PCON
register is set so that the cause of processor reset may be
determined by software. This flag will remain set until cleared by
software.
23
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
The processor can be made to exit Power Down mode via Reset or
one of the interrupt sources shown in Table 5. This will occur if the
interrupt is enabled and its priority is higher than any interrupt
currently in progress.
For correct activation of Brownout Detect, the VDD fall time must be
no faster than 50 mV/m s. When VDD is restored, is should not rise
faster than 2 mV/m s in order to insure a proper reset.
The brownout voltage (2.5 V or 3.8 V) is selected via the BOV bit in
the EPROM configuration register UCFG1. When unprogrammed
(BOV = 1), the brownout detect voltage is 2.5 V. When programmed
(BOV = 0), the brownout detect voltage is 3.8 V.
In Power Down mode, the power supply voltage may be reduced to
the RAM keep-alive voltage VRAM. This retains the RAM contents at
the point where Power Down mode was entered. SFR contents are
not guaranteed after VDD has been lowered to VRAM, therefore it is
recommended to wake up the processor via Reset in this case. VDD
must be raised to within the operating range before the Power Down
mode is exited. Since the watchdog timer has a separate oscillator, it
may reset the processor upon overflow if it is running during Power
Down.
If the Brownout Detect function is not required in an application, it
may be disabled, thus saving power. Brownout Detect is disabled by
setting the control bit BOD in the AUXR1 register (AUXR1.6).
Power On Detection
The Power On Detect has a function similar to the Brownout Detect,
but is designed to work as power comes up initially, before the
power supply voltage reaches a level where Brownout Detect can
work. When this feature is activated, the POF flag in the PCON
register is set to indicate an initial power up condition. The POF flag
will remain set until cleared by software.
Note that if the Brownout Detect reset is enabled, the processor will
be put into reset as soon as VDD drops below the brownout voltage.
If Brownout Detect is configured as an interrupt and is enabled, it will
wake up the processor from Power Down mode when VDD drops
below the brownout voltage.
Power Reduction Modes
When the processor wakes up from Power Down mode, it will start
the oscillator immediately and begin execution when the oscillator is
stable. Oscillator stability is determined by counting 1024 CPU
clocks after start-up when one of the crystal oscillator configurations
is used, or 256 clocks after start-up for the internal RC or external
clock input configurations.
The P87LPC760 supports Idle and Power Down modes of power
reduction.
Idle Mode
The Idle mode leaves peripherals running in order to allow them to
activate the processor when an interrupt is generated. Any enabled
interrupt source or Reset may terminate Idle mode. Idle mode is
entered by setting the IDL bit in the PCON register (see Figure 19).
Some chip functions continue to operate and draw power during
Power Down mode, increasing the total power used during Power
Down. These include the Brownout Detect, Watchdog Timer, and
Comparator.
Power Down Mode
The Power Down mode stops the oscillator in order to absolutely
minimize power consumption. Power Down mode is entered by
setting the PD bit in the PCON register (see Figure 19).
PCON
P87LPC760
Address: 87h
S 30h for a Power On reset
S 20h for a Brownout reset
S 00h for other reset sources
0
Reset Value:
Not Bit Addressable
BIT
7
6
5
4
3
2
1
SMOD1
SMOD0
BOF
POF
GF1
GF0
PD
SYMBOL
IDL
FUNCTION
PCON.7
SMOD1
When set, this bit doubles the UART baud rate for modes 1, 2, and 3.
PCON.6
SMOD0
This bit selects the function of bit 7 of the SCON SFR. When 0, SCON.7 is the SM0 bit. When 1,
SCON.7 is the FE (Framing Error) flag.1
PCON.5
BOF
Brown Out Flag. Set automatically when a brownout reset or interrupt has occurred. Also set at
power on. Cleared by software. Refer to the Power Monitoring Functions section for additional
information.
PCON.4
POF
Power On Flag. Set automatically when a power-on reset has occurred. Cleared by software. Refer
to the Power Monitoring Functions section for additional information.
PCON.3
GF1
General purpose flag 1. May be read or written by user software, but has no effect on operation.
PCON.2
GF0
General purpose flag 0. May be read or written by user software, but has no effect on operation.
PCON.1
PD
Power Down control bit. Setting this bit activates Power Down mode operation. Cleared when the
Power Down mode is terminated (see text).
PCON.0
IDL
Idle mode control bit. Setting this bit activates Idle mode operation. Cleared when the Idle mode is
terminated (see text).
SU01540
1. See Figure 31 for additional information.
Figure 19. Power Control Register (PCON)
2002 Mar 07
24
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Table 8. Sources of Wakeup from Power Down Mode
Wakeup Source
Conditions
External Interrupt 0
The interrupt must be enabled.
Keyboard Interrupt
The keyboard interrupt feature must be enabled and properly set up. The corresponding interrupt must be
enabled.
Comparator 1
The comparator must be enabled and properly set up. The corresponding interrupt must be enabled.
Watchdog Timer Reset
The watchdog timer must be enabled via the WDTE bit in the UCFG1 EPROM configuration byte.
Watchdog Timer Interrupt
The WDTE bit in the UCFG1 EPROM configuration byte must not be set. The corresponding interrupt must
be enabled.
Brownout Detect Reset
The BOD bit in AUXR1 must not be set (brownout detect not disabled). The BOI bit in AUXR1 must not be
set (brownout interrupt disabled).
Brownout Detect Interrupt
The BOD bit in AUXR1 must not be set (brownout detect not disabled). The BOI bit in AUXR1 must be set
(brownout interrupt enabled). The corresponding interrupt must be enabled.
Reset Input
The external reset input must be enabled.
2002 Mar 07
25
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
save external components and to be able to use pin P1.5 as a
general-purpose input pin.
Low Voltage EPROM Operation
The EPROM array contains some analog circuits that are not
required when VDD is less than 4 V, but are required for a VDD
greater than 4 V. The LPEP bit (AUXR.4), when set by software, will
power down these analog circuits resulting in a reduced supply
current. LPEP is cleared only by power-on reset, so it may be set
ONLY for applications that always operate with VDD less than 4 V.
The P87LPC760 can additionally be configured to use P1.5 as an
external active-low reset pin RST by programming the RPD bit in the
User Configuration Register UCFG1 to 0. The internal reset is still
active on power-up of the device. While the signal on the RST pin is
low, the P87LPC760 is held in reset until the signal goes high.
Reset
The watchdog timer on the P87LPC760 can act as an oscillator fail
detect because it uses an independent, fully on-chip oscillator.
The P87LPC760 has an integrated power-on reset circuit which
always provides a reset when power is initially applied to the device.
It is recommended to use the internal reset whenever possible to
UCFG1.RPD = 1 (default)
P87LPC760
UCFG1 is described in the System Configuration Bytes section of
this datasheet.
UCFG1.RPD = 0
87LPC760
87LPC760
P1.5
RST
Pin is used as
digital input pin
Pin is used as
active-low reset pin
Internal power-on
Reset active
Internal power-on
Reset active
SU01541
Figure 20. Using pin P1.5 as general purpose input pin or as low-active reset pin
RPD (UCFG1.6)
RST/VPP PIN
WDTE (UCFG1.7)
S
WDT
MODULE
Q
CHIP RESET
R
SOFTWARE RESET
SRST (AUXR1.3)
RESET
TIMING
POWER MONITOR
RESET
CPU
CLOCK
SU01170
Figure 21. Block Diagram Showing Reset Sources
2002 Mar 07
26
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
high in one cycle and a low in the next cycle, the count is
incremented. The new count value appears in the register during the
cycle following the one in which the transition was detected. Since it
takes 2 machine cycles (12 CPU clocks) to recognize a 1-to-0
transition, the maximum count rate is 1/6 of the CPU clock
frequency. There are no restrictions on the duty cycle of the external
input signal, but to ensure that a given level is sampled at least once
before it changes, it should be held for at least one full machine
cycle.
Timer/Counters
The P87LPC760 has two general purpose counter/timers which are
upward compatible with the standard 80C51 Timer 0 and Timer 1.
Both can be configured to operate as timers or can be configured to
be an event counter (see Figure 22). An option to automatically
toggle the T0 pin upon timer overflow has been added.
In the “Timer” function, the register is incremented every machine
cycle. Thus, one can think of it as counting machine cycles. Since a
machine cycle consists of 6 CPU clock periods, the count rate is 1/6
of the CPU clock frequency. Refer to the section Enhanced CPU for
a description of the CPU clock.
The “Timer” or “Counter” function of Timer 0 is selected by control bit
C/T in the Special Function Register TMOD. In addition to the
“Timer” or “Counter” selection, Timer 0 and Timer 1 have four
operating modes, which are selected by bit-pairs (M1, M0) in TMOD.
Modes 0, 1, and 2 are the same for both Timers/Counters. Mode 3 is
different. The four operating modes are described in the following
text.
In the “Counter” function of Timer 0, the register is incremented in
response to a 1-to-0 transition at its corresponding external input
pin, T0. In this function, the external input is sampled once during
every machine cycle. When the samples of the pin state show a
TMOD
P87LPC760
Address: 89h
Reset Value: 00h
Not Bit Addressable
7
6
5
4
3
2
1
0
–
–
M1
M0
GATE
C/T
M1
M0
T1
BIT
SYMBOL
TMOD.7, 6
–
TMOD.5, 4
M1, M0
TMOD.3
GATE
TMOD.2
C/T
TMOD.1, 0
M1, M0
M1, M0
T0
FUNCTION
Reserved. Must be written with zeros only.
Mode Select for Timer 1 (see table below).
Gating control for Timer 0. When set, Timer/Counter is enabled only while the INT0 pin is high and
the TR0 control pin is set. When cleared, Timer 0 is enabled when the TR0 control bit is set.
Timer or Counter Selector for Timer 0. Cleared for Timer operation (input from internal system clock.)
Set for Counter operation (input from T0 input pin).
Mode Select for Timer 0 (see table below).
Timer Mode
00
8048 Timer “TLn” serves as 5-bit prescaler.
01
16-bit Timer/Counter “THn” and “TLn” are cascaded; there is no prescaler.
10
8-bit auto-reload Timer/Counter. THn holds a value which is loaded into TLn when it overflows.
11
Timer 0 is a dual 8-bit Timer/Counter in this mode. TL0 is an 8-bit Timer/Counter controlled by the
standard Timer 0 control bits. TH0 is an 8-bit timer only, controlled by the Timer 1 control bits (see
text). Timer 1 in this mode is stopped.
SU01542
Figure 22. Timer/Counter Mode Control Register (TMOD)
2002 Mar 07
27
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
Mode 0
Putting either Timer into Mode 0 makes it look like an 8048 Timer,
which is an 8-bit Counter with a divide-by-32 prescaler. Figures 24
and 25 show Mode 0 operation.
measurements). TRn is a control bit in the Special Function Register
TCON (Figure 23). The GATE bit is in the TMOD register (TMOD.3).
The 13-bit register consists of all 8 bits of THn and the lower 5 bits
of TLn. The upper 3 bits of TLn are indeterminate and should be
ignored. Setting the run flag (TRn) does not clear the registers.
In this mode, the Timer register is configured as a 13-bit register. As
the count rolls over from all 1s to all 0s, it sets the Timer interrupt
flag TFn. The count input is enabled to Timer 0 when TR0 = 1 and
either GATE = 0 or INT0 = 1. (Setting GATE = 1 allows the Timer to
be controlled by external input INT0, to facilitate pulse width
TCON
P87LPC760
Mode 0 operation is slightly different for Timer 0 and Timer 1. See
Figures 24 and 25.
Address: 88h
Reset Value: 00h
Bit Addressable
BIT
7
6
5
4
3
2
1
0
TF1
TR1
TF0
TR0
–
–
IE0
IT0
SYMBOL
FUNCTION
TCON.7
TF1
Timer 1 overflow flag. Set by hardware on Timer/Counter overflow. Cleared by hardware when the
interrupt is processed, or by software.
TCON.6
TR1
Timer 1 Run control bit. Set/cleared by software to turn Timer/Counter 1 on/off.
TCON.5
TF0
Timer 0 overflow flag. Set by hardware on Timer/Counter overflow. Cleared by hardware when the
processor vectors to the interrupt routine, or by software.
TCON.4
TR0
Timer 0 Run control bit. Set/cleared by software to turn Timer/Counter 0 on/off.
TCON.3, 2
–
Reserved (must be 0).
TCON.1
IE0
Interrupt 0 Edge flag. Set by hardware when external interrupt 0 edge is detected. Cleared by
hardware when the interrupt is processed, or by software.
TCON.0
IT0
Interrupt 0 Type control bit. Set/cleared by software to specify falling edge/low level triggered
external interrupts.
SU01543
Figure 23. Timer/Counter Control Register (TCON)
OVERFLOW
OSC/6
OR
OSC/12
T0 PIN
C/T = 0
TL0
(5 BITS)
C/T = 1
TH0
(8 BITS)
TF0
INTERRUPT
CONTROL
TR0
TOGGLE
GATE
T0 PIN
INT0 PIN
T0OE
SU01544
Figure 24. Timer/Counter 0 in Mode 0 (13-Bit Timer/Counter)
2002 Mar 07
28
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
OVERFLOW
TL1
(5 BITS)
OSC/6
OR
OSC/12
TH1
(8 BITS)
TF1
INTERRUPT
CONTROL
TR1
SU01553
Figure 25. Timer 1 in Mode 0 (13-Bit Timer)
Timer 0 in Mode 3 establishes TL0 and TH0 as two separate 8-bit
counters. The logic for Mode 3 on Timer 0 is shown in Figure 30.
TL0 uses the Timer 0 control bits: C/T, GATE, TR0, and TF0 as well
as the INT0 pin. TH0 is locked into a timer function (counting
machine cycles) and takes over the use of TR1 and TF1 from Timer
1. Thus, TH0 now controls the “Timer 1” interrupt.
Mode 1
Mode 1 is the same as Mode 0, except that all 16 bits of the timer
register (THn and TLn) are used. (See Figures 26 and 27)
Mode 2
Mode 2 configures the Timer register as an 8-bit Counter (TLn) with
automatic reload, as shown in Figures 28 and 29. Overflow from TLn
not only sets TFn, but also reloads TLn with the contents of THn,
which must be preset by software. The reload leaves THn
unchanged. Mode 2 operation is slightly different for Timer 0 and
Timer 1 (see Figures 28 and 29).
Mode 3 is provided for applications that require an extra 8-bit timer.
With Timer 0 in Mode 3, an P87LPC760 can look like it has three
Timer/Counters. When Timer 0 is in Mode 3, Timer 1 can be turned
on and off by switching it into and out of its own Mode 3. It can still
be used by the serial port as a baud rate generator, or in any
application not requiring an interrupt.
Mode 3
When Timer 1 is in Mode 3 it is stopped. The effect is the same as
setting TR1 = 0.
OVERFLOW
OSC/6
OR
OSC/12
T0 PIN
C/T = 0
TL0
(8 BITS)
TH0
(8 BITS)
TF0
INTERRUPT
CONTROL
C/T = 1
TR0
TOGGLE
GATE
T0 PIN
INT0 PIN
T0OE
SU01545
Figure 26. Timer/Counter 0 in Mode 1 (16-Bit Timer/Counter)
OVERFLOW
OSC/6
OR
OSC/12
TL1
(8 BITS)
TH1
(8 BITS)
TF1
INTERRUPT
CONTROL
TR1
SU01546
Figure 27. Timer 1 in Mode 1 (16-Bit Timer)
2002 Mar 07
29
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
OSC/6
OR
OSC/12
T0 PIN
P87LPC760
C/T = 0
OVERFLOW
TL0
(8 BITS)
TF0
INTERRUPT
CONTROL
C/T = 1
RELOAD
TR0
TOGGLE
GATE
T0 PIN
TH0
(8 BITS)
INT0 PIN
T0OE
SU01547
Figure 28. Timer/Counter 0 in Mode 2 (8-Bit Auto-Reload)
OSC/6
OR
OSC/12
OVERFLOW
TL1
(8 BITS)
TF1
INTERRUPT
CONTROL
RELOAD
TR1
TH1
(8 BITS)
SU01548
Figure 29. Timer 1 in Mode 2 (8-Bit Auto-Reload)
OSC/6
OR
OSC/12
T0 PIN
C/T = 0
TL0
(8 BITS)
OVERFLOW
TF0
INTERRUPT
CONTROL
C/T = 1
TR0
TOGGLE
GATE
T0 PIN
INT0 PIN
T0OE
TH0
(8 BITS)
OSC/6
OR
OSC/12
OVERFLOW
TF1
INTERRUPT
CONTROL
TR1
SU01549
Figure 30. Timer/Counter 0 Mode 3 (Two 8-Bit Timer/Counters)
2002 Mar 07
30
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
Mode 2
11 bits are transmitted (through TxD) or received (through RxD):
start bit (logical 0), 8 data bits (LSB first), a programmable 9th data
bit, and a stop bit (logical 1). When data is transmitted, the 9th data
bit (TB8 in SCON) can be assigned the value of 0 or 1. Or, for
example, the parity bit (P, in the PSW) could be moved into TB8.
When data is received, the 9th data bit goes into RB8 in Special
Function Register SCON, while the stop bit is ignored. The baud
rate is programmable to either 1/16 or 1/32 of the CPU clock
frequency, as determined by the SMOD1 bit in PCON.
Timer Overflow Toggle Output
Timer 0 can be configured to automatically toggle a port output
whenever a timer overflow occurs. The same device pins that is
used for the T0 count inputs are also used for the timer toggle
outputs. This function is enabled by control bit T0OE in the P2M1
register. The port outputs will be a logic 1 prior to the first timer
overflow when this mode is turned on.
UART
The P87LPC760 includes an enhanced 80C51 UART. The baud rate
source for the UART is timer 1 for modes 1 and 3, while the rate is
fixed in modes 0 and 2. Because CPU clocking is different on the
P87LPC760 than on the standard 80C51, baud rate calculation is
somewhat different. Enhancements over the standard 80C51 UART
include Framing Error detection and automatic address recognition.
Mode 3
11 bits are transmitted (through TxD) or received (through RxD): a
start bit (logical 0), 8 data bits (LSB first), a programmable 9th data
bit, and a stop bit (logical 1). In fact, Mode 3 is the same as Mode 2
in all respects except baud rate. The baud rate in Mode 3 is variable
and is determined by the Timer 1 overflow rate.
The serial port is full duplex, meaning it can transmit and receive
simultaneously. It is also receive-buffered, meaning it can
commence reception of a second byte before a previously received
byte has been read from the SBUF register. However, if the first byte
still hasn’t been read by the time reception of the second byte is
complete, the first byte will be lost. The serial port receive and
transmit registers are both accessed through Special Function
Register SBUF. Writing to SBUF loads the transmit register, and
reading SBUF accesses a physically separate receive register.
In all four modes, transmission is initiated by any instruction that
uses SBUF as a destination register. Reception is initiated in Mode 0
by the condition RI = 0 and REN = 1. Reception is initiated in the
other modes by the incoming start bit if REN = 1
Serial Port Control Register (SCON)
The serial port control and status register is the Special Function
Register SCON, shown in Figure 31. This register contains not only
the mode selection bits, but also the 9th data bit for transmit and
receive (TB8 and RB8), and the serial port interrupt bits (TI and RI).
The serial port can be operated in 4 modes:
Mode 0
Serial data enters and exits through RxD. TxD outputs the shift
clock. 8 bits are transmitted or received, LSB first. The baud rate is
fixed at 1/6 of the CPU clock frequency.
The Framing Error bit (FE) allows detection of missing stop bits in
the received data stream. The FE bit shares the bit position SCON.7
with the SM0 bit. Which bit appears in SCON at any particular time
is determined by the SMOD0 bit in the PCON register. If SMOD0 =
0, SCON.7 is the SM0 bit. If SMOD0 = 1, SCON.7 is the FE bit.
Once set, the FE bit remains set until it is cleared by software. This
allows detection of framing errors for a group of characters without
the need for monitoring it for every character individually.
Mode 1
10 bits are transmitted (through TxD) or received (through RxD): a
start bit (logical 0), 8 data bits (LSB first), and a stop bit (logical 1).
When data is received, the stop bit is stored in RB8 in Special
Function Register SCON. The baud rate is variable and is
determined by the Timer 1 overflow rate.
2002 Mar 07
P87LPC760
31
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
SCON
P87LPC760
Address: 98h
Reset Value: 00h
Bit Addressable
BIT
7
6
5
4
3
2
1
0
SM0/FE
SM1
SM2
REN
TB8
RB8
TI
RI
SYMBOL
SCON.7
FE
SCON.7
SM0
SCON. 6
SM1
FUNCTION
Framing Error. This bit is set by the UART receiver when an invalid stop bit is detected. Must be
cleared by software. The SMOD0 bit in the PCON register must be 1 for this bit to be accessible.
See SM0 bit below.
With SM1, defines the serial port mode. The SMOD0 bit in the PCON register must be 0 for this bit
to be accessible. See FE bit above.
With SM0, defines the serial port mode (see table below).
UART Mode
Baud Rate
00
0: shift register
CPU clock/6
01
1: 8-bit UART
Variable (see text)
10
2: 9-bit UART
CPU clock/32 or CPU clock/16
11
3: 9-bit UART
Variable (see text)
SM0, SM1
SCON.5
SM2
Enables the multiprocessor communication feature in Modes 2 and 3. In Mode 2 or 3, if SM2 is set
to 1, then Rl will not be activated if the received 9th data bit (RB8) is 0. In Mode 1, if SM2=1 then RI
will not be activated if a valid stop bit was not received. In Mode 0, SM2 should be 0.
SCON.4
REN
Enables serial reception. Set by software to enable reception. Clear by software to disable reception.
SCON.3
TB8
The 9th data bit that will be transmitted in Modes 2 and 3. Set or clear by software as desired.
SCON.2
RB8
In Modes 2 and 3, is the 9th data bit that was received. In Mode 1, it SM2=0, RB8 is the stop bit that
was received. In Mode 0, RB8 is not used.
SCON.1
TI
Transmit interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or at the beginning
of the stop bit in the other modes, in any serial transmission. Must be cleared by software.
SCON.0
RI
Receive interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or halfway through
the stop bit time in the other modes, in any serial reception (except see SM2). Must be cleared by
software.
SU01550
Figure 31. Serial Port Control Register (SCON)
application. The Timer itself can be configured for either “timer” or
“counter” operation, and in any of its 3 running modes. In the most
typical applications, it is configured for “timer” operation, in the
auto-reload mode (high nibble of TMOD = 0010b). In that case the
baud rate is given by the formula:
Baud Rates
The baud rate in Mode 0 is fixed: Mode 0 Baud Rate = CPU clock/6.
The baud rate in Mode 2 depends on the value of bit SMOD1 in
Special Function Register PCON. If SMOD1 = 0 (which is the value
on reset), the baud rate is 1/32 of the CPU clock frequency. If
SMOD1 = 1, the baud rate is 1/16 of the CPU clock frequency.
Mode 2 Baud Rate + 1 ) SMOD1 x CPU clock frequency
32
Mode 1, 3 Baud Rate +
Using Timer 1 to Generate Baud Rates
When Timer 1 is used as the baud rate generator, the baud rates in
Modes 1 and 3 are determined by the Timer 1 overflow rate and the
value of SMOD1. The Timer 1 interrupt should be disabled in this
2002 Mar 07
CPU clock frequencyń
192 (or 96 if SMOD1 + 1)
256 * (TH1)
Tables 6 and 7 list various commonly used baud rates and how they
can be obtained using Timer 1 as the baud rate generator.
32
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Table 9. Baud Rates, Timer Values, and CPU Clock Frequencies for SMOD1 = 0
Timer Co
Count
nt
Baud Rate
2400
4800
9600
19.2k
38.4k
57.6k
–1
0.4608
0.9216
* 1.8432
* 3.6864
* 7.3728
* 11.0592
–2
0.9216
1.8432
* 3.6864
* 7.3728
* 14.7456
–3
1.3824
2.7648
5.5296
* 11.0592
–
–
–4
* 1.8432
* 3.6864
* 7.3728
* 14.7456
–
–
–5
2.3040
4.6080
9.2160
* 18.4320
–
–
–6
2.7648
5.5296
* 11.0592
–
–
–
–7
3.2256
6.4512
12.9024
–
–
–
–8
* 3.6864
* 7.3728
* 14.7456
–
–
–
–9
4.1472
8.2944
16.5888
–
–
–
–10
4.6080
9.2160
* 18.4320
–
–
–
Table 10. Baud Rates, Timer Values, and CPU Clock Frequencies for SMOD1 = 1
Timer Co
Count
nt
Baud Rate
2400
4800
9600
19.2 k
38.4 k
57.6 k
115.2 k
–1
0.2304
0.4608
0.9216
* 1.8432
* 3.6864
5.5296
* 11.0592
–2
0.4608
0.9216
* 1.8432
* 3.6864
* 7.3728
* 11.0592
–
–3
0.6912
1.3824
2.7648
5.5296
* 11.0592
16.5888
–
–4
0.9216
* 1.8432
* 3.6864
* 7.3728
* 14.7456
–
–
–5
1.1520
2.3040
4.6080
9.2160
* 18.4320
–
–
–6
1.3824
2.7648
5.5296
* 11.0592
–
–
–
–7
1.6128
3.2256
6.4512
12.9024
–
–
–
–8
* 1.8432
* 3.6864
* 7.3728
* 14.7456
–
–
–
–9
2.0736
4.1472
8.2944
16.5888
–
–
–
–10
2.3040
4.6080
9.2160
* 18.4320
–
–
–
–11
2.5344
5.0688
10.1376
–
–
–
–
–12
2.7648
5.5296
* 11.0592
–
–
–
–
–13
2.9952
5.9904
11.9808
–
–
–
–
–14
3.2256
6.4512
12.9024
–
–
–
–
–15
3.4560
6.9120
13.8240
–
–
–
–
–16
* 3.6864
* 7.3728
* 14.7456
–
–
–
–
–17
3.9168
7.8336
15.6672
–
–
–
–
–18
4.1472
8.2944
16.5888
–
–
–
–
–19
4.3776
8.7552
17.5104
–
–
–
–
–20
4.6080
9.2160
* 18.4320
–
–
–
–
–21
4.8384
9.6768
19.3536
–
–
–
–
NOTES TO TABLES 9 AND 10:
1. Tables 6 and 7 apply to UART modes 1 and 3 (variable rate modes), and show CPU clock rates in MHz for standard baud rates from 2400 to
115.2k baud.
2. Table 6 shows timer settings and CPU clock rates with the SMOD1 bit in the PCON register = 0 (the default after reset), while Table 7
reflects the SMOD1 bit = 1.
3. The tables show all potential CPU clock frequencies up to 20 MHz that may be used for baud rates from 9600 baud to 115.2 k baud. Other
CPU clock frequencies that would give only lower baud rates are not shown.
4. Table entries marked with an asterisk (*) indicate standard crystal and ceramic resonator frequencies that may be obtained from many
sources without special ordering.
2002 Mar 07
33
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
More About UART Mode 1
Ten bits are transmitted (through TxD), or received (through RxD): a
start bit (0), 8 data bits (LSB first), and a stop bit (1). On receive, the
stop bit goes into RB8 in SCON. In the P87LPC760 the baud rate is
determined by the Timer 1 overflow rate. Figure 33 shows a
simplified functional diagram of the serial port in Mode 1, and
associated timings for transmit receive.
More About UART Mode 0
Serial data enters and exits through RxD. TxD outputs the shift
clock. 8 bits are transmitted/received: 8 data bits (LSB first). The
baud rate is fixed at 1/6 the CPU clock frequency. Figure 32 shows
a simplified functional diagram of the serial port in Mode 0, and
associated timing.
Transmission is initiated by any instruction that uses SBUF as a
destination register. The “write to SBUF” signal at S6P2 also loads a
1 into the 9th position of the transmit shift register and tells the TX
Control block to commence a transmission. The internal timing is
such that one full machine cycle will elapse between “write to SBUF”
and activation of SEND.
Transmission is initiated by any instruction that uses SBUF as a
destination register. The “write to SBUF” signal also loads a 1 into
the 9th bit position of the transmit shift register and flags the TX
Control unit that a transmission is requested. Transmission actually
commences at S1P1 of the machine cycle following the next rollover
in the divide-by-16 counter. (Thus, the bit times are synchronized to
the divide-by-16 counter, not to the “write to SBUF” signal.)
SEND enables the output of the shift register to the alternate output
function line of P1.1 and also enable SHIFT CLOCK to the alternate
output function line of P1.0. SHIFT CLOCK is low during S3, S4, and
S5 of every machine cycle, and high during S6, S1, and S2. At
S6P2 of every machine cycle in which SEND is active, the contents
of the transmit shift are shifted to the right one position.
The transmission begins with activation of SEND, which puts the
start bit at TxD. One bit time later, DATA is activated, which enables
the output bit of the transmit shift register to TxD. The first shift pulse
occurs one bit time after that.
As data bits shift out to the right, zeros are clocked in from the left.
When the MSB of the data byte is at the output position of the shift
register, then the 1 that was initially loaded into the 9th position is
just to the left of the MSB, and all positions to the left of that contain
zeros. This condition flags the TX Control unit to do one last shift
and then deactivate SEND and set TI. This occurs at the 10th
divide-by-16 rollover after “write to SBUF.”
As data bits shift out to the right, zeros come in from the left. When
the MSB of the data byte is at the output position of the shift register,
then the 1 that was initially loaded into the 9th position, is just to the
left of the MSB, and all positions to the left of that contain zeros.
This condition flags the TX Control block to do one last shift and
then deactivate SEND and set T1. Both of these actions occur at
S1P1 of the 10th machine cycle after “write to SBUF.” Reception is
initiated by the condition REN = 1 and R1 = 0. At S6P2 of the next
machine cycle, the RX Control unit writes the bits 11111110 t o the
receive shift register, and in the next clock phase activates
RECEIVE.
Reception is initiated by a detected 1-to-0 transition at RxD. For this
purpose RxD is sampled at a rate of 16 times whatever baud rate
has been established. When a transition is detected, the
divide-by-16 counter is immediately reset, and 1FFH is written into
the input shift register. Resetting the divide-by-16 counter aligns its
rollovers with the boundaries of the incoming bit times.
RECEIVE enable SHIFT CLOCK to the alternate output function line
of P1.0. SHIFT CLOCK makes transitions at S3P1 and S6P1 of
every machine cycle. At S6P2 of every machine cycle in which
RECEIVE is active, the contents of the receive shift register are
shifted to the left one position. The value that comes in from the right
is the value that was sampled at the P1.1 pin at S5P2 of the same
machine cycle.
The 16 states of the counter divide each bit time into 16ths. At the
7th, 8th, and 9th counter states of each bit time, the bit detector
samples the value of RxD. The value accepted is the value that was
seen in at least 2 of the 3 samples. This is done for noise rejection.
If the value accepted during the first bit time is not 0, the receive
circuits are reset and the unit goes back to looking for another 1-to-0
transition. This is to provide rejection of false start bits. If the start bit
proves valid, it is shifted into the input shift register, and reception of
the rest of the frame will proceed.
As data bits come in from the right, 1s shift out to the left. When the
0 that was initially loaded into the rightmost position arrives at the
leftmost position in the shift register, it flags the RX Control block to
do one last shift and load SBUF. At S1P1 of the 10th machine cycle
after the write to SCON that cleared RI, RECEIVE is cleared as RI is
set.
As data bits come in from the right, 1s shift out to the left. When the
start bit arrives at the leftmost position in the shift register (which in
mode 1 is a 9-bit register), it flags the RX Control block to do one
last shift, load SBUF and RB8, and set RI. The signal to load SBUF
and RB8, and to set RI, will be generated if, and only if, the following
conditions are met at the time the final shift pulse is generated: 1.
R1 = 0, and 2. Either SM2 = 0, or the received stop bit = 1.
If either of these two conditions is not met, the received frame is
irretrievably lost. If both conditions are met, the stop bit goes into
RB8, the 8 data bits go into SBUF, and RI is activated. At this time,
whether the above conditions are met or not, the unit goes back to
looking for a 1-to-0 transition in RxD.
2002 Mar 07
34
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
80C51 INTERNAL BUS
WRITE
TO
SBUF
S
D
RxD
P1.1 ALT
OUTPUT
FUNCTION
SBUF
Q
CL
ZERO DETECTOR
START
SHIFT
TX CONTROL
S6
TX CLOCK
TI
TX CLOCK
RI
TxD
P1.0 ALT
OUTPUT
FUNCTION
SEND
SERIAL PORT
INTERRUPT
REN
RI
RX CONTROL
START
1
1
1
1
SHIFT
CLOCK
RECEIVE
1
SHIFT
1
1
0
RXD
P1.1 ALT
INPUT
FUNCTION
INPUT SHIFT REGISTER
LOAD
SBUF
SBUF
READ
SBUF
80C51 INTERNAL BUS
S1 ... S6
S1 ... S6
S1 ... S6
S1 ... S6
S1 ... S6
S1 ... S6
S1 ... S6
S1 ... S6
D1
D2
D3
D4
S1 ... S6 S1 ... S6
S1 ... S6
S1 ... S6
S1 ... S6
WRITE TO SBUF
SEND
SHIFT
RXD (DATA OUT)
TRANSMIT
D0
D5
D6
D7
TXD (SHIFT CLOCK)
TI
WRITE TO SCON (CLEAR RI)
RI
RECEIVE
RECEIVE
SHIFT
RxD (DATA IN)
D0
D1
D2
D3
D4
D5
D6
D7
TxD (SHIFT CLOCK)
SU01178
Figure 32. Serial Port Mode 0
2002 Mar 07
35
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
80C51 INTERNAL BUS
TB8
WRITE
TO SBUF
D
TIMER 1
OVERFLOW
S
÷2
SMOD1 = 0
TxD
P1.0 ALT
OUTPUT
FUNCTION
SBUF
Q
CL
ZERO DETECTOR
SMOD1
= 1
SHIFT
START
÷16
TX CONTROL
DATA
TI
SEND
TX CLOCK
SERIAL PORT
INTERRUPT
÷16
RX
CLOCK
1-TO-0
TRANSITION
DETECTOR
RI
LOAD SBUF
RX CONTROL
START
SHIFT
1FFH
BIT
DETECTOR
RxD
P1.1 ALT
INPUT
FUNCTION
INPUT SHIFT REGISTER
LOAD
SBUF
SBUF
READ
SBUF
80C51 INTERNAL BUS
TX CLOCK
WRITE TO SBUF
SEND
DATA
TRANSMIT
SHIFT
START
BIT
TxD
D0
D1
D2
D3
D4
D5
D6
D7
STOP BIT
TI
RX CLOCK
RxD
÷ 16 RESET
START
BIT
D0
D1
D2
D3
D4
D5
BIT DETECTOR SAMPLE TIMES
D6
D7
STOP BIT
RECEIVE
SHIFT
RI
SU01179
Figure 33. Serial Port Mode 1
2002 Mar 07
36
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
proves valid, it is shifted into the input shift register, and reception of
the rest of the frame will proceed.
More About UART Modes 2 and 3
Eleven bits are transmitted (through TxD), or received (through
RxD): a start bit (0), 8 data bits (LSB first), a programmable 9th data
bit, and a stop bit (1). On transmit, the 9th data bit (TB8) can be
assigned the value of 0 or 1. On receive, the 9the data bit goes into
RB8 in SCON. The baud rate is programmable to either 1/16 or 1/32
of the CPU clock frequency in Mode 2. Mode 3 may have a variable
baud rate generated from Timer 1.
As data bits come in from the right, 1s shift out to the left. When the
start bit arrives at the leftmost position in the shift register (which in
Modes 2 and 3 is a 9-bit register), it flags the RX Control block to do
one last shift, load SBUF and RB8, and set RI.
The signal to load SBUF and RB8, and to set RI, will be generated
if, and only if, the following conditions are met at the time the final
shift pulse is generated. 1. RI = 0, and 2. Either SM2 = 0, or the
received 9th data bit = 1.
Figures 34 and 35 show a functional diagram of the serial port in
Modes 2 and 3. The receive portion is exactly the same as in
Mode 1. The transmit portion differs from Mode 1 only in the 9th bit
of the transmit shift register.
If either of these conditions is not met, the received frame is
irretrievably lost, and RI is not set. If both conditions are met, the
received 9th data bit goes into RB8, and the first 8 data bits go into
SBUF. One bit time later, whether the above conditions were met
or not, the unit goes back to looking for a 1-to-0 transition at the
RxD input.
Transmission is initiated by any instruction that uses SBUF as a
destination register. The “write to SBUF” signal also loads TB8 into
the 9th bit position of the transmit shift register and flags the TX
Control unit that a transmission is requested. Transmission
commences at S1P1 of the machine cycle following the next rollover
in the divide-by-16 counter. (Thus, the bit times are synchronized to
the divide-by-16 counter, not to the “write to SBUF” signal.)
Multiprocessor Communications
UART modes 2 and 3 have a special provision for multiprocessor
communications. In these modes, 9 data bits are received or
transmitted. When data is received, the 9th bit is stored in RB8. The
UART can be programmed such that when the stop bit is received,
the serial port interrupt will be activated only if RB8 = 1. This feature
is enabled by setting bit SM2 in SCON. One way to use this feature
in multiprocessor systems is as follows:
The transmission begins with activation of SEND, which puts the
start bit at TxD. One bit time later, DATA is activated, which enables
the output bit of the transmit shift register to TxD. The first shift pulse
occurs one bit time after that. The first shift clocks a 1 (the stop bit)
into the 9th bit position of the shift register. Thereafter, only zeros
are clocked in. Thus, as data bits shift out to the right, zeros are
clocked in from the left. When TB8 is at the output position of the
shift register, then the stop bit is just to the left of TB8, and all
positions to the left of that contain zeros. This condition flags the TX
Control unit to do one last shift and then deactivate SEND and set
TI. This occurs at the 11th divide-by-16 rollover after “write to SBUF.”
When the master processor wants to transmit a block of data to one
of several slaves, it first sends out an address byte which identifies
the target slave. An address byte differs from a data byte in that the
9th bit is 1 in an address byte and 0 in a data byte. With SM2 = 1, no
slave will be interrupted by a data byte. An address byte, however,
will interrupt all slaves, so that each slave can examine the received
byte and see if it is being addressed. The addressed slave will clear
its SM2 bit and prepare to receive the data bytes that follow. The
slaves that weren’t being addressed leave their SM2 bits set and go
on about their business, ignoring the subsequent data bytes.
Reception is initiated by a detected 1-to-0 transition at RxD. For this
purpose RxD is sampled at a rate of 16 times whatever baud rate
has been established. When a transition is detected, the
divide-by-16 counter is immediately reset, and 1FFH is written to the
input shift register.
SM2 has no effect in Mode 0, and in Mode 1 can be used to check
the validity of the stop bit, although this is better done with the
Framing Error flag. In a Mode 1 reception, if SM2 = 1, the receive
interrupt will not be activated unless a valid stop bit is received.
At the 7th, 8th, and 9th counter states of each bit time, the bit
detector samples the value of R–D. The value accepted is the value
that was seen in at least 2 of the 3 samples. If the value accepted
during the first bit time is not 0, the receive circuits are reset and the
unit goes back to looking for another 1-to-0 transition. If the start bit
2002 Mar 07
P87LPC760
37
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
80C51 INTERNAL BUS
TB8
WRITE TO SBUF
S
D
PHASE 2 CLOCK
(1/2 fOSC)
SBUF
Q
÷2
SMOD1 = 0
TxD
P1.0 ALT OUTPUT
FUNCTION
CL
ZERO DETECTOR
SMOD1
= 1
START
STOP BIT GEN.
SHIFT
TX CONTROL
÷16
TX CLOCK
DATA
SEND
TI
÷16
SERIAL PORT INTERRUPT
RX
CLOCK
1-TO-0
TRANSITION
DETECTOR
RI
LOAD SBUF
RX CONTROL
START
SHIFT
1FFH
INPUT SHIFT REGISTER
BIT DETECTOR
RxD
P1.1 ALT
INPUT
FUNCTION
LOAD
SBUF
SBUF
READ
SBUF
80C51 INTERNAL BUS
TX CLOCK
WRITE TO SBUF
SEND
DATA
TRANSMIT
SHIFT
START
BIT
TxD
D0
D1
D2
D3
D4
D5
D6
D7
TB8
STOP BIT
TI
STOP BIT GEN.
RX CLOCK
RxD
÷ 16 RESET
START
BIT
D0
D1
D2
D3
D4
D5
BIT DETECTOR SAMPLE TIMES
D6
D7
RB8
STOP BIT
RECEIVE
SHIFT
RI
SU01180
Figure 34. Serial Port Mode 2
2002 Mar 07
38
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
80C51 INTERNAL BUS
TB8
WRITE TO SBUF
D
TIMER 1
OVERFLOW
S
÷2
SMOD1 = 0
TxD
P1.0 ALT
OUTPUT
FUNCTION
SBUF
Q
CL
ZERO DETECTOR
SMOD1
= 1
SHIFT
START
TX CONTROL
÷16
TX CLOCK
DATA
SEND
TI
÷16
SERIAL PORT INTERRUPT
RX
CLOCK
1-TO-0
TRANSITION
DETECTOR
RI
LOAD SBUF
RX CONTROL
START
SHIFT
1FFH
BIT
DETECTOR
RxD
P1.1 ALT
INPUT
FUNCTION
INPUT SHIFT REGISTER
LOAD
SBUF
SBUF
READ
SBUF
80C51 INTERNAL BUS
TX CLOCK
WRITE TO SBUF
SEND
DATA
TRANSMIT
SHIFT
START
BIT
TxD
D0
D1
D2
D3
D4
D5
D6
D7
TB8
STOP BIT
TI
STOP BIT GEN.
RX CLOCK
RxD
÷ 16 RESET
START
BIT
D0
D1
D2
D3
D4
D5
BIT DETECTOR SAMPLE TIMES
D6
D7
RB8
STOP BIT
RECEIVE
SHIFT
RI
SU01181
Figure 35. Serial Port Mode 3
2002 Mar 07
39
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
Address for each slave is created by taking the logical OR of
SADDR and SADEN. Zeros in this result are treated as don’t-cares.
In most cases, interpreting the don’t-cares as ones, the broadcast
address will be FF hexadecimal. Upon reset SADDR and SADEN
are loaded with 0s. This produces a given address of all “don’t
cares” as well as a Broadcast address of all “don’t cares”. This
effectively disables the Automatic Addressing mode and allows the
microcontroller to use standard UART drivers which do not make
use of this feature.
Automatic Address Recognition
Automatic Address Recognition is a feature which allows the UART
to recognize certain addresses in the serial bit stream by using
hardware to make the comparisons. This feature saves a great deal
of software overhead by eliminating the need for the software to
examine every serial address which passes by the serial port. This
feature is enabled by setting the SM2 bit in SCON. In the 9 bit UART
modes, mode 2 and mode 3, the Receive Interrupt flag (RI) will be
automatically set when the received byte contains either the “Given”
address or the “Broadcast” address. The 9 bit mode requires that
the 9th information bit is a 1 to indicate that the received information
is an address and not data.
Watchdog Timer
When enabled via the WDTE configuration bit, the watchdog timer is
operated from an independent, fully on-chip oscillator in order to
provide the greatest possible dependability. When the watchdog
feature is enabled, the timer must be fed regularly by software in
order to prevent it from resetting the CPU, and it cannot be turned
off. When disabled as a watchdog timer (via the WDTE bit in the
UCFG1 configuration register), it may be used as an interval timer
and may generate an interrupt. The watchdog timer is shown in
Figure 36.
Using the Automatic Address Recognition feature allows a master to
selectively communicate with one or more slaves by invoking the
Given slave address or addresses. All of the slaves may be
contacted by using the Broadcast address. Two special Function
Registers are used to define the slave’s address, SADDR, and the
address mask, SADEN. SADEN is used to define which bits in the
SADDR are to be used and which bits are “don’t care”. The SADEN
mask can be logically ANDed with the SADDR to create the “Given”
address which the master will use for addressing each of the slaves.
Use of the Given address allows multiple slaves to be recognized
while excluding others. The following examples will help to show the
versatility of this scheme:
Slave 0
Slave 1
The watchdog timeout time is selectable from one of eight values,
nominal times range from 25 milliseconds to 3.2 seconds. The
frequency tolerance of the independent watchdog RC oscillator is
±37%. The timeout selections and other control bits are shown in
Figure 35. When the watchdog function is enabled, the WDCON
register may be written once during chip initialization in order to set
the watchdog timeout time. The recommended method of initializing
the WDCON register is to first feed the watchdog, then write to
WDCON to configure the WDS2–0 bits. Using this method, the
watchdog initialization may be done any time within 10 milliseconds
after startup without a watchdog overflow occurring before the
initialization can be completed.
SADDR = 1100 0000
SADEN
= 1111 1101
Given
= 1100 00X0
SADDR = 1100 0000
SADEN
= 1111 1110
Given
= 1100 000X
P87LPC760
In the above example SADDR is the same and the SADEN data is
used to differentiate between the two slaves. Slave 0 requires a 0 in
bit 0 and it ignores bit 1. Slave 1 requires a 0 in bit 1 and bit 0 is
ignored. A unique address for Slave 0 would be 1100 0010 since
slave 1 requires a 0 in bit 1. A unique address for slave 1 would be
1100 0001 since a 1 in bit 0 will exclude slave 0. Both slaves can be
selected at the same time by an address which has bit 0 = 0 (for
slave 0) and bit 1 = 0 (for slave 1). Thus, both could be addressed
with 1100 0000.
Since the watchdog timer oscillator is fully on-chip and independent
of any external oscillator circuit used by the CPU, it intrinsically
serves as an oscillator fail detection function. If the watchdog feature
is enabled and the CPU oscillator fails for any reason, the watchdog
timer will time out and reset the CPU.
In a more complex system the following could be used to select
slaves 1 and 2 while excluding slave 0:
Watchdog Feed Sequence
If the watchdog timer is running, it must be fed before it times out in
order to prevent a chip reset from occurring. The watchdog feed
sequence consists of first writing the value 1Eh, then the value E1h
to the WDRST register. An example of a watchdog feed sequence is
shown below.
Slave 0
Slave 1
Slave 2
When the watchdog function is enabled, the timer is deactivated
temporarily when a chip reset occurs from another source, such as
a power on reset, brownout reset, or external reset.
SADDR = 1100 0000
SADEN
= 1111 1001
Given
= 1100 0XX0
SADDR = 1110 0000
SADEN
= 1111 1010
Given
= 1110 0X0X
WDFeed:
mov WDRST,#1eh ; First part of watchdog feed
sequence.
mov WDRST,#0e1h ; Second part of watchdog feed
sequence.
SADDR = 1110 0000
SADEN
= 1111 1100
Given
= 1110 00XX
The two writes to WDRST do not have to occur in consecutive
instructions. An incorrect watchdog feed sequence does not cause
any immediate response from the watchdog timer, which will still
time out at the originally scheduled time if a correct feed sequence
does not occur prior to that time.
In the above example the differentiation among the 3 slaves is in the
lower 3 address bits. Slave 0 requires that bit 0 = 0 and it can be
uniquely addressed by 1110 0110. Slave 1 requires that bit 1 = 0 and
it can be uniquely addressed by 1110 and 0101. Slave 2 requires
that bit 2 = 0 and its unique address is 1110 0011. To select Slaves 0
and 1 and exclude Slave 2 use address 1110 0100, since it is
necessary to make bit 2 = 1 to exclude slave 2. The Broadcast
2002 Mar 07
After a chip reset, the user program has a limited time in which to
either feed the watchdog timer or change the timeout period. When
a low CPU clock frequency is used in the application, the number of
40
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
code execution will begin immediately after that. If the processor
was in Power Down mode, the watchdog reset will start the
oscillator and code execution will resume after the oscillator is
stable.
instructions that can be executed before the watchdog overflows
may be quite small.
Watchdog Reset
If a watchdog reset occurs, the internal reset is active for
approximately one microsecond. If the CPU clock was still running,
500 kHz
RC OSCILLATOR
CLOCK OUT
WDS2–0
(WDCON.2–0)
ENABLE
8 TO 1 MUX
WATCHDOG
RESET
WDCLK * WDTE
8 MSBs
STATE CLOCK
WATCHDOG
INTERRUPT
20-BIT COUNTER
WDTE + WDRUN
CLEAR
WDTE (UCFG1.7)
WATCHDOG
FEED DETECT
S
WDOVF
(WDCON.5)
Q
BOF (PCON.5)
R
POF (PCON.4)
SU01633
Figure 36. Block Diagram of the Watchdog Timer
WDCON
Reset Value: S 30h for a watchdog reset.
Address: A7h
S 10h for other rest sources if the watchdog is enabled via the WDTE configuration bit.
Not Bit Addressable
S 00h for other reset sources if the watchdog is disabled via the WDTE configuration bit.
BIT
WDCON.7, 6
7
6
5
4
3
2
1
0
—
—
WDOVF
WDRUN
WDCLK
WDS2
WDS1
WDS0
SYMBOL
—
FUNCTION
Reserved for future use. Should not be set to 1 by user programs.
WDCON.5
WDOVF
Watchdog timer overflow flag. Set when a watchdog reset or timer overflow occurs. Cleared when
the watchdog is fed.
WDCON.4
WDRUN
Watchdog run control. The watchdog timer is started when WDRUN = 1 and stopped when
WDRUN = 0. This bit is forced to 1 (watchdog running) if the WDTE configuration bit = 1.
WDCON.3
WDCLK
Watchdog clock select. The watchdog timer is clocked by CPU clock/6 when WDCLK = 1 and by
the watchdog RC oscillator when WDCLK = 0. This bit is forced to 0 (using the watchdog RC
oscillator) if the WDTE configuration bit = 1.
WDCON.2–0 WDS2–0
Watchdog rate select.
WDS2–0
Timeout Clocks
Minimum Time
Nominal Time
Maximum Time
000
8,192
10 ms
16 ms
23 ms
001
16,384
20 ms
32 ms
45 ms
010
32,768
41 ms
65 ms
90 ms
011
65,536
82 ms
131 ms
180 ms
100
131,072
165 ms
262 ms
360 ms
101
262,144
330 ms
524 ms
719 ms
110
524,288
660 ms
1.05 sec
1.44 sec
111
1,048,576
1.3 sec
2.1 sec
2.9 sec
SU01634
Figure 37. Watchdog Timer Control Register (WDCON)
2002 Mar 07
41
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
• MOV
Additional Features
The AUXR1 register contains several special purpose control bits
that relate to several chip features. AUXR1 is described in
Figure 38.
• MOVX A, @DPTR
@A+DPTR
Jump indirect relative to DPTR value.
AUXR1
Move code byte relative to DPTR to the
accumulator.
Move data byte from data memory
relative to DPTR to the accumulator.
Also, any instruction that reads or manipulates the DPH and DPL
registers (the upper and lower bytes of the current DPTR) will be
affected by the setting of DPS. The MOVX instructions have limited
application for the P87LPC760 since the part does not have an
external data bus. However, they may be used to access EPROM
configuration information (see EPROM Characteristics section).
Bit 2 of AUXR1 is permanently wired as a logic 0. This is so that the
DPS bit may be toggled (thereby switching Data Pointers) simply by
incrementing the AUXR1 register, without the possibility of
inadvertently altering other bits in the register.
Specific instructions affected by the Data Pointer selection are:
Increments the Data Pointer by 1.
Load the Data Pointer with a 16-bit
constant.
Move data byte the accumulator to data
memory relative to DPTR.
• MOVX @DPTR, A
Dual Data Pointers
The dual Data Pointer (DPTR) adds to the ways in which the
processor can specify the address used with certain instructions.
The DPS bit in the AUXR1 register selects one of the two Data
Pointers. The DPTR that is not currently selected is not accessible
to software unless the DPS bit is toggled.
DPTR
DPTR, #data16
• MOVC A, @A+DPTR
Software Reset
The SRST bit in AUXR1 allows software the opportunity to reset the
processor completely, as if an external reset or watchdog reset had
occurred. If a value is written to AUXR1 that contains a 1 at bit
position 3, all SFRs will be initialized and execution will resume at
program address 0000. Care should be taken when writing to
AUXR1 to avoid accidental software resets.
• INC
• JMP
P87LPC760
Address: A2h
Reset Value: 00h
Not Bit Addressable
BIT
SYMBOL
7
6
5
4
3
2
1
0
KBF
BOD
BOI
LPEP
SRST
0
—
DPS
FUNCTION
AUXR1.7
KBF
Keyboard Interrupt Flag. Set when any pin of port 0 that is enabled for the Keyboard Interrupt
function goes low. Must be cleared by software.
AUXR1.6
BOD
Brown Out Disable. When set, turns off brownout detection and saves power. See Power
Monitoring Functions section for details.
AUXR1.5
BOI
Brown Out Interrupt. When set, prevents brownout detection from causing a chip reset and allows
the brownout detect function to be used as an interrupt. See the Power Monitoring Functions
section for details.
AUXR1.4
LPEP
Low Power EPROM control bit. Allows power savings in low voltage systems. Set by software. Can
only be cleared by power-on or brownout reset. See the Power Reduction Modes section for details.
AUXR1.3
SRST
AUXR1.2
—
This bit contains a hard-wired 0. Allows toggling of the DPS bit by incrementing AUXR1, without
interfering with other bits in the register.
AUXR1.1
—
Reserved for future use. Should not be set to 1 by user programs.
AUXR1.0
DPS
Software Reset. When set by software, resets the 87LPC760 as if a hardware reset occurred.
Data Pointer Select. Chooses one of two Data Pointers for use by the program. See text for details.
SU01551
Figure 38. AUXR1 Register
2002 Mar 07
42
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
32-Byte Customer Code Space
A small supplemental EPROM space is reserved for use by the
customer in order to identify code revisions, store checksums, add a
serial number to each device, or any other desired use. This area
exists in the code memory space from addresses FCE0h through
FCFFh. Code execution from this space is not supported, but it may
be read as data through the use of the MOVC instruction with the
appropriate addresses. The memory may be programmed at the
same time as the rest of the code memory and UCFG bytes are
programmed.
EPROM Characteristics
Programming of the EPROM on the P87LPC760 is accomplished
with a serial programming method. Commands, addresses, and data
are transmitted to and from the device on two pins after
programming mode is entered. Serial programming allows easy
implementation of In-System Programming of the P87LPC760 in an
application board. Details of In-System Programming can be found
in application note AN466.
The P87LPC760 contains three signature bytes that can be read
and used by an EPROM programming system to identify the device.
The signature bytes designate the device as an P87LPC760
manufactured by Philips. The signature bytes may be read by the
user program at addresses FC30h, FC31h and FC60h with the
MOVC instruction, using the DPTR register for addressing.
System Configuration Bytes
A number of user configurable features of the P87LPC760 must be
defined at power up and therefore cannot be set by the program
after start of execution. Those features are configured through the
use of two EPROM bytes that are programmed in the same manner
as the EPROM program space. The contents of the two
configuration bytes, UCFG1 and UCFG2, are shown in Figures 39
and 40. The values of these bytes may be read by the program
through the use of the MOVX instruction at the addresses shown in
the figure.
A special user data area is also available for access via the MOVC
instruction at addresses FCE0h through FCFFh. This “customer
code” space is programmed in the same manner as the main code
EPROM and may be used to store a serial number, manufacturing
date, or other application information.
UCFG1
P87LPC760
Address: FD00h
BIT
Unprogrammed Value: FFh
7
6
5
4
3
2
1
0
WDTE
RPD
PRHI
BOV
CLKR
FOSC2
FOSC1
FOSC0
SYMBOL
FUNCTION
UCFG1.7
WDTE
Watchdog timer enable. When programmed (0), disables the watchdog timer. The timer may
still be used to generate an interrupt.
UCFG1.6
RPD
Reset pin disable. When 1 disables the reset function of pin P1.5, allowing it to be used as an
input only port pin.
UCFG1.5
PRHI
Port reset high. When 1, ports reset to a high state. When 0, ports reset to a low state.
UCFG1.4
BOV
Brownout voltage select. When 1, the brownout detect voltage is 2.5V. When 0, the brownout
detect voltage is 3.8V. This is described in the Power Monitoring Functions section.
UCFG1.3
CLKR
Clock rate select. When 0, the CPU clock rate is divided by 2. This results in machine cycles
taking 12 CPU clocks to complete as in the standard 80C51. For full backward compatibility,
this division applies to peripheral timing as well.
UCFG1.2–0 FOSC2–FSOC0
FOSC2–FOSC0
CPU oscillator type select. See Oscillator section for additional information. Combinations
other than those shown below should not be used. They are reserved for future use.
Oscillator Configuration
1 1 1
External clock input on X1 (default setting for an unprogrammed part).
0 1 1
Internal RC oscillator, 6 MHz. For tolerance, see AC Electrical Characteristics table.
0 1 0
Low frequency crystal, 20 kHz to 100 kHz.
0 0 1
Medium frequency crystal or resonator, 100 kHz to 4 MHz.
0 0 0
High frequency crystal or resonator, 4 MHz to 20 MHz.
SU01477
Figure 39. EPROM System Configuration Byte 1 (UCFG1)
2002 Mar 07
43
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
UCFG2
P87LPC760
Address: FD01h
Unprogrammed Value: FFh
7
6
5
4
3
2
1
0
SB2
SB1
—
—
—
—
—
—
BIT
SYMBOL
UCFG2.7, 6
SB2, SB1
UCFG2.5–0
—
FUNCTION
EPROM security bits. See table entitled, “EPROM Security Bits” for details.
Reserved for future use.
SU01186
Figure 40. EPROM System Configuration Byte 2 (UCFG2)
Security Bits
When neither of the security bits are programmed, the code in the
EPROM can be verified. When only security bit 1 is programmed, all
further programming of the EPROM is disabled. At that point, only
security bit 2 may still be programmed. When both security bits are
programmed, EPROM verify is also disabled.
Table 11. EPROM Security Bits
SB2
SB1
1
1
Both security bits unprogrammed. No program security features enabled. EPROM is programmable and verifiable.
1
0
Only security bit 1 programmed. Further EPROM programming is disabled. Security bit 2 may still be programmed.
0
1
Only security bit 2 programmed. This combination is not supported.
0
0
Both security bits programmed. All EPROM verification and programming are disabled.
2002 Mar 07
Protection Description
44
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
ABSOLUTE MAXIMUM RATINGS
PARAMETER
RATING
UNIT
Operating temperature under bias
–55 to +125
°C
Storage temperature range
–65 to +150
°C
Voltage on RST/VPP pin to VSS
0 to +11.0
V
Voltage on any other pin to VSS
–0.5 to VDD+0.5V
V
Maximum IOL per I/O pin
20
mA
Power dissipation (based on package heat transfer, not device power consumption)
1.5
W
NOTES:
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section
of this specification are not implied.
2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static
charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maximum.
3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless otherwise noted.
2002 Mar 07
45
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
DC ELECTRICAL CHARACTERISTICS
VDD = 2.7 V to 6.0 V unless otherwise specified; Tamb = 0 °C to +70 °C, unless otherwise specified.
SYMBOL
PARAMETER
IDD
Power supply
su ly current
current, operating
o erating
IRC
Power su
supply
ly current
current, o
operating
erating RC Osc.
Osc
IID
supply
current Idle mode
Power su
ly current,
IPD
Power supply
su ly current
current, Power Down mode
VRAM
VIL
Input
In
ut low voltage (TTL in
input)
ut)
Negative going threshold (Schmitt input)
Input high voltage (TTL input)
Positive going threshold (Schmitt input)
Hysteresis voltage
Output low voltage all ports5, 9
Output low voltage all ports5, 9
VOH
Output
Out
ut high voltage,
voltage all ports
orts3
VOH1
CIO
IIL
ILI
Output high voltage, all ports4
Input/Output pin capacitance10
Logical 0 input current, all ports8
Input leakage current, all ports7
RRST
VBOLOW
VBOHI
VREF
MHz11
5.0 V, 20
3.0 V, 10 MHz11
5.0 V, 6 MHz11
3.0 V, 6 MHz11
5.0 V, 20 MHz11
3.0 V, 10 MHz11
5.0 V11
3.0 V11
RAM keep-alive voltage
VIL1
VIH
VIH1
HYS
VOL
VOL1
ITL
TEST CONDITIONS
Logical 1 to 0 transition current,
current all ports
orts3, 6
4.0 V < VDD < 6.0 V
2.7 V < VDD < 4.0 V
IOL = 3.2 mA, VDD = 2.7 V
IOL = 20 mA, VDD = 2.7 V
IOH = –20 m A, VDD = 2.7 V
IOH = –30 m A, VDD = 4.5 V
IOH = –1.0 mA, VDD = 2.7 V
VIN = 0.4 V
VIN = VIL or VIH
VIN = 1.5 V at VDD = 3.0 V
VIN = 2.0 V at VDD = 5.5 V
Internal reset pull-up resistor
Brownout trip voltage with BOV = 112
Brownout trip voltage with BOV = 0
Reference voltage
MIN
–
–
–
–
–
–
–
–
1.5
–0.5
–0.5
–0.5
0.2 VDD+0.9
0.7VDD
–
–
–
VDD–0.7
VDD–0.7
VDD–0.7
–
–
–
–30
–150
40
2.35
3.45
1.11
LIMITS
TYP1,2
15
4
4
2
6
2
1
1
–
–
–
–
–
–
0.2 VDD
–
–
–
–
–
–
–
–
–
–
–
–
–
1.26
MAX
25
7
–
–
10
4
10
5
–
0.2 VDD–0.1
0.7
0.3 VDD
VDD+0.5
VDD+0.5
–
0.4
1.0
–
–
–
15
–50
±2
–250
–650
225
2.69
3.99
1.41
UNIT
mA
mA
mA
mA
mA
mA
m A
m A
V
V
V
V
V
V
V
V
V
V
V
V
pF
m A
m A
m A
m A
kW
V
V
V
NOTES:
1. Typical ratings are not guaranteed. The values listed are at room temperature, 5 V.
2. See other Figures for details.
3. Ports in quasi-bidirectional mode with weak pull-up (applies to all port pins with pull-ups). Does not apply to open drain pins.
4. Ports in PUSH-PULL mode. Does not apply to open drain pins.
5. In all output modes except high impedance mode.
6. Port pins source a transition current when used in quasi-bidirectional mode and externally driven from 1 to 0. This current is highest when
VIN is approximately 2 V.
7. Measured with port in high impedance mode. Parameter is guaranteed but not tested at cold temperature.
8. Measured with port in quasi-bidirectional mode.
9. Under steady state (non-transient) conditions, IOL must be externally limited as follows:
Maximum IOL per port pin:
20 mA
80 mA
Maximum total IOL for all outputs:
Maximum total IOH for all outputs:
5 mA
If IOL exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed
test conditions.
10. Pin capacitance is characterized but not tested.
11. The IDD, IID, and IPD specifications are measured using an external clock with the following functions disabled: comparators, brownout
detect, and watchdog timer. For VDD = 3 V, LPEP = 1. Refer to the appropriate figures on the following pages for additional current drawn by
each of these functions and detailed graphs for other frequency and voltage combinations.
12. Devices initially operating at VDD = 2.7 V or above, and at fOSC = 10 MHz or less, are guaranteed to continue to execute instructions
correctly at the brownout trip point. Initial power-on operation below VDD = 2.7 V is not guaranteed.
13. Devices initially operating at VDD = 4.0 V or above and at fOSC = 20 MHz or less are guaranteed to continue to execute instructions correctly
at the brownout trip point. Initial power-on operation below VDD = 4.0 V and fOSC > 10 MHz is not guaranteed.
2002 Mar 07
46
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
COMPARATOR ELECTRICAL CHARACTERISTICS
VDD = 3.0 V to 6.0 V unless otherwise specified; Tamb = 0 °C to +70 °C, unless otherwise specified.
SYMBOL
PARAMETER
TEST CONDITIONS
LIMITS
MIN
TYP
MAX
UNIT
VIO
Offset voltage comparator inputs1
–
–
±10
VCR
Common mode range comparator inputs
0
–
VDD–0.3
V
Common mode rejection ratio1
–
–
–50
dB
Response time
–
250
500
ns
Comparator enable to output valid
–
–
10
m s
–
–
±10
m A
CMRR
IIL
Input leakage current, comparator
0 < VIN < VDD
mV
NOTE:
1. This parameter is guaranteed by characterization, but not tested in production.
AC ELECTRICAL CHARACTERISTICS
Tamb = 0 °C to +70 °C, VDD = 2.7 V to 6.0 V unless otherwise specified; VSS = 0 V1, 2, 3
SYMBOL
FIGURE
LIMITS
PARAMETER
UNIT
MIN
MAX
0
20
MHz
External Clock
fC
42
Oscillator frequency (VDD = 4.0 V to 6.0 V)
fC
42
Oscillator frequency (VDD = 2.7 V to 6.0 V)
tC
42
Clock period and CPU timing cycle
fCLCX
42
fCLCX
42
fCHCX
42
fCHCX
42
Clock
low-time1
Clock high-time1
0
10
MHz
1/fC
–
ns
fOSC = 20 MHz
20
–
ns
fOSC = 10 MHz
40
–
ns
fOSC = 20 MHz
20
–
ns
fOSC = 10 MHz
40
–
ns
Internal RC Oscillator
fCCAL
On-chip RC oscillator calibration2
fRCOSC = 6 MHz
–1
+1
%
fCTOL
On-chip RC oscillator, 0 °C to +50 °C3,4 tol.
fRCOSC = 6 MHz
–2.5
+2.5
%
fCTOL
On-chip RC oscillator, 0 °C to +70 °C3 tol.
fRCOSC = 6 MHz
–55
+2.5
%
6tC
–
ns
Shift Register
tXLXL
41
Serial port clock cycle time
tQVXH
41
Output data setup to clock rising edge
5tC – 133
–
ns
tXHQX
41
Output data hold after clock rising edge
1tC – 80
–
ns
tXHDV
41
Input data setup to clock rising edge
–
5tC – 133
ns
tXHDX
41
Input data hold after clock rising edge
0
–
ns
NOTES:
1. Applies only to an external clock source, not when a crystal is connected to the X1 and X2 pins.
2. Tested at VDD = 5.0 V and room temperature.
3. These parameters are characterized but not tested.
4. +/– 2.5% accuracy enables serial communication over the UART with the internal Oscillator.
5. Min frequency at hot temperature.
2002 Mar 07
47
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
tXLXL
CLOCK
tXHQX
tQVXH
OUTPUT DATA
0
1
WRITE TO SBUF
2
3
4
5
6
7
tXHDX
tXHDV
SET TI
INPUT DATA
VALID
VALID
VALID
VALID
VALID
VALID
VALID
VALID
CLEAR RI
SET RI
SU01187
Figure 41. Shift Register Mode Timing
VDD – 0.5
0.2VDD + 0.9
0.2 VDD – 0.1
0.45V
tCHCX
tCHCL
tCLCX
tCLCH
tC
SU01188
Figure 42. External Clock Timing
1000
6.0 V
5.0 V
6.0 V
5.0 V
10
Idd (uA)
Idd (uA)
100
4.0 V
3.3 V
4.0 V
3.3 V
2.7 V
100
2.7 V
1
10
10
100
100
Frequency (kHz)
SU01202
10,000
SU01203
Figure 43. Typical Idd versus frequency (low frequency
oscillator, 25 °C)
2002 Mar 07
1,000
Frequency (kHz)
Figure 44. Typical Idd versus frequency (medium frequency
oscillator, 25 °C)
48
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
10,000
10,000
4.0 V
3.3 V
1,000
2.7 V
Idd (uA)
Idd (uA)
6.0 V
5.0 V
1,000
4.0 V
3.3 V
2.7 V
100
10
1
100
1
10
100
10
100
1,000
Frequency (kHz)
10,000
Frequency (MHz)
SU01207
SU01204
Figure 48. Typical Idle Idd versus frequency (external clock,
25 °C, LPEP=1)
Figure 45. Typical Idd versus frequency (high frequency
oscillator, 25 °C)
100,000
10,000
1,000
3.3 V
3.3 V
Idd (uA)
2.7 V
1,000
4.0 V
6.0 V
4.0 V
10,000
Idd (uA)
5.0 V
5.0 V
6.0 V
2.7 V
100
100
10
10
10
100
1,000
10,000
100,000
10
Figure 46. Typical Active Idd versus frequency (external clock,
25 °C, LPEP=0)
4.0 V
3.3 V
1,000
2.7 V
Idd (uA)
10,000
10
1,000
10,000
Frequency (kHz)
SU01206
Figure 47. Typical Active Idd versus frequency (external clock,
25 °C, LPEP=1)
2002 Mar 07
10,000
100,000
Figure 49. Typical Idle Idd versus frequency (external clock,
25 °C, LPEP=0)
100
100
1,000
SU01208
SU01205
1
10
100
Frequency (kHz)
Frequency (kHz)
49
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
TSSOP14: plastic thin shrink small outline package; 14 leads; body width 4.4 mm
2002 Mar 07
50
P87LPC760
SOT402-1
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
DIP14: plastic dual in-line package; 14 leads (300 mil)
2002 Mar 07
51
P87LPC760
SOT27-1
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
REVISION HISTORY
Date
CPCN
Description
2002 Mar 07
9397 750 09532
Initial release
2002 Mar 07
52
P87LPC760
Philips Semiconductors
Preliminary data
Low power, low price, low pin count (14 pin)
microcontroller with 1 kbyte OTP
P87LPC760
Purchase of Philips I2C components conveys a license under the Philips’ I2C patent
to use the components in the I2C system provided the system conforms to the
I2C specifications defined by Philips. This specification can be ordered using the
code 9398 393 40011.
Data sheet status
Data sheet status [1]
Product
status [2]
Definitions
Objective data
Development
This data sheet contains data from the objective specification for product development.
Philips Semiconductors reserves the right to change the specification in any manner without notice.
Preliminary data
Qualification
This data sheet contains data from the preliminary specification. Supplementary data will be
published at a later date. Philips Semiconductors reserves the right to change the specification
without notice, in order to improve the design and supply the best possible product.
Product data
Production
This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply.
Changes will be communicated according to the Customer Product/Process Change Notification
(CPCN) procedure SNW-SQ-650A.
[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL
http://www.semiconductors.philips.com.
Definitions
Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one
or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.
Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.
Disclaimers
Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.
 Koninklijke Philips Electronics N.V. 2002
All rights reserved. Printed in U.S.A.
Contact information
For additional information please visit
http://www.semiconductors.philips.com.
Fax: +31 40 27 24825
For sales offices addresses send e-mail to:
[email protected]
Document order number:
2002 Mar 07
Date of release: 03-02
53
9397 750 09532
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
