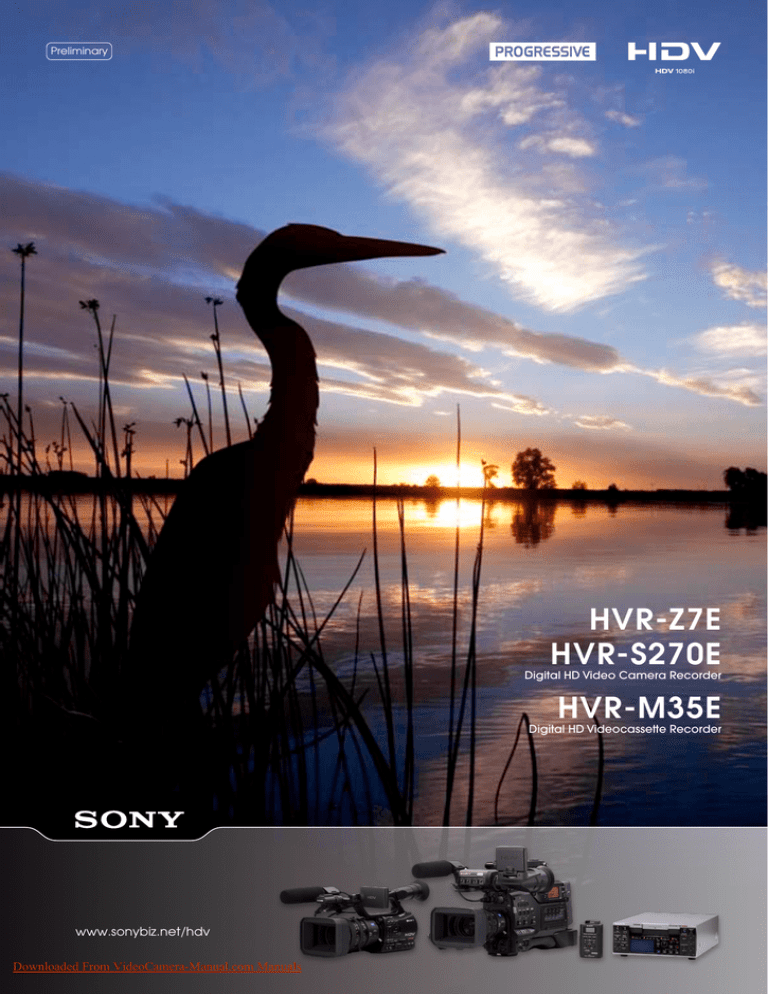

Preliminary

www.sonybiz.net/hdv

Downloaded From VideoCamera-Manual.com Manuals

HVR-Z7E

HVR-S270E

Digital HD Video Camera Recorder

HVR-M35E

Digital HD Videocassette Recorder

MK10453V1_PAL_1115.qxd 07.11.15 2:33 PM Page 2 (1,1)

Interchangeable lens system, native progressive recording and solid-state memory recording – Sony’s commitment to the HDV world brings a remarkable evolution in next-generation products.

Sony is proud to introduce two new HDV™ camcorders that deliver the enhanced functionality professionals have been waiting for: an interchangeable lens system, native progressive recording and solid-state memory recording.

Introducing the HVR-Z7E, the world’s first HDV handheld camcorder that uses 1/3-inch bayonet joint interchangeable lenses and the HVR-S270E shoulder-mount camcorder which supports standard-size cassettes for extended recording times.

A streamlined nonlinear editing workflow can be achieved using the supplied Memory Recording Unit, which provides HDV/DVCAM/DV file recording on a widely available CompactFlash ® solid-state memory card.

These groundbreaking new camcorders feature the 1080/25p HDV native progressive recording mode and they also have HDMI or HD/SD-SDI output.

This next-generation system features the HVR-M35E Video Cassette Recorder which has HD/SD-SDI output.

These new solutions enhance the operational versatility of Sony's professional HDV line-up and open up a world of possibilities for high-definition digital video production. Whether it’s for general TV production, low-budget movies, music videos, Internet, education, or a wide range of live events and corporate videos, Sony’s new HDV camcorders are ideal.

HVR-Z7E

(with supplied lens) (with ENG lens*)

Downloaded From VideoCamera-Manual.com Manuals

2

(with cinema lens*)

MK10453V1_PAL_1115.qxd 07.11.15 2:33 PM Page 3 (1,1)

HVR-M35E

HVR-S270E

(with supplied lens)

Downloaded From VideoCamera-Manual.com Manuals

(with ENG lens*)

Memory Recording Unit

(supplied with the HVR-Z7E/S270E)

(with cinema lens*)

*These lenses, adaptors and matte box sets are not supplied.

3

MK10453V1_PAL_1115.qxd 07.11.15 2:33 PM Page 4 (1,1)

HVR-Z7E and HVR-S270E Common Features

New Line-up Expanding the HDV format World

Sony’s commitment to HDV has resulted in the remarkable evolution of cutting-edge technology equipment, such as the

HVR-Z7E and HVR-S270E which use the popular HDV1080i recording specification.

The HDV1080i specification uses one of the “MPEG2 Long GOP” compression profiles. This highly efficient and robust "MPEG2

Long GOP" codec - which is also used in the Sony XDCAM HD and XDCAM EX series – enables users to record stunning-quality

HD video.

The HVR-Z7E provides over 60 minutes* 2 of recording time using the widely available miniDV videotape. While the HVR-S270E has the additional option of using standard-size cassettes that provide over 4.5 hours* 3 of continuous recording.

*2 When Sony's recommended Professional HDV tape DigitalMaster™ model

PHDVM-63DM is used, approx. 63 min. recording time.

*3 When Sony's recommended Professional HDV tape DigitalMaster™ model

PHDV-276DM is used, approx. 276 min. (4 hrs. 36 min.) recording time.

Native editing in the HDV format is supported by most

of the popular NLE (Nonlinear editing) software

manufacturers.

Additionally, the HDV signals can be recorded as a file on non-tape media. For example, when using the supplied

CompactFlash (CF) Memory Recording Unit

, images can be stored on a standard CF card for quick nonlinear editing.

The optional HVR-DR60 Hard Disk Recording Unit can be used in the same manner, with images being recorded on to its large-capacity 60GB hard drive, which provides 4.5 hours of recording time.

PHDVM-63DM PHDV-276DM

Switchable Recording and

Playback – HDV1080i/DVCAM/DV

The HVR-Z7E and HVR-S270E can switch between HDV 1080i,

DVCAM and DV recording, providing full flexibility to record in either standard definition or high definition depending on your production needs

.

Memory Recording Unit (supplied)*

*CF card is not included.

HVR-DR60 (option)

Built-in Down-converter for

SD Production

The HVR-Z7E and S270E can convert material from 1080i down to 576i and output the video signals through its i.LINK

interface and other SD output connectors.

This allows users to edit recorded material with a compatible nonlinear editing system using current DV editing software, as well as record SD signals to an external VTR.

SD (4:3)

HD (16:9)

Squeeze Letterbox Edge crop

*Letterbox mode is not available from the i.LINK connector. i.Link is a trademark of Sony used only to designate that a product contains an IEEE

1394 connector. Not all products with an i.LINK connector will necessarily communicate with each other. For information on compatibility, operating conditions and proper connection, please refer to the documentation supplied with any device with an i.LINK connector. For information on devices that include an i.LINK connection, please contact your nearest

Sony office.

Downloaded From VideoCamera-Manual.com Manuals

4

MK10453V1_PAL_1115.qxd 07.11.15 5:55 PM Page 5 (1,1)

Cutting-edge imaging System for New Camcorders

1/3 inch-type 3 ClearVid CMOS Sensor system

The newly developed 1/3-inch type 3 ClearVid CMOS

Sensor™ system has 45-degree rotated pixels on each chip in order to increase the signal density, while each pixel maintains sufficient surface area.

In combination with Enhanced Imaging Processor™ (EIP), the 3 ClearVid CMOS Sensor system achieves high resolution, high sensitivity, wide dynamic range and excellent colo ur reproduction.

The pixel shift interpolation technique has been traditionally used in small 3CCD camcorders. However, it normally requires the combination of all three colo ur element (RGB) signals to maximi se resolution. If an object lacks one or more colo ur elements, the resolution of the object may be degraded.

The 3 ClearVid CMOS Sensor system is different. It can always produce maximum resolution, regardless of the balance between colo ur elements, thanks to its unique and sophisticated interpolation technology.

Enhanced Functionality due to “Exmor” Technology

Both the HVR-Z7

E and HVR-S270E offer cutting-edge features, such as the

“Exmor™”technology developed by Sony, which utili ses the full potential of the 3 ClearVid

CMOS Sensor system.

The

“Exmor” technology, which features the column-parallel A/D conversion technique and the dual noise cancelling method are also used in other new camera products from Sony

, such as the PMW-EX1.

Multiple A/D (analog ue to digital) converters on each pixel row convert analog ue signals to digital as soon as they are generated, unlike traditional technology that only has one A/D converter on each chip. The“Exmor” technology can eliminate the influence of external noise that enters the signal chain during transfer to the A/D converter, resulting in high-quality digital signals with extremely low noise. This significantly enhances shooting in low-light environments.

By adopting this groundbreaking technology, the new

1/3-inch 3 ClearVid CMOS Sensor system enables the

HVR-Z7E and HVR-S270E to achieve a low light sensitivity of just 1.5 lux*.

* at 1/25 shutter, auto iris and auto gain.

Current Technology “Exmor” technology

Sensor

Photo Diodes Photo Diodes

Sensor

Pixel Layout

1080 Pixels

Noise

Cancelling

Noise

Cancelling

:Noise

A/D Converter

Noise

Cancelling

A/D Converter A/D Converter

Noise

Cancelling

Noise

Cancelling

:Noise

Pixels (Photo Diodes)

Signals after interpolation

Downloaded From VideoCamera-Manual.com Manuals

5

MK10453V1_PAL_1115.qxd 07.11.15 2:34 PM Page 6 (1,1)

Interchangeable Lens System

Offers Unlimited Possibilities

Various video lenses can be attached to the

HVR-S270E and HVR-Z7E which are both equipped with a universal standard 1/3-inch bayonet mount mechanism for quick changing of lenses.

Carl Zeiss Lens for HD Video as Standard

A high-quality, multi-purpose Carl Zeiss lens for HD video comes as standard with the HVR-S270E and HVR-Z7E. Stunning resolution and contrast is achieved thanks to the Carl Zeiss Vario-Sonnar™ T* coating, which suppresses unwanted reflections. A specially designed wide-angle lens is also available as an option

to suit a diverse range of shooting requirements.

Lens Optical Zoom

Focal Length* 4

F number

Standard lens

(supplied)

VCL-412BWH (for HVR-Z7E)

VCL-412BWS (for HVR-S270

E)

VCL-308

BWH (for HVR-Z7E)

12x

32mm-384mm

(16:9)

Wide lens

(option)

VCL-308BWS (for HVR-S270E)

8x

24mm-192mm

(16:9)

*4 These values are calculated to be equivalent to 35 mm film.

1.6 - 2.0

1.6 - 2.4

Easy-to-use Interchangeable Lens for Fixed-lens

Camcorder Users

These lenses give Sony’s two new HDV camcorders the same functionality as popular fixed-lens camcorders like the HVR-Z1E and

HVR-V1E, thanks to built-in features such as auto-focus, optical stabili ser, and automatic back-focus adjustment.

Current users of the above camcorders will easily become adept at using the HVR-Z7E and HVR-S270E, even if they have never used interchangeable lenses.

Natural-touch Lens Operation

Focus

The newly designed focus ring offers two types of manual focus, plus an auto focus mode that can be easily switched by sliding the focus ring forward or backward.

When the focus ring is in the front position, the lens works in the same way as the HVR-Z1E, HVR-V1E and DSR-PD170P. In this case, either manual or auto focus mode can be selected by the assignable button on the lens. On the other hand, when the focus ring is set to the rear position, the focus ring has a physical stop at infinity and works in the same way as a professional interchangeable lens, with fixed-focus-position and distance indicators.

Zoom

Fast, intuitive manual-zoom response is provided by an internal gearwheel mechanism that provides accurate zoom positioning.

A high-quality servo-motor provides the smooth zooming performance that industry professionals have come to rely on.

Iris

The iris ring encircles the lens barrel.

Manual iris adjustment is possible with an ENG-type ring system that allows fine exposure control for challenging lighting situations.

Downloaded From VideoCamera-Manual.com Manuals

6

Slide Focus Ring Zoom Ring Iris Ring

Front : AF/MF

AF/MF Mode

• Full AF

• MF with One-push AF

Back : Full MF

Full MF Mode

• Full MF

(absolute focus position)

MK10453V1_PAL_1115.qxd 07.11.15 2:34 PM Page 7 (1,1)

HVR-Z7E and HVR-S270E Common Features

Wide Range of Lenses

The flexible bayonet lens attachment system allows you to use a wide range of lenses.

Standard 1/3-inch HD video lenses, from manufacturers such as Fujinon and Canon, can be attached directly to the HVR-Z7E and HVR-S270E.

If you’d like to attach a 2/3-inch or 1/2-inch HD video lens on the HVR-Z7E or HVR-S270E, it is possible to do so by adding a standard lens adaptor from the lens manufacturer.

The HVR-S270E and HVR-Z7E camcorders have 12-pin lens connectors allowing compatibility with professional ENG lenses.

This feature is very useful

, not only for those who already have these professional HD video lenses, but also for those who prefer to use HD digital cinema lenses for their unique contrast, colo ur and atmosphere.

Cinema lens on HVR-S270E with an adaptor

Lens adaptor

Lens Compatibility

With a special adaptor from Sony, it is also possible to use the lens series designed for Sony Digital SLR still s cameras.

By using lenses in various configurations, creative effects can be achieved.

This approach is ideal for filmmakers on a budget or those who already own lenses.

Note:

The focal length is doubled with a 2/3-inch lens adaptor

The focal length is increased 1.3 times with a 1/2-inch lens adaptor

The focal length is increased 7 times with an lens adaptor

Some lenses may not be compatible and not all lens functions may be available lenses

Downloaded From VideoCamera-Manual.com Manuals

7

MK10453V1_PAL_1115.qxd 07.11.15 2:35 PM Page 8 (1,1)

Operational Versatility

New Manual Camera settings

Three ND filters

The HVR-Z7E and HVR-S270E have three built-in ND

(Neutral Density) filters, which help users to reduce light intensity under bright shooting conditions.

Negative Gain

Negative gain settings of -6 and -3 dB have also been added to help reduce sensitivity under bright lighting conditions. When the iris needs to be opened to create a short depth of field, a suitable brightness can be achieved with this function.

Smooth Gain

The Smooth Gain function is a smooth transition gain system that avoids sudden brightness changes caused by manual gain-level adjustment. With this function, the brightness changes gradually when the gain-level position is switched and avoids any sudden, unwanted iris adjustment.

Smooth WB (White Balance)

The Smooth WB feature is a smooth transition white balance system that avoids unnatural sudden colo ur temperature changes between preset white balance settings. For example, this function is useful when you move from an artificial, low-light environment inside a building, to bright natural sunlight outside.

Three ND filters

Shooting Support Functions

Advanced Histogram

The Histogram Indicator for brightness can be displayed on the LCD monitor and viewfinder, allowing operators to easily evaluate the brightness of captured images.

A target window appears in the centr e of the screen and the brightness level is indicated by a vertical red line in the histogram. The zebra indicator level appears as a yellow vertical line in the histogram as reference for proper exposure.

Focus Marking

When the focus position needs to be manually moved to pre-decided positions, you can put up to two markers

(A and B) on a focus position indicator in the LCD/EVF as reference points. When the focus position becomes aligned with one of these markers, it will begin to flash. This allows you to keep your eye on the subject of your shot, without having to check the focus indicator on the lens.

Camera Leveling

The HVR-Z7E and HVR-S270E both have a built-in threedimensional gravity (3G) sensor, which detects the horizontal level of the camcorder and displays it via an indicator in the

LCD/EVF. This digital leveler function makes it possible to obtain a horizontal level reading even when shooting without a tripod.

AE Window

Six types of AE (Auto Exposure) can be selected to automatically adjust the exposure to the most suitable level.

Standard Type 1 Type 2

Type 3 Type 4 Type 5

Downloaded From VideoCamera-Manual.com Manuals

8

MK10453V1_PAL_1115.qxd 07.11.15 2:35 PM Page 9 (1,1)

HVR-Z7E and HVR-S270E Common Features

Picture Profile

Up to six different picture-quality settings, including gamma and colo ur settings, can be registered in the memory as picture profiles. This labo ur-saving function allows operators to easily recall customi sed picturequality settings for various shooting conditions. It is also useful for matching footage shot at different times or for multi-camera setups.

The picture-profile functions of the HVR-Z7E and

HVR-S270E include enhanced versions from the HVR-Z1E or HVR-V1E, plus a selection of new functions.

Colour Depth

Generally, the brightness of a video image increases as the colo ur level becomes more vivid. In these new camcorders, the brightness and colo ur level are processed independently so that more flexible tone – for instance, a dark image with a vivid colo ur – is realised by 3D-LUT colour processing.

Note: 3D-LUT = three-dimensional look-up table

Colour Correction

The Colo ur Correction function of the HVR-Z1E has been improved in the HVR-Z7E and HVR-S270E camcorders.

Colo ur Correction provides two functions for creative shooting. The Colo ur Extraction function can retain up to two desired colo urs of monitored pictures in the screen, while making all other colo urs black and white. The advanced function allows users to select the colo ur simply by pressing a button to memori se the centre colour of the captured image.

The Colo ur Revision function can change the hue of only the colo ur designated by the Colour Extraction function.

This function is good not only for creating impressive images, but also for blue- or green-screen shooting in order to normali se uneven colour.

The colo ur data is stored in each Picture Profile so that users can select the most suitable colo ur setting for each shooting situation.

Normal Colo ur Extraction

Colo ur Revision

Colo ur Correction Images Simulated

WB Shift

The WB (White Balance) Shift function allows users to create an impressive colo ur or to adjust the colour temperature of the camcorder.

There are two WB Shift options to choose from:

•LB-CC type: adjusting the LB axis (colo ur temperature) and CC filter effect

•R-B level type: adjusting the red and blue levels

Skintone Detail

This function allows users to change the sharpness of an object with a specific colo ur and is particularly good for making skin tones look more natural. The target colo ur can be specified by controlling the Phase/Range/Saturation/Y

Level/Y Range parameters or by pressing a button to specify the colo ur of an object with a colour picker.

If the sharpness of the background object is decreased, the blur looks more natural.

Improved Microphone Sound Quality

New Supplied Monaural Microphone

ECM-XM1

The supplied ECM-XM1 microphone's S/N ratio is 78 dB, a sensitivity increase of 14 dB over its predecessor, the

ECM-NV1* 6 .

*6 The ECM-NV1 is a supplied microphone with DSR-PD170

P, DSR-250P,

HVR-A1

E and HVR-V1E.

Microphone

Sensitivity (at 1KHz)

Signal-to-noise ratio

Frequency Response

Maximum input sound pressure level* 8

Dynamic Range

*7 0 dB=1 V/Pa. at 1 kHz

*8 0 dB SPL=20 µ Pa.

ECM-XM1

-30 dB±3.5 dB* 7

78 dB, typical

50~20,000 Hz

127 dB SPL, typical

111 dB, typical

ECM-NV1

-44 dB±4.0 dB

70 dB

100~15,000 Hz

121 dB SPL

97 dB

Downloaded From VideoCamera-Manual.com Manuals

9

MK10453V1_PAL_1115.qxd 07.11.15 5:56 PM Page 10 (1,1)

Selectable Progressive Modes

The HVR-Z7E and HVR-S270E have two types of progressive shooting modes.

25p HDV Native Progressive Recording Modes

The HVR-Z7

E and HVR-S270E camcorders newly feature a 25p HDV native progressive recording mode.

The 3 ClearVid CMOS Sensor system and EIP create true

1080p images, which can then be recorded as

a progressive signal by the HVR-Z7

E and HVR-S270E camcorders in HDV format.

The progressive HDV stream can be output from an i.LINK

connector and used for progressive editing with compatible NLE software.

The native progressive recording mode is suitable for output to film, CG composition, viewing on a progressive monitor, or as an Internet movie.

Note: interlaced video is output from connectors other than i.LINK

Capture

1080p

Record

1080p

Edit

1080p

Deliver

1080p

25p Progressive Scan Mode

In this mode, the 1080p image captured by the 3

ClearVid CMOS Sensor system is also recorded as an interlaced signal by dividing each frame into two fields.

This enables compatibility with current editing and monitoring equipment that only accept interlace signals, while maintaining the quality of the 1080p image.

The progressive scan mode is suitable for feature films,

Capture

1080p

Record

1080i

Odd Field

documentaries and music videos, which have to be recorded as interlaced video for viewing on interlaced monitors, but want to offer a “progressive look” to their motion.

It is also possible to edit footage recorded in the “25p scan” mode as progressive material.

Most NLE software can output the edited timeline in progressive format by merging odd and even fields.

Edit

1080p or 1080i

Deliver

1080p or 1080i

1080p 1080p

Even Field

1080i

1080i

Progressive-look Motion

Downloaded From VideoCamera-Manual.com Manuals

10

MK10453V1_PAL_1115.qxd 07.11.15 2:35 PM Page 11 (1,1)

HVR-Z7E and HVR-S270E Common Features

Memory Recording Unit

HDV in IT Workflow by CompactFlash

Memory Recording Unit

The Memory Recording Unit is supplied with each camcorder to support HDV tape recording.

It captures the HDV1080i, DVCAM, or DV stream output from the camcorder and records it as movie file while you are simultaneously recording to tape.

You can use a standard CompactFlash (CF) card*, which offers secure recording, high-speed access, large data capacity, removable media convenience and high durability against external vibration.

*Not supplied.

The CF card was selected for these HDV camcorders because the

media is easily obtainable. So, in the same way as miniDV tape is easily obtainable for HDV recordings, CF will be easily available for file recording. This general versatility is very important for those who frequently need to obtain media quickly, such as someone shooting a documentary or news reports while moving from city to city.

Integration Without Cabling

HDV/DVCAM/DV File Recording on Easily

Obtained CompactFlash Card

The recording time on a 16-GB CF card* 9 in HDV, DVCAM and DV format* 10 is approximately 72 minutes.

CF card capacity

16GB

8GB

4GB

2GB

Recording time(approximately)

72 minutes

36 minutes

18 minutes

9 minutes

The Memory Recording Unit can be integrated to the

HVR-Z7E or HVR-S270E without the need for cabling, simply by attaching it onto the special shoe connector* 11 .

This smart combination never interferes with shooting operations. The Memory Recording Unit automatically synchroni ses with the recording action of the camcorder – i.e., when the camcorder starts or stops recording, so does the unit.

*11 The intelligent shoe connector inputs and outputs an HDV/DV stream and supplies power to the Memory Recording Unit. The i.LINK connector is not available when the unit is attached on the camcorder.

*9 At least 133x speed and 2-GB capacity is required. The NCFD8GP and NCFD16GP Sony CF cards are recommended.

*10 The recording time may change according to the CF card type and recording format.

72 min.

16 GB

attached on the HVR-Z7E attached on the HVR-S270E

Downloaded From VideoCamera-Manual.com Manuals

11

MK10453V1_PAL_1115.qxd 07.11.15 2:36 PM Page 12 (1,1)

Hybrid Operation Realises Archiving, IT Workflow and HD/SD Parallel Recording

The Memory Recording Unit provides a hybrid operation, where images are recorded to tape and a CF card simultaneously, in a similar fashion to the HVR-DR60 Hard Disk Recording Unit* 12 .

*12 HVR-DR60 does not accept a native progressive HDV stream.

This means you can immediately access a movie file for streamlined NLE work, while keeping the master source tape in a safe place.

The file format is M2T for HDV mode and AVI or RawDV for DVCAM/DV modes.

In the same fashion as HVR-DR60 operation, these files can be edited using popular NLE software.* 13

Mode

HDV

DVCAM/DV

File Format

M2T

DV-AVI(type 1) or Raw-DV

*13 The Memory Recording Unit and HVR-DR60 adopt the FAT32 file system. Continuous recording is divided into 4-GB files (approximately 20 minutes of recording time). A utility software, available from the Sony website, can merge these divided files for seamless editing on NLEs. Some NLEs include this function. For details of NLE operation, please consult your nearest NLE software dealer.

In addition, when the built-in down-converter of the connected HDV camcorder is active, SD images can be recorded on a CF card while HD images are recorded to tape.

HD master tape is recorded and SD movie files are created at the same time.

HDV or DVCAM tape-based users can gradually move to IT workflow with this hybrid-operation.

Tape-less recording is also available if desired.

Hybrid-Recording

“HD + HD” Hybrid-Recording

Tape : HDV1080i signal CF card : HDV1080i signal

Archiving

Repurposing

+

CF

M2T file

HD HD HDV Editing

“HD + SD” Hybrid-Recording

Tape : HDV1080i signal CF card : Down-converted DV signal

HD Delivery

Archiving

Repurposing

+

CF

DV file

SD Delivery

HD SD DV Editing

“SD + SD” Hybrid-Recording

Tape : DVCAM or DV signal CF card : DV signal

DVCAM

+

CF

DV file

SD SD

DV Editing

Archiving

Repurposing

SD Delivery

Downloaded From VideoCamera-Manual.com Manuals

12

MK10453V1_PAL_1115.qxd 07.11.15 2:36 PM Page 13 (1,1)

HVR-Z7E and HVR-S270E Common Features

File Transfer

CF

CF card

PC with CF card slot

CF

CF card

USB connection

Memory

Recording

Unit

CF card reader(USB)*

*Not supplied.

PC with USB interface

CF

CF card

Memory Recording Unit on the supplied cradle

Playback from the Memory Recording Unit i.LINK connection

PC with i.LINK(IEEE1394) connector

+

Memory Recording Unit HVR-Z7E

i.LINK

connection

Memory Recording Unit on the supplied cradle

or

HVR-S270E

HDV VTR / Camcorder

Video output

Component

Composite/S-Video

HDMI (HVR-Z7E)

HD/SD-SDI (HVR-S270E)

Video output

Component

Composite/S-Video

HDMI (HVR-M25E, HVR-V1E)

HD/SD-SDI (HVR-M35E/HVR-1500)

Display

Display

Independent Use With the Supplied Cradle

The Memory Recording Unit can be used as an external recording unit, just like the HVR-DR60, by attaching the supplied cradle that has an i.LINK connector, battery attachment and DC power input. When the Memory Recording Unit is connected to a PC via i.LINK, it is recogni sed as an external drive and can be used to access files. When connected to a video device (such as a VTR or

NLE system) via i.LINK, it can be used to input/output a

HDV/DVCAM/DV stream.

Memory Recording Unit

DC Power Input

Cradle

Battery (L series) Slot i.LINK Connector

(6pin)

Downloaded From VideoCamera-Manual.com Manuals

13

MK10453V1_PAL_1115.qxd 07.11.15 5:56 PM Page 14 (1,1)

HVR-Z7E

Sony's new HVR-Z7E is the world's first professional handheld HDV camcorder with an interchangeable lens system.

The compact design makes it easy to use and flexible when shooting applications requiring mobility and in space-constrained locations.

HDV, DVCAM and DV Recording on a miniDV Cassette tape

The HVR-Z7E accepts miniDV cassette tapes, which provide over 60 minutes recording time for HDV and DV formats, over 40 minutes for DVCAM format.

An Ideal Handheld Camcorder Design

Sony has responded to professional user feedback to create the ideal handheld camcorder with ergonomically designed body-weight balance and a well-planned layout of buttons and connectors to reduce camera operator fatigue.

Cassette compartment

Operational Versatility of HVR-Z7E

New XtraFine LCD and EVF Offer

High-resolution, High-contrast Images

XtraFine™ LCD

A 3.2-inch type XtraFine LCD is located on the HVR-Z7E in the same position as on the HVR-Z1E.

The high pixel number of approximately 921,000 dots is around four times greater than the LCD of the HVR-Z1E, and this higher resolution allows for easier focus adjustments.

XtraFine EVF

The 0.45 inch type XtraFine EVF (Electronic View Finder) has approximately 1,227,000 dots (852x480x3(RGB)).

This device has three independent LEDs for R, G, and B colo urs. This technology allows users to check objects with remarkable colo ur reproduction and resolution*. The EVF has a selectable display mode between colo ur or black and white.

*When the camcorder is panned quickly or when an object in the screen moves quickly, the primary colo urs of R/G/B may be seen on the object in the EVF momentarily.

Downloaded From VideoCamera-Manual.com Manuals

14

Common Features of the XtraFine LCD and EVF

•100% full-scan display – helps you to check the entire recorded area.

•6500k colo ur temperature – the standard for professional monitors.

XtraFine LCD and EVF

MK10453V1.qxd 07.11.20 10:36 AM Page 15 (1,1)

infoLITHIUM L Series Battery Compatible

The HVR-Z7E uses the same batteries as the HVR-Z1E,

HVR-V1E and DSR-PD170P, so you can fully utilise your existing battery and charger assets.

HDMI output connector

Uncompressed digital HD video and audio signals are output from the HDMI connector. You can see stunning

HD images on the HDMI-compatible monitor display.

During shooting, the pre-compressed 1920x1080i/4:2:2 signal is output from the HDMI connector.

Two Accessory Shoes

The HVR-Z7E features two accessory shoes. There is a cold shoe on the front that can be removed to make room for a mattebox. While at the rear, there is a screw-hole type shoe located on the handle, which can be changed to a cold shoe, if required, using supplied parts.

B

A

Smooth Slow Rec

The Smooth Slow Rec function of the HVR-Z7E camcorder enables slow-motion playback by capturing images four times faster than the normal field rate (200 fields/s). In this mode, quad-speed images are captured for three seconds, stored in the built-in buffer memory, and then recorded to tape (in either HDV, DVCAM, or DV format) as slow-motion pictures lasting 12 seconds*

15

. This allows recorded images to be checked immediately in the field.

Although the resolution of the picture quality is decreased, this function is effective for some applications that don’t need full HD quality, such as Internet movies or the analysis of moving objects like a golf swing, for example.

Smooth Slow Rec

200i Capturing

1/200 s

1 2 3 599 600

598

3s

50i Recording

1

1/50 s

Buffer

Memory

2 3 598 599 600

12 s

A :Removable Front Shoe B :Screw Hole

Removable Front Shoe Rear cold shoe parts

Two Screw Holes for Secure Connection

To provide a more secure connection between the camcorder and tripod plate or other accessories, two screw holes have been incorporated.

One-touch Clip-type Microphone Holder

A one-touch clip-type microphone holder makes it easy to remove the microphone for quick storage.

Clip-type microphone holder

Tape

(HDV/DVCAM/DV)

*15 Audio cannot be recorded while shooting in this mode.

Downloaded From VideoCamera-Manual.com Manuals

15

MK10453V1_PAL_1115.qxd 07.11.15 5:57 PM Page 16 (1,1)

HVR-S270E

The HVR-S270E offers videographers a traditional “on-the-shoulder” feel with the benefits of increased camera stability and longer recording time of up to 4.5 hours with standard size cassettes.

Standard-size Cassette Compatibility

A standard-size cassette tape provides approximately 4.5

hours of HDV/DV recording or approximately 3 hours of

DVCAM recording. Of course, recording on a miniDV tape is still an option.

HD/SD-SDI & Other Output Connectors

An HD/SD-SDI output connector provides embedded audio and TC data and can, for example, be linked up to an XDCAM HD deck.

BNC connectors provide secure cabling connections.

"Dual Finder" New LCD Position on EVF Unit

The new LCD position on the EVF (Electric View Finder) unit is currently only available on Sony’s professional HDV shoulder-mount camcorders.

The HVR-S270E camcorder features a new configuration of a 3.2-inch type XtraFine LCD monitor (approximately

921,000 dots) and an XtraFine EVF (approximately

1,227,000 dots, 852x480x3 (RGB))*. The LCD is located on the EVF unit. This unique layout enables the camera operator to perform both traditional EVF monitoring and

LCD monitoring, while the camcorder is held on the shoulder. The 180-degree tilt mechanism allows for LCD monitoring when the camcorder is held in a high or low-angle position

. The 270-degree swivel mechanism will allow LCD monitoring from the front, right, or even left of the camcorder so that a reporter or a

director can monitor what is being captured by the camcorder.

*When the camcorder is panned quickly or when an object in the screen moves quickly, the primary colo urs of R/G/B may be seen on the object in the EVF momentarily.

Rear panel

Connectors

Side panel

Four-channel Audio Input

Four-channel audio recording is reali sed in HDV and

DVCAM thanks to four XLR audio input connectors – two at the front, and two at the back.

Downloaded From VideoCamera-Manual.com Manuals

16

BP Series Battery Compatible

V-lock professional BP batteries are another great feature in common with broadcast camcorders.

Smooth Slow Rec

As with the HVR-Z7E, the HVR-S270E camcorder enables slow-motion playback by capturing images four times faster than the normal field rate (200 fields/s).

MK10453V1_PAL_1115.qxd 07.11.15 2:38 PM Page 17 (1,1)

HVR-M35E

The HVR-M35E is compatible with HDV native progressive recording modes and supports

HD/SD-SDI output with embedded audio and TC data.

HD/SD-SDI Output

The HD/SD-SDI output of HVR-M35E allows straight duplication to a deck with HD/SD-SDI input.

Multi-format Playback/Recording

Capability

The HVR-M35E supports HDV native progressive recording modes and has a 60i/50i switchable function, so it can playback/record:

•HDV1080i: 60i/50i/24p/30p/25p

•DVCAM/DV:60i/50i

•The HDV720p(24/25/30p) tape playback is available for a simple viewing.*

*No i.LINK output for HDV720p

Standard and Mini Size Cassette Tape

Compatibility

Both standard

and mini size cassette tapes are supported. It accepts standard cassettes shot on the

HVR-S270E or other shoulder-mount DVCAM camcorders.

Four Channel Audio Data Playback

The HVR-M35E can play back the four-channel audio data in HDV1080i format recorded by the HVR-S270E.

It can also play back the four-channel audio data in

DVCAM format. The four-channel audio data is embedded in the i.LINK and HD/SD-SDI output, or is output through the AES/EBU audio connectors.

Downloaded From VideoCamera-Manual.com Manuals

2.7-inch Wide Clear Photo LCD plus Screen and Monaural Speaker

A built-in 2.7-inch type wide Clear Photo LCD plus™ screen and built-in monaural speaker allow quick and convenient checking of video and audio.

Other Functions of the HVR-M35E

The HVR-M35E covers most functions of its lower-end model, the HVR-M25E.

Down-conversion Playback Capabilities

The HVR-M35E can convert material from HD down to SD, and output the SD video signal through its i.LINK, SD-SDI, analog ue component, S-video, and composite connectors.

This allows users to edit recorded material with a compatible nonlinear editing system using current DV editing software, as well as record SD signals to an external VTR.

When down-converting these signals, the aspect ratio displayed can be converted from 16:9 to 4:3. Display modes can be selected from Squeeze, Letterbox, and

Edge Crop* 16 .

*16 Letterbox output is not available from the i.LINK connector. For the

HDV recording with four channels audio data, the audio data in the down-converted DV signal is selectable from either 1/2ch or 3/4ch.

Edge Crop Adjust

When down-converting signals in Edge Crop mode, you can use the Edge Crop Adjust function to adjust the edge crop position. By displaying the edge crop marker on the LCD monitor, operators can conveniently check the edge crop position before outputting downconverted signals.

DUPLICATE PLUS

The DUPLICATE PLUS function makes it easy to copy video and audio from a VTR or camcorder onto the HVR-M35E – along with the original time code. Operators simply connect the two i.LINK devices together via their i.LINK

interfaces and press the DUPLICATE PLUS and PLAY buttons on the front panel of the HVR-M35E. Copying will then begin.

17

MK10453V1_PAL_1115.qxd 07.11.15 2:38 PM Page 18 (1,1)

HVR-M35E

Front Rear

Accessories

New

Optional Wide Lens

VCL-308WBH (for HVR-Z7

E)*

VCL-308BWS (for HVR-S207

E)*

New

lens adaptor

LA-100W*

* For the detail on the release date, please ask your nearest Sony office or authori sed dealer.

CompactFlash Card

NCFD16GP 16GB 300x

CompactFlash Card

(available from April 2008)

NCFD8GP 8GB 300x

CompactFlash Card

HVR-DR60

Hard Disk Recording Unit

An external Hard Disk Recording Unit with a 60GB capacity and 4.5 hours of recording time for HDV, DVCAM and DV. (battery is not supplied)

New

VCT-SP1BP

Camcorder Support (HVR-Z7E)

•Weight support for stable/ comfortable shooting

•Support for several shooting styles

(e.g., high-angle shooting)

•Quick-release function from harness for excellent mobility

•Perfect design for a camcorder

Monopod

•Carbon shaft for light weight and rigid design

•RM-1BP Remote Controller supplied as standard

New

AC-VQL1BP

AC Adaptor Charger (HVR-Z7E)

•4 slots battery charger (A pair of parallel charge)

•2 charge mode selectable

(Normal/Full)

•Charging information

Remaining time to charge complete

Current available time for shooting

•Battery Log information

Total charge time

Total charge cycle

Last operation date

New

SH-L32WBP

LCD Hood (HVR-Z7E/S270

E)

•LCD Hood for 3.2” LCD monitor

•Adjustable shade (360° shade)

•Folding

structure - no need to remove from camcorder

HVL-LBP

LED Battery Video Light

(HVR-Z7E/S270

E)

•LED reliability and low power consumption of 16W

•Battery power from NP-F770/F970

•Wide compatibility for flexible installation (Cold shoe/Screw bolt/Screw hole)

•Ideal for Wide-angle shooting and interviews

Spot ([email protected]) or flood-lighting

([email protected]) with attached condensing lens ON or Off

•Light diffuser attached to soften shadows and reduce contrast

•Long Operating time: approximately

3 hours with the NP-F970

(at maximum brightness)

2NP-F970/B

InfoLITHIUM Rechargeable

Battery Pack (2 pack) (HVR-Z7E)

NP-F970/F770/F570

InfoLITHIUM Rechargeable

Battery Pack (HVR-Z7E)

VCT-PG11RMB

Tripod with RM-1BP Remote

Controller (HVR-Z7E)

RM-1BP

LANC remote controller

(HVR-Z7E/S270

E)

BP-GL95/GL65/L60S/L80S

Lithium-ion Battery Pack

(HVR-S270E)

BC-L70/M150/L500

Battery Charger (HVR-S270E)

AC-DN10

AC Adaptor (HVR-S270E)

Downloaded From VideoCamera-Manual.com Manuals

18

MK10453V1_PAL_1115.qxd 07.11.15 4:59 PM Page 19 (1,1)

Specifications (HVR-Z7E,HVR-S270E)

Camera section

Supplied Lens

Built-in filter

Imaging system

Picture elements

Focus

White balance

Manual shutter speed Auto

Manual

Gain

Minimum illumination

VTR section

Recording format

Play out/Down conversion format

Playback/Recording time HDV/DV SP

DVCAM

Input/Output conectors

Audio/Video output

Component video output

HDV/DV input/output

XLR audio input

Headphone

LANC

Digital video output

Built-in output devices

LCD view finder

LCD monitor

General

Mass

Power requirements

Power consumption HDV

DVCAM/DV

Operating temperature

Storage temperature

Supplied accessories

Supplied memory recording unit

Recording media

File system

File format HDV

DVCAM/DV

Connectors

HVR-Z7E HVR-S270E

Carl Zeiss Vario-Sonnar T* zoom lens, 12x (optical), f = 4.4 to 52.8 mm, f = 32.0 to 384 mm* at 16:9 mode f = 39.5 to 474 mm* at 4:3 mode, filter diameter: 72 mm

Clear, 1/4, 1/16, 1/64

1/3-inch, progressive 3 ClearVid CMOS Sensor system with Exmor

technology

Approx. 1,037,000 pixels (effective), approx. 1,120,000 pixels (total)

Auto, manual (focus ring/one push auto/infinity/AF assist/ focus macro)

Auto, one-push auto (A/B positions), indoor (3200 K), outdoor (selectable level -7 to +7, approx. 500K/step), manual WB Temp (selectable 2300K to 15000K, 100K/step)

1/50 - 1/1750

50i/25p: 1/3 - 1/10000

-6, -3, 0 , 3, 6, 9, 12, 15, 18, 21 dB

1.5 lux (auto gain, auto iris, 1/25 shutter)

Max. 63 min with PHDVM-63DM cassette

Max. 41 min with PHDVM-63DM cassette

HDV1080/50i, DVCAM, DV SP 576/50i (PAL)

HDV1080/50i, DVCAM, DV SP 576/50i (PAL)

Max. 276min with PHDV-276DM Max. 63 min with PHDVM-63DM cassette

Max. 184min with PHDV-276DM Max. 41 min with PHDVM-63DM cassette

10-pin connector A/V OUT jack

(composite, unbalanced audio x2ch with the supplied cable)

Component out jack (special connector) i.LINK interface (IEEE 1394, 6-pin)

XLR 3-pin female x 2ch

Stereo mini jack (ø3.5 mm)

Stereo mini-mini jack (ø2.5 mm)

HDMI connector

Composite video (BNCx1)

Unbalanced auido (pin x2ch)

BNC x3

XLR 3pin female x 4ch

HD/SD-SDI BNC x1

0.45-inch type (Viewable area measured diagonally), approx. 1,226,880 dots (852x480x3[RGB]), 16:9 aspect ratio

3.2-inch type (Viewable area measured diagonally), XtraFine LCD, approx. 921,600 dots, hybrid type, 16:9 aspect ratio

Approx. 2.4 kg (5 lb 4 oz) (w/ the supplied lens, w/o tape, battery)

DC 7.2 V (battery pack), DC 8.4 V (AC adaptor)

Approx. 7.0 W (with ECM-XM1 / LCD EVF ON)

Approx. 6.8 W (with ECM-XM1 / LCD EVF ON)

0 to 40 °C (32 to 104 °F)

-20 to +60 °C (-4 to 140 °F)

AC-VQ1050 AC adaptor/charger, NP-F570 infoLITHIUM rechargeable battery pack, A/V connecting cable, component video cable, lens hood with lens cover, lithium battery (CR2025), shoe adaptor, large size eye-cup, additional normal shoe kit, RMT-831 wireless Remote Commander, ECM-XM1 monaural electret condenser microphone Operating instructions (CD-ROM) Printed

operating instructions, memory recording unit kit

Approx. 6.3kg (13 lb 15 oz) (w/ the supplied lens, w/o tape, BP-GL95battery)

DC 12 V (battery pack), DC 14.4 V (AC adaptor)

Approx. 12.2 W (with ECM-XM1 / EVF ON)

Approx. 11.7 W (with ECM-XM1 / EVF ON)

0 to 40 °C (32 to 104 °F)

-20 to +60 °C (-4 to 140 °F) lens hood with lens cover, lithium battery (CR2025), large size eye-cup, additional normal shoe kit, ECM-XM1 monaural elect ret condenser microphone, Shoulder Belt, Operating instructions (CD-ROM), Printed

operating instructions, memory recording unit kit

CompactFlash card (2GB or bigger, 133x or faster)

(not supplied)

FAT32

.M2T

.AVI (DV-AVI, type 1) or .DV (Raw-DV) special hot shoe i.LINK-6pin (on the supplied cradle)

DC power input (on the supplied cradle) infoLITHIUM L series battery slot (on the supplied cradle)

Specifications (HVR-M35E)

Recording/playback performance

Recording format HDV

Playout format

DVCAM / DV SP

HDV

Playout video signal

DVCAM / DV SP

Tape speed HDV/DV SP

DVCAM

Playback/recording time HDV/DV SP

DVCAM

HDV1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p

DVCAM, DV SP 480/60i (NTSC), 576/50i (PAL)

HDV1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p.

HDV720/24p, 720/25p, 720/30p

DVCAM, DV SP 480/60i (NTSC), 576/50i (PAL)

1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL), 480/60P, 576/50P

720/60P, 720/50P

Max. 18.812 mm/s

Max. 28.218 mm/s

Max. 276 min with PHDV-276DM cassette

Max. 63 min with PHDVM-63DM cassette

Max. 184 min with PHDV-276DM cassette

Max. 41 min with PHDVM-63DM cassette

Approx. 2 min with PHDV-276DM cassette Fast forward/rewind time

Input/output connectors/devices

Video input/output

Monitor video out

S-video input/output

Component video output i.LINK interface (HDV /DV)

BNCx1 / BNCx1

RCA pin x1

Mini-DIN 4-pin x1 / Mini-DIN 4-pin x1

BNC x 3

6-pin (no power)

HD/SD-SDI output

Audio input

Audio output

Monitor audio out

AES/EBU output

TC out

Phones

LANC

Control S input

LCD monitor

General

Weight

Dimention (WxHxD)

Power requirements

Power consumption

Operating temperature

Storage temperature

Supplied accessories

BNC x1

RCA pin x 4ch

XLR 3pin x 4ch

RCA pin x 1

BNC x2

BNC x1

Stereo minijack (ø3.5 mm)

Stereo mini-minijack (ø2.5 mm)

Stereo minijack (ø3.5 mm)

2.7-inch type (Viewable area measured diagonally), approx.

211,200 dots (960 x 220), Clear Photo™ LCD Plus

Approx. 9 lb 12 oz (4.4 kg)

Approx. 212 x 88 x 390.3mm (8 3/8 x 3 1/2 x 15 3/8 inch)

AC 120 V, 60 Hz

16 W (playback mode with LCD monitor on)

41 to 104 °F (5 to 40 °C)

-4 to 140 °F (-20 to +60 °C)

Remote Commander Unit (1), power cord (1), size AA batteries (2), cleaning cassette (1), operating instructions (1)

Downloaded From VideoCamera-Manual.com Manuals

19

Sony Specialist Dealers receive extensive training on all our products and services.

They combine this with an in-depth knowledge of the market, ensuring you get advice that meets your needs before and after purchase.

To find your nearest Sony Specialist Dealer visit our “dealer locator” at:

www.sonybiz.net/dealer

Services from Sony: working with you, working for you.

Recognising that every company and every challenge is unique, we offer a complete and comprehensive range of services all the way through consulting, planning, financing, implementation, training, servicing, maintenance and support. Choose exactly what’s right for you, when and where you need it.

Sony Professional Services

Tailor-made design, installation and project management of audio-visual and IT (AV/IT) systems using skills developed over 25 years of systems integration.

Sony Financial Services

Innovative and flexible finance solutions designed to meet budgetary and financial requirements and constraints, enabling businesses to always have the most current technology.

Sony Training Services

A range of off-the-shelf or customised training services from basic operation through to high-level technical maintenance.

Sony Support Services

Fully integrated and customised support for products and systems throughout their operational life, combining proactive and reactive technical services.

Not all services are available in all countries. If you’d like to find out more about what we do, who we do it for and how we do it, visit

www.sonybiz.net or contact your local Sony office.

© 2007 Sony Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited.

Features and specifications are subject to change without notice.

All non-metric weights and measurements are approximate. Images on monitors are simulated.

Sony, TRIMASTER, and Memory Stick are trademarks of Sony Corporation.

VESA is a trademark of the Video Electronics Standards Association.

All other trademarks are the property of their respective owners.

Downloaded From VideoCamera-Manual.com Manuals

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
