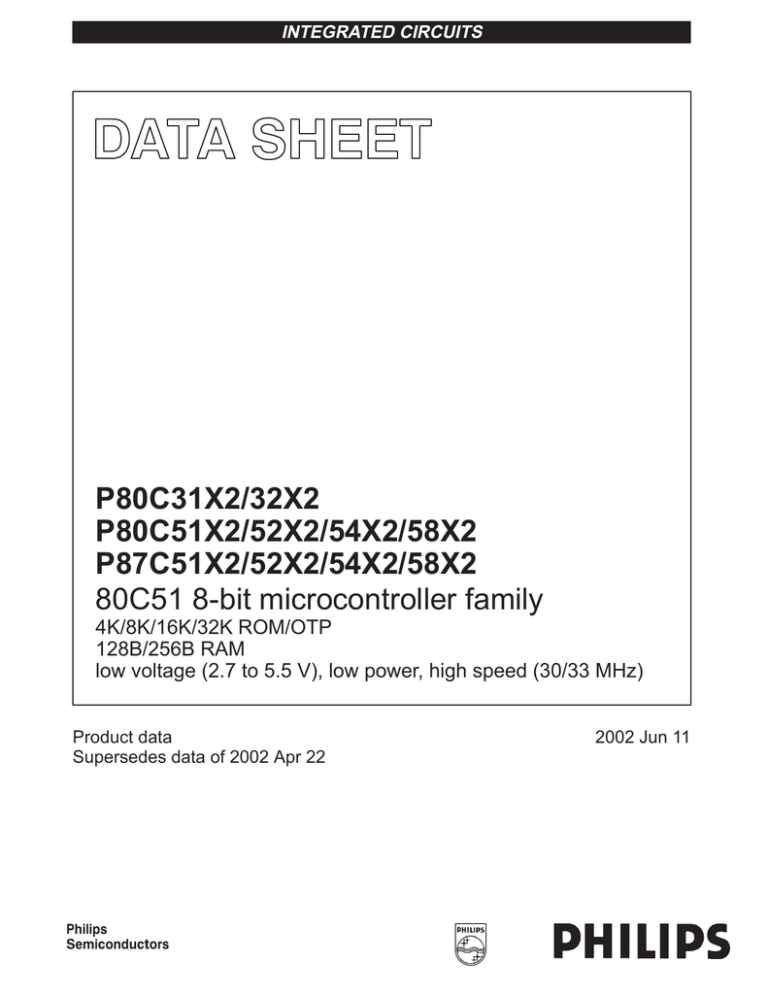

p80c3xx2 8xc5xx2 ds
INTEGRATED CIRCUITS
P80C31X2/32X2
P80C51X2/52X2/54X2/58X2
P87C51X2/52X2/54X2/58X2
80C51 8-bit microcontroller family
4K/8K/16K/32K ROM/OTP
128B/256B RAM
low voltage (2.7 to 5.5 V), low power, high speed (30/33 MHz)
Product data
Supersedes data of 2002 Apr 22
2002 Jun 11
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
selectable modes of power reduction — idle mode and power-down
mode — are available. The idle mode freezes the CPU while
allowing the RAM, timers, serial port, and interrupt system to
continue functioning. The power-down mode saves the RAM
contents but freezes the oscillator, causing all other chip functions to
be inoperative. Since the design is static, the clock can be stopped
without loss of user data. Then the execution can be resumed from
the point the clock was stopped.
DESCRIPTION
The Philips microcontrollers described in this data sheet are
high-performance static 80C51 designs incorporating Philips’
high-density CMOS technology with operation from 2.7 V to 5.5 V.
They support both 6-clock and 12-clock operation.
The P8xC31X2/51X2 and P8xC32X2/52X2/54X2/58X2 contain
128 byte RAM and 256 byte RAM respectively, 32 I/O lines, three
16-bit counter/timers, a six-source, four-priority level nested interrupt
structure, a serial I/O port for either multi-processor
communications, I/O expansion or full duplex UART, and on-chip
oscillator and clock circuits.
SELECTION TABLE
For applications requiring more ROM and RAM, as well as more
on-chip peripherals, see the P89C66x and P89C51Rx2 data sheets.
In addition, the devices are low power static designs which offer a
wide range of operating frequencies down to zero. Two software
PWM
PCA
WD
UART
I 2C
CAN
SPI
ADC bits/ch.
I/O Pins
Interrupts
(External)
Program
Security
Default Clock
Rate
Optional
Clock Rate
Max.
Freq.
at 6-clk
/ 12-clk
(MHz)
P87C58X2
256B
–
32K
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P80C58X2
256B
32K
–
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P87C54X2
256B
–
16K
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P80C54X2
256B
16K
–
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P87C52X2
256B
–
8K
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P80C52X2
256B
8K
–
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P87C51X2
128B
–
4K
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P80C51X2
128B
4K
–
–
3
–
–
–
n
–
–
–
–
32
6 (2)
n
12–clk
6-clk
30/33
0–16
0–30/33
P80C32X2
256B
–
–
–
3
–
–
–
n
–
–
–
–
32
6 (2)
–
12–clk
6-clk
30/33
0–16
0–30/33
P80C31X2
128B
–
–
–
3
–
–
–
n
–
–
–
–
32
6 (2)
–
12–clk
6-clk
30/33
0–16
0–30/33
RAM
# of Timers
Serial Interfaces
Flash
Timers
OTP
Memory
ROM
Type
Freq.
Range
at 3V
(MHz)
Freq.
Range
at
5V
(MHz)
NOTE:
1. I2C = Inter-Integrated Circuit Bus; CAN = Controller Area Network; SPI = Serial Peripheral Interface; PCA = Programmable Counter Array;
ADC = Analog-to-Digital Converter; PWM = Pulse Width Modulation
2002 Jun 11
2
853-2337 28059
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
• PLCC, DIP or LQFP package
• Extended temperature ranges
• Dual Data Pointers
• Security bits:
FEATURES
• 80C51 Central Processing Unit
– 4 kbytes ROM/EPROM (P80/P87C51X2)
– 8 kbytes ROM/EPROM (P80/P87C52X2)
– 16 kbytes ROM/EPROM (P80/P87C54X2)
– 32 kbytes ROM/EPROM (P80/P87C58X2)
– ROM (2 bits)
– 128 byte RAM (P80/P87C51X2 and P80C31X2)
– OTP (3 bits)
• Encryption array - 64 bytes
• 4 interrupt priority levels
• 6 interrupt sources
• Four 8-bit I/O ports
• Full-duplex enhanced UART
– 256 byte RAM (P80/P87C52/54X2/58X2 and P80C32X2)
– Boolean processor
– Fully static operation
– Low voltage (2.7 V to 5.5 V at 16 MHz) operation
• 12-clock operation with selectable 6-clock operation (via software
or via parallel programmer)
• Memory addressing capability
– Framing error detection
– Up to 64 kbytes ROM and 64 kbytes RAM
– Automatic address recognition
• Power control modes:
• Three 16-bit timers/counters T0, T1 (standard 80C51) and
– Clock can be stopped and resumed
additional T2 (capture and compare)
• Programmable clock-out pin
• Asynchronous port reset
• Low EMI (inhibit ALE, slew rate controlled outputs, and 6-clock
– Idle mode
– Power-down mode
• CMOS and TTL compatible
• Two speed ranges at VCC = 5 V
mode)
• Wake-up from Power Down by an external interrupt.
– 0 to 30 MHz with 6-clock operation
– 0 to 33 MHz with 12-clock operation
2002 Jun 11
3
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
P80C31/32X2 ORDERING INFORMATION (ROMLESS)
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁÁ
Type number
Package
Name
Description
P80C31X2BA
PLCC44
plastic leaded chip carrier; 44 leads
P80C31X2BN
DIP40
plastic dual in-line package; 40 leads (600 mil)
P80C32X2BA
PLCC44
plastic leaded chip carrier; 44 leads
P80C32X2BN
DIP40
plastic dual in-line package; 40 leads (600 mil)
P80C32X2FA
PLCC44
plastic leaded chip carrier; 44 leads
P80C32X2FN
DIP40
plastic dual in-line package; 40 leads (600 mil)
P87C51X2 ORDERING INFORMATION (4 KBYTE OTP)
Type number
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
Version
Temperature
R
Range
(°C)
SOT187-2
0 to +70
SOT129-1
0 to +70
SOT187-2
0 to +70
SOT129-1
0 to +70
SOT187-2
–40 to +85
SOT129-1
–40 to +85
Package
Name
Description
Version
Temperature
R
Range
(°C)
P87C51X2BA
PLCC44
plastic leaded chip carrier; 44 leads
SOT187-2
0 to +70
P87C51X2BN
DIP40
plastic dual in-line package; 40 leads (600 mil)
SOT129-1
0 to +70
P87C51X2BBD
LQFP44
plastic low profile quad flat package; 44 leads; body 10 x 10 x 1.4 mm SOT389-1
0 to +70
P87C51X2FA
PLCC44
plastic leaded chip carrier; 44 leads
SOT187-2
–40 to +85
P87C52X2 ORDERING INFORMATION (8 KBYTE OTP)
Type number
Package
Name
Description
Version
Temperature
R
Range
(°C)
P87C52X2BA
PLCC44
plastic leaded chip carrier; 44 leads
SOT187-2
0 to +70
P87C52X2BN
DIP40
plastic dual in-line package; 40 leads (600 mil)
SOT129-1
0 to +70
P87C52X2BBD
LQFP44
plastic low profile quad flat package; 44 leads; body 10 x 10 x 1.4 mm SOT389-1
0 to +70
P87C52X2FA
PLCC44
plastic leaded chip carrier; 44 leads
SOT187-2
–40 to +85
P87C52X2FN
DIP40
plastic dual in-line package; 40 leads (600 mil)
SOT129-1
–40 to +85
P87C54X2 ORDERING INFORMATION (16 KBYTE OTP)
Type number
Package
Name
Description
Version
Temperature
R
Range
(°C)
P87C54X2BA
PLCC44
plastic lead chip carrier; 44 leads
SOT187-2
0 to +70
P87C54X2BN
DIP40
plastic dual in-line package; 40 leads (600 mil)
SOT129-1
0 to +70
P87C54X2BBD
LQFP44
plastic low profile quad flat package; 44 leads; body 10 x 10 x 1.4 mm SOT389-1
0 to +70
P87C54X2FA
PLCC44
plastic lead chip carrier; 44 leads
SOT187-2
–40 to +85
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁ
ÁÁÁÁÁ
P87C58X2 ORDERING INFORMATION (32 KBYTE OTP)
Type number
Package
Name
Description
Version
Temperature
R
Range
(°C)
P87C58X2BA
PLCC44
plastic lead chip carrier; 44 leads
SOT187-2
0 to +70
P87C58X2BN
DIP40
plastic dual in-line package; 40 leads (600 mil)
SOT129-1
0 to +70
P87C58X2BBD
LQFP44
plastic low profile quad flat package; 44 leads; body 10 x 10 x 1.4 mm SOT389-1
0 to +70
P87C58X2FA
PLCC44
plastic lead chip carrier; 44 leads
–40 to +85
SOT187-2
All OTP parts listed here are also available as ROM parts (80C5xX2). Please contact your Philips representative if you would like to order a
ROM part.
2002 Jun 11
4
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
PART NUMBER DERIVATION
Memory
P87C51X2
7 = OTP
0 = ROM or
ROMless
5 = ROM/OTP
3 = ROMless
1 = 128 BYTES RAM
4 KBYTES ROM/OTP
2 = 256 BYTES RAM
8 KBYTES ROM/OTP
4 = 256 BYTES RAM
16 KBYTES ROM/OTP
8 = 256 BYTES RAM
32 KBYTES ROM/OTP
Temperature Range
Package
B = 0 °C TO +70 °C
F = –40 °C TO +85 °C
A = PLCC
N = DIP
BD = LQFP
X2 = 6-clock
mode available
The following table illustrates the correlation between operating mode, power supply and maximum external clock frequency:
Operating Mode
Power Supply
Maximum Clock Frequency
6-clock
5 V ± 10%
30 MHz
6-clock
2.7 V to 5.5 V
16 MHz
12-clock
5 V ± 10%
33 MHz
12-clock
2.7 V to 5.5 V
16 MHz
2002 Jun 11
5
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
BLOCK DIAGRAM 1
Accelerated 80C51 CPU
(12-clk mode, 6-clk mode)
0K / 4K / 8K / 16K /
32K Byte
CODE ROM / EPROM
Full-duplex enhanced
UART
128 / 256 Byte
Data RAM
Timer 0
Timer 1
Port 3
Configurable I/Os
Timer 2
Port 2
Configurable I/Os
Port 1
Configurable I/Os
Port 0
Configurable I/Os
Crystal or
Resonator
Oscillator
su01579
2002 Jun 11
6
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
BLOCK DIAGRAM 2 (CPU-ORIENTED)
P0.0–P0.7
P2.0–P2.7
PORT 0
DRIVERS
PORT 2
DRIVERS
VCC
VSS
RAM ADDR
REGISTER
PORT 0
LATCH
RAM
PORT 2
LATCH
ROM/EPROM
8
B
REGISTER
STACK
POINTER
ACC
PROGRAM
ADDRESS
REGISTER
TMP1
TMP2
BUFFER
ALU
SFRs
PC
INCREMENTER
TIMERS
PSW
8
16
PSEN
ALE/PROG
EA / VPP
TIMING
AND
CONTROL
RST
INSTRUCTION
REGISTER
PROGRAM
COUNTER
PD
DPTR’S
MULTIPLE
PORT 1
LATCH
PORT 3
LATCH
PORT 1
DRIVERS
PORT 3
DRIVERS
P1.0–P1.7
P3.0–P3.7
OSCILLATOR
XTAL1
XTAL2
SU00845
2002 Jun 11
7
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
LOGIC SYMBOL
PLASTIC LEADED CHIP CARRIER PIN FUNCTIONS
VCC
6
VSS
XTAL1
1
40
7
39
PORT 0
ADDRESS AND
DATA BUS
PLCC
XTAL2
17
PORT 1
T2
T2EX
RST
EA/VPP
18
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RxD
TxD
INT0
INT1
T0
T1
WR
RD
PORT 2
ALE/PROG
PORT 3
SECONDARY FUNCTIONS
PSEN
ADDRESS BUS
SU00830
PLASTIC DUAL IN-LINE PACKAGE
PIN CONFIGURATIONS
T2/P1.0 1
39 P0.0/AD0
P1.2 3
38 P0.1/AD1
P1.3 4
37 P0.2/AD2
P1.4 5
36 P0.3/AD3
P1.5 6
35 P0.4/AD4
P1.6 7
34 P0.5/AD5
P1.7 8
33 P0.6/AD6
Pin
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Pin
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Function
P2.7/A15
PSEN
ALE
NIC*
EA/VPP
P0.7/AD7
P0.6/AD6
P0.5/AD5
P0.4/AD4
P0.3/AD3
P0.2/AD2
P0.1/AD1
P0.0/AD0
VCC
SU01062
LOW PROFILE QUAD FLAT PACK
PIN FUNCTIONS
34
1
33
LQFP
11
23
32 P0.7/AD7
DUAL
IN-LINE
PACKAGE
31 EA/VPP
12
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
30 ALE
INT0/P3.2 12
29 PSEN
INT1/P3.3 13
28 P2.7/A15
T0/P3.4 14
27 P2.6/A14
T1/P3.5 15
26 P2.5/A13
WR/P3.6 16
25 P2.4/A12
RD/P3.7 17
24 P2.3/A11
XTAL2 18
23 P2.2/A10
XTAL1 19
22 P2.1/A9
VSS 20
21 P2.0/A8
Function
P1.5
P1.6
P1.7
RST
P3.0/RxD
NIC*
P3.1/TxD
P3.2/INT0
P3.3/INT1
P3.4/T0
P3.5/T1
P3.6/WR
P3.7/RD
XTAL2
XTAL1
Pin
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
* NO INTERNAL CONNECTION
SU01063
2002 Jun 11
Function
P3.4/T0
P3.5/T1
P3.6/WR
P3.7/RD
XTAL2
XTAL1
VSS
NIC*
P2.0/A8
P2.1/A9
P2.2/A10
P2.3/A11
P2.4/A12
P2.5/A13
P2.6/A14
44
RST 9
TxD/P3.1 11
Function
NIC*
P1.0/T2
P1.1/T2EX
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
RST
P3.0/RxD
NIC*
P3.1/TxD
P3.2/INT0
P3.3/INT1
28
* NO INTERNAL CONNECTION
40 VCC
T2EX/P1.1 2
RxD/P3.0 10
29
8
22
Function
VSS
NIC*
P2.0/A8
P2.1/A9
P2.2/A10
P2.3/A11
P2.4/A12
P2.5/A13
P2.6/A14
P2.7/A15
PSEN
ALE
NIC*
EA/VPP
P0.7/AD7
Pin
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Function
P0.6/AD6
P0.5/AD5
P0.4/AD4
P0.3/AD3
P0.2/AD2
P0.1/AD1
P0.0/AD0
VCC
NIC*
P1.0/T2
P1.1/T2EX
P1.2
P1.3
P1.4
SU01487
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
PIN DESCRIPTIONS
PIN NUMBER
MNEMONIC DIP
VSS
20
VCC
40
P0.0-0.7
39–32
PLCC
22
44
43–36
LQFP
16
38
37–30
TYPE
I
I
I/O
P1.0–P1.7
1–8
2–9
40–44,
1–3
I/O
P2.0–P2.7
1
2
21–28
2
3
24–31
40
41
18–25
I/O
I
I/O
P3.0–P3.7
10–17
11,
13–19
5,
7–13
I/O
RST
10
11
12
13
14
15
16
17
9
11
13
14
15
16
17
18
19
10
5
7
8
9
10
11
12
13
4
I
O
I
I
I
I
O
O
I
ALE/PROG
30
33
27
O
PSEN
29
32
26
O
EA/VPP
31
35
29
I
XTAL1
19
21
15
I
NAME AND FUNCTION
Ground: 0 V reference.
Power Supply: This is the power supply voltage for normal, idle, and power-down operation.
Port 0: Port 0 is an open-drain, bidirectional I/O port. Port 0 pins that have 1s written to
them float and can be used as high-impedance inputs. Port 0 is also the multiplexed
low-order address and data bus during accesses to external program and data memory. In
this application, it uses strong internal pull-ups when emitting 1s. Port 0 also outputs the
code bytes during program verification and received code bytes during EPROM
programming. External pull-ups are required during program verification.
Port 1: Port 1 is an 8-bit bidirectional I/O port with internal pull-ups. Port 1 pins that have 1s
written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs,
port 1 pins that are externally pulled low will source current because of the internal pull-ups.
(See DC Electrical Characteristics: IIL). Port 1 also receives the low-order address byte
during program memory verification. Alternate functions for Port 1 include:
T2 (P1.0): Timer/Counter 2 external count input/clockout (see Programmable Clock-Out)
T2EX (P1.1): Timer/Counter 2 Reload/Capture/Direction control
Port 2: Port 2 is an 8-bit bidirectional I/O port with internal pull-ups. Port 2 pins that have 1s
written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs,
port 2 pins that are externally being pulled low will source current because of the internal
pull-ups. (See DC Electrical Characteristics: IIL). Port 2 emits the high-order address byte
during fetches from external program memory and during accesses to external data memory
that use 16-bit addresses (MOVX @DPTR). In this application, it uses strong internal
pull-ups when emitting 1s. During accesses to external data memory that use 8-bit addresses
(MOV @Ri), port 2 emits the contents of the P2 special function register. Some Port 2 pins
receive the high order address bits during EPROM programming and verification.
Port 3: Port 3 is an 8-bit bidirectional I/O port with internal pull-ups. Port 3 pins that have 1s
written to them are pulled high by the internal pull-ups and can be used as inputs. As inputs,
port 3 pins that are externally being pulled low will source current because of the pull-ups.
(See DC Electrical Characteristics: IIL). Port 3 also serves the special features of the 80C51
family, as listed below:
RxD (P3.0): Serial input port
TxD (P3.1): Serial output port
INT0 (P3.2): External interrupt
INT1 (P3.3): External interrupt
T0 (P3.4): Timer 0 external input
T1 (P3.5): Timer 1 external input
WR (P3.6): External data memory write strobe
RD (P3.7): External data memory read strobe
Reset: A high on this pin for two machine cycles while the oscillator is running, resets the
device. An internal diffused resistor to VSS permits a power-on reset using only an external
capacitor to VCC.
Address Latch Enable/Program Pulse: Output pulse for latching the low byte of the
address during an access to external memory. In normal operation, ALE is emitted at a
constant rate of 1/6 (12-clock Mode) or 1/3 (6-clock Mode) the oscillator frequency, and can
be used for external timing or clocking. Note that one ALE pulse is skipped during each
access to external data memory. This pin is also the program pulse input (PROG) during
EPROM programming. ALE can be disabled by setting SFR auxiliary.0. With this bit set,
ALE will be active only during a MOVX instruction.
Program Store Enable: The read strobe to external program memory. When the device is
executing code from the external program memory, PSEN is activated twice each machine
cycle, except that two PSEN activations are skipped during each access to external data
memory. PSEN is not activated during fetches from internal program memory.
External Access Enable/Programming Supply Voltage: EA must be externally held low to enable the device
to fetch code from external program memory locations 0000H to 0FFFH/1FFFH/3FFFH/7FFFH. If EA is held
high, the device executes from internal program memory unless the program counter contains an address
greater than the on-chip ROM/OTP. This pin also receives the 12.75 V programming supply voltage (VPP) during
EPROM programming. If security bit 1 is programmed, EA will be internally latched on Reset.
Crystal 1: Input to the inverting oscillator amplifier and input to the internal clock generator
circuits.
Crystal 2: Output from the inverting oscillator amplifier.
XTAL2
18
20
14
O
NOTE:
To avoid “latch-up” effect at power-on, the voltage on any pin at any time must not be higher than VCC + 0.5 V or VSS – 0.5 V, respectively.
2002 Jun 11
9
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Table 1.
SYMBOL
Special Function Registers
DESCRIPTION
DIRECT
ADDRESS
ACC*
AUXR#
AUXR1#
B*
CKCON
DPTR:
DPH
DPL
Accumulator
Auxiliary
Auxiliary 1
B register
Clock Control Register
Data Pointer (2 bytes)
Data Pointer High
Data Pointer Low
E0H
8EH
A2H
F0H
8FH
IE*
Interrupt Enable
A8H
MSB
BIT ADDRESS, SYMBOL, OR ALTERNATIVE PORT FUNCTION
LSB
E7
E6
E5
E4
E3
E2
E1
E0
–
–
–
–
–
–
–
LPEP2
–
WUPD
–
0
–
–
AO
DPS
F7
F6
F5
F4
F3
F2
F1
F0
–
–
–
–
–
–
–
X2
83H
82H
AF
AE
AD
AC
AB
AA
A9
A8
EA
–
ET2
ES
ET1
EX1
ET0
EX0
BF
BE
BD
BC
BB
BA
B9
B8
–
–
PT2
PT2H
PS
PSH
PT1
PT1H
PX1
PX1H
PT0
PT0H
PX0
PX0H
Interrupt Priority
Interrupt Priority High
B8H
B7H
–
–
87
86
85
84
83
82
81
80
P0*
Port 0
80H
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
97
96
95
94
93
92
91
90
P2*
Port 1
Port 2
90H
A0H
0x000000B
xx000000B
xx000000B
FFH
–
–
–
–
–
–
T2EX
T2
A7
A6
A5
A4
A3
A2
A1
A0
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
B7
B6
B5
B4
B3
B2
B1
B0
T1
T0
INT1
INT0
TxD
RxD
FFH
00xx0000B
P3*
Port 3
B0H
RD
WR
PCON#1
Power Control
87H
SMOD1
SMOD0
–
POF
GF1
GF0
PD
IDL
D7
D6
D5
D4
D3
D2
D1
D0
AC
F0
RS1
RS0
OV
–
P
PSW*
RACAP2H#
RACAP2L#
SADDR#
SADEN#
SBUF
Program Status Word
Timer 2 Capture High
Timer 2 Capture Low
Slave Address
Slave Address Mask
Serial Data Buffer
D0H
CBH
CAH
A9H
B9H
99H
CY
9F
9E
9D
9C
9B
9A
99
98
SCON*
SP
Serial Control
Stack Pointer
98H
81H
SM0/FE
SM1
SM2
REN
TB8
RB8
TI
RI
8F
8E
8D
8C
8B
8A
89
88
TCON*
Timer Control
88H
TF1
TR1
TF0
TR0
IE1
IT1
IE0
IT0
CF
CE
CD
CC
CB
CA
C9
C8
T2CON*
Timer 2 Control
C8H
TF2
EXF2
RCLK
TCLK
EXEN2
TR2
C/T2
CP/RL2
T2MOD#
Timer 2 Mode Control
C9H
–
–
–
–
–
–
T2OE
DCEN
TH0
Timer High 0
8CH
TH1
Timer High 1
8DH
TH2#
Timer High 2
CDH
TL0
Timer Low 0
8AH
TL1
Timer Low 1
8BH
TL2#
Timer Low 2
CCH
TMOD
Timer Mode
89H
GATE
C/T
M1
M0
GATE
C/T
M1
M0
NOTE:
Unused register bits that are not defined should not be set by the user’s program. If violated, the device could function incorrectly.
* SFRs are bit addressable.
# SFRs are modified from or added to the 80C51 SFRs.
– Reserved bits.
1. Reset value depends on reset source.
2. LPEP – Low Power EPROM operation (OTP only)
2002 Jun 11
00H
xxxxxxx0B
xxx000x0B
00H
xxx00000B
00H
00H
IP*
IPH#
P1*
RESET
VALUE
10
FFH
FFH
000000x0B
00H
00H
00H
00H
xxxxxxxxB
00H
07H
00H
00H
xxxxxx00B
00H
00H
00H
00H
00H
00H
00H
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
generator simultaneously. Note, however, that the baud-rate and the
Clock-Out frequency will be the same.
OSCILLATOR CHARACTERISTICS
Using the oscillator
XTAL1 and XTAL2 are the input and output, respectively, of an
inverting amplifier. The pins can be configured for use as an on-chip
oscillator, as shown in the logic symbol.
RESET
A reset is accomplished by holding the RST pin HIGH for at least
two machine cycles (24 oscillator periods in 12-clock and 12
oscillator periods in 6-clock mode), while the oscillator is running. To
insure a reliable power-up reset, the RST pin must be high long
enough to allow the oscillator time to start up (normally a few
milliseconds) plus two machine cycles. After the reset, the part runs
in 12-clock mode, unless it has been set to 6-clock operation using a
parallel programmer.
To drive the device from an external clock source, XTAL1 should be
driven while XTAL2 is left unconnected. However, minimum and
maximum high and low times specified in the data sheet must be
observed.
Clock Control Register (CKCON)
This device provides control of the 6-clock/12-clock mode by both
an SFR bit (bit X2 in register CKCON and an OTP bit (bit OX2).
When X2 is 0, 12-clock mode is activated. By setting this bit to 1, the
system is switching to 6-clock mode. Having this option
implemented as SFR bit, it can be accessed anytime and changed
to either value. Changing X2 from 0 to 1 will result in executing user
code at twice the speed, since all system time intervals will be
divided by 2. Changing back from 6-clock to 12-clock mode will slow
down running code by a factor of 2.
LOW POWER MODES
Stop Clock Mode
The static design enables the clock speed to be reduced down to
0 MHz (stopped). When the oscillator is stopped, the RAM and
Special Function Registers retain their values. This mode allows
step-by-step utilization and permits reduced system power
consumption by lowering the clock frequency down to any value. For
lowest power consumption the Power Down mode is suggested.
The OTP clock control bit (OX2) activates the 6-clock mode when
programmed using a parallel programmer, superceding the X2 bit
(CKCON.0). Please also see Table 2 below.
Idle Mode
Table 2.
OX2 clock mode bit
(can only be set by
parallel programmer)
X2 bit
(CKCON.0)
CPU clock mode
erased
0
12-clock mode
(default)
erased
1
6-clock mode
programmed
X
6-clock mode
In idle mode (see Table 3), the CPU puts itself to sleep while all of
the on-chip peripherals stay active. The instruction to invoke the idle
mode is the last instruction executed in the normal operating mode
before the idle mode is activated. The CPU contents, the on-chip
RAM, and all of the special function registers remain intact during
this mode. The idle mode can be terminated either by any enabled
interrupt (at which time the process is picked up at the interrupt
service routine and continued), or by a hardware reset which starts
the processor in the same manner as a power-on reset.
Power-Down Mode
Programmable Clock-Out
To save even more power, a Power Down mode (see Table 3) can
be invoked by software. In this mode, the oscillator is stopped and
the instruction that invoked Power Down is the last instruction
executed. The on-chip RAM and Special Function Registers retain
their values down to 2.0 V and care must be taken to return VCC to
the minimum specified operating voltages before the Power Down
Mode is terminated.
A 50% duty cycle clock can be programmed to be output on P1.0.
This pin, besides being a regular I/O pin, has two alternate
functions. It can be programmed:
1. to input the external clock for Timer/Counter 2, or
2. to output a 50% duty cycle clock ranging from 61 Hz to 4 MHz at
a 16 MHz operating frequency in 12-clock mode (122 Hz to
8 MHz in 6-clock mode).
Either a hardware reset or external interrupt can be used to exit from
Power Down. Reset redefines all the SFRs but does not change the
on-chip RAM. An external interrupt allows both the SFRs and the
on-chip RAM to retain their values. WUPD (AUXR1.3–Wakeup from
Power Down) enables or disables the wakeup from power down with
external interrupt. Where:
To configure the Timer/Counter 2 as a clock generator, bit C/T2 (in
T2CON) must be cleared and bit T20E in T2MOD must be set. Bit
TR2 (T2CON.2) also must be set to start the timer.
The Clock-Out frequency depends on the oscillator frequency and
the reload value of Timer 2 capture registers (RCAP2H, RCAP2L)
as shown in this equation:
n
WUPD = 0: Disable
WUPD = 1: Enable
To properly terminate Power Down, the reset or external interrupt
should not be executed before VCC is restored to its normal
operating level and must be held active long enough for the
oscillator to restart and stabilize (normally less than 10 ms).
Oscillator Frequency
(65536–RCAP2H, RCAP2L)
Where:
n = 2 in 6-clock mode, 4 in 12-clock mode.
To terminate Power Down with an external interrupt, INT0 or INT1
must be enabled and configured as level-sensitive. Holding the pin
low restarts the oscillator but bringing the pin back high completes
the exit. Once the interrupt is serviced, the next instruction to be
executed after RETI will be the one following the instruction that put
the device into Power Down.
(RCAP2H,RCAP2L) = the content of RCAP2H and RCAP2L
taken as a 16-bit unsigned integer.
In the Clock-Out mode Timer 2 roll-overs will not generate an
interrupt. This is similar to when it is used as a baud-rate generator.
It is possible to use Timer 2 as a baud-rate generator and a clock
2002 Jun 11
11
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
following the one that invokes Idle should not be one that writes to a
port pin or to external memory.
Low-Power EPROM operation (LPEP)
The EPROM array contains some analog circuits that are not
required when VCC is less than 4 V, but are required for a VCC
greater than 4 V. The LPEP bit (AUXR.4), when set, will powerdown
these analog circuits resulting in a reduced supply current. This bit
should be set ONLY for applications that operate at a VCC less than
4 V.
ONCE Mode
The ONCE (“On-Circuit Emulation”) Mode facilitates testing and
debugging of systems without the device having to be removed from
the circuit. The ONCE Mode is invoked in the following way:
1. Pull ALE low while the device is in reset and PSEN is high;
Design Consideration
2. Hold ALE low as RST is deactivated.
When the idle mode is terminated by a hardware reset, the device
normally resumes program execution from where it left off, up to two
machine cycles before the internal reset algorithm takes control.
On-chip hardware inhibits access to internal RAM in this event, but
access to the port pins is not inhibited. To eliminate the possibility of
an unexpected write when Idle is terminated by reset, the instruction
While the device is in ONCE Mode, the Port 0 pins go into a float
state, and the other port pins and ALE and PSEN are weakly pulled
high. The oscillator circuit remains active. While the device is in this
mode, an emulator or test CPU can be used to drive the circuit.
Normal operation is restored when a normal reset is applied.
Table 3. External Pin Status During Idle and Power-Down Modes
MODE
PROGRAM MEMORY
ALE
PSEN
PORT 0
PORT 1
Idle
Internal
1
Idle
External
1
Power-down
Internal
0
Power-down
External
0
PORT 2
PORT 3
1
Data
1
Float
Data
Data
Data
Data
Address
Data
0
0
Data
Data
Data
Data
Float
Data
Data
Data
Timer 0 and Timer 1
Mode 1
Mode 1 is the same as Mode 0, except that the Timer register is
being run with all 16 bits.
The “Timer” or “Counter” function is selected by control bits C/T in
the Special Function Register TMOD. These two Timer/Counters
have four operating modes, which are selected by bit-pairs (M1, M0)
in TMOD. Modes 0, 1, and 2 are the same for both Timers/Counters.
Mode 3 is different. The four operating modes are described in the
following text.
Mode 2
Mode 2 configures the Timer register as an 8-bit Counter (TLn) with
automatic reload, as shown in Figure 4. Overflow from TLn not only
sets TFn, but also reloads TLn with the contents of THn, which is
preset by software. The reload leaves THn unchanged.
TIMER 0 AND TIMER 1 OPERATION
Mode 2 operation is the same for Timer 0 as for Timer 1.
Mode 0
Putting either Timer into Mode 0 makes it look like an 8048 Timer,
which is an 8-bit Counter with a divide-by-32 prescaler. Figure 2
shows the Mode 0 operation.
Mode 3
Timer 1 in Mode 3 simply holds its count. The effect is the same as
setting TR1 = 0.
In this mode, the Timer register is configured as a 13-bit register. As
the count rolls over from all 1s to all 0s, it sets the Timer interrupt
flag TFn. The counted input is enabled to the Timer when TRn = 1
and either GATE = 0 or INTn = 1. (Setting GATE = 1 allows the
Timer to be controlled by external input INTn, to facilitate pulse width
measurements). TRn is a control bit in the Special Function Register
TCON (Figure 3).
Timer 0 in Mode 3 establishes TL0 and TH0 as two separate
counters. The logic for Mode 3 on Timer 0 is shown in Figure 5. TL0
uses the Timer 0 control bits: C/T, GATE, TR0, and TF0 as well as
pin INT0. TH0 is locked into a timer function (counting machine
cycles) and takes over the use of TR1 and TF1 from Timer 1. Thus,
TH0 now controls the “Timer 1” interrupt.
Mode 3 is provided for applications requiring an extra 8-bit timer on
the counter. With Timer 0 in Mode 3, an 80C51 can look like it has
three Timer/Counters. When Timer 0 is in Mode 3, Timer 1 can be
turned on and off by switching it out of and into its own Mode 3, or
can still be used by the serial port as a baud rate generator, or in
fact, in any application not requiring an interrupt.
The 13-bit register consists of all 8 bits of THn and the lower 5 bits
of TLn. The upper 3 bits of TLn are indeterminate and should be
ignored. Setting the run flag (TRn) does not clear the registers.
Mode 0 operation is the same for Timer 0 as for Timer 1. There are
two different GATE bits, one for Timer 1 (TMOD.7) and one for Timer
0 (TMOD.3).
2002 Jun 11
12
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
TMOD
Address = 89H
Reset Value = 00H
Not Bit Addressable
7
6
5
4
3
2
1
0
GATE
C/T
M1
M0
GATE
C/T
M1
M0
TIMER 1
BIT
TMOD.3/
TMOD.7
TMOD.2/
TMOD.6
SYMBOL
GATE
C/T
TIMER 0
FUNCTION
Gating control when set. Timer/Counter “n” is enabled only while “INTn” pin is high and
“TRn” control pin is set. when cleared Timer “n” is enabled whenever “TRn” control bit is set.
Timer or Counter Selector cleared for Timer operation (input from internal system clock.)
Set for Counter operation (input from “Tn” input pin).
M1
M0
OPERATING
0
0
8048 Timer: “TLn” serves as 5-bit prescaler.
0
1
16-bit Timer/Counter: “THn” and “TLn” are cascaded; there is no prescaler.
1
0
8-bit auto-reload Timer/Counter: “THn” holds a value which is to be reloaded
into “TLn” each time it overflows.
1
1
(Timer 0) TL0 is an 8-bit Timer/Counter controlled by the standard Timer 0 control bits.
TH0 is an 8-bit timer only controlled by Timer 1 control bits.
1
1
(Timer 1) Timer/Counter 1 stopped.
SU01580
Figure 1. Timer/Counter 0/1 Mode Control (TMOD) Register
÷ d*
OSC
C/T = 0
TLn
(5 Bits)
THn
(8 Bits)
TFn
Interrupt
C/T = 1
Control
Tn Pin
TRn
Timer n
Gate bit
INTn Pin
*d = 6 in 6-clock mode; d = 12 in 12-clock mode.
SU01618
Figure 2. Timer/Counter 0/1 Mode 0: 13-Bit Timer/Counter
2002 Jun 11
13
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
TCON
Address = 88H
Reset Value = 00H
Bit Addressable
7
TF1
BIT
TCON.7
SYMBOL
TF1
TCON.6
TCON.5
TR1
TF0
TCON.4
TCON.3
TR0
IE1
TCON.2
IT1
TCON.1
IE0
TCON.0
IT0
6
5
4
3
2
1
0
TR1
TF0
TR0
IE1
IT1
IE0
IT0
FUNCTION
Timer 1 overflow flag. Set by hardware on Timer/Counter overflow.
Cleared by hardware when processor vectors to interrupt routine, or clearing the bit in software.
Timer 1 Run control bit. Set/cleared by software to turn Timer/Counter on/off.
Timer 0 overflow flag. Set by hardware on Timer/Counter overflow.
Cleared by hardware when processor vectors to interrupt routine, or by clearing the bit in software.
Timer 0 Run control bit. Set/cleared by software to turn Timer/Counter on/off.
Interrupt 1 Edge flag. Set by hardware when external interrupt edge detected.
Cleared when interrupt processed.
Interrupt 1 type control bit. Set/cleared by software to specify falling edge/low level triggered
external interrupts.
Interrupt 0 Edge flag. Set by hardware when external interrupt edge detected.
Cleared when interrupt processed.
Interrupt 0 Type control bit. Set/cleared by software to specify falling edge/low level
triggered external interrupts.
SU01516
Figure 3. Timer/Counter 0/1 Control (TCON) Register
÷ d*
OSC
C/T = 0
TLn
(8 Bits)
TFn
Interrupt
C/T = 1
Control
Tn Pin
Reload
TRn
Timer n
Gate bit
THn
(8 Bits)
INTn Pin
SU01619
*d = 6 in 6-clock mode; d = 12 in 12-clock mode.
Figure 4. Timer/Counter 0/1 Mode 2: 8-Bit Auto-Reload
2002 Jun 11
14
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
÷ d*
OSC
C/T = 0
TL0
(8 Bits)
TF0
Interrupt
TH0
(8 Bits)
TF1
Interrupt
C/T = 1
Control
T0 Pin
TR0
Timer 0
Gate bit
INT0 Pin
OSC
÷ d*
Control
TR1
*d = 6 in 6-clock mode; d = 12 in 12-clock mode.
SU01620
Figure 5. Timer/Counter 0 Mode 3: Two 8-Bit Counters
Counter Enable) which is located in the T2MOD register (see
Figure 8). After reset, DCEN=0 which means Timer 2 will default to
counting up. If DCEN is set, Timer 2 can count up or down
depending on the value of the T2EX pin.
TIMER 2 OPERATION
Timer 2
Timer 2 is a 16-bit Timer/Counter which can operate as either an
event timer or an event counter, as selected by C/T2 in the special
function register T2CON (see Figure 6). Timer 2 has three operating
modes: Capture, Auto-reload (up or down counting), and Baud Rate
Generator, which are selected by bits in the T2CON as shown in
Table 4.
Figure 9 shows Timer 2 which will count up automatically since
DCEN=0. In this mode there are two options selected by bit EXEN2
in T2CON register. If EXEN2=0, then Timer 2 counts up to 0FFFFH
and sets the TF2 (Overflow Flag) bit upon overflow. This causes the
Timer 2 registers to be reloaded with the 16-bit value in RCAP2L
and RCAP2H. The values in RCAP2L and RCAP2H are preset by
software.
Capture Mode
In the capture mode there are two options which are selected by bit
EXEN2 in T2CON. If EXEN2=0, then timer 2 is a 16-bit timer or
counter (as selected by C/T2 in T2CON) which, upon overflowing,
sets bit TF2, the timer 2 overflow bit. This bit can be used to
generate an interrupt (by enabling the Timer 2 interrupt bit in the
IE register). If EXEN2=1, Timer 2 operates as described above, but
with the added feature that a 1-to-0 transition at external input T2EX
causes the current value in the Timer 2 registers, TL2 and TH2, to
be captured into registers RCAP2L and RCAP2H, respectively. In
addition, the transition at T2EX causes bit EXF2 in T2CON to be
set, and EXF2 (like TF2) can generate an interrupt (which vectors to
the same location as Timer 2 overflow interrupt. The Timer 2
interrupt service routine can interrogate TF2 and EXF2 to determine
which event caused the interrupt). The capture mode is illustrated in
Figure 7 (There is no reload value for TL2 and TH2 in this mode.
Even when a capture event occurs from T2EX, the counter keeps on
counting T2EX pin transitions or osc/12 (12-clock Mode) or osc/6
(6-clock Mode) pulses).
If EXEN2=1, then a 16-bit reload can be triggered either by an
overflow or by a 1-to-0 transition at input T2EX. This transition also
sets the EXF2 bit. The Timer 2 interrupt, if enabled, can be
generated when either TF2 or EXF2 are 1.
In Figure 10 DCEN=1 which enables Timer 2 to count up or down.
This mode allows pin T2EX to control the direction of count. When a
logic 1 is applied at pin T2EX, Timer 2 will count up. Timer 2 will
overflow at 0FFFFH and set the TF2 flag, which can then generate
an interrupt, if the interrupt is enabled. This timer overflow also
causes the 16-bit value in RCAP2L and RCAP2H to be reloaded
into the timer registers TL2 and TH2.
A logic 0 applied to pin T2EX causes Timer 2 to count down. The
timer will underflow when TL2 and TH2 become equal to the value
stored in RCAP2L and RCAP2H. A Timer 2 underflow sets the TF2
flag and causes 0FFFFH to be reloaded into the timer registers TL2
and TH2.
The external flag EXF2 toggles when Timer 2 underflows or
overflows. This EXF2 bit can be used as a 17th bit of resolution if
needed. The EXF2 flag does not generate an interrupt in this mode
of operation.
Auto-Reload Mode (Up or Down Counter)
In the 16-bit auto-reload mode, Timer 2 can be configured as either
a timer or counter (C/T2 in T2CON), then programmed to count up
or down. The counting direction is determined by bit DCEN (Down
2002 Jun 11
15
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Table 4. Timer 2 Operating Modes
RCLK + TCLK
CP/RL2
TR2
0
0
1
16-bit Auto-reload
0
1
1
16-bit Capture
1
X
1
Baud rate generator
X
X
0
(off)
T2CON
MODE
Address = C8H
Bit Addressable
Reset Value = 00H
7
TF2
6
5
4
3
2
1
0
EXF2
RCLK
TCLK
EXEN2
TR2
C/T2
CP/RL2
Symbol
Position
Name and Significance
TF2
T2CON.7
EXF2
T2CON.6
RCLK
T2CON.5
TCLK
T2CON.4
EXEN2
T2CON.3
TR2
C/T2
T2CON.2
T2CON.1
CP/RL2
T2CON.0
Timer 2 overflow flag set by a Timer 2 overflow and must be cleared by software. TF2 will not be set
when either RCLK or TCLK = 1.
Timer 2 external flag set when either a capture or reload is caused by a negative transition on T2EX and
EXEN2 = 1. When Timer 2 interrupt is enabled, EXF2 = 1 will cause the CPU to vector to the Timer 2
interrupt routine. EXF2 must be cleared by software. EXF2 does not cause an interrupt in up/down
counter mode (DCEN = 1).
Receive clock flag. When set, causes the serial port to use Timer 2 overflow pulses for its receive clock
in modes 1 and 3. RCLK = 0 causes Timer 1 overflow to be used for the receive clock.
Transmit clock flag. When set, causes the serial port to use Timer 2 overflow pulses for its transmit clock
in modes 1 and 3. TCLK = 0 causes Timer 1 overflows to be used for the transmit clock.
Timer 2 external enable flag. When set, allows a capture or reload to occur as a result of a negative
transition on T2EX if Timer 2 is not being used to clock the serial port. EXEN2 = 0 causes Timer 2 to
ignore events at T2EX.
Start/stop control for Timer 2. A logic 1 starts the timer.
Timer or counter select. (Timer 2)
0 = Internal timer (OSC/12 in 12-clock mode or OSC/6 in 6-clock mode)
1 = External event counter (falling edge triggered).
Capture/Reload flag. When set, captures will occur on negative transitions at T2EX if EXEN2 = 1. When
cleared, auto-reloads will occur either with Timer 2 overflows or negative transitions at T2EX when
EXEN2 = 1. When either RCLK = 1 or TCLK = 1, this bit is ignored and the timer is forced to auto-reload
on Timer 2 overflow.
SU01621
Figure 6. Timer/Counter 2 (T2CON) Control Register
2002 Jun 11
16
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
÷ n*
OSC
C/T2 = 0
TL2
(8 bits)
TH2
(8 bits)
TF2
C/T2 = 1
T2 Pin
Control
TR2
Capture
Transition
Detector
Timer 2
Interrupt
RCAP2L
RCAP2H
T2EX Pin
EXF2
Control
EXEN2
SU01622
*n = 6 in 6-clock mode; n = 12 in 12-clock mode.
Figure 7. Timer 2 in Capture Mode
T2MOD
Address = 0C9H
Reset Value = XXXX XX00B
Not Bit Addressable
Symbol
Position
—
*
7
6
5
4
3
2
1
0
—
—
—
—
—
—
T2OE
DCEN
Function
Not implemented, reserved for future use.*
T2OE
T2MOD.1
DCEN
T2MOD.0
Timer 2 Output Enable bit.
Down Count Enable bit. When set, this allows Timer 2 to be configured as an up/down
counter.
User software should not write 1s to reserved bits. These bits may be used in future 8051 family products to invoke new features.
In that case, the reset or inactive value of the new bit will be 0, and its active value will be 1. The value read from a reserved bit is
indeterminate.
SU01519
Figure 8. Timer 2 Mode (T2MOD) Control Register
2002 Jun 11
17
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
÷ n*
OSC
C/T2 = 0
TL2
(8-BITS)
TH2
(8-BITS)
C/T2 = 1
T2 Pin
CONTROL
TR2
RELOAD
TRANSITION
DETECTOR
RCAP2L
RCAP2H
TF2
TIMER 2
INTERRUPT
T2EX PIN
EXF2
CONTROL
*n = 6 in 6-clock mode; n = 12 in 12-clock mode.
SU01623
EXEN2
Figure 9. Timer 2 in Auto-Reload Mode (DCEN = 0)
(DOWN COUNTING RELOAD VALUE)
FFH
FFH
TOGGLE
EXF2
÷ n*
OSC
C/T2 = 0
OVERFLOW
TL2
TH2
TF2
INTERRUPT
C/T2 = 1
T2 Pin
CONTROL
TR2
COUNT
DIRECTION
1 = UP
0 = DOWN
RCAP2L
RCAP2H
*n = 6 in 6-clock mode; n = 12 in 12-clock mode.
(UP COUNTING RELOAD VALUE)
Figure 10. Timer 2 Auto Reload Mode (DCEN = 1)
2002 Jun 11
18
T2EX PIN
SU01624
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Timer 1
Overflow
n = 1 in 6-clock mode
n = 2 in 12-clock mode.
÷2
OSC
“0”
÷n
“1”
C/T2 = 0
SMOD
TL2
(8 bits)
“1”
TH2
(8 bits)
“0”
RCLK
C/T2 = 1
T2 Pin
Control
÷ 16
“1”
TR2
Reload
Transition
Detector
RCAP2L
T2EX Pin
EXF2
RCAP2H
RX Clock
“0”
TCLK
÷ 16
TX Clock
Timer 2
Interrupt
Control
EXEN2
Note availability of additional external interrupt.
SU01625
Figure 11. Timer 2 in Baud Rate Generator Mode
Modes 1 and 3 Baud Rates =
Oscillator Frequency
[n [65536 * (RCAP2H, RCAP2L)]]
Baud Rate Generator Mode
Bits TCLK and/or RCLK in T2CON (Table 4) allow the serial port
transmit and receive baud rates to be derived from either Timer 1 or
Timer 2. When TCLK= 0, Timer 1 is used as the serial port transmit
baud rate generator. When TCLK= 1, Timer 2 is used as the serial
port transmit baud rate generator. RCLK has the same effect for the
serial port receive baud rate. With these two bits, the serial port can
have different receive and transmit baud rates – one generated by
Timer 1, the other by Timer 2.
Where:
n = 16 in 6-clock mode, 32 in 12-clock mode.
(RCAP2H, RCAP2L)= The content of RCAP2H and RCAP2L
taken as a 16-bit unsigned integer.
The Timer 2 as a baud rate generator mode shown in Figure 11 is
valid only if RCLK and/or TCLK = 1 in T2CON register. Note that a
rollover in TH2 does not set TF2, and will not generate an interrupt.
Thus, the Timer 2 interrupt does not have to be disabled when
Timer 2 is in the baud rate generator mode. Also if the EXEN2
(T2 external enable flag) is set, a 1-to-0 transition in T2EX
(Timer/counter 2 trigger input) will set EXF2 (T2 external flag) but
will not cause a reload from (RCAP2H, RCAP2L) to (TH2,TL2).
Therefore when Timer 2 is in use as a baud rate generator, T2EX
can be used as an additional external interrupt, if needed.
Figure 11 shows the Timer 2 in baud rate generation mode. The
baud rate generation mode is like the auto-reload mode, in that a
rollover in TH2 causes the Timer 2 registers to be reloaded with the
16-bit value in registers RCAP2H and RCAP2L, which are preset by
software.
The baud rates in modes 1 and 3 are determined by Timer 2’s
overflow rate given below:
Modes 1 and 3 Baud Rates + Timer 2 Overflow Rate
16
When Timer 2 is in the baud rate generator mode, one should not try
to read or write TH2 and TL2. As a baud rate generator, Timer 2 is
incremented every state time (osc/2) or asynchronously from pin T2;
under these conditions, a read or write of TH2 or TL2 may not be
accurate. The RCAP2 registers may be read, but should not be
written to, because a write might overlap a reload and cause write
and/or reload errors. The timer should be turned off (clear TR2)
before accessing the Timer 2 or RCAP2 registers.
The timer can be configured for either “timer” or “counter” operation.
In many applications, it is configured for “timer” operation (C/T2=0).
Timer operation is different for Timer 2 when it is being used as a
baud rate generator.
Usually, as a timer it would increment every machine cycle (i.e., 1/6
the oscillator frequency in 6-clock mode or 1/12 the oscillator
frequency in 12-clock mode). As a baud rate generator, it
increments at the oscillator frequency in 6-clock mode or at 1/2 the
oscillator frequency in 12-clock mode. Thus the baud rate formula is
as follows:
2002 Jun 11
Table 5 shows commonly used baud rates and how they can be
obtained from Timer 2.
19
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Table 5.
Timer 2 Generated Commonly Used
Baud Rates
Baud Rate
Timer/Counter 2 Set-up
Except for the baud rate generator mode, the values given for
T2CON do not include the setting of the TR2 bit. Therefore, bit TR2
must be set, separately, to turn the timer on. See Table 6 for set-up
of Timer 2 as a timer. Also see Table 7 for set-up of Timer 2 as a
counter.
Timer 2
12-clk
mode
6-clk
mode
Osc Freq
375 K
9.6 K
4.8 K
2.4 K
1.2 K
300
110
300
110
750 K
19.2 K
9.6 K
4.8 K
2.4 K
600
220
600
220
12 MHz
12 MHz
12 MHz
12 MHz
12 MHz
12 MHz
12 MHz
6 MHz
6 MHz
RCAP2H
RCAP2L
FF
FF
FF
FF
FE
FB
F2
FD
F9
FF
D9
B2
64
C8
1E
AF
8F
57
Table 6. Timer 2 as a Timer
T2CON
Summary Of Baud Rate Equations
Timer 2 is in baud rate generating mode. If Timer 2 is being clocked
through pin T2(P1.0) the baud rate is:
Baud Rate + Timer 2 Overflow Rate
16
MODE
INTERNAL
CONTROL
(Note 1)
EXTERNAL
CONTROL
(Note 2)
16-bit Auto-Reload
00H
08H
16-bit Capture
01H
09H
Baud rate generator receive
and transmit same baud rate
34H
36H
Receive only
24H
26H
Transmit only
14H
16H
Table 7. Timer 2 as a Counter
If Timer 2 is being clocked internally, the baud rate is:
Baud Rate +
[n
TMOD
f OSC
[65536 * (RCAP2H, RCAP2L)]]
MODE
Where:
n = 16 in 6-clock mode, 32 in 12-clock mode.
INTERNAL
CONTROL
(Note 1)
EXTERNAL
CONTROL
(Note 2)
16-bit
02H
0AH
Auto-Reload
03H
0BH
fOSC= Oscillator Frequency
NOTES:
1. Capture/reload occurs only on timer/counter overflow.
2. Capture/reload occurs on timer/counter overflow and a 1-to-0
transition on T2EX (P1.1) pin except when Timer 2 is used in the
baud rate generator mode.
To obtain the reload value for RCAP2H and RCAP2L, the above
equation can be rewritten as:
RCAP2H, RCAP2L + 65536 *
2002 Jun 11
ǒ
n
Ǔ
f OSC
Baud Rate
20
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
The slaves that weren’t being addressed leave their SM2s set and
go on about their business, ignoring the coming data bytes.
FULL-DUPLEX ENHANCED UART
Standard UART operation
SM2 has no effect in Mode 0, and in Mode 1 can be used to check
the validity of the stop bit. In a Mode 1 reception, if SM2 = 1, the
receive interrupt will not be activated unless a valid stop bit is
received.
The serial port is full duplex, meaning it can transmit and receive
simultaneously. It is also receive-buffered, meaning it can
commence reception of a second byte before a previously received
byte has been read from the register. (However, if the first byte still
hasn’t been read by the time reception of the second byte is
complete, one of the bytes will be lost.) The serial port receive and
transmit registers are both accessed at Special Function Register
SBUF. Writing to SBUF loads the transmit register, and reading
SBUF accesses a physically separate receive register.
Serial Port Control Register
The serial port control and status register is the Special Function
Register SCON, shown in Figure 12. This register contains not only
the mode selection bits, but also the 9th data bit for transmit and
receive (TB8 and RB8), and the serial port interrupt bits (TI and RI).
The serial port can operate in 4 modes:
Mode 0:
Serial data enters and exits through RxD. TxD outputs
the shift clock. 8 bits are transmitted/received (LSB first).
The baud rate is fixed at 1/12 the oscillator frequency in
12-clock mode or 1/6 the oscillator frequency in 6-clock
mode.
Mode 1:
10 bits are transmitted (through TxD) or received
(through RxD): a start bit (0), 8 data bits (LSB first), and
a stop bit (1). On receive, the stop bit goes into RB8 in
Special Function Register SCON. The baud rate is
variable.
Mode 2:
Mode 3:
Baud Rates
The baud rate in Mode 0 is fixed: Mode 0 Baud Rate = Oscillator
Frequency / 12 (12-clock mode) or / 6 (6-clock mode). The baud
rate in Mode 2 depends on the value of bit SMOD in Special
Function Register PCON. If SMOD = 0 (which is the value on reset),
and the port pins in 12-clock mode, the baud rate is 1/64 the
oscillator frequency. If SMOD = 1, the baud rate is 1/32 the oscillator
frequency. In 6-clock mode, the baud rate is 1/32 or 1/16 the
oscillator frequency, respectively.
Mode 2 Baud Rate =
2 SMOD
n
11 bits are transmitted (through TxD) or received
(through RxD): start bit (0), 8 data bits (LSB first), a
programmable 9th data bit, and a stop bit (1). On
Transmit, the 9th data bit (TB8 in SCON) can be
assigned the value of 0 or 1. Or, for example, the parity
bit (P, in the PSW) could be moved into TB8. On receive,
the 9th data bit goes into RB8 in Special Function
Register SCON, while the stop bit is ignored. The baud
rate is programmable to either 1/32 or 1/64 the oscillator
frequency in 12-clock mode or 1/16 or 1/32 the oscillator
frequency in 6-clock mode.
Where:
n = 64 in 12-clock mode, 32 in 6-clock mode
The baud rates in Modes 1 and 3 are determined by the Timer 1 or
Timer 2 overflow rate.
Using Timer 1 to Generate Baud Rates
When Timer 1 is used as the baud rate generator (T2CON.RCLK
= 0, T2CON.TCLK = 0), the baud rates in Modes 1 and 3 are
determined by the Timer 1 overflow rate and the value of SMOD as
follows:
11 bits are transmitted (through TxD) or received
(through RxD): a start bit (0), 8 data bits (LSB first), a
programmable 9th data bit, and a stop bit (1). In fact,
Mode 3 is the same as Mode 2 in all respects except
baud rate. The baud rate in Mode 3 is variable.
Mode 1, 3 Baud Rate =
2 SMOD
n
(Timer 1 Overflow Rate)
Where:
In all four modes, transmission is initiated by any instruction that
uses SBUF as a destination register. Reception is initiated in Mode 0
by the condition RI = 0 and REN = 1. Reception is initiated in the
other modes by the incoming start bit if REN = 1.
n = 32 in 12-clock mode, 16 in 6-clock mode
The Timer 1 interrupt should be disabled in this application. The
Timer itself can be configured for either “timer” or “counter”
operation, and in any of its 3 running modes. In the most typical
applications, it is configured for “timer” operation, in the auto-reload
mode (high nibble of TMOD = 0010B). In that case the baud rate is
given by the formula:
Multiprocessor Communications
Modes 2 and 3 have a special provision for multiprocessor
communications. In these modes, 9 data bits are received. The 9th
one goes into RB8. Then comes a stop bit. The port can be
programmed such that when the stop bit is received, the serial port
interrupt will be activated only if RB8 = 1. This feature is enabled by
setting bit SM2 in SCON. A way to use this feature in multiprocessor
systems is as follows:
Mode 1, 3 Baud Rate =
2 SMOD
n
Oscillator Frequency
12 [256–(TH1)]
Where:
When the master processor wants to transmit a block of data to one
of several slaves, it first sends out an address byte which identifies
the target slave. An address byte differs from a data byte in that the
9th bit is 1 in an address byte and 0 in a data byte. With SM2 = 1, no
slave will be interrupted by a data byte. An address byte, however,
will interrupt all slaves, so that each slave can examine the received
byte and see if it is being addressed. The addressed slave will clear
its SM2 bit and prepare to receive the data bytes that will be coming.
2002 Jun 11
(Oscillator Frequency)
n = 32 in 12-clock mode, 16 in 6-clock mode
One can achieve very low baud rates with Timer 1 by leaving the
Timer 1 interrupt enabled, and configuring the Timer to run as a
16-bit timer (high nibble of TMOD = 0001B), and using the Timer 1
interrupt to do a 16-bit software reload. Figure 13 lists various
commonly used baud rates and how they can be obtained from
Timer 1.
21
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
SCON
Address = 98H
Bit Addressable
Reset Value = 00H
7
6
5
4
3
2
1
0
SM0
SM1
SM2
REN
TB8
RB8
TI
RI
Where SM0, SM1 specify the serial port mode, as follows:
SM0
0
0
1
1
SM1
0
1
0
1
Mode
0
1
2
3
Description
shift register
8-bit UART
9-bit UART
9-bit UART
Baud Rate
fOSC/12 (12-clock mode) or fOSC/6 (6-clock mode)
variable
fOSC/64 or fOSC/32 (12-clock mode) or fOSC/32 or fOSC/16 (6-clock mode)
variable
SM2
Enables the multiprocessor communication feature in Modes 2 and 3. In Mode 2 or 3, if SM2 is set to 1, then Rl will not be
activated if the received 9th data bit (RB8) is 0. In Mode 1, if SM2=1 then RI will not be activated if a valid stop bit was not
received. In Mode 0, SM2 should be 0.
REN
Enables serial reception. Set by software to enable reception. Clear by software to disable reception.
TB8
The 9th data bit that will be transmitted in Modes 2 and 3. Set or clear by software as desired.
RB8
In Modes 2 and 3, is the 9th data bit that was received. In Mode 1, it SM2=0, RB8 is the stop bit that was received. In Mode 0,
RB8 is not used.
TI
Transmit interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or at the beginning of the stop bit in the other
modes, in any serial transmission. Must be cleared by software.
RI
Receive interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or halfway through the stop bit time in the other
modes, in any serial reception (except see SM2). Must be cleared by software.
SU01626
Figure 12. Serial Port Control (SCON) Register
Timer 1
Baud Rate
Mode
12-clock mode
6-clock mode
Mode 0 Max
Mode 2 Max
Mode 1, 3 Max
Mode 1, 3
1.67 MHz
625 k
104.2 k
19.2 k
9.6 k
4.8 k
2.4 k
1.2 k
137.5
110
110
3.34 MHz
1250 k
208.4 k
38.4 k
19.2 k
9.6 k
4.8 k
2.4 k
275
220
220
fOSC
SMOD
20 MHz
20 MHz
20 MHz
11.059 MHz
11.059 MHz
11.059 MHz
11.059 MHz
11.059 MHz
11.986 MHz
6 MHz
12 MHz
X
1
1
1
0
0
0
0
0
0
0
C/T
Mode
Reload Value
X
X
0
0
0
0
0
0
0
0
0
X
X
2
2
2
2
2
2
2
2
1
X
X
FFH
FDH
FDH
FAH
F4H
E8H
1DH
72H
FEEBH
Figure 13. Timer 1 Generated Commonly Used Baud Rates
More About Mode 0
Serial data enters and exits through RxD. TxD outputs the shift
clock. 8 bits are transmitted/received: 8 data bits (LSB first). The
baud rate is fixed a 1/12 the oscillator frequency (12-clock mode) or
1/6 the oscillator frequency (6-clock mode).
S6P2 of every machine cycle in which SEND is active, the contents
of the transmit shift are shifted to the right one position.
As data bits shift out to the right, zeros come in from the left. When
the MSB of the data byte is at the output position of the shift register,
then the 1 that was initially loaded into the 9th position, is just to the
left of the MSB, and all positions to the left of that contain zeros.
This condition flags the TX Control block to do one last shift and
then deactivate SEND and set T1. Both of these actions occur at
S1P1 of the 10th machine cycle after “write to SBUF.”
Figure 14 shows a simplified functional diagram of the serial port in
Mode 0, and associated timing.
Transmission is initiated by any instruction that uses SBUF as a
destination register. The “write to SBUF” signal at S6P2 also loads a
1 into the 9th position of the transmit shift register and tells the TX
Control block to commence a transmission. The internal timing is
such that one full machine cycle will elapse between “write to SBUF”
and activation of SEND.
Reception is initiated by the condition REN = 1 and R1 = 0. At S6P2
of the next machine cycle, the RX Control unit writes the bits
11111110 to the receive shift register, and in the next clock phase
activates RECEIVE.
RECEIVE enable SHIFT CLOCK to the alternate output function line
of P3.1. SHIFT CLOCK makes transitions at S3P1 and S6P1 of
every machine cycle. At S6P2 of every machine cycle in which
RECEIVE is active, the contents of the receive shift register are
SEND enables the output of the shift register to the alternate output
function line of P3.0 and also enable SHIFT CLOCK to the alternate
output function line of P3.1. SHIFT CLOCK is low during S3, S4, and
S5 of every machine cycle, and high during S6, S1, and S2. At
2002 Jun 11
22
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
shifted to the left one position. The value that comes in from the right
is the value that was sampled at the P3.0 pin at S5P2 of the same
machine cycle.
whether the above conditions are met or not, the unit goes back to
looking for a 1-to-0 transition in RxD.
More About Modes 2 and 3
Eleven bits are transmitted (through TxD), or received (through
RxD): a start bit (0), 8 data bits (LSB first), a programmable 9th data
bit, and a stop bit (1). On transmit, the 9th data bit (TB8) can be
assigned the value of 0 or 1. On receive, the 9the data bit goes into
RB8 in SCON. The baud rate is programmable to either 1/32 or 1/64
(12-clock mode) or 1/16 or 1/32 the oscillator frequency (6-clock
mode) the oscillator frequency in Mode 2. Mode 3 may have a
variable baud rate generated from Timer 1 or Timer 2.
As data bits come in from the right, 1s shift out to the left. When the
0 that was initially loaded into the rightmost position arrives at the
leftmost position in the shift register, it flags the RX Control block to
do one last shift and load SBUF. At S1P1 of the 10th machine cycle
after the write to SCON that cleared RI, RECEIVE is cleared as RI is
set.
More About Mode 1
Ten bits are transmitted (through TxD), or received (through RxD): a
start bit (0), 8 data bits (LSB first), and a stop bit (1). On receive, the
stop bit goes into RB8 in SCON. In the 80C51 the baud rate is
determined by the Timer 1 or Timer 2 overflow rate.
Figures 16 and 17 show a functional diagram of the serial port in
Modes 2 and 3. The receive portion is exactly the same as in Mode
1. The transmit portion differs from Mode 1 only in the 9th bit of the
transmit shift register.
Figure 15 shows a simplified functional diagram of the serial port in
Mode 1, and associated timings for transmit receive.
Transmission is initiated by any instruction that uses SBUF as a
destination register. The “write to SBUF” signal also loads TB8 into
the 9th bit position of the transmit shift register and flags the TX
Control unit that a transmission is requested. Transmission
commences at S1P1 of the machine cycle following the next rollover
in the divide-by-16 counter. (Thus, the bit times are synchronized to
the divide-by-16 counter, not to the “write to SBUF” signal.)
Transmission is initiated by any instruction that uses SBUF as a
destination register. The “write to SBUF” signal also loads a 1 into
the 9th bit position of the transmit shift register and flags the TX
Control unit that a transmission is requested. Transmission actually
commences at S1P1 of the machine cycle following the next rollover
in the divide-by-16 counter. (Thus, the bit times are synchronized to
the divide-by-16 counter, not to the “write to SBUF” signal.)
The transmission begins with activation of SEND, which puts the
start bit at TxD. One bit time later, DATA is activated, which enables
the output bit of the transmit shift register to TxD. The first shift pulse
occurs one bit time after that. The first shift clocks a 1 (the stop bit)
into the 9th bit position of the shift register. Thereafter, only zeros
are clocked in. Thus, as data bits shift out to the right, zeros are
clocked in from the left. When TB8 is at the output position of the
shift register, then the stop bit is just to the left of TB8, and all
positions to the left of that contain zeros. This condition flags the TX
Control unit to do one last shift and then deactivate SEND and set
TI. This occurs at the 11th divide-by-16 rollover after “write to SUBF.”
The transmission begins with activation of SEND which puts the
start bit at TxD. One bit time later, DATA is activated, which enables
the output bit of the transmit shift register to TxD. The first shift pulse
occurs one bit time after that.
As data bits shift out to the right, zeros are clocked in from the left.
When the MSB of the data byte is at the output position of the shift
register, then the 1 that was initially loaded into the 9th position is
just to the left of the MSB, and all positions to the left of that contain
zeros. This condition flags the TX Control unit to do one last shift
and then deactivate SEND and set TI. This occurs at the 10th
divide-by-16 rollover after “write to SBUF.”
Reception is initiated by a detected 1-to-0 transition at RxD. For this
purpose RxD is sampled at a rate of 16 times whatever baud rate
has been established. When a transition is detected, the
divide-by-16 counter is immediately reset, and 1FFH is written to the
input shift register.
Reception is initiated by a detected 1-to-0 transition at RxD. For this
purpose RxD is sampled at a rate of 16 times whatever baud rate
has been established. When a transition is detected, the
divide-by-16 counter is immediately reset, and 1FFH is written into
the input shift register. Resetting the divide-by-16 counter aligns its
rollovers with the boundaries of the incoming bit times.
At the 7th, 8th, and 9th counter states of each bit time, the bit
detector samples the value of R-D. The value accepted is the value
that was seen in at least 2 of the 3 samples. If the value accepted
during the first bit time is not 0, the receive circuits are reset and the
unit goes back to looking for another 1-to-0 transition. If the start bit
proves valid, it is shifted into the input shift register, and reception of
the rest of the frame will proceed.
The 16 states of the counter divide each bit time into 16ths. At the
7th, 8th, and 9th counter states of each bit time, the bit detector
samples the value of RxD. The value accepted is the value that was
seen in at least 2 of the 3 samples. This is done for noise rejection.
If the value accepted during the first bit time is not 0, the receive
circuits are reset and the unit goes back to looking for another 1-to-0
transition. This is to provide rejection of false start bits. If the start bit
proves valid, it is shifted into the input shift register, and reception of
the rest of the frame will proceed.
As data bits come in from the right, 1s shift out to the left. When the
start bit arrives at the leftmost position in the shift register (which in
Modes 2 and 3 is a 9-bit register), it flags the RX Control block to do
one last shift, load SBUF and RB8, and set RI.
The signal to load SBUF and RB8, and to set RI, will be generated
if, and only if, the following conditions are met at the time the final
shift pulse is generated.
1. RI = 0, and
2. Either SM2 = 0, or the received 9th data bit = 1.
As data bits come in from the right, 1s shift out to the left. When the
start bit arrives at the leftmost position in the shift register (which in
mode 1 is a 9-bit register), it flags the RX Control block to do one
last shift, load SBUF and RB8, and set RI. The signal to load SBUF
and RB8, and to set RI, will be generated if, and only if, the following
conditions are met at the time the final shift pulse is generated.:
1. R1 = 0, and
2. Either SM2 = 0, or the received stop bit = 1.
If either of these conditions is not met, the received frame is
irretrievably lost, and RI is not set. If both conditions are met, the
received 9th data bit goes into RB8, and the first 8 data bits go into
SBUF. One bit time later, whether the above conditions were met or
not, the unit goes back to looking for a 1-to-0 transition at the RxD
input.
If either of these two conditions is not met, the received frame is
irretrievably lost. If both conditions are met, the stop bit goes into
RB8, the 8 data bits go into SBUF, and RI is activated. At this time,
2002 Jun 11
23
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
80C51 Internal Bus
Write
to
SBUF
S
D
Q
RxD
P3.0 Alt
Output
Function
SBUF
CL
Zero Detector
Start
Shift
TX Control
S6
T1
TX Clock
Send
Serial
Port
Interrupt
R1
RX Clock
Receive
RX Control
REN
RI
Start
1
1
1
TxD
P3.1 Alt
Output
Function
Shift
Clock
Shift
1
1
1
1
0
MSB
LSB
RxD
P3.0 Alt
Input
Function
Input Shift Register
Shift
Load
SBUF
LSB
MSB
SBUF
Read
SBUF
80C51 Internal Bus
S4 . .
S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1 . . . . S6 S1
ALE
Write to SBUF
S6P2
Send
Shift
Transmit
RxD (Data Out)
D0
D1
D2
D3
D4
D5
D6
D7
TxD (Shift Clock)
S3P1
TI
S6P1
Write to SCON (Clear RI)
RI
Receive
Shift
RxD (Data In)
Receive
D0
D1
D2
D3
D4
D5
D6
D7
S5P2
TxD (Shift Clock)
SU00539
Figure 14. Serial Port Mode 0
2002 Jun 11
24
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Timer 1
Overflow
80C51 Internal Bus
TB8
÷2
SMOD = 0
SMOD = 1
Write
to
SBUF
S
D
Q
SBUF
TxD
CL
Zero Detector
Start
Data
Shift
TX Control
÷ 16
T1
Send
RX Clock RI
Load
SBUF
TX Clock
Serial
Port
Interrupt
÷ 16
Sample
RX Control
1-to-0
Transition
Detector
Shift
Start
1FFH
Bit Detector
Input Shift Register
(9 Bits)
Shift
RxD
Load
SBUF
SBUF
Read
SBUF
80C51 Internal Bus
TX
Clock
Write to SBUF
Send
Data
S1P1
Transmit
Shift
TxD
Start Bit
D0
D1
D2
D3
D4
D5
D6
D7
Stop Bit
D0
D1
D2
D3
D4
D5
D6
D7
Stop Bit
TI
÷ 16 Reset
RX
Clock
RxD
Bit Detector
Sample Times
Start
Bit
Receive
Shift
RI
SU00540
Figure 15. Serial Port Mode 1
2002 Jun 11
25
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
80C51 Internal Bus
TB8
Write
to
SBUF
S
D
Phase 2 Clock
(1/2 fOSC in
12-clock mode;
fOSC in 6-clock
mode)
Q
SBUF
TxD
CL
Zero Detector
Mode 2
Start
÷ 16
SMOD = 1
Stop Bit
Gen.
TX Control
TX Clock
Shift
Data
T1
Send
R1
Load
SBUF
Serial
Port
Interrupt
÷2
SMOD = 0
(SMOD is
PCON.7)
÷ 16
RX Clock
Sample
RX Control
1-to-0
Transition
Detector
Shift
Start
1FFH
Bit Detector
Input Shift Register
(9 Bits)
Shift
RxD
Load
SBUF
SBUF
Read
SBUF
80C51 Internal Bus
TX
Clock
Write to SBUF
Send
Data
S1P1
Transmit
Shift
TxD
Start Bit
D0
D1
D2
D3
D4
D5
D6
D7
TB8
D0
D1
D2
D3
D4
D5
D6
D7
RB8
Stop Bit
TI
Stop Bit Gen.
÷ 16 Reset
RX
Clock
RxD
Bit Detector
Sample Times
Start
Bit
Stop Bit
Receive
Shift
RI
SU01627
Figure 16. Serial Port Mode 2
2002 Jun 11
26
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Timer 1
Overflow
80C51 Internal Bus
TB8
Write
to
SBUF
÷2
SMOD = 0
SMOD = 1
S
D
Q
SBUF
TxD
CL
Zero Detector
Start
Data
Shift
TX Control
÷ 16
TX Clock
T1
Send
R1
Load
SBUF
Serial
Port
Interrupt
÷ 16
RX Clock
Sample
RX Control
1-to-0
Transition
Detector
Shift
Start
1FFH
Bit Detector
Input Shift Register
(9 Bits)
Shift
RxD
Load
SBUF
SBUF
Read
SBUF
80C51 Internal Bus
TX
Clock
Write to SBUF
Send
Data
S1P1
Transmit
Shift
TxD
Start Bit
D0
D1
D2
D3
D4
D5
D6
D7
TB8
D0
D1
D2
D3
D4
D5
D6
D7
RB8
Stop Bit
TI
Stop Bit Gen.
RX
Clock
RxD
Bit Detector
Sample Times
÷ 16 Reset
Start
Bit
Stop Bit
Receive
Shift
RI
SU00542
Figure 17. Serial Port Mode 3
2002 Jun 11
27
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Slave 1
Enhanced UART operation
In addition to the standard operation modes, the UART can perform
framing error detect by looking for missing stop bits, and automatic
address recognition. The UART also fully supports multiprocessor
communication.
In a more complex system the following could be used to select
slaves 1 and 2 while excluding slave 0:
Automatic Address Recognition
Automatic Address Recognition is a feature which allows the UART
to recognize certain addresses in the serial bit stream by using
hardware to make the comparisons. This feature saves a great deal
of software overhead by eliminating the need for the software to
examine every serial address which passes by the serial port. This
feature is enabled by setting the SM2 bit in SCON. In the 9 bit UART
modes, mode 2 and mode 3, the Receive Interrupt flag (RI) will be
automatically set when the received byte contains either the “Given”
address or the “Broadcast” address. The 9 bit mode requires that
the 9th information bit is a 1 to indicate that the received information
is an address and not data. Automatic address recognition is shown
in Figure 20.
Mode 0 is the Shift Register mode and SM2 is ignored.
Using the Automatic Address Recognition feature allows a master to
selectively communicate with one or more slaves by invoking the
Given slave address or addresses. All of the slaves may be
contacted by using the Broadcast address. Two special Function
Registers are used to define the slave’s address, SADDR, and the
address mask, SADEN. SADEN is used to define which bits in the
SADDR are to be used and which bits are “don’t care”. The SADEN
mask can be logically ANDed with the SADDR to create the “Given”
address which the master will use for addressing each of the slaves.
Use of the Given address allows multiple slaves to be recognized
while excluding others. The following examples will help to show the
versatility of this scheme:
2002 Jun 11
Slave 0
SADDR =
SADEN =
Given
=
1100 0000
1111 1001
1100 0XX0
Slave 1
SADDR =
SADEN =
Given
=
1110 0000
1111 1010
1110 0X0X
Slave 2
SADDR =
SADEN =
Given
=
1110 0000
1111 1100
1110 00XX
In the above example the differentiation among the 3 slaves is in the
lower 3 address bits. Slave 0 requires that bit 0 = 0 and it can be
uniquely addressed by 1110 0110. Slave 1 requires that bit 1 = 0 and
it can be uniquely addressed by 1110 and 0101. Slave 2 requires
that bit 2 = 0 and its unique address is 1110 0011. To select Slaves 0
and 1 and exclude Slave 2 use address 1110 0100, since it is
necessary to make bit 2 = 1 to exclude slave 2.
The 8 bit mode is called Mode 1. In this mode the RI flag will be set
if SM2 is enabled and the information received has a valid stop bit
following the 8 address bits and the information is either a Given or
Broadcast address.
SADDR =
SADEN =
Given
=
1100 0000
1111 1110
1100 000X
In the above example SADDR is the same and the SADEN data is
used to differentiate between the two slaves. Slave 0 requires a 0 in
bit 0 and it ignores bit 1. Slave 1 requires a 0 in bit 1 and bit 0 is
ignored. A unique address for Slave 0 would be 1100 0010 since
slave 1 requires a 0 in bit 1. A unique address for slave 1 would be
1100 0001 since a 1 in bit 0 will exclude slave 0. Both slaves can be
selected at the same time by an address which has bit 0 = 0 (for
slave 0) and bit 1 = 0 (for slave 1). Thus, both could be addressed
with 1100 0000.
When used for framing error detect the UART looks for missing stop
bits in the communication. A missing bit will set the FE bit in the
SCON register. The FE bit shares the SCON.7 bit with SM0 and the
function of SCON.7 is determined by PCON.6 (SMOD0) (see
Figure 18). If SMOD0 is set then SCON.7 functions as FE. SCON.7
functions as SM0 when SMOD0 is cleared. When used as FE
SCON.7 can only be cleared by software. Refer to Figure 19.
Slave 0
SADDR =
SADEN =
Given
=
The Broadcast Address for each slave is created by taking the
logical OR of SADDR and SADEN. Zeros in this result are trended
as don’t-cares. In most cases, interpreting the don’t-cares as ones,
the broadcast address will be FF hexadecimal.
Upon reset SADDR (SFR address 0A9H) and SADEN (SFR
address 0B9H) are leaded with 0s. This produces a given address
of all “don’t cares” as well as a Broadcast address of all “don’t
cares”. This effectively disables the Automatic Addressing mode and
allows the microcontroller to use standard 80C51 type UART drivers
which do not make use of this feature.
1100 0000
1111 1101
1100 00X0
28
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
SCON Address = 98H
Reset Value = 0000 0000B
Bit Addressable
7
6
5
4
3
2
1
0
SM0/FE
SM1
SM2
REN
TB8
RB8
Tl
Rl
(SMOD0 = 0/1)*
Symbol
Position
Function
FE
SCON.7
Framing Error bit. This bit is set by the receiver when an invalid stop bit is detected. The FE bit is not
cleared by valid frames but should be cleared by software. The SMOD0 bit must be set to enable
access to the FE bit.*
SM0
SCON.7
Serial Port Mode Bit 0, (SMOD0 must = 0 to access bit SM0)
SM1
SCON.6
Serial Port Mode Bit 1
SM0
SM1
Mode
Description
Baud Rate**
0
0
1
0
1
0
0
1
2
shift register
8-bit UART
9-bit UART
1
1
3
9-bit UART
fOSC/12 (12-clk mode) or fOSC/6 (6-clk mode)
variable
fOSC/64 or fOSC/32 or fOSC/16 (6-clock mode) or
fOSC/32 (12-clock mode)
variable
SM2
SCON.5
Enables the Automatic Address Recognition feature in Modes 2 or 3. If SM2 = 1 then Rl will not be set
unless the received 9th data bit (RB8) is 1, indicating an address, and the received byte is a Given or
Broadcast Address. In Mode 1, if SM2 = 1 then Rl will not be activated unless a valid stop bit was
received, and the received byte is a Given or Broadcast Address. In Mode 0, SM2 should be 0.
REN
SCON.4
Enables serial reception. Set by software to enable reception. Clear by software to disable reception.
TB8
SCON.3
The 9th data bit that will be transmitted in Modes 2 and 3. Set or clear by software as desired.
RB8
SCON.2
In modes 2 and 3, the 9th data bit that was received. In Mode 1, if SM2 = 0, RB8 is the stop bit that
was received.
In Mode 0, RB8 is not used.
Tl
SCON.1
Transmit interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or at the beginning of
the stop bit in the other modes, in any serial transmission. Must be cleared by software.
Rl
SCON.0
Receive interrupt flag. Set by hardware at the end of the 8th bit time in Mode 0, or halfway through the
stop bit time in the other modes, in any serial reception (except see SM2). Must be cleared by
software.
NOTES:
*SMOD0 is located at PCON.6.
**fOSC = oscillator frequency
SU01628
Figure 18. SCON: Serial Port Control Register
2002 Jun 11
29
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
D0
D1
D2
D3
D4
D5
D6
D7
D8
DATA BYTE
START
BIT
ONLY IN
MODE 2, 3
STOP
BIT
SET FE BIT IF STOP BIT IS 0 (FRAMING ERROR)
SM0 TO UART MODE CONTROL
SM0 / FE
SM1
SM2
REN
SMOD1
SMOD0
–
POF
TB8
GF1
RB8
TI
GF0
PD
RI
SCON
(98H)
IDL
PCON
(87H)
0 : SCON.7 = SM0
1 : SCON.7 = FE
SU01191
Figure 19. UART Framing Error Detection
D0
D1
D2
D3
D4
SM0
SM1
1
1
1
0
D5
SM2
1
D6
D7
D8
REN
TB8
RB8
1
X
TI
RI
SCON
(98H)
RECEIVED ADDRESS D0 TO D7
COMPARATOR
PROGRAMMED ADDRESS
IN UART MODE 2 OR MODE 3 AND SM2 = 1:
INTERRUPT IF REN=1, RB8=1 AND “RECEIVED ADDRESS” = “PROGRAMMED ADDRESS”
– WHEN OWN ADDRESS RECEIVED, CLEAR SM2 TO RECEIVE DATA BYTES
– WHEN ALL DATA BYTES HAVE BEEN RECEIVED: SET SM2 TO WAIT FOR NEXT ADDRESS.
SU00045
Figure 20. UART Multiprocessor Communication, Automatic Address Recognition
2002 Jun 11
30
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Priority Level Structure
Each interrupt source can also be individually programmed to one of
four priority levels by setting or clearing bits in Special Function
Registers IP (Figure 23) and IPH (Figure 24). A lower-priority
interrupt can itself be interrupted by a higher-priority interrupt, but
not by another interrupt of the same level. A high-priority level 3
interrupt can’t be interrupted by any other interrupt source.
Interrupt Priority Structure
0
INT0
IT0
IE0
1
If two request of different priority levels are received simultaneously,
the request of higher priority level is serviced. If requests of the
same priority level are received simultaneously, an internal polling
sequence determines which request is serviced. Thus within each
priority level there is a second priority structure determined by the
polling sequence as follows:
TF0
0
IT1
INT1
IE1
Interrupt
Sources
1
Source
1. IE0 (External Int 0)
2. TF0 (Timer 0)
3. IE1 (External Int 1)
4. TF1 (Timer 1)
5. RI+TI (UART)
6. TF2, EXF2 (Timer 2)
TF1
TI
RI
TF2, EXF2
Priority Within Level
(highest)
(lowest)
SU01521
Note that the “priority within level” structure is only used to resolve
simultaneous requests of the same priority level.
Figure 21. Interrupt Sources
The IP and IPH registers contain a number of unimplemented bits.
User software should not write 1s to these positions, since they may
be used in other 80C51 Family products.
Interrupts
The devices described in this data sheet provide six interrupt
sources. These are shown in Figure 21. The External Interrupts
INT0 and INT1 can each be either level-activated or
transition-activated, depending on bits IT0 and IT1 in Register
TCON. The flags that actually generate these interrupts are bits IE0
and IE1 in TCON. When an external interrupt is generated, the flag
that generated it is cleared by the hardware when the service routine
is vectored to only if the interrupt was transition-activated. If the
interrupt was level-activated, then the external requesting source is
what controls the request flag, rather than the on-chip hardware.
How Interrupts Are Handled
The interrupt flags are sampled at S5P2 of every machine cycle.
The samples are polled during the following machine cycle. If one of
the flags was in a set condition at S5P2 of the preceding cycle, the
polling cycle will find it and the interrupt system will generate an
LCALL to the appropriate service routine, provided this
hardware-generated LCALL is not blocked by any of the following
conditions:
1. An interrupt of equal or higher priority level is already in
progress.
2. The current (polling) cycle is not the final cycle in the execution
of the instruction in progress.
3. The instruction in progress is RETI or any write to the IE or IP
registers.
The Timer 0 and Timer 1 Interrupts are generated by TF0 and TF1,
which are set by a rollover in their respective Timer/Counter
registers (except see Timer 0 in Mode 3). When a timer interrupt is
generated, the flag that generated it is cleared by the on-chip
hardware when the service routine is vectored to.
Any of these three conditions will block the generation of the LCALL
to the interrupt service routine. Condition 2 ensures that the
instruction in progress will be completed before vectoring to any
service routine. Condition 3 ensures that if the instruction in
progress is RETI or any access to IE or IP, then at least one more
instruction will be executed before any interrupt is vectored to.
The Serial Port Interrupt is generated by the logical OR of RI and TI.
Neither of these flags is cleared by hardware when the service
routine is vectored to. In fact, the service routine will normally have
to determine whether it was RI or TI that generated the interrupt,
and the bit will have to be cleared in software.
All of the bits that generate interrupts can be set or cleared by
software, with the same result as though it had been set or cleared
by hardware. That is, interrupts can be generated or pending
interrupts can be canceled in software.
The polling cycle is repeated with each machine cycle, and the
values polled are the values that were present at S5P2 of the
previous machine cycle. Note that if an interrupt flag is active but not
being responded to for one of the above conditions, if the flag is not
still active when the blocking condition is removed, the denied
interrupt will not be serviced. In other words, the fact that the
interrupt flag was once active but not serviced is not remembered.
Every polling cycle is new.
Each of these interrupt sources can be individually enabled or
disabled by setting or clearing a bit in Special Function Register IE
(Figure 22). IE also contains a global disable bit, EA, which disables
all interrupts at once.
2002 Jun 11
31
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
IE
Address = 0A8H
Reset Value = 0X000000B
Bit Addressable
7
6
5
4
3
2
1
0
EA
—
ET2
ES
ET1
EX1
ET0
EX0
Enable Bit = 1 enables the interrupt.
Enable Bit = 0 disables it.
BIT
IE.7
SYMBOL
EA
IE.6
IE.5
IE.4
IE.3
IE.2
IE.1
IE.0
—
ET2
ES
ET1
EX1
ET0
EX0
FUNCTION
Global disable bit. If EA = 0, all interrupts are disabled. If EA = 1, each interrupt can be individually
enabled or disabled by setting or clearing its enable bit.
Not implemented. Reserved for future use.
Timer 2 interrupt enable bit.
Serial Port interrupt enable bit.
Timer 1 interrupt enable bit.
External interrupt 1 enable bit.
Timer 0 interrupt enable bit.
External interrupt 0 enable bit.
SU01522
Figure 22. Interrupt Enable (IE) Register
IP
Address = 0B8H
Reset Value = xx000000B
Bit Addressable
7
6
5
4
3
2
1
0
—
—
PT2
PS
PT1
PX1
PT0
PX0
Priority Bit = 1 assigns higher priority
Priority Bit = 0 assigns lower priority
BIT
IP.7
IP.6
IP.5
IP.4
IP.3
IP.2
IP.1
IP.0
SYMBOL
—
—
PT2
PS
PT1
PX1
PT0
PX0
FUNCTION
Not implemented, reserved for future use.
Not implemented, reserved for future use.
Timer 2 interrupt priority bit.
Serial Port interrupt priority bit.
Timer 1 interrupt priority bit.
External interrupt 1 priority bit.
Timer 0 interrupt priority bit.
External interrupt 0 priority bit.
SU01523
Figure 23. Interrupt Priority (IP) Register
IPH
Address = B7H
Bit Addressable
Reset Value = xx000000B
7
6
5
4
3
2
1
0
—
—
PT2H
PSH
PT1H
PX1H
PT0H
PX0H
Priority Bit = 1 assigns higher priority
Priority Bit = 0 assigns lower priority
BIT
IPH.7
IPH.6
IPH.5
IPH.4
IPH.3
IPH.2
IPH.1
IPH.0
SYMBOL
—
—
PT2H
PSH
PT1H
PX1H
PT0H
PX0H
FUNCTION
Not implemented, reserved for future use.
Not implemented, reserved for future use.
Timer 2 interrupt priority bit high.
Serial Port interrupt priority bit high.
Timer 1 interrupt priority bit high.
External interrupt 1 priority bit high.
Timer 0 interrupt priority bit high.
External interrupt 0 priority bit high.
Figure 24. Interrupt Priority HIGH (IPH) Register
2002 Jun 11
32
SU01524
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
.........
C1
S5P2
C2
C3
C4
C5
....
S6
.........
....
....
e
Interrupt
Goes
Active
Interrupts
Are Polled
Long Call to
Interrupt
Vector Address
Interrupt
Latched
Interrupt Routine
This is the fastest possible response when C2 is the final cycle of an instruction other than RETI or an access to IE or IP.
SU00546
Figure 25. Interrupt Response Timing Diagram
service routine is completed, or else another interrupt will be
generated.
The polling cycle/LCALL sequence is illustrated in Figure 25.
Note that if an interrupt of higher priority level goes active prior to
S5P2 of the machine cycle labeled C3 in Figure 25, then in
accordance with the above rules it will be vectored to during C5 and
C6, without any instruction of the lower priority routine having been
executed.
Response Time
The INT0 and INT1 levels are inverted and latched into IE0 and IE1
at S5P2 of every machine cycle. The values are not actually polled
by the circuitry until the next machine cycle. If a request is active
and conditions are right for it to be acknowledged, a hardware
subroutine call to the requested service routine will be the next
instruction to be executed. The call itself takes two cycles. Thus, a
minimum of three complete machine cycles elapse between
activation of an external interrupt request and the beginning of
execution of the first instruction of the service routine. Figure 25
shows interrupt response timings.
Thus the processor acknowledges an interrupt request by executing
a hardware-generated LCALL to the appropriate servicing routine. In
some cases it also clears the flag that generated the interrupt, and in
other cases it doesn’t. It never clears the Serial Port flag. This has to
be done in the user’s software. It clears an external interrupt flag
(IE0 or IE1) only if it was transition-activated. The
hardware-generated LCALL pushes the contents of the Program
Counter on to the stack (but it does not save the PSW) and reloads
the PC with an address that depends on the source of the interrupt
being vectored to, as shown in Table 8.
A longer response time would result if the request is blocked by one
of the 3 previously listed conditions. If an interrupt of equal or higher
priority level is already in progress, the additional wait time obviously
depends on the nature of the other interrupt’s service routine. If the
instruction in progress is not in its final cycle, the additional wait time
cannot be more the 3 cycles, since the longest instructions (MUL
and DIV) are only 4 cycles long, and if the instruction in progress is
RETI or an access to IE or IP, the additional wait time cannot be
more than 5 cycles (a maximum of one more cycle to complete the
instruction in progress, plus 4 cycles to complete the next instruction
if the instruction is MUL or DIV).
Execution proceeds from that location until the RETI instruction is
encountered. The RETI instruction informs the processor that this
interrupt routine is no longer in progress, then pops the top two
bytes from the stack and reloads the Program Counter. Execution of
the interrupted program continues from where it left off.
Note that a simple RET instruction would also have returned
execution to the interrupted program, but it would have left the
interrupt control system thinking an interrupt was still in progress,
making future interrupts impossible.
Thus, in a single-interrupt system, the response time is always more
than 3 cycles and less than 9 cycles.
External Interrupts
The external sources can be programmed to be level-activated or
transition-activated by setting or clearing bit IT1 or IT0 in Register
TCON. If ITx = 0, external interrupt x is triggered by a detected low
at the INTx pin. If ITx = 1, external interrupt x is edge triggered. In
this mode if successive samples of the INTx pin show a high in one
cycle and a low in the next cycle, interrupt request flag IEx in TCON
is set. Flag bit IEx then requests the interrupt.
As previously mentioned, the derivatives described in this data
sheet have a four-level interrupt structure. The corresponding
registers are IE, IP and IPH. (See Figures 22, 23, and 24.) The IPH
(Interrupt Priority High) register makes the four-level interrupt
structure possible.
The function of the IPH SFR is simple and when combined with the
IP SFR determines the priority of each interrupt. The priority of each
interrupt is determined as shown in the following table:
Since the external interrupt pins are sampled once each machine
cycle, an input high or low should hold for at least 12 oscillator
periods to ensure sampling. If the external interrupt is
transition-activated, the external source has to hold the request pin
high for at least one cycle, and then hold it low for at least one cycle.
This is done to ensure that the transition is seen so that interrupt
request flag IEx will be set. IEx will be automatically cleared by the
CPU when the service routine is called.
PRIORITY BITS
If the external interrupt is level-activated, the external source has to
hold the request active until the requested interrupt is actually
generated. Then it has to deactivate the request before the interrupt
2002 Jun 11
33
INTERRUPT PRIORITY LEVEL
IPH.x
IP.x
0
0
Level 0 (lowest priority)
0
1
Level 1
1
0
Level 2
1
1
Level 3 (highest priority)
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
interrupt is being serviced, it will be stopped and the new interrupt
serviced. When the new interrupt is finished, the lower priority level
interrupt that was stopped will be completed.
An interrupt will be serviced as long as an interrupt of equal or
higher priority is not already being serviced. If an interrupt of equal
or higher level priority is being serviced, the new interrupt will wait
until it is finished before being serviced. If a lower priority level
Table 8.
Interrupt Table
SOURCE
POLLING PRIORITY
REQUEST BITS
HARDWARE CLEAR?
N
(L)1
Y
VECTOR ADDRESS
(T)2
External interrupt 0
1
IE0
Timer 0
2
TF0
Y
03H
External interrupt 1
3
IE1
N (L) Y (T)
13H
Timer 1
4
TF1
Y
1BH
UART
5
RI, TI
N
23H
Timer 2
6
TF2, EXF2
N
2BH
0BH
NOTES:
1. L = Level activated
2. T = Transition activated
Note that bit 2 is not writable and is always read as a zero. This
allows the DPS bit to be quickly toggled simply by executing an INC
DPTR instruction without affecting the WUPD or LPEP bits.
Reduced EMI
All port pins have slew rate controlled outputs. This is to limit noise
generated by quickly switching output signals. The slew rate is
factory set to approximately 10 ns rise and fall times.
Reduced EMI Mode
The AO bit (AUXR.0) in the AUXR register when set disables the
ALE output.
DPS
BIT0
AUXR1
AUXR (8EH)
DPTR1
DPTR0
7
6
5
4
3
2
1
0
–
–
–
–
–
–
–
AO
AUXR.0
AO
DPH
(83H)
DPL
(82H)
Turns off ALE output.
EXTERNAL
DATA
MEMORY
SU00745A
Figure 26.
Dual DPTR
The dual DPTR structure (see Figure 26) enables a way to specify
the address of an external data memory location. There are two
16-bit DPTR registers that address the external memory, and a
single bit called DPS = AUXR1/bit0 that allows the program code to
switch between them.
DPTR Instructions
The instructions that refer to DPTR refer to the data pointer that is
currently selected using the AUXR1/bit 0 register. The six
instructions that use the DPTR are as follows:
• New Register Name: AUXR1#
• SFR Address: A2H
• Reset Value: xxx000x0B
AUXR1 (A2H)
7
6
5
4
3
2
1
0
–
–
–
LPEP
WUPD
0
–
DPS
Where:
DPS = AUXR1/bit0 = Switches between DPTR0 and DPTR1.
Select Reg
DPS
DPTR0
0
DPTR1
1
Increments the data pointer by 1
MOV DPTR, #data16
Loads the DPTR with a 16-bit constant
MOV A, @ A+DPTR
Move code byte relative to DPTR to ACC
MOVX A, @ DPTR
Move external RAM (16-bit address) to
ACC
MOVX @ DPTR , A
Move ACC to external RAM (16-bit
address)
JMP @ A + DPTR
Jump indirect relative to DPTR
The data pointer can be accessed on a byte-by-byte basis by
specifying the low or high byte in an instruction which accesses the
SFRs. See application note AN458 for more details.
The DPS bit status should be saved by software when switching
between DPTR0 and DPTR1.
2002 Jun 11
INC DPTR
34
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
ABSOLUTE MAXIMUM RATINGS1, 2, 3
PARAMETER
Operating temperature under bias
RATING
UNIT
0 to +70 or –40 to +85
°C
–65 to +150
°C
0 to +13.0
V
Storage temperature range
Voltage on EA/VPP pin to VSS
Voltage on any other pin to VSS
Maximum IOL per I/O pin
–0.5 to +6.5
V
15
mA
Power dissipation (based on package heat transfer limitations, not device power consumption)
1.5
W
NOTES:
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section
of this specification is not implied.
2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static
charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated maximum.
3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless otherwise
noted.
AC ELECTRICAL CHARACTERISTICS
Tamb = 0°C to +70°C or –40°C to +85°C
CLOCK FREQUENCY
RANGE
SYMBOL
1/tCLCL
2002 Jun 11
FIGURE
PARAMETER
31
Oscillator frequency
OPERATING MODE
POWER SUPPLY
VOLTAGE
MAX
UNIT
6-clock
5V
0
30
MHz
6-clock
2.7 V to 5.5 V
0
16
MHz
12-clock
5V
0
33
MHz
12-clock
2.7 V to 5.5 V
0
16
MHz
35
10%
MIN
10%
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
DC ELECTRICAL CHARACTERISTICS
Tamb = 0 °C to +70 °C or –40 °C to +85 °C; VCC = 2.7 V to 5.5 V; VSS = 0 V (16 MHz max. CPU clock)
SYMBOL
PARAMETER
TEST
CONDITIONS
VIL
Input low voltage11
4.0 V < VCC < 5.5 V
–0.5
0.2 VCC–0.1
V
2.7 V < VCC < 4.0 V
–0.5
0.7 VCC
V
VIH
Input high voltage (ports 0, 1, 2, 3, EA)
–
0.2 VCC+0.9
VCC+0.5
V
VIH1
Input high voltage, XTAL1, RST11
–
0.7 VCC
VCC+0.5
V
VOL
Output low voltage, ports 1, 2, 8
VCC = 2.7 V; IOL = 1.6 mA2
–
0.4
V
VOL1
Output low voltage, port 0, ALE, PSEN8, 7
VCC = 2.7 V; IOL = 3.2 mA2
–
0.4
V
VOH
Output high voltage, ports 1, 2, 3 3
VCC = 2.7 V; IOH = –20 mA
VCC – 0.7
–
V
VCC = 4.5 V; IOH = –30 mA
VCC – 0.7
–
V
LIMITS
MIN
UNIT
TYP1
MAX
VOH1
Output high voltage (port 0 in external bus VCC = 2.7 V; IOH = –3.2 mA
mode), ALE9, PSEN3
VCC – 0.7
–
V
IIL
Logical 0 input current, ports 1, 2, 3
VIN = 0.4 V
–1
–50
mA
ITL
Logical 1-to-0 transition current, ports 1, 2, 36
VIN = 2.0 V; See note 4
–
–650
mA
ILI
Input leakage current, port 0
0.45 < VIN < VCC – 0.3
–
±10
mA
ICC
Power supply current (see Figure 34 and
Source Code):
mA
Active mode @ 16 MHz
mA
Idle mode @ 16 MHz
Power-down mode or clock stopped
(see Figure 30 for conditions) 12
Tamb = 0 °C to 70 °C
Tamb = –40 °C to +85 °C
2
30
mA
3
50
mA
VRAM
RAM keep-alive voltage
–
1.2
RRST
Internal reset pull-down resistor
–
40
225
V
kW
CIO
Pin capacitance10 (except EA)
–
–
15
pF
NOTES:
1. Typical ratings are not guaranteed. Values listed are based on tests conducted on limited number of samples at room temperature.
2. Capacitive loading on ports 0 and 2 may cause spurious noise to be superimposed on the VOLs of ALE and ports 1 and 3. The noise is
due to external bus capacitance discharging into the port 0 and port 2 pins when these pins make 1-to-0 transitions during bus operations.
In the worst cases (capacitive loading > 100 pF), the noise pulse on the ALE pin may exceed 0.8 V. In such cases, it may be desirable to
qualify ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input. IOL can exceed these conditions provided
that no single output sinks more than 5 mA and no more than two outputs exceed the test conditions.
3. Capacitive loading on ports 0 and 2 may cause the VOH on ALE and PSEN to momentarily fall below the VCC–0.7 specification when the
address bits are stabilizing.
4. Pins of ports 1, 2 and 3 source a transition current when they are being externally driven from 1 to 0. The transition current reaches its
maximum value when VIN is approximately 2 V.
5. See Figures 36 through 39 for ICC test conditions and Figure 34 for ICC vs. Frequency
12-clock mode characteristics:
Active mode (operating): ICC = 1.0 mA + 0.9 mA × FREQ.[MHz]
Active mode (reset):
ICC = 7.0 mA + 0.5 mA x FREQ.[MHz]
Idle mode:
ICC = 1.0 mA + 0.18 mA x FREQ.[MHz]
6. This value applies to Tamb = 0 °C to +70 °C. For Tamb = –40 °C to +85 °C, ITL = –750 mA.
7. Load capacitance for port 0, ALE, and PSEN = 100 pF, load capacitance for all other outputs = 80 pF.
8. Under steady state (non-transient) conditions, IOL must be externally limited as follows:
15 mA (*NOTE: This is 85 °C specification.)
Maximum IOL per port pin:
Maximum IOL per 8-bit port:
26 mA
71 mA
Maximum total IOL for all outputs:
If IOL exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed
test conditions.
9. ALE is tested to VOH1, except when ALE is off then VOH is the voltage specification.
10. Pin capacitance is characterized but not tested. Pin capacitance is less than 25 pF. Pin capacitance of ceramic package is less than 15 pF
(except EA is 25 pF).
11. To improve noise rejection a nominal 100 ns glitch rejection circuitry has been added to the RST pin, and a nominal 15 ns glitch rejection
circuitry has been added to the INT0 and INT1 pins. Previous devices provided only an inherent 5 ns of glitch rejection.
12. Power down mode for 3 V range: Commercial Temperature Range – typ: 0.5 mA, max. 20 mA; Industrial Temperature Range – typ. 1.0 mA,
max. 30 mA;
2002 Jun 11
36
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
DC ELECTRICAL CHARACTERISTICS
Tamb = 0 °C to +70 °C or –40 °C to +85 °C; VCC = 5 V ±10%; VSS = 0 V (30/33 MHz max. CPU clock)
SYMBOL
PARAMETER
TEST
CONDITIONS
LIMITS
MIN
VIL
Input low
VIH
voltage11
UNIT
TYP1
MAX
4.5 V < VCC < 5.5 V
–0.5
0.2 VCC–0.1
V
Input high voltage (ports 0, 1, 2, 3, EA)
–
0.2 VCC+0.9
VCC+0.5
V
VIH1
Input high voltage, XTAL1, RST11
–
0.7 VCC
VCC+0.5
V
VOL
Output low voltage, ports 1, 2, 3 8
VCC = 4.5 V; IOL = 1.6 mA2
–
0.4
V
VOL1
Output low voltage, port 0, ALE, PSEN 7, 8
VCC = 4.5 V; IOL = 3.2 mA2
–
0.4
V
VOH
Output high voltage, ports 1, 2, 3 3
VCC = 4.5 V; IOH = –30 mA
VCC – 0.7
–
V
VOH1
Output high voltage (port 0 in external bus
mode), ALE9, PSEN3
VCC = 4.5 V; IOH = –3.2 mA
VCC – 0.7
–
V
IIL
Logical 0 input current, ports 1, 2, 3
VIN = 0.4 V
–1
–50
mA
ITL
Logical 1-to-0 transition current, ports 1, 2, 36
VIN = 2.0 V; See note 4
–
–650
mA
ILI
Input leakage current, port 0
0.45 < VIN < VCC – 0.3
–
±10
mA
ICC
Power supply current (see Figure 34):
2
30
mA
3
50
mA
Active mode (see Note 5)
Idle mode (see Note 5)
Power-down mode or clock stopped
(see Figure 39 for conditions)
Tamb = 0 °C to 70 °C
Tamb = –40 °C to +85 °C
VRAM
RAM keep-alive voltage
–
1.2
RRST
Internal reset pull-down resistor
–
40
225
V
kW
CIO
Pin capacitance10 (except EA)
–
–
15
pF
NOTES:
1. Typical ratings are not guaranteed. The values listed are at room temperature, 5 V.
2. Capacitive loading on ports 0 and 2 may cause spurious noise to be superimposed on the VOLs of ALE and ports 1 and 3. The noise is due
to external bus capacitance discharging into the port 0 and port 2 pins when these pins make 1-to-0 transitions during bus operations. In the
worst cases (capacitive loading > 100 pF), the noise pulse on the ALE pin may exceed 0.8 V. In such cases, it may be desirable to qualify
ALE with a Schmitt Trigger, or use an address latch with a Schmitt Trigger STROBE input. IOL can exceed these conditions provided that no
single output sinks more than 5 mA and no more than two outputs exceed the test conditions.
3. Capacitive loading on ports 0 and 2 may cause the VOH on ALE and PSEN to momentarily fall below the VCC–0.7 specification when the
address bits are stabilizing.
4. Pins of ports 1, 2 and 3 source a transition current when they are being externally driven from 1 to 0. The transition current reaches its
maximum value when VIN is approximately 2 V.
5. See Figures 36 through 39 for ICC test conditions and Figure 34 for ICC vs. Frequency.
12-clock mode characteristics:
Active mode (operating): ICC(MAX) = 1.0 mA + 0.9 mA × FREQ.[MHz]
Active mode (reset):
ICC(MAX) = 7.0 mA + 0.5 mA x FREQ.[MHz]
Idle mode:
ICC(MAX) = 1.0 mA + 0.18 mA × FREQ.[MHz]
6. This value applies to Tamb = 0°C to +70°C. For Tamb = –40°C to +85°C, ITL = –750 Am .
7. Load capacitance for port 0, ALE, and PSEN = 100 pF, load capacitance for all other outputs = 80 pF.
8. Under steady state (non-transient) conditions, IOL must be externally limited as follows:
Maximum IOL per port pin:
15 mA (*NOTE: This is 85 °C specification.)
26 mA
Maximum IOL per 8-bit port:
Maximum total IOL for all outputs:
71 mA
If IOL exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed
test conditions.
9. ALE is tested to VOH1, except when ALE is off then VOH is the voltage specification.
10. Pin capacitance is characterized but not tested. Pin capacitance is less than 25 pF. Pin capacitance of ceramic package is less than 15 pF
(except EA is 25 pF).
11. To improve noise rejection a nominal 100 ns glitch rejection circuitry has been added to the RST pin, and a nominal 15 ns glitch rejection
circuitry has been added to the INT0 and INT1 pins. Previous devices provided only an inherent 5 ns of glitch rejection.
2002 Jun 11
37
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
AC ELECTRICAL CHARACTERISTICS (12-CLOCK MODE, 5 V ±10% OPERATION)
Tamb = 0 °C to +70 °C or –40 °C to +85 °C ; VCC = 5 V ±10%, VSS = 0 V1,2,3,4
Symbol
Figure
Parameter
Limits
16 MHz Clock
MIN
MAX
33
MIN
Unit
MAX
1/tCLCL
31
Oscillator frequency
0
tLHLL
27
ALE pulse width
2 tCLCL–8
117
MHz
ns
tAVLL
27
Address valid to ALE low
tCLCL –13
49.5
ns
tLLAX
27
Address hold after ALE low
tCLCL –20
tLLIV
27
ALE low to valid instruction in
tLLPL
27
ALE low to PSEN low
tCLCL –10
52.5
ns
tPLPH
27
PSEN pulse width
3 tCLCL –10
177.5
ns
tPLIV
27
PSEN low to valid instruction in
tPXIX
27
Input instruction hold after PSEN
tPXIZ
27
Input instruction float after PSEN
tCLCL –10
52.5
ns
tAVIV
27
Address to valid instruction in
5 tCLCL –35
277.5
ns
tPLAZ
27
PSEN low to address float
10
10
ns
42.5
4 tCLCL –35
3 tCLCL –35
0
ns
215
152.5
0
ns
ns
ns
Data Memory
tRLRH
28
RD pulse width
6 tCLCL –20
355
tWLWH
29
WR pulse width
6 tCLCL –20
355
tRLDV
28
RD low to valid data in
tRHDX
28
Data hold after RD
tRHDZ
28
Data float after RD
2 tCLCL –10
115
ns
tLLDV
28
ALE low to valid data in
8 tCLCL –35
465
ns
tAVDV
28
Address to valid data in
9 tCLCL –35
527.5
ns
tLLWL
28, 29
ALE low to RD or WR low
3 tCLCL –15
202.5
ns
tAVWL
28, 29
Address valid to WR low or RD low
4 tCLCL –15
235
ns
tQVWX
29
Data valid to WR transition
tCLCL –25
37.5
ns
tWHQX
29
Data hold after WR
tCLCL –15
47.5
ns
tQVWH
29
Data valid to WR high
7 tCLCL –5
tRLAZ
28
RD low to address float
tWHLH
28, 29
RD or WR high to ALE high
tCLCL –10
tCLCL +10
5 tCLCL –35
0
ns
ns
277.5
0
3 tCLCL +15
172.5
ns
432.5
0
52.5
ns
ns
0
ns
72.5
ns
External Clock
tCHCX
31
High time
0.32 tCLCL
tCLCL – tCLCX
ns
tCLCX
31
Low time
0.32 tCLCL
tCLCL – tCHCX
ns
tCLCH
31
Rise time
5
ns
tCHCL
31
Fall time
5
ns
Shift register
tXLXL
30
Serial port clock cycle time
12 tCLCL
750
ns
tQVXH
30
Output data setup to clock rising edge
10 tCLCL –25
600
ns
tXHQX
30
Output data hold after clock rising edge
2 tCLCL –15
110
ns
tXHDX
30
Input data hold after clock rising edge
0
tXHDV
30
Clock rising edge to input data valid
0
10 tCLCL –133
ns
492
ns
NOTES:
1. Parameters are valid over operating temperature range unless otherwise specified.
2. Load capacitance for port 0, ALE, and PSEN = 100 pF, load capacitance for all outputs = 80 pF
3. Interfacing the microcontroller to devices with float time up to 45 ns is permitted. This limited bus contention will not cause damage to port 0
drivers.
4. Parts are guaranteed by design to operate down to 0 Hz.
2002 Jun 11
38
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
AC ELECTRICAL CHARACTERISTICS (12-CLOCK MODE, 2.7 V TO 5.5 V OPERATION)
Tamb = 0 °C to +70 °C or –40 °C to +85 °C ; VCC = 2.7 V to 5.5 V, VSS = 0 V1,2,3,4
Symbol
Figure
Parameter
Limits
16 MHz Clock
MIN
MAX
16
MIN
Unit
MAX
1/tCLCL
31
Oscillator frequency
0
tLHLL
27
ALE pulse width
2tCLCL–10
115
MHz
ns
tAVLL
27
Address valid to ALE low
tCLCL –15
47.5
ns
tLLAX
27
Address hold after ALE low
tCLCL –25
tLLIV
27
ALE low to valid instruction in
tLLPL
27
ALE low to PSEN low
tCLCL –15
47.5
ns
tPLPH
27
PSEN pulse width
3 tCLCL –15
172.5
ns
tPLIV
27
PSEN low to valid instruction in
tPXIX
27
Input instruction hold after PSEN
tPXIZ
27
Input instruction float after PSEN
tCLCL –10
52.5
ns
tAVIV
27
Address to valid instruction in
5 tCLCL –50
262.5
ns
tPLAZ
27
PSEN low to address float
10
10
ns
37.5
4 tCLCL –55
3 tCLCL –55
0
ns
195
132.5
0
ns
ns
ns
Data Memory
tRLRH
28
RD pulse width
6 tCLCL –25
350
tWLWH
29
WR pulse width
6 tCLCL –25
350
tRLDV
28
RD low to valid data in
tRHDX
28
Data hold after RD
tRHDZ
28
Data float after RD
2 tCLCL –20
105
ns
tLLDV
28
ALE low to valid data in
8 tCLCL –55
445
ns
tAVDV
28
Address to valid data in
9 tCLCL –50
512.5
ns
tLLWL
28, 29
ALE low to RD or WR low
3 tCLCL –20
207.5
ns
tAVWL
28, 29
Address valid to WR low or RD low
4 tCLCL –20
230
ns
tQVWX
29
Data valid to WR transition
tCLCL –30
32.5
ns
tWHQX
29
Data hold after WR
tCLCL –20
42.5
ns
tQVWH
29
Data valid to WR high
7 tCLCL –10
tRLAZ
28
RD low to address float
tWHLH
28, 29
RD or WR high to ALE high
tCLCL –15
tCLCL +15
5 tCLCL –50
0
ns
ns
262.5
0
3 tCLCL +20
167.5
ns
427.5
0
47.5
ns
ns
0
ns
77.5
ns
External Clock
tCHCX
31
High time
0.32 tCLCL
tCLCL – tCLCX
ns
tCLCX
31
Low time
0.32 tCLCL
tCLCL – tCHCX
ns
tCLCH
31
Rise time
5
ns
tCHCL
31
Fall time
5
ns
Shift register
tXLXL
30
Serial port clock cycle time
12 tCLCL
750
ns
tQVXH
30
Output data setup to clock rising edge
10 tCLCL –25
600
ns
tXHQX
30
Output data hold after clock rising edge
2 tCLCL –15
110
ns
tXHDX
30
Input data hold after clock rising edge
0
tXHDV
30
Clock rising edge to input data valid
0
10 tCLCL –133
ns
492
ns
NOTES:
1. Parameters are valid over operating temperature range unless otherwise specified.
2. Load capacitance for port 0, ALE, and PSEN = 100 pF, load capacitance for all outputs = 80 pF
3. Interfacing the microcontroller to devices with float time up to 45 ns is permitted. This limited bus contention will not cause damage to port 0
drivers.
4. Parts are guaranteed by design to operate down to 0 Hz.
2002 Jun 11
39
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
AC ELECTRICAL CHARACTERISTICS (6-CLOCK MODE, 5 V ±10% OPERATION)
Tamb = 0 °C to +70 °C or –40 °C to +85 °C ; VCC = 5 V ±10%, VSS = 0 V1,2,3,4,5
Symbol
Figure
Parameter
Limits
16 MHz Clock
MIN
MAX
30
MIN
Unit
MAX
1/tCLCL
31
Oscillator frequency
0
tLHLL
27
ALE pulse width
tCLCL–8
54.5
MHz
ns
tAVLL
27
Address valid to ALE low
0.5 tCLCL –13
18.25
ns
tLLAX
27
Address hold after ALE low
0.5 tCLCL –20
tLLIV
27
ALE low to valid instruction in
tLLPL
27
ALE low to PSEN low
0.5 tCLCL –10
21.25
ns
tPLPH
27
PSEN pulse width
1.5 tCLCL –10
83.75
ns
tPLIV
27
PSEN low to valid instruction in
tPXIX
27
Input instruction hold after PSEN
tPXIZ
27
Input instruction float after PSEN
0.5 tCLCL –10
21.25
ns
tAVIV
27
Address to valid instruction in
2.5 tCLCL –35
121.25
ns
tPLAZ
27
Data Memory
PSEN low to address float
10
10
ns
tRLRH
28
RD pulse width
3 tCLCL –20
tWLWH
29
WR pulse width
3 tCLCL –20
tRLDV
28
RD low to valid data in
tRHDX
28
Data hold after RD
tRHDZ
28
Data float after RD
tCLCL –10
52.5
ns
tLLDV
28
ALE low to valid data in
4 tCLCL –35
215
ns
tAVDV
28
Address to valid data in
4.5 tCLCL –35
246.25
ns
tLLWL
28, 29
ALE low to RD or WR low
1.5 tCLCL –15
108.75
ns
tAVWL
28, 29
Address valid to WR low or RD low
2 tCLCL –15
110
ns
tQVWX
29
Data valid to WR transition
0.5 tCLCL –25
6.25
ns
tWHQX
29
Data hold after WR
0.5 tCLCL –15
16.25
ns
tQVWH
29
Data valid to WR high
3.5 tCLCL –5
213.75
tRLAZ
28
RD low to address float
11.25
2 tCLCL –35
1.5 tCLCL –35
0
ns
90
58.75
0
ns
167.5
0
ns
121.25
0
1.5 tCLCL +15
78.75
0
21.25
ns
ns
167.5
2.5 tCLCL –35
ns
ns
ns
ns
0
ns
41.25
ns
tWHLH
28, 29
External Clock
RD or WR high to ALE high
0.5 tCLCL –10
0.5 tCLCL +10
tCHCX
31
High time
0.4 tCLCL
tCLCL – tCLCX
ns
tCLCX
31
Low time
0.4 tCLCL
tCLCL – tCHCX
ns
tCLCH
31
Rise time
5
ns
tCHCL
31
Shift register
Fall time
5
ns
tXLXL
30
Serial port clock cycle time
6 tCLCL
375
ns
tQVXH
30
Output data setup to clock rising edge
5 tCLCL –25
287.5
ns
tXHQX
30
Output data hold after clock rising edge
tCLCL –15
47.5
ns
tXHDX
30
Input data hold after clock rising edge
0
tXHDV
30
Clock rising edge to input data valid
0
5 tCLCL –133
ns
179.5
ns
NOTES:
1. Parameters are valid over operating temperature range unless otherwise specified.
2. Load capacitance for port 0, ALE, and PSEN=100 pF, load capacitance for all outputs = 80 pF
3. Interfacing the microcontroller to devices with float time up to 45ns is permitted. This limited bus contention will not cause damage to port 0
drivers.
4. Parts are guaranteed by design to operate down to 0 Hz.
5. Data shown in the table are the best mathematical models for the set of measured values obtained in tests. If a particular parameter
calculated at a customer specified frequency has a negative value, it should be considered equal to zero.
2002 Jun 11
40
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
AC ELECTRICAL CHARACTERISTICS (6-CLOCK MODE, 2.7 V TO 5.5 V OPERATION)
Tamb = 0 °C to +70 °C or –40 °C to +85 °C ; VCC=2.7 V to 5.5 V, VSS = 0 V1,2,3,4,5
Symbol
Figure
Parameter
Limits
16 MHz Clock
MIN
MAX
16
MIN
Unit
MAX
1/tCLCL
31
Oscillator frequency
0
tLHLL
27
ALE pulse width
tCLCL–10
52.5
MHz
ns
tAVLL
27
Address valid to ALE low
0.5 tCLCL –15
16.25
ns
tLLAX
27
Address hold after ALE low
0.5 tCLCL –25
tLLIV
27
ALE low to valid instruction in
tLLPL
27
ALE low to PSEN low
0.5 tCLCL –15
16.25
ns
tPLPH
27
PSEN pulse width
1.5 tCLCL –15
78.75
ns
tPLIV
27
PSEN low to valid instruction in
tPXIX
27
Input instruction hold after PSEN
tPXIZ
27
Input instruction float after PSEN
0.5 tCLCL –10
21.25
ns
tAVIV
27
Address to valid instruction in
2.5 tCLCL –50
101.25
ns
tPLAZ
27
Data Memory
PSEN low to address float
10
10
ns
tRLRH
28
RD pulse width
3 tCLCL –25
tWLWH
29
WR pulse width
3 tCLCL –25
tRLDV
28
RD low to valid data in
tRHDX
28
Data hold after RD
tRHDZ
28
Data float after RD
tCLCL –20
42.5
ns
tLLDV
28
ALE low to valid data in
4 tCLCL –55
195
ns
tAVDV
28
Address to valid data in
4.5 tCLCL –50
231.25
ns
tLLWL
28, 29
ALE low to RD or WR low
1.5 tCLCL –20
113.75
ns
tAVWL
28, 29
Address valid to WR low or RD low
2 tCLCL –20
105
ns
tQVWX
29
Data valid to WR transition
0.5 tCLCL –30
1.25
ns
tWHQX
29
Data hold after WR
0.5 tCLCL –20
11.25
ns
tQVWH
29
Data valid to WR high
3.5 tCLCL –10
208.75
tRLAZ
28
RD low to address float
6.25
2 tCLCL –55
1.5 tCLCL –55
0
ns
70
38.75
0
ns
162.5
0
ns
106.25
0
1.5 tCLCL +20
73.75
0
16.25
ns
ns
162.5
2.5 tCLCL –50
ns
ns
ns
ns
0
ns
46.25
ns
tWHLH
28, 29
External Clock
RD or WR high to ALE high
0.5 tCLCL –15
0.5 tCLCL +15
tCHCX
31
High time
0.4 tCLCL
tCLCL – tCLCX
ns
tCLCX
31
Low time
0.4 tCLCL
tCLCL – tCHCX
ns
tCLCH
31
Rise time
5
ns
tCHCL
31
Shift register
Fall time
5
ns
tXLXL
30
Serial port clock cycle time
6 tCLCL
375
ns
tQVXH
30
Output data setup to clock rising edge
5 tCLCL –25
287.5
ns
tXHQX
30
Output data hold after clock rising edge
tCLCL –15
47.5
ns
tXHDX
30
Input data hold after clock rising edge
0
tXHDV
30
Clock rising edge to input data valid
0
5 tCLCL –133
ns
179.5
ns
NOTES:
1. Parameters are valid over operating temperature range unless otherwise specified.
2. Load capacitance for port 0, ALE, and PSEN=100 pF, load capacitance for all outputs = 80 pF
3. Interfacing the microcontroller to devices with float time up to 45ns is permitted. This limited bus contention will not cause damage to port 0
drivers.
4. Parts are guaranteed by design to operate down to 0 Hz.
5. Data shown in the table are the best mathematical models for the set of measured values obtained in tests. If a particular parameter
calculated at a customer specified frequency has a negative value, it should be considered equal to zero.
2002 Jun 11
41
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
EXPLANATION OF THE AC SYMBOLS
P – PSEN
Q – Output data
R – RD signal
t – Time
V – Valid
W – WR signal
X – No longer a valid logic level
Z – Float
Examples: tAVLL = Time for address valid to ALE low.
tLLPL =Time for ALE low to PSEN low.
Each timing symbol has five characters. The first character is always
‘t’ (= time). The other characters, depending on their positions,
indicate the name of a signal or the logical status of that signal. The
designations are:
A – Address
C – Clock
D – Input data
H – Logic level high
I – Instruction (program memory contents)
L – Logic level low, or ALE
tLHLL
ALE
tAVLL
tLLPL
tPLPH
tLLIV
tPLIV
PSEN
tLLAX
INSTR IN
A0–A7
PORT 0
tPXIZ
tPLAZ
tPXIX
A0–A7
tAVIV
PORT 2
A0–A15
A8–A15
SU00006
Figure 27. External Program Memory Read Cycle
ALE
tWHLH
PSEN
tLLDV
tLLWL
tRLRH
RD
tAVLL
tLLAX
tRLAZ
PORT 0
tRHDZ
tRLDV
tRHDX
A0–A7
FROM RI OR DPL
DATA IN
A0–A7 FROM PCL
INSTR IN
tAVWL
tAVDV
PORT 2
P2.0–P2.7 OR A8–A15 FROM DPF
A0–A15 FROM PCH
SU00025
Figure 28. External Data Memory Read Cycle
2002 Jun 11
42
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
ALE
tWHLH
PSEN
tWLWH
tLLWL
WR
tLLAX
tAVLL
tWHQX
tQVWX
tQVWH
A0–A7
FROM RI OR DPL
PORT 0
DATA OUT
A0–A7 FROM PCL
INSTR IN
tAVWL
PORT 2
P2.0–P2.7 OR A8–A15 FROM DPF
A0–A15 FROM PCH
SU00026
Figure 29. External Data Memory Write Cycle
INSTRUCTION
0
1
2
3
4
5
6
7
8
ALE
tXLXL
CLOCK
tXHQX
tQVXH
OUTPUT DATA
0
1
2
WRITE TO SBUF
3
4
5
6
7
tXHDX
tXHDV
SET TI
INPUT DATA
VALID
VALID
VALID
VALID
VALID
VALID
VALID
VALID
CLEAR RI
SET RI
SU00027
Figure 30. Shift Register Mode Timing
VCC–0.5
0.45V
0.7VCC
0.2VCC–0.1
tCHCL
tCHCX
tCLCH
tCLCX
tCLCL
SU00009
Figure 31. External Clock Drive
2002 Jun 11
43
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
VCC–0.5
VLOAD+0.1V
0.2VCC+0.9
TIMING
REFERENCE
POINTS
VLOAD
0.45V
0.2VCC–0.1
VLOAD–0.1V
SU00717
SU00718
Figure 32. AC Testing Input/Output
Figure 33. Float Waveform
35
MAX ACTIVE MODE
ICCMAX = 0.9
FREQ. + 1.0
30
ICC(mA)
25
20
15
TYP ACTIVE MODE
10
MAX IDLE MODE
5
TYP IDLE MODE
8
12
16
20
24
28
32
36
FREQ AT XTAL1 (MHz)
SU01486
Figure 34. ICC vs. FREQ for 12-clock operation
Valid only within frequency specifications of the specified operating voltage
2002 Jun 11
VOL+0.1V
NOTE:
For timing purposes, a port is no longer floating when a 100mV change from
load voltage occurs, and begins to float when a 100mV change from the loaded
VOH/VOL level occurs. IOH/IOL ≥ ±20mA.
NOTE:
AC inputs during testing are driven at VCC –0.5 for a logic ‘1’ and 0.45V for a logic ‘0’.
Timing measurements are made at VIH min for a logic ‘1’ and VIL max for a logic ‘0’.
4
VOH–0.1V
44
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
/*
##
as31 version V2.10
/ *js* /
##
##
##
source file: idd_ljmp1.asm
##
list file: idd_ljmp1.lst
created Fri Apr 20 15:51:40 2001
##
##########################################################
#0000
# AUXR equ 08Eh
#0000
# CKCON equ 08Fh
#
#
#0000
# org 0
#
# LJMP_LABEL:
0000 /75;/8E;/01;
#
MOV
AUXR,#001h
; turn off ALE
0003 /02;/FF;/FD;
#
LJMP
LJMP_LABEL
; jump to end of address space
0005 /00;
#
NOP
#
#FFFD
# org 0fffdh
#
# LJMP_LABEL:
#
FFFD /02;/FD;FF;
#
LJMP LJMP_LABEL
# ;
NOP
#
#
*/”
Figure 35. Source code used in measuring IDD operational
2002 Jun 11
45
SU01499
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
VCC
VCC
ICC
ICC
VCC
VCC
VCC
VCC
RST
RST
P0
P0
EA
EA
(NC)
XTAL2
(NC)
XTAL2
CLOCK SIGNAL
XTAL1
CLOCK SIGNAL
XTAL1
VSS
VSS
SU00719
SU00720
Figure 36. ICC Test Condition, Active Mode
All other pins are disconnected
VCC–0.5
Figure 37. ICC Test Condition, Idle Mode
All other pins are disconnected
0.7VCC
0.2VCC–0.1
0.45V
tCHCL
tCHCX
tCLCH
tCLCX
tCLCL
SU00009
Figure 38. Clock Signal Waveform for ICC Tests in Active and Idle Modes
tCLCH = tCHCL = 5ns
VCC
ICC
VCC
VCC
RST
P0
EA
(NC)
XTAL2
XTAL1
VSS
SU00016
Figure 39. ICC Test Condition, Power Down Mode
All other pins are disconnected. VCC = 2 V to 5.5 V
2002 Jun 11
VCC
46
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
device. The VPP source should be well regulated and free of glitches
and overshoot.
EPROM CHARACTERISTICS
The OTP devices described in this data sheet can be programmed
by using a modified Improved Quick-Pulse Programming
algorithm. It differs from older methods in the value used for VPP
(programming supply voltage) and in the width and number of the
ALE/PROG pulses.
The family contains two signature bytes that can be read and used
by an EPROM programming system to identify the device. The
signature bytes identify the device as being manufactured by
Philips.
Program Verification
If security bits 2 and 3 have not been programmed, the on-chip
program memory can be read out for program verification. The
address of the program memory locations to be read is applied to
ports 1 and 2 as shown in Figure 42. The other pins are held at the
‘Verify Code Data’ levels indicated in Table 9. The contents of the
address location will be emitted on port 0. External pull-ups are
required on port 0 for this operation.
Table 9 shows the logic levels for reading the signature byte, and for
programming the program memory, the encryption table, and the
security bits. The circuit configuration and waveforms for quick-pulse
programming are shown in Figures 40 and 41. Figure 42 shows the
circuit configuration for normal program memory verification.
If the 64 byte encryption table has been programmed, the data
presented at port 0 will be the exclusive NOR of the program byte
with one of the encryption bytes. The user will have to know the
encryption table contents in order to correctly decode the verification
data. The encryption table itself cannot be read out.
Quick-Pulse Programming
Reading the Signature bytes
The signature bytes are read by the same procedure as a normal
verification of locations 030h and 031h, except that P3.6 and P3.7
need to be pulled to a logic low. The values are:
(030h) = 15h; indicates manufacturer (Philips)
(031h) = 92h/97h/BBh/BDh; indicates P87C51X2/52X2/54X2/
58X2.
The setup for microcontroller quick-pulse programming is shown in
Figure 40. Note that the device is running with a 4 to 6 MHz
oscillator. The reason the oscillator needs to be running is that the
device is executing internal address and program data transfers.
The address of the EPROM location to be programmed is applied to
ports 1 and 2, as shown in Figure 40. The code byte to be
programmed into that location is applied to port 0. RST, PSEN and
pins of ports 2 and 3 specified in Table 9 are held at the ‘Program
Code Data’ levels indicated in Table 9. The ALE/PROG is pulsed
low 5 times as shown in Figure 41.
Program/Verify Algorithms
Any algorithm in agreement with the conditions listed in Table 9, and
which satisfies the timing specifications, is suitable.
Security Bits
To program the encryption table, repeat the 5 pulse programming
sequence for addresses 0 through 1FH, using the ‘Pgm Encryption
Table’ levels. Do not forget that after the encryption table is
programmed, verification cycles will produce only encrypted data.
With none of the security bits programmed the code in the program
memory can be verified. If the encryption table is programmed, the
code will be encrypted when verified. When only security bit 1 (see
Table 10) is programmed, MOVC instructions executed from
external program memory are disabled from fetching code bytes
from the internal memory, EA is latched on Reset and all further
programming of the EPROM is disabled. When security bits 1 and 2
are programmed, in addition to the above, verify mode is disabled.
When all three security bits are programmed, all of the conditions
above apply and all external program memory execution is disabled.
To program the security bits, repeat the 5 pulse programming
sequence using the ‘Pgm Security Bit’ levels. After one security bit is
programmed, further programming of the code memory and
encryption table is disabled. However, the other security bits can still
be programmed.
Note that the EA/VPP pin must not be allowed to go above the
maximum specified VPP level for any amount of time. Even a narrow
glitch above that voltage can cause permanent damage to the
Encryption Array
64 bytes of encryption array are initially unprogrammed (all 1s).
Table 9. EPROM Programming Modes
MODE
RST
PSEN
ALE/PROG
EA/VPP
P2.7
P2.6
P3.7
P3.6
P3.3
Read signature
1
0
1
1
0
0
0
0
X
Program code data
1
0
0*
VPP
1
0
1
1
X
Verify code data
1
0
1
1
0
0
1
1
X
Pgm encryption table
1
0
0*
VPP
1
0
1
0
X
Pgm security bit 1
1
0
0*
VPP
1
1
1
1
X
Pgm security bit 2
1
0
0*
VPP
1
1
0
0
X
Pgm security bit 3
1
0
0*
VPP
0
1
0
1
X
Program to 6-clock mode
1
0
0*
VPP
0
1
0
1
0
NOTES:
1. ‘0’ = Valid low for that pin, ‘1’ = valid high for that pin.
2. VPP = 12.75 V ±0.25 V.
3. VCC = 5 V±10% during programming and verification.
Trademark phrase of Intel Corporation.
2002 Jun 11
47
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
*
ALE/PROG receives 5 programming pulses for code data (also for user array; 5 pulses for encryption or security bits) while VPP is held at
12.75 V. Each programming pulse is low for 100 m s (±10 m s) and high for a minimum of 10 m s.
Table 10. Program Security Bits for EPROM Devices
PROGRAM LOCK BITS1, 2
SB1
SB2
SB3
PROTECTION DESCRIPTION
1
U
U
U
No Program Security features enabled. (Code verify will still be encrypted by the Encryption Array if
programmed.)
2
P
U
U
MOVC instructions executed from external program memory are disabled from fetching code bytes
from internal memory, EA is sampled and latched on Reset, and further programming of the EPROM
is disabled.
3
P
P
U
Same as 2, also verify is disabled.
4
P
P
P
Same as 3, external execution is disabled. Internal data RAM is not accessible.
NOTES:
1. P – programmed. U – unprogrammed.
2. Any other combination of the security bits is not defined.
+5V
A0–A7
VCC
P1
P0
1
RST
1
P3.6
EA/VPP
1
P3.7
ALE/PROG
OTP
XTAL2
4–6MHz
XTAL1
PGM DATA
+12.75V
5 PULSES TO GROUND
PSEN
0
P2.7
1
P2.6
0
A8–A12
P2.0–P2.5
VSS
SU01488
Figure 40. Programming Configuration
5 PULSES
1
ALE/PROG:
0
1
2
3
4
5
SEE EXPLODED VIEW BELOW
tGHGL = 10m s MIN
tGLGH = 100m s±10m s
1
ALE/PROG:
1
0
SU00875
Figure 41. PROG Waveform
2002 Jun 11
48
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
+5V
VCC
A0–A7
P0
P1
1
RST
1
P3.6
1
P3.7
OTP
XTAL2
4–6MHz
XTAL1
PGM DATA
EA/VPP
1
ALE/PROG
1
PSEN
0
P2.7
0 ENABLE
P2.6
0
P2.0–P2.5
A8–A12
VSS
SU01489
Figure 42. Program Verification
PROGRAMMING AND VERIFICATION CHARACTERISTICS
Tamb = 21 °C to +27 °C, VCC = 5 V±10%, VSS = 0 V (See Figure 43)
SYMBOL
PARAMETER
MIN
MAX
UNIT
12.5
13.0
V
50 1
mA
6
MHz
VPP
Programming supply voltage
IPP
Programming supply current
1/tCLCL
Oscillator frequency
tAVGL
Address setup to PROG low
48tCLCL
tGHAX
Address hold after PROG
48tCLCL
tDVGL
Data setup to PROG low
48tCLCL
tGHDX
Data hold after PROG
48tCLCL
tEHSH
P2.7 (ENABLE) high to VPP
48tCLCL
tSHGL
VPP setup to PROG low
10
m s
tGHSL
VPP hold after PROG
10
m s
tGLGH
PROG width
90
tAVQV
Address to data valid
48tCLCL
tELQZ
ENABLE low to data valid
48tCLCL
tEHQZ
Data float after ENABLE
0
tGHGL
PROG high to PROG low
10
4
NOTE:
1. Not tested.
2002 Jun 11
49
110
m s
48tCLCL
m s
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
PROGRAMMING*
VERIFICATION*
P1.0–P1.7
P2.0–P2.5
P3.4
(A0 – A12)
ADDRESS
ADDRESS
PORT 0
P0.0 – P0.7
(D0 – D7)
DATA IN
tAVQV
DATA OUT
tDVGL
tAVGL
tGHDX
tGHAX
ALE/PROG
tGLGH
tSHGL
tGHGL
tGHSL
LOGIC 1
LOGIC 1
EA/VPP
LOGIC 0
tEHSH
tELQV
tEHQZ
P2.7
**
SU01414
NOTES:
* FOR PROGRAMMING CONFIGURATION SEE FIGURE 40.
FOR VERIFICATION CONDITIONS SEE FIGURE 42.
**
SEE TABLE 9.
Figure 43. Programming and Verification
MASK ROM DEVICES
internal memory, EA is latched on Reset and all further programming
of the EPROM is disabled. When security bits 1 and 2 are
programmed, in addition to the above, verify mode is disabled.
Security Bits
With none of the security bits programmed the code in the program
memory can be verified. If the encryption table is programmed, the
code will be encrypted when verified. When only security bit 1 (see
Table 11) is programmed, MOVC instructions executed from external
program memory are disabled from fetching code bytes from the
Encryption Array
64 bytes of encryption array are initially unprogrammed (all 1s).
Table 11. Program Security Bits
PROGRAM LOCK BITS1, 2
SB1
SB2
PROTECTION DESCRIPTION
1
U
U
No Program Security features enabled.
(Code verify will still be encrypted by the Encryption Array if programmed.)
2
P
U
MOVC instructions executed from external program memory are disabled from fetching code bytes from
internal memory, EA is sampled and latched on Reset, and further programming of the EPROM is disabled.
NOTES:
1. P – programmed. U – unprogrammed.
2. Any other combination of the security bits is not defined.
2002 Jun 11
50
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
80C51X2 ROM CODE SUBMISSION
When submitting a ROM code for the 80C51X2, the following must be specified:
1. 4 kbyte user ROM data
2. 64 byte ROM encryption key
3. ROM security bits.
ADDRESS
CONTENT
BIT(S)
COMMENT
0000H to 0FFFH
DATA
7:0
User ROM Data
1000H to 103FH
KEY
7:0
ROM Encryption Key
1040H
SEC
0
ROM Security Bit 1
1040H
SEC
1
ROM Security Bit 2
Security Bit 1: When programmed, this bit has two effects on masked ROM parts:
1. External MOVC is disabled, and
2. EA is latched on Reset.
Security Bit 2: When programmed, this bit inhibits Verify User ROM.
NOTE: Security Bit 2 cannot be enabled unless Security Bit 1 is enabled.
If the ROM Code file does not include the options, the following information must be included with the ROM code.
For each of the following, check the appropriate box, and send to Philips along with the code:
Security Bit #1:
V
Enabled
V
Disabled
Security Bit #2:
V
Enabled
V
Disabled
Encryption:
V
No
V
Yes
If Yes, must send key file.
80C52X2 ROM CODE SUBMISSION
When submitting a ROM code for the 80C52X2, the following must be specified:
1. 8 kbyte user ROM data
2. 64 byte ROM encryption key
3. ROM security bits.
ADDRESS
CONTENT
BIT(S)
COMMENT
0000H to 1FFFH
DATA
7:0
User ROM Data
2000H to 203FH
KEY
7:0
ROM Encryption Key
2040H
SEC
0
ROM Security Bit 1
2040H
SEC
1
ROM Security Bit 2
Security Bit 1: When programmed, this bit has two effects on masked ROM parts:
1. External MOVC is disabled, and
2. EA is latched on Reset.
Security Bit 2: When programmed, this bit inhibits Verify User ROM.
NOTE: Security Bit 2 cannot be enabled unless Security Bit 1 is enabled.
If the ROM Code file does not include the options, the following information must be included with the ROM code.
For each of the following, check the appropriate box, and send to Philips along with the code:
Security Bit #1:
V
Enabled
V
Disabled
Security Bit #2:
V
Enabled
V
Disabled
Encryption:
V
No
V
Yes
2002 Jun 11
If Yes, must send key file.
51
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
80C54X2 ROM CODE SUBMISSION
When submitting a ROM code for the 80C54X2, the following must be specified:
1. 16 kbyte user ROM data
2. 64 byte ROM encryption key
3. ROM security bits.
ADDRESS
CONTENT
BIT(S)
COMMENT
0000H to 3FFFH
DATA
7:0
User ROM Data
4000H to 403FH
KEY
7:0
ROM Encryption Key
FFH = no encryption
4040H
SEC
0
ROM Security Bit 1
0 = enable security
1 = disable security
4040H
SEC
1
ROM Security Bit 2
0 = enable security
1 = disable security
Security Bit 1: When programmed, this bit has two effects on masked ROM parts:
1. External MOVC is disabled, and
2. EA is latched on Reset.
Security Bit 2: When programmed, this bit inhibits Verify User ROM.
NOTE: Security Bit 2 cannot be enabled unless Security Bit 1 is enabled.
If the ROM Code file does not include the options, the following information must be included with the ROM code.
For each of the following, check the appropriate box, and send to Philips along with the code:
Security Bit #1:
V
Enabled
V
Disabled
Security Bit #2:
V
Enabled
V
Disabled
Encryption:
V
No
V
Yes
2002 Jun 11
If Yes, must send key file.
52
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
80C58X2 ROM CODE SUBMISSION
When submitting a ROM code for the 80C58X2, the following must be specified:
1. 32 kbyte user ROM data
2. 64 byte ROM encryption key
3. ROM security bits.
ADDRESS
CONTENT
BIT(S)
COMMENT
0000H to 7FFFH
DATA
7:0
User ROM Data
8000H to 803FH
KEY
7:0
ROM Encryption Key
FFH = no encryption
8040H
SEC
0
ROM Security Bit 1
0 = enable security
1 = disable security
8040H
SEC
1
ROM Security Bit 2
0 = enable security
1 = disable security
Security Bit 1: When programmed, this bit has two effects on masked ROM parts:
1. External MOVC is disabled, and
2. EA is latched on Reset.
Security Bit 2: When programmed, this bit inhibits Verify User ROM.
NOTE: Security Bit 2 cannot be enabled unless Security Bit 1 is enabled.
If the ROM Code file does not include the options, the following information must be included with the ROM code.
For each of the following, check the appropriate box, and send to Philips along with the code:
Security Bit #1:
V
Enabled
V
Disabled
Security Bit #2:
V
Enabled
V
Disabled
Encryption:
V
No
V
Yes
2002 Jun 11
If Yes, must send key file.
53
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
DIP40: plastic dual in-line package; 40 leads (600 mil)
2002 Jun 11
54
SOT129-1
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
PLCC44: plastic leaded chip carrier; 44 leads
2002 Jun 11
SOT187-2
55
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
LQFP44: plastic low profile quad flat package; 44 leads; body 10 x 10 x 1.4 mm
2002 Jun 11
56
SOT389-1
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
REVISION HISTORY
Date
CPCN
Description
2002 Jun TBD
9397 750
Added information on how to program the 87C5xX2 devices to 6-clk mode
via parallel programmer
2002 April 22
9397 750 09779
Updated ordering information to include LQFP parts
2002 February 19
9397 750 09467
– Updated chapters on Timers 0, 1, and 2 to include 6-clk/12-clk options
2001 September 24
9397 750 08895
– Updated ordering information table
2002 Jun 11
Initial release
57
Philips Semiconductors
Product data
80C51 8-bit microcontroller family
P80C3xX2; P80C5xX2;
P87C5xX2
4K/8K/16K/32K ROM/OTP, low voltage (2.7 to 5.5 V),
low power, high speed (30/33 MHz)
Data sheet status
Data sheet status [1]
Product
status [2]
Definitions
Objective data
Development
This data sheet contains data from the objective specification for product development.
Philips Semiconductors reserves the right to change the specification in any manner without notice.
Preliminary data
Qualification
This data sheet contains data from the preliminary specification. Supplementary data will be
published at a later date. Philips Semiconductors reserves the right to change the specification
without notice, in order to improve the design and supply the best possible product.
Product data
Production
This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply.
Changes will be communicated according to the Customer Product/Process Change Notification
(CPCN) procedure SNW-SQ-650A.
[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at URL
http://www.semiconductors.philips.com.
Definitions
Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one
or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or
at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended
periods may affect device reliability.
Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips
Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or
modification.
Disclaimers
Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.
Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard
cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified.
 Koninklijke Philips Electronics N.V. 2002
All rights reserved. Printed in U.S.A.
Contact information
For additional information please visit
http://www.semiconductors.philips.com.
Fax: +31 40 27 24825
For sales offices addresses send e-mail to:
[email protected]
Document order number:
2002 Jun 11
Date of release: 06-02
58
9397 750 09779
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
