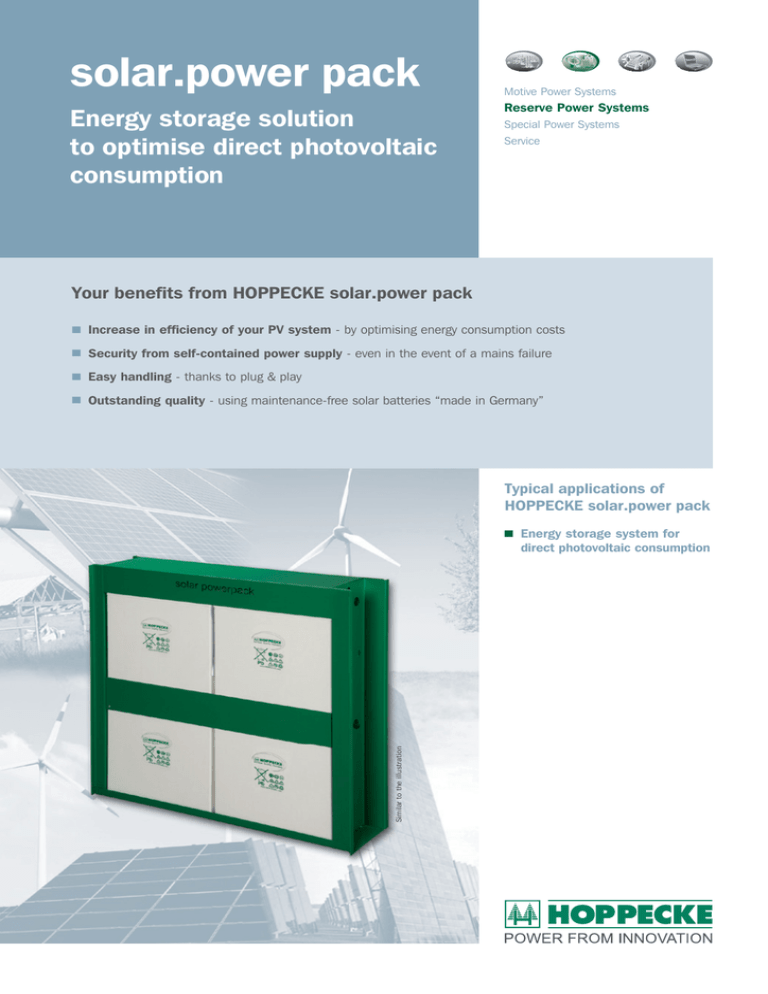

solar.power pack
Energy storage solution
to optimise direct photovoltaic
consumption
Motive Power Systems
Reserve Power Systems
Special Power Systems
Service
Your benefits from HOPPECKE solar.power pack
■
Increase in efficiency of your PV system - by optimising energy consumption costs
■
Security from self-contained power supply - even in the event of a mains failure
■
Easy handling - thanks to plug & play
■
Outstanding quality - using maintenance-free solar batteries “made in Germany”
Typical applications of
HOPPECKE solar.power pack
Similar to the illustration
■
Energy storage system for
direct photovoltaic consumption
solar.power pack
Be independent!
Optimise your direct consumption of photovoltaic energy
Everyone is talking about self-produced energy. The
price for self-produced photovoltaic energy which
is fed into the power network is dropping rapidly.
At the same time, the energy price of the electricity
suppliers is constantly increasing. For many private
households and businesses, these are two important
reasons to use their own solar energy directly.
However, the generation and consumption of photovoltaic energy are not synchronised. Battery systems
allows you to store the photovoltaic energy so you
can use the generated energy independent of the
sunlight.
HOPPECKE offers you an energy storage solution,
enabling you to manage the demand of your household
and therefore to reduce electricity costs. With our
solar.power pack, you are able to store your solar energy temporarily in order to use it at specified times.
Even in the event of a power failure, you are on the
safe side. The battery system immediately provides
you with the required energy.
Solar energy produced
Inverter
Customer load
Energy from the grid
solar.power pack
Energy storage system
HOPPECKE solar.power pack
■
■
■
■
■
■
■
■
■
Modular design – flexible and extendible
High cycle stability
Stationary, maintenance-free, valve regulated
lead-acid batteries
Nominal voltage: 24 V (48 V possible by serial
connection)
Nominal energy content: 7.4 kWh
Number of cycles (50% DoD): 2500
Design life (at 250 cycles/year): 10 years
Dimensions (L/W/H, in mm): 875/247/860
Installation of the fuse elements, wiring and
monitoring are available as options
HOPPECKE LiOn solar.power pack
■
■
■
■
■
■
■
■
■
■
Photovoltaic energy
Energy from the grid
Fast-charging and absolutely maintenance-free
High charging efficiency and very low selfdischarge
Maximum reliability with integrated battery
management system
Inherently safe operation of each LiOn module
Communication with inverter system to transmit battery status data
Nominal voltage: 24 V (48 V possible by serial
connection)
Nominal energy content: 5.2 kWh
Number of cycles (80 % DoD): up to 2500
Design life (at 250 cycles/year): 10 years
External dimensions (L/W/H, in mm):
671/272/322
Service
HOPPECKE subsidiaries and factories - European sales and service network
Industrial batteries - Complete energy systems - Full Service
sä62,!äBATTERIESäINä'ELäORä!'-ä4YPESä
sä"ATTERYäRECYCLING
sä6,!äBATTERIES
sä!PPLICATIONSäENGINEERINGäANDäTECHNOLOGY
sä3INGLEäCELLäORäBLOCKäDESIGN
sä"ATTERYäROOMäDESIGN
sä"ATTERYäACCESSOIRES
sä4ECHNICALäTRAININGäANDäSEMINARS
sä"ATTERYäMANAGEMENTäSYSTEMSäANDäSOFTWARE
sä,EASING
sä"ATTERIECHARGERäSERVICING
sä0OWERäBYäTHEäHOUR
Your partner for sustainable energy solutions!
Futher information on www.hoppecke.com
HOPPECKE Batterien GmbH & Co. KG
P.O. Box 1140 · D-59914 Brilon
Bontkirchener Straße 1 · D-59929 Brilon-Hoppecke
Phone +49(0)2963 61-374
Fax
+49(0)2963 61-270
Email [email protected]
www.hoppecke.com
All details in this brochure are based on state-of-the-art technology. Our products are subject to constant development. We therefore reserve the right to make changes.
