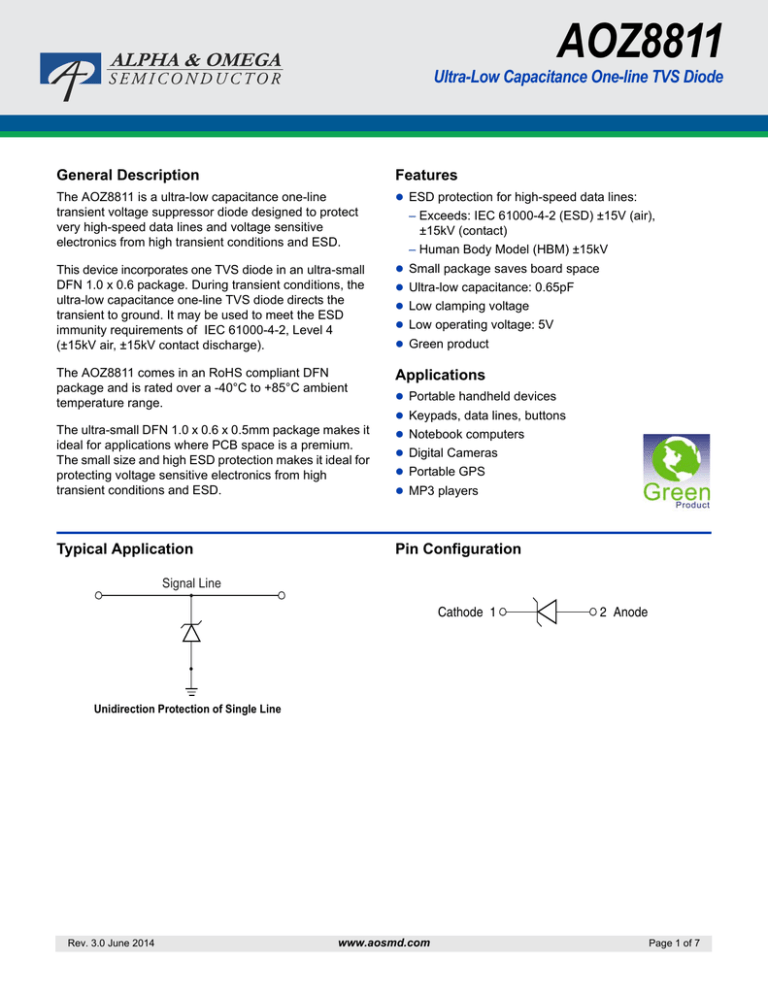

AOZ8811 Ultra-Low Capacitance One-line TVS Diode General Description

AOZ8811 Ultra-Low Capacitance One-line TVS Diode  General Description
AOZ8811
Ultra-Low Capacitance One-line TVS Diode
General Description
Features
The AOZ8811 is a ultra-low capacitance one-line
transient voltage suppressor diode designed to protect
very high-speed data lines and voltage sensitive
electronics from high transient conditions and ESD.
 ESD protection for high-speed data lines:
This device incorporates one TVS diode in an ultra-small
DFN 1.0 x 0.6 package. During transient conditions, the
ultra-low capacitance one-line TVS diode directs the
transient to ground. It may be used to meet the ESD
immunity requirements of IEC 61000-4-2, Level 4
(±15kV air, ±15kV contact discharge).
 Small package saves board space
The AOZ8811 comes in an RoHS compliant DFN
package and is rated over a -40°C to +85°C ambient
temperature range.
Applications
The ultra-small DFN 1.0 x 0.6 x 0.5mm package makes it
ideal for applications where PCB space is a premium.
The small size and high ESD protection makes it ideal for
protecting voltage sensitive electronics from high
transient conditions and ESD.
 Notebook computers
Typical Application
Pin Configuration
– Exceeds: IEC 61000-4-2 (ESD) ±15V (air),
±15kV (contact)
– Human Body Model (HBM) ±15kV
 Ultra-low capacitance: 0.65pF
 Low clamping voltage
 Low operating voltage: 5V
 Green product
 Portable handheld devices
 Keypads, data lines, buttons
 Digital Cameras
 Portable GPS
 MP3 players
Signal Line
Cathode 1
2 Anode
Unidirection Protection of Single Line
Rev. 3.0 June 2014
www.aosmd.com
Page 1 of 7
AOZ8811
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8811DI-05
-40°C to +85°C
DFN 1.0 x 0.6
RoHS Compliant
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter
Rating
VP – VN
5V
Peak Pulse Current (IPP), tP = 8/20µs
2A
Storage Temperature (TS)
-65°C to +150°C
ESD Rating per IEC61000-4-2,
Contact(1)
±15kV
ESD Rating per IEC61000-4-2,
Air(1)
±15kV
Model(2)
±15kV
ESD Rating per Human Body
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
Maximum Operating Ratings
Parameter
Rating
Junction Temperature (TJ)
Rev. 3.0 June 2014
-40°C to +125°C
www.aosmd.com
Page 2 of 7
AOZ8811
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
Parameter
Diagram
IPP
Maximum Reverse Peak Pulse Current
VCL
Clamping Voltage @ IPP
VRWM
IR
VBR
IF
Working Peak Reverse Voltage
Maximum Reverse Leakage Current
Breakdown Voltage
VCL VBR VRWM
IT
Test Current
IF
Forward Current
VF
Forward Voltage
PPK
Peak Power Dissipation
CJ
I
V
IR VF
IT
IPP
Capacitance @ VR = 0 and f = 1MHz
Electrical Characteristics
TA = 25°C unless otherwise noted, VF = 0.95V Max. @ IF = 15mA for all types
Device
Device VRWM (V) VBR (V)
Max.
Max.
Marking
AOZ8811DI-05
Rev. 3.0 June 2014
C
5.0
6.0
IR (µA)
Max.
VF (V)
Typ.
1.0
0.75
www.aosmd.com
VCL Max.
IPP = 1A IPP = 2A IPP = 5A
14.00
15.50
20.00
CJ (pF)
Typ.
CJ (pF)
Max.
0.65
0.75
Page 3 of 7
AOZ8811
Typical Performance Characteristics
Clamping Voltage vs. Peak Pulse Current
Forward Voltage vs. Forward Current
25
5
20
4
Forward Voltage (V)
Clamping Voltage, VCL (V)
(tperiod = 100ns, tr = 1ns)
15
10
5
0
(tperiod = 100ns, tr = 1ns)
3
2
1
0
0
1
2
3
4
5
0
1
Insertion Loss (dB)
0
-5
-10
-15
-20
-25
1000
1.2
1.0
0.8
0.6
0.4
0.2
0
10000
0
0.5
1.0 1.5
2.0 2.5
3.0 3.5
4.0 4.5
5.0
Input Voltage (V)
Frequency (MHz)
Rev. 3.0 June 2014
5
(f = 1MHz, T = 25˚C)
Normalized Input Capacitance (pF)
5
100
4
Typical Variation of CIN vs. VR)
I/O – Gnd Insertion Loss (S21) vs. Frequency
10
3
Forward Current (A)
Peak Pulse Current, IPP (A)
1
2
www.aosmd.com
Page 4 of 7
AOZ8811
Package Dimensions, DFN 1.0 x 0.6
5 Index Area
(E/4xD)
2x
aaa C
3
e
A
aaa C 2x
D
ddd
C AB
B
E
Pin#1 ID
0.125x45°
2x b
L2
ddd
C AB
BOTTOM VIEW
TOP VIEW
6
A
Seating Plane
2x
7
ccc C
A1
C
SIDE VIEW
RECOMMENDED LAND PATTERN
1.00
0.30
0.55
0.40
0.125 x 45°
Dimensions in millimeters
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.47
0.00
0.45
Nom.
0.51
0.02
0.50
0.60 BSC
1.00 BSC
0.65 BSC
0.20
0.25
0.05
0.03
0.10
Max.
0.55
0.05
0.55
0.30
Dimensions in inches
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.019
0.000
0.018
0.008
Nom.
0.020
0.001
0.020
0.024
0.039
0.026
0.010
0.002
0.001
0.004
Max.
0.022
0.002
0.022
0.012
0.30
UNIT: mm
Notes:
1. Dimensions and tolerancing conform to ASME Y14.5-2009.
2. All dimensions are in milliteters.
3. “e” represents the terminal grid pitch.
4. N isthe total number of terminals.
5. A visual index feature must be located within the hatched area. Typical index feature (chamfer) must be located on the edge
of the Pin#1 feature.
6. This dimension includes stand-off height “A1” and packaged body thickness, but does not include attached feature e.g. external
heatsink or chip capacitors, an internal heatslug is not considered as attached feature.
7. Dimension “A1” is primarily terminal plating, and does not include small metal protrusions.
Rev. 3.0 June 2014
www.aosmd.com
Page 5 of 7
AOZ8811
Tape and Reel Dimensions, DFN 1.0 x 0.6
Carrier Tape
P1
P2
T
D1
E1
E2
E
B0
K0
P0
D0
A0
UNIT: mm
Option
A
Package
B0
A0
K0
DFN 1.0x0.6/ 0.69 1.19
0.66
DFN 1.0x0.6A ±0.05 ±0.05 ±0.05
(8 mm)
D0
0.40
±0.05
D1
E
E1
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
E2
3.50
±0.05
P0
2.00
±0.05
P1
4.00
±0.10
T
P2
0.23
2.00
±0.05 ±0.02
B
0.61
DFN 1.0x0.6/ 0.65 1.05
DFN 1.0x0.6A ±0.04 ±0.04 ±0.04
(8 mm)
0.40
±0.05
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
3.50
±0.05
2.00
±0.10
4.00
±0.10
2.00
0.20
±0.05 ±0.05
Reel
W1
S
G
N
M
K
V
R
H
W
UNIT: mm
Tape Size Reel Size
8mm
ø178
M
ø178
±0.5
N
ø55
±1
W
8.4
+1.5/-0
W1
Max.
14.4
H
ø13.0
±0.5
K
Max.
10.1
S
2.0
±0.5
G
N/A
R
N/A
V
N/A
Leader / Trailer & Orientation
TVS
Unit Per Reel:
10000pcs
Trailer Tape
300mm Min.
Rev. 3.0 June 2014
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm Min.
Page 6 of 7
AOZ8811
Part Marking
C X
Product Number Code
Date Code
LEGAL DISCLAIMER
Alpha and Omega Semiconductor makes no representations or warranties with respect to the accuracy or
completeness of the information provided herein and takes no liabilities for the consequences of use of such
information or any product described herein. Alpha and Omega Semiconductor reserves the right to make changes
to such information at any time without further notice. This document does not constitute the grant of any intellectual
property rights or representation of non-infringement of any third party’s intellectual property rights.
LIFE SUPPORT POLICY
ALPHA AND OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 3.0 June 2014
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 7 of 7
