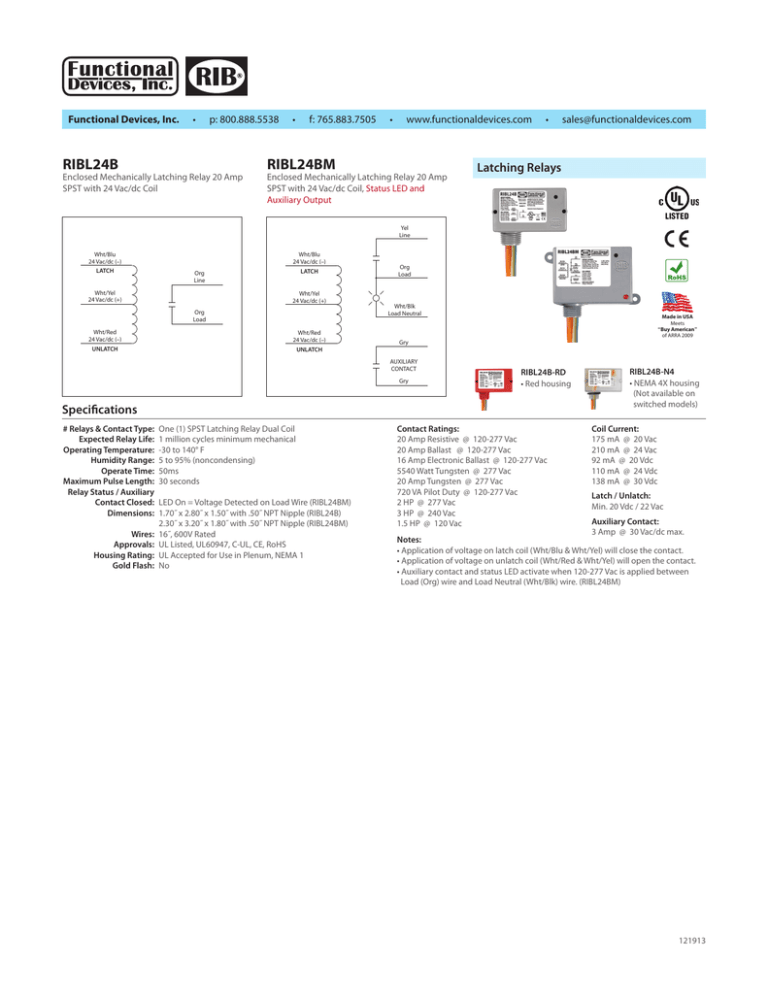

RIBL24BM Datasheet

RIBL24BM Datasheet
Functional Devices, Inc.
•
RIBL24B
p: 800.888.5538
Enclosed Mechanically Latching Relay 20 Amp
SPST with 24 Vac/dc Coil
•
f: 765.883.7505
•
www.functionaldevices.com
RIBL24BM
Enclosed Mechanically Latching Relay 20 Amp
SPST with 24 Vac/dc Coil, Status LED and
Auxiliary Output
•
[email protected]
Latching Relays
Yel
Line
Wht/Blu
24 Vac/dc (–)
LATCH
Wht/Blu
24 Vac/dc (–)
LATCH
Org
Line
Wht/Yel
24 Vac/dc (+)
Wht/Yel
24 Vac/dc (+)
Org
Load
Wht/Red
24 Vac/dc (–)
Wht/Red
24 Vac/dc (–)
UNLATCH
UNLATCH
Org
Load
Wht/Blk
Load Neutral
Made in USA
Meets
“Buy American”
of ARRA 2009
Gry
AUXILIARY
CONTACT
Gry
RIBL24B-RD
• Red housing
Specifications
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Operate Time:
Maximum Pulse Length:
Relay Status / Auxiliary
Contact Closed:
Dimensions:
Wires:
Approvals:
Housing Rating:
Gold Flash:
One (1) SPST Latching Relay Dual Coil
1 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
50ms
30 seconds
LED On = Voltage Detected on Load Wire (RIBL24BM)
1.70˝ x 2.80˝ x 1.50˝ with .50˝ NPT Nipple (RIBL24B)
2.30˝ x 3.20˝ x 1.80˝ with .50˝ NPT Nipple (RIBL24BM)
16˝, 600V Rated
UL Listed, UL60947, C-UL, CE, RoHS
UL Accepted for Use in Plenum, NEMA 1
No
Contact Ratings:
20 Amp Resistive @ 120-277 Vac
20 Amp Ballast @ 120-277 Vac
16 Amp Electronic Ballast @ 120-277 Vac
5540 Watt Tungsten @ 277 Vac
20 Amp Tungsten @ 277 Vac
720 VA Pilot Duty @ 120-277 Vac
2 HP @ 277 Vac
3 HP @ 240 Vac
1.5 HP @ 120 Vac
RIBL24B-N4
• NEMA 4X housing
(Not available on
switched models)
Coil Current:
175 mA @ 20 Vac
210 mA @ 24 Vac
92 mA @ 20 Vdc
110 mA @ 24 Vdc
138 mA @ 30 Vdc
Latch / Unlatch:
Min. 20 Vdc / 22 Vac
Auxiliary Contact:
3 Amp @ 30 Vac/dc max.
Notes:
• Application of voltage on latch coil (Wht/Blu & Wht/Yel) will close the contact.
• Application of voltage on unlatch coil (Wht/Red & Wht/Yel) will open the contact.
• Auxiliary contact and status LED activate when 120-277 Vac is applied between
Load (Org) wire and Load Neutral (Wht/Blk) wire. (RIBL24BM)
