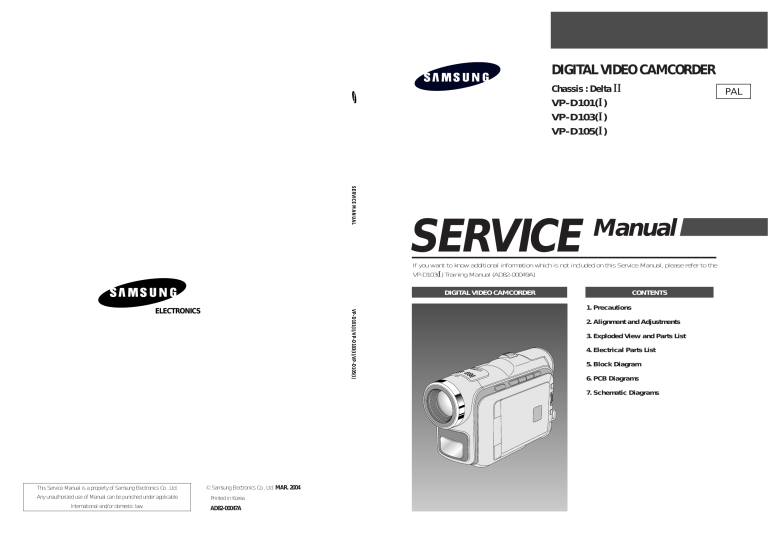

DIGITAL VIDEO CAMCORDER

Chassis : Delta

II

VP-D101(

I

)

VP-D103(

I

)

VP-D105(

I

)

PAL

SERVICE Manual

If you want to know additional information which is not included on this Service Manual, please refer to the

VP-D103(

I

) Training Manual (AD82-00049A).

DIGITAL VIDEO CAMCORDER CONTENTS

1. Precautions

2. Alignment and Adjustments

3. Exploded View and Parts List

4. Electrical Parts List

5. Block Diagram

6. PCB Diagrams

7. Schematic Diagrams

DIGITAL VIDEO CAMCORDER

Chassis : Delta

II

VP-D102D(

I

)

VP-D102

I

PAL

SERVICE Manual

ELECTRONICS

This Service Manual is a property of Samsung Electronics Co .,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

© Samsung Electronics Co., Ltd.

APR. 2004

Printed in Korea

AD82-00066A

- SUMMARY -

This model is based on VP-D101(

I

).

This service manual covers only different portions from service manual (Code-No. ; AD82-00047A) for VP-D101(

I

).

The technical information included in the service manual (Code-No. ; AD82-00047A) for VP-D101(

I

) can be used for

VP-D102D(

I

) servicing.

If you want to know additional information which is not included on this Service Manual, please refer to the

VP-D103(

I)

Training Manual (AD82-00049A).

1. Precautions

1. Be sure that all of the built-in protective devices are replaced. Restore any missing protective shields.

2. When reinstalling the chassis and its assemblies, be sure to restore all protective devices, including : control knobs and compartment covers.

3. Make sure that there are no cabinet openings through which people--particularly children

--might insert fingers and contact dangerous voltages. Such openings include the spacing between the picture tube and the cabinet mask, excessively wide cabinet ventilation slots, and improperly fitted back covers.

If the measured resistance is less than 1.0 megohm or greater than 5.2 megohms, an abnormality exists that must be corrected before the unit is returned to the customer.

4. Leakage Current Hot Check (See Fig. 1-1) :

Warning : Do not use an isolation transformer during this test. Use a leakage current tester or a metering system that complies with American

National Standards Institute (ANSI C101.1,

Leakage Current for Appliances), and Underwriters

Laboratories (UL Publication UL1410, 59.7).

5. With the unit completely reassembled, plug the AC line cord directly the power outlet. With the unit’s

AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including : antennas, handle brackets, metal cabinets, screwheads and control shafts. The current measured should not exceed

0.5 milliamp. Reverse the power-plug prongs in the

AC outlet and repeat the test.

6. X-ray Limits :

The picture tube is designed to prohibit X-ray emissions. To ensure continued X-ray protection, replace the picture tube only with one that is the same type as the original.

DEVICE

UNDER

TEST

TEST ALL

EXPOSED METER

SURFACES

2-WIRE CORD

LEAKAGE

CURRENT

TESTER

(READING SHOULD

NOT BE ABOVE

0.5mA)

ALSO TEST WITH

PLUG REVERSED

(USING AC ADAPTER

PLUG AS REQUIRED)

EARTH

GROUND

Fig. 1-1 AC Leakage Test

7. Antenna Cold Check :

With the unit’s AC plug disconnected from the

AC source, connect an electrical jumper across the two AC prongs. Connect one lead of the ohmmeter to an AC prong.

Connect the other lead to the coaxial connector.

8. High Voltage Limit :

High voltage must be measured each time servicing is done on the B+, horizontal deflection or high voltage circuits.

Heed the high voltage limits. These include the

X-ray protection Specifications Label, and the

Product Safety and X-ray Warning Note on the service data schematic.

9. Some semiconductor (“solid state”) devices are easily damaged by static electricity.

Such components are called Electrostatically

Sensitive Devices (ESDs); examples include integrated circuits and some field-effect transistors.

The following techniques will reduce the occurrence of component damage caused by static electricity.

10. Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging

Wrist-strap device. (Be sure to remove it prior to applying power--this is an electric shock precaution.)

Samsung Electronics 1-1

Precautions

11. High voltage is maintained within specified limits by close-tolerance, safety-related components and adjustments. If the high voltage exceeds the specified limits, check each of the special components.

12. Design Alteration Warning :

Never alter or add to the mechanical or electrical design of this unit. Example : Do not add auxiliary audio or video connectors.

Such alterations might create a safety hazard.

Also, any design changes or additions will void the manufacturer’s warranty.

13. Hot Chassis Warning :

Some TV receiver chassis are electrically connected directly to one conductor of the AC power cord. If an isolation transformer is not used, these units may be safely serviced only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC source.

To confirm that the AC power plug is inserted correctly, do the following : Using an AC voltmeter, measure the voltage between the chassis and a known earth ground. If the reading is greater than 1.0V, remove the AC power plug, reverse its polarity and reinsert. Re-measure the voltage between the chassis and ground.

14. Some TV chassis are designed to operate with 85 volts AC between chassis and ground, regardless of the AC plug polarity. These units can be safely serviced only if an isolation transformer inserted between the receiver and the power source.

15. Never defeat any of the B+ voltage interlocks.

Do not apply AC power to the unit (or any of its assemblies) unless all solid-state heat sinks are correctly installed.

16. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

17. Observe the original lead dress, especially near the following areas : Antenna wiring, sharp edges, and especially the AC and high voltage power supplies. Always inspect for pinched, outof-place, or frayed wiring. Do not change the spacing between components and the printed circuit board. Check the AC power cord for damage. Make sure that leads and components do not touch thermally hot parts.

18. Picture Tube Implosion Warning :

The picture tube in this receiver employs

“integral implosion” protection. To ensure continued implosion protection, make sure that the replacement picture tube is the same as the original.

19. Do not remove, install or handle the picture tube without first putting on shatterproof goggles equipped with side shields. Never handle the picture tube by its neck. Some “in-line” picture tubes are equipped with a permanently attached deflection yoke; do not try to remove such

“permanently attached” yokes from the picture tube.

20. Product Safety Notice :

Some electrical and mechanical parts have special safety-related characteristics which might not be obvious from visual inspection. These safety features and the protection they give might be lost if the replacement component differs from the original--even if the replacement is rated for higher voltage, wattage, etc.

Components that are critical for safety are indicated in the circuit diagram by shading,

( or ).

Use replacement components that have the same ratings, especially for flame resistance and dielectric strength specifications. A replacement part that does not have the same safety characteristics as the original might create shock, fire or other hazards.

1-2 Samsung Electronics

2. Alignment and Adjustment

2-1 VCR Adjustmant

2-1-1 Adjustment Preparation

1) Before you start

ΠUse the buttons on the SET key when adjusting VCR.

´ When changing the adjustment item, please press the “EASY-Q” and “DISPLAY” buttons on the Set.

ˇ You can change the adjustment value to move the “MENU Dial” Up or Down.

¨ Press the push the “ENTER button” when storing confirmed adjustment value of each adjustment step in

EEPROM.

ˆ The OSD shows “OK” after finishing each adjustment step.

Ø To clear the adjustment mode, pull out the power source.

2) Function of each buttons on the Set Key

Buttons

ENTER button (Confirm)

MENU Dial down (Data Down)

MENU Dial up (Data Up)

EASY-Q (Mode Up)

DISPLAY (Mode Down)

<Table 2-1>

Description

Stores changed value in the adjustment and auto adjustment mode.

Changes data in the adjustment state.

Changes mode.

3) How to get into the VCR adjust mode

[STEP 1]

ΠConnect the Power source.

´ Set the Power Switch to “PLAYER” position and Mode Switch to “TAPE” position.

EASY-Q Button

STOP Button

Power Switch

Samsung Electronics

Mode Switch

DISPLAY Button

PB ZOOM Button

Fig. 2-1

MENU Button

MENU Dial

ENTER Button

2-1

Alignment and Adjustments

[STEP 2]

Œ

Press and hold the "STOP" and "PB ZOOM" buttons on the video camera at the same time for more than

5 seconds.

´ When monitor OSD appears as shown Fig. 2-2, the adjustment mode has been activated successfully.

ˇ

Move the “MENU Dial” to highlight VCR ADJ and push the “MENU Dial”.

¨ Monitor OSD shows Fig. 2-3.

Then VCR adjustment mode has been activated successfully.

[STEP 3]

If you want to finish the adjustment mode, you have to do Power Reset.

The Power Reset means that you pull out the power source and pull in it again.

ADJ ITEM

VCR ADJ

CAM ADJ

CODEC ADJ

PRML ADJ

CAM DISP

DSC ADJ

LCD/CVF ADJ

Fig. 2-2

VCRADJ

600

EPR

00

EVR

00 Indicates current adjustment item

Indicates the adjusted values

Indicates preset values

Fig. 2-3

2-1-2 VCR Adjustment

Mode(Address)

620

Name

SWP Position

Value

80

<Table 2-2>

Description

Head Switching Position Adjust

ΠGet into VCR ADJUST mode.

´ Move to the VCR ADJUST address “620”.

ˇ Play standard tape, and “Head Switching Position” will be adjusted automatically.

2-2

Samsung Electronics

Alignment and Adjustments

2-2 Camera Adjustmant

Note : How to adjust the camera system.

1) EEPROM stores confirmed adjustment value of each adjustment step.

2) DSP (Digital Signal Process : ICA01-Main PCB) digitalizes the camera signal.

3) When changing IC705-Main PCB of EEPROM, readjust Main PCB.

While changing LCD PCB and CVF PCB- always readjust each part.

Since EEPROM stores confirmed adjustment value of each adjustment step, readjusting must be performed in order to store the changed data.

4) Adjust the following items after changing LENS Ass’y.

Œ

Lens Zoom Track

´

Auto HALL

ˇ

Auto IRIS

5) Adjust the following items after changing EEPROM and Camera Main PCB.

Œ

Lens Zoom Track

´

Zoom VR Center

ˇ

Auto HALL

¨

Auto IRIS

ˆ

Auto White Balance (indoor)

Ø

Auto White Balance (outdoor)

2-2-1 Adjustment Preparation

1) Before you start

ΠUse the buttons on the SET key when adjusting Camera.

´ When changing the adjustment item, please press the “EASY-Q” and “DISPLAY” buttons on the Set.

ˇ You can change the adjustment value to move the “MENU Dial” Up or Down.

¨ Press the push the “ENTER button” when storing confirmed adjustment value of each adjustment step in

EEPROM.

ˆ The OSD shows “OK” after finishing each adjustment step.

Ø To clear the adjustment mode, pull out the power source.

2) Function of each buttons on the Sst Key

Buttons

ENTER BUTTON (Confirm)

MENU Dial down (Data Down)

MENU Dial up (Data Up)

EASY-Q (Mode Up)

DISPLAY (Mode Down)

<Table 2-3>

Description

Stores changed value in the adjustment and auto adjustment mode.

Changes data in the adjustment state.

Changes mode.

Samsung Electronics

2-3

Alignment and Adjustments

5) How to set up the camera adjustment mode

[STEP 1]

Œ

Connect the Power source.

´ Set the Power Switch to “CAM” position and Mode Switch to “TAPE” position.

[STEP 2]

ΠPress and hold the "STOP" and "PB ZOOM" buttons on the video camera at the same time for more than

5 seconds.

´ When monitor OSD appears as shown Fig. 2-5, the adjustment mode has been activated successfully.

ˇ Move the “MENU Dial” to highlight CAM ADJ and push the “ENTER button”.

¨ Monitor OSD shows Fig. 2-6.

Then Camera adjustment mode has been activated successfully.

[STEP 3]

If you want to finish the adjustment mode, you have to do Power Reset.

The Power Reset means that you pull out the power source and pull in it again.

EASY-Q Button

STOP Button

Power Switch

Mode Switch

DISPLAY Button

PB ZOOM Button

Fig. 2-4

ADJ ITEM

VCR ADJ

CAM ADJ

CODEC ADJ

PRML ADJ

CAM DISP

DSC ADJ

LCD/CVF ADJ

Fig. 2-5

MENU Button

MENU Dial

ENTER Button

2-4

Samsung Electronics

Alignment and Adjustments

2-2-2 Camera Adjustment

Note

: "XX XX" indicate the previous preset value and adjusted value.

Press the “ENTER button” (Confirm) to store the adjusted value.

CAMADJ EPR EVR

00DF XX XX

Adjusted values

Stored values

Fig. 2-6

1) EEPROM Data Initialize

Caution

: This adjustment must do following items changing new EEPROM (IC705) or Main PCB.

Œ

Press the “EASY-Q”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows “00DF XX XX”.

´ Using “MENU Dial”(Data Up/Down) so that display data of EVR is “A0”

ˇ Press the “ENTER button” (Confirm).

¨

The OSD shows “OK” after huithing the initalize.

2) Lens Zoom Track

Caution

: For whole zoom range, it shall be in focus.

The location of a focus lens is moving depending on the location of Zoom Lens.

During adjusting, micom measures the focus location from a near distance to a long.

ΠCamera is set to E-E mode.

´

Focus chart photo.

ˇ Ensure that camera is left an about 3m distance from a focus chart and the focus of lens is placed vertically.

Attach a focus chart to white or gray wall of a flat surface.

¨

Connect a video output terminal to a TV.

ˆ Press the “EASY-Q”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows "00DE XX XX".

Ø Press the “ENTER button” (Confirm).

Never impact on the lens when adjusting zoom and focus Lens.

The OSD shows “OK” after finishing the adjustment.

3M ± 1cm

(Be sure to maintain the distance)

Fig. 2-7

LENS CCD

Samsung Electronics

2-5

Alignment and Adjustments

3) Zoom VR Center

ΠConnect a video output terminal to a TV.

´ Press the “EASY”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows “00D6 XX XX”.

ˇ Press the “ENTER button” (Confirm).

¨ Then Micom finds out Zoom VR center position.

Store Zoom VR center value in OB7.

4) Auto HALL

ΠConnect a video output terminal to a TV.

´ Press the “EASY-Q”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows "00CD XX XX".

ˇ

Press the “ENTER button” (Confirm).

¨ Then micom finds out max. Hall value with an iris opened and min. Hall value with an iris closed.

Store max. and min. value of Hall in OAD and OAC respectively.

ˆ

The OSD shows “OK” after finishing the adjustment.

5) Auto IRIS Level

ΠConnect a video output terminal to a wave form monitor and a TV.

´ Press the “EASY-Q”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows "00CE XX XX".

ˇ

Press the “ENTER button” (Confirm).

¨ Then micom finds out max. Hall value with an iris opened and min.

Hall value with an iris closed. Store max. and min. value of in 00BC, 00BD and 00BB respectively.

ˆ

The OSD shows “OK” after finishing the adjustment.

6) Auto White Balance (indoor)

Œ Camera mode & 3100 ˚ K gray scale chart.

´ Connect a video output terminal to a vectorscope and a TV.

ˇ Press the “EASY-Q”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows "00D4 XX XX".

¨

Ensure that camera picks up image 40µs on 3100 ˚ K gray scale chart precisely and the illumination is 1500~2000

Lux.

ˆ Press the “ENTER button” (Confirm) to ensure that white spot on a vectorscope is moving in the middle of screen.

Ø The OSD shows “OK” after finishing the adjustment.

7) Auto White Balance (outdoor)

Œ Camera mode & 5100 ˚ K gray scale chart.

´ Connect a video output terminal to a vectorscope and a TV.

ˇ Press the “EASY-Q”(Mode Up)/”DISPLAY”(Mode Down) buttons so that OSD shows "00D5 XX XX".

¨ Ensure that camera picks up image 40 µs on 5100 gray scale chart (3100 gray scale chart + C16 filter) precisely and the illumination is 1500~2000 Lux.

ˆ Press the “ENTER button” (Confirm) to ensure that white spot on a vectorscope is moving in the middle of screen.

Ø The OSD shows “OK” after finishing the adjustment.

2-6

Samsung Electronics

Alignment and Adjustments

2-3 LCD Adjustmant

2-3-1 Adjustment Preparation

1) Before you start

ΠUse the buttons on the SET key when adjusting LCD.

´ When changing the adjustment item, please press the “EASY-Q” and “DISPLAY” buttons on the Set.

ˇ You can change the adjustment value to move the “MENU Dial” Up or Down.

¨ Press the push the “ENTER button” when storing confirmed adjustment value of each adjustment step in

EEPROM.

ˆ The OSD shows “OK” after finishing each adjustment step.

Ø To clear the adjustment mode, pull out the power source.

2) Function of each buttons on the Set Key

Buttons

ENTER button (Confirm)

MENU Dial down (Data Down)

MENU Dial up (Data Up)

EASY-Q (Mode Up)

DISPLAY (Mode Down)

<Table 2-4>

Description

Stores changed value in the adjustment and auto adjustment mode.

Changes data in the adjustment state.

Changes mode.

Samsung Electronics

2-7

Alignment and Adjustments

3) How to get into the LCD adjust mode

[STEP 1]

ΠConnect the Power source.

´ Set the Power Switch to “CAM” position and Mode Switch to “TAPE” position.

[STEP 2]

ΠPress and hold the "STOP" and "PB ZOOM" buttons on the video camera at the same time for more than

5 seconds.

´ When “ADJ ITEM” OSD appears at the monitor as shown Fig. 2-9, move to a “ CAM ADJ” through

“Menu Dial” scrolling and press the “ENTER button”.

Fig. 2-10 will be shown in LCD screen and move to Address No. “012C” to adjust its value as “01”.

In order to save the modification value, press the “ENTER button” again.

(this is for setting up of Color Bar output.)

After completing all of adjustment, the Value of Address No. “012C” must necessarily return as “00”.

ˇ Move a Power Switch to OFF.

(Don’t have to plug it out)

EASY-Q Button

STOP Button

Power Switch

2-8

MENU Button

MENU Dial

ENTER Button

Mode Switch

DISPLAY Button

PB ZOOM Button

ADJ ITEM

VCR ADJ

CAM ADJ

CODEC ADJ

PRML ADJ

CAM DISP

DSC ADJ

LCD/CVF ADJ

Fig. 2-9

Fig. 2-8

CAMADJ EPR EVR

012C XX 01

Fig. 2-10

Adjusted values [01]

Address values [012C]

Samsung Electronics

Alignment and Adjustments

[STEP 3]

Œ

Set the Power Switch to “CAM” position and Mode Switch to “TAPE” position.

´ Press and hold the "STOP" and "PB ZOOM" buttons on the video camera at the same time for more than

5 seconds.

ˇ

When monitor OSD appears as shown Fig. 2-11, the adjustment mode has been activated successfully.

¨ Move the “MENU Dial” to highlight LCD/CVF ADJ and push the “ENTER button”.

ˆ Monitor OSD shows Fig. 2-12.

Then LCD adjustment mode has been activated successfully.

ADJ ITEM

VCR ADJ

CAM ADJ

CODEC ADJ

PRML ADJ

CAM DISP

DSC ADJ

LCD/CVF ADJ

LCD

XX EPR : XX EVR : XX

Fig. 2-11

Adjusted values

Address values

Fig. 2-12

Samsung Electronics

2-9

Alignment and Adjustments

2-3-2 LCD Adjustment

SHORT POINT (SOLDER LAND 2 POINTS SHORT)

Fig. 2-13 Location of Test point

1) Initial Adjustment

ΠLet two solder lands short. (Refer to Fig. 2-13, two short point)

´ Press a “STOP” button for 3 seconds or more until “INT OK” appears. (See Fig. 2-14)

INT OK

Fig. 2-14

You continuously let two solder lands short until completing all adjustment (from 1] Initial Adj. to 7] VCO Adj.) and they must be opened after completing all adjustment.

If two solder lands are continuously shorted, the product doesn’t work correctly.

2-10

Samsung Electronics

Alignment and Adjustments

2-4 Deck Adjustmant

2-4-1 Operation Without Housing Assembly

1) Remove the Housing Ass’y from the Deck Ass’y.

2) Connect the Mechanical Chassis to the recorder circuit to supply voltage.

3) Set to Unload mode.

4) Press the S/W Push (Keep ON status)to start loading, and push the PLAY Key.

(Cover the Top/End sensor with black tape, because they do not operate.)

Note

: For the removal of the Housing Ass’y refer to

4-2-2 (Training Manual ; page 4-8).

Connceted the Recorder Circuit

SWITCH C-IN

Fig. 2-15

2-4-2 Setting Mechanical Mode (Without Recorder Circuit)

1) Set the power-supply output to approx. 3V~5V.

2) Choose the polarity (depending on whether loading or unloading).

3) Supply the voltage to the Motor Loading, and set to the desired mode.

A

+

-

DC POWER SUPPLY

B

-

+

<Table 2-5>

Movement of Chassis

Unloading

Loading

A

B

Fig. 2-16

Samsung Electronics

2-11

Alignment and Adjustments

2-4-3 Maintenance

Carry out the following periodic maintenance checks in order to fully exercise all functions, operations and tape.

After repairing, service the set as follows:

1) Cleaning of Drum Assembly

ΠGently apply lens tissue soaked in ethyl alcohol to the Drum assembly.

Clean the Upper Drum assembly while rotating it slowly counterclockwise(by hand).

Note

: Do not rotate the motor by power or rotate the Upper Drum assembly clockwise.

Also, the Head tip will be damaged if the lens tissue is moved in a perpendicular direction.

Be sure to follow these instructions when cleaning the Drum Ass’y

2) Cleaning of Tape Path

ΠIn EJECT mode, clean the tape path system(from Pole Tension P1 through Pole Review P8, Pinch Roller and

Capstan Shaft) and the Lower Drum. Using the lens tissue soaked in ethyl alcohol.

Note

: Make sure that no oil or grease adheres to the lens tissue.

P1

P2

P3

P4

P7

P5

P6

P8

PINCH ROLLER

Fig. 2-17

2-12

Samsung Electronics

Alignment and Adjustments

3) Periodic Maintenance and Check List

When overhauling, refer to the following table.

<Table 2-6>

Maintenance checks

Tape path system

I

N

G

I

V

D

R

Performance

S

T

S

Y

E

M

Confirmation

Cleaning of tape path O

Cleaning and degaussing of drum ass’y O

Capstan Shaft

Gear Capstan

Gear Pully Shaft

Belt Timing

Motor Loading

Abnormal Noise

Back Tension

Brake System

PB, REV Torque Measurement

Hours of use (H)

500 1000 1500 2000 2500 3000 3500 4000 4500 5000

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O : Cleaning ∆ : Oil

: Confirmation

Remark

- Never let oil get on to the tape path surface.

When lubrication bearings, be sure to keep the oil free of dust. (Oil contaminated with dust might cause the bearings to wear out or seize.)

A “drop”of oil is defined as the amount attached to the tip of a Ø 2mm stick as shown in Fig. 2-18.

2mm

OIL

Fig. 2-18

Samsung Electronics

2-13

Alignment and Adjustments

2-4-4 Mechanical Check and Adjustment

2-4-4(a) Tension Regulator Adjustment

1) Disassembly

Œ For the removal of the Housing Ass’y refer to 4-2-2 (Training Manual ; page 4-8).

2) Adjustment

ΠSet to PLAY mode (without cassette tape).

´ Check that the distance between external surface of Holder Loading and extenal diamater of Arm Tension is

0.7±0.3mm. (Fig. 2-19)

ˇ If necessary, proceed to step 4.

¨ If the Arm Tension Œ is located inside (or right) the position specified, adjust the Cap Adjust Œ toward arrow “A”. (If it is located outside (or left), adjust toward arrow “B”.)

Note

: Check if the Arm Tension can be moved toward arrow “C” in PB mode.

3) Reassembly

Œ For the removal of the Housing Ass’y refer to 4-2-2 (Training Manual ; page 4-8).

ARM TENSION

Œ

CAP ADJUST

´

"A"

"B"

"C"

Fig. 2-19

2-14

Samsung Electronics

Alignment and Adjustments

2-4-4(b) Back Tension Confirmation

1) Set up the cassette-torque tape.

2) Set to CAMERA mode, push the EDIT(+) KEY and check that the torque value of Reel S is 5.5±1g.cm.

3) If necessary, proceed to step 4.

4) If the Tension value is Low specified, moved to toward “a”.

If the Tension value is High specified, moved to toward “c”.

Reference

: After changed, insert Cassette torque tape and confirm torque value.

Fig. 2-20

2-4-4(c) PB/REV Torque check

1) Set up the cassette torque tape.

2) Set to CAMERA mode, Push the EDIT(+) button and check that the torque value of Reel T is 9±3g.cm.

3) Push the EDIT(-) button and check that the torque value of Reel S is 15±3g.cm.

4) If necessary, replace the defective Reel Disk S, T Ass’y.

2-4-4(d) Reel Table Height Check

1) Removal

Œ For the removal of the Housing Ass’y refer to 4-2-2 (Training Manual ; page 4-8).

´ For the removal of the Idler Ass’y refer to 4-2-3 (Training Manual ; page 4-9).

2) Check

Œ

Using vernier calipers, check the following distances : From the upper surface of the Sub Chassis to the resting surfaces of Reel S, T table should each be 3.9±0.1mm.

3) Mounting

Œ For the removal of the Idler Ass’y refer to 4-2-3 (Training Manual ; page 4-9).

´ For the removal of the Housing Ass’y refer to 4-2-2 (Training Manual ; page 4-8).

REEL DISK S TABLE

RESTING SURFACE

REEL DISK T TABLE

RESTING SURFACE

CHASSIS SUB

Fig. 2-21

Samsung Electronics

2-15

Alignment and Adjustments

2-4-5 Tape Path Adjustment

2-4-5(a) Preparation for Adjustment

ΠClean the tape running surface (Poles, Drum, Capstan Shaft, Pinch Roller).

´ Observe the PB RF signal and Head Switching Pulse on an oscilloscope.

ˇ Play back the alignment tape.

¨ Check that the waveform of the RF signal is flat at both inlet and outlet(A in Fig. 2-23).

If not flat (B or C in Fig. 2-23), do adjustments 2-4-5(b) through 2-4-5(d).

INLET OUTLET

A NORMAL

B

DEFECT AT INLET

RF Signal

(Pin 3 of CNR02)

Head Switching

(Pin 2 of CNR02)

3

2

1

5

4

7

6

9 10

8 11

12

13

14

15

16

17

18

Fig. 2-22 Rear PCB (Bottom Side)

P1 P2

P3

P5

P6

P7

P8

C DEFECT AT OUTLET

Fig. 2-23

Fig. 2-24

2-16

Samsung Electronics

2-4-5(b) Tracking adjustment

Œ

Play Back the alignment tape.

´ Turn P3 to flatten the waveform at the inlet.

ˇ Turn P5 to flatten the waveform at the outlet.

MOTOR CAPSTAN

P8

P6

P2

Alignment and Adjustments

Fig. 2-25

2-4-5(c) Take Up Path Adjustment

ΠPlay back the alignment tape, and confirm that the tape is not twisted between the Guide Roller T and

Capstan. (If the tape is twisted, turn P8, Fig. 2-25)

´ Set to REV mode and observe the outlet waveform of PB RF signal. (Fig. 2-26)

ˇ If the outlet waveform is out-of-spec, turn P8 counterclockwise, and redo steps 1 and 2.

(DEFECTIVE)

Fig. 2-26

(CORRECT)

Samsung Electronics

2-17

Alignment and Adjustments

2-4-5(d) Check After Adjustment

1) Tracking Check

ΠPlayback the alignment tape.

´ Confirm that the minimum amplitude value(E min.)is 80% of the maximum value(E max.) or larger.

(Fig. 2-27)

ˇ Confirm that no large fluctuation occur on the waveform. (Fig. 2-28)

C

A

Emin Emax

C

Emin

Emax

80(%)

C

1

8

A

Fig. 2-27 Fig. 2-28

2) CUE and REV Check

ΠPlayback the alignment tape, and set to REV mode.

Confirm that the waveform peaks have a uniform Pitch. (Fig. 2-29 A)

If the track pitch is not uniform, do section 2-4-5(b) (Tracking adjustment) and 2-4-5(c) (P8 adjustment).

´ Set to CUE mode.

Confirm that the waveform peaks still have a uniform pitch. (Fig. 2-29 B)

If the track pitch is not uniform, do section 2-4-5(b) (Tracking Adjustment).

a b c a b c a b c

Fig. 2-29

2-18

Samsung Electronics

Alignment and Adjustments

3) Rise Time Check

Œ

Playback the alignment tape.

´ Set to playback mode, and confirm that the waveform of PB RF signal rises flat within 3 seconds.

Also confirm that the tape is not twisted or curled around the Pinch Roller. (Fig. 2-30)

ˇ

Run the tape in CUE/REV and FF/REW modes, then playback.

Confirm the waveform of PB RF signal rises flat within 3 seconds. Also confirm that the tape is not twisted or curled around the Pinch Roller.

¨ Repeat steps 2. and 3.

4) Tape Path Check

ΠIn CUE and REV modes, check that the tape is not curled around the P2, P6 upper flange and P8 upper/Lower flanges.

MOTOR CAPSTAN

P6

P8

P2

Fig. 2-30

P1

P2 P3

FROM THE S REEL

Fig. 2-31

P5

P6

P8

TO THE T REEL

Samsung Electronics

2-19

Alignment and Adjustments

MEMO

2-20

Samsung Electronics

3. Exploded View and Parts List

Page

3-1 Ass’y Chassis - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2

3-2 Ass’y EVF/CVF - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4

3-3 Ass’y Left - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6

3-4 Ass’y Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-8

3-5 Ass’y LCD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-10

3-6 Ass’y Top - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-12

3-7 Ass’y Front - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-14

3-8 Ass’y Rear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-16

3-9 Ass’y Cover Housing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-17

3-10 Mechanical Parts (Main Chassis) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-18

3-11 Mechanical Parts (Sub Chassis) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-20

Notice

You can search for the updated part code through ITSELF web site.

URL; http://itself.sec.samsung.co.kr

Samsung Electronics 3-1

Exploded View and Parts List

3-1 Ass’y Chassis

160

166

917

917

165

173

171

170

917

903

150

180

3-2 Samsung Electronics

Loc. No

170

171

173

180

150

160

165

166

903

917

Parts No.

AD97-07910A

AD97-08324A

AD61-01592A

AD61-01593A

AD97-08531A

AD60-00053A

AD67-00253A

AD97-08510A

AD97-08510B

AD97-08510C

AD97-08510E

AD97-08510F

AD97-08510G

AD97-09047A

AD97-09181A

AD97-09047B

AD97-09181C

AD97-09047C

AD97-09181D

6001-000805

6003-001453

Description ; Specification

ASSY-DECK;-,DD-4,ASSY

ASSY-LENS-ZOOM;PC,SHML,20X

BRACKET-LENS A;DELTA2,SUS304 1/2H,T0.5,W

BRACKET-LENS B;DELTA2,SUS304 1/2H,T0.5,W

ASSY-CCD BOARD;-,DELTA2-PJ,º «œ,DELTA2,C

SPACER-CCD;ALPHA_PJ,SILICON,-,-,-,BLK,0.

LENS FILTER-OLPF;SHML,ºˆ¡§

∫π

±º¿˝

«,WHIT

ASSY-MAIN;DELTA2-PJ,VP-D103,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D101,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D105,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D101i,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D103i,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D105i,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D101i/CHN,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D101i/XEV,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D103i/CHN,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D103i/XEV,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D105i/CHN,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D105i/XEV,MAIN

SCREW-MACHINE;CH,+,M1.7,L3,NI PLT,SWRCH1

SCREW-TAPTITE;BH,+,B,M1.7,L4,ZPC(BLK)

Exploded View and Parts List

Remark

VP-D103 Only

VP-D101 Only

VP-D105 Only

VP-D101

I

Only

VP-D103

I

Only

VP-D105

I

Only

VP-D101

I

/CHN Only

VP-D101

I

/XEV Only

VP-D103

I

/CHN Only

VP-D103

I

/XEV Only

VP-D105

I

/CHN Only

VP-D105

I

/XEV Only

Samsung Electronics 3-3

Exploded View and Parts List

3-2 Ass’y EVF/CVF

711

901

901

701

714

730

703

912

702

901

EVF (VP-D101(

I

)/D103(

I

))

422

423

919

913

720

715

717

CVF (VP-D105(

I

))

713

432

433

935

937

938

936

3-4 Samsung Electronics

Loc. No

720

730

901

912

713

714

715

717

701

702

703

711

422

423

432

433

913

919

935

936

937

938

Parts No.

AD41-00525A

AD97-08656A

AD41-00526A

AD97-08845A

AD61-12033A

AD61-01596A

AD69-00461A

AD61-01597A

AD73-00118A

AD61-01613A

AD61-01610A

AD67-00194A

AD64-01165A

AD97-08463A

6001-000805

6002-001132

6002-001085

6009-001325

AD97-06506B

AD07-00009A

AD97-06616A

AD07-00035A

Description ; Specification

FPC-EVF;DELTA2-PJ,-,POLYMIDE,-,0.15(0.

ASSY-UNIT-EVF;0.24PAL,DELTA2-PJ,UNIT-EV

FPC-CVF;DELTA2-PJ,-,POLYAMID,-,0.15(0.

ASSY-UNIT-CVF;0.24PAL,THETA2,UNIT-CVF

BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8

CASE-EVF BOTTOM;DELTA2-PJ,ABS 94V0,T34,W

PAD-EVF;DELTA-PJ,

˜

–,0.5,20.5,7,-,BLA

CASE-EVF TOP;DELTA2-PJ,ABS 94V0,T34,W24,

RUBBER-EYE CUP;DELTA2-PJ,TPU,36X24X10.2,

GUIDE-LINK;DELTA2-PJ,PC,T34,W24,L36,SILV

HOLDER-LENS CVF;DELTA2-PJ,ABS 94 HB,T7.8

LENS-EVF 14X G1;DELTA-PJ,OPT PLASTIC PMM

KNOB-EVF;DELTA2-PJ,POM,T4.5,W3.6,L5,-,B

ASSY-EVF LINK;-,DELTA2-PJ,EVF LINK

SCREW-MACHINE;CH,+,M1.7,L3,NI PLT,SWRCH1

SCREW-TAPPING;BH,T0.5,+,2,M1.7,L3.0,BLK,

SCREW-TAPPING;CH,+,2,M1.7,L5,ZPC(BLK),SW

SCREW-SPECIAL;CH,+,,M1.4,L5(1.9),ZPC(BLK

ASSY-EVF BOARD(PAL);DVC,VP-D26,EVF BOARD

LCD-PANNEL;MCVVQ410(320),VP-D50,320*240,

ASSY-CVF BOARD;,GAMMA-PJ,GAMMA,CVF B

LCD-PANNEL;-,LCX042AK,521*218,8.87*9.87*

Exploded View and Parts List

Remark

VP-D101(

I

)/D103(

I

) Only

VP-D101(

I

)/D103(

I

) Only

VP-D105(

I

) Only

VP-D105(

I

) Only

VP-D101(

I

)/D103(

I

) Only

VP-D101(

I

)/D103(

I

) Only

VP-D105(

I

) Only

VP-D105(

I

) Only

Samsung Electronics 3-5

Exploded View and Parts List

3-3 Ass’y Left

916

916

511

580

917

917

911

512

913

536

560

542

541 543

540

917

911

911

517

514

570

530

535

600

520

3-6 Samsung Electronics

Exploded View and Parts List

Remark

541

542

543

560

570

530

535

536

540

Loc. No

511

512

514

517

520

580

600

911

913

916

917

Parts No.

AD61-01616A

AD61-01028A

AD61-01799A

AD97-08377A

AD97-08407B

AD97-08407A

AD97-08407E

AD97-08410A

AD97-08445E

AD97-08445B

AD97-08445G

6002-001085

6003-001142

6003-001445

6003-001453

AD64-01148A

AD61-01582A

AD61-01595A

AD61-01594A

AD97-08465C

AD97-08465B

AD97-08465A

AD97-08461C

AD97-08461A

AD64-01159A

AD61-01621A

AD97-08466A

AD97-08467A

AD63-00555A

AD63-00555B

AD61-01615A

Description ; Specification

BUTTON-FUNCTION 2.5;DELTA2,ABS 94HB,75.

BASE-TRI POD;DELTA2,PC,T10.3,W32,L20.3,L

BRACKET-SPEAKER;DELTA2,SUS304 1/2H,T0.5,

BRACKET-SHOULDER STRAP;DELTA2,SUS304 1/2

ASSY-COVER LEFT;-,DELTA2-PJ,PAL,MS(X)

ASSY-COVER LEFT;-,DELTA2-PJ,EXP,MULTI(O)

ASSY-COVER LEFT;-,DELTA2-PJ,NTSC,EXP,MS(

ASSY-UNIT CASE LEFT;-,DELTA2-PJ,LIGHT(X

ASSY-UNIT CASE LEFT2.5;-,DELTA2-PJ,SCD10

KNOB-SELECT;DELTA2-PJ,ABS 94HB,T4,W9.45,

HOLDER-SELECT;DELTA2-PJ,POM,T6,W9,L25.3,

ASSY-MS DOOR;-,DELTA2-PJ,NTSC,EXP,MS(O)

ASSY-MULTI DOOR;-,DELTA2-PJ,NTSC,EXP,MUL

COVER-DOOR M/S;DELTA2-PJ,ABS 94HB,T1.4,W

COVER-DOOR-MULTI;DELTA2-PJ,ABS94HB,T1.0,

HOLDER-DOOR M/S;DELTA2-PJ,ABS 94HB,T6.9,

HOLDER-DOOR MULTI;DELTA2-PJ,ABS 94HB,T6,

SPRING ETC-DOOR M/S;BETA-PJ,SUS304 WPB,-

SPRING ETC-DOOR-MULTI;DELTA2-PJ,SWPB,0.2

ASSY-SPEAKER;DELTA2-PJ,SC-D103,SPEAKER

ASSY-LEFT BOARD;DELTA2-PJ,MEMORY(X),LEFT

ASSY-LEFT BOARD;DELTA2-PJ,SC-D103,LEFT B

ASSY-LEFT BOARD;DELTA2-PJ,2.5INCH,LEFT B

ASSY-FUNCTION BOARD;DELTA2-PJ,SC-D103,FU

ASSY-LCD 2.5;-,DELTA2-PJ,VP-D103,PAL

ASSY-LCD 2.5;-,DELTA2-PJ,VP-D101,PAL

ASSY-LCD 2.5;-,DELTA2-PJ,VP-D105,PAL

SCREW-TAPPING;CH,+,2,M1.7,L5,ZPC(BLK),SW

SCREW-TAPTITE;CH,+,B,M1.7,L5,NI PLT,SRWC

SCREW-TAPTITE;PH,+,B,M2,L5,ZPC(BLK)

SCREW-TAPTITE;BH,+,B,M1.7,L4,ZPC(BLK)

VP-D101(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D103(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

) Only

VP-D105(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

) Only

VP-D101(

I

) Only

VP-D105(

I

) Only

Samsung Electronics 3-7

Exploded View and Parts List

3-4 Ass’y Right

410

456

3-8

470

128

901

431

434

433

462

901

430

901

918

127

459

452

458

453

457

906

462

454

901

918

451

420

421

901

422

461

455

460

918

444

442

906

918

440

Samsung Electronics

Exploded View and Parts List

Remark

431

433

434

Loc. No

127

128

410

420

421

422

430

460

461

462

470

901

906

918

456

457

458

459

452

453

454

455

440

442

444

451

Parts No.

AD63-00561A

AD63-00561B

AD61-01169A

AD61-60521A

AD61-01585A

AD61-60601A

AD63-00565A

AD64-00936A

AD64-00942A

AD61-01146A

AD64-00947A

AD66-00278A

AD73-00006A

AD97-08448A

6001-000805

6001-001527

6003-001490

AD63-00571A

AD63-00559A

AD97-08462A

AD97-08369A

AD61-01587A

AD97-08370A

AD97-08640A

AD97-08376E

AD97-08371A

AD97-08371C

AD61-01583A

AD97-08409A

AD97-08409B

AD97-08459A

AD61-12033A

AD73-00006A

Description ; Specification

COVER-ADJUST;DELTA2-PJ,ABS 94HB,T1.5,W7.

COVER-LI BATTERY;DELTA2-PJ,ABS 94HB,T8.3

ASSY-LINK;-,DELTA2-PJ,HOUSING LINK

ASSY-POWER;DELTA2-PJ,SC-D103,POWER

BRACKET-POWER PCB;DELTA2,SECC,T0.5,W11,L

ASSY-START/STOP BOARD;DELTA2-PJ,SC-D103,

ASSY-JACK;DELTA2-PJ,sc-d107,jack

ASSY-JACK;DELTA2-PJ,vp-d101,JACK

ASSY-JACK BOARD;DELTA2-PJ,SC-D103,JACK B

ASSY-JACK BOARD;DELTA2-PJ,SC-D103,JACK B

BRACKET-JACK;DELTA2,SUS304 1/2H,T0.5,W46

ASSY-LITHIUM BOARD;DELTA2-PJ,SC-D103,LIT

ASSY-LITHIUM B’D;DELTA2-PJ,VP-D101,Lithi

ASSY-CASE RIGHT;-,DELTA2-PJ,EXP,USB(O)

BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8

RUBBER—GUIDE DECK;BUTHYL RUB,-,VP-D50,-

COVER-RIGHT;DELTA2-PJ,ABS 94HB,T50,W68.7

COVER-RIGHT;DELTA2-PJ,ABS 94HB,T50,W68.7

SPRING ETC-PLATE RECORD;DELTA-PJ,SUS ,-,

SPRING-REC;SC-80,SWPB,4.3,-,-,-,-,-,-,-,

BRACKET-RIGHT;DELTA2,SUS304 1/2H,T0.5,W1

SPRING-KNOB POWER;-,SUS304 WPB,-,-,-,-,-

COVER-JACK;DELTA2-PJ,ABS+URETAN,T16,W28,

BUTTON-POWER RECORD;DELTA-PJ,ABS 94HB,-,

KNOB-POWER;DELTA-PJ,ABS 94HB,-,-,-,-,BLK

PLATE-POWER;DELTA-PJ,SUS T0.5,T0.2,-,-,N

LOCKER-SAFETY POWER;DELTA-PJ,ABS 94HB,-,

SLIDER-POWER;DELTA2-PJ,POM,T5.8,W14,L15,

RUBBER—GUIDE DECK;BUTHYL RUB,-,VP-D50,-

ASSY-BELT GRIP;LEATHER,DELTA2-PJ,-

SCREW-MACHINE;CH,+,M1.7,L3,NI PLT,SWRCH1

SCREW-MACHINE;CH(0.3),+,M1.7,L2.0,NI PLT

SCREW-TAPTITE;PH,+,B,M1.7,L4,NI PLT,SWCH

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

Samsung Electronics 3-9

Exploded View and Parts List

3-5 Ass’y LCD

611

614

908

917 912

904

917

619

620

618

604

603

613

637

636

631

633

632

634

904

601

630

3-10 Samsung Electronics

Exploded View and Parts List

Remark

631

632

633

634

636

904

908

917

937

Loc. No

612

613

614

618

601

603

604

611

619

620

630

Parts No.

AD97-08372B

AD07-00039A

AD97-08470A

AD63-00563A

AD63-00562A

AD62-00027A

AD61-12033A

AD61-01603A

AD97-08469A

AD97-06489A

AD97-08439E

AD97-08439B

AD97-08439G

AD61-01602E

AD61-01602B

AD64-01161A

AD61-01606A

AD61-01624A

AD64-01172A

AD64-01171A

AD64-01173A

6001-001444

6001-001716

6003-001453

AD64-00808A

Description ; Specification

ASSY-LCD BOARD;DELTA2-PJ,PAL,LCD BOARD(2

LCD;PA025XS8,DELTA-PJ,480*234,61.6

ASSY-BACK LIGHT2.5;-,DELTA2-PJ,2.5

COVER-HINGE BOTTOM 2.5;DELTA2-PJ,ABS 94

COVER-HINGE TOP 2.5;DELTA2-PJ,ABS 94V0,

INSULATION-BACK LIGHT;BETA-PJ,PVC,T0.05,

BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8

CASE-LCD BOTTOM 2.5;DELTA2-PJ,ABS 94V0,

ASSY-HINGE;-,DELTA2-PJ,HINGE

ASSY-LCD FPC;.,DELTA-PJ,LCD FPC

ASSY-CASE LCD TOP 2.5;-,DELTA2-PJ,VP-D1

ASSY-CASE LCD TOP 2.5;-,DELTA2-PJ,VP-D1

ASSY-CASE LCD TOP 2.5;-,DELTA2-PJ,VP-D1

CASE-LCD TOP2.5;DELTA2-PJ,ABS 94V0,T7.7,

CASE-LCD TOP2.5;DELTA2-PJ,ABS 94V0,T7.7,

LOCKER-LCD;DELTA2-PJ,POM,WHT,-,-,9.6X5.6

HOLDER-LOCK LCD;DELTA2-PJ,ABS 94HB,T1,W7

SPRING ETC-LOCK LCD;DELTA2-PJ,SUS304 WPB

INLAY-DV;DELTA2-PJ,PC,T0.6,W15,L15,SILV

INLAY-MS;DELTA2-PJ,PC,T0.6,W15,L15,BLUE

BADGE-MULTI;DELTA2-PJ,NI,T0.6,W15,L15,-,

SCREW-MACHINE;PH,+,M1.7,L2.0,ZPC(BLK),SW

SCREW-MACHINE;BH,+,M2,L4,NI PLT

SCREW-TAPTITE;BH,+,B,M1.7,L4,ZPC(BLK)

BADGE-SAMSUNG;ALPHA_PJ,AL,T0.7,-,-,-,SIL

VP-D103(

I

) Only

VP-D101(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

) Only

VP-D105(

I

) Only

Samsung Electronics 3-11

Exploded View and Parts List

3-6 Ass’y Top

442

808

811

812

122

123

124

915

120

801

3-12

442

911

805

804

442

803

807

809

Samsung Electronics

Loc. No

120

807

808

809

811

812

911

915

801

803

804

805

122

123

124

442

Parts No.

AD97-08444B

AD97-08444C

AD64-01153C

AD64-01158A

AD61-01619A

AD61-12033A

AD61-01601A

AD64-01160A

AD61-01622A

AD61-01623A

AD63-00567A

AD63-00568A

AD97-08379A

AD73-00120A

AD69-00542A

6002-001085

6003-001291

Description ; Specification

ASSY-GRILL MIC;-,DELTA2-PJ,NITE-CAPTURE(

ASSY-GRILL MIC;-,DELTA2-PJ,NITE-PIX,CAPT

GRILLE-MIC A;DELTA2-PJ,ABS 94HB,T8.4,W26

KNOB-NITE PIX;DELTA2-PJ,ABS 94HB,T12.6,W

HOLDER-NITE PIX;DELTA2-PJ,POM,T4.8,W10.5

BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8

CASE-TOP;DELTA2-PJ,ABS 94HB,T27.5,W39.5

KNOB-ZOOM;DELTA2-PJ,ABS 94HB,T19.7,W10.9

HOLDER-ZOOM;DELTA2-PJ,POM,T8.9,W23.2,L28

SPRING ETC-ZOOM;DELTA2-PJ,SUS304 WPB,•’0

SHEET-PHOTO;DELTA2-PJ,

Œ¡˜

˜,T0.2,W7.7,L

SHEET-MIC;DELTA2-PJ,

Œ¡˜

˜,T0.2,W12.2,L2

ASSY-TOP BOARD;DELTA2-PJ,SC-D103,TOP BOA

RUBBER-MIC;DELTA2-PJ,IIR,8.6X21X6.6,15,-

PAD-MIC;DELTA2-PJ,PORON SRS,T0.5,W8.6,

SCREW-TAPPING;CH,+,2,M1.7,L5,ZPC(BLK),SW

SCREW-TAPTITE;CH,+,B,M1.4,L3.0,ZPC(BLK),

Exploded View and Parts List

Remark

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

Samsung Electronics 3-13

Exploded View and Parts List

3-7 Ass’y Front

3-14

209

204

210

917

917

208

VP-D101(

I

) Only

201

917

205

208

917

206

VP-D103(

I

)/D105(

I

) Only

207

917

203

Samsung Electronics

209

210

917

Loc. No

201

203

204

205

206

207

208

Parts No.

AD97-08450A

AD61-01598A

AD61-01598B

AD73-00119A

AD61-12033A

AD64-01162A

AD63-00560A

AD64-01164A

AD64-01163A

AD61-01617A

AD61-01617B

AD67-00252A

6003-001453

Description ; Specification

ASSY-VIDEO LIGHT;-,DELTA2-PJ,VIDEO LIGHT

CASE-FRONT 16X;DELTA2-PJ,ABS 94HB,T27.6,

CASE-FRONT 20X;-,DELTA2-PJ,T27.6,W75,L46

RUBBER-HOOD;DELTA2-PJ,SILICON,•’34.1XT6,

BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8

WINDOW-REFLECTOR;DELTA2-PJ,PC 94HB,T9.2,

COVER-REFLECTOR;DELTA2-PJ,PC,T17.4,W18.5

WINDOW-REMOCON B;DELTA2-PJ,PMMA,T6.5,W28

WINDOW-REMOCON A;DELTA2-PJ,PMMA,T6.5,W28

HOLDER-LENS HOOD 16X;DELTA2-PJ,PC,T8,W36

HOLDER-LENS HOOD 20X;DELTA2-PJ,PC,T8,W36

LENS-HOOD;DELTA2-PJ,ABS 94HB,L/GARY,•’42

SCREW-TAPTITE;BH,+,B,M1.7,L4,ZPC(BLK)

Exploded View and Parts List

Remark

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

)/D103(

I

) Only

VP-D105(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

) Only

VP-D103(

I

)/D105(

I

) Only

VP-D101(

I

)/D103(

I

) Only

VP-D105(

I

) Only

Samsung Electronics 3-15

Exploded View and Parts List

3-8 Ass’y Rear

901

308

307

306

301

304

Loc. No

307

308

320

901

126

301

304

306

Parts No.

AD63-00554A

AD61-01625A

AD64-01156A

AD61-01605A

AD61-01626A

AD97-08373A

AD97-08514A

6002-001085

Description ; Specification

COVER-CONNECTOR;DELTA2-PJ,ABS 94HB,T1.3,

SPRING ETC-BATTERY EJECT;DELTA2-PJ,SUS30

KNOB-BATTERY EJECT;DELTA2-PJ,ABS 94HB,T5

HOLDER-BATTERY EJECT;DELTA2-PJ,POM,T3.1,

BRACKET-JOINT;DELTA2-PJ,SUS304 1/2H,T0.6

ASSY-REAR BOARD;DELTA2-PJ,SC-D103,REAR B

ASSY-UNIT CASE REAR;-,DELTA2-PJ,EXP

SCREW-TAPPING;CH,+,2,M1.7,L5,ZPC(BLK),SW

320

126

Remark

3-16 Samsung Electronics

Exploded View and Parts List

3-9 Ass’y Cover Housing

913

482

481

901

484

483

Loc. No

480

481

482

483

484

901

913

Parts No.

AD97-08460A

AD63-00557A

AD61-01591A

AD64-00858A

AD97-04814A

6001-000805

6003-001142

Description ; Specification

ASSY-HOUSING;-,DELTA2-PJ,EXP

COVER-HOUSING;DELTA2-PJ,ABS 94HB,T42.8,W

BRACKET-GRIP FRONT;DELTA2,SUS304 1/2H,T1

KNOB-TAPE EJECT;BETA-PJ,ABS 94HB,-,-,-,-

ASSY-TAPE EJECT;SUS,BETA-PJ,-

SCREW-MACHINE;CH,+,M1.7,L3,NI PLT,SWRCH1

SCREW-TAPTITE;CH,+,B,M1.7,L5,NI PLT,SRWC

480

Remark

Samsung Electronics 3-17

Exploded View and Parts List

3-10 Mechanical Parts (Main Chassis)

M404

406

M417

M411

405

M402

M413

M410

407

M412

M407

404

M409

401

403

406

M403

302

M414

M415

301

M416

M408

M401

M405

M406

3-18 Samsung Electronics

Loc. No

M401

M402

M403

M404

M405

M406

M407

M408

404

405

406

407

301

302

401

403

M409

M410

M411

M412

M413

M414

M415

M416

M417

Parts No.

6031-001412

6031-001417

6001-001575

6001-001591

6001-001715

6001-001590

6009-001319

6001-001452

AD97-06414A

AD97-06389A

AD66-00208A

AD97-07909A

AD66-00212A

AD66-00211A

AD97-06399A

AD97-06398A

AD61-01164A

AD97-06403A

AD97-06176A

AD61-01483A

AD61-00558A

AD66-00221A

AD66-00069A

AD97-06400A

AD66-00219A

Description ; Specification

WASHER-PLAIN;POLYSLIDE,CUT,ID0.7,D2.0,T0

WASHER-PLAIN;POLYSLIDE,-,ID0.8,D3.0,T0.2

SCREW-MACHINE;PH,+,M1.4,L3.5,ZPC(WHT),SW

SCREW-MACHINE;PH,+,M1.4,L4(1.5),ZPC(BLK)

SCREW-MACHINE;BH,+,M1.4,L2.2,ZPC(BLK)

SCREW-MACHINE;PH,+,M1.4,L2.2,ZPC(BLK),SW

SCREW-SPECIAL;BH,+,-,M1.4,L2.6,ZPC(YEL),

SCREW-MACHINE;BH,+,M1.4,L2.5,BLK,SWRCH18

ASSY-MAIN CHASSIS;-,DD-4,ASSY

ASSY-LOADING-MOTOR;MOTOR+TEC,DD-4,ASSY

GEAR-TENSION;DD-4,PBT3300,0.5,24,-,-,PCD

ASSY-GEAR-CAM-MAIN;-,DD-4,ASSY

SLIDER-MAIN;DD-4,SUS430 CP,T0.4,-,-,NAT,

LEVER-EJECT;DD-4,DURACON MS-02,-,-,-,-,-

ASSY-DRUM BASE RAIL;-,DD-4,-

ASSY-CAPSTAN MOTOR;-,DD-4,ASSY

HOLDER-FPC SUB;DD-4,DURACON M90-44,-,-,-

ASSY-DRUM;-,DD-4,ASSY

ASSY-GUIDE ROLLER;SUS+ETC,DD-4,-

GUIDE-ROLLER;DD-4,POM,-,-,-,BLACK,MOLD T

PLATE-S/P BASE;DD-3,SUS632 CSP ,T0.15,-,

PULLEY-BELT TIMING;DD-4,POLYURETHAN,-,-,

GEAR-CAPSTAN;DD-3,DYAMID,0.4,28,-,-,PCD

ASSY-ARM-PINCH;-,DD-4,ASSY

GEAR-PULLEY;DD-4,DURACON M90-44,0.3,44,-

Exploded View and Parts List

Remark

Samsung Electronics 3-19

Exploded View and Parts List

3-11 Mechanical Parts (Sub Chassis)

S312

S313

S311

401

S315

S314

301

S308

S307

402

S304

S302

S310

S303

S306

S305

S309

S301

3-20 Samsung Electronics

Loc. No

S306

S307

S308

S309

S310

S311

S312

S313

S314

S315

301

401

402

S301

S302

S303

S304

S305

Parts No.

6031-001412

6001-001575

6009-001320

AD97-06412A

AD97-06404A

AD97-06390A

AD97-06395A

AD97-06396A

AD97-06397A

AD97-06401A

AD61-01184A

AD97-06402A

AD97-07213A

AD61-01195A

AD61-01194A

AD97-06394A

AD61-01159A

AD69-00425A

Description ; Specification

WASHER-PLAIN;POLYSLIDE,CUT,ID0.7,D2.0,T0

SCREW-MACHINE;PH,+,M1.4,L3.5,ZPC(WHT),SW

SCREW-SPECIAL;BH,+,,M1.4,L1.7,ZPC(YEL),S

ASSY-SUB CHASSIS;ASSY,DD-4,-

ASSY-COVER-REEL-BRAKE;-,DD-4,-

ASSY-BRAKE T;-,DD-4,ASSY

ASSY-REEL-DISK-S;ASSY,DD-4,-

ASSY-REEL-DISK-T;ASSY,DD-4,-

ASSY-IDLER;ASSY,DD-4,-

ASSY-ARM-TENSION;-,DD-4,ASSY

SPRING ETC-TENSION;DD-4,SUS304-WPB,-,-,-

ASSY-ARM-REVIEW;-,DD-4,ASSY

ASSY-BRAKE-SOFT-S;-,DD-4,ASSY

HOUSING-LOCK R;DD-4,DURACON M90-44 DURA

HOUSING-LOCK L;DD-4,DURACON M90-44 DURA

ASSY-HOUSING;SECC+ETC,DD-4,ASSY

HOLDER-BAND;DD-4,DURACON M90-44,-,-,-,NA

BAND-TENSION;DD-4,LUMIRROR,-,-,-,WHITE,-

Exploded View and Parts List

Remark

Samsung Electronics 3-21

Exploded View and Parts List

MEMO

3-22 Samsung Electronics

DIFFERENT POINT

CABINET ASSEMBLY ( Page : 3-2, 3-3 )

160

166

917

917

165

173

171

170

917

903

150

180

Loc.No

180

Part No

AD97-08510J

AD97-09336B

AD97-09181B

AD97-09616A

Samsung Electronics

Description ; Specification

ASSY-MAIN;DELTA2-PJ,VP-D102D,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D102D/XEV,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D102Di/XEV,MAIN

ASSY-MAIN BOARD;DELTA2-PJ,VP-D102i/CHN,M

Remark

VP-D102D Only

VP-D102D/XEV Only

VP-D102DI Only

VP-D102I/CHN Only

1

2

DIFFERENT POINT

CABINET ASSEMBLY ( Page : 3-6, 3-7 )

917

917

580

511

911

512

913

536

560

542

541 543

540

917

911

911

517

514

570

530

916

916

535

600

Loc.No

600

Part No

AD97-09635A

AD97-09627A

AD97-09627C

520

Description ; Specification

ASSY-LCD;DELTA2-PJ,VP-D102i,PAL,112K,SI

ASSY-LCD;DELTA2-PJ,VP-D101,PAL,112K» ≠ º

ASSY-LCD;DELTA2-PJ,VP-D102i,PAL,112K» ≠

Remark

VP-D102I Only

VP-D102D Only

VP-D102DI Only

Samsung Electronics

DIFFERENT POINT

CABINET ASSEMBLY ( Page : 3-8, 3-9 )

456

410

Loc.No

430

470

128

901

431

434

433

462

901

901

430

918

127

459

452

458

453

457

906

462

454

901

918

451

420

421

901

422

461

455

460

918

444

Part No

AD97-08376A

442

906

440

918

Description ; Specification

ASSY-JACK;DELTA2-PJ,SC-D103,JACK

Samsung Electronics 3

DIFFERENT POINT

CABINET ASSEMBLY ( Page : 3-10, 3-11 )

611

614

908

917 912

904

917

619

620

618

604

603

4

Loc.No

630

631

Part No

AD97-08439B

AD97-08439T

AD97-09631A

AD61-01602B

AD61-01602N

AD61-01602R

637

636

631

633

632

634

904

601

630

Description ; Specification

ASSY-CASE LCD TOP 2.5;-,DELTA2-PJ,VP-D1

ASSY-CASE LCD TOP;-,VP-D102Di,-

ASSY-CASE LCD TOP;-,VP-D102i/CHN,-

CASE-LCD TOP2.5;DELTA2-PJ,ABS 94V0,T7.7,

CASE-LCD TOP;VP-D102Di,ABS 94V0,T7.7,W56

CASE-LCD TOP;VP-D102i/CHN,ABS 94V0,T7.7,

613

Remark

VP-D102D Only

VP-D102DI Only

VP-D102I Only

VP-D102D Only

VP-D102DI Only

VP-D102I Only

Samsung Electronics

DIFFERENT POINT

CABINET ASSEMBLY ( Page : 3-14, 3-15 )

917

917

208

I

) Only

VP-D101(

201

917

205

208

917

206

VP-D103(

I

)/D105(

I

) Only

207

917

203

Loc.No

203

209

210

204

Part No

AD61-01598B

AD61-01617B

209

Description ; Specification

CASE-FRONT 20X;-,DELTA2-PJ,T27.6,W75,L46

HOLDER-LENS HOOD 20X;DELTA2-PJ,PC,T8,W36

Samsung Electronics 5

MEMO

6 Samsung Electronics

4. Electrical Parts List

Loc.No

180

Part No

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2404-001251

2404-001254

2203-006048

2404-001020

2404-001020

2404-001020

2203-005627

2203-006048

2203-006006

2203-006006

2203-006048

2203-006006

2203-006006

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2007-000076

2203-005344

2203-005344

2203-006048

2203-006048

2404-001020

2203-006048

2404-001020

2203-002487

2203-000254

2203-006048

2203-000254

2203-006048

2404-001020

2203-006048

2203-006048

AD97-08510A

AD97-08510B

AD97-08510C

AD97-08510E

AD97-08510F

AD97-08510G

2901-001022

2901-001022

2901-001022

2901-001022

2007-000070

2007-000070

2901-001022

2007-000070

2007-000076

2007-000070

B301

B302

B303

B401

BA01

BA02

BA03

BA04

C220

C221

C222

C223

C216

C217

C218

C219

C212

C213

C214

C215

C208

C209

C210

C211

C124

C201

C203

C206

C120

C121

C122

C123

C115

C116

C117

C118

C111

C112

C113

C114

C230

C231

C232

C233

C224

C227

C228

C229

C234

C235

C310

C311

Description ; Specification

ASSY-MAIN;DELTA2-PJ,VP-D103,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D101,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D105,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D101i,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D103i,MAIN

ASSY-MAIN;DELTA2-PJ,VP-D105i,MAIN

CORE-FERRITE BEAD;60ohm,1.6x0.8x0.8mm,20

CORE-FERRITE BEAD;60ohm,1.6x0.8x0.8mm,20

CORE-FERRITE BEAD;60ohm,1.6x0.8x0.8mm,20

CORE-FERRITE BEAD;60ohm,1

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

CORE-FERRITE BEAD;60ohm,

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;330ohm,5%,1/10W,T

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;330ohm,5%,1/10W,T

C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,-

C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;4.7nF,10%,25V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;470NF,10%,10V,X5R,TP,1608

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-TA,CHIP;220uF,20%,2.5V,-,TP,3.5(L)X2.8

Remark

VP-D103 Only

VP-D101 Only

VP-D105 Only

VP-D101I Only

VP-D103I Only

VP-D105I Only

IEEE1394 Only

Not used VP-D101(I)

Not used VP-D101(I)

VP-D103(I) Only

Not used VP-D101(I)

VP-D103(I) Only

Not used VP-D101(I)

VP-D103(I) Only

Samsung Electronics

Part No

2203-006048

2203-006048

2404-001020

2404-000284

2203-006048

2203-006048

2203-006048

2203-002487

2203-005481

2203-006048

2203-005923

2203-000234

2203-000234

2404-001020

2404-001020

2203-000585

2404-000151

2203-006048

2203-000438

2203-006048

2203-006048

2203-006048

2203-006048

2203-000438

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2203-006048

2404-001039

2203-006048

2203-005481

2203-006048

2203-006048

2203-006048

2203-005481

2203-005481

2203-005481

2203-005481

2203-006048

2203-000438

2203-006048

2203-000438

2203-006048

2203-006048

2404-001251

2203-006048

2203-000254

2404-001251

2203-000254

2203-006048

2203-000254

2203-000254

2404-001020

2404-001254

2404-001251

2203-006048

2404-001020

2404-001020

2203-006048

Loc.No

C613

C616

C617

C618

C608

C609

C611

C612

C619

C620

C621

C622

C623

C602

C603

C606

C607

C513

C514

C517

C601

C509

C510

C511

C512

C505

C506

C507

C508

C501

C502

C503

C504

C411

C412

C413

C414

C407

C408

C409

C410

C401

C402

C404

C406

C324

C325

C327

C328

C320

C321

C322

C323

C316

C317

C318

C319

C312

C313

C314

C315

Description ; Specification

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;0.22NF,10%,50V,X7R,TP,1005

C-TA,CHIP;1uF,20%,16V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,16V,-,TP,3528

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;4.7nF,10%,25V,X7R,TP,1005

C-CER,CHIP;47nF,10%,10V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1000NF,20%,6.3V,X5R,TP,1608

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;220uF,20%,2.5V,-,TP,3.5(L)X2.8

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,

C-TA,CHIP;47uF,20%,6.3V,G

C-CER,CHIP;100NF,10%,10V,

C-CER,CHIP;47nF,10%,10V,X

C-CER,CHIP;100NF,10%,10V,

C-CER,CHIP;100NF,10%,10V,

C-CER,CHIP;100NF,10%,10V,

C-CER,CHIP;47nF,10%,10V,X

C-CER,CHIP;47nF,10%,10V,X

C-CER,CHIP;47nF,10%,10V,X

C-CER,CHIP;47nF,10%,10V,X

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

This Document can not be used without Samsung’s authorization

Remark

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

4-1

Electrical Parts List

Part No

2203-006048

2404-000167

2404-000167

2404-001020

2404-001020

2404-000232

2404-000157

2404-000157

2404-000157

2404-000157

2203-002487

2203-002487

2203-005496

2404-001020

2404-001020

2203-005496

2203-005496

2203-006048

2404-001039

2203-006048

2203-006048

2404-001020

2203-000234

2404-001020

2203-005496

2404-000151

2203-006048

2404-001020

2203-000234

2404-001020

2203-005065

2203-006048

2203-006048

2203-006048

2203-000278

2203-000254

2404-001020

2203-006048

2203-000254

2203-000254

2203-006048

2203-005061

2203-005061

2203-002717

2203-002982

2203-000254

2203-002982

2404-001246

2203-000254

2203-000254

2203-000234

2203-006047

2203-006048

2203-005496

2203-006048

2203-006048

2203-000489

2203-000489

2203-006048

2404-001020

2203-006048

2404-000335

2203-006048

2203-000254

2203-000714

2203-006006

Loc.No

C831

C832

C833

C836

C826

C827

C828

C829

C837

C838

C822

C823

C824

C825

C818

C819

C820

C821

C814

C815

C816

C817

C809

C810

C812

C813

C805

C806

C807

C808

C801

C802

C803

C804

C721

C723

C726

C727

C717

C718

C719

C720

C713

C714

C715

C716

C708

C709

C710

C712

C704

C705

C706

C707

C632

C701

C702

C703

C628

C629

C630

C631

C624

C625

C626

C627

Description ; Specification

C-TA,CHIP;47uF,20%,6.3V,GP,TP,3528,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;220nF,+80-20%,10V,Y5V,TP,1005

C-TA,CHIP;1uF,20%,16V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;4.7uF,20%,10V,-,TP,3216

C-TA,CHIP;1uF,20%,35V,-,TP,3216

C-TA,CHIP;1uF,20%,35V,-,TP,3216

C-TA,CHIP;1uF,20%,35V,-,TP,3216

C-TA,CHIP;1uF,20%,35V,-,TP,3216

C-CER,CHIP;4.7nF,10%,25V,X7R,TP,1005

C-CER,CHIP;4.7nF,10%,25V,X7R,TP,1005

C-CER,CHIP;220nF,+80-20%,10V,Y5V,TP,1005

C-TA,CHIP;10uF,20%,10V,GP

C-TA,CHIP;10uF,20%,10V,GP

C-CER,CHIP;220nF,+80-20%,10V,Y5V,TP,1005

C-CER,CHIP;220nF,+80-20%,10V,Y5V,TP,1005

C-CER,CHIP;100NF,10%,10V,

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-CER,CHIP;33NF,10%,16V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;220nF,+80-20%,10V,Y5V,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;3.3uF,20%,16V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;0.01NF,0.5PF,50V,C0G,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100nF,+80-20%,16V,Y5V,-,1005

C-CER,CHIP;100nF,+80-20%,16V,Y5V,-,1005

C-CER,CHIP;10nF,+80-20%,50V,Y5V,TP,1005

C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;6.8nF,10%,50V,X7R,TP,1005

C-TA,CHIP;10UF,20%,6.3V,WT,TP,2012

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

4-2

Remark

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

Part No

2203-005922

2404-001020

2203-002793

2203-002793

2203-002793

2203-005686

2203-002793

2203-005686

2203-005686

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2404-001020

2203-005686

2203-005921

2404-001251

2203-005686

2404-001251

2203-002793

2203-002793

2203-002793

2203-005686

2203-005922

2404-001251

2203-002793

2203-002793

2203-002793

2203-002793

2203-000254

2203-006078

2404-000335

2203-005686

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-002793

2203-005922

2404-001020

2203-005686

2404-001020

2203-005686

2404-001251

2203-000234

2203-000438

2203-006048

2203-000438

2203-000254

2203-006048

2203-006048

2203-000254

2203-000234

2203-006048

2404-000157

2203-000438

2203-000438

2203-006048

2203-000438

Loc.No

C988

C989

C990

C992

C977

C981

C982

C986

C994

C995

C966

C969

C971

C976

C961

C962

C964

C965

C956

C957

C958

C959

C951

C952

C954

C955

C942

C947

C949

C950

C937

C938

C940

C941

C931

C933

C934

C936

C927

C928

C929

C930

C923

C924

C925

C926

C915

C919

C920

C921

C911

C912

C913

C914

C908

C909

C910

C9100

C904

C905

C906

C907

C839

C901

C902

C903

Description ; Specification

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-CER,CHIP;10000NF,20%,4V,X5R,TP,2012

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-CER,CHIP;4700NF,20%,6.3V,X5R,TP,2012

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;4700NF,20%,6.3V,X5R,TP,2012

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;0.1NF,5%,50V,C0G,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;1uF,20%,35V,-,TP,3216

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1nF,10%,50V,X7R,TP,1005,-

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;10000NF,20%,16V,X5R,TP,3225

C-TA,CHIP;3.3uF,20%,16V,GP,TP,3216

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;4700NF,20%,6.3V,X5R,TP,2012

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;2200nF,20%,10V,X5R,TP,2012

This Document can not be used without Samsung’s authorization

Remark

Not used VP-D101(I)

Not used VP-D101(I)

Not used VP-D101(I)

Samsung Electronics

Loc.No

CA31

CA32

CA33

CA34

CA25

CA26

CA28

CA30

CA21

CA22

CA23

CA24

CA17

CA18

CA19

CA20

CA13

CA14

CA15

CA16

CA07

CA08

CA09

CA12

CA03

CA04

CA05

CA06

C996

C997

CA01

CA02

CN301

CN401

CN601

CN602

CN703

CN801

CN901

CN902

CNA01

CA35

CA36

CA37

CA38

CA39

CA40

CA41

CN101

CP13

CP14

CP15

CP16

CP09

CP10

CP11

CP12

CP04

CP06

CP07

CP08

CNP01

CP01

CP02

CP03

Part No

3708-000363

3708-001662

3710-000554

2404-000157

2404-000212

2203-006048

2404-000212

2203-005065

2203-006048

2203-005065

2203-006048

2203-005065

2203-005065

2404-001020

2203-000815

2203-002793

2404-001131

2203-006048

2203-006048

2203-006006

2203-005061

2404-001251

2404-001246

2203-006048

2203-000654

3708-001842

3708-001813

3708-001505

3708-001215

3708-001472

3711-005479

3711-000922

3710-000554

3711-000541

2203-006048

2203-006048

2203-002443

2203-006048

2203-006048

2404-001251

2203-006048

2203-006048

2203-006006

2203-006006

2203-002338

2203-006048

2203-006048

2404-001251

2203-006048

2203-006048

2203-002793

2404-001251

2203-006048

2203-006048

2203-006048

2404-001250

2203-006048

2404-001250

2203-006048

2404-001251

2203-006048

2203-006048

2203-000812

2203-006048

2203-000254

2203-006048

Description ; Specification Remark

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;47uF,20%,4V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;47uF,20%,4V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;10nF,10%,16V,X7R,TP,1005,-

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.33nF,10%,50V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;0.015nF,5%,50V,NP0,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.005NF,°æ0.25PF,50V,C0G,TP,1

C-CER,CHIP;100nF,+80-20%,16V,Y5V,-,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-TA,CHIP;10UF,20%,6.3V,WT,TP,2012

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.27NF,10%,50V,X7R,TP,1005

CONNECTOR-FPC/FFC/PIC;7P,0.5MM,SMD-A,TIN

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

CONNECTOR-FPC/FFC/PIC;45P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;36P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;18P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;36P,0.5mm,SMD-A,SN

CONNECTOR-HEADER;BOX,22P,2R,0.5mm,SMD-S,

CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,

CONNECTOR-SOCKET;40P,2R,0.8mm,SMD-A,SN

CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A, Not used VP-D101(I)

CONNECTOR-FPC/FFC/PIC;20P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;10

CONNECTOR-SOCKET;40P,2R,0.8mm,SMD-A,SN

C-TA,CHIP;1uF,20%,35V,-,TP,3216

Not used VP-D101(I)

VP-D103(I) Only

C-TA,CHIP;3.3uF,20%,25V,-,TP,3528

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;3.3uF,20%,25V,-,TP,3528

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1608

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-TA,CHIP;22UF,10%,10V,GP,TP,3528

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

Samsung Electronics

Electrical Parts List

ICA04

ICA10

ICP01

ICP02

ICP03

ICP05

ICP06

Part No

1103-001218

1203-002184

0801-002800

1205-002247

AD09-00122A

0801-002417

1203-002323

AD13-00018A

1105-001544

1107-001365

AD11-00012A

0801-002349

AD13-00026A

1003-001065

1002-001270

1003-001530

1201-001667

0801-002417

3601-001331

3601-001331

AD13-00019A

1201-001511

AD13-00021D

1105-001261

1201-001322

1204-002253

1204-001573

1205-001988

1003-001680

AC14-12012T

AD09-00246A

0909-001013

1203-002807

0801-002417

2404-001251

2203-006048

2203-006048

2203-006048

2203-000359

2203-006048

2203-006048

2203-006048

0401-001054

0401-001054

0401-001059

0401-001059

0401-001059

2007-000070

0401-001054

3601-001331

2203-006048

2203-006048

2203-006048

2203-001086

2203-006048

2203-005065

2404-001251

2203-001405

2203-006048

2203-006048

2203-006048

2203-006047

2203-006047

2203-006048

2404-001020

2203-006048

Loc.No

IC401

IC501

IC601

IC603

IC701

IC702

IC703

IC704

F902

F903

IC101

IC102

IC201

IC202

IC301

IC303

IC705

IC706

IC708

IC801

IC802

IC803

IC901

ICA01

ICA02

ICA03

D906

DP01

DP02

F901

D701

D702

D902

D905

CP40

CP41

CP42

CP43

CP36

CP37

CP38

CP39

CP30

CP33

CP34

CP35

CP25

CP26

CP27

CP28

CP21

CP22

CP23

CP24

CP17

CP18

CP19

CP20

Description ; Specification

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.005nF,0.25pF,50V,NP0,TP,160

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;22nF,+80-20%,25V,Y5V,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;33NF,10%,16V,X7R,TP,1005

C-CER,CHIP;33NF,10%,16V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-TA,CHIP;22UF,20%,7V,-,TP,3216

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

C-CER,CHIP;100NF,10%,10V,X7R,TP,1005

DIODE-SWITCHING;KDS160,80V,100MA,SOD-323

DIODE-SWITCHING;KDS160,80V,100MA,SOD-323

DIODE-SWITCHING;1SS362,80V,80MA,SC-75,TP

DIODE-SWITCHING;1SS362,80V,80MA,SC-75,TP

DIODE-SWITCHING;1SS362,80V,80MA,SC-75,TP

R-CHIP;0ohm,5%,1/10W,TP,1608

DIODE-SWITCHING;KDS160,80V,100MA,SOD-323

FUSE-SURFACE MOUNT;32V,1.25A,SLOW BLOW,,

FUSE-SURFACE MOUNT;32V,1.25A,SLOW BLOW,,

FUSE-SURFACE MOUNT;32V,1.25A,SLOW BLOW,,

IC ASIC-LDV5000,PRML;LDV5000,DELTA-PJ,64

IC-PREAMP;LD3502,TSSOP,14P,-,DUAL,500V/V

IC ASIC-DV 1CHIP(REV1.1);-,SC-D23,320,1.

IC-DRAM;12L1616A,16BIT,TSOP,50P,400MIL

IC-VIDEO AMP;NJM2538V,SOP,20P,175MIL,-,-

IC-OSD PROCESSOR;BU3095-06FV,SSOP,20P,17

IC-VIDEO PROCESS;SAA7113H

IC-DATA COMM./GEN.;TSB41AB1-PAP,QFP,64P,

IC-MOTOR DRIVER;LB11993W,SQPF,64P,12x12x

IC-OP AMP;TA75S01F(TE85L),QFP,-

IC MICOM-IC MICOM(MASK);-,DELTA2,257,-,-

IC-REAL TIME CLOCK;5C372,8BIT,SOP,8P,-,3

IC-POSI.FIXED REG.;XC6413FY01MR,SOT-25,5

IC-CMOS LOGIC;7SHU04,INVERTER,SSOP,5P,49

IC-EEPROM;524AB0X91,4Kx8,SOP,8P,5.13x4mm

IC-POSI.FIXED REG.;71725,SOT-23-5,5P,63M

IC-CMOS LOGIC;NC7SV08,AND GATE,SC70,5P,4

IC-CODEC;AK4564VQ,LQFP,48P,7X7MM,PLASTI

IC-MOC-VOICE;ML2201,-,8PI

IC-CMOS LOGIC;7SHU04,INVE

IC-PWM CONTROLLER;MB3881,LQFP,64P,-,PLAS

IC HYBRID-DSP5;S5C7375X,DELTA-PJ,232,0 T

IC-DRAM;M12L64322A,4x512Kx32Bit,TSOPII

IC-FLASH MEMORY;29LV160BE,1Mx16/2Mx8Bit,

IC MASK ROM-P2ROM;MR27T1

IC-CMOS LOGIC;7S66,BILATERAL SWITCH,SOP,

IC ASIC-MULTI CARD CONTROLLE;-,DELTA2,64

IC-CLOCK DRIVER;KS7221D,SOP,20P,225MIL,Q

IC-A/D CONVERTER;TLV990BPFB,10,TQFP,48P,

IC-MOTOR DRIVER;UPD16877MA-6A5,TSSOP,24P

IC-OP AMP;12902,SSOP,TP,14P,173MIL,QUAD,

IC-CMOS LOGIC;7SHU04,INVERTER,SSOP,5P,49

Remark

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

VP-D101/D103 Only

VP-D105(I) Only

This Document can not be used without Samsung’s authorization

4-3

Electrical Parts List

Loc.No

L908

L909

L910

L913

L904

L905

L906

L907

L914

L915

L917

L918

L919

L804

L806

L902

L903

L702

L801

L802

L803

L501

L502

L601

L701

L303

L304

L305

L401

L203

L204

L205

L206

ICP07

ICP08

L112

L113

LA07

LP01

LP02

LP03

LP04

LP05

LP06

MD01

MD02

MD03

MD04

MD05

LA02

LA03

LA05

LA06

L940

L941

L950

LA01

L928

L929

L930

L934

L922

L924

L925

L926

Part No

2007-000029

2007-000029

2703-001883

2703-001863

2703-001863

2007-000029

2703-001863

2703-001883

2703-001883

2703-002174

2703-002174

2703-002174

2703-002174

2007-000070

2007-000070

2007-000070

2007-000070

2007-000070

2703-001863

2007-000029

2703-001865

2007-000029

2007-000029

2703-001867

2703-002569

2703-001863

2703-001863

2703-001863

2703-000397

2703-000397

2703-002568

2703-000397

2703-000397

2703-001863

2703-000396

2703-000396

2703-002175

2703-000396

2703-000396

2703-000397

2703-000408

2703-002569

2703-000375

2703-000397

2703-001865

2703-001910

2703-001910

2703-000408

2703-002569

2703-001863

0801-002417

AC14-12012T

2007-000029

2703-002174

2703-002174

2703-002174

2703-002174

2007-000643

2703-000396

2703-000396

2703-000396

2007-000029

2703-002174

2703-002174

2703-000396

2703-000396

Description ; Specification

INDUCTOR-SMD;6.8uH,20%,2520

R-CHIP;0ohm,5%,1/8W,TP,2012

INDUCTOR-SMD;33uH,20%,6060

R-CHIP;0ohm,5%,1/8W,TP,2012

R-CHIP;0ohm,5%,1/8W,TP,2012

INDUCTOR-SMD;1uH,20%,252

INDUCTOR-SMD;22uH,20%,4040

INDUCTOR-SMD;6.8uH,20%,2520

INDUCTOR-SMD;6.8uH,20%,2520

INDUCTOR-SMD;6.8uH,20%,2520

INDUCTOR-SMD;33uH,10%,2520

INDUCTOR-SMD;33uH,10%,2520

INDUCTOR-SMD;15uH,20%,4040

INDUCTOR-SMD;33uH,10%,2520

INDUCTOR-SMD;33uH,10%,2520

INDUCTOR-SMD;6.8uH,20%,2520

R-CHIP;0ohm,5%,1/8W,TP,2012

R-CHIP;0ohm,5%,1/8W,TP,2012

INDUCTOR-SMD;22uH,10%,2520

INDUCTOR-SMD;6.8uH,20%,2520

INDUCTOR-SMD;6.8uH,20%,2520

R-CHIP;0ohm,5%,1/8W,TP,2012

INDUCTOR-SMD;6.8uH,20%,2520

INDUCTOR-SMD;22uH,10%,2520

INDUCTOR-SMD;22uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1

R-CHIP;0ohm,5%,1/10W,TP,1

R-CHIP;0ohm,5%,1/10W,TP,

R-CHIP;0ohm,5%,1/10W,TP,1608

IC-CMOS LOGIC;7SHU04,INVERTER,SSOP,5P,49

IC-OP AMP;TA75S01F(TE85L),QFP,-

R-CHIP;0ohm,5%,1/8W,TP,2012

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

R-CHIP;270ohm,5%,1/10W,TP,1608

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

R-CHIP;0ohm,5%,1/8W,TP,20

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;100uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;33uH,10%,252

INDUCTOR-SMD;3.3uH,20%,3225

INDUCTOR-SMD;22uH,20%,4040

INDUCTOR-SMD;82uH,5%,2520

INDUCTOR-SMD;33uH,10%,2520

INDUCTOR-SMD;33uH,20%,6060

INDUCTOR-SMD;68uH,20%,6060

INDUCTOR-SMD;68uH,20%,6060

INDUCTOR-SMD;3.3uH,20%,3225

INDUCTOR-SMD;22uH,20%,4040

INDUCTOR-SMD;6.8uH,20%,2520

Remark

IEEE1394 Only

IEEE1394 Only

Not used VP-D105(I)

Not used VP-D101(I)

Not used IEEE1394

VP-D101I/D105I Only

VP-D101/D105I Only

Model Option

VP-D105(I) Only

4-4

Part No

0501-000225

0504-001025

0501-000225

0501-000552

2007-007142

2007-007318

2007-000162

2007-007132

2007-007142

2007-007318

2007-000140

2007-000140

2007-000140

2007-000162

2007-000162

2007-001313

2007-000141

2007-000148

0506-001066

0505-001609

0505-001725

0506-001066

0506-001066

0504-000168

0504-001101

0501-000552

0501-000552

0501-000225

0501-000225

0501-000552

0501-000225

0501-000225

0501-000225

0501-000552

0505-001609

0505-001725

0505-001609

0505-001725

0505-001609

0505-001725

0505-001609

0505-001725

0505-001609

0505-001725

0501-000552

0501-000225

0501-000225

0505-001609

0505-001725

0506-001066

0501-002128

0501-002128

0504-001032

0504-001032

0501-002374

0501-002374

0501-002374

0504-000168

0504-000167

0504-000167

0501-000172

0501-000552

0501-000225

0504-000168

0504-000168

0505-001646

Loc.No

R125

R126

R127

R129

R116

R117

R119

R120

R130

R131

R111

R112

R113

R115

QP03

QP05

QP06

QP07

Q941

Q942

QP01

QP02

Q931

Q932

Q933

Q940

Q918

Q920

Q925

Q930

Q914

Q915

Q915

Q917

Q910

Q910

Q9100

Q9101

Q9102

Q912

Q912

Q913

Q908

Q908

Q909

Q909

Q906

Q906

Q907

Q907

Q702

Q703

Q704

Q901

Q601

Q604

Q605

Q701

Q401

Q402

Q403

Q404

Q111

Q112

Q301

Q302

Description ; Specification

TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP

TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP

TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT-

TR-DIGITAL;KRC404,NPN,100MW,47K/47K,SOT-

TR-SMALL SIGNAL;EMZ1,NPN/

TR-SMALL SIGNAL;EMZ1,NPN/

TR-SMALL SIGNAL;EMZ1,NPN/

TR-DIGITAL;RN1104,NPN,100

TR-DIGITAL;RN1102,NPN,100MW,10K/10K,SSM,

TR-DIGITAL;RN1102,NPN,100MW,10K/10K,SSM,

TR-SMALL SIGNAL;2SB1121,PNP,500mW,PCP,TP

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,

TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,

FET-SILICON;MCH5803,N,30V,1.4A,370MOHM,0

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

TR-ARRAY;UMF5,NPN/PNP,2,150MW,SC-88,TP,

TR-ARRAY;UMF5,NPN/PNP,2,150MW,SC-88,TP,

FET-SILICON;SSM5G01TU,P,-30V,-1A,0.3OHM,

FET-SILICON;MCH5818,P,-12V,-1.5A,200MOHM

TR-ARRAY;UMF5,NPN/PNP,2,150MW,SC-88,TP,

TR-ARRAY;UMF5,NPN/PNP,2,150MW,SC-88,TP,

TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,

TR-DIGITAL;EMD2,NPN/PNP,150MW,22K/22K,EM

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-DIGITAL;DTC143EE,NPN,150MW,4.7K,EMT3,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

R-CHIP;10Kohm,1%,1/16W,TP,1005

R-CHIP;1Kohm,1%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;15Kohm,1%,1/16W,DA,TP,1005

R-CHIP;10Kohm,1%,1/16W,TP,1005

R-CHIP;1Kohm,1%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;330ohm,5%,1/16W,DA,TP,1005

R-CHIP;2.2Kohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

Remark

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

Not used VP-D101

Not used VP-D101

This Document can not be used without Samsung’s authorization

Samsung Electronics

Part No

2007-000171

2007-000170

2007-008015

2007-008015

2007-002970

2007-001305

2007-000148

2007-003029

2007-001305

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000171

2007-000171

2007-001307

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-001333

2007-000171

2007-000140

2007-000142

2007-000164

2007-000153

2007-000170

2007-000140

2007-000171

2007-000171

2007-000164

2007-000171

2007-000142

2007-000171

2007-008026

2007-000171

2007-000155

2007-000159

2007-000139

2007-007095

2007-000140

2007-000242

2007-007095

2007-007095

2007-000171

2007-001306

2007-001306

2007-001306

2007-001306

2007-007306

2007-000164

2007-000142

Loc.No

R316

R317

R318

R331

R312

R313

R314

R315

R332

R333

R308

R309

R310

R311

R293

R294

R301

R302

R281

R282

R291

R292

R264

R265

R269

R278

R244

R245

R262

R263

R239

R240

R241

R242

R229

R235

R236

R238

R225

R226

R227

R228

R218

R219

R220

R222

R214

R215

R216

R217

R208

R211

R212

R213

R201

R202

R205

R206

R136

R137

R138

R139

R132

R133

R134

R135

Description ; Specification

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;1Mohm,5%,1/16W,DA,TP,1005

R-CHIP;75ohm,1%,1/16W,DA,TP,1005

R-CHIP;75ohm,1%,1/16W,DA,TP,1005

R-CHIP;56ohm,5%,1/16W,TP,1005

R-CHIP;120ohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;820KOHM,5%,1/16W,DA,TP,1005

R-CHIP;120ohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;180ohm,5%,1/16W,DA,TP,1005

R-CHIP;27Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56Kohm,5%,1/16W,DA,TP,1005

R-CHIP;220ohm,5%,1/16W,DA,TP,1005

R-CHIP;390OHM,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1005

R-CHIP;390OHM,5%,1/16W,DA,TP,1005

R-CHIP;390OHM,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;150ohm,5%,1/16W,DA,TP,1005

R-CHIP;150ohm,5%,1/16W,DA,TP,1005

R-CHIP;150ohm,5%,1/16W,DA,TP,1005

R-CHIP;150ohm,5%,1/16W,DA,TP,1005

R-CHIP;100ohm,1%,1/16W,DA,TP,1005

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1005

R-CHIP;18Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1005

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Mohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;56ohm,1%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

Samsung Electronics

Remark Part No

2007-000775

2007-000775

2007-000159

2007-000159

2007-000153

2007-001341

2007-000170

2007-000162

2007-000171

2007-000140

2007-007310

2007-000171

2007-000171

2007-000162

2007-000140

2007-000140

2007-000140

2007-000162

2007-000160

2007-000152

2007-000152

2007-000162

2007-000160

2007-000152

2007-000152

2007-000162

2007-000159

2007-000775

2007-000157

2007-000155

2007-000483

2007-000483

2007-000483

2007-000483

2007-000138

2007-000148

2007-000148

2007-000148

2007-000140

2007-008301

2007-008301

2007-008300

2007-008301

2007-008301

2007-008391

2007-000162

2007-000162

2007-002970

2007-001311

2007-000148

2007-002970

2007-000138

2007-003006

2007-001306

2007-000140

2007-003006

2007-001306

2007-003006

2007-001306

2007-000140

2007-000140

2007-000932

2007-000932

2007-000932

2007-000160

2007-000162

Loc.No

R674

R701

R702

R703

R660

R670

R671

R672

R704

R705

R649

R650

R652

R653

R636

R637

R643

R644

R627

R628

R629

R630

R622

R623

R624

R625

R617

R618

R619

R620

R613

R614

R615

R616

R602

R603

R604

R607

R535

R536

R537

R601

R531

R532

R533

R534

R417

R526

R527

R529

R413

R414

R415

R416

R409

R410

R411

R412

R405

R406

R407

R408

R334

R335

R403

R404

Description ; Specification

R-CHIP;68Kohm,5%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;68Kohm,5%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56Kohm,5%,1/16W,DA,TP,1005

R-CHIP;33Kohm,5%,1/16W,DA,TP,1005

R-CHIP;47Kohm,5%,1/16W,TP,1005

R-CHIP;27Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1ohm,5%,1/8W,TP,2012

R-CHIP;1ohm,5%,1/8W,TP,2012

R-CHIP;1ohm,5%,1/8W,TP,2012

R-CHIP;1ohm,5%,1/8W,TP,2012

R-CHIP;33Kohm,5%,1/16W,DA,TP,1005

R-CHIP;33Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;680Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Mohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;8.2Kohm,1%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56ohm,5%,1/16W,TP,1005

R-CHIP;100ohm,5%,1/16W,TP,1005

R-CHIP;16OHM,5%,1/16W,DA,

R-CHIP;150ohm,5%,1/16W,DA

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;16OHM,5%,1/16W,DA,

R-CHIP;150ohm,5%,1/16W,DA

R-CHIP;16OHM,5%,1/16W,DA,

R-CHIP;150ohm,5%,1/16W,DA

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;470ohm,5%,1/16W,DA

R-CHIP;470ohm,5%,1/16W,DA

R-CHIP;470ohm,5%,1/16W,DA

R-CHIP;68Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100ohm,5%,1/16W,TP

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;56.2OHM,1%,1/16W,DA,TP,1005

R-CHIP;56.2OHM,1%,1/16W,DA,TP,1005

R-CHIP;5.11KOHM,1%,1/16W,DA,TP,1005

R-CHIP;56.2OHM,1%,1/16W,DA,TP,1005

R-CHIP;56.2OHM,1%,1/16W,DA,TP,1005

R-CHIP;6.34KOHM,1%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56ohm,5%,1/16W,TP,1005

R-CHIP;270ohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

Electrical Parts List

Remark

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

Not used VP-D101(I)

IEEE1394 Only

This Document can not be used without Samsung’s authorization

4-5

Electrical Parts List

Part No

2007-000157

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000148

2007-000140

2007-000140

2007-000140

2007-000140

2007-000171

2007-000171

2007-000162

2007-000162

2007-000140

2007-000140

2007-000140

2007-000140

2007-000157

2007-000140

2007-000140

2007-000140

2007-000140

2007-000162

2007-000140

2007-000148

2007-000140

2007-000162

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000170

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000162

2007-000140

2007-000140

2007-000140

2007-000140

2007-000140

2007-000162

2007-000140

2007-000140

2007-000162

2007-000140

2007-000162

2007-000140

2007-000140

2007-000140

2007-000140

2007-000162

2007-000162

2007-000162

2007-000148

2007-000148

2007-000148

2007-000162

2007-000148

Loc.No

R715

R7150

R7151

R7152

R7153

R7154

R7155

R7156

R7157

R716

R7142

R7143

R7144

R7145

R7146

R7147

R7148

R7149

R7134

R7135

R7136

R7137

R7139

R714

R7140

R7141

R7126

R7127

R7129

R713

R7130

R7131

R7132

R7133

R7119

R712

R7120

R7121

R7122

R7123

R7124

R7125

R7111

R7112

R7113

R7114

R7115

R7116

R7117

R7118

R7104

R7105

R7106

R7107

R7108

R7109

R711

R7110

R706

R707

R708

R709

R710

R7100

R7101

R7102

Description ; Specification

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;47Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;47Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,D

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Mohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

4-6

Remark

Not used IEEE1394

IEEE1394 Only

This Document can not be used without Samsung’s authorization

Part No

2007-000140

2007-000162

2007-000162

2007-000140

2007-000162

2007-000140

2007-000162

2007-000162

2007-001325

2007-000140

2007-000162

2007-000140

2007-000141

2007-000157

2007-001325

2007-000140

2007-000162

2007-000140

2007-000162

2007-000140

2007-000162

2007-000162

2007-000148

2007-000148

2007-000162

2007-000140

2007-000162

2007-000162

2007-000140

2007-000162

2007-000140

2007-000140

2007-000162

2007-000140

2007-000162

2007-000140

2007-000162

2007-000140

2007-000162

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000162

2007-000148

2007-000140

2007-000140

2007-000162

2007-000140

2007-000140

2007-000162

2007-000171

2007-000162

2007-000162

2007-000140

2007-000140

2007-007309

2007-007309

2007-007318

2007-000162

2007-000140

2007-000140

2007-000140

2007-000140

2007-000162

Loc.No

R775

R776

R777

R784

R769

R770

R771

R774

R785

R786

R765

R766

R767

R768

R759

R761

R762

R764

R755

R756

R757

R758

R751

R752

R753

R754

R745

R746

R747

R750

R740

R741

R743

R744

R736

R737

R738

R739

R7304

R7309

R731

R732

R727

R728

R729

R730

R7300

R7301

R7302

R7303

R7181

R7182

R719

R720

R7200

R721

R722

R725

R7165

R717

R7170

R7172

R7173

R7174

R718

R7180

Description ; Specification

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;2.2Kohm,5%,1/16W,TP,1005

R-CHIP;47Kohm,5%,1/16W,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

R-CHIP;1Kohm,1%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,100

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,100

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,100

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

Remark

VP-D105I Only

VP-D105I Only

VP-D105I Only

Samsung Electronics

Part No

2007-007142

2007-008275

2007-007132

2007-000153

2007-000146

2007-008275

2007-000142

2007-007309

2007-000775

2007-000148

2007-000148

2007-007309

2007-007142

2007-000151

2007-001333

2007-001333

2007-000152

2007-000148

2007-000140

2007-000140

2007-000140

2007-000162

2007-000140

2007-001319

2007-000152

2007-007309

2007-000152

2007-007134

2007-007132

2007-007588

2007-007134

2007-000154

2007-000091

2007-000148

2007-000172

2007-000120

2007-000148

2007-000141

2007-000141

2007-000120

2007-000148

2007-000172

2007-000153

2007-000140

2007-000153

2007-000153

2007-000140

2007-000153

2007-000146

2007-000146

2007-000162

2007-000140

2007-000162

2007-000140

2007-001325

2007-000162

2007-000140

2007-000162

2007-000140

2007-000162

2007-000140

2007-000162

2007-000172

2007-000172

2007-000172

2007-000172

Loc.No

R915

R916

R917

R918

R911

R912

R913

R914

R919

R920

R908

R909

R910

R9100

R9101

R9102

R9103

R9104

R904

R905

R906

R907

R840

R901

R902

R903

R831

R832

R833

R839

R827

R828

R829

R830

R817

R824

R825

R826

R813

R814

R815

R816

R809

R810

R811

R812

R805

R806

R807

R808

R801

R802

R803

R804

R796

R797

R798

R799

R792

R793

R794

R795

R787

R788

R789

R791

Description ; Specification

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;100Kohm,5%,1/16W,D

R-CHIP;1Kohm,5%,1/16W,TP,

R-CHIP;1.2Kohm,5%,1/16W,D

R-CHIP;20Kohm,5%,1/16W,DA

R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;39Kohm,1%,1/16W,DA,TP,1005

R-CHIP;15Kohm,1%,1/16W,DA,TP,1005

R-CHIP;1.8Kohm,1%,1/16W,DA,TP,1005

R-CHIP;39Kohm,1%,1/16W,DA,TP,1005

R-CHIP;24Kohm,5%,1/16W,DA,TP,1005

R-CHIP;12Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,1%,1/16W,TP,1005

R-CHIP;30KOHM,1%,1/16W,DA,TP,1005

R-CHIP;15Kohm,1%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1005

R-CHIP;30KOHM,1%,1/16W,DA,TP,1005

R-CHIP;2.7Kohm,5%,1/16W,DA,TP,1005

R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

R-CHIP;33Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

R-CHIP;10Kohm,1%,1/16W,TP,1005

R-CHIP;15Kohm,5%,1/16W,DA,TP,1005

R-CHIP;18Kohm,5%,1/16W,DA,TP,1005

R-CHIP;18Kohm,5%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;680ohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;2.2Kohm,5%,1/16W,TP,1005

R-CHIP;2.2Kohm,5%,1/16W,TP,1005

R-CHIP;680ohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1005

R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1005

Samsung Electronics

Remark

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

IEEE1394 Only

Part No

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000171

2007-000172

2007-000170

2007-000148

2007-000171

2007-000148

2007-000148

2007-000171

2007-000138

2007-000139

2007-000148

2007-000157

2007-007138

2007-007312

2007-000171

2007-000162

2007-003112

2007-000162

2007-000172

2007-000140

2007-000171

2007-000162

2703-000371

2007-000164

2007-001325

2007-000171

2007-000171

2007-000171

2007-001325

2007-000153

2007-001325

2007-000153

2007-001325

2007-007138

2007-000141

2007-000242

2007-000151

2007-000152

2007-000153

2007-008417

2007-007309

2007-000146

2007-000153

2007-000146

2007-007310

2007-000148

2007-007470

2007-007311

2007-007312

2007-008275

2007-000148

2007-007470

2007-000154

2007-000140

2007-000148

2007-007311

2007-007310

2007-000153

2007-001325

2007-000153

Loc.No

RA30

RA31

RA40

RA43

RA17

RA18

RA20

RA26

RA50

RA51

RA119

RA120

RA122

RA123

RA126

RA127

RA128

RA16

RA100

RA11

RA111

RA112

RA115

RA116

RA117

RA118

RA02

RA03

RA06

RA07

R995

R996

R999

RA01

R986

R987

R992

R994

R982

R983

R984

R985

R954

R961

R976

R979

R949

R951

R952

R953

R935

R946

R947

R948

R930

R932

R933

R934

R925

R926

R928

R929

R921

R922

R923

R924

Description ; Specification

R-CHIP;27KOHM,1%,1/16W,DA,TP,1005

R-CHIP;20Kohm,1%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;27OHM,5%,1/16W,DA,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

INDUCTOR-SMD;4.7uH,5%,2520

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,

R-CHIP;0ohm,5%,1/16W,TP,

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;1Mohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;100ohm,5%,1/16W,TP,1005

R-CHIP;220ohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;47Kohm,5%,1/16W,TP,1005

R-CHIP;8.2Kohm,1%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;7.5Kohm,1%,1/16W,DA,TP,1005

R-CHIP;22Kohm,1%,1/16W,TP,1005

R-CHIP;20Kohm,1%,1/16W,TP,1005

R-CHIP;30KOHM,1%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;7.5Kohm,1%,1/16W,DA,TP,1005

R-CHIP;24Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,1%,1/16W,TP,1005

R-CHIP;8.2Kohm,1%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.3Kohm,5%,1/16W,TP,1005

R-CHIP;27KOHM,1%,1/16W,DA,TP,1005

R-CHIP;2.2Kohm,5%,1/16W,TP,1005

R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1005

R-CHIP;15Kohm,5%,1/16W,DA,TP,1005

R-CHIP;20Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;34KOHM,1%,1/16W,DA,TP,1005

R-CHIP;12Kohm,1%,1/16W,DA,TP,1005

R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;6.8Kohm,5%,1/16W,DA,TP,1005

Electrical Parts List

Remark

Not used VP-D101(I)

Not used VP-D101(I)

Not used VP-D101(I)

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

VP-D105(I) Only

Model Option

Model Option

VP-D103(I) Only

VP-D103(I) Only

This Document can not be used without Samsung’s authorization

4-7

Electrical Parts List

Part No

2007-000159

2007-000159

2007-000775

2007-000164

2007-000148

2007-000148

2007-000171

2007-000143

2007-000143

2801-003703

2801-003424

2801-004311

2801-003856

2804-001601

2007-000164

2007-000148

2007-000139

2007-000140

2007-000171

2007-000164

2007-007001

2007-007001

2007-000775

2007-000153

2007-000982

2007-000140

2007-000143

2007-000143

2007-001307

2007-001307

2007-000242

2007-003112

2007-003112

2007-000138

2007-000162

2007-000172

2007-000172

2007-000171

2007-000171

2007-000148

2007-000141

2007-000153

2007-000636

2007-000153

2007-000156

2007-000162

2007-000157

2007-000140

2007-000171

2007-000148

2007-000148

2007-000148

2007-000148

2007-000171

2007-000171

2007-003112

2007-000138

2007-000138

2007-003112

2007-000171

2007-000171

2007-000242

AD97-08531A

2404-000212

2203-000189

Loc.No

RP42

X201

X202

X701

X702

XA01

RP37

RP38

RP40

RP41

RP32

RP33

RP34

RP36

RP28

RP29

RP30

RP31

RP20

RP21

RP23

RP25

RP16

RP17

RP18

RP19

RP11

RP12

RP13

RP15

RP06

RP08

RP09

RP10

RA98

RP01

RP02

RP05

RA93

RA94

RA95

RA96

RA86

RA87

RA88

RA91

RA79

RA80

RA84

RA85

RA71

RA76

RA77

RA78

RA65

RA66

RA67

RA70

RA52

RA53

RA56

RA64

170

CC01

CC02

Description ; Specification

R-CHIP;47Kohm,5%,1/16W,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;27OHM,5%,1/16W,DA,TP,1005

R-CHIP;100ohm,5%,1/16W,TP,1005

R-CHIP;100ohm,5%,1/16W,TP,1005

R-CHIP;27OHM,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1.5Kohm,5%,1/16W,DA,TP,1005

R-CHIP;27OHM,5%,1/16W,DA,TP,1005

R-CHIP;27OHM,5%,1/16W,DA,TP,1005

R-CHIP;100ohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;10ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;2.2Kohm,5%,1/16W,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;270Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;30Kohm,5%,1/16W,TP,1005

R-CHIP;100Kohm,5%,1/16W,DA,TP,1005

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;220ohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;3.9KOHM,5%,1/16W,DA,TP,1005

R-CHIP;3.9KOHM,5%,1/16W,DA,TP,1005

R-CHIP;33Kohm,5%,1/16W,DA,TP,1005

R-CHIP;22Kohm,5%,1/16W,DA,TP,1005

R-CHIP;5.6Kohm,5%,1/16W,DA,TP,1005

R-CHIP;1Kohm,5%,1/16W,TP,1005

R-CHIP;4.7Kohm,5%,1/16W,TP,1005

R-CHIP;4.7Kohm,5%,1/16W,TP,1005

R-CHIP;180ohm,5%,1/16W,DA,TP,1005

R-CHIP;180ohm,5%,1/16W,DA,TP,1005

R-CHIP;56Kohm,5%,1/16W,DA,TP,1005

R-CHIP;56Kohm,5%,1/16W,DA,TP,1005

R-CHIP;33Kohm,5%,1/16W,DA,TP,1005

R-CHIP;150Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;10Kohm,5%,1/16W,DA,TP,1005

R-CHIP;0ohm,5%,1/16W,TP,1005

R-CHIP;4.7Kohm,5%,1/16W,TP,1005

R-CHIP;4.7Kohm,5%,1/16W,TP,1005

CRYSTAL-SMD;24.576MHz,50ppm,28-ACI,12pF,

CRYSTAL-SMD;41.85MHZ,50ppm,28-ACC,12pF,-

CRYSTAL-SMD;13.5MHz,50ppm,28-ABV,10pF,60

CRYSTAL-SMD;0.032768MHz,20ppm,28-ACP,7pF

OSCILLATOR-CLOCK;54.000MHz,25ppm,CMOS/15

ASSY-CCD BOARD;-,DELTA2-PJ,º «œ,DELTA2,C

C-TA,CHIP;3.3uF,20%,25V,-,TP,3528

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

Remark

4-8

RR12

RR13

RR14

RR30

RR07

RR09

RR10

RR11

RR02

RR03

RR04

RR05

QR03

QR04

QR05

RR01

RR31

RR32

RR33

RR34

SWR05

SWR06

SWR08

VRR01

CR03

CR10

FER01

ICR01

JR01

LDR01

QR01

QR02

308

BTR1

BTR2

CNR01

CNR02

CNR03

CR01

CR02

Loc.No

RC01

RC02

RC04

RC05

CC03

CC04

CC05

CC06

CNC01

CNC02

DC01

QC01

Part No

2203-000189

2203-000491

2203-000189

2404-000212

3710-001106

3708-001687

0401-001054

0505-000180

2007-000072

2007-000079

2007-000102

2007-000070

0504-000168

0501-000172

0501-000172

2007-000102

2007-000109

2007-008596

2007-000043

2007-000067

2007-000102

2007-000072

2007-000923

2007-000563

2007-001198

2007-001198

2007-000090

2007-000077

AD97-08373A

AD65-00022A

AD65-00016A

3710-001106

3710-001478

3711-000922

2203-000257

2203-000257

2203-000189

2203-000189

0505-001726

1201-001376

AD97-08500A

0601-001419

0504-001102

0504-000168

2007-000077

2007-000076

2007-000076

2007-000076

3404-001034

3404-001034

3404-001130

3406-001005

422

CNPW01

AD97-08370A

3711-000922

SWPW01 3404-001171

SWPW02 3409-001150

SWPW03 3409-001150

431

CJ01

CJ02

CJ03

CNJ01

AD97-08371A

AD97-08371C

2404-001020

2203-000440

2203-000440

3708-001472

Description ; Specification

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608,-

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;3.3uF,20%,25V,-,TP,3528

CONNECTOR-SOCKET;40P,2R,0.8mm,SMD-S,SN

CONNECTOR-FPC/FFC/PIC;27P,0.3MM,SMD-A,SN

DIODE-SWITCHING;KDS160,80V,100MA,SOD-323

FET-SILICON;2SK1070,N,-,50mA,-,150mW,SOT

R-CHIP;47ohm,5%,1/10W,TP,1608

R-CHIP;1.8Kohm,5%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

ASSY-REAR BOARD;DELTA2-PJ,SC-D103,REAR B

TERMINAL-PLATE BATTERY B;DELTA2-PJ,C5210

TERMINAL-PLATE BATTERY B;BETA-PJ,C5210R-

CONNECTOR-SOCKET;40P,2R,0.8mm,SMD-S,SN

CONNECTOR-SOCKET;18P,2R,1MM,SMD-S,SN

CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,

C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

FET-SILICON;ECH8603,P,-20V,-4A,37MOHM,1.

IC-OP AMP;75W01,SSOP,8P,110MIL,DUAL,-,PL

ASSY-DC JACK;TC18-431-01,DELTA2-PJ,ANGLE

LED;SMD,RED,3.2X1.6X1.1MM,660NM,3.

TR-DIGITAL;EMD3,NPN/PNP,150MW,10K/10K,EM

TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,

TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,

TR-SMALL SIGNAL;2SB1121,PNP,500mW,PCP,TP

TR-SMALL SIGNAL;2SB1121,PNP,500mW,PCP,TP

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;1Mohm,5%,1/10W,TP,1608

R-CHIP;0.1ohm,1%,1/4W,TP,3216

R-CHIP;1Kohm,1%,1/10W,TP,1608

R-CHIP;15Kohm,1%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;47ohm,5%,1/10W,TP,1608

R-CHIP;470Kohm,1%,1/10W,TP,1608

R-CHIP;220Kohm,1%,1/10W,TP,1608

R-CHIP;820ohm,1%,1/8W,TP,2012

R-CHIP;820ohm,1%,1/8W,TP,2012

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;470ohm,5%,1/10W,TP,1608

R-CHIP;470ohm,5%,1/10W,TP,1608

R-CHIP;330ohm,5%,1/10W,TP,1608

R-CHIP;330ohm,5%,1/10W,TP,1608

R-CHIP;330ohm,5%,1/10W,TP,1608

SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S

SWITCH-TACT;12V,50mA,160gf,4x7.4x1.8mm,S

SWITCH-TACT;12VDC,50mA,160gf,6.1x3.7x2.5

SWITCH-ROTARY;5V,0.1mA,DPST,-

ASSY-START/STOP BOARD;DELTA2-PJ,SC-D103,

CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,

SWITCH-TACT;12V DC,50MA,200GF,6.6X6X5MM,

SWITCH-DETECTOR;12V,100MA,SPST,35GF,PUSH

SWITCH-DETECTOR;12V,100MA,SPST,35GF,PUSH

Remark

ASSY-JACK BOARD;

ASSY-JACK BOARD;

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

CONNECTOR-FPC/FFC/PIC;36P,0.5mm,SMD-A,SN

VP-D103(I)/D105(I) Only

VP-D101(I) Only

VP-D103(I)/D105(I) Only

This Document can not be used without Samsung’s authorization

Samsung Electronics

AD97-08409A

AD97-08409B

3711-002049

3403-001084

3722-001741

2007-000102

2007-000070

2007-000070

2007-000070

2007-000070

2007-000070

2007-000078

2007-000450

2007-000102

2007-000106

2007-000070

2007-000082

2007-000070

2007-000070

3709-001214

3404-000119

3404-000119

3404-000119

3403-001084

3409-001036

AD97-08407B

AD97-08407A

2203-000257

2203-000189

2203-005065

3708-001813

3708-001662

3708-001112

3708-001215

3711-000541

3711-000922

3711-000541

0501-000225

0501-000552

2007-000651

2007-000828

Part No

3711-002049

0601-001626

0601-001626

3722-001202

3722-001435

3722-000458

3722-002003

2703-001867

2703-001867

2703-001867

0501-000546

0504-001037

0504-000168

AD32-00007A

2007-000090

2007-000772

2007-000130

2007-000097

2007-000863

2007-000660

2007-000094

2007-000087

3404-001264

434

CNBT01

SWBT01

USBT01

570

RLF13

RLF15

RLF16

RLF37

SOLF01

SWLF01

SWLF02

SWLF03

SWLF04

SWLF05

RLF05

RLF06

RLF07

RLF08

RLF09

RLF10

RLF11

RLF12

CNLF06

CNLF07

QLF01

QLF02

RLF01

RLF02

RLF03

RLF04

CLF01

CLF02

CLF04

CNLF01

CNLF02

CNLF03

CNLF04

CNLF05

Loc.No

LJ02

LJ03

QJ01

QJ02

QJ03

REMJ01

RJ01

RJ02

CNJ02

IRLJ01

IRLJ02

JNJ01

JNJ02

JNJ04

JNJ05

LJ01

RJ03

RJ04

RJ05

RJ06

RJ07

RJ08

SWJ01

Description ; Specification Remark

CONNECTOR-HEADER;BOX,6P,1R,1.25mm,SMD-A,

LED-IR;ROUND,5mm,140mW,4V,880nm,-

LED-IR;ROUND,5mm,140mW,4V,880nm,-

JACK-PHONE;7P,3.6PI,AG,YEL,NO

JACK-PHONE;4P,3.6PI,AG,RED,-

JACK-DIN;4P,-,SN,BLK,-

JACK-IEEE1394;4P/1C,TIN,WHT,ANGLE,IEEE13

INDUCTOR-SMD;1uH,20%,2520

INDUCTOR-SMD;1uH,20%,2520

INDUCTOR-SMD;1uH,20%,2520

TR-SMALL SIGNAL;KSA1298,PNP,200mW,SOT-23

TR-DIGITAL;KRC401,NPN,100MW,4.7K/4.7K,SO

TR-DIGITAL;RN1104,NPN,100MW,47K/47K,SSM,

MODULE REMOCON;-,KSM-603TM,37.9KHz,940nm VP-D103(I)/D105(I) Only

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;33Kohm,1%,1/10W,TP,1608

VP-D103(I)/D105(I) Only

VP-D103(I)/D105(I) Only

R-CHIP;39Kohm,5%,1/10W,TP,1608

R-CHIP;47Kohm,5%,1/10W,TP,1608

R-CHIP;4.3ohm,5%,1/8W,TP,2012

R-CHIP;27ohm,5%,1/4W,TP,3216

R-CHIP;22Kohm,5%,1/10W,TP,1608

R-CHIP;6.8Kohm,5%,1/10W,TP,1608

SWITCH-TACT;12V,50mA,183gf,3.9*2.9*1.5,1

VP-D103(I)/D105(I) Only

ASSY-LITHIUM BOARD;DELTA2-PJ,,

ASSY-LITHIUM B’D;DELTA2-PJ,VP-D101,Lithi

CONNECTOR-HEADER;BOX,6P,1R,1.25mm,SMD-A,

SWITCH-PUSH;DC5V,1 MA,-,ON-OFF,-

JACK-MINI USB;5P/1C,AU30U,BLK,SMD-A,-

VP-D103(I)/D105(I) Only

VP-D101(I) Only

Not used VP-D101(I)

ASSY-LEFT BOARD;DELTA2-PJ,MEMORY(X),LEFT VP-D101(I) Only

ASSY-LEFT BOARD;DELTA2-PJ,SC-D103,LEFT B VP-D103(I) Only

C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

CONNECTOR-FPC/FFC/PIC;45P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;10P,0.5MM,SMD-A-ZI

CONNECTOR-FPC/FFC/PIC;26P,0.5MM,SMD-A,SN

VP-D103(I) Only

CONNECTOR-FPC/FFC/PIC;18P,0.5MM,SMD-A,SN

CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A,

CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,

CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

R-CHIP;27Kohm,1%,1/10W,TP,1608

R-CHIP;39Kohm,1%,1/10W,TP,1608

VP-D103(I) Only

VP-D103(I) Only

VP-D103(I) Only

VP-D103(I) Only

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;180ohm,5%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;220Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;3.3Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

CONNECTOR-CARD EDGE;10P,1.5MM,SMD-A,AUF

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-PUSH;DC5V,1 MA,-,ON-OFF,-

SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE

VP-D103(I) Only

VP-D103(I) Only

VP-D103(I) Only

Samsung Electronics

This Document can not be used without Samsung’s authorization

Electrical Parts List

2007-000070

2007-000070

2007-000070

2007-000078

2007-000450

2007-000102

2007-000106

2007-000070

2007-000070

2007-000070

2007-000070

2007-000402

2007-000402

2007-000070

2007-000402

2007-000402

AD97-08407E

2203-000257

2203-000189

2203-005065

3708-001813

3708-000363

3708-001112

3708-001215

3711-000541

3711-000922

3711-000541

0501-000225

2007-000651

2007-000828

2007-000102

2007-000070

2007-001125

2007-001125

2007-000090

2007-001125

2007-001125

2007-000102

2007-001010

2007-001010

2007-001010

2007-001010

2007-000102

2007-000070

2007-000070

3709-001261

3404-000119

3404-000119

3404-000119

3403-001084

3409-001036

AD97-08410A

2203-000257

3711-000541

2007-000651

2007-000828

2007-001206

2007-000633

3404-000119

3404-000119

3404-000119

3404-000119

3404-000119

RLF17

RLF18

RLF19

RLF20

RLF21

RLF22

RLF23

RLF24

RLF05

RLF06

RLF07

RLF09

RLF10

RLF11

RLF12

RLF13

CNLF05

CNLF06

CNLF07

QLF01

RLF01

RLF02

RLF03

RLF04

570

CLF01

CLF02

CLF04

CNLF01

CNLF02

CNLF03

CNLF04

RLF33

RLF34

RLF35

RLF36

RLF38

SOLF01

SWLF01

SWLF02

RLF25

RLF26

RLF27

RLF28

RLF29

RLF30

RLF31

RLF32

SWLF03

SWLF04

SWLF05

580

CF01

CNF01

RF01

RF02

RF03

RF04

SWF01

SWF02

SWF03

SWF04

SWF05

Loc.No

Part No Description ; Specification Remark

ASSY-LEFT BOARD;DELTA2-PJ,2.5INCH,LEFT B

C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608

CONNECTOR-FPC/FFC/PIC;45P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;20P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;26P,0.5MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;18P,0.5MM,SMD-A,SN

CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A,

CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,

CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A,

TR-SMALL SIGNAL;2SC4617,NPN,200mW,EM3,TP

R-CHIP;27Kohm,1%,1/10W,TP,1608

R-CHIP;39Kohm,1%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;180ohm,5%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;220Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;150ohm,5%,1/10W,TP,1608

R-CHIP;150ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;150ohm,5%,1/10W,TP,1608

R-CHIP;150ohm,5%,1/10W,TP,1608

R-CHIP;68Kohm,1%,1/10W,TP,1608

R-CHIP;68Kohm,1%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;68Kohm,1%,1/10W,TP,1608

R-CHIP;68Kohm,1%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;51Kohm,5%,1/10W,TP,1608

R-CHIP;51Kohm,5%,1/10W,TP,1608

R-CHIP;51Kohm,5%,1/10W,TP,1608

R-CHIP;51Kohm,5%,1/10W,TP,1608

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

CONNECTOR-CARD EDGE;9/10P,1.5MM/2MM,PIN,

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-PUSH;DC5V,1 MA,-,ON-OFF,-

SWITCH-DETECTOR;3~5V,50uA~10mA,2,30gf,LE

ASSY-FUNCTION BOARD;DELTA2-PJ,SC-D103,FU

C-CER,CHIP;10nF,10%,50V,X7R,TP,1608

CONNECTOR-HEADER;BOX,2P,1R,1.25MM,SMD-A,

R-CHIP;27Kohm,1%,1/10W,TP,1608

R-CHIP;39Kohm,1%,1/10W,TP,1608

R-CHIP;82Kohm,1%,1/10W,TP,1608

R-CHIP;270Kohm,1%,1/10W,TP,1608

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

SWITCH-TACT;12V,50mA,100gf,5.2x5.2x0.8mm

VP-D105(I) Only

4-9

Electrical Parts List

Part No

2703-000396

2703-002271

2703-000398

2703-000396

2703-000396

2703-000407

2703-000396

0504-001037

0502-001221

0502-001221

0501-002311

0501-000552

2007-000516

2007-000516

2007-000124

2007-000116

2007-000078

2007-000090

2203-000140

2404-000167

2404-000167

2404-000167

2404-001020

2404-000167

2203-000189

3708-001829

3708-001341

0401-001054

1003-001474

1103-001133

1201-001086

0601-001097

2703-000407

2703-000396

2203-000189

2404-000232

2203-000189

2203-000189

2404-001020

2404-001020

2404-001020

2404-001020

2203-000189

2404-001020

2203-000189

2404-000284

2404-000157

2203-000189

2404-001269

2203-002793

AD97-08372B

2203-000189

2203-000189

2203-000189

2404-000212

2404-000212

2203-000189

2404-001131

2203-000189

2301-001108

2203-005040

2404-001020

2203-000189

2404-001131

2203-000189

2203-000189

Loc.No

QL108

QL109

QL110

QL306

RL136

RL137

RL140

RL141

RL142

RL201

LL105

LL109

LL115

LL201

LL304

LL307

LL401

QL103

CNL302

DL303

ICL01

ICL202

ICL301

LED01

LL102

LL104

CL415

CL416

CL417

CL418

CL419

CL421

CL422

CNL301

CL317

CL318

CL319

CL331

CL332

CL344

CL401

CL412

CL209

CL210

CL211

CL231

CL232

CL302

CL303

CL316

CL138

CL148

CL150

CL157

CL158

CL160

CL161

CL208

601

CL101

CL102

CL104

CL107

CL110

CL111

CL137

Description ; Specification

ASSY-LCD BOARD;DELTA2-PJ,PAL,LCD BOARD(2

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;3.3uF,20%,25V,-,TP,3528

C-TA,CHIP;3.3uF,20%,25V,-,TP,3528

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;22UF,10%,10V,GP,TP,3528

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-FILM,SMD-PPS;22nF,5%,50V,TP,3.2x2.5x1.

C-CER,CHIP;0.012nF,5%,3kV,NP0,TP,4520

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;22UF,10%,10V,GP,TP,3528

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;4.7uF,20%,10V,-,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,16V,-,TP,3528

C-TA,CHIP;1uF,20%,35V,-,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,20V,-,TP,3528

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,-

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

CONNECTOR-FPC/FFC/PIC;28P,0.5MM,SMD-A,TI

CONNECTOR-FPC/FFC/PIC;26P,0.5MM,SMD-A,SN

DIODE-SWITCHING;KDS160,80V,100MA,SOD-323

IC-LCD DRIVER;AN2545NFHQ,LQFP,48P,49MIL,

IC-EEPROM;24C020,256x8,SOP,8P,5.13x3.95m

IC-OP AMP;75S558,SOP,ST,5P,63MIL,DUAL,10

LED;SMD,GRN,1.6X1.4MM,560NM,3.2X1.

INDUCTOR-SMD;330uH,10%,3225

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;100uH,30%,5757

INDUCTOR-SMD;10uH,10%,3225

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;330uH,10%,3225

INDUCTOR-SMD;10uH,10%,2520

TR-DIGITAL;KRC401,NPN,100MW,4.7K/4.7K,SO

TR-POWER;CPH3209,NPN,900mW,CPH3,TP,200-

TR-POWER;CPH3209,NPN,900mW,CPH3,TP,200-

TR-SMALL SIGNAL;HN2A01FU,PNP,200mW,UMD6,

TR-SMALL SIGNAL;2SA1774-Q,PNP,150mW,EM3,

R-CHIP;2.7Kohm,1%,1/10W,TP,1608

R-CHIP;2.7Kohm,1%,1/10W,TP,1608

R-CHIP;2.2Kohm,5%,1/10W,TP,1608

R-CHIP;120ohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

Remark

4-10

CE18

CE19

CE20

CNE01

CNE02

DE02

DE03

DE04

ICE01

LE01

LE03

CE14

CE15

CE16

CE17

CE10

CE11

CE12

CE13

CE04

CE05

CE07

CE08

935

CE01

CE02

CE03

809

CNT01

RT01

RT02

SWT01

VRT01

Part No

2007-000074

2007-000074

2007-000090

2007-000092

2007-000091

2007-000070

2007-000070

2007-000074

2007-000074

2007-000074

2007-000074

2007-000082

2007-000082

2007-000082

2601-001090

2007-000097

2007-000097

2007-000092

2007-000090

2007-000458

2007-000078

2007-000086

2007-000078

2007-000070

2007-000078

2007-000078

2007-000078

2007-000078

2007-001179

2007-000074

2007-000074

Loc.No

RL322

RL323

RL428

RL430

RL431

RL432

TL103

RL313

RL314

RL315

RL316

RL317

RL319

RL320

RL321

RL305

RL306

RL307

RL308

RL309

RL310

RL311

RL312

RL202

RL203

RL204

RL205

RL301

RL302

RL303

RL304

AD97-08379A

3711-000922

2007-000309

2007-000309

3404-001130

2102-001019

2203-000189

2203-000189

2404-001020

3708-001680

3708-001076

0401-001054

0404-000110

0403-001421

1003-001373

2703-000397

2703-000397

AD97-06506B

2404-001020

2203-000189

2203-000189

2203-000440

2404-000284

2404-001020

2203-000189

2203-000189

2203-000189

2203-000189

2203-000975

2404-000151

2404-000151

2404-001020

2203-000189

Description ; Specification

R-CHIP;47Kohm,5%,1/10W,TP,1608

R-CHIP;47Kohm,5%,1/10W,TP,1608

R-CHIP;15Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;18Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;5.6Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;8.2Kohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;15Kohm,5%,1/10W,TP,1608

R-CHIP;12Kohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;0ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;3.3Kohm,5%,1/10W,TP,1608

R-CHIP;3.3Kohm,5%,1/10W,TP,1608

R-CHIP;3.3Kohm,5%,1/10W,TP,1608

TRANS-SMD,PULSE;100MH,760,-,10.1X10.1X2.

Remark

ASSY-TOP BOARD;DELTA2-PJ,SC-D103,TOP BOA

CONNECTOR-HEADER;BOX,4P,1R,1.25mm,SMD-A,

R-CHIP;10ohm,5%,1/10W,TP,1608

R-CHIP;10ohm,5%,1/10W,TP,1608

SWITCH-TACT;12VDC,50mA,160gf,6.1x3.7x2.5

VR-SLIDE;10Kohm,30%,1/20W,SLIDE

ASSY-EVF BOARD(PAL);

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,-

C-TA,CHIP;10uF,20%,16V,-,TP,3528

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;47nF,10%,25V,X7R,TP,1608,-

C-TA,CHIP;1uF,20%,16V,-,TP,3216

C-TA,CHIP;1uF,20%,16V,-,TP,3216

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

CONNECTOR-FPC/FFC/PIC;6P,0.5MM,SMD-A,SN,

CONNECTOR-FPC/FFC/PIC;20P,0.5MM,SMD-S,SN

DIODE-SWITCHING;KDS160,80V,100MA,SOD-323

DIODE-SCHOTTKY;RB411D,20V,500MA,SOT-23,T

DIODE-ZENER;KDZ2.7V,2.5-2.9V,150MW,SOD-3

IC-LCD DRIVER;MCVVQ111FB,LQFP,48P,276MIL

INDUCTOR-SMD;33uH,10%,2520

INDUCTOR-SMD;33uH,10%,2520

VP-D101(I)/D103(I) Only

This Document can not be used without Samsung’s authorization

Samsung Electronics

Part No

0601-001586

0501-002310

2007-001125

2007-001068

2007-000772

2007-000828

2007-000078

2007-000090

2007-000082

2007-000090

2007-000091

2007-000075

2007-000084

2007-000097

2007-000125

2007-000091

2007-000074

2007-000074

2104-001007

2404-001020

2404-000167

2404-000167

2404-000284

2203-000189

2203-000189

2404-001246

2404-000167

2203-000140

2203-002793

1003-001456

1103-001290

AD07-00023A

2703-000396

2703-000396

2703-000396

AD97-06616A

3708-001712

3708-001840

2203-000189

2404-001020

2203-000189

2404-001246

2203-001408

2404-000232

2203-000189

2203-000189

2203-000189

2404-001020

2404-000167

2203-000189

2203-000189

2703-000396

2703-000396

0501-002128

2007-000102

2007-000090

2007-000090

2007-000078

2007-000078

2007-000078

2007-000119

2007-000078

2007-000078

2007-000078

2007-001670

Loc.No

RE24

RE25

RE26

RE29

RE17

RE19

RE21

RE22

RE05

RE06

RE07

RE16

LED01

QE02

RE01

RE02

RE30

RE31

VRE02

CV22

CV23

IC1

ICV02

LED01

LV01

LV02

LV03

CV18

CV19

CV20

CV21

CV14

CV15

CV16

CV17

CV10

CV11

CV12

CV13

CV06

CV07

CV08

CV09

CV02

CV03

CV04

CV05

937

CNV01

CNV02

CV01

RV06

RV08

RV09

RV10

RV11

RV12

RV02

RV03

RV04

RV05

LV04

LV05

QV01

RV01

Description ; Specification

LED;SMD,WHT,-,470NM,3.2X2X1.2MM

TR-SMALL SIGNAL;HN1B04FU,PNP/NPN,200mW,U

R-CHIP;68Kohm,1%,1/10W,TP,1608

R-CHIP;6.8Kohm,1%,1/10W,TP,1608

R-CHIP;33Kohm,1%,1/10W,TP,1608

R-CHIP;39Kohm,1%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;3.3Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;12Kohm,5%,1/10W,TP,1608

R-CHIP;220ohm,5%,1/10W,TP,1608

R-CHIP;4.7Kohm,5%,1/10W,TP,1608

R-CHIP;47Kohm,5%,1/10W,TP,1608

R-CHIP;3.9Kohm,5%,1/10W,TP,1608

R-CHIP;12Kohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

R-CHIP;100ohm,5%,1/10W,TP,1608

VR-SMD;10Kohm,25%,0.15W,TOP

ASSY-CVF BOARD;

CONNECTOR-FPC/FFC/PIC;17P,0.3MM,SMD-A,SN

CONNECTOR-FPC/FFC/PIC;16P,0.5MM,SMD-A,SN

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10UF,20%,6.3V,WT,TP,2012

C-CER,CHIP;0.27nF,5%,50V,NP0,TP,1608

C-TA,CHIP;4.7uF,20%,10V,-,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10uF,20%,10V,GP,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-TA,CHIP;10uF,20%,16V,-,TP,3528

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-CER,CHIP;100nF,+80-20%,25V,Y5V,TP,1608

C-TA,CHIP;10UF,20%,6.3V,WT,TP,2012

C-TA,CHIP;2.2uF,20%,16V,-,TP,3216

C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1608,-

C-CER,CHIP;1000nF,+80-20%,25V,Y5V,TP,201

IC-LCD DRIVER;AN2536FHQ,QFS,48P,393MIL,-

IC-EEPROM;24C02,256x8,SSOP,8P,4.4x3mm,2.

B/L LED WHT;-,-,-,3*2*1.2,1.2,-,-,540MCD

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

INDUCTOR-SMD;10uH,10%,2520

TR-SMALL SIGNAL;KTC4075,NPN,100mW,USM,TP

R-CHIP;100Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;10Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;560ohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;1Kohm,5%,1/10W,TP,1608

R-CHIP;68ohm,1%,1/8W,TP,2012

Remark

VP-D105(I) Only

Samsung Electronics

Loc.No

RV13

RV14

RV15

RV16

Part No

2007-000614

2007-000651

2007-000091

2007-000092

Description ; Specification

R-CHIP;24Kohm,1%,1/10W,TP,1608

R-CHIP;27Kohm,1%,1/10W,TP,1608

R-CHIP;12Kohm,5%,1/10W,TP,1608

R-CHIP;15Kohm,5%,1/10W,TP,1608

Electrical Parts List

Remark

This Document can not be used without Samsung’s authorization

4-11

Electrical Parts List

MEMO

4-12

This Document can not be used without Samsung’s authorization

Samsung Electronics

5. Block Diagram

Front Ass'y

Lithium Battery

Remocon

S-jack

AV Jack

Internal Mic

USB Jack

IEEE1394 JACK

Camera Lens Ass'y

Iris

Hall sensor

X20

Lens

O

L

P

F

1/6"

CCD

Right Ass'y

(BW;0.16"/76K) Function Key

Zoom S/W, Photo Key

Rear Ass'y

DC Jack

Battery

POWER KEY

5V

3.3V

1.8V

BL5V

-15V~-7.5V

Drum VS

Capstan VS

Zoom/focus

M. Drive

(UPD16877)

V.Drive

(KS7221D)

CDS/AGC/ADC

(TLV990B)

Multi

Card

Slot

Left Ass'y

Menu Key&dial

M/S Socket [Multi]

112K PV1 LCD

Main Ass'y

DC/DC

(MB388B)

10Bits

H1,H2

DSP5

(S5C7375X)

Audio I/F

(AK4564)

ITU-R656

27Mhz

54Mhz

Decimation

ADC/DAC

Shuffle

Video

Encoder

Video I/F

(NJM2538)

OSD

(C;UPD6467)

DCT/IDCT

COMPRE-

SSION

Video

Decoder

SAA7113H

ECC 4M

DRAM

Link

Layer

Main MICOM

(TX1962)

RTC

(RS5C372A)

Reset

(XC61FC2512)

EEPROM

(24C045STP)

Motor Drive

(LB11990W)

PB CLK

PB DATA

PRML

(VM65011)

Record Data

Envelope

Phy.Layer

PREAMP

(VC370250)

64M SDRAM 16M SDRAM

D E

E D

C I

K S

O

N

Samsung Electronics This Document can not be used without Samsung’s authorization 5-1

Block Diagram

MEMO

5-2

This Document can not be used without Samsung’s authorization

Samsung Electronics

6. PCB Diagrams

Page

6-1 Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-2

6-2 Left PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3

6-3 LCD PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3

6-4 Rear PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4

6-5 Function PCB- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4

6-6 Jack PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-5

6-7 EVF PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-5

6-8 CCD PCB- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6

6-9 Top PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6

6-10 Start-Stop PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-7

6-11 CVF PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-7

Samsung Electronics 6-1

PCB Diagrams

6-1 Main PCB

COMPONENT SIDE

CONDUCTOR SIDE

6-2 Samsung Electronics

6-2 Left PCB

COMPONENT SIDE

6-3 LCD PCB

COMPONENT SIDE

Samsung Electronics

CONDUCTOR SIDE

CONDUCTOR SIDE

PCB Diagrams

6-3

PCB Diagrams

6-4 Rear PCB

COMPONENT SIDE

6-5 Function PCB

COMPONENT SIDE

6-4

CONDUCTOR SIDE

CONDUCTOR SIDE

Samsung Electronics

6-6 Jack PCB

COMPONENT SIDE

6-7 EVF PCB

COMPONENT SIDE

Samsung Electronics

CONDUCTOR SIDE

CONDUCTOR SIDE

PCB Diagrams

6-5

PCB Diagrams

6-8 CCD PCB

COMPONENT SIDE

6-9 Top PCB

COMPONENT SIDE

6-6

CONDUCTOR SIDE

CONDUCTOR SIDE

Samsung Electronics

6-10 Start-Stop PCB

COMPONENT SIDE

6-11 CVF PCB

COMPONENT SIDE

Samsung Electronics

CONDUCTOR SIDE

CONDUCTOR SIDE

PCB Diagrams

6-7

PCB Diagrams

MEMO

6-8 Samsung Electronics

7. Schematic Diagrams

Page

7-1 DC/DC Converter (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-2

7-2 Servo (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3

7-3 System Control (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-4

7-4 Pre Amp/PRML (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5

7-5 DV1-Chip (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-6

7-6 Video-Interface (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-7

7-7 Line-In (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-8

7-8 Audio (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-9

7-9 PHY (Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-10

7-10 Camera Process (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-11

7-11 DSP (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-12

7-12 Camera Memory (Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13

7-13 CCD (CCD PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-14

7-14 Left (Left PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-15

7-15 Jack (Jack PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-16

7-16 Rear (Rear PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-17

7-17 Function (Function PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-18

7-18 Top (Top PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-19

7-19 Start-Stop (Start-Stop PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-20

7-20 LCD (LCD PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-21

7-21 EVF (EVF PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-22

7-22 CVF (CVF PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-23

Note

For schematic Diagram

- Resistors are in ohms, 1/8W unless otherwise noted.

Special note :

Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the

“electrostatically sensitive (ES) devices” section of this service manual.

Note :

Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list (may be slightly different or amended since this drawing was prepared).

Important safety notices :

Components identified with the mark have the special characteristics for safety. When replacing any of these components.

Use only the same type.

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-1

Schematic Diagrams

7-1 DC/DC Converter (Main PCB)

7-2

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-2 Servo (Main PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-3

Schematic Diagrams

7-3 System Control (Main PCB)

7-4

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-4 Pre Amp/PRML (Main PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-5

Schematic Diagrams

7-5 DV1-Chip (Main PCB)

7-6

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-6 Video-Interface (Main PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-7

Schematic Diagrams

7-7 Line-In (Main PCB)

7-8

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-8 Audio (Main PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-9

Schematic Diagrams

7-9 PHY (Main PCB)

7-10

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-10 Camera Process (Main PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-11

Schematic Diagrams

7-11 DSP (Main PCB)

7-12

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-12 Camera Memory (Main PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-13

Schematic Diagrams

7-13 CCD (CCD PCB)

7-14

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-14 Left (Left PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-15

Schematic Diagrams

7-15 Jack (Jack PCB)

7-16

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-16 Rear (Rear PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-17

Schematic Diagrams

7-17 Function (Function PCB)

7-18

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-18 Top (Top PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-19

Schematic Diagrams

7-19 Start-Stop (Start-Stop PCB)

7-20

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-20 LCD (LCD PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-21

Schematic Diagrams

7-21 EVF (EVF PCB)

7-22

This Document can not be used without Samsung’s authorization

Samsung Electronics

Schematic Diagrams

7-22 CVF (CVF PCB)

Samsung Electronics

This Document can not be used without Samsung’s authorization

7-23

Schematic Diagrams

MEMO

7-24

This Document can not be used without Samsung’s authorization

Samsung Electronics

SERVICE BULLETIN

ELECTRONICS

Product :

DVC

Model :

Delta 2 PAL MODEL

Buyer :

PAL MODEL BUYER

Bulletin No. :

Bulletin Date :

SUBJECT : DELTA 2 CAMERA PARTIAL INITIAL DATA is changed

03-DVC-F0001

30-Jun-04

Background :

! " # $ %&'( !

& ) !* ( !+", (* -) .

Note :

CCD Ass'y which is on Ass'y Camera Lens FPC Connector has MV MARK like attached file,

then changed Camera Initial Data must be used.

If not, old data must be used.

Application Date : Immediately

Location

No.

OLD (before) Parts

SEC Code Description

( Interchangeability Code : * I.C )

NEW (changed) Parts

SEC Code Description

*

I.C

Type

Interchange OLD

A type

Early OLD

B type

Early OLD

C type

Early OLD

D type E type F type

Early Parts Addition Parts deletion

Type Code

(Parts) (Prod.) (Parts) (Prod.) (Parts) (Prod.) (Parts) (Prod.) (None New) ( Old Del. )

(* I.C ) NEW

Application

Late NEW

Reference ( )

Attachment

Late NEW

Only Defected sets ( O )

Schematic Diagram ( )

Late NEW Late

Whole sets ( )

Component Lay-out ( ) Exploded View ( )

Mechanical Diagram ( ) None ( ) Others ( )

Product Month : About

30-Jun-04

Published by : Checked by :

Serial No. (~ from) :

Approved by :J.Y. Pang

Revision (V8.2 : March 10, 1998) ... Global Strategy Group. Tech.-Info. Suppot Part ( Pages : 1 of 1 )

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
