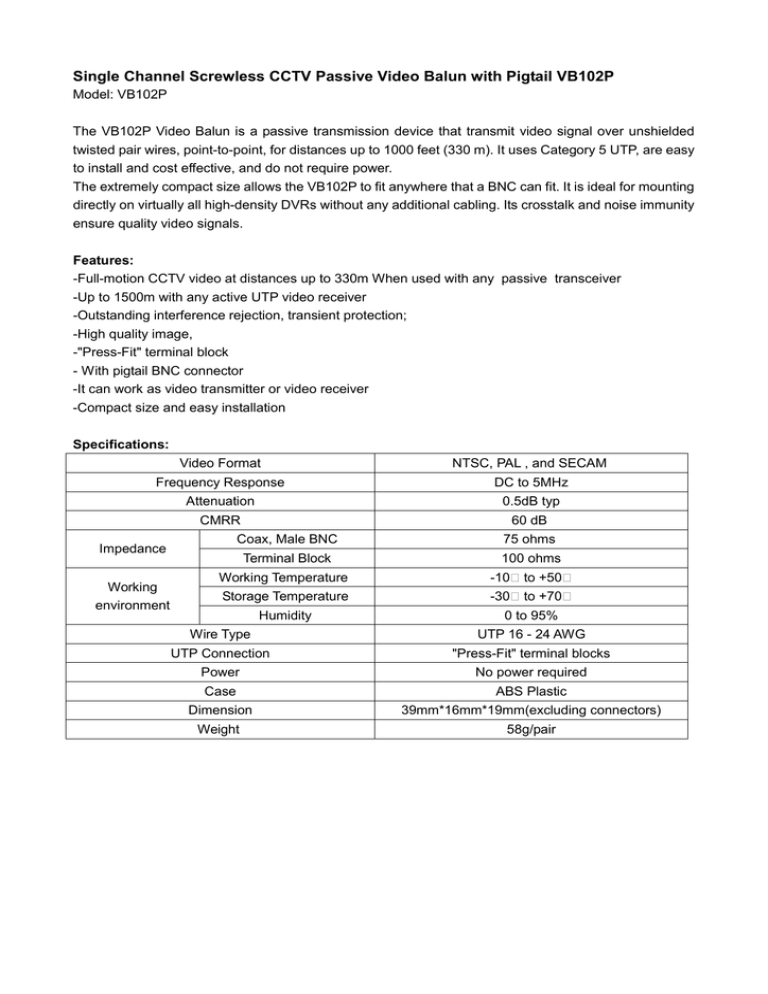

Single Channel Screwless CCTV Passive Video Balun with Pigtail VB102P
Model: VB102P
The VB102P Video Balun is a passive transmission device that transmit video signal over unshielded
twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP, are easy
to install and cost effective, and do not require power.
The extremely compact size allows the VB102P to fit anywhere that a BNC can fit. It is ideal for mounting
directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity
ensure quality video signals.
Features:
-Full-motion CCTV video at distances up to 330m When used with any passive transceiver
-Up to 1500m with any active UTP video receiver
-Outstanding interference rejection, transient protection;
-High quality image,
-"Press-Fit" terminal block
- With pigtail BNC connector
-It can work as video transmitter or video receiver
-Compact size and easy installation
Specifications:
Video Format
NTSC, PAL , and SECAM
Frequency Response
DC to 5MHz
Attenuation
0.5dB typ
CMRR
60 dB
Coax, Male BNC
75 ohms
Terminal Block
100 ohms
Working Temperature
-10℃ to +50℃
Storage Temperature
-30℃ to +70℃
Humidity
0 to 95%
Impedance
Working
environment
Wire Type
UTP 16 - 24 AWG
UTP Connection
"Press-Fit" terminal blocks
Power
No power required
Case
ABS Plastic
Dimension
39mm*16mm*19mm(excluding connectors)
Weight
58g/pair
