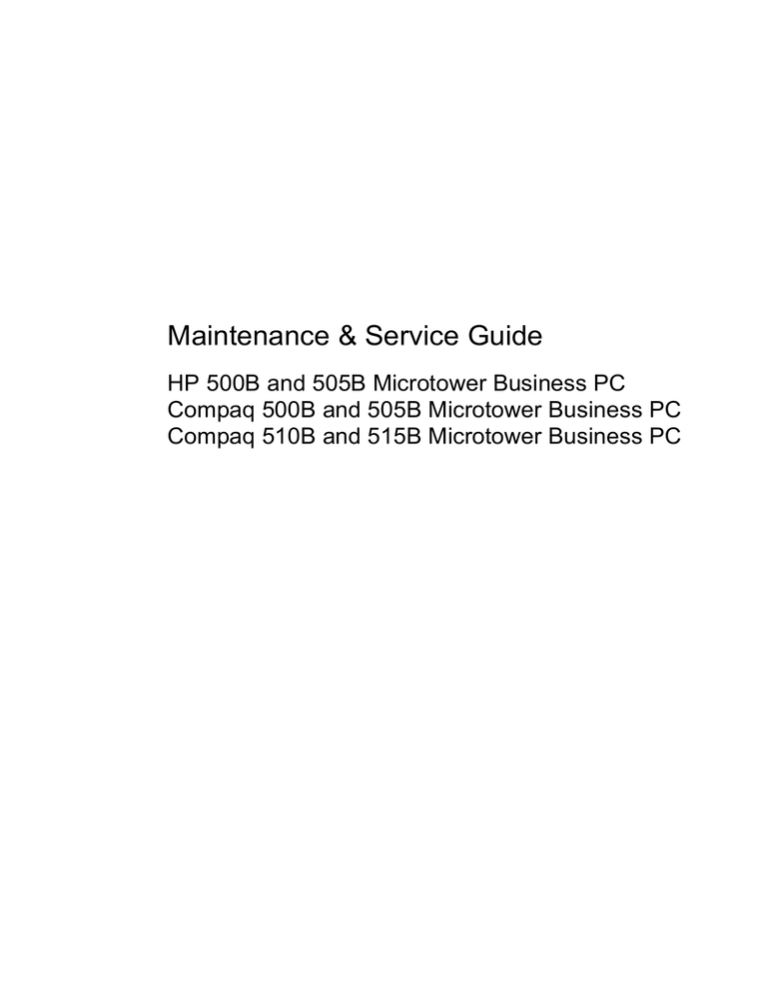

Maintenance & Service Guide
HP 500B and 505B Microtower Business PC
Compaq 500B and 505B Microtower Business PC
Compaq 510B and 515B Microtower Business PC
© Copyright 2009, 2010 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
HP 500B and 505B Microtower Business
PC
Compaq 500B and 505B Microtower
Business PC
Compaq 510B and 515B Microtower
Business PC
Third Edition (August 2010)
Second Edition (May 2010)
First Edition (September 2009)
Document Part Number: 591882-003
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE:
Text set off in this manner provides important supplemental information.
iii
iv
About This Book
Table of contents
1 Product Description ........................................................................................................................................ 1
Chassis Designations ........................................................................................................................... 1
HP 500B/505B ..................................................................................................................... 1
Compaq 500B/505B, Compaq 510B/515B .......................................................................... 2
Product Description .............................................................................................................................. 3
2 Removal and Replacement Procedures Microtower (MT) Chassis ............................................................ 4
Preparation for Disassembly ................................................................................................................ 4
Access Panel ........................................................................................................................................ 5
Front Bezel ........................................................................................................................................... 7
Memory ................................................................................................................................................ 9
DDR3-SDRAM DIMMs ........................................................................................................ 9
Populating DIMM Sockets ................................................................................................. 10
Installing Memory Modules ................................................................................................ 11
Expansion Cards ................................................................................................................................ 13
Cable Management ............................................................................................................................ 21
Cable Connections ............................................................................................................ 21
Drives ................................................................................................................................................. 23
Installing Additional Drives ................................................................................................. 23
System Board Drive Connections ..................................................................... 24
Removing an Optical Drive ............................................................................... 25
Replacing an Optical Drive ................................................................................ 27
Removing a Hard Drive ..................................................................................... 28
Replacing a Hard Drive ..................................................................................... 31
Front I/O and USB Panel Housing Assembly ..................................................................................... 33
Power Switch/LED Assembly ............................................................................................................. 34
System Fan ........................................................................................................................................ 35
Heat sink assembly (Intel) — Model 500B/510B ................................................................................ 36
Heat sink assembly (AMD) — Model 505B/515B ............................................................................... 37
Processor (Intel) — Model 500B/510B ............................................................................................... 38
Processor (AMD) — Model 505B/515B .............................................................................................. 40
Power Supply ..................................................................................................................................... 41
System Board ..................................................................................................................................... 47
Battery ................................................................................................................................................ 48
v
Type 1 Battery Holder ........................................................................................................ 49
Type 2 Battery Holder ........................................................................................................ 50
Type 3 Battery Holder ........................................................................................................ 50
Appendix A Computer (F10) Setup ................................................................................................................ 52
Model 500B/510B — Computer Setup (F10) Utilities ......................................................................... 52
Using Computer Setup (F10) Utilities ................................................................................ 52
Computer Setup—Main ..................................................................................................... 53
Computer Setup—Advanced ............................................................................................. 54
Computer Setup—Power ................................................................................................... 55
Computer Setup—Boot ...................................................................................................... 57
Computer Setup—Exit ....................................................................................................... 58
Model 505B/515B — Computer Setup (F10) Utilities ......................................................................... 58
Using Computer Setup (F10) Utilities ................................................................................ 59
Computer Setup—Main ..................................................................................................... 59
Computer Setup—Advanced ............................................................................................. 60
Computer Setup—Power ................................................................................................... 61
Computer Setup—Boot ...................................................................................................... 63
Computer Setup—Exit ....................................................................................................... 64
Appendix B Diagnostics .................................................................................................................................. 65
Interpreting Diagnostic Beep Codes ................................................................................................... 65
LED Codes ......................................................................................................................................... 66
Accessing HP Insight Diagnostics ...................................................................................................... 67
Testing Memory Modules ................................................................................................................... 67
POST Error/Warning Messages ......................................................................................................... 68
Power Button/Power Button LED ....................................................................................................... 69
Using the Setup Utility ........................................................................................................................ 69
BIOS Updates .................................................................................................................................... 70
Clearing CMOS .................................................................................................................................. 70
Appendix C Troubleshooting Without Diagnostics ...................................................................................... 72
Safety and Comfort ............................................................................................................................ 72
Before You Call for Technical Support ............................................................................................... 72
Helpful Hints ....................................................................................................................................... 73
Solving General Problems .................................................................................................................. 74
Solving Power Problems .................................................................................................................... 75
Solving Hard Drive Problems ............................................................................................................. 76
Solving Media Card Reader Problems ............................................................................................... 77
Solving Display Problems ................................................................................................................... 78
Solving Audio Problems ..................................................................................................................... 79
Solving Keyboard and Mouse Problems ............................................................................................ 79
Solving Network Problems ................................................................................................................. 80
vi
Solving Memory Problems ................................................................................................................. 81
Solving CD-ROM and DVD Problems ................................................................................................ 82
Solving Front Panel Component Problems ........................................................................................ 83
Appendix D Connector Pin Assignments ...................................................................................................... 84
4-Pin Power (for CPU) ........................................................................................................................ 84
Ethernet BNC ..................................................................................................................................... 84
USB .................................................................................................................................................... 84
Microphone ......................................................................................................................................... 85
Headphone ......................................................................................................................................... 85
Line-in Audio ...................................................................................................................................... 85
Line-out Audio .................................................................................................................................... 85
Monitor ............................................................................................................................................... 86
24-Pin Power ...................................................................................................................................... 86
PCI Express ....................................................................................................................................... 87
PCI Express ....................................................................................................................................... 88
Appendix E Routine Care and Disassembly Preparation ............................................................................ 90
Electrostatic Discharge Information .................................................................................................... 90
Generating Static ............................................................................................................... 90
Preventing Electrostatic Damage to Equipment ................................................................ 91
Personal Grounding Methods and Equipment ................................................................... 91
Grounding the Work Area .................................................................................................. 92
Recommended Materials and Equipment .......................................................................... 92
Operating Guidelines .......................................................................................................................... 93
Routine Care ...................................................................................................................................... 94
General Cleaning Safety Precautions ................................................................................ 94
Cleaning the Computer Case ............................................................................................ 94
Cleaning the Keyboard ...................................................................................................... 94
Cleaning the Monitor .......................................................................................................... 95
Cleaning the Mouse ........................................................................................................... 95
Service Considerations ...................................................................................................................... 95
Power Supply Fan ............................................................................................................. 95
Tools and Software Requirements .................................................................................... 96
Screws ............................................................................................................................... 96
Cables and Connectors ..................................................................................................... 96
Hard Drives ........................................................................................................................ 96
Lithium Coin Cell Battery ................................................................................................... 97
Appendix F Serial ATA (SATA) Drive Guidelines and Features .................................................................. 98
SATA Hard Drives .............................................................................................................................. 98
SATA Hard Drive Cables .................................................................................................................... 98
SATA Data Cable .............................................................................................................. 98
vii
SMART ATA Drives ............................................................................................................................ 99
Hard Drive Capacities ........................................................................................................................ 99
Appendix G Power Cord Set Requirements ................................................................................................ 100
General Requirements ..................................................................................................................... 100
Japanese Power Cord Requirements .............................................................................................. 100
Country-Specific Requirements ........................................................................................................ 101
Appendix H Specifications ............................................................................................................................ 102
Index ................................................................................................................................................................. 104
viii
1
Product Description
Chassis Designations
The following subsection illustrates the various chassis designs.
HP 500B/505B
NOTE:
Card reader not included on all models.
Chassis Designations
1
Compaq 500B/505B, Compaq 510B/515B
2
Chapter 1 Product Description
Product Description
HP 500B, Compaq 500B, and Compaq 510B are based on Intel PCA and processor technology,
whereas the Compaq 505B MT, Compaq 505B, and Compaq 515B are based on AMD technology.
The following list provides notable features of the PCs.
HP 500B, Compaq 500B, and Compaq 510B features:
●
Intel Core 2 Duo processors
●
Intel G41/ICH7 Express chipset
●
Intel GMA X4500 integrated graphics controller
Compaq 505B, Compaq 505B/515B features:
●
AMD AM3 Athlon II and Phenom II processors
●
nVidia MCP61P
●
nVidia GeForce 6150SE integrated graphics controller
Both PCs feature:
●
Support for up to 4GB of DDR3 SDRAM in two dual-channel DIMM slots
●
One PCI-E x16, two PCI-E x1, one PCI expansion slot
●
300W passive Power Factor Correction (PFC) and non-PFC power supply
●
Six USB 2.0 ports
●
Realtek 10/100 Mbps Ethernet controller
●
Integrated 5.1 channel audio
●
Support for HP Kensington MicroSaver cable lock
●
Windows 7 logo compliance
Product Description
3
2
Removal and Replacement Procedures
Microtower (MT) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE:
Not all features listed in this guide are available on all computers.
Preparation for Disassembly
1.
Close any open software applications.
2.
Exit the operating system.
3.
Remove any media from the computer.
4.
Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
CAUTION: Regardless of the power-on state, voltage is always present on the system board
as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on
even when the computer is in the “Standby,” or “Suspend” modes. The power cord should
always be disconnected before servicing a unit.
5.
Disconnect the power cord from the electrical outlet and then from the computer.
6.
Disconnect all peripheral device cables from the computer.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the components removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using
the wrong screw in an component may damage the component or the computer.
4
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Access Panel
NOTE:
Access panel appearance may vary.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the side cover by loosening the screw that connects the cover to the computer.
Figure 2-1 Removing the Computer Access Panel
3.
Grasp the handle on the side cover and pull towards the back of the computer. Slide the cover
about 2.4 cm (1 inch) to remove it.
NOTE: You may want to lay the computer on its side to install internal parts. Be sure the side
with the access panel is facing up.
Figure 2-2 Removing the Computer Access Panel
Access Panel
5
4.
Remove the side panel by lifting it away from the computer.
Figure 2-3 Removing the Computer Access Panel
To replace the access panel, reverse the removal steps.
6
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Front Bezel
NOTE:
Front bezel appearance may vary.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Pull each of the three side tabs that secure the front bezel to the computer, to release the front
bezel.
Figure 2-4 Removing the Front Bezel
Front Bezel
7
4.
Swing the front bezel out to remove from the computer.
Figure 2-5 Removing the Front Bezel
NOTE:
The appearance of the front bezel may vary.
To reinstall the front bezel, reverse the removal procedure.
8
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Memory
The computer comes with double data rate 3 synchronous dynamic random access memory
(DDR3-SDRAM) dual inline memory modules (DIMMs).
DDR3-SDRAM DIMMs
The memory sockets on the system board can be populated with up to two industry-standard
DIMMs. These memory sockets are populated with at least one preinstalled DIMM. To achieve the
maximum memory support, you can populate the system board with up to 4 GB of memory
configured in a high-performing dual channel mode.
For proper system operation, the DDR3-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered PC3-10600, 1333 MHz-compliant
●
1.5 volt DDR3-SDRAM DIMMs
The DDR3-SDRAM DIMMs must also:
●
support CAS latency 9 DDR3 1333 Mhz (9-9-9 timing)
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
512Mbit, 1Gbit, and 2Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE:
The system will not operate properly if you install unsupported DIMMs.
Memory
9
Populating DIMM Sockets
There are two DIMM sockets on the system board.
Figure 2-6 DIMM Socket Locations — 500B/510B
Figure 2-7 DIMM Socket Locations — 505B/515B
Table 2-1 DIMM Socket Locations
Item
Description
Socket Color
1
DIMM1 socket, Channel A (populate first)
Blue
2
DIMM2 socket, Channel A
Blue
NOTE: A DIMM must occupy the DIMM1 socket.
10
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Installing Memory Modules
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Locate the memory module sockets on the system board (500B shown).
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
Figure 2-8 DIMM locations (500B shown)
Memory
11
4.
Open both latches of the memory module socket (1), and insert the memory module into the
socket (2).
Figure 2-9 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
12
5.
Push the DIMM module down firmly into the socket, ensuring that the module is fully inserted
and properly seated. The DIMM must be pushed all the way down into the socket and sit evenly
in the socket to avoid memory corruption. Make sure the latches are in the closed position (3).
6.
Repeat steps 4 and 5 to install any additional modules.
7.
Replace the computer access panel.
8.
Reconnect the power cord and any external devices, then turn on the computer. The computer
should automatically recognize the additional memory when you turn on the computer.
9.
Lock any security devices that were disengaged when the access panel was removed.
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Expansion Cards
The computer has one PCI expansion slot, two PCI Express x1 expansion slots, and one PCI
Express x16 expansion slot. The expansion slots accommodate full-height or half-height expansion
cards.
Figure 2-10 Expansion Slot Locations — 500B/510B
Figure 2-11 Expansion Slot Locations — 505B/515B
Table 2-2 Expansion Slot Locations
Item
Description
1
PCI Express x16 expansion slot
Expansion Cards
13
Table 2-2 Expansion Slot Locations (continued)
Item
Description
2
PCI Express x1 expansion slot
3
PCI Express x1 expansion slot
4
PCI expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To remove, replace, or add an expansion card:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Locate the add-in cards at the back of the computer.
Figure 2-12 Locating the expansion card slots
14
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
4.
On the back of the computer, remove the screw from the bracket cover for the add-in cards.
Figure 2-13 Opening the slot cover lock
5.
Remove the bracket cover.
Figure 2-14 Removing the bracket cover
Expansion Cards
15
6.
If you are removing a graphics card, press on the latch to release it.
Figure 2-15 Press the latch to release the graphics card
7.
Remove the graphics card from the card slot.
NOTE: If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Be sure not to scrape the card against the other
components.
Figure 2-16 Removing the graphics card from the slot
16
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
8.
For other add-in cards, move the card back and forth gently to free it from the card slot in the
computer.
Figure 2-17 Rocking the card to Remove
9.
Lift the card out of the computer.
Figure 2-18 Lifting the card from the computer
Expansion Cards
17
10. If present, remove any cables connected to the add-in card.
Figure 2-19 Removing cables from the card
11. Store the removed card in anti-static packaging.
12. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
13. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis so that the bottom of the bracket on the
card slides into the small slot on the chassis. Press the card straight down into the expansion
socket on the system board.
Figure 2-20 Installing an expansion card
NOTE: When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
18
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
14. If you are replacing a graphics card, verify that the latch in the computer snaps back into place.
Figure 2-21 Replacing a graphics card
15. Press straight down until the card is fully seated in the card slot.
Figure 2-22 Seating the card
Expansion Cards
19
16. Replace the bracket cover on the back of the computer.
Figure 2-23 Replacing the bracket cover
17. Replace the screw to secure the bracket to the back of the computer.
Figure 2-24 Replacing the bracket screw
18. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
19. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
20
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Cable Management
Always follow good cable management practices when working inside the computer.
●
Keep cables away from major heat sources like the heatsink.
●
Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
●
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves.
When removing the power supply power cable from the connector on the system board, always follow
these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector (1).
2.
Grasp the cable end of the connector and pull it straight up (2).
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
Cable Connections
System board connectors are color-coded to make it easier to find the proper connection.
Table 2-3 Cable connections — 500B/510B
Connector Name
Connector Color
Description
ATX_POWER
white
power supply, 24-pin
ATX_12V
white
power supply, 4-pin
SYS_FAN1
brown
chassis fan
CPU_FAN
white
heat sink fan
F PANEL
black
front power button/LED
F_USB1
white
front I/O USB cable
F_AUDIO
yellow
front I/O audio
SATA1
dark blue
hard drive
SATA2
white
optical drive
PCI2
white
PCI expansion slot
PCIE1X
black
PCIe x1 expansion slot
Cable Management
21
Table 2-3 Cable connections — 500B/510B (continued)
Connector Name
Connector Color
Description
PCIE1X1
black
PCIe x1 expansion slot
PCIE16X
black
PCIe x16 expansion slot
Table 2-4 Cable connections — 505B/515B
22
Connector Name
Connector Color
Description
ATXPOWER
white
power supply, 24-pin
ATXCPU
white
power supply, 4-pin
CHASSIS_FAN1
brown
chassis fan
CPU FAN
white
heat sink fan
F_PANEL
black
front power button/LED
F_USB2
white
front I/O USB cable
F_AUDIO
yellow
front I/O audio
SATA0
dark blue
hard drive
SATA1
white
optical drive
PCI1
white
PCI expansion slot
PCIE_X1_1
black
PCIe x1 expansion slot
PCIE_X1_2
black
PCIe x1 expansion slot
PCIE X16
black
PCIe x16 expansion slot
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Drives
The computer supports one optical drive and one hard drive.
This section describes the procedure for replacing or upgrading the drives. A Torx T-15 screwdriver is
needed to remove and install the guide screws on a drive.
Installing Additional Drives
When installing additional drives, follow these guidelines:
●
Connect the primary SATA hard drive to the dark blue primary SATA connector on the system
board labeled SATA1 for model 500B/510B, SATA0 for model 505B/515B.
●
Connect the SATA optical drive to the white SATA connector on the system board labeled
SATA2 on model 500B/510B, SATA1 for model 505B/515B.
CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby
mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and
label the package “Fragile: Handle With Care.”
Drives
23
System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.
Figure 2-25 System Board Drive Connections — 500B/510B
Figure 2-26 System Board Drive Connections — 505B/515B
Table 2-5 System Board Drive Connections
24
No.
System Board Label — 500B/510B
System Board Label — 505B/515B
Color
1
SATA1
SATA0
dark blue
2
SATA2
SATA1
white
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Removing an Optical Drive
CAUTION: All removable media should be taken out of a drive before removing the drive from the
computer.
To remove an optical drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Remove the front bezel (Front Bezel on page 7).
4.
Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
Figure 2-27 Disconnecting the power and data cables
5.
Remove the screws that fasten the disc drive in the computer.
Figure 2-28 Removing the optical drive screws
Drives
25
6.
Push the drive slightly forward.
Figure 2-29 Push the drive forward
7.
Pull the disc drive out through the front of the computer.
Figure 2-30 Pull the drive from the computer
NOTE:
26
To install an optical drive, refer to Replacing an Optical Drive on page 27.
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Replacing an Optical Drive
To install an optical drive:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Remove the front bezel (Front Bezel on page 7).
4.
If the new drive has screws installed on the sides of the drive, remove the screws before
inserting the drive into the chassis.
5.
Push the replacement disc drive partially into the drive bay in the computer.
Figure 2-31 Installing the optical drive
6.
Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 2-32 Connecting the power and data cables
Drives
27
7.
Align the disc drive screw holes with the drive bay holes (marked “2”).
Figure 2-33 Aligning the holes
8.
Replace the drive screws.
Figure 2-34 Replacing the screws
9.
Replace the front bezel, access panel, and reconnect all cables.
10. Lock any security devices that were disengaged when the access panel was removed.
The system automatically recognizes the drive and reconfigures the computer.
Removing a Hard Drive
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so
that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard drive,
make sure you have created a Recovery Disc Set to restore the operating system, software drivers,
and any software applications that were preinstalled on the computer. If you do not have this CD set,
select Start > HP Backup and Recovery and create it now.
28
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Remove the front bezel (Front Bezel on page 7).
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
4.
Locate the external drive bay at the front of the computer, below the optical drive bays.
Figure 2-35 Locating the hard drive
5.
Disconnect the power (1) and data (2) cables by squeezing the latch on the connector and
pulling to remove.
Figure 2-36 Disconnecting the hard drive cables
Drives
29
6.
Remove the two screws that secure the hard disk drive to the computer.
Figure 2-37 Removing the hard drive screws
7.
Pull the hard drive out of the front of the computer.
Figure 2-38 Pulling the hard drive from the computer
NOTE:
30
To install a hard drive, refer to Replacing a Hard Drive on page 31.
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Replacing a Hard Drive
1.
Follow the steps in Removing a Hard Drive on page 28 to remove the hard drive.
2.
Slide the replacement hard disk drive into the bay.
NOTE: If you are replacing an old drive with a new drive, use the four retainer screws from the
old drive to install the new drive.
Figure 2-39 Installing the hard drive
3.
Align the screw holes on the side of the hard drive with the holes marked “HDD” on the bay.
Figure 2-40 Align the screw holes
CAUTION: Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius. A
sharp bend can break the internal wires.
Drives
31
4.
Attach the two screws to secure the hard disk drive to the bay.
Figure 2-41 Replacing the screws that secure the hard drive
5.
Attach the power and data connectors to the back of the drive.
Figure 2-42 Attaching the connectors
32
6.
Replace the front bezel, computer access panel, and all cables.
7.
Lock any security devices that were disengaged when the access panel was removed.
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Front I/O and USB Panel Housing Assembly
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5)
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel (Front Bezel on page 7).
5.
Unplug the four cables that connect the assembly to the system board.
6.
Remove the screw (1) that secures the housing to the chassis, slide the housing up (2), and then
pull the assembly away from the chassis while guiding the cables through the hole in the
chassis.
Figure 2-43 Removing the front I/O assembly
To install the housing assembly, reverse the removal procedures.
Front I/O and USB Panel Housing Assembly
33
Power Switch/LED Assembly
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel (Front Bezel on page 7).
5.
Remove the optical drive (Removing an Optical Drive on page 25).
6.
Disconnect the braided cables from the system board.
7.
Remove the cable from the clips in the optical drive cage.
8.
Press the tabs near the bottom on both sides of the switch holder (1) to disengage it from the
chassis, rotate the bottom of the switch upward (2), and then pull it away from the chassis while
guiding the wires through the hole in the chassis.
Figure 2-44 Removing the power switch
To install the power switch/LED assembly, reverse the removal procedures.
34
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
System Fan
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the rear facing toward you.
4.
Disconnect the cable that connects the system fan to the system board.
5.
Remove the four Phillips screws that secure the fan to the chassis, rotate the top of the fan
forward, and then remove the fan from the chassis.
Figure 2-45 Removing the system fan
To install the fan, reverse the removal procedures.
System Fan
35
Heat sink assembly (Intel) — Model 500B/510B
NOTE:
Heat sink appearance may vary.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the rear facing toward you.
4.
Disconnect the heat sink fan control cable from the system board (1).
5.
Remove the four torx screws (1) that secure the heat sink to the system board.
Figure 2-46 Removing the heat sink
6.
Lift the heat sink from the processor and set it on its side to keep from contaminating the work
area with thermal grease.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink to the processor. This is especially important as the pins on the socket
are very fragile and any damage to them may require replacing the system board.
When reinstalling an existing heat sink, make sure that its bottom has been cleaned with an alcohol
wipe and fresh thermal grease has been applied to the top of the processor. New heatsinks come
from the factory with fresh thermal grease already applied.
36
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Heat sink assembly (AMD) — Model 505B/515B
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the rear facing toward you.
4.
Disconnect the heat sink fan control cable from the system board.
5.
Lift the lever (1) that secures the heat sink latch to the heat sink bracket attached to the system
board.
6.
After loosening the lever, press downward on the lever to release the square clip (2) from the tab
on the heat sink bracket.
7.
Use the lever to maneuver the square clip on the opposite side on the heat sink (3) free from the
tab on the heat sink bracket.
8.
Lift the heat sink from the processor and set it on its side to keep from contaminating the work
area with thermal grease.
Figure 2-47 Removing the heat sink
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the heat sink to the processor. This is especially important as the pins on the socket
are very fragile and any damage to them may require replacing the system board.
When reinstalling an existing heat sink, make sure that its bottom has been cleaned with an alcohol
wipe and fresh thermal grease has been applied to the top of the processor. New heatsinks come
from the factory with fresh thermal grease already applied.
Heat sink assembly (AMD) — Model 505B/515B
37
Processor (Intel) — Model 500B/510B
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the rear facing toward you.
4.
Disconnect the heatsink control cable from the system board and remove the heatsink Heat sink
assembly (Intel) — Model 500B/510B on page 36).
5.
Rotate the locking lever to its full open position (1).
6.
Raise and rotate the microprocessor retainer to its full open position (2)
7.
Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
CAUTION: The heatsink must be installed within 24 hours of installing the processor to prevent
damage to the processor’s solder connections.
Figure 2-48 Removing an Intel processor
To install a new processor:
1.
Place the processor in its socket and close the retainer.
2.
Secure the locking lever.
If reusing the existing heat sink, go to step 3.
If using a new heat sink, go to step 6.
3.
38
If reusing the existing heat sink, clean the bottom of the heat sink with the alcohol pad provided
in the spares kit.
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
4.
Apply the thermal grease provided in the spares kit to the top of the processor and install the
heat sink atop the processor.
5.
Go to step 7.
6.
If using a new heat sink, remove the protective covering from the bottom of the heat sink and
place it in position atop the processor.
7.
Secure the heat sink to the system board and system board tray with the 4 captive screws and
attach the heat sink control cable to the system board.
CAUTION: Heat sink retaining screws should be tightened in diagonally opposite pairs (as in
an X) to evenly seat the heat sink on the processor. This is especially important as the pins on
the socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system
ROM to ensure that the latest version of the BIOS is being used on the computer. The latest
system ROM BIOS can be found on the Web at: http:\\h18000.www1.hp.com/support/files.
Processor (Intel) — Model 500B/510B
39
Processor (AMD) — Model 505B/515B
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Disconnect the heatsink control cable from the system board and remove the heatsink Heat sink
assembly (AMD) — Model 505B/515B on page 37).
4.
Rotate the locking lever to its full open position (1).
5.
Carefully lift the processor from the socket (2).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to
the processor’s solder connections.
Figure 2-49 Removing an AMD processor
To install a new processor:
1.
Place the processor in its socket and close the retainer.
2.
Secure the locking lever.
If reusing the existing heat sink, go to step 3.
If using a new heat sink, go to step 5.
40
3.
If reusing the existing heat sink, apply the thermal grease provided in the spares kit to the top of
the processor.
4.
Clean the bottom of the heat sink with the provided alcohol pad and place it atop the processor.
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
5.
If using a new heat sink, remove the protective covering from the bottom of the heat sink and
place it in position atop the processor.
6.
Secure the heat sink to the system board and system board tray with the four captive screws
and attach the heat sink control cable to the system board.
CAUTION: heat sink retaining screws should be tightened in diagonally opposite pairs (as in
an X) to evenly seat the heat sink on the processor. This is especially important as the pins on
the socket are very fragile and any damage to them may require replacing the system board.
NOTE: After installing a new processor onto the system board, always update the system ROM to
ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can
be found on the Web at: http://h18000.www1.hp.com/support/files.
Power Supply
NOTE:
Power supply appearance may vary.
WARNING! Voltage is always present on the system board when the computer is plugged into an
active AC outlet. To avoid possible personal injury and damage to the equipment the power cord
should be disconnected from the computer and/or the AC outlet before opening the computer.
NOTE: When installing a new power supply, be sure to set the red switch to the setting (230 V or
115 V) appropriate for the country in which the computer is used. Spare power supplies normally
arrive set for 230 V.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the rear facing toward you.
4.
Disconnect all power cables from the mass storage devices and from the system board.
5.
Place the computer on its side.
Power Supply
41
6.
Locate the power supply at the top of the computer.
Figure 2-50 Locating the power supply
NOTE: Noting the location, type and orientation of the power connectors is extremely
important. Failure to correctly restore all power connectors appropriately will prevent the
computer or components from working successfully.
NOTE: The location of the power connectors on the motherboard may vary from the ones
shown below.
7.
Trace the power supply cables to the system components:
●
Optical disc drives (A)
●
Hard disk drives (B)
●
Motherboard main power (C)
●
Motherboard fan (D)
Figure 2-51 Power supply connections
42
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
8.
Disconnect the power cable from the optical disc and hard disk drives by squeezing the latch (1)
on the connectors and pulling to remove.
Figure 2-52 Disconnecting the power cable
Power Supply
43
9.
The motherboard power connector has a latch that must be pressed to detach the connector
from the motherboard.
Figure 2-53 Disconnecting the main system board power connector
Some connectors may have latches that must be pressed to remove them.
Figure 2-54 Connector Latches
44
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
10. Disconnect all other power connectors from the motherboard.
Figure 2-55 Disconnecting power connectors
11. Remove the four screws that connect the power supply to the computer. The images below
illustrate possible power supply screw locations.
Figure 2-56 Removing the power supply screws
Power Supply
45
12. Use a screwdriver to press the latch at the bottom of the power supply to release it.
Figure 2-57 Pressing the power supply latch
13. Pull the power supply back and tilt it out of the computer.
Figure 2-58 Removing the power supply from the computer
To install the power supply, reverse the removal procedure. Note that there is a latch, a guide, and a
ledge on the computer that help secure the power supply.
46
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
Figure 2-59 Power supply securing features
System Board
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory modules
●
Processor
●
Expansion modules
To remove the system board:
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
3.
Lay the computer on its side with the rear facing toward you.
4.
Remove the front bezel (Front Bezel on page 7).
5.
Remove an expansion cards (Expansion Cards on page 13).
6.
Disconnect the power, and data cables from the back of all installed drives.
7.
Disconnect all cables from the system board.
8.
Remove the eight screws that secure the system board to the chassis.
System Board
47
9.
Slide the system board toward the front of the chassis, and then lift it up and out of the chassis.
NOTE: The system board in the computer may look slightly different from the one shown here.
Figure 2-60 Removing the system board — model 500B shown
To install the system board, reverse the removal procedure.
NOTE:
BIOS.
When replacing the system board, you must also change the chassis serial number in the
NOTE: After installing a new system board, always update the system ROM to ensure that the
latest version of the BIOS is being used on the computer. The latest system ROM BIOS can be found
at: http:\\h18000.www1.hp.com/support/files.
Battery
The battery that comes with your computer provides power to the real-time clock and has a
lifetime of about three years. When replacing the battery, use a battery equivalent to the battery
originally installed on the computer. The computer comes with a 3-volt lithium coin cell battery.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC
wall socket. The lithium battery is only used when the computer is NOT connected to AC power.
48
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
WARNING! This computer contains an internal lithium manganese dioxide battery. There is a risk of
fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140°F)
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP/Compaq spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the
Troubleshooting Guide for information on backing up the CMOS settings.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, its authorized partners, or its agents.
CAUTION: Static electricity can damage the electronic components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static electricity by
briefly touching a grounded metal object.
1.
Prepare the computer for disassembly (Preparation for Disassembly on page 4).
2.
Remove the access panel (Access Panel on page 5).
NOTE: It may be necessary to remove an expansion card to gain access to the battery.
3.
Locate the battery and battery holder on the system board.
Type 1 Battery Holder
1.
Lift the battery out of its holder.
2.
Slide the replacement battery into position, positive side up.
3.
The battery holder automatically secures the battery in the proper position.
4.
Replace the computer access panel.
Battery
49
5.
Plug in the computer and turn on power to the computer.
6.
Reset the date and time, your passwords, and any special system setups, using Computer
Setup. Refer to the Computer Setup (F10) Utility Guide.
Type 2 Battery Holder
1.
To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
2.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up (2). Push the other edge down until the clamp snaps over the other edge of
the battery.
3.
Replace the computer access panel.
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time, your passwords, and any special system setups, using Computer
Setup. Refer to the Computer Setup (F10) Utility Guide.
Type 3 Battery Holder
1.
50
Pull back on the clip (1) that holds the battery in place, then remove the battery (2).
Chapter 2 Removal and Replacement Procedures Microtower (MT) Chassis
2.
Insert the new battery and position the clip back in place.
3.
Replace the computer access panel.
4.
Plug in the computer and turn on power to the computer.
5.
Reset the date and time, your passwords, and any special system setups, using Computer
Setup. Refer to the Computer Setup (F10) Utility Guide.
Battery
51
A
Computer (F10) Setup
Model 500B/510B — Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●
Change factory default settings.
●
Set the system date and time.
●
Set, view, change, or verify the system configuration, including settings for graphics, audio,
storage, communications, and input devices.
●
View settings for processor and memory.
●
Modify the boot order of bootable devices such as hard drives, diskette drives, optical drives, or
USB flash media devices.
●
Restrict a device from booting the unit.
●
Run hard drive self-tests.
●
Establish a supervisor password that controls access to Computer Setup (F10) Utility and the
settings described in this section.
●
Enable or disable removable media boot ability.
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
52
The Computer Setup Utility screen is divided into menu headings and actions.
Appendix A Computer (F10) Setup
Five menu headings appear on the Computer Setup Utility screen:
●
Main
●
Advanced
●
Power
●
Boot
●
Exit
Use the arrow keys to select the appropriate heading, then press Enter. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the previous screen,
press Esc.
CAUTION: Do NOT turn the computer power OFF while the ROM is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only
after exiting the F10 Setup screen.
Computer Setup—Main
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-1 Computer Setup—Main
Option
Description
System Time
Allows you to set system time.
System Date
Allows you to set system date.
Language
Allows you to select language.
Floppy Diskette A:
Allows you to set drive A to:
●
Disabled
●
1.44 MB 3.5”
●
Not Installed
Model 500B/510B — Computer Setup (F10) Utilities
53
Table A-1 Computer Setup—Main (continued)
1st Drive
For each, allows you to:
2nd Drive
●
Port Configuration - set the ability to configure ports to:
3rd Drive
◦
Enabled
4th Drive
◦
Disabled
●
●
System Information
(view only)
◦
Capacity (Size - HDD only)
◦
Transfer Mode
Smart Support - run HDD self-test for selected channel:
◦
SMART Status Check
◦
SMART Short Self-Test
◦
SMART Extended Self-Test
(view only)
●
Installed Memory
●
Memory Bank 1
●
Memory Bank 2
●
BIOS Revision
●
Core Version
●
Model Number
●
Serial Number
●
Product Number
●
Asset Tag
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
WARNING! Setting items on this menu to incorrect values may cause your system to malfunction.
Table A-2 Computer Setup—Advanced
54
Option
Description
CPU Type
(view only)
CPU Speed
(view only)
Cache RAM
(view only)
Appendix A Computer (F10) Setup
Table A-2 Computer Setup—Advanced (continued)
Primary Video Adapter
Onboard Video
Memory Size
Allows you to select the boot display device when more than 2 video options are offered by the
system:
●
PCI
●
PCI-Ex16
●
32 MB
●
64 MB
●
128 MB
SATA Controller
Allows you to disable/enable the SATA Controller.
USB Ports
Allows you to disable/enable the USB ports.
Onboard LAN
Allows you to disable/enable onboard LAN controller.
Onboard LAN Boot
ROM
Allows you to disable/enable the boot ROM of the onboard LAN chip.
Supervisor Password
Shows whether the supervisor password is enabled or disabled (view only).
User Password
Shows whether the user password is enabled or disabled (view only).
Change Supervisor
Password
Allows you to change the supervisor password.
Onboard Audio
Allows you to set the onboard audio to:
Microphone Input
●
Auto
●
Disabled
●
Enabled
Allows you to set disable/enable microphone input.
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-3 Computer Setup—Power
Option
Description
After AC Power
Failure
Allows you to select system restart behavior after power loss:
●
Stay Off
●
Power On
●
Auto
Model 500B/510B — Computer Setup (F10) Utilities
55
Table A-3 Computer Setup—Power (continued)
XD
Disables/enables XD (eXecute Disable) bit.
NOTE: The XD bit is a technology used in to separate areas of memory for use by either storage
of processor instructions or code or for storage of data. Memory designated with the NX attribute
may only be used for storing data. Processor instructions should not reside and cannot be
executed there. This technology is used to prevent buffer overflow attacks – malicious software
that takes over computers by inserting code into another program's data storage area and running
that code.
S5 Maximum Power
Savings
56
Disables/enables the S5 power setting. Enabling this setting enables the EuP Lot6 power
specification of 1 Watt in S5 mode. This setting disable various system board components to
reduce power consumption.
Appendix A Computer (F10) Setup
Computer Setup—Boot
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-4 Computer Setup—Boot
Option
Description
Boot-time Diagnostic
Screen
Disables/enables POST diagnostic messages display.
ESC: Boot Menu
Enables/disables the ability to press the Esc key to access the boot menu during boot.
F9: Diagnostics
Enables/disables the ability to press the F9 key to access the Diagnostics menu during boo.
F10: Setup
Enables/disables the ability to press the F10 key to access the Setup menu during boo.
F11: Recovery
Enables/disables the ability to press the F11 key to access the recovery menu during boo.
F12: Boot from LAN
Enables/disables the ability to press the F12 key to boot from LAN.
Boot Device Priority
Allows you to specify which device groups will boot first, second, third, and fourth or to disable any
of the four:
●
1st Boot Device
●
2nd Boot Device
●
3rd Boot Device
●
4th Boot Device
Options for each boot device include:
●
CD-ROM Group
●
Hard Drive Group
●
Floppy Group
Network Boot Group
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
CD-ROM Group Boot
Priority
Specifies boot device priority within CD/DVD drives.
Hard Drive Group
Boot Priority
Specifies boot device priority within hard drives.
Floppy Group Boot
Priority
Specifies boot device priority within removable devices.
Network Group Boot
Priority
Specifies boot device priority within bootable network devices.
Model 500B/510B — Computer Setup (F10) Utilities
57
Computer Setup—Exit
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-5 Computer Setup—Exit
Option
Description
Exit Saving Changes
Press Enter to exit saving changes.
Exit Discarding
Changes
Press Enter to exit discarding changes.
Load Setup Defaults
Press Enter to load setup defaults.
Discard Changes
Press Enter to discard changes.
Save Changes
Press Enter to save changes.
Model 505B/515B — Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
58
●
Change factory default settings.
●
Set the system date and time.
●
Set, view, change, or verify the system configuration, including settings for graphics, audio,
storage, communications, and input devices.
●
View settings for processor and memory.
●
Modify the boot order of bootable devices such as hard drives, diskette drives, optical drives, or
USB flash media devices.
●
Restrict a device from booting the unit.
●
Run hard drive self-tests.
●
Establish a supervisor password that controls access to Computer Setup (F10) Utility and the
settings described in this section.
●
Enable or disable removable media boot ability.
Appendix A Computer (F10) Setup
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer.
2.
As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and
again press F10 when the monitor light turns green to access the utility.
3.
The Computer Setup Utility screen is divided into menu headings and actions.
Five menu headings appear on the Computer Setup Utility screen:
●
Main
●
Advanced
●
Power
●
Boot
●
Exit
Use the arrow keys to select the appropriate heading, then press Enter. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the previous screen,
press Esc.
CAUTION: Do NOT turn the computer power OFF while the ROM is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only
after exiting the F10 Setup screen.
Computer Setup—Main
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-6 Computer Setup—Main
Option
Description
System Time
Allows you to set system time.
System Date
Allows you to set system date.
Language
Allows you to select language.
Floppy Diskette A:
Allows you to set drive A to:
●
Disabled
●
1.44 MB 3.5”
●
Not Installed
Model 505B/515B — Computer Setup (F10) Utilities
59
Table A-6 Computer Setup—Main (continued)
1st Drive
For each, allows you to:
2nd Drive
●
Port Configuration - set the ability to configure ports to:
3rd Drive
◦
Enabled
4th Drive
◦
Disabled
●
●
System Information
(view only)
◦
Capacity (Size - HDD only)
◦
Transfer Mode
Smart Support - run HDD self-test for selected channel:
◦
SMART Status Check
◦
SMART Short Self-Test
◦
SMART Extended Self-Test
(view only)
●
Installed Memory
●
Memory Bank 1
●
Memory Bank 2
●
BIOS Revision
●
Core Version
●
Model Number
●
Product Number
●
Asset Tag (press Enter to change)
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
WARNING! Setting items on this menu to incorrect values may cause your system to malfunction.
Table A-7 Computer Setup—Advanced
60
Option
Description
CPU Type
(view only)
CPU Speed
(view only)
Cache RAM (L2)
(view only)
Cache RAM (L3)
(view only)
Appendix A Computer (F10) Setup
Table A-7 Computer Setup—Advanced (continued)
Primary Video Adapter
Allows you to select the boot display device when more than 2 video options are offered by the
system:
●
PCI
●
PCI-E x1
●
PCI-E x16
●
Onboard
Onboard LAN
Allows you to disable/enable onboard LAN controller.
Onboard LAN Boot
ROM
Allows you to disable/enable the boot ROM of the onboard LAN chip.
Onboard Audio
Allows you to set the onboard audio to:
●
Auto
●
Disabled
●
Enabled
Supervisor Password
Shows whether the supervisor password is enabled or disabled (view only).
User Password
Allows you to change the user password.
USB Ports
Lists USB ports 1-10, what is connected to the port, and allows you to enable/disable each port.
Change Supervisor
Password
Allows you to change supervisor password.
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-8 Computer Setup—Power
Option
Description
After AC Power
Failure
Allows you to select system restart behavior after power loss:
●
Auto
●
Power On
●
Stay Off
NX (No Execute)
Disables/enables NX bit.
Virtualization
Technology
Allows you to enable/disable Virtualization Technology (VT). VT enables a CPU feature to run
multiple simultaneous virtual machines allowing specialized software to run in full isolation of each
other.
Model 505B/515B — Computer Setup (F10) Utilities
61
Table A-8 Computer Setup—Power (continued)
62
S5 Maximum Power
Savings
Disables/enables the S5 power setting. Enabling this setting enables the EuP Lot6 power
specification of 1 Watt in S5 mode. This setting disable various system board components to
reduce power consumption.
WOL in S5
Allows you to view whether WOL is disabled or enabled in S5 (view only).
Appendix A Computer (F10) Setup
Computer Setup—Boot
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-9 Computer Setup—Boot
Option
Description
Boot-time Diagnostic
Screen
Disables/enables POST diagnostic messages display.
Boot Device Priority
Allows you to specify which device groups will boot first, second, third, and fourth or to disable any
of the four:
●
1st Boot Device
●
2nd Boot Device
●
3rd Boot Device
●
4th Boot Device
Options for each boot device include:
●
CD-ROM Group
●
Hard Drive Group
●
Floppy Group
Network Boot Group
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
ESC: Boot Menu
Enables/disables the ability to press the Esc key to access the boot menu during boot.
F9: Diagnostics
Enables/disables the ability to press the F9 key to access the Diagnostics menu during boo.
F10: Setup
Enables/disables the ability to press the F10 key to access the Setup menu during boo.
F11: Recovery
Enables/disables the ability to press the F11 key to access the recovery menu during boo.
F12: Boot from LAN
Enables/disables the ability to press the F12 key to boot from LAN.
Floppy Group Boot
Priority
Specifies boot device priority within removable devices.
CD-ROM Group Boot
Priority
Specifies boot device priority within CD/DVD drives.
Hard Drive Group
Boot Priority
Specifies boot device priority within hard drives.
Network Group Boot
Priority
Specifies boot device priority within bootable network devices.
Model 505B/515B — Computer Setup (F10) Utilities
63
Computer Setup—Exit
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table A-10 Computer Setup—Exit
64
Option
Description
Exit Saving Changes
Press Enter to exit saving changes.
Exit Discarding
Changes
Press Enter to exit discarding changes.
Load Setup Defaults
Press Enter to load setup defaults.
Discard Changes
Press Enter to discard changes.
Save Changes
Press Enter to save changes.
Appendix A Computer (F10) Setup
B
Diagnostics
Interpreting Diagnostic Beep Codes
The Power-On Self-Test (POST) is a series of diagnostic tests that runs automatically when the
computer is powered on. If the POST detects an error, this causes an audible beep code to sound.
The POST beep codes are not necessarily accompanied by an associated, visble error code or text
message.
The following table shows the POST beep codes, their meanings, and the recommended actions for
solving the problem.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
Table B-1 Diagnostic Beep Codes
Beeps
Diagnosis
Recommended action
1 short beep, 1
long beep, 3
second pause
Bad memory or memory
configuration error.
Check that the memory modules have been installed correctly and
that proper modules are used.
2 short beeps, 1
long beep, 3
second pause
No graphics card installed or
graphics card initialization failed.
For systems with a graphics card:
1.
Reseat the graphics card. Power on the system.
2.
Replace the graphics card.
3.
Replace the system board.
For systems with integrated graphics, replace the system board.
3 short beeps, 1
long beep, 3
second pause
CPU configuration error or invalid
CPU detected before graphics card
initialized.
1.
Upgrade the BIOS to proper version.
2.
Change the processor.
1 short beep, 1
second pause
No legacy floppy drive or optical
drive found
1.
Check cable connections.
2.
Run the Setup utility and ensure the device port is enabled.
1.
Check the type of drive you are using and use the correct
media type.
2.
Replace the diskette or CD with a new one.
2 short beeps, 3
second pause
No floppy diskette or CD found
Interpreting Diagnostic Beep Codes
65
Table B-1 Diagnostic Beep Codes (continued)
Beeps
Diagnosis
Recommended action
3 short beeps, 3
second pause
Flashing not ready (missing utility or
BIOS image file, etc.)
Upgrade the BIOS to proper version.
4 short beeps, 3
second pause
Flashing operation has failed
(checksum error, corrupted image,
etc.)
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently added, remove it to see if
the problem remains.
4.
Clear CMOS.
5.
If the message disappears, there may be a problem with the
expansion card.
6.
Replace the system board.
5 short beeps, 3
second pause
BIOS recovery was successful
No action required.
LED Codes
The following table describes the LED states for the PCs.
LED
State
LED Status
Power LED Indicator
System on (normal operation)
Steady green
Suspend to RAM
Blinks green every 2 seconds
Computer off
LED not on
Normal hard drive activity
Green drive LED is flashing
Drive LED Indicator
66
Appendix B Diagnostics
Accessing HP Insight Diagnostics
The HP Insight Diagnostics utility can be used to view information about the hardware configuration of
the computer. It can also perform hardware diagnostic testing on the computer and its subsystems,
which provides information for troubleshooting.
HP Insight Diagnostics runs from the recovery discs. To access HP Insight Diagnostics, the user must
first create a set of recovery disks from the recovery image on their hard drive. Then they can access
HP Insight Diagnostics by booting from the recovery disc that contains the utility.
To create a set of recovery discs, users need to perform the following steps.
1.
Click Start > HP Backup and Recovery > HP Backup and Recovery Manager.
2.
Click Next to open the Backup and Recovery Wizard.
3.
Select Create to create a set of recovery discs, and the click Next.
4.
Follow the wizard instructions to create a Recovery Disc Set.
5.
Use Windows Explorer to search the Recovery Disc Set for the CD in the /Hpdiags directory.
6.
Insert the CD into the optical drive on the computer.
7.
Restart the computer and the system will boot to the CD.
8.
Click the appropriate language and click Next.
9.
Click Agree in the End User License Agreement page. The utility launches with the Survey tab
displayed.
Testing Memory Modules
A faulty memory module or socket can lead to memory errors, operating system crashes, or frequent
system lock-ups. Memory problems can be caused by overheating, problems with the power supply,
or corrosion between the memory module and socket that weakens the electrical connection.
HP System Diagnostics allows the user to run tests on the system’s hard drive, memory, and CPU.
The diagnostic tool can check DIMMs to find out whether they are improperly configured, incorrectly
installed, or defective.
To access HP Diagnostic Tools, the user presses the F9 button when booting the PC.
If HP Diagnostic Tools or POST beep codes indicate a memory error, check the following common
memory issues before assuming that the DIMM is faulty.
Reason
Result
Remedy
Improperly configured
The user did not follow the proper
configuration rules and might have the
wrong part for the system.
Check the part number and make sure that the
DIMMs are compatible with the system.
Accessing HP Insight Diagnostics
67
Improperly installed
The DIMM is not seated properly or a
DIMM socket is bad or unusable.
Open the computer casing and reseat the DIMM. If
this does not work, try different sockets.
Check that no debris or corrosion is in the socket.
Defective
If the above remedies do not solve the
DIMM issue, the DIMM could be
defective.
Replace the DIMM.
POST Error/Warning Messages
Once the display becomes available, the BIOS should classify all errors detected during POST into 3
categories and handle them as specified below:
●
Critical errors requiring system shutdown (e.g. CPU fan fault):
Clear the screen, display the corresponding error message, pause for a while as specified and
then turn the system off.
●
Serious errors requiring user's attention and response (e.g. SMART error during POST):
Display the corresponding error message, wait for the user's input and then proceed as selected.
●
Alerts/warnings requiring user's attention (e.g. CMOS checksum error -> defaults loading):
Display the corresponding message and pause for a while as specified. If the message includes
an option for a keystroke from the user and the user responds with the key input, proceed as
selected. Otherwise, continue the POST process.
When there are multiple errors happened during POST, apply the following guideline:
●
If multiple errors include at least one critical error, the system will shut down immediately after
handling the first critical error.
●
If multiple errors do not include a critical error, handle all serious errors first, one by one, and
then proceed to alerts/warnings. For example, if the BIOS detected a SMART error (serious
error), a floppy diskette failure (serious error) and a CMOS checksum error (alert/warning) during
POST, the BIOS will handle them as follows:
For SKUs including an OS=MSV or an OS=LX in the SMBIOS Type 11 data,
1.
Handle the first serious error, SMART error, as follows:
Display "xxx: Hard disk failure is imminent ... Press F10 for Setup, F2 to Continue”. If the
user selects F10, proceed to Setup. However, if the user selects F2, the BIOS should
proceed to step 2 below.
2.
Handle the second serious error, floppy diskette failure, as follows:
Display "Floppy diskette failure ... Press F10 for Setup, F2 to Continue”. If the user selects
F10, proceed to Setup. However, if the user selects F2, the BIOS should proceed to step 3
below.
3.
68
Handle the alert/warning message, CMOS checksum error, as follows:
Appendix B Diagnostics
Display "Default BIOS settings have been loaded... Press F10 for Setup, F2 to Continue”. If
the user selects F10, proceed to Setup. However, if the user selects F2, the BIOS should
proceed to step 2 below.
For all other SKUs,
Use F1 instead of F10 in the above handling.
NOTE: If a device fails to respond while the BIOS tries to configure the device during POST, the
BIOS must not make the system look as if it locked up by having an infinite loop or waiting for too
long. Instead, the BIOS must time out after a reasonable amount of time (the time varies with the
device) and skip to the next process.
NOTE: Unless specified in this document as above, the BIOS should not stop the POST process
with any POST diagnostic screen and/or error message to draw user’s attention. For example, HP
does not consider replacing a hard drive or CPU as an error condition.
Power Button/Power Button LED
The power button is under the BIOS control during POST, in BIOS Setup and after booting to a nonACPI OS. The BIOS must respond immediately when the power button is pressed in these
environments. For the ACPI-compliant OS such as Windows, the BIOS must pass the power button
information to the OS via the ACPI table as specified in the ACPI spec.
If a platform offers a dual-color-based power button LED, the BIOS will program the power button
LED to alternate the color between the On (ACPI S0) state and the Stand-by (S3) state. In doing so,
the LED should not blink, but stay constant. Check with the corresponding platform manager for the
default colors in the On and Stand-by states. The color of the power button LED in the Hibernate
state (ACPI S4) is the same as in the S5 state.
To find out if the system's power button LED is dual-color capable, check the SMBIOS Type 11 data
structure. If the SMBIOS Type 11 data structure contains the string DLED (NOT case-sensitive), the
system supports the dual-color power button LED and therefore, the BIOS support as described
above is required.
Using the Setup Utility
The BIOS Setup Utility is accessed by pressing the F10 button during startup. The BIOS Setup Utility
allows you to:
●
Change factory default settings
●
Set the system date and time
●
Set, view, change, or verify the system configuration—including settings for graphics, audio,
storage, communications, and input devices
●
View processor and memory settings
●
Modify the boot order of bootable devices—such as hard drives, diskette drives, optical drives,
or USB media
Power Button/Power Button LED
69
●
Run tests on the hard drive
●
Establish a supervisor password that controls access to the Setup Utility
BIOS Updates
HP periodically releases system BIOS updates, which are available from the HP website. These
updates often contain fixes for known issues in the BIOS.
To find out whether a PC needs a BIOS update, compare the current BIOS version number against
the latest version available for download. To determine the current BIOS version, you should perform
the following steps:
1.
Click Start > Shut Down.
2.
Select Restart, and then click OK.
3.
When the first screen displays, press F10 to enter Setup. The BIOS revision number is listed on
the main menu.
4.
Write down the current BIOS version.
5.
Exit Setup by pressing Esc, selecting Yes, and pressing Enter.
Clearing CMOS
The CLEAR CMOSjumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC
RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system
setup information such as system passwords.
To erase the RTC RAM:
WARNING! Except when using this function, do not remove the jumper cap from the default
position or else there may be a system boot failure.
70
1.
Turn off the computer and disconnect the power cord.
2.
Remove the RTC battery.
3.
Disconnect the keyboard, monitor, and any other external devices that are connected to the
computer.
4.
Remove the access panel.
5.
Locate the CMOS jumper header on the motherboard, as follows:
●
On model 500B/510B it is labeled E18.
●
On model 505B/515B it labeled CLEAR CMOS.
Appendix B Diagnostics
6.
Remove the jumper from pins 2-3 pins and put it on pins 1-2 to clear CMOS. Keep the cap on
pins 1-2 for 5 to 10 seconds.
7.
Replace the jumper on pins 2-3.
8.
Reinstall the battery.
9.
Replace the access panel, external equipment, and reconnect the power cord.
10. Turn on the computer.
11. Hold down the F1 key during boot and enter BIOS setup to re-enter data.
Clearing CMOS
71
C
Troubleshooting Without Diagnostics
This chapter provides information on how to identify and correct minor problems, such as hard drive,
optical drive, graphics, audio, memory, and software problems. If you encounter problems with the
computer, refer to the tables in this chapter for probable causes and recommended solutions.
NOTE: For information on specific error messages that may appear on the screen during Power-On
Self-Test (POST) at startup, refer to Appendix A, Diagnostics on page 65.
Safety and Comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment
may result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/
ergo for more information on choosing a workspace and creating a safe and comfortable work
environment. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. For more information, refer to the Safety & Regulatory
Information guide.
Before You Call for Technical Support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the
exact problem before calling for technical support.
72
●
Run the HP diagnostic tool.
●
Run the hard drive self-test in Computer Setup. Refer to the Computer Setup (F10) Utility Guide
for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is
available. Or, replace the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network
connection. There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions
properly.
●
If you recently installed new software, uninstall the software and see if the computer functions
properly.
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When
booting the operating system, use “Last Known Configuration.”
Appendix C Troubleshooting Without Diagnostics
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to Helpful Hints on page 73 in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with
self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional
Edition's online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/
go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online
support information, software and drivers, proactive notification, and worldwide community of peers
and HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that
your service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number, product ID number, and monitor serial number before
calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized
service provider or dealer.
Helpful Hints
If you encounter problems with the computer, monitor, or software, see the following list of general
suggestions before taking further action:
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check that the computer is turned on and the green power light is on.
●
Check that the monitor is turned on and the green monitor light is on.
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●
Check all cable connections for loose connections or incorrect connections.
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the
system remains in suspend mode, shut down the computer by pressing and holding the power
button for at least four seconds then press the power button again to restart the computer. If the
system will not shut down, unplug the power cord, wait a few seconds, then plug it in again. The
computer will restart if it is set to automatic start after power loss in Computer Setup as soon as
power is restored. If it does not restart, press the power button to start the computer.
Helpful Hints
73
●
Be sure that all the needed device drivers have been installed. For example, if you are using a
printer, you need a driver for that model printer.
●
Remove all bootable media (DVD or USB device) from the system before turning it on.
●
If you have installed an operating system other than the factory-installed operating system,
check to be sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed
(embedded video on some models only) and a single monitor, the monitor must be plugged into
the monitor connector on the source selected as the primary VGA adapter. During boot, the
other monitor connectors are disabled and if the monitor is connected into these ports, the
monitor will not function. You can select which source will be the default VGA source in
Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied
to the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Solving General Problems
You may be able to easily resolve the general problems described in this section. If a problem
persists and you are unable to resolve it yourself or if you feel uncomfortable about performing the
operation, contact an authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to
the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be
sure to disconnect the power cord from the wall outlet and allow the internal system components to
cool before touching.
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four
seconds until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
First, reset the date and time under Control Panel
(Computer Setup can also be used to update the RTC date
and time). If the problem persists, replace the RTC battery.
NOTE: Connecting the computer to a live AC outlet
prolongs the life of the RTC battery.
74
Appendix C Troubleshooting Without Diagnostics
Poor performance is experienced.
Cause
Solution
Processor is hot.
1.
Make sure airflow to the computer is not blocked. Leave
a 10.2-cm (4-inch) clearance on all vented sides of the
computer and above the monitor to permit the required
airflow.
2.
Make sure fans are connected and working properly
(some fans only operate when needed).
3.
Make sure the processor heat sink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on
the hard drive. Run the windows disk-cleanup utility to clear
some space on the hard drive. Uninstall applications that are
not being used.
Low on memory.
Add more memory.
Too many applications running.
1.
Close unnecessary applications to free up memory.
2.
Add more memory. Some applications run in the
background and can be closed by right-clicking on their
corresponding icons in the task tray.
The computer is beeping and will not start.
Cause
Solution
A hardware error has occurred during POST and the
computer is beeping a code.
See POST Error/Warning Messages on page 68 to interpret
the error code.
Solving Power Problems
Common causes and solutions for power problems are listed in the following table.
The computer will not turn on.
Cause
Solution
Cables to the external power source are unplugged.
Check that the cables connecting the computer to the
external power source are plugged in properly, and that the
wall outlet is active.
The voltage selector switch on the rear of the computer
chassis (some models) is not switched to the correct line
voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
A defective PCI card has been installed.
Remove any expansion board that was just installed.
Solving Power Problems
75
The computer will not turn on.
Cause
Solution
Drive data or power supply cables might not be properly
connected.
Reseat drive data and power supply cables.
The unit temperature might have exceeded safe limits, or the
fan might be blocked.
The computer is in an exceedingly hot environment. Let it
cool down and check that the computer air vents are not
blocked, and that the internal fan is running.
Solving Hard Drive Problems
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
●
Boot and press F10 to launch the HP Setup Utility.
●
Select Device Configuration from the Storage menu,
and determine whether the device is listed.
If the device is not listed, the cable connection might be
loose or the drive might be faulty.
The drive’s SATA controller is disabled in HP Setup.
Reconnect the power cable and ensure that all four pins are
connected.
Drive responds slowly after initial power up.
Run Computer Setup and increase the POST Delay in
Advanced > Power-On Options.
Nonsystem disk/NTLDR missing message.
Cause
Solution
The system is trying to start from the hard drive but the hard
drive may have been damaged.
Try to reboot the computer from another bootable device,
such as a diskette or USB disk-on-key. If the operating
system boots from the new device, either the hard drive is
defective or the boot block is corrupted.
System files missing or not properly installed.
1.
Insert a bootable media device into the drive and restart
the computer.
2.
Verify that the hard drive is partitioned and formatted.
3.
Install system files for the appropriate operating system,
if necessary.
Hard drive boot has been disabled in Computer Setup.
76
Appendix C Troubleshooting Without Diagnostics
Run the Computer Setup utility and enable the hard drive
entry in the Storage > Boot Order list.
Solving Media Card Reader Problems
NOTE: It is possible that the driver your memory card uses has become corrupted or is not
functioning correctly. From time to time new drivers and firmware are released to address issues.
New firmware for your memory card reader might be available that would resolve the particular issue
you are having. Make sure that you are using the latest driver and firmware, periodically check for
new releases of this software on the HP Software Download Web page.
The memory card reader does not appear in My Computer or Windows Explorer.
Cause
Solution
You are using an adapter for a type of memory card not
supported by the reader.
Refer to the manufacturer of the adapter for help. Make sure
the memory card is one of the supported types:
CompactFlash (1, 2, and Microdrive), Memory Stick,
MultiMedia, Secure Digital, or SmartMedia memory cards.
The memory card is faulty.
Try a different memory card of the same type in the same
slot. If the other memory card works, the card reader is good
and the original memory card should be replaced.
Media Center is not detecting the memory card.
Remove the memory card, maximize the Media Center
window, and re-insert the memory card.
The memory card reader is not responding.
Turn off the computer, disconnect the power cord, and press
the power button on the front of the computer for 5 seconds.
Reconnect power and turn on the computer to test the
reader.
The USB port is not responding.
Insert a USB device into an open USB port to test the USB. If
the device works properly, go to the next step. If the USB
device also fails, there is a problem with the USB port. See
the USB troubleshooting guide for help in this matter.
The internal memory card reader pin is bent.
Shine a flashlight into the empty card slots. Check whether
any pins inside are bent. Disconnect the computer from
power and straighten the bent pins with the end of a
mechanical pencil. If a pin has bent to the point where it is
touching another pin, replace the memory card reader or
have the computer serviced.
Memory card appears in My Computer, but errors occur when writing or reading.
Cause
Solution
The memory card is faulty.
Try a different memory card of the same type in the same
slot. If the different memory card works, the card reader is
good and the original memory card should be replaced.
Write protect click has been set to Disable.
Check that the switch is set to Write Enabled before
attempting to write data to it.
Data has exceeded the memory card size.
Check that the amount of data you attempted to store has
not exceeded the capacity of the card.
Dirt or material is closing a hole or spoiling a metal contact.
Clean the contacts with a lint-free cloth and small amounts of
isopropyl alcohol. Replace the memory card if necessary.
Solving Media Card Reader Problems
77
Memory card appears in My Computer, but errors occur when writing or reading.
Cause
Solution
You are using an adapter for a type of memory card not
supported by the reader.
Consult the manufacturer of the adapter for help. Be sure
that the memory card is one of the supported types:
CompactFlash (1, 2, and Microdrive), Memory Stick,
MultiMedia, Secure Digital, or SmartMedia memory cards.
The memory card is not properly inserted.
Make sure that the memory card is fully inserted into the slot.
The internal memory card reader pin is bent.
Shine a flashlight into the empty card slots. Check whether
any pins inside are bent. Disconnect the computer from
power and straighten the bent pins with the end of a
mechanical pencil. If a pin has bent to the point where it is
touching another pin, replace the memory card reader or
have the computer serviced.
Solving Display Problems
If you encounter display problems, see the documentation that came with the monitor and to the
common causes and solutions listed in the following table.
Blank screen (no video).
Cause
Solution
Monitor is not turned on and the monitor light is not on.
Turn on the monitor and check that the monitor light is on.
Bad monitor.
Try a different monitor.
The cable connections are not correct.
Check the cable connection from the monitor to the computer
and to the electrical outlet.
You may have a screen blanking utility installed or energy
saver features are enabled.
Press any key or click the mouse button and, if set, type your
password.
You are using a fixed-sync monitor and it will not sync at the
resolution chosen.
Be sure that the monitor can accept the same horizontal
scan rate as the resolution chosen.
Computer is in Standby mode.
Press the power button to resume from Standby mode.
CAUTION: When attempting to resume from standby
mode, do not hold down the power button for more than four
seconds. Otherwise, the computer will shut down and you
will lose any unsaved data.
Monitor cable is plugged into the wrong connector. If another
video port is available, connect the monitor to that port and
reboot the system.
Check that the monitor is plugged into an active connector
on the rear of the computer.
The picture is broken up, rolls, jitters, or flashes.
78
Cause
Solution
The monitor connections may be incomplete or the monitor
may be incorrectly adjusted.
Restore the monitor settings to factory default.
Appendix C Troubleshooting Without Diagnostics
High pitched noise coming from inside a flat panel monitor.
Cause
Solution
Brightness and/or contrast settings are too high.
Lower brightness and/or contrast settings.
Solving Audio Problems
If the computer has audio features and you encounter audio problems, see the common causes and
solutions listed in the following table.
Sound cuts in and out.
Cause
Solution
Processor resources are being used by other open
applications.
Shut down all processor-intensive applications or cut down
the number of applications running.
No sound.
Cause
Solution
Volume has been muted or lowered.
Double-click the speaker icon on the taskbar, and clear the
Mute All check box or adjust the volume level.
External speakers are not turned on.
Turn on the external speakers.
External speakers are plugged into the wrong audio jack.
Check the sound card documentation for proper speaker
connection.
A device, such as headphones, is connected to the line-out
jack.
Turn on and use headphones or external speakers—only
connect to one device at a time.
Solving Keyboard and Mouse Problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment
and to the common causes and solutions listed in the following table.
Keyboard commands and typing are not recognized by the computer.
Cause
Solution
Keyboard connector is not properly connected.
Replace the keyboard.
Computer will not respond to a USB keyboard or mouse.
Cause
Solution
The keyboard or mouse is not connected to the computer.
Make sure that the keyboard and mouse cables are
connected to the computer.
Solving Audio Problems
79
No response from the USB keyboard and mouse during running of application.
Cause
Solution
The application has stopped responding.
Restart the computer.
Mouse does not respond to movement or is too slow.
Cause
Solution
Mouse connector is not properly plugged into the back of the
computer.
Shut down the computer if it still does not respond.
Mouse may be faulty.
Replace mouse.
Solving Network Problems
Some common causes and solutions for network problems are listed in the following table. These
guidelines do not discuss the process of debugging the network cabling.
Network driver does not detect network controller.
Cause
Solution
Network controller is disabled.
Run the HP Setup Utility and enable the network controller.
Incorrect network driver.
Check the network controller documentation for the correct
driver or obtain the latest driver from the manufacturer’s Web
site.
Network status link light is not working or never flashes.
NOTE: The network status light is supposed to flash when there is network activity.
Cause
Solution
No active network is detected.
Check cabling and network equipment for proper connection.
Network controller is not set up properly.
Use the network control application to verify that the device
is working properly.
Diagnostics reports a failure.
80
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
There is a problem with the cable or a device at the other
end of the cable.
Ensure that the cable and device at the other end are
operating correctly.
Appendix C Troubleshooting Without Diagnostics
Diagnostics reports a failure.
Cause
Solution
Network controller interrupt is shared with an expansion
board.
Under the Computer Setup Advanced menu, change the
resource settings for the board. Check that they are different
from those of the network controller.
The network controller is defective.
Disable the integrated network controller from the setup
utility and install a new network interface card.
Network controller stops working without apparent cause.
Cause
Solution
The files containing the network drivers are corrupted.
Reinstall the network drivers.
The cable is not securely connected.
Ensure that the cable is securely attached to the network
connector and that the other end of the cable is securely
attached to the correct device.
The network is temporarily unavailable.
Contact the network administrator to find out the status of the
network.
Cannot connect to network server when attempting Remote System Installation.
Cause
Solution
The network controller is not configured properly.
Verify that the computer is properly connected to the
network, that a DHCP Server is present, and that the
Remote System Installation Server contains drivers for the
network controller.
Solving Memory Problems
If you encounter memory problems, some common causes and solutions are listed in the following
table.
System will not boot or does not function properly after installing additional memory modules.
Cause
Solution
Memory module is not the correct type or speed grade for
the system or the new memory module is not seated
properly.
Replace module with the correct industry-standard device for
the computer. Do not mix ECC and non-ECC memory
modules.
The memory module is not correctly seated.
Open the casing and reseat the DIMM.
Solving Memory Problems
81
Memory count during POST is wrong.
Cause
Solution
The memory modules may not be installed correctly.
Check that the memory modules have been installed
correctly and that proper modules are used.
One of the memory modules might be faulty.
1.
Find out which module is faulty by booting with each
module individually.
2.
Replace the faulty memory module.
Insufficient memory error during operation.
Cause
Solution
The system does not have enough memory to run the
software.
Check the software requirements and upgrade to an
adequate amount.
Solving CD-ROM and DVD Problems
If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the
following table or to the documentation that came with the optional device.
System will not boot from DVD drive.
Cause
Solution
DVD boot is not enabled in the BIOS Setup Utility.
Run the BIOS Setup Utility, select Device Options from the
Storage menu and enable removable media boot. Verify the
boot order and check that the DVD drives are listed in the
boot order.
DVD device not detected or driver is not loaded.
Cause
Solution
Drive is not connected properly or not properly configured.
1.
Power off the PC.
2.
Reconnect the power and data cables to the drive.
3.
Reboot the PC
4.
Reinstall the correct (new or updated) device driver.
An optical drive cannot read a CD or DVD disc.
82
Cause
Solution
The disc is upside down or not seated properly.
Reinsert the disc with the label facing up and verify that the
disc is securely snapped down on the spindle.
Appendix C Troubleshooting Without Diagnostics
An optical drive cannot read a CD or DVD disc.
Cause
Solution
CD or DVD disc is dirty.
Clean the disc.
Windows does not detect the DVD-ROM drive.
1.
Use Device Manager to remove or uninstall the device.
2.
Restart the computer and let Windows detect the
device.
The disc is damaged or corrupted.
Obtain a replacement disk.
Cannot eject a disc.
Cause
Solution
The disc is not properly seated in the drive.
Shut down the computer and insert a thin metal rod into the
emergency eject hole and push firmly. Slowly pull the tray
out from the drive until the tray is fully extended, then remove
the disc.
Solving Front Panel Component Problems
If you encounter problems with devices connected to the front panel, refer to the common causes and
solutions listed in the following table.
A USB device is not recognized by the computer.
Cause
Solution
The device does not have power.
If the USB device requires AC power, be sure one end is
connected to the device and one end is connected to a live
outlet.
The headphone or microphone is not working.
Cause
Solution
The cable from the device to the computer is faulty.
Replace the cable.
The correct driver is not installed.
Reinstall the driver and restart the computer.
Solving Front Panel Component Problems
83
D
Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors. Some
of these connectors may not be used on the product being serviced.
4-Pin Power (for CPU)
Connector and Icon
Pin
Signal
1
GND
2
GND
3
+12V CPU
4
-12V CPU
Pin
Signal
1
Data
2
Ground
Ethernet BNC
Connector and Icon
USB
Connector and Icon
84
Appendix D Connector Pin Assignments
Pin
Signal
1
+5 VDC
2
- Data
3
+ Data
4
Ground
Microphone
Connector and Icon (1/8” miniphone)
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Audio_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_left
2 (Ring)
Power_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_In_Left
2 (Ring)
Audio_In_Right
3 (Shield)
Ground
Pin
Signal
1 (Tip)
Audio_Out_Left
2 (Ring)
Audio_Out_Right
3 (Shield)
Ground
1 2 3
Headphone
Connector and Icon (1/8” miniphone)
1 2 3
Line-in Audio
Connector and Icon (1/8” miniphone)
1 2 3
Line-out Audio
Connector and Icon (1/8” miniphone)
1 2 3
Microphone
85
Monitor
Connector and Icon
Pin
Signal
Pin
Signal
1
Red Analog
9
+5V (fused)
2
Green Analog
10
Ground
3
Blue Analog
11
Not used
4
Not used
12
DDC Serial Data
5
Ground
13
Horizontal Sync
6
Ground
14
Vertical Sync
7
Ground
15
DDC Serial Clock
8
Ground
24-Pin Power
Connector
24
13
Front
12
86
1
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+3.3V
7
GND
13
+3.3V
19
GND
2
+3.3V
8
POK
14
–12V
20
open
3
GND
9
+5 Vaux
15
GND
21
+5V
4
+5V
10
+12V
16
PSON
22
+5V
5
GND
11
+12V
17
GND
23
+5V
6
+5V
12
+3.3V
18
GND
24
GND
Appendix D Connector Pin Assignments
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin A
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
PRSNT1
6
JTAG3
11
PERST#
16
PERp0
21
PERp1
2
+12V
7
JTAG4
12
GND
17
PERn0
22
PERn1
3
+12V
8
JTAG5
13
REFCLK+
18
GND
23
GND
4
GND
9
+3.3V
14
REFCLK-
19
RSVD
24
GND
5
JTAG2
10
+3.3V
15
GND
20
GND
25
PERp2
26
PERn(2)
31
GND
36
PERn4
41
GND
46
GND
27
GND
32
RSVD
37
GND
42
GND
47
PERp7
28
GND
33
RSVD
38
GND
43
PERp6
48
PERn7
29
PERp3
34
GND
39
PERp5
44
PERn6
49
GND
30
PERn3
35
PERp4
40
PERn5
45
GND
50
RSVD
51
GND
56
PERp9
61
PERn10
66
GND
71
GND
52
PERp8
57
PERn9
62
GND
67
GND
72
PERp13
53
PERN8
58
GND
63
GND
68
PERp12
73
PERn13
54
GND
59
GND
64
PERp11
69
PERn12
74
GND
55
GND
60
PERp10
65
PERn11
70
GND
75
GND
PCI Express
87
76
PERp14
81
PERn15
77
PERn14
82
GND
78
GND
79
GND
80
PERp15
Pin B information is on the next page
NOTE: x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
PCI Express
x1, x4, x8, and x16 PCI Express Connector
Pin B
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
1
+12V
6
SMDAT
11
WAKE#
16
GND
21
GND
2
+12V
7
GND
12
RSVD
17
22
GND
23
PETp2
24
PETn2
25
GND
GND
3
RSVD
8
+3.3 V
13
GND
18
PETp1
4
GND
9
JTAG1
14
PETp0
19
PETn1
88
5
SMCLK
10
3.3vAux
15
PETn0
20
26
GND
31
PRSNT2#
36
GND
41
PETp6
46
PETn7
27
PETp3
32
GND
37
PETp5
42
PRTn6
47
GND
28
PETn3
33
PETp4
38
PETn5
43
GND
48
PRSNT2#
29
GND
34
PETn4
39
GND
44
GND
49
GND
30
RSVD
35
GND
40
GND
45
PETp7
50
PETp8
Appendix D Connector Pin Assignments
51
PETn8
56
GND
61
GND
66
PETp12
71
PETn13
52
GND
57
GND
62
PETp11
67
PETn12
72
GND
53
GND
58
PETp10
63
PETn11
68
GND
73
GND
54
PETp9
59
PETn10
64
GND
69
GND
74
PETp14
55
PETn9
60
GND
65
GND
70
PETp13
75
PETn14
76
GND
81
PRSNT2#
77
GND
82
RSVD
78
PETp15
79
PETn15
80
GND
Pin B information is on the next page
NOTE: x1 PCI Express uses pins 1-18
x4 PCI Express uses pins 1-32
x8 PCI Express uses pins 1-49
x16 PCI Express uses pins 1-8
PCI Express
89
E
Routine Care and Disassembly
Preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION:
When the computer is plugged into an AC power source, voltage is always applied to
the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy staticsensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An
electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and
can work perfectly throughout a normal cycle. The device may function normally for a while, but it has
been degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the
discharge contains enough power to alter device parameters or melt silicon junctions.
Generating Static
The following table shows that:
●
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
Relative Humidity
90
Event
55%
40%
10%
Walking across carpet
7,500 V
15,000 V
35,000 V
Walking across vinyl floor
3,000 V
5,000 V
12,000 V
Motions of bench worker
400 V
800 V
6,000 V
Removing DIPs* from plastic tube
400 V
700 V
2,000 V
Appendix E Routine Care and Disassembly Preparation
Removing DIPs* from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs* from Styrofoam
3,500 V
5,000 V
14,500 V
Removing bubble pack from PCB
7,000 V
20,000 V
26,500 V
Packing PCBs in foam-lined box
5,000 V
11,000 V
21,000 V
*These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE:
700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the
degree of sensitivity. The following packaging and grounding precautions are necessary to prevent
damage to electric components and accessories.
●
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or
boxes.
●
Protect all electrostatic parts and assemblies with conductive or approved containers or
packaging.
●
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
Always be properly grounded when touching a sensitive component or assembly.
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or
conductive foam.
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
●
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
●
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on
both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Electrostatic Discharge Information
91
Method
Voltage
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
15,000
Grounding the Work Area
To prevent static damage at the work area, use the following precautions:
●
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
to the work surface and properly grounded tools and equipment.
●
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
Handle them only at static-free work areas.
●
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative
surfaces.
●
Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
Styrofoam.
●
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
92
●
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
Appendix E Routine Care and Disassembly Preparation
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
Operating Guidelines
To prevent overheating and to help prolong the life of the computer:
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and
cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all
vented sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they
are subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software,
including sleep states.
Operating Guidelines
93
Routine Care
General Cleaning Safety Precautions
1.
Never use solvents or flammable solutions to clean the computer.
2.
Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and
then use the cloth on the component.
3.
Always unplug the computer when cleaning with liquids or damp cloths.
4.
Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5.
Disconnect the keyboard before cleaning it.
6.
Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General Cleaning Safety Precautions on page 94 before cleaning the
computer.
To clean the computer case, follow the procedures described below:
●
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with
a cloth or swab dampened with clear water.
●
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
evaporate quickly and not leave a residue.
●
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the
vents and limit the airflow.
Cleaning the Keyboard
Follow all safety precautions in General Cleaning Safety Precautions on page 94 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the
Computer Case on page 94.
When cleaning debris from under the keys, review all rules in General Cleaning Safety Precautions
on page 94 before following these procedures:
94
Appendix E Routine Care and Disassembly Preparation
CAUTION:
Use safety glasses equipped with side shields before attempting to clean debris from
under the keys.
●
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be
used as too much air pressure can dislodge lubricants applied under the wide keys.
●
If you remove a key, use a specially designed key puller to prevent damage to the keys. This
tool is available through many electronic supply outlets.
CAUTION:
Never remove a wide leveled key (like the space bar) from the keyboard. If
these keys are improperly removed or installed, the keyboard may not function properly.
●
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the Monitor
●
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
●
To clean the monitor body follow the procedures in Cleaning the Computer Case on page 94.
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
●
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●
To clean the mouse body, follow the procedures in Cleaning the Computer Case on page 94.
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power Supply Fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION:
The cooling fan is always on when the computer is in the “On” mode. The cooling fan
is off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Service Considerations
95
Tools and Software Requirements
To service the computer, you need the following:
●
Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)
●
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
●
Diagnostics software
●
HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP
tamper-resistant bits (Smart Cover FailSafe Key, PN 166527-002)
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard
drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the
work area to prevent damage.
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with
care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or
removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid
bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot
be caught or snagged by parts being removed or replaced.
CAUTION:
When servicing this computer, ensure that cables are placed in their proper location
during the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
96
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
packaging and label the package “Fragile: Handle With Care.”
●
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
protective packaging until they are actually mounted in the CPU.
●
Avoid dropping drives from any height onto any surface.
Appendix E Routine Care and Disassembly Preparation
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
while the computer is on or in standby mode.
●
Before handling a drive, ensure that you are discharged of static electricity. While handling a
drive, avoid touching the connector. For more information about preventing electrostatic
damage, refer to Electrostatic Discharge Information on page 90
●
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
fields such as monitors or speakers.
Lithium Coin Cell Battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this
guide for instructions on the replacement procedures.
WARNING!
This computer contains a lithium battery. There is a risk of fire and chemical burn if
the battery is handled improperly. Do not disassemble, crush, puncture, short external contacts,
dispose in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to
recharge the battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, their authorized partners, or their agents.
Service Considerations
97
F
Serial ATA (SATA) Drive Guidelines
and Features
NOTE: HP only supports the use of SATA hard drives on these models of computer. No Parallel
ATA (PATA) drives are supported.
SATA Hard Drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable
7/7
Number of pins in power cable
15
Maximum data cable length
39.37 in (100 cm)
Data interface voltage differential
400-700 mV
Drive voltages
3.3 V, 5 V, 12 V
Jumpers for configuring drive
N/A
Data transfer rate
3.0 Gb/s
SATA Hard Drive Cables
SATA Data Cable
Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA
1.5 Gb/s drives.
Current HP desktop products ship with SATA 3.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and
never bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
98
Appendix F Serial ATA (SATA) Drive Guidelines and Features
SMART ATA Drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
Hard Drive Capacities
The combination of the file system and the operating system used in the computer determines the
maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may
be properly accessed by the operating system. A single hard drive may therefore be subdivided into a
number of unique drive partitions in order to make use of all of its space.
Because of the differences in the way that drive sizes are calculated, the size reported by the
operating system may differ from that marked on the hard drive or listed in the computer specification.
Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by
Microsoft are bytes to the base 2.
Drive/Partition Capacity Limits
Maximum Size
File System
Controller Type
Operating System
Partition
Drive
FAT 32
ATA
Windows 2000/XP/Vista
32 GB
2 TB
NTFS
ATA
Windows 2000/XP/Vista
2 TB
2 TB
SMART ATA Drives
99
G
Power Cord Set Requirements
The power supplies on some computers have external power switches. The voltage select switch
feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts
AC. Power supplies on those computers that do not have external power switches are equipped with
internal switches that sense the incoming voltage and automatically switch to the proper voltage.
The power cord set received with the computer meets the requirements for use in the country where
you purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you use
the computer.
General Requirements
The requirements listed below are applicable to all countries:
1.
The power cord must be approved by an acceptable accredited agency responsible for
evaluation in the country where the power cord set will be installed.
2.
The power cord set must have a minimum current capacity of 10A (7A Japan only) and a
nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.
3.
The diameter of the wire must be a minimum of 0.75 mm2 or 18AWG, and the length of the cord
must be between 1.8 m (6 feet) and 3.6 m (12 feet).
The power cord should be routed so that it is not likely to be walked on or pinched by items placed
upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point
where the cord exits from the product.
WARNING! Do not operate this product with a damaged power cord set. If the power cord set is
damaged in any manner, replace it immediately.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION: Do not use the power cord received with this product on any other products.
100
Appendix G Power Cord Set Requirements
Country-Specific Requirements
Additional requirements specific to a country are shown in parentheses and explained below.
Country
Accrediting Agency
Country
Accrediting Agency
Australia (1)
EANSW
Italy (1)
IMQ
Austria (1)
OVE
Japan (3)
METI
Belgium (1)
CEBC
Norway (1)
NEMKO
Canada (2)
CSA
Sweden (1)
SEMKO
Denmark (1)
DEMKO
Switzerland (1)
SEV
Finland (1)
SETI
United Kingdom (1)
BSI
France (1)
UTE
United States (2)
UL
Germany (1)
VDE
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set fittings (appliance
coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it
will be used.
2.
The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.
3.
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug
must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.
Country-Specific Requirements
101
H
Specifications
Table H-1 Specifications
Temperature Range
Operating
50° to 95°F
10° to 35°C
Nonoperating
-22° to 140°F
-30° to 60°C
Operating
10-90%
10-90%
Nonoperating (38.7°C max wet bulb)
5-95%
5-95%
Operating
10,000 ft
3048 m
Nonoperating
30,000 ft
9144 m
Relative Humidity (noncondensing)
Maximum Altitude (unpressurized)
NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no
direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and
number of options installed.
Shock
The level of shock the product can withstand with
no damage being incurred is 35 G peak input
acceleration during an 11-millisecond trapezoidal
shock pulse.
Vibration
Random vibration (0.25 G nominal):
Operating
●
5 Hz at 0.00025 G²/Hz
●
10 Hz at 0.01 G²/Hz
●
100 Hz at 0.01 G²/Hz
●
300Hz at 0.00001 G²/Hz
Non-operating
5 Hz to 500 Hz (0.2 G nominal)
NOTE: Listed are the levels of vibration the product can withstand with no damage being incurred. The values
represent a flat random vibration input acceleration profile across the given frequency range.
102
Appendix H Specifications
Table H-1 Specifications (continued)
Acoustic noise
LWAd = 43 dB
LWAd = 55 dB
Desktop average LpAm
= 32 dBA
Desktop average
LpAm = 44 dBA
NOTE: Listed are the declared A-weighted sound power levels (LWAd) and declared average desktop seated
operator position A-weighted sound pressure levels (LpAm) when the product is operating in a 23°C (73.4°F)
ambient environment.
NOTE: Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
103
Index
Symbols/Numerics
24-pin power pin assignments 86
4-pin power pin assignments 84
A
access panel
removal and replacement 5
audible codes 65
audio problems 79
B
battery
disposal 97
removal and replacement 48
beep codes 65
BIOS DIMM test 67
BIOS updates 70
C
cable connections 21
cable management 21
cable pinouts
SATA data 98
cautions
AC power 90
cables 96
cooling fan 95
electrostatic discharge 90
keyboard cleaning 95
keyboard keys 95
CD-ROM or DVD problems 82
chassis, illustrated 1
cleaning
computer 94
mouse 95
safety precautions 94
computer cleaning 94
connecting drive cables 23
connections
system board 21
104
Index
connector pin assignments 84
country power cord set
requirements 101
Customer Support 72
D
diagnostics 65
DIMM test 67
disassembly preparation 4
drive connectors 24
drives
connecting cables 23
installing 23
removal and replacement
23
I
installing
drive cables 23
hard drive 31
optical drive 27
E
electrostatic discharge (ESD)
preventing damage 91
error codes
beeps 65
LEDs 66
ethernet
BNC pin assignments 84
expansion card sockets 13
expansion slot cover
replacing 18
K
keyboard
cleaning 94
keyboard problems 79
L
LED codes 66
line-in audio pin assignments 85
line-out audio pin
assignments 85
F
fan
power supply 95
removal and replacement
front bezel
removal and replacement
front I/O device
removal and replacement
front panel problems 83
G
general problems 74
grounding methods 91
H
hard drive
installing 31
proper handling 96
removing 28
SATA characteristics 98
hard drive problems 76
headphone pin assignments 85
heat sink
removal and
replacement 36, 37
helpful hints 73
HP Insight Diagnostics 67
35
7
33
M
Media Card Reader problems 77
memory
populating sockets 10
removal and replacement 9
specifications 9
memory problems 81
memory test 67
microphone pin assignments 85
monitor
pin assignments 86
monitor problems 78
mouse
cleaning 95
mouse problems 79
MT
processor removal and
replacement 40
N
network problems 80
O
operating guidelines 93
optical drive
installing 27
removing 25
optical drive problems 82
overheating, prevention 93
P
PCI Express card 13
PCI Express pin assignments 87
POST error messages 68
power cord set requirements
country specific 101
power problems 75
power supply
fan 95
removal and replacement 41
power switch/LED
removal and replacement 34
preparation for disassembly 4
problems
audio 79
CD-ROM or DVD 82
front panel 83
general 74
hard drive 76
keyboard 79
Media Card Reader 77
memory 81
monitor 78
mouse 79
network 80
power 75
processor
MT removal and
replacement 40
removal and replacement 38
R
removal and replacement
access panel 5
battery 48
drives 23
fan 35
front bezel 7
front I/O device 33
heat sink 36, 37
memory 9
MT processor 40
power supply 41
power switch 34
processor 38
system board 47
removing
hard drive 28
optical drive 25
temperature control 93
tools, servicing 96
Torx T15 screwdriver 96
U
updating BIOS 70
USB pin assignments 84
V
ventilation, proper 93
S
safety and comfort 72
safety precautions
cleaning 94
SATA
connectors on system
board 98
data cable pinouts 98
hard drive characteristics 98
screws, correct size 96
SDRAM (synchronous dynamic
random access memory 9
service considerations 95
software
servicing computer 96
spare part number
tamper-resistent wrench 96
Torx T-15 screwdriver 96
specifications
computer 102
memory 9
static electricity 90
system board
removal and replacement 47
SATA connectors 98
system board drive
connections 24
T
tamper-proof screws
tool 96
Index
105
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
