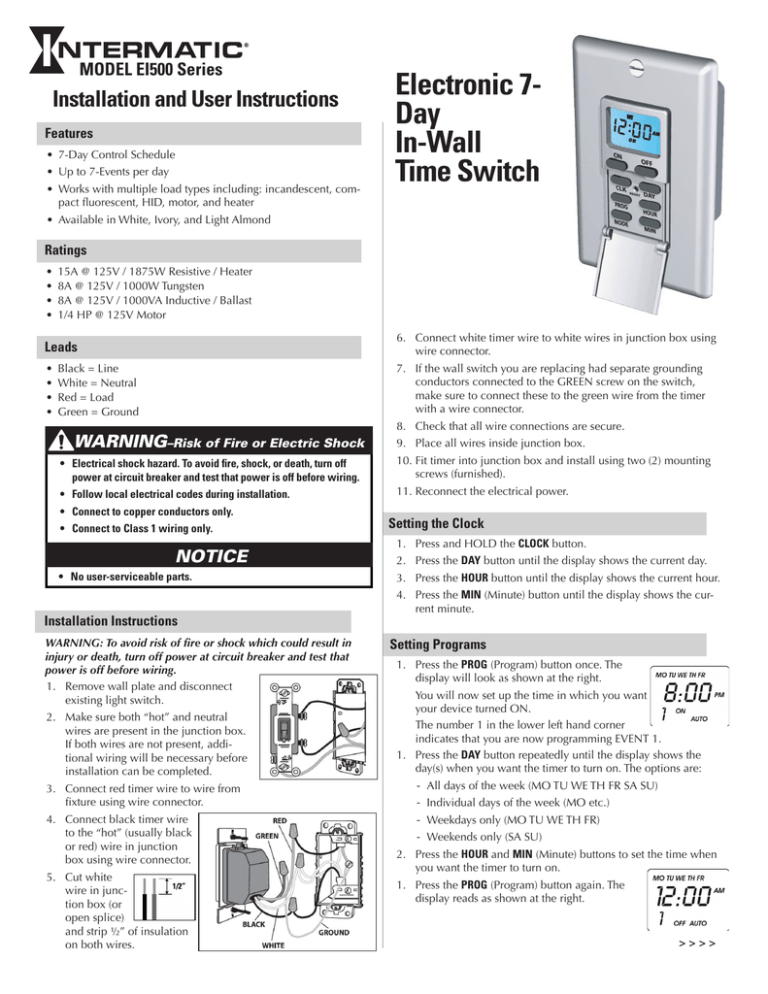

Fan Timer
MODEL EI500 Series
Installation and User Instructions
Features
• 7-Day Control Schedule
• Up to 7-Events per day
• Works with multiple load types including: incandescent, compact fluorescent, HID, motor, and heater
Electronic 7Day
In-Wall
Time Switch
• Available in White, Ivory, and Light Almond
Ratings
•
•
•
•
15A @ 125V / 1875W Resistive / Heater
8A @ 125V / 1000W Tungsten
8A @ 125V / 1000VA Inductive / Ballast
1/4 HP @ 125V Motor
6. Connect white timer wire to white wires in junction box using
wire connector.
Leads
•
•
•
•
7. If the wall switch you are replacing had separate grounding
conductors connected to the GREEN screw on the switch,
make sure to connect these to the green wire from the timer
with a wire connector.
Black = Line
White = Neutral
Red = Load
Green = Ground
8. Check that all wire connections are secure.
WARNING–Risk of Fire or Electric Shock
9. Place all wires inside junction box.
• Electrical shock hazard. To avoid fire, shock, or death, turn off
power at circuit breaker and test that power is off before wiring.
10. Fit timer into junction box and install using two (2) mounting
screws (furnished).
• Follow local electrical codes during installation.
11. Reconnect the electrical power.
• Connect to copper conductors only.
• Connect to Class 1 wiring only.
NOTICE
• No user-serviceable parts.
Installation Instructions
WARNING: To avoid risk of fire or shock which could result in
injury or death, turn off power at circuit breaker and test that
power is off before wiring.
1. Remove wall plate and disconnect
existing light switch.
2. Make sure both “hot” and neutral
wires are present in the junction box.
If both wires are not present, additional wiring will be necessary before
installation can be completed.
Setting the Clock
1. Press and HOLD the CLOCK button.
2. Press the DAY button until the display shows the current day.
3. Press the HOUR button until the display shows the current hour.
4. Press the MIN (Minute) button until the display shows the current minute.
Setting Programs
1. Press the PROG (Program) button once. The
display will look as shown at the right.
You will now set up the time in which you want
your device turned ON.
The number 1 in the lower left hand corner
indicates that you are now programming EVENT 1.
1. Press the DAY button repeatedly until the display shows the
day(s) when you want the timer to turn on. The options are:
3. Connect red timer wire to wire from
fixture using wire connector.
- All days of the week (MO TU WE TH FR SA SU)
4. Connect black timer wire
to the “hot” (usually black
or red) wire in junction
box using wire connector.
- Weekdays only (MO TU WE TH FR)
5. Cut white
wire in junction box (or
open splice)
and strip ½” of insulation
on both wires.
- Individual days of the week (MO etc.)
- Weekends only (SA SU)
2. Press the HOUR and MIN (Minute) buttons to set the time when
you want the timer to turn on.
1. Press the PROG (Program) button again. The
display reads as shown at the right.
>>>>
1. Repeat Steps 2-4 to set the OFF time for Event 1.
2. When programming is complete, press the CLOCK button to
display the current time.
Things you should know about programming events:
• You can repeat the ON and OFF programming procedures outlined above for up to 7 events, as needed.
• Warning: While setting events the timer may prematurely turn on
the load, if you press the MODE button.
• Three kinds of settings can cause the timer to work in an unexpected way:
- Set up events in progressive order of time (for example, 8:00
pm ON, 9:00 pm ON, 10:00 pm ON — NOT 8:00 pm ON,
10:00 pm ON, 9:00 pm ON).
- Do not overlap event times(for example, 8:00 pm ON /12:00
pm OFF, and 9:00 pm ON / 11:00 pm OFF).
- Do not set ON / OFF events within 30 minutes or less from
one another if you are going to use the timer in the Random
Mode. The Random Mode interval is ± 15 minutes from the
programmed times, and programs set too close together may
overlap one another.
Reviewing Events Programmed
1. In the current time display, press the PROG (Program) button
repeatedly to check your settings.
2. When finished, press the CLOCK button to return the display to
the time of day.
Operating the Time Switch
Press the MODE button repeatedly to set the timer to Automatic,
Random or Manual mode.
NOTE: For the time switch to run programmed events, it must
be set to “AUTO” mode.
• AUTO — runs all events automatically, according to the schedule you have set. The word “AUTO” appears in the display.
• RND (Random) — runs all events in a RANDOM mode. This
is a security feature in which ON and OFF times randomly differ ± 15 minutes from the programmed times, creating a more
“lived-in” look. The word “RDM” appears in the display.
NOTE: DO NOT set the ON / OFF events within 30 Minutes
or less from one another if you are going to use this timer
in the RANDOM MODE. The RANDOM MODE is ± 15
minutes of programmed times and may overlap one another,
causing the timer to possibly not work as desired.
• MANUAL — turns ON and OFF only when the user presses the
ON or OFF button. The display is blank, showing neither RDM or
AUTO.
Overriding Timer Settings
The ON or OFF buttons override the current programmed events.
To override the current program (either ON or OFF), press the ON
or OFF button.
NOTE: If the timer is not in “Manual” mode, it will obey the
next programmed event. This allows the user to manually turn
a light on and allow the program to shut the light back off at a
preset time.
Clearing (Deleting) an Event
1. Press the PROG (Program) button as many times as necessary to
locate the setting you want to clear.
2. Press and hold the MODE button.
Resetting the Timer
In case of an operational failure of the timer, press the RESET button to clear all settings and restart.
3. Press the PROG button to clear the setting.
4. When finished, press the CLOCK button to return the display to
the time of day.
LIMITED ONE-YEAR WARRANTY
If within one (1) year from the date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole
option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units
caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or
otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and
batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation
costs, removal costs, or reinstallation costs.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product, along with proof of purchase,
postage prepaid to the authorized service center listed below. This warranty is made by: Intermatic Incorporated/After Sales Service/7777 Winn Rd., Spring Grove, Illinois 600819698/815-675-7000 http://www.intermatic.com Please be sure to wrap the product securely to avoid shipping damage.
INTERMATIC INCORPORATED, SPRING GROVE, ILLINOIS 60081-9698
158--00293
