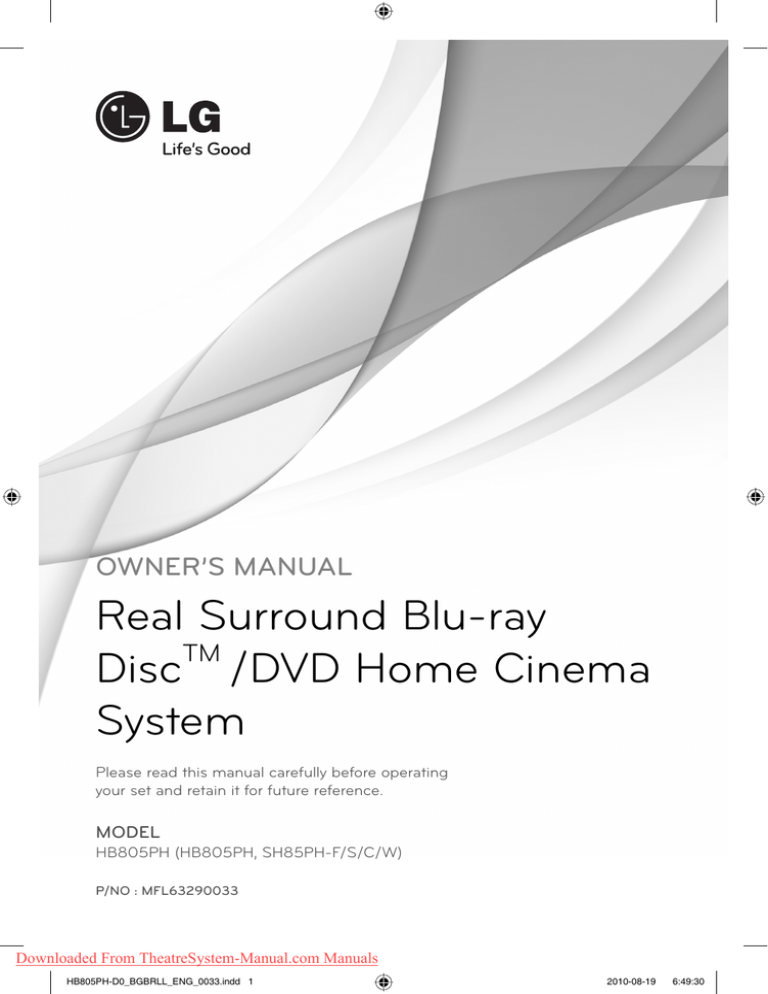

OWNER’S MANUAL

Real Surround Blu-ray

Disc

TM

/DVD Home Cinema

System

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

HB805PH (HB805PH, SH85PH-F/S/C/W)

P/NO : MFL63290033

Downloaded From TheatreSystem-Manual.com Manuals

Downloaded From TheatreSystem-Manual.com Manuals

Safety Information

3

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning fl ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Cautions and Warnings

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a confi ned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those specifi ed herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

1

Downloaded From TheatreSystem-Manual.com Manuals

4

Safety Information

1

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specifi cation page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric shock or fi re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service centre.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery

from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste.

It is recommended that you use local, free reimbursement systems batteries and accumulators.

The battery shall not be exposed to excessive heat such as sunshine, fi re or the lile.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects fi lled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the

European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, disposal service or the shop where you purchased the product.

EEE Compliance with Directive. (for Turkey only)

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive

2004/108/EC, 2006/95/EC, and 2009/125/

EC.

European representative :

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere, The

Netherlands (Tel : +31–(0)36–547–8888)

Downloaded From TheatreSystem-Manual.com Manuals

Safety Information

5

Notes on Copyrights

• Because AACS (Advanced Access Content System) is approved as content protection system for BD format, similar to use of CSS (Content Scramble

System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by

AACS after the production of this product.

• Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems for BD format, which imposes certain restrictions including playback restrictions for BD-ROM

Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark,

BD+, or this product, please contact an authorized

Customer Service Centre.

• Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a

VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation.

Reverse engineering or disassembly is prohibited.

• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, BD-ROM discs, DVDs,

CDs and other materials may subject you to civil and/or criminal liability.

Important Notice for TV colour system

The colour system of this player diff ers according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC colour system, the image is outputted as a NTSC signal.

Only the multi system colour TV can receive all signals outputted from the player.

• If you have a PAL colour system TV, you will see just distorted images when using discs or video contents recorded in NTSC.

• The multi system colour TV changes the colour system automatically according to input signals.

In case that the colour system is not changed automatically, turn it off and then on to see normal images on screen.

• Even if the disc recorded in NTSC colour system are well displayed on your TV, these may not be recorded correctly on your recorder.

1

Downloaded From TheatreSystem-Manual.com Manuals

6

Contents

1

Safety Information

3

Installation

16 Assembling the speaker stand to the speaker

17

18

Attaching the speakers to the player

Positioning the system

2

Preparation

8 Introduction

8

8

About the “

Display

” Symbol

Symbols Used in this

Manual

20 What is SIMPLINK?

Connection

23 Connections with external device

24 PORT. IN connection

24 OPTICAL IN connection

25 Connecting to your Home Network

Codec High Defi nition)

25

12 AVCHD Video

26

Wired network connection

Wired Network Setup

28 USB device connection

Requirements

30 Settings

30 Adjust the Setup Settings

Downloaded From TheatreSystem-Manual.com Manuals

4

Operation

38

48 Playing a movie fi le and VR disc

50 Viewing a photo

51

51

Options while viewing a photo

Listening to music while slide show

52 Listening to music

53

54

Audio CD Recording

Displaying MP3 music information (ID3 Tag)

Access

NetCast

TM

Entertainment

56 YouTube

TM

60 Picasa TM Web Albums

5

Using the disc menu

Maintenance

65 Notes on Discs

65 Handling the Unit

6

Troubleshooting

66 General

67 Picture

67 Sound

68 Network

1

2

7

Appendix

69 Controlling a TV with the Supplied

Remote Control

70 Area Code List

71 Language code List

72 Network Software Update

72 Network update notifi cation

3

4

74 Video output resolution

75 Trademarks and Licences

77 Specifi cations

79 Important Information Relating to

Network Services

80 Open source software notice

5

6

8

Warranty

83 GUARANTEE

7

8

7

Downloaded From TheatreSystem-Manual.com Manuals

8

Preparation

2

Preparation

2

Introduction

About the “ ” Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specifi c media.

Symbols Used in this Manual

NOTE

Indicates special notes and operating features.

CAUTION

Indicates cautions for preventing possible damages from abuse.

A section whose title has one of the following symbols are applicable only to the disc represented by the symbol.

BD

DVD

AVCHD

ACD

MOVIE

MUSIC


BD-ROM disc

DVD-Video, DVD±R/RW in

Video mode or VR mode and fi nalized

DVD±R/RW in AVCHD format

Audio CDs

Movie fi les

Music fi les

Photo fi les

Downloaded From TheatreSystem-Manual.com Manuals

Preparation

9

Supplied Accessories

Video cable (1)

Battery (1)

Speaker cables (3)

Remote control (1)

FM antenna (1)

Playable Discs

Blu-ray Disc

Discs such as movies that can be p urchased or rented.

BD-R/RE discs that contain

Movie, Music or Photo fi les.

DVD-VIDEO

8 / 12 cm disc

Discs such as movies that can be purchased or rented.

DVD±R

8 / 12 cm disc

Video mode and fi nalized only

Support s the dual layer disc also

Finalized AVCHD format

DVD±R discs that contain

Movie, Music or Photo fi les

DVD-RW

8 / 12 cm disc

VR mode , Video mode and fi nalized only

Finalized AVCHD format

DVD-RW discs that contain

Movie, Music or Photo fi les.

DVD+RW

8 / 12 cm disc

Video mode and fi nalized only

AVCHD format

Finalized AVCHD format

DVD+RW discs that contain

Movie, Music or Photo fi les.

Audio CD

8 / 12 cm disc

CD-R/RW

8 / 12 cm disc

CD-R/RW discs that contain audio titles, Movie, Music or

Photo fi les.

2

Downloaded From TheatreSystem-Manual.com Manuals

10

Preparation

2

NOTE

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

• Depending on the recording software & the fi nalization, some recorded discs (CD-R/RW,

DVD±R/RW, BD-R/RE) may not be playable.

• BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or

CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

• This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.

• Pre-recorded DVDs are automatically set to these standards. There are many diff erent types of recordable disc formats (including

CD-R containing MP3 or WMA fi les) and these require certain pre-existing conditions to ensure compatible playback.

• Customers should note that permission is required in order to download MP3 / WMA fi les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

• You have to set the disc format option to

[Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live

File System : Disc format system for windows

Vista)

Downloaded From TheatreSystem-Manual.com Manuals

Preparation

11

File compatibility

Overall

Available File extensions:

“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”,

“.mkv”, “.mp4”, “.mp3”, “.wma”, “.wav”, “.gif”

• Some “.wav” fi les are not supported on this player.

• The fi le name is limited to 180 characters.

• Depending on the size and number of the fi les, it may take several minutes to read the contents on the media.

Maximum Files/Folder: Less than 2 000 (total number of fi les and folders)

CD-R/RW, DVD±R/RW, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format

MOVIE

Available resolution size:

1 920 x 1 080 (W x H) pixels

Playable subtitle: SubRip (.srt / .txt), SAMI

(.smi), SubStation Alpha (.ssa/.txt), MicroDVD

(.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub),

SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD

Subtitle System (.txt)

Playable Codec format: “DIVX3.xx”, “DIVX4.xx”,

“DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard playback only), H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS

Playable Audio format: “Dolby Digital”, “DTS”,

“MP3”, “WMA”, “AAC”, “AC3”

• Not all the WMA and AAC Audio format is compatible with this unit.

Sampling frequency: within 32 kHz to 48 kHz (WMA), within 16 kHz to 48 kHz (MP3)

Bit rate: within 32 kbps to 192 kbps (WMA), within 32 kbps to 320 kbps (MP3)

NOTE

• HD movie fi les contained on the CD or USB

1.0/1.1 may not played properly. BD, DVD or USB

2.0 are recommended to play back HD movie fi les.

• This player supports H.264/MPEG-4 AVC profi le

Main, High at Level 4.1. For a fi le with higher level, the warning message will appear on the screen.

• This player does not support the fi les that are recorded with GMC

*

1

or Qpel

*

2

. Those are video encoding techniques in MPEG4 standard, like

DivX or XVID have.

*1 GMC – Global Motion Compensation

*2 Qpel – Quarter pixel

• This player supports UTF-8 fi les even it contains

Unicode subtitle contents. This player can not support the pure Unicode subtitle fi les.

• Depending on the types of fi le or ways of recording, it may not play back.

• A disc which was recorded by multi-session on normal PC is not supported on this player.

• To be playback a movie fi le, movie fi le name and

Subtitle fi le name must be the same.

• If video codec is MPEG2 TS or MPEG2 PS, subtitle does not play back.

MUSIC

Sampling frequency: within 32 kHz to 48 KHz (WMA), within 11 kHz to 48 kHz (MP3)

Bit rate: within 8 kbps to 320 kbps (WMA, MP3),

NOTE

The total playback time indicated on the screen may not correct for VBR fi les.


Recommended size:

Less than 4 000 x 3 000 x 24 bit/pixel

Less than 3 000 x 3 000 x 32 bit/pixel

• Progressive and lossless compression photo image fi les are not supported.

2

Downloaded From TheatreSystem-Manual.com Manuals

12

Preparation

2

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”.

AVCHD (Advanced Video Codec

High Defi nition)

• This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.

• The AVCHD format is a high defi nition digital video camera format.

• The MPEG-4 AVC/H.264 format is capable than that of the conventional image compressing format.

• Some AVCHD discs use the “x.v.Colour” format.

• This player can playback AVCHD discs using

“x.v.Colour” format.

• Some AVCHD format discs may not play, depending on the recording condition.

• AVCHD format discs need to be fi nalized.

normal DVD camcorder discs.

Certain System Requirements

For high defi nition video playback:

• High defi nition display that has

COMPONENT or HDMI input jacks.

• BD-ROM disc with high defi nition content.

• HDMI or HDCP capable DVI input on your display device is required for some content

(as specifi ed by disc authors).

• For up-conversion of standard defi nition

DVD, a HDMI or HDCP capable DVI input on your display device is required for copy protected content.

Compatibility Notes

• Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service

Centre.

• Viewing high-defi nition content and upconverting standard DVD content may require a HDMI-capable input or HDCPcapable DVI input on your display device.

• Some BD-ROM and DVD discs may restrict the use of some operation commands or features.

• You can use a USB device that is used to store some disc related information, including downloaded on-line content. The disc you are using will control how long this information is retained.

Downloaded From TheatreSystem-Manual.com Manuals

Preparation

13

Remote control

Battery Installation

Remove the battery cover on the rear of the Remote

Control, and insert two R03

(size AAA) battery with and matched correctly.

• • • • • • • a • • • • • •

RADIO&INPUT: Changes input mode.

MARKER: Marks any point during playback.

1

(POWER): Switches the player

ON or OFF.

Z OPEN/CLOSE: Opens and closes the disc tray.

SEARCH: Displays or exits the search menu.

INFO/DISPLAY: Displays or exits On-Screen Display.

HOME: Displays or exits the

[Home Menu].

DISC MENU: Accesses menu on a disc.

• • • • • • • b • • • • • •

PRESET (U/u) : Selects

PROGRAMME of Radio.

TUNING (-/+) : Tunes in the desired radio station.

U/u/I/i (up/ down/ left/

right): Used to navigate on-screen displays.

ENTER: Acknowledges menu selection.

O

RETURN: Exits the menu or resumes playback.

TITLE/POPUP: Displays the DVD title menu or BD-ROM’s pop-up menu, if available.

x STOP: Stops playback.

B

PLAY: Starts playback.

X PAUSE/STEP: Pauses playback m /M SCAN: Searches backward or forward.

.

/> SKIP: Goes to the next or previous chapter / track / fi le.

• • • • • • • c • • • • • •

SPEAKER LEVEL: Sets the sound level of desired speaker.

SOUND EFFECT: Selects a sound eff ect mode.

VOL +/- : Adjusts speaker volume.

OPTICAL: Changes input mode to optical directly.

MUTE: Mute the unit.

Coloured (R, G, Y, B) buttons: Use to navigate on menus.

RDS: Radio Data System.

PTY: Views the programme type of the RDS.

PTY SEARCH:

Searches programme type.

MONO/STEREO: Selects mono/ stereo in FM mode.

SLEEP: Sets a certain period of time after which the unit will switch to off .

z REC: Records an audio CD.

ZOOM: Displays or exits the

[Zoom] menu.

0-9 numerical buttons: Selects numbered options in a menu.

CLEAR: Removes a mark on the search menu or a number when setting the password.

REPEAT: Repeats a desired section or sequence.

• • • • • • • d • • • • • •

TV Control Buttons: See page 69.

*: This button is not available.

2

Downloaded From TheatreSystem-Manual.com Manuals

14

Preparation

Front panel

1 2

2

7 8 a

1/\

(POWER) Button b Disc Tray c Remote sensor d Display window e Volume control f

Z

(OPEN/CLOSE)

3 4 5 6

6 g PORT. IN h USB Port i Operation buttons

>/ıı (PLAY / PAUSE) x

(STOP) ı<</ >>ı (SKIP), <</ >> (SCAN)

F (Function)

Changes the input source or function.

1 2 3 4 5 6

7 8

Downloaded From TheatreSystem-Manual.com Manuals

1 2 3 4

9

5 6

1

7 8 9

2 3 4 5

10

1 2 3

6 7 8

4 5 6

9

10 11

1

7 8 9

10 11 12

2 3 4 5

6 7 8 9

10 11

1 2 3 4 5

1

6 7

2 3 4

8

5

6 7 8 9

2 3 4 5 6 7 1

1

8 9

Rear panel

8 9

10

1 2

2 3

3 4

4 5

10

6 7

Preparation

15

11

5

2

1 2 a AC Power cord

Plug into the power source.

b Speakers connectors c Cooling Fan d Antenna Connector e VIDEO OUT f OPTICAL IN

3

6 7 8 9

10

4 5 6 g AUX (L/R) INPUT h COMPONENT VIDEO (Y P

B

P

R

)

OUTPUT (PROGRESSIVE SCAN) i HDMI OUT (type A, Version 1.3)

Connect to TV with HDMI inputs.

j LAN port

7 8 9

10 11 12

1 2 3 4 5

6 7 8 9

10 11

Downloaded From TheatreSystem-Manual.com Manuals

16

Installation

3

Installation

3

Assembling the speaker stand to the speaker

Before connecting the speakers, assemble the speakers. Please check the items for assembling the speakers.

Pakage contents

Attach the speakers to the speaker stands by rotateing the screws.

Speaker

Stand

Downloaded From TheatreSystem-Manual.com Manuals

Installation

17

Speaker Connection

Attaching the speakers to the player

Connect the wires hooked up to the speaker to the unit.

To connect the cable to the unit, press each plastic fi nger pad to open the connection terminals on the unit. Insert the wire and release the fi nger pad.

Connect the black end of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

CAUTION

• Be careful to make sure children not to put their hands or any objects into the *speaker duct.

*Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).

• Place the centre speaker at a safe distance from the child’s reach.

Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.

• The speakers contain magnet parts, so colorirregularity may occur on the TV screen or

PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

3

colour Speaker Position

Grey

Blue

Rear

Rear

Rear right

Rear left

Green Centre

Orange Sub

Red

White woofer

Front

Front

Centre

Any front position

Front right

Front left

Downloaded From TheatreSystem-Manual.com Manuals

18

Installation

3

Positioning the system

The following illustration shows an example of positioning the system. Note that the illustrations in these instructions diff er from the actual unit for explanation purposes.

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (

A

).

A

F

A

D

A

B

C

G

A

A

A

E

A

Front left speaker (L)/

B

Front right speaker (R):

Place the front speakers to the sides of the monitor or screen and as fl ush with the screen surface as possible.

C

Centre speaker:

Place the centre speaker above or below the monitor or screen.

D

Surround left speaker (L)/

E

Surround right speaker (R):

Place these speakers behind your listening position, facing slightly inwards.

F

Subwoofer:

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the centre of the room to reduce the wall refl ections.

G

Unit

Downloaded From TheatreSystem-Manual.com Manuals

Installation

19

Connecting to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

• HDMI connection (pages 19-20)

• Component Video connection (page 21)

• Video connection (page 21)

HDMI Connection

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable(Type A, Version 1.3). Connect the HDMI

OUT jack on the player to the HDMI IN jack on a HDMI compatible TV or monitor.

HDMI Connection

NOTE

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

• Please refer to the manuals of your TV, stereo system or other devices as necessary to make the best connections.

• Make sure the player is connected directly to the TV. Tune the TV to the correct video input channel.

• Do not connect your player via your VCR. The image could be distorted by the copy protection system.

Player

TV

3

Set the TV’s source to HDMI (refer to TV’s

Owner’s manual).

Downloaded From TheatreSystem-Manual.com Manuals

20

Installation

3

What is SIMPLINK?

NOTE

• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.

• When the HDMI connection with HDCP is not verifi ed, TV screen is changed to black screen.

In this case, check the HDMI connection, or disconnect the HDMI cable.

• If there is noise or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m and use a high speed HDMI cable (version 1.3).

• If a connected HDMI device does not accept the audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

• When you use HDMI connection, you can change the resolution for the HDMI output.

(Refer to “Resolution Setting” on page 22.)

• Select the type of video output from the HDMI

OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 31).

• When you connect a HDMI or DVI compatible device make sure of the following:

- Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

- The connected device’s video input is set correctly for this unit.

- The connected device is compatible with

720 x 576p, 1 280 x 720p, 1 920 x 1 080i or

1 920 x 1 080p video input.

• Not all HDCP-compatible HDMI or DVI devices will work with this player.

- The picture will not be displayed properly with non-HDCP device.

- This player does not playback and TV screen is changed to black screen.

Some functions of this unit are controlled by the TV’s remote control when this unit and LG

TV’s with SIMPLINK are connected through

HDMI connection.

Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power Off , etc.

Refer to the TV owner’s manual for the details of SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as shown above.

NOTE

• Depending on the disc type or playing status, some SIMPLINK operation may diff er from your purpose or not work.

• When you use SIMPLINK function, you have to connect to the OPTICAL IN jack to enjoy TV sound to your speaker system.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

21

Component Video Connection

Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using Y P

B

P

R

cables. You can hear the sound the through the system’s speaker.

Component Connection

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable.

You can hear the sound through the system’s speakers.

Video Connection

Player

Player

3

TV

Green

Blue

Red

TV

Yellow

NOTE

When you use COMPONENT VIDEO OUT connection, you can change the resolution for the output. (Refer to “Resolution setting” on page 22.)

Downloaded From TheatreSystem-Manual.com Manuals

22

Installation

Resolution Setting

The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You can change the resolution using

[Setup] menu.

1. Press HOME ( ).

2. Use I/i to select the [Setup] and press

ENTER ( ). The [Setup] menu appears.

NOTE

• If your TV does not accept the resolution you have set on the player, you can set resolution to

576p as follows:

Press x for more than 5 seconds.

• Since several factors aff ect the resolution of video output, see “Video Output Resolution” on page 74.

3

3. Use U/u to select [DISPLAY] option then press i to move to the second level.

4. Use U/u to select the [Resolution] option then press ENTER ( ) or i to move to the third level.

5. Use U/u to select the desired resolution then press ENTER ( ) to confi rm your selection.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

23

Antenna connection Connections with external device

Connect the supplied antenna for listening to the radio.

Antenna Connection

AUX Connection

You can enjoy the sound of your component with the analogue audio output jacks from the speakers of the system.

Connect the analogue audio output jacks of your component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing RADIO&INPUT and ENTER ( ).

You can also use F button on the front panel to select the input mode.

AUX Connection

3

Player

NOTE

After connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the

FM wire antenna.

Red

White

To the audio output jacks of your component

(TV, VCR, etc.)

Downloaded From TheatreSystem-Manual.com Manuals

24

Installation

3

PORT. IN

CONNECTION

OPTICAL IN

CONNECTION

You can enjoy the sound of your portable audio player from the speakers of the system.

Connect the headphones (or line out ) jack of the portable audio player into the PORT. IN of this unit. And then select the [PORTABLE] option by pressing RADIO&INPUT and ENTER

( ).

You can also use F button on the front panel to select the input mode.

PORT.IN Connection

You can enjoy the sound of your component with the digital optical connection from the speakers of the system.

Connect the optical output jack of your component into the OPTICAL IN jacks on the unit. And then select the [OPTICAL IN] option by pressing RADIO&INPUT and ENTER

( ). Or press OPTICAL to select directly.

You can also use F button on the front panel to select the input mode.

Optical Connection

MP3 player, etc ...

To the digital optical output jack of your component

Downloaded From TheatreSystem-Manual.com Manuals

Installation

25

Connecting to your

Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel.

By connecting the unit to a broadband home network, you have access to services such as software updates, BD-LIVE interactivity and streaming services.

Wired network connection

Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable (CAT5 or better with RJ45 connector).

Wired Network Connection

Router

WAN

LAN 1

LAN 2

LAN 3

PC

PC

Broadband

Service

3

Player

NOTE

• When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

• Do not connect a modular phone cable to the

LAN port.

• Since there are various connection confi gurations, please follow the specifi cations of your telecommunication carrier or internet service provider.

Downloaded From TheatreSystem-Manual.com Manuals

26

Installation

3

Wired Network Setup

Before setting the wired network, you need to connect the broadband internet to your home network.

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address.

After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.

1. Select [Connection Setting] option in the

[Setup] menu then press ENTER ( ).

3. Select [OK] and press ENTER ( ) to apply network settings.

4. The player will ask you to test the network connection. Select [OK] and press ENTER

( ) to complete the network connection.

5. If you select [Test] and press ENTER

( ) at step 4 above, the network connection status is displayed on the screen.

You can also test it on the

[Connection Status] in the [Setup] menu.

2. Use U/u/I/i to select the IP mode between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP address automatically.

NOTE

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set the [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using U/u/I/i and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

27

Notes on Network Connection:

• Many network connection problems during set up can often be fi xed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem.

Then power on and/or connect the power cable again.

• Depending on the internet service provider

(ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

• Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

• The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet

Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

• Some internet contents may require a higher bandwidth connection.

• Even if the player is properly connected and confi gured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

• Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

• A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player.

If your internet service does not allow for such a connection, you will not be able to connect the player.

• You must use a Router to use xDSL service.

• A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

• The use of a “Router” may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

3 your local home network. Some devices

Downloaded From TheatreSystem-Manual.com Manuals

28

Installation

3

USB device connection

This player can play movie, music and photo fi les contained in the USB device.

1. Insert a USB device to the USB port until it fi ts into place.

USB Connection - 1

2. Select [Movie], [Photo] or [Music] using

I/i, and press ENTER ( ).

3. Select a fi le using U/u/I/i, and press PLAY or ENTER ( ) to play the fi le.

You can check the space of the USB device on the screen.

4. Select the other mode. And withdraw the

USB device carefully.

USB Connection - 2

When you connect the USB device on the HOME menu, the player plays a music fi le contained in the USB storage device automatically. If the USB storage device is containing various types of fi les, a menu for the fi le type selection will appear.

File loading may takes few minutes depending on the number of content stored in the USB storage device. Press ENTER ( ) while [Cancel] is selected to stop loading.

Downloaded From TheatreSystem-Manual.com Manuals

NOTE

• This player supports USB fl ash memory/external

HDD formatted in FAT16, FAT32 and NTFS when accessing fi les (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB fl ash memory/external HDD formatted in either

FAT16 or FAT32 when using BD-LIVE and Audio

CD recording.

• The USB device can be used for the local storage for enjoying BD-LIVE discs with Internet.

• This unit can support up to 4 partitions of the

USB device.

• Do not extract the USB device during operation

(play, etc.).

• An USB device which requires additional programme installation when you have connected it to a computer, is not supported.

• USB device: USB device that support USB 1.1 and USB 2.0.

• Movie, music and photo fi les can be played.

For details of operations on each fi le, refer to relevant pages.

• Regular back up is recommended to prevent data loss.

• If you use a USB extension cable, USB HUB or

USB Multi-reader, the USB device may not be recognised.

• Some USB device may not work with this unit.

• Digital camera and mobile phone are not supported.

• USB Port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

29

3

30

Installation

Settings

4. Use U/u to select a second setup option, and press ENTER ( ) to move to the third level.

Adjust the Setup Settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME ( ).

3

5. Use U/u to select a desired setting, and press i or ENTER ( ) to confi rm your selection.

[DISPLAY] Menu

2. Use I/i to select the [Setup] and press

ENTER ( ). The [Setup] menu appears.

3. Use U/u to select a fi rst setup option, and press i to move to the second level.

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected.

Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected.

Displays pictures cropped to fi ll your TV screen. Both sides of the picture are cut off .

[16:9 Original]

Select when a 16:9 wide TV is connected.

The 4:3 picture is displayed with an original

4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected.

The 4:3 picture is adjusted horizontally (in a linear proportion) to fi ll the entire screen.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

31

NOTE

You cannot select [4:3 Letter Box] and [4:3 Pan

Scan] option when the resolution is set to higher than 720p.

Resolution

Sets the output resolution of the Component and HDMI video signal. Refer to page 22 and

74 or details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to

TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. If the

COMPONENT VIDEO OUT is only connected, this changes the resolution to 1080i as default resolution.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[576p]

Outputs 576 lines of progressive video.

[576i]

Outputs 576 lines of interlaced video.

1080p Display Mode

When the resolution is set to 1080p, select

[24 Hz] for smooth presentation of fi lm material

(1080p/ 24 Hz) with a HDMI-equipped display compatible with 1080p/ 24 Hz input.

NOTE

• When you select [24 Hz], you may experience some picture disturbance when the video switches video and fi lm material. In this case, select [50 Hz].

• Even when [1080p Display Mode] is set to

[24 Hz], if your TV is not compatible with

1080p/ 24 Hz

, the actual frame frequency of the video output will be 50 Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI

OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI (RGB) display device.

3

Downloaded From TheatreSystem-Manual.com Manuals

32

Installation

[LANGUAGE] Menu [AUDIO] Menu

3

Display Menu

Select a language for the [Setup] menu and on-screen display.

Disc Menu/ Disc Audio/

Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press ENTER ( ) to select another language.

Use number buttons then ENTER to enter the corresponding 4-digit number according to the language code list on page 71.

[Off ] (for Disc Subtitle only)

Turn off Subtitle.

Speaker Setup

To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

NOTE

Depending on the disc, your language setting may not work.

[Speaker]

Select a speaker that you want to adjust.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone]

The speakers will emit a test tone.

[OK]

Confi rms the setting.

[Cancel]

Cancels the setting.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

33

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it eff ectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use U u to scroll up and down through the delay amount, which you can set at anything between 0 and

300 ms.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[Off ]

Turns off this function.

[On]

Compress the dynamic range of the Dolby

Digital, Dolby Digital Plus or Dolby TrueHD audio output.

[Auto]

The dynamic range of the Dolby TrueHD audio output is specifi ed by itself. And the dynamic range of the Dolby Digital and

Dolby Digital Plus are operated as same as the [On] mode.

3

The delay will vary depending on which digital

TV channel you are on. If you change channel you may need to readjust the HD AV Sync.

NOTE

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

Downloaded From TheatreSystem-Manual.com Manuals

34

Installation

3

[LOCK] Menu

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created.

If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER ( ) to create a new password.

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select this, parental control is not active and the disc plays in full.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press

ENTER ( ) to create a new password.

[Change]

Enter the current password and press ENTER

( ). Enter a 4-digit password twice, and press ENTER ( ) to create a new password.

BD Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

NOTE

If you make a mistake before pressing ENTER ( ) , press CLEAR. Then input the correct password.

NOTE

The [BD Rating] will be applied only for the BD disc that containing the Advanced Rating Control.

If you forget your password,

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Select [Lock] option in the [Setup] menu.

3. Use number buttons to enter “210499” on the

[Password] Menu. The password is cleared.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 70.

Downloaded From TheatreSystem-Manual.com Manuals

Installation

35

[NETWORK] Menu [OTHERS] Menu

The [NETWORK] settings are needed to use the software update, BD Live and NetCast features.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the network connection for network communication. (See “Connecting to your

Home Network” on page 25.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] options and press ENTER ( ) to check whether a connection to the network and the internet have been established.

DIVX VOD

ABOUT DIVX VIDEO: DivX® is a digital video

DivX Certifi ed device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your fi les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certifi ed® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the

DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about

DivX VOD.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the deactivation code.

3

BD-LIVE connection

You can restrict Internet access when BD-LIVE functions are used.

[Permitted]

Internet access is permitted for all BD-LIVE contents.

[Partially permitted]

Internet access is permitted only for BD-

LIVE contents which have content owner certifi cates. Internet access and AACS

Online functions are prohibited for all BD-

LIVE contents without a certifi cate.

[Prohibited]

Internet access is prohibited for all BD-LIVE contents.

NOTE

All the downloaded videos from DivX VOD with this player’s registration code can only be played back on this unit.

Downloaded From TheatreSystem-Manual.com Manuals

36

Installation

3

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about fi ve minutes. If you set this option to [On], the unit automatically turns itself off after the Screen

Saver is displayed for 20 minutes.

Set this option to [Off ] to leave the screen saver until the unit is operated by the user.

Initialize

Factory Set

You can reset the player to its original factory settings.

BD Storage Clear

Initializes the BD contents from the connected USB storage.

NOTE

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again.

Software

Information

Displays the current software version.

Update

You can update the software by connecting the unit directly to the software update server (see page 72-73).

Disclaimer Notice

Press ENTER ( ) to view the notice of Network

Service Disclaimer on page 78.

Sound Effect

You can select a suitable sound mode. Press

SOUND EFFECT repeatedly until the desired mode appears on the front panel display or the

TV screen. The displayed items for the equalizer maybe diff erent depending on sound sources and eff ects.

[NATURAL]: You can enjoy comfortable and natural sound.

[BYPASS]: Software with multichannel surround audio signals is played according to the way it was recorded.

[BASS]: Reinforce the bass sound eff ect from front left and right speaker and subwoofer.

[CLRVOICE]: This mode makes voice sound clear, improving the quality of voice sound.

[VIRTUAL]: You can enjoy more dynamic sound with improved centre channel.

[GAME]: You can enjoy more virtual sound while playing video games.

[NIGHT]: This may be useful when you want to watch movies at low volumes late at night.

[RETOUCH]: When listening to MP3 fi les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[LOUNDNESS]: Improves bass and treble sound.

[NAT PLUS]: You can enjoy the natural sound eff ect same as 5.1 channel.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

37

4

Operation

General Playback

Playing Discs

1. Press OPEN/CLOSE (Z), and place a disc on the disc tray.

4. Select [Movie], [Photo] or [Music] using I/ i, and press ENTER ( ).

5. Select the [Disc] option using I/i, and press ENTER ( ).

2. Press OPEN/CLOSE( Z) to close the disc tray.

For the most Audio CD, BD-ROM and

DVD-ROM discs, playback starts automatically.

3. Press HOME ( ).

When you connect up to two devices, it appears as above.

6. Select a fi le using U/u/I/i, and press B

(PLAY) or ENTER ( ) to play the fi le.

NOTE

• Playback functions described in this manual are not always available in every fi les and medium.

Some functions can be restricted depending on many factors.

• Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback.

4

Downloaded From TheatreSystem-Manual.com Manuals

38

Operation

4

To stop playback

Press x (STOP) while playback.

To pause playback

Press X (PAUSE) while playback.

Press B (PLAY) to resume playback.

To play frame-by-frame

Press X (PAUSE) while movie playback.

Press X (PAUSE) repeatedly to play Frame-by-

Frame playback.

To scan forward or backward

Press m or M to play fast forward or fast reverse during playback.

You can change the various playback speeds by pressing m or M repeatedly.

To slow down the playing speed

While the playback is paused, press M repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/fi le

During playback, press . or > to go to the next chapter/track/fi le or to return to the beginning of the current chapter/track/fi le.

Press . twice briefl y to step back to the previous chapter/track/fi le.

Using the disc menu

BD DVD AVCHD

To display the disc menu

The menu screen may be displayed fi rst after loading a disc which contains a menu. If you want to display the disc menu while playback, press DISC MENU.

Use U/u/I/i buttons to navigate through menu items.

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that appears while playback.

Press TITLE/POPUP while playback, and use

U/u/I/i buttons to navigate through menu items.

Downloaded From TheatreSystem-Manual.com Manuals

Resume playback

BD DVD AVCHD MOVIE ACD

MUSIC

The unit records the point where you pressed the x (STOP) depending on the disc.

If “Xx (Resume Stop)” appears on the screen briefl y, press B (PLAY) to resume playback

(from the scene point).

If you press x (STOP) twice or unload the disc,

“x” (Complete Stop) appears on the screen.

The unit will clear the stopped point.

NOTE

• The resume point may be cleared when a button is pressed (for example; 1 (POWER),

Z (OPEN/CLOSE), etc).

• On BD-Video discs with BD-J, the resume playback function does not work.

• If you press x (STOP) once during BD-ROM interactive title playback, the unit will be in

Complete Stop mode .

Operation

39

4

Downloaded From TheatreSystem-Manual.com Manuals

40

Operation

Advanced Playback

4

Repeat Playback

BD DVD AVCHD ACD MUSIC

During playback, press REPEAT repeatedly to select a desired repeat mode.

BDs/DVDs

A – Selected portion will be repeated continually.

Chapter – The current chapter will be played back repeatedly.

Title – The current title will be played back repeatedly.

To return to normal playback, press REPEAT repeatedly to select [Off ].

Audio CDs/Music fi les

– The current track or fi le will be played back repeatedly.

– All the tracks or fi les will be played back repeatedly.

– The tracks or fi les will be played back in random order.

– All the tracks or fi les will be played back repeatedly in random order.

– Selected portion will be repeated continually. (Audio CD only)

To return to normal playback, press CLEAR.

Repeating a specifi c portion

BD DVD AVCHD ACD

This player can repeat a portion you have selected.

1. While playback, press REPEAT to select [A-] at the beginning of the portion you wish to repeat. And then press ENTER ( ).

2. Press ENTER ( ) at the end of the portion.

Your selected portion will be repeated continually.

3. To return to normal playback, press REPEAT repeatedly to select [OFF] or press CLEAR.

NOTE

You cannot select a portion less than 3 seconds.

Enlarge the playback image

1. During playback or pause mode, press

ZOOM to display the [Zoom] menu.

2. Use red (R) or green (G) colored button to zoom out or in the picture.

You can move through the zoomed picture using U/u/I/i buttons.

3. To return to the normal picture size, press yellow (Y) colored button.

4. Press RETURN(O) to exit the [Zoom] menu.

NOTE

• If you press > once during Repeat Chapter/

Track playback, the repeat playback cancels.

• This function may not work on some disc or title.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

41

Marker Search

BD DVD AVCHD MOVIE

You can start playback from up to nine memorized points.

To delete a Marker

1. Press SEARCH and the search menu appears on the screen.

To enter a marker

1. While playback, press MARKER at the desired point. The Marker icon appears on the TV screen briefl y.

2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press a number button to select a marker number that you want to recall. Playback starts from the marked scene.

2. Press u to highlight a marker number. Use

I/i to select a marked scene that you want to delete.

3. Press CLEAR and the marked scene is erased from the search menu.

NOTE

• This function may not work depending on discs, titles, server ability.

• All marked points are cleared if the title is in complete stop (x) mode, the title is changed or if you unload the disc.

• If the total length of the title is less than

10 seconds, this function is not available.

4

Downloaded From TheatreSystem-Manual.com Manuals

42

Operation

Using the search menu

BD DVD AVCHD MOVIE

Using search menu, you can easy to fi nd the point where you want to start playback.

To search a point

1. During playback, press SEARCH to display the search menu.

Changing content list view

MOVIE MUSIC PHOTO

On the [Movie], [Music], [Photo] menu, you can change the content list view.

Method 1

Press red (R) coloured button repeatedly.

4

2. Press I/i to skip the playback 15 seconds forward or backward. You can select a point that you want to skip by pressing and holding I/i button.

To start playback from a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press u to highlight a marker number. Use

I/i to select a marked scene that you want to start playback from.

3. Press ENTER ( ) to start playback from the marked scene.

NOTE

This function may not work depending on discs, titles, server ability.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

43

Method 2

1. On the content list, press INFO/DISPLAY ( ) to display the option menu.

2. Use U/u to select the [View Change] option.

3. Press ENTER ( ) to change the content list view.

Last Scene Memory

BD DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Viewing content information

MOVIE

The player can display the content information.

1. Select a fi le using U/u/I/i.

2. Press INFO/DISPLAY ( ) to display the option menu.

3. Select the [Information] option using U/u, and press ENTER ( ).

The fi le information appears on the screen.

While movie playback, you can display the fi le information by pressing TITLE/POPUP.

NOTE

• Last Scene Memory function for a previous disc is erased once a diff erent disc is played.

• This function may not work depending on the disc.

• This unit does not memorize settings of a disc if you switch off the unit before commencing to play it.

4

NOTE

The information displayed on the screen may not correct comparing actual content information.

Downloaded From TheatreSystem-Manual.com Manuals

44

Operation

4

On-Screen display

You can display and adjust various information and settings about the content.

Displaying content information on-screen

BD DVD AVCHD MOVIE

1. While playback, press INFO/DISPLAY ( ) to show various playback information.

a b c d e f g h a Title – Current title number/total number of titles b Chapter – Current chapter number/total number of chapters c Time – Elapsed playing time/Total playback time d Audio – Selected audio language or channel e Subtitle – Selected subtitle f Angle – Selected angle/total number of angles g TV Aspect Ratio – Selected a TV aspect

Ratio h Picture Mode – Selected picture mode

2. Select an option using U/u.

3. Use I/i to adjust the selected option value.

4. Press RETURN (O) to exit the On-Screen display.

NOTE

• If no button is pressed for a few seconds, the onscreen display disappears.

• A title number cannot be selected on some discs.

• Available items may diff er depending on discs or titles.

• If BD interactive title is playing back, some setting information is displayed on the screen but prohibited to be changed.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

45

Playing from selected time

BD DVD AVCHD MOVIE

1. Press INFO/DISPLAY ( ) during playback.

The time search box shows the elapsed playing time.

2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to fi nd a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”.

Press I/i to skip the playback 60 seconds forward or backward.

3. Press ENTER ( ) to start playback from selected time.

NOTE

This function may not work on some disc or titles.

Hearing a different audio

BD DVD AVCHD MOVIE

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [Audio] option.

3. Use I/i to select desired audio language, audio track or audio channel.

NOTE

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press

TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

• Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound.

• On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the onscreen display.

Selecting a subtitle language

BD DVD AVCHD MOVIE

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [Subtitle] option.

3. Use I/i to select desired subtitle language.

4. Press RETURN(O) to exit the On-Screen display.

NOTE

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press

TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

4

Downloaded From TheatreSystem-Manual.com Manuals

46

Operation

4

Watching from a different angle

BD DVD

If the disc contains scenes recorded at diff erent camera angles, you can change to a diff erent camera angle during playback.

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [Angle] option.

3. Use I/i to select desired angle.

4. Press RETURN (O) to exit the On-Screen display.

Changing the Picture Mode

BD DVD AVCHD MOVIE

You can change the [Picture mode] option while playback.

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [Picture Mode] option.

3. Use I/i to select desired option.

4. Press RETURN (O) to exit the On-Screen display.

Changing the TV Aspect Ratio

BD DVD AVCHD MOVIE

You can change the TV aspect ratio setting while playback.

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [TV Aspect Ratio] option.

3. Use I/i to select desired option.

4. Press RETURN (O) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [Picture Mode] option.

3. Use I/i to select the [User setting] option, and press ENTER ( ).

NOTE

Even if you change the value of the [TV Aspect

Ratio] option in On-Screen display, the [TV Aspect

Ratio] option in the [Setup] menu is not changed.

4. Use U/u/I/i to adjust the [Picture Mode] options.

Select [Default] option then press ENTER

( ) to reset the all adjustments.

5. Use U/u/I/i to select the [Close] options, and press ENTER ( ) to fi nish setting.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

47

Enjoying BD-LIVE

This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting

BONUSVIEW (BD-ROM version 2 Profi le 1 version 1.1/ Final Standard Profi le).

Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

In addition to the BONUSVIEW function, BD-

Video supporting BD-LIVE (BD-ROM version

2 Profi le 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings

(pages 25-27).

2. Insert a USB storage device to the USB port on the front panel.

A USB storage device is needed to download bonus content.

USB Connection

3 . Press Home ( ), and set the [BD-LIVE connection] option on the [Setup] menu

(page 35).

Depending on a disc, the BD-LIVE function may not be operated if [BD-

LIVE connection] option is set to [Partially

Permitted].

4 . Insert a BD-ROM with BD-LIVE.

The operations are diff er depending on the disc. Refer to the manual supplied with the disc.

NOTE

• Do not extract the connected USB device while content is being downloaded or a Blu-ray disc is still in the disc tray. Doing so may damage the connected USB device and BD-LIVE features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

• Some BD-LIVE contents may be restrictively accessed in some territories by contents provider’s own decision.

• It may take up to several minutes to load and start enjoying BD-LIVE contents.

4

Downloaded From TheatreSystem-Manual.com Manuals

48

Operation

Playing a movie fi le and VR disc

You can play DVD-RW discs that are recorded in Video Recording (VR) format and movie fi les contained in a disc or USB device.

1. Press HOME ( ).

NOTE

• The fi le requirements are described on page 11.

• You can use various playback functions. Refer to pages 37-46.

• Unfi nalized DVD VR format discs may not be played in this player.

• Some DVD-VR disc are made with CPRM data by DVD recorder. This unit cannot support these kinds of discs.

What is CPRM?

CPRM is a copy protection system (with scramble system) only allowing the recording of

‘copy once’ broadcast programmes. CPRM stands for Content Protection for Recordable Media.

4

2. Select [Movie] using I/i, and press ENTER

( ).

3. Select the device using I/i, and press

ENTER ( ).

When you connect up to two devices, it appears as above.

4. Select a fi le using U/u/I/i, and press PLAY or ENTE ( ) R to play the fi le.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

49

Selecting a subtitle fi le

MOVIE

If a movie fi le name and the subtitle fi le name are the same, subtitle fi le is played automatically when playing the movie fi le.

If the subtitle fi le name is diff erent with the movie fi le name, you need to select the subtitle fi le on the [Movie] menu before playing the movie.

1. Use U/u/I/i to select the subtitle fi le you wish to play in the [Movie] menu.

2. Press ENTER ( ).

Changing subtitle code page

MOVIE

If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle fi le properly.

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/u to select the [Code Page] option.

3. Use I/i to select desired code option.

Press ENTER ( ) again to deselect the subtitle fi le. Selected subtitle fi le will be displayed when you play the movie fi le.

NOTE

If you press x (STOP) while playback, the subtitle selection is cancelled.

4. Press RETURN (O) to exit the On-Screen display.

4

Downloaded From TheatreSystem-Manual.com Manuals

50

Operation

Viewing a photo

You can view photo fi les using this player.

1. Press HOME ( ).

4

2. Select [Photo] using I/i, and press ENTER

( ).

3. Select the device using I/i, and press

ENTER ( ).

To play a slide show

Press B (PLAY) to start slide show.

To stop a slide show

Press x (STOP) while slide show.

To pause a slide show

Press X (PAUSE) while slide show.

Press B (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press

I or i to go to the previous or next photo.

NOTE

• The fi le requirements are described on page 11.

• You can use various playback functions. Refer to pages 37-46.

When you connect up to two devices, it appears as above.

4. Select a fi le using U/u/I/i, and press

ENTER ( ) to view the photo.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

51

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press

INFO/DISPLAY ( ) to display the option menu.

2. Select an option using U/u.

a b c d e f g h a Current photo/Total number of photos

– Use I/i to view previous/next photo.

b Slide Show – Press ENTER ( ) to start or pause slide show.

c Music Select – Select the background music for the slide show.

d Music –Press ENTER ( ) to start or pause background music.

e Rotate – Press ENTER ( ) to rotate the photo clockwise.

f Zoom – Press ENTER ( ) to display the

[Zoom] menu.

g Eff ect – Use I/i to select a transition eff ect between photos in a slide show.

h Speed – Use I/i to select a delaying speed between photos in a slide show.

3. Press RETURN (O) to exit the option menu.

Listening to music while slide show

You can display photo fi les while listening to music fi les.

1. Press HOME ( ).

2. Select [Photo] using I/i, and press ENTER

( ).

3. Select the [Disc] or [USB] option using I/i, and press ENTER ( ).

4. Select a fi le using U/u/I/i, and press

ENTER ( ) to view the photo.

5. Press INFO/DISPLAY ( ) to display the option menu.

6. Use U/u to select [Music Select] option, and press ENTER ( ) to display the [Music

Select] menu.

4

Downloaded From TheatreSystem-Manual.com Manuals

52

Operation

7. Use U/u to select a device, and press ENTER

( ).

Device that you can select are diff er depending on the location of the photo fi le you are displaying in full screen.

Photo location Available Device

Disc Disc, USB

USB Disc, USB

8. Use U/u to select a fi le or a folder you wish to play.

Listening to music

The player can play Audio CDs and music fi les

1. Press HOME ( ).

4

Select a folder and press ENTER ( ) to display the lower directory.

Select and press ENTER ( ) to display the upper directory.

9. Use i to select [OK], and press ENTER ( ) to complete music selection.

2. Select [Music] using I/i, and press ENTER

( ).

3. Select the device using I/i, and press

ENTER ( ).

When you connect up to two devices, it appears as above.

4. Select a music fi le or audio track using

U/u/I/i, and press ENTER ( ) to play the music.

NOTE

• The fi le requirements are described on page 11.

• You can use various playback functions. Refer to pages 37-46.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

53

Audio CD Recording

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on the front panel.

2. Press Z (OPEN/CLOSE), and place an Audio

CD on the disc tray.

Press Z (OPEN/CLOSE) to close the disc tray. The playback starts automatically.

3. Press INFO/DISPLAY ( ) to display the option menu.

Or

Press REC button on the remote control.

You can record all musics in the audio CD.

4. Use U/u to select [CD Recording] option, and press ENTER ( ) to display the [CD

Recording] menu.

Repeat this step to select tracks as many as you can.

5. Use U/u to select a track you wish to copy on the menu, and press ENTER ( ).

Repeat this step to select tracks as many as you can.

If you want to create a new folder, use

U/u/I/i to select [New Folder] and press

ENTER ( ).

Enter a folder name using virtual keyboard, and press ENTER ( ) while [OK] is selected.

8. Use U/u/I/i to select [OK], and press

ENTER ( ) to start Audio CD recording.

If you want to stop in progressing Audio CD recording, press ENTER ( ) while [Cancel] is highlighted.

9. A message appears when Audio CD recording is completed. Press ENTER

( ) to check the music fi le created in the destination folder.

4

Select all the tracks on an Audio

CD.

Selects an encoding option from the pop-up menu (128 kbps,

192 kbps, 320 kbps or Lossless).

Cancels the recording and returns to the previous screen.

6. Use U/u/I/i to select [Start], and press

ENTER ( ).

7. Use U/u/I/i to select the destination folder to be copied.

Downloaded From TheatreSystem-Manual.com Manuals

54

Operation

4

NOTE

• The table below shows the average recording time from an audio track with 4 minutes of playback time to a music fi le with 192 kbps as an example.

stop mode

1 min.

while playback

4 min.

• All times in the above table are approximate.

• Actual recording time for USB storage device varies depending on the USB storage device’s ability.

• Make sure that there is minimum of 50 MB free space is needed when recording into the USB storage device.

• The length of the music should be longer than

20 seconds for the proper recording.

• Do not turn off this player or extract the connected USB storage device during Audio CD recording.

Displaying MP3 music information (ID3 Tag)

1. Select a music fi le using U/u/I/i

2. Press INFO/DISPLAY ( ) to display the option menu.

3. Select [Information] option using U/u, and press ENTER ( ).

4. The music information will be displayed on the screen.

NOTE

Depending on the MP3 fi les, information may not be displayed on the screen.

The making of unauthorized copies of copy-protected material, including computer programmes, fi les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal off ense.

This equipment should not be used for such purposes.

Be responsible

Respect copyrights

Downloaded From TheatreSystem-Manual.com Manuals

Operation

55

Radio Operations

Deleting all the saved stations

Press and hold CLEAR for two seconds.

“ERASE ALL” will fl ash up. Then all the saved stations are deleted.

Be sure that the antenna is connected.

(Refer to the page 23)

Listening to the radio

1. Press RADIO&INPUT until TUNER (FM) appears in the display window. The last received station is tuned in.

2. Press and hold TUNING (-/+) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNING (-/+) repeatedly.

3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOL (+/- ) on the remote control.

Deleting a saved station

1. Press PRESET - / + to Select a preset number you want to delete.

2. Press CLEAR, the preset number will blink in the display window.

3. Press CLEAR again, to delete the selectd preset number.

Improving poor FM reception

Press B (blue) (MONO/STEREO) coloured button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

4

Presetting the Radio Stations

You can preset 50 stations for FM.

Before tuning, make sure that you have turned down the volume.

1. Press RADIO&INPUT until the TUNER (FM) appears in the display window.

2. Select the desired frequency by using

TUNING (-/+).

3. Press ENTER ( ) a preset number will fl ash in the display window.

4. Press PRESET (-/+) to select the preset number you want.

5. Press ENTER ( ). The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

See information about a radio station

The FM tuner is supplied with the RDS (Radio

Data System) facility. This shows information about the radio station being listened to. Press

RDS repeatedly to cycle through the various data types:

PS

PTY (Programme Type Recognition)

The programme type (e.g. Jazz or News) will appear in the display.

RT

(Programme Service Name)

The name of the channel will appear in the display

CT

(Radio Text)

A text message contains special information from the broadcast station.

This text may scroll across the display.

(Time controlled by the channel)

This shows the time and date as broadcast by the station.

Downloaded From TheatreSystem-Manual.com Manuals

56

Operation

Using NetCast

TM

Entertainment Access

YouTube

TM

4

You can use various content services via

Internet with NetCast Entertainment Access feature.

1. Check the network connection and settings

(pages 25-27).

2. Press HOME ( ).

3. Select the [NetCast] using I/i, and press

ENTER ( ).

4. Select an option using I/i, and press

ENTER ( ).

YouTube

TM

– See pages 56-59

Picasa

TM

Web Albums – See pages 60-62

AccuWeather – See pages 63-64

5. While enjoying on-line content from

NetCast, press blue (B) coloured button to go to NetCast Home screen.

NOTE

• The content of NetCast services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information.

• The background image on the NetCast home indicates the weather of your favorite city in the

AccuWeather feature.

You can browse, search and watch YouTube

TM videos over the internet to your TV via your LG

Blu-ray disc player.

Watch YouTube

TM

videos on your TV

1. On the player, select the [YouTube

TM

] option in the [NetCast] menu using I/i, and press

ENTER ( ).

2. Press U to select the option menu bar.

3. Use I/i to select an option and press

ENTER ( ) to search videos.

4. Use I/i to select a video and press ENTER

( ) or B (play) to play the video.

Button Operation

B or ENTER Starts playback the video with content detail.

INFO/

DISPLAY

X

Toggle between playback in full screen and playback screen with content detail.

To pause a video while it is playing. To resume playing a paused video, press B again. x

Stops the video and displays related videos list.

.

/>

Skip the playback forward or backward .

Downloaded From TheatreSystem-Manual.com Manuals

Operation

57

About the YouTube

TM

menu

There are various options on the YouTube

TM menu. Use U/u/I/i to select an option and press ENTER ( ) to select the options as described below.

Featured – The featured videos list will be displayed.

Recent Videos – The most recently updated videos list will be displayed.

Most Viewed – The most viewed videos list will be displayed. The period option appears at the bottom of the screen.

Top Rated – The best rated videos list from

YouTube

TM

server will be displayed. The period option appears at the bottom of the screen.

Search – The virtual keyboard will be displayed. See “Searching videos” on page 59 for more detail.

History – The videos list that you previously played on this unit will be displayed.

Maximum of 25 videos can be stored.

Favorites – This option will be appeared only when the unit is in sign-in status. Displays the videos list that is arranged in the YouTube

TM server with your account. Some videos may not appear on the [Favorites] list, even if the videos are arranged in the server.

Sign in (Sign Out) – Displays the virtual keyboard to sign in or returns to the sign-out status.

See “Sign in with your YouTube

TM

account” on page 59 for more details.

Local site – Choose which country’s videos you would like to view. The countries listed on the [Local Site] menu may diff erent with those listed on the YouTube

TM

web site.

NOTE

YouTube

TM

menu can display 5 videos in the videos list. Press green (G) or yellow (Y) buttons to display previous/next 5 videos.

• If you select the [Most Viewed] or [Top Rated] option in the YouTube

TM

menu, the period options appear at the bottom of the screen.

Use U/u/I/i to select a period option and press ENTER ( ) to display the videos list within the selected period.

• The videos list searched from the player may diff er with the list searched from a web browser on PC.

• The playback of YouTube

TM

videos may be paused, stopped or buff ering occurring often depending on your broadband speed.

We recommend a minimum connection speed of 1.5 Mbps. For the best playback condition, a connection speed of 4.0 Mbps is required.

Sometimes your broadband speed varies based on your ISP’s network conditions.

Contact your ISP if you have problems maintaining a fast connection that is reliable, or if you want to increase your connection speed.

Many ISPs off er a variety of broadband speed options.

4

Downloaded From TheatreSystem-Manual.com Manuals

58

Operation

Using the virtual keyboard

On the virtual keyboard, there are two input mode for the entering a character. Press the yellow (Y) coloured button to toggle display between keyboard mode and keypad mode.

Keyboard Mode

Use U/u/I/i to select a letter on the screen, and press ENTER ( ) to confi rm your selection.

Keypad Mode

This mode allows you to enter letters by pressing the buttons on the remote control.

Press the buttons with the required letter once, twice, three or four times until the letter is displayed.

4

[Cancel] – Return to the previous screen.

[Space] – Inserts a space at the cursor position.

[Backspace] – Deletes the previous character at the cursor position.

[ABC / abc / #+-=&] – Changes the virtual keyboard settings to capital letters, small letters or symbols.

Press CLEAR to clear all entered characters.

To enter a letter with an accent mark:

1. Select a letter using U/u/I/i on the virtual key board.

2. Press INFO/DISPLAY ( ) to display the extended character set.

3. Use I/i to select a character then press

ENTER ( ).

Available languages to enter on the keyboard mode are as follows: English, Spanish, Italian,

French, German, Dutch, Portuguese, Swedish,

Polish and Czech.

Button Operation

CLEAR

REPEAT

Deletes the previous character at the cursor position.

Inserts a space at the cursor position.

M /.

Change the character set of the remote control (#+-=&,

123, ABC or abc)

NOTE

The keypad mode is available only in the

[YouTube

TM

] and [Picasa

TM

Web Albums] features.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

59

Searching videos

You can search for videos by entering search words of up to 128 characters.

1. Use I/i to select [Search] option from the menu and press ENTER ( ) to display the virtual keyboard.

Refer to “Using the virtual keyboard” on page 58 for using virtual keyboard.

3. When you fi nish entering the user name and the password, select [OK] and press

ENTER ( ) to sign in.

4. If you want to sign out, select the [Sign Out] from the YouTube

TM

menu and press ENTER

( ).

This unit can automatically store up to 5 user names which were previously signed-in. The user name list appears when you select the

[Sign In] option.

Select a stored user name on the list and press

ENTER ( ) to display the keyboard menu with the selected user name is entered. You will then only need to enter the password to sign in.

When you entering a character, maximum of 5 suggestion words will be displayed.

2. When you fi nish entering the search words, select [OK] and press ENTER ( ) to display the related video list.

Sign in with your YouTube

TM

account

To watch videos from your [Favorites] video list on the YouTube

TM

server with your account, you need to sign in with your YouTube

TM account.

1. Use I/i to select [Sign In] option from the menu and press ENTER ( ) to display the virtual keyboard.

2. Use U/u/I/i to select a character then press ENTER ( ) to confi rm your selection on the virtual keyboard.

Refer to “Using the virtual keyboard” on page 58 for using virtual keyboard.

Select the [X] symbol and press ENTER ( ) to delete the stored user name.

4

Downloaded From TheatreSystem-Manual.com Manuals

60

Operation

4

Picasa

TM

Web Albums

Enjoy photo albums from friends and family on the Picasa

TM

Web Albums on-line service.

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press

INFO/DISPLAY ( ) to display the option menu.

2. Select an option using U/u.

View Picasa

TM

Web Albums on your

TV

1. On the player, select the [Picasa

TM

Web

Albums] option in the [NetCast] menu using I/i, and press ENTER ( ).

Featured photos are appeared on the screen.

2. Use U/u/I/i to select a photo and press

ENTER ( ) to view the photo in full screen.

a b c d e f g

Button

B

INFO/

DISPLAY

X x

I/i

Operation

Starts a slide show.

Displays the photo option menu.

Pauses a slide show. To resume slide show, press B again.

Stops the slide show and return to the Picasa

TM

Web

Albums menu.

Moves to the next or previous photo.

a Current photo/Total number of photos

– Use I/i to view previous/next photo.

b Slide Show – Press ENTER ( ) to start or pause slide show.

c Add to NetCast Friends List – Add the current photo owner to my friend list.

d Rotate – Press ENTER ( ) to rotate the photo clockwise.

e Zoom – Press ENTER ( ) to display the

[Zoom] menu.

f Eff ect – Use I/i to select a transition eff ect between photos in a slide show.

g Speed – Use I/i to select a delaying speed between photos in a slide show.

3. Press RETURN (O) to exit the option menu.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

61

About the Picasa

TM

Web Albums menu

There are various options on the Picasa

TM

Web

Albums menu. Use U/u/I/i to select an menu option and press ENTER ( ) to select the options as described below.

Adding friends

If you add your friends on the [NetCast Friends] menu, you can see the photos of your friend’s public photos directly.

1. Select the [NetCast Friends] on the Picasa

TM

Web Albums menu using U/u/I/i, and press ENTER ( ).

Home – The featured photo list will be displayed.

NetCast Friends – List of your friends will be displayed.

Search – Enter a search word to fi nd related photos. The virtual keyboard will be displayed

(page 62).

My Photos – Displays the photos organised in my Picasa

TM

Web Albums. This option is available only when the unit is in sign-in status.

Favorites – Displays up to 50 favorite web albums that are arranged in the Picasa

TM

Web

Albums server with your account. This option is available only when the unit is in sign-in status.

Sign in (Sign Out) – Displays the virtual keyboard to sign in or returns to the sign-out status (page 62)

NOTE

Photos displayed in [My Photos] and [Favorites] may diff er with the photos from a web browser on

PC.

2. Press ENTER ( ) to display the virtual keyboard.

3. Enter a name using the virtual keyboard.

Refer to “Using the virtual keyboard” on page 58 for using virtual keyboard.

4. Select [OK] using U/u/I/i, and press

ENTER ( ) to display the web album of your friend.

NOTE

• If you want to delete your friend from the list, press green (G) coloured button while the web album is selected.

• If you want to add more friends, press red (R) coloured button on the list.

• You can add more web albums of your friends up to 50.

4

Downloaded From TheatreSystem-Manual.com Manuals

62

Operation

Searching photos

You can enter a search word to fi nd related photos.

1. Select the [Search] on the Picasa

TM

Web

Albums menu using U/u/I/i, and press

ENTER ( ).

2. Enter a search word using the virtual keyboard.

Refer to “Using the virtual keyboard” on page 58 for using virtual keyboard.

3. Select [OK] using U/u/I/i, and press

ENTER ( ) to display the search result.

3. Enter the password using the virtual keyboard, and press ENTER ( ) while [OK] is selected.

Your web album is appeared on the screen.

4. If you want to sign out, select the [Sign Out] from the Picasa

TM

Web Albums menu and press ENTER ( ).

This unit can automatically store up to 5 user names which were previously signed-in. The user name list appears when you select the

[Sign In] option.

Select a stored user name on the list and press

ENTER ( ) to display the virtual keyboard with the selected user name is entered. You will then only need to enter the password to sign in.

4

NOTE

The search result from the player may diff er with the result searched from a web browser on PC.

Signing in with your account

To display photos in your web album on the screen, you need to sign in with your Picasa

TM

Web Albums account.

1. Select the [Sign In] on the Picasa

TM

Web

Albums menu using U/u/I/i, and press

ENTER ( ).

Select the [X] symbol and press ENTER ( ) to delete the stored user name.

2. Enter your user name using the virtual keyboard, and press ENTER ( ) while [OK] is selected.

Refer to “Using the virtual keyboard” on page 58 for using virtual keyboard.

Downloaded From TheatreSystem-Manual.com Manuals

Operation

63

Using the AccuWeather

5. Select a city using U/u/I/i, and press

ENTER ( ).

6. Use U/u/I/i to select [Home] and press

ENTER ( ) to display weather information of the selected city.

See on-line local and global weather forcasts from AccuWeather.com.

Viewing weather information

1. On the player, select the [AccuWeather] option in the [NetCast] menu using I/i, and press ENTER ( ).

The city selection menu appears on the screen.

Press red (R) coloured button to toggle display between Fahrenheit or Celsius thermometre.

7. Use I/i to select previous or next city, and press ENTER ( ) to display the weather information.

This step works only when you add more than 1 cities to the [Favorite city List].

4

2. Press ENTER ( ) while [Add City to Favorite

City List] is selected.

3. Select a region using U/u, and press ENTER

( ).

NOTE

• The weather information is not always correct.

• The weather information may be displayed in

English, if your own language is not available on the AccuWeather service.

4. Select a, country using U/u/I/i, and press

ENTER ( ).

Downloaded From TheatreSystem-Manual.com Manuals

64

Operation

Adding more cities

1. Use I/i to select [Favorite City List] on the

AccuWeather menu, and press ENTER ( ).

4

2. Press ENTER ( ) while [Add City to Favorite

City List] is selected.

3. Select a region, country and city using

U/u/I/i and ENTER ( ).

4. Repeats step 2-3 to add up to 5 cities.

Select the [X] symbol and press ENTER ( ) to delete the stored favorite city.

5. Use U/u to select a city from the [Favorite

City List], and press ENTER ( ) to display the weather information.

Downloaded From TheatreSystem-Manual.com Manuals

Maintenance

65

5

Maintenance

Notes on Discs Handling the Unit

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.

• Wiping with strong pressure may damage the surface.

• Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service centre.

5

Downloaded From TheatreSystem-Manual.com Manuals

66

Troubleshooting

6

Troubleshooting

6

General

The Power does not turned on.

• Plug the power cord into the wall outlet securely.

The unit does not start playback.

• Insert a playable disc. (Check the disc type, colour system, and regional code.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Cancel the rating function or change the rating level.

The angle cannot be changed.

The subtitle language cannot be changed or turned off .

Cannot play MP3/WMA/

JPEG/DivX fi les.

• Multi-angles are not recorded on the DVD Video being played.

• Subtitles are not recorded on the DVD Video being played.

The remote control does not work properly.

• The fi les are not recorded in a format that the unit can play.

• The unit does not support the codec of the movie fi le.

• The remote control is not pointed at the remote sensor of the unit.

• The remote control is too far from the unit.

• There is an obstacle in the path of the remote control and the unit.

• The Battery in the remote control is exhausted.

Downloaded From TheatreSystem-Manual.com Manuals

Troubleshooting

67


There is no picture.

Picture noise appears

• Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.

• Connect the video connection securely.

• Check the [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection.

• Your TV may not suppot the resolution you have set on the player. Change the resolution that your TV accepts.

• The player’s HDMI OUT jack is connected to a DVI device that does not support copyright protection.

• You are playing a disc recorded in a colour system that is diff erent from your TV.

• Set the resolution which your TV accepts.

Sound

There is no sound or the sound is distorted.

• The unit is in scan, slow motion, or pause mode.

• The sound volume is low.

• Check the speaker cable connection. (page 17)

6

Downloaded From TheatreSystem-Manual.com Manuals

68

Troubleshooting

Network

BD-LIVE feature does not work.

Streaming video services

(such as YouTube

TM

, etc.) are often stopped or

“buff er” during playback.

• The connected USB storage may not have enough space.

Connect the USB storage with at least 1GB free space.

• Ensure that the unit is correctly connected to the local area network and can access the internet (see pages 25-27).

• Your broadband speed may not fast enough to use the BD-

LIVE features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

• The [BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted].

• Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider

(ISP) and increase the broadband speed is recommended.

Design and specifi cations are subject to change without notice.

Customer Support

You can update the Player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://lgservice.com or contact LG Electronics customer care centre.

6

Downloaded From TheatreSystem-Manual.com Manuals

Appendix

69

7

Appendix

Controlling a TV with the Supplied Remote

Control

You can control your TV using the buttons below.

Setting up the remote to control your TV

You can operate your LG/GoldStar TV with the supplied remote control.

While holding down TV POWER button, press

PR/CH U/u. Release the TV POWER button to complete setting.

When you replace the Battery of the remote, you may have reset the remote control.

TV Control

Buttons

Button Operation

1

(TV Power)

Turn the TV on or off .

AV/ INPUT

Switch the TV’s input source between the TV and other input sources.

VOL +/-

Adjust the volume of the

TV.

PR/CH U/u

Scan up or down through memorized channels.

MUTE

Mutes the sound.

NOTE

Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

7

Downloaded From TheatreSystem-Manual.com Manuals

70

Appendix

Area Code List

7

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF Fiji FJ Monaco MC Singapore SG

Argentina

Australia

Austria

Belgium

Bhutan

Bolivia

Brazil

Egypt

El Salvador

Ethiopia

AR

AU

AT

BE

Finland

France

Germany

Great Britain

BT

BO

BR

Greece

Greenland

Hong Kong

Cambodia

Canada

Chile

China

Colombia

Congo

Costa Rica

Croatia

Czech Republic CZ

Denmark DK

Ecuador EC

KH

CA

CL

CN

CO

CG

CR

HR

EG

SV

ET

Hungary

India

Indonesia

Israel

Italy

Jamaica

Japan

Kenya

Kuwait

Libya

Luxembourg

Malaysia

Maldives

Mexico

FI

FR

DE

GB

GR

GL

HK

KW

LY

LU

MY

MV

MX

Mongolia

Morocco

Nepal

Netherlands

IT

JM

JP

KE

HU

IN

ID

IL

Netherlands

Antilles

New Zealand

Nigeria

Norway

Oman

Pakistan

Panama

Paraguay

Philippines

Poland

Portugal

Romania

Russian

Federation

Saudi Arabia

Senegal

MN

MA

NP

NL

AN

NZ

NG

NO

OM

PK

PA

PY

PH

PL

PT

RO

RU

SA

SN

Slovak Republic SK

Slovenia SI

South Africa

South Korea

ZA

KR

Spain

Sri Lanka

Sweden

Switzerland

Taiwan

Thailand

Turkey

Uganda

Ukraine

United States

Uruguay

Uzbekistan

Vietnam

Zimbabwe

ES

LK

SE

UZ

VN

ZW

CH

TW

TH

TR

UG

UA

US

UY

Downloaded From TheatreSystem-Manual.com Manuals

Appendix

71

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio],

[Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Afar

Afrikaans

Albanian

Ameharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

6588

6590

Bashkir

Basque

6665

6985

Bengali; Bangla 6678

6565

6570

8381

6577

6582

7289

6583

Bhutani

Bihari

Breton

Bulgarian

6890

6672

6682

6671

Burmese 7789

Byelorussian 6669

Chinese

Croatian

9072

7282

Czech

Danish

Dutch

6783

6865

7876

English

Esperanto

Estonian

Faroese

Fiji

Finnish

6978

6979

6984

7079

7074

7073

French

Frisian

Galician

7082

7089

7176

Georgian

German

7565

6869

Greek 6976

Greenlandic 7576

Guarani

Gujarati

Hausa

Hebrew

Hindi

7178

7185

7265

7387

7273

Hungarian

Icelandic

Indonesian

Interlingua

Irish

Italian

Japanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Laothian

Latin

7579

7585

7679

7665

Latvian, Lettish 7686

Lingala 7678

7285

7383

7378

7365

7165

7384

7465

7578

7583

7575

7589

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay

Malayalam

Maori

Marathi

7783

7776

7773

7782

Moldavian

Mongolian

7779

7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya

Panjabi

7982

8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance

8277

Rumanian

Russian

Samoan

Sanskrit

8279

8285

8377

8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi

Singhalese

Slovak

Slovenian

Spanish

Sudanese

Swahili

Swedish

Tagalog

Tajik

Tamil

Telugu

Thai

Tonga

Turkish

Turkmen

Twi

Ukrainian

Urdu

Uzbek

8472

8479

8482

8475

8487

8575

8582

8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof

Xhosa

Yiddish

Yoruba

Zulu

8779

8872

7473

8979

9085

8368

8373

8375

8376

6983

8385

8387

8386

8476

8471

8465

8469

7

Downloaded From TheatreSystem-Manual.com Manuals

72

Appendix

7

Network Software

Update

Option 2:

If the software update is available from the update server, the “Update” icon appears at the bottom of the Home menu. Press blue (B) coloured button to start the update procedure.

Network update notifi cation

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Software Update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

Option 1:

1. The update menu will appear on the screen when you turn on the player.

2. Use I/i to select a desired option and then press ENTER ( ).

CAUTION

• Before updating the software in your player, remove any disc and USB Device from the player.

• Before updating the software in your player, turn the player off and then turn it back on.

• During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button.

• If you cancel the update, turn off the power and turn it on for stable performance.

• This unit cannot be updated to previous software version.

[OK]

Starts the software update.

[Cancel]

Exits the update menu and displays it next booting.

1. Check the network connection and settings

(page 25-27).

2. Select [Software] option in the [Setup] menu then press ENTER ( ).

3. Select [Update] option, and press ENTER

( ).

Downloaded From TheatreSystem-Manual.com Manuals

The player will check for the newest update.

Appendix

73

NOTE

• Pressing ENTER (

)

while checking for the update will end the process.

• If there is no update available, the Message,

“No update is found.” appears. Press ENTER ( to return to the [Home Menu].

)

4. If newer version exists, the message “A new update was found. Do you want to download it?” appears.

CAUTION

Do not turn off the power during the software update.

NOTE

If the software includes the driver update, disc tray may open during the process.

9. When update is completed, the message,

“Update is complete.” will appear, and then power will turn off automatically after 5 seconds.

10. Turn the power back on. The system now operates with the new version.

5. Select [OK] to download the update.

(Selecting [Cancel] will end the update.)

6. The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition)

7. When downloading is completed, the message, “Download is complete. Do you want to update?” appears.

8. Select [OK] to start updating.

(Selecting [Cancel] will end the update and downloaded fi le will not be re-usable. To update software the next time, the software update procedure has to be started from the beginning again.)

NOTE

The Software Update function may not work properly depending on your internet environment.

In this case, you can obtain the latest software from the authorized LG Electronics Service Centre then update your player. Refer to “Customer Support” on page 68.

7

Downloaded From TheatreSystem-Manual.com Manuals

74

Appendix

Video output resolution

When the non-copy protected media is playing back

Video Out

Resolution

576i

576p

720p

1080i

1080p / 24 Hz

1080p / 50 Hz

HDMI OUT

576p

576p

720p

1080i

1080p / 24 Hz

1080p / 50 Hz

COMPONENT VIDEO OUT

HDMI connected HDMI disconnected

576i

576p

720p

1080i

1080i

1080i

When the copy protected media is playing back

Video Out

Resolution

576i

576p

720p

1080i

1080p / 24 Hz

1080p / 50 Hz

HDMI OUT

576p

576p

720p

1080i

1080p / 24 Hz

1080p / 50 Hz

COMPONENT VIDEO OUT

HDMI connected HDMI disconnected

576i

576i

-

-

-

576i

576i

576i

576i

7

HDMI OUT connection

• For the 576i resolution setting, real output resolution of HDMI OUT will change to

576p.

• If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

• If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

• The 1080p video output frame rate may be automatically set to either 24 Hz or

50 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

COMPONENT VIDEO OUT connection

BD or DVD could prevent up-scaling on analogue output.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i resolution.

When you set the HDMI Resolution, over 720p is not outputted to Composit Video.

Downloaded From TheatreSystem-Manual.com Manuals

Appendix

75

Trademarks and Licences

“Blu-ray Disc” is a trademark.

HDMI, the HDMI logo and High-Defi nition

Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

“BD-LIVE” logo is a trademark of Blu-ray Disc

Association.

“BONUSVIEW” is trademark of Blu-ray Disc

Association.

“DVD Logo” is a trademark of DVD Format/Logo

Licensing Corporation.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun

Microsystems, Inc. in the United States and other countries.

DivX, DivX Certifi ed and associated logos are registered trademarks of DivX, Inc. and are used under license.

“x.v.Colour” is a trademark of Sony Corporation.

Manufactured under licence from Dolby

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

YouTube

TM

is a trademark of Google Inc.

Picasa

TM

Web Albums is a trademark of Google Inc.

7

Manufactured under license under U. S. Patent

#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,226,616; 6,487,535; 7,392,195; 7,272,567;

7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master

Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc.

All Rights Reserved.

Downloaded From TheatreSystem-Manual.com Manuals

76

Appendix

“AVCHD” and the “AVCHD” logo are trademarks of

Panasonic Corporation and Sony Corporation.

This product is licenced under the AVC patent portfolio licence and VC-1 patent portfolio licence for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1

Video”) and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licenced to provide AVC/VC-1 Video.

No licence is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

7

Downloaded From TheatreSystem-Manual.com Manuals

Appendix

77

Specifi cations

Tuner

87.5 to 108.0 MHz or 87.50 to 108.00 MHz

General

200 - 240 V, 50/60 Hz

110 W

• Dimensions (W x H x D):

Approx. 360 x 313 x 62.5 mm without foot

2.9 kg

41 °F to 95 °F (5 °C to 35 °C)

5 % to 90 %

• Bus Power supply (USB):

DC 5 V 500 mA

Amplifi er

• Stereo mode:

Front

Center

Surround

Subwoofer

136 W + 136 W (4 Ω at 1 kHz)

136 W + 136 W (4 Ω at 1 kHz)

136 W (4 Ω at 1 kHz)

136 W + 136 W (4 Ω at 1 kHz)

170 W (3 Ω at 60 Hz)

Inputs/ Outputs

1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1,

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

• HDMI OUT (video/audio):

19 pin (HDMI standard, Type A, Version 1.3)

• Analogue AUDIO IN:

2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

• DIGITAL IN (OPTICAL IN):

3 V (p-p), Optical jack x 1

0.5 Vrms (3.5 mm stereo jack)

System

• Laser:

Semiconductor laser

Wavelength: 405 nm / 650 nm

Standard NTSC/PAL colour TV system

20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)

More than 80 dB

• Total harmonic distortion:

0.05 % at 1 W

• Dynamic range:

More than 85 dB

Ethernet jack x 1, 10BASE-T/100BASE-TX

7

Downloaded From TheatreSystem-Manual.com Manuals

78

Appendix

Speakers

• Front speaker (Left/ Right)

Type: 2 Way 2 speaker

Impedance Rated:

Input Power:

Max. Input power:

Net Dimensions

(W x H x D):

Net Weight:

4 Ω

136 W

272 W

270 x 1022 x 225 mm

2.7 kg

• Rear speaker (Left/ Right)

Type:

Impedance

Input Power:

Max. Input power:

Net Dimensions

(W x H x D):

Net Weight:

1 Way 1 speaker

4 Ω

136 W

272 W

100 x 186 x 100 mm

0.4 kg

Type:

Impedance Rated:

Input Power:

Max. Input power:

Net Dimensions

(W x H x D):

Net Weight:

• Subwoofer

Type:

Impedance Rated:

Input Power:

Max. Input power:

Net Dimensions

(W x H x D):

Net Weight:

2 Way 2 speaker

4 Ω

136 W

272 W

200 x 103 x 88 mm

0.48 kg

1 Way 1 speaker

3 Ω

170 W

340 W

190 x385 x 275 mm

4.6 kg

7

Downloaded From TheatreSystem-Manual.com Manuals

Appendix

79

Important Information

Relating to Network

Services

PLEASE READ CAREFULLY. USE OF THE NETWORK

SERVICES IS SUBJECT TO THE FOLLOWING TERMS

AND CONDITIONS.

Use of the Network Services requires an Internet connection which is sold separately and for which you are solely responsible. The Network Services may be limited or restricted depending upon the quality, capabilities and technical limitations of your Internet service.

The Network Services belong to third parties and may be protected by copyright, patent, trademark and/or other intellectual property laws. The Network

Services are provided sol\ely for your personal and noncommercial use. Unless expressly authorized by the respective content owner or service provider, you shall not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services accessible through this product.

LG IS NOT RESPONSIBLE FOR YOUR USE OF

THE NETWORK SERVICES. THE NETWORK

SERVICES ARE PROVIDED “AS IS.” TO THE FULLEST

EXTENT PERMISSIBLE BY LAW, LG MAKES NO

REPRESENTATIONS OR WARRANTIES OF ANY KIND

WHATSOEVER (i) FOR THE ACCURACY, VALIDITY,

TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY

NETWORK SERVICE MADE AVAILABLE THROUGH

THIS PRODUCT; OR (ii) THAT THE NETWORK SERVICES

ARE FREE OF VIRUSES OR OTHER COMPONENTS

THAT MAY INFECT, HARM, OR CAUSE DAMAGE TO

THIS PRODUCT, YOUR COMPUTER, TELEVISION,

OTHER EQUIPMENT, OR ANY OTHER PROPERTY. LG

EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES,

INCLUDING BUT NOT LIMITED TO, WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE.

UNDER NO CIRCUMSTANCES AND UNDER NO

LEGAL THEORY, WHETHER IN CONTRACT, TORT,

STRICT LIABILITY OR OTHERWISE, SHALL LG BE

LIABLE TO YOU OR ANY THIRD PARTY FOR ANY

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, STATUTORY,

CONSEQUENTIAL OR OTHER DAMAGES OR

ATTORNEY FEES OR EXPENSES RELATING TO OR

ARISING OUT OF THE NETWORK SERVICES EVEN IF

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR

IF SUCH DAMAGES COULD HAVE BEEN REASONABLY

FORESEEN.

The Network Services may be terminated or interrupted at any time, and LG makes no representation or warranty that any Network Service will remain available for any period of time. Use of the

Network Services may be subject to additional terms and conditions of the respective third party service provider. The Network Services are transmitted by third parties by means of networks and transmission facilities over which LG has no control. LG EXPRESSLY

DISCLAIMS ANY RESPONSIBILITY OR LIABILITY

FOR ANY INTERRUPTION OR SUSPENSION OF ANY

NETWORK SERVICE.

LG shall be neither responsible nor liable for customer service related to the Network Services.

Any question or request should be made directly to the respective Network Service providers.

“Network Service(s)” means the third party services accessible through this product including but not limited to all data, software, links, messages, video and other content found thereon or used in connection therewith.

“LG” means LG Electronics, Inc. its parent company related companies worldwide.

7

Downloaded From TheatreSystem-Manual.com Manuals

80

Appendix

7

Open source software notice

The following GPL executables and LGPL libraries used in this product are subject to the GPL2.0/

LGPL2.1 License Agreements:

GPL EXECUTABLES: Linux kernel, busybox, linux IR control package, ntfs-3g, squashfs, u-boot

LGPL LIBRARIES: glibc, libmtp, libusb, libusbcompat

LG Electronics off ers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at: [email protected]

This off er is valid for a period of three(3) years from the date of the distribution of this product by LG

Electronics.

You can obtain a copy of the GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/ gpl-2.0.html and http://www.gnu.org/licenses/oldlicenses/lgpl-2.1.html .

This product includes

• curl: copyright © 1996 - 2008, Daniel Stenberg

• expat: copyright © 2006 expat maintainers

• freetype: copyright © 2003 The FreeType Project

(www.freetype.org).

• International Components for Unicode: copyright © 1995-2010 International Business

Machines Corporation and others

• jpeg: This software is based in part on the work of the Independent JPEG Group copyright © 1991 –

1998, Thomas G. Lane.

– cryptographic software written by Eric Young

([email protected]).

– software written by Tim Hudson

([email protected]).

– software developed by the OpenSSL Project for use in the OpenSSL Toolkit.

(http://www.openssl.org)

• xml2 : copyright © 1998-2003 Daniel Veillard

• WPA Supplicant : Copyright © 2003-2007, Jouni

Malinen <[email protected] > and contributors

• zlib: copyright © 1995-2002 Jean-loup Gailly and

Mark Adler.

All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation fi les (the “Software”), to deal in the

Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE WARRANTIES

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL

THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR

ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER

IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,

ARISING FROM, OUT OF OR IN CONNECTION WITH THE

SOFTWARE OR THE USE OR OTHER DEALINGS IN THE

SOFTWARE.

Permission is hereby granted, without written agreement and without license or royalty fees, to use, copy, modify, and distribute this software and its documentation for any purpose, provided that the above copyright notice and the following two paragraphs appear in all copies of this software.

IN NO EVENT SHALL THE COPYRIGHT HOLDER BE

LIABLE TO ANY PARTY FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THE USE OF THIS SOFTWARE AND ITS

DOCUMENTATION, EVEN IF THE COPYRIGHT HOLDER HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• Unicode Bidirectional Algorithm copyright ©

1999-2009, ASMUS, Inc. All Rights Reserved.

Distributed under the Terms of Use in http://www.unicode.org/copyright.html.

THIS SOFTWARE IS PROVIDED “AS IS”, WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE

AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN

NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS

INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR

ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES,

OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS

OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF

CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,

ARISING OUT OF OR IN CONNECTION WITH THE USE OR

PERFORMANCE OF THE SOFTWARE.

Downloaded From TheatreSystem-Manual.com Manuals

Downloaded From TheatreSystem-Manual.com Manuals

Downloaded From TheatreSystem-Manual.com Manuals

Warranty

83

Technology with the human touch

GUARANTEE

• LG Electronics U.K. Ltd. will provide the following services in order toexpedite this Guarantee.

1. All faulty components which fail due to defective manufacture will be replaced free of charge for a period of 12 months from the original date of purchase.

2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure.

PLEASE NOTE:

A. The dealer may restrict the guarantee to the original purchaser.

B. The dealer is not obliged to carry out service under guarantee if unauthorized modifi cations are made to the apparatus, or if non standard components are used or if the serial number of the apparatus is removed, defaced, misused, or altered.

C. Any claims made under guarantee must be directed to the dealer from whom the equipment was originally purchased. The dealer may, before carrying out service under guarantee, require a receipted account as evidence of the date of purchase.

D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted or worn in use.

E. Aerial alignment and consumer control adjustments are not covered by this guarantee.

This guarantee does not aff ect your statutory rights.

• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:

RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE SURRENDERED

AT THE TIME GUARANTEE SERVICE IS PROVED.

• Product Registration Card :

It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should modifi cations be necessary.

• To obtain information or assistance: Call 0870 873 5454 Monday-Friday 9.00am-4.30pm

MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*

LGEUK Website : www.lge.co.uk

( service website : www.lgelectronics.co.uk )

8

Downloaded From TheatreSystem-Manual.com Manuals

Downloaded From TheatreSystem-Manual.com Manuals

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
