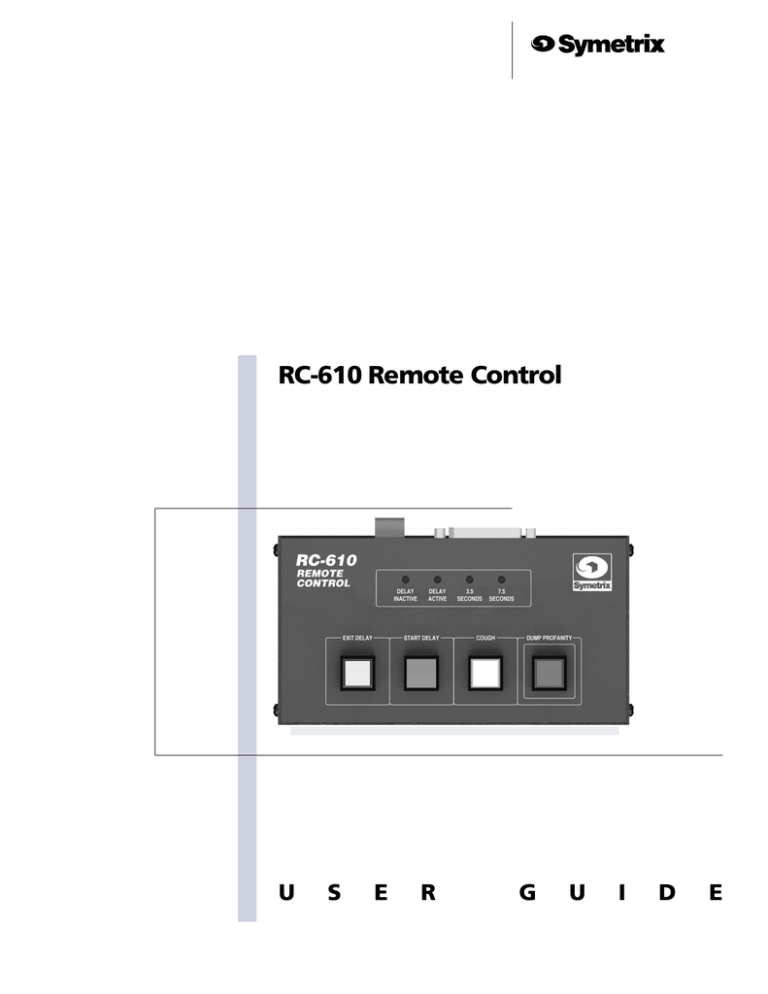

RC-610 User s Guide
RC-610 Remote Control
U
S
E
R
N
G
U
I
D
E
RC-610 Remote Control User’s Guide
© July 2000 Symetrix, Inc.
All rights reserved.
Printed in the United States of America
Symetrix Part Number 53R610-0A00
The information in this guide is subject to
change without notice. Symetrix, Inc. shall
not be liable for technical or editorial
errors or omissions contained herein; nor
is it liable for incidental or consequential
damages resulting from the furnishing,
performance, or use of this material.
Mention of third-party products is for informational purposes only and constitutes
neither an endorsement nor a recommendation. Symetrix assumes no responsibility with regard to the performance or use
of these products.
Under copyright laws, no part of this user
guide may be reproduced or transmitted
in any form or by any means, electronic or
mechanical, without permission in writing
from Symetrix, Inc. If, however, your only
means of access is electronic, permission
to print one copy is hereby granted.
Symetrix, Inc.
14926 35th Ave West
Lynnwood WA 98037-2303
USA
Tel:
425.787.3222
Fax:
425.787.3211
Web:
www.symetrixaudio.com
Email: [email protected]
Symetrix RC-610 Remote Contr ol User’s Guide
Contents
Before You Begin
2
Operational Safety Summary
2
Equipment Markings
2
Getting Help
2
Notational Conventions in this User Guide
2
Product Summary
3
Features
3
What Ships in the Box
3
Making Hardware Connections
4
Operating the RC-610
5
Hardware Specifications
7
Warranty
8
Service
9
1
Symetrix RC-610 Remote Contr ol User’s Guide
Before You Begin
Operator Safety Instructions
Getting Help
Please follow all warnings and instructions.
Install in accordance with the manufacturer’s instructions.
If you have technical questions beyond the scope of this guide, please contact
our Technical Services Group in the following ways:
Operating Location Do not operate this
equipment under any of the following
conditions: explosive atmospheres, in wet
locations, in inclement weather, improper
or unknown AC mains voltage, or if
improperly fused. Do not install near any
heat source such as radiators, heat
registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Unplug this apparatus during lightning
storms or when unused for long periods of
time.
Stay Out of the Box To avoid personal
injury (or worse), do not remove the
product covers or panels. Do not operate
the product without the covers and panels
properly installed. Only use accessories
specified by the manufacturer. Clean only
with a damp cloth.
User-Serviceable Parts There are no
user serviceable parts inside the RC-610.
In case of failure, refer all servicing to the
factory. Servicing is required when the
RC-610 has been damaged in any way,
such as when a power supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
T
US customers (888) 349-3222
International customers (425) 787-3222
from 6:00 am to 4:30 pm Pacific Time Monday through Friday
F
(425) 787-3211
[email protected]
www.symetrixaudio.com
Notational Conventions in this User Guide
Note
Identifies information that needs extra emphasis. Generally
supplies extra information to help you to better use the
RC-610.
Caution
Identifies information that, if unheeded, may cause
damage to the RC-610 or other equipment in your system.
Warning
Identifies information that, if ignored, may be hazardous to
your health or that of others.
CAPS
Controls, switches or other markings on the chassis of the
RC-610.
Equipment Markings
The lightning flash with arrowhead symbol
within an equilateral triangle is intended
to alert the user of the presence of
uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons. The exclamation
point within an equilateral triangle is
intended to alert the user of the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product (i.e., this user
guide).
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
AVIS:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
SEE OWNERS MANUAL. VOIR CAHIER D’INSTRUCTIONS.
No user serviceable parts inside. Refer servicing to qualified service personnel.
Il ne se trouve a l’interieur aucune piece pourvant entre reparée l’usager.
S’adresser a un reparateur compétent.
2
Symetrix RC-610 Remote Contr ol User’s Guide
Before You Begin
Product Summary
The RC-610 Remote Control permits
Features
Lighted Switches
Press lighted push-button switches to activate the Symetrix
610 Broadcast Audio Delay unit’s features—Exit Delay,
Start Delay, Cough, and Dump Profanity.
LED Indicators
View the operational status of the Symetrix 610: Delay
Inactive, Delay Active, 3.5 Seconds and 7.5 Seconds.
Remote Access
100 feet maxmium cable length distance with low impedance cable.
Opto-isolator
Avoid such complications as ground loops with this isolated
circuitry. Allows connection to a cart machine or CD player.
producers or on-air talent to control
the main functions of the Symetrix
610 Broadcast Audio Delay, a digital
delay unit for live broadcast that
prevents unwanted profanity or
comments from reaching the airwaves.
What Ships in the Box
! The RC-610 unit
! One DB-25 connector cable, 25 ft. in length
! 4 rubber feet for optional mounting to bottom of unit
! This user’s guide
! A warranty card
You can extend the one year warranty by 4 more years if you return your
warranty card or register online at www.symetrixaudio.com.
3
Symetrix RC-610 Remote Contr ol User’s Guide
Making Hardware Connections
RC-610 Basic Connection
CONNECTION
CONNECTOR TYPE
WHAT IT DOES
610 INTERFACE
DB-25 Female
Enables data transfer between the
RC-610 Remote Control and the 610
Broadcast Audio Delay.
OPTICAL OUTPUT ISOLATOR
Detachable Euroblock
Connects to any playback source that
has an optical input connector. When
you press DUMP PROFANITY, a 500 ms
pulse triggers the connected device.
Playback sources include an on-air
delivery system, CD player, cart
machine, or digital cart machine.
To OPTO INPUT playback
source (optional)
Use 3-conductor shielded
or 2-conductor with
separate shield cable,
24 gauge minimum.
RC-610 Remote Control
610 INTERFACE
MANUFACTURED IN LYNNWOOD, WA USA
NO USER SERVICEABLE PARTS INSIDE.
Maximum length 25 feet
GND
OPTICAL
ISOLATOR
OUTPUT
FABRIQUÉ AUX E.-U. PAR SYMETRIX INC., LYNNWOOD, WASHINGTON.
RÉFÉREZ TOUTE RÉPARATION À UN TECHNICIEN QUALIFIÉ.
DB-25 cable, maximum length 100 feet
610 Broadcast Audio Delay
BROADCAST AUDIO DELAY
LEFT OUTPUT
REMOTE INDICATOR AND
CONTROL INTERFACE
AC INPUT
20W MAXIMUM
RIGHT OUTPUT
NOMINAL OPERATING
LEVEL (dB)
+8 dBu
+4 dBu
LEFT INPUT
PRE SS
RIGHT INPUT
PRE SS
POWER
4
Symetrix RC-610 Remote Contr ol User’s Guide
Operating the RC-610
Front Panel Controls and Status LEDs
DELAY
INACTIVE
EXIT DELAY
DELAY
ACTIVE
START DELAY
7.5
3.5
SECONDS SECONDS
COUGH
DUMP PROFANITY
FEATURE
NAME
WHAT IT DOES
Status LEDs
DELAY INACTIVE
Indicates that the 610 has been
forced into a bypass state. This can
happen automatically as a result of
the EXIT DELAY function or manually
as a result of moving the STATUS
button on the front panel of the 610
to the BYPASS position.
DELAY ACTIVE
Indicates activation of the START
DELAY function.
3.5 SECONDS
Indicates that 3.5 seconds of delay
has been built into the program
audio.
7.5 SECONDS
Indicates that 7.5 seconds of delay
has been built into the program
audio.
EXIT DELAY
Initiates the gradual reduction of
delay time. Several minutes before
the end of the show, press this
button to have the Symetrix 610 time
compress the program audio until
there is nothing left in its memory
(zero seconds delay). At this point
the program is back in “real-time”
and the 610 automatically removes
itself from the signal path. This
button blinks as long as delay time is
decreasing. Its light switches off
when zero delay is achieved.
Push Button Controls
You can download the Symetrix 610 Br oadcast
Audio Delay User’s Guide from
www.symetrixaudio.com
5
Symetrix RC-610 Remote Contr ol User’s Guide
Operating the RC-610
Front Panel Controls and Status LEDs continued
FEATURE
Push Button Controls
continued
NAME
WHAT IT DOES
START DELAY
Initiates the gradual increase of delay
time. Press this button when a radio
talk show begins. The light of this
button blinks for as long as delay
time is increasing. The light shines
steady once full delay time (7.5
seconds) is achieved. See Appendix C
in the Symetrix 610 Broadcast Audio
Delay User’s Guide for more information.
COUGH
Mutes the incoming signal while
allowing the output signal to play
(uninterrupted) from the 610’s
memory. You can cough, have a
quick drink of water, or make a
comment to the producer or engineer
without any perceptible program
interruption.
When you press this button, the 610
plays from memory. If you press this
button for a period of time that
exceeds the amount of delay available, then there will be dead air for
the excess (muted output). When
you release the button, the 610
automatically begins to refill the
memory.
DUMP PROFANITY
Plays delayed programming stored in
memory to prevent unwanted audio
from reaching the airwaves. As the
program begins, the 610 gradually
and unobtrusively delays or
“stretches out” the program until 7.5
seconds of stereo audio is stored in
memory. When you press this button,
the memory is cleared. Then the 610
automatically begins to stretch (time
expand) the program audio again
until it attains the full 7.5 second
delay.
See Appendix C of the 610 Broadcast
Audio Delay User’s Guide for details
on how to select between a full memory
dump or a half memory—3.75 second
—dump.
You can download the Symetrix 610 Br oadcast
Audio Delay User’s Guide from
www.symetrixaudio.com
6
Symetrix RC-610 Remote Contr ol User’s Guide
Hardware Specifications
Connections
Input/Output
Output
Physical
Size (H x W x D)
Shipping Weight
Electrical
Power Requirements
DB-25 female
Euroblock, detachable
1.5 in. x 7.15 in. x 3.85 in. / 3.81 cm x 18.16 cm x 9.78 cm
1.14 lbs.
Powered from Symetrix 610 Broadcast Audio Delay
In the interest of continuous product
improvement, Symetrix, Inc. reserves the
right to alter, change, or modify these
specifications without prior notice.
7
Symetrix RC-610 Remote Contr ol User’s Guide
Warranty
Important Information
Regarding Your Warranty
We would like to offer you an incentive to
complete our product registration form.
Either fully complete and mail your product
registration card or register online at
www.symetrixaudio.com. You will then
have a total of 5 years of warranty
coverage, under the terms and limitations
as set forth below, without additional cost.
If you don’t register your product, you will
still receive one year of warranty coverage,
but it only takes a minute to fill out the
card or register online and we won’t share
your personal information with others.
Following are the terms and limitations of
the Symetrix warranty.
Warranty
Symetrix, Inc. expressly warrants to the
original purchaser (“Buyer”), subject to the
terms and conditions set forth below, that
the Product will be free from defects in
material and workmanship as a result of
normal commercial use for one (1) year
from the date of purchase. This warranty
will be automatically extended (subject to
the additional limitations set forth below)
for an additional four years if the Warranty
Registration is completed and returned to
Symetrix (or completed online) within
thirty (30) days of the date of delivery.
Symetrix’s warranty obligation is limited to
the repair, replacement, or refund at
Symetrix’s sole discretion, of the part or
parts of the Product which may thus prove
defective in materials or workmanship
within one year from date of purchase (or
five years from the date of purchase if
Buyer has registered its purchase as
provided above) under normal use and
which our examination discloses to our
satisfaction to be thus defective, provided
that Buyer gives Symetrix prompt notice of
its warranty claim and satisfactory proof
thereof.
Symetrix will make every reasonable effort
to ensure that parts are available to
support the repair of our products under
warranty. In the event that a product or
component part thereof becomes obsolete,
unavailable or irreparable, Symetrix
reserves the right to refund a prorated
portion of the purchase price in full
satisfaction of all warranty claims. A refund
of the purchase price is prorated as
follows: 100% through year one, 80%
through year two, 60% through year three,
40% through year four and 20% through
year five.
In order to serve you better we request
that the Buyer shall, prior to shipping
Product to Symetrix for warranty service,
contact Symetrix and secure a Return
Authorization Number that shall be
included with the returned Product. This
will facilitate our efforts to keep track of
your Product and process your warranty
repair as quickly as possible. Buyer will
prepay all freight charges to ship the
Product to Symetrix for warranty inspection
and service. This warranty is subject to
Symetrix’s inspection of the Product at its
facilities and, upon Symetrix’s request,
satisfactory proof of purchase (dated copy
of original retail dealer’s invoice.)
Symetrix reserves the right to effect
repairs to the product with reconditioned
components/parts. Products once repaired
under warranty will be shipped to Buyer
freight prepaid by Symetrix via United
Parcel Service (surface) or any similar
shipper, to any location designated by
buyer within the Continental United States.
At Buyer’s request and expense Product
will be returned via airfreight. Outside the
continental United States, repaired or
replaced products will be returned freight
collect.
THIS WARRANTY IS EXPRESSLY IN LIEU OF
ALL OTHER WARRANTIES EXPRESS OR
IMPLIED, ARISING BY LAW OR OTHERWISE
(INCLUDING, WITHOUT LIMITATION ANY
OBLIGATIONS OF THE SELLER WITH
RESPECT TO CONSEQUENTIAL DAMAGES)
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE AND
OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART, AND WE NEITHER
ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OTHER
LIABILITY IN CONNECTION WITH THE
SALE OF THE PRODUCT. THIS WARRANTY
SHALL NOT APPLY TO THIS PRODUCT OR
ANY PART THERE OF WHICH HAS BEEN
SUBJECT TO ACCIDENT, NEGLIGENCE,
ALTERATION, ABUSE, OR MISUSE. WE
MAKE NO WARRANTY WHATSOEVER IN
RESPECT TO ACCESSORIES OR PARTS NOT
SUPPLIED BY US. THE TERM “ORIGINAL
PURCHASER,” AS USED IN THIS WARRANTY SHALL BE DEEMED TO MEAN THAT
PERSON OR COMPANY THAT ORIGINALLY
PURCHASED THE PRODUCT.
This Symetrix product has been designed
and manufactured for use in professional
and studio audio systems and is not
intended for other usage. This warranty
only applies to Buyers using the Product in
professional and studio audio systems.
With respect to others, including but not
limited to consumers for personal, family,
or household use, Symetrix expressly
disclaims all warranties, including but
not limited to warranties of merchantability and fitness for a particular
purpose and the express warranties as
otherwise provided herein.
Symetrix reserves the right to modify the
design or make additions to, or improvements to, its product lines without making
similar upgrades to Product purchased by
Buyer. Symetrix does not authorize any
third party, including any dealer or sales
representative, to assume any liability,
effect any repairs or modifications to the
Product, or make any additional warranties
or representation regarding the Product or
Product information on behalf of Symetrix.
Symetrix’s total liability on any claim,
whether in contract, tort (including
negligence) or otherwise arising out of,
connected with, or resulting from the
manufacture, sale, delivery, resale, repair,
replacement or use of Product will not
exceed the purchase price of the Product or
any part thereof which gives rise to the
claim. In no event will Symetrix be liable
for any incidental or consequential
damages including but not limited to
damage for lost revenue, cost of capital,
claims of customers for service interruptions or failure to supply, and costs and
expenses incurred in connection with labor,
overhead, transportation, installation or
removal of products or substitute facilities
or supply houses as a result of Product
failure.
This limited warranty gives Buyer certain
rights. Buyer may have additional rights
under applicable law.
8
Symetrix RC-610 Remote Contr ol User’s Guide
Service
Where to Get Service
To Get Your RC-610 Unit Repaired (US Customers Only)
If outside of the USA
1
If you have determined that your RC610 requires repair services and you
live outside of the United States,
please contact your local Symetrix
dealer or distributor for instructions
on how to obtain service.
If inside the USA
Symetrix will perform in-warranty or
out-of-warranty service on any
product it has manufactured for a
period of five years from date of
manufacture. If you reside in the
USA, then proceed as follows:
In-Warranty Repairs
Repairs made in-warranty will cost
you only one-way freight charges.
We’ll prepay the return (surface)
freight. Of course, if the repair is due
to operator error, parts and labor will
be charged. If there are charges for
the repair costs, you will pay for the
return freight. All charges will be COD
unless you have made other arrangements (prepaid, Visa, or Mastercard).
Call our Technical Services Group for a return authorization (RA) number.
(888) 349-3222, Monday through Friday, 6:00 am to 4:30 pm Pacific Time
Have your serial number ready to give to the service representative. You
will find it on the bottom of the unit.
2
Pack the unit in its original packaging materials.
3
Include your name, address, daytime telephone number, and a brief statement of the problem.
4
Write the RA number on the outside of the box.
5
Ship the unit to Symetrix, freight prepaid. We do not accept freight
collect shipments.
Symetrix, Inc.
14926 35th Ave West
Lynnwood WA 98037
If You Don't Have Factory Packaging Materials
If you send us your product in substandard packaging, we will charge you for
factory shipping materials. If you don’t have the factory packaging materials, do
the following:
1
Select an oversized carton.
2
Wrap the unit in a plastic bag, and surround it with bubble-wrap.
3
Pack the box full of Styrofoam peanuts. Be sure there is enough clearance
in the carton to protect the rack ears.
We will return the unit in Symetrix packaging.
Out-of-Warranty Repairs
If the warranty period has passed,
you’ll be billed for all necessary parts,
labor, packaging materials, and
freight charges.
9
301
Low Distortion Compressor/Limiter
302
Dual Microphone Preamplifier
303
Interface Amplifier
304
Headphone Amplifier
305
Distribution Amplifier (1x4)
306
Preamp/Ducker
307
Dual Isolation Transformer
308
VCA Volume Control/Loudness EQ
372
SPL Computer
402
Dual Output Delay
420
Stereo Power Amplifier
421M
AGC-Leveler
422
Stereo AGC-Leveler
440
Foreground Audio Controller
450
Dual Zone Priority Mixer
501
Peak-RMS Compressor/Limiter
501-01
Peak-RMS Compressor/Limiter
506E
Headphone Amplifier
527E
Voice Processor
528E
Voice Processor
531E
Graphic Equalizer
532E
Graphic Equalizer
533E
Graphic Equalizer
551E
5-Band Parametric EQ
552E
Dual 5-Band Parametric EQ
562E
Windowing Expander/Gate
565E
Dual Compressor/Limiter/Expander
571
SPL Computer
571S
SPL Computer Slave
572
SPL Computer
581E
Distribution Amplifier (4x4)
606
Delay F/x Machine
610
Broadcast Audio Delay
628
Digital Voice Processor
9022
2x2 DSP Engine
HR-1
Headphone Remote for 304 and 506E
RC-1
628 Remote Control
RC-2
440 Remote Control
RC-610
Remote Control
www.symetrixaudio.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
