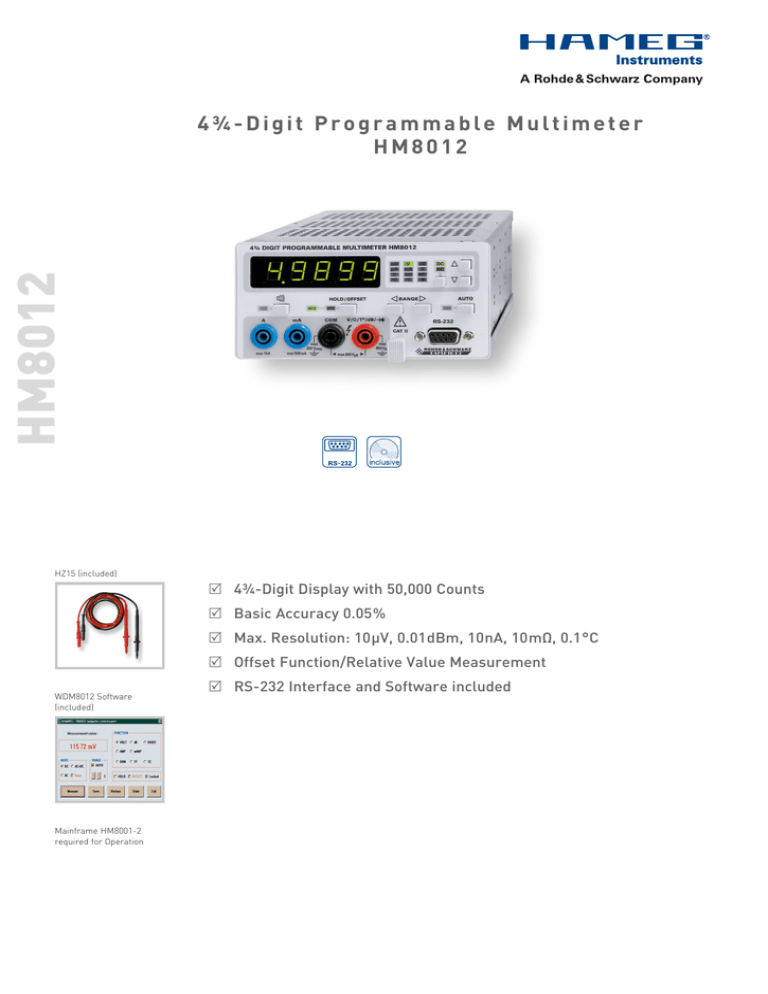

Quick Facts
HM8012
4¾-Digit Programmable Multimeter
HM8012
HZ15 (included)
R 4¾-Digit Display with 50,000 Counts
R Basic Accuracy 0.05 %
R Max. Resolution: 10 µV, 0.01 dBm, 10 nA, 10 mΩ, 0.1 °C
R Offset Function/Relative Value Measurement
WDM8012 Software
(included)
Mainframe HM8001-2
required for Operation
R RS-232 Interface and Software included
4¾-Digit Programmable Multimeter HM8012
All data valid at 23 °C after 30 minutes warm-up.
DC voltage
Measurement ranges:
Resolution:
Accuracy:
5 V, 500 V, 600 V
500 mV, 50 V
Overload protection:
V/Ω/T°/dB/
to
COM and to chassis
COM against chassis
Input resistance:
50 V, 500 V, 600 V
500 mV, 5 V
Input current:
Common mode
­rejection ratio:
Serial mode rejection ratio:
dB Mode
Accuracy:
Resolution:
DC current
Measurement ranges:
Resolution:
Accuracy:
0.5…500 mA
10 A
Voltage drop:
10 A range
500 mA range
other ranges
AC voltage
Measurement ranges:
Resolution:
Accuracy 0.5…50 V:
40 Hz…5 kHz
20 Hz…20 kHz
Accuracy 500 V and 600 V:
40 Hz…1 kHz
20 Hz…1 kHz
Overload protection:
V/Ω/T°/dB/
to
COM and to chassis
COM against chassis
Input impedance
AC mode
AC + DC mode
Bandwidth at -3 dB:
dB mode:
Accuracy
-23.8…59.8 dBm
Resolution:
CMRR:
Crest factor:
AC current
Measurement ranges:
Resolution:
Accuracy:
0.5…500 mA
10 A
500 mV, 5 V, 50 V, 500 V, 600 V
10 µV, 100 µV, 1 mV, 10 mV, 100 mV
±(0.05 % of reading + 0.002 % of full scale)
±(0.05 % of reading + 0.004 % of full scale)
850 Vp at max. 60 Hz or 600 Vdc
250 Vrms at max. 60 Hz or 250 Vdc
10 MΩ II 90 pF
>1 GΩ II 90 pF
10 pA
≥100 dB (50…60 Hz ±0.5 %)
≥60 dB (50…60 Hz ±0.5 %)
±(0.02 dB + 2 digits) (display >-38.7 dBm)
0.01 dB above 18 % of rating
500 µA, 5 mA, 50 mA, 500 mA, 10 A
10 nA, 100 nA, 1 µA, 10 µA, 1 mA
±(0.2 % of reading + 0.004 % of full scale)
±(0.3 % of reading + 0.004 % of full scale)
0.2 V max.
2.5 V max.
0.7 V max.
500 mV, 5 V, 50 V, 500 V, 600 V
10 µV, 100 µV, 1 mV, 10 mV, 100 mV
±(0.4 % of reading + 0.07 % of full scale)
±(1 % of reading + 0.07 % of full scale)
±(0.4 % of reading + 0.07 % of full scale)
±(1 % of reading + 0.07 % of full scale)
850 Vp at max. 60 Hz or 600 Vdc
250 Vrms at max. 60 Hz or 250 Vdc
1 MΩ II 90 pF
10 MΩ II 90 pF
80 kHz typical
20 Hz…20 kHz
±0.2 dBm
0.01 dB above 9 mV
≥60 dB (50…60 Hz ±0.5 %)
7 max.
AC + DC measurements
As shown for AC + 25 digits
Resistance
Measurement ranges:
Resolution:
Accuracy:
500 Ω…500 kΩ
5…50MΩ
Overload Protection:
Measurement current:
Measurement voltage:
Temperature
2-wire resistance
­measurement:
Range:
Resolution:
Measurement current:
Display:
Accuracy:
500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 50 MΩ
10 mΩ, 100 mΩ, 1 Ω, 10 Ω, 100 Ω, 1 kΩ
±(0.05 % of reading + 0.004 % of f.s. + 50 mΩ)
±(0.3 % of reading + 0.004 % of full scale)
max. 300 Vrms
500 Ω…5kΩ range:
1mA
50 kΩ range:
100µA
500 kΩ range:
10 µA
5…50 MΩ range:
100 nA
10 V typical for open inputs, depending
on the value of resistance to be measured.
Negative polarity of measurement voltage
is across common terminal.
with linearization for PT100 sensors as per
standard EN60751
-200…+500 °C
0.1 °C
approx. 1 mA
in °C, °F
±(0.4 °C + 0.0005 x T) from -200…+200 °C
±(0.5 °C + 0.0005 x T) from +200…+500 °C
(T in °C, sensor tolerance not included)
Temperature coefficient: (reference 23 °C)
V = 500 mV, 50 V
30 ppm/°C
600 V range
80 ppm/°C
other ranges
20 ppm/°C
V ~ 600 V range
80 ppm/°C
other ranges
50 ppm/°C
mA all ranges
200 ppm/°C
mA~all ranges
300 ppm/°C
Ω 5 MΩ, 50 MΩ ranges
200 ppm/°C
other ranges
50 ppm/°C
Miscellaneous
Power supply (from mainframe):
+5 V
300 mA
~26 V
140 mA
+5…+40 °C
Operating temperature:
-20…+70 °C
Storage temperature:
5…80 % (non condensing)
Rel. humidity:
Dimensions (W x H x D)
(without 22-pole flat plug): 135 x 68 x 228 mm
approx. 0.5 kg
Weight:
Accessories supplied: Operating manual, Interface cable (HZ14),
PVC test leads (HZ15), CD, Software
Recommended accessories:
HZ10S 5 x silicone test lead (measurement connection in black)
HZ10R 5 x silicone test lead (measurement connection in red)
HZ10B 5 x silicone test lead (measurement connection in blue)
HZ812 PT100 Temperature probe
500 µA, 5 mA, 50 mA, 500 mA, 10 A
10 nA, 100 nA, 1 µA, 10 µA, 1 mA
±(0.7 % of reading + 0.07 % of f.s.)
40 Hz…5 kHz
±(1 % of reading + 0.07 % of full scale)
