PHYSICAL ACCESS SOLUTIONS

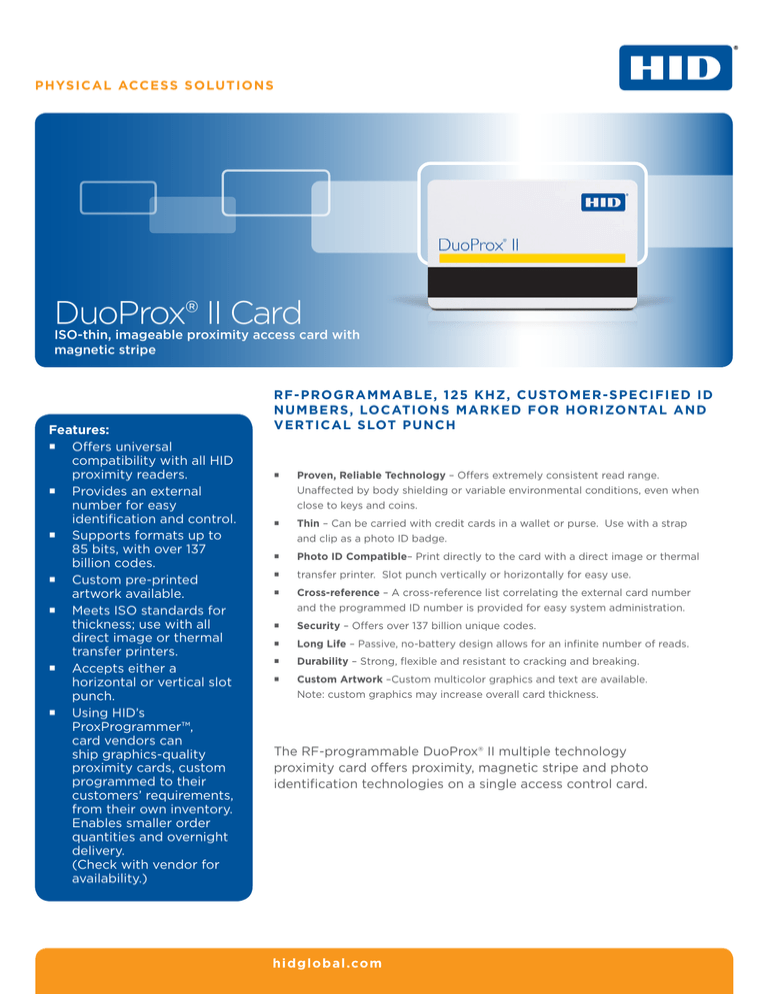

DuoProx® II Card
ISO-thin, imageable proximity access card with
magnetic stripe
Features:
ƒƒ Offers universal
compatibility with all HID
proximity readers.
ƒƒ Provides an external
number for easy
identification and control.
ƒƒ Supports formats up to
85 bits, with over 137
billion codes.
ƒƒ Custom pre-printed
artwork available.
ƒƒ Meets ISO standards for
thickness; use with all
direct image or thermal
transfer printers.
ƒƒ Accepts either a
horizontal or vertical slot
punch.
ƒƒ Using HID’s
ProxProgrammer™,
card vendors can
ship graphics-quality
proximity cards, custom
programmed to their
customers’ requirements,
from their own inventory.
Enables smaller order
quantities and overnight
delivery.
(Check with vendor for
availability.)
RF-PROGRAMMABLE, 125 KHZ, CUSTOMER-SPECIFIED ID
NUMBERS, LOCATIONS MARKED FOR HORIZONTAL AND
VERTICAL SLOT PUNCH
ƒƒ
Proven, Reliable Technology – Offers extremely consistent read range.
Unaffected by body shielding or variable environmental conditions, even when
close to keys and coins.
ƒƒ
Thin – Can be carried with credit cards in a wallet or purse. Use with a strap
and clip as a photo ID badge.
ƒƒ
Photo ID Compatible– Print directly to the card with a direct image or thermal
ƒƒ
transfer printer. Slot punch vertically or horizontally for easy use.
ƒƒ
Cross-reference – A cross-reference list correlating the external card number
and the programmed ID number is provided for easy system administration.
ƒƒ
Security – Offers over 137 billion unique codes.
ƒƒ
Long Life – Passive, no-battery design allows for an infinite number of reads.
ƒƒ
Durability – Strong, flexible and resistant to cracking and breaking.
ƒƒ
Custom Artwork –Custom multicolor graphics and text are available.
Note: custom graphics may increase overall card thickness.
The RF-programmable DuoProx® II multiple technology
proximity card offers proximity, magnetic stripe and photo
identification technologies on a single access control card.
hidglobal.com
SPECIFICATIONS
DuoProx® II Card
Base Part Number
1336
Typical Maximum*
Read Range
ProxPoint® Plus reader-up to 2.5” (6.35 cm)
MiniProx® reader-up to 5” (12.7 cm)
ThinLine II® reader-up to 5” (12.7 cm)
ProxPro® reader-up to 7” (17.8 cm)
ProxPro® II reader-up to 8” (20 cm)
Prox80™ Card reader-up to 5” (12.7 cm)
MaxiProx® reader-up to 20” (50.8 cm)
EntryProx™ reader-up to 2.5” (6.35 cm)
pcProx™ Desktop reader-up to 2.5” (6.35 cm)
Dimensions
2.125” x 3.370” x 0.030” ± 0.003” nominal
(5.4 x 8.6 x 0.076 ± 0.0076 cm)
Construction
Thin, flexible polyvinyl chloride (PVC) laminate with an
ABA standard, high coercivity magnetic stripe rated
4000 Oersted.
Operating
Temperature
-50° to 160° F (-45° to 70° C)
Options
External card numbering (inkjet or laser engraving)
Slot punch (horizontal or vertical)
Custom artwork (text or graphics)
A variety of magnetic stripe type
Weight
0.24 oz. (6.8 g)
Magnetic Stripe
Ready to be encoded by the customer. (See card construction.)
Warranty
Lifetime
NOTES:
*Dependent on local installation conditions.
3.370"
(8.6 cm)
North America: +1 949 732 2000
Toll Free: 1 800 237 7769
Europe, Middle East, Africa: +44 1440 714 850
Asia Pacific: +852 3160 9800
Latin America: +52 55 5081 1650
hid g l o b al.com
0.030" ± 0.003"
(0.076 ± 0.0076 cm)
© 2011 HID Global Corporation. All rights reserved. HID, the HID logo, DuoProx logo are trademarks or registered trademarks of HID Global in
the U.S. and/or other countries. All other trademarks, service marks and product or service names are trademarks or registered trademarks of
their respective owners.
2012-05-14-prox-duoprox-ii-card-ds-en
