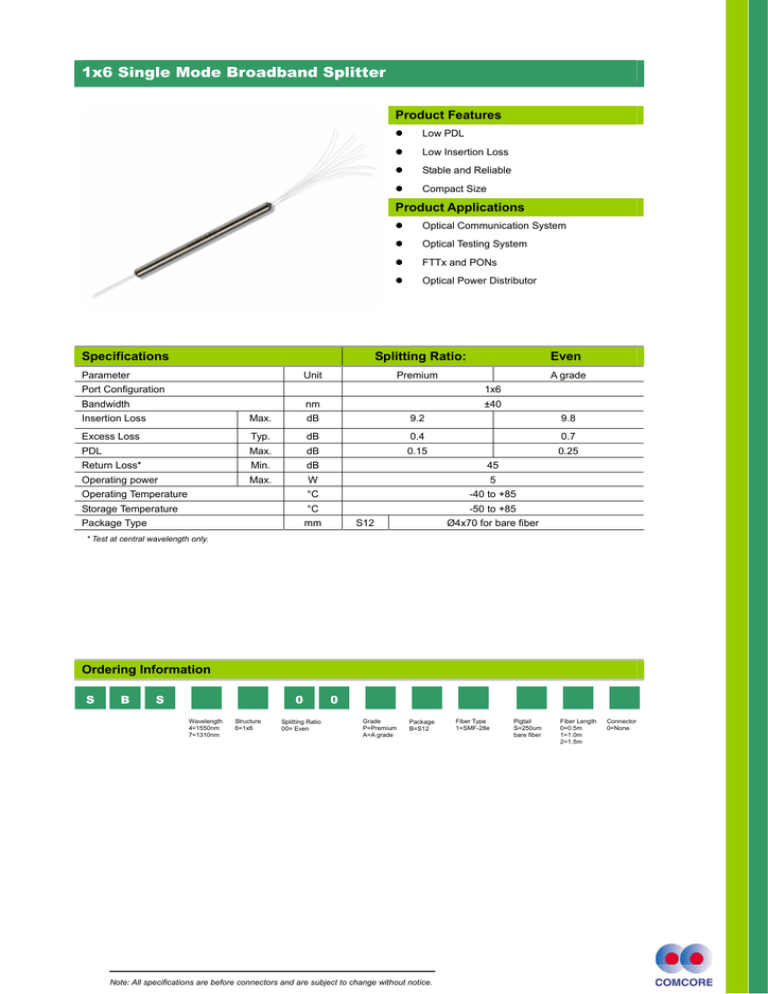

1x6 Single Mode Broadband Splitter
Product Features
z
Low PDL
z
Low Insertion Loss
z
Stable and Reliable
z
Compact Size
Product Applications
Specifications
z
Optical Communication System
z
Optical Testing System
z
FTTx and PONs
z
Optical Power Distributor
Splitting Ratio:
Parameter
Unit
Even
Premium
Port Configuration
A grade
1x6
Bandwidth
nm
Insertion Loss
±40
Max.
dB
Excess Loss
Typ.
dB
0.4
0.7
PDL
Max.
dB
0.15
0.25
Return Loss*
Min.
dB
Operating power
Max.
W
5
°C
-40 to +85
Operating Temperature
Storage Temperature
°C
Package Type
mm
9.2
9.8
45
-50 to +85
S12
Ø4x70 for bare fiber
* Test at central wavelength only.
Ordering Information
S
B
S
0
Wavelength
4=1550nm
7=1310nm
Structure
6=1x6
Splitting Ratio
00= Even
0
Grade
P=Premium
A=A grade
Package
B=S12
Note: All specifications are before connectors and are subject to change without notice.
Fiber Type
1=SMF-28e
Pigtail
S=250um
bare fiber
Fiber Length
0=0.5m
1=1.0m
2=1.5m
Connector
0=None
