Blade Fuses

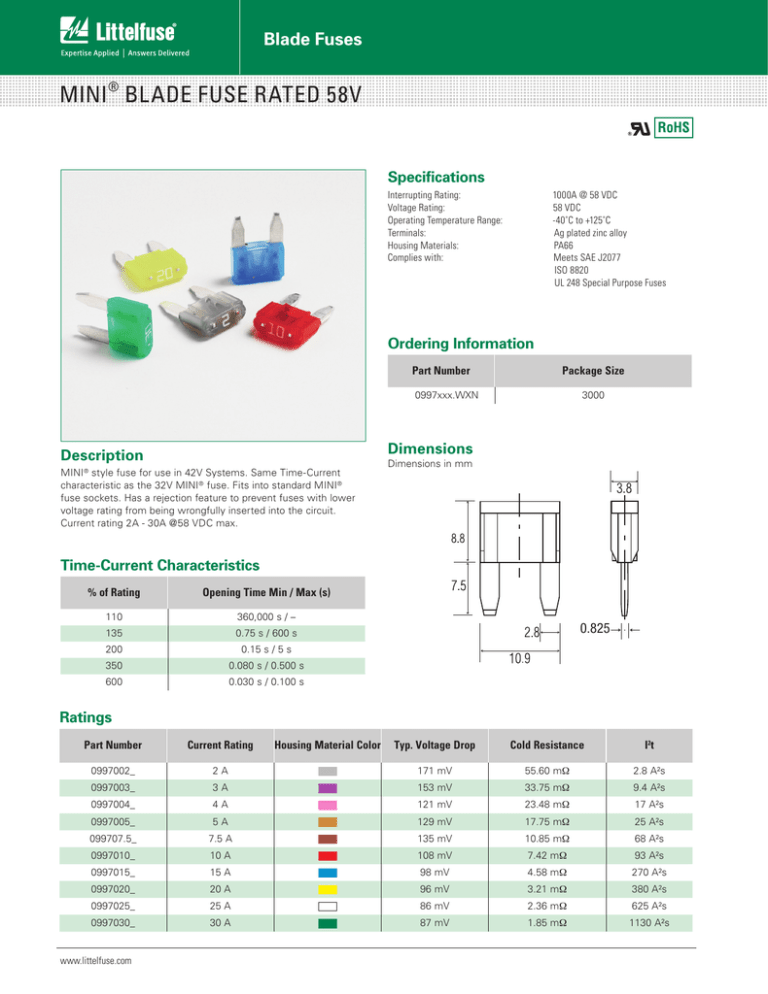

MINI ® BLADE FUSE RATED 58V
Specifications
Interrupting Rating:
Voltage Rating:
Operating Temperature Range:
Terminals:
Housing Materials:
Complies with:
1000A @ 58 VDC
58 VDC
-40˚C to +125˚C
Ag plated zinc alloy
PA66
Meets SAE J2077
ISO 8820
UL 248 Special Purpose Fuses
Ordering Information
Part Number
Package Size
0997xxx.WXN
3000
Dimensions
Description
MINI® style fuse for use in 42V Systems. Same Time-Current
characteristic as the 32V MINI® fuse. Fits into standard MINI®
fuse sockets. Has a rejection feature to prevent fuses with lower
voltage rating from being wrongfully inserted into the circuit.
Current rating 2A - 30A @58 VDC max.
Dimensions in mm
Time-Current Characteristics
% of Rating
Opening Time Min / Max (s)
110
360,000 s / –
135
0.75 s / 600 s
200
0.15 s / 5 s
350
0.080 s / 0.500 s
600
0.030 s / 0.100 s
0.825
Ratings
Part Number
Current Rating
0997002_
Typ. Voltage Drop
Cold Resistance
I2t
2A
171 mV
55.60 mΩ
2.8 A²s
0997003_
3A
153 mV
33.75 mΩ
9.4 A²s
0997004_
4A
121 mV
23.48 mΩ
17 A²s
0997005_
5A
129 mV
17.75 mΩ
25 A²s
099707.5_
7.5 A
135 mV
10.85 mΩ
68 A²s
0997010_
10 A
108 mV
7.42 mΩ
93 A²s
0997015_
15 A
98 mV
4.58 mΩ
270 A²s
0997020_
20 A
96 mV
3.21 mΩ
380 A²s
0997025_
25 A
86 mV
2.36 mΩ
625 A²s
0997030_
30 A
87 mV
1.85 mΩ
1130 A²s
www.littelfuse.com
Housing Material Color
Blade Fuses
MINI ® BLADE FUSE RATED 58V
Time-Current Characteristic Curves
Temperature Rerating Curve
www.littelfuse.com
