Guide Specifications in CSI Format

800-13905 Rev B

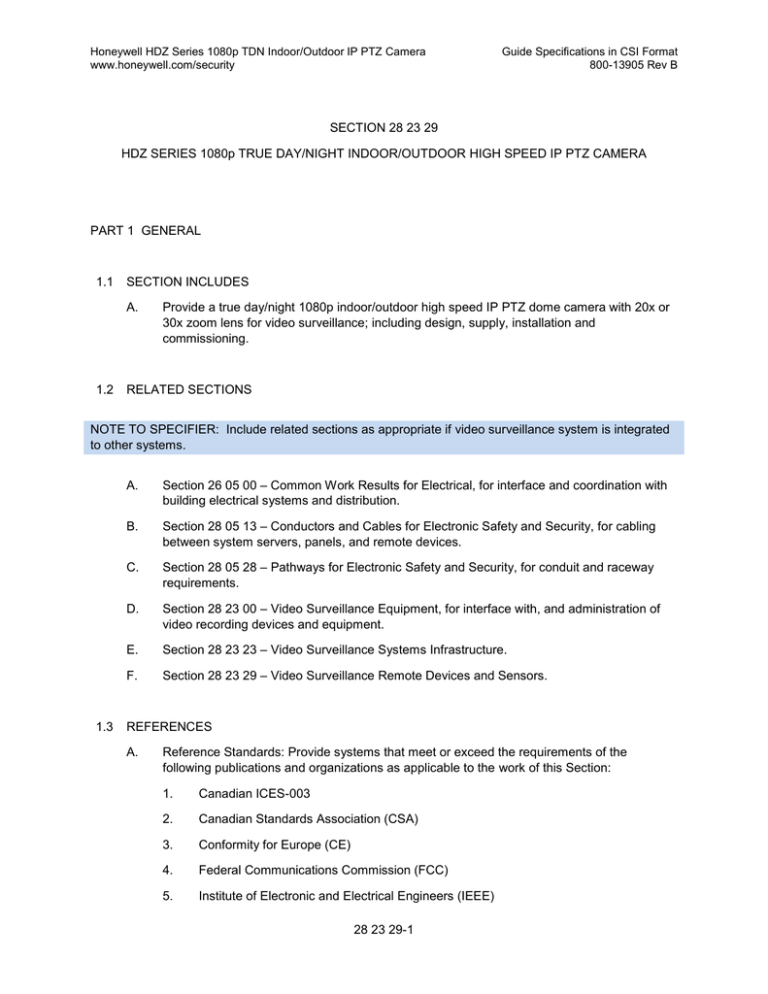

SECTION 28 23 29

HDZ SERIES 1080p TRUE DAY/NIGHT INDOOR/OUTDOOR HIGH SPEED IP PTZ CAMERA

PART 1 GENERAL

1.1

SECTION INCLUDES

A.

Provide a true day/night 1080p indoor/outdoor high speed IP PTZ dome camera with 20x or

30x zoom lens for video surveillance; including design, supply, installation and commissioning.

1.2

RELATED SECTIONS

NOTE TO SPECIFIER: Include related sections as appropriate if video surveillance system is integrated to other systems.

A.

Section 26 05 00

– Common Work Results for Electrical, for interface and coordination with building electrical systems and distribution.

B.

Section 28 05 13

– Conductors and Cables for Electronic Safety and Security, for cabling between system servers, panels, and remote devices.

C.

Section 28 05 28

– Pathways for Electronic Safety and Security, for conduit and raceway requirements.

D.

Section 28 23 00

– Video Surveillance Equipment, for interface with, and administration of video recording devices and equipment.

E.

Section 28 23 23

– Video Surveillance Systems Infrastructure.

F.

Section 28 23 29

– Video Surveillance Remote Devices and Sensors.

1.3

REFERENCES

A.

Reference Standards: Provide systems that meet or exceed the requirements of the following publications and organizations as applicable to the work of this Section:

1.

Canadian ICES-003

2.

3.

4.

5.

Canadian Standards Association (CSA)

Conformity for Europe (CE)

Federal Communications Commission (FCC)

Institute of Electronic and Electrical Engineers (IEEE)

28 23 29-1

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

6.

Joint Photographic Experts Group (JPEG)

7.

8.

National Television Systems Committee (NTSC)

Phase Alternating Line (PAL)

Guide Specifications in CSI Format

800-13905 Rev B

9.

Underwriters Laboratories Inc. (UL)

10.

IP Code (Ingress Protection Rating) per IEC 60529

1.4

SYSTEM DESCRIPTION

A.

The HDZ Series high resolution (1080p) indoor/outdoor IP PTZ dome camera shall use either:

1.

A flexible indoor enclosure that can be mounted quickly to a flat surface with one of the mounting options, easily installed with the in-ceiling mounting bracket, wall mount or pendant mount.

2.

A rugged, discreet, outdoor IP66-rated vandal-resistant enclosure that can be easily installed directly to a ceiling, wall or roof with either the wall, ceiling or parapet mounting accessories.

B.

The HDZ Series 1080p indoor/outdoor True Day/Night 30x Zoom IP PTZ dome camera shall include as standard an impact resistant IK10 rated clear acrylic dome.

C.

The HDZ Series 1080p indoor/outdoor True Day/Night IP PTZ dome camera shall capture video in 1080p high definition resolution for clean, sharp images at 30 frames per second

(NTSC) and 25 frames per second (PAL). Lower resolutions (720p and lower) can capture images at 60 fps (NTSC) and 50 fps (PAL). As a True Day/Night solution, the 1080p IP PTZ dome camera has a low light sensitivity of 0.1 lux (B/W) for HDZ30HD/HDZ30HDE units and

0.01 lux (B/W) for HDZ20HD(X)/HDZ20HDE(X). The camera is designed for a broad range of surveillance applications and features user-adjustable resolution and frame rate to accommodate a wide variety of surveillance environments.

1.5

SUBMITTALS

A.

General: Submittals shall be made in accordance with the Conditions of the Contract and

Submittal Procedure Section.

B.

Manufacturer’s Product Data: Submit manufacturer’s data sheets indicating systems and components proposed for use, including instruction manuals.

C.

Shop Drawings: Submit complete shop drawings including connection diagrams for interfacing equipment, list of connected equipment, and locations for major equipment components.

D.

Record Drawings: During construction maintain record drawings indicating location of equipment and wiring. Submit an electronic version of record drawings not later than

Substantial Completion of the project.

E.

Operation and Maintenance Data:

Submit manufacturer’s operation and maintenance data, customized to the system installed. Include system and operator manuals.

28 23 29-2

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

Guide Specifications in CSI Format

800-13905 Rev B

F.

Field Tests: Submit results of field testing of every device including date, testing personnel, retesting date (if applicable), and confirmation that every device passed field testing.

G.

Maintenance Service Agreement:

Submit a sample copy of the manufacturer’s maintenance service agreement, including cost and services for a one year period for Owner’s review.

Maintenance shall include, but not be limited to, labor and materials to repair the system, tests and adjustments, and regular inspections.

1.6

QUALITY ASSURANCE

A.

Manufacturer: Minimum ten years experience in manufacturing and maintaining video surveillance systems. Manufacturer shall provide toll-free technical assistance and support available 24/7.

B.

Manufacture Location: Provide equipment assembled in China.

C.

Installer: Minimum two years experience installing similar systems, and acceptable to the manufacturer of the video surveillance system.

D.

Regulatory Requirements:

1.

Emissions: EU - EN55022; NA - FCC Part 15B, ICES-003.

E.

Environmental Requirements:

1.

Indoor in-ceiling and pendant dome operating temperatures shall be between 0°C

(32°F) and 50°C (122°F).

2.

Protecting the dome from direct sunlight in high temperature environments is advised.

Outdoor pendant and vandal-resistant rugged dome operating temperatures shall be between

−40°C (−40°F) and 50°C (122°F).

F.

Power Requirements:

1.

2.

HDZ20HD(X) - Indoor in-ceiling and pendant dome: a.

b.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE+ (IEEE 802.3at-2009).

Power Consumption: 21 W maximum.

HDZ30HD - Indoor in-ceiling and pendant dome:

3.

4.

a.

b.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE+ (IEEE 802.3at-2009).

Power Consumption: 25.5 W maximum.

HDZ20HDE(X) - Outdoor pendant and vandal-resistant rugged dome: a.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE+ (IEEE 802.3at-2009). 24 V AC input voltage required if heater/blower is used. b.

Power Consumption: 57 W maximum (with heater/blower).

HDZ30HDE - Outdoor pendant and vandal-resistant rugged dome: a.

b.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE++.

Power Consumption: 59 W maximum (with heater/blower).

28 23 29-3

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

Guide Specifications in CSI Format

800-13905 Rev B

1.7

DELIVERY, STORAGE, AND HANDLING

A.

Deliver materials in manufacturer’s labeled packages. Store and handle in accordance with manufacturer’s requirements, in a facility with environmental conditions within recommended limits.

1.8

WARRANTY

A.

Manufacturer’s Warranty: Submit manufacturer’s warranty of three (3) years from the manufacture date code under normal use and service for the video surveillance system.

PART 2 PRODUCTS

2.1

MANUFACTURER

A.

HDZ Series Camera Manufacturer: Honeywell HDZ Series true day/night indoor/outdoor

1080p resolution IP PTZ dome camera, www.honeywell.com/security or www.honeywellintegrated.com.

B.

Accepted Part Numbers:

1.

HDZ20HD

– IP Dome, Indoor Pendant, 20x HD TDN NTSC, H.264, Clear Dome

2.

3.

4.

5.

6.

HDZ20HDE

– IP Dome, Outdoor Pendant, 20x HD TDN NTSC, H.264, Clear Dome

HDZ30HD

– IP Dome, Indoor Pendant, 30x HD TDN PAL/NTSC, H.264, Clear IK10

Dome

HDZ30HDE

– IP Dome, Outdoor Pendant, 30x HD TDN PAL/NTSC, H.264, Clear

IK10 Dome

HDZ20HDX

– IP Dome, Indoor Pendant, 20x HD TDN PAL, H.264, Clear Dome

HDZ20HDEX

– IP Dome, Outdoor Pendant, 20x HD TDN PAL, H.264, Clear Dome

2.2

SYSTEM COMPONENTS

A.

Indoor/Outdoor dome housing, camera scan unit, cabling, and a web based GUI that provides complete control of the IP PTZ dome settings and live video access.

2.3

OPERATIONAL REQUIREMENTS

A.

The HDZ Series true day/night indoor/outdoor IP PTZ dome camera system shall meet or exceed the following camera specifications:

1.

Image Sensor: 1/2.8-inch Sony Progressive CMOS

28 23 29-4

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

2.

3.

Total Pixels: 1920 (H) × 1080 (V); 1080p

Optical Zoom: a.

HDZ20HD(X)/HDZ20HDE(X): 20x

Guide Specifications in CSI Format

800-13905 Rev B

4.

b.

HDZ30HD/HDZ30HDE: 30x

Focal Length: a.

HDZ20HD(X)/HDZ20HDE(X): 4.7

–94.0 mm b.

HDZ30HD/HDZ30HDE: 4.3

–129.0 mm

Focus Mode: Auto/PTZ trigger/Zoom trigger 5.

6.

7.

Iris Control: Auto/Manual

Minimum Illumination: a.

HDZ20HD(X)/HDZ20HDE(X): 0.05 lux (color) / 0.01 lux (B/W) @ F1.6 (30 IRE)

8.

9.

b.

HDZ30HD/HDZ30HDE: 0.5 lux (color) / 0.1 lux (B/W) @ F1.6 (30 IRE)

Shutter Speed: 1/1

–1/10,000 seconds

Dual Audio Communication: Full-duplex, simplex (G.711/G.726 ADPCM)

10.

Communication: ONVIF Profile S support

11.

White Balance: Auto Tracking White Balance (ATW), Auto White Control (AWC),

Indoor, Outdoor, Manual

12.

Signal-to-Noise Ratio: greater than 50 dB (AGC off)

13.

Backlight Compensation: On/Off

14.

AGC: Auto/Manual (Max gain limit settings for Full Auto, Shutter Priority, and Iris

Priority modes)

B.

The HDZ Series 1080p IP PTZ camera must be available with a 1080p super high-resolution color/monochrome (true day/night) advanced digital signal processing (DSP) camera and a

20X optical zoom (4.7 mm to 94 mm) or 30X optical zoom (4.3 mm to 129 mm). 30X optical zoom units (HDZ30HD/HDZ30HDE) also support digital wide dynamic range (WDR).

C.

The HDZ Series 1080p IP PTZ color/monochrome (true day/night) camera shall utilize a

1/2.8" Sony Progressive CMOS technology with a minimum horizontal resolution of 1080p.

The camera must provide sharp, detailed images down to 0.05 lux color, and 0.01 lux monochrome for HDZ20HD(X)/HDZ20HDE(X) units and 0.5 lux color, and 0.1 lux monochrome for HDZ30HD/HDZ30HDE units. When switching to monochrome mode, the camera must automatically remove the IR cut filter when necessary, which will increase the infrared sensitivity. When enough ambient light is available to produce an acceptable color image, the camera must automatically enable the IR cut filter. The 30X zoom units

(HDZ30HD/HDZ30HDE) must also utilize WDR technology, allowing for detail to be captured accurately even in high contrast scenes.

D.

The fully featured HDZ Series 1080p IP PTZ camera supports the following Protocols:

IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE,

UPnP, IGMP, SNMP, Email, IEEE 802.1x, QoS, ONVIF.

28 23 29-5

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

Guide Specifications in CSI Format

800-13905 Rev B

NOTE TO SPECIFIER: Some development may be required in specific user cases to support some of these protocols in the field as naturally the protocols will mature over time.

E.

The HDZ Series 1080p IP PTZ camera shall be comprised of a high-speed pan/tilt assembly using precision stepper motors with a high-strength belt drive, resulting in quiet and accurate operation.

F.

The HDZ Series 1080p IP PTZ camera shall transmit images in simultaneous dual streams:

H.264 and motion JPEG (MJPEG). The streams shall have the following features/functions:

1.

Support for 1080p resolution (1920x1080) at 30 frames per second (NTSC) and 25 frames per second (PAL). The camera can also support lower resolutions: 720p,

1280x1024, 1024x768, 800x600, 640x480, D1: 720x480(NTSC)/720x576(PAL), CIF:

352x240(NTSC)/352x288(PAL) resolutions. Lower resolution frame rates (720p and lower) available at 60 frames per second (NTSC) and 50 frames per second (PAL).

2.

3.

The HDZ Series 1080p IP PTZ camera shall transmit additional H.264 or MJPEG video streams simultaneously with the primary H.264 or MJPEG stream (up to 4/quad streams).

The bit rate for the H.264 and MJPEG streams can be set to constant or variable bit rate. The resolutions and frame rates for all streams are adjustable by the administrator.

4.

The fully featured HDZ Series 1080p IP PTZ camera shall support three (3) H.264 profiles: High profile, Main profile, and Baseline profile.

G.

The HDZ Series 1080p IP PTZ camera shall include, as standard, a web based GUI that provides complete control of the IP PTZ dome settings. The web based GUI shall:

1.

2.

3.

Permit three (3) users @ 1080p resolution or five (5) users @ D1 resolution in simultaneous unicast.

Provide multiple user access levels with password protection.

Offer video access from a web browser. The web browser shall offer live viewing for up to three (3) users @ 1080p resolution or five (5) users @ D1 resolution with fullcontrol of all camera settings available to the administrator.

4.

5.

Be easily discovered through Honeywell Device Search Tool or other appropriate device search tools.

Be available to record streaming video or snapshot images to a PC hard disk. The administrator/user must have the ability to turn the recording function on or off through the web based GUI.

6.

Require the following hardware as a minimum for the web browser: a.

Operating system: Windows 7 (32-bit/64-bit) b.

c.

d.

Processor: Intel® Pentium® 4 processor, 3 GHz or faster

Intel® Core™2 Duo processor, 2 GHz or faster

System memory (RAM): 1 GB (32-bit)

Graphics card: AGP graphics card 64 MB RAM, DirectDraw

28 23 29-6

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security e.

Guide Specifications in CSI Format

800-13905 Rev B

Network card: 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation f.

g.

Web browser: Microsoft Internet Explorer 8.0 or later

Viewer: ActiveX control plug-in for Internet Explorer

H.

The HDZ Series 1080p IP PTZ camera shall feature web GUI menus for programming dome parameters. A minimum of the following menus must be available:

1.

Language a.

b.

c.

d.

e.

English

Czech

German

Spanish

French

2.

3.

f.

g.

h.

Italian

Portuguese

Russian i.

j.

k.

l.

Simple Chinese

Traditional Chinese

Dutch

Polish m.

Japanese

Display Options a.

Camera Message b.

c.

Pan azimuth and the tilt elevation direction

Zoom Msg. d.

e.

Change Camera Name

Time and Date

Control Options a.

Program Alarms b.

c.

d.

Program Motion Detection

Program Network failure detection

Program Periodical event e.

f.

Program Network parameter/security

Schedule Recording to micro SD card/Network share recording

28 23 29-7

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security g.

Guide Specifications in CSI Format

800-13905 Rev B

Event Recording to micro SD card/Network share recording h.

i.

j.

Recording file down load from micro SD card/Network share recording

Set Default Function

Auto Focus by three (3) modes

4.

5.

Diagnostic Options a.

View Parameter List b.

c.

d.

System log

Restore Default Settings

Camera Parameter Reset e.

Export and Import system configuration parameter

Camera Options a.

b.

c.

Zoom and Focus

Exposure Control d.

e.

f.

White Balance

BLC

Flip

– Mechanical/Image/Off

Rotate

– Flip/Mirror/Inverse/Portrait

6.

i.

j.

g.

h.

k.

ICR function

Speed by zoom

WDR

2D NR

3D NR (only available on HDZ30HD/HDZ30HDE units) l.

Motion Detection

Function Programming a.

b.

c.

Program a Mimic Tour

Program a Preset tour

Program a Auto pan d.

e.

Program Privacy zone

Program Home

28 23 29-8

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

I.

Guide Specifications in CSI Format

800-13905 Rev B

The HDZ Series 1080p IP PTZ camera shall include, as standard, the following PTZ features and functions:

1.

Incorporates a sealed, precision gold slip ring to provide three hundred sixty degrees

(360º) of continuous rotation. The dome must automatically adjust pan and tilt speed in proportion to the zoom position for greater control. The same amount of picture shall appear to move across the monitor regardless of the zoom factor. Manual pan speeds must range from 0.5º to 200º per second, and manual tilt speeds must range from 0.5º to 84º per second.

2.

3.

4.

5.

Provides for three (3) auto focus modes: PTZ trigger focus, Zoom trigger focus, and

Continuous auto focus. When the scene requires extra-fine control, the dome must allow the operator to override the auto focus settings. Auto iris with manual override must also be standard.

Eight (8) mimic or learned tours. The administrator or user with privilege shall perform a series of pan, tilt, zoom movements that the dome must “learn”, when the pattern is recalled, the dome automatically repeats the movements. The duration of each pattern can be up to two (2) minutes or more.

Support for up to eight (8) programmable preset tours, each with up to sixty-four (64) preprogrammed positions. Each position can include a preset position, the speed, and the dwell time (dwell time defines the time the dome rests before going to the next preset position). The tour can be programmed to run continuously until halted by the operator. All programming of preset tours shall be done utilizing simple web GUI controls

. A list of each dome’s programmed preset tours, displaying the tour numbers and titles, must be available for viewing on the web client.

In order to quickly identify the specific PTZ an operator is viewing, the HDZ Series

1080p IP PTZ camera shall contain a text overlay with an up to 20-character onscreen display. This text overlay should be editable by the administrator.

6.

7.

8.

Sixteen (16) programmable Dynamic Privacy Zones, which are protected by the

Admin password, or a user who has the privilege.

Incorporates flash memory to protect the programming for the privacy zones if power is lost. The flash memory shall retain the programming for a minimum of twenty (20) years. If the privacy zones have been programmed and the unit loses power, the video will remain blank until the PTZ dome finds its index position to prevent any area behind programmed privacy zones from being visible when power is restored.

Include auto-pivot tracking (flip) circuitry to allow the dome to automatically turn 180degrees when reaching its lower limit. This allows the administrator or user with privilege to automatically track an individual moving directly below the camera. The administrator must have the ability to enable or disable this feature using a web GUI menu. The HDZ Series 1080p IP PTZ camera shall be able to flip the image when tilting crosses the 90° direction.

9.

Supports auto-homing to activate a preset tour, mimic tour, or a preset position after a specified period of inactivity, programmable from one (1) to one hundred and twentyeight (128) minutes.

10.

Able to set emulated joystick mode and set center mode. For emulated joystick mode, the PTZ will go pan/tilt by the mouse left button click on the live view image area. For set center mode, the PTZ will set the point to the center of the live view image by the

28 23 29-9

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

Guide Specifications in CSI Format

800-13905 Rev B mouse left button click on the image. The administrator shall also have the ability to enable the dome for a -10° tilt limit, allowing the unit to view slightly above the horizon without permitting the operator to view the inside of the housing.

11.

Displays the pan azimuth and the tilt elevation/declination, in degrees, on the video.

The administrator must have the ability to turn the coordinates on or off.

12.

Displays date and time in the video for viewing/recording. The administrator must have the ability to turn it on/off. The HDZ IP PTZ Series shall allow the administrator to enter an alphanumeric camera ID/name and insert the ID/name in to the video for viewing on a monitor (add text overlay on video). In addition, a digital zoom label shall be available on the video to display the current digital zoom magnification when zoom in/out. The administrator must have the ability to turn both IDs/names on or off.

J.

The HDZ Series 1080p IP PTZ camera must provide the option of restoring all displays, alarms, camera settings, and diagnostic settings to factory default with a Web GUI command.

In addition, the unit shall offer a simple “reboot” with a Web GUI command.

K.

The HDZ Series 1080p IP PTZ camera should provide a warning message through relay output/FTP/Email/HTTP, upload an image through FTP/Email or record video to a micro SD card/network recorder upon motion detection. The administrator must have the ability to turn the motion detection function on or off through the web GUI.

L.

The HDZ Series 1080p IP PTZ camera should provide a warning message through relay output/FTP/Email, or record video to a micro SD card upon network failure detection, the minimum detecting period is 5 seconds. The administrator must have the ability to adjust the detecting period and turn the network failure detection function on or off through the web

GUI.

M.

The HDZ Series 1080p IP PTZ camera should provide a warning message through relay output/FTP/Email, upload an image through FTP/Email, move to a function line (move to

Preset, Preset Tour, Auto pan, Mimic Tour) or record video to a micro SD card/network recorder when an alarm in signal occurs. The administrator must have the ability to turn the alarm function on or off through the web GUI.

N.

The HDZ Series 1080p IP PTZ camera should provide micro SD card recording for backup when there is an event (Alarm, Motion detection, Network failure detection) or scheduling.

The administrator must have the ability to turn the recording function on or off through the web GUI. The micro SD card storage size can be varied from 8 GB to 64 GB. 64 GB has only been applied on SanDisk SDXC 64 GB. The micro SD card can be inserted, replaced or removed by the installer or the user. The HDZ Series 1080p IP PTZ camera does not come with a micro SD card installed. It is recommended to use a high quality micro SD card for recording, with the following minimum specifications:

1.

2.

3.

4.

8 GB MicroSDHC card (Class 10). (Notes: MLC).

16 GB MicroSDHC card (Class 10). (Notes: MLC/TLC).

32 GB MicroSDHC card (Class 10). (Notes: TLC).

64 GB MicroSDXC card (Class 10). (Notes: TLC).

NOTE TO SPECIFIER: IMPORTANT! Any damaged files on an installed micro SD card incurred by malfunction or error in files saved on the micro SD card, regardless of the cause, are not guaranteed by

Honeywell.

28 23 29-10

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

Guide Specifications in CSI Format

800-13905 Rev B

O.

The HDZ Series 1080p IP PTZ camera shall provide Network share recording for backup when there is an event (alarm, motion detection) or scheduling. The administrator must have the ability to turn the recording function on or off through the web GUI.

P.

The HDZ Series 1080p IP PTZ camera shall include four (4) on-board alarm inputs for normally open or normally closed dry contacts. The dome shall have the ability to go to a preset position, start a preset tour, or start a mimic tour when an alarm occurs. The dome must insert “A” and the alarm pin number to the video signal display for viewing on the monitor until the alarm returns to its normal state. When more than one alarm occurs, the latest alarm will be performed.

Q.

The HDZ Series 1080p IP PTZ camera shall include two (2) on-board alarm outputs for normally open or normally closed dry contacts. The dome shall have the ability to perform the relay out signal to the alarm equipment.

R.

The HDZ Series 1080p IP PTZ camera shall be available in indoor configurations designed for installation of in-ceiling bracket and pendant mount configurations. The bottom domes must be designed to blend in with building aesthetics and shall be constructed of vacuumformed, optically-graded acrylic available in smoke, clear, and IK10-rated finishes.

HDZ30HD units include IK10-rated acrylic as standard. Trim rings must be available in white finishes.

S.

The HDZ Series 1080p IP PTZ camera shall be available in a pendant housing specifically designed for installation in an outdoor environment, with an integral resistive type thermostat-controlled 24 V AC heater and blower to maintain a sufficient operating temperature. The pendant housing shall be IP66 rated. The bottom domes shall be designed to blend in with building aesthetics and shall be constructed of vacuum-formed, opticallygraded acrylic available in smoke, clear, and IK10-rated finishes. HDZ30HDE units include

IK10-rated acrylic as standard. Available mounting options shall include pendant, wall, roof, and parapet, as well as pole and corner adapters.

T.

The HDZ Series 1080p IP PTZ camera shall be available with Vandal Proof Acrylic/bubble for indoor or outdoor environments with tamper-resistant screws. The Acrylic/bubble shall be designed to blend in with building aesthetics and shall be constructed of optically-graded acrylic available in smoke, clear, and IK10-rated finishes. HDZ30HD/HDZ30HDE units include IK10-rated acrylic as standard. The unit shall have an Industry standard 1.5" NPT connections that shall work with all existing Honeywell PTZ mounts and brackets. The PTZ dome should be protected from direct sunlight in hot climates.

2.4

HDZ SERIES INTEGRATIONS

A.

The following mounting options are compatible with the HDZ Series 1080p IP PTZ camera:

1.

HDZINBKT

– In-Ceiling Bracket for HDZ Series

2.

HDVWM1

– Indoor Only Wall Mount

3.

4.

5.

6.

HDXWM2

– Indoor and Outdoor Wall Mount

HDXSM1

– Half Swan Neck Pole Mount

HDPRM2

– Parapet and Roof Mount

HDCM1

– Ceiling Mount for Indoor Pendant (Not for outdoor use)

28 23 29-11

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

7.

8.

HDXPMA2

– Pole Mount Adapter for HDXWM2

HDXCMA1

– Corner Mount Adapter for HDXWM2

Guide Specifications in CSI Format

800-13905 Rev B

B.

The following optional accessories are compatible with the HDZ Series 1080p IP PTZ camera:

1.

2.

3.

4.

HDZVRSMKAC

– Smoked PC Vandal Proof Acrylic for HDZ Series

HDZVRCLRAC

– Clear PC Vandal Proof Acrylic for HDZ Series (repair purposes only)

HDZIK10AC

– Clear IK10 Vandal Proof Acrylic for HDZ Series (included as standard on HDZ30HD and HDZ30HDE units)

517082-7130

– In-Ceiling PTZ Support Plate

C.

The following NVRs and Hybrid DVRs are compatible with the HDZ Series 1080p IP PTZ camera:

1.

Fusion NVR

– 8, 16, and 32 Channel Network Video Recorders

2.

3.

4.

5.

6.

MAXPRO

®

NVR Family

– Entry to Enterprise Level Network Video Recorders

Enterprise NVR Series

– Enterprise Class Digital Network Video Recorder System

DVM

– Digital Video Manager

Fusion Hybrid DVR

– Full-featured Hybrid Digital Video Recorder

ONVIF support for interoperability between Honeywell and other manufacturer’s IPenabled security devices.

NOTE TO SPECIFIER: Some development may be required in specific user cases to support some of these protocols in the field as naturally the protocols will mature over time.

2.5

SYSTEM HARDWARE

A.

The HDZ Series 1080p IP PTZ camera shall have the following mechanical specifications:

1.

HDZ20HD(X) Indoor In-Ceiling unit: a.

Unit Dimensions (H x Dia.): 9.2" x 9.8" (232.6 mm x 250.0 mm)

2.

b.

c.

Unit Weight: 6.83 lb (3.1 kg)

Lower Dome Diameter: 5.8" (148.0 mm)

HDZ30HD Indoor In-Ceiling unit: a.

Unit Dimensions (H x Dia.): 9.4" x 9.8" (239.0 mm x 250.0 mm) b.

c.

Unit Weight: 6.83 lb (3.1 kg)

Lower Dome Diameter: 5.8" (148.0 mm)

28 23 29-12

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

3.

HDZ20HD(X) Indoor Pendant unit: a.

b.

c.

Guide Specifications in CSI Format

800-13905 Rev B

Unit Dimensions (H x Dia.): 10.8" x 7.5" (275.1 mm x 191.5 mm)

Unit Weight: 4.85 lb (2.2 kg)

Lower Dome Diameter: 7.5" (191.5 mm)

4.

5.

6.

HDZ30HD Indoor Pendant unit: a.

Unit Dimensions (H x Dia.): 11.1" x 7.6" (281.4 mm x 192.0 mm) b.

c.

Unit Weight: 4.85 lb (2.2 kg)

Lower Dome Diameter: 7.6" (192.0 mm)

HDZ20HDE(X) Outdoor Pendant unit: a.

b.

Unit Dimensions (H x Dia.): 10.6" x 7.5" (270.5 mm x 191.5 mm)

Unit Weight: 5.73 lb (2.6 kg) c.

Lower Dome Diameter: 7.5" (191.5 mm)

HDZ30HDE Outdoor Pendant unit: a.

Unit Dimensions (H x Dia.): 10.9" x 7.6" (276.2 mm x 194.0 mm) b.

c.

Unit Weight: 5.73 lb (2.6 kg)

Lower Dome Diameter: 7.6" (194.0 mm)

B.

The HDZ Series 1080p IP PTZ camera shall have the following electrical specifications:

1.

HDZ20HD(X) - Indoor in-ceiling and pendant dome: a.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE+ (IEEE 802.3at-2009).

2.

3.

4.

b.

Power Consumption: 21 W maximum.

HDZ30HD - Indoor in-ceiling and pendant dome: a.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE+ (IEEE 802.3at-2009). b.

Power Consumption: 25.5 W maximum.

HDZ20HDE(X) - Outdoor pendant and vandal-resistant rugged dome: a.

b.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE+ (IEEE 802.3at-2009). 24 V AC input voltage required if heater/blower is used.

Power Consumption: 57 W maximum (with heater/blower).

HDZ30HDE - Outdoor pendant and vandal-resistant rugged dome: a.

Input Voltage: 24 V AC ±10%, 50/60 Hz or PoE++. 24 V AC input voltage required if heater/blower is used. b.

Power Consumption: 59 W maximum (with heater/blower).

28 23 29-13

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

Guide Specifications in CSI Format

800-13905 Rev B

C.

The HDZ Series 1080p IP PTZ camera shall be designed to meet the following environmental conditions:

1.

Indoor In-Ceiling and Indoor Pendant dome:

2.

3.

4.

5.

6.

a.

Operating Temperature: 32°F to 122°F (0°C to 50°C)

Outdoor Pendant and Vandal-Resistant Rugged dome: a.

Operating Temperature:

–40°F to 122°F (–40°C to 50°C)

Relative Humidity: 10%-90%, non-condensing

Emissions: EU - EN55022; NA - FCC Part 15B, ICES-003

Immunity: CE - EN50130-4

Safety: EU - EN60950-1, EN60950-22 (outdoor models)

NA

– UL/CSA 60950-1, UL/CSA 60950-22 (outdoor models)

2.6

MANUFACTURER SUPPORT

A.

Manufacturer shall provide customer service, pre-sales applications assistance, after-sales technical assistance, access to online technical support, and online training using Web conferencing.

B.

Manufacturer shall provide 24/7 technical assistance and support by means of a toll-free telephone number at no extra charge.

PART 3 EXECUTION

3.1

EXAMINATION

A.

Examine site conditions prior to installation. Notify Architect and Owner in writing if unsuitable conditions are encountered. Do not start installation until site conditions are acceptable.

3.2

INSTALLATION

A.

All components of the camera system shall be thoroughly tested before shipping to the project location.

B.

Camera system shall be installed, programmed, and tested in accordance with manufacture r’s installation instructions.

1.

Coordinate interfaces with Owner’s representative where appropriate.

2.

Provide conduit, cable and wire for a complete and reliable installation. Obtain

Owner’s approval for exact location of the camera and all boxes, conduit, cable, and wiring runs prior to installation.

28 23 29-14

Honeywell HDZ Series 1080p TDN Indoor/Outdoor IP PTZ Camera www.honeywell.com/security

3.

Guide Specifications in CSI Format

800-13905 Rev B

Install conduit, cable, and wire parallel and square with building lines, including raised floors areas. Do not exceed forty percent (40%) fill in conduits. Gather wires and tie to create an orderly installation.

4.

Coordinate with other trades to provide proper sequencing of installation.

3.3

FIELD COMMISSIONING AND CERTIFICATION

A.

Field Commissioning: Test dome camera system as recommended by manufacturer, including the following:

1.

2.

3.

4.

Conduct complete inspection and testing of equipment, including verification of operation with connected equipment.

Test devices and demonstrate operational features for Owner’s representative and authorities having jurisdiction, as applicable.

Correct deficiencies until satisfactory results are obtained.

Submit written copies of test results.

3.4

TRAINING

A.

Conduct on-site system administrator and security/surveillance operator training, with the number of sessions and length of sessions as recommended by the video surveillance system manufacturer. Training shall include, but not limited to camera administration, provisioning, configuration, operation, and diagnostics.

END OF SECTION

28 23 29-15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
