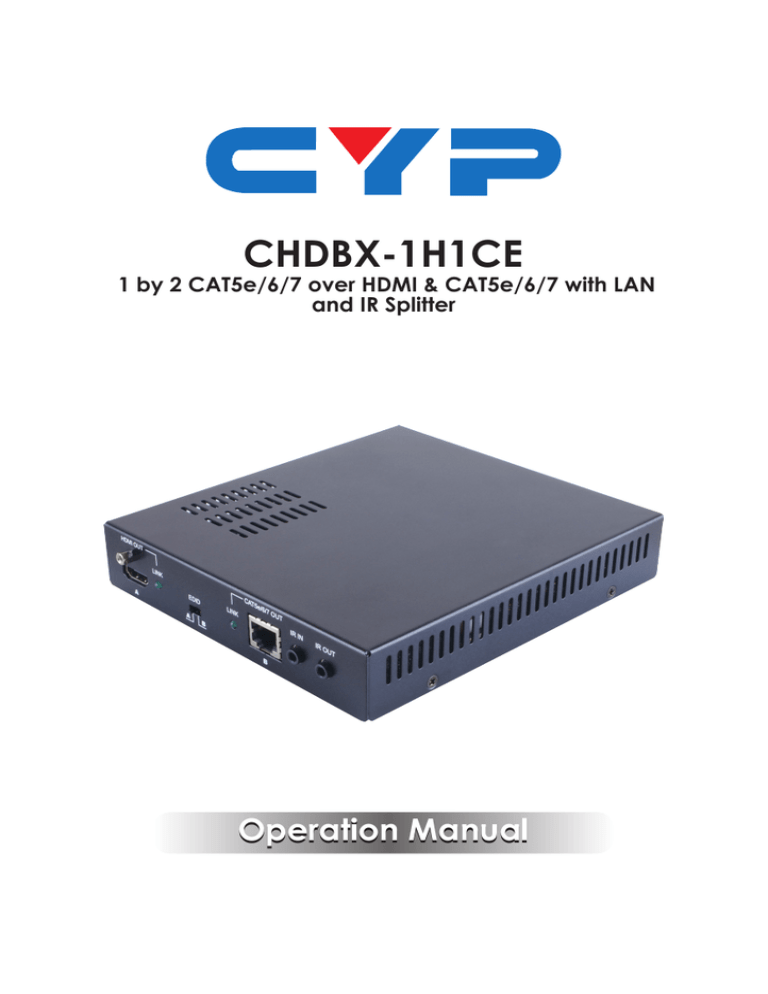

CHDBX-1H1CE

1 by 2 CAT5e/6/7 over HDMI & CAT5e/6/7 with LAN and IR Splitter

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2013 by Cypress Technology.

All Rights Reserved.

Version 1.0 June 2013

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 14/04/14 Preliminary Release

RDV2 03/10/14 Connection Diagram

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 IR Cable Pin Assignment..................5

7. Connection Diagram ........................... 6

8. Specifications ........................................ 7

8.1 CAT5e/6/7 Cable Specification .....8

9. Acronyms ............................................... 8

1. INTRODUCTION

The CAT5e/6/7 over HDMI and CAT5e/6/7 Splitter can convert a single CAT5e/6/7 input, 2-way IR control and LAN serving to a single

CAT5e/6/7 output and includes a simultaneous HDMI bypass output.

It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD,

Dolby Digital Plus and DTS-HD). The HDMI output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters.

Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• CAT5e/6/7 over HDMI & CAT5e/6/7 with LAN & IR Splitter

• IR Blaster x 1

• IR Extender x 1

• 24V DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• Source equipment with HDMI over CAT5e/6/7 Transmitter

• Display TV/Monitor with HDMI input connector

• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

1

5. FEATURES

• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

• Simultaneous HDMI and CAT5e/6/7 outputs

• Supports data rate from 250Mbps up to 3Gbps

• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K ([email protected]/25/30Hz,

[email protected] and [email protected] YUV_420)

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio transmission (32-192kHz sample rate)

• Supports distances up to 100 meters through CAT5e/6/7 cables

• Supports Ethernet network rate up to 100Mbps

• Can select EDID

• Supports USB service port

• Supports control of devices via 2-way IR

• The 3D signal display follow by display TV’s EDID

Note:

1. This system was tested with CAT6/23AWG cables, results may vary

with cables of a different specification.

2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI

cable and display in order for proper image displaying.

3. This device obtain the last memory function therefore, the device

will use last output port's EDID when the output is not connected to

a display after power cycling.

The unit will detect HDMI output's EDID when it obtain a 4Kx2K

EDID and send out the signal accordingly to other output ports. If

the HDMI output is without a 4Kx2K's EDID the unit will detect

all output's EDID and send out the signal that all outputs can

accept.

2

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

LAN CAT5e/6/7 IN

LINK POWER

SERVICE

DC 24V

1 2 3 4 5

1

SERVICE: This slot is reserved for firmware update only.

2

LAN: Connect to intranet or internet service system for a total sharing rate of 100Mbps within the link of Transmitter.

Warning: DO NOT connect this slot with any of the CAT5e/6/7 port, doing so may trigger a power shot down and ruin the device.

3

CAT5e/6/7 IN & LINK LED: Connect from HDMI over CAT5e/6/7

Transmitter device along with source device for input signal distribution up to 100m. Once the connection is made with active signal the LINK LED will illuminate.

4

POWER LED: Once the power supply is connected the LED will illuminate.

5

DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.

3

6.2 Rear Panel

HDMI OUT

LINK LINK

CAT5e/6/7 OUT

IR IN IR OUT

A

EDID

B

A B

1 2 3 4 5

1

HDMI OUT & LINK LED: Connect to HDMI display for instant image display or cascade with another family type Transmitter. The LINK

LED will illuminate once and active display signal is detected.

This device obtain the last memory function therefore, the device will use the last output port's EDID when The output port is not connected to a display after power cycling.

2

EDID: Switch to A/B to allows device to output image according to output A/B (A: HDMI, B:CAT OUT) port's EDID. For example, switch to A and both input and output A is connect to 4K2K's equivalence signal, both output A and B will obtain a 4K2K's signal however if output B is not connected with 4K2K's display there will be no image.

3

CAT5e/6/7 OUT & LINK LED: Connect this port to CAT5e/6/7 to HDMI

Receiver with CAT5e/6/7 cable along with display to extend the signal up to 100m. Once the connection is made with active signal the LINK LED will illuminate.

4

IR IN: Connect with the supplied IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within the direct line-of-sight of the

IR Extender.

5

IR OUT: Connect with the supplied IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

4

6.3 IR Cable Pin Assignment

IR Blaster

1

2

3

Power

IR Blaster Signal

NC

IR Extender

1

2

3

IR Signal

Power

Grounding

5

7. CONNECTION DIAGRAM

DVD or Blu-ray Player

Internet Modem or

Router

Smartphone or

Tablet

3D TV/Display

HDMI

HDMI IN

RS-232 IN

Transmitter

LAN

HDMI to CAT5e/6/7 with LAN/IR/RS-232

TX

Notebook

Router with

Internet

Connection

CAT5/6/7

Cable

100M

SERVICE

LAN

LINK

CAT5e/6/7 IN

POWER

DC 24V

HDMI OUT

A

LINK

A

EDID

B

CAT5/6/7

Cable

100M

LINK

CAT5e/6/7 OUT

IR IN IR OUT

B

Power

IR2 Blaster

IR1 Extender

Link

CAT5e/6 In

3m

60°

3m

60°

1.5m

3D TV/Display

6

8. SPECIFICATIONS

Video Bandwidth

Input ports

Output ports

Resolution

340Mbps/10.2Gbps

1 x CAT5e/6/7,

1 x IR IN, 1 x LAN,

1 x USB (Service only)

1 x HDMI,

1 x CAT5e/6/7

1 x IR OUT,

Up to 4Kx2K ([email protected]/25/30Hz/4096x

[email protected]/[email protected] YUV_420)

Up to [email protected] or12-bit 1080p

HDMI Input & Output

Cable Distance

CAT5e/6/7 Output

Cable Distance

IR Frequency

Power Supply

Dimensions

Weight

Chassis Material

Silkscreen Color

ESD Protection

Up to 100m

30~50kHz

24V / 1.25A DC (US/EU standards, CE/FCC/

UL certified)

145 mm(W) x 160 mm(D) x 30 mm(H)/

Jacks Excluded

45 mm(W) x 172.75 mm(D) x 35 mm(H)/

Jacks Included

662g

Metal

Black

Human body model:

±8kV (air-gap discharge)

±4kV (contact discharge)

Operating Temperature 0°C ~ 40°C

Storage Temperature

-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

Relative Humidity

Power Consumption

20 ~ 90% RH (non-condensing)

22.33W/with Receiver connected

7

8.1 CAT5e/6/7 Cable Specification

Cable

Type

Range Pixel clock rate

Video Data

Rate

CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps

(HD Video)

70 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

Supported Video

Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz

TMDS clock).

4K2K, 30Hz video formats

CAT6A/7 100 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

4K2K, 30Hz video formats

9. ACRONYMS

ACRONYM

4Kx2K

COMPLETE TERM

3840x2160 / 4096x2160

DTS

EDID

HDCP

HDMI

HDTV

Digital Theater System

Extended Display Identification Data

High-bandwidth Digital Content Protection

High-Definition Multimedia Interface

High-Definition Television

8
