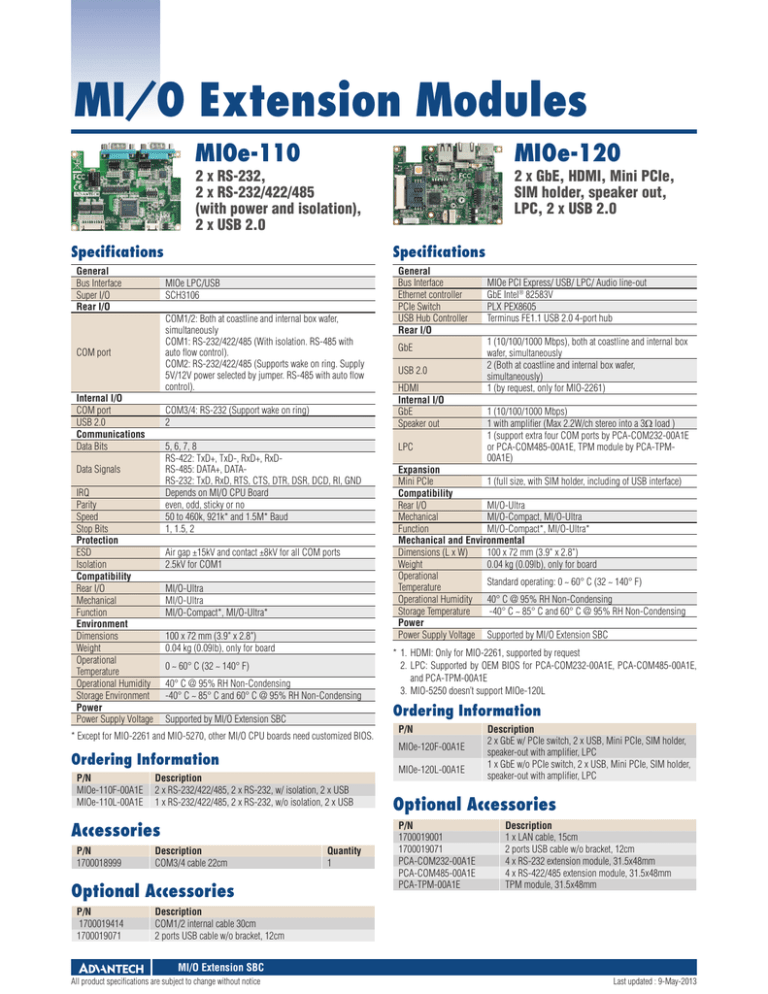

MI/O Extension Modules MIOe-110 2 x RS-232, 2 x RS-232/422/485

MI/O Extension Modules MIOe-110 2 x RS-232, 2 x RS-232/422/485
MI/O Extension Modules
MIOe-110
MIOe-120
2 x RS-232,
2 x RS-232/422/485
(with power and isolation),
2 x USB 2.0
Specifications
Specifications
General
Bus Interface
Super I/O
Rear I/O
MIOe LPC/USB
SCH3106
COM port
COM1/2: Both at coastline and internal box wafer,
simultaneously
COM1: RS-232/422/485 (With isolation. RS-485 with
auto flow control).
COM2: RS-232/422/485 (Supports wake on ring. Supply
5V/12V power selected by jumper. RS-485 with auto flow
control).
Internal I/O
COM port
USB 2.0
Communications
Data Bits
COM3/4: RS-232 (Support wake on ring)
2
5, 6, 7, 8
RS-422: TxD+, TxD-, RxD+, RxDRS-485: DATA+, DATARS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Depends on MI/O CPU Board
even, odd, sticky or no
50 to 460k, 921k* and 1.5M* Baud
1, 1.5, 2
Data Signals
IRQ
Parity
Speed
Stop Bits
Protection
ESD
Isolation
Compatibility
Rear I/O
Mechanical
Function
Environment
Dimensions
Weight
Operational
Temperature
Operational Humidity
Storage Environment
Power
Power Supply Voltage
Air gap ±15kV and contact ±8kV for all COM ports
2.5kV for COM1
MI/O-Ultra
MI/O-Ultra
MI/O-Compact*, MI/O-Ultra*
100 x 72 mm (3.9" x 2.8")
0.04 kg (0.09lb), only for board
0 ~ 60° C (32 ~ 140° F)
40° C @ 95% RH Non-Condensing
-40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
Supported by MI/O Extension SBC
* Except for MIO-2261 and MIO-5270, other MI/O CPU boards need customized BIOS.
Ordering Information
P/N
MIOe-110F-00A1E
MIOe-110L-00A1E
Description
2 x RS-232/422/485, 2 x RS-232, w/ isolation, 2 x USB
1 x RS-232/422/485, 2 x RS-232, w/o isolation, 2 x USB
Accessories
P/N
1700018999
Description
COM3/4 cable 22cm
Optional Accessories
P/N
1700019414
1700019071
2 x GbE, HDMI, Mini PCIe,
SIM holder, speaker out,
LPC, 2 x USB 2.0
Quantity
1
General
Bus Interface
Ethernet controller
PCIe Switch
USB Hub Controller
Rear I/O
GbE
USB 2.0
HDMI
Internal I/O
GbE
Speaker out
LPC
MIOe PCI Express/ USB/ LPC/ Audio line-out
GbE Intel® 82583V
PLX PEX8605
Terminus FE1.1 USB 2.0 4-port hub
1 (10/100/1000 Mbps), both at coastline and internal box
wafer, simultaneously
2 (Both at coastline and internal box wafer,
simultaneously)
1 (by request, only for MIO-2261)
1 (10/100/1000 Mbps)
1 with amplifier (Max 2.2W/ch stereo into a 3Ω load )
1 (support extra four COM ports by PCA-COM232-00A1E
or PCA-COM485-00A1E, TPM module by PCA-TPM00A1E)
Expansion
Mini PCIe
1 (full size, with SIM holder, including of USB interface)
Compatibility
Rear I/O
MI/O-Ultra
Mechanical
MI/O-Compact, MI/O-Ultra
Function
MI/O-Compact*, MI/O-Ultra*
Mechanical and Environmental
Dimensions (L x W)
100 x 72 mm (3.9" x 2.8")
Weight
0.04 kg (0.09lb), only for board
Operational
Standard operating: 0 ~ 60° C (32 ~ 140° F)
Temperature
Operational Humidity 40° C @ 95% RH Non-Condensing
Storage Temperature
-40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
Power
Power Supply Voltage Supported by MI/O Extension SBC
* 1. HDMI: Only for MIO-2261, supported by request
2.LPC: Supported by OEM BIOS for PCA-COM232-00A1E, PCA-COM485-00A1E,
and PCA-TPM-00A1E
3. MIO-5250 doesn’t support MIOe-120L
Ordering Information
P/N
MIOe-120F-00A1E
MIOe-120L-00A1E
Description
2 x GbE w/ PCIe switch, 2 x USB, Mini PCIe, SIM holder,
speaker-out with amplifier, LPC
1 x GbE w/o PCIe switch, 2 x USB, Mini PCIe, SIM holder,
speaker-out with amplifier, LPC
Optional Accessories
P/N
1700019001
1700019071
PCA-COM232-00A1E
PCA-COM485-00A1E
PCA-TPM-00A1E
Description
1 x LAN cable, 15cm
2 ports USB cable w/o bracket, 12cm
4 x RS-232 extension module, 31.5x48mm
4 x RS-422/485 extension module, 31.5x48mm
TPM module, 31.5x48mm
Description
COM1/2 internal cable 30cm
2 ports USB cable w/o bracket, 12cm
MI/O Extension SBC
All product specifications are subject to change without notice
Last updated : 9-May-2013
