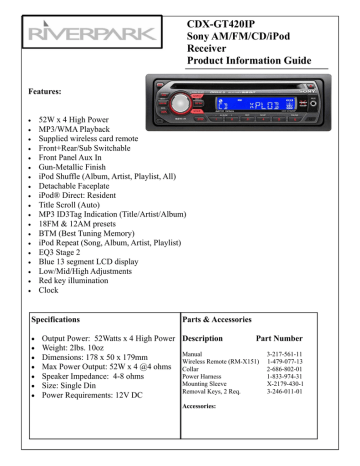

CDXGT420IP PID
CDX-GT420IP
Sony AM/FM/CD/iPod
Receiver
Product Information Guide
Features:
•
52W x 4 High Power
MP3/WMA Playback
Supplied wireless card remote
Front+Rear/Sub Switchable
Front Panel Aux In
Gun-Metallic Finish
iPod Shuffle (Album, Artist, Playlist, All)
Detachable Faceplate
iPod® Direct: Resident
Title Scroll (Auto)
MP3 ID3Tag Indication (Title/Artist/Album)
18FM & 12AM presets
BTM (Best Tuning Memory)
iPod Repeat (Song, Album, Artist, Playlist)
EQ3 Stage 2
Blue 13 segment LCD display
Low/Mid/High Adjustments
Red key illumination
Clock
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Specifications
•
•
•
•
•
•
•
Parts & Accessories
Output Power: 52Watts x 4 High Power Description
Part Number
Weight: 2lbs. 10oz
Manual
3-217-561-11
Dimensions: 178 x 50 x 179mm
Wireless Remote (RM-X151) 1-479-077-13
Max Power Output: 52W x 4 @4 ohms Collar
2-686-802-01
Power
Harness
1-833-974-31
Speaker Impedance: 4-8 ohms
Mounting Sleeve
X-2179-430-1
Size: Single Din
Removal Keys, 2 Req.
3-246-011-01
Power Requirements: 12V DC
Accessories:
