SpeakerCraft PROFILE AIM5 ONE Datasheet

SpeakerCraft PROFILE AIM5 ONE Datasheet

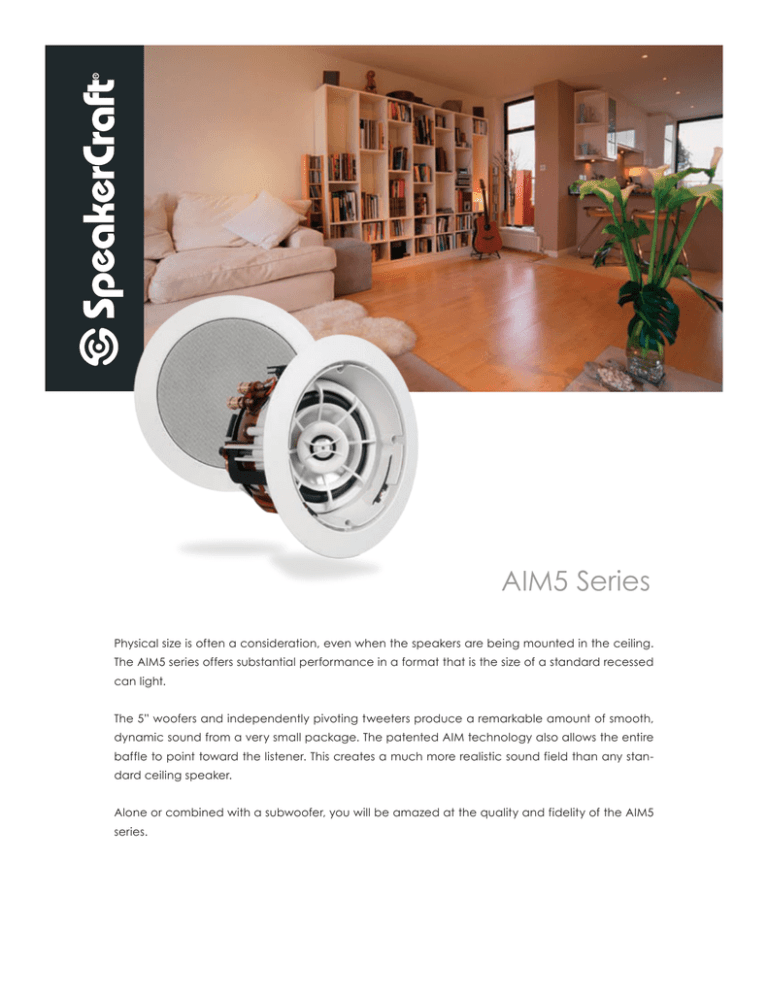

AIM5 Series
Physical size is often a consideration, even when the speakers are being mounted in the ceiling.
The AIM5 series offers substantial performance in a format that is the size of a standard recessed
can light.
The 5” woofers and independently pivoting tweeters produce a remarkable amount of smooth,
dynamic sound from a very small package. The patented AIM technology also allows the entire
baffle to point toward the listener. This creates a much more realistic sound field than any standard ceiling speaker.
Alone or combined with a subwoofer, you will be amazed at the quality and fidelity of the AIM5
series.
AIM5 Three
•
•
•
•
•
•
Pivoting and Rotating 51⁄4" Aluminum Cone Woofer
Pivoting 3⁄4" Aluminum Dome Tweeter
Timbre-Matched to All Three Series
Front Mounted Bass & Treble Equalization Switches
Efficiency: 89dB 1W/1m
Frequency Response: 50Hz - 20kHz ± 3dB
AIM5 One
•
•
•
•
•
•
Ordinary Speakers
Pivoting and Rotating 51⁄4" Injection Molded Polypropylene Cone Woofer
Pivoting 3⁄4" Treated Silk Dome Tweeter
Timbre-Matched to All Three Series
Front Mounted Treble Equalization Switch
Efficiency: 88 dB 1W/1m
Frequency Response: 55 - 20,000 Hz ± 3dB
AIM With WavePlane
Only SpeakerCraft offers the exclusive WavePlane™ tweeter baffle which is
located just behind the tweeter of all AIM in-ceiling speakers. The WavePlane™
creates better high frequency dispersion. This is accomplished by allowing the
tweeter to reflect off a solid surface instead of the vibrating woofer. Ordinary
speakers only sound their best when you are directly underneath them. This is
because high frequencies are directional. The WavePlane™ assures optimal high
frequency dispersion throughout the listening area.
* All AIM Speakers come with Limited LIFETIME Warranty
* U.S. Patent No. D419,561 & 6,101,262
* As we incorporate design improvements, specifications may change without notice
940 Columbia Ave., Riverside CA 92507 • USA (800) 448 0976
Fax (951) 787 8747 International +1 951 787 0543 • www.speakercraft.com
