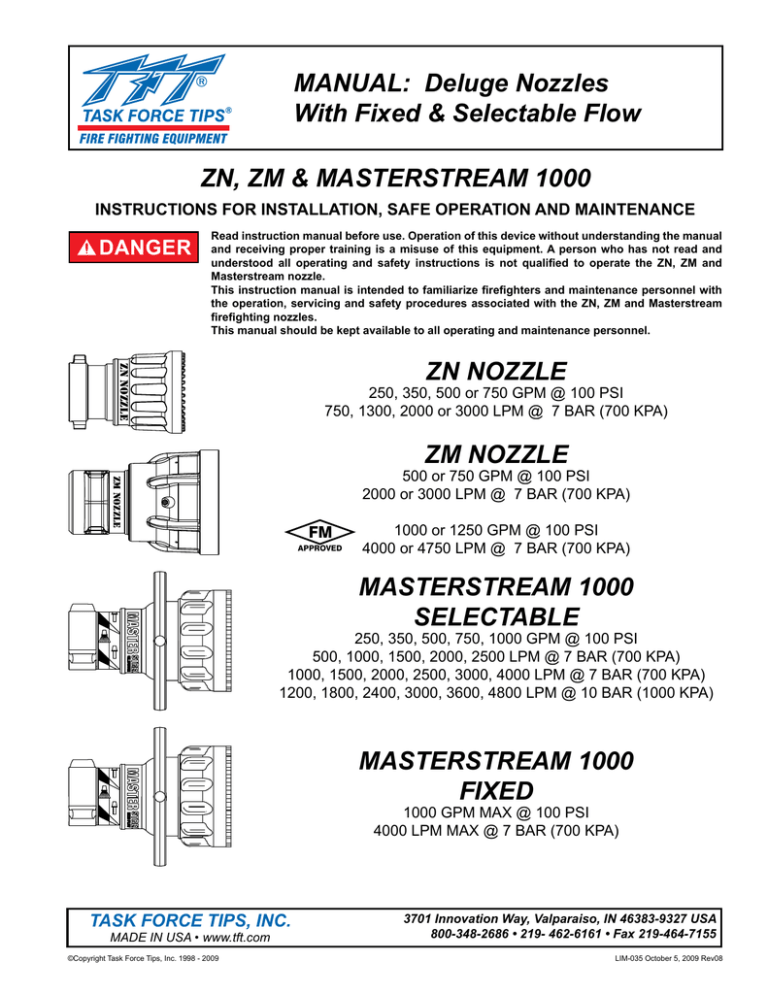

MANUAL: Deluge Nozzles

With Fixed & Selectable Flow

ZN, ZM & MASTERSTREAM 1000

INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE

DANGER

Read instruction manual before use. Operation of this device without understanding the manual and receiving proper training is a misuse of this equipment. A person who has not read and understood all operating and safety instructions is not qualified to operate the ZN, ZM and

Masterstream nozzle.

This instruction manual is intended to familiarize firefighters and maintenance personnel with the operation, servicing and safety procedures associated with the ZN, ZM and Masterstream firefighting nozzles.

This manual should be kept available to all operating and maintenance personnel.

ZN NOZZLE

250, 350, 500 or 750 GPM @ 100 PSI

750, 1300, 2000 or 3000 LPM @ 7 BAR (700 KPA)

ZM NOZZLE

500 or 750 GPM @ 100 PSI

2000 or 3000 LPM @ 7 BAR (700 KPA)

FM

APPROVED

1000 or 1250 GPM @ 100 PSI

4000 or 4750 LPM @ 7 BAR (700 KPA)

MASTERSTREAM 1000

SELECTABLE

250, 350, 500, 750, 1000 GPM @ 100 PSI

500, 1000, 1500, 2000, 2500 LPM @ 7 BAR (700 KPA)

1000, 1500, 2000, 2500, 3000, 4000 LPM @ 7 BAR (700 KPA)

1200, 1800, 2400, 3000, 3600, 4800 LPM @ 10 BAR (1000 KPA)

MASTERSTREAM 1000

FIXED

1000 GPM MAX @ 100 PSI

4000 LPM MAX @ 7 BAR (700 KPA)

TASK FORCE TIPS, INC.

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 1998 - 2009

3701 Innovation Way, Valparaiso, IN 46383-9327 USA

800-348-2686 • 219- 462-6161 • Fax 219-464-7155

LIM-035 October 5, 2009 Rev08

DANGER

PERSONAL RESPONSIBILITY CODE

The member companies of FEMSA that provide emergency response equipment and services want responders to know and understand the following:

1. Firefighting and Emergency Response are inherently dangerous activities requiring proper training in their hazards and the use of extreme caution at all times.

2. It is your responsibility to read and understand any user’s instructions, including purpose and limitations, provided with any piece of equipment you may be called upon to use.

3. It is your responsibility to know that you have been properly trained in

Firefighting and /or Emergency Response and in the use, precautions, and care of any equipment you may be called upon to use.

4. It is your responsibility to be in proper physical condition and to maintain the personal skill level required to operate any equipment you may be called upon to use.

5. It is your responsibility to know that your equipment is in operable condition and has been maintained in accordance with the manufacturer’s instructions.

6. Failure to follow these guidelines may result in death, burns or other severe injury.

FEMSA

Fire and Emergency Manufacturers and Service Association

P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org

Table Of Contents

1.0 MEANING OF SAFETY SIGNAL WORDS

2.0 GENERAL INFORMATION

2.1 USE WITH SALT WATER

2.2 VARIOUS MODELS AND TERMS

2.3 PATTERN CONTROL

2.4 USE WITH FOAM

2.4.1 FOAMJET LX WITH MASTERSTREAM NOZZLE

3.0 FLOW CHARACTERISTICS OF INDUSTRIAL NOZZLE

3.1 FLOW CHARACTERISTICS OF MASTERSTREAM

SELECTABLE NOZZLE

3.2 FLOW CHARACTERISTICS OF MASTERSTREAM FIXED

NOZZLE

3.3 DETERMINING FLOW WITH PRE-PIPED MONITORS

3.4 STREAM TRAJECTORY DATA

4.0 FLUSHING DEBRIS

5.0 MAINTENANCE

6.0 DRAWINGS & PARTS LISTS

7.0 WARRANTY

1.0 MEANING OF SAFETY SIGNAL WORDS

A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows:

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to personal injury.

©Copyright Task Force Tips, Inc. 1998 - 2009

2

LIM-035 October 5, 2009 Rev08

2.0 GENERAL INFORMATION

The Task Force Tips ZN, ZM and Masterstream nozzles are deluge nozzles with clean far reaching straight stream. They are adjustable from straight stream to a dense fog pattern. Their rugged construction is compatible with the use of fresh water as well as fire fighting foam solutions. A summary of each nozzle’s characteristics is shown in the tables below.

WARNING

This equipment is intended for use by trained personnel for firefighting. Their use for other purposes may involve hazards not addressed by this manual. Seek appropriate guidance and training to reduce risk of injury.

SERIES

ZN NOZZLE

ZM NOZZLE

ZM NOZZLE

MASTERSTREAM

1000 FIXED

FLOW (GPM

250, 350, 500, 750

500, 750

FM

APPROVED

1000, 1250

CUSTOMER

SPECIFIED:

1000 GPM MAX

FIXED FLOW NOZZLES

PRESSURE

(PSI)

FLOW (LPM)

100

100

1000, 1500, 2000, 3000

2000, 3000

100

CUSTOMER

SPECIFIED:

150 PSI MAX

4000, 4750

CUSTOMER SPECIFIED:

4000 LPM MAX

PRESSURE

(BAR,KPA/100)

7

7

7

CUSTOMER

SPECIFIED:

10 BAR MAX k FACTOR

15 - 75

50 - 125

50 - 125

50 - 105

SERIES

MASTERSTREAM 1000

SELECTABLE

MASTERSTREAM 1000

SELECTABLE

MASTERSTREAM SELECTABLE FLOW NOZZLES

FLOW (GPM PRESSURE

(PSI)

FLOW (LPM)

100 1000, 1500, 2000, 3000, 4000 250, 350, 500, 750,

1000

250, 350, 500, 750,

1000

150 1200, 1800, 2400, 3600, 4800

PRESSURE

(BAR,KPA/100)

7

10 k FACTOR

15 - 75

50 - 105

NOTES ON TABLES:

• 2 ½ inch NH female threads are standard. Other threads and coupling sizes can be specified at time of order.

ZM & ZN series nozzle are hardcoat anodized ANSI 356 aluminum.

Masterstream series nozzle is constructed of hardcoat anodized 6061-T6 aluminum.

Masterstream series nozzle is also available in automatic pressure control models. See catalog for details.

Temperature Rating: -25°F to 135°F (-32° C to 57°C) for ZN and Masterstream nozzles;

-40°F to 135°F (-40°C to 57°C) for ZM nozzles.

ZM nozzles with flows of 1000 & 1250 gpm (2000 and 3000 l/min) with 2.5” (65mm) NH or NSPH or BSP threads are FM approved.

WARNING

Injury can occur from an inadequately supported nozzle. The mounting must be capable of supporting the nozzle reaction force which can be in excess of 665 LBS (1250 GPM at 100 PSI).

WARNING

WARNING

CAUTION

Some volatile liquids can be ignited by static discharge. Static build-up can occur from:

• Electrochemical separation of charge as water drains through low conductivity, refined

products.

• Applying foam over a low conductivity liquid of sufficient depth to retain the charge created as

the foam blanket drains.

• Streaming currents as water or foam is introduced into the storage tank.

1

Water is a conductor of electricity. Application of water solutions on high voltage equipment can cause injury or death by electrocution. The amount of current that may be carried back to the nozzle will depend on the following factors:

Voltage of the line or equipment • Distance from the nozzle to the line or equipment

Size of the stream • Whether the stream is solid or broken • Purity of the water

2

Nozzle must be properly connected. Mismatched or damaged threads may cause nozzle to leak or uncouple under pressure and could cause injury.

CAUTION

Do not couple aluminum to brass. Dissimilar metals coupled together can cause galvanic corrosion that can result in inability to unscrew threads or complete loss of thread engagement.

CAUTION

The nozzle may become damaged if allowed to freeze while containing water. Always drain after use to avoid damage and possible loss of use.

1 Electrostatic Hazards of Foam Blanketing Operations by Peter Howels. Industrial Fire Safety July/August 1993

2 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47.

©Copyright Task Force Tips, Inc. 1998 - 2009

3

LIM-035 October 5, 2009 Rev08

2.1 USE WITH SALT WATER

Use with salt water is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of the nozzle may be shortened due to the effects of corrosion and is not covered under warranty.

2.2 VARIOUS MODELS AND TERMS

See figures 1A, 1B and 1C for views of the ZN, ZM and Masterstream nozzles. The Masterstream Series Nozzle is available without halo ring. See catalog for model numbers and details.

Stream Shaper / Bumper

Baffle

Threaded Inlet

FIG 1A - ZN Nozzle

Halo Ring

Stream Shaper / Bumper

Baffle

Jam Nut

Flow

Selector

Coupling

FIG 1B - Masterstream 1000

Selectable Gallonage Nozzle

FIG 1C - Masterstream 1000

Fixed Gallonage Nozzle

2.3 PATTERN CONTROL

TFT’s ZN, ZM and Masterstream nozzles have full pattern control from straight stream to wide fog. Turning the stream shaper clockwise (as seen from the operating position behind the nozzle) moves the shaper to the straight stream position. Turning the stream shaper counterclockwise will result in an increasingly wider pattern.

Since the stream trim point varies with flow, the stream trim point should be “trimmed” after changing the flow to obtain the straightest and farthest reaching stream. To properly trim a stream, first open the pattern to narrow fog. Then close the stream to parallel to give maximum reach. Note: Turning the shaper further forward will cause stream crossover and reduce the effective reach of the nozzle.

Note: Masterstream models are also available with linear (push/pull), remote electric or hydraulic actuation of the stream shaper.

2.4 USE WITH FOAM

ZN, ZM and Masterstream nozzles may be used with foam solutions. FM approval Class Number 5511- Firefighting Nozzles for Use with Hose, Monitor Assemblies and other Firefighting Equipment applies to use with water only. Refer to fire service training for the proper use of foam.

WARNING

For Class B fires, lack of foam or interruption in the foam stream can cause a break in the foam blanket and greatly increase the risk of injury or death. Assure that: Application rate is sufficient (see NFPA 11 or foam manufacturer’s recommendations); Enough concentrate is on hand to complete task (see NFPA for minimum duration time requirements); Foam logistics have been carefully planned. Allow for such things as: Storage of foam in a location not exposed to the hazard it protects; Personnel, equipment and technique to deliver foam at a rapid enough rate; Removal of empty foam containers; Keeping clear path to deliver foam as hoses, other equipment and vehicles are deployed.

WARNING

WARNING

Improper use of foam can result in injury or damage to the environment. Follow foam manufacturer’s instructions and fire service training to avoid: Using wrong type of foam on a fire, i.e. Class A foam on a

Class B fire; Plunging foam into pools of burning liquid fuels; Causing environmental damage; Directing stream at personnel.

There is a wide variety of foam concentrates. Each user is responsible for verifying that any foam concentrate chosen to be used with this unit has been tested to assure that the foam obtained is suitable for the purpose intended.

©Copyright Task Force Tips, Inc. 1998 - 2009

4

LIM-035 October 5, 2009 Rev08

2.4.1 FOAMJET LX WITH MASTERSTREAM NOZZLE

To increase the expansion ratio and drain time, Task Force Tips “Foamjet LX” (model FJ-LX-M) may be used with the Masterstream nozzle. This low expansion foam tube attaches and detaches quickly from the nozzle. Note: As expansion ratio is increased, the reach of the stream will be decreased due to the greater amount of bubbles in the stream and their inability to penetrate the air.

Generally, the reach with foam is approximately 10 % less than with water only. Actual results will vary based on brand of foam, hardness of water, temperature, etc.

FIG 2.4.1A - FJ-LX-M Shown on Masterstream Nozzle FIG 2.4.1B - FJ-LX-MD Shown on ZN Nozzle

3.0 FLOW CHARACTERISTICS OF ZN & ZM NOZZLES

The ZN & ZM Nozzles are manufactured to a predetermined fixed orifice. The orifice size is not adjustable and is specified at time of order. 250, 350, 500 or 750 GPM flow rates at 100 PSI are available on the ZN and 500, 750, 1000 or 1250 GPM @ 100 psi are available on the ZM nozzle. The flow rate is marked on the nozzle’s baffle. Figure 3 gives relationship of flow and pressure for various orifice sizes.

3.1 FLOW CHARACTERISTICS OF MASTERSTREAM 1000 SELECTABLE NOZZLE

The Masterstream 1000 Selectable Nozzle allows the user to select one of several orifice sizes by turning a knob at the front of the nozzle. An indicator on the knob shows which flow has been selected. Figure 3 gives relationship of flow and pressure for various orifice sizes.

1000

FLOW (LPM)

2000 3000 4000

100

80

60

40

20

0

0

200

0

180

160

140

120

100

25

0

200

G

PM

@

1

00

P

SI

35

300

0

G

PM

@

1

00

P

SI

400

50

0

GP

M

@

1

00

P

SI

75

0 G

PM

@

10

0 P

500 600 700 800 900 1000 1100 1200

FLOW (GPM)

FIG 3 - Nozzle Flow Characteristics

SI

100

0 G

PM

@

1250 GPM @

10

0 P

SI

100 PSI

12

8

4

0

©Copyright Task Force Tips, Inc. 1998 - 2009

5

LIM-035 October 5, 2009 Rev08

3.2 FLOW CHARACTERISTICS OF MASTERSTREAM 1000 FIXED NOZZLE

The Masterstream 1000 Fixed Flow Nozzle is set to the desired flow by adjusting the baffle and locking it in place with a jam nut. The nozzle is adjusted and flow tested at the factory at time of order. If the baffle is moved (for example to flush the nozzle), then the baffle must be readjusted to obtain the desired flow. Refer to figure 3.0 for baffle position to achieve a certain flow and pressure. Figure 4 gives relationship of flow and pressure for various orifice sizes.

1000 2000

NOZZLE FLOW (LPM)

3000 4000 5000

180

12

160

2 turns 3 turns 4 turns 5 turns 6 turns 7 turns

140

10

120

100

80

8

6

60

4

40

200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400

NOZZLE FLOW (GPM)

FIG 4 - Nozzle flow vs. baffle turns from closed position for Masterstream Fixed Nozzle

WARNING

An inadequate supply of nozzle pressure and/or flow will cause an ineffective stream and can result in injury, death or loss of property.

3.3 DETERMINING FLOW WITH PRE-PIPED MONITORS

The simplest procedure to determine flow is with a flow meter. If a flow meter is unavailable then the flow may be estimated using pressure loss data between the nozzle and an in-line pressure gauge at the pump or considerably upstream from the nozzle. Data is taken with a smooth bore nozzle and handheld pitot gauge. Note: equations assume no substantial change in elevation between in-line pressure gauge and nozzle.

Step1: Determine flow of smooth bore nozzle.

Flow water with a smooth bore nozzle and record the nozzle’s size, pitot pressure and in-line pressure gauge reading. The smooth bore nozzle’s flow is calculated from the Freeman formula:

Q nozzle

= F x D P pitot

Where: F = 29.71 for English units (GPM, INCHES, PSI)

F = .667 for metric units (LPM, MM, BAR) Note: 1 BAR=100 KPA

Q nozzle

is smooth bore nozzle flow in GPM (or LPM)

D is nozzle exit diameter in INCHES (or MM)

P pitot

is pitot pressure in PSI (or BAR)

©Copyright Task Force Tips, Inc. 1998 - 2009

6

LIM-035 October 5, 2009 Rev08

0

80

70

60

50

40

30

20

10

0

0

Step 2: Find piping pressure loss constant.

Using the results from step 1 use the following equation to calculate the pressure loss constant between the in-line pressure gauge and the nozzle.

C piping

=

Q 2 smooth

P in-line

— P pitot

Where: C piping

is pressure loss constant in GPM2/PSI (or LPM2/BAR)

P inline

is inline pressure gauge reading in PSI (or BAR)

Step 3: Calculate nozzle constant.

Where: C nozzle

is the nozzle’s constant in GPM2/PSI (or LPM2/BAR)

Q nominal

P nominal

is the nozzle’s nominal flow in GPM (or LPM)

is the nozzle’s nominal pressure in PSI (or BAR)

Step 4: Calculate flow.

Using the pressure loss constant from step 2, the nozzle constant from step 3, and the in-line pressure gauge reading, the flow with a fixed orifice nozzle can be calculated with the following equation.

Q =

C nozzle

=

Q

2

P nominal nominal

C piping x C nozzle x P inline

(C piping

+ C nozzle

)

Where: Q is fixed orifice nozzle’s flow in GPM (or LPM)

Mount a graph or table of the results adjacent to the in-line pressure gauge. Deliver any desired flow by adjustment of pump pressure.

3.4 STREAM TRAJECTORY DATA

Figure 5 gives the stream trajectory for the ZN, ZM and Masterstream nozzles at various pressures. The graphs represent orifice sizes of 250, 350, 500, 750 and 1000 GPM at 100 PSI. For other orifice sizes and pressures the graphs may be interpolated.

Notes on trajectory graphs:

• Graphs show approximate effective stream trajectory at 30 degrees elevation in no wind conditions. Distance to last water drops approximately 10% farther.

Trajectories shown are for water. The addition of foam is expected to decrease the reach by approximately 10%.

Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%.

20

10

40 60

20

A

80

30

HORIZONTAL DISTANCE (METERS)

40 50 60

D

B

C

100 120 140 160 180

HORIZONTAL DISTANCE (FEET)

200

E

220

70

ZN, ZM AND MASTERSTREAM 1000, 75 PSI (5 BAR, 500 KPA )

240

80

260 280

90

20

10

300

0

CURVE

A

B

C

D

E

CURVE

A

B

C

D

E

LPM

FLOW

830

1100

1600

2500

3300

GPM

FLOW

200

300

430

650

870

LBS

REACTION

100

140

200

300

400

KGF

REACTION

45

60

90

140

180

80

70

60

20

10

0

50

40

30

0

0 10 20 30

HORIZONTAL DISTANCE (METERS)

40 50 60

A

B

C

100 120 140 160 180

HORIZONTAL DISTANCE (FEET)

200

70

ZN, ZM AND MASTERSTREAM 1000, 100 PSI (7 BAR, 700 KPA )

20 40 60 80

D

220 240

E

80

260 280

90

20

10

300

0

CURVE

A

B

C

D

E

GPM

FLOW

250

350

500

750

1000

LBS

REACTION

130

190

270

400

530

CURVE

A

B

C

D

E

LPM

FLOW

950

1300

1900

2800

3800

KGF

REACTION

60

80

120

180

240

©Copyright Task Force Tips, Inc. 1998 - 2009

7

LIM-035 October 5, 2009 Rev08

HORIZONTAL DISTANCE (FEET)

80

70

60

50

40

30

20

10

0

0

0 10 20 30 40 50 60

100 120 140 160 180

HORIZONTAL DISTANCE (FEET)

200

70

ZN, ZM AND MASTERSTREAM 1000, 150 PSI (10 BAR, 1000 KPA )

20 40 60 80

A

B

C

220

D

240

E

80

260 280

90

FIG 5 - ZN, ZM and Masterstream Nozzle Stream Trajectory

300

20

10

0

CURVE

A

B

C

D

E

CURVE

A

B

C

D

E

LPM

FLOW

1200

1600

2300

3500

4500

GPM

FLOW

310

430

610

920

1200

LBS

REACTION

200

280

400

600

780

KGF

REACTION

90

120

180

270

350

4.0 FLUSHING DEBRIS

Debris in the water may get caught inside the nozzle. This trapped material will cause poor stream quality, shortened reach and reduced flow. To remove debris trapped in the nozzle:

1) Shut off flow to the nozzle.

2) Move the stream shaper to the wide fog position.

3) For ZN Nozzle: Unscrew baffle using a 1-1/8 inch (28mm) socket.

For ZM Nozzle: Unscrew the bolt using 7/8” socket and remove baffle.

For Masterstream Selectable Gallonage Nozzle: Turn flow selector on front of nozzle to “FLUSH” position.

For Masterstream Fixed Gallonage Nozzle: Remove nozzle to gain access to debris.

4) Remove debris. Flow water to flush if necessary.

5) Reassemble the nozzle. Tighten the baffle on the Max Lite nozzle to 30 ft-lbs (40 newton-meters).

WARNING

Large amounts of debris may be unflushable and can reduce the flow of the nozzle resulting in an ineffective flow. In the event of a blockage, it may be necessary to retreat to a safe area.

5.0 MAINTENANCE

Nozzles must be checked regularly to assure proper operation. Contact factory for parts lists and exploded views for particular models.

©Copyright Task Force Tips, Inc. 1998 - 2009

8

LIM-035 October 5, 2009 Rev08

6.0 DRAWINGS & PARTS LIST

10

8

7

ZN NOZZLE

6

5

4

3

2 1

9

ZN PARTS LIST

ITEM DESCRIPTION

1 BAFFLE 350 GPM

BAFFLE 500 GPM

BAFFLE 750 GPM

QTY PART

1

1

1

Z565

Z566

Z567

2 1/2-13 X 2 STUD - FULL THREAD 1 VT50-13SD2.0

3 BUMPER

4 SHAFT

1

1

Z700

Z505

ITEM DESCRIPTION

5

6

7

8

1/4-28 X 1/4 SOCKET SET SCREW

SHAPER SEAL 3.255 ID - DEFLASHED

IND. NOZ. BODY ALUM 2.5” NH

CAM PIN

9 NAME LABEL - ZN NOZZLE

10 GASKET - 2.5” HOSE COUPLING

ZM NOZZLE

1

2

3

5

4

6

8

9

QTY PART

1 VT-25-28SS250

1 Z330

1 Z650ANJ

1 Z660

1 ZL150

1 V3190

10

11

12

13

7

ITEM DESCRIPTION

1 GASKET - 2.5” HOSE COUPLING

2 NOZZLE BODY 2.5” NH

3 CUP SEAL 4.25 X 4.75 X 1/4

QTY PART

1 V3190

1 ZFM600NJ

1 XGE380

4 10-32 X 3/8 SOCKET SET SCREW 1 VT10-32SS375

5 PIN - .680 X 1/8” DIA.

1 D07550

6 NOZZLE SHAPER

7 GREASE FITTING 1/4-28

1

1

ZFM500

VT25-28ZERK

ZM PARTS LIST

ITEM DESCRIPTION

8 SPRING

9 BAFFLE K=125

13 SUBBAFFLE K=75 & K=100

11 SUBBAFFLE K=50 - LASERED

12 HEAVY HEX BOLT 1/2”-13 X 1.5”

13 ZM NAME LABEL

©Copyright Task Force Tips, Inc. 1998 - 2009

9

QTY PART

1 ZFM580

1 ZFM560

1 ZFM5656

1 ZFM570

1 ZFM575

1 ZFML150

LIM-035 October 5, 2009 Rev08

6.0 DRAWINGS & PARTS LIST

MASTERSTREAM 1000 SELECTABLE

11 2

18

12

1

13

22

8

9

7

25

6

10

3

4

32 33 34

35

15

5

13

16

24

19

17

28

26

30

27

23

29

31

ITEM DESCRIPTION

1 COUPLING 2.5” NH

2 1/4-28 X 1/2 SET SCREW

3 BARREL LABEL

4 BARREL

5 NAME LABEL

6 SHAPER

7 HALO RING

8 HALO CAP

QTY PART

1 M307N

1 VT25-28SS500

1 M740

1 M205

1 M750

1 M216

1 M230

4 M231

9 5/16-18 X 1-1/2 SOCKET HEAD SCREW 4 VT31-18SH1.5

10 MASTER BUMPER 1 M700

11 GASKET - 2.5” HOSE COUPLING

12 BASE RING

13 O-RING-335

15 SLOTTED RING

1

1

2

1

V3190

M206

V0-335

M245

16 BARREL CONE

17 WASHER

1 M200

1 C034

ITEM DESCRIPTION

18 3/6” BALL

19 SHAFT

22 WEAR STRIP

23 3/32 X 3/16 DRIVE SCREW

24 O-RING-345

25 CAM PINS

26 SELECT GAL BAFFLE

27 SELECT GAL CAM US

28 SELECTABLE FLOW SPRING

29 I/O SCREW

30 3/8-24 X 3/8 DOG POINT

31 6 X 1/4 DRIVE SCREW

32 SNAP RING

33 CONTROL NUT PISTON

34 O-RING-015

35 FINS

©Copyright Task Force Tips, Inc. 1998 - 2009

10

QTY PART

48 V2120

1 C035

1 M510

1 VT02-00DS187

1 VO-345

2 M260

1 C027

1 C028

1 C031

1 C033

2 H515

1 VT06E00DS250

1 V2010

1 C105

1 VO-015

1 M250

LIM-035 October 5, 2009 Rev08

6.0 DRAWINGS & PARTS LIST

10

2

21

1

11

MASTERSTREAM 1000 FIXED

12

22

7

6

8

25

5

9

3

27 28

29

13

14

12

4

15

24

16

17 18 19

20

26

23

6

7

8

9

4

5

ITEM DESCRIPTION

1 COUPLING 2.5” NH

2

3

1/4-28 X 1/2 SET SCREW

BARREL

NAME LABEL

SHAPER

HALO RING

HALO CAP

QTY PART

1

1

1

1

1

1

4

M307N

VT25-28SS500

M205

M755

M216

M230

M231

5/16-18 X 1-1/2 SOCKET HEAD SCREW 4 VT31-18SH1.5

MASTER BUMPER 1 M700

10 GASKET - 2.5” HOSE COUPLING

11 BASE RING

12 O-RING-335

13 FINS

14 SLOTTED RING

15 BARREL CONE

1 V3190

1 M206

2 V0-335

1 M250

1 M245

1 M200

ITEM DESCRIPTION

16 FIXED GAP SHAFT

17 FIXED GAP BAFFLE

18 5/8-18 JAM NUT

19 WASHER

20 10-24 X 1/2 BUTTON HEAD SCREW

21 3/6” BALL

22 WEAR STRIP

23 3/32 X 3/16 DRIVE SCREW

24 O-RING-345

25 CAM PINS

26 BARREL LABEL

27 SNAP RING

28 CONTROL NUT PISTON

29 O-RING-015

QTY PART

1 C036

1 C026

1 VT62-18NT

1 VW700X203-60

1 VT10-24BH500

48 V2120

1 M510

1 VT02-00DS187

1 VO-345

2 M260

1 M740

1 V2010

1 C105

1 VO-015

©Copyright Task Force Tips, Inc. 1998 - 2009

11

LIM-035 October 5, 2009 Rev08

7.0 WARRANTY

Task Force Tips, Inc., 3701 Innovation Way, Valparaiso, Indiana 46383-9327 (“TFT”) warrants to the original purchaser of its ZN,

ZM and Masterstream series nozzles (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase.

TFT’s obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by

TFT’s examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 3701 Innovation Way, Valparaiso, Indiana 46383-9327, within a reasonable time after discovery of the defect.

TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.

If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.

This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part consideration for limiting TFT’s liability. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.

THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL

IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE.

THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TASK FORCE TIPS, INC.

MADE IN USA • www.tft.com

©Copyright Task Force Tips, Inc. 1998 - 2009

3701 Innovation Way, Valparaiso, IN 46383-9327 USA

800-348-2686 • 219- 462-6161 • Fax 219-464-7155

LIM-035 October 5, 2009 Rev08

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
