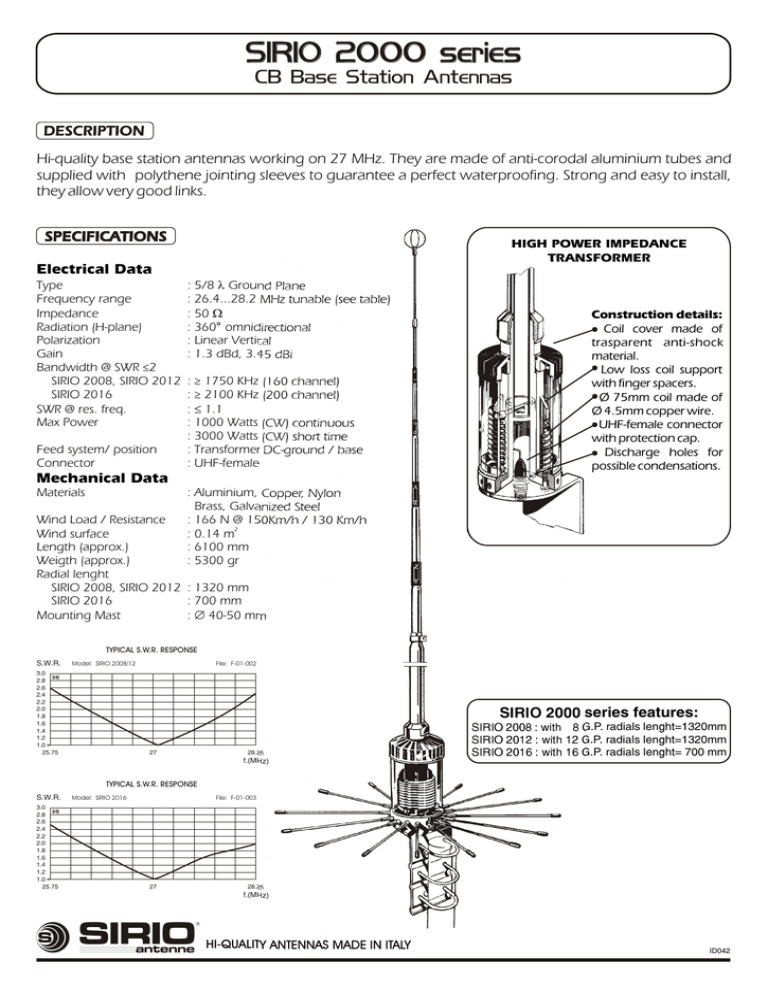

SIRIO 2000 series
CB Base Station Antennas
DESCRIPTION
Hi-quality base station antennas working on 27 MHz. They are made of anti-corodal aluminium tubes and
supplied with polythene jointing sleeves to guarantee a perfect waterproofing. Strong and easy to install,
they allow very good links.
SPECIFICATIONS
Electrical Data
Type
Frequency range
Impedance
Radiation (H-plane)
Polarization
Gain
Bandwidth @ SWR £2
SIRIO 2008, SIRIO 2012
SIRIO 2016
SWR @ res. freq.
Max Power
Feed system/ position
Connector
Mechanical Data
Materials
HIGH POWER IMPEDANCE
TRANSFORMER
: 5/8 l Ground Plane
: 26.4...28.2 MHz tunable (see table)
: 50 W
: 360° omnidirectional
: Linear Vertical
: 1.3 dBd, 3.45 dBi
: ³ 1750 KHz (160 channel)
: ³ 2100 KHz (200 channel)
: £ 1.1
: 1000 Watts (CW) continuous
: 3000 Watts (CW) short time
: Transformer DC-ground / base
: UHF-female
Construction details:
· Coil cover made of
trasparent anti-shock
material.
· Low loss coil support
with finger spacers.
· Ø 75mm coil made of
Ø 4.5mm copper wire.
· UHF-female connector
with protection cap.
· Discharge holes for
possible condensations.
: Aluminium, Copper, Nylon
Brass, Galvanized Steel
: 166 N @ 150Km/h / 130 Km/h
: 0.14 m2
: 6100 mm
: 5300 gr
Wind Load / Resistance
Wind surface
Length (approx.)
Weigth (approx.)
Radial lenght
SIRIO 2008, SIRIO 2012 : 1320 mm
SIRIO 2016
: 700 mm
Mounting Mast
: Æ 40-50 mm
TYPICAL S.W.R. RESPONSE
S.W.R.
Model: SIRIO 2008/12
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
25.75
File: F-01-002
SIRIO 2000 series features:
27
28.25
f.(MHz)
SIRIO 2008 : with 8 G.P. radials lenght=1320mm
SIRIO 2012 : with 12 G.P. radials lenght=1320mm
SIRIO 2016 : with 16 G.P. radials lenght= 700 mm
TYPICAL S.W.R. RESPONSE
S.W.R.
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
25.75
Model: SIRIO 2016
File: F-01-003
27
28.25
f.(MHz)
HI-QUALITY ANTENNAS MADE IN ITALY
ID042
TUNING TABLE
Freq. (MHz)
26.4
27.0
(Ch.19 CB) 27.185
27.5
28.0
28.2
Pos
1
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
545
381
330
241
101
45
Mounting needed tools:
tape rules (meter)
phillips screwdriver
8 mm open key
10 mm open key
13 mm open key
n. 1
n. 1
n. 1
n. 1
n. 1
14
Q.ty
1
4
8
1
1
1
1
6
6
6
3
1
8/12
16
8/12/16
Parts List
Description
5 sections telescopic aluminium whip
plastic jointing sleeves (4 different sizes)
Æ 3.9x6.5 mm phillips tapping screws
top section with cage
M4x4 hexagon socket set screw cup point
2 mm hexagonal key
Bottom section assembled with coil and connector
M8 washers
M8 spring lock washers
M8 hexagonal nuts
M8x200 mm U-bolts
Æ 26-28 mm hose clamps
Æ 6x8x1320mm radials aluminium tubes with joint (SIRIO 2008/12)
Æ 6x8x700mm radials aluminium tubes with joint (SIRIO 2016)
PVC cap for Æ 8mm aluminium tubes (models dependent)
MOUNTING INSTRUCTIONS
1
2
1
4
Fit the whip (1) on the
bottom section (7). Well
lock the hose clamps
(12) by using the
suitable 8mm open key.
12
L
5 SECTIONS TELESCOPIC ALUMINIUM WHIP
7
6
5
1
7
Pull out the sections of
telescopic aluminium whip (1),
insert the jointing sleeves (2) and
lock they using the screws (3).
Insert the top section with the
cage (4) at L (see tuning table for
frequency) and lock it using the
screw (5) and 2 mm hexagonal
key (6).
NOTE: Use the table just as a
guide. For fine-tuning please use
an SWR-meter
3
Mount the bottom
section with coil (7) on
the mast using parts
(8), (9), (10) and (11) in
according to the
picture.
11
10
8
9
Mast Æ 40-50mm (not supplied)
1
4
2
13
Mount the PVC cap (14)
at the end of radials
tubes (13) and lock they
on the coil by using the
suitable 10mm open key.
3
14
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 16/10/2008 - Cod. ID042
