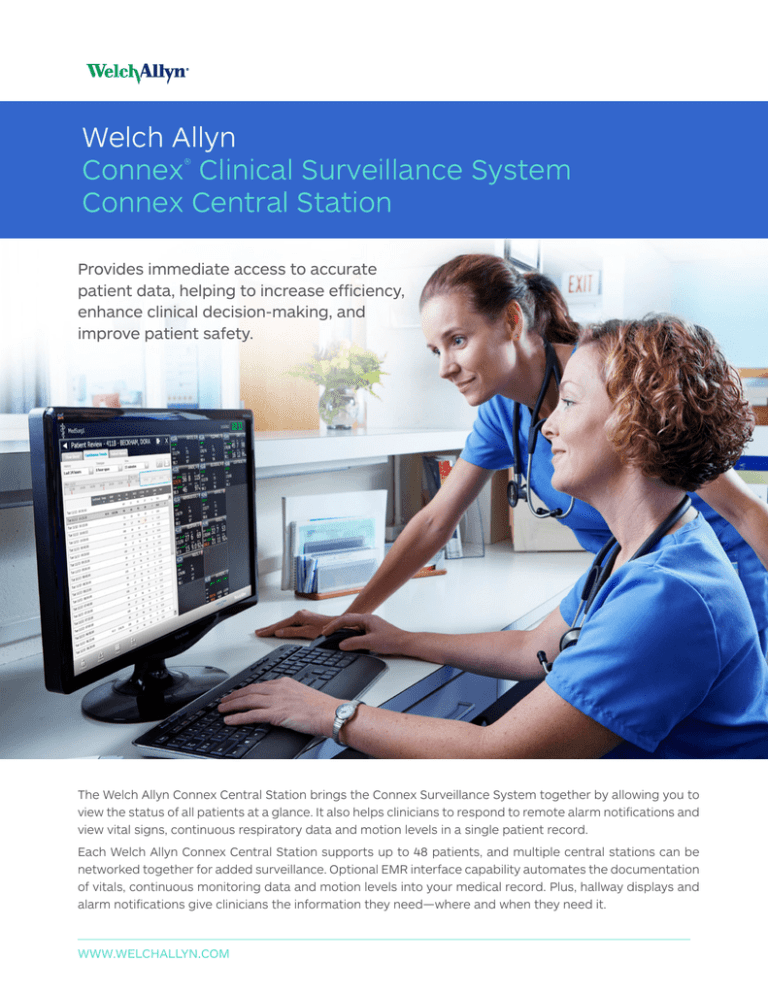

Welch Allyn
Connex® Clinical Surveillance System
Connex Central Station
Provides immediate access to accurate
patient data, helping to increase efficiency,
enhance clinical decision-making, and
improve patient safety.
The Welch Allyn Connex Central Station brings the Connex Surveillance System together by allowing you to
view the status of all patients at a glance. It also helps clinicians to respond to remote alarm notifications and
view vital signs, continuous respiratory data and motion levels in a single patient record.
Each Welch Allyn Connex Central Station supports up to 48 patients, and multiple central stations can be
networked together for added surveillance. Optional EMR interface capability automates the documentation
of vitals, continuous monitoring data and motion levels into your medical record. Plus, hallway displays and
alarm notifications give clinicians the information they need—where and when they need it.
WWW.WELCHALLYN.COM
Select Specifications
Connex® Central Station
Software Options
Connex CS Software includes Flow Sheet, Continuous Trends, Graphical Trends,
Patient Alarms and 24-hour Review
Optional 4 Day Review
Optional ADT interface
Optional Outbound HL7 ORU interface
Optional Alarm Interface
Software requires customer site to have an SQL license
Vital Signs Monitored
Connex Vital Signs Monitor (CVSM) 6000 Series
NIBP, Temp, SpO2 (Nellcor® or Masimo®)
• Covidien® Microstream® Capnography (etCO2), RR, IPI
• Masimo® Acoustic Respiration (RRa)
• EarlySense® PR, RR, bed exits, turn reminders
Manually entered parameters
Tile Layout Modes
Automatically sorted, mapped by patient location or manual
Patient Support
48 patients per Central Station
Up to 30 simultaneous, continuous monitor connections
Communication
Bidirectional—parameter settings, alarm limits, patient list
Wide Area Notifications,
including Alarms
Audible and highly visible alarm notification; multiple queues for each alarm,
border indications
Easy alarm tone pause and limit adjustment
Configurable audible alarm hold-off: 0–20 seconds
Alarm notification allows for alarms to be monitored from the bedside, handheld
devices or central station
Displays Supported1
24" color flat-panel monitor (Purchased or customer-supplied)
27" color flat-panel monitor (Customer-supplied only)
Repeater Displays
Supported1
27" color flat-panel monitor (Customer-supplied)
42" color flat-panel monitor (Customer-supplied)
Laser Printer
Multiple printers supported; can be purchased or customer-supplied1
Customer provided driver for MS Windows 7 – 64 bit O/S (PCL6 preferred).
Desktop Workstation
Operating System: Windows 7 Embedded
PC Physical Specifications
329 mm (13.0 in) H x 136 mm (5.4 in) W x 394 mm (15.5 in) D
Weight: 8.9 kg (19.7 lb)
Preferred Mounting: Mid-tower or desktop, at Nurse Station
CS/Device Support
Up to 6 Connex CS per network
Up to 288 spot-check and 144 continuous monitor connections per network
Networking: Hard-wired
or Wireless
Ethernet and 802.11 a/b/g. 802.11a required for continuous monitoring.
Supported WLANs2
Multiple WLANs supported, including Aruba®, Cisco®
Radio Card (802.11a)2
5.15–5.25, 5.25–5.35, 5.47–5.725, 5.725–5.85 GHz
Quality of Service, 802.11e QoS
Receiver Sensitivity, -65 dBm (minimum)
Transmit Power, 14 dBm (typical)
Authentication / Encryption
WEP 64 and 128, WPA2 Personal, WPA2 Enterprise (EAP-TLS,
EAP-TTLS, EAP-PEAP [MSCHAPv2])
Connex Network
Connex HIS Interfaces
Admit /Discharge/Transfer (ADT), and Outbound ORU
Alarm Interface Gateway (HL7)
Connex CS application is designed to work with HL7 revisions: 2.3, 2.3.1, 2.4, 2.5
Remote Diagnostics
Welch Allyn PartnerConnect
Enables remote technical support of devices and software
Compatible with PCs running Microsoft® Windows® Server 2003, 2008, 7, XP, or Vista®
Secure Internet connection required on port 443 (SSL)3
No transfer of patient information (HIPAA Compliant)
Device and System Monitoring
Welch Allyn Service Dashboard
Enables customer self-support of devices and software: CVSM 6000 Series,
Connex Central Station, Connex Closet Server
View device status, configuration, locations, calibration schedules, software/
firmware versions, licensing, services (applications)
PartnerConnect required
Supported Browsers: Internet Explorer: 8+, Google Chrome : V15+,
Apple Safari: V5.1+
Connex Service
& Support Tools
Refer to Connex CS Technical System Requirements (80018292) for specific models supported and resolution requirements.
Refer to Connex Network Installation Best Practices Overview (80018295) for current WLAN specifications and network configuration information.
Refer to MC10279 for complete description of security protocols.
1
2
3
WWW.WELCHALLYN.COM
©2014 Welch Allyn SM4102 Rev A
