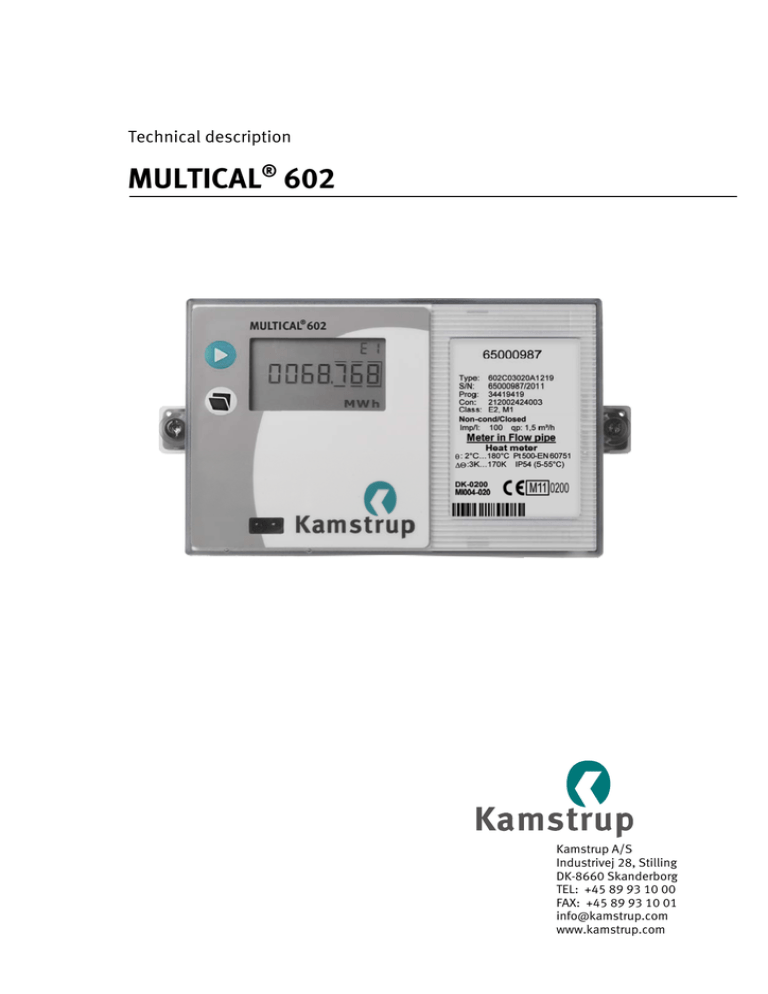

Technical description
Technical description
MULTICAL® 602
Kamstrup A/S
Industrivej 28, Stilling
DK-8660 Skanderborg
TEL: +45 89 93 10 00
FAX: +45 89 93 10 01
[email protected]
www.kamstrup.com
MULTICAL® 602
TECHNICAL DESCRIPTION
2
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
List of contents
1
General description ..........................................................................................................6
2
Technical Data ..................................................................................................................7
3
2.1
Approved meter data ............................................................................................................................7
2.2
Electrical data.......................................................................................................................................8
2.3
Mechanical data.................................................................................................................................10
2.4
Materials ............................................................................................................................................10
2.5
Accuracy.............................................................................................................................................10
Type overview .................................................................................................................11
3.1
Type and programming overview.........................................................................................................11
3.2
Type number combination ..................................................................................................................12
3.3
PROG, A-B-CCC-CCC ............................................................................................................................14
3.4
Display coding....................................................................................................................................21
3.5
>EE< Configuration of MULTITARIFF ......................................................................................................23
3.6
>FF< Input A (VA) - pulse divider, >GG< Input B (VB) - pulse divider.........................................................25
3.7
Configuration of pulse outputs in the top module................................................................................26
3.8
>MN< Configuration of leak limits.........................................................................................................26
3.9
>T< Configuration of encryption level....................................................................................................26
3.10
Data for configuration .........................................................................................................................27
4
Dimentional sketches .....................................................................................................28
5
Installation .....................................................................................................................29
6
5.1
Flow pipe and return pipe placing .......................................................................................................29
5.2
EMC conditions ..................................................................................................................................30
5.3
Climatic conditions.............................................................................................................................30
5.4
Electric installations ...........................................................................................................................30
Calculator functions........................................................................................................31
6.1
Energy calculation ..............................................................................................................................31
6.2
Application types................................................................................................................................32
6.3
Calculator with two flow sensors .........................................................................................................37
6.4
Combined heat/cooling metering........................................................................................................38
6.5
Flow measurement, V1 and V2............................................................................................................39
6.6
Power measurement, V1 .....................................................................................................................40
6.7
Min. and max. flow and power, V1 ......................................................................................................41
6.8
Temperature measurement .................................................................................................................42
6.9
Display functions................................................................................................................................44
6.10
Real Time Clock (RTC) .........................................................................................................................47
6.11
Info codes ..........................................................................................................................................48
6.12
Tariff functions ...................................................................................................................................51
5512-931 GB/09.2011/Rev. B1
3
MULTICAL® 602
TECHNICAL DESCRIPTION
6.13
Data loggers ...................................................................................................................................... 56
6.14
Leak surveillance ............................................................................................................................... 58
6.15
Reset functions .................................................................................................................................. 61
6.16
SMS Commands ................................................................................................................................ 61
6.17
Set-up via the front keys .................................................................................................................... 63
6.18
Reset via the front keys ...................................................................................................................... 65
7
Flow sensor connection .................................................................................................. 66
7.1 Volume inputs V1 and V2......................................................................................................................... 66
7.2
Flow sensor with active 24 V pulse output .......................................................................................... 68
7.3
Pulse inputs VA and VB...................................................................................................................... 71
8
Temperature sensors...................................................................................................... 73
8.1
Sensor types...................................................................................................................................... 74
8.2
Cable influence and compensation .................................................................................................... 75
8.3
Pocket sensors .................................................................................................................................. 77
8.4
Pt500 short direct sensor set ............................................................................................................. 78
9
Voltage supply ............................................................................................................... 79
9.1
Integral D-cell lithium battery ............................................................................................................. 79
9.2
Battery lifetimes................................................................................................................................. 80
9.3
High Power supply module 230 VAC................................................................................................... 81
9.4
High Power supply module 24 VAC..................................................................................................... 81
9.5
Supply module 230 VAC..................................................................................................................... 82
9.6
Supply module 24 VAC....................................................................................................................... 82
9.7
Exchanging the supply unit ................................................................................................................ 83
9.8
Mains supply cables .......................................................................................................................... 84
9.9
Back-up of data during power down ................................................................................................... 84
9.10
Danish regulations for connection of mains operated meters.............................................................. 85
10
10.1
Top modules...................................................................................................................................... 86
10.2
Base modules.................................................................................................................................... 92
10.3
Retrofitting modules ........................................................................................................................ 100
11
Data communication.................................................................................................. 101
11.1
MULTICAL® 602 data protocol .......................................................................................................... 101
11.2
MULTICAL® 602 communication paths ............................................................................................. 103
11.3
Optical eye ...................................................................................................................................... 103
12
4
Plug-in modules .......................................................................................................... 86
Calibration and verification ....................................................................................... 104
12.1
High-resolution energy reading ........................................................................................................ 104
12.2
Pulse interface ................................................................................................................................. 104
12.3
True energy calculation .................................................................................................................... 106
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
13
Approvals ..................................................................................................................107
13.1
CE marking ...................................................................................................................................... 107
13.2
Measuring instrument directive........................................................................................................ 107
14
Trouble-shooting .......................................................................................................109
15
Disposal ....................................................................................................................110
16
Documents ................................................................................................................111
17
Appendix A - MULTICAL® 602 vs. previous meters......................................................112
5512-931 GB/09.2011/Rev. B1
5
MULTICAL® 602
TECHNICAL DESCRIPTION
1 General description
MULTICAL® 602 is a thermal energy meter with many applications. In addition to being a precise and reliable heat
meter for battery or mains operation, MULTICAL® 602 is also used for:
• Cooling measurement in water-based systems
• Bifunctional heat/cooling measurements in separate registers
• Leak surveillance of hot and cold-water installations
• Power and flow limiter with valve control
• Data logger
• Data communication
• Energy measurement in open systems
In designing the MULTICAL® 602 we have attached great importance to flexibility via programmable functions and
plug-in modules (see chapter 10) in both the calculator top as well as in the base unit to ensure optimal use in a
large number of applications. In addition, the construction ensures that already installed MULTICAL® 602 meters
can be updated via the PC program METERTOOL.
This technical description is prepared to give utility managers, meter electricians, consulting engineers and
distributors the possibility of utilizing all functions available in the MULTICAL® 602. Furthermore, the description
is made for laboratories for the testing and verification process.
6
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
2 Technical Data
2.1 Approved meter data
Standard
EN 1434:2007, prEN 1434:2009 and OIML R75:2002
EU directives
Measuring Instrument Directive, Low Voltage Directive,
Electromagnetic Compatibity Directive
Heat meter approval
Temperature range
Differential range
DK-0200-MI004-020
θ: 2°C…180°C
ΔΘ: 3 K…170 K
Cooling meter
Temperature range
Differential range
θ: 2°C…50°C
ΔΘ: 3 K…40 K
Accuracy
EC ± (0.5 + ΔΘ min/ΔΘ) %
Temperature sensors
-Type 602-A
-Type 602-B and 602-D
-Type 602-C
Compatible flow sensor types
-ULTRAFLOW®
-Electronic meters with an active 24 V pulse output
-Mechanical meters with an electronic pick-up unit
-Mechanical meters with a Reed switch
Flow sensor sizes
[kWh]
[MWh]
[GJ]
EN 1434 designation
Environmental class A and C
MID designation
Mechanical environment: Class M1
The stated minimum temperatures
apply to the type approval only.
The meter has no cut-off for low
temperature and thus measures as low
temperatures as
0.01°C and 0.01 K.
Pt100 – EN 60 751, 2-wire connection
Pt500 – EN 60 751, 4-wire connection
Pt500 – EN 60 751, 2-wire connection
qp 0.6 m3/h…15 m3/h
qp 0.6 m3/h…1500 m3/h
qp 0.6 m3/h…3000 m3/h
Electromagnetic environment: Class E1 and E2
5…55°C, non condensing, closed location (indoor installation)
5512-931 GB/09.2011/Rev. B1
7
MULTICAL® 602
TECHNICAL DESCRIPTION
2.2 Electrical data
Calculator data
Typical accuracy
Calculator: EC ± (0.15 + 2/ΔΘ) % Sensor set: ET ± (0.4 + 4/ΔΘ) %
Display
LCD – 7 (8) digits with a digit height of 7.6 mm
Resolution
9999.999 – 99999.99 – 999999.9 – 9999999
Energy units
MWh – kWh – GJ – Gcal
Data logger (EEPROM)
Standard:
1392 hours, 460 days, 36 months, 15 years, 50 info codes
Option:
Data loggers with programmable interval
Clock/calendar
Clock, calendar, compensation for leap years, target date, Real time clock
with battery back-up
Data communication
KMP protocol with CRC16 used for optical communication and for top and
base modules
Power in temperature
sensors
< 10 μW RMS
Supply voltage
3.6 VDC ± 0.1 VDC
Battery
3.65 VDC, D-cell lithium
Stand-by current
< 15 μA excluding flow sensor
Replacement interval
12+1 years @ tBAT< 30°C
- Mounted on the flow sensor 10 years @ tBAT< 40°C
- Mounted on the wall
The replacement interval is reduced when using data modules, frequent data
communication and high ambient temperature. See chapter 9.2.
Mains supply
230 VAC +15/-30%, 50/60 Hz
24 VAC ±50%, 50/60 Hz
Insulation voltage
4 kV
Power supply
< 1W
Back-up supply
Integral super-cap eliminates operational disturbances due to short-term
power cuts (Power supply modules type 602-0000-7 and type 602-0000-8
only)
EMC data
Meets prEN 1434-4:2009 class C (MID class E2)
Temperature measurement
T1
T2
T3
T4
Measuring range
602-A
2-W Pt100 Preset range
0.00…185.00°C
0.01…180.00°C
0.00…185.00°C
0.01…180.00°C
0.00…185.00°C
0.01…180.00°C
N/A
0.01…180.00°C
Measuring range
602-B/D
4-W Pt500 Preset range
0.00…185.00°C
0.01…180.00°C
0.00…185.00°C
0.01…180.00°C
N/A
N/A
N/A
0.01…180.00°C
Measuring range
602-C
2-W Pt500 Preset range
0.00…185.00°C
0.01…180.00°C
0.00…185.00°C
0.01…180.00°C
0.00…185.00°C
0.01…180.00°C
N/A
0.01…180.00°C
Max. cable lengths
8
Pt100, 2-wire
Pt500, 2-wire
2
2
Pt500, 4-wire
2 x 0.25 mm : 2.5 m
2 x 0.25 mm : 10 m
4 x 0.25 mm2: 100 m
2 x 0.50 mm2: 5 m
2 x 0.50 mm2: 20 m
-
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
Flow measuring V1 and
V2
ULTRAFLOW®
Reed switches
24 V active pulses
V1: 9-10-11 and V2: 9-69-11
V1: 10-11 and V2: 69-11
V1: 10B-11B and V2: 69B-79B
EN 1434 pulse class
IC
IB
(IA)
Pulse input
680 kΩ pull-up for 3.6 V
680 kΩ pull-up for 3.6 V
12 mA at 24 V
Pulse ON
< 0.4 V in > 0.5 msec.
< 0.4 V in > 200 msec.
< 4 V in > 0.5 msec.
Pulse OFF
> 2.5 V in > 10 msec.
> 2.5 V in > 200 msec.
> 12 V in > 10 msec.
Pulse frequency
< 128 Hz
< 1 Hz
< 128 Hz
Integration frequency
< 1 Hz
< 1 Hz
< 1 Hz
Electrical isolation
No
No
2 kV
Max. cable length
10 m
25 m
100 m
Pulse inputs without bounce damping:
Pulse inputs VA and VB
Water meter connection
Electricity meter connection
VA: 65-66 and VB: 67-68
FF(VA) and GG(VB) = 71…90
FF(VA) and GG(VB) = 50…60
Pulse input
680 kΩ pull-up for 3.6 V
680 kΩ pull-up for 3.6 V
Pulse ON
< 0.4 V in > 30 msec.
< 0.4 V in > 30 msec.
Pulse OFF
> 2.5 V in > 100 msec.
> 2.5 V in > 100 msec.
Pulse frequency
< 1 Hz
< 3 Hz
Electrical isolation
No
No
Max. cable length
25 m
25 m
Requirements to external Leakage current at function open < 1 μA
contact
Pulse inputs with bounce damping:
Pulse inputs VA and VB
Water meter connection
VA: 65-66 and VB: 67-68
FF(VA) and GG(VB) = 01…40
Pulse input
680 kΩ pull-up for 3.6 V
Pulse ON
< 0.4 V i > 200 ms.
Pulse OFF
> 2.5 V i > 500 ms.
Pulse frequency
< 1 Hz
Electrical isolation
None
Max. Cable length
25 m
Requirements to external Leakage current at function open < 1 μA
contact
Pulse outputs CE and CV
- via top module
Type
67-0B
602-0C
Opto FET
Open collector (OB)
External voltage
5…48 VDC/AC
5…30 VDC
Current
1…50 mA
1…10 mA
Residual voltage
RON ≤ 40 Ω
UCE ≈ 1 V at 10 mA
Electrical isolation
2 kV
2 kV
Max. cable length
25 m
25 m
Pulse length
Optional 32 msec. or 100 msec.
5512-931 GB/09.2011/Rev. B1
9
MULTICAL® 602
TECHNICAL DESCRIPTION
2.3 Mechanical data
Environmental class
Meets EN 1434 class A and C
Ambient temperature
5…55°C non condensing, closed location (indoor installation)
Protection class
IP54
Storage temperature
-20…60°C (drained meter)
Weight
0.4 kg excluding sensors and flow sensor
Connection cables
ø3.5…6 mm
Supply cable
ø5…10 mm
2.4 Materials
Top cover
PC
Base unit
ABS with TPE packings (thermoplastic elastomer)
Print box
ABS
Wall brackets
PC + 30% glass
2.5 Accuracy
Figure 1. MULTICAL® 602 typical accuracy compared with EN 1434.
10
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
3 Type overview
MULTICAL® 602 can be ordered in a countless number of combinations as required by the customer. First the
required hardware is selected in the type overview. Then “Prog”, “Config” and “Data” are selected to suit the
application in question.
The meter is delivered completely configured and ready for use from the factory but it can also be
retrofitted/reconfigured after installation.
Please note that the items marked ”Totalprog” can only be changed when the verification seal is broken. This
requires that the change must be made at an accredited meter laboratory.
New functions and modules for MULTICAL® 602 are constantly being developed. Please contact Kamstrup A/S, if
the described variants do not meet your requirements.
3.1 Type and programming overview
Type number (Total prog.)
602-X-X-XX-X-XX-X-XXX
Selection of Pt100/Pt500
calculator, modules, supply,
sensor set, flow sensor and
language on label
PROG (Total prog.)
A-B-CCC-CCC
- Flow pipe/Return pipe
- Energy unit
- Flow meter code
CONFIG (Partial prog.)
DDD-EE-FF-GG-M-N-T
- Display
- Tariff
- Pulse inputs
- Leak sensibility
- Pulse outputs
- AMR Encryption level
DATA (Partial prog.)
- Customer no.
- Target date
- Tariff limits
- Average peak time max./min.
- Date/time
5512-931 GB/09.2011/Rev. B1
11
MULTICAL® 602
TECHNICAL DESCRIPTION
3.2 Type number combination
MULTICAL® 602
Type 602Sensor connection
Pt100 2-wire (T1-T2)
Pt500 4-wire (T1-T2)
Pt500 2-wire (T1-T2-T3)
Pt500 4-wire (T1-T2) w/24 V pulse inputs
Top module
No module
RTC + ΔEnergy calculation + hourly data logger 2)
RTC + PQ or Δt-limiter + hourly data logger
RTC + data output + hourly data logger
RTC + M-Bus
RTC + ΔVolume + hourly data logger 2)
RTC + 2 pulse outputs for CE and CV + hourly data logger + scheduler
RTC + 2 pulse outputs for CE and CV + prog. data logger
2 Pulse outputs CE and CV
Base module
No module
Data + pulse inputs
M-Bus + pulse inputs 1)
Radio Router + pulse inputs
Prog. data logger + RTC + 4…20 mA inputs + pulse inputs
0/4…20 mA outputs
LonWorks, FTT-10A + pulse inputs
Radio + pulse inputs (internal antenna) 434 or 444 MHz
Radio + pulse inputs (external antenna connection) 434 or 444 MHz
M-Bus module with alternative registers + pulse inputs
M-Bus module with medium data package + pulse inputs
M-Bus module with MC-III data package + pulse inputs
Wireless M-Bus Mode C1 + pulse inputs
ZigBee 2.4 GHz int.ant. + pulse inputs
Metasys N2 (RS485) + pulse inputs
SIOX module (Auto detect Baud rate)
GSM/GPRS module (GSM6H)
Ethernet/IP module (IP201)
High Power Radio Router + pulse inputs
A
B
C
D
0
2
3
5
7
9
A
B
C
00
10
20
21
22
23
24
25
26
27
28
29
30
60
62
64
Require HighPower supply
modules
Supply
No supply
Battery, D-cell
230 VAC high power isolated SMPS
24 VAC high power isolated SMPS
230 VAC isolated linear supply
24 VAC isolated linear supply
Pt500 sensor set
No sensor set
Pocket sensor set w/1.5 m cable
Pocket sensor set w/3.0 m cable
Pocket sensor set w/5 m cable
Pocket sensor set w/10 m cable
Short direct sensor set w/1.5 m cable
Short direct sensor set w/3.0 m cable
3 Pocket sensors in sets w/1.5 m cable
3 Short direct sensors in sets w/1.5 m cable
Flow sensor /pick-up unit
Supplied w/1 pcs. ULTRAFLOW®
(Please specify type)
Supplied w/2 pcs. (identical) ULTRAFLOW® (Please specify type)
Prepared for 1 pcs. ULTRAFLOW®
(Please specify type)
Prepared for 2 pcs. (identical) ULTRAFLOW® (Please specify type)
Prepared for meters w/electronic pulse output
Prepared for meters w/Reed switch output (both V1 and V2)
Prepared for meters w/24 V active pulses
Meter type
Heat meter, (MID module B+D)
Heat meter, closed systems
Cooling meter
Heat/Cooling meter
Volume meter, hot water
Volume meter, cooling water
Energy meter, open systems
0
2
3
4
7
8
00
0A
0B
0C
0D
0F
0G
0L
Q3
1
2
7
8
K
L
M
2
4
5
6
7
8
9
XX
Country code (language on label etc.)
12
80
82
84
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
3.2.1
Comments to the Type number survey
When placing orders please state ULTRAFLOW® type numbers separately.
1)
See paragraph 10.2 for further details.
2)
Requires two identical flow sensors.
3.2.2 Accessories
66-00-200-100
60200004000000
60200003000000
60200008000000
60200007000000
66-99-624
66-99-614
66-99-098
66-99-099
66-99-144
66-99-102
66-99-106
66-99-397/-398/-399
59-20-147
65-56-4x-xxx
679xxxxxx2xx
66-99-718
66-99-719
D-cell battery
24 VAC high power isolated SMPS
230 VAC high power isolated SMPS
24 VAC isolated linear supply
230 VAC isolated linear supply
Pulse transmitter/divider for 602-A and 602-C
4-wire connection PCB with pulse inputs for 24 V active pulses (for 602-D)
Data cable w/USB plug
Infrared optical reading head w/USB plug
Infrared optical reading head for Kamstrup/EVL w/USB plug
Infrared optical reading head w/D-sub 9F
Data cable RS 232, D-sub 9F
Verification unit (used with METERTOOL)
USB to serial converter
Temperature sensor set with connection head (2/4-wire)
External Communication Box
METERTOOL for MULTICAL® 602
METERTOOL LogView for MULTICAL® 602
Please contact Kamstrup A/S for questions concerning further accessories.
5512-931 GB/09.2011/Rev. B1
13
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3 PROG, A-B-CCC-CCC
The legal parameters of the meter are determined by Prog, which can only be changed when the verification seal
is broken. The change must then be made at an accreditated meter laboratory.
The A-code indicates whether the flow sensor (V1) is installed in flow or return pipe. As water has a larger volume
at higher temperatures, the calculator must be adjusted for the current installation type. Wrong programming or
installation results in measuring errors. For further details on placing the flow and return pipe of the flow sensor in
connection with heat and cooling meters, see paragraph 5.1.
The B-code indicates the measuring unit used for the energy register. GJ, kWh or MWh are used most frequently,
whereas Gcal is only used in some countries outside the EEA.
The CCC code indicates the calculator’s adaptation to a concrete flow sensor type, i.e. the calculation speed and
display resolution are optimised to the selected flow sensor type and at the same time the type approval
regulations concerning min. resolution and max. register overflow are met. The CCC codes are divided into several
tables to give a better survey.
CCC(V1) indicates the CCC code of the flow sensor and is connected to flow sensor input V1 on terminal 9-10-11
(or 10B-11B), which in most applications is the flow sensor used for calculating energy.
CCC(V2) indicates the CCC code of an extra flow sensor, if any, to be connected to terminal 9-69-11 (or 69B-79B).
If V2 is not used, CCC(V2) = CCC(V1). In connection with leakage surveillance CCC(V2) = CCC(V1).
Prog. number
A
Flow sensor placing:
- Inlet/Flow pipe (at T1)
k-factor
table
- Outlet/Return pipe (at T2)
3
4
-
Measuring unit, energy
- GJ
- kWh
- MWh
- Gcal
-
CCC (V1)
-
CCC (V2)
2
3
4
5
Flow sensor coding
(CCC-table)
14
B
CCC
5512-931 GB/09.2011/Rev. B1
CCC
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3.1
CCC-table for MULTICAL® 602
The CCC tables are divided into fast pulse codes (CCC=4XX, 2XX and 1XX) for electronic meters, e.g. ULTRAFLOW®,
and slow codes for e.g. reed contacts (CCC=0XX).
Electronic meters with fast and bounce-free pulses as well as info codes for ULTRAFLOW® X4
CCC= 4XX
Max. pulse frequency: 128 Hz
Max. integration frequency: 1 Hz
CCC= 1XX, 2XX
Electronic meters with fast and bounce-free pulses
Max. pulse frequency: 128 Hz
Max. integration frequency: 1 Hz
CCC= 0XX
Mechanical meters delivering slow pulses with bounce (flow sensor type "L")
Max. pulse frequency: 1 Hz
Max. integration frequency: 1 Hz
Max. integration frequency is 1 Hz for all types. The CCC codes are arranged in a way that qs+20% (or
Qmax+20%) does not exceed the 1 Hz in the integration frequency.
Example: CCC=107 (applies for a qp 1.5 m3/h meter) : 1 Hz in the integration frequency is obtained at
q = 3.6 m3/h.
EN 1434 makes demands on the resolution and registre size of the energy reading. MULTICAL® 602 meets these
demands when connected to below flow sensor sizes:
[kWh]
[MWh]
[GJ]
3.3.2
qp 0.6 m3/h…15 m3/h
qp 0.6 m3/h…1500 m3/h
qp 0.6 m3/h…3000 m3/h
CCC codes for mechanical flow sensors with Reed switch
Number of decimals on the display
CCC
no.
Precounter
010
1
011
012
013
020
021
022
Flow factor
kWh
MWh
Gcal
GJ
921600
1
-
1
1
1
4
921600
921600
921600
230400
0
4
4
230400
230400
-
m³/h
l/h
kW
MW
l/pulses
3
m³
[ton]
3
Pulses/l
-
0
1
-
1
3
2
1
3
2
1
0
2
2
1
0
2
2
1
0
2
-
0
0
2
1
-
10
100
1000
2.5
0.1
0.01
0.001
0.4
2
1
1
0
1
0
1
0
-
-
2
1
25
250
0.04
0.004
1
Qmax
[m³/h]
Flow
sensor
≤ 3,0
1…30
10…300
100…3000
L
≤6
3…60
30…600
L
L
L
L
L
L
Current flow (l/h or m³/h) reading is calculated on the basis of the measured period between 2 volume pulses
(see paragraph 6.5)
When one of above CCC codes has been selected both CCC (V1) and CCC (V2) must be selected from this table.
Note: Continuous maximum water flow and permanent ΔΘ > 75 K may cause overflow in the daily data logger at
CCC=010-011-012-013-150-202-205. With these combinations we recommend you to use Prog. data logger type
67-0B or type 67-00-22.
5512-931 GB/09.2011/Rev. B1
15
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3.3
CCC codes for ULTRAFLOW® II, type 65 54 XXX
Number of decimals on the display
CCC
no.
Precounter
116
3000
119
Flow
factor
kWh
MWh
Gcal
GJ
m³
[ton]
l/h
m³/h
kW
MW
78642
0
3
2
2
0
-
1
-
300
0.6
1000
235926
0
3
2
2
0
-
1
-
100
1.5
136
500
471852
0
3
2
2
0
-
1
-
50.0
2.5
151
5000
471852
-
2
1
1
0
-
1
-
50.0
3.5
137
2500
943704
-
2
1
1
0
-
1
-
25.0
120
1000
2359260
-
2
1
1
0
-
1
-
10.0
158
170
147
194
195
5000
2500
1000
400
250
471852
943704
2359260
5898150
9437040
-
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
-
2
2
2
2
2
0
-
3
3
3
3
6.0
6.0
10
10
15
25
40
60
150
400
1000
Pulses/l
5.0
2.5
1.0
0.4
0.25
qp
[m³/h]
Type no.
Flow
sensor
65 54 A8X
65 54 AAX
65 54 A6X
65 54 A7X
65 54 A1X
65 54 A2X
65 54 A3X
65 54 A4X
65 54 ADX
65 54 B1X
65 54 B7X
65 54 B2X
65 54 B5X
65 54 BGX
65 54 BHX
65 54 B4X
65 54 B8X
65 54 B9X
65 54 BAX
65 54 BBX
65 54 BCX
65 54 BKX
1-2-7-8
Current flow reading (l/h or m³/h) is calculated on the basis of volume pulses/10 sec. (see paragraph 6.5)
16
5512-931 GB/09.2011/Rev. B1
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3.4
CCC codes for ULTRAFLOW® type 65-R/S/T
Number of decimals on the display
CCC
no.
Precounter
116
3000
119
Flowfactor
kWh
MWh
Gcal
GJ
m³
[ton]
l/h
m³/h
kW
MW
78642
0
3
2
2
0
-
1
-
300
0.6
1000
235926
0
3
2
2
0
-
1
-
100
1.5
136
500
471852
0
3
2
2
0
-
1
-
50.0
3.0
151
5000
471852
-
2
1
1
0
-
1
-
50.0
3.5
137
2500
943704
-
2
1
1
0
-
1
-
25.0
178
1500
1572840
-
2
1
1
0
-
1
-
15.0
6
6
10
10
10
120
179
120
158
1000
600
1000
5000
2359260
3932100
2359260
471852
-
2
2
2
1
1
1
1
0
1
1
1
0
0
0
0
-
2
1
1
1
0
-
10.0
6.0
10.0
5.0
15
25
25
40
170
2500
943704
-
1
0
0
-
2
-
3
2.5
60
180
147
1500
1000
1572840
2359260
-
1
1
0
0
0
0
-
2
2
-
3
3
1.5
1.0
100
150
181
191
600
400
3932100
589815
-
1
1
0
0
0
0
-
2
1
-
3
2
0.6
0.4
250
400
192
250
943704
-
1
0
0
-
1
-
2
0.25
193
150
1572840
-
1
0
0
-
1
-
2
0.15
600
600
1000
1000
1000
Pulses/l
qp
[m³/h]
Type no.
Flow part
65-X-CAAA-XXX
65-X-CAAD-XXX
65-X-CDAC-XXX
65-X-CDAD-XXX
65-X-CDAE-XXX
65-X-CDAF-XXX
65-X-CDAA-XXX
65-X-CFAF-XXX
65-X-CFBA-XXX
65-X-CGAG-XXX
65-X-CGBB-XXX
65-X-CHAG-XXX
65-X-CHBB-XXX
65-X-C1AJ-XXX
65-X-C1BD-XXX
65-X-CJAJ-XXX
65-X-CJBD-XXX
65-X-CKBE-XXX
65-X-CLBG-XXX
65-X-C2BG-XXX
65-X-CMBHXXX
65-X-FABL-XXX
65-X-FACL-XXX
65-X-FBCL-XXX
65-X-FCBN-XXX
65-X-FCCN-XXX
65-X-FDCN-XXX
65-X-FEBN-XXX
65-X-FEBR-XXX
65-X-FECN-XXX
65-X-FECP-XXX
65-X-FECR-XXX
65-X-FFCP-XXX
65-X-FFCR-XXX
65-X-F1BR-XXX
65-X-F1CR-XXX
65-X-FGBR-XXX
1-2-7-8
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8
1-2-7-8-M
1-2-7-8
1-2-7-8-M
1-2-7-8-M
1-2-7-8
Current flow reading (l/h or m³/h) is calculated on the basis of volume pulses/10 sec. (see paragraph 6.5)
5512-931 GB/09.2011/Rev. B1
17
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3.5
CCC codes with high resolution for ULTRAFLOW® (for cooling meters etc.)
Number of decimals on the display
CCC
no.
Precounter
Flow
factor
kWh
MWh
Gcal
GJ
m³
[ton]
l/h
m³/h
kW
MW
184
107
136
138
300
100
500
250
78642
235926
471852
943704
1
1
0
0
3
3
3
3
2
2
3
3
2
2
0
0
0
0
-
1
1
1
1
-
183
185
186
187
188
189
191
192
150
100
500
250
150
100
400
250
1572840
2359260
471852
943704
1572840
2359260
589815
943704
0
0
-
3
3
2
2
2
2
1
1
2
2
1
1
1
1
0
0
2
2
1
1
1
1
0
0
0
0
-
2
2
2
2
1
1
1
1
0
-
3
3
3
2
2
15.0
10.0
5.0
2.5
1.5
1.0
0.4
0.25
193
150
1572840
-
1
0
0
-
1
-
2
0.15
Pulses/l
qp
[m³/h]
300
100
50.0
25.0
Type no.
0.6
1.5
3.5
6.0
10
10
15
40
60
100
150
400
600
1000
1000
Flow sensor
1-2-7-8
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8
1-2-7-8-M
1-2-7-8-M
1-2-7-8-M
1-2-7-8
Current flow reading (l/h or m³/h) is calculated on the basis of volume pulses/10 sec. (see paragraph 6.5)
3.3.6
CCC codes for other electronic meters with a passive output
Number of decimals on the display
CCC
no.
Precounter
Flow
factor
MWh
Gcal
GJ
147
148
149
150
175
176
177
1000
400
100
20
7500
4500
2500
2359260
5898150
2359260
11796300
314568
524280
943704
1
1
1
1
1
1
1
0
0
0
0
0
0
0
m³
[ton]
m³/h
0
0
0
0
0
0
0
2
2
1
1
2
2
2
kW
MW
l/pulse
Pulses/l
Qmax
Type
[m³/h]
-
3
3
2
2
3
3
3
1
2.5
10
50
-
7.5
4.5
2.5
18...75
120…300
450…1200
1800…3000
15…30
25…50
40…80
SC-18
SC-120
SC-450
SC-1800
DF-15
DF-25
DF-40
Flow
sensor
K-M
K-M
K-M
K-M
K-M
K-M
K-M
Number of decimals on the display
CCC
no.
Precounter
201
100
202
Flow
factor
MWh
Gcal
GJ
m³
[ton]
m³/h
MW
235926
2
1
1
1
2
1
1
10…100
75
40
589815
2
1
1
1
2
2.5
0.4
40…200
240
203
400
589815
1
0
0
1
2
2.5
0.4
100…400
500
204
100
235926
1
0
0
0
1
10
0.1
150…1200
1600
205
20
1179630
1
0
0
0
1
50
0.02
500…3000
3600
l/pulse
Pulse/l
Qp range
[m³/h]
Qs
(m³/h)
Type
Flow
sensor
FUS380
DN50-65
FUS380
DN80-100
FUS380
DN125
FUS380
DN150-250
FUS380
DN300-400
K-M
Current flow reading (l/h or m³/h) is calculated on the basis of volume pulses/10 pcs. (see paragraph 6.5)
3.3.7 CCC codes for other electronic meters with an active output
Flow sensor with active 24 V pulse output, see paragraph 7.2
18
5512-931 GB/09.2011/Rev. B1
K-M
K-M
K-M
K-M
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3.8
CCC codes for vane wheel meters with an electronic pick-up unit
Number of decimals on the display
CCC
no.
Precounter
Flow
factor
MWh
Gcal
kWh
GJ
102
103
104
105
106
108
109
110
111
112
113
114
115
116
117
118
119
121
122
123
124
125
560
300
2520
1230
1080
1403
957
646
404
502
2350
712
757
3000
269
665
1000
294
1668
864
522
607
421296
786420
936214
1918098
2184500
168158
246527
365211
583975
469972
1003940
331357
311659
78642
877048
354776
235926
802469
141442
273063
451966
388675
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3
3
2
2
2
3
3
3
3
3
2
2
3
3
3
3
3
3
3
3
3
3
126
127
420
2982
561729
791167
0
-
128
129
130
131
132
133
134
135
139
140
141
142
143
144
145
146
152
153
156
157
163
164
165
168
169
173
2424
1854
770
700
365
604
1230
1600
256
1280
1140
400
320
1280
640
128
1194
1014
594
3764
1224
852
599
449
1386
500
973292
1272524
3063974
3370371
645665
390154
191732
1474538
921586
1843172
2069526
589815
737269
1843172
3686344
18431719
1975930
2326686
397182
626796
192750
280064
393735
5259161
1702208
471852
0
0
0
0
0
0
0
0
-
m³
[ton]
l/h
m³/h
kW
MW
Pulses/l
2
2
1
1
1
2
2
2
2
2
1
1
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
2
2
2
2
2
1
1
2
2
2
2
2
2
2
2
2
2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
56.0
30.0
25.2
12.3
10.8
140.3
95.7
64.6
40.4
50.2
23.5
7.12
75.7
300.0
26.9
66.5
100.0
29.4
166.8
86.4
52,2
60.7
3
2
2
1
2
1
0
0
-
1
1
-
42.0
29.82
2
2
2
2
3
3
3
2
3
2
2
2
2
1
1
1
2
2
3
2
3
3
3
2
1
1
1
1
1
1
2
2
2
1
2
1
1
1
1
0
0
0
1
1
2
1
2
2
2
1
0
0
1
1
1
1
2
2
2
1
2
1
1
1
1
0
0
0
1
1
2
1
2
2
2
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
-
3
3
3
3
3
2
24.24
18.54
7.7
7.0
36.54
60.47
123.05
16.0
25.6
12.8
11.4
4
3.2
1.28
0.64
0.128
11.94
10.14
59.4
37.64
122.4
85.24
59.92
4.486
1.386
0.5
qp
Type
Flow
sensor
GWF-MT3
GWF-MT3
GWF-MT3
GWF-MT3
GWF-MT3
GWF
GWF
GWF
HM (GWF)
GWF
GWF
GWF
GWF
GWF
Brunata
Aquastar
HM
HM
HM
CG (HM)
HM
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
CG (HM)
HM
K
K
HM
HM
HM
HM
Wehrle
Wehrle
Wehrle
HM
GWF
GWF
GWF
GWF
GWF
GWF
GWF
GWF
GWF
GWF
Metron
Metron
GWF/U2
GWF/U2
GWF/U2
HM/WS
HM/WS
Westland
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
[m³/h]
1.5/2.5
3.5
6
10
15
0.6
1.0
1.5
1.5 (2.5)
1.5 – 2.5*
3.5 - 6*
10 - 15*
1.0*
0.6*
1.5
1.5
0.6
1.5 – 2.5
0.6
0.75 - 1*
2.5 (1.5*)
1.5 - 1*
1.5*
1.0 (2.5*)
2.5
3.5*
3.5*
6*
10*
15*
2.5
1.5
0.6
10*
1.5 – 2.5
3.5 – 5.0
6
10
10 - 15
25 - 40
60
125
10
15
1.5
2.5
0.6 – 1.0
1.5
2.5
15/25
40
80
Current flow reading (l/h or m³/h) is calculated on the basis of volume pulses/10 sec. (see paragraph 6.5)
* Multiple-jet water meter
5512-931 GB/09.2011/Rev. B1
19
MULTICAL® 602
TECHNICAL DESCRIPTION
3.3.9
ULTRAFLOW® X4 CCC-codes
Number of decimals on the display
CCC
no.
416
Precounter
3000
Flow
factor
78642
MWh
Gcal
kWh
0
GJ
3
m³
[ton]
2
l/h
m³/h
kW
MW
Pulses/l
qp
Type
Flow
sensor
0.6 65-X-CAAA-XXX
1-2-7-8
[m³/h]
2
0
-
1
-
300
65-X-CAAD-XXX
65-X-CAAF-XXX
484
300
78642
1
-
3
3
0
-
1
-
300
0.6
419
1000
235926
0
3
2
2
0
-
1
-
100
1.5 65-X-CDA1-XXX
1-2-7-8
1-2-7-8
65-X-CDAA-XXX
65-X-CDAC-XXX
65-X-CDAD-XXX
65-X-CDAE-XXX
65-X-CDAF-XXX
65-X-CDBA-XXX
407
100
235926
1
-
3
3
0
-
1
-
100
498
600
393210
0
3
2
2
0
-
1
-
60
1.5
1-2-7-8
2.5 65-X-CEAF-XXX
1-2-7-8
65-X-CEBA/CECA-XXX
65-X-CEAD-XXX
451
5000
471852
-
2
1
1
0
-
1
-
50
3.5 65-X-CGAG-XXX
436
500
471852
0
3
2
2
0
-
1
-
50
3.5
437
2500
943704
2
1
1
0
1-2-7-8
65-X-CGBB/CGCB-XXX
1
25
1-2-7-8
6 65-X-CHAF-XXX
1-2-7-8
65-X-CHAG-XXX
65-X-CHAH-XXX
65-X-CHBB/CHCB-XXX
438
250
943704
0
3
2
2
0
-
1
-
25
478
1500
1572840
-
2
1
1
0
-
1
-
15
6
1-2-7-8
10 65-X-CJAJ-XXX
1-2-7-8
65-X-CJB2/CJC2-XXX
65-X-CJBD/CJCD-XXX
483
150
1572840
0
3
2
2
0
-
1
-
15
10
420
1000
2359260
-
2
1
1
0
-
1
-
10
15 65-X-CKB4/CKC4-XXX
1-2-7-8
1-2-7-8
65-X-CKBE/CKCE-XXX
485
100
2359260
0
3
2
2
0
-
1
-
10
15
1-2-7-8
479
600
3932100
-
2
1
1
0
-
1
-
6
25 65-X-CLBG/CLCG -XXX
1-2-7-8
458
5000
471852
-
1
0
0
-
2
0
-
5
40 65-X-CMBH/CMCH -XXX 1-2-7-8
65-X-CMBJ/CMCJ -XXX
486
500
471852
-
2
1
1
-
2
0
-
5
470
2500
943704
-
1
0
0
-
2
-
3
2.5
60 65-X-FACL-XXX
1-2-7-8
487
250
943704
-
2
1
1
-
2
-
3
2.5
60
1-2-7-8
480
1500
1572840
-
1
0
0
-
2
-
3
1.5
100 65-X-FBCL-XXX
488
150
1572840
-
2
1
1
-
2
-
3
1.5
100
1-2-7-8
447
1000
2359260
1
0
0
2
3
1
150 65-X-FCCN-XXX
1-2-7-8
489
100
2359260
2
1
1
2
3
1
150
1-2-7-8
481
600
3932100
1
0
0
2
3
0.6
491
400
589815
1
0
0
1
2
0.4
492
250
943704
1
0
0
1
2
0.25
493
150
1572840
1
0
0
1
2
0.15
ULTRAFLOW® CCC- codes with high resolution
20
5512-931 GB/09.2011/Rev. B1
40
250 65-X-FDCN-XXX
65-X-FECN-XXX
400 65-X-FECP-XXX
65-X-FECR-XXX
65-X-FFCP-XXX
600
65-X-FFCR-XXX
1000 65-X-FGCR-XXX
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
1-2-7-8
MULTICAL® 602
TECHNICAL DESCRIPTION
3.4 Display coding
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
•
•
2.1
2.2
Yearly data
Monthly data)
3.1
3.2
3.3
3.4
3.5
3.6
3.7
E2
E4
E5
E6
E7
E8 (m3*tf)
E9 (m3*tr)
4.1
4.2
4.3
4.4
Yearly data
Monthly data
Mass 1
P1
•
•
5.1
5.2
5.3
5.4
Yearly data
Monthly data
Mass 2
P2
•
•
6.1
Error hour counter
7.1
7.2
Year-to-date average
Month-to date average
8.1
8.2
Year-to-date average
Month-to-date average
Heat meter
DDD=910
Cold Volume
DDD=810
1
1A
1B
1
1A
1B
2
2A
2B
Heat volume
DDD=710
Heat/cooling
DDD=610
1
1A
1B
Cooling meter
DDD=510
Yearly data
Monthly data
Cooling energy (E3)
3.X
4.0
•
•
Heat energy (E1)
1.1
1.2
2.0
Heat meter
DDD=210
1.0
Date stamp
The display code "DDD" indicates the active readings for the individual meter type. ”1” is the first primary reading
whereas e.g. ”1A” is the first secondary reading. The display automatically returns to reading ”1” after 4 minutes.
1
1A
2
2A
2B
2C
2
2A
3
3A
3B
Volume V1
2
2A
2B
3
3A
3B
1
1A
1B
1
1A
1B
Volume V2
Hour counter
4
5
6
6A
6B
7
7A
7B
8
2
3
9
9A
8
8A
9
9A
4
4A
4
4A
9B
8B
9B
4B
4B
12A
9C
10
11
11A
8C
9C
4C
5
4C
5
9
9A
10
10A
12B
13
14
11B
9B
10B
11C
9C
10C
T2 (Return flow)
T1-T2 (Δt) - = cooling
T3
T4 (prog.)
Flow (V1)
Max this year
Max. yearly data
Min. this year
Min. yearly data
Max. this month
Max. monthly data
Min. this month
Min. monthly data
•
•
•
•
•
•
•
•
14.1
14.2
14.3
14.4
14.5
14.6
14.7
14.8
Max. this year
Max. yearly data
Min. this year
Min. yearly data
Max. this month
Max. monthly data
Min. this month
Min. monthly data
•
•
•
•
•
•
•
•
4A
4B
4C
5
6
7
3
4
5
5A
5B
6
6A
6B
7
T1 (Flow)
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
3A
3B
3C
4
4
5
6
6A
6B
7
7A
7B
8
(No 60)
Flow (V2)
Power (V1)
5512-931 GB/09.2011/Rev. B1
2
3
3
8
9
10
11
12
21
MULTICAL® 602
16.1
16.2
16.3
16.4
Meter no. VB
Yearly data
Monthly data
L/Imp for VA
17.1
TL2
18.1
TL3
19.1
19.2
Info event counter
Info logger (last 36 events)
20.1
20.2
20.3
20.4
20.5
20.6
20.7
20.8
20.9
20.10
20.11
20.12
20.13
20.14
20.15
20.16
Date
Time
Target date
Serial no.
(No 3)
Prog. (A-B-CCC-CCC)
(No 4)
Config 1 (DDD-EE)
(No 5)
Config 2 (FF-GG-M-N-T) (No 6)
Software edition
(No 10)
Software check-sum
(No 11)
Segment test
Top module type
(No 20)
Top module primary adr. (No 21)
Top module second. adr. (No 22)
Base module type
(No 30)
Base module primary adr. (No 31)
Base module second. adr. (No 32)
•
•
(No 65)
18.0
TA3
•
•
(No 67)
Info code
Customer number
(No 1+2)
•
Cooling meter
DDD=510
11
11A
11B
11C
11D
12
12A
12B
12C
12D
13
6
6A
6B
6C
6D
7
7A
7B
7C
7D
6
6A
6B
6C
6D
7
7A
7B
7C
7D
15
15A
15B
15C
15D
16
16A
16B
16C
16D
15
15A
15B
16
8
8A
8B
9
8
8A
8B
9
17
17A
17B
18
13A
13B
13C
13D
13E
13F
13G
13H
13I
13J
13K
13L
13M
13N
13O
13P
16A
16B
16C
16D
16E
16F
16G
16H
16I
16J
16K
16L
16M
16N
16O
16P
9A
9B
9C
9D
9E
9F
9G
9H
9I
9J
9K
9L
9M
9N
9O
9P
9A
9B
9C
9D
9E
9F
9G
9H
9I
9J
9K
9L
9M
9N
9O
9P
18A
18B
18C
18D
18E
18F
18G
18H
18I
18J
18K
18L
18M
18N
18O
18P
2
12
2
12
2
12
2
12
2
12
12
12A
12B
12C
12D
13
13A
13B
13C
13D
14
14A
15
15A
16
16A
16B
17
10
10A
10B
10C
10D
11
11A
11B
11C
11D
12
12A
12B
13
17A
17B
17C
17D
17E
17F
17G
17H
17I
17J
17K
17L
17M
17N
17O
17P
2
12
Number of yearly data shown in the display (1…15)
Number of monthly data shown in the display (1…36)
Heat meter
DDD=910
Cold volume
DDD=810
TA2
20.0
Meter no. VA
Yearly data
Monthly data
L/Imp for VA
VB (Input B)
17.0
19.0
15.1
15.2
15.3
15.4
Heat volume
DDD=710
16.0
VA (Input A)
Heat/cooling
DDD=610
15.0
Heat meter
DDD=410
Date stamp
TECHNICAL DESCRIPTION
14
DDD=210 is the ”standard code” for heat meters with meter type 602xxxxxxx2xx. Please contact Kamstrup for
other combinations. Max. number of readings of a DDD code is 110. Of these, reading of data logger counts for 4
readings. Top module no. and base module no. to be left out of account.
A complete survey of existing display codes (DDD) appears from a separate document.
Please contact Kamstrup for further details.
Note: Data reading can retrieve up to 36 monthly data and up to 15 yearly data. Number of yearly and monthly
data to be shown in the display is determined by the DDD code in each case.
22
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
3.4.1 Energy overview
Above energy types E1 to E9 are calculated as follows:
ΔΘ
Formula
Example of an application
Included in Application No.
Register type
(see paragraph 6.2)
E1=V1(T1-T2)k T1: Flow / T2: Return
T1 > T2
Heat energy (V1 in flow or return flow)
1+2+3+4+5+6+8+10
Legal Display/Data/Log
E2=V2(T1-T2)k T2: Return
T1 > T2
Heat energy (V2 in return flow)
2+7
Display/Data/Log
E3=V1(T2-T1)k T2: Flow / T1: Return
T2 > T1
Cooling energy (V1 in flow or return flow)
1+11
Legal Display/Data/Log
E4=V1(T1-T3)k T1: Flow
T1 > T3
Flow energy
7+9+11
Display/Data/Log
E5=V2(T2-T3)k T2: Flow
T2 > T3
Return energy or tap from return flow
5+7+9
Display/Data/Log
E6=V2(T3-T4)k T3: Flow
T3 > T4
Tap water energy, separate
3+6
Display/Data/Log
E7=V2(T1-T3)k T3: Return
T1 > T3
Return energy or tap from flow
4+8
Display/Data/Log
3
E8=m x T1
3
-
Average temperature in flow
Display/Data/Log
See paragraph 6.2.2
E9=m x T2
-
Average temperature in return
Display/Data/Log
3.5 >EE< Configuration of MULTITARIFF
MULTICAL® 602 has 2 extra registers, TA2 and TA3, that accumulates energy E1 or E3 (EE=20 accumulates
volume) in parallel with the main register based on the limits programmed to tariff limits TL2 and TL3.
Example: EE=11 (power tariff)
TA2 shows the energy consumed …
… above the power limit TL2 (but below TL3)
T2
T3
5512-931 GB/09.2011/Rev. B1
23
MULTICAL® 602
TECHNICAL DESCRIPTION
Example: Power tariff (EE=11); TL2=20 kW; TL3=30 kW; the meter is a heat meter.
11
Power tariff
12
Flow tariff
13
Cooling tariff
14
Flow temperature tariff
15
Return flow temperature
tariff
19
Time-controlled tariff
20
Heat/cooling volume tariff
(TL2 and TL3 are not used)
Volume (V1) is split up into TA2 for heat (T1>T2) and TA3 for
cooling (T1<T2) (Recommended on Heating/Cooling applications)
21
PQ tariff
Energy at P>TL2 is stored in TA2 and energy at Q>TL3 is stored in
TA3
Energy is accumulated in TA2 and TA3 based on the power limits in
TL2 and TL3.
Energy is accumulated in TA2 and TA3 based on the flow limits in
TL2 and TL3.
Energy is accumulated in TA2 and TA3 based on the Δt limits in TL2
and TL3.
Energy is accumulated in TA2 and TA3 based on the tF-limits in
TL2 and TL3.
Energy is accumulated in TA2 and TA3 based on the tR-limits in TL2
and TL3.
TL2=Starting time for TA2
TL3=Starting time for TA3
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Country code 9xx
No function
Country code 8xx
No tariff active
Country code 7xx
00
Country code 6xx
FUNCTION
Country code 5xx
TARIFF TYPE
Country code 4xx
EE=
Country code 2xx
The heat energy E1 is always counted in the main register. When the power exceeds the limit set for TL2, i.e. 20
kW, but is below the limit set for TL3, i.e. 30 kW, the heat energy E1 is counted in TA2, but only as long as TL2
exceeds 20 kW and is lower than 30 kW. It functions as a contact T2, which closes the moment TL2 surpasses 20
kW. As soon as the power either surpasses 30 kW or falls below 20 kW, the contact breaks again and counting
stops in the TA-register. If the power surpasses 30 kW the contact T3 closes and now all the energy E1, which is
consumed as long as the power remains above 30 kW is counted in T3. This energy E1 is counted in both the
main register and in TA3.
•
Please note that only tariff No. 20 can be used in a combined heat / cooling meter. All other tariffs may
only be used for either a heat meter or a cooling meter. The meter can not distinguish heat energy (E1)
from cooling energy (E3) and vice versa.
24
7.1
7.2
Year-to-date average
Month-to-date average
8.1
8.2
Year-to-date average
Month-to-date average
T2 (Return flow)
Heat/cooling
DDD=610
8.0
T1 (Flow)
Cooling meter
DDD=510
7.0
Heat meter
DDD=410
See paragraph 6.12 for further details on the tariff registers.
5
5A
5B
6
6A
6B
4
4A
4B
5
5A
5B
5
5A
5B
6
6A
6B
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
3.6 >FF< Input A (VA) - pulse divider, >GG< Input B (VB) - pulse divider
MULTICAL® 602 has 2 extra pulse inputs, VA and VB, that are placed on the base modules (see paragraph 7.3 for
further information). The inputs are configured via the FF and the GG codes as shown in below diagram.
By default the inputs are configured to FF = 24 and GG = 24, unless otherwise informed by the customer.
Input A
Terminal 65-66
FF
Max. input
f ≤1Hz
Input B
Terminal 67-68
GG
Max. input
f ≤1 Hz
Pre-counter
Wh/pulses
l/pulse
Measuring unit and decimal
point
Pulse input with bounce damping (for meters with Reed-switch):
01
02
03
04
05
06
07
100 m³/h
50 m³/h
25 m³/h
10 m³/h
5 m³/h
2.5 m³/h
1 m³/h
01
02
03
04
05
06
07
100 m³/h
50 m³/h
25 m³/h
10 m³/h
5 m³/h
2.5 m³/h
1 m³/h
1
2
4
10
20
40
100
-
100
50
25
10
5.0
2.5
1.0
vol A/vol b
vol A/vol b
vol A/vol b
vol A/vol b
vol A/vol b
vol A/vol b
vol A/vol b
(m3)
(m3)
(m3)
(m3)
(m3)
(m3)
(m3)
000000.0
000000.0
000000.0
000000.0
000000.0
000000.0
000000.0
24
25
26
27
10 m³/h
5 m³/h
2.5 m³/h
1 m³/h
24
25
26
27
10 m³/h
5 m³/h
2.5 m³/h
1 m³/h
1
2
4
10
-
10
5.0
2.5
1.0
vol A/vol b
vol A/vol b
vol A/vol b
vol A/vol b
(m3)
(m3)
(m3)
(m3)
00000.00
00000.00
00000.00
00000.00
40
1000 m³/h
40
1000 m³/h
1
-
1000
vol A/vol b (m3)
0000000
100
vol A/vol b (m3)
000000.0
Pulse input without bounce damping (for meters with electronic pulse output):
71
100 m³/h
71
72
50 m³/h
72
50 m³/h
2
-
50
vol A/vol b (m )
000000.0
73
25 m³/h
73
25 m³/h
4
-
25
vol A/vol b (m3)
000000.0
74
10 m³/h
74
10 m³/h
10
-
10
vol A/vol b (m3)
000000.0
75
5 m³/h
75
5 m³/h
20
-
5.0
vol A/vol b (m )
000000.0
76
2.5 m³/h
76
2.5 m³/h
40
-
2.5
vol A/vol b (m3)
000000.0
77
1 m³/h
77
1 m³/h
100
-
1.0
vol A/vol b (m3)
000000.0
84
10 m³/h
84
10 m³/h
1
-
10
vol A/vol b (m3)
00000.00
85
5 m³/h
85
5 m³/h
2
-
5.0
vol A/vol b (m3)
00000.00
2.5 m³/h
86
2.5 m³/h
4
-
2.5
1 m³/h
87
1 m³/h
10
-
1.0
1000 m³/h
90
1000 m³/h
1
-
1000
86
87
90
100 m³/h
1
-
FF
Max. Input
f ≤ 3 Hz
GG
Max. Input
f ≤ 3 Hz
Pre-counter
Wh/pulses
50
51
52
53
54
55
56
57
58
59
60
61
62
2500 kW
150 kW
120 kW
75 kW
30 kW
25 kW
20 kW
15 kW
7,5 kW
750 kW
1250 kW
75 kW
15 kW
50
51
52
53
54
55
56
57
58
59
60
61
62
2500 kW
150 kW
120 kW
75 kW
30 kW
25 kW
20 kW
15 kW
7,5 kW
750 kW
1250 kW
75 kW
15 kW
1
60
75
120
240
340
480
600
1000
10
2
100
500
1000
16.67
13.33
8.333
4.167
2.941
2.083
1.667
1.000
100
500
10.00
2.000
70
25000 kW
70
25000 kW
1
10000
l/pulses
3
3
3
00000.00
3
00000.00
3
0000000
vol A/vol b (m )
vol A/vol b (m )
vol A/vol b (m )
Measuring unit and decimal
point
-
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
EL A/EL b
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
(kWh)
0000000
0000000
0000000
0000000
0000000
0000000
0000000
0000000
0000000
0000000
0000000
0000000
0000000
-
EL A/EL b (MWh)
00000.00
FF and GG are only used for configuration of inputs.
l/pulse can also be set via the front bottons. Please see 6.17 for further information.
5512-931 GB/09.2011/Rev. B1
25
MULTICAL® 602
TECHNICAL DESCRIPTION
3.7 Configuration of pulse outputs in the top module
See paragraph 10.1
3.8 >MN< Configuration of leak limits
When MULTICAL® 602 is used for leakage surveillance, the sensitivity is ”M-N” in connection with configuration.
District heat leakage search (V1-V2)
Sensitivity in leakage
search
M=
0
OFF
1
1.0% qp + 20% q
2
1.0% qp + 10% q
3
0.5% qp + 20% q
4
0.5% qp + 10% q
Cold-water leakage search (VA)
Constant leakage at no consumption (pulse
resolution 10 l/pulses)
N=
0
OFF
1
20 l/h 3x10 min. (½ hour without pulses)
2
10 l/h 6x10 min. (1 hour without pulses)
3
5 l/h 12x10 min. (2 hours without pulses)
NB: M=2 and N=2 are default values when leakage surveillance is used. Higher degree of sensitivity, e.g. M=4
can only be obtained by means of METERTOOL.
Info codes for leakage/bursting (info 256/512) are only active when M > 0 or N > 0.
3.8.1
Example of District Heat Leakage level (Leak level)
In this example M=2. Having a qp=0.6 m3/h flowmeter, qp must be converted to l/h: qp=600 l/h.
If we assume that there has been a means flow of 50 l/h then there will be counted approximately 1200 l/day.
10% of this value is 120 l/day. Further, 1% of qp=600 l/h is 6 l/h equivalent to 24 x 6 l/h = 144 l/day. Leak level
in this case will be 120 + 144 = 264 l/day or equivalent of 6 l/h.
3.9 >T< Configuration of encryption level
MULTICAL® 602 is available without or with encryption of the data transmission. If encryption of data is selected,
128 bit AES counter mode encryption is applied. The encryption level cannot be changed after production.
Encryption level
T=
0
1
2
3
4
No encryption
Reserved for future use
Reserved for future use
Encryption with separately forwarded key (individual key)
Reserved for future use
T=0
Default value. Data has not been encrypted.
T=3
The meter can only be read if the reading system recognizes the individual meter’s encryption key.
The encryption key is forwarded to the customer and ”matched” with the individual meter’s serial number in the
reading system.
If the encryption key is lost, the meter cannot be read. A new encryption key must be supplied by Kamstrup.
Only encrypted data via the base modules can be read by Wireless M-Bus.
26
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
3.10 Data for configuration
Serial no. (S/N) and year
Customer number
Automatic
To be stated when ordering Default
E.g. 65.000.000/2011
-
Up to 16 digits.
Customer number = S/N
Limited to 11 digits
regarding PcBase
compatibility
Display No. 1 = 8 digits MSD
Display No. 2 = 8 digits LSD
Target date
TL2
TL3
Max./min. average peak time
H/C change over (θhc)
T2 prog.
T3 prog.
T4 prog.
Date/time
-
MM=1-12 and DD=1-28
5 digits
5 digits
1…1440 min.
0.01…180.00°C
Depending on country code
0
0
60 min.
25°C at DDD=5xx and 6xx
YYYY.MM.DD/hh.mm.ss
0.01…180°C
0.01…180°C
0.01…180°C
GMT ± 12.0 hours
5°C
0°C
-
GMT+offset according to
country code
(0.5 hour in jumps)
Data registers for configuration of top/base modules
qp [l/h]
Valve traction time
hysteresis
from CCC table
-
20…500 sec.
0.5…5 sec.
300 sec.
0.5 sec.
Telephone number #1
Telephone number #2
Telephone number #3
-
Max. 16 (0-9+P)
Max. 15 (0-9+P)
Max. 15 (0-9+P)
-
Primary Data Address
Secondary Data Address
Baud-rate
Reserved
Reserved
Reserved
…..
Reserved
Reserved: These registers are prepared for later extensions of the funcitonality of the modules and therefore, they
have not yet any concrete designations.
- COUNTRY CODES
For information on country codes see 55 14-414.
- MAINTENANCE
See instruction no. 55 08-781 concerning updating of programming, configuration and country codes.
5512-931 GB/09.2011/Rev. B1
27
MULTICAL® 602
TECHNICAL DESCRIPTION
4 Dimentional sketches
MULTICAL® 602 mounted on ULTRAFLOW®
MULTICAL® 602´s front dimensions
Wall-mounted MULTICAL® 602 seen from the side
Panel-mounted MULTICAL® 602 seen from the side
Panel-mounted MULTICAL® 602 seen from the front
28
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
5 Installation
5.1 Flow pipe and return pipe placing
Prog. number
A
Flow sensor placing:
k-factor - Inlet/Flow pipe (at T1)
table
- Outlet/Return pipe (at T2)
3
4
Formula:
k-factor
k-factor with
T1 in
Inlet table
Prog.:
A=3 (Flow
sensor in
Flow pipe)
MULTICAL® 602 is programmed for flow sensor placing in
either flow or return pipe. Below diagram shows the
installation conditions for:
♦ Heat meters
♦ Cooling meters
♦ Heat/cooling meters
Hot
pipe
Cold
pipe
V1 and
T1
T2
T1
V1 and
T2
T2
V1 and
T1
V1 and
T2
T1
Installation:
Heat meter
E1=V1(T1-T2)k
k-factor with
T2 in
Outlet table
k-factor with
T1 in
Outlet table
A=4 (Flow
sensor in
Return pipe)
A=3 (Flow
sensor in
Flow pipe)
Cooling meter
E3=V1(T2-T1)k
k-factor with
T2 in
Inlet table
A=4 (Flow
sensor in
Return pipe)
5512-931 GB/09.2011/Rev. B1
29
MULTICAL® 602
TECHNICAL DESCRIPTION
5.2 EMC conditions
MULTICAL® 602 is designed and CE marked in accordance with EN 1434 Class A and Class C
(corresponding to Electromagnetic environment: Class E1 and E2 in the Measuring Instruments Directive)
and can therefore be installed in domestic and industrial environments.
All control cables must be installed separately and not in parallel with e.g. power cables or other cables
with the risk of induction of electromagnetic interferences. Control cables are laid at a min. distance of 25
cm from other installations.
5.3 Climatic conditions
MULTICAL® 602 is designed for indoor installation in noncondensing environments with ambient
temperatures from 5…55°C, however, max. 30°C for optimal battery lifetime.
Protection class IP54 allows periodic splashes of water, but the apparatus cannot stand constant moisture
and flooding.
5.4 Electric installations
See paragraph 9.
30
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6 Calculator functions
6.1 Energy calculation
MULTICAL® 602 calculates energy based on the formula in EN 1434-1:2007 in which the international
temperature scale from 1990 (ITS-90) and the pressure definition of 16 bar is used.
The energy calculation can in a simplified way be expressed as: Energy = V × ΔΘ × k.
The calculator always calculates energy in [Wh], and then it is converted into the selected measuring unit.
× ΔΘ × k × 1000
E [Wh] =
V
E [kWh] =
E [Wh] / 1,000
E [MWh] =
E [Wh] / 1,000,000
E [GJ] =
E [Wh] / 277,780
E [Gcal] =
E [Wh] / 1163,100
V
is the supplied (or simulated) water volume in m3. E.g. if a CCC code = 119 is used, the calculator will be
programmed to receive 100 pulses/liter. E.g. if 10,000 pulses are added this corresponds to 10,000/100 =
100 liters or 0.1 m3.
ΔΘ
is the temperature difference measured, e.g. ΔΘ = flow temperature – return flow temperature. Please
note, that various temperatures are used to calculate ΔΘ as MULTICAL® 602 calculates various different
energy types. Both in the display and during data reading each energy type is uniquely defined, e.g.:
Heat energy: E1 = V1(T1-T2)k
k
Cooling energy: E3 = V1 (T2-T1)k
is the thermal coefficient of water which is calculated on the basis of formula in EN 1434-1:2007 (identical
with the energy formula in OIML R75-1:2002). For control calculations Kamstrup can supply an energy
calculator (available on intranet):
5512-931 GB/09.2011/Rev. B1
31
MULTICAL® 602
TECHNICAL DESCRIPTION
6.2 Application types
MULTICAL® 602 operates with 9 different energy formulas, E1…E9, that are all calculated in parallel with each
integration no matter how the meter is configured.
ΔΘ
Formula
Example of an application
Included in Application No.
Register type
E1=V1(T1-T2)k T1: Flow / T2: Return
T1 > T2
Heat energy (V1 in flow or return flow)
1+2+3+4+5+6+8+10
Legal Display/Data/Log
E2=V2(T1-T2)k T2: Return
T1 > T2
Heat energy (V2 in return flow)
2+7
Display/Data/Log
E3=V1(T2-T1)k T2: Flow / T1: Return
T2 > T1
Cooling energy (V1 in flow or return flow)
1+11
Legal Display/Data/Log
E4=V1(T1-T3)k T1: Flow
T1 > T3
Flow energy
7+9+11
Display/Data/Log
E5=V2(T2-T3)k T2: Flow
T2 > T3
Return energy or tap from return flow
5+7+9
Display/Data/Log
E6=V2(T3-T4)k T3: Flow
T3 > T4
Tap water energy, separate
3+6
Display/Data/Log
E7=V2(T1-T3)k T3: Return
T1 > T3
Return energy or tap from flow
4+8
Display/Data/Log
3
E8=m x T1
3
E9=m x T2
-
Average temperature in flow
Display/Data/Log
See paragraph 6.2.2
-
Average temperature in return
Display/Data/Log
6.2.1 E1…E7
The energy types E1…E7 are described with application examples below.
Application No. 1
Closed thermal system with 1 flow sensor
Heat energy: E1 = V1(T1-T2)kT1:Flow or T2:Return
Cooling energy: E3 = V1 (T2-T1)kT2:Flow or T1:Return
Flow sensor V1 is placed in flow or return pipe as
chosen under PROG options.
602-A/B/C/D
Mass: M1 = V1 (Kmass t1) or
Mass: M1 = V1 (Kmass t2) depending on the
Flow/Return programming
Application No. 2
Closed thermal system with 2 identical flow
sensors
Billing energy: E1 = V1(T1-T2)kT1:Flow
Control energy: E2 = V2 (T1-T2)k T2:Return
T3 can be used for control measurement of either
the flow or return temperature, but T3 is not
included in calculations.
602-C
32
Mass: M1 = V1 (Kmass t1)
Mass: M2 = V2 (Kmass t2)
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
Application No. 3
2 string system with 2 flow sensors
Heat energy: E1 = V1(T1-T2)kT1:Flow or T2:Return
Tap water energy: E6 = V2 (T3-T4)kT3:Flow
T3 is measured or programmed
T4 is programmed
Flow sensor V1 is placed in flow or return pipe as
chosen under PROG options.
602-C
Mass: M1 = V1 (Kmass t1) or
Mass: M1 = V1 (Kmass t2) depending on the
Flow/Return programming
Mass: M2 = V2 (Kmass t3)*
Application No. 4
2 heat circuits with joint flow
Heat energy #1: E1 = V1(T1-T2)k T2:Return
Heat energy #2: E7 = V2(T1-T3)k T3:Return
T3 is measured or programmed
Mass: M1 = V1 (Kmass t2)
Mass: M2 = V2 (Kmass t3)*
602-C
Application No. 5
Open system with tap from return flow
Heat energy: E1 = V1(T1-T2)k T1:Flow
Tap water energy: E5 = V2 (T2-T3)k T2:Flow
T3 is measured or programmed.
Mass: M1 = V1 (Kmass t1)
Mass: M2 = V2 (Kmass t2)
602-C
5512-931 GB/09.2011/Rev. B1
33
MULTICAL® 602
TECHNICAL DESCRIPTION
Application No. 6
Open system with separate flow sensor for tap
water
Heat energy: E1 = V1(T1-T2)k T2:Return
Tap water energy: E6 = V2 (T3-T4)k T3:Flow
T3 is measured or programmed
T4 is programmed
602-C
Mass: M1 = V1 (Kmass t2)
Mass: M2 = V2 (Kmass t3)*
Application No. 7
Open system with 2 flow sensors
Flow energy: E4 = V1 (T1-T3)k T1:Flow
Return energy: E5 = V2 (T2-T3)k T2:Flow
(ΔE = E4-E5 can be calculated by the topmodule,
but only if the 2 flow sensors are identical)
Heat energy: E2 = V2 (T1-T2)k T2:Return
T3 is measured or programmed.
602-C
Mass: M1 = V1 (Kmass t1)
Mass: M2 = V2 (Kmass t2)
Application No. 8
Hot-water boiler with circulation
Total consumption:
E1 = V1 (T1-T2)k T2:Return
Circulated consumption: E7 = V2 (T1-T3)k T3:Return
602-C
* M2 = V2 (Kmass t3)* only on selected country codes (930…939)!
34
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
Application No. 9
2 cooling circuits with joint flow
Cooling energy #1: E4 = V1(T1-T3)k T1:Flow
Cooling energy #2: E5 = V2(T2-T3)k T2:Flow
602-C
Application No. 10
Hot tap water energy: E1 = V1 (T1-T2)KT1:Flow
T1 is measured with a 2-wire sensor (602-C) or with a
4-wire sensor (602-B/D)
T2 is either measured with a 2-wire sensor (602-C) or
with a 4-wire sensor (602-B/D)
Or
T2 is programmed with a fixed temperature value
Or
T2 is programmed via
the scheduler and hourly datalogger top module,
type 602-0A. The temperature T2 will then follow a
schedule where T2 changes up to 12 times per year.
Scheduler function
25
20
Return temperature
602-C
15
10
5
0
jan
feb
mar
apr
may
jun
jul
aug
sep
oct
nov
dec
Date
5512-931 GB/09.2011/Rev. B1
35
MULTICAL® 602
TECHNICAL DESCRIPTION
Application No. 11
Two-stage boiler system with 1 flow meter
Boiler energy „B“: E3 = V1 (T2-T1)k T1:Return
Boiler energy „A“: E4 = V1(T1-T3)k T1:Flow
602-C
6.2.2 E8 and E9
E8 and E9 are used as calculation basis for calculating volume based average temperatures in flow and return
pipe, respectively. For each integration (every 0.01 m3 for qp 1.5 m3/h) the registers are accumulated with the
product of m3 × °C, for such purposes E8 and E9 is a suitable basis for calculating volume based average
temperatures.
E8 and E9 can be used for average calculation in any period of time as long as the volume register is read at the
same time as E8 and E9.
E8= m3 × tF E8 is accumulated with the product of
m3 × tF
E9 = m3 × tR E9 is accumulated with the product of m3 × tR
Volume resolution
0000.001 m3
00000.01 m3
000000.1 m3
0000001 m3
Resolution on E8 and E9
E8 and E9 are depending on the volume
resolution (m3)
E8 and E9 resolution
m3 × °C × 10
m3 × °C
m3 × °C × 0.1
m3 × °C × 0.01
Example 1: After 1 year a heat installation has consumed 250.00 m3 of district heating water and the
average temperatures have been 95°C in flow and 45°C in return pipe.
E8 = 23750 and E9 = 11250.
Example 2: It is required that the average temperatures are measured at the same time as the yearly
reading, and therefore E8 and E9 are included in the yearly reading.
Reading date Volume
Average
flow
E8
2003.06.01
534.26 m3
48236
18654
2002.06.01
3
20123
7651
Yearly
297.39 m3
consumption
28113
236.87 m
28113/297.39
11003
= 94.53°C
Table 1
36
E9
5512-931 GB/09.2011/Rev. B1
Average return
flow
11003/297.39
= 36.99°C
MULTICAL® 602
TECHNICAL DESCRIPTION
6.3 Calculator with two flow sensors
MULTICAL® 602 can be used in various applications with two flow sensors, e.g. leak surveillance or
open systems. When two ULTRAFLOW® are direct connected to one MULTICAL® 602, a close electric
coupling between the two pipes ought to be carried out as a main rule. If the two pipes are installed in a
heat exchanger, close to the flow sensors, however, the heat exchanger will provide the necessary
electric coupling.
Electric coupling
• Forward and return pipes are closely electrically coupled
• No welded joints occur
In installations where the electric coupling cannot be carried out, or where welding in the pipe system
can occur, the cable from one ULTRAFLOW® must be routed through a Pulse Transmitter with galvanic
separation before the cable enters MULTICAL® 602.
• Forward and return pipes are not necessarily closely coupled
• Electric welding *) can occur
*)
Electric welding must always be carried out with the earth pole closest to the welding point. Damage
to meters due to welding is not comprised by our factory guarantee.
5512-931 GB/09.2011/Rev. B1
37
MULTICAL® 602
TECHNICAL DESCRIPTION
6.4 Combined heat/cooling metering
MULTICAL® 602 is available as e.g. heat meter (Meter type 2xx), cooling meter (Meter type 5xx) or
combined heat/cooling meter (Meter type 6xx).
Meter type
Heat meter with MID marking
Heat meter, closed systems
Cooling meter
Heat/cooling meter
Volume meter, hot water
Volume meter, cooling water
Energy meter, open systems
2
4
5
6
7
8
9
Delivery code (language on label etc.)
XX
If MULTICAL® 602 has been supplied as a combined heat/cooling meter (meter type 6xx), it measures heat energy
(E1) at a positive temperature difference (T1 > T2), whereas it measures cooling energy (E3) at a negative
temperature difference (T2 > T1). Temperature sensor T1 (with a red type sign) must be installed in the hydraulic
forward pipe, whereas T2 (with a blue type sign) is installed in the return pipe.
If the current T1 exceeds, or equals θhc only heat energy can be measured. If the current T1 is lower than or equals
θhc only cooling energy can be measured.
θhc is the temperature point used to change between heat and cooling measurement. θhc is configurable in
temperature range 0.01…180.00°C.
In combined heat/cooling meters θhc should correspond to the highest occurring flow pipe temperature in
connection with cooling, e.g. 25°C. If the meter is to be used for ”purchase and sale of heat”, θhc is set at
200.00°C, which cancels the θhc function.
The change between heat and cooling measurement involves no hysteresis (Δθhc = 0.00K).
θhc is configured by means of METERTOOL (see paragraph 13.2). θhc is also mentioned as H/C change-over.
38
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.5 Flow measurement, V1 and V2
MULTICAL® 602 calculates current water flow according to two different principles depending on the connected
flow sensor type:
6.5.1 Fast volume pulses (CCC > 100)
The current water flow for fast volume pulses is calculated, without average determination, as the number of
volume pulses per 10 sec. multiplied by a scaling factor.
q = (pulses/10 sec. x flow factor)/65535 [l/h] or [m3/h]
Example:
-
ULTRAFLOW® qp 1.5 m3/h with 100 pulses/l (CCC=119), flow factor = 235926
-
Current water flow = 317 l/h corresponding to 88 pulses/10 sec.
q = (88 x 235926)/65535 = 316.8 which is shown in the display as 316 [l/h]
Current water flow in V1
6.5.2 Resolution of the actual flow rate (CCC > 100)
The display resolution of the actual flow rate can be derived from the flow factor and the number of decimals.
Example 1:
-
ULTRAFLOW® qp 1.5 m3/h with 100 pulses/l (CCC=119), flow factor = 235926
Resolution = 235926/65535 = 3.6 which is shown in the display as 3 [l/h]
Example 2:
-
FUS380 Qs 75 m3/h with 1 pulses/l (CCC=201), flow factor = 235926
Resolution = 235926/65535 = 3.6 which is shown in the display as 3.6 [m3/h]
6.5.3 Slow volume pulses (CCC = 0XX)
The current water flow for slow volume pulses (typically from flow sensors with a Reed switch) is calculated
without average determination as a scaling factor divided by the period of time between two volume pulses.
q = flow factor/(256 x period in sec.) [l/h] or [m3/h]
Example:
-
Mechanical flow sensor Qn 15 qp m3/h with 25 l/pulse (CCC=021), flow factor = 230400
-
Current water flow = 2.5 m3/h corresponding to 36 sec. in the period of time between 2 pulses
q = 230400/(256 x 36) = 25, which is shown in the display as 2.5 [m3/h]
V1 and V2 must be the same type (either quick (CCC >100) or slow (CCC=0XX)) but can have different qp-codings
(CCC).
Using top modules 67-02 or 67-09, V1 and V2 must have identical qp-codings (CCC).
The actual flow rate on the display will be shown a ”0”, when the period between pulses exceed 15 min.
5512-931 GB/09.2011/Rev. B1
39
MULTICAL® 602
TECHNICAL DESCRIPTION
6.6 Power measurement, V1
MULTICAL® 602 calculates the current power based on the current water flow and the temperature difference
measured at the last integration based on following formula:
P = q (T1 – T2) x k [kW] or [MW]
where ”k” is the water's heat coefficient that is constantly calculated by MULTICAL® 602 according to
EN 1434:2007.
Example:
-
Current water flow, q = 316 l/h and flow sensor is placed in return pipe
-
T1 = 70.00°C and T2 = 30.00°C, k-factor is calculated for 1.156 kWh/m3/K
P = 0.316 (70-30) x 1.156 = 14.6 [kW]
Current power in V1
Both heat power and cooling power are shown
numerically
40
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.7 Min. and max. flow and power, V1
MULTICAL® 602 registers both minimum and maximum flow and power both on a monthly and on a yearly basis.
These values can be read in full via data communication. In addition, a small number of monthly and yearly
registers can be read on the display depending on the selected DDD code.
Min. and Max. registration comprises following flow and power values including date.
Max. data
Registration type:
Min. data
Yearly data
Max. this year (since last target date)
•
•
Max. yearly data, up to 15 years back
•
•
Min. this year (since last target date)
•
•
Min. yearly data, up to 15 years back
•
•
Monthly data
Max. this month (since last target date)
•
•
Max. monthly data, up to 36 months back
•
•
Min. this month (since last target date)
•
•
Min. monthly data, up to 36 months back
•
•
All max. and min. values are calculated as largest and smallest average of a number of current flow or power
measurements. The average period used for all calculations are selected in the interval 1…1440 min. in jumps in
1 min. (1440 min. = 1 full day).
The average period and target date are stated in connection with orders or re-configured by means of METERTOOL.
Where nothing has been stated when the order was placed the average period is set at 60 min. and the target
date is set at the standard applying for the country code used.
In connection with commencement of a new year or month the max. and min. values are stored in the data logger
and the current max. and min. registers are "reset" according to the selected target date and the internal clock
and calendar of the meter.
"Reset" is made by putting the max. value at zero and min. value at 10000.0 kW at e.g. CCC=119.
If the max. or min. registration is used for billing purposes, we recommend to supplement MULTICAL® 602 with a
top module containing real time clock and battery back-up.
Date for year-to-date max.
Value for year-to-date max.
Date for min. in the current month
Value for min. in the current month
5512-931 GB/09.2011/Rev. B1
41
MULTICAL® 602
TECHNICAL DESCRIPTION
6.8 Temperature measurement
MULTICAL® 602 has a high resolution analog/digital converter that measures the temperatures T1, T2 and T3 with
a resolution of 0.01°C (T3 is not available on meters with 4-wire sensor inputs). The same measuring circuit is
used for all 3 temperature inputs to obtain the lowest possible measuring error on the temperature difference.
Prior to each temperature measurement an automatic adjustment of the internal measuring circuit is made on the
basis of integral reference resistances at 0°C and 100°C, respectively. This ensures a very good accuracy and a
very stable long-term operation.
Current T1
Temperature measurings are made in connection with each integration (energy calculation) and every 10 sec.
when the display shows temperature. The measuring circuit has a temperature range of 0.00°C…185.00°C. In
case of a disconnected temperature sensor the display shows 200.00°C and in connection with a short-circuited
temperature sensor it shows 0.00°C. In both cases the info code for sensor error will appear.
To reduce the influence from the mains frequency which can e.g. be inducted to long sensor cables, double
measurings are made with a delay of ½ period , and the average of the 2 measurings make up the temperature
measurement used for calculation and display. Supressing of the mains frequency is optimised to either 50 Hz or
60 Hz depending on the selected country code.
6.8.1 Measuring current and power
Measuring current is only sent through the temperature sensors in the short period of time it takes to measure the
temperature. However, the effective power that is consumed in the sensor elements is minimal and the influence
on the self-heating of the temperature sensors is typically less than 1/1000 K.
Pt100
Pt500
< 3 mA
< 0.5 mA
Peak power
< 1.5 mW
< 0.2 mW
RMS power
< 10 μW
< 1 μW
Testing current
42
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.8.2 Average temperatures
MULTICAL® 602 constantly calculates the average temperatures for flow and return (T1 and T2) in the entire °C
range and the background calculations E8 and E9 (m3 x T1 and m3 x T2) are made for each energy calculation (e.g.
for each 0.01 m3 for qp 1.5 meter size), whereas the display value is updated every day. Thereby the average
calculations are weighted according to volume and can therefore be used for control purposes.
Average
Yearly data
Year-to-date average (since last target date)
•
•
Month-to-date average (since last target date)
•
Registration type:
Monthly data
•
Year-to-date average for T1.
(Current date with ”comma lines” under year or
month is shown just BEFORE this reading)
6.8.3 Programmed temperatures
The temperatures T3 and T4 can be programmed in the memory of the calculator, and these temperatures can be
used for calculating energy with fixed temperature reference, as used in connection with the calculations of the
energy types E4, E5, E6 and E7 (see the application drawings in paragraph 6.2)
The temperatures can be programmed when placing orders or by means of METERTOOL in the range 0.01…180°C,
once the meter is installed.
5512-931 GB/09.2011/Rev. B1
43
MULTICAL® 602
TECHNICAL DESCRIPTION
6.9 Display functions
MULTICAL® 602 is equipped with a clear LC display including 8 digits, units of measurement and information
panel. In connection with energy and volume readings 7 digits and the corresponding units of measurement are
used, whereas 8 digits are used when e.g. a meter number is shown.
As a starting point the display shows the accumulated energy. When the push buttons are activated the display
reacts immediately by showing other readings. The display automatically returns to energy reading 4 minutes
after last activation of the push buttons.
6.9.1 Primary and secondary readings
The upper button is used to switch between the primary readings of which the consumers typically use the first
primary readings in connection with self-reading for billing purposes.
The lower push button is used to show secondary information on the primary reading that has been selected.
Example: When the primary reading selected is "Heat energy" the secondary readings will be yearly data and
monthly data for heat energy.
Heat energy E1 in MWh
Yearly data, date for LOG 1 (last yearly reading)
Yearly data, value for LOG 1 (last yearly reading)
Monthly data, date for LOG 1 (last monthly reading)
44
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.9.2 Display structure
Below diagram shows the display structure with up to 20 primary readings and a number of secondary readings
under most primary readings. The number of secondary readings for yearly data and monthly data has been laid
down under the DDD code. If nothing is informed in connection with placing the order, the reading is set at 2
yearly data and 12 monthly data. The target date is set at the standard valid for the country code used.
As the display is configured according to the needs of the customer (by selecting DDD code), the display will
usually contain fewer readings than shown below.
Figure 2
5512-931 GB/09.2011/Rev. B1
45
MULTICAL® 602
TECHNICAL DESCRIPTION
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
46
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1•
•
•
2.1
2.2
Yearly data
Monthly data
•
•
3.1
3.2
3.3
3.4
3.5
3.6
3.7
E2
E4
E5
E6
E7
E8 (m3*tf)
E9 (m3*tr)
4.1
4.2
4.3
4.4
Yearly data
Monthly data
Mass 1
P1
•
•
5.1
5.2
5.3
5.4
Yearly data
Monthly data
Mass 2
P2
•
•
6.1
Error hour counter
7.1
7.2
Year-to-date average
Month-to-date average
8.1
8.2
Year-to-date average
Month-to-date average
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
Max. this year
Max. yearly data
Min. this year
Min. yearly data
Max. this month
Max. monthly data
Min. this month
Min. monthly data
•
•
•
•
•
•
•
•
14.1
14.2
14.3
14.4
14.5
14.6
14.7
14.8
Max. this year
Max. yearly data
Min. this year
Min. yearly data
Max. this month
Max. monthly data
Min. this month
Min. monthly data
•
•
•
•
•
•
•
•
Cooling energy (E3)
Other energy types
Volume V1
Volume V2
Hour counter
(No 60)
T1 (Flow)
T2 (Return flow)
T1-T2 (Δt) - = cooling
T3
T4 (programmed)
Flow (V1)
Flow (V2)
Power (V1)
5512-931 GB/09.2011/Rev. B1
1•
•
•
•
•
•
•
•
•
•
•
•
1•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Heat meter
DDD=9xx
•
•
•
•
•
Yearly data
Monthly data
Cold volume
DDD=8xx
•
•
•
•
•
•
•
1.1
1.2
Heat energy (E1)
Heat volume
DDD=7xx
Heat/cooling
DDD=6xx
3.X
1•
•
•
Heat meter
DDD=2xx
2.0
1•
•
•
•
•
•
Date stamp
1.0
Cooling meter
DDD=5xx
6.9.3 Display grouping
MULTICAL® 602 can be configured for a number of various applications, which creates the need for various
display groupings. In the overview below the possible readings [•] will appear for heat meter, cooling meter etc.,
which readings are supported by date stamps, and which reading is automatically shown 4 min. after last
activation of the push buttons [1•]. (This chapter applies to design of DDD-codes only).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
MULTICAL® 602
Heat volume
DDD=7xx
Cold volume
DDD=8xx
Heat meter
DDD=9xx
15.1
15.2
15.3
15.4
Meter no. VA
Yearly data
Monthly data
L/imp for VA
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
16.1
16.2
Meter no. VB
Yearly data
16.3
16.4
Monthly data
L/imp for VB
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
17.1
TL2
18.1
TL3
19.1
19.2
Info event counter
Info logger (last 36 events)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
20.1
20.2
20.3
20.4
20.5
20.6
20.7
20.8
20.9
20.10
20.11
20.12
20.13
20.14
20.15
20.16
Date
Time
Target date
Serial no.
(No 3)
Prog. (A-B-CCC-CCC)
(No 4)
Config 1 (DDD-EE)
(No 5)
Config 2 (FF-GG-M-N-T) (No 6)
Software edition
(No 10)
Software check-sum
(No 11)
Segment test
Top module type
(No 20)
Top module primary adr. (No 21)
Top module second. adr. (No 22)
Base module type
(No 30)
Base module primary adr. (No 31)
Base module second. adr. (No 32)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
(No 65)
VB (Input B)
TA2
18.0
TA3
20.0
•
•
•
•
•
•
•
•
VA (Input A)
17.0
19.0
Heat/cooling
DDD=6xx
16.0
Cooling meter
DDD=5xx
15.0
Heat meter
DDD=4xx
Date stamp
TECHNICAL DESCRIPTION
•
•
(No 67)
Info code
•
Customer number
(No 1+2)
•
Display example showing
the PROG number.
A complete survey of existing display codes (DDD) appears from a separate document.
Please contact Kamstrup for further details.
6.10 Real Time Clock (RTC)
MULTICAL® 602 has built-in real time clock and battery backup. This is valuable for applications where correct
date/time in data loggers as well as time-controlled tariffs are important. The battery will ensure the RTC function
for at least 3 years without power during the entire lifetime of MULTICAL® 602. This small battery will only back-up
the RTC, meaning that the display will go blank, when the main supply or main battery is off.
If a top module with RTC is mounted, the top module’s RTC will not have any effect on the meter’s own RTC.
5512-931 GB/09.2011/Rev. B1
47
MULTICAL® 602
TECHNICAL DESCRIPTION
6.11 Info codes
MULTICAL® 602 constantly surveys a number of important functions. Where serious errors have occured in the
measuring system or in the installation, a flashing "INFO" will appear in the display while the error exists. The
“INFO” panel will flash for as long as the error exists no matter which reading is selected. The " INFO " panel will
automatically turn off, when the source of error has been corrected.
6.11.1 Examples of info codes on the display
Ex. 1
Flashing ” INFO”
If the info code exceeds 0 a flashing " INFO " will
appear in the information panel.
Ex. 2
Current info code
When the upper (primary) push button is activated
several times the current info code can be shown on
the display.
Ex. 3
Info event counter
- indicates how many times the info code has been
changed.
Ex. 4
Info logger
By pressing the lower push button once more the
data logger for the info code is displayed.
First, the date of the first change is displayed …
…then the info code appearing on that particular
date is displayed. In this case there has been a
"bursting alarm" on 4th January 2006.
The data logger stores the last 50 changes, of which
the last 36 changes are shown in the display. All 50
changes can be read by means of LogView.
Time, E1 (heat energy) and E3 (Cooling energy – if available) will be logged when the info code is changed.
Naturally, the info code will still be logged during changed info codes. To read out Time and E1 together with the
info code it is necessary to use LogView.
In addition, the info code is stored in the hourly logger, the daily logger, the monthly logger and the yearly logger
for diagnostic purposes.
48
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.11.2 Types of info codes
Info code
0
1
8
4
32
64
256
512
16
1024
2048
128
4096
8192
16384
32768
Description
No irregularities
Supply voltage has been cut off
Temperature sensor T1 outside measuring range
Temperature sensor T2 outside measuring range
Temperature sensor T3 outside measuring range
Leak in the cold-water system
Leak in the heating system
Burst in the heating system
ULTRAFLOW® X4 info (if activated CCC=4XX)
Flow sensor V1, Datacomm error,
signal too low or wrong flow direction
Flow sensor V2, Datacomm error,
signal too low or wrong flow direction
Flow sensor V1, Wrong meter factor
Flow sensor V2, Wrong meter factor
Flow sensor V1, Signal too low (Air)
Flow sensor V2, Signal too low (Air)
Flow sensor V1, Wrong flow direction
Flow sensor V2, Wrong flow direction
Response time
1…10 min.
1…10 min.
1…10 min.
1 day
1 day
120 sec.
After reset and 1 day (00:00)
After reset and 1 day (00:00)
After reset and 1 day (00:00)
After reset and 1 day (00:00)
After reset and 1 day (00:00)
After reset and 1 day (00:00)
After reset and 1 day (00:00)
After reset and 1 day (00:00)
Info code 1 will be logged when the mains supply/main battery is switched OFF and Info code 1 will be deleted
when the mains supply/main battery is switched ON. Thereby the time without power can be retrieved from the
logger data.
If several info codes appear at the same time the sum of the info codes is shown. E.g. if both temperature sensors
are outside measuring range, info code 12 will appear.
During configuration at the factory the individual info - active or passive - are set and in this way a standard heat
meter not using T3, cannot display info code 32.
Info = 16-1024-2048-128-4096-8192-16384-32768 functions via data communication between MULTICAL® and
ULTRAFLOW® 54. See paragraph 13.2.3, Info code setup, in order to change the settings.
6.11.3 Transport mode
When the meter leaves the factory it is in transport mode, and the info codes are only active on the display and
not in the data logger. This prevents both ”info event” to increment and the storage of non relevant data in the
info logger. When the meter has summed up the volume register for the first time after installation the info code is
automatically set at active.
5512-931 GB/09.2011/Rev. B1
49
MULTICAL® 602
TECHNICAL DESCRIPTION
6.11.4 Info event counter
Info event counter
Counting takes place every time the info code is
changed.
The info event counter will be 0 on receipt, as
"transport mode" prevents counting during transport
”INFO” on display
Registration in the info,
daily, monthly or yearly
logger
Counting of info events
1
No
Yes
At each ”Power-On-Reset”
4, 8, 32
Yes
Yes
64, 256
Yes
Yes
512
Yes
Yes
16, 1024, 2048, 4096,
8192, 16384, 32768
Yes
Yes
When info 4, 8, 32 are set or removed.
Max. 1 per measurement of temperature
When info is set and when info is deleted.
Max. 1 time/day
When info is set and when info is deleted.
Max. 1 time/120 sec.
When info is set and when info is deleted.
Max. 1 time/day
Info code
6.11.5 Error hour counter
An error hour counter is added. This will sum up the approx. number of hours with info code > zero.
50
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.12 Tariff functions
MULTICAL® 602 has 2 extra registers TA2 and TA3 to accumulate heat energy or cooling energy (EE=20
accumulates volume) in parallel to the main register based on a programmed tariff condition. No matter which
tariff form is selected the tariff registers are indicated as TA2 and TA3 in the display.
The main register is always accumulated as it is considered a legal billing register, irrespective of the selected
tariff function. The tariff conditions TL2 and TL3 are monitored before each integration. When the tariff conditions
are fulfilled the consumed heat energy is counted in either TA2 or TA3, in parallel to the main register.
Power tariff
60
P
TL3
TL2
TA3
50
30
TA2
Power (kW)
Main register
40
20
10
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
Number of integrations
To each tariff function two tariff conditions, TL 2 and TL3 are connected, which are always used in the same tariff
type. Therefore, it is not possible to "mix" two tariff types.
Example: EE=11 (Power tariff)
TA2 shows the consumed energy…
…over the power limit TL2 (but under TL3)
5512-931 GB/09.2011/Rev. B1
51
MULTICAL® 602
TECHNICAL DESCRIPTION
00
No tariff active
No function
11
Power tariff
12
Flow tariff
13
Cooling tariff
14
Flow temperature tariff
15
Return flow temperature
tariff
19
Time-controlled tariff
20
Heat/cooling volume tariff
(TL2 and TL3 are not used)
Volume (V1) is split up into TA2 for heat (T1>T2) and TA3 for cooling
(T1<T2) (Recommended on Heating/Cooling applications)
21
PQ tariff
Energy at P>TL2 is stored in TA2 and energy at Q>TL3 is stored in TA3
Energy is accumulated in TA2 and TA3 based on the power limits
in TL2 and TL3
Energy is accumulated in TA2 and TA3 based on the flow limits
in TL2 and TL3
Energy is accumulated in TA2 and TA3 based on the Δt limits
in TL2 and TL3
Energy is accumulated in TA2 and TA3 based on the tF-limits in TL2
and TL3
Energy is accumulated in TA2 and TA3 based on the tR-limits in TL2
and TL3
TL2=Starting time for TA2
TL3=Starting time for TA3
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Country code 6xx
FUNCTION
Country code 5xx
TARIFF TYPE
Country code 4xx
EE=
Country code 2xx
6.12.1 Tariff types
Below table indicates which tariff types MULTICAL® 602 can be configured to:
•
•
•
•
Please note that only tariff No. 20 can be used in a combined heat / cooling meter. All other tariffs can only be
used with either a heat meter or a cooling meter. The meter cannot distinguish heat energy (E1) from cooling
energy (E3) and vice versa.
EE=00 No tariff active
If the tariff function should not be used, select the set-up for EE=00.
However, the tariff function can be made active at a later date by a reconfiguring the function by means of
METERTOOL for MULTICAL® 602. See paragraph Fejl! Henvisningskilde ikke fundet. METERTOOL.
EE=11 Power controlled tariff
When the current power is higher than TL2, but lower than/equal to TL3, the energy is counted in TA2 in parallel to
the main register. If the current power exceeds TL3, the energy is counted in TA3 in parallel to the main register.
P ≤ TL2
Counting in main register only
TL3 ≥ P > TL2
Counting in TA2 and the main register
P > TL3
Counting in TA3 and the main register
TL3 > TL2
When setting up data TL3 must always be higher than TL2. Among other things the power controlled tariff is used
as a basis for calculating the individual consumer’s connection costs. Furthermore, this tariff form can provide
valuable statistical data when the energy supplier evaluates new installation activities.
52
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
EE=12 Flow controlled tariff
When the current water flow is higher than TL2 but lower than/equal to TL3, the energy is counted in TA2 in
parallel to the main register. If the current water flow becomes higher than TL3, the energy is counted in TA3 in
parallel to the main register. When setting up data, TL3 must always be higher than TL2.
q ≤ TL2
Counting in main register only
TL3 ≥ q > TL2
Counting in TA2 and the main register
q > TL3
Counting in TA3 and the main register
TL3 > TL2
Among other things the flow controlled tariff is used as a basis for calculating the individual consumer’s
connection costs. Furthermore, this tariff form provides valuable statistical data when the energy supplier
evaluates new installation activities.
When the power or flow tariff is used it is possible to get a total overview of the total consumption compared to
the part of the consumption, that is used above the tariff limits.
EE=13 Differential temperature tariff (Δt)
When the current T1-T2 (Δt) is lower than TL2, but higher than TL3, the energy is counted in TA2 in parallel to the
main register. If the current cooling drops to less than/equal to TL3, the energy is counted in TA3 in parallel to the
main register.
Δt ≥ TL2
Counting in main register only
TL3 < Δt < TL2
Counting in TA2 and the main register
Δt ≤ TL3
Counting in TA3 and the main regiser
TL3 < TL2
When setting up tariff limits TL3 must always be lower than TL2.
The T1-T2 tariff can be used to form the basis for a weighted user payment. Low Δt (small difference between flow
and return flow temperatures) is uneconomical for e.g. the heat supplier.
EE=14 Flow temperature tariff
When the current flow temperature (T1) is higher than TL2, but lower than/equal to TL3, the energy is counted in
TA2 in parallel to the main register. If the current flow temperature becomes higher than TL3, the energy is
counted in TA3 in parallel to the main register.
T1 ≤ TL2
Counting in main register only
TL3 ≥ T1 > TL2
Counting in TA2 and the main register
T1 > TL3
Counting in TA3 and the main register
TL3 > TL2
When setting up data TL3 must always be higher than TL2.
The flow temperature tariff can form the basis of billing of those customers who are guaranteed a given flow
temperature. When the “guaranteed” minimum temperature set at TL3, the calculated consumption is
accumulated in TA3.
5512-931 GB/09.2011/Rev. B1
53
MULTICAL® 602
TECHNICAL DESCRIPTION
EE=15 Return temperature tariff
When the current return temperature (T2) is higher than TL2 but lower than/equal to TL3, the energy is counted in
TA2 in parallel to the main register. If the current return temperature becomes higher than TL3, the energy is
counted in TA3 in parallel to the main register.
T2 ≤ TL2
Counting in main register only
TL3 ≥ T2 > TL2
Counting in TA2 and the main register
T2 > TL3
Counting in TA3 and the main register
TL3 > TL2
When setting up data TL3 must always be higher than TL2.
The return temperature tariff can form the basis of a weighted user payment. A high return flow temperature
indicates insufficient heat utilization which is uneconomical for e.g. the heat supplier.
54
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
EE=19 Time-controlled tariff
The time-controlled tariff is used for time division of the heat consumption. If TL2 = 08:00 and TL3 = 16:00 the
consumption of the entire day from 08:00 till 16:00 will be accumulated in TA2, whereas the consumption of the
evening and the night from 16:01 till 07:59 will be accumulated in TA3.
TL2 must have a lower number of hours than TL3.
TL 3 ≥ Clock ≥ TL2
Counting in TA2 and the main register
TL 2 > Clock > TL3
Counting in TA3 and the main register
TL3 > TL2
Among other things the time tariff is suitable for billing in housing sectors close to industrial sectors with a large
consumption of district heating and for billing industrial customers.
EE=20 Heat/cooling volume tariff
The heat/cooling volume tariff is used for dividing volume into heat and cooling consumption. TA2 accumulates
the volume consumed together with E1 (heat energy) and TA3 accumulates the volume consumed together with
E3 (cooling energy).
T1 ≥ T2
Volume is accumulated in TA2 and V1
T2 > T1
Volume is accumulated in TA3 and V1
TL2 and TL3 are
not used
In connection with combined heat/cooling measurement the total volume in the V1 register is accumulated,
whereas the heat energy is accumulated in E1 and the cooling energy in E3. The heat/cooling tariff divides the
consumed volume into heating and cooling volume.
EE=20 should always be selected together with combined heat/cooling meters, type 602-xxxxxxxx-6xx.
EE=21 PQ tariff
The PQ tariff is a combined power and flow tariff. TA2 functions as a power tariff and TA3 as a flow tariff.
P ≤ TL2 and q ≤ TL3
Counting in the main register only
P > TL2
Counting in TA2 and the main register
TL2 = power limit (P)
q > TL3
Counting in TA3 and the main register
TL3 = flow limit (q)
P > TL2 and q > TL3
Counting in TA2, TA3 and the main register
Among other things the PQ tariff is used for customers paying a fixed duty based on max. power and max. flow.
5512-931 GB/09.2011/Rev. B1
55
MULTICAL® 602
TECHNICAL DESCRIPTION
6.13 Data loggers
MULTICAL® 602 contains a permanent memory (EEPROM), where the results of a number of various data loggers
are stored. The meter contains following data loggers:
Data logging interval
Data logging depth
Logged value
Logger read-out
Yearly logger
15 years
Counter registers
LogView/MT Pro
•
Monthly logger
36 months
Counter registers
LogView/MT Pro
•
Daily logger
460 days
Consumption (increase)/day
LogView/MT Pro
♦
Hourly logger
1392 hours
1080 loggings
(e.g. 45 days' hour loggings or
11 days' 15 min. loggings)
50 events (36 events can be
displayed)
Consumption (increase)/hour
LogView/MT Pro
♦
30 registers and values
AMR *),
LogView/MT Pro
•
Info code and date
LogView/MT Pro
Programmable data logger
Top module 67-0B
Info logger
*) Example of AMR (Automatic Meter Reading) for the data logger is GSM/GPRS. See chapter 13.4 about LogView.
The loggers are static and therefore the register types cannot be changed, furthermore, the logging intervals are
fixed. When the last record has been written in the EEPROM the oldest one is overwritten.
6.13.1 Yearly, monthly, daily and hourly loggers
Following registers are logged every year and every month on target date as counter values. In addition, the
increases of the day and the hour are logged at midnight.
Yearly
logger
Monthly
logger
Daily
logger
Hourly
logger
67-0B
Prog.
logger
Year, month and day for logging times
•
•
♦
♦
•
Clock (hh.mm.ss.)
Time
-
-
-
-
•
Log Info
Status, quality stamping of log record
-
-
-
-
•
E1
E1=V1(T1-T2)k Heat energy
•
•
E2=V2(T1-T2)k Heat energy
•
•
E3
E3=V1(T2-T1)k Cooling energy
•
•
E4
•
•
•
•
♦
•
E6
E4=V1(T1-T3)k Flow energy
E5=V2(T2-T3)k
Return flow energy or tap from
return flow
E6=V2(T3-T4)k Tap water energy, separate
♦
♦
♦
♦
•
E2
♦
♦
♦
♦
♦
•
•
♦
•
E7
E7=V2(T1-T3)k Tap water energy from flow
•
•
♦
♦
♦
•
E8
E8=m3 x T1 (flow)
•
•
-
•
E9
E9=m3 x T2 (return flow)
•
•
♦
♦
-
•
TA2
Tariff register 2
•
•
-
-
-
TA3
Tariff register 3
•
•
-
-
-
V1
Volume register for Volume 1
•
•
•
V2
Volume register for Volume 2
•
•
VA
Extra water or electricity meter connected to Input A
•
•
VB
Extra water or electricity meter connected to Input B
•
•
♦
♦
♦
♦
♦
♦
♦
Register type
Description
Date (YY.MM.DD)
E5
•
•
•
INFO
Information code
•
•
♦
♦
♦
♦
♦
♦
♦
DATE FOR MAX. FLOW V1
Date stamp for max. flow in the period
•
•
-
-
-
MAX. FLOW V1
Value for max. flow in the period
•
•
-
-
-
DATE FOR MIN. FLOW V1
Date stamp for min. flow in the period
•
•
-
-
-
MIN. FLOW V1
Value for min. flow in the period
•
•
-
-
-
DATE FOR MAX. POWER V1
Date stamp for max. power in the period
•
•
-
-
-
MAX. POWER V1
Value for max. power in the period
•
•
-
-
-
DATE FOR MIN. POWER V1
Date stamp for min. power in the period
•
•
-
-
-
M1
Mass corrected V1
-
-
M2
Mass corrected V2
-
-
56
5512-931 GB/09.2011/Rev. B1
•
•
•
•
•
•
MULTICAL® 602
TECHNICAL DESCRIPTION
Value for min. power in the period
•
•
-
-
-
T1avg
Time based average for T1
-
-
Time based average for T2
-
-
T3avg
Time based average for T3
-
-
P1avg
Time based average for P1
-
-
P2avg
Time based average for P2
-
-
♦
♦
♦
♦
♦
-
T2avg
♦
♦
♦
♦
♦
Operating hour counter
Accumulated number of operating hours
•
•
-
-
•
T1
Current value of T1
-
-
-
-
•
T2
Current value of T2
-
-
-
-
•
T3
Current value of T3
-
-
-
-
•
T4
Current value of T4
-
-
-
-
•
T1-T2 (Δt)
Current differential value
-
-
-
-
•
Flow (V1)
Current water flow of V1
-
-
-
-
•
Flow (V2)
Current water flow of V2
-
-
-
-
•
Power (V1)
Actual power
-
-
-
-
•
P1
Current pressure of flow
-
-
-
-
•
P2
Current pressure of return
-
-
-
-
•
MIN. POWER V1
-
Note: Continuous maximum water flow and permanent ΔΘ > 75 K may cause overflow in the daily data logger at
CCC=010-011-012-013-150-202-205. With these combinations we recommend you to use Prog. data logger type
67-0B or type 67-00-22.
6.13.2 Info logger
Every time the information code is changed, date and info code are logged. Thereby, it is possible to data read
the last 50 changes in the information code and the date of the change.
Register type
Description
Date (YY.MM.DD)
Year, month and day for the logging time
Info
Information code on above date
E1
Heat energy
E3
Cooling energy
Clock (hh.mm.ss.)
Time
When the info logger is read on the display the last 36 changes including dates can be read. Heat energy, cooling
Energy, and time can be read out via LogView only. Please see 6.11 for more information.
5512-931 GB/09.2011/Rev. B1
57
MULTICAL® 602
TECHNICAL DESCRIPTION
6.14 Leak surveillance
6.14.1 District heating installations
The leak surveillance system is primarily intended for directly connected district heating installations, i.e.
installations without heat exchanger between the district heating network and the heating system of the housing.
The surveillance system consists of two water meters based on the ultrasonic principle placed in both flow and
return pipe, and of temperature sensors in both pipes. In addition, the electronic unit MULTICAL® 602, which in
addition to calculating the heat energy also surveys the mass difference (temperature compensated volume) that
may appear between flow and return pipe.
Tap water meter
with pulse output
Main valve
Cold-water
connection
Tap water
MULTICAL® heat
remote reading
meter
with
(E.g. integral radio module)
District heating
connection
Check valve
Shut-off valves
For radiators and
vessel/exchanger
Ultrasonic meters in
flow and return flow
If a difference of more than 20% of the measuring range (corresponding to 300 l/h in a single-family house) is
registered, an alarm will be sent within 120 sec. via remote communication.
Small leaks from 15 kg/h and upwards for qp 1.5 m3/h are under surveillance on the basis of a 24-hour average
to rule out incorrect alarms as a consequence of air pockets and fast flow changes e.g. from hot-water
exchangers.
District heating leak surveillance (V1-V2)
M=
Sensitivity in leak
surveillance
0
1
2
3
4
OFF
1.0% qp + 20% q
1.0% qp + 10% q
0.5% qp + 20% q
0.5% qp + 10% q
NB: M=2 is a default value when leak surveillance is used. Higher degrees of sensitivity, e.g. M=4 is only possible
by means of METERTOOL. Please see 3.8.1 for an example of how the sensitivity is calculated.
Info codes for leak/bursting are only active when M > 0 or N > 0, respectively.
58
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
Example: The curve below illustrates the difference between Mass V1 and Mass V2 in an extract of 60 days
before the leak in a floor heating pipe was the reason for a leak alarm. As will appear from below, there is a
fluctuation of approx. ± 1 kg/hour in the first 43 days which is a normal fluctuation for installations without leaks.
16
14
Leakage in/hou
12
10
8
6
4
2
0
400
410
420
43 0
440
450
4 60
-2
Number of days
6.14.2 District heating bursting
Every 30 sec. the current flow in the flow pipe is compared with that in the return flow pipe. If the difference at 4
measurings in a row (120 sec.) is larger than 20% of the nominal flow info = 00512 and a "bursting alarm" will be
sent via remote communication.
6.14.3 Cold-water systems
In addition to above functions MULTICAL® 602 can be connected to the pulse signal from the cold-water meter of
the house. In this way it can survey the cold-water consumption. A flushing toilet cistern, leaky heating coils in
the water tanks or other leaks will cause that impulses from the cold-water meter are received 24 hours a day.
If MULTICAL® 602 does not register e.g. at least one continous hour/day without pulses from the water meter, this
is a sign of a leak in the water system and an alarm will be sent via remote communication.
Cold-water leak search (VA)
N=
0
1
2
3
Constant leak at no consumption (pulse
resolution 10 l/pulse)
OFF
20 l/h (½ hour without pulses)
10 l/h (1 hour without pulses)
5 l/h (2 hours without pulses)
NB: N=2 is a default value in connection with leak surveillance. Higher degree of sensitivity, e.g. N=3 is only
possible if using METERTOOL. Infocodes for leak/bursting are only active when M > 0 or N > 0, respectively.
6.14.4 Receiving alarm messages
When the meter has registered a leak or bursting it will send an alarm message to a receiving station, where
incoming alarms are handled on the basis of an encoded action pattern that is laid down for each individual
customer, e.g. starting with an SMS message to the customer’s mobile phone. At the same time the utility on duty
receives the message. Regular data readings from MULTICAL® 602 to the receiving station/monitoring center
ensure that defective remote readings, if any, are detected.
5512-931 GB/09.2011/Rev. B1
59
MULTICAL® 602
TECHNICAL DESCRIPTION
6.14.5 Surveillance, but no automatic blocking
The leak surveillance system is based on installation at a large number of private district heating customers’.
Usually, the individual utility installs and maintains the leak surveillance, integrated with the compulsory heat
metering at all district heating customers in their area. In this way, the individual private district heating
customers neither maintain the system nor perform other technical tasks in connection with the installed leak
surveillance system, and the surveillance system must not imply an increased risk of faulty blocking that may
lead to frost bursts. As a consequence of this the entire system must have a reliability that ensures operation for
12 years without maintenance. As neither thermally nor electrically activated shut-off valves can be expected to
have such a long lifetime it will not be possible to use automatic blocking.
6.14.6 First day after reset
The first day after installation (when the meter has had no supply voltage) no infocodes will be set and no alarms
will be sent in case of calculated district heating or cold-water leak.
This limitation has been introduced to avoid wrong alarms as a result of the installation and the shortened
metering period.
The alarm function can be tested via remote communication by pressing both push buttons simultaneously, until
a ”Call” appears in the display.
60
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.15 Reset functions
6.15.1 Resetting the hour counter
As the hour counter usually is used to control that the meter has been
in operation in the entire billing period (e.g. 1 year = 8760 hours) the
district heating supplier must always be informed which meters have
had their hour counter reset.
The operational hour counter can only be reset via the front bottons.
Please see 6.18.
6.15.2 Resetting data loggers
Separate reset of data loggers, info loggers, max. & min. loggers (without resetting the legal registers) are only
possible by means of METERTOOL. See paragraph 13 for further details.
6.15.3 Resetting all registers
Resetting all legal and non-legal registers including all data loggers, info loggers, max. & min. loggers can only be
made by using METERTOOL or via NOWA, if the verification seal is broken and the internal “Total programming
lock” is short-circuited. As the verification seal is broken, this can only be made at an accredited laboratory.
Following registers are reset:
All legal and non-legal registers including all data loggers, info loggers, max. & min. loggers (max. values are set
at zero, whereas min. values are set at 100000).
After reset ”Date” is set at 2000.01.01 and is then changed to current date/time of the PC used for the task.
Remember to check correct date/time (technical standard time = “winter-time”) on the PC before the reset
function is initiated.
6.16 SMS Commands
MULTICAL® 602 can be read by means of an SMS. In order to do so, a GSM-module (68G6xxxxx) fitted with a SIMcard must be connected to the meter. To read the meter you send an SMS from a mobile phone direct to the
meter. Subsequently, you receive a reply with the following values:
•
Acc. energy: [kWh], [MWh], [GJ] or [Gcal]
•
Current power: [kW] or [MW]
•
Hour counter
•
Meter number. It is also possible to read the modem’s signal strength by means of an SMS. You receive a
reply with the modem’s current signal strength on a scale of 0 to 31, the best value being 31. The signal
strength must be minimum 12. See the examples on the next page.
•
There are different SMS-commands to get additional data via SMS: Pressure, I/O-status, Signal strength
(please see Installation Manual for further information)
NOTE: SMS commands must be written in either capital letters or small letters, i.e. an SMS command must not
include a mixture of capital and small letters.
5512-931 GB/09.2011/Rev. B1
61
MULTICAL® 602
TECHNICAL DESCRIPTION
READ_HEAT_METER – for reading a MULTICAL® 602
Syntax
=READ_HEAT_METER#
Return reply, error
NO ANSWER
Example of SMS command
=READ_HEAT_METER#
Example of correct reply
12.067Gj, 120.0kW
6930 Hours,
Meter No.: 6055524
SIGNAL – for reading the signal strength
Syntax, command
=SIGNAL#
Return reply, error
NO ANSWER
Example of SMS command
=SIGNAL#
Example of correct reply
Signal: 16(0-31)
62
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.17 Set-up via the front keys
Via the main key
and the sub-key
on MULTICAL® 602, a number of settings can be selected.
6.17.1 Activate the setup-menu
The setup-menu is activated in the following way:
1)
2)
3)
4)
5)
Select the display reading that you wish to change
Remove the calculator from the base
Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
While replacing the calculator on the base, press and hold the main key for approx. 8 seconds
The setup-menu is now active
Having activated the setup-menu, the register that you wish to change is now displayed with the rightmost digit
flashing (in the below example the “Date” has been selected):
If a display register that is not supported by the front key set-up is selected, the meter will show the normal
display without activating the setup-menu.
6.17.2 Setup of a display register
When the setup-menu is activated, the actual value in the register selected will be displayed (in the below
example the date 2011.07.14)
The value of the flashing digit can be increased by pressing the sub-key:
⇒
When pressing the main key, the next digit to the left will be flashing:
⇒
5512-931 GB/09.2011/Rev. B1
63
MULTICAL® 602
TECHNICAL DESCRIPTION
6.17.3 Exit setup-menu
When the display value has been changed as required, hold the main key for 10 seconds, until the ”OK” segment
is displayed. The display reverts to legal reading.
The new value is checked. If it is valid, the new value is saved. If it is invalid, the old value is kept and the “OK”
segment will not be displayed within approx. 3 seconds. The display reverts to legal reading.
If you wish to exit the setup-menu without saving the new value:
1) Remove the calculator from the base
2) Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
3) Replace the calculator on the base without pressing the front keys
Allow some seconds for the meter to boot-up without pressing the front keys. The normal display register is now
shown and the setup menu is deactivated.
Note that if the front keys are not activated for 4 minutes in the setup-menu, the setup-menu will be deactivated
and the meter will automatically return to normal operation.
No data will be stored in the meter’s memory, unless the “OK” segment is displayed.
6.17.4 Display registers supported by the setup-menu
The following registers are supported by the setup-menu:
● Date
● Clock
● Primary M-Bus address (for both top and base module if mounted)
● Preset of Input A
● Preset of Input B
● Meter No. for Input A
● Meter No. for input B
● Pulse value for Input A
● Pulse value for Input B
64
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
6.18 Reset via the front keys
Via the the main key
and the sub-key
on MULTICAL® 602, a number of reset functions can be made.
6.18.1 Activate the reset-menu
The reset-menu is activated in the following way:
1)
2)
3)
4)
5)
Select the display reading that you wish to reset
Remove the calculator from the base
Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
While replacing the calculator on the base, press and hold the main key for approx. 8 seconds
The reset-menu has now been activated
Having activated the reset menu, either the operation hour counter, the infoevent-counter or the error hour
counter will be displayed, depending on the register which was selected before activating the reset menu.
When the reset menu has been activated,”0” will be displayed. It is not possible to change to any other value. It
is only possible to “save” the value = 0 in order to reset the register, or to leave the reset menu without reset.
If a display register that is not supported by the reset-menu is selected, the meter will show the normal display
without activating the reset menu.
6.18.2 Exit the reset menu
When the operation hour counter, the info-event counter or the error hour counter displayes “0”, hold the main
key for 5-6 seconds, until the ”OK” segment is displayed, and the display reverts to legal reading.
If you wish to exit the reset menu without resetting any registers:
4) Remove the calculator from the base
5) Wait until the display goes blank (up to 2.5 minutes). Meanwhile do not touch the front keys
6) Replace the calculator on the base without pressing the front keys
Allow some seconds for the meter to boot-up without pressing the front keys. The normal display register is now
displayed and the reset menu is deactivated.
Note that if the front keys are not activated for 4 minutes in the setup-menu, the setup-menu will be deactivated
and the meter will automatically return to normal operation.
No data will be reset in the meter’s memory, unless the “OK” segment is shown.
6.18.3 Time-out
If no keys are activated for 4 min., the reset menu is deactivated and the display reverts to legal reading. If
the “OK” is not displayed, no data have been saved.
5512-931 GB/09.2011/Rev. B1
65
MULTICAL® 602
TECHNICAL DESCRIPTION
7 Flow sensor connection
MULTICAL® 602 can be used with up to 4 pulse inputs, of which V1 and V2 are used for energy calculation and
leak surveillance, whereas VA and VB are used to accumulate pulses e.g. from tap-water meters and electricity
meters.
V1 and V2 can either be used for fast pulses (CCC > 100) or for slow pulses (CCC = OXX). Fast and slow pulses
cannot be used simultaneously.
7.1 Volume inputs V1 and V2
MULTICAL® 602 can be connected to one or two flow sensors depending on the required application. Typical heat
installations with one flow sensor are always connected to V1 irrespective if this flow sensor is installed in flow
pipe or return pipe.
Almost all available flow sensor types with pulse output can be connected as the standard connection PCB
receives pulses from both electronic and mechanical meters. In addition, a connection PCB that receives 24 V
active pulses is also available.
7.1.1 Flow sensor with transistor- or FET output c
Typically, the signaller is an optocoupler with a transistor or a FET outpt. V1 is connected to terminal 10(+) and
11(-), V2 is connected to terminals 69(+) and 11(-). Terminal 9 is not used in this application.
The leak current in the transistor or FET output must not exceed 1μA in OFF state and there must be max. 0.4 V in
ON state.
A suitable CCC code must be selected with the same number of pulses/liter as the flow part, and for this flow
sensor type the CCC code must be CCC > 100.
Example: CCC=147 fits an electronic meter with 1 pulse/liter and qp of 150 m3/h.
7.1.2 Flow sensor with Reed switch output d
The signaller is a Reed switch typically mounted on vane wheel or Woltmann meters, or a relay output from e.g. a
magnetic inductive flow sensor. V1 is connected to the terminals 10(+) and 11(-), V2 is connected to the
terminals 69(+) and 11(-). Terminal 9 is not used in this application.
The leak current must not exceed 1μA in OFF state and there must be max. 10 kΩ in ON state.
A suitable CCC code must be selected with the same number of pulses/liter as the flow part, and for this flow
sensor type the CCC code must be in the range 010 ≤ CCC ≤ 022.
Example: CCC=012 fits a mechanical flow sensor with 100 liter/pulse. Flow sensors with Qmax. in the range
10…300 m3/h can use this CCC code.
66
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
7.1.3 Flow sensor with active output supplied from MULTICAL® e
This connection is used both together with Kamstrup’s ULTRAFLOW® and Kamstrup’s electronic pick-up units for
vane wheel meters. The power consumption in these units is very low and is adapted to MULTICAL®’s battery
lifetime.
A suitable CCC code must be selected with the same number of pulses/litre as the flow part, and for this flow
sensor type the CCC code must be CCC > 100.
Example: CCC=119 fits an electronic meter with 100 pulses/litre and typical qp is 1.5 m3/h.
V1 and V2 are connected as shown in below diagram.
V1
V2
9
9
Yellow (Signal)
10
69
Blue
11
11
Red
(3.6 V)
(GND)
Table 2
7.1.3.1
Use of Pulse Transmitter between ULTRAFLOW® and MULTICAL®
In general it is permissible to use up to 10 m cable between MULTICAL® and ULTRAFLOW®. If longer cable is
required, a Pulse Transmitter can be inserted between ULTRAFLOW® and MULTICAL®. In this way the cable length
can be extended up to 50 m.
When a Pulse Transmitter is used between ULTRAFLOW® and MULTICAL®, volume pulses from the flow meter will
be transferred to the calculator. However, the calculator is unable to data communicate with the flow meter. In
order to avoid erroneous info codes it is, therefore, necessary to deselect the info codes, which are based on data
communication between MULTICAL® and ULTRAFLOW® 54 (Info = 16-1024-2048-128-4096-8192-16384-32768).
The above-mentioned info codes can be deselected by means of the PC-program METERTOOL, either by changing
from CCC-code 4xx to 1xx, or by using the ”Info code setup” function under ”Utility”. See paragraph 13.2.3 Info
code setup.
5512-931 GB/09.2011/Rev. B1
67
MULTICAL® 602
TECHNICAL DESCRIPTION
7.2 Flow sensor with active 24 V pulse output f
When MULTICAL® is connected to ”industrial” flow sensors with a 24 V active pulse output, the connection board
type 66-99-614 must be used in MULTICAL® 602 type 602-B or 602-D, with a 4 wire temperature sensor
connection.
602-D is mounted with 66-99-614 from the factory.
Technical data
Pulse input voltage
12…32 V
Pulse current
Max. 12 mA at 24 V
Pulse frequency
Max. 128 Hz
Pulse duration
Min. 3 msec.
Cable length V1 and V2
Max. 100 m
(including min. 25 cm distance to other cables)
Galvanic insulation
The inputs V1 and V2 are both individually insulated and
insulated from MULTICAL®
Insulation voltage
2 kV
Net supply to MULTICAL®
24 VAC or 230 VAC
Battery life time for
MULTICAL®
When using V1: 12+1 years
When using both V1 and V2: 10 years
If in addition, a data communication modules is used in MULTICAL® the battery lifetime will
be reduced further. See paragraph 9.2 for further details.
68
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
7.2.1
Connection examples
Figure 3
5512-931 GB/09.2011/Rev. B1
69
MULTICAL® 602
TECHNICAL DESCRIPTION
7.2.2 Flow sensor coding
In connection with installation it is important that both the flow sensor and the MULTICAL® are programmed
correctly. Below table states the possibilities:
Number of decimals on the display
CCC
no.
Precounter
201
100
202
Flow
factor
MWh
Gcal
GJ
235926
2
40
589815
203
400
204
205
l/pulse
Pulse/l
Qs
[m³/h]
m³/h
MW
1
1
2
1
1
10…100
75
2
1
1
1
2
2.5
0.4
40…200
240
589815
1
0
0
1
2
2.5
0.4
100…400
500
100
235926
1
0
0
0
1
10
0.1
150…1200
1600
20
1179630
1
0
0
0
1
50
0.02
500…3000
3600
Table 3
70
Qp range
[m³/h]
m³
[ton]
1
5512-931 GB/09.2011/Rev. B1
Type
FUS380
DN50-65
FUS380
DN80-100
FUS380
DN125
FUS380
DN150-250
FUS380
DN300-400
Flow
sensor
K-M
K-M
K-M
K-M
K-M
MULTICAL® 602
TECHNICAL DESCRIPTION
7.3 Pulse inputs VA and VB
In additions to the pulse inputs V1 and V2 MULTICAL® 602 has two extra pulse inputs, VA and VB, to collect and
accumulate pulses remotely, e.g from cold-water meters and electricity meters. The pulse inputs are physically
placed on the ”base modules” as for instance on the ”data/pulse input module” that can be placed in the
connection base, however, accumulation and data logging of values are made by the calculator.
The pulse inputs VA and VB function independantly of the other inputs/outputs and thereby they are not included
in any energy calculations.
Both pulse inputs are constructed identically and can individually be set up to receive pulses from water meters
with max. 1 Hz or pulses from electricity meters with max. 3 Hz.
Configuration to correct pulse value is made at the factory on the basis of order information or are configured by
means of METERTOOL. See paragraph 3.6 concerning configuration of VA (FF codes) and VB (GG codes).
MULTICAL® 602 registers the accumulated consumption for the meters connected to VA and VB and stores the
registers every month and every year on the target date. To facilitate the identification during data reading it is
also possible to store the meter numbers for the two meters that are connected to VA and VB. Programming is
made by means of METERTOOL.
The registers that can both be read on the display (by selecting a suitable DDD code) and via data communication
contains the following information as well as date of yearly and monthly data:
Registration type:
VA (accumulated register)
Count
Identification
Yearly data
•
•
Meter number VA
•
Yearly data, up to 15 years back
•
Monthly data, up to 36 months back
VB (accumulated register)
Monthly data
•
•
Meter number VB
•
Yearly data, up to 15 years back
•
Monthly data, up to 36 months back
By using METERTOOL the registers VA and VB can be preset to the value of the connected meters at the time of
installation.
5512-931 GB/09.2011/Rev. B1
71
MULTICAL® 602
TECHNICAL DESCRIPTION
7.3.1 Display example, VA
In the example below VA is configured to FF=24, which corresponds to 10 liters/pulse and a max. flow of 10 m3/h.
The meter that is connected to VA has meter number 75420145 which is stored in MULTICAL® 602’s internal
memory by means of METERTOOL .
Accumulated register for VA (Input A)
Meter number for VA (max. 8 digits)
Yearly data, date for LOG 1 (last target date)
Yearly data, value for LOG 1 (last yearly reading)
This is the accumulated volume registered on VA
on the 1st January 2006.
72
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
8 Temperature sensors
For MULTICAL® 602 either Pt100 or Pt500 temperature sensors are used according to EN 60751 (DIN/IEC 751). A
Pt100 or Pt500 temperature sensor is a platinum sensor with a nominal ohmic resistance of 100.000 Ω and
500.000 Ω, respectively, at 0.00°C and 138.506 Ω and 692.528 Ω at 100.00°C, respectively. All values for the
ohmic resistance are laid down in the international standard IEC 751 valid for Pt100 temperature sensors. The
values for the ohmic resistances in Pt500 sensors are 5 times higher. In below tables the resistance values in [Ω]
are stated for every whole degree celcius for both Pt100 and for Pt500 sensors:
Pt100
°C
0
1
2
3
4
5
6
7
8
9
0
100.000
100.391
100.781
101.172
101.562
101.953
102.343
102.733
103.123
103.513
10
103.903
104.292
104.682
105.071
150.460
105.849
106.238
106.627
107.016
107.405
20
107.794
108.182
108.570
108.959
109.347
109.735
110.123
110.510
110.898
111.286
30
111.673
112.060
112.447
112.835
113.221
113.608
113.995
114.382
114.768
115.155
40
115.541
115.927
116.313
116.699
117.085
117.470
117.856
118.241
118.627
119.012
50
119.397
119.782
120.167
120.552
120.936
121.321
121.705
122.090
122.474
122.858
60
123.242
123.626
124.009
124.393
124.777
125.160
125.543
125.926
126.309
126.692
70
127.075
127.458
127.840
128.223
128.605
128.987
129.370
129.752
130.133
130.515
80
130.897
131.278
131.660
132.041
132.422
132.803
133.184
133.565
133.946
134.326
90
134.707
135.087
135.468
135.848
136.228
136.608
136.987
137.367
137.747
138.126
100
138.506
138.885
139.264
139.643
140.022
140.400
140.779
141.158
141.536
141.914
110
142.293
142.671
143.049
143.426
143.804
144.182
144.559
144.937
145.314
145.691
120
146.068
146.445
146.822
147.198
147.575
147.951
148.328
148.704
149.080
149.456
130
149.832
150.208
150.583
150.959
151.334
151.710
152.085
152.460
152.835
153.210
140
153.584
153.959
154.333
154.708
155.082
155.456
155.830
156.204
156.578
156.952
150
157.325
157.699
158.072
158.445
158.818
159.191
159.564
159.937
160.309
160.682
160
161.054
161.427
161.799
162.171
162.543
162.915
163.286
163.658
164.030
164.401
170
164.772
165.143
165.514
165.885
166.256
166.627
166.997
167.368
167.738
168.108
Pt100, IEC 751 Amendment 2-1995-07
Table 4
5512-931 GB/09.2011/Rev. B1
73
MULTICAL® 602
TECHNICAL DESCRIPTION
Pt500
°C
0
1
2
3
4
5
6
7
8
9
0
500.000
501.954
503.907
505.860
507.812
509.764
511.715
513.665
515.615
517.564
10
519.513
521.461
523.408
525.355
527.302
529.247
531.192
533.137
535.081
537.025
20
538.968
540.910
542.852
544.793
546.733
548.673
550.613
552.552
554.490
556.428
30
558.365
560.301
562.237
564.173
566.107
568.042
569.975
571.908
573.841
575.773
40
577.704
579.635
581.565
583.495
585.424
587.352
589.280
591.207
593.134
595.060
50
596.986
598.911
600.835
602.759
604.682
606.605
608.527
610.448
612.369
614.290
60
616.210
618.129
620.047
621.965
623.883
625.800
627.716
629.632
631.547
633.462
70
635.376
637.289
639.202
641.114
643.026
644.937
646.848
648.758
650.667
652.576
80
654.484
656.392
658.299
660.205
662.111
664.017
665.921
667.826
669.729
671.632
90
673.535
675.437
677.338
679.239
681.139
683.038
684.937
686.836
688.734
690.631
100
692.528
694.424
696.319
698.214
700.108
702.002
703.896
705.788
707.680
709.572
110
711.463
713.353
715.243
717.132
719.021
720.909
722.796
724.683
726.569
728.455
120
730.340
732.225
734.109
735.992
737.875
739.757
741.639
743.520
745.400
747.280
130
749.160
751.038
752.917
754.794
756.671
758.548
760.424
762.299
764.174
766.048
140
767.922
769.795
771.667
773.539
775.410
777.281
779.151
781.020
782.889
784.758
150
786.626
788.493
790.360
792.226
794.091
795.956
797.820
799.684
801.547
803.410
160
805.272
807.133
808.994
810.855
812.714
814.574
816.432
818.290
820.148
822.004
170
823.861
825.716
827.571
829.426
831.280
833.133
834.986
836.838
838.690
840.541
Pt500, IEC 751 Amendment 2-1995-07
Table 5
8.1 Sensor types
MULTICAL® 602
Type 602-
Pt500 sensor set
No sensor set
Pocket sensor set w/1.5 m cable
Pocket sensor set w/3.0 m cable
Pocket sensor set w/5 m cable
Pocket sensor set w/10 m cable
Short direct sensor set w/1.5 m cable
Short direct sensor set w/3.0 m cable
3 Pocket sensors in sets w/1.5 m cable
3 Pocket sensors in sets w/3.0 m cable
3 Pocket sensors in sets w/5 m cable
3 Pocket sensors in sets w/10 m cable
3 Short direct sensors in sets w/1.5 m cable
3 Short direct sensors in sets w/3.0 m cable
74
0
A
B
C
D
F
G
L
M
N
P
Q3
Q4
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
8.2 Cable influence and compensation
8.2.1
2 wire sensor set
Small and medium-sized heat meters only need a relatively short temperature sensor length, and the 2 wire
sensor set can be used with the advantage of easy installation.
The cable length and the cross sectional area must always be identical for the 2 sensors used as a temperature
sensor pair for a heat meter. The length of the cable sensors must neither be shortened nor extended.
The limitations attached to using the 2 wire sensor set according to EN 1434-2:2007 are stated in below table.
Kamstrup supply Pt500 sensor sets with up to 10 m cable (2 x 0.25 mm2)
Pt100 sensors
Cable cross
section [mm2]
Pt500 sensors
Max. cable length
[m]
Temperature
increase [K/m]
Max. cable length
[m]
Temperature
increase [K/m]
according to
EN 1434-2:2007
Copper @ 20°C
according to
EN 1434-2:2007
Copper @ 20°C
0.25
2.5
0.450
12.5
0.090
0.50
5.0
0.200
25.0
0.040
0.75
7.5
0.133
37.5
0.027
1.50
15.0
0.067
75.0
0.013
Table 6
8.2.2 4 wire sensor set
For installations requiring longer cable lengths than stated in above table, we recommend a 4 wire sensor set and
a MULTICAL® 602 type 602-B with 4 wire connection.
The 4 wire construction uses two conductors for testing current and the two other conductors for measuring
signal. In this way, the construction will in theory not be affected by long sensor cables. However, in practice
cables longer than 100 m should not be used. We recommend to use 4 x 0.25 mm2.
5512-931 GB/09.2011/Rev. B1
75
MULTICAL® 602
TECHNICAL DESCRIPTION
The connection cable should have an outside diameter of 5-6 mm to obtain optimal tightening in both
MULTICAL® 602 and in the cable gland on the 4 wire sensor. The insulation material/cover of the cable should be
selected based on the max. temperature in the installation. PVC cables are typically used up to 80°C and in
connection with higher temperatures silicone cables are often used.
4 wire sensor set from Kamstrup has an interchangeable sensor pocket and is available in the lengths 90, 140
and 180 mm.
76
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
8.3 Pocket sensors
The Pt500 cable sensor is constructed with a 2 wire silicone cable and closed with a shrinked-on stainless steel
tube with a diamenter of ø5.8 mm that protects the sensor element.
The steel tube is fitted in a sensor pocket (pocket) which has an inside diameter of ø6 and an outside diameter of
ø8 mm. The sensor pockets are supplied with an R½ (conical ½”) connection in stainess steel with a length of
65, 90 or 140 mm. The sensor construction with separate pocket allows replacement of sensors without turning
off the water flow. The large selection of pocket lengths also ensures that the sensors can be fitted in all pipe
sizes.
The plastic tube on the sensor
cable is placed opposite the seal
screw and the screw is tightened
lightly by hand before sealing.
Figure 4
Figure 5
The stainless steel pockets is used in PN25 installations!
5512-931 GB/09.2011/Rev. B1
77
MULTICAL® 602
TECHNICAL DESCRIPTION
8.4 Pt500 short direct sensor set
The Pt500 short direct sensor is constructed according to the European standard for thermal heat meters
EN 1434-2. The sensor is constructed for fitting directly in the measuring medium, i.e. without sensor pocket. In
this way an extremely fast response time on temperature changes from e.g. domestic water exchangers is
obtained.
The sensor is based on a 2 wire silicone cable. The sensor tube is made of stainless steel and has a diameter of
ø4 mm at the tip where the sensor element is placed. Fitting can also be made directly in many flow sensor types,
which reduces the installation costs.
The sensor is fitted in special T-sections, that is
available for ½”, ¾” and 1” pipe installations.
Figure 6
In addition, the short direct sensor is fitted by
means of a R½ or R¾ for M10 nipple in a
standard 90° tee.
Figure 7
To obtain the best serviceability during meter
replacements, the short direct sensor can be
placed in a ball valve with a sensor connecting
piece.
Ball valves with a sensor connecting piece are
available in G½, G¾ and G1.
No.
6556-474 6556-475
G½
G¾
Max. 130°C and PN16
Figure 8
78
5512-931 GB/09.2011/Rev. B1
6556-476
G1
MULTICAL® 602
TECHNICAL DESCRIPTION
9 Voltage supply
MULTICAL® 602 must always be supplied internally with 3.6 VDC (± 0.1 VDC) on terminals 60(+) and 61(-). This is
obtained by one of the following supply modules:
MULTICAL 602®
Type 602-
Supply
Battery, D-cell
230 VAC high power isolated SMPS
24 VAC high power isolated SMPS
230 VAC isolated linear supply
24 VAC isolated linear supply
2
3
4
7
8
The above supply modules are all included in the extensive type test made on MULTICAL® 602. Within the
frameworks of the type approval, the CE declaration and the factory guarantee, no other types of supply modules
must be used than those mentioned above.
9.1 Integral D-cell lithium battery
A lithium D-cell battery (Kamstrup type 66-00-200-100) must be used for the meter. The battery is placed at the
right in the base unit and can easily be replaced just by using a screwdriver.
The battery lifetime partly depends on the temperature to which the battery is exposed and partly of the selected
meter application.
5512-931 GB/09.2011/Rev. B1
79
MULTICAL® 602
TECHNICAL DESCRIPTION
9.2 Battery lifetimes
Supply options and battery lifetime for wall mounted MULTICAL® 602 with ULTRAFLOW® 54
Estimated battery lifetime in years
Top ⇒
Base ⇓
602-00-00
Without base
module
602-00-10
Data+ pulse inp.
602-0020/27/28/29
M-Bus+ pulse inp.
602-00-21
Radio Router
+pulse inp.
602-00-22
Prog. datalogger +
analog inputs
602-00-23
0/4-20 Analogue
Out
602-00-24
LONWorks
+pulse inp.
602-00-25/26
RF+p/i, read by
Hand Held Terminal
602-00-30
WM-Bus Mode C1 +
pulse inp.
602-00-60
ZigBee + pulse inp.
602-00-62
Metasys N2
+pulse inp.
602-00-64
SIOX
602-0A
2 pulse out +
H-Log +
scheduler
602-0C
602-0B
2 pulse out + 2 pulse out
prog.
datalogger
12+1
10
9
10
Monthly: 12
daily: 12
hourly: 10
min.: 5
Monthly: 12
daily: 11
hourly: 9
min.: 1
Monthly: 10
daily: 9
hourly: 8
min.: 5
Monthly: 10
daily: 9
hourly: 7
min.: 1
Monthly: 9
daily: 8
hourly: 7
min.: 4
Monthly: 9
daily: 8
hourly: 6
min.: 1
Monthly: 10
daily: 9
hourly: 8
min.: 5
Monthly: 10
daily: 9
hourly: 7
min.: 1
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
602-02
ΔE + H-Log
602-09
ΔV + H-Log
12+1
12+1
Monthly: 12
daily: 12
hourly: 10
min.: 5
Monthly: 12
daily: 11
hourly: 9
min.: 1
Monthly: 12
daily: 12
hourly: 10
min.: 5
Monthly: 12
daily: 11
hourly: 9
min.: 1
Mains
only
Mains
only
Mains
only
602-03
PQ + H-Log
602-07
M-Bus
Mains
only
Mains
only
Mains
only
Monthly: 10
daily: 9
hourly: min.: -
Monthly: 9
daily: 8
hourly: min.: -
Mains
only
Monthly: 9
daily: 8
hourly: min.: -
Monthly: 8
daily: 7
hourly: min.: -
Monthly: 7
daily: 6
hourly: min.: -
Monthly: 8
daily: 7
hourly: min.: -
12+1
12+1
Mains
only
12+1
10
9
10
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
Mains
only
602-00-80
GSM/GPRS
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
Mains
only
HP Mains
only
Mains
only
HP Mains
only
Mains
only
HP Mains
only
602-00-82
Ethernet/IP
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
602-00-84
High Power RF +
pulse inp.
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
Note 6:
80
602-05
Data + H-Log
602-00
Without Top
module
Battery lifetime in [years] at one data reading per month, day, hour or minute.
Battery temperature between 30 and 45°C (pipe mounted calculator) will reduce the lifetime by 1-3 years.
Connection of 2 ULTRAFLOW® will reduce the lifetime by 3 years.
With top module 602-0B, log intervals from 60 to 1 min. will reduce the battery lifetime by up to 3 years.
Connecting ULTRAFLOW® 65 instead of ULTRAFLOW® 54 will reduce the lifetime by 3 years.
Pulse outputs are calculated at an average of 50% qp for standard CCC-codes and 32 ms. pulse duration.
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
9.3 High Power supply module 230 VAC
This PCB module is galvanically separated from the mains supply and is suited for direct 230 V mains installation.
The module is a Switch Mode Power Supply (SMPS) that meets the demands for double insulation when the
calculator top is mounted. The power consumption is less than 1.7 VA/1 W.
National electricity installation requirements must be met. The 230 VAC module must be
connected/disconnected by the utility staff, whereas the fixed 230 V installation for the switch cabinet must only
be made by an authorised electrician. If mains disappears, this SMPS will keep the meter running for a few
seconds.
9.4 High Power supply module 24 VAC
This PCB module is galvanically separated from the 24 VAC mains supply and is suited for industrial installations
with joint 24 VAC supply and individual installations supplied from a separate 230/24 V safety transformer in the
switch cabinet. The module is a Switch Mode Power Supply (SMPS) that meets the demands for double insulation
when the calculator top has been mounted. The power consumption is less than 1.7 VA/1 W.
National electricity installation requirements must be met. The 24 VAC module must be connected/disconnected
by the utility staff, whereas installation of 230/24 V in the switch cabinet must only be made by an authorised
electrician.
The module is specially suited for installation together with a 230/24 V safety transformer, e.g. type 66-99-403,
that can be installed in the switch cabinet before the safety relay. When the transformer is used the power
consumption will be less than 1.7 W for the entire meter including the 230/24 V transformer. If mains disappears,
this SMPS will only keep the meter running for a few seconds.
5512-931 GB/09.2011/Rev. B1
81
MULTICAL® 602
TECHNICAL DESCRIPTION
9.5 Supply module 230 VAC
This PCB module is galvanically separated from the mains supply and is suited for direct 230 V mains installation.
The module contains a double chamber safety transformer that meets the demands for double insulation when
the calculator top has been mounted. The power consumption is less than 1.5 VA/0.7 W.
National electricity installation requirements must be met. The 230 VAC module must be
connected/disconnected by the utility staff, whereas the fixed 230 V installation for the switch cabinet must only
be made by an authorised electrician. If mains disappears, this power supply will keep the meter running for a
few minutes.
9.6 Supply module 24 VAC
This PCB module is galvanically separated from the 24 VAC mains supply and is suited for industrial installations
with joint 24 VAC supply and individual installations supplied from a separate 230/24 V safety transformer in the
switch cabinet. The module contains a double chamber safety transformer that meets the demands for double
insulation when the calculator top has been mounted. The power consumption (without an external 230/24 V
transformer) is less than 1.5 VA/0.7 W.
National electricity installation requirements must be met. The 24 VAC module must be connected/disconnected
by the utility staff, whereas installation of 230/24 V in the switch cabinet must only be made by an authorised
electrician.
82
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
The module is especially suited for installation together with a 230/24 V safety transformer, e.g. type 66-99-403,
that can be installed in the switch cabinet before the safety relay. When the transformer is used the power
consumption will be less than 2.2 W for the entire meter including the 230/24 V transformer. If mains disappears,
this power supply will keep the meter running for a few minutes.
9.7 Exchanging the supply unit
The power supply unit for MULTICAL® 602 can be exchanged from mains supply to battery or vice versa as the
needs at the utility change. In this way, mains supplied meters can be exchanged for battery meters with
advantage in connection with buildings in the course of construction, as the mains supply may be unstable or
lack periodically.
Exchange from battery to mains supply does not require reprogramming, as MULTICAL® 602 does not contain an
information code for worn out batteries.
However, exchange from mains supply to battery must not be made on MULTICAL® 602 with following base
modules:
MULTICAL 602®
Type 602-
Base module
Radio Router/pulse inputs
Prog. data logger + RTC + 4…20 mA inputs + pulse inputs
0/4…20 mA outputs
LonWorks, FTT-10A/pulse inputs
ZigBee 2.4 GHz int.ant. + pulse inputs
Metasys N2 (RS485 + pulse inpts
SIOX module (Auto detect Baud rate)
GSM/GPRS module (GSM6H)
Ethernet/IP module (IP201)
High Power Radio Router + pulse inputs
21
22
23
24
60
62
64
80
82
84
See paragraph 10.1.5 re supply options for top and base modules.
5512-931 GB/09.2011/Rev. B1
83
MULTICAL® 602
TECHNICAL DESCRIPTION
9.8 Mains supply cables
MULTICAL® 602 is available with mains cables H05 VV-F for either 24 V or 230 V (l=1.5 m):
Mains cable, type 5000-286 (2x0.75 mm²), max. 6 A fuse
”H05 VV-F” is the designation for a heavy PVC cable, that stands max. 70°C. The supply cable must therefore be
installed with a sufficient distance to hot pipes and the like.
9.9 Back-up of data during power down
An early warning circuit and corresponding software is added, securing safety back-up of all main registers during
power down. In fact, this will function as the hourly data back-up, but also during power down. This will ensure
that the meter always starts up with the same display values as before the power break.
This will be effective for both 24V and 230V power break and also when the top part of MULTICAL® 602 is
removed from the base, or in case of a battery failure.
The battery has been constructed to maintain a constanct voltage level of 3.6 VDC ±0,1 V throughout its entire
life-time. Shortly before the battery’s energy is used up completely, the voltage falls. When the battery reaches
3.1 V the meter safety backs up. When the voltage is further reduced, ”bAt LO” is displayed to indicate that the
battery voltage of the meter is too low to carry out measurements. At 2.1 V info code = 1 is logged in the info
event logger with time and date, to make it possible to see when the battery’s energy has been completely used
up.
84
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
9.10 Danish regulations for connection of mains operated meters
Installation to electric mains operated equipment for consumption registration (www.sik.dk, safety notification
electric services no. 27/09, February 2009).
The consumption of energy and resources (electricity, heat, gas and water) of the individual consumer is to an
increasing extent registered by electronic meters, and often equipment for remote reading and remote control of
both electronic and non-electronic meters is used.
General regulations for carrying out installations must be observed. However, the following modifications are
permitted:
•
If meter or equipment for remote reading or remote control is double-isolated, it is not necessary to run
the protective conductor all the way to the connection point. This also applies if the connection point is a
plug socket provided that it is placed in a canning which is sealable or can be opened with key or tool
only.
If meter or equipment used for remote reading and remote control is connected to a safety transformer mounted
in the panel and direct connected to the branch conductor, no on-off switch or separate overcurrent protection in
either primary or secondary circuit is required, provided that the following conditions are fulfilled:
• The safety transformer must either be inherently short-circuit-proof or fail-safe
• The conductor of the primary circuit must either be short-circuit protected by the overcurrent protection of
the branch conductor or short-circuit safely run.
• The conductor of the secondary circuit must have a cross section of at least 0.5 mm² and a current value
which exceeds the absolute maximum current deliverable by the transformer
• It must be possible to separate the secondary circuit, either by separators, or it must appear from the
installation instructions that the secondary circuit can be disconnected at the transformer’s terminals
General information
Work on the fixed installation, including any intervention in the group panel, must be carried out by an authorized
electrician.
It is not required that service work on equipment comprised by this notification as well as connection and
disconnection of the equipment outside the panel is carried out by an authorized electrician. These tasks can
also be carried out by persons or companies, who professionally produce, repair or maintain equipment if only
the person carrying out the work has the necessary expert knowledge.
5512-931 GB/09.2011/Rev. B1
85
MULTICAL® 602
TECHNICAL DESCRIPTION
10 Plug-in modules
Plug-in modules can be added to MULTICAL® 602 both in the calculator top (top modules) and in the base unit
(base modules), in this way the meter adaps to a number of various applications.
All plug-in modules are included in the extensive type test which MULTICAL® 602 has gone through. Within the
framework of the type approval, the CE declaration and the factory guarantee other types of plug-in modules than
those mentioned below cannot be used:
10.1 Top modules
MULTICAL 602®
Type 602-
Top module
RTC + ΔEnergy calculation + hourly data logger
RTC + PQ or Δt-limiter + hourly data logger
RTC + data output + hourly data logger
RTC + M-Bus
RTC + ΔVolume + hourly data logger
RTC + 2 pulse outputs CE and CV + hourly data logger + scheduler
RTC + 2 pulse outputs CE and CV + prog. data logger
2 Pulse outputs CE and CV
2
3
5
7
9
A
B
C
The top modules are build up on the above joint hardware platform. The application program in the micro
controller and the component location vary according to the task.
Modules developed for MULTICAL® 601 can also be used in MULTICAL® 602 (except for the 67-06 module that
does not work in MC602), but only with the functions from MULTICAL® 601. When a top module with RTC is
mounted in MULTICAL® 602 the top module’s RTC will not have any effect on the meter’s own RTC.
86
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
10.1.1 Top module overview
Type 67-02: Δ energy calculation and hourly data logger
This top module calculates the difference between forward
and return energy, whereby an expression of the tapped
energy in open systems is obtained.
Differential energy dE=E4-E5.
The module also comprises an hourly data logger. Besides the
differential energy dE, the logger includes registers such as
daily logger (see paragraph 6.13 Data loggers).
Terminal screws are not used in this module.
Type 67-03: PQ-limiter + hourly data logger
The module has two pulse outputs which can be used for
UP/DOWN control of a low-speed three-point motor-operated
valve via an external solid-state relay, type S75-90-006 and a
230/24 V trafo, type 66-99-403.
The required power and flow limits are entered into
MULTICAL® 602 via the PC-program METERTOOL.
Also see instructions: 5512-498
The module also includes an hourly data logger.
Type 67-05: Data output + hourly data logger
The module has a galvanically separated data port which
functions together with the KMP-protocol. The data output can
be used for e.g. connection of external communication units
or other hardwired data communication which it is not
expedient to carry out via the optical communication on the
meter’s front.
62: DATA (Brown) – 63: REQ (White) – 64: GND (Green). Use
data cable type 66-99-106 with 9-pole D-sub or type 66-99098 with USB connector.
The module also includes an hourly data logger.
Only current and accumulated data can be read. Data loggers
for time/days/months/years cannot be read through the data
port of top module 67-05.
Type 67-07: M-Bus
M-Bus can be connected in star, ring and bus topology.
Depending on M-Bus master and cable length/cross section,
up to 250 meters can be connected with primary addressing,
and even more using secondary addressing.
Cable resistance in network: < 29 Ohm
Cable capacity in network:
< 180 nF
The connection polarity of terminals 24-25 is unimportant.
The module should only be used in mains supplied meters.
Unless otherwise stated in the order, the primary address
consists of the last three digits of the customer number, but it
can be changed via the PC program METERTOOL.
In order to function correctly in a MC602, minimum program
version D1, released in March 2011, is required.
5512-931 GB/09.2011/Rev. B1
87
MULTICAL® 602
TECHNICAL DESCRIPTION
Type 67-09: ΔVolume calculation and hourly data logger
This top module calculates the difference between forward
and return volume, whereby an expression of the tapped
volume in open systems is obtained.
Differential volume dV=V1-V2.
The module also comprises an hourly data logger. Besides the
differential volume, the logger includes registers such as daily
logger (see paragraph 6.13 Data loggers).
Requires CCC1=CCC2 and a suitable DDD-code.
Terminal screws are not used in this module.
Type 67-0A: 2 pulse outputs for CE and CV + hourly data
logger + scheduler
See Application no. 10 on page 33, Hot water meter
The top module has the same functions as the 602-0C top
module and furthermore the module is able to simulate a cold
water temperature according to a programmed scheduler,
where the programmed temperature for T2, T3 or T4 can be
programmed with up to 12 individual dates/temperatures per
year.
See paragraph 10.1.2 concerning the function of the pulse
outputs.
Type 67-0B: 2 pulse outputs for CE and CV + prog. data logger
Pulse output functions of this top module are identical with the
functions described under top module
602-0C. Type 67-0B however, is supplied with Opto FET
output for AC/DC pulses. See paragraph 2.2 Electrical data as
to specifications of pulse outputs CE and CV.
The top module is prepared for use in a Kamstrup radio
network together with the High Power Radio Router base
module 6020084, read data being transferred to the system
software via network unit RF Concentrator.
See paragraph 10.1.2 concerning the function of the pulse
outputs.
Type 602-0C: 2 pulse outputs for CE and CV
This top module has two configurable pulse outputs, which are
suitable for volume and energy pulses for heat meters, cooling
meters and combined heat/cooling meters.
The pulse resolution follows the display (fixed in the CCCcode). E.g. CCC=119 (qp 1.5): 1 pulse/kWh and 1 pulse/0.01
m3.
The pulse outputs are optoinsulated and can be charged with
30 VDC and 10 mA.
Normally, energy (CE) is connected to 16-17 and volume (CV) to
18-19, but other combinations can be selected via the PC
program METERTOOL, also used to select pulse duration 32 or
100 ms.
See paragraph 10.1.2 concerning the function of the pulse
outputs.
88
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
10.1.2 Top modules 67-0A, 67-0B and 602-0C pulse outputs
These top modules has two configurable pulse outputs, which are suitable for combined heating/cooling applications among other things:
Meter function
Heat meter
Volume meter
Cooling meter
Heat/cooling meter
Output C (16-17)
CE+ Heat energy
CV+ Volume
CE- Cooling energy
CE+ Heat energy
(E1)
(V1)
(E3)
(E1)
Output D (18-19)
CV+ Volume
(V1)
CV+ Volume
(V1)
CV+ Volume
(V1)
CE- Cooling energy (E3)
Pulse duration
32 msec.
or
100 msec.
Pulse resolution follows the display (fixed in CCC-code). E.g. CCC=119: 1 pulse/kWh and 1 puls/0.01m3
The module includes the configuration data, which will also follow the module in case of replacement.
CV- (TA3) is only used in connection with tariff EE=20.
10.1.3 Fitting and removing the top module
The top module is released by pressing downwards in the middle of the plastic piece on the left, and at the same
time pushing the top module towards the left.
Figure 9
5512-931 GB/09.2011/Rev. B1
89
MULTICAL® 602
TECHNICAL DESCRIPTION
10.1.4 Supply options for top and base modules
Top ⇒
Base ⇓
67-00-10
Data + pulse inp.
67-00-20/27/28/29
M-Bus + pulse inp.
67-00-21
Radio Router + pulse inp.
67-00-22
4-20 inp.
67-00-23
0/4-20 out
67-00-24
LonWorks + pulse inp.
67-00-25
RF + pulse inp.
67-00-26
RF + pulse inp.
67-00-30
wM-Bus + pulse inp.
67-00-60
ZigBee + pulse inp.
67-00-62
Metasys N2 + pulse inp.
602-00-64
SIOX
602-00-80
GSM/GPRS
602-00-82
Ethernet/IP (IP201)
602-00-84
High power Radio Router
+ pulse inp.
90
67-02
ΔE + H-Log
67-09
ΔV + H-Log
Battery or
mains
Battery or
mains
67-03
PQ + H-Log
67-07
M-Bus
Mains only
Mains only
602-0C
2 pulse
outputs
(CE/CV)
67-0A
H-Log+ 2
pulse out
+scheduler
67-0B
2 pulse
out+prog.d
atalog
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
67-05
Data + HLog
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Battery or
mains
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
Mains only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
HP Mains
only
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
10.1.5 Module survey for Top module 67-05 with external communication box
Top ⇒
Ext. box ⇓
67-00-10
67-00-20/27/28/29
67-00-21
67-00-22
67-00-23
67-00-24
LonWorks
67-00-25
67-00-26
67-00-30
67-00-60
67-00-62
602-00-64
602-00-80
602-00-82
602-00-84
67-05
Data + H-Log
Comments/restrictions in use
N/A
N/A
N/A
N/A
N/A
Mains only
The module type in the external communication box is not displayed in MC602.
Only accumulated and actual data. No hourly/daily/monthly/yearly data loggers can be
read through the data port on the 602-05 top module. LonWorks always requires mains
supply.
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Note: Pulse inputs for VA and VB (terminals 65-66-67-68) are not connected when a module is installed in an
external connection box.
5512-931 GB/09.2011/Rev. B1
91
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2 Base modules
The base modules for MULTICAL® 602 can be divided into 4 groups:
602-00-8X
Modules specifically developed for MULTICAL® 602 to be used together with 230 VAC or 24 VAC high power
SMPS module.
602-00-3X,
Modules specifically developed for MULTICAL® 602 and the KMP protocol.
602-00-6X,
602-00-2X
Modules specifically developed for MULTICAL® 602 and the KMP protocol.
602-00-1X
Modules with simple functions and without a microprocessor.
MULTICAL 602®
Type 602-
Base module
No module
Data + pulse inputs
M-Bus + pulse inputs
Radio Router + pulse inputs
Prog. data logger + RTC + 4…20 mA inputs + pulse inputs
0/4…20 mA outputs
LonWorks, FTT-10A + pulse inputs
Radio + pulse inputs (internal antenna) 434 or 444 MHz
Radio + pulse inputs (external antenna connection) 434 or 444 MHz
M-Bus module with alternative registers + pulse inputs
M-Bus module with medium data package + pulse inputs
M-Bus module with MC-III data package + pulse inputs
Wireless M-Bus Mode C1 + pulse inputs
ZigBee 2.4 GHz int.ant. + pulse inputs
Metasys N2 (RS485) + pulse inputs
SIOX module (Auto detect Baud rate)
GSM/GPRS module (GSM6H)
Ethernet/IP module (IP201)
High Power Radio Router + pulse inputs
92
00
10
20
21
22
23
24
25
26
27
28
29
30
60
62
64
Require High
Power supply
modules
5512-931 GB/09.2011/Rev. B1
80
82
84
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.1 Data + pulse inputs (67-00-10)
The module has a galvanically separated data port that functions with the KMP protocol. The data output can be
used for connection of external communication units or another wired data communication which is not suitable
to perform via optical communication on the front of the meter.
See paragraph 7.3 Pulse inputs VA and VB concerning functioning of the pulse inputs.
The module comprises data connection, which can be used for external data plug, designed for use with the
hand-held terminal from Kamstrup, or as a semi-permanent PC connection.
The data connection is galvanically isolated from the optocouplers which makes it necessary to use data cable
type 66-99-105 or 66-99-106 in order to adjust the signal to RS-232 level, which is used by PC and with the handheld terminal from Kamstrup. See section 11. Data communication for information on data strings and protocols.
If the computer does not have a COM port, a data cable with USB connection, type 66-99-098, can be used.
5512-931 GB/09.2011/Rev. B1
93
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.2 M-Bus + pulse inputs (67-00-20)
The M-Bus module is supplied via the M-Bus network and is independent of the meter’s own supply. M-Bus and
the energy meters communicate two-way via opto couplers which gives galvanically separation between M-Bus
and the meter. The module supports primary, secondary and enhanced secondary addressing.
The M-Bus module has 2 extra inputs. See paragraph 7.3 Pulse inputs VA and VB concerning functioning of the
pulse inputs.
In order to function correctly in a MC602, minimum program version H1, released in March 2011, is required.
10.2.3 RadioRouter + pulse inputs (67-00-21)
The radio module is supplied as standard to operate in a licence-free frequency band but can also be supplied to
other frequences requiring licence.
The radio module is prepared to form part of a Kamstrup radio network, where the data are automatically
transferred to system software via the network components RF Router and RF Concentrator.
The radio module has 2 extra inputs. See paragraph 7.3 Pulse inputs VA and VB regarding functioning of the
pulse inputs. The RadioRouter module must be used with mains supply.
10.2.4 Prog. data logger + RTC + 4…20 mA inputs + pulse inputs (67-00-22)
The module has connection possibility for two pressure transmitters on terminals 57, 58 and 59 and can be
adjusted for current reading or pressure ranges of 6, 10 or 16 bar.
The module is prepared for remote reading, data from meter/module being transferred to the system software via
the connected external GSM/GPRS modem on terminals 62, 63 and 64.
Furthermore, the module has two extra pulse inputs, see section 7.3: Pulse inputs VA and VB as to function. The
module must always be powered by 24 VAC.
Pressure transmitter requirements: 4…20 mA, 2-wire, loop-powered, loop voltage max. 16 VDC
(e.g. type CTL from Baumer A/S)
94
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.5 0/4…20 mA outputs (67-00-23)
The module is furnished with two active analogue outputs, which can both be configured for 0…20 mA or for
4…20 mA. In addition, the outputs can be configured to any measuring value (power, flow, or temperature) and to
any range scaling. All values of the two analog outputs are updated every 10 seconds.
The module must be mounted in MULTICAL® 602. It cannot be used separately together with flow meters.
The configuration is carried out via the menu "Bottom module" in METERTOOL.
10.2.6 LonWorks, FTT-10A + pulse inputs (67-00-24)
The LonWorks module is used for data transfer from MULTICAL 602® either for data reading/registration for
adjusting purposes via the Lon-bus.
See section 7.3 Pulse inputs VA and VB for details on the functioning of the pulse inputs. The module must be
provided with 24 VAC voltage supply.
For a list of network variables (SNVT) and further information on the LonWoks module please see data sheet
5810-511.
For installation please refer to Installation Guide 5512-403.
5512-931 GB/09.2011/Rev. B1
95
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.7 Radio + pulse inputs (67-00-25/26)
The radio module is supplied as standard to operate in a licence-free frequency band but can also be supplied to
other frequences requiring licence.
The radio module is prepared to form part of a Kamstrup radio network, where read data automatically is
transferred to system software via the network components RF Router and RF Concentrator.
The radio module has 2 extra inputs. See paragraph 7.3 Pulse inputs VA and VB regarding functioning of the
pulse inputs.
67-00-25: Internal antenna
67-00-26: External antenna connection
10.2.8 M-Bus module with alternative registers + pulse inputs (67-00-27)
The M-Bus module is supplied via the M-Bus network and is independent of the meter’s own supply. M-Bus and
the energy meters communicate two-way via opto couplers which gives galvanically separation between M-Bus
and the meter. The module supports primary, secondary and enhanced secondary addressing.
The M-Bus module has 2 extra inputs. See paragraph 7.3 Pulse inputs VA and VB concerning functioning of the
pulse inputs.
In order to function correctly in a MC602, minimum program version F1 released in April 2011, is required.
10.2.9 M-Bus module with medium data package + pulse inputs (67-00-28)
A new M-Bus base module has been develop for MULTICAL® 602 and can solely be used in MULTICAL® 602.
The “Error hour counter” has been added to the M-Bus telegram and following registers has been removed: TA2,
TA3 in actual and target data and E8, E9, TL2, TL3 in manufacture specified data.
In order to function correctly in a MC602, minimum program version D1 released in April 2011, is required.
96
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.10 M-Bus module with MC-III data package + pulse inputs (67-00-29)
The M-Bus module 670029 comprises the same data packet as M-Bus module 6604 for MC III/66-C and module
660S for MCC/MC 401.
The module can e.g. be used together with the old M-Bus master with display, old regulators and old reading
systems not supporting the newer M-Bus modules.
In order to function correctly in a MC602, minimum program version E1, released in June 2011, is required.
10.2.11 Wireless M-Bus + 2 pulse inputs (67-00-30)
The radio module has been designed to form part of Kamstrup's hand-held Wireless M-Bus Reader systems,
which operate within the unlicensed frequency band in the 868 MHz area.
The module fulfils the C-mode specifications of prEN13757-4 and can thus form part of other systems using
Wireless M-Bus C-mode communication.
The radio module comes with internal antenna and external antenna connection as well as two pulse inputs
(VA + VB). Paragraph 7.3 “Pulse inputs VA and VB” describes how the pulse inputs function.
The Wireless M-Bus radio transmitter is switched off before dispatch from the factory. It switches on automaticaly
when one litre of water has run through meter. The radio transmitter can also be switched on by making a forced
call (keep both front keys activated for approx. 5 sec. until CALL is displayed).
10.2.12 ZigBee + 2 pulse inputs (67-00-60)
The ZigBee module is mounted direct in the meter and is powered by the meter's supply. The module operates
within the 2.4 GHz area and is ZigBee Smart Energy certified. The certification secures that the meter can form
part of other ZigBee networks, e.g. reading several meter types from different meter suppliers.
To be able to offer a compact solution the module uses an internal antenna.
Paragraph 7.3 “Pulse inputs VA and VB” describes how the pulse inputs function.
5512-931 GB/09.2011/Rev. B1
97
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.13 Metasys N2 (RS485) + 2 pulse inputs (VA, VB) (67-00-62)
The N2 module is used for data transfer from MULTICAL® heat and cooling meters to an N2 Master in a Johnson
Controls System. The N2 module transfers accumulated energy and volume, current temperatures, flow and power
from the heat or cooling meter to an N2 Master. N2 Open from Johnson Controls is a widespread and established
field bus protocol used within building automation. The N2 module for MULTICAL® ensures simple integration
from Kamstrup’s heat and cooling meters to N2 Open based systems. Adress area is 1-255 determined by the last
three digits of the meters customer number.
Further details about the Metasys N2 module appear from data sheet 5810-925, GB-version.
10.2.14 SIOX module (Auto detect Baud rate) (602-00-64)
SIOX is used for data reading of small and medium size groups of heat meters via cable, the data reading being
presented by the main system, e.g. Mcom, Fix or Telefrang. Further information on these systems can be ordered
from the supplier in question. Furthermore, a configuration tool is available from Telefrang.
The two-wire serial SIOX bus connection is optoisolated from the meter and is connected without regard to
polarity (i.e. the polarity is unimportant). The module is powered by the SIOX bus. Communication speed between
300 and 19,200 baud. The module automatically uses the highest possible communication speed. The module
converts data from KMP protocol to SIOX protocol.
10.2.15 GSM/GPRS module (GSM6H) (602-00-80)
The GSM/GPRS module functions as transparent communication path between reading software and
MULTICAL®602 and is used for data reading. The module includes an external dual-band GSM antenna which
must always be used. The module itself includes a line of light emitting diodes indicating signal strength which
are very useful during installation.
Further details about the GSM/GPRS module appear from data sheet 5810-627. GB-version 5810-628, DE-version
5810-629, SE-version 5810-630.
Regarding mounting we refer to installation instructions DK-version 5512-686, GB-version 5512-687, DE-version
5512-688.
98
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
10.2.16 Ethernet/IP module (IP201) (602-00-82)
The IP module functions as transparent communication between reading software and MULTICAL 801 and is used
for data reading. The module supports both dynamic and static addressing. This is specified in the order or
selected during subsequent configuration. The module has no built-in security and must, therefore, always be
used in connection with a firewall or NAT.
Further details appear from the data sheet, DK-version 5810-541, GB-version 5810-542, DE-version 5810-543,
SE-version 5810-544. As far as installation is concerned we refer to installation instructions, DK version 5512934, GB-version 5512-937, DE-version 5512-938, SE-version 5512-939.
10.2.17 High Power Radio Router + 2 pulse inputs (VA, VB) (602-00-84)
The High Power RadioRouter module has built-in router functionality and is thus optimized to form part of a
Kamstrup radio network, the read data being automatically transferred to system software via the network unit RF
Concentrator.
Furthermore, the module can be read by Kamstrup’s hand-held reading systems, e.g. USB Meter Reader and MT
Pro.
The RadioRouter module is available for operation in both licence-free and licence demanding frequences
permitting a transmitting strength of up to 500 mW. The module is by default fitted with internal antenna,
connection for external antenna, and two extra pulse inputs.
See paragraph 7.3 Pulse inputs VA and VB regarding the function of the pulse inputs.
The High Power RadioRouter module (602-00-84) must be used together with the High Power mains supply (230
VAC: 602-00-00-2 and 24 VAC: 602-00-00-3).
5512-931 GB/09.2011/Rev. B1
99
MULTICAL® 602
TECHNICAL DESCRIPTION
10.3 Retrofitting modules
Top as well as base modules for MULTICAL® 602 can be supplied separately for retrofitting. The modules are
configured from the factory and ready to be mounted. Some of the modules, however, need individual
configuration after installation, which can be carried out by means of METERTOOL.
Top module
Possible configuration after installation
ΔEnergy calculation + Hourly data logger
2
N/A
PQ or Δt-limiter + hourly data logger
3
Magnification, hysteresis and possible flow cut-off must be
adjusted during commissioning. All parameters and limits
can be changed via METERTOOL
Data output + hourly data logger
5
N/A
M-Bus
7
Primary and secondary M-Bus addresses can be changed via
METERTOOL or M-Bus. Furthermore, monthly logger data can
be selected instead of yearly logger data by means of M-Bus
ΔVolume + hourly data logger
9
N/A
2 pulse outputs for CE and CV + hourly data logger +
scheduler
A
Configuration of pulse outputs.
2 pulse outputs for CE and CV + prog. data logger
B
Configuration of pulse outputs.
2 pulse outputs for CE and CV
C
Configuration of pulse outputs.
10
Pulse values of VA and VB are changed via METERTOOL
M-Bus/pulse inputs
20
Pulse values of VA and VB are changed via METERTOOL
Primary and secondary M-Bus addresses can be changed via
METERTOOL or M-Bus. Furthermore, monthly logger data can
be selected instead of yearly logger data via M-Bus
Radio Router/pulse inputs
21
Pulse values of VA and VB are changed via METERTOOL
Prog. data logger + 4…20 mA inputs + pulse inputs
22
Pulse values of VA and VB are changed via METERTOOL
0/4…20 mA outputs
23
LonWorks, FTT-10A/pulse inputs
24
Radio + pulse inputs (internal antenna)
25
Pulse values of VA and VB are changed via METERTOOL
Radio + pulse inputs (external antenna)
26
Pulse values of VA and VB are changed via METERTOOL
Base module
Data/pulse inputs
Config data must be programmed into the calculator by
means of METERTOOL in case of retrofitting. Furthermore, all
parameters can be changed via METERTOOL
Pulse values of VA and VB are changed via METERTOOL. All
other configurations via LonWorks
Pulse values of VA and VB are changed via METERTOOL.
Primary and secondary M-Bus addresses can be changed via
METERTOOL or M-Bus. Furthermore, monthly logger data can
be selected instead of yearly logger data via M-Bus
Pulse values of VA and VB are changed via METERTOOL.
Primary and secondary M-Bus addresses can be changed via
METERTOOL or M-Bus. Furthermore, yearly logger data can be
selected instead monthly logger via M-Bus.
Pulse values of VA and VB are changed via METERTOOL.
Primary and secondary M-Bus addresses can be changed via
METERTOOL or M-Bus.
M-Bus module with alternative registers + pulse inputs
27
M-Bus module with alternative registers + pulse inputs
28
M-Bus module with medium data package + pulse
inputs
29
Wireless M-Bus + pulse inputs
30
Pulse values of VA and VB are changed via METERTOOL
ZigBee 2.4 GHz internal antenna + pulse inputs
60
Pulse values of VA and VB are changed via METERTOOL
Metasys N2 (RS485) + pulse inputs
62
Pulse values of VA and VB are changed via METERTOOL
SIOX module (Auto detect Baud Rate)
64
N/A
GSM/GPRS module (GSM6H)
80
N/A
Ethernet/IP module (IP201)
82
N/A
High Power Radio Router + pulse inputs
84
Pulse values of VA and VB are changed via METERTOOL
100
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
11 Data communication
11.1 MULTICAL® 602 data protocol
Internally in MULTICAL® 602 the data communication is built up with a Kamstrup Meter Protocol (KMP) that both
gives a fast and flexible reading structure, and fulfils future demands on data reliability.
The KMP protocol is common for all Kamstrup consumption meters introduced in 2006 and later. The protocol is
used on the optical eye and via pins to the base module. Base modules with e.g. M-Bus interface uses the KMP
protocol internally and the M-Bus protocol externally.
The KMP protocol is constructed to handle point-to-point communication in a master/slave system (bus system, if
required) and is used for data reading of Kamstrup energy meters.
Software and parameter protection
The meter’s software is implemented into ROM and can after that not be changed neither deliberately nor nondeliberately. The legal parameters cannot be changed via data communication without breaking the legal seal
and short-circuiting the ”total programming lock”.
Software conformity
The check sum of the software, based on CRC16, is available via data communication and on the display.
Integrity and authenticity of data
All data parameters contain type, measuring unit, scaling factor and CRC16 check sum.
Each meter produced contains a unique identification number.
In the communication between master and slave two different formats are used. Either a data frame format or an
application knowledge.
•
Request from master to slave always takes place with a data frame.
•
Response from the slave either takes place with a data frame or an application knowledge.
The data frame is based on the OSI model, in which the physical layer, data link layer and the application layer
are used.
Number of bytes in each field
Field description
1
1
1
0-?
2
1
Start byte
Destination
address
CID
Data
CRC
Stop byte
OSI – lag
Application layer
Data link layer
Physical layer
The protocol is based on half duplex serial asynchronous communication with the setup: 8 databits, no parity
and 2 stopbits. The data bit rate is 1200 or 2400 baud. CRC16 is used in both request and response.
Data is transferred byte for byte in a binary data format where the 8 databits thereby represent a byte data.
”Byte Stuffing” is used to extend the data domain.
5512-931 GB/09.2011/Rev. B1
101
MULTICAL® 602
TECHNICAL DESCRIPTION
11.1.1 MULTICAL® 602 Register ID’s
ID
1003
60
94
63
61
62
95
96
97
110
64
65
68
69
84
85
72
73
1004
113
1002
99
86
87
88
122
89
91
92
74
75
80
123
124
125
126
127
128
129
130
138
139
140
141
142
143
144
145
146
147
149
150
66
67
98
152
153
168
1001
112
1010
114
104
1005
154
155
157
158
175
234
235
102
Register
DATE
E1
E2
E3
E4
E5
E6
E7
E8
E9
TA2
TA3
V1
V2
VA
VB
M1
M2
HR
INFOEVENT
CLOCK
INFO
T1
T2
T3
T4
T1-T2
P1
P2
FLOW1
FLOW2
EFFEKT1
MAX FLOW1DATE/ÅR
MAX FLOW1/ÅR
MIN FLOW1DATE/ÅR
MIN FLOW1/ÅR
MAX EFFEKT1DATE/ÅR
MAX EFFEKT1/ÅR
MIN EFFEKT1DATE/ÅR
MIN EFFEKT1/ÅR
MAX FLOW1DATE/MÅNED
MAX FLOW1/MÅNED
MIN FLOW1DATE/MÅNED
MIN FLOW1/MÅNED
MAX EFFEKT1DATE/MÅNED
MAX EFFEKT1/MÅNED
MIN EFFEKT1DATE/MÅNED
MIN EFFEKT1/MÅNED
AVR T1/ÅR
AVR T2/ÅR
AVR T1/MÅNED
AVR T2/MÅNED
TL2
TL3
XDAY
PROG NO
CONFIG NO 1
CONFIG NO 2
SERIE NO
METER NO 2
METER NO 1
METER NO VA
METER NO VB
METER TYPE
CHECK SUM 1
HIGH RES
TOPMODUL ID
BOTMODUL ID
INFOHOUR
IMPINa
IMPINb
Description
Current date (YYMMDD)
Energy register 1: Heat energy
Energy register 2: Control energy
Energy register 3: Cooling energy
Energy register 4: Flow energy
Energy register 5: Return flow energy
Energy register 6: Tap water energy
Energy register 7: Heat energy Y
3
Energy register 8: [m x T1]
3
Energy register 9: [m x T2]
Tariff register 2
Tariff register 3
Volume register V1
Volume register V2
Input register VA
Input register VB
Mass register V1
Mass register V2
Operational hour counter
Info-event counter
Current time (hhmmss)
Infocode register, current
Current flow temperature
Current return flow temperature
Current temperature T3
Current temperature T4
Current temperature difference
Pressure in flow
Pressure in return flow
Current flow in flow
Current flow in return flow
Current power calculated on the basis of V1-T1-T2
Date for max. this year
Max. value this year
Date for min. this year
Min. value this year
Date for max. this year
Max. value this year
Date for min. this year
Min. value this year
Date for max. this month
Max. value this month
Date for min. this month
Min. value this month
Date for max. this month
Max. value this month
Date for min. this month
Min. value this month
Year-to-date average for T1
Year-to-date average for T2
Month-to-date average for T1
Month-to-date average for T2
Tariff limit 2
Tariff limit 3
Target date (reading date)
Program no. ABCCCCCC
Config no. DDDEE
Config. no. FFGGMN
Serial no. (unique number for each meter)
Customer number (8 most important digits)
Customer number (8 less important digits)
Meter no. for VA
Meter no. for VB
Software edition
Software check sum
High-resolution energy register for testing purposes
ID number for top module
ID number for base module
Error hour counter
l/imp. for VA
l/imp. for VB
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
11.1.2 Open data protocol
Companies who want to develop their own communication driver for the KMP protocol can order a demonstration
program with "open source code" in C# (.net based) as well as a detailed protocol description (in English
language).
11.2 MULTICAL® 602 communication paths
Physically, it is possible to communicate directly as shown below. Via destination addresses data
communication can be routed internally between modules and calculator.
11.3 Optical eye
For data communication via the optical interface an optical eye can be used. The optical eye must be located at
the front of the calculator, just above the IR-diode as shown on the photo below. Please note that the optical eye
contains a very powerful magnet that should be protected with the magnet protector when not in use.
Different variants of the optical eye can be found in the list of accessories (see chapter 3.2.2).
11.3.1 Current saver for the optical eye
The circuit around the optical eye has been improved by a magnet sensor that only allows current consumption
for the optical eye when a magnet (optical head) is attached to the meter.
5512-931 GB/09.2011/Rev. B1
103
MULTICAL® 602
TECHNICAL DESCRIPTION
12 Calibration and verification
12.1 High-resolution energy reading
If a need for high resolution of the energy reading arises during testing and verification it can be initialised as
follows:
-
Lift up the calculator top from the base unit and wait for the display to turn off
-
Press both push buttons simultaneously while the calculator top is placed in the base unit again and keep
pressing both push buttons until the display becomes active
-
The display now shows energy with a 0.1 [Wh] resolution until one of the push buttons are activated
The display example shows 345.4 [Wh] which corresponds to the energy accumulated at flow = 43.00°C and
return flow = 40.00°C and a return volume of 0.1 m3.
The high-resolution energy reading is displayed in Wh at a volume resolution of 0.01 m³
(qp 1.5 m³/h). In connection with large meters the energy shown must be multiplied by 10 or 100.
m3
0.001
0.01
0.1
1
Wh
x 0.1
x1
x 10
x 100
The high-resolution energy can be used for both heat energy (E1) and for cooling energy (E3).
Hour counter and info-event counter are always reset when HighRes is provoked by pressing both keys in
connection with reset. Please be aware of pressing and releasing both keys simultaneously in order to avoid that
the meter returns to primary reading after some minutes.
12.1.1 Data reading of high-resolution energy
Data reading of the register ”HighRes” is possible with ID = 155.
The read value will show correct measuring unit and value irrespective of the meter size.
12.2 Pulse interface
During test and verification of MULTICAL® 602, where high resolution energy pulses are needed, the verification
adapter, type 66-99-275, can be used in the module area of the connection bracket.
The pulse interface gets serial data from MULTICAL® 602 every 7. sec. and converts these to high resolution
energy pulses with the same resolution as the high resolution display mode. (see chapter 12.1)
104
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
The pulse interface must be power supplied on terminal 97-98 from an external 5…30 VDC. The current
consumption is max. 5 mA.
The high resolution energy pulses is a open collector signal on terminal 13-12. An additional pull-up resistor on
10 kOhm can be connected via terminal 13A.
12.2.1
Meter types
Pulse interface type 5550-888 can be used for verification of the below 4 variants of MULTICAL® 602, if
the correct connection PCB and the correct temperature sensors/simulators and flow simulator is used.
Meter type
602-A
602-B
602-C
602-D
Connection PCB
5550-492
5550-568
5550-492
5550-732
Sensor type
Pt100, 2-Wire
Pt500, 4- Wire
Pt500, 2- Wire
Pt500, 4- Wire
Volume input
ULTRAFLOW® (11-9-10) or Reed-contact (11-10)
24 V pulses (10B-11B)
Pulsinterface 5550-888 (to the right) with connection PCB 5550-492 (to the left)
5512-931 GB/09.2011/Rev. B1
105
MULTICAL® 602
TECHNICAL DESCRIPTION
12.2.2 Technical data
Power supply (97-98):
5…30 VDC
Current consumption:
Max. 5 mA
Volume simulation:
Max. 128 Hz for CCC=1xx (ULTRAFLOW®)
Max. 1 Hz for CCC=0xx (Reed-contact)
HF-energy output (13-12):
Open collector, 5…30 VDC max. 15 mA
Pulse frequency (13-12):
Max. 32 kHz as burst per integration
Data interval:
Ca. 7 sec.
Time-out with no data:
Ca. 35 sec.
12.3 True energy calculation
During test and verification the energy calculation of the heat meter is compared with the ”true energy” calculated
according to the formular stated in EN 1434-1:2007 or OIML R75:2002.
The PC program METERTOOL from Kamstrup contains an energy calculator suitable for the purpose:
The conventional true energy at the most frequent verification points is stated in below table.
106
T1 [°C]
T2 [°C]
ΔΘ [K]
42
43
53
50
70
80
160
160
175
40
40
50
40
50
60
40
20
20
2
3
3
10
20
20
120
140
155
Flow
[Wh/0.1 m3]
Return flow
[Wh/0.1 m3]
230.11
345.02
343.62
1146.70
2272.03
2261.08
12793.12
14900.00
16270.32
230.29
345.43
344.11
1151.55
2295.86
2287.57
13988.44
16390.83
18204.78
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
13 Approvals
13.1 CE marking
MULTICAL® 602 is CE-marked in accordance with following directives:
EMC directive
2004/108/EC
LV directive
2006/95/EC
13.2 Measuring instrument directive
MULTICAL® 602 is available with CE-marking according to MID (2004/22/EC). The certificates have the following
numbers:
B-Module:
DK-0200-MI004-020
D-Module:
DK-0200-MIQA-001
5512-931 GB/09.2011/Rev. B1
107
MULTICAL® 602
TECHNICAL DESCRIPTION
108
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
14 Trouble-shooting
MULTICAL® 602 is constructed with a view to fast and simple mounting as well as long-term, reliable operation at
the heat consumer’s.
Should you, however, experience an operating problem with the meter, the error detection table below may help
you clairfy the possible reason.
In connection with repair, if necessary, we recommend to replace only battery and temperature sensors and
communication modules. Alternatively, the entire meter must be replaced.
Major repairs must be made in our factory.
Before sending in the meter for repair, you must go through below error detection table to help clarify the possible
cause of the problem.
Symptom
Possible cause
Suggested corrections
No display function (blank
display)
No power supply.
Replace the battery or check the
mains supply. Is there 3.6 VDC on
terminal 60(+) and 61(-) ?
No accumulation of energy (e.g.
MWh) and volume (m3)
Read “info” on the display.
Check the error indicated by the
info code (see section 6.8)
If “info” = 000, 16384 or 32768 ⇒
Check that the flow direction
corresponds with the arrow on the
flow sensor
If “info” = 004, 008 or 012 ⇒
Check the temperature sensors. If
defects are detected, replace the
sensor set.
If “info” = 4096 or 8192 ⇒
There is air in the installation.
Ventilation necessary.
Flow and return sensors have been
reversed, either during installation
or connection.
Mount the sensors correctly
Accumulation of volume (m3),
but not of energy (e.g. MWh)
No accumulation of volume (m3) No volume pulses
Check that the flow direction
corresponds with the arrow on the
flow sensor.
Check the flow sensor connection
Incorrect accumulation of
volume (m3)
Incorrect programming. If “info” =
128 or 2048 ⇒
Incorrect temperature indication Defective temperature sensor
Temperature display is too low
or accumulated energy is too
little (e.g. MWh)
Check if the pulse figure on the
flow sensor corresponds with the
calculator
Replace the sensor set.
Insufficient installation
Check the installation
Poor thermal sensor contact
Place the sensors in the bottom of
the sensor pockets.
Heat dissiptation
Sensor pockets too short
Insulate the sensor pockets.
Replace sensor pockets with
longer ones.
5512-931 GB/09.2011/Rev. B1
109
MULTICAL® 602
TECHNICAL DESCRIPTION
15 Disposal
Kamstrup A/S is environmentally certified according to ISO 14001, and as far as possible and as part of our
environmental policy we use materials that can be recycled in an environmentally correct way.
As of August 2005 heat meters from Kamstrup are marked according to
the EU directive 2002/96/EEA and the standard EN 50419.
The purpose of marking is to inform that the heat meter cannot be
disposed of as ordinary waste.
• Disposal
Kamstrup is willing to dispose of worn out MULTICAL® 602 in an environmentally safe manner according to a
previous arrangement. The disposal arrangement is free of charge to the customer, who only pays for
transportation to Kamstrup A/S or the nearest approved disposal arrangement.
The meters must be separated into below parts. The separated parts should be sent for approved destruction.
Batteries must not be exposed to mechanical impact and the lead-in wires of the battery must not short-circuit
during transport.
Subject
Material
Recommended destruction
Lithium cells in MULTICAL® 602
Lithium and Thionylclorid >UN
3090<
D-cell: 4.9 g lithium
Approved destruction of
lithium cells
PC boards in MULTICAL® 602
Copper epoxide laminate with
soldered componenets
Print board scrap for
concentration of noble
metals
LC-display
Glass and liquid crystals
Approved processing of
LC displays
Cables for flow sensor and sensors
Copper with silicone mantle
Cable recycling
Transparent top cover
PC
Plastic recycling
Print box and base unit
Noryl and ABS with TPE gaskets
Plastic recycling
Other plastic parts, cast
PC + 20% glass
Plastic recycling
Meter case, ULTRAFLOW®
> 84% alpha brass/redbrass
Metal recycling
(LC-display must be removed)
< 15% standard steel (St 37)
< 1% stainless steel
Packing
Environmental cardboard
Cardboard recycling (Resy)
Packing
Polystyrene
EPS recycling
Please direct any questions you may have concerning environmental matters to:
Kamstrup A/S
FAO: Environmental and quality
assurance department
Fax.: +45 89 93 10 01
[email protected]
110
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
16 Documents
Danish
English
German
Russian
Technical description
5512-930
5512-931
5512-932
5512-933
Data sheet
5810-938
5810-939
5810-940
5810-957
Installation and user guide
5512-951
5512-952
5512-953
5512-956
5512-931 GB/09.2011/Rev. B1
111
MULTICAL® 602
TECHNICAL DESCRIPTION
17 Appendix A - MULTICAL® 602 vs. previous meters
This paragraph briefly describes the compatibility with other/previous meters. The description is not final.
18.1 Kamstrup Meter Protocol (KMP)
MULTICAL® 602 uses Kamstrup’s Meter Protocol (KMP) and, thus, has the same communication platform as
MULTICAL® 402/61/601/801. KMP is used internally in the meter as well as via the optical eye and contact pins
for the base module. Thus, base modules with e.g. M-Bus interface use the KMP protocol internally and the M-Bus
protocol externally. Further information on the KMP protocol appears from paragraph 11.1.
18.2 M-Bus module with MULTICAL® III compatible data packet (67-00-29)
A variety of M-Bus modules are available for the Kamstrup MULTICAL® 61/601/801 meters. The contents of the
module’s M-Bus data package are similar to the data of the M-Bus modules for MULTICAL® III and MULTICAL®
Compact, allowing installation in older applications originally designed for e.g. MULTICAL® III.
The module can also be used together with the old 40-slave M-Bus Master with display from Kamstrup as well as
older regulators and reading software. The module is mounted in the meter’s module area and is
used for remote reading and programming of MULTICAL® 61/601/602/801.
18.3 SIOX module (602-00-64)
The SIOX module can be used in a series of Kamstrup’s meters, e.g. MULTICAL® 61/601/602/801, making it
possible to read meter data via the SIOX-bus. The SIOX-bus is a well-known bus-system, which has been used in
many meter relations. This module makes it possible to use MULTICAL® 61/601/602/801 in a SIOX-network.
18.4 MULTICAL® 66-C compatibility module (67-06)
Concerning MULTICAL® 601 a top module made MULTICAL® 601 data compatible with MULTICAL® 66-C, making it
possible to use a series of previous base modules for MULTICAL® 66-C in MULTICAL® 601 too. This module has
been discontinued and does not function together with MULTICAL® 602.
112
5512-931 GB/09.2011/Rev. B1
MULTICAL® 602
TECHNICAL DESCRIPTION
5512-931 GB/09.2011/Rev. B1
113
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
