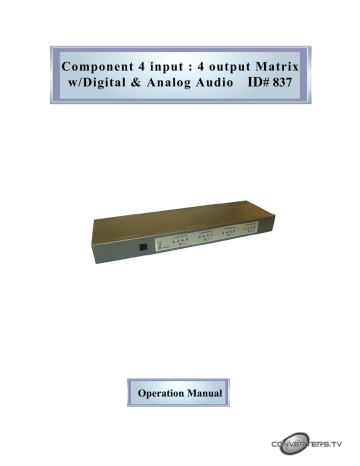

Component 4 input : 4 output Matrix
w/Digital & Analog Audio ID# 837
Operation Manual
Introduction
Component 4 input : 4 output Matrix w/Digital & Analog Audio is a high
performance Component of Digital/Analog Audio with Video Matrix. It offers you
maximum convenience in HDTV audio/video signal distribution when you have
multiple sources to display. Each of the four HDTV audio/video sources can be
directed to any one of the four outputs and or all four displays can show one
identical output sources at the same time. It provides a variety of choices on where
to play your image with remote controller.
Application




High performance Digital/Analog Audio and Video Matrix with remote
control.
Link up-to 4 of your favor sources and enjoying playing them on
different HDTV with true HD.
Each input can be direct to any/all output.
Audio format of Digital or Analog both acceptable.
Features
1. Provides 4 by 4 matrix input/output of Component (YPbPr/YCbCr)
video and L/R & Coaxial digital audio signal.
2. Buffered video and audio output.
3. Input source LED indicators on each output select.
4. Ideal for home theater integration, conference room and retail stores.
5. Supports high resolution input/output:
HDTV: 480i, 576i, 480p, 576p, 1080i, and 1080p
6. Supports analog stereo L/R audio input and output.
7. Support Coaxial audio input and output.
8. IR remote control.
9. RS-232 control.
Operating Functions
and Controls
Front Panel
1. Remote control sensor.
2. Power Switch & LED Indicator: The LED will illuminate when the
power is turned on.
3. Input Select/Indicators for Output A: Press the "OUT A" button
repeatedly to switch to your desired source. One of the four LEDs
will illuminate to indicate which input source is being selected, and
routed to the display.
4. Input Select/Indicators for Output B: Press the "OUT B" button
repeatedly to switch to your desired source. One of the four LEDs
will illuminate to indicate which input source is being selected, and
routed to the display.
5. Input Select/Indicators for Output C: Press the "OUT C" button
repeatedly to switch to your desired source. One of the four LEDs
will illuminate to indicate which input source is being selected, and
routed to the display.
6. Input Select/Indicators for Output D: Press the "OUT D" button
repeatedly to switch to your desired source. One of the four LEDs
will illuminate to indicate which input source is being selected, and
routed to the display.
Rear Panel
1. RS-232 Communication Port:
Connect to the COM port of your PC for the distant control over RS-232
Channel.
2. Component with Digital (Coaxial)& L/R Audio OUTPUT Ports A, B, C & D:
Connect each set of Component (3 RCA) and Audio (2 RCA/Coaxial) to
the input of your HDTV displays.
3. Component with Digital (Coaxial) & L/R Audio INPUT Ports 1, 2, 3 & 4:
Connect each set of Component (3 RCA) and Audio (2 RCA/Coaxial) to
the output of your source equipments such as DVD player or set-top-box.
4. Power:
Plug the 12VDC power supply into the unit and connect the adaptor to
AC wall outlet.
Remote Control
1. Power:
Press the button to turn on/off the unit.
2. Input Select for Component/Audio OUT A:
Press 1, 2, 3 or 4 to select the desired input
source for Component/Audio OUT A.
3. Input Select for Component/Audio OUT B:
Press 1, 2, 3 or 4 to select the desired input
source for Component/Audio OUT B.
4. Input Select for Component/Audio OUT C:
Press 1, 2, 3 or 4 to select the desired input
source for Component/Audio OUT C.
5. Input Select for Component/Audio OUT D:
Press 1, 2, 3 or 4 to select the desired input
source for Component/Audio OUT D.
RS-232 Protocol
Pin Definition
ID # 837
Commands
Specifications
* Input Ports:
Component (YPbPr/YCbCr) + Coaxial & L/R
Audio x 4 sets
* Output Ports:
Component (YPbPr/YCbCr) + Coaxial & L/R
Audio x 4 sets
* 12V DC power supply
* Dimensions:
436 (W) x 120 (D) x 44(H)mm
* Weight:
1.6 Kgs
* Power consumption: 6w (max)
Support
Resolution
Connection and
Installation
